Extron electronics CS 26T Plus, CS 120P User Manual

User Guide

CS 26T Plus and CS 120P

CS 1226T Plus SpeedMount Ceiling Speaker System

Speakers

68-2651-01 Rev. A

09 15

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended to

alert the user of the presence of uninsulated dangerous voltage within the
product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing)
instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron website,

www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le

produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit
d’une tension électrique dangereuse susceptible de provoquer un choc
électrique.

ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit, signale

à l’utilisateur des instructions d’utilisation ou de maintenance importantes
qui se trouvent dans la documentation fournie avec le matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation,
la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les
informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site
Extron, www.extron.com.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer darauf

aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes
gefährliche Spannungen herrschen, die nicht isoliert sind und die einen
elektrischen Schlag verursachen können.

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in der

im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise
zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in
den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer
68-290-01) auf der Extron-Website, www.extron.com.

Инструкция по технике безопасности • Русский

ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан

на продукте, предупреждает пользователя о наличии
неизолированного опасного напряжения внутри корпуса
продукта, которое может привести к поражению
электрическим током.

ВНИМАНИЕ: Данный символ, , если указан на продукте,

предупреждает пользователя о наличии важных инструкций
по эксплуатации и обслуживанию в руководстве,
прилагаемом к данному оборудованию.

Для получения информации о правилах техники безопасности,
соблюдении нормативных требований, электромагнитной
совместимости (ЭМП/ЭДС), возможности доступа и других
вопросах см. руководство по безопасности и соблюдению
нормативных требований Extron на сайте Extron: www.extron.com,
номер по каталогу - 68-290-01.

安全说明 • 简体中文

警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险 电压，

有触电危险。

注意： 产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍
使用的特性等相关内容，敬请访问 Extron 网站 www.extron.com，参见
Extron 安全规范指南，产品编号 68-290-01。

安全記事 • 繁體中文

警告: 若產品上使用此符 號，是為了提醒使 用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

注意: 若產品上使用此符號，是為了提醒使用者，設備隨附的用戶手冊中有重

要的操作和維護（維修）説明。

有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資
訊，請瀏覽 Extron 網站：www.extron.com，然後參閱《Extron 安全性與法規
遵守手冊》，準則編號 68-290-01。

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del
producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y
mantenimiento recogidas en la documentación proporcionada con el
equipo.

Para obtener información sobre directrices de seguridad, cumplimiento
de normativas, compatibilidad electromagnética, accesibilidad y temas
relacionados, consulte la Guía de cumplimiento de normativas y seguridad de
Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.com.

安全上のご注意 • 日本語

警告: この記号 が製品 上に表 示されている場合は、筐 体内に 絶縁 されて

いない高電 圧が流れ、感電の危険があることを示しています。

注意: この記号 が製品上に表示されている場合は、本 機の取扱説明書

に 記載されている重要な操作と保守(整備)の指示についてユーザーの
注 意を喚起する もので す。

安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
つ いては 、エクストロ ンのウェブ サ イト www.extron.com よ り 『 Extron Safety
and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧くださ い。

안전 지침 • 한국어

경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을
경고합니다.

주의: 이 기호 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와

있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에
대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및
규제 준수 안내서, 68-290-01 조항을 참조하십시오.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference; the user must correct the interference at
his own expense.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility,

accessibility, and related topics, see the “Extron Safety and Regulatory Compliance

Guide” on the Extron website.

Copyright

© 2015 Extron Electronics. All rights reserved.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks®, registered service marks

(SM)

, and trademarks

RGBSystems, Inc. or Extron Electronics:

Registered Trademarks

AVTrac, Cable Cubby, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, FlexOS, GlobalConfigurator, GlobalViewer,
Hideaway, Inline, IPIntercom, IPLink, KeyMinder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField,
SpeedMount, SpeedSwitch, SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP,
and XTP Systems

Registered Service Mark

AAP, AFL (Accu-RateFrameLock), ADSP(Advanced Digital Sync Processing), Auto-Image, CableCover, CDRS(ClassDRipple
Suppression), DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator,
DSVP(Digital Sync Validation Processing), eLink, EQIP, FastBite, FOX, FOXBOX, IP Intercom HelpDesk, LinkLicense, MAAP, MicroDigital,
NetPA, ProDSP, QS-FPC(QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, ShareLink, SIS, SimpleInstructionSet,
Skew-Free, SpeedNav, Triple-Action Switching, True 4K, Vector, WebShare, XTRA, ZipCaddy, ZipClipp

(SM)

: S3 Service Support Solutions

Trademarks (™

(®)

)

(TM)

are the property of

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

Specifications Availability

Product specifications are available on the Extron Website, www.extron.com.

Contents

Introduction............................................................ 1

About this Guide ................................................. 1

Overview ............................................................ 1

Features ............................................................. 1

Application Example ........................................... 2

Installation .............................................................. 3

Installation Considerations .................................. 3

Installation Configurations ................................... 3

Installing the CS 1226T Plus System — Single

Installer .............................................................. 4

Installing the CS 120P in a Suspended Ceiling

— Division of Labor ......................................... 18

Installing the CS 26T Plus in a Suspended

Ceiling — Division of Labor .............................. 24

Installing the CS 120P in a Hard Ceiling ............ 32

CS 26T Plus and CS 120P User Guide • Contents v

CS 26T Plus and CS 120P User Guide • Contents vi

Introduction

This section gives an overview of the Extron CS 1226T Plus SpeedMount Ceiling Speaker
System, consisting of the CS 26T Plus speaker and the CS 120P enclosure. It also provides
a list of system features and an application diagram. Topics include:

• About this Guide

• Overview

• Features

• Application Example

About this Guide

This guide describes the Extron CS 1226T Plus Speaker System, the CS 26T Plus speaker
pair and the CS 120P enclosure and provides instructions for installing all components of
the system in different types of ceilings.

Overview

The CS 1226T Plus system features a low profile design that houses a 6.5-inch woofer
and a 0.75-inch tweeter (CS 26T Plus) contained in a UL 2043 rated enclosure (CS 120P)
designed for use in plenum rated ceiling spaces.

This unique speaker system splits installation into two phases, rough-in and finish, allowing
the installer to “reserve” space for the speaker system by installing the CS 120P back can
and then later installing the CS 26T Plus speaker. This two-step process (division of labor) is
especially useful when multiple installers are involved. The CS 120P can be installed by the
low voltage contractor while the CS 26T Plus can be installed by the AV systems contractor.

Features

• US and metric ceiling grids — The CS 120P enclosure can be installed in both U.S.

and metric ceiling grid systems (for metric systems, the CS 120P end tabs are cut off).

• UL 2043 listed — The CS 1226T Plus is UL 2043 listed (only when the CS 26T Plus is

used with the CS 120P).

NOTE: The use of any other back can other than the CS 120P or those provided by

Extron voids the UL 2043 rating.

• Optional open back configuration — The CS 26T Plus can be used without the

CS 120P by reconfiguring the attached bass port plate (allowing the CS 26T Plus to
function as an open back speaker).

NOTE: When the CS 26T Plus is used without the CS 120P, it is not suitable for air

handling spaces and is not UL 2043 rated.

• Low profile enclosure — The low profile enclosure is compatible with plenum

environments where overhead space may be limited.

CS 26T Plus and CS 120P User Guide • Introduction 1

Application Example

Extron
IN1606

Six Input HDCP-Compliant
Scaling Presentation
Switcher

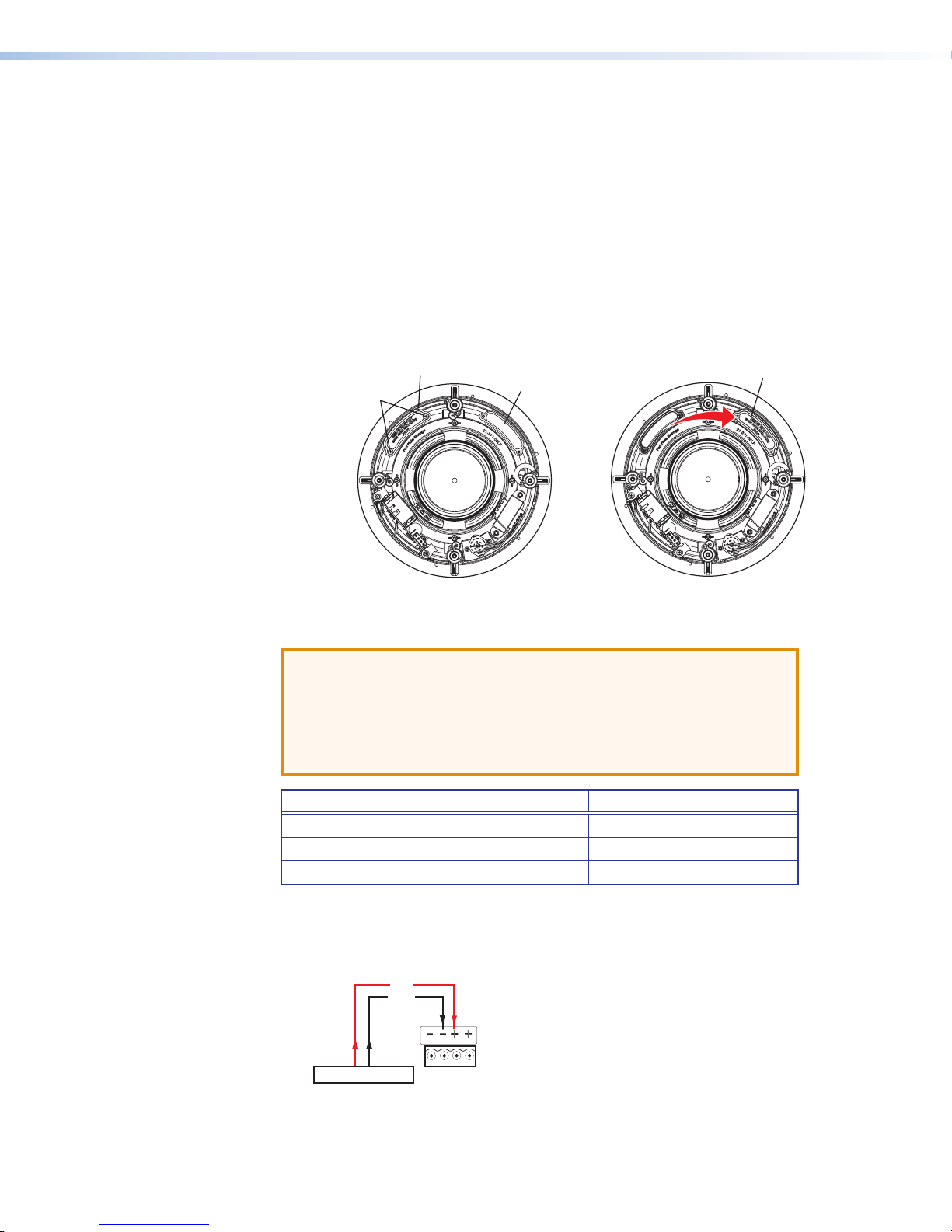

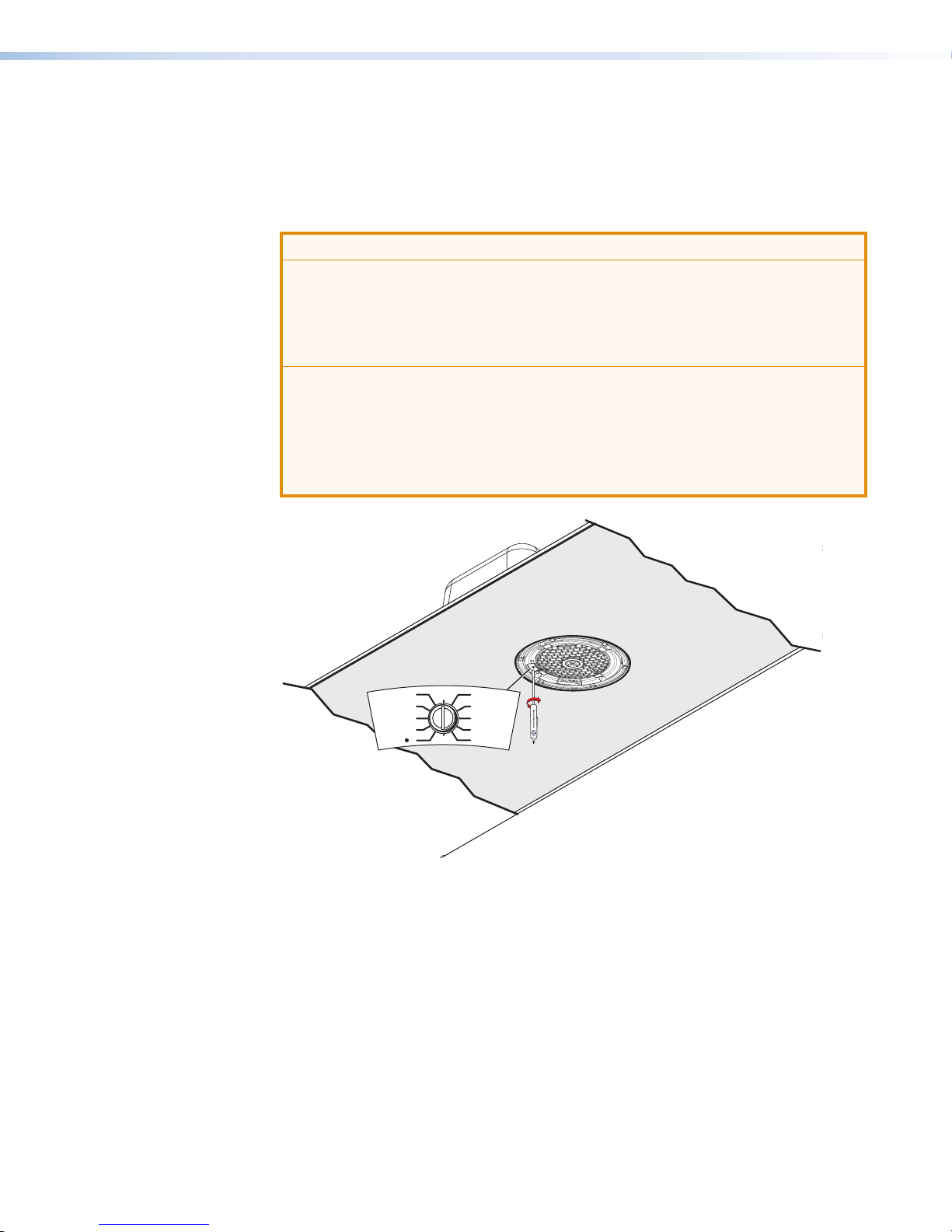

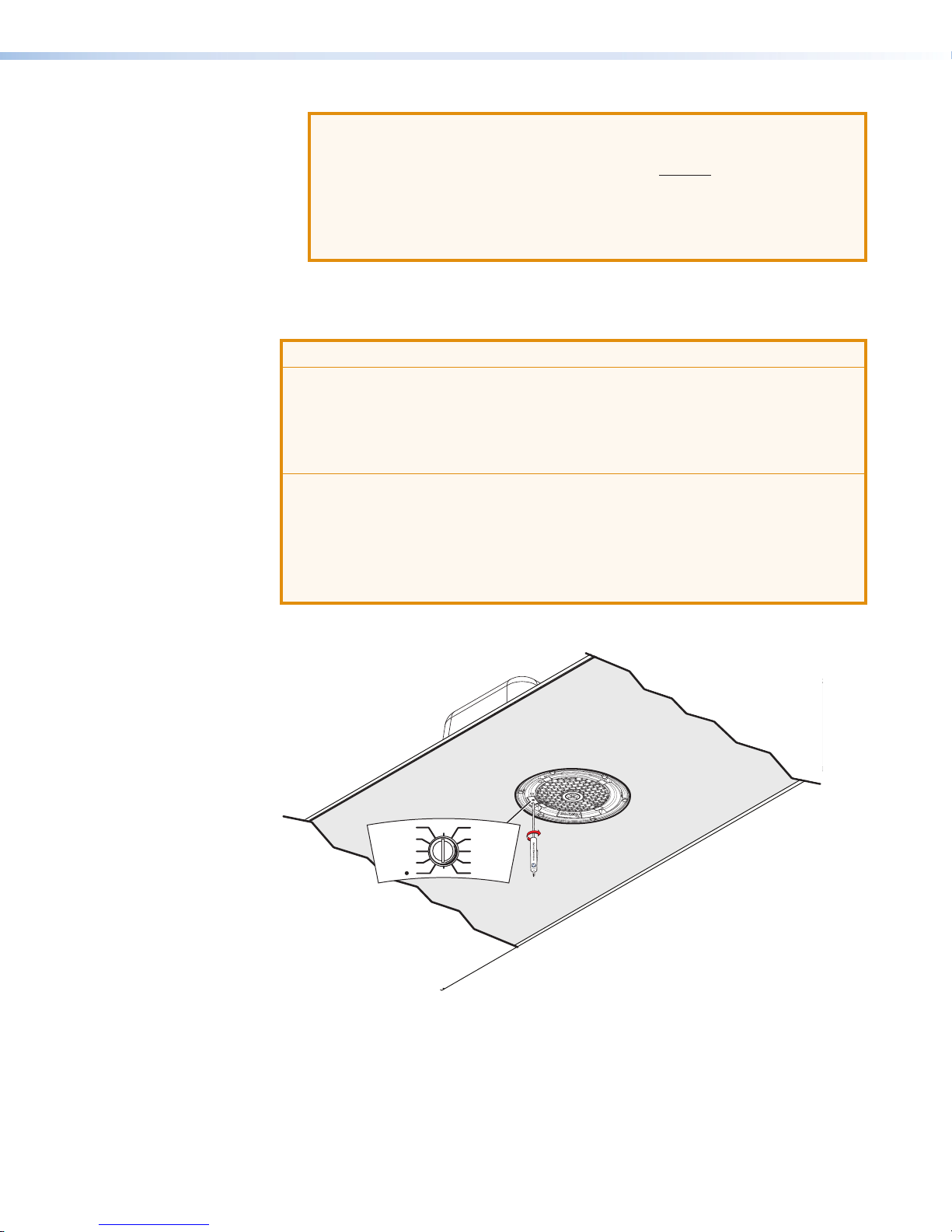

• Selectable taps — The rotary tap selector switch, located behind the grille, sets the

speaker to operate in either 8-ohm direct or 70 volt /100 volt operation with 32, 16, 8,
4, and 2 watt taps.

• Magnetic grille — Magnets spaced around the grille edge enable it to be easily

attached and to remain firmly in place.

The illustration below is one example of configuring a system using the CS 1226T Plus.

Extron
CS 1226T Plus

Speed Mount Ceiling
Speaker System

Extron
XPA 2001

70/100 V ­Power Amplier

232
S-

N

R

LA

OUTPUTS REMOTE

G
x

TxR

2

T

SE
E
R

1

LE

B

R

IA
R
VA

1

L

INE
/L

IC

UDIO INPUTS

M

2

R

+48V

L 5

R

6

R

V
8

+4

L

3

L

R

4

R

L

VGA

Laptop

5

MI

D

INPUTS OUTPUTS A

H

6

3

MI
D

H

4

z

1

LE

B
A
R

FIGU

ON

-- A MAX

C

100-240V ~ 50/60 H

2

HDMI

PC

L 1

R

2

L

A

DMI
H

B

IN1606

0-60Hz
5

1.3A,

00-240V
1

HDMI

Blu-ray

Desk Microphone

XPA 2001-70V

OUTPUT
70 V

CLASS 2 WIRING

REMOTE

0 mA
5

/MUTE

0V

OL

1

V

NPUTS
I

R

BY

HPF

NO)

STAND
MO
(

L

80 Hz

LEVEL

DEO
T
17T

US
T

A
UDIO/VI
A

OFF

PPAR
A

US

D

C

0

LISTE

ECT
LIMITER/
PROT
SIGNAL

Extron
IPCP Pro 250

Control Processor

Extron
TLP Pro 720T

7" Tabletop
Touchpanel

TCP/IP

®

100
K

RELAY

LIN

UT

ACT

3

NP
I

1

IR

3

1

4

3

COM

2

RX

1

4

TX

2

IPL 250

1

42

2

R

3

D
DV

C
P

top
p
La

3

2

splay
i
D

1

On

5

4

f
Of

8

7

te
Mu

0

Room
Control

Screen

Help

Lighting

3
2
1

Tuner

c
Do
m
Ca

Volume

VCR

Presets

Mute

Channel

Tuner

ore
M

ets

s

t

6

e

s

Pr

La

Audio
ontrol
C

em

9

st
y
S

ff

O

r
e
t

En

3 - 7:58 AM

r 15, 201
be
m

ce
e
D

Extron

Extron

Figure 1. Application Diagram of a CS 1226T Plus Installation

CS 26T Plus and CS 120P User Guide • Introduction 2

Installation

This section provides instructions for installing the CS 26T Plus speaker and the CS 120P
enclosure. Topics include:

• Installation Considerations

• Installation Configurations

• Installing the CS 1226T Plus — Single Installer

• Installing the CS 120P in a Suspended Ceiling — Division of Labor

• Installing the CS 26T Plus in a Suspended Ceiling — Division of Labor

• Installing the CS 120P in a Hard Ceiling

Installation Considerations

WARNING: Potential risk of severe injury. Installation and service must be

performed by authorized personnel only.

AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. L’installation

et l’entretien doivent être effectués par le personnel autorisé uniquement.

• All wiring and electrical connections must conform to all applicable building codes and

local ordinances.

• Installation in a plenum-rated environment requires plenum rated cable or conduit.

• If using secondary support cables, the installer provides the cables.

Installation Configurations

The CS 26T Plus can be configured in the following ways:

• Open-back: For configurations in which the CS 120P is not used, use the C-ring

accessory, available at www.extron.com. The C-ring spreads out the clamping force of
the locking arms when used in drop ceilings and gypsum ceilings.

• Using the CS 120P: When used with the CS 120P, the CS 26T Plus can be placed in

plenum environments. This is the only configuration that is UL 2043 rated.

NOTE: The CS 120P can be ordered separately or as part of the CS 1226T Plus kit.

For hard ceiling installations, see Installing the CS 120P in a Hard Ceiling on
page 32.

CS 26T Plus and CS 120P User Guide • Installation 3

Installing the CS 1226T Plus System — Single Installer

Side View

15/16" (24 mm)

If a single installer is installing the CS 1226T Plus system, follow this procedure for the entire
system:

NOTE: The ceiling grid must be installed before the installation of the CS 1226T Plus

begins.

• Verify if fiberglass ceiling tiles are being used (see step 2 below and step 11 on

page 7 for details).

• The grid face should be at least 15/16 inch (24 mm), as shown below, for proper

installation of the CS 120P (see step 21 on page 15 for details on suspending the
enclosure on a smaller grid face).

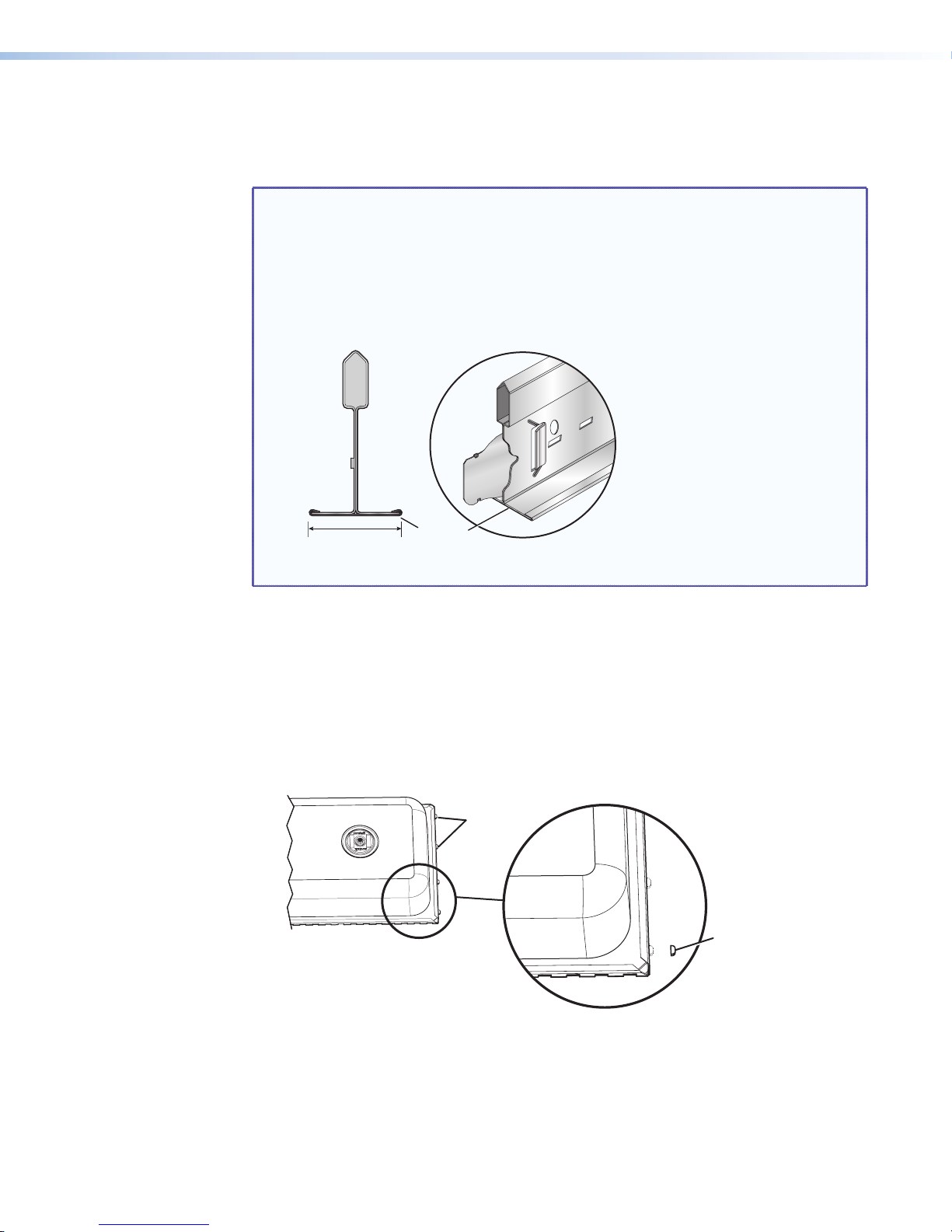

Grid Face

Figure 2. Grid Face Example

1. Disconnect power — Power down all attached devices before proceeding.

2. Verify the space where the system will be installed — Ensure that there is sufficient

clearance above the ceiling tile for the unit to be installed.

3. Cut a hole for the CS 26T Plus speaker — Use the provided cutout template to

outline the hole to be cut in the ceiling tile as described below.

a. Remove the ceiling tile.
b. To find the center of the tile, use a tape measure to measure the space between

two opposite corners, and mark the half-way point.

c. Position the center hole of the cutout template directly over the center of the tile

that you marked in step3b.

d. Using the provided cutout template, trace a circle on the ceiling tile as follows:

For installations in ceiling tiles that are NOT fiberglass or when installing
the speakers in an open back configuration: Trace a circle around the

CS 26T Plus cutout template.

NOTE: The fiberglass tile adapters are not needed and can be discarded.

CS 26T Plus and CS 120P User Guide • Installation 4

For installations in 1-inch (2.5 cm) thick fiberglass ceiling tiles with the

V-

CS 120P:

NOTE: A set of fiberglass tile adapters is provided with both the CS 26T Plus

and the CS 120P. Only one set is needed to install the CS 26T Plus with the
CS 120P kit in a 1-inch (2.5 cm) thick fiberglass tile. The adapter works only
with 1-inch (2.5 cm) thick fiberglass tile.

i. Place the fiberglass tile adapter around the outer diameter of the template that

was positioned in step 3c.

ii. Trace a circle around the outer diameter of the adapter.
e. Cut out the circle traced in the ceiling tile.
f. Replace the tile in the ceiling.

4. Remove the adjacent ceiling tile — To facilitate the installation

process, remove the tile adjacent to the ceiling tile where the
CS 26T Plus will be installed. If the CS 120P is being installed, skip to step 6.
Otherwise, proceed to step 5.

5. If NOT using the CS 120P, install the Ceiling Mount kit — Place two V-rails and

one C-ring across the tile above the hole that you cut in step 3, where the speaker will
be installed, as shown below.

C-ring

rail

Figure 3. Install the Ceiling Mount Kit

Skip to step 13 on page 8.

6. Configure the CS 120P for a U.S. or metric ceiling grid — For U.S. ceilings (2 feet

by 2 feet or 2 feet by 4 feet) leave intact the four tabs that are on one of the short ends
of the enclosure.

For metric ceilings (600 mm by 600 mm or 600 mm by 1200 mm) cut off the tabs, as
shown below.

Tabs (4)

Removable
Tabs

Figure 4. Tabs on the CS 120P

CS 26T Plus and CS 120P User Guide • Installation 5

7. Remove the cover plate — Loosen (do not remove) the two screws on the cover

Seismic Cable Pass

plate and remove it, as shown in figure 5.

Cover Plate

Figure 5. Removing the Cover Plate

8. Route the cables through the cover plate —

NOTES:

• The CS 120P is fully UL 2043 compliant only when it is used with a metal

conduit or with plenum rated cables.

• Installation of all conduits, conduit adapters, wiring, and electrical connections

must conform to all applicable building codes and local ordinances.

Using a flexible conduit:

a. Route wires through the conduit.
b. Insert the conduit into the cover plate opening using an appropriate conduit

adapter, and secure the conduit to the plate as shown in figure 6.

c. Pull the wires out of the conduit and through the cover plate. with flexible conduit

Flexible Conduit Adapter

Flexible Conduit

Cover Plate

Through Loop

Rear of Enclosure

Figure 6. Routing the Cables through the Cover Plate Using a Flexible

Conduit

CS 26T Plus and CS 120P User Guide • Installation 6

Using speaker wires without a conduit:

Seismic Cable Pass

a. Secure the cable clamp adapter (included) to the cover plate.
b. Insert the wires through the clamp and cover plate, as shown in figure 7.
c. Tighten the clamp screws.

Cable Clamp Adapter

Cover Plate

Through Loop

Rear of Enclosure

Figure 7. Routing the Cables Without a Conduit

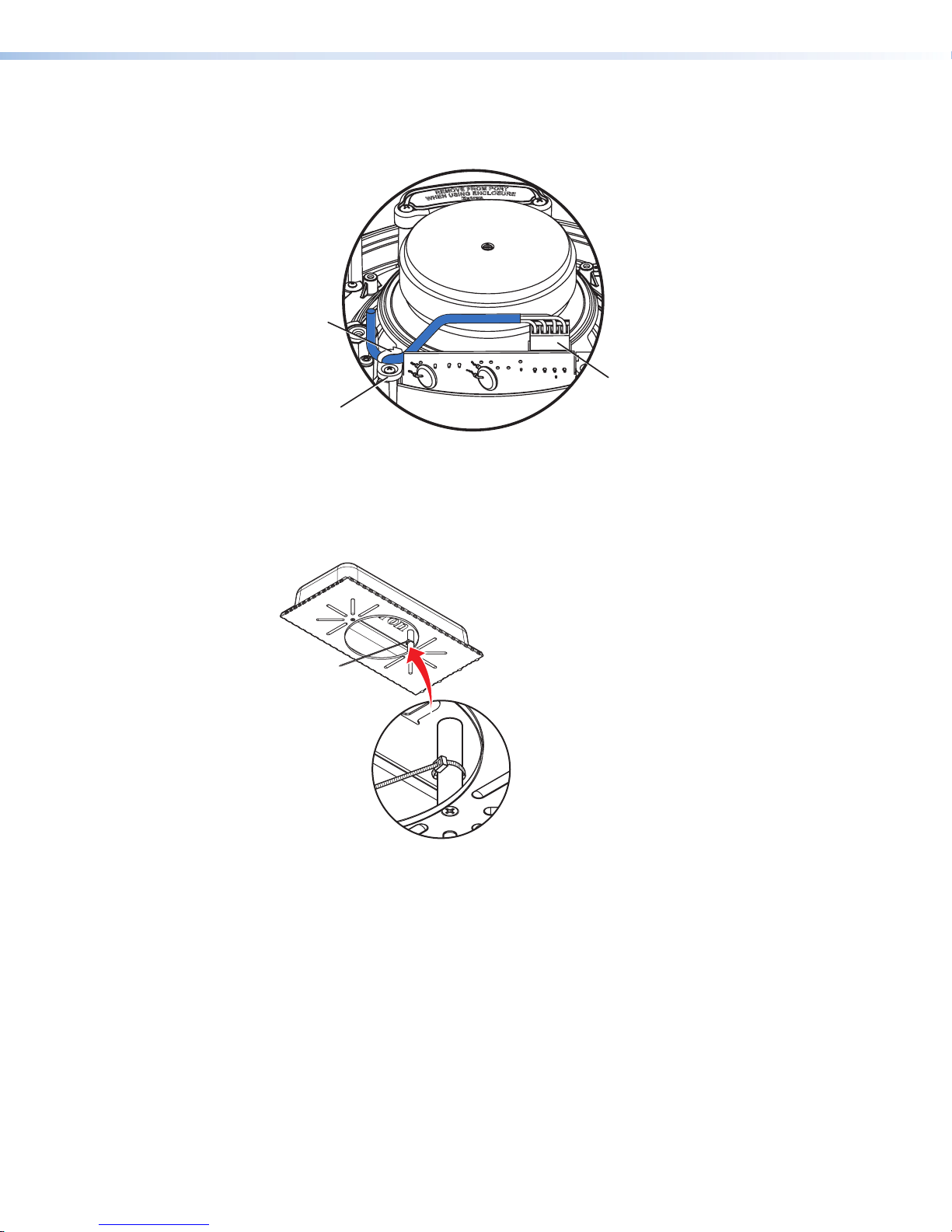

9. Wire the CS 120P — Route the wires through the H-shaped opening in the CS 120P.

Be sure to leave sufficient slack.

Figure 8. Route the Wires Through the H-shaped Opening

10. Replace the terminal cover plate — Reinstall the terminal cover plate onto the

CS 120P and tighten the two screws that were previously loosened.

11. If the CS 120P is NOT being installed in a 1-inch (2.5 cm) thick fiberglass ceiling

tile, discard the fiberglass tile adapter and proceed to step 12 on the next page.
If the CS 120P is being installed in a 1-inch (2.5 cm) thick fiberglass ceiling tile,

install the fiberglass ceiling tile adapter. Attach the fiberglass tile adapter to the

outer side of the lip of the port hole on the CS 120P as follows:

a. Cut four strips of adhesive tape (such as duct tape) approximately 4 inches

(10.2 cm) long.

CS 26T Plus and CS 120P User Guide • Installation 7

b. Attach each tape strip starting from the outer side of the CS 120P metal baffle, up

and over the port ring adapter, then down to the inner surface of the CS 120P metal
baffle, as shown in figure 9. strips

Fiberglass Tile Adapter

x 4 Tape

Figure 9. Attach Four Tape Strips to the Baffle and Port Ring Adapter

NOTE: The tape strips must lie flat against all surfaces, with no ridges or raised

edges.

12. Place the CS 120P into the ceiling grid — Place the CS 120P over the tile grid so

that the CS 120P is safely supported on the two short edges. Ensure that the hole in
the tile is aligned with the hole in the CS 120P (see figure 10).

Fig: Mounting the PRE

NOTE:

grid mounting is the same as 2' x 4'
(600 mm x 1200 mm) grid mounting.

2' x 2' (600 mm x 600 mm)

Figure 10. Mounting the CS 120P in a 2" x 4" (600 mm x 1200 mm) Ceiling

Grid

13. Route the speaker wires — Route the speaker wires through the ceiling tile hole.

14. Remove the speaker grille — Carefully remove the grille from the front of the

CS 26T Plus.

NOTE: Grille hooks are provided for grille removal, if needed.

CS 26T Plus and CS 120P User Guide • Installation 8

15. Configure the bass reflex port plate — By default, the CS 26T Plus is set up for use

AB

Scr

with the CS 120P. If not using the CS 120P, set the plate for an open-back installation.

• With the CS 120P (default configuration): Leave the plate in its default location.

The port must be left uncovered (see A in figure 11).

• Open back: The bass reflex port is uncovered by default. In the open back

configuration (without the CS 120P), this port must be closed (covered). If the port
is not covered:

a. Use a Phillips screwdriver to remove the two screws securing the bass reflex

port plate in its storage location.

b. Attach the plate to the bass reflex port using the two screws that you removed

in step a (see B in figure 11).

Bass Port Plate
(storage location)

ews (2)

Bass Reflex Port
(open, uncovered)

Bass Reflex Port
(closed, covered)

Figure 11. Configuring the Bass Reflex Port Plate

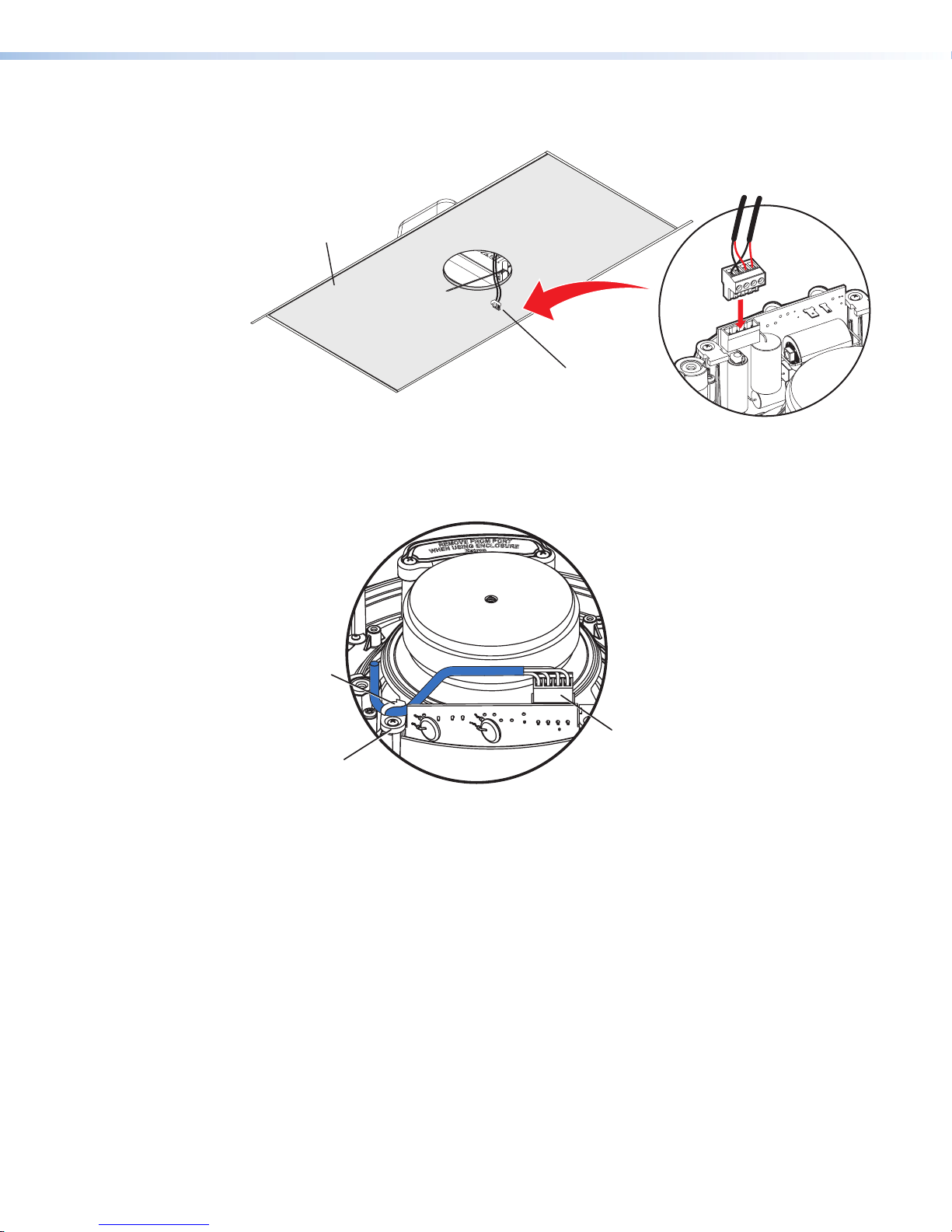

16. Attach the speaker wires to the captive screw connector —

ATTENTION: Do not tin the wire leads before installing into the

connector. Tinned wires are not as secure in the connector and
could be pulled out.

ATTENTION : Ne pas étamer les conducteurs avant de les insérer

dans le connecteur. Les câbles étamés ne sont pas aussi bien xés
dans le connecteur et pourraient être retirés.

Number of Wires per Connection Point Maximum Wire Gauge

1 12 AWG

2 16 AWG

4 18 AWG

Attach the speaker wires to the included four-pole captive screw connector using one of
the following methods:

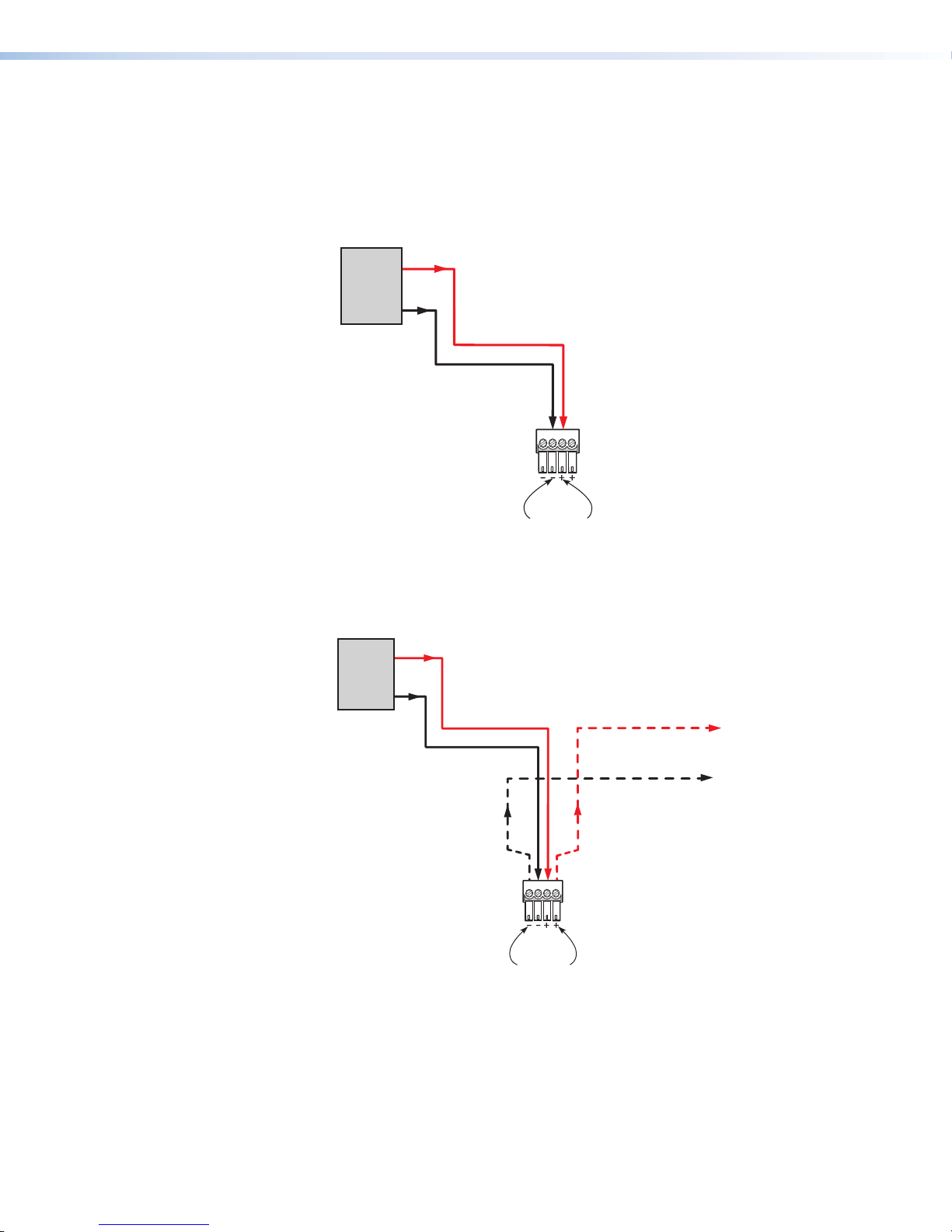

• Wiring a Single Speaker: Connect the wires to the captive screw connectors of

the speakers as shown in figure 12. Be sure to tighten the screws.

(Red)

(Black)

+

+

–

–

IN

LOOP

LOOP

IN

Power Amplifier

Speaker 1

Figure 12. Wiring a Single Speaker

CS 26T Plus and CS 120P User Guide • Installation 9

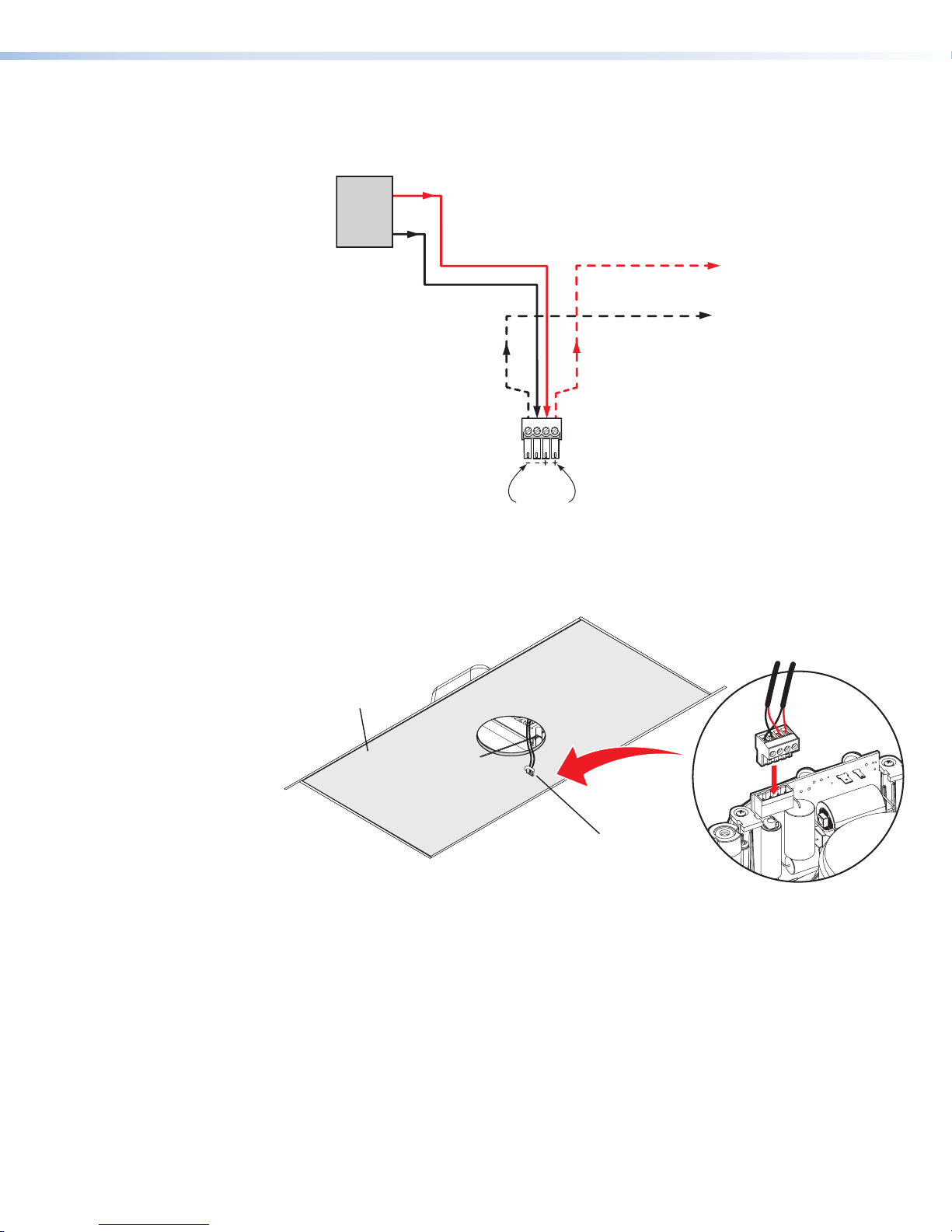

• Wiring Multiple Speakers in Parallel: Connect the wires to the captive screw

Test Points

connectors of the speakers, as shown in figure 13. Be sure to tighten the screws.

(Red)

(Black)

(Red)

(Black)

–

+

+

–

–

IN

LOOP

IN

LOOP

LOOP

(Red)

(Black)

+

+

–

IN

LOOP

IN

Power Amplifier

Speaker 1

Speaker 2

Figure 13. Wiring Multiple Speakers in Parallel

In the parallel configuration, all of the speakers downstream of the one being tested
continue to function even when it is disconnected. This is especially useful in
installations where the system can never be completely down, such as in a hospital
setting.

The source signal can be tested by connecting to the inner + (IN) and – (IN)
terminals of the captive screw connector, see below.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Figure 14. Signal Test Points — Parallel Configuration

• Wiring Multiple Speakers Using Loop-through: A loop-through electrical

connection is made on the crossover board of the CS 26T Plus. Connect the wires
to the captive screw connectors of the speakers, as shown in figure 15. Be sure to
tighten the screws.

Power Amplifier

(Red)

(Black)

–

–

LOOP

IN

Speaker 1

(Red)

(Black)

–

–

+

+

IN

LOOP

LOOP

IN

(Red)

(Black)

+

+

IN

LOOP

Speaker 2

Figure 15. Wiring Multiple Speakers Using Loop-through

CS 26T Plus and CS 120P User Guide • Installation 10

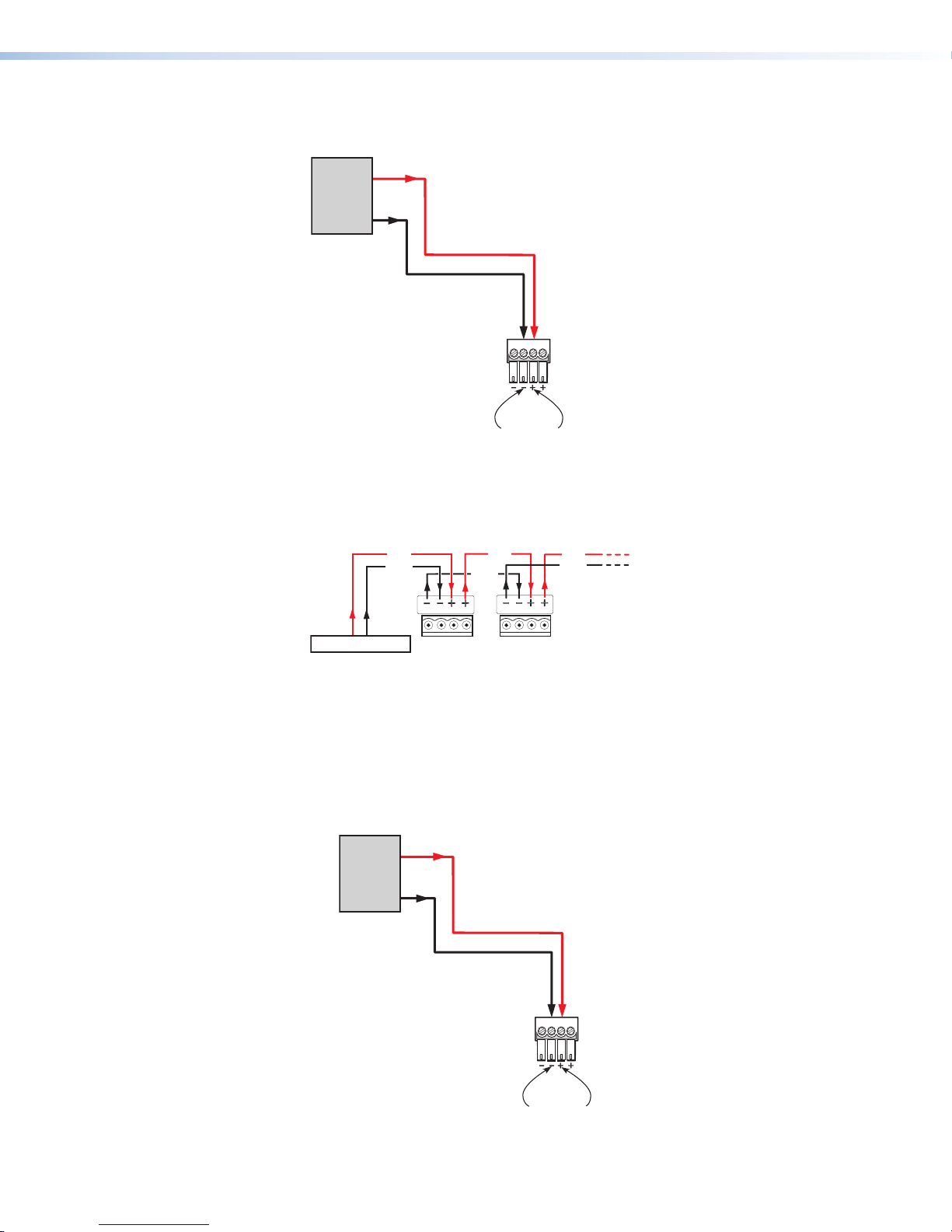

In this configuration, all of the speakers downstream of the one being tested are
disconnected from the signal when it is disconnected. This is useful for
troubleshooting in three ways:

• The system is sectioned for easier troubleshooting.

• The source signal can be tested by connecting to the inner + (IN) and – (IN)

terminals of the captive screw connector, as shown in figure 16.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

Figure 16. Signal Test Points — Loop-through Configuration

• The impedance of the speakers downstream of the one being tested can be

measured while the system is on by connecting to the outer (LOOP) terminals
of the captive screw connector, as shown in figure 17.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

To next speaker(s)

Figure 17. Impedance Test Points — Loop-through Configuration

CS 26T Plus and CS 120P User Guide • Installation 11

17. Insert the captive screw connector into the four-pole receptacle on the speaker

w

Strain Relief

crossover board, see below.

2” x 4” Ceiling Tile

4 Pole Connector

Figure 18. Connecting the Wire from the CS 120P to the Speaker

18. Attach the speaker wire to the strain relief tie down point using the provided zip

tie, see below.

Zip Tie

Tab

Captive Scre
Connector

Figure 19. Attaching the Speaker Wire to the Strain Relief Point

CS 26T Plus and CS 120P User Guide • Installation 12

19. Attach the CS 120P secondary support line to the CS 26T Plus secondary tie

off point (if the CS 120P enclosure is not being installed then skip this step) —

In the closed back configuration, use the zip tie protruding from the underside of the
enclosure (see figure 20 below) to attach to the secondary tie off point of the CS 26T
Plus speaker (see figure 21 below).

Figure 20. Closed Back Secondary Support Line for the CS 26T Plus

Zip Tie

Secondary
Tie off Point

Figure 21. Attaching the Secondary Support Line to the CS 26T Plus

NOTES: Observe all applicable building codes and local ordinances when installing

the speaker.

CS 26T Plus and CS 120P User Guide • Installation 13

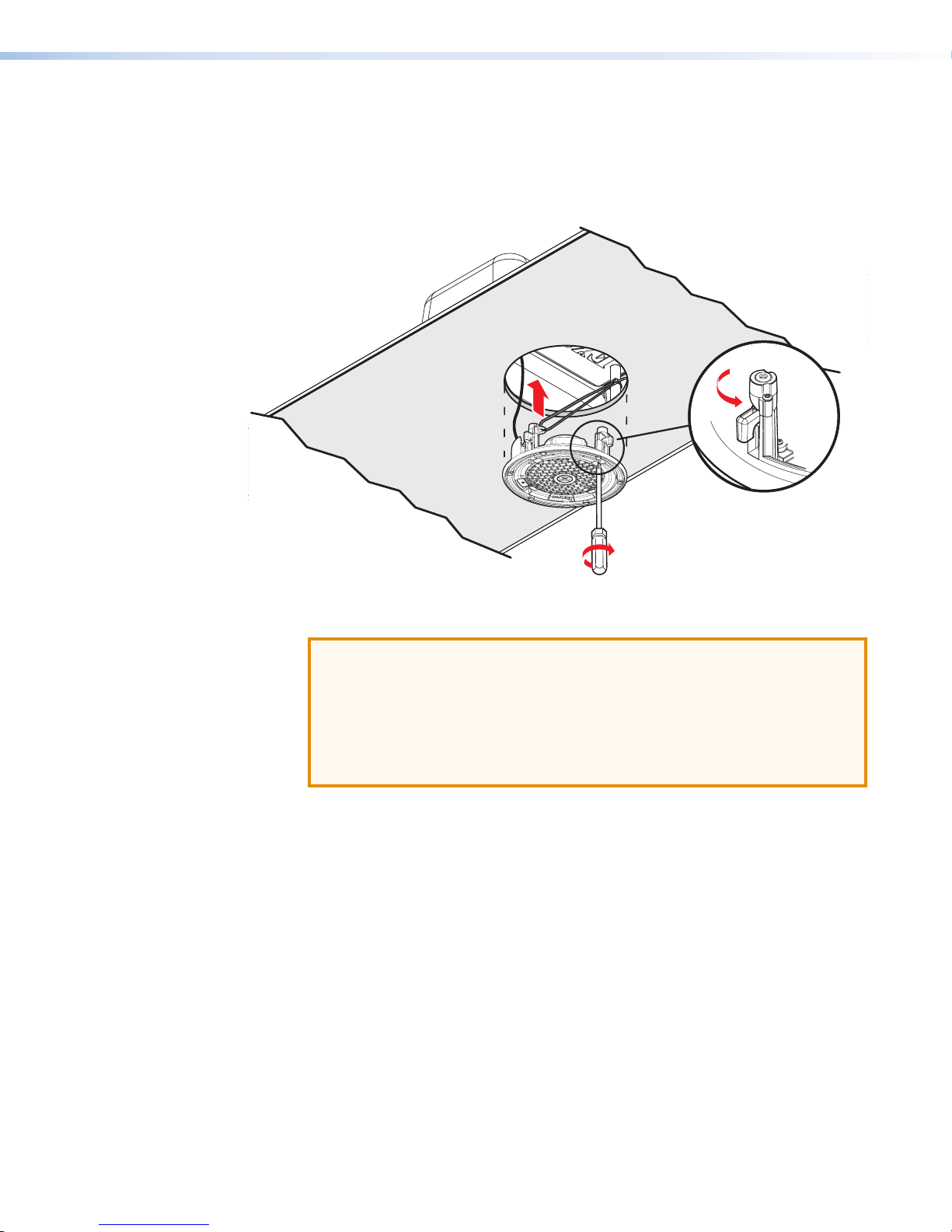

20. Mount the CS 26T Plus (see figure 22).
a. Insert the CS 26T Plus through the bottom of the hole in the ceiling tile that was

cut in step 3 on page 4.

b. Tighten the four screws (clockwise) until the speaker is securely clamped to the

ceiling.

Speaker Mounted with
the CS 120P

Figure 22. Mounting the Speaker to the CS 120P

ATTENTION:

• To avoid damaging the speaker, do not overtighten the four screws. Use

a manual screwdriver to tighten the screws. Do not use a cordless drill or
electric screwdriver.

• Pour éviter d’endommager l’enceinte, ne serrez pas trop les quatre

vis. Utilisez un tournevis manuel pour serrer les vis. N’utilisez pas de
perceuse-visseuse ou de tournevis électrique.

CS 26T Plus and CS 120P User Guide • Installation 14

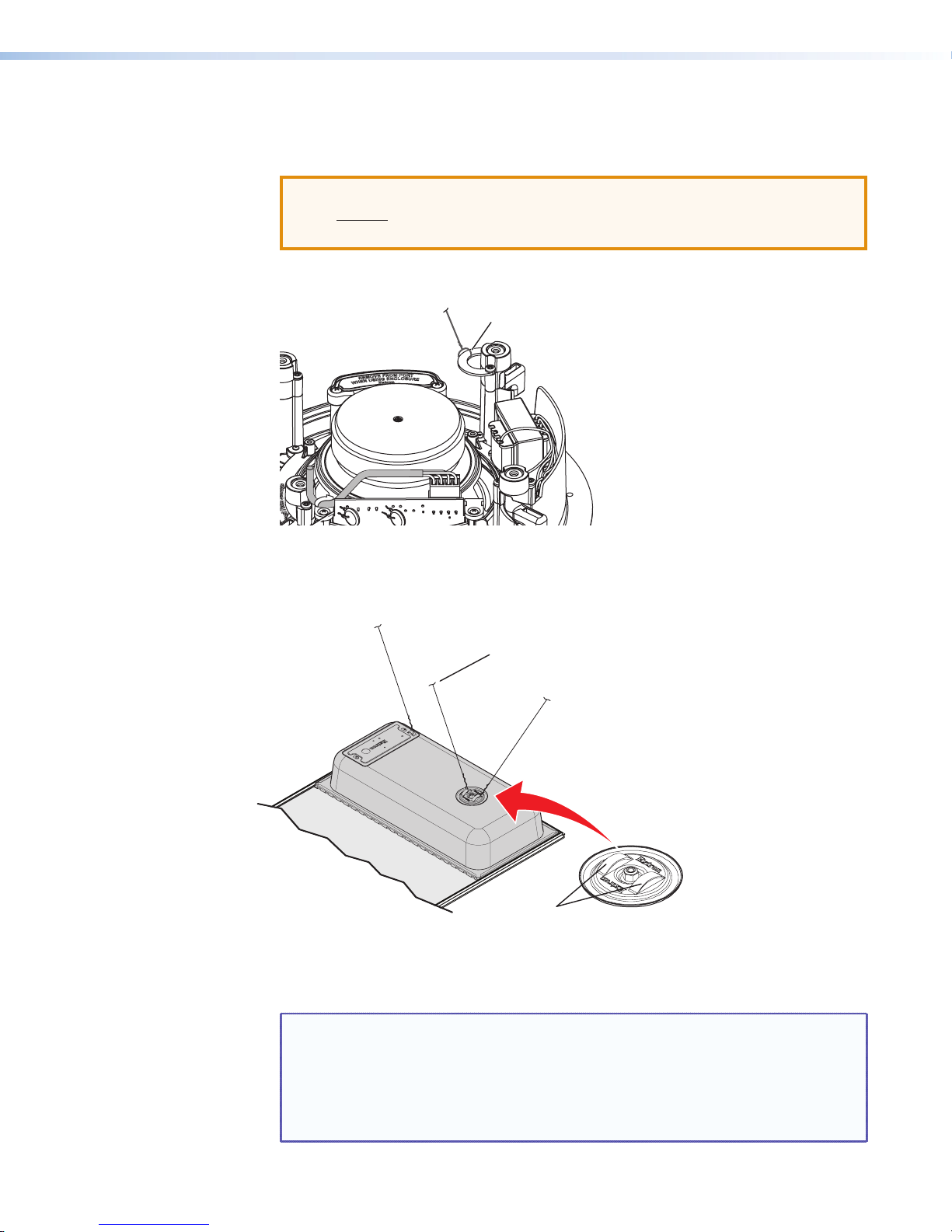

21. Attach secondary support lines — If required, attach all of the secondary support

Secondary

lines as shown below. Figure 23 shows the open back configuration and figure 24
shows the closed back configuration.

ATTENTION:

• Do not allow any slack in the secondary support line.

• Ne laissez pas de mou au niveau du lin de sécurité secondaire.

Support Line

Secondary
Tie off Point

Figure 23. Attaching Secondary Support Lines: Open Back

Anchor ends to suitable
solid secure points within the
permanent building structure.

Secondary Support
Cables (3)

Attach cables here
and secure.

Figure 24. Attaching Secondary Support Lines: Closed Back

NOTES:

• When placing the CS 120P on a tile grid with a grid face less than 15/16 inch

(24 mm) and no ceiling tile is installed, use the secondary attachment points
as hanger suspension points.

• Observe all applicable building codes and local ordinances when installing the

speaker.

CS 26T Plus and CS 120P User Guide • Installation 15

22. Replace the adjacent tile — Reinstall the adjacent tile that was removed in step 4 on

page 5.

23. Set the rotary tap selector switch — Use a small screwdriver to set the tap selector

switch to the appropriate setting.

ATTENTION:

• When setting the taps for a distributed (high impedance) system, do not tap

the system above the rated power of the amplifier.

• Lors de la mise en place des capteurs pour un système distribué (haute

impédance), n’exploitez pas le système au delà du niveau d’alimentation de
l’amplificateur.

• When connecting multiple speakers in 8-ohm mode, be sure that the combined

rated impedance does not equal a value less than the minimum rated
impedance of the amplifier.

• Lors de la connexion de plusieurs enceintes en mode 8ohm, assurez vous que

le niveau d’impédance combinée ne soit pas équivalent à une valeur inférieure
à l’impédance minimum de l’amplificateur.

4W

100 V

8W

16W

Adjust the Tap Selector

32W

32W

8Ω

16W
8W
4W

8Ω

70 V

2W

Figure 25. Adjusting the Rotary Tap Selector

CS 26T Plus and CS 120P User Guide • Installation 16

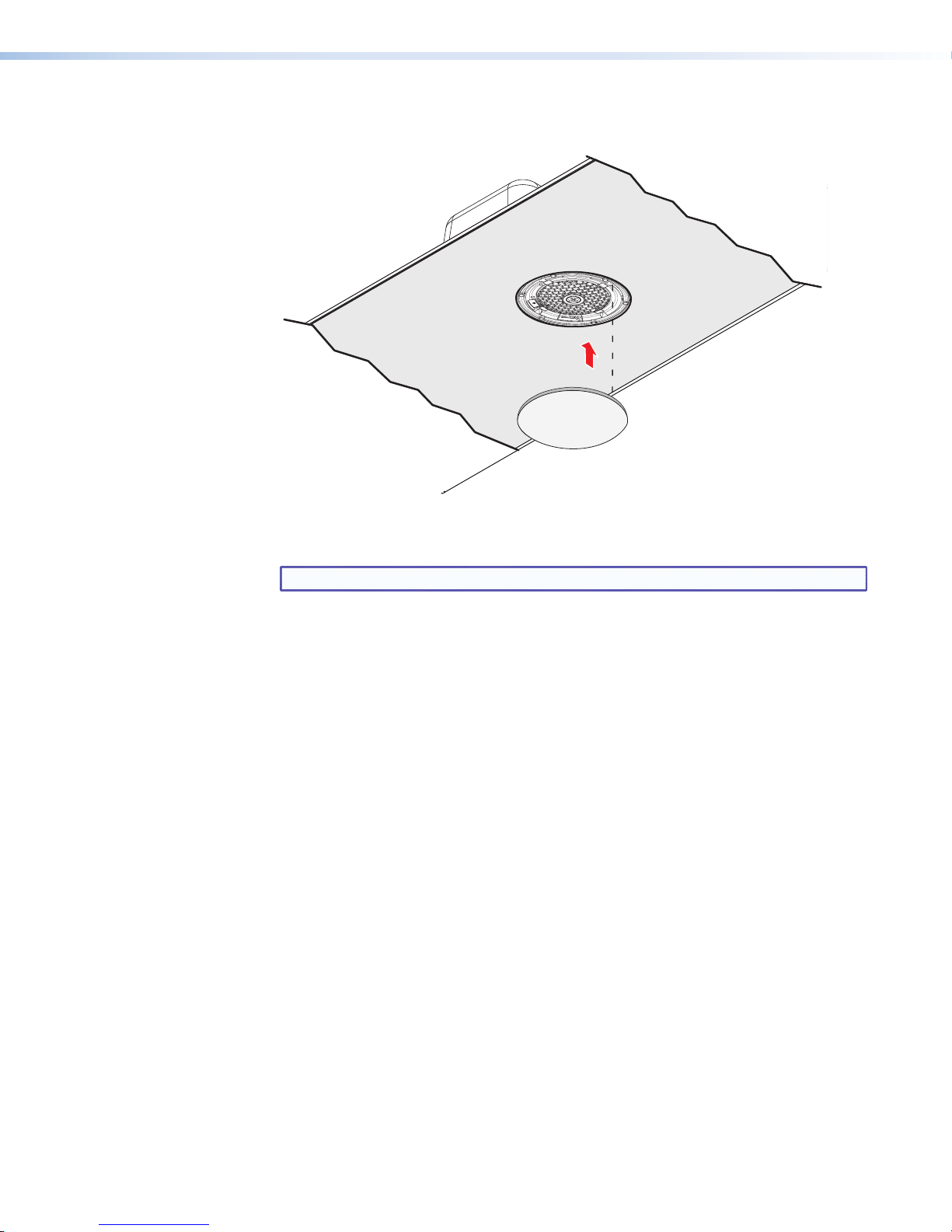

24. Install the grille — Position the outer perimeter of the grille into the groove of the

Speaker Grille

speaker baffle. Six magnets pull the grille securely into place.

Figure 26. Installing the Speaker Grille

NOTE: Grille hooks are provided for removal of the grille after installation.

CS 26T Plus and CS 120P User Guide • Installation 17

Installing the CS 120P in a Suspended Ceiling — Division of Labor

Side View

In a division of labor installation, low-voltage contractors install the CS 120P enclosure
(construction rough-in phase).

NOTE: The ceiling grid must be installed before the installation of the CS 1226T Plus

can begin.

• Verify if fiberglass ceiling tiles are being used (see step 4d on the next page and

step 10 on page 22 for details).

• The grid face should be at least 15/16 inch (24 mm) for proper installation of the

CS 120P (see step 12 on page 23 for details on suspending the enclosure on a
smaller grid face).

15/16" (24 mm)

Grid Face

Figure 27. Grid Face Example

Use the following procedure:

1. Disconnect power — Power down all attached devices before proceeding.

2. Verify the space where the system will be installed — Ensure that there is sufficient

clearance above the ceiling tile for the unit to be installed.

3. Configure the CS 120P for a U.S. or metric ceiling grid — For U.S. ceilings (2 feet

by 2 feet or 2 feet by 4 feet), leave intact the four tabs that are on one of the short ends
of the enclosure.

For metric ceilings (600 mm by 600 mm or 600 mm by 1200 mm) cut off the tabs.

Tabs (4)

Removable
Tabs

Figure 28. Tabs on the CS 120P

CS 26T Plus and CS 120P User Guide • Installation 18

4. Cut a hole for the CS 26T Plus speaker. Use the provided cutout template to outline

the hole to be cut in the ceiling tile as described below. (If the ceiling tile will not be
installed during this phase of the installation, skip to step 6.)

a. Remove the ceiling tile.
b. To find the center of the tile, use a tape measure to measure the space between

two opposite corners, and mark the half-way point.

c. Position the center hole of the cutout template directly over the center of the tile

that you marked in step4b.

d. Using the provided cutout template, trace a circle on the ceiling tile as follows:

For installations in ceiling tiles that are NOT fiberglass: Trace a circle around

the CS 26T Plus cutout template.

NOTE: The fiberglass tile adapters are not needed and can be discarded.

For installations in 1-inch (2.5 cm) thick fiberglass ceiling tiles with the
CS 120P:

NOTE: A set of fiberglass tile adapters is provided with both the CS 26T Plus

and the CS 120P. Only one set is needed to install the CS 26T Plus with the
CS 120P kit in a 1-inch (2.5 cm) thick fiberglass tile. The adapter works only
with 1-inch (2.5 cm) thick fiberglass tile.

i. Place the fiberglass tile adapter around the outer diameter of the template that

was positioned in step 4c.

ii. Trace a circle around the outer diameter of the adapter.

e. Cut out the circle traced in the ceiling tile.
f. Replace the tile in the ceiling.

5. Remove the adjacent ceiling tile — To facilitate the installation

process, remove the tile adjacent to the ceiling tile where the
CS 26T Plus will be installed.

6. Remove the cover plate — Loosen (do not remove) the two

screws on the cover plate and remove it, as shown in figure 29.

Figure 29. Removing the Cover Plate

Cover Plate

CS 26T Plus and CS 120P User Guide • Installation 19

7. Route the cables through the cover plate —

Seismic Cable Pass

NOTES:

• The CS 120P is fully UL 2043 compliant only when it is used with a metal

conduit or with plenum rated cables.

• Installation of all conduits, conduit adapters, wiring, and electrical connections

must conform to all applicable building codes and local ordinances.

Using a flexible conduit:

a. Route wires through the conduit.
b. Insert the conduit into the cover plate opening using an appropriate conduit

adapter, and secure the conduit to the plate as shown in figure 30.

c. Pull the wires out of the conduit and through the cover plate. with flexible conduit

Flexible Conduit Adapter

Flexible Conduit

Cover Plate

Through Loop

Rear of Enclosure

Figure 30. Routing the Cables through the Cover Plate Using a Flexible

Conduit

CS 26T Plus and CS 120P User Guide • Installation 20

Using speaker wires without a conduit:

a. Secure the cable clamp adapter (included) to the cover plate.
b. Insert the wires through the clamp and cover plate, as shown in figure 31.
c. Tighten the clamp screws.

Cable Clamp Adapter

Cover Plate

Seismic Cable Pass
Through Loop

Rear of Enclosure

Figure 31. Routing the Cables Without a Conduit

8. Wire the CS 120P — Route the wires through the H-shaped opening in the CS 120P.

Be sure to leave sufficient slack.

Figure 32. Route the Wires Through the H-shaped Opening

CS 26T Plus and CS 120P User Guide • Installation 21

9. Replace the terminal cover plate — Reinstall the terminal cover plate onto the

x 4 Tape

CS 120P and tighten the two screws that were previously loosened.

10. If the CS 120P is NOT being installed in a 1-inch (2.5 cm) thick fiberglass ceiling

tile, discard the fiberglass tile adapter and proceed to step 11 on the next page.
If the CS 120P is being installed in a 1-inch (2.5 cm) thick fiberglass ceiling tile,

install the fiberglass ceiling tile adapter. Attach the fiberglass tile adapter to the

outer side of the lip of the port hole on the CS 120P as follows:

a. Cut four strips of adhesive tape (such as duct tape) approximately 4 inches

(10.2 cm) long.

b. Attach each tape strip starting from the outer side of the CS 120P metal baffle, up

and over the port ring adapter, then down to the inner surface of the CS 120P metal
baffle, as shown in figure 33.

Fiberglass Tile Adapter

Figure 33. Attach Four Tape Strips to the Baffle and Port Ring Adapter

NOTE: The tape strips must lie flat against all surfaces, with no ridges or raised

edges.

11. Place the CS 120P into the ceiling grid — Place the CS 120P over the tile

grid so that the CS 120P is safely supported on the two short edges. If the ceiling
tile was installed, ensure that the hole in the tile is aligned with the hole in the
CS 120P (see figure 34).

Fig: Mounting the PRE

NOTE:

grid mounting is the same as 2' x 4'
(600 mm x 1200 mm) grid mounting.

2' x 2' (600 mm x 600 mm)

Figure 34. Mounting the CS 120P in a 2' x 4' (600 mm x 1200 mm) Ceiling Grid

CS 26T Plus and CS 120P User Guide • Installation 22

12. Attach secondary support lines — If required, attach all of the secondary support

lines as shown in figure 35.

ATTENTION: Do not allow any slack in the secondary support line.

ATTENTION : Ne laissez pas de mou au niveau du lin de sécurité

secondaire.

Anchor ends to suitable
solid secure points within the
permanent building structure.

Secondary Support
Cables (3)

Attach cables here
and secure.

Figure 35. Attaching Secondary Support Lines

NOTE:

• When placing the CS 120P on a tile grid with a grid face of less than

15/16 inch (24 mm) and no ceiling tile is installed, use the secondary
attachment points as hanger suspension points.

• Observe all applicable building codes and local ordinances when installing the

speaker.

13. Replace the adjacent tile — Reinstall the adjacent tile if one was removed in step 5.

CS 26T Plus and CS 120P User Guide • Installation 23

Installing the CS 26T Plus in a Suspended Ceiling — Division of Labor

In a division of labor installation, an AV system contractor installs the CS 26T Plus (final
installation phase). Use the following procedure:

NOTE: Observe all applicable building codes and local ordinances when installing the

speaker.

1. Disconnect power — Power down all attached devices before proceeding.

2. (If the ceiling tile is already cut and in place, skip this step.)

Cut a hole for the CS 26T Plus speaker — Use the provided cutout template to

outline the hole to be cut in the ceiling tile as described below.

a. Remove the ceiling tile.
b. To find the center of the tile, use a tape measure to measure the space between

two opposite corners, and mark the half-way point.

c. Position the center hole of the cutout template directly over the center of the tile

that you marked in step2b.

d. Using the provided cutout template, trace a circle on the ceiling tile as follows:

For installations in ceiling tiles that are NOT fiberglass: Trace a circle around

the CS 26T Plus cutout template.

NOTE: The fiberglass tile adapters are not needed and can be discarded.

For installations in 1-inch (2.5 cm) thick fiberglass ceiling tiles with the
CS 120P:

NOTE: A set of fiberglass tile adapters is provided with both the CS 26T Plus

and the CS 120P. Only one set is needed to install the CS 26T Plus with the
CS 120P kit in a 1-inch (2.5 cm) thick fiberglass tile. The adapter works only
with 1-inch (2.5 cm) thick fiberglass tile.

i. Place the fiberglass tile adapter around the outer diameter of the template that

e. Cut out the circle traced in the ceiling tile.
f. Replace the tile in the ceiling, ensuring that the hole in the tile is aligned with the

3. Route the speaker wires — Route the speaker wires through the ceiling tile hole.

4. Remove the speaker grille — Carefully remove the grille from the front of the

CS 26T Plus.

NOTE: Grille hooks are provided for grille removal, if needed.

was positioned in step 2c.

ii. Trace a circle around the outer diameter of the adapter.

hole in the CS 120P.

CS 26T Plus and CS 120P User Guide • Installation 24

5. Attach the speaker wires to the captive screw connector —

ATTENTION: Do not tin the wire leads before installing into the

connector. Tinned wires are not as secure in the connector and
could be pulled out.

ATTENTION : Ne pas étamer les conducteurs avant de les insérer

dans le connecteur. Les câbles étamés ne sont pas aussi bien xés
dans le connecteur et pourraient être retirés.

Number of Wires per

Connection Point

Maximum Wire

Gauge

1 12 AWG

2 16 AWG

4 18 AWG

Attach the speaker wires to the included four-pole captive screw connector using one of
the following methods:

• Wiring a Single Speaker: Connect the wires to the captive screw connectors of

the speaker as shown in figure 36. Be sure to tighten the screws.

(Red)

(Black)

+

+

–

–

IN

LOOP

LOOP

IN

Power Amplifier

Speaker 1

Figure 36. Wiring a Single Speaker

• Wiring Multiple Speakers in Parallel: Connect the wires to the captive screw

connectors of the speakers, as shown in figure 37. Be sure to tighten the screws.

(Red)

(Black)

–

LOOP

(Red)

(Black)

–

+

+

–

IN

IN

LOOP

LOOP

(Red)

(Black)

+

+

–

IN

LOOP

IN

Figure 37. Wiring Multiple Speakers in Parallel

In the parallel configuration, all of the speakers downstream of the one being
tested continue to function even when it is disconnected. This is especially useful in
installations where the system can never be completely down, such as in a hospital
setting.

Power Amplifier

Speaker 1

Speaker 2

CS 26T Plus and CS 120P User Guide • Installation 25

The source signal can be tested by connecting to the inner + (IN) and – (IN)

Test Points

Test Points

terminals of the captive screw connector, as shown below.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Figure 38. Signal Test Points — Parallel Configuration

• Wiring Multiple Speakers Using Loop-through: A loop-through electrical

connection is made on the crossover board of the CS 26T Plus. Connect the wires
to the captive screw connectors of the speakers, as shown in figure 39. Be sure to
tighten the screws.

(Red)

(Black)

(Black)

(Red)

(Red)

(Black)

+

+

–

–

+

+

–

Power Amplifier

–

IN

LOOP

IN

Speaker 1

LOOP

IN

LOOP

IN

Speaker 2

LOOP

Figure 39. Wiring Multiple Speakers Using Loop-through

In this configuration, all of the speakers downstream of the one being tested are
disconnected from the source signal when it is disconnected. This is useful for
troubleshooting in three ways:

• The system is sectioned for easier troubleshooting.

• The source signal can be tested by connecting to the inner + (IN) and – (IN)

terminals of the captive screw connector, as shown in figure 40.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Figure 40. Signal Test Points — Loop-through Configuration

CS 26T Plus and CS 120P User Guide • Installation 26

• The impedance of the speakers downstream of the one being tested can be

measured while the system is on by connecting to the outer (LOOP) terminals
of the captive screw connector, as shown in figure 41.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

To next speaker(s)

Figure 41. Impedance Test Points — Loop-through Configuration

6. Insert the captive screw connector into the four-pole receptacle on the speaker

crossover board, as shown below.

2” x 4” Ceiling Tile

Figure 42. Connecting the Wire from the CS 120P to the Speaker

4 Pole Connector

CS 26T Plus and CS 120P User Guide • Installation 27

7. Attach the speaker wire to the strain relief tie down point using the provided zip

w

Strain Relief

tie, as shown below.

Zip Tie

Captive Scre
Connector

Tab

Figure 43. Attaching the Speaker Wire to the Strain Relief Point

8. In the closed back configuration, use the zip tie protruding from the underside of the

enclosure (see figure 44) to attach to the secondary tie off point of the CS 26T Plus
speaker (see figure 45 on the next page).

Figure 44. Closed Back Seconday Support Line for the CS 26T Plus

CS 26T Plus and CS 120P User Guide • Installation 28

Zip Tie

Secondary
Tie off Point

Figure 45. Attaching the Secondary Support Line to the CS 26T Plus

NOTE: Observe all applicable building codes and local ordinances when installing

the speaker.

9. Mount the CS 26T Plus (see figure 46 below).
a. Insert the CS 26T Plus through the bottom of the hole in the ceiling tile that was

cut in step 4.

b. Tighten the four screws (clockwise) until the speaker is securely clamped to the

ceiling.

Speaker Mounted with
the CS 120P

Figure 46. Mounting the Speaker to the CS 120P

CS 26T Plus and CS 120P User Guide • Installation 29

ATTENTION:

• To avoid damaging the speaker, do not overtighten the four screws. Use

a manual screwdriver to tighten the screws. Do not use a cordless drill or
electric screwdriver.

• Pour éviter d’endommager l’enceinte, ne serrez pas trop les quatre

vis. Utilisez un tournevis manuel pour serrer les vis. N’utilisez pas de
perceuse-visseuse ou de tournevis électrique.

10. Set the rotary tap selector switch — Use a small screwdriver to set the tap selector

switch to the appropriate setting, as shown below.

ATTENTION:

• When setting the taps for a distributed (high impedance) system, do not tap

the system above the rated power of the amplifier.

• Lors de la mise en place des capteurs pour un système distribué (haute

impédance), n’exploitez pas le système au delà du niveau d’alimentation de
l’amplificateur.

• When connecting multiple speakers in 8-ohm mode, be sure that the combined

rated impedance does not equal a value less than the minimum rated
impedance of the amplifier.

• Lors de la connexion de plusieurs enceintes en mode 8ohm, assurez vous que

le niveau d’impédance combinée ne soit pas équivalent à une valeur inférieure
à l’impédance minimum de l’amplificateur.

100 V

16W
32W

Adjust the Tap Selector

4W
8W

32W

8Ω

16W
8W
4W

8Ω

70 V

2W

Figure 47. Adjusting the Rotary Tap Selector

CS 26T Plus and CS 120P User Guide • Installation 30

11. Install the grille — Position the outer perimeter of the grille into the groove of the

speaker baffle. Six magnets pull the grille securely into place, as shown below.

Speaker Grille

Figure 48. Installing the Speaker Grille

NOTE: Grille hooks are provided for removal of the grille after installation.

CS 26T Plus and CS 120P User Guide • Installation 31

Installing the CS 120P in a Hard Ceiling

If you are installing the CS 1226T Plus in a hard ceiling (having no ceiling tiles), with the
ceiling structure in place, install the CS 120P:

• It is the responsibility of the installer to identify a suitable mounting location and provide

the mounting hardware.

• The CS 120P must be mounted as close as possible to the upper surface of the ceiling

material.

• The lip of the CS 120P should protrude into the hole cut for the speaker.

• Do not leave a gap between the CS 120P and the ceiling material.

NOTE: Installation in this type of ceiling must be done while access to the ceiling is

still possible.

CS 26T Plus and CS 120P User Guide • Installation 32

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of five years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America,
and Central America:

Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
U.S.A.

Europe and Africa:

Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands

Japan:

Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
