Extron electronics CS 26T, CS 120P, CS 1226T User Manual

CS 26T and CS 120P

CS 1226T SpeedMount Ceiling Speaker System

User Guide

Speakers

68-2161-01 Rev. A

08 13

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended to

alert the user of the presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended to alert

the user of important operating and maintenance (servicing) instructions in the
literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron
website, www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT: Ce pictogramme, , lorsqu’il est utilisé sur le

produit, signale à l’utilisateur la présence à l’intérieur du boîtier du
produit d’une tension électrique dangereuse susceptible de provoquer
un choc électrique.

ATTENTION: Ce pictogramme, , lorsqu’il est utilisé sur le produit,

signale à l’utilisateur des instructions d’utilisation ou de maintenance
importantes qui se trouvent dans la documentation fournie avec le
matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la
réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets
connexes, lisez les informations de sécurité et de conformité Extron, réf. 68­290-01, sur le site Extron, www.extron.fr.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer darauf

aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes
gefährliche Spannungen herrschen, die nicht isoliert sind und die einen
elektrischen Schlag verursachen können.

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer

in der im Lieferumfang enthaltenen Dokumentation besonders
wichtige Hinweise zur Bedienung und Wartung (Instandhaltung)
geben.

Chinese Simplified（简体中文）

警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险

电 压 ，有 触 电 危 险 。

注意： 产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、

使用的特性等相关内容，敬请访问

安全规范指南，产品编号

68-290-01。

EMI/EMF 的兼容性、无障碍

Extron 网站 www.extron.cn，参见 Extron

Chinese Traditional（繁體中文）

警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

注意 若產品上使用此符號，是為了提醒使用者。

有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細
資訊，請瀏覽 Extron 網站：www.extron.cn，然後參閱《Extron 安全性與法規遵

守手冊》，準則編號 68-290-01。

Japanese

警告: この記 号 が製品上に表示されている場合は、筐体内に絶縁されて

いない高電圧が流れ、感電の危険があることを示しています。

注意: この記号 が製品上に表示されている場合は、本機の取扱説明書に

記載されている重要な操作と保守(整 備)の指示についてユーザーの

  注意を喚起するものです。

安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
つ い て は 、エ ク ストロ ン の ウ ェ ブ サ イト www.extron.jp より

『Extron Safety and Regulatory Compliance Guide 』 (P/N 68-290-01) をご覧ください。

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie
in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer 68­290-01) auf der Extron-Website, www.extron.de.

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro
del producto, lo que puede representar un riesgo de descarga
eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso
y mantenimiento recogidas en la documentación proporcionada

con el equipo

Para obtener información sobre directrices de seguridad, cumplimiento
de normativas, compatibilidad electromagnética, accesibilidad y temas
relacionados, consulte la Guía de cumplimiento de normativas y seguridad de
Extron, referencia 68-290-01, en el sitio Web de Extron, www.extron.es.

.

Korean

경고: 이 기호 , 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을
경고합니다.

주의: 이 기호 , 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와

있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련
항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.co.kr)의
Extron 안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference; the user must correct the interference at
his own expense.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility,

accessibility, and related topics, see the “Extron Safety and Regulatory Compliance

Guide

” on the Extron website.

Copyright

© 2013 Extron Electronics. All rights reserved.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks

®

, registered service marks

RGBSystems, Inc. or Extron Electronics:

Registered Trademarks

AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, GlobalViewer, Hideaway, Inline, IPIntercom, IPLink,
Key Minder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, System
Integrator, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP and XTP Systems

Registered Service Mark

AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), AIS (Advanced Instruction Set), Auto-Image, CDRS (Class D
Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), DriverConfigurator, DSPConfigurator, DSVP
(Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, ProDSP, QS-FPC (QuickSwitch Front Panel
Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, XTRA, ZipCaddy, ZipClip

(SM)

: S3 Service Support Solutions

Trademarks

(SM)

, and trademarks

(®)

(™)

(TM)

are the property of

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: A warning indicates a situation that has the potential to result in death or

severe injury.

ATTENTION: Attention indicates a situation that may damage or destroy the product or

associated equipment.

NOTE: A note draws attention to important information.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Contents

Introduction............................................................ 1

About this Guide ................................................. 1

Overview ............................................................ 1

Features ............................................................. 1

Application Example ........................................... 2

Installation .............................................................. 3

Installation Considerations .................................. 3

Installation Configurations ................................... 3

Installing the CS 1226T System — Single

Installer .............................................................. 4

Installing the CS 120P in a Suspended

Ceiling — Division of Labor .............................. 15

Installing the CS 26T in a Suspended

Ceiling — Division of Labor .............................. 20

Installing the CS 120P in a Hard Ceiling ............ 26

CS 26T and CS 120P User Guide • Contents v

CS 26T and CS 120P User Guide • Contents vi

Introduction

This section gives an overview of the Extron CS 1226T SpeedMount Ceiling Speaker
System, consisting of the CS 26T speakers and CS 120P enclosure. It also provides a list of
system features and an application diagram. Topics include:

• About this Guide

• Overview

• Features

• Application Example

About this Guide

This guide describes the Extron CS 1226T Speaker System, the CS 26T speaker pair and
the CS 120P enclosure and provides instructions for installing all components of the system
in different types of ceilings.

Overview

The CS 1226T system features a low profile design that houses a 6.5-inch woofer and a

0.75-inch tweeter (CS 26T) contained in a UL 2043 rated enclosure (CS 120P) designed for
use in plenum rated ceiling spaces.

This unique speaker system splits installation into two phases, rough-in and finish, allowing
the installer to “reserve” space for the speaker system by installing the CS 120P back can
and then later installing the CS 26T speaker. This two-step process (division of labor) is
especially useful when multiple installers are involved. The CS 120P can be installed by the
low voltage contractor while the CS 26T can be installed by the AV systems contractor.

Features

• US and metric ceiling grids — The CS 120P enclosure can be installed in both U.S.

and metric ceiling grid systems (for metric systems, the CS 120P end tabs are cut off).

• UL 2043 listed — The CS 1226T is UL 2043 listed (only when the CS 26T is used with

the CS 120P).

NOTE: The use of any other back can other than the CS 120P or those provided by

Extron voids the UL 2043 rating.

• Optional open back configuration — The CS 26T can be used without the CS 120P

by reconfiguring the attached bass port plate (allowing the CS 26T to function as an
open back speaker).

NOTE: When the CS 26T is used without the CS 120P, it is not suitable for air

handling spaces and is not UL 2043 rated.

• New dog-leg design — The new dog-leg design eliminates jamming during

installation.

• Low profile enclosure — The low profile enclosure is compatible with plenum

environments where overhead space may be limited.

CS 26T and CS 120P User Guide • Introduction 1

Application Example

• Selectable taps — The rotary tap selector switch, located behind the grille, sets the

speaker to operate in either 8-ohm direct or 70 volt /100 volt operation with 16, 8, 4, 2,
and 1 watt taps.

• Magnetic grille — Magnets spaced around the grille edge enable it to be easily

attached and to remain firmly in place.

The illustration below is one example of configuring a system using the CS 1226T.

Desk Microphones

VCR

DVD

DOC
CAM

LAPTOP

PC

ON

OFF

DISPLAY
MUTE

SCREEN
UP

SCREEN
DOWN

TCP/IP

Network

LAN

POWER
12V
500mA
MAX

RS-232

COM1

RT SC TS

RX

TX

INPUT

1 2 3 4

Ethernet

RELAY
1

2

IR

1

COM 2

G

RELAY

TXRX

3

SG S

IR

4

3

COM 3

G

TXRX

SG S

2

4

3

YC

1

VID

I

Y

N

VID

100-240V 50-60Hz

4

P

U

2

T

Extron
IN1508

Scaling Presentation
Switcher

XPA 2003C-70V

GREEN - ACTIVE
AMBER - STANDBY

100-240V 1.5A, 50-60 Hz

RS-232

OUTPUT

A

R

B

L

L

6

5

R

8

7

3 4

AUDIO INPUT

2

1

L

OUTPUT

R

RGB

LISTED
1T23

U S

I.T.E.

Y, B-Y, R-Y

C

6

8

DVI

RGB

7

RGB

R-Y

5

B-Y

Extron
TLP 700TV

7" TouchLink
Tabletop
Touchpanel

Extron

O
U
T

MIC/LINE INPUTS

P

3

U

MIC

T

+48V

S

3

2

6

1

5

6

4

IPL 250

IP Link Control
Processor

DMP 64

RS-232(1)

RESET

LAN

I/O

Rx
x
T

2

3

RS-232(2)

1 2

1

6

4 5

Rx
Tx

4

3

Laptop

PC

2

1

5

4

Extron
DMP 64

POWER

12V

1.5A MAX

Digital Matrix
Processor

70 V
3

OUTPUTS

8Ω / 4Ω
1 2

HPF

CLASS 2 WIRING

80 Hz

OFF

3 3

INPUTS

2

1

3

ATTENUATION

8

10

6

2

12

4

8

14

2

10

6

1

12

4

0

8

14

2

10

6

∞

12

4

0

14

2

LIMITER/

∞

REMOTE

18

3

0

PROTECT

2

26

∞

1

STANDBY

G

SIGNAL

Extron
XPA 2003C 70V

Combo Power Amplier

Figure 1. Application Diagram of a CS 1226T Installation

Extron
SI 26

Surface-Mount
Speakers

Extron
CS 1226T

SpeedMount Ceiling
Speaker System

CS 26T and CS 120P User Guide • Introduction 2

Installation

This section provides instructions for installing the CS 26T speakers and the CS 120P
enclosure. Topics include:

• Installation Considerations

• Installation Configurations

• Installing the CS 1226T — Single Installer

• Installing the CS 120P in a Suspended Ceiling — Division of Labor

• Installing the CS 26T in a Suspended Ceiling — Division of Labor

• Installing CS 120P in a Hard Ceiling

Installation Considerations

WARNING: Risk of severe bodily injury from falling or sharp equipment.

Installation and service must be performed by authorized personnel only.

• All wiring and electrical connections must conform to all applicable building codes and

local ordinances.

• Installation in a plenum-rated environment requires plenum rated cable or conduit.

• If using secondary support cables, the installer provides the cables.

Installation Configurations

The CS 26T can be configured in the following ways:

• Open-back: For configurations in which the CS 120P is not used, use the C-ring

accessory, available at www.extron.com. The C-ring spreads out the clamping force of
the dog-legs when used in drop ceilings and gypsum ceilings.

• Using the CS 120P: When used with the CS 120P, the CS 26T can be placed in

plenum environments. This is the only configuration that is UL 2043 rated.

NOTE: The CS 120P can be ordered separately or as part of the CS 1226T kit.

For hard ceiling installations, see Installing the CS 120P in a Hard Ceiling on
page 26.

CS 26T and CS 120P User Guide • Installation 3

Installing the CS 1226T System — Single Installer

Side View

If a single installer is installing the CS 1226T system, follow this procedure for the entire
system:

NOTE: The ceiling grid must be installed before the installation of the CS 1226T begins.

• Verify if fiberglass ceiling tiles are being used (see step 2 below and step11 on

page 7 for details).

• The grid face must be at least 15/16 inch (24 mm) for proper installation of the

CS 120P (see step20 on page 13 for details on suspending the enclosure on a
smaller grid face).

15/16" (24 mm)

Grid Face

Figure2. GridFaceExample

1. Disconnectpower — Power down all attached devices before proceeding.

2. Verifythespacewherethesystemwillbeinstalled — Ensure that there is sufficient

clearance above the ceiling tile for the unit to be installed.

3. CutaholefortheCS26Tspeaker—Use the provided cutout template to outline

the hole to be cut in the ceiling tile as described below.

a. Remove the ceiling tile.

b. To find the center of the tile, use a tape measure to measure the space between

two opposite corners, and mark the half-way point.

c. Position the center hole of the cutout template directly over the center of the tile

that you marked in step3b.

d. Using the provided cutout template, trace a circle on the ceiling tile as follows:

ForinstallationsinceilingtilesthatareNOTfiberglassorwheninstalling
thespeakersinanopenbackconfiguration: Trace a circle around the CS 26T

cutout template.

NOTE: The fiberglass tile adapters are not needed and can be discarded.

Forinstallationsin1-inch(0.25cm)thickfiberglassceilingtileswiththe
CS120P:

NOTE: A set of fiberglass tile adapters is provided with both the CS 26T and

i. Place the fiberglass tile adapter around the outer diameter of the template that

ii. Trace a circle around the outer diameter of the adapter.

the CS 120P. Only one set is needed to install the CS 26T with the CS 120P
kit in a 1-inch (0.25 cm) thick fiberglass tile. The adapter works only with
1-inch (0.25 cm) thick fiberglass tile.

was positioned in step 3c.

CS26TandCS120PUserGuide•Installation 4

e. Cut out the circle traced in the ceiling tile.

f. Replace the tile in the ceiling.

4. Remove the adjacent ceiling tile — To facilitate the installation

process, remove the tile adjacent to the ceiling tile where the CS
26T will be installed. If the CS 120P is being installed, skip to step 6.
Otherwise, proceed to step 5.

5. If NOT using the CS 120P, install the Ceiling Mount kit — Place two V-rails and

one C-ring across the tile above the hole that you cut in step 3, where the speaker will
be installed.

C-ring

V-rail

Figure 3. Install the Ceiling Mount Kit

Skip to step 12 on page 8.

6. Configure the CS 120P for a U.S. or metric ceiling grid — For U.S. ceilings (2 feet

by 2 feet or 2 feet by 4 feet) leave intact the four tabs that are on one of the short ends
of the enclosure.

For metric ceilings (600 mm by 600 mm or 600 mm by 1200 mm) cut off the tabs.

Tabs (4)

Removable
Tabs

Figure 4. Tabs on the CS 120P

7. Remove the cover plate — Loosen (do not remove) the two screws on the cover

plate and remove it, as shown in figure 5.

Cover Plate

Figure 5. Removing the Cover Plate

CS 26T and CS 120P User Guide • Installation 5

8. Route the cables through the cover plate —

Flexible Conduit Adapter

NOTES:

• The CS 120P is fully UL 2043 compliant only when it is used with a metal

conduit or with plenum rated cables.

• Installation of all conduits, conduit adapters, wiring, and electrical connections

must conform to all applicable building codes and local ordinances.

Using a flexible conduit:

a. Route wires through the conduit.

b. Insert the conduit into the cover plate opening using an appropriate conduit

adapter, and secure the conduit to the plate as shown in figure 6.

c. Pull the wires out of the conduit and through the cover plate. with flexible conduit

Flexible Conduit

Cover Plate

Seismic Cable Pass
Through Loop

Rear of Speaker

Figure 6. Routing the Cables through the Cover Plate Using a Flexible

Conduit

Using speaker wires without a conduit:

a. Secure the cable clamp adapter (included) to the cover plate.

b. Insert the wires through the clamp and cover plate, as shown in figure 7.

c. Tighten the clamp screws.

Cable Clamp Adapter

Cover Plate

Seismic Cable Pass
Through Loop

Figure 7. Routing the Cables Without a Conduit

Rear of Speaker

CS 26T and CS 120P User Guide • Installation 6

9. Wire the CS 120P — Route the wires through the H-shaped opening in the CS 120P.

Be sure to leave sufficient slack.

Figure 8. Route the Wires Through the H-shaped Opening

10. Replace the terminal cover plate — Reinstall the terminal cover plate onto the

CS 120P and tighten the two screws that were previously loosened.

11. If the CS 120P is NOT being installed in a 1-inch (0.25 cm) thick fiberglass

ceiling tile, discard the fiberglass tile adapter and proceed to step 12 on the next
page.

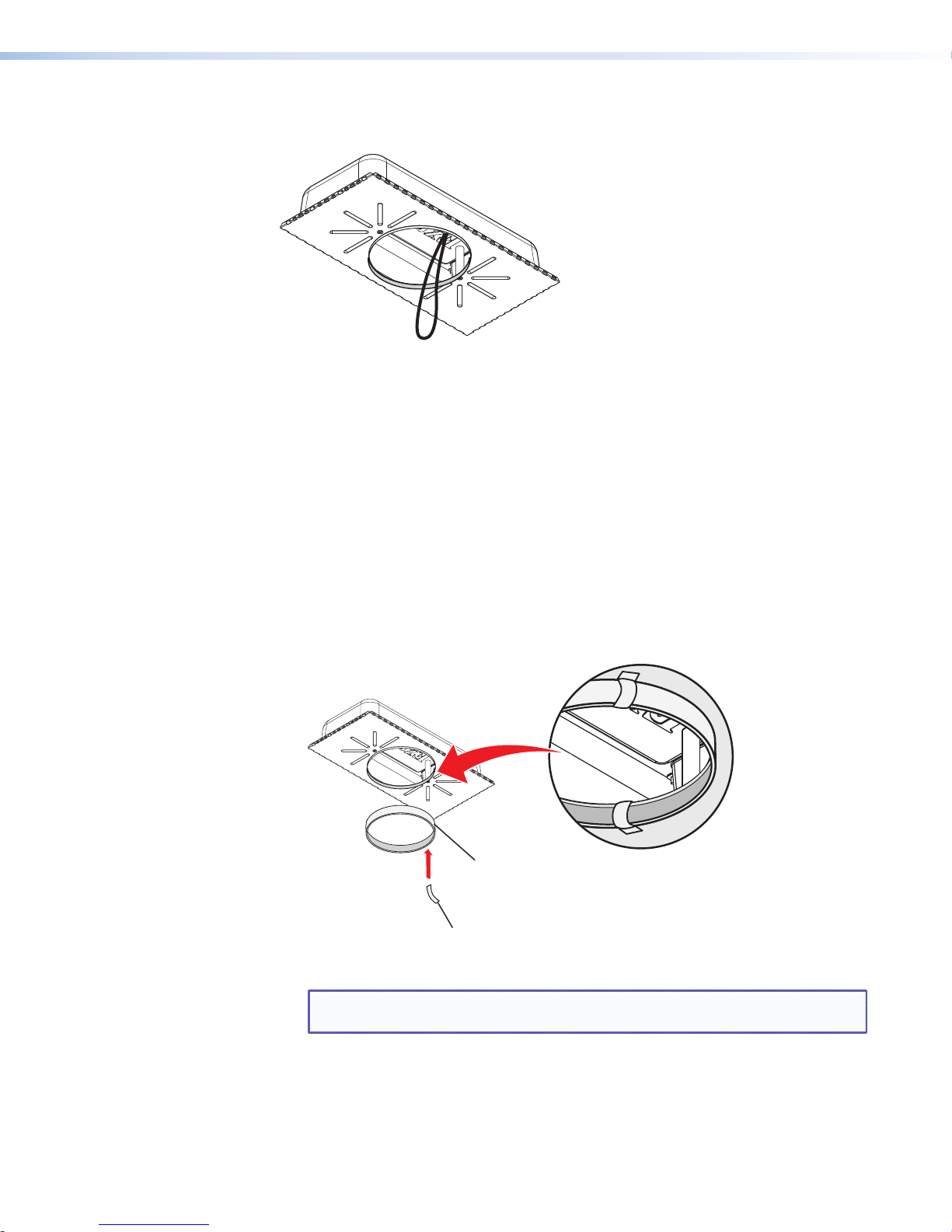

If the CS 120P is being installed in a 1-inch (0.25 cm) thick fiberglass ceiling tile,
install the fiberglass ceiling tile adapter. Attach the fiberglass tile adapter to the

outer side of the lip of the port hole on the CS 120P as follows:

a. Cut four strips of adhesive tape (such as duct tape) approximately 4 inches

(102 mm) long.

b. Attach each tape strip starting from the outer side of the CS 120P metal baffle, up

and over the port ring adapter, then down to the inner surface of the CS 120P metal
baffle, as shown in figure 9. strips

Fiberglass Tile Adapter

Tape (x 4)

Figure 9. Attach Four Tape Strips to the Baffle and Port Ring Adapter

NOTE: The tape strips must lie flat against all surfaces, with no ridges or raised

edges.

CS 26T and CS 120P User Guide • Installation 7

12. Place the CS 120P into the ceiling grid — Place the CS 120P over the tile grid so

AB

that the CS 120P is safely supported on the two short edges. Ensure that the hole in
the tile is aligned with the hole in the CS 120P (see figure 10).

Fig: Mounting the PRE

NOTE:

2' x 2' (600 mm x 600 mm)
grid mounting is the same as 2' x 4'
(600 mm x 1200 mm) grid mounting.

Figure 10. Mounting the CS 120P in a 2" x 2" (600 mm x 600 mm) Ceiling Grid

13. Route the speaker wires — Route the speaker wires through the ceiling tile hole.

14. Remove the speaker grille — Carefully remove the grille from the front of the CS 26T.

NOTE: Grille hooks are provided for grille removal, if needed.

15. Configure the bass reflex port plate. By default, the CS 26T is set up for use with

the CS 120P. If not using the CS 120P, set the plate for an open-back installation.

• With the CS 120P (default configuration): Leave the plate in its default location.

The port must be left uncovered (see A in figure 11).

• Open back: The bass reflex port is uncovered by default. In the open back

configuration (without the CS 120P), this port must be closed (covered). If the port
is not covered:

a. Use a Phillips screwdriver to remove the two screws securing the bass reflex

port plate in its storage location.

b. Attach the plate to the bass reflex port using the two screws that you removed

in step a (see B in figure 11).

Screws (2)

Bass Port Plate
(storage location)

Bass Reflex Port
(open, uncovered)

Bass Reflex Port
(closed, covered)

Figure 11. Configuring the Bass Reflex Port Plate

CS 26T and CS 120P User Guide • Installation 8

16. Attach the speaker wires to the captive screw connector —

ATTENTION: Do not tin the wires. Tinned wires do not remain tight in the captive

screws and can break easily after several bends.

Number of Wires per Connection Point Maximum Wire Gauge

1 12 AWG

2 16 AWG

4 18 AWG

Attach the speaker wires to the included four-pole captive screw connector using one of
the following methods:

• Wiring a Single Speaker: Connect the wires to the captive screw connectors of

the speakers as shown in figure 12. Be sure to tighten the screws.

(Red)

(Black)

+

+

–

–

IN

LOOP

LOOP

IN

Power Amplifier

Speaker 1

Figure 12. Wiring a Single Speaker

• Wiring Multiple Speakers in Parallel: Connect the wires to the captive screw

connectors of the speakers, as shown in figure 13. Be sure to tighten the screws.

(Red)

(Black)

+

+

–

IN

LOOP

IN

Power Amplifier

(Red)

(Black)

+

–

–

IN

LOOP

IN

Speaker 1

(Red)

(Black)

–

+

LOOP

LOOP

Speaker 2

Figure 13. Wiring Multiple Speakers in Parallel

In the parallel configuration, all of the speakers downstream of the one being tested
continue to function even when it is disconnected. This is especially useful in
installations where the system can never be completely down, such as in a hospital
setting.

The source signal can be tested by connecting to the inner + (IN) and – (IN)
terminals of the captive screw connector.

Red Wire (+) from Amplifier

Amplifier

Figure 14. Signal Test Points — Parallel Configuration

Black Wire (-) from Amplifier

Test Points

CS 26T and CS 120P User Guide • Installation 9

• Wiring Multiple Speakers Using Loop-through:

A loop-through electrical connection is made on the crossover board of the CS 26T.
Connect the wires to the captive screw connectors of the speakers, as shown in
figure 15. Be sure to tighten the screws.

Power Amplifier

(Red)

(Black)

–

–

LOOP

IN

Speaker 1

(Red)

(Black)

–

–

+

+

IN

LOOP

LOOP

IN

(Red)

(Black)

+

+

IN

LOOP

Speaker 2

Figure 15. Wiring Multiple Speakers Using Loop-through

In this configuration, all of the speakers downstream of the one being tested are
disconnected from the signal when it is disconnected. This is useful for
troubleshooting in three ways:

• The system is sectioned for easier troubleshooting.

• The source signal can be tested by connecting to the inner + (IN) and – (IN)

terminals of the captive screw connector, as shown in figure 16.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

Figure 16. Signal Test Points — Loop-through Configuration

CS 26T and CS 120P User Guide • Installation 10

• The impedance of the speakers downstream of the one being tested can be

measured while the system is on by connecting to the outer (LOOP) terminals
of the captive screw connector, as shown in figure 17.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

To next speaker(s)

Figure 17. Impedance Test Points — Loop-through Configuration

17. Insert the captive screw connector into the four-pole receptacle on the speaker

crossover board.

2' by 4' Ceiling Tile

Figure 18. Connecting the Wire from the CS 120P to the Speaker

4 Pole Connector

CS 26T and CS 120P User Guide • Installation 11

18. Attach the speaker wire to the strain relief tie down point using the provided zip

tie.

Strain Relief Tab
(zip tie)

Captive Screw
Connector

Figure 19. Attaching the Speaker Wire to the Strain Relief Point

19. Mount the CS 26T (see figure 20).

a. Insert the CS 26T through the bottom of the hole in the ceiling tile that was cut in

step 3.

b. Tighten the four screws (clockwise) until the speaker is securely clamped to the

ceiling.

Figure 20. Mounting the Speaker to the CS 120P

ATTENTION: Do not overtighten the screws.

CS 26T and CS 120P User Guide • Installation 12

20. Attach secondary support lines — If required, attach all of the secondary support

lines as shown in figure 21.

ATTENTION: Do not allow any slack in the support cables.

NOTE: If the CS 26T will be installed in the CS 120P, do not attach secondary

support cables to the speakers.

Anchor ends to suitable
solid secure points within the
permanent building structure.

Secondary Support

Secondary Support
Cable

Cables (3)

Attach cables here
and secure.

Open Back

SC 26T with PRE 120

Figure 21. Attaching Secondary Support Lines

NOTES:

• When placing the CS 120P on a tile grid with a grid face less than 15/16 inch

(24 mm) and no ceiling tile is installed, use the secondary attachment points
as hanger suspension points.

• Observe all applicable building codes and local ordinances when installing the

speaker.

21. Replace the adjacent tile — Reinstall the adjacent tile that was removed in step 4.

CS 26T and CS 120P User Guide • Installation 13

22. Set the rotary tap selector switch — Use a small screwdriver to set the tap selector

switch to the appropriate setting.

ATTENTION: When setting the taps for a distributed (high impedance) system,

do not tap the system above the rated power of the amplifier. When connecting
multiple speakers in 8-ohm mode, be sure that the combined rated impedance
does not equal a value less than the minimum rated impedance of the amplifier.

100 V

16W

2W
4W
8W

16W

8Ω

8W
4W
2W

8Ω

1W

Adjust the Tap Selector

70 V

Figure 22. Adjusting the Rotary Tap Selector

23. Install the grille. Position the outer perimeter of the grille into the groove of the

speaker baffle. Six magnets pull the grille securely into place.

Speaker Grille

Figure 23. Installing the Speaker Grille

NOTE: Grille hooks are provided for removal of the grille after installation.

CS 26T and CS 120P User Guide • Installation 14

Installing the CS 120P in a Suspended Ceiling — Division of Labor

Side View

In a division of labor installation, low-voltage contractors install the CS 120P enclosure
(construction rough-in phase).

NOTE: The ceiling grid must be installed before the installation of the CS 1226T can

begin.

• Verify if fiberglass ceiling tiles are being used (see step4d on the next page and

step10 on page 18 for details).

• The grid face must be at least 15/16 inch (24 mm) for proper installation of the

CS 120P (see step12 on page 19 for details on suspending the enclosure on a
smaller grid face).

15/16" (24 mm)

Grid Face

Figure24. GridFaceExample

Use the following procedure:

1. Disconnectpower — Power down all attached devices before proceeding.

2. Verifythespacewherethesystemwillbeinstalled — Ensure that there is sufficient

clearance above the ceiling tile for the unit to be installed.

3. ConfiguretheCS120PforaU.S.ormetricceilinggrid — For U.S. ceilings (2 feet

by 2 feet or 2 feet by 4 feet), leave intact the four tabs that are on one of the short ends
of the enclosure.

For metric ceilings (600 mm by 600 mm or 600 mm by 1200 mm) cut off the tabs.

Tabs (4)

Removable
Tabs

Figure25. TabsontheCS120P

CS26TandCS120PUserGuide•Installation 15

4. Cut a hole for the CS 26T speaker. Use the provided cutout template to outline the

hole to be cut in the ceiling tile as described below. (If the ceiling tile will not be installed
during this phase of the installation, skip to step 6.)

a. Remove the ceiling tile.

b. To find the center of the tile, use a tape measure to measure the space between

two opposite corners, and mark the half-way point.

c. Position the center hole of the cutout template directly over the center of the tile

that you marked in step4b.

d. Using the provided cutout template, trace a circle on the ceiling tile as follows:

For installations in ceiling tiles that are NOT fiberglass: Trace a circle around
the CS 26T cutout template.

NOTE: The fiberglass tile adapters are not needed and can be discarded.

For installations in 1-inch (0.25 cm) thick fiberglass ceiling tiles with
the CS 120P:

NOTE: A set of fiberglass tile adapters is provided with both the CS 26T and

the CS 120P. Only one set is needed to install the CS 26T with the CS 120P
kit in a 1-inch (0.25 cm) thick fiberglass tile. The adapter works only with
1-inch (0.25 cm) thick fiberglass tile.

i. Place the fiberglass tile adapter around the outer diameter of the template that

was positioned in step 4c.

ii. Trace a circle around the outer diameter of the adapter.

e. Cut out the circle traced in the ceiling tile.

f. Replace the tile in the ceiling.

5. Remove the adjacent ceiling tile — To facilitate the installation process, remove the

tile adjacent to the ceiling tile where the CS 26T will be installed.

6. Remove the cover plate — Loosen (do not remove) the two screws on the cover

plate and remove it, as shown in figure 26.

Figure 26. Removing the Cover Plate

Cover Plate

CS 26T and CS 120P User Guide • Installation 16

7. Route the cables through the cover plate —

Flexible Conduit Adapter

NOTES:

• The CS 120P is fully UL 2043 compliant only when it is used with a metal

conduit or with plenum rated cables.

• Installation of all conduits, conduit adapters, wiring, and electrical connections

must conform to all applicable building codes and local ordinances.

Using a flexible conduit:

a. Route wires through the conduit.

b. Insert the conduit into the cover plate opening using an appropriate conduit

adapter, and secure the conduit to the plate as shown in figure 27.

c. Pull the wires out of the conduit and through the cover plate. with flexible conduit

Flexible Conduit

Cover Plate

Seismic Cable Pass
Through Loop

Rear of Speaker

Figure 27. Routing the Cables through the Cover Plate Using a Flexible

Conduit

Using speaker wires without a conduit:

a. Secure the cable clamp adapter (included) to the cover plate.

b. Insert the wires through the clamp and cover plate, as shown in figure 28.

c. Tighten the clamp screws.

Cable Clamp Adapter

Cover Plate

Seismic Cable Pass
Through Loop

Figure 28. Routing the Cables Without a Conduit

Rear of Speaker

CS 26T and CS 120P User Guide • Installation 17

8. Wire the CS 120P — Route the wires through the H-shaped opening in the CS 120P.

Be sure to leave sufficient slack.

Figure 29. Route the Wires Through the H-shaped Opening

9. Replace the terminal cover plate — Reinstall the terminal cover plate onto the

CS 120P and tighten the two screws that were previously loosened.

10. If the CS 120P is NOT being installed in a 1-inch (0.25 cm) thick fiberglass

ceiling tile, discard the fiberglass tile adapter and proceed to step 11 on the next

page.

If the CS 120P is being installed in a 1-inch (0.25 cm) thick fiberglass ceiling tile,
install the fiberglass ceiling tile adapter. Attach the fiberglass tile adapter to the

outer side of the lip of the port hole on the CS 120P as follows:

a. Cut four strips of adhesive tape (such as duct tape) approximately 4 inches

(102 mm) long.

b. Attach each tape strip starting from the outer side of the CS 120P metal baffle, up

and over the port ring adapter, then down to the inner surface of the CS 120P metal
baffle, as shown below.

Fiberglass Tile Adapter

Tape (x 4)

Figure 30. Attach Four Tape Strips to the Baffle and Port Ring Adapter

NOTE: The tape strips must lie flat against all surfaces, with no ridges or raised

edges.

CS 26T and CS 120P User Guide • Installation 18

11. Place the CS 120P into the ceiling grid — Place the CS 120P over the tile

grid so that the CS 120P is safely supported on the two short edges. If the ceiling
tile was installed, ensure that the hole in the tile is aligned with the hole in the
CS 120P (see figure 31).

Fig: Mounting the PRE

NOTE: 2' x 2' (600 mm x 600 mm)

grid mounting is the same as 2' x 4'
(600 mm x 1200 mm) grid mounting.

Figure 31. Mounting the CS 120P in a 2' x 2' (600 mm x 600 mm) Ceiling Grid

12. Attach secondary support lines — If required, attach all of the secondary support

lines as shown in figure 32.

ATTENTION: Do not allow any slack in the support cables.

NOTE: If the CS 26T will be installed in the CS 120P, do not attach secondary

support cables to the speakers.

Anchor ends to suitable
solid secure points within the
permanent building structure.

Secondary Support

SC 26T with PRE 120

Cables (3)

Attach cables here
and secure.

Figure 32. Attaching Secondary Support Lines

NOTE:

• When placing the CS 120P on a tile grid with a grid face of less than 15/16

inch (24 mm) and no ceiling tile is installed, use the secondary attachment
points as hanger suspension points.

• Observe all applicable building codes and local ordinances when installing the

speaker.

13. Replace the adjacent tile — Reinstall the adjacent tile if one was removed in step 5.

CS 26T and CS 120P User Guide • Installation 19

Installing the CS 26T in a Suspended Ceiling — Division of Labor

In a division of labor installation, an AV system contractor installs the CS 26T (final
installation phase). Use the following procedure:

NOTE: Observe all applicable building codes and local ordinances when installing the

speaker.

1. Disconnect power — Power down all attached devices before proceeding.

2. (If the ceiling tile is already cut and in place, skip this step.)

Cut a hole for the CS 26T speaker — Use the provided cutout template to outline

the hole to be cut in the ceiling tile as described below.

a. Remove the ceiling tile.

b. To find the center of the tile, use a tape measure to measure the space between

two opposite corners, and mark the half-way point.

c. Position the center hole of the cutout template directly over the center of the tile

that you marked in step2b.

d. Using the provided cutout template, trace a circle on the ceiling tile as follows:

For installations in ceiling tiles that are NOT fiberglass: Trace a circle around
the CS 26T cutout template.

NOTE: The fiberglass tile adapters are not needed and can be discarded.

For installations in 1-inch (0.25 cm) thick fiberglass ceiling tiles with the
CS 120P:

NOTE: A set of fiberglass tile adapters is provided with both the CS 26T and

the CS 120P. Only one set is needed to install the CS 26T with the CS 120P
kit in a 1-inch (0.25 cm) thick fiberglass tile. The adapter works only with
1-inch (0.25 cm) thick fiberglass tile.

i. Place the fiberglass tile adapter around the outer diameter of the template that

e. Cut out the circle traced in the ceiling tile.

f. Replace the tile in the ceiling, ensuring that the hole in the tile is

3. Route the speaker wires — Route the speaker wires through the

ceiling tile hole.

4. Remove the speaker grille — Carefully remove the grille from the front of the CS 26T.

NOTE: Grille hooks are provided for grille removal, if needed.

was positioned in step 2c.

ii. Trace a circle around the outer diameter of the adapter.

aligned with the hole in the CS 120P.

CS 26T and CS 120P User Guide • Installation 20

5. Attach the speaker wires to the captive screw connector —

ATTENTION: Do not tin the wires. Tinned wires do not remain tight in the captive

screws and can break easily after several bends.

Number of Wires per

Connection Point

Maximum Wire

Gauge

1 12 AWG

2 16 AWG

4 18 AWG

Attach the speaker wires to the included four-pole captive screw connector using one of
the following methods:

• Wiring a Single Speaker: Connect the wires to the captive screw connectors of

the speaker as shown in figure 33. Be sure to tighten the screws.

(Red)

(Black)

+

+

–

–

IN

LOOP

LOOP

IN

Power Amplifier

Speaker 1

Figure 33. Wiring a Single Speaker

• Wiring Multiple Speakers in Parallel: Connect the wires to the captive screw

connectors of the speakers, as shown in figure 34. Be sure to tighten the screws.

(Red)

(Black)

(Red)

(Black)

–

+

+

–

–

IN

LOOP

IN

LOOP

LOOP

(Red)

(Black)

+

+

–

IN

LOOP

IN

Power Amplifier

Speaker 1

Speaker 2

Figure 34. Wiring Multiple Speakers in Parallel

In the parallel configuration, all of the speakers downstream of the one being
tested continue to function even when it is disconnected. This is especially useful in
installations where the system can never be completely down, such as in a hospital
setting. You can test the source signal can be tested by connecting to the inner +
(IN) and – (IN) terminals of the captive screw connector.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

Figure 35. Signal Test Points — Parallel Configuration

CS 26T and CS 120P User Guide • Installation 21

• Wiring Multiple Speakers Using Loop-through:

A loop-through electrical connection is made on the crossover board of the CS 26T.
Connect the wires to the captive screw connectors of the speakers, as shown in
figure 36. Be sure to tighten the screws.

Power Amplifier

(Red)

(Black)

–

–

LOOP

IN

Speaker 1

(Red)

(Black)

–

–

+

+

IN

LOOP

LOOP

IN

(Red)

(Black)

+

+

IN

LOOP

Speaker 2

Figure 36. Wiring Multiple Speakers Using Loop-through

In this configuration, all of the speakers downstream of the one being tested are
disconnected from the signal when it is disconnected. This is useful for
troubleshooting in three ways:

• The system is sectioned for easier troubleshooting.

• The source signal can be tested by connecting to the inner + (IN) and – (IN)

terminals of the captive screw connector, as shown in figure 37.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

Figure 37. Signal Test Points — Loop-through Configuration

CS 26T and CS 120P User Guide • Installation 22

• The impedance of the speakers downstream of the one being tested can be

measured while the system is on by connecting to the outer (LOOP) terminals
of the captive screw connector, as shown in figure 38.

Red Wire (+) from Amplifier

Amplifier

Black Wire (-) from Amplifier

Test Points

To next speaker(s)

Figure 38. Impedance Test Points — Loop-through Configuration

6. Insert the captive screw connector into the four-pole receptacle on the speaker

crossover board.

2' by 4' Ceiling Tile

Figure 39. Connecting the Wire from the CS 120P to the Speaker

4 Pole Connector

CS 26T and CS 120P User Guide • Installation 23

7. Attach the speaker wire to the strain relief tie down point using the provided zip

tie.

Strain Relief Tab
(zip tie)

Captive Screw
Connector

Figure 40. Attaching the Speaker Wire to the Strain Relief Point

8. Mount the CS 26T (see figure 41).

a. Insert the CS 26T through the bottom of the hole in the ceiling tile that was cut in

step 2.

b. Tighten the four screws (clockwise) until the speaker is securely clamped to the

ceiling.

Figure 41. Mounting the Speaker to the CS 120P

ATTENTION: Do not overtighten the screws.

CS 26T and CS 120P User Guide • Installation 24

9. Set the rotary tap selector switch — Use a small screwdriver to set the tap selector

switch to the appropriate setting.

ATTENTION: When setting the taps for a distributed (high impedance) system,

do not tap the system above the rated power of the amplifier. When connecting
multiple speakers in 8-ohm mode, be sure that the combined rated impedance
does not equal a value less than the minimum rated impedance of the amplifier.

100 V

16W

2W
4W
8W

16W

8Ω

8W
4W
2W

8Ω

1W

Adjust the Tap Selector

70 V

Figure 42. Adjusting the Rotary Tap Selector

10. Install the grille — Position the outer perimeter of the grille into the groove of the

speaker baffle. Six magnets pull the grille securely into place.

Speaker Grille

Figure 43. Installing the Speaker Grille

NOTE: Grille hooks are provided for removal of the grille after installation.

CS 26T and CS 120P User Guide • Installation 25

Installing the CS 120P in a Hard Ceiling

If you are installing the CS 1226T in a hard ceiling (having no ceiling tiles), with the ceiling
structure in place, install the CS 120P:

• It is the responsibility of the installer to identify a suitable mounting location and provide

the mounting hardware.

• The CS 120P must be mounted as close as possible to the upper surface of the ceiling

material.

• The lip of the CS 120P should protrude into the hole cut for the speaker.

• Do not leave a gap between the CS 120P and the ceiling material.

NOTE: Installation in this type of ceiling must be done while access to the ceiling is

still possible.

CS 26T and CS 120P User Guide • Installation 26

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America,
and Central America:

Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
U.S.A.

Europe and Africa:

Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands

Japan:

Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan

China:

Extron China
686 Ronghua Road
Songjiang District
Shanghai 201611
China

Asia:

Extron Asia Pte Ltd
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363

Middle East:

Extron Middle East
Dubai Airport Free Zone
F12, PO Box 293666
United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical
or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not
authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040
Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage
during shipment. Returned units must include the serial number and a description of the problem, as well as the
name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality,
performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct,
indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may
not apply to you.

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX [phone] FAX

Extron Europe

+800.3987.6673
(Inside Europe Only)

+31.33.453.4040
+31.33.453.4050 FAX

© 2013 Extron Electronics All rights reserved. www.extron.com

Extron Asia

+65.6383.4400
+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655
+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568
+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800
+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571
+82.2.3444.1575 FAX

Extron India

1800.3070.3777
(Inside India Only)

+91.80.3055.3777
+91.80.3055.3737 FAX
