Extron electronics CrossPoint 450 Plus 84 HV, CrossPoint 450 Plus 88 HVA, CrossPoint 450 Plus 128 HV, CrossPoint 450 Plus 128 HVA, CrossPoint 450 Plus 124 HVA User Manual

...

Download

CrossPoint 450 Plus Series

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

MAV Plus Series

Matrix Switchers

68-521-02 Rev. B

12 04

Precautions

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the

equipment.

Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user

information.

Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir les consulter à l’avenir. Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in

der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Warning

Power sources • This equipment should be operated only from the power source indicated on the

product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from

the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or

pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-serviceable parts

inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to

prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only

with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur

l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous

les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que

personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un

technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci servent à

empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la batterie. Remplacer

uniquement avec une batterie du meme type ou d'un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben

werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle

Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und

niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem Servicepersonal durchgeführt

werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese

zur Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie

verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar

el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta. Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especificamente

recomendados por el fabricante, ya que podrian implicar riesgos.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación

eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de

alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en

lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calificado. En el

interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar

esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

Quick Start — CrossPoint 450 Plus

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

and MAV Plus Switchers

Installation

Step 1

Turn off power to the input and output devices, and remove the power cords from them.

Step 2 (video models)

CrossPoint 450 Plus — Cable the switcher for RGBHV, RGBS, RGsB, RsGsBs, component/ HDTV video, S-video, or composite video input and output.

MAV Plus video models — Cable the switcher for component/HDTV video, S-video, or composite video input and output.

See chapter 2, Installation, to connect the various video formats to and from the various models.

Step 3 (audio models)

Most audio models — Cable the switcher for audio input and output. High impedance is generally over 800 ohms.

Tip

Sleeve

Tip

Sleeve

Unbalanced Input

(high impedance)

Tip

Ring

Sleeve(s)

Tip

Ring

CAUTION Connect the sleeve to

Balanced Input

(high impedance)

600 ohms

Tip

Ring

Sleeve(s)

Tip

Ring

600 ohms

Balanced Output

(600 ohms)

MAV Plus 128 AV RCA — Cable the switcher for stereo audio input and output. Each input and output has two RCA connectors (left and right) for unbalanced audio input or output.

Tip

See caution

Sleeve

Tip

See caution

Unbalanced Output

ground. Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.

Tip

Ring

Sleeve(s)

Tip

Ring

Balanced Output

RS-422RS-232

All Models

Pin FunctionPin# PinFunction

— TX RX

—

Gnd

—

Not used Transmit Receive Not used Ground Not used Not used Not used Not used

2 3 4 5 6 7 8 9

Pin Function

— TX– RX–

— Gnd

— RX+ TX+

—

Not used Transmit – Receive – Not used Ground Not used Receive + Transmit + Not used

2412 — 323284 — 1616

TX+

TX– RX+ RX– Gnd

— — — —

Transmit + Transmit – Receive + Receive – Ground Not used Not used Not used Not used

Step 5

If desired, connect a network WAN or LAN hub, a control system, or computer to the Ethernet RJ-45 port. See chapter 2, Installation, for details.

• Network connection — Wire as a patch (straight) cable.

• Computer or control system connection — Wire the interface cable as a crossover cable.

Step 6 (MAV Plus)

If desired, attach an external sync timing device to the external sync connectors.

Step 7

Plug the switcher into a grounded AC source.

BBG 6 A

BLACK BURST/COLOR BAR /AUDIO GENERATOR

POWER

1 KHZ AUDIO

+4dBu

-10dBV

NTSC

1 2 3

BLACKBURST/

PAL

COLORBAR

12V

0.5A MAX

Extron BBG 6 A

Black Burst Color Bar Audio Generator

Terminate cable or connect to another device.

432

BLACKBURST

OUT

Connect to MAV Plus.

EXT SYNC

Definitions

Tie — An input-to-output connection. Set of ties — An input tied to 2 or more outputs. Configuration — One or more ties or sets of ties. Current configuration — The currently active

configuration (also called configuration 0).

Global preset — A configuration that has been

stored. One global preset can be assigned to each input button. When a global preset is retrieved from memory, it becomes the current configuration.

Step 4

If desired, connect a control system or computer to the Remote RS-232/RS-422 port.

96 Female

Front Panel Controls

Input and output buttons select inputs and

outputs. Output buttons light amber to indicate video and audio ties. The buttons light green to indicate video-only ties. The buttons light red to indicate audio-only ties. Input and output buttons also select presets.

Quick Start — CrossPoint 450 Plus

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

and MAV Plus Switchers, Cont’d

On audio models, the output buttons also

display the selected input’s audio level.

On audio models, the input buttons also

display the selected output’s volume level.

Enter button saves changes. Preset button saves a configuration as a preset or

recalls a previously-defined preset.

View button selects a view-only mode that

prevents inadvertent configuration changes. On audio models, View decrements the level and volume. See View, adjust the audio level.

Esc button cancels selections in progress and

resets the front panel button indications. The Esc button does not reset: the current configuration, the RGBHV or video and audio selection, any presets, or any audio level or volume settings. On audio models, Esc increments the level and volume. See View, adjust the audio level.

RGBHV (CrossPoint 450 Plus)/Video (MAV Plus)

and Audio buttons select/deselect video

and/or audio. The Audio button blinks to indicate audio breakaway. The Audio button also selects the audio level/adjust mode. See View, adjust the audio level.

Create a tie

1. Press and release the RGBHV/Video and/or Audio I/O button(s) to select or deselect video and/or audio as desired.

I / O

RGBHV AUDIO

Green when selected. Off when deselected.

Red when selected. Off when deselected.

Save or recall a preset

1. Save a preset — Press and hold the Preset button for 2 seconds.

Recall a preset — Press and release the Preset button.

Save a preset

Recall a

preset

2 seconds

PRESET PRESET

Press and hold.

PRESET PRESET

All input and output buttons with assigned presets light red.

The configuration data at assigned preset locations will be overwritten.

Preset button blinks.

Preset button lights.Press and release.

1 2 3 4 5 6

17 18 19 20 21 22

2. Press and release the desired input or output button.

The button blinks red to indicate that this preset is selected to save or recall.

The Enter button blinks

ENTER

3. Press and release the Enter button.

View, adjust the audio level

1. Press and hold the Audio button.

2. Press an input or output button. See chapter 3 to read the displayed value.

green to indicate the need to activate the save or recall.

2 seconds

AUDIO AUDIO

Hold

Audio button blinks.Press and

2. Press and release the desired input button.

The button lights to indicate the selection.

3. Press and release the desired output button(s).

Amber indicates RGBHV/video and audio tie. Green indicates RGBHV/video only tie. Red indicates audio only tie.

3 4

Green indicates the need

to confirm the change.

4. Press and release the Enter button.

ENTER

Press an Input button to adjust gain/attenuation.

Press an Output button to adjust volume.

1 2

Output buttons display gain/attenuation. Input buttons display volume.

17 18

3. Increase and decrease the gain/attenuation or volume level by pressing the Esc (

) and View ( )

buttons.

4. Press and release the Audio button to exit.

button decreases the level or volume.

button increases the level or volume.

ESCVIEW

Table of Contents

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Chapter 1 • Introduction .......................................................................................................1-1

About this Manual .............................................................................................................1-2

About the Matrix Switchers .......................................................................................... 1-2

CrossPoint 450 Plus switchers ............................................................................................1-5

MAV Plus switchers ............................................................................................................ 1-6

Definitions ............................................................................................................................. 1-7

Features ................................................................................................................................... 1-8

Chapter 2 • Installation.......................................................................................................... 2-1

Mounting the Switcher.................................................................................................... 2-2

Rear Panel Views................................................................................................................. 2-3

CrossPoint 450 Plus switchers ............................................................................................2-3

MAV Plus switchers ............................................................................................................ 2-5

Connections ........................................................................................................................... 2-8

Video input and output (video switchers)........................................................................ 2-8

RGBHV (CrossPoint 450 Plus switchers only) ................................................................. 2-8

Video (MAV Plus switchers only)................................................................................. 2-10

Sync termination switchers (CrossPoint 450 Plus only) .................................................. 2-12

Audio input and output (audio models only) ................................................................ 2-13

Captive screw connector models (all except MAV Plus 128 AV RCA) .......................... 2-13

RCA connector model (MAV Plus 128 AV RCA) ...........................................................2-14

RS-232/RS-422 ...................................................................................................................2-14

Ethernet............................................................................................................................ 2-15

Cabling and RJ-45 connector wiring ........................................................................... 2-15

Reset button..................................................................................................................... 2-17

External sync (MAV Plus video models only) .................................................................. 2-17

Power ............................................................................................................................... 2-18

Chapter 3 • Operation ............................................................................................................. 3-1

Front Panel Controls and Indicators ......................................................................... 3-2

Definitions .......................................................................................................................... 3-4

Input and output buttons ................................................................................................. 3-4

Control buttons.................................................................................................................. 3-5

I/O controls ......................................................................................................................... 3-8

Power indicators (2412 and larger models only) ............................................................. 3-9

Button icons ....................................................................................................................... 3-9

Front Panel Operations .................................................................................................... 3-9

Power ................................................................................................................................. 3-9

Creating a configuration .................................................................................................3-10

Example 1: Creating a set of video and audio ties...................................................... 3-11

Example 2: Adding a tie to a set of video and audio ties ........................................... 3-13

Example 3: Removing a tie from a set of video and audio ties ................................... 3-15

Viewing a configuration ................................................................................................. 3-17

Example 4: Viewing video and audio, audio only, and video only ties .......................3-18

CrossPoint 450 Plus and MAV Plus Switchers • Table of Contents

Table of Contents, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

I/O grouping ..................................................................................................................... 3-21

Example 5: Grouping inputs and outputs ................................................................... 3-23

Setting RGB delay (CrossPoint 450 Plus switchers only) ................................................ 3-25

Example 6: Setting the RGB delay for an output ........................................................3-25

Using presets ....................................................................................................................3-27

Example 7: Saving a preset ......................................................................................... 3-28

Example 8: Recalling a preset ..................................................................................... 3-30

Muting and unmuting video and/or audio outputs ...................................................... 3-31

Example 9: Muting and unmuting an output ............................................................. 3-32

Viewing and adjusting the input audio level (audio models) ....................................... 3-34

Example 10: Viewing and adjusting an input audio level........................................... 3-35

Viewing and adjusting the output volume (audio models) .......................................... 3-40

Reading the displayed volume ................................................................................... 3-41

Example 11: Viewing and adjusting an output volume level......................................3-44

Locking out the front panel (Executive mode) .............................................................. 3-47

Performing a system reset from the front panel ........................................................... 3-48

Background illumination ................................................................................................. 3-48

Selecting the RS-232/RS-422 protocol and baud rate .................................................... 3-49

Rear Panel Controls ......................................................................................................... 3-50

Performing soft system resets ......................................................................................... 3-50

Performing a hard reset .................................................................................................. 3-52

Optimizing the Audio (Audio Switchers) .............................................................3-52

Troubleshooting ................................................................................................................3-53

General checks ................................................................................................................. 3-53

Plasma display S-video problem (CrossPoint 450 Plus switchers only) .......................... 3-53

Configuration Worksheets ........................................................................................... 3-54

Worksheet example 1: System equipment ..................................................................... 3-54

Worksheet example 2: Daily configuration.................................................................... 3-55

Worksheet example 3: Test configuration...................................................................... 3-56

32-button configuration worksheet ............................................................................... 3-57

16-button configuration worksheet ............................................................................... 3-59

Chapter 4 • Programmer’s Guide..................................................................................... 4-1

RS-232/RS-422 Link ............................................................................................................. 4-2

Ethernet Link......................................................................................................................... 4-3

Ethernet connection .......................................................................................................... 4-3

Default IP addresses........................................................................................................... 4-3

Host-to-Switcher Instructions....................................................................................... 4-4

Switcher-Initiated Messages ......................................................................................... 4-4

Switcher Error Responses ............................................................................................... 4-5

Using the Command/Response Tables ...................................................................... 4-5

Command/Response Table for SIS Commands ..................................................... 4-6

Symbol definitions .............................................................................................................4-6

ii CrossPoint 450 Plus and MAV Plus Switchers • Table of Contents

Command/Response Table for IP SIS Commands.............................................. 4-16

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Symbol definitions ........................................................................................................... 4-16

Special Characters ............................................................................................................4-18

Chapter 5 • Matrix Software ..............................................................................................5-1

Matrix Switchers Control Program ............................................................................ 5-2

Installing the software ...................................................................................................... 5-2

Software operation via Ethernet ...................................................................................... 5-2

Ethernet protocol settings ............................................................................................ 5-2

Using the software ............................................................................................................ 5-3

IP Settings/Options window .............................................................................................. 5-6

Matrix IP Address field.................................................................................................. 5-7

Extron Name/Descriptor field ....................................................................................... 5-7

Gateway IP Address field ..............................................................................................5-8

Subnet Mask field ......................................................................................................... 5-8

Hardware Address field ................................................................................................ 5-8

Use DHCP checkbox ...................................................................................................... 5-8

Date field...................................................................................................................... 5-8

Time (local) field ........................................................................................................... 5-9

Sync Time to PC button ................................................................................................ 5-9

GMT (offset) field ......................................................................................................... 5-9

Use Daylight Savings checkbox ..................................................................................... 5-9

Administrator Password field ....................................................................................... 5-9

User Password field .................................................................................................... 5-10

Mail Server IP Address field ........................................................................................ 5-10

Mail Server Domain Name field .................................................................................. 5-11

Mail Server Password field .......................................................................................... 5-11

E-mail Addressee fields ............................................................................................... 5-11

Update firmware ............................................................................................................. 5-12

Upload HTML files ........................................................................................................... 5-14

Windows buttons, drop boxes, and trash ...................................................................... 5-15

Windows menus............................................................................................................... 5-15

File menu .................................................................................................................... 5-15

Tools menu ................................................................................................................. 5-16

Preferences menu ....................................................................................................... 5-17

Master Reset selection ................................................................................................5-19

Using emulation mode .................................................................................................... 5-19

Using the help system...................................................................................................... 5-19

Special Characters ............................................................................................................5-19

Button Label Generator ................................................................................................. 5-20

Using the software .......................................................................................................... 5-20

iiiCrossPoint 450 Plus and MAV Plus Switchers • Table of Contents

Table of Contents, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Chapter 6 • HTML Operation ............................................................................................... 6-1

Download the Startup Page .......................................................................................... 6-2

System Status Page ........................................................................................................... 6-3

DSVP page (CrossPoint 450 Plus switchers only) .............................................................. 6-4

System Configuration Page........................................................................................... 6-5

IP settings fields ................................................................................................................. 6-6

Unit Name field ............................................................................................................ 6-6

DHCP radio buttons ...................................................................................................... 6-6

IP Address field .............................................................................................................6-6

Gateway IP Address field ..............................................................................................6-6

Subnet Mask field ......................................................................................................... 6-6

MAC Address field ........................................................................................................6-6

Date/Time Settings fields ................................................................................................... 6-7

Passwords page .................................................................................................................. 6-8

Email Settings page ........................................................................................................... 6-9

Mail IP address field ..................................................................................................... 6-9

Domain Name field ...................................................................................................... 6-9

Email address fields .................................................................................................... 6-10

Firmware Upgrade page ................................................................................................. 6-10

File Management Page .................................................................................................. 6-11

Set and View Ties Page .................................................................................................. 6-12

Create a tie ....................................................................................................................... 6-13

RGB and Audio Settings page ......................................................................................... 6-13

Change the input gain and attenuation page (audio models only) ........................... 6-14

Mute or unmute one or all outputs............................................................................ 6-15

Change the RGB delay (CrossPoint 450 Plus switchers only) ....................................... 6-16

Change the output volume level (audio models only) ............................................... 6-17

Global Presets page ......................................................................................................... 6-19

Save a preset .............................................................................................................. 6-19

Recall a preset ............................................................................................................ 6-19

Special Characters ............................................................................................................6-20

iv CrossPoint 450 Plus and MAV Plus Switchers • Table of Contents

Appendix A • Ethernet Connection .............................................................................. A-1

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Ethernet Link........................................................................................................................ A-2

Ethernet connection ......................................................................................................... A-2

Default address ................................................................................................................. A-2

Ping to determine Extron IP address ................................................................................ A-3

Ping to determine Web IP address.................................................................................... A-3

Connect as a Telnet client................................................................................................. A-3

Telnet tips ........................................................................................................................... A-4

Open ......................................................................................................................... A-4

Escape character and Esc key .................................................................................. A-4

Local echo ................................................................................................................. A-5

Set carriage return-line feed ................................................................................... A-5

Close ......................................................................................................................... A-5

Help........................................................................................................................... A-5

Quit ........................................................................................................................... A-5

Subnetting — A Primer ................................................................................................... A-6

Gateways ........................................................................................................................... A-6

Local and remote devices ................................................................................................. A-6

IP addresses and octets ..................................................................................................... A-6

Subnet masks and octets .................................................................................................. A-6

Determining whether devices are on the same subnet .................................................. A-7

Appendix B • Reference Information ...........................................................................B-1

CrossPoint 450 Plus Specifications.............................................................................B-2

MAV Plus Specifications .................................................................................................. B-6

Part Numbers ......................................................................................................................B-10

CrossPoint 450 Plus part numbers ................................................................................... B-10

MAV Plus part numbers ...................................................................................................B-10

Included parts ..................................................................................................................B-12

Optional accessories ........................................................................................................ B-12

Cables ............................................................................................................................... B-12

Bulk cable ...................................................................................................................B-12

Assorted connectors ................................................................................................... B-13

Pre-cut cables ............................................................................................................. B-13

Button Labels ...................................................................................................................... B-14

Installing labels in the matrix switcher’s buttons...........................................................B-14

Button label blanks..........................................................................................................B-15

vCrossPoint 450 Plus and MAV Plus Switchers • Table of Contents

Table of Contents, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

All trademarks mentioned in this manual are the properties of their respective owners.

vi CrossPoint 450 Plus and MAV Plus Switchers • Table of Contents

68-521-02 Rev. B

12 04

CrossPoint 450 Plus and MAV Plus Switchers

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Chapter One

Introduction

About this Manual

About the Matrix Switchers

Definitions

Features

Introduction, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Introduction

About this Manual

This manual contains installation, configuration, and operating information for the complete Extron family of full-function, medium- and large-sized, analog matrix switchers, specifically:

• CrossPoint 450 Plus ultra-wideband RGBHV and audio matrix switchers

• MAV Plus broadcast quality HDTV/component video, S-video, and composite video and audio matrix switchers

About the Matrix Switchers

Matrix switchers distribute any input to any combination of outputs. The matrix switchers can route multiple input/output configurations simultaneously.

The matrix switchers are single box solutions to complex wideband (figure 1-1) or low resolution (figure 1-2) video and/or audio routing applications. Each input and output is individually isolated and buffered, and any input(s) can be switched to any one or all outputs with virtually no crosstalk or signal noise between channels.

Class Room 101

Class Room 102

Class Room 103

Extron CrossPoint 450 Plus 128 HVA

Matrix Switcher

Extron

E T O

DVS 204

M E

-Y B , /R-Y,Y

B RG

S T U

P T

U O

T U P N I

Scaler

B G R RU/

DI S

-TH

BcS PA RG

-Y B C /

VIDEO

3 1 Y

RECORDING

Progressiv

-RW/-R

DVD

Precision Cinema

DVD

Extron DVS 204

E T O M E R

,B-Y

-Y,Y /R

RGB

S T U

P T

U O

T U P

Scaler

N I

HRU/

-T

GBcS

-Y B C /

VIDEO

3 1 Y

Extron RGB 109xi

Cable Box

E T O M E R

-Y /R-Y,Y,B GB R

S T U

P T

U O

T U P N I

B RG

RU/

SS-T BcS

-Y B /C

O E ID V

1 Y

- 2

Extron DVS 204

Scaler

Interface

Extron RGB 109xi

Interface

1 1

0 1

U P IN

Class Room 104

T U O

2 1

N SY V

Extron RGB 109xi

Interface

Class Room 105

Class Room 106

LAN

Ethernet

T E S

LINK

ACT

LAN

E Z I S

T X E

N U N E M

E Z E

R F

E S E R

R I

0 0 7

E T

E V N O C

N A C S

M / N I M

Z I S / N

A P /

R E T N

E C

Extron VSC 700

Scan Converter

VCR

Extron RGB 109xi

Interface

Extron RGB 109xi

Interface

DVD

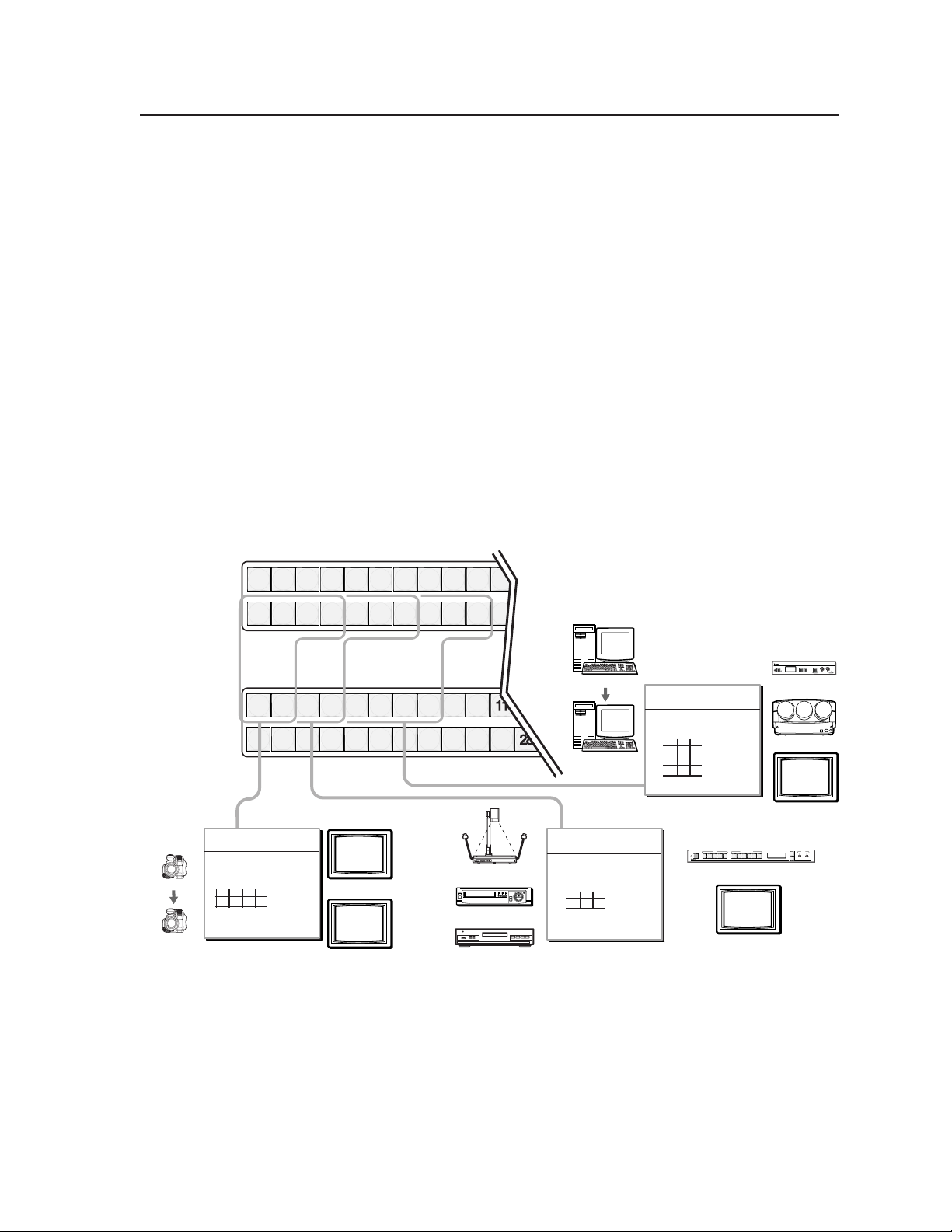

Figure 1-1 — Typical CrossPoint 450 Plus matrix switcher application

CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction1-2

essive

RECORDING

-RW/-R D DV

Precision Cinema Progr

Student

Computer

Internet

Connection

Student

Computer

Student

Computer

Instructor Computer

CRT

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Projector

Monitor

Extron Mav Plus 1616 HDA

Matrix Switcher

LCD

Projector

D E

T S I L

3 2 T

. 1

E . T .

16 Outputs

1 1

INPUTS Y

1 1

C INPU

1 1

INP

B Y

4 1

2 1

Sound System

LAN

3 1

1 1

14 16

Y OUTPUTS

3 1

2 5 1

3 1

2 5 1

3 1

2 5 1

3 1

14 16

P U T S

I N P U T S

SYNC

TPU U

C O

RESET

3 1

16 1 1

LAN

B Y OUTPU

3 1

RS232/RS422

REMOTE

2 1

Ethernet

System Control

16 Inputs

VCR

Video Camera

-RW/-R RECORDING

DVD

Precision Cinema Progressiv

DVD Player

Figure 1-2 — Typical MAV Plus matrix switcher application

All of the matrix switchers are available in a variety of matrix sizes (the matrix size is the number of inputs and outputs).

CrossPoint 450 Plus series switchers offer two models of each matrix size:

• HVA for switching RGBHV video and two-channel stereo audio

• HV for switching RGBHV video signals only

MAV Plus series switchers offer multiple models of all matrix sizes, with one, two, or three (MAV Plus 1616 and smaller) video planes, to support different low resolution video formats (exceptions are noted in MAV Plus switchers on page 1-6):

• HDA for switching component/HDTV video and two-channel stereo audio

• HD for switching component/HDTV video signals only

• SVA for switching S-video and two-channel stereo audio

• SV for switching S-video signals only

• AV for switching composite video and two-channel stereo audio

• V for switching composite video signals only

• A for switching two-channel stereo audio only

1-3CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction

Introduction, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

All audio models, with the exception of the MAV Plus 128 AV RCA, input and output audio on 3.5 mm, 5-pole captive screw terminals. The MAV Plus 128 AV RCA inputs and outputs audio on RCA connectors.

For all switchers with video and audio, the audio switching can either be linked with the video (audio follow) or independent of the video (audio breakaway). Adjustable input audio gain and attenuation compensates for level differences between audio inputs.

Each matrix switcher can be remotely controlled via its Ethernet port and its RS-232/RS-422 port. The matrix switchers are programmed with Extron’s Simple Instruction Set™ (SIS™), a set of basic ASCII code commands that provide simple control through a control system or PC without programming long, obscure strings of code. SIS commands can be entered via either the Ethernet link or the RS-232/RS-422 link.

The Ethernet port can be connected through a local area network (LAN) or wide area network (WAN).

The CrossPoint 450 Plus or MAV Plus switcher features e-mail notification of maintenance or other concerned personnel concerning the status of the power supplies and fans and the loss or resumption of sync on individual inputs.

The RS-232/RS-422 port can be connected to a control system, a PC, or Extron’s MCP 1000 remote control panel and/or MKP 1000 remote keypad.

The matrix switchers are housed in rack-mountable, metal enclosures with 19” rack ears. The amount of vertical rack space required for each switcher is as follows:

In this manual, the term “video model” refers to any CrossPoint 450 Plus or MAV Plus switcher that switches video.

In this manual, the term “audio model” refers to any CrossPoint 450 Plus or MAV Plus switcher that switches audio.

• 2U high enclosure

! MAV Plus 88 and 128 HDA, HD, SVA, and SV switchers ! MAV Plus 88, 128, 816, 168, and 1616 AV, AV RCA, V, and A switchers

• 3U high enclosure

! CrossPoint 450 Plus 84, 88, 124, and 128 HV and HVA switchers ! MAV Plus 168, 816, and 1616 SVA and SV switchers

• 4U high enclosure

! MAV Plus 168, 816, and 1616 HDA and HD switchers

• 5U high enclosure

! MAV Plus 2412, 2424, 3216, and 3232 SV, AV, V, and A switchers

• 6U high enclosure

! CrossPoint 450 Plus 816, 168, and 1616 HV and HVA switchers

• 8U high enclosure

! CrossPoint 450 Plus 2412 and 2424 HV and HVA switchers ! MAV Plus 2412, 2424, 3216, and 3232 SVA switchers

• 10U high enclosure

! CrossPoint 450 Plus 3216 and 3232 HV and HVA switchers

The appropriate rack mounting kit is included with each switcher.

CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction1-4

Each model has an internal 100 VAC to 240 VAC, 50/60 Hz, auto switchable power

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

supply that provides worldwide power compatibility. The CrossPoint 450 Plus 2412, 2424, 3216, and 3232 and MAV Plus 2412, 2424, 3216, and 3232 each have two, primary and redundant, power supplies. The power rating of the power supplies for the various switchers is as follows:

• 15 watts

! MAV Plus 128 AV RCA

• 20 watts

! MAV Plus 168 and 1616 HDA, HD, SVA, SV, AV, V, and A switchers

• 30 watts

! CrossPoint 450 Plus 84, 88, 124, and 128 ! MAV Plus 88 and 128 HDA, HD, SVA, SV, AV, V, and A switchers

• 36 watts

! CrossPoint 450 Plus 816, 168, and 1616

• 100 watts

! MAV Plus 2412, 2424 AV, V, and A switchers

• 120 watts

! MAV Plus 3216, 3232 AV, V, and A switchers

• 150 watts

! CrossPoint 450 Plus 2412, 2424 ! MAV Plus 2412, 2424, 3216, 3232 SV and SVA switchers

• 180 watts

! CrossPoint 450 Plus 3216, 3232

CrossPoint 450 Plus switchers

There are 11 CrossPoint 450 Plus series matrix sizes available, each in an HVA (RGBHV video and audio) and HV (RGBHV video only) model:

• CrossPoint 450 Plus 84 (8 inputs by 4 outputs)

• CrossPoint 450 Plus 88 (8 inputs by 8 outputs)

• CrossPoint 450 Plus 816 (8 inputs by 16 outputs)

• CrossPoint 450 Plus 124 (12 inputs by 4 outputs)

• CrossPoint 450 Plus 128 (12 inputs by 8 outputs)

• CrossPoint 450 Plus 168 (16 inputs by 8 outputs)

• CrossPoint 450 Plus 1616 (16 inputs by 16 outputs)

• CrossPoint 450 Plus 2412 (24 inputs by 12 outputs)

• CrossPoint 450 Plus 2424 (24 inputs by 24 outputs)

• CrossPoint 450 Plus 3216 (32 inputs by 16 outputs)

• CrossPoint 450 Plus 3232 (32 inputs by 32 outputs) The CrossPoint 450 Plus Series have a minimum bandwidth of 425 MHz (-3 dB).

All models can also switch RGBS, RGsB, RsGsBs, HDTV, component video, S-video, and composite video.

1-5CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction

Introduction, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

MAV Plus switchers

There are 56 different MAV Plus models available, in a combination of matrix sizes and low resolution video formats, with or without audio or with audio only. The various matrix sizes and video formats are as follows:

• MAV Plus 88 (8 inputs by 8 outputs)

! HDA (component/HDTV video and audio) ! HD (component/HDTV video only) ! SVA (S-video and audio) ! SV (S-video only) ! AV (composite video and audio) ! V (composite video only) ! A (audio only)

• MAV Plus 128 (12 inputs by 8 outputs)

! HDA ! HD ! SVA ! SVA ! AV ! V ! A

• MAV Plus 128 AV RCA (12 inputs by 8 outputs)

! AV (with RCA audio connectors)

• MAV Plus 816 (8 inputs by 16 outputs)

! HDA ! HD ! SVA ! SVA ! AV ! V ! A

• MAV 168 Plus (16 inputs by 8 outputs)

! HDA ! HD ! SVA ! SVA ! AV ! V ! A

• MAV 1616 Plus (16 inputs by 16 outputs)

! HDA ! HD ! SVA ! SVA ! AV ! V ! A

• MAV 2412 Plus (24 inputs by 12 outputs)

! SVA ! SV ! AV ! V ! A

• MAV 2424 Plus (24 inputs by 24 outputs)

! SVA ! SV ! AV ! V ! A

CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction1-6

• MAV 3216 Plus (32 inputs by 16 outputs)

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

• MAV 3232 Plus (32 inputs by 32 outputs)

MAV Plus HDA and HD switchers can also route low resolution RGsB and RsGsBs video signals. HDA and HD switchers can also route multiple composite video planes or S-video and composite video. If used in this way, the various video planes cannot be broken away; the input signals on the Y, R-Y, and B-Y input BNCs must be routed to the same outputs.

MAV Plus SVA and SV switchers can also be used to switch two planes of composite video. If used in this way, the two video planes cannot be broken away; the input signals on the luma and chroma input BNCs must be routed to the same outputs.

The MAV Plus Series have a bandwidth of 150 MHz (-3 dB).

Definitions

The following terms, which apply to Extron matrix switchers, are used throughout this manual:

! SVA ! SV ! AV ! V ! A

Tie — An input-to-output connection. Set of ties — An input tied to two or more outputs. (An output can never be tied

to more than one input.)

Configuration — One or more ties or one or more sets of ties. Current configuration — The configuration that is currently active in the

switcher (also called configuration 0)

Global memory preset — A configuration that has been stored. Up to 32 global

memory presets can be stored in memory. Preset locations are assigned to

the input buttons and (where necessary) output buttons. Up to 20 or 32 (depending on the number of input and output buttons) presets can be selected from the front panel for either saving or retrieving. When a preset is retrieved from memory, it becomes the current configuration. All models have 32 presets; on models with fewer than 32 input and output buttons, preset numbers that are too high to be available from the front panel are still accessible under RS-232/RS-422 or Ethernet control.

1-7CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction

Introduction, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Features

Video — All switchers input and output video on BNC connectors.

CrossPoint 450 Plus — These switchers input and output wideband RGBHV or

RGBS video. They can also switch RGsB, RsGsGs, component/HDTV, S-video, or composite video.

MAV Plus — These switchers input and output NTSC 3.58, NTSC 4.43, PAL, or

SECAM video or HDTV video inputs. Depending on the video format of the switcher, these switchers can distribute low resolution RGsB, RsGsGs, component/HDTV, S-video, or composite video.

Bandwidth —

CrossPoint 450 Plus — The CrossPoint 450 Plus Series switchers provide a

minimum of 425 MHz (-3 dB) video bandwidth, fully loaded.

MAV Plus — The MAV Plus switchers provide a minimum of 150 MHz (-3 dB)

video bandwidth, fully loaded.

Audio inputs (audio models only) —

All audio models, with the exception of the MAV Plus 128 AV RCA — Input

and output stereo audio, balanced or unbalanced, on 3.5 mm, 5-pole captive screw terminals.

MAV Plus 128 AV RCA — Input and output unbalanced stereo audio on left and

right RCA connectors.

Audio input gain/attenuation (audio models only) — Individual input audio

levels can be adjusted so there are no noticeable volume differences between sources. Users can set the input level of audio gain or attenuation (-18 dB to +24 dB) via the Ethernet link, RS-232/RS-422 link, or the front panel.

Audio output volume (audio models) — The audio volume of each output can be

displayed and adjusted through a range of full output to completely silent from the front panel or under RS-232/RS-422 or Ethernet control.

CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction1-8

Digital Sync Validation Processing (DSVP™) (CrossPoint 450 Plus switchers) —

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

In critical environments or unmanned, remote locations, it may be vital to know that sources are active and switching. Extron’s DSVP confirms that input sources are active by scanning all sync inputs for active signals. DSVP provides instantaneous frequency feedback for composite sync or separate horizontal and vertical sync signals via the switcher’s RS-232/RS-422 or Ethernet port. The frequency information can be displayed on any control system or in a Windows

-based control program on a local-area network

(LAN) or Internet (IP) connection (figure 1-3).

Input # 01

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input Horz. Vert. 01 31.50 60.00 02 31.50 60.00 03 31.50 60.00 04 48.01 67.50 05 48.01 67.50 06 48.01 67.50 07 48.01 67.50 08 61.55 72.00 09 61.55 72.00 10 61.55 72.00 11 61.55 72.00 12 61.55 72.00

MATRIX INPUT STATUS

Input # 01

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 05

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 09

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 02

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 06

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 10

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 03

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 07

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 11

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Sample control system panel

Input # 04

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 08

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Input # 12

Signal: PRESENT Sync Type: H&V Vertical Freq.: 60 Hz Horz Freq.: 31.5 kHz

Figure 1-3 — DSVP data display

Rooming — Each switcher can be programmed to group multiple outputs to

Switching flexibility — Provides individually buffered, independent matrix

Windows-based control program

specific “rooms”, allowing them to have their own presets.

switched outputs with audio follow and audio breakaway for audio models.

• Tie any input to any or all outputs

• Quick multiple tie — Multiple inputs can be switched to multiple outputs simultaneously. This allows all displays (outputs) to change from source to source at the same time.

• Audio follow — Audio can be switched with its corresponding video input via front panel control or under Ethernet or RS-232/RS-422 remote control.

• Audio breakaway — Audio can be broken away from its corresponding video signal. This feature allows any audio signal to be selected with any video signal simultaneously to one or all outputs in any combination. Audio breakaway switching can be done via front panel control or under Ethernet or RS-232/RS-422 remote control.

1-9CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction

Introduction, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Operational flexibility — Operations such as input/output selection, setting of

presets, and adjustment of audio levels can be performed on the front panel or via the Ethernet or RS-232/RS-422 link. The RS-232/RS-422 links allow remote control via a PC or control system. The Ethernet link allows multiple remote links with two levels of password protection.

• Front Panel Controller — The front panel controller supports input and output selection, I/O grouping, preset creation and selection, RGB delay, and audio gain and attenuation and volume control (audio models). The front panel features illuminated pushbuttons that can be labeled with text or graphics.

• Windows-based control program — For RS-232/RS-422 remote control from a PC, the Extron Windows-based control software provides a graphical interface and drag-and-drop/point-and-click operation. The Windows-based control program also has an emulation mode that lets you create a switcher configuration file at the home office and then download it for use by the switcher on site.

• Simple Instruction Set (SIS™) — The remote control protocol uses Extron’s SIS for easy programming and operation.

• Remote control panels and keypads — The matrix switchers are remote controllable, using the optional MCP 1000 master control panel and any combination of optional MCP 1000 slave control panels and/or MKP 1000 slave control keypads. The remote control devices are easy to use and provide tactile buttons for quick selection. Each MCP 1000 can be used for one-touch switching for a particular output and selecting global presets. Each MKP 1000 dedicated to an output can be used to select a different input for that output or to select a preset.

Upgradeable firmware — The firmware that controls all switcher operation can be

upgraded in the field via RS-232/RS-422 or Ethernet, without taking the switcher out of service, opening the switcher enclosure, and replacing the firmware chip. Firmware upgrades are available for download on the Extron Web site, www.extron.com and they can be installed using the Windowsbased control program.

Labeling — Extron’s included label software lets you create labels to place in the

front panel I/O buttons, with names, alphanumeric characters, or color bitmaps for easy and intuitive input and output selection. Alternatively, labels can be made with any Brother™ P-Touch™ or comparable labeler.

Global memory presets — 20 or 32 (depending on the model) global memory

presets are a time-saving feature that lets you set up and store input/output configurations in advance. You can then recall those configurations, when needed, with a few simple steps.

Rack mounting — Rack mountable in any conventional 19” wide rack. Front panel security lockout (Executive mode) — If a matrix switcher is installed in

an open area, where operation by unauthorized personnel may be a problem, a security lockout feature can be implemented. When the front panel is locked, a special button combination or SIS command is required to unlock the front panel controller before it can be operated.

I/O grouping — Allows the matrix to be virtually divided into smaller

sub-switchers, making installation and control easier. I/O grouping allows specific outputs, such as those designated for a specific purpose, to be grouped together.

CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction1-10

Power — The matrix switchers’ 100 VAC to 240 VAC, auto-switchable, internal

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

power supply(s) provides worldwide power compatibility.

Primary and redundant power supplies —

(CrossPoint 450 Plus and MAV Plus 2412, 2424, 3216, and 3232 switchers only)

Includes two internal 100 VAC to 240 VAC, 50/60 Hz, auto-switchable power supplies, which provide worldwide power compatibility.

The power supply circuitry is configured to automatically switch over from the primary supply to the hot redundant supply in the case of a failure.

The ready hot redundant power supply means high reliability for the system and no loss of functionality should the primary supply fail; the redundant power supply immediately assumes the load.

Power supply status LEDs —

(CrossPoint 450 Plus and MAV Plus 2412, 2424, 3216, and 3232 switchers only)

Front panel LEDs indicate the status of the primary and redundant power supplies.

1-11CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction

Introduction, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

CrossPoint 450 Plus and MAV Plus Matrix Switchers • Introduction1-12

CrossPoint 450 Plus and MAV Plus Switchers

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Chapter Two

Installation

Mounting the Switcher

Rear Panel Views

Connections

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Installation

Mounting the Switcher

The matrix switchers are housed in rack-mountable, metal enclosures with 19" rack ears. The amount of vertical rack space required for each switcher is as follows:

• 2U high enclosure

! MAV Plus 84, 88, 124, and 128 HDA, HD, SVA, and SV switchers ! MAV Plus 84, 88, 124, 128, 816, 168, and 1616 AV, AV RCA, V, and A

• 3U high enclosure

! CrossPoint 450 Plus 84, 88, 124, and 128 HV and HVA switchers ! MAV Plus 168, 816, and 1616 SVA and SV switchers

• 4U high enclosure

! MAV Plus 168, 816, and 1616 HDA and HD switchers

• 5U high enclosure

! MAV Plus 2412, 2424, 3216, 3232 AV, V, and A switchers

• 6U high enclosure

! CrossPoint 450 Plus 816, 168, and 1616 HV and HVA switchers

• 8U high enclosure

! CrossPoint 450 Plus 2412 and 2424 HV and HVA switchers

switchers

• 10U high enclosure

! CrossPoint 450 Plus 3216 and 3232 HV and HVA switchers

If desired, rack mount the switcher as follows:

1. Insert the switcher into the rack, aligning the holes in the mounting bracket with those in the rack.

2. Secure the switcher to the rack using the supplied bolts.

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-2

Rear Panel Views

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

All connectors for all switchers are on the rear panel. Figure 2-1 through figure 2-10 show a representative sampling of all of the matrix switchers described in this manual. See Connections, on page 2-8, for connecting cables to the rear panel connectors.

CAUTION

Use Electrostatic discharge precautions (be electrically grounded) when making connections. Electrostatic discharge (ESD) can damage equipment, even if you cannot feel, see, or hear it.

CAUTION

Remove system power before making all connections.

CrossPoint 450 Plus switchers

Figure 2-1 shows the CrossPoint 450 Plus 3232 HVA RGB video and stereo audio matrix switcher.

The CrossPoint 450 Plus 2412, 2424, and 3216 are housed in the same 10U or similar 8U enclosure, but have fewer output connectors to accommodate their smaller matrix sizes.

INPUTSINPUTS

RED GREEN

OUTPUTS

L1R L2R L3R

ANAHEIM, CA

L17R L18R L19R

L2R

L1R

1.2A MAX

L9R L10R L11R

50/60Hz

100-240V

OUTPUTS OUTPUTS

L4R

L5R

L20R L21R L22R

L4R

L5R

L3R

L12R

L13R

L6R

L14R L15R

L7R

L23R

L7R L8R

L8R

L24R

L16R

BLUE SYNC

L9R

L25R L26R L27R

L9R

L25R L26R L27R

Ω

12345678 12345678

OUTPUTS OUTPUTS

L10R L11R

L10R

L11R

L12R L13R

L28R L29R L30R

L12R L13R

L28R L29R

L14R L15R L16R

L31R

L15R L16R

L14R

L30R L31R

INPUTSINPUTSINPUTS

Ω

V SYNC

L32R

I N P U T S

RESET

O U T P

ETHERNET

U T S

REMOTE

ACT

LINK

RS 232/422

Figure 2-1 — CrossPoint 450 Plus 3232 HVA matrix switcher

2-3CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Figure 2-2 shows the CrossPoint 450 Plus 1616 HVA RGB video and stereo audio matrix switcher.

The CrossPoint 450 Plus 816 and 168 are housed in the same 6U enclosure, but have fewer output connectors to accommodate their smaller matrix sizes.

INPUTS

7856341

INPUTS

7856341

13 57 9613

1516131411129

13 57 9613

OUTPUTS

7856341

OUTPUTS

1516131411129

RESET

LAN

4 3 5

Figure 2-2 — CrossPoint 450 Plus 1616 HVA matrix switcher

Figure 2-3 shows the CrossPoint 450 Plus 128 HVA RGB video and stereo audio matrix switcher.

The CrossPoint 450 Plus 84, 88, and 124 are housed in the same 3U enclosure, but have fewer output connectors to accommodate their smaller matrix sizes.

LINK

ACT

Figure 2-3 — CrossPoint 450 Plus 128 HVA matrix switcher

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-4

12345678

INPUTS

45678

9101112

INPUTS

H SYNC V SYNC

9101112

12 34 5678

4 5

OUTPUTS

RESET

LINK

LAN

ACT

MAV switchers

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Figure 2-4 shows the MAV Plus 3232 SVA S-video and stereo audio switcher.

The MAV Plus 2412, 2424, and 3216 are housed in a similar 8U enclosure, but have fewer input and/or output connectors to accommodate their smaller matrix sizes.

O U T P

U T S

O U T P

U T S

L9R

L25R L26R L27R

L9R

L25R L26R L27R

L1R

L17R

L1R

L17R

L2R L3R

L18R

L2R L3R

L18R

ANAHEIM, CA

100-240V 50/60Hz

1.2A MAX.

711

128

L4R L5R

L20R

L19R

L4R L5R

L20R L21R

L19R

15 19

16128

17 21 25

15 19

L6R L7R L8R

L21R

L22R

L6R

L22R

21 25

221814

L23R L24R

L7R

L8R

L23R L24R

I N P

U T S

3228

I N P

U T S

3228

INPUTS

OUTPUTS

711

128

L10R

L11R

L10R

L11R

15 19

16128

17 21 25

15 19

L12R L13R

L28R

L29R

L12R L13R

L28R L29R

21 25

221814

L14R L15R

L30R L31R

L14R L15R

L31R

L30R

3228

L16R

L32R

L16R

L32R

SYNC

RESET

LAN

REMOTE

RS232/RS422

Figure 2-4 — MAV Plus 3232 SVA matrix switcher

Figure 2-5 shows a portion of the MAV Plus 3232 AV composite video matrix switcher without audio and a portion of the MAV Plus 3232 A audio-only matrix switcher.

11 10

Figure 2-5 — MAV Plus 1616 matrix switchers, various video formats

MAV Plus 3232 V

ANAHEIM, CA

100-240V 50/60Hz

1.2A MAX.

Both of these switchers feature the same matrix size as figure 2-4, but with composite video format and without audio and in a 5U enclosure.

MAV Plus 3232 A

711

15 19

16128

17 21 25

221814

L6R L7R

L15R

L23R

L22R

L30R L31R

ANAHEIM, CA

L2R L3R

L1R

L9R L10R L11R

L17R

L25R L26R L27R

L18R

L4R L5R

L12R L13R L14R

L20R

L19R

L28R

L21R

L29R

100-240V 50/60Hz

1.2A MAX.

2-5CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Figure 2-6 shows a MAV Plus 1616 HDA component/HDTV video and stereo audio switcher.

The rear panel of the MAV Plus 816 and 168 models have the same features as the MAV Plus 1616 series models (figure 2-6 and figure 2-7), with the exception of fewer inputs or outputs.

LISTED 1T23

U S

I.T.E.

13 57 9613

Y INPUTS

R-Y INPUTS

B-Y INPUTS

13 15

14 16

13 15

14 16

13 15

14 16

I N P U

T S

O U T P U T S

Y OUTPUTS

R-Y OUTPUTS

B-Y OUTPUTS

13 15

14 16

SYNC

RESET

REMOTE

RS232/RS422

4 5

Figure 2-6 — MAV Plus 1616 HDA matrix switcher

Figure 2-7 shows a portion of the MAV Plus 1616 SVA S-video and stereo audio matrix switcher, a portion of the MAV Plus 1616 V composite video matrix switcher without audio, and a portion of the MAV Plus 1616 A audio-only matrix switcher.

All of these switchers feature the same matrix size as figure 2-6, but with different video formats and with or without audio.

MAV Plus 1616 SVA

13 57 9613

LISTED 1T23

I.T.E.

MAV Plus 1616 V

Y INPUTS

C INPUTS

LISTED 1T23

I N P U

T S

I.T.E.

MAV Plus 1616 A

LISTED 1T23

I.T.E.

13 57 9613

INPUTS

I N P U

T S

Figure 2-7 — MAV Plus 1616 matrix switchers, various video formats

Figure 2-8 shows a MAV Plus 128 AV RCA composite video and stereo audio (with inputs and outputs on RCA connectors) matrix switcher.

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-6

1 2

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

OUTPUTS

SYNC

RESET

LAN

REMOTE

RS232/RS422

LISTED 1T23

I.T.E.

INPUTS

1 2

6 7

Figure 2-8 — MAV Plus 128 AV RCA matrix switcher

Figure 2-9 shows a MAV Plus 128 HDA component/HDTV video and stereo audio matrix switcher.

The MAV Plus 88 models are housed in the same 2U enclosure, but have fewer input and/or output connectors to accommodate the different matrix sizes they provide.

123

LISTED 1T23

I.T.E.

12 34 567 8

91011

9101112

12 34 567 8

SYNC

RESET

LAN

REMOTE

RS232/RS422

11 10

9 8

11 10

9 8

4 5

Figure 2-9 — MAV Plus 128 HDA matrix switcher

Figure 2-10 shows a portion of the MAV Plus 128 SV S-video matrix switcher without audio, a portion of the MAV Plus 128 AV composite video and stereo audio matrix switcher, and a portion of the MAV Plus 128 A audio-only matrix switcher.

All of these switchers feature the same matrix size as figure 2-9, but with different video formats and with or without audio.

MAV Plus 128 AV

MAV Plus 128 SV

LISTED 1T23

I.T.E.

123

LISTED 1T23

I.T.E.

123

12 34 567

MAV Plus 128 A

123

LISTED 1T23

I.T.E.

12 34 567

Figure 2-10 — MAV Plus 128 matrix switchers, various video formats

2-7CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Connections

CAUTION

Video input and output (video switchers)

RGBHV (CrossPoint 450 Plus switchers only)

The switcher can connect to up to as many as 32 RGBHV video sources, depending on the model. The switcher can output to as many as 32 RGBHV video devices, depending on the model.

Use Electrostatic discharge precautions (be electrically grounded) when making connections. Electrostatic discharge (ESD) can damage equipment, even if you cannot feel, see, or hear it.

Remove system power before making all connections.

The switchers do not alter the video signal in any way. The signal output by the switcher is in the same format as the input.

On CrossPoint 450 Plus matrix sizes of 8 x 16 and larger, the connectors for each video plane are grouped together (all of the red inputs grouped together, all of the green inputs grouped, and so on). Ensure that you connect the input on each video plane to the corresponding connector in the correct group (see figure 2-11).

The CrossPoint 450 Plus switchers can also switch RGBS, RGsB, RsGsBs, component video, S-video, or composite video by using four, three, two, or one BNC(s). If switching a video format other than RGBHV, ensure that the same video planes (R, G, B, H/HV, and/or V) are used on the switcher output as on the input.

Video inputs — Connect RGB video, component/HDTV video, S-video, or

composite video inputs, as applicable, to these BNC connectors for each input. Figure 2-11 shows how to connect the RGB video format to each configuration.

Video outputs — Connect RGB video, component/HDTV video, S-video, or

composite video displays, as applicable, or other devices to these BNC connectors for each output. Figure 2-11 shows how to connect the RGB video format to each configuration.

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-8

Input 1

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

2 3 4

1 1 1

22 3

OUTPUTS

Output 1

INPUTSINPUTS

RED

GREEN

OUTPUTS OUTPUTS

2 3 4 22 3

Input or output 1

CrossPoint 450 Plus

2412, 2424, 3216, 3232

INPUTS

BLUE

Input or output 1

CrossPoint 450 Plus

84, 88, 124, 128

H HV

OUTPUTS

CrossPoint 450 Plus 816, 168, 1616

Figure 2-11 — CrossPoint 450 Plus RGB connections

2-9CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Video (MAV Plus switchers only)

The switcher can connect to up to as many as 32 S-video or composite video or up to 16 component/HDTV video, S-video, or composite video sources, depending on the model. The switcher can output to as many as 32 S-video or composite video or up to 16 component video, S-video, or composite video devices, depending on the model.

Video inputs — Connect component/HDTV video (figure 2-12),

S-video (figure 2-13), or composite video (figure 2-14) inputs, as applicable, to these BNC connectors for each input.

Video outputs — Connect component/HDTV video (figure 2-12),

S-video (figure 2-13), or composite video (figure 2-14) displays, as applicable, or other devices to these BNC connectors for each output. Figure 2-14 shows how to connect the various video formats to each MAV Plus configuration.

Video input and output connections are made with female BNC connectors. Some video input and output devices do not have BNC video output connectors. For these cases, a suitable cable or connector adapter is necessary. The part number for the Extron RCA-to-BNC adapter is 10-229-01.

The connectors for each video plane are grouped together (for example, for component/HDTV switchers, all of the Y inputs grouped together, all of the R-Y inputs grouped, and so on). Ensure that you connect the input on each video plane to the corresponding connector in the correct group (figure 2-12, through figure 2-14, below and on the next page).

The S-video (figure 2-13) and composite video (figure 2-14) connection drawings are all on the next page.

MAV Plus 88, 128

R-Y

B-Y

Component/HDTV video

HDA and HD

MAV Plus 816, 168, 1616 HDA and HD Component/HDTV video

Figure 2-12 — MAV Plus component/HDTV video connections

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-10

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

O U T

MAV Plus 2412, 2424,

MAV Plus 816, 168, 1616 SVA and SV

S-video 3216, 3232 SVA and SV S-video

Figure 2-13 — MAV Plus S-video connections

MAV Plus 88, 128

SVA and SV

S-video

O U

MAV Plus 2412, 2424, 3216, 3232 AV and V

MAV Plus 816, 168, 1616 AV and V Composite video

Composite video

Figure 2-14 — MAV Plus video connections

MAV Plus 88, 128

HDA and HD

Composite video

2-11CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Sync termination switches (CrossPoint 450 Plus only)

Sync termination switches — The CrossPoint 450 Plus matrix switchers have

sync termination switches on the rear panel for inputs 1 through 8 (CrossPoint 450 Plus 2412, 2424, 3216, and 3232) or inputs 1 through 4 (CrossPoint 450 Plus 84, 88, 124, 128, 816, 168, 1616). The switches (figure 2-15) provide a way to condition non-TTL sync levels greater than 5 Vp-p, enabling the sync to be properly passed from input to selected output(s). The matrix switchers have two sets of sync termination switches; one for horizontal or combined sync and a second set for vertical sync.

12345678 12345678

INPUTSINPUTS

Ω

H HV

SYNC

Ω

V SYNC

OUTPUTS OUTPUTS

2 3

2412, 2424, 3216, and 3232

CrossPoint 450 Plus

2 3

H SYNC V SYNC

CrossPoint 450 Plus

816, 168, and 1616

Figure 2-15 — Sync termination switches

Each switch provides the option of selecting either 510 ohms or 75 ohms. The 75 ohms position is required only for an input with non-TTL sync, greater than 5 V p-p. The normal position is 510 ohms.

An input that produces an out of sync display, a display that is rolling vertically and/or tearing horizontally, could indicate a non-TTL sync input. A device that is known to output non-TTL sync levels (greater than 5V p-p) should be connected to one of the inputs with sync termination switches, and the switches for that input should be set to the 75 ohm position. If you are not sure, check the specifications in the user’s manual for the input device.

CrossPoint 450 Plus

84, 88, 124, and 128

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-12

Audio input and output (audio models only)

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

By default, the audio ties follow the video ties. Audio breakaway, which can be activated via the front panel or under Ethernet or RS-232/RS-422 control, allows you to select from any one of the audio input sources and route it separately from its corresponding video source. See chapter 3, Operation, chapter 4, Programmer’s Guide, chapter 5, Switcher Software, and chapter 6, HTML Operation for details.

Captive screw connector models (all except MAV Plus 128 AV RCA)

Connections for balanced and unbalanced audio inputs — Each input has a

3.5 mm, 5-pole captive screw connector for balanced or unbalanced stereo audio input. Connectors are included with each switcher, but you must supply the audio cable. See figure 2-16 to wire a connector for the appropriate input type and impedance level. High impedance is generally over 800 ohms.

Tip

Sleeve

Tip

Sleeve

Unbalanced Input

(high impedance)

Tip

Ring

Sleeve (s)

Tip

Ring

Balanced Input

(high impedance) (600 ohms)

Sleeve (s)

Tip

Ring

Tip

Ring

Balanced Input

600 ohms

Figure 2-16 — Captive screw connector wiring for audio inputs

CAUTION

The captive screw audio connector can easily be inadvertently plugged partially into one receptacle and partially into an adjacent receptacle. This misconnection could damage the audio output circuits. Ensure that the connector is plugged fully and only into the desired input or output.

See figure 2-17 to identify the tip, ring, and sleeve when you are making connections for the switcher from existing audio cables. A mono audio connector consists of the tip and sleeve. A stereo audio connector consists of the tip, ring and sleeve. The ring, tip, and sleeve wires are also shown on the captive screw audio connector diagrams, figure 2-16 and figure 2-18.

Tip (+)

Sleeve ( )

RCA Connector

Ring (-)

3.5 mm Stereo Plug Connector

Sleeve ( )

(balanced)

Figure 2-17 — Typical audio connectors

The audio level for each input can be individually set via the front panel or Ethernet or RS-232/RS-422 control to ensure that the level on the output does not vary from input to input. See chapter 3, Operation, chapter 4, Programmer’s Guide, chapter 5, Switcher Software, and chapter 6, HTML Operation for details.

2-13CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Connections for balanced and unbalanced audio outputs — These 3.5 mm,

5-pole captive screw connectors output the selected unamplified, line level audio. Connect audio devices, such as an audio amplifier or powered speakers. See figure 2-18 to properly wire an output connector.

See caution

Sleeve

See caution

Tip

Ring

Sleeve (s)

Ring

Tip

Unbalanced Output

Figure 2-18 — Captive screw connector wiring for audio output

CAUTION

Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.

The volume level for each output can be individually set via the front panel or Ethernet or RS-232/RS-422 control. See chapter 3, Operation, chapter 4,

Programmer’s Guide, chapter 5, Switcher Software, and chapter 6, HTML Operation for details.

RCA connector model (MAV Plus 128 AV RCA)

Connections for unbalanced audio inputs — Each input has a pair, left and

right, of female RCA connectors for unbalanced stereo audio input. Connections for unbalanced audio outputs — Each output has a pair, left

and right, of female RCA connectors for unbalanced stereo audio output.

RS-232/RS-422

RS-232/RS-422 connector — Connect a host device, such as a computer, touch

panel control, or RS-232 capable PDA to the switcher via this 9-pin D connector for serial RS-232/RS-422 control (figure 2-19).

All Models

REMOTE

RS-232 FunctionPin RS-422Function

—

RS232/RS422

2 3 4 5 6 7 8 9

—

Gnd

— — — —

Not used Transmit data Receive data Not used Signal ground Not used Not used Not used Not used

RS-422 Function

Balanced Output

84 through 1616

Matrix Sizes

—

Not used

TX–

Transmit data (–)

RX–

Receive data (–)

—

Not used

Gnd

Signal ground

—

Not used

RX+

Receive data (+)

TX+

Transmit data (+)

—

Not used

2412 through 3232

Matrix Sizes

Transmit data (+)

TX+

Transmit data (–)

TX–

Receive data (+)

RX+

Receive data (–)

RX–

Signal Ground

Gnd

Not used

—

Not used

—

Not used

—

Not used

—

Figure 2-19 — RS-232/RS-422 connector

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-14

See chapter 4, Programmer’s Guide, for definitions of the SIS commands (serial commands to control the switcher via this connector) and chapter 5, Matrix

Software for details on how to install and use the control software.

The switcher can support either the RS-232 or RS-422 serial communication protocol, and operate at 9600, 19200, 38400, or 115200 baud rates. See Selecting the RS-232/RS-422 protocol and baud rate in chapter 3,

Operation, to configure the RS-232/RS-422 port from the front panel.

If desired, connect an MCP 1000 remote control panel master unit to the

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

switcher’s RS-232/RS-422 connector. You can also connect an MKP 1000 remote keypad or MCP 1000 slave unit to the MCP 1000 master unit. Refer to the MCP 1000 Remote Control Panel User’s Manual and the MKP 1000 User’s Manual for details.

Ethernet

Ethernet port — If desired, connect the matrix switcher to a PC or to an

Ethernet LAN, via this RJ-45 connector. You can use a PC to control the networked switcher with SIS commands from anywhere in the

ACTLINK

ETHERNET

Cabling and RJ-45 connector wiring

It is vital that your Ethernet cables be the correct cables, and that they be properly terminated with the correct pinout. Ethernet links use Category (CAT) 5e or CAT 6, unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45 connectors. Ethernet cables are limited to a length 328’ (100 m).

world. You can also control the switcher from a PC that is either running Extron’s windows-based control program or that has downloaded HTML pages from the switcher.

Ethernet connection indicators — The Link and Act LEDs indicate the status of the Ethernet connection. The Link LED indicates that the switcher is properly connected to an Ethernet LAN. This LED should light steadily. The Act LED indicates transmission of data packets on the RJ-45 connector. This LED should flicker as the switcher communicates.

Do not use standard telephone cables. Telephone cables will not support Ethernet or Fast Ethernet.

Do not stretch or bend cables. Transmission errors can occur.

The cable used depends on your network speed. The switcher supports both 10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex and full-duplex, Ethernet connections.

2-15CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

• 10Base-T Ethernet requires CAT 3 UTP or STP cable at minimum.

• 100Base-T Fast Ethernet requires CAT 5e UTP or STP cable at minimum.

The Ethernet cable can be terminated as a straight-through cable or a crossover cable and must be properly terminated for your application (figure 2-20).

• Crossover cable — Direct connection between the computer and the CrossPoint 450 Plus or MAV Plus switcher.

• Patch (straight) cable — Connection of the CrossPoint 450 Plus or MAV Plus switcher to an Ethernet LAN.

Clip DownSide

1Pins 2345678

RJ-45 connector

Patch (straight) cable

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-orange 2 Orange 2 Orange 3 White-green 3 White-green 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Green 7 White-brown 7 White-brown 8 Brown 8 Brown

2345678

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-green

1&2

3&6 4&5

7&8

Twisted Pairs

2 Orange 2 Green 3 White-green 3 White-orange 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Orange 7 White-brown 7 White-brown 8 Brown 8 Brown

Figure 2-20 — RJ-45 connector and pinout tables

Crossover cable

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-16

Reset button

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Reset button — The Reset button initiates three levels of reset to the

matrix switcher. Press and hold the button while the switcher is running or while you power up the switcher for different reset levels.

See Reset button in chapter 3, Operation, for details.

• Events (mode 3) reset — Hold Reset for 3 seconds then release and push again to toggle events monitoring on and off.

• IP settings (mode 4) reset — Hold Reset for 6 seconds then release and push again to reset the switcher’s IP functions.

IP settings reset does not replace any user-installed firmware.

• Absolute (mode 5) reset — Hold Reset for 9 seconds then release and push again to restore the switcher to the default factory conditions.

• Hard reset — Hold Reset while powering up the switcher to restore the switcher to the default factory conditions.

External sync (MAV Plus video models only)

The MAV Plus switcher switches between inputs during the vertical interval period, resulting in glitch-free video switching. The MAV switcher can use an external signal to synchronize switching during the vertical interval. Without the external sync locking feature, switching between inputs can result in a brief rolling (sync loss) or a brief change in the picture size.

RESET

LAN

Ext(ernal) Sync connector — Connect an external sync signal to this BNC

connection for genlocking the video signal in broadcast or other sync-critical applications.

Figure 2-21 shows a basic external sync configuration. The Ext Sync connector receives the timing signal. A tee connector on the connector allows the signal to be passed on to another video device, if required. Terminate the tee connector if desired.

Extron

BBG 6 A

BLACK BURST/COLOR BAR /AUDIO GENERATOR

POWER

1 KHZ AUDIO

12V

+4dBu

0.5A MAX

-10dBV

NTSC

1 2 3

BLACKBURST/

PAL

COLORBAR

Connect to MAV Plus AV 3232.

432

BLACKBURST

RESET

ETHERNET

REMOTE

BBG 6 A

Black Burst Color Bar Audio Generator

OUT

EXT SYNC

LINK

ACT

Extron

RS232/RS-422

MAV Plus 3232

Matrix Switcher

Tee-connector

Terminate cable or connect to another device.

Figure 2-21 — Simple external sync connection example

2-17CrossPoint 450 Plus and MAV Plus Switchers • Installation

Installation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Figure 2-22 shows another configuration, in which the timing source passes through three video cameras and a video scan converter before connecting to the switcher. This type of video camera is capable of synchronizing with the external timing source for video editing applications.

Monitor

Extron

VGA Input

VSC 900D

Computer-to-Video

Extron

VCR

Scan Converter

MAV Plus AV 3232

Extron BBG 6 A

Black Burst/Color Bar/ Audio Generator

Matrix Switcher

9 2

5 2

7 1

3 1

EXT

SYNC

3 5 2

1 2

3 1

2218

7 2

3228

4 2

, M I

E H A

7 11

9 2

UTION AMPLIFIE

DISTRIB

5 2

0 3

6 2

3 1

22181

8 2

5 19 1

M I E H A

2 1

6 /

- A

. 1 1

z H 0 6 0/ 5

V 0 4

A 0 1

A .2 1

9 2

K N I

5 2

1 2

ETHERNET

7 1

6 2

3 1

RS-232/RS-422

1 3

REMOTE

181

7 2

3 2

0 1

5 1

4 2

R 1 1

YN S

U T P U T S

T C

128

K N

ETHERNET

R L

RS-232/RS-422

REMOTE

R L

Video Camera Video Camera Video Camera

0. V 40

0-2 10

H 0 6 / 0 5

O N L O

VIDE

O E D I V

H / H

B / B

Y / G

R / R

T P

U T S

H V /H

B /

H V

/H G Y /

-Y

/B R Y

R /

Y G-

, Y

, B-Y

/R-Y

R-Y /

RGB

I N P U

Figure 2-22 — Multiple device external sync connection example

If no external sync timing source is connected to the switcher, switching occurs immediately.

2 3 2

4 /

Power

AC power connector — Plug a standard IEC power cord into this connector

to connect the switcher to a 100 VAC to 240 VAC, 50 or 60 Hz power source.

CrossPoint 450 Plus and MAV Plus Switchers • Installation2-18

CrossPoint 450 Plus and MAV Plus Switchers

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Chapter Three

Operation

Front Panel Controls and Indicators

Front Panel Operations

Rear Panel Controls

Optimizing the Audio (Audio Switchers)

Troubleshooting

Configuration Worksheets

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Operation

Front Panel Controls and Indicators

The front panel controls (figure 3-1 through figure 3-3) are grouped into two sets. The input and output buttons are grouped on the left side of the control panel. The control buttons and video/audio (I/O) selection buttons are grouped on the right side of the panel.

The operation of the CrossPoint 450 Plus switchers and MAV Plus switchers is very similar. There are two exceptions:

• The video selection button is labeled “RGBHV” on the CrossPoint 450 Plus switchers and “Video” on the MAV Plus switchers.

• The MAV Plus switchers do not offer RGB delay switching.

While the number of inputs and outputs varies depending on the size of the matrix, there are only three front panel arrangements: 12 input buttons by 8 output buttons (figure 3-1), 16 by 16 (figure 3-2), and 32 by 32 (figure 3-3). See the table below to identify the front panel arrangements used by each switcher model.

On smaller matrix switchers, the larger-numbered buttons are not used for input and output selection, although they are used to select and indicate preset numbers, indicate the input audio level, and indicate the output audio volume.

Switcher

model

Panel

16 x 16

32 x 3212 x 8 Figure

CrossPoint 450 Plus

84, 88, 124, 128

MAV Plus

3-1

88, 128

CrossPoint 450 Plus

MAV Plus

3-2

816, 1616

CrossPoint 450 Plus

MAV Plus

3-3

2412, 2424, 3216, 3232

INPUTS

OUTPUTS

CONTROL

ENTER PRESET

ULTRA-WIDEBAND MATRIX SWITCHER WITH ADSP™ AND IP LINK™

ESC

VIDEO

VIEW

CROSSPOINT 450 PLUS SERIES

I/O

AUDIO

86543 7

Figure 3-1 — Front panel, CrossPoint 450 Plus 128 HVA

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-2

INPUTS

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

OUTPUTS

ENTER PRESET

CONTROL

VIEW

AV MATRIX SWITCHER WITH IP LINK™

ESC

VIDEO

MAV PLUS SERIES

I/O

AUDIO

86543 7

Figure 3-2 — Front Panel, MAV Plus 1616 HDA

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

ENTER

C O N T R O L

PRESET

RGBHV

I / O

AUDIO

ESC

VIEW

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Figure 3-3 — CrossPoint 450 Plus 3232 series front panel

The large, illuminated push buttons can be labeled with text and/or graphics. The buttons can be set to provide amber background illumination all the time or the background illumination can be turned off (see Background illumination, on page 3-48. The buttons blink or are lit at full intensity (depending on the operation) when selected.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

ULTRA-WIDEBAND MATRIX SWITCHER

POWER SUPPLY

PRIMARY

REDUNDANT

CROSSPOINT 450 PLUS SERIES

WITH

ADSP ™

AND

IP LINK ™

3-3CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Definitions

The following terms, which apply to Extron matrix switchers, are used throughout this manual:

Tie — An input-to-output connection. Set of ties — An input tied to two or more outputs. (An output can never be tied

to more than one input.)

Configuration — One or more ties or one or more sets of ties. Current configuration — The configuration that is currently active in the

switcher (also called configuration 0)

Global memory preset — A configuration that has been stored. Up to 32 global

memory presets can be stored in memory. Preset locations are assigned to

Room — A subset of outputs that are logically related to each other, as

determined by the operator. The switchers support up to 10 rooms, each of which can consist of from 1 to 16 outputs.

Room memory preset — A configuration consisting of outputs in a single room

that has been stored. When a room preset is retrieved from memory, it becomes the current configuration.

Input and output buttons

If the switcher has fewer inputs or outputs than input or output buttons, only the buttons for which the switcher has an input or output perform the function of selecting and identifying that input or output.

Input buttons — The input buttons have two primary functions (•) and four

secondary (❏) functions:

• Select an input.

• Identify the selected input.

❏ (Input 1 only) With the Output 1 button, select I/O Group mode. See I/O

grouping on page 3-21.

❏ Select a preset. See Using presets on page 3-27. ❏ (CrossPoint 450 Plus switchers, Input 1 through 10 only) Display the

RGB delay. See Setting RGB delay (CrossPoint 450 Plus Switchers) on page 3-25.

❏ (Audio models) Display the output volume level. Viewing and adjusting

the output volume (audio models) on page 3-40.

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-4

Output buttons — The output buttons have two primary functions (•) and

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

three secondary (❏) functions:

• Select output(s).

• Identify the selected output(s).

❏ (Output 1 only) With the Input 1 button, select I/O Group mode. See I/O

grouping on page 3-21.

❏ (8 x 4, 8 x 8, 12 x 4, and 12 x 8 matrix sizes only) Select a preset. See

Using presets on page 3-27.

❏ Mute the output. See Muting and unmuting video and/or audio outputs on

page 3-31.

❏ (Audio models) Display the audio level of the selected input. See

Viewing and adjusting the input audio level (audio models) on page 3-34.

Control buttons

Enter button — The Enter button has three primary functions (•) and five

secondary (❏) functions:

• Save changes that you make on the front panel. To create a simple configuration:

• Indicate that a potential tie has been created but not saved.

• Indicate that a global preset has been selected to be saved or recalled but that the preset action has not been accomplished.

❏ In the I/O Group mode, select group 1. See I/O grouping on page 3-21. ❏ In the I/O Group mode, indicate that group 1 is selected. See I/O grouping

on page 3-21.

❏ With the Preset, View, and Esc buttons, select Serial Port Configuration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

❏ Select 9600 baud for the RS-232/RS-422 port in Serial Port Configuration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

❏ Indicate that the RS-232/RS-422 port is set to 9600 baud Serial Port

Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-49.

! Specify RGBHV (CrossPoint 450 Plus switchers) or video

(MAV Plus switchers), audio, or both (see I/O selection buttons

[

] and [8])

! Press the desired input button ( ! Press the desired output button(s) ( ! Press the Enter button.

)

3-5CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Preset button — The Preset button has two primary functions (•) and five

secondary (❏) functions:

• Activates Save Preset mode to save a configuration as a preset and Recall

• Blinks when Save Preset mode is active and lights steadily when Recall

❏ In the I/O Group mode, select group 2. See I/O grouping on page 3-21. ❏ In the I/O Group mode, indicate that group 2 is selected. See I/O grouping

❏ With the Enter, View, and Esc buttons, select Serial Port Configuration

❏ Select 19200 baud for the RS-232/RS-422 port in Serial Port Configuration

❏ Indicate that the RS-232/RS-422 port is set to 19200 baud Serial Port

View ( ) button — The View ( ) button has two primary functions (•) and

eight secondary (❏) functions:

• Select View-Only mode that displays the current configuration.

• Indicate that View-Only mode is active.

❏ In the I/O Group mode, select group 3. See I/O grouping on page 3-21. ❏ In the I/O Group mode, indicate that group 3 is selected. See I/O grouping

❏ (CrossPoint 450 Plus switchers) Decrease the RGB delay of switches to

❏ (Audio models) Decrease the audio level of the selected input. See

❏ (Audio models) Decrease the volume of the selected output. See Viewing

❏ With the Enter, Preset, and Esc buttons, select Serial Port Configuration

❏ Select 38400 baud for the RS-232/RS-422 port in Serial Port Configuration

❏ Indicate that the RS-232/RS-422 port is set to 38400 baud Serial Port

Preset mode to activate a previously-defined preset.

Preset mode is active.

on page 3-21.

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

View-only mode also provides a way to mute and unmute the outputs. See Muting and unmuting video and/or audio outputs on page 3-31.

on page 3-21.

the selected output. See Setting RGB delay (CrossPoint 450 Plus Switchers) on page 3-25.

Viewing and adjusting the input audio level (audio models) on page 3-34.

and adjusting the output volume (audio models) on page 3-40.

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-6

Esc ( ) button — The Esc ( ) button has two primary functions (•) and

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

eight secondary (❏) functions:

• Cancel operations or selections in progress and reset the front panel button indicators.

The Esc ( ) button does not reset the current configuration, the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and Audio selection button, any presets, or any audio gain or attenuation or volume settings.

• Flashes once to indicate that the escape function has been activated.

❏ In the I/O Group mode, select group 4. See I/O grouping on page 3-21. ❏ In the I/O Group mode, indicate that group 4 is selected. See I/O grouping

on page 3-21.

❏ (CrossPoint 450 Plus switchers) Increase the RGB delay of switches to

the selected output. See Setting RGB delay (CrossPoint 450 Plus Switchers) on page 3-25.

❏ (Audio models) Increase the audio level of the selected input. See

Viewing and adjusting the input audio level (audio models) on page 3-34.

❏ (Audio models) Increase the volume of the selected output. See Viewing

and adjusting the output volume (audio models) on page 3-40.

❏ With the Enter, Preset, and View buttons, select Serial Port Configuration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

❏ Select 115200 baud for the RS-232/RS-422 port in Serial Port Configuration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

❏ Indicate that the RS-232/RS-422 port is set to 115200 baud Serial Port

Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-49.

3-7CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

I/O controls

You must specify video, audio, or both when you are creating or viewing a configuration. This is done with the RGBHV button (CrossPoint 450 Plus switchers) or Video button (MAV Plus switchers) (

RGBHV (CrossPoint 450 Plus) button or Video (MAV Plus) button — The

RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button has two primary functions (•) and five secondary (❏) functions:

• Selects and deselects video for a configuration that is being created or

• Lights green to indicate that video is available for configuring or for

❏ With the Audio button, toggles the front panel lock on or off. See Locking

❏ With the Audio button, commands the front panel system reset. See

❏ (CrossPoint 450 Plus switchers) Selects the RGB delay mode, in which

❏ Select the RS-232 protocol for the RS-232/RS-422 port in Serial Port

❏ Indicate that the RS-232/RS-422 port is set to the RS-232 protocol in Serial

) and Audio (8) buttons.

Throughout this chapter, the terms “RGBHV button” and “Video button” can be used interchangeably.

viewed.

viewing.

out the front panel (Executive mode) on page 3-47.

Performing a system reset from the front panel on page 3-48.

you can set the RGB delay. See Setting RGB delay (CrossPoint 450 Plus Switchers only) on page 3-25.

Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-49.

Port Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

Audio button — The Audio button has two primary functions (•) and three

secondary (❏) functions

• (Audio models only) Selects and deselects audio for a configuration that is being created or viewed.

• (Audio models only) Lights to indicate that audio is available for configuration or viewing.

❏ (Audio models only) Selects the Audio mode, in which you can adjust

the input audio level and the output audio volume. See Viewing and

adjusting the input audio level (audio models) on page 3-34 and Viewing and adjusting the output volume (audio models) on page 3-40.

❏ With the RGBHV/Video button, toggles the front panel lock on or off.

See Locking out the front panel (Executive mode) on page 3-47.

❏ With the RGBHV/Video button, commands the front panel system reset.

See Performing a system reset from the front panel on page 3-48.

❏ Select the RS-422 protocol for the RS-232/RS-422 port in Serial Port

Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-49.

❏ Indicate that the RS-232/RS-422 port is set to the RS-422 protocol in Serial

Port Configuration mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-49.

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-8

Power indicators (2412 and larger models only)

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Primary and Redundant Power Supply LEDs —

Green — Indicates that the associated power supply is operating within normal tolerances.

Red — Indicates that the associated power supply is operating outside the normal tolerances or has failed.

Button icons

The numbered translucent covers on the input and output pushbuttons can be removed and replaced to insert labels behind the covers.

Input and output labels can be created easily with Extron’s Button-Label Generator software, which ships with every Extron matrix switcher. Each input and output can be labeled with names, alphanumeric characters, or even color bitmaps for easy and intuitive input and output selection (figure 3-4). See chapter 5, Matrix Software, for details on using the labeling software. See Appendix B, Reference Information, for blank labels and a procedure for removing and replacing the translucent covers.

0 13 15

DVD

VCR

Document

Camera

Computer Computer

2928 30 31 32

VTG 200

I N P U T S

Figure 3-4 — Sample button icons

Front Panel Operations

The following paragraphs detail the power-up process and then provide sample procedures for creating ties; changing a configuration; viewing configurations; saving and recalling a preset; muting and unmuting outputs, viewing and adjusting the audio level; viewing and adjusting the output volume; locking out the front panel; performing one of several resets; toggling background illumination on and off; and reading and setting the RS-232/RS-422 Remote port settings.

Power

Apply power by connecting the power cord to an AC source. The switcher performs a self-test that flashes the front panel button indicators green, red, and amber and then turns them off. An error-free power up self-test sequence leaves all I/O and control buttons either unlit or showing background illumination. The lit/ unlit status RGBHV or Video button and the Audio button is the same as when the switcher was powered off.

The current configuration and all presets are saved in non-volatile memory. When power is applied, the most recent configuration is retrieved. The previous presets remain intact.

If an error occurs during the self-test, the switcher locks up and does not operate. If your switcher locks up on power-up, call the Extron S Hotline.

Sales & Technical Support

3-9CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Creating a configuration

The current configuration can be changed using the front panel buttons. Change the current configuration as follows:

1. Press the Esc button to clear any input button indicators, output button indicators, or control button indicators that may be lit.

2. Select to configure video, audio, or both by pressing the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and/or Audio button.

3. Select the desired input and output(s) by pressing the input and output buttons.

Input buttons light green. Output buttons light or blink amber to indicate video and audio ties, green to indicate video only ties, and red to indicate audio only ties.

To indicate potential ties, output buttons blink the appropriate color when an input is selected.

To indicate current ties, output buttons light steadily the appropriate color when an input is selected.

To clear unwanted outputs, press and release the associated lit output buttons. To indicate potential unties, output buttons blink the appropriate color when an output is deselected but not untied from the input.

4. Press and release the Enter button to accept the tie.

5. Repeat steps 1 through 4 to create additional ties until the desired

configuration is complete.

• Only one video input and one audio input can be tied to an output.

• If a tie is made between an input and an output, and the selected output was previously tied to another input, the older tie is broken in favor of the newer tie.

• If an input with no tie is selected, only that input’s button lights.

• When the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and Audio button are lit, if an input with an audio tie but no video tie is selected, the input’s button lights green and the output button lights the appropriate color (amber, green, or red).

• As each input and output is selected, the associated output button blinks the appropriate color to indicate a tentative tie. Buttons for output(s) that were already tied to the input light the appropriate color steadily. Outputs that are already tied can be left on, along with new blinking selections, or toggled off by pressing the associated output button.

• If you press the input button for an I/O grouped input and then try to select an output in a different group, the associated output button cannot be selected. The associated input button remains lit.

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-10

Example 1: Creating a set of video and audio ties

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

The following steps show an example in which input 5 is tied to outputs 3, 4, and 8. The steps show the front panel indications that result from your action.

This example assumes that there are no ties in the current configuration.

1. Press and release the Esc button (figure 3-5).

Press the Esc button to clear all selections.

C O N T R O L

ENTER

PRESET

The button flashes once.

ESCVIEW

Figure 3-5 — Clear all selections

2. To select video and audio for the tie, if necessary, press and release the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button until the buttons light (figure 3-6).

I / O

RGBHV AUDIO

Press the RGBHV/Video button to toggle on and off.

The button lights green when selected.

Press the Audio button to toggle on and off. The button lights red when selected.

Figure 3-6 — Select RGBHV or video and audio

3. Press and release the input 5 button (figure 3-7).

Press and release the Input 5 button. The button lights green.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

I N P U

T S

Figure 3-7 — Select an input

3-11CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

U T P U T S

C O N T R O L

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

PRESET

ENTER

= Blinking button

ESCVIEW

Press and release the Output 3, Output 4, and Output 8 buttons. The buttons blink amber to indicate that the selected RGBHV or video and audio input will be tied to these outputs.

The Enter button blinks green to indicate the need to confirm the change.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

4. Press and release the output 3, output 4, and output 8 buttons (figure 3-8).

Figure 3-8 — Select the outputs

5. Press and release the Enter button (figure 3-9).

Press the Enter button to confirm the configuration change.

The entire set of ties can be canceled at this point by pressing and releasing the Esc button. The Esc button flashes red once.

ENTER

The Enter button returns to unlit or background illumination.

All input buttons and output buttons return to unlit or background illumination.

Figure 3-9 — Press the Enter button

The current configuration (figure 3-10) is now:

• Input 5 video and audio tied to output 3, output 4, and output 8

Input 5 (video/audio) tied

to outputs 3, 4, and 8.

Input

3 4

Output

Video Audio

Figure 3-10 — Example 1, final configuration

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-12

Example 2: Adding a tie to a set of video and audio ties

O U T P U T S

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

I N P U T S

Press and release the Input 5 button. The button lights green.

The Output 3, Output 4, and Output 8 buttons light green to indicate the RGBHV or video ties created in example 1.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

The following steps show an example in which a new video tie is added to the current configuration. The steps show the front panel indications that result from your action.

This example assumes that you have performed example 1.

1. Press and release the Esc button (figure 3-11).

Press the Esc button to clear all selections.

C O N T R O L

ENTER

PRESET

The button flashes once.

ESCVIEW

Figure 3-11 — Clear all selections

2. To select video only for the tie, if necessary, press and release the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button (figure 3-12).

I / O

VIDEO AUDIO

Press the RGBHV/Video button to toggle on and off.

The button lights green when selected.

Press the Audio button to toggle on and off. The button is unlit or background illuminated when deselected.

Figure 3-12 — Select RGBHV or video only

3. Press and release the input 5 button (figure 3-13).

Figure 3-13 — Select an input

3-13CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

4. Press and release the output 1 button (figure 3-14).

Press and release the Output 1 button. The button blinks green to indicate that only the selected RGBHV or video input will be tied to this output.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

= Blinking button

Figure 3-14 — Select the output

5. Press and release the Enter button (figure 3-15).

Press the Enter button to confirm the configuration change.

ENTER

The Enter button returns to unlit or background illumination.

Figure 3-15 — Press the Enter button

All input buttons and output buttons return to unlit or background illumination.

C O N T R O L

PRESET

ENTER

O U T P U T S

The Enter button blinks green to indicate the need to confirm the change.

ESCVIEW

The current configuration (figure 3-16) is now:

• Input 5 video tied to output 1, output 3, output 4, and output 8

• Input 5 audio tied to output 3, output 4, and output 8

Input 5 video tied

to outputs 1, 3, 4, and 8.

Input 5 audio tied

to outputs 3, 4, and 8.

Input

3 4

Output

Video Audio

Figure 3-16 — Example 2, final configuration

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-14

Example 3: Removing a tie from a set of video and audio ties

O U T P U T S

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

I N P U T S

Press and release the Input 5 button. The button lights green.

The Output 3, Output 4, and Output 8 buttons light red to indicate the audio ties created in example 1. The output 1 button does not light to indicate the tie created in example 2 because that tie is RGBHV or video only.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

The following steps show an example in which an existing audio tie is removed from the current configuration. The steps show the front panel indications that result from your action.

This example assumes that you have performed example 1 and example 2.

1. Press and release the Esc button (figure 3-17).

Press the Esc button to clear all selections.

C O N T R O L

ENTER

PRESET

The button flashes once.

ESCVIEW

Figure 3-17 — Clear all selections

2. To select audio only for the tie, if necessary, press and release the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button (figure 3-18).

I / O

RGBHV AUDIO

Press the RGBHV/Videobutton to toggle on and off.

The button is unlit or background illuminated

when deselected.

Press the Audio button to toggle on and off. The button lights red when selected.

Figure 3-18 — Select audio only

3. Press and release the input 5 button (figure 3-19).

Figure 3-19 — Select an input

3-15CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

4. Press and release the output 4 button (figure 3-20).

Press and release the Output 4 button. The button blinks red to indicate the pending change: audio input will be untied.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

= Blinking button

Figure 3-20 — Deselect the output

5. Press and release the Enter button (figure 3-21).

Press the Enter button to confirm the configuration change.

C O N T R O L

PRESET

ENTER

O U T P U T S

The Enter button blinks green to indicate the need to confirm the change.

ESCVIEW

ENTER

The Enter button returns to unlit or background illumination.

All input buttons and output buttons return to unlit or background illumination.

Figure 3-21 — Press the Enter button

The current configuration (figure 3-22) is now:

• Video —

(Video only models) — Input 5 tied to output 1, output 3, and output 8 (Video and audio models) — Input 5 video tied to output 1, output 3,

output 4, and output 8

• Audio — (audio models) Input 5 audio tied to output 3 and output 8

Input 5 video tied

to outputs 1, 3, 4, and 8.

Input 5 audio tied

to outputs 3 and 8.

Input

3 4

Output

Figure 3-22 — Example 3, final configuration, audio switcher

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-16

Video Audio

Viewing a configuration

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

The current configuration can be viewed using the front panel buttons. The ViewOnly mode prevents inadvertent changes to the current configuration. View-Only mode also provides a way to mute video and audio outputs (see Muting and unmuting video and/or audio outputs on page 3-31.

View the current configuration as follows:

1. Press the Esc button to clear any input button indications, output button indications, or control button indications that may be on.

2. Press and release the View button. All of the buttons for outputs that are not tied light:

• Amber: No tied video or audio input

• Green: No tied video input

• Red: No tied audio input

3. Select video, audio, or both to view by pressing the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and/or the Audio button.

4. Select the desired input or output(s) whose ties you wish to view by pressing the input and output buttons.

• When you enter View-Only mode, the output buttons light for all

outputs without ties. Likewise, when an output button for which there are no ties is pushed, the output buttons turn on for all outputs without ties.

• To see all ties of the current configuration, press and release each input and output button, one at a time, with the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button lit.

• In View-Only mode, you can view video and audio, video-only, or audio- only ties. Pressing and releasing the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button toggles each on and off.

• When you view video and audio ties, the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button is lit green and the Audio button is lit red. After you select an input or output, the output buttons light different colors to show where video and audio ties are not the same (audio is broken away). Amber = video and audio, green = video only, and red = audio only.

3-17CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

I / O

VIDEO AUDIO

O U T P U T S

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

Until you select an input, the buttons for all untied outputs light amber if no inputs are tied, green if no video inputs are tied (only audio is tied), or red if no audio inputs are tied (only video is tied).

Press the Audio button to toggle on and off.

The button lights red when selected.

Press the RGBHV/ Video

button to toggle on and off.

The button lights green

when selected.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Example 4: Viewing video and audio, audio only, and video only ties

The following steps show an example of viewing the video and audio, audio-only, and video-only ties in the current configuration. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (figure 3-23).

ENTER

Figure 3-23 — Clear all selections

2. Press and release the View button to enter View-Only mode. The View button lights red.

3. To select both video and audio for viewing, if necessary, press and release the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button (figure 3-24).

This example assumes that you have performed example 1, example 2, and example 3.

Press the Esc button to clear all selections.

C O N T R O L

PRESET

The button flashes once.

ESCVIEW

Figure 3-24 — Select RGBHV or video and audio

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-18

4. Press and release the input 5 button (figure 3-25).

O U T P U T S

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

I N P U T S

Press and release the Input 5 button. The button lights green.

Green GreenAmber Amber

The output buttons for outputs that are not tied to input 5 are either unlit or background illuminated.

The output buttons for outputs that are tied to input 5 light the appropriate color:

Amber for audio and RGBHV or video ties (audio follow) Green for RGBHV or video ties (audio breakaway) Red for audio ties (audio breakaway)

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Figure 3-25 — Select an input

A set of ties can also be viewed by selecting a tied output. To demonstrate this, note the number of a lit output button, and then press and release the output button for an untied (unlit or background illumination) output. Observe that all of the untied outputs light. Then press the output button that you noted previously and observe that the selected output button, the tied input button (input 5), and the output buttons light for all of the outputs that are tied to the input.

5. Press and release the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button to deselect RGBHV or video (figure 3-26).

Press the RGBHV/ Video

button to deselect it.

The button is unlit or

background illuminated

Figure 3-26 — Deselect RGBHV or video to view audio ties only

I / O

VIDEO AUDIO

The Audio button remains lit red to indicate that only audio is selected.

when deselected.

The output buttons for outputs that are tied to input 5 light red to indicate audio ties (audio breakaway).

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

The output buttons for outputs that are not tied to input 5 are either unlit or background illuminated.

Red Red

O U T P U T S

3-19CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

6. Press and release the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button to toggle the RGBHV or Video button on green and the Audio button either unlit or providing background illumination (figure 3-27).

VIDEO AUDIO

Press the RGBHV/

Video button to select it.

The button lights green

when selected.

I / O

Press the Audio button to deselect it.

The button is unlit or background illuminated when deselected.

The output buttons for outputs that are tied to input 5 light

green to indicate RGBHV/Video ties (audio breakaway).

Green GreenGreen Green

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

The output buttons for outputs that are not tied to input 5 are either unlit or background illuminated.

Figure 3-27 — Deselect audio and select RGBHV or video to view RGBHV or video only

If video ties are established for input 5, the output buttons for all video outputs tied to input 5 light green. If no ties are established for input 5, all output buttons return to either unlit or to background illumination.

7. Press and release the View button to exit View-Only mode (figure 3-28).

Press the View button to exit

View-Only

VIEW

The View button returns to unlit or background illumination.

mode.

All input buttons and output buttons return to unlit or background illumination.

O U T P U T S

Figure 3-28 — Press the View button to exit View-Only mode

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-20

I/O grouping

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

I/O grouping is a matrix switcher feature that allows you to subdivide the front panel control of the matrix into four smaller functional sub-switchers and limit tie creation from the front panel only. Inputs and outputs can be assigned to one of four groups or not assigned to any group.

Inputs and outputs that are assigned to a group can only be tied to other outputs and inputs within the same group when you are creating ties on the front panel. For example, a front panel operator cannot tie an input that is assigned to group 1 to an output that is assigned to group 2. Ungrouped inputs and outputs can be switched to outputs and inputs in any group. Ties between groups (an input in group 1 tied to an output in group 2) can be created under RS-232/RS-422 or Ethernet control.

Suggested applications for the I/O grouping feature include:

• Segregating specific video formats to prevent an input in one video format

• Segregating input and output devices that are in separate rooms.

• Isolating video from being displayed on specific output devices for

from being inadvertently applied to an output device that supports another video format (figure 3-29).

operational security reasons.

Camera #1

Camera #4

1 2 3 4 5 6 7 8

171718 19 20 21 22 23 24

Group 1 Group 2 Group 3

1 2 3 4 5 6 7 8

18 19 20 21 22 23 24 25

4 input, 2 output

composite video matrix

Input

17 18 19

Output

Group 1

Figure 3-29 — I/O grouping of incompatible video formats

Monitor

9910 11

26 27

Document Camera

VCR

DVD

Computer #1

Computer #3

3 input, 2 output

S-video matrix

Input

21 22 23

Group 2

3 4

Output

3 input, 4 output

RGBHV matrix

Input

24 25 26

Group 3

RGB

FREEZE

5 6

Output

7 8

INPUTS

UNIVERSAL

COMPOSITE

12345

S-VIDEO SDI

PICTURE ADJUSTMENTS

CENTER SIZE BRT/CONT COL/TNT ZOOM DETAIL

USP 405

Monitor

FREEZE RESET

VSC 700

Projector

NEXTMENU

Monitor

ADJUST

USP 405

UNIVERSAL SIGNAL PROCESSOR

VSC 700

SCAN CONVERTER

SIZE

MIN/MAX

CENTER/PAN/SIZE

3-21CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

The I/O groups can be set up on the front panel or by using RS-232/RS-422 and Ethernet ports and either the SIS or the Windows control program (see chapter 4, Programmer’s Guide, and chapter 5, Matrix Software. Create I/O groups on the front panel as follows:

1. Press the Esc button to clear any input buttons, output buttons, or control buttons that may be lit.

2. To enter I/O Group mode, press and hold the Input 1 and Output 1 buttons until the input and output buttons light to display the ungrouped inputs and outputs.

3. Press and release one of the Control buttons to select a group:

• Press the Enter button to select group 1.

• Press the Preset button to select group 2.

• Press the View button to select group 3.

• Press the Esc button to select group 4.

4. Select the desired input(s) and output(s) to assign to the group by pressing the input and output buttons.

5. Press and release the RGBHV/Video and Audio button to exit the I/O Group mode, or allow the mode to time out after approximately 30 seconds.

• Ties between groups (an input in group 1 tied to an output in group 2)

can be created under RS-232/RS-422 or Ethernet control.

• Presets can be created under RS-232/RS-422 or Ethernet control that tie

inputs and outputs across group boundaries. These presets are selectable from the front panel.

• An input or output can be assigned to only one group. If you assign an input or output to a group and that input or output is already assigned to a different group, the older grouping is discarded in favor of the new grouping.

• Audio

• For I/O groups to have any function, at least two groups must be created.

can be broken away from the video for a given input or output

(assigned to different groups) by isolating only video or only audio using the front panel RGBHV (CrossPoint 450 Plus)/Video (MAV Plus) and/or Audio buttons after you select I/O Group mode (between steps 2 and 3).

Audio breakaway across different groups operating the front panel; Control Program, HTML pages, or SIS commands; and is recommended.

is not displayed by the Matrix Switchers

can be confusing when

not

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-22

Example 5: Grouping inputs and outputs

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

The following steps show an example in which several switcher inputs and outputs are assigned to groups. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (figure 3-30).

Press the Esc button to clear all selections.

C O N T R O L

ENTER

PRESET

The button flashes once.

ESCVIEW

Figure 3-30 — Clear all selections

2. To enter I/O Group mode, press and hold the Input 1 and Output 1 buttons (figure 3-31).

Press and hold the Input 1 button and Output 1 button.

1 2

17 18

1 2

17 18

T S

2 seconds

O U

T P

T S

Release the Input 1 button and Output 1 button.

Ungrouped input and output buttons light.

Figure 3-31 — Select I/O Group mode

3. Press and release the Enter button to select group 1 (figure 3-32).

Press and release the Enter button to select group 1. The button lights amber to indicate the selection.

C O N T R O L

ENTER

1324Group #

PRESET

ESCVIEW

Figure 3-32 — Select an I/O group

3-23CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

4. Press and release the input 1 through 4 and output 1 through 4 buttons (figure 3-33).

Press and release the Input 1 through Input 4 buttons. The selected buttons light.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

Press and release the Output 1 through Input 4 buttons. The selected buttons light.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

I N P U T S

O U T P U T S

Figure 3-33 — Assign inputs and outputs

5. Press and release the Preset button to select group 2 (figure 3-34).

Press and release the Preset button to select group 2. The button lights amber to indicate the selection.

C O N T R O L

ENTER

1324Group #

PRESET

ESCVIEW

Figure 3-34 — Select an I/O group

6. Press and release the input 5 through 8 and output 5 through 8 buttons (figure 3-35).

Press and release the Input 5 through Input 8 buttons. The selected buttons light.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

Press and release the Output 5 through Output 8 buttons. The selected buttons light.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

I N P U T S

O U T P U T S

Figure 3-35 — Assign inputs and outputs

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-24

7. Do nothing for approximately 30 seconds. The front panel times out and the

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

switcher exits I/O Group mode.

• Group 1 consists of inputs 1 through 4 and outputs 1 through 4.

• Group 2 consists of inputs 5 through 8 and outputs 5 through 8.

Setting RGB delay (CrossPoint 450 Plus switchers only)

The CrossPoint 450 Plus switchers can briefly blank the RGB (video) output while it switches to the new input’s sync source, and then switches the RGB signals. This allows a brief delay for the display to adjust to the selected input’s sync timing before displaying the new picture, which will appear without glitches. RGB delay, also known as Triple-Action Switching or video mute switching, is user selectable from 0 to 5 seconds, in half-second increments.

The RGB delay interval can be set on the front panel or by using RS-232/RS-422 and Ethernet ports and either the SIS, Windows control program, or HTML pages (see chapter 4, Programmer’s Guide, chapter 5, Matrix Software, and chapter 6, HTML operation. Specify the RGB delay interval for a specific output on the front panel as follows:

1. Press the Esc button to clear any input buttons, output buttons, or control buttons that may be lit.

2. To enter RGB Delay mode, press and hold the RGBHV button until the button begins to blink green, then release the button.

3. Press and release an output button to select an output. Each lit input button, from Input 1 through Input 10, indicates a half second of RGB delay interval for the selected output.

4. Press and release the Esc ( the interval.

5. Press and release the RGBHV button to exit the RGB Delay mode. The RGBHV button stops blinking.

• Pressing the Enter or Preset button also exits RGB Delay mode. Pressing the Preset button changes to Recall Preset mode.

• The RGB interval for each output is stored in non-volatile memory. When power is removed and restored, the delay settings are retained.

• Exiting RGB Delay mode by pressing the RGBHV button always returns the I/O configuration to audio only selected for configuration.

) and View ( ) buttons to increase and decrease

Example 6: Setting the RGB delay for an output

The following steps show an example in which the RGB delay is increased for output 17. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (figure 3-36).

Figure 3-36 — Clear all selections

Press the Esc button to clear all selections.

C O N T R O L

ENTER

PRESET

The button flashes once.

ESCVIEW

3-25CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

2. Press and hold the RGBHV button for approximately 2 seconds (figure 3-37).

RGBHV RGBHV

Figure 3-37 — Select RGB Delay mode

3. Press and release the output 17 button (figure 3-38).

Press and release the Output 17 button. The button lights green.

17 18

2 seconds

Press and hold the RGBHV button until it blinks.

= Blinking button

The Input 1 through Input 10 buttons display the selected output's RGB delay. Each lit input button indicates half a second of delay. In this example, the green input buttons display 3.5 seconds of RGB delay.

1 2

17 18

U T P U T S

1 2 3 4 5 6 7

17 18 19 20 21 22 23

3.53.02.52.01.51.00.5

8 9 10

24 25 26

T S

= Unlit button = Lit button

Figure 3-38 — Select an output

4. Press and release the Esc (

) button once (figure 3-39) to increase the RGB

delay by a half second. Press and release the Esc (

) button twice more to increase the RGB delay by a whole second. Note the input button indication changes that occur each time the Esc (

Figure 3-39 show the result of pressing the Esc (

Press the Esc button to increase the RGB interval that is applied to switches to the selected output by a half second per button push.

ESC ESC ESC

) button is pressed and released.

) button a total of 3 times.

3.5 4.0 4.5 5.03.02.52.01.51.00.5

1 2 3 4 5 6 7

17 18 19 20 21 22 23

= Unlit button = Lit button

8 9 10

24 25 26

I N P U

Figure 3-39 — Adjust the RGB delay interval

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-26

5. Press and release the RGBHV button (figure 3-40).

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Press the RGBHV button to exit RGB delay mode.

I / O

The RGBHV button stops blinking and goes out or becomes background illuminated. The Audio button lights red.

Figure 3-40 — Deselect RGB Delay mode

Using presets

The current configuration (configuration 0) can be saved as a preset in any one of 32 preset memory addresses. Preset locations are assigned to the input buttons and (where necessary) output buttons. Up to 20 or 32 (depending on the number of input and output buttons) presets can be selected from the front panel to be either saved or retrieved. When a preset is retrieved from memory, it becomes the current configuration.

RGBHV AUDIO

All input buttons and output buttons return to unlit or background illumination.

• Only the audio and video ties are stored and recalled; audio gain settings are not saved, and they do not change when a preset is recalled.

• Presets cannot be viewed from the front panel unless recalled as the current configuration. Presets can be viewed using Extron’s Windowsbased control program. See Chapter 5, Matrix Software, for more details.

• The current configuration and all presets are stored in non-volatile memory. When power is removed and restored, the current configuration is still active and all presets are retained.

• When a preset is recalled, it replaces the current configuration, which is lost unless it is also stored as a preset. The recalled preset overwrites all of the current configuration ties in favor of the preset configuration ties.

• All models have 32 presets; on models with fewer than 32 input and output buttons, preset numbers that are too high to be available from the front panel are still accessible under RS-232/RS-422 or Ethernet control.

• Figure 3-41 on the next page shows the presets associated with the various input and output buttons for all three front panel configurations.

3-27CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Input buttons

Output buttons

Input buttons

Output buttons

24 x 12, 24 x 24, 32 x 16, and 32 x 32 matrix sizes

Preset

Preset3Preset

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Preset5Preset

Preset

Preset8Preset

Preset

Preset11Preset

Preset13Preset14Preset

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

Preset

8 x 16, 16 x 8, and 16 x 16 matrix sizes

Preset

8 x 4, 8 x 8, 12 x 4, and 12 x 8 matrix sizes

Preset

Preset19Preset

Preset

Preset14Preset

Preset21Preset

Preset4Preset

Preset20Preset

Preset

OUTPUTS

Preset

Preset6Preset

Preset22Preset

Preset6Preset

INPUTS

Preset18Preset

Preset24Preset

Preset8Preset

INPUTS

OUTPUTS

Preset24Preset

Preset

NOTE

Preset

Preset27Preset

Preset

Presets 21 through 32 are available via RS-232/

RS-422 and Ethernet control only

Preset29Preset30Preset

Preset13Preset

Preset

Preset29Preset

Preset

Preset15Preset

Preset31Preset

Preset

I N P U T S

Figure 3-41 — Preset locations by matrix sizes

Example 7: Saving a preset

The following steps show an example in which the current configuration is saved as a preset. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (figure 3-42).

Press the Esc button to clear all selections.

C O N T R O L

ENTER

PRESET

The button flashes once.

ESCVIEW

Figure 3-42 — Clear all selections

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-28

2. Press and hold the Preset button for approximately 2 seconds until it blinks

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

(figure 3-43).

2 seconds

PRESET PRESET

Press and hold the Preset button until it blinks.

All input buttons with assigned presets light red. If you then save the configuration to a lit preset number, the configuration data at that preset location will be overwritten.

= Blinking button

(Preset Assigned)

1 2

17 18

Unlit

(No Preset Assigned)

Figure 3-43 — Enter Save Preset mode

3. Press and release the input or output button for the desired preset (figure 3-44).

Press and release the Input 1 button. The button blinks red to indicate that this

preset number is selected but not saved.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

= Blinking button

I N P U T S

C O N T R O L

PRESET

ENTER

The Enter button blinks to indicate the need to save the preset. The Preset button continues to blink.

Red

I N P U T S

ESCVIEW

Figure 3-44 — Select the preset

Figure 3-41 shows the presets associated with the various input and output buttons for all three front panel configurations.

4. Press and release the Enter button (figure 3-45). The current configuration is now stored in the selected memory location.

Press the Enter button to save the preset.

C O N T R O L

PRESET

ENTER

The Enter and Preset buttons return to unlit or background illumination.

ESCVIEW

All input buttons return to unlit or background illumination.

Figure 3-45 — Press the Enter button

3-29CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Example 8: Recalling a preset

The following steps show an example in which a preset is recalled to become the current configuration. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (figure 3-46).

ENTER

Figure 3-46 — Clear all selections

2. Press and release the Preset button (figure 3-47).

Press the Esc button to clear all selections.

C O N T R O L

PRESET

The button flashes once.

ESCVIEW

Red

(Preset Assigned)

Press and release the Preset button.

PRESET

The Preset button lights.

All input buttons with

assigned presets light red.

1 2

17 18

Unlit

(No Preset Assigned)

I N P U T S

Figure 3-47 — Enter Recall Preset mode

3. Press and release the input or output button for the desired preset (figure 3-48).

Press and release the Input 1 button. The button blinks red to indicate that this

preset number is selected but not recalled.

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

= Blinking button

I N P U T S

C O N T R O L

PRESET

ENTER

The Enter button blinks to indicate the need to recall the preset.

Figure 3-48 — Select the preset

ESCVIEW

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-30

Figure 3-41 shows the presets associated with the various input and output buttons for all three front panel configurations.

4. Press and release the Enter button (figure 3-49). The configuration stored in

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

selected memory location is now the current configuration and can be viewed in the View-Only mode (see example 4).

Press the Enter button to recall the preset.

C O N T R O L

PRESET

ENTER ESCVIEW

All input buttons return to unlit or background illumination.

The Enter and Preset buttons return to unlit or background illumination.

1 2

17 18

I N P U T S

Figure 3-49 — Press the Enter button

Muting and unmuting video and/or audio outputs

Individual outputs can be muted or unmuted as follows:

1. Press the Esc button to clear any input button indications, output button indications, or control button indications that may be on.

2. Press and release the View button.

3. Select video, audio, or both to mute or unmute by pressing the RGBHV

(CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and/or the Audio button.

4. One at a time, press and hold the output button(s) for the desired output(s) for approximately 2 seconds. The output LED(s) for the selected output(s) blink to indicate the mute or return to their previous state to indicate the unmute.

5. Press and release the View button to return to normal switcher operation.

• You can mute video and audio, video-only, or audio-only outputs. Pressing and releasing the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button toggles each selection on and off.

• When you enter View-Only mode, the output LEDs turn on for all outputs without ties.

• On CrossPoint 450 Plus switchers, the video mute function mutes the R, G, and B planes only; the H and V planes are still active. On MAV Plus switchers, the video mute function mutes all video planes.

• Mutes are saved to non-volatile memory. When power is removed and restored, the mute settings are retained.

3-31CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

I / O

VIDEO AUDIO

O U T P U T S

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

Press the Audio button to toggle on and off.

The button lights red when selected.

Press the RGBHV/ Video

button to toggle on and off.

The button lights green

when selected.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Example 9: Muting and unmuting an output

The following steps show an example in which several switcher outputs are muted and unmuted. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (figure 3-50).

ENTER

Figure 3-50 — Clear all selections

2. Press and release the View button to enter View-Only mode. The View button lights red.

3. To select both video and audio for viewing and muting, if necessary, press and release the RGBHV (CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the Audio button (figure 3-51).

Press the Esc button to clear all selections.

C O N T R O L

PRESET

The button flashes once.

ESCVIEW

This example shows the front panel indications if example 1, example 2, and example 3 have been completed.

Figure 3-51 — Select RGBHV or video and audio

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-32

4. One at a time, press and hold the Output 3 and then the Output 4 buttons

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

(figure 3-52) for approximately 2 seconds until the buttons begin to blink. The output 3 and output 4 video and audio signals are muted.

Mute outputs one at a time.

2 seconds

Press and hold the Output 3 button.

2 seconds

Press and hold the Output 4 button.

= Blinking button

Figure 3-52 — Mute the outputs

If both RGBHV/video and audio are selected, the mute action toggles both the video and audio outputs. If either the video output or the audio output is already muted, the unmuted output is muted and the muted output is unmuted.

If both RGBHV/video and audio are selected and only video is muted, the output button flashes between green and amber. If only audio is selected, the output button flashes between red and amber.

5. One at a time, press and hold the Output 3 and then the Output 4 buttons (figure 3-53) for approximately 2 seconds until the buttons lights steadily. The output 3 and output 4 video and audio signals are unmuted.

The button blinks amber to indicate that

the RGBHV and audio outputs are muted.

The button blinks amber to indicate that

the RGBHV and audio outputs are muted.

Mute outputs one at a time.

2 seconds

Press and hold the Output 3 button.

2 seconds

Press and hold the Output 4 button.

= Blinking button

Figure 3-53 — Unmute the outputs

The button lights amber to indicate that

the RGBHV and audio outputs are not muted.

The button lights amber to indicate that

the RGBHV and audio outputs are not muted.

3-33CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

6. Press and release the View button to exit View-Only mode (figure 3-54).

Press the View button to exit

If both RGBHV/video and audio are selected, the unmute action toggles both the video and audio outputs. If either the video output or the audio output is already unmuted, the muted output is unmuted and the unmuted output is muted.

View-Only

mode.

VIEW

All input buttons and output buttons return to unlit or background illumination.

The View button returns to unlit or background illumination.

Figure 3-54 — Press the View button to exit View-Only mode

Viewing and adjusting the input audio level (audio models)

On models with audio, the audio level of each input can be displayed and adjusted through a range of -18 dB to +24 dB (-15 dB to +9 dB for MAV Plus 128 AV RCA) to ensure that there is no noticeable volume difference among sources (figure 3-55). The audio level can be adjusted from the front panel or under RS-232/RS-422 or Ethernet control.

VUdBu 21+24 18+21 15+19 12+16

9+13 6+10 3+7 0

-3

-6

-2

-9

-5

-12

-8

-15

-12

-18

-15

-21

-18

Low Audio

Output Level

VUdBu

21+24 18+21 15+19 12+16

9+13 6+10 3+7 0

-3

-6

-2

-9

-5

-12

-8

-15

-12

-18

-15

-21

-18

High Audio

Output Level

Audio Inputs

VCR

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

I N P U T S

C O N T R O L

VIEW

PRESET

ENTER

O U T P U T S

CROSSPOINT xi PLUS SERIES SWITCHER

Crosspoint 450 Plus 3232

CD Jukebox

I / O

ESC

RGBHV

AUDIO

POWER SUPPLY

PRIMARY

REDUNDANT

WITH

ADSP

VUdBu 21+24 18+21 15+19 12+16

9+13 6+10 3+7 0

-3

-6

-2

-9

-5

-12

-8

-15

-12

-18

-15

-21

-18

Output

Level

No noticeable volume differences between sources

Audio System

Figure 3-55 — Audio gain and attenuation

1. Press the Esc button to clear any input buttons, output buttons, or control

2. To enter Audio mode, press and hold the Audio button until the button begins

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-34

buttons that may be lit.

to blink red, then release the button.

3. Press and release an input button to select an input. The output buttons

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

display audio level and polarity (+ or –) for the selected input. Each lit output button indicates 1 dB of gain or attenuation. Green output buttons indicate a gain (+) audio level and red buttons indicate an attenuation (–) level.

4. Press and release the Esc ( the audio level.

5. Press and release the Audio button to exit the Audio mode. The Audio button stops blinking.

• Pressing the Enter or Preset button also exits Audio mode. Pressing the Preset button changes to Recall Preset mode.

• There is one audio level setting per input. The audio level setting is shared by the left and right audio inputs.

• The audio level settings are stored in non-volatile memory. When power is removed and restored, the audio level settings are retained.

• Exiting Audio mode by pressing the Audio button always returns the I/O configuration to RGBHV (CrossPoint 450 Plus switchers) or video (MAV Plus switchers) and audio selected for configuration.

) and View ( ) buttons to increase and decrease

Example 10: Viewing and adjusting an input audio level

The following steps show an example in which an audio level is viewed and adjusted. The steps show the front panel indications that result from your action.

Audio gain and attenuation is displayed differently on different models.

• Switchers with 32 output buttons — Each output button indicates 1 dB when lit. See the table on page 3-36.

• Switchers with 16 output buttons — Each output button indicates 1 dB when blinking and 2 dB when lit. See the table on page 3-37.

• Switchers with 8 output buttons — Each output button indicates 1 dB when blinking slowly, 2 dB when blinking quickly, and 3 dB when lit. See the table on page 3-37.

Because of the different gain and attenuation display schemes, the input audio levels that result from the following example are shown three times: as displayed on a 32-button switcher, on a 16-button switcher, and on an 8-button switcher. The 32-button displays show the actions that led up to the display. For simplicity, the 16-button and 8-button figures show the attenuation display only, not the actions that lead up to it.

1. Press and release the Esc button (figure 3-56).

Figure 3-56 — Clear all selections

Press the Esc button to clear all selections.

C O N T R O L

ENTER

PRESET

The button flashes once.

ESCVIEW

3-35CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Input audio level adjustment displays

CrossPoint 450 Plus /

MAV Plus

2412, 2424, 3216, 3232 HVA

12345678910111213 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

123456789101112 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

1234567891011 12 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910 11 12 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

123456789 10111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678 9 10 11 12 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

1234567 8 9 10 11 12 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

123456 7 8 9 10 11 12 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

CrossPoint 450 Plus /

MAV Plus

dBdB

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

2412, 2424, 3216, 3232 HVA

12345 6 7 8 9 10 11 12 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

1234 5 6 7 8 9 10 11 12 13 14 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

1 2345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

12345678910111213141516

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

123456789101112131415 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

1234567891011121314 15 16

18 19 20 21 22 23 24 25 26 27 28 29 30 31 3217

= unlit button

Green indicates a positive (gain) level, red indicates a negative (attenuation) level

= lit button

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-36

Input audio level adjustment displays

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

CrossPoint xi Plus /

MAV Plus

84, 88, 124, 128 HVA

dB dB

1 3 4 5 6 7 8

21 3 4 5 6 7 8

1 3 4 5 6 7 8

21 3 4 5 6 7 8

1 3 4 5 6 7 8

21 3 4 5 6 7 8

1 3 4 5 6 7 8

21 3 4 5 6 7 8

1 3 4 5 6 7 8

CrossPoint xi Plus /

MAV Plus

816, 168, 1616 HVA

1 3 4 5 6 7 8 9

112

1121 3 4 5 6 7 8 9 10 12

112

1121 3 4 5 6 7 8 9 10 12

112

13 14

15 16

21 3 4 5 6 7 8

1 3 4 5 6 7 8

21 3 4 5 6 7 8

1 3 4 5 6 7 8

1 3 4 5 6 7 8 9

3 4 5 6127 8 9

102

= Unlit button = Blinking button

= Slow blinking button

= Fast blinking button

= Lit button

Green indicates a positive (gain) level, red indicates a negative (attenuation) level

112

15 16

3-37CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

2. Press and hold the Audio button for approximately 2 seconds (figure 3-57).

AUDIO AUDIO

Figure 3-57 — Select Audio mode

3. Press and release the input 5 button (figure 3-58).

Press and release the Input 5 button. The button lights green.

2 seconds

Press and hold the Audio button until it blinks.

= Blinking button

1 2 3 4 5 6 7 8

17 18 19 20 21 22 23 24

Green Green Green Green Green Green Green Green

1 2 3 4 5 6 7

17 18 19 20 21 22 23

The output buttons display the selected input's audio level and polarity (gain or attenuation). Each output button indicates 1 dB when lit. When the buttons are lit green, they indicate a gain (+) audio level. When the output buttons are lit red, they indicate an attenuation (-) level. In this example, the output buttons display an audio gain level of +8 dB.

= Unlit button

Figure 3-58 — Select an input

Figure 3-59 shows the same level (+8 dB) as in figure 3-58, but displayed on a 16-output-button switcher, such as a CrossPoint 450 Plus 816 HVA.

Green Green Green Green

24 25 26

I N P U

T S

9 10

U T P U T S

Figure 3-59 — Level display on a 16-output-button switcher

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-38

In this example, the output buttons display an audio gain level of +8 dB.

= unlit button

Figure 3-60 shows the same level (+8 dB) as in figure 3-58, but displayed on a 8-output-button switcher, such as a MAV Plus 84 HDA.

OUT

Green Green Green

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

In this example, the output buttons display an audio gain level of +8 dB.

OUTPUTS

= unlit button = fast blinking button

Figure 3-60 — Level display on a 8-output-button switcher

4. Press and release the View ( audio level by 1 dB.

Press and release the View ( decrease the input audio level by 1 dB per button push. Note the output button indication changes that occur each time the View (

Figure 3-61 shows the result of pressing the View ( Note that the level is now displayed in red to indicate a negative level.

Press the View button to decrease the input audio level by 1 dB per button

VIEW

Red

2 3 4 5 6 7 8

17 18 19 20 21 22 23

) button once (figure 3-61) to decrease the input

) button several more times (figure 3-61) to

) button is pressed.

) button a total of 9 times.

9 10

24 25 26

U T P U T S

= Unlit button

Figure 3-61 — Adjust the input audio level

Figure 3-62 shows the same level (–1 dB) as in figure 3-61, but displayed on a 16-output-button switcher, such as a MAV Plus 1616 A.

Red

In this example, the output buttons display an audio gain level of -1 dB.

= unlit button = blinking LED

Figure 3-62 — Level display on a 16-output-button switcher

OUT

3-39CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Figure 3-63 shows the same level (–1 dB) as in figure 3-61, but displayed on a 8-output-button switcher, such as a CrossPoint 450 Plus 128 HVA.

In this example, the output buttons display an audio gain level of +8 dB.

Red

OUTPUTS

= unlit button = Slowly blinking button

Figure 3-63 — Level display on a 8-output-button switcher

5. Press and release the Audio button (figure 3-64).

Press the Audio button to exit audio mode.

I / O

RGBHV AUDIO

The Audio button stops blinking and lights red. The RGBHV or Video button lights green.

Figure 3-64 — Deselect Audio mode

All input buttons and output buttons return to unlit or background illumination.

Viewing and adjusting the output volume (audio models)

On models with audio, the audio level of each output can be displayed and adjusted through a range of 100% (no attenuation) to 0% (maximum [98 dB] attenuation). The audio level can be adjusted from the front panel or under RS-232/RS-422 or Ethernet control.

1. Press the Esc button to clear any input buttons, output buttons, or control

2. To enter Audio mode, press and hold the Audio button until the button begins

3. Press and release an output button to select an output. The input buttons

4. Press and release the Esc (

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-40

buttons that may be lit.

to blink red, then release the button.

display the volume level for the selected output. The switchers indicate the volume differently, depending on number of input buttons, but as a general rule, the more buttons that are lit, the higher the volume. The fewer buttons that are lit, the lower the volume.

For a more detailed analysis of decoding the displayed value, see Reading the displayed volume on the next page.

) and View ( ) buttons to increase and decrease

the audio volume.

5. Press and release the Audio button to save the audio settings and exit the

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Audio mode. The Audio button stops blinking.

• There is one audio volume level setting per output. The audio level setting is shared by the left and right audio inputs.

• The audio volume levels are stored in non-volatile memory. When power is removed and restored, the audio level settings are retained.

• Exiting Audio mode by pressing the Audio button always returns the I/O buttons to RGBHV (CrossPoint 450 Plus) or Video (MAV Plus) lit green and Audio lit red.

• Pressing the Enter or Preset button also exits Audio mode. Pressing the Preset button changes to Recall Preset mode.

Reading the displayed volume

This section is a detailed look at reading the output volume display on the switcher’s front panel. If you do not need to read the exact value of the volume setting, skip this section.

There are 65 steps of volume attenuation, with 1 dB per step (button push), except for 0-to-1, which is 35 dB. At maximum attenuation, no input buttons are lit, 98 dB of attenuation is applied, and the audio output is effectively muted. At no attenuation, all input buttons are lit and the output volume is equal to the input signal plus any gain or attenuation that is applied to that specific input using the input audio level adjustment. See Viewing and adjusting the input audio level (audio models). Other than the minimum and maximum volume, the switchers indicate the volume differently, depending on number (12, 16, or 32) of input LEDs. See the table on the next page to read the volume display for each display scheme.

For each display scheme, the input buttons blink or light sequentially to indicate the approximate volume of the selected output. Volume is defined as a percentage of the input audio signal that is applied to the output. From 0% of volume, the first Esc (

) button push applies 5.5% of the input audio signal. From 5.5% on, each

Esc (

) push applies 1.5% more of the input audio signal to the output:

• Push Esc (

! Switchers with 12 and 16 input buttons — Indicated by the Input 1

button blinking slowly.

! Switchers with 32 input buttons — Indicated by the Input 1 button lit

steadily.

• Push Esc (

! Switchers with 12 input buttons — Indicated by the Input 1 button

blinking quickly.

! Switchers with 16 input buttons — Indicated by the Input 1 button lit

steadily.

! Switchers with 32 input buttons — Indicated by the Input 1 and Input 2

button lit steadily.

• Push Esc (

! Switchers with 12 input buttons — Indicated by the Input 1 through 4

buttons lit steadily.

! Switchers with 16 input buttons — Indicated by the Input 1 through 5

buttons lit steadily and the Input 6 button blinking.

! Switchers with 32 input buttons — Indicated by the Input 1 through

Input 11 buttons lit steadily and the Input 12 button blinking.

) button — 5.5% + 1.5% = 7% volume

) button twice — 7% + 1.5% + 1.5% = 10% volume

) button nineteen times — 10% + (19•1.5%) = 38.5% volume

3-41CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Audio volume adjustment settings

Highest # input button lit

12-input

switcher

None

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink Fast

blink

16-input switcher

None

32-input

switcher

dB of

attenuation

98 63 62

61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

Output

volume

0%None

5.5% 7%

8.5%

10%

11.5% 13%

14.5% 16%

17.5% 19%

20.5% 22%

23.5% 25%

26.5% 28%

29.5% 31%

32.5% 34%

35.5% 37%

38.5% 40%

41.5% 43%

44.5% 46%

47.5% 49%

50.5%

52%

Highest # input button lit

12-input

switcher

Fast

blink

6 9

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink

Fast

blink

Slow

blink

Fast

blink

16-input

switcher

32-input

switcher

dB of

attenuation

31 53.5% 30 55%

29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

= blinking LED

Output

volume

56.5% 58%

59.5% 61%

62.5% 64%

65.5% 67%

68.5% 70%

71.5% 73%

74.5% 76%

77.5% 79%

80.5% 82%

83.5% 85%

86.5% 88%

89.5% 91%

92.5% 94%

95.5% 97%

98.5%

100%

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-42

When all input buttons are lit for any switcher model, the audio output is 100% of

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

the audio input level. Another way to view the volume level is to think in terms of the attenuation that is

applied to the output. Attenuation reduction is indicated by the lit or blinking input buttons: when fewer input buttons are lit, attenuation is greater (and the volume is quieter).

• At minimum volume, all input buttons are unlit or background illuminated and 98 dB of attenuation is applied to the output. The audio output is effectively muted.

• The first step of volume increase causes the Input 1 button to blink (slowly, in the case of switchers with 12 input buttons). Attenuation is reduced by 35 dB (63 dB of attenuation is applied to the output).

• The second step of volume increase reduces the attenuation by an additional 1 dB (62 dB of attenuation is applied to the output). (On switchers with 32 input buttons the Input 1 button lights steadily.)

• Successive steps of volume increase cause consecutive buttons to first blink, then light steadily. (On switchers with 32 input buttons, each consecutive button indicates a 1 dB attenuation reduction when blinking and a 2 dB

attenuation reduction when lit.) For example: When lit steadily, the Input 3 button indicates the following,

depending on the number of input buttons the switcher has:

! Switchers with 12 input buttons — 47 dB of attenuation when compared

to the Input 3 button blinking quickly (48 dB to 50 dB of attenuation). The blinking Input 4 button (45 dB to 46 dB of attenuation) is at least 2 dB less than the fast blinking Input 3 button (48 dB – 46 dB) and at most 5 dB less (50 dB – 45 dB).

! Switchers with 16 input buttons — 52 dB of attenuation when compared

to the Input 3 button blinking (53 dB to 55 dB of attenuation). The blinking Input 4 button (49 dB to 51 dB of attenuation) is at least 2 dB less than the fast blinking Input 3 button (53 dB – 51 dB) and at most and at most 6 dB less (55 dB – 49 dB).

! Switchers with 32 input buttons — 58 dB of attenuation when compared

to the Input 3 button blinking (59 dB of attenuation). The blinking Input 4 button (57 dB of attenuation) is 2 dB less than the steadily-lit Input 2 button (59 dB - 57 dB).

See the table on page 3-42 to read the volume display.

• On switcher with 32 input buttons, the buttons’ volume indications are additive.

For example: Input 1 lit (36 dB [35 dB + 1 dB] of attenuation reduction), Input 2 lit (2 dB [1 dB + 1 dB] of attenuation reduction), and Input 3 blinking (1 dB of attenuation reduction) indicate that the output attenuation has been reduced by a total of 39 dB (36 dB + 2 dB + 1 dB = 39 dB).

• At full volume, no attenuation is applied to the output and all input buttons are lit steadily.

3-43CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Example 11: Viewing and adjusting an output volume level

The following steps show an example in which the audio output volume is viewed and adjusted. The steps show the front panel indications that result from your action.

Audio output volume is displayed differently on different models. See the table on page 3-42.

For this reason, figure 3-68 and figure 3-71 show the indications displayed on a switcher with 12 output buttons without duplicating all of the actions shown in figure 3-67 and figure 3-70, which show switchers with 32 output buttons. Figure 3-69 and figure 3-72 show the indications displayed on a switcher with 16 output buttons.

1. Press and release the Esc button (figure 3-65).

ENTER

Figure 3-65 — Clear all selections

Press the Esc button to clear all selections.

C O N T R O L

PRESET

The button flashes once.

ESCVIEW

2. Press and hold the Audio button for approximately 2 seconds (figure 3-66).

2 seconds

AUDIO AUDIO

Press and hold the Audio button until it blinks.

= Blinking button

Figure 3-66 — Select Audio mode

3. Press and release the output 17 button (figure 3-67).

The input buttons display the selected output's audio volume level. Each lit input button beyond input 1 indicates 3 percent of the total input volume is applied to the

output. The flashing button indicates an additional 1.5 percent. In this example, the green input buttons indicate 41.5 percent of the applied audio input. The unlit

input buttons indicate an audio volume attenuation of 39 dB.

Press and release the Output 17 button. The button lights green.

= Unlit button = Blinking button = Lit button

O U T P U T S

17 18

–39 dB attenuation,

41.5% volume

12 13 14 15 16

28 29 30 31 32

I N P U T S

Figure 3-67 — Select output 17

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-44

Figure 3-68 shows the same volume (41.5%) as in figure 3-67, but displayed on

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

a 12-ouput-button switcher, such as a CrossPoint 450 Plus 128 HVA.

The input LEDs display the selected output's audio volume level. In this example, the lit/blinking input buttons indicate 40 to 41.5 percent of the

applied audio input. The unlit/blinking input buttons indicate an audio volume attenuation of 39 dB to 40 dB.

–39 dB attenuation,

41.5% volume

1 3 4 5 6 7 8 9

= Unlit button = Slow blinking button

Figure 3-68 — Volume display on a 12-output-button switcher

Figure 3-69 shows the same volume (41.5%) as in figure 3-67, but displayed on a 16-ouput-button switcher, such as a CrossPoint 1616 HVA.

The input LEDs display the selected output's audio volume level. In this example, the lit/blinking input buttons indicate 41.5 to 44.5 percent of the applied audio input.

The unlit/blinking input buttons indicate an audio volume attenuation of 37 dB to 39 dB.

1 3 4 5 6 7 8 9

= Unlit button

Figure 3-69 — Volume display on a 16-output-button switcher

–39 dB attenuation,

41.5% volume

10 14

= Blinking button = Lit button

11 162

11 122

= Lit button

13 15

3-45CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

4. Press and release the Esc ( ) button once (figure 3-70) to increase the volume by 1.5%.

Press and release the Esc ( increase the volume by 1.5% per button push. Note the input button indication changes that occur each time the Esc ( released.

Figure 3-70 show the result of pressing the Esc (

Press the Esc button to decrease the audio attenuation (thereby increasing the audio level) that is applied to the output volume level by 1 dB per button push.

ESC

) button several more times (figure 3-70) to

) button is pressed and

You can press and hold the Esc ( ) or View ( ) button to ramp the level up or down by 3 dB per second to the high or low limit.

) button a total of 13 times.

17 18 19

The input buttons display the selected output's audio volume level. Each lit input button beyond input 1 indicates 3 percent of the total input volume

is applied to the output. In this example, the green input buttons display 61 percent of the applied audio

input. The unlit input buttons indicate an audio volume attenuation of 26 dB.

26 dB attenuation,

61% volume

= Unlit button

12 13 14 15 16

28 29 30 31 32

= Lit button

I N P U

T S

Figure 3-70 — Adjust the output audio volume

Figure 3-71 shows the same volume (61%) as in figure 3-70, but displayed on a 12-ouput-button switcher, such as a CrossPoint 450 Plus 450 128 HVA.

The input LEDs display the selected output's audio volume level. In this example, the lit/blinking input buttons indicate 59.5 to 61percent of the

applied audio input. The unlit/blinking input buttons indicate an audio volume attenuation of 26 dB to 27 dB.

–26 dB attenuation,

61% volume

Figure 3-71 — Volume display on a 12-output-button switcher

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-46

1 3 4 5 6 7 8 9

= Unlit button = Fast blinking button

11 122

= Lit button

Figure 3-72 shows the same volume (61%) as in figure 3-70, but displayed on a

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

16-ouput-button switcher, such as a CrossPoint 1616 HVA.

The input LEDs display the selected output's audio volume level. In this example, the lit/blinking input buttons indicate 59.5 to 62.5 percent of the applied audio input.

The unlit/blinking input buttons indicate an audio volume attenuation of 25 dB to 27 dB.

–26 dB attenuation,

61% volume

1 3 4 5 6 7 8 9

= Unlit button

= Blinking button = Lit button

11 162

10 14

Figure 3-72 — Volume display on a 16-output-button switcher

5. Press and release the Audio button (figure 3-73).

Press the Audio button to exit audio mode.

I / O

RGBHV AUDIO

The Audio button stops blinking and lights red. The RGBHV or Video button lights green.

All input buttons and output buttons return to unlit or background illumination.

Figure 3-73 — Deselect Audio mode

Locking out the front panel (Executive mode)

The front panel security lockout limits the operation of the switcher from the front panel. When the switcher is locked, all of the front panel functions are disabled except for the View-Only mode functions. See Viewing a configuration on page 3-17. Other than in View-Only mode, if the user pushes a front panel button when the switcher is locked, the RGBHV (CrossPoint 450 Plus) or Video (MAV Plus) and Audio buttons flash twice and return to their previous state.

To toggle the lock on and off, press and hold the RGBHV (CrossPoint 450 Plus) or Video (MAV Plus) button and the Audio button for approximately two seconds (figure 3-74).

13 15

Press and hold the RGBHV /Video and Audio buttons simultaneously to toggle executive mode on or off.

Figure 3-74 — Toggle front panel lock on or off

I / O

VIDEO AUDIO

2 seconds

I / O

VIDEO AUDIO

The RGBHV/ Video and Audio buttons blink twice to indicate the mode change. Release the buttons.

3-47CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Performing a system reset from the front panel

The front panel reset is identical to the Programmer’s Guide). A system reset clears all ties and presets, all video and audio mutes, resets all I/O grouping, sets all input audio levels to unity gain (+0 dB), and sets all output volume levels to 100% (0 dB of attenuation).

Reset the switcher to the factory default settings by pressing and holding the RGBHV (CrossPoint 450 Plus) or Video (MAV Plus) button and Audio button while you apply AC power to the switcher (figure 3-75).

The switcher flashes the button indicators green, red, and amber and then turns them off.

Continue to hold the RGBHV/Video and Audio buttons until all input and output buttons return to either unlit or to background illumination and the RGBHV or Video and Audio buttons turn on.

Esc

ZXXX SIS command (see chapter 4,

System reset does not reset the Internet protocol (IP) settings or replace userinstalled firmware.

Press and hold the RGBHV/Video and Audio buttons while you apply power to the switcher.

I / O

VIDEO AUDIO

Power

Release the RGBHV/Video and Audio buttons.

Figure 3-75 — System reset

Background illumination

The buttons on the front panel can be set to provide amber background illumination at all times or the background illumination can be turned off. To toggle the background illumination on or off, press and hold the Input 1 and Input 2 buttons for approximately two seconds (figure 3-76).

Press and hold the Input 1 and Input 2 buttons simultaneously to toggle background illumination mode on or off.

1 2

17 18

2 seconds

1 2

17 18

T S

Release the Input 1

and Input 2 buttons.

T S

Figure 3-76 — Toggle background illumination on or off

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-48

Selecting the RS-232/RS-422 protocol and baud rate

C O N T R O L

PRESET

ENTER

I / O

RGBHV AUDIO

C O N T R O L

PRESET

ENTER

ESCVIEW

2 seconds

All Control buttons light with one flashing. Both I/O buttons light with one flashing. The flashing Control button indicates the baud rate as follows: Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

The flashing I/O button indicates the protocol as follows: RGBHV/Video — RS-232 Audio — RS-422/RS-485

In this example, the port is set to RS-232 at 9600 baud.

Press and hold the Enter, Preset, View, and Esc buttons.

= Blinking button

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

The switcher can support either RS-232 or RS-422 serial communication protocol, and operate at 9600, 19200, 38400, and 115200 baud rates. The settings of these variables can be viewed and changed from the front panel.

View and configure the switcher’s serial communications settings as follows:

1. To enter Serial Port Configuration mode, simultaneously press and hold all Control buttons (Enter, Preset, View, and Esc) (figure 3-77).

Figure 3-77 — RS-232/RS-422 and baud rate display

2. Release the Control buttons.

3. To change a value, press and release the button that relates to the desired

value (figure 3-78).

Press and release the button(s) to configure the port as follows: Baud rate: Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

Serial protocol: RGBHV/Video — RS-232 Audio — RS-422/RS-485

The selected buttons blink and the others remain lit. In this example, the port is set to RS-422 at 38400 baud.

I / O

RGBHV AUDIO

ENTER

PRESET

C O N T R O L

ESCVIEW

= Blinking button

Figure 3-78 — RS-232/RS-422 and baud rate selection

4. Press and release an input or output button to exit the Serial Port Configuration mode (figure 3-79).

Press and release an

input or output button.

All Control and I/O buttons return to unlit or background illumination.

ENTER

C O N T R O L

PRESET

ESCVIEW

I / O

RGBHV AUDIO

Figure 3-79 — Exit Serial Port Configuration mode

3-49CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Rear Panel Controls

The rear panel has a Reset button that initiates four levels of matrix switcher resets. Press and hold the button while the switcher is running or while you apply power to the switcher for different reset levels.

Performing soft system resets

The CrossPoint 450 Plus and MAV Plus switchers have three soft resets available that restore various tiers of switcher settings to their default settings.

• Events (mode 3) reset — This function toggles the monitoring of events on or off (if events monitoring was on, this function turns it off; if it was on, it is turned off).

• IP settings (mode 4) reset — The IP settings reset performs the following functions:

! Enables Arp program capability ! Resets the IP address to the factory default (192.168.254.254) ! Resets the subnet mask to the factory default () ! Resets the gateway address to its factory default () ! Resets port mapping to the factory default () ! Turn DHCP off ! Turn events off

IP settings reset does not replace any user-installed firmware.

• Absolute (mode 5) reset — Absolute reset restores the switcher to the default factory conditions. This function is identical to the command, see chapter 4, Programmer’s Guide).

Esc

ZQQQ SIS

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-50

Perform a soft reset of the switcher as follows:

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

1. Press and hold the Reset button until the front panel RGBHV (CrossPoint 450 Plus)/Video (MAV Plus) and Audio buttons blink once (events reset), twice (system reset), or three times (absolute reset) (figure 3-80).

Release, then

immediately

press and release again.

RESETRESETRESET

Release, then

immediately

press and release again.

Release, then

immediately

press and release again.

Events Reset

IP Settings

Reset

Absolute Reset

Press and hold

the Reset button.

RESET

LAN

Press and hold

the Reset button.

RESETRESET

Press and hold

the Reset button.

I / O

3 seconds

Buttons and Reset LED flash once.

6 seconds

Buttons and Reset LED flash twice.

9 seconds

RGBHV AUDIO

I / O

VIDEO AUDIO

I / O

RGBHV AUDIO

Buttons and Reset LED flash three times.

NOTE The Reset button on switchers with matrix sizes of 24 x 12 and above

have a different appearance and do not have a rear panel Reset LED.

Figure 3-80 — Whole switcher and absolute resets

2. Release the Reset button and then immediately press and release the Reset button again. Nothing happens if the second momentary press does not occur within 1 second.

3-51CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Performing a hard reset

The hard reset function restores the switcher to the base firmware that it shipped with. After a hard reset, events do not automatically start, but user settings and files are restored. Perform a hard reset as follows:

1. If necessary, turn off power to the switcher.

2. Press and hold the Reset button on the rear panel while you apply AC power

to the switcher (figure 3-81).

Press and hold the Reset button while you apply power to the switcher.

The hard reset restores the factory-installed firmware. The switcher reverts to that factory firmware the next time power is cycled off and on firmware update is performed before the power cycle.

RESET

LAN

unless a

The switcher flashes the button indicators green, red, and amber and then turns them off.

Continue to hold the Reset button until all input and output buttons return to either unlit or to background illumination and the RGBHV or Video and Audio buttons turn on.

Release the Reset button.

NOTE The Reset button on switchers with matrix sizes of 24 x 12 and above

have a different appearance and do not have a rear panel Reset LED.

Figure 3-81 — Hard reset

Power

Optimizing the Audio (Audio Switchers)

Each individual input audio level can be adjusted within a range of -18 dB to +24 dB, so there are no noticeable volume differences between sources and for the best headroom and signal-to-noise ratio. Adjust the audio gain and attenuation as follows:

1. Connect audio sources to all desired inputs and connect the audio outputs to output devices such as audio players. See Audio input and output connections (audio models only), in chapter 2, Installation. For best results, wire all of the inputs and the outputs balanced.

2. Power on the audio sources, the switcher, and the audio players.

3. Switch among the inputs (see Creating ties, in this chapter), listening to the

audio with a critical ear or measuring the output audio level with test equipment, such as a VU meter.

4. As necessary, adjust the input audio level of each input (see Viewing and adjusting the input audio level (audio models), in this chapter) so that the

approximate output level is the same for all selected inputs.

5. As necessary, adjust the output audio level of each input (see Viewing and adjusting the output volume (audio models), in this chapter).

RESET

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-52

Troubleshooting

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

This section gives recommendations on what to do if you have problems operating the CrossPoint 450 Plus or MAV Plus switcher, and it describes an actual image problem that Extron has encountered.

General checks

1. Ensure that all devices are plugged in and powered on. The switcher is receiving power if one of the front panel Power Supply LEDs is lit green.

2. Check to see if one or more outputs are muted.

3. Ensure an active input is selected for output on the switcher.

4. Ensure that the proper signal format is supplied.

5. Check the cabling and make corrections as necessary.

6. Call the Extron S

Plasma display S-video problem (CrossPoint 450 Plus switchers only)

Extron has encountered a problem when a CrossPoint 450 Plus switcher routes S-video that is output by some video conference codecs. Some codecs change the DC offset on the chrominance (C) so that it is very different from the level on the luminance (Y). This can cause a plasma display to come up in the wrong size mode.

With the matrix switcher taken out of the system, the plasma works fine. It looks like a problem with the matrix switcher, but it is not. The matrix switcher boosts the bad codec output, which makes the plasma go to the wrong setting.

Solution: Try placing an Extron video DC block adapter, part #26-495-01, on the luminance (Y) input to the switcher from the codec.

Sales & Technical Support Hotline if necessary.

3-53CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

Worksheet Example

26 27 28 29 30 31 32

17 18 19 20 21 22 23 24

17 18 19 20 21 22 23 242525

Main

Hall

PJ#1

Main

Hall

PJ#2

Podium monitor

VCR

(USP 405)

Lobby

monitor

Class room #1 monitor

Class room #2 monitor

Demo room PJ #1

Demo

rack

monitor

Demo

rack

switcher

Conf.

room

Sound system

Camera

main

podium

Podium

Mic

PC1

RGB 201

Rxi

Classroom

#1 VCR

(DVS 406)

Classroom

#2 VCR

(DVS 406)

Laptop

RGB 201

Rxi

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

rack #1

USP 405

Demo

rack #2

USP 405

Demo rack #3 USP 405

Demo

rack #4

USP 405

Rack DVD

(DVS)

Floorbox

Audio

VTG

300

Camera

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Configuration Worksheets

Rather than trying to remember the configuration for each preset, use worksheets to record this information. Make copies of the blank worksheet on page 3-57 (32-input button and -output button switchers) and page 3-59 (16-button switchers) and use one for each preset configuration. The worksheet accommodates all of the CrossPoint 450 Plus and MAV Plus models. Cross out all unused or inactive inputs and outputs. Use different colors for video and audio.

Worksheet example 1: System equipment

Figure 3-82 shows a worksheet for a CrossPoint 450 Plus 2424 HVA in a fictional organization with the system hardware annotated. Inputs 10, 11, and 21 through 24 have no connections in this organization, so they have been crossed out on the worksheet. A CrossPoint 450 Plus 2424 does not have inputs 25 through 32, so they are crossed out. Similarly, outputs 7, 14, 15, 16, and 25 through 32 are crossed out.

Inputs include PCs, an audio CD player, cameras, and an Extron VTG 300. Output devices include monitors, front and rear projectors, a stereo, and a VCR for recording presentations.

The Extron VTG 300 video test generator connected to input 12 enables a video test pattern to be sent to one, several, or all output devices for problem isolation or adjustment purposes. An audio test tape or CD could be used in a similar manner to check out the audio components.

Figure 3-82 — Worksheet example 1: System equipment

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-54

Worksheet example 2: Daily configuration

Main

Hall

PJ#1

Main

Hall PJ#2

Podium monitor

VCR

(USP 405)

Lobby

monitor

Class room #1 monitor

Class room #2 monitor

Demo room PJ #1

Demo

rack

monitor

Demo

rack

switcher

Conf.

room

Sound system

Camera

main

podium

Podium

Mic

PC1

RGB 201

Rxi

Classroom

#1 VCR

(DVS 500)

Classroom

#2 VCR

(DVS 500)

Laptop

RGB 201

Rxi

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

rack #1

USP 405

Demo

rack #2

USP 405

Demo rack #3 USP 405

Demo

rack #4

USP 405

Rack DVD

(DVS)

Floorbox

Audio

VTG

300

Camera

Worksheet Example

26 27 28 29 30 31 32

17 18 19 20 21 22 23 24

17 18 19 20 21 22 23 242525

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Figure 3-83 continues from worksheet example 1 by showing the video and audio ties that make up the configuration of preset 1. A solid ink line shows video ties and a dashed pencil line shows the audio ties.

In this example:

• The image of the presenter, from the main podium camera (input 1), is displayed:

! In the main hall (output 1) ! In the conference room (output 4) to the overflow crowd ! In the lobby (output 8) ! Tied to the VCR (output 6)

• The presenter has a presentation on her laptop computer (input 4) that is scan converted and displayed:

! In the main hall (output 2) ! Locally on the podium (output 3)

• The audio from her microphone (input 3) is played:

! In the hall (output 1) ! In the conference room (output 4) ! Sent to the VCR

• Classical music from the CD player (input 5) is played:

! In the background in the main hall on sound system #2 (output 5) ! In the lobby (output 8)

Figure 3-83 — Worksheet example 2: Daily configuration

3-55CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

Main

Hall

PJ#1

Main

Hall PJ#2

Podium monitor

VCR

(USP 405)

Lobby

monitor

Class room #1 monitor

Class room #2 monitor

Demo room PJ #1

Demo

rack

monitor

Demo

rack

switcher

Conf.

room

Sound system

Camera

main

podium

Podium

Mic

PC1

RGB 201

Rxi

Laptop

RGB 201

Rxi

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

wallbox

Demo

rack #1

USP 405

Demo

rack #2

USP 405

Demo rack #3 USP 405

Demo

rack #4

USP 405

Rack DVD

(DVS)

Floorbox

Audio

VTG

300

Camera

Worksheet Example

26 27 28 29 30 31 32

17 18 19 20 21 22 23 24

17 18 19 20 21 22 23 242525

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

Worksheet example 3: Test configuration

The A/V system in our fictional organization needs to be fine tuned on a regular basis. Figure 3-84 shows a typical test configuration, with an Extron video test generator (input 12) generating a test pattern to all monitors (outputs 1, 2, 3, 4, 8, 9, 10, and 12). Sound checks are run from the CD player (input 5) to all audio systems (outputs 1, 2, 4, 5, and 8).

Figure 3-84 — Worksheet example 3: Test configuration

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-56

Input sources

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

26 27 28 29 30 31 32

Output destinations

32-button switchers configuration worksheet

1 23456789 10111213141516

17 18 19 20 21 22 23 24 25

1 23456789 10111213141516

17 18 19 20 21 22 23 24 25

Preset # Title: Video: Audio:

Fill in the preset number and use colors, or dashes, etc. to make connecting lines.

Indicate if the configuration is for Video, Audio, or both.

3-57CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

This page was intentionally left blank.

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-58

12 13 14 15 16

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

10 12 13 14 15 16

Input sources

91011

Output destinations

16-button switchers configuration worksheet

1 2345678

123 45 678

Preset # Title: Video: Audio:

Fill in the preset number and use colors, or dashes, etc. to make connecting lines.

Indicate if the configuration is for video, audio, or both.

3-59CrossPoint 450 Plus and MAV Plus Switchers • Operation

Operation, cont’d

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201 Fax 07131 911203

ce-info@camboard.de

This page was intentionally left blank.

CrossPoint 450 Plus and MAV Plus Switchers • Operation3-60

Extron electronics CrossPoint 450 Plus 84 HV, CrossPoint 450 Plus 88 HVA, CrossPoint 450 Plus 128 HV, CrossPoint 450 Plus 128 HVA, CrossPoint 450 Plus 124 HVA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
