User’s Manual

CPM200 AND CPM208

Modular A/V Connector Bays

68-861-01 Rev. B

09 05

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions in
the literature provided with the equipment.

This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of
electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be
hazardous.

Consignes de Sécurité • Français

Ce s ymbole s ert à a vertir l’ut ilisateu r que l a
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation et
la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir

les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes

marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni d’outils

non recommandés par le fabricant du matériel car cela risquerait de poser
certains dangers.

Sicherheitsanleitungen • Deutsch

Dies es Sym bol so ll dem Benut zer in der i m
Li efe rum fan g en tha lte nen D oku men tat ion
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam
machen , daß im I nneren des Gehäuses diese s
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen
und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se util iza para advertir al usuario
sobre instruc ciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destac ar en el c ontenido de la docume ntación
suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y

seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para

futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas

en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian
implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power
system with a grounded (neutral) conductor. The third (grounding) pin is a safety
feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power

cords from the rear of the equipment, or the desktop power module (if detachable),
or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be

stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly

replaced. Replace it only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale
comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue
un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit
pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des
couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci

servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures
ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.

Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent
recommande par le constructeur. Mettre au reut les batteries usagees conformement
aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer
Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte
Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten

Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung
(falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar
dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem Servicepersonal

durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei.
Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses
Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,

dienen diese zur Vermeidung einer Überhitzung der empfindlichen Teile im
Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt

wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie
verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor neutro
a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia
ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida

de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación
en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera
independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben

instalar en lugares donde no sean pisados ni apretados por objetos que se puedan
apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar
riesgo de electrocución, no intentar personalmente la reparación/mantenimiento
de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship
for a period of three years from the date of purchase. In the event of malfunction during
the warranty period attributable directly to faulty workmanship and/or materials,
Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating
condition, provided that it is returned within the warranty period, with proof of
purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America: Extron Electronics, Europe

Extron Electronics Beeldschermweg 6C
1001 East Ball Road 3821 AH Amersfoort
Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper
handling care, electrical or mechanical abuse, abnormal operating conditions or non­Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at [phone] (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect
to the product and its quality, performance, merchantability, or fitness for any particular
use. In no event will Extron Electronics be liable for direct, indirect, or consequential
damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.

Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.

Precautions

Table of Contents

安全须知 • 中文

这个符号提示用户该设备用户手册中
有重要的操作和维护说明。

这个符号警告用户该设备机壳内有
露的危险电压，有触电危险

注意

阅读说明书 • 用户使用该设备前必须阅读并理解所有

安全和使用说明。

保存说明书 • 用户应保存安全说明书以备将来使用。
遵守警告 • 用户应遵守产品和用户指南上的所有安全

和操作说明。

• 不要使用该产品厂商没有推荐的工具或追

避免追加

加设备，以避免危险

。

。

警告

电源 • 该设备只能使用产品上标明的电源。 设备必须

使用有地线的 供电系统供电。 第 三条线（地线）是
安全设 施，不能不用或跳过 。

拔掉电源

• 为安全地 从设备拔掉电源，请拔掉所有设

备后或桌面电源的电源线，或任何接到市电系统
的电源线。

电源线保护
维护 • 所有维修必须由认证的维修人员进行。 设备内

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来

锂电池

• 妥善布线， 避免被 踩踏，或重物挤压。

部没有用户可以更换的零件。为避免 出现触电危险
不要自己试图打开设备盖子维修该设备。

防止机内敏感元件过热。 不要用任 何东西挡住通
风孔。

• 不正确的更换电池会有爆炸的危险。必须使用

与厂家推荐的相同或 相近型号的电池。按照 生产厂
的建议处理废弃电池。

Chapter 1 • Introduction ......................................................... 1-1

About the Modular A/V Connector Bays .......................... 1-2

Features ....................................................................................... 1-2

Chapter 2 • Installation ............................................................ 2-1

Installation Overview ............................................................. 2-2

Preparing the Table .................................................................. 2-2

Preparing the table with a saber or keyhole saw
Preparing the table with a hole saw

(CPM200 only) ........... 2-3

Installing the CPM Enclosure ................................................ 2-4

.............. 2-3

Installing the MAAPs and the Cables ................................ 2-5

Moving the MAAP shelf in the CPM200 .............................. 2-5

Moving the MAAP shelves in the CPM208 .......................... 2-5

Installing and cabling the MAAPs ........................................ 2-6

Chapter 3 • Maintenance and Modifications ........... 3-1

Removing and Replacing the Enclosure ............................ 3-2

Replacing Cables or an MAAP

®

............................................. 3-2

Appendix A • Reference Information ............................A-1

Specifications .............................................................................A-2

Top Plate Dimensions ..............................................................A-3

CPM Part Numbers ...................................................................A-6

Included Parts ........................................................................A-6

All trademarks mentioned in this manual are the properties of their respective owners.

68-861-01 Rev B

09 05

CPM200 and CPM208 • Table of Contents

i

Table of Contents, cont’d

CMP200 and CMP208

CMP200 and CMP208

Chapter One

1

Introduction

About the Modular A/V Connector Bays

Features

ii

CPM200 and CPM208 • Table of Contents

Introduction

Mounted
through a table
or podium

Extron
CPM208

Modular A/V
Connector Bay

D
A

S
1

0
1

C
M

A

u
d

i
o

B
u

f
f
e

r

M
A

X
P

O
W

E
R

4
0

0
W

D
A

V
1
0

1
C
M

V
G

A

L
i
n

e

D
r
i

v
e

r

V

i
d
e
o

I
n
p

u
t

P
o

w

e
r

D
A

S
1

0
1

C
M

A

u
d

i
o

B
u

f
f
e

r

About the Modular A/V Connector Bays

The Extron CPM200 and CPM208 are table-mounted,
architectural solutions for inconspicuous computer video, audio,
phone, data, and control interface connector access and control.

Figure 1-1 — CPM modular A/V connector bay
(CPM200 shown)

The installed enclosures fit nearly flush within a table or podium
top, storing the connectors out of the way and out of sight. To
access the connectors, the user lifts the lid of the enclosure.

The CPM200 and CPM208 Connector Bays are available in black
anodized aluminum.

Figure 1-2 — CPM208 application

Features

1-2

CMP200 and CMP208 • Introduction

• Easy access to connectors provides convenience.

• Designed for easy surface preparation and installation.

• Available with a variety (75+) of optional MAAP
connector modules (the CPM200 accepts up to 3 single
space MAAP modules and the CPM208 accepts up to 8
single space, MAAP modules) to provide flexibility.

• Optional Captive Cable Kits allow cables to be
permanently installed and available for use.

• Optional active A/V connector MAAP modules (line
driver, audio buffering, twisted-pair transmission, control,
and AC power models) provide versatility.

• Compact size and a durable finish make an unobtrusive
and attractive package.

• Adjustable mounting brackets will accomodate table
thicknesses from 0.5” to 2.5”.

CPM200 and CPM208 • Introduction

1-3

Introduction, cont'd

CMP200 and CMP208

CMP200 and CMP208

Chapter Two

2

1-4

Installation

Installing the CPM Enclosure

Preparing the Table

Installing the CPM Enclosure

Installing the MAAPs and the Cables

CMP200 and CMP208 • Introduction

Installation

1

2

3

4

5

6

7

CAUTION

CAUTION

Installation Overview

Install and set up a CPM modular A/V connector bay as
follows:

Draw a mounting template, based on the surface cut-out

dimensions shown in the back of this guide
(see Appendix A).

Place the template where you want the enclosure installed,

and mark the surface material to be removed.

Cut a hole in the surface where the enclosure will be

installed and install the enclosure. The screw clamps
secure the enclosure to the tabletop. See "Preparing the
Table and Installing the CPM Enclosure" in this chapter.

Run all cables necessary to support the MAAP panels/

modules. Leave enough slack in the cables to connect
them to the underside of the enclosure.

Turn off all of the equipment to be connected. Ensure

that all the equipment connected to the MAAP modules is
turned off and disconnected from the power source.

Install the MAAPs and connect the cables to the MAAPs.

See "Installing the MAAPs and the Cables" in this chapter.

Connect power cords and turn on the devices that connect

to the connector bay.

Preparing the Table

To install either enclosure, you can use a paper cut-out template
(see Appendix A) and a saber or keyhole saw to remove the
surface material. Alternately, if you are installing a CPM200
unit, a 3.5” hole saw may be used to prepare the table instead of
a saber or keyhole saw.

Prepare the table as follows:

The opening in the table for the CPM200 or

CPM208 should be cut only by licensed and bonded
craftspeople. Exercise care to prevent scarring or
damaging the furniture.

Preparing the table with a saber or keyhole saw

1. Using the dimensions for your enclosure provided in the
back of this manual (see Appendix A), draw an installation
template.

2. Locate the desired mounting location on the tabletop or
other installation surface and, using the template, draw an
outline of the surface material to be removed. If necessary,
use a square to ensure that the template is properly
positioned. Extron is not responsible for improperly
positioned CPM products.

3. Using a saber saw or keyhole saw, carefully cut the
opening in the table surface.

Wear safety glasses when operating the saber saw.

Failure to comply can result in eye injury.

Preparing the table with a hole saw (CPM200 only)

1. Locate the desired mounting location on the tabletop or
other installation surface. Mark the 3.5” circle, then find
the center and mark it as well.

Wear safety glasses when operating the hole saw.

Failure to comply can result in eye injury.

2. Using a 3.5” hole saw on a portable drill, cut the mounting
hole at the desired location. Extron is not responsible for
improperly positioned CPM products.

Use a portable drill with sufficient power to handle

the 3.5” hole saw. Exercise caution when handling
the drill and hole saw. Care should be taken to
protect the tabletop, podium, or other mounting
surface from damage.

2-2 2-3

CMP200 and CMP208 • Installation

The surfaces of the CPM enclosure have screws and
other protruding hardware that could damage fine
furniture. Do not rest the enclosure on unprotected
furniture.

Figure 2-1 — Cutting the opening with a hole saw

CMP200 and CMP208 • Installation

Installation, cont'd

Mounting
Surface

Mounting Bracket

Extron
CPM200

Modular A/V
Connecter Bay

D

A
V

1

0

1
C

M

V

G

A

L

in

e

D

ri

v

e

r

V
id

e

o

In

p

u

t

P

o

w

e
r

D

A

S

1

0
1

C

M

A

u
d

i
o

B

u

f
f

e

r

Installing the CPM Enclosure

1. Remove the mounting brackets (2 on the CPM200 and 4 on
the CPM208) on the sides of the enclosure.

2. If necessary, move the MAAP shelves to the lower position
(optional) from the upper (default) position within the
CPM unit. See the section on "Installing the MAAPs and
the Cables" on the following page.

The upper position is designed for applications using

A/V and active connector MAAP modules. The lower
position is designed for use with cable slot (split) module
plates and is used for captive cable installations where
cables are permanently installed in the CPM enclosure
and pulled out as needed.

4. From the underside of the table, reinstall the mounting
brackets on the enclosure (figure 2-2), then tighten the
brackets to secure the enclosure to the surface.

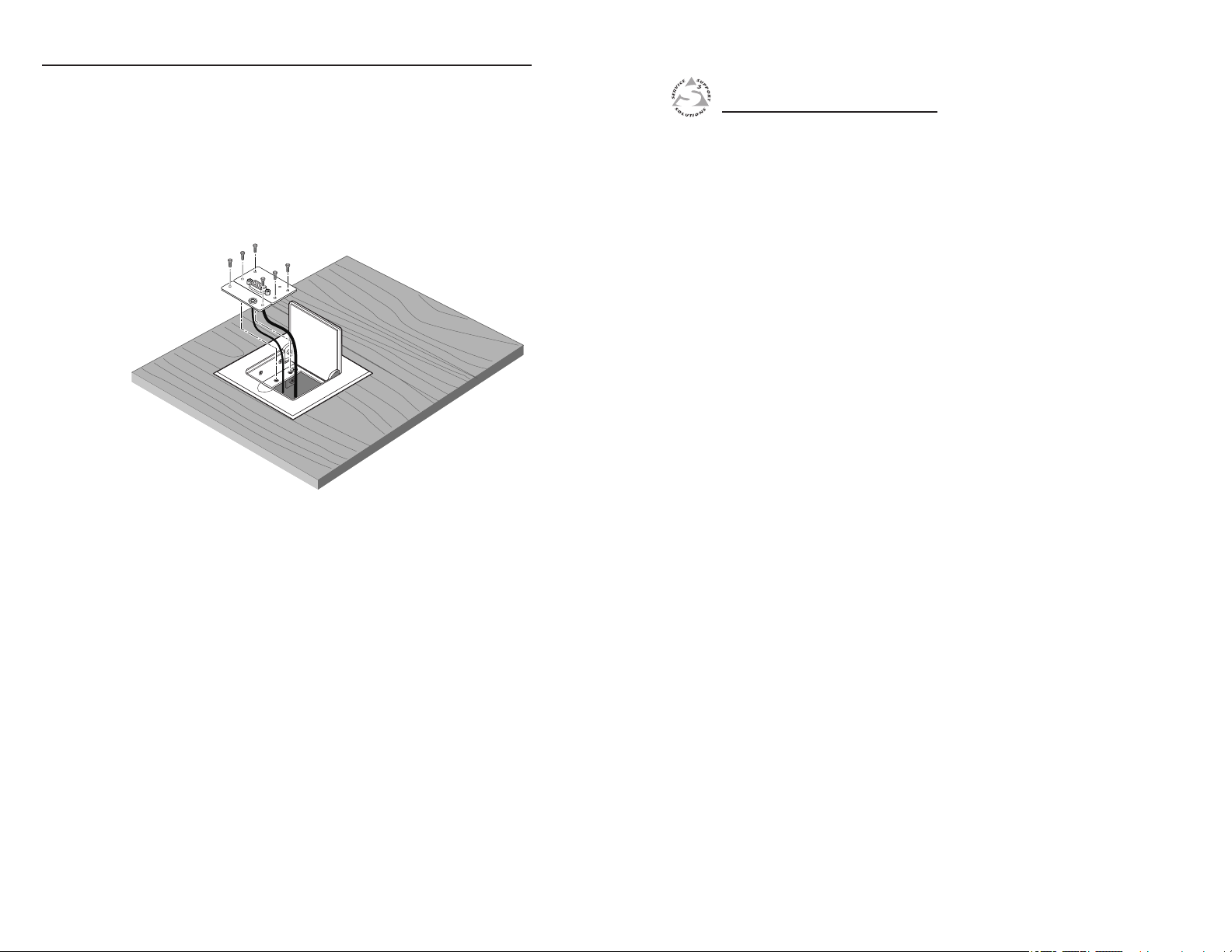

Installing the MAAPs and the Cables

Each CPM unit ships with one (CPM200) or two (CPM208)
MAAP shelves. The MAAP shelf in the CPM200 supports three
MAAPs. Both MAAP shelves in the CPM208 support four
MAAPs. The shelves are installed at the factory in either the
upper position (recessed 1” from the top), or the lower position,
(recessed 2.5” from the top).

The upper position is suitable for use with A/V and active
connector modules and the lower position is suitable for captive
cable installations where the cables are permanently installed
in the connector bay and are pulled out as needed. If your
application requires the MAAP shelves to be installed in a
different position, the shelves must be moved.

Moving the MAAP shelf in the CPM200

Move the MAAP shelf in the CPM200 as follows:

1. Remove the hex screws securing any MAAPs to the MAAP
shelf, then remove the MAAPs from the enclosure.

2. Remove the four Philips screws securing the MAAP shelf
to the MAAP shelf brackets, then remove the MAAP shelf
from the enclosure.

3. Remove the four MAAP shelf brackets from the enclosure.

4. Reinstall the four MAAP shelf brackets in the desired
position (leave the brackets slightly loose until the shelf is
installed).

5. Gently insert the shelf into the CPM enclosure until it rests
on the MAAP shelf brackets.

6. When the shelf contacts the shelf bracket, align the screw
holes and install the four screws to secure the shelf to the
shelf brackets.

7. Tighten the MAAP shelf bracket screws.

Moving the MAAP shelves in the CPM208

Figure 2-2 — CPM200 enclosure installation

3. Carefully lower the CPM enclosure into the hole to test the
fit. If necessary, remove the enclosure and use a file or rasp
to enlarge or smooth the edges of the opening.

2-4 2-5

CMP200 and CMP208 • Installation

Move the MAAP shelves in the CPM208 as follows:

1. Remove the hex screws securing any MAAPs to the MAAP
shelves, then remove the MAAPs from the enclosure.

2. Loosen, then remove the four Philips screws holding
each MAAP shelf in the enclosure, then move the MAAP
shelves to the desired position within the enclosure.

CMP200 and CMP208 • Installation

Installation, cont’d

DAV101

CM

VGA L

ine

Driv

er

Video I

npu

t

Powe

r

D
A

S
1

01

C

M

A

u

di
o

B

u

ffe

r

3. Reinstall the screws to secure the MAAP shelves in the
lower position within the enclosure.

Installing and cabling the MAAPs

Once the MAAP shelf is installed in the selected position, install
the cables and MAAPs in the CPM enclosure by connecting
the appropriate cable to the back side of each MAAP module,
or installing the cable in the split (cable slot) module, then
installing each MAAP module on the MAAP shelf.

Figure 2-2 — Installing and cabling the MAAPs

Install the MAAPs as follows:

1. Route the cables up through the installed CPM unit from
the underside of the table or podium.

2. Connect the cables to the bottom of the MAAP(s) to be
installed.

- OR -

Install the appropriate sized grommet on the cable and

snap the grommet in place in half of a split (cable slot)
MAAP.

3. Thread the cable, with the MAAP attached, back into the
enclosure, then align the holes in the MAAP with the
MAAP shelf and install the hex screws to secure the MAAP
in place.

For split (cable slot) MAAPs, install the other half of the

MAAP to fully support the cable, making sure not to pinch
or bind the cable.

4. For strain relief, secure the cables to the holes in the bottom
edge of the CPM enclosure with tie-wraps.

CMP200 and CMP208

Chapter Three

3

Maintenance and Modifications

Removing and Replacing the Enclosure

Replacing Cables or an MAAP

®

2-6

CPM200 and CPM208 • Installation

Maintenance and Modifications

Removing and Replacing the Enclosure

Remove and replace the CPM enclosure for maintenance as
follows:

Ensure that any AC power (if connected) is

disconnected before removing the CPM unit.

1. Loosen and remove the screws holding the MAAP module
in the CPM enclosure.

2. Gently pull the MAAP module, with the cables attached,
out of the CPM enclosure.

3. Remove the cables from the MAAPs.

4. On the underside of the table, loosen the mounting
brackets holding the enclosure to the tabletop. Remove the
brackets.

5. Lift the enclosure out of the table.

The surfaces of the CPM enclosures have screws and

other protrusions that could damage fine furniture. Do
not rest the enclosures on unprotected furniture.

6. Perform the desired maintenance procedure.

7. Carefully lower the CPM enclosure into the table opening.
From the underside, reattach the mounting brackets to the
enclosure, then tighten the brackets, securing the enclosure
to the tabletop.

8. Reconnect the cables to the MAAPs.

9. Reinstall the MAAPs onto the MAAP shelf in the CPM
enclosure (see "Installing the MAAPs and the Cables" in
chapter 2, Installation).

CMP200 and CMP208

Appendix A

A

Reference Information

Replacing Cables or an MAAP

Before you change the cables inside the CPM unit or replace one
or more MAAPs, you must remove the MAAP from the CPM
enclosure. Use the following guidelines as applicable:

1. Remove the MAAP by removing the two hex mounting
screws securing the MAAP to the MAAP shelf in the
enclosure.

2. Gently push the MAAP (with the cable attached) out
through the top of the enclosure.

3. Once the MAAP is removed, you can change the cables
and/or MAAPs as required. See "Installing the MAAPs
and the Cables" in chapter 2, Installation.

4. Reinstall the MAAP module into the CPM enclosure.

3-2

CPM200 and CPM208 • Maintenance and Modifications

Specifications

Top Plate Dimensions

CPM Part Numbers

User Access

4.0"

NOT FULL SIZE

Do Not Use as a cutout template

Top Panel

Cut surface material
out along this line.

SURFACE CUT-OUT

AREA =

3.5" dia.

(8.9 cm)

4.0" (10.2 cm)

3.5"

(8.9 cm)

Cut-Out Dimensions for Extron's

CPM200

Reference Information

CAUTION

Specifications

General

Rack mount .................................... No, but furniture mountable

Enclosure type ............................... Metal

Enclosure dimensions

Refer to the surface cutout dimensions here before

cutting a hole in the furniture or other surface.
Pay special attention to the direction the unit will
face; the unit’s MAAP and connector access side is
underlined. Extron is not responsible for miscut
mounting holes.

CPM200

Top plate (outer rim) ........ 4.0” W x 4.0” D (10.2 cm W x 10.2 cm D)

Surface cutout (inside rim) 3.5” Diameter (8.9 cm Diameter)

Box (under surface) .......... 3.5” H x 2.5” W (front of unit) x 2.5” D

8.9 cm H x 6.4 cm W x 6.4 cm D)

CPM208

Top plate (outer rim) ......... 6.75” W x 4.75” D (17.1 cm W x 12.1 cm D)

Surface cutout (inside rim) 5.9” W x 3.63 D (14.9 cm W x 9.22 cm D)

Box (under surface) .......... 3.5” H x 5.25” W (front of unit) x 3.4” D

.............................................. (8.9 cm H x 13.3 cm W x 8.6 cm D)

Product weight

CPM200 .............................. 1.0 lbs (0.5 kg)

CPM208 .............................. 2.0 lbs (1 kg)

Shipping weight

CPM200 .............................. 2 lbs (1 kg)

CPM208 .............................. 3 lbs (1.5 kg)

Vibration ........................................ ISTA/NSTA 1A in carton (International

Safe Transit Association)

MTBF ............................................... 30,000 hours

Warranty ........................................ 3 years parts and labor

Specifications are subject to change without notice.

Top Plate Dimensions

The cutout dimension illustrations (figures A-1 and A-2) are not
to scale and are for reference only. The dimensions shown in the
illustrations will help you prepare a mounting template. The
surface cutout area is shown as a shaded area on the diagrams
and the cutout dimensions are provided.

A-2

CPM200 and CPM208 • Reference Information

Figure A-1 — CPM200 cutout dimensions

CPM200 and CPM208 • Reference Information

A-3

Modular A/V
Connector Plate
in Upper Position

Tabl

e Top Thickness

Range: 0.50" to 2.50"

Modular A/V
Connector Plat

e

in Lower Position

1.00 "

2.50 "

Bottom ViewSide View (brackets removed)

Side View (with brackets)Back View (brackets removed)

Top View (lid open)top view (lid closed)

99

Thumbscrews
4 Places

Anti-rotation
Bumper, 4 Places

3 A/V Modular Plates

3 A/V Modular Plates

Lid Access Slot

Securing Brackets

3.50" Hole in Table Top
(viewed from underside)

2.50"

0.50" (min.)

2.50" (max.)

1.45"

2.66"

0.41"

2.66"

1.97"

3.50"

4.00"

0.10"

2.57"

2.56"

0.45"

4.00"

0.10"

1.20"

1.00"

3.50"

2.50"

4.00"

4.00"

Reference Information, cont'd

User Access

Cut-Out Template for Extron's

CPM208

TEMPLATE IS NOT FULL SIZE.

4.75"

(12.1 cm)

6.75" (17.1 cm)

Top Panel

Cut surface material
out along this line.

3.63"

(9.2 cm)

5.88"

(14.9 cm)

SURFACE CUT-OUT

AREA =

5.88"(14.9 cm) x

3.75"(9.5 cm)

Figure A-2 — CPM208 cutout dimensions

Figure A-3 — CPM200 enclosure dimensions

A-4

CPM200 and CPM208 • Reference Information

CPM200 and CPM208 • Reference Information

A-5

Reference Information, cont'd

Top View (lid closed)

Side View

To

p View (lid open)

Side View (lid open)

1.00 "

2.50 "

Modular A/V
Connector Plate
in upper position

Modular A/V
Connector Plate
in lower position

Thumbscrews
4 Places

0.50" (min)

Table top thickness
range: 0.50" to 2.50"

3.50"

6.75"

4.75"

6.75"

4.75"

6.75"

5.25"

2.50"

1.45"

2.50"

1.97"

Anti-rotation
Bumper,
4 Places

99

Figure A-4 — CPM208 enclosure dimensions

CPM Part Numbers

Included Parts

A-6

CPM200 and CPM208 • Reference Information

Part Part number

CPM200-1 (modular faceplate in upper position) 60-589-11
CPM200-2 (modular faceplate in lower position) 60-589-12
CPM208-1 60-589-13

Part Replacement part number

CPM200 and CPM208 User’s Manual
