Extron electronics DA 6V EQ, DA 6AV RCA EQ, DA 6AV EQ, DA 6SV EQ, DA 6SVA EQ User Manual

...

Download

User’s Manual

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805 USA

714.491.1500 Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664

Extron Electronics, Japan

Daisan DMJ Building 6F 3-9-1 Kudan Minami Chiyoda-ku, Tokyo 102-0074 Japan +81.3.3511.7655 Fax +81.3.3511.7656

www.extron.com

DA 6A

DA 8V/4V Dual EQ

DA 12V/6V Dual EQ

DA 3AV RCA

68-977-01, Rev. A

Printed in USA

10 04

Audio/Video Distribution Amplifiers

DA 6V EQ

DA 6AV EQ

DA 6AV RCA EQ

DA 6SV EQ

DA 6SVA EQ

DA 6SVA RCA EQ

Precautions

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be hazardous.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all

power cords from the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to

be stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced.

Replace it only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de

pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et

consignes marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni

d’outils non recommandés par le fabricant du matériel car cela risquerait de poser certains dangers.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,

ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la

batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Safety Instructions • English

Consignes de Sécurité • Français

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,

sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem

Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse

aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.

Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de

operación y seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad

para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones

marcadas en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian implicar riesgos.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la

acometida de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se

deben instalar en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/ mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

Instrucciones de seguridad • Español

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America:

Extron Electronics, Europe Extron Electronics Beeldschermweg 6C 1230 South Lewis Street 3821 AH Amersfoort Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan 135 Joo Seng Road, #04-01 Daisan DMJ Bldg. 6F, PM Industrial Bldg. 3-9-1 Kudan Minami Singapore 368363 Chiyoda-ku, Tokyo 102-0074

Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe),

65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

DA AV EQ Series • Quick Start Guide

Quick Start Guide — DA AV EQ Series

QS-1

To install and set up a DA AV EQ Series distribution amplifier, follow these steps:

Step 1

Turn all of the equipment off and disconnect it from the power source.

Step 2

Mount the DA AV EQ on a rack shelf, under a desktop or podium, or through a desktop. See Mounting the DA AV EQ Series in chapter 2 for mounting procedures. See Optional Accessories in appendix A for information on ordering the mounting options.

Step 3

Wire the captive screw connectors. For the models with captive screw connectors, follow the illustration below to wire them.

AUDIO

Unbalanced Input

Tip

Sleeve

Tip

Sleeve

Balanced Input

Tip

Ring

Sleeve (s)

Tip

Ring

(high impedance)

Wiring captive screw audio output connectors

Unbalanced Output

Tip

See Caution

Sleeve

Tip

See Caution

Balanced Output

Tip

Ring

Sleeve (s)

Tip

Ring

Wiring captive screw audio output connectors

Disconnect all power to the unit before wiring.

Step 4

Connect the cables of the input and output devices to the DA AV EQ, and power on all equipment.

DA AV EQ Series • Quick Start Guide

DA AV EQ Series • Table of Contents

Table of Contents

All trademarks mentioned in this manual are the properties of their respective owners.

68-977-01 Rev. A

Printed in USA

10 04

Introduction....................................................................1-1

About this Manual ....................................................... 1-2

About the DA AV EQ Distribution Amplifiers....... 1-2

Models ....................................................................................1-2

Features .................................................................................. 1-3

Connection diagrams ............................................................ 1-3

Installation and Operation ..........................................2-1

Mounting the DA AV EQ Series ................................ 2-2

Tabletop use........................................................................... 2-2

Rack mounting....................................................................... 2-2

Furniture mounting ............................................................... 2-4

Through-desk mounting .......................................................2-5

Rear Panel Features and Cabling ............................. 2-6

Front Panel Features and Operation................................ 3-1

Front Panel Features ................................................... 3-2

Gain and Equalization Controls .....................................3-4

Setting Up Potentiometers for Cable Lengths ....... 3-5

Settings for short cables ........................................................ 3-5

Adjusting for long cables ......................................................3-6

Adjusting with an oscilloscope ....................................... 3-6

Adjusting without an oscilloscope ................................. 3-6

Specifications, Part Numbers, and Accessories ..... A-1

Specifications................................................................ A-2

Models ............................................................................A-6

Included Parts ...............................................................A-7

Optional Accessories ................................................... A-7

QS-2

Quick Start Guide — DA AV EQ Series, cont’d

Step 5

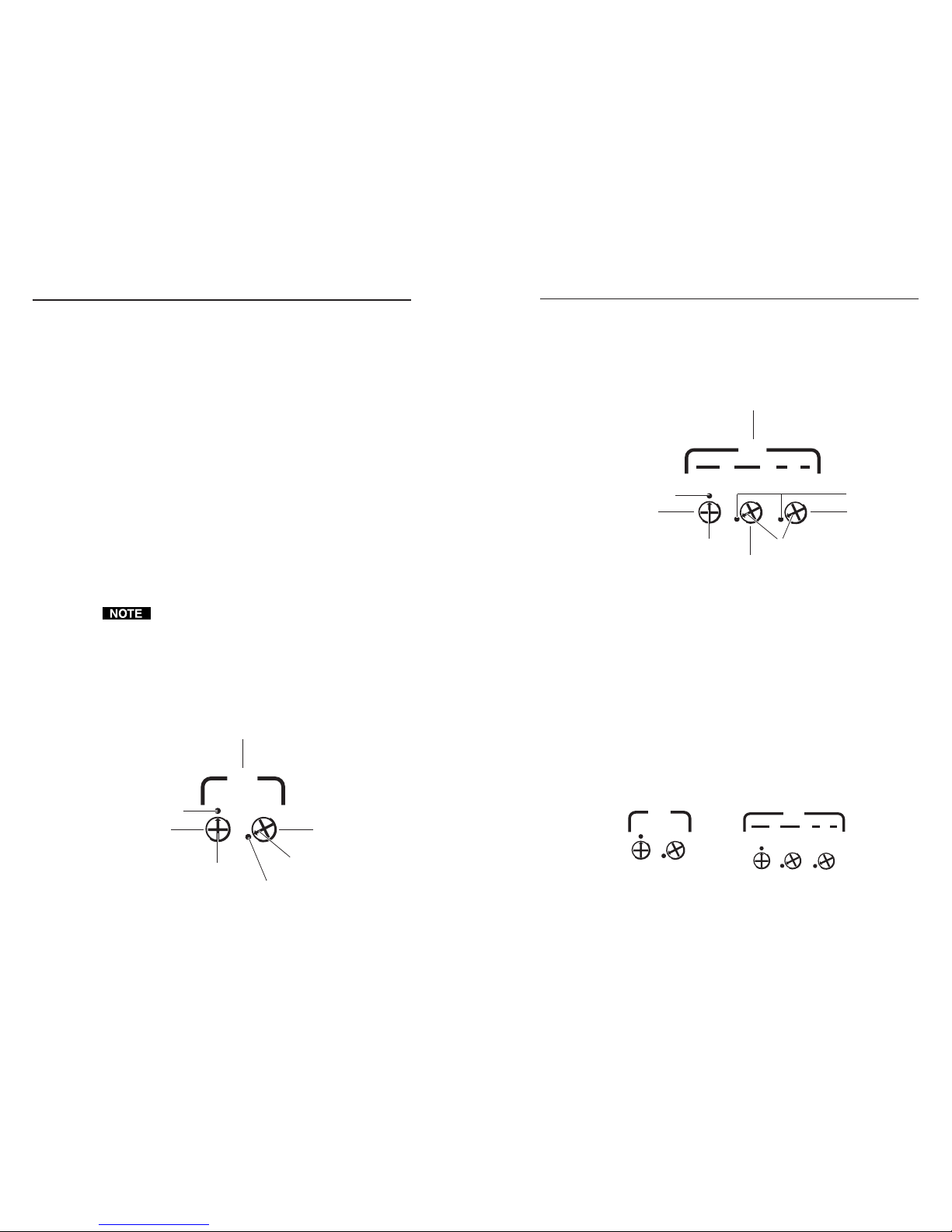

Adjust the potentiometers (pots) for the output cable lengths, if necessary.

• If using very short output cables, make sure that the pots are in

the unity gain position; that is, with the arrow on each pot pointing to the dot beside or above it.

If the pots are already in the unity gain position (factory default settings), DO NOT CHANGE THEM. If they are not in the unity gain position, rotate them into position, using an Extron Tweeker. The illustration below shows the pots for Outputs 1 and 2 at the unity gain position.

EQGAIN

1/2

GAIN

EQGAIN

1/2

Composite Video Models S-video Models

Potentiometers at unity gain setting

• If using long cables, follow these steps to adjust the pots:

a. Supply the Color Bars test signal to the input.

(Recommendation: Use an Extron VTG 300 Video Test Generator to generate the test signal.)

b. Adjust the Gain pot(s) for output pair 1 and 2 until the

signal level at the far end is the same as the input (or the display shows the correct brightness and contrast).

c. Adjust the EQ pot for outputs 1 and 2 so that no overshoot

or round front corners appear at the far end on the scope (or until you see a sharp picture with no smearing).

d. Repeat steps b and c for the rest of the outputs.

DA AV EQ Series • Table of Contents

Table of Contents, cont’d

DA AV EQ Series

Chapter One

Introduction

About this Manual

About the DA AV EQ Series Distribution Amplifiers

DA AV EQ Series • IntroductionDA AV EQ Series • Introduction

Introduction

1-3

Features

Equalization and gain control — Independent gain and

equalization control for each two outputs provides more flexibility and more accurate cable compensation to drive different lengths of cables from different outputs. (S-video models have Y-only equalization, and Y and C gain controls.)

Outputs with similar lengths of cables should be paired in the same output group so that they can share the same gain and EQ setup.

Passive video loop-through — All models except DA 6A,

DA 12V/6V Dual EQ, and DA 8V/4V Dual EQ feature a passive video loop-through channel with a 75 ohm impedance toggle switch, which provides for local monitoring and cascading to another distribution amplifier.

Power supply — An internal 100 VAC to 240 VAC, 50/60 Hz,

autoswitchable power supply is provided on all models.

Enclosure — All models have a compact 1U, half rack

enclosure, six inches in depth.

High bandwidth — Bandwidth of 150 MHz @ -3 dB for

composite video and S-video maintains signal quality without picking up noise.

Rack and furniture mountability — All models can be

mounted on a rack shelf, under a desk or podium, or through a table top.

Connection diagrams

The connection diagrams on the next page show examples of how devices may be connected to the DA AV EQ Series distribution amplifiers.

About this Manual

This manual provides information on the Extron DA AV EQ series of audio/video distribution amplifiers and discusses how to install and operate them.

About the DA AV EQ Series

The Extron DA AV EQ Series products are high-performance composite video, S-video, and audio distribution amplifiers. They feature long cable drive capability and individual gain and equalization adjustments (for every two outputs) to optimize the picture for displays at significantly different distances from the DA AV EQ.

Models

The DA AV EQ Series consists of 10 models with the following features:

DA 6V EQ — One input, six outputs, composite video with

equalization and gain controls

DA 6AV EQ — One input, six outputs, audio, and composite

video with equalization and gain controls

DA 6AV RCA EQ — One input, six outputs, audio on RCA

connectors, and composite video with equalization and gain controls

DA 6SV EQ — One input; six outputs; S-video with luma (Y)

equalization control, and luma and chroma gain controls

DA 6SVA EQ — One input; six outputs; audio; and S-video with

luma (Y) equalization control, and luma and chroma gain controls

DA 6SVA RCA EQ — One input; six outputs; audio on RCA

connectors; and S-video with luma (Y) equalization control, and luma and chroma gain controls

DA 6A — One input, six outputs, audio DA 3AV RCA — One input, three outputs, audio on RCA

connectors, and composite video

DA 12V/6V Dual EQ — Dual composite video DA that can

function as either a 1-input, 12-output DA with one active loop-through, or two 1-input, 6-output DAs in one enclosure (no loop-through); equalization and gain controls

DA 8V/4V Dual EQ — Dual composite video DA that can

function as either a 1-input, 8-output DA with one active loop-through or two 1-input, 4-output DAs in one enclosure (no loop-through); equalization and gain controls

1-2

DA AV EQ Series • Introduction

Introduction

DA AV EQ Series

Chapter Two

Installation and Rear Panel

Functions

Mounting the DA AV EQ Series

Rear Panel Features

1-4

-T

Sound Systems

Projector

DVD

Monitor (Loop-through)

DA 6AV EQ

Audio Video Distribution Amplifier

Plasma Displays

VCR

6' Cables

1000' Cables

800' Cables

100' Cables

Example of devices connected to a DA 6AV EQ

INPUT

INPU

OUTP

UTS

OUTP

UTS

DA 3AV

Projector

DVD

Monitor (Loop-through)

DA 3AV RCA

Audio Video Distribution Amplifier

HDTV Plasma Displays

200' Cables

100' Cables

300' Cables

Example of devices connected to a DA 3AV RCA

DA AV EQ Series • Installation and Rear Panel

Installation and Rear Panel, cont’d

2-3

6" Deep Rack Shelf

Front false faceplate uses 2 screws.

1/2 Rack Width Front False Faceplate

Use the 2 mounting holes on opposite corners.

(2) 4-40 x 3/16" Screws

Mounting a DA AV EQ on a 6-inch rack shelf

Use the 2 mounting holes on opposite corners.

(2) 4-40 x 3/16" Screws

NOTE:

Using screws longer than 3/16” will damage the unit and void the warranty.

1U Universal Rack Shelf

Front false faceplate uses 2 screws.

1/2 Rack Width Front False Faceplate

Mounting a DA AV EQ on a standard rack shelf

Mounting the DA AV EQ Series

The DA AV EQ distribution amplifiers can be set on a table; mounted on a rack shelf; or mounted through or under a desk, podium, or tabletop.

Tabletop use

Four self-adhesive rubber feet are included with the DA AV EQ. For tabletop use, affix one foot at each corner of the bottom side of the unit and place the unit in the desired location.

Rack mounting

For optional rack mounting, do not install the rubber feet. Mount the distribution amplifier on a half-rack width, 6" deep, 1U high rack shelf (Extron part #60-190-10 or 60-604-10) or a standard 19-inch wide 1U rack shelf (Extron part #60-190-01 or

60-604-01).

1. Remove the rubber feet if they were previously installed

on the bottom of the unit.

2. Mount the unit on the rack shelf, using two 4-40 x 3/16"

screws in opposite (diagonal) corners to secure it.

3. Install blank panel(s) or other unit(s) on the rack shelf.

4. Attach the rack shelf to the rack using the supplied bolts.

2-2

DA AV EQ Series • Installation and Rear Panel

Installation and Rear Panel, cont’d

2-5

Through-desk mounting

Mount the DA AV EQ through a desk or table, using the optional mounting kit (part #70-077-02) as illustrated below.

Through-desk mounting the DA AV EQ

1. Mark the opening through which the unit will be

mounted—approximately 1.8" by 8.9" (4.6 cm by 22.6 cm).

2. Cut out the material from the installation area with a

jigsaw.

3. Drill pilot holes 1/4" (6.4 mm) deep and 3/32" (2 mm) in

diameter in the desk or table at the locations of the mounting bracket screws. The holes should be drilled from the underside or inside (concealed side) of the furniture, where the amplifier will be located.

2-4

Furniture mounting

Furniture-mount (under a desk or shelf) the DA AV EQ using the optional mounting kit (part #70-077-01) as illustrated below.

Under-desk mounting the DA AV EQ

Drill pilot holes 1/4" (6.4 mm) deep and 3/32" (2 mm) in diameter in the table or desk at the marked screw locations. The holes should be drilled from the underside or inside (concealed side) of the furniture, where the amplifier will be located.

DA AV EQ Series • Installation and Rear Panel

Installation and Rear Panel, cont’d

2-7

DA 6SV EQ

OUTPUTS

INPUT

LOOP-THRU

HIGH Z

75 Ohm

531

642

50/60 Hz

100-240V 0.2A

DA 6SV EQ rear panel

DA 6SVA EQ

OUTPUTS

INPUT

LOOP-THRU

HIGH Z

75 Ohm

531

642

50/60 Hz

100-240V 0.2A

INPUT

OUTPUTS

DA 6SVA EQ rear panel

DA 6SVA RCA EQ

OUTPUTS

INPUT

LOOP-THRU

HIGH Z

75 Ohm

123456

642

50/60 Hz

100-240V 0.2A

DA 6SVA RCA EQ rear panel

2-6

Rear Panel Features and Cabling

The following diagrams show the rear panel configurations of the 10 models in the DA AV EQ series.

100-240V 0.2A

50/60 Hz

LOOP-THRU

INPUT

75 Ohm

HIGH Z

246

135

OUTPUTS

DA 6V EQ

DA 6V EQ rear panel

100-240V 0.2A

50/60 Hz

246

135

75 Ohm

HIGH Z

LOOP-THRU

INPUT

OUTPUTS

DA 6AV EQ

INPUT

OUTPUTS

DA 6AV EQ rear panel

100-240V 0.2A

50/60 Hz

LOOP-THRU

INPUT

75 Ohm

HIGH Z

246

654321

INPUT

OUTPUTS

DA 6AV RCA EQ

4 9

DA 6AV RCA EQ rear panel

DA AV EQ Series • Installation and Rear Panel

Installation and Rear Panel, cont’d

2-9

100-240V 0.2A

50/60 Hz

1 2 3

321

75 Ohm

HIGH Z

LOOP-THRU

INPUT

OUTPUTS

DA 3AV RCA

DA 3AV RCA rear panel

AC power connector — Plug a standard IEC power cord into this male connector to connect the distribution amplifier to a 100 to 240 VAC, 50 Hz or 60 Hz power source.

Passive Loop-Thru connector (composite video) — (All models except DA 6A and the three S-video models) Connect a monitor to this female BNC video loop-through connector.

This connector functions as an input on the DA 12V/6V and 8V/4V Dual EQ models when they are operating in Dual mode.

Passive Loop-Thru connector (S-video) — (DA 6SV EQ, DA 6SVA EQ, and DA 6SVA RCA EQ only) Connect a monitor to this female 4-pin mini DIN video loop-through connector.

Termination toggle switch — (All models except DA 6A, DA 12V/6V Dual EQ, and DA 8V/4V Dual EQ) Set this switch to HIGH Z (up) if a monitor is plugged into the passive loopthrough connector. Set the switch to 75 OHM (down) to simulate a monitor when none is attached to the Loop-Thru connector.

Dual mode toggle switch — (DA 12V/6V Dual EQ and DA 8V/ 4V Dual EQ only). Use this switch to toggle between operating modes:

• DA 12V/6V EQ: Switches between operating as one

1-input, 12-output DA with active loop-out (up), and two 1-input, 6-output DAs (down).

• DA 8V/4V EQ: Switches between operating as one

1-input, 8-output DA with active loop-through (up), and two 1-input, 4-output DAs (down).

2-8

DA 6A

100-240V 0.2A

50/60 Hz

INPUT

OUTPUTS

DA 6A rear panel

56 8

12 43

100-240V 0.2A

50/60 Hz

LOOP-

THRU

Dual 1 x 4

1 x 8

INPUT B

INPUT A

OUTPUTS

DA 8V/4V DUAL

DA 8V/4V Dual EQ rear panel

78 10

12 41151263

100-240V 0.2A

50/60 Hz

LOOP-

THRU

Dual 1 x 6

1 x 12

INPUT B

INPUT A

DA 12V/6V DUAL

OUTPUTS

DA 12V/6V Dual EQ rear panel

DA AV EQ Series • Installation and Rear Panel

Installation and Rear Panel, cont’d

DA AV EQ Series

Chapter Three

Front Panel Features and

Operation

Front Panel Features

Gain and Equalization Controls

2-10

Video outputs 1-6 (composite video) — Connect an output monitor, projector, and/or other devices to these female BNC connectors.

Video outputs 1-6 (S-video) — Connect an output monitor, projector, and/or other devices to these female 4-pin mini DIN connectors.

Audio input — Connect an audio input source to this female 5-pin captive screw connector.

AUDIO

Unbalanced Input

Tip

Sleeve

Tip

Sleeve

Balanced Input

Tip

Ring

Sleeve (s)

Tip

Ring

(high impedance)

Audio input (RCA) — Connect an unbalanced audio input source to these female RCA connectors.

Audio outputs — Connect speakers to these 5-pole captive screw connectors. Wire the captive screw connectors for stereo output as shown in the following diagram.

Unbalanced Output

Tip

See Caution

Sleeve

Tip

See Caution

Balanced Output

Tip

Ring

Sleeve (s)

Tip

Ring

CAUTION

Always connect the sleeve to ground (Gnd). Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.

Audio outputs (RCA) — Connect speakers to these RCA connectors.

Video input (composite video) — Connect a composite video source to this female BNC connector.

Video input (S-video) — Connect an S-video source to this female 4-pin mini DIN connector.

DA AV EQ Series • Front Panel Features and OperationDA AV EQ Series • Front Panel Features and Operation

Front Panel Features and Operation

3-3

11/12

EQGAIN

9/10

EQGAIN

7/8

EQGAIN

5/6

EQGAIN

3/4

EQGAIN

1/2

VIDEO DISTRIBUTION AMPLIFIER

DA 6V/12V Dual EQ front panel

S-VIDEO/AUDIO DISTRIBUTION AMPLIFIER

5/63/4

EQGAIN

1/2

GAIN EQGAINYGAIN EQGAINYGAIN

DA 6SVA EQ, DA 6SVA RCA EQ, and DA 6SV EQ front panel

The above illustration shows the DA 6SVA and 6SVA RCA EQ front panel. The DA 6SV EQ front panel is identical except that it is identified in the lower-right corner as “Video Distribution Amplifier.”

Power indicator LED — This LED, when lit, indicates that the distribution amplifier is receiving power.

Gain and EQ potentiometers — (Composite video models; one set for each pair of outputs) Use an Extron Tweeker or a small screwdriver to turn these potentiometers to adjust for gain and equalization (EQ) for connected devices with long cables.

Gain and EQ potentiometers (luma) — (SV and SVA EQ models; one set for each pair of outputs) Use an Extron Tweeker or a small screwdriver to rotate these potentiometers (labeled with Y, above it) to adjust the luminance gain and equalization (EQ) when devices with long cables are connected.

Gain potentiometer (chroma) — (SV EQ and SVA EQ models; one for each pair of outputs) Use an Extron Tweeker or a small screwdriver to rotate this potentiometer (labeled with C, above it) to adjust the chroma gain.

3-2

Front Panel Features

The following diagrams show the five different front panel configurations of the DA AV EQ series.

EQGAIN

5/6

EQGAIN

3/4

EQGAIN

1/2

VIDEO/AUDIO DISTRIBUTION AMPLIFIER

DA 6AV EQ, DA 6AV RCA EQ, and DA 6V EQ front panel

The above illustration shows the DA 6AV and 6AV RCA EQ front panel. The DA 6V EQ front panel is identical except that it is identified in the lower-right corner as “Video Distribution Amplifier.”

AUDIO DISTRIBUTION AMPLIFIER

DA 6A

DA 6A and DA 3AV RCA front panel

The above illustration shows the DA 6A front panel. The DA 3AV RCA front panel is identical except that it is identified in the lower-right corner as “Video/Audio Distribution Amplifier.”

7/8

EQGAIN

5/6

EQGAIN

3/4

EQGAIN

1/2

EQGAIN

VIDEO DISTRIBUTION AMPLIFIER

DA 8V/4V Dual EQ front panel

DA AV EQ Series • Front Panel Features and OperationDA AV EQ Series • Front Panel Features and Operation

Front Panel Features and Operation

3-5

• DA 6SV EQ, DA 6SVA EQ, and DA 6SVA RCA EQ: The

front panels of these models each contain one Y Gain, one Y EQ, and one C Gain potentiometer for each pair of outputs. The illustration below shows the Y Gain, EQ, and C Gain potentiometers for outputs 1 and 2.

EQGAIN

1/2

GAIN

Output Pair

Chroma Gain Pot

Luma (Y) Gain Pot

Equalization (EQ) Pot (for Luma [Y])

Arrow

0 dB Indicator Dot

Arrow

0 dB Indicator Dot

Setting Up Potentiometers for Cable Lengths

To set up your DA AV EQ, you may need to adjust the potentiometers for the cable lengths of the outputs. You can make the necessary adjustments using an Extron Tweeker (small screwdriver).

Settings for short cables

At the factory, the DA AV EQ pots are set precisely to the unity gain position (with the arrow on the pot pointing to the dot beside or above it). If you are using very short output cables, do not turn these pots; leave them at the factory default setting. If the pots have already been turned, reset them to the default position. The illustration below shows outputs 1 and 2 set to the unity gain position.

EQGAIN

1/2

GAIN

EQGAIN

1/2

Composite Video Models S-video Models

Potentiometers for outputs 1/2 at unity gain settings

3-4

Gain and Equalization Controls

Gain and equalization (EQ) can be adjusted from the front panel of all DA AV EQ series products except the DA 6A and DA 3AV RCA. On S-video models, you can adjust luma (Y) gain and equalization, and chroma (C) gain. On composite video models, you can adjust Gain and EQ. Adjustments are made for each pair of outputs.

The front panels of all the DA AV EQ series products feature Gain and EQ potentiometers (pots), which enable you to make the gain and equalization adjustments. Each pot has a white dot either above it (composite and Y gain) or to the lower left of it (EQ and C gain). These dots indicate 0 dB unity.

Use an Extron Tweeker or a small screwdriver to rotate these pots clockwise to increase gain or equalization, or counterclockwise to decrease.

The DA AV EQ products have one EQ pot and one or two Gain pots for each pair of outputs. Therefore, gain and equalization can be adjusted only for a pair of outputs at a time. For example, if you adjust the equalization pot for output 1, output 2 is adjusted by the same amount, at the same time.

This means that you should have cables of the same length for both outputs of a pair.

• DA 6V EQ, DA 6AV EQ, DA 6AV EQ RCA, DA 8V/4V Dual EQ, and DA 12V/6V Dual EQ: The front

panels of these models feature one Gain and one EQ pot for each pair of outputs. The illustration below shows the Gain and EQ pots for outputs 1 and 2.

Output Pair

Equalization (EQ) Pot

Gain Pot

Arrow

EQGAIN

1/2

0 dB Indicator Dot

Arrow

0 dB Indicator Dot

DA AV EQ Series • Front Panel Features and Operation

Front Panel Features and Operation

DA AV EQ Series

Appendix A

Specifications, Part Numbers,

and Accessories

Specifications

Models

Included Parts

Optional Accessories

3-6

Adjusting for long cables

If you are using long cables, you will need adjust the Gain and EQ potentiometers (pots) until you have the best picture quality. Using an oscilloscope is recommended; however, you can make these adjustments without one. Both methods are described below.

Adjusting with an oscilloscope

1. Feed a grayscale signal from an Extron VTG 300/400 or

other A/V test generator to the input of the DA AV EQ.

2. Remove the far end of the output cable from the display,

and connect it to the oscilloscope with 75 ohm termination.

3. Adjust the composite video or Y Gain pot to achieve 0.7

Vp-p for the white bar of the test pattern. For the S-video models, adjust the C gain pot to achieve 0.3 Vp-p of color burst level.

4. Adjust the EQ pot until no overshooting or round corners

appear on the test pattern.

5. Repeat steps 1 through 4 for all other output pairs.

6. Plug the far end of the cable back into the display device.

Adjusting without an oscilloscope

1. Feed a grayscale signal from an Extron VTG 300/400 or

other A/V test generator to the input of the DA AV EQ.

2. Adjust the composite video or Y Gain pot until the picture

from the display device appears to have the correct brightness and contrast.

3. Adjust the EQ pot until the picture appears sharp and

without visible smearing.

4. Repeat steps 1 through 3 for all other output pairs.

DA AV EQ Series • Specifications, Parts, and Accessories

Specifications, Parts, and Accessories

A-3

Minimum/maximum levels

Composite video or

Y signal .............................. 0.4 V to 2.0 Vp-p with no offset at unity

gain DA 6SV, DA 6SVA, and

DA 6SVA RCA EQ .......... Y: 0.4 V to 2.0 Vp-p with no offset at unity

gain

Impedance

DA 8V/4V Dual EQ and

DA 12V/6V Dual ............. 75 ohms

All other models .............. 75 ohms or Hi-Z, selectable

Return loss .................................... -30 dB @ 5 MHz

DC offset (max. allowable) ......... 4.0 V, AC coupled

Video output

Number/signal type

DA 6V, DA 6AV, and

DA 6AV RCA EQ............. 6 composite video

DA 6SV, DA 6SVA, and

DA 6SVA RCA EQ .......... 6 S-video

DA 12V/6V Dual EQ ...... 12 composite video

DA 8V/4V Dual EQ ........ 8 composite video

DA 3AV RCA ................... 3 composite video

Connectors

DA 6V, DA 6AV, and

DA 6AV RCA EQ............. 6 female BNC

DA 6SV, DA 6SVA, and

DA 6SVA RCA EQ .......... 6 female 4-pin mini DIN

DA 12V/6V Dual EQ ...... 12 female BNC

DA 8V/4V Dual EQ ........ 8 female BNC

DA 3AV RCA ................... 3 female BNC

Nominal level ............................... 1 Vp-p for composite video and for Y of

S-video

0.3 Vp-p for C of S-video

Minimum/maximum levels ...... 0.4 V to 2.0 Vp-p

Impedance .................................... 75 ohms

Return loss .................................... -30 dB @ 5 MHz

Sync

Standards ...................................... NTSC 3.58, NTSC 4.43, PAL, SECAM

Specifications

Video

Gain (all models except DA 6A and DA 3AV RCA)

Video and Y ...................... -1 dB to +3 dB (x 0.9 to x 1.4), adjustable

per every 2 outputs

C (chroma) ........................ 0 dB to +10 dB (x 1 to x 3), adjustable for

DA 6SV EQ, DA 6SVA EQ, and DA 6SVA RCA EQ

Equalization (all models except DA 6A and DA 3AV RCA)

0 dB to +6 dB (x 1 to x 2) at 5 MHz,

adjustable per every 2 outputs

Bandwidth .................................... 150 MHz (-3 dB)

Output cable driving distance ... Up to 1000 feet with Mini HR cable

Up to 1500 feet with RG6 or RG59 cables

Video input and loop-through

Number/signal type

DA 6V, DA 6AV, DA 6AV RCA EQ, and

DA 3AV RCA ................... 1 composite video input, 1 composite

video passive loop-through

DA 6SV, DA 6SVA, and

DA 6SVA RCA EQ .......... 1 S-video, 1 S-video passive loop-through

DA 12V/6V Dual EQ and

DA 8V/4V Dual EQ ........ 1 composite video and 1 buffered loop-

through or 2 composite video Connectors

DA 6V, DA 6AV, DA 6AV RCA EQ, and

DA 3AV RCA ................... 1 female BNC (input), 1 female BNC

(loop-through)

DA 6SV, DA 6SVA, and

DA 6SVA RCA EQ .......... 1 female 4-pin mini DIN (input), 1 female

4-pin mini DIN (loop-through)

DA 12V/6V Dual EQ ...... 2 female BNC

DA 8V/4V Dual EQ ........ 2 female BNC

Nominal level ............................... 1 Vp-p for composite video and for Y of S-

video

0.3 Vp-p for C of S-video

A-2

DA AV EQ Series • Specifications, Parts, and Accessories

Specifications, Parts, and Accessories

A-5

Audio output

Number/signal type

DA 6AV RCA EQ and

DA 6SVA RCA EQ .......... 6 stereo, unbalanced

DA 3AV RCA ................... 3 stereo, unbalanced

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... 6 stereo, balanced/unbalanced

Connectors

DA 6AV RCA EQ and

DA 6SVA RCA EQ .......... 6 pairs of female RCA jacks

DA 3AV RCA ................... 3 pairs of female RCA jacks

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... (6) 3.5 mm captive screw connectors,

5 pole

Impedance

RCA models ..................... 50 ohms unbalanced

DA 6AV EQ, DA 6SVA EQ, and DA 6A

50 ohms unbalanced, 100 ohms balanced

Maximum level (Hi-Z)

RCA models ..................... >+18 dBu, unbalanced at 1% THD+N

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... >+24 dBu, balanced at 1% THD+N

Maximum level (600 ohm)

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... >+15 dBm, balanced at 1%THD+N

General

Power............................................. 100 VAC to 240 VAC, 50/60 Hz, 8 watts,

internal, autoswitchable

Temperature/humidity .............. Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount................................... Yes, with optional 1U rack shelf, part

#60-190-01 or 60-604-01; or #60-190-10 or 60-604-10 Also furniture mountable with an optional Under-Desk Mounting Kit, #70-077-01, or Through-Desk Mounting Kit, #70-077-02

Enclosure type.............................. Metal

A-4

Audio

Gain ............................................... Unity when internal jumpers are set to

match output wiring. See table below for other conditions.

Balanced

0 dB

+6 dB

Un balanced

-6 dB 0 dB

Internal Jumpers

Output Wiring

Balanced

Unbalanced

Frequency response ..................... 20 Hz to 20 kHz, ±0.08 dB (with voltage

reference @ 1 kHz)

THD + Noise ................................ 0.03% @ 1 kHz at nominal level

S/N (at any output)..................... >90 dB, unbalanced, at maximum output

(unweighted)

Stereo channel separation .......... >80 dB @ 1 kHz; >60 dB @ 20 kHz

CMRR ............................................ >75 dB @ 20 Hz to 20 kHz

Output cable driving distance ... Up to 1000 feet with STP 22 cable

Audio input

Number/signal type

RCA models ..................... 1 stereo, unbalanced

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... 1 stereo, balanced/unbalanced

Connectors

RCA models ..................... 1 pair female RCA

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... (1) 3.5 mm captive screw connector, 5 pole

Impedance

RCA models ..................... 18 k ohms, unbalanced, DC coupled

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... 18 k ohms unbalanced, >24k ohms

balanced, DC coupled

Nominal level ............................... Compatible with +4 dBu (1.23 Vrms), 0

dBu (0.775 Vrms), -10 dBV (316 m Vrms),

-20 dBV (100 m Vrms)

Maximum level

RCA models ..................... +18 dBu, (unbalanced) at 1% THD+N

DA 6A, DA 6AV EQ, and

DA 6SVA EQ .................... +24 dBu, (balanced) at 1%THD+N

0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV 2 dBu

DA AV EQ Series • Specifications, Parts, and Accessories

Specifications, Parts, and Accessories

A-7

Included Parts

These items are included in each order for a DA AV EQ:

Included part Part number

IEC power cord 5-pin 3.5 mm captive screw connectors (7) 10-10-319

(DA 6AV EQ, DA 6SVA EQ, and DA 6A) Tweeker (small screwdriver) Rubber feet (not attached) DA AV EQ Series User’s Manual

Optional Accessories

These items can be ordered separately:

Accessories Part number

Extron 19" wide 1U rack shelf 60-190-01 or

60-604-01

Extron 6" deep 1U rack shelf 60-190-10 or

60-604-10 Under-desk mounting kit 70-077-01 Thru-desk mounting kit 70-077-02 S-video cable (S-video models only) 26-316-xx or

26-522-xx BNC cable 26-383-xx CSR 6 audio adapter (audio models only) 26-575-01 IN8700 series RCA cable (audio models only) IN87xx

A-6

Model Part number

Models

Enclosure dimensions ................. 1.7" H x 8.7" W x 6.0" D (1U high, half rack

wide)

4.3 cm H x 22.1 cm W x 15.2 cm D

(Depth excludes connectors.)

Product weight ............................. 2 lbs (0.9 kg)

Shipping weight ........................... 4 lbs (2 kg)

Vibration ....................................... ISTA 1A in carton (International Safe

Transit Association)

Listings .......................................... UL, CUL

Compliances ................................. CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

All nominal levels are at ±10%.

Specifications are subject to change without notice.

DA 6V EQ 60-692-01 DA 6AV EQ 60-692-21 DA 6AV RCA EQ 60-692-31 DA 6SV EQ 60-692-02 DA 6SVA EQ 60-692-22 DA 6SVA RCA EQ 60-692-32 DA 6A 60-692-20 DA 8V/4V Dual EQ 60-693-01 DA 12V/6V Dual EQ 60-694-01 DA 3AV RCA 60-695-31

DA AV EQ Series • Specifications, Parts, and Accessories

Specifications, Parts, and Accessories

A-8

Extron electronics DA 6V EQ, DA 6AV RCA EQ, DA 6AV EQ, DA 6SV EQ, DA 6SVA EQ User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
