XTP T HDMI
XTP R HDMI
XTP HDMI Transmitter and Receiver
User Guide
XTP Extenders
68-1723-01 Rev. A
07 13
Safety Instructions • English
WARNING: This symbol, , when used on the product, is intended
to alert the user of the presence of uninsulated dangerous voltage
within the product’s enclosure that may present a risk of electric
shock.
ATTENTION: This symbol, , when used on the product, is intended
to alert the user of important operating and maintenance (servicing)
instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron
website, www.extron.com.
Chinese Simplified（简体中文）
警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险
电 压 ，有 触 电 危 险 。
注意： 产品上的这个标志意在提示用户设备随附的用户手册中有
重要的操作和维护(维修）说明。
关于我们产品的安全指南、遵循的规范、
使用的特性等相关内容，敬请访问
安全规范指南，产品编号
68-290-01。
EMI/EMF 的兼容性、无障碍
Extron 网站 www.extron.cn，参见 Extron
Instructions de sécurité • Français
AVERTISSEMENT: Ce pictogramme, , lorsqu’il est utilisé sur
le produit, signale à l’utilisateur la présence à l’intérieur du boîtier
du produit d’une tension électrique dangereuse susceptible de
provoquer un choc électrique.
ATTENTION: Ce pictogramme, , lorsqu’il est utilisé sur le produit,
signale à l’utilisateur des instructions d’utilisation ou de maintenance
importantes qui se trouvent dans la documentation fournie avec le
matériel.
Pour en savoir plus sur les règles de sécurité, la conformité à la
réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets
connexes, lisez les informations de sécurité et de conformité Extron, réf.
68-290-01, sur le site Extron, www.extron.fr.
Sicherheitsanweisungen • Deutsch
WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer
darauf aufmerksam machen, dass im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen herrschen, die nicht isoliert sind
und die einen elektrischen Schlag verursachen können.
VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in
der im Lieferumfang enthaltenen Dokumentation besonders wichtige
Hinweise zur Bedienung und Wartung (Instandhaltung) geben.
Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie
in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer
68-290-01) auf der Extron-Website, www.extron.de.
Instrucciones de seguridad • Español
ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,
avisa al usuario de la presencia de voltaje peligroso sin aislar dentro
del producto, lo que puede representar un riesgo de descarga
eléctrica.
ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa
al usuario de la presencia de importantes instrucciones de uso y
mantenimiento recogidas en la documentación proporcionada con
el equipo.
Chinese Traditional（繁體中文）
警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著
可能會導致觸電之風險的未絕緣危險電壓。
注意 若產品上使用此符號，是為了提醒使用者。
有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細
資訊，請瀏覽 Extron 網站：www.extron.cn，然後參閱《Extron 安全性與法規遵
守手冊》，準則編號 68-290-01
。
Japanese
警告: この記 号 が製品上に表示されている場合は、筐体内に絶縁されて
いない高電圧が流れ、感電の危険があることを示しています。
注意:この 記号 が製品上に表示されている場合は、本機の取扱説明書に
記載されている重要な操作と保 守( 整備 )の指 示についてユーザーの
注意を喚起するものです。
安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
つ い て は 、エ ク スト ロ ン の ウ ェブ サ イトwww.extron.jpより
『Extron Safety and Regulatory Compliance Guide 』 (P/N 68-290-01) をご覧ください 。
Korean
경고: 이 기호 , 가 제품에 사용될 경우, 제품의 인클로저 내에 있는
접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을
경고합니다.
주의: 이 기호 , 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와
있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.
안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련
항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.co.kr)의
Extron 안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.
Para obtener información sobre directrices de seguridad, cumplimiento
de normativas, compatibilidad electromagnética, accesibilidad y
temas relacionados, consulte la Guía de cumplimiento de normativas
y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,
www.extron.es.
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause interference; the user must correct the interference at his own expense.
ATTENTION: The Twisted Pair Extension technology works with unshielded twisted
pair (UTP) or shielded twisted pair (STP) cables; but, to ensure FCC Class A and CE
compliance, STP cables and STP connectors are required.
For more information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the “Extron Safety and Regulatory
Compliance Guide” on the Extron website.
Copyright
© 2013 Extron Electronics. All rights reserved.
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks
(®)
, registered service marks
(SM)
, and trademarks
(TM)
are the property of
RGBSystems, Inc. or Extron Electronics:
Registered Trademarks
AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field,GlobalViewer, Hideaway, Inline, IP Intercom,
IP Link, Key Minder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch,
System Integrator, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP, XTP Systems
(SM)
Registered Service Mark
AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), AIS (Advanced Instruction Set), Auto-Image, CDRS (Class D
Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP
(Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, ProDSP, QS-FPC (QuickSwitch Front Panel
Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, XTRA, ZipCaddy, ZipClip
: S3 Service Support Solutions
Trademarks
(®)
(™)
Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
WARNING: A warning indicates a situation that has the potential to result in death or
severe injury.
ATTENTION: Attention indicates a situation that may damage or destroy the product or
associated equipment.
NOTE: A note draws attention to important information.
TIP: A tip provides a suggestion to make working with the application easier.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
E X! *X1&* X2)* X2#* X2! CE}
NOTE: For commands and examples of computer or device responses mentioned
in this guide, the character “0” is used for the number zero and “O” represents the
capital letter “o.”
Computer responses and directory paths that do not have variables are written in the font
shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here:
ping xxx.xxx.xxx.xxx —t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are
written in the font shown here:
From the File menu, select New.
Click the OK button.
Specifications Availability
Product specification are available on the Extron website, www.extron.com.
Contents
Introduction .................................................... 1
About This Guide ................................................ 1
About the XTP HDMI Transmitter and
Receiver ............................................................ 1
Key Features ...................................................... 2
Installation and Operation .............................. 4
Cabling ............................................................... 4
XTP T HDMI Rear Panel Connectors ............... 4
XTP R HDMI Rear Panel Connectors .............. 6
Front Panel Configuration Port ........................ 7
Making Connections ........................................... 8
HDMI LockIt ................................................... 8
TP Cable Termination and
Recommendations ........................................ 9
RS-232 and IR Communication .................... 10
Power Connection ........................................ 11
Operation ......................................................... 13
XTP T HDMI Front Panel Indicators ............... 13
XTP R HDMI Front Panel Indicators .............. 13
HDMI Audio Switch ...................................... 14
EDID ............................................................. 14
Audio Output Overview ................................. 15
Reset Modes ................................................ 15
SIS Configuration and Control ..................... 16
Host Device Connection ................................... 16
SIS Programming Guide ................................... 16
Host-to-Device and Device-to-Host
Communication ........................................... 16
Error Responses ........................................... 17
Using the Command and Response Table
for SIS Commands ...................................... 17
Command and Response Tables for
Transmitter SIS Commands ............................. 19
Audio Configuration ...................................... 19
EDID ............................................................. 20
Advanced Configuration ............................... 20
Command and Response Tables for
Receiver SIS Commands ................................. 21
Audio Configuration ...................................... 21
Advanced Configuration ............................... 21
XTP System Configuration Software ........... 23
Installing the XTP System Configuration
Software .......................................................... 23
Using the XTP System Configuration
Software .......................................................... 24
Connection ................................................... 24
Transmitter Configuration .............................. 25
Receiver Configuration .................................. 28
Reference Information ................................. 29
Mounting .......................................................... 29
Tabletop Mounting ........................................ 29
Mounting Kits ............................................... 29
Updating Firmware with Firmware Loader ......... 30
Downloading Extron Firmware Loader .......... 30
Installing Firmware Loader ............................ 30
Downloading Firmware ................................. 31
Installing Firmware with Firmware Loader ...... 32
XTP T HDMI Transmitter and XTP R HDMI Receiver • Contents
iv
XTP T HDMI Transmitter and XTP R HDMI Receiver • Contents
v
Introduction
This section contains general information about this guide and the Extron XTP T HDMI
transmitter and XTP R HDMI receiver. Topics in this section include:
• About This Guide
• About the XTP HDMI Transmitter and Receiver
• Key Features
About This Guide
This guide contains installation, operation, control, and reference information for the
XTP T HDMI transmitter and the XTP R HDMI receiver.
In this guide, the terms “transmitter,” “XTP T HDMI,” and “XTP HDMI transmitter” are used
interchangeably to refer to the XTP T HDMI transmitter. The terms “receiver,” “XTP R HDMI,”
and “XTP HDMI receiver” are used interchangeably to refer to the XTP R HDMI receiver.
About the XTP HDMI Transmitter and Receiver
Both the XTP T HDMI transmitter and XTP R HDMI receiver send or receive video, audio,
bidirectional RS-232 and IR, and Ethernet over a single twisted pair cable. They are
HDCP-compliant and support 1080p/60 Deep Color and 1920x1200 signals, and
embedded HD lossless audio formats. They work with Extron XTP devices in matrix or
point-to-point applications for signal distribution and long-distance transmission (up to 330
feet) between remote endpoints, using shielded or unshielded CATx cable.
They can be powered locally or remotely through an Extron XTP Power Injector or XTP
matrix switcher.
Both devices can be controlled through Extron Simple Instruction Set (SIS) or the XTP
Configuration Software (see SIS Configuration and Control on page 16 or XTP System
Configuration Software on page 23).
1XTP T HDMI Transmitter and XTP R HDMI Receiver • Introduction
The following diagram shows some ways the XTP T HDMI and the XTP R HDMI can be
integrated in an XTP matrix application.
PC
Laptop
STANDBY/ON
Blu-ray
Ethernet
HDMI
POWER
12V
--A MAX
HDMI
Extron
XTP T HDMI
Long Distance XTP
Transmitter for HDMI
Ethernet
HDMI
POWER
12V
--A MAX
HDMI
Extron
XTP T HDMI
Long Distance XTP
Transmitter for HDMI
Ethernet
PQLS HDMI OPEN/CLOSE FL OFF
USB
HDMI
POWER
12V
--A MAX
HDMI
Extron
XTP T HDMI
Long Distance XTP
Transmitter for HDMI
Ethernet
AV Control
Network
INPUTS
HDMI AUDIO
ON
OFF
LOOP-THRU
SIG LINK
OVER XTP
AUDIO
LR
RS-232 IR
RESET
−+−+
ACT LINK
XTP OUT
XTP T HDMI
RxTx
RxTx
LAN
Ethernet
Extron
IPCP 505
IP Link Control
Processor
100-240V 50-60Hz
COM1
COM2
COM3
COM7
2
1
SGSG
RTS CTS
TXRX
TXRX
TXRX
TXRX
+-+-
SWITCHED 12VDC
IR/SERIAL
40W MAX TOTAL
COM4
COM5
COM6
COM8
3 4
5
6 7
SGSG
RTS CTS
TXRX
TXRX
TXRX
TXRX
+-+-
5A MAX
RS-232 IR
3
SGSG
SGSG
4 1 21 2 3 4
8 5 6 7 8
House Network Switch
eBUS
+V
D-S+S
LAN
PWR OUT = 12W
RELAY
FLEX I/O
1234
Ethernet
CAT 5-type Cable
XTP CP 4i
XTP CP 4i
IN
IN
IN
IN
XTP CP 4i HDMI
XTP CP 4i HDMI
XTP CP 4i DVI Pro
REMOTE
RS 232/RS422
AUDIO
AUDIO
AUDIO
ACT
LRLRLRLR
LRLRLRLR
LRLRLRLR
LAN
LINK
INPUTS
HDMI AUDIO
ON
OFF
LOOP-THRU
INPUTS
HDMI AUDIO
ON
OFF
LOOP-THRU
SIG LINK
OVER XTP
AUDIO
LR
RS-232 IR
−+−+
XTP OUT
XTP T HDMI
RxTx
RxTx
IR
SIG LINK
OVER XTP
AUDIO
LR
RS-232 IR
−+−+
XTP OUT
XTP T HDMI
RxTx
RxTx
RESET
RESET
ACT LINK
LAN
100-240V
--A MAX
50-60Hz
DISCONNECT POWER
CORD BEFORE
SERVICING
IN
IN
IN
RESET
ACT LINK
LAN
IN
IN
IN
IN
XTP CP 4i VGA
XTP CP 4i VGA
XTP CP 4i DVI Pro
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
AUDIO
AUDIO
AUDIO
IR/RS-232 OVER XTP
IR/RS-232 OVER XTP
TxRx Tx Rx
RS-232 IR
LRLRLRLR
LRLRLRLR
LRLRLRLR
TxRx Tx Rx
RS-232 IR
LAN
ACT LINK
XTP
SIG LINK
SIG LINK
PWR
LAN
ACT LINK
XTP
SIG LINK
SIG LINK
PWR
LAN
ACT LINK
XTP
SIG LINK
SIG LINK
PWR
LAN
ACT LINK
XTP
SIG LINK
SIG LINK
PWR
IN
IN
IN
IN
IN
OUT
OUT
OUT
XTP CP 4o HDMI
XTP CP 4o HDMI
XTP CP 4o DVI Pro
TxRx Tx Rx
RS-232 IR
TxRx Tx Rx
RS-232 IR
AUDIO
AUDIO
AUDIO
TxRx Tx Rx
RS-232 IR
RS-232 IR
PWR
PWR
PWR
PWR
LRLRLRLR
LRLRLRLR
LRLRLRLR
TxRx Tx Rx
LAN
ACT LINK
O
I
U
XTP
N
T
P
P
U
U
T
T
S
S
LAN
ACT LINK
XTP
LAN
ACT LINK
XTP
LAN
ACT LINK
XTP
OUT
OUT
OUT
Extron
XTP CrossPoint 3200
Modular Digital
Matrix Switcher
Extron
TLP 1000TV
10" Ta bletop TouchLink
Touchpanel
Ethernet
XTP CP 4o
XTP CP 4o
OUT
OUT
OUT
OUT
XTP CP 4o SA
XTP CP 4o DVI Pro
TxRx Tx Rx
TxRx Tx Rx
RS-232 IR
RS-232 IR
TxRx Tx Rx
TxRx Tx Rx
RS-232 IR
RS-232 IR
AUDIO
AUDIO
IR/RS-232 OVER XTP
IR/RS-232 OVER XTP
TxRx Tx Rx
TxRx Tx Rx
RS-232 IR
RS-232 IR
LRLRLRLR
LRLRLRLR
TxRx Tx Rx
TxRx Tx Rx
RS-232 IR
RS-232 IR
LAN
LAN
ACT LINK
ACT LINK
XTP
XTP
SIG LINK
SIG LINK
PWR
PWR
LAN
LAN
ACT LINK
ACT LINK
XTP
XTP
SIG LINK
SIG LINK
PWR
PWR
LAN
LAN
ACT LINK
ACT LINK
XTP
XTP
SIG LINK
SIG LINK
PWR
PWR
LAN
LAN
ACT LINK
ACT LINK
XTP
XTP
SIG LINK
SIG LINK
PWR
PWR
OUT
OUT
OUT
OUT
100-240V 1.3A, 50-60Hz
Extron
XPA 1002
Stereo Power Amplier
Ethernet
SIG LINK
POWER
12V
--A MAX
ACT LINK
XTP IN
LAN
Extron
XTP R HDMI
Long Distance XTP
Receiver for HDMI
Ethernet
SIG LINK
POWER
12V
--A MAX
ACT LINK
XTP IN
LAN
Extron
XTP R HDMI
Long Distance XTP
Receiver for HDMI
Stereo Audio
17TT
AUDIO/VIDEO
C US
APPARATUS
LISTED
LEVEL
12
1
2
LIMITER/
PROTECT
SIGNAL
0 0
OVER XTP
RS-232 IR
RxTx
RxTx
RS-232
OVER XTP
RS-232 IR
RxTx
RxTx
INPUTS
10V 50 mA
2
1
IR
REMOTE
VOL/MUTE
HDMI AUDIO
HDMI AUDIO
CLASS 2 WIRING
ON
OFF
HDMI
ON
OFF
HDMI
OUTPUT
1
STANDBY
HDMI
XTP R HDMI
OUTPUTS
S/PDIF
AUDIO
RELAYS
1
RL
-+-+
HDMI
XTP R HDMI
OUTPUTS
AUDIO
S/PDIF
RELAYS
1
RL
-+-+
XPA 1002
2
Extron
SI 28
Surface Mount
Speakers
2
RESET
2
RESET
Flat Panel
Display
Flat Panel
Display
Key Features
Figure 1. Typical XTP HDMI Transmitter and Receiver Matrix Application
Reliable cable infrastructure — Transmits or receives video, audio, bidirectional
RS-232 and IR, and Ethernet up to 330 feet (100 m) over a CATx cable, providing
high reliability and maximum performance on an economical and easily installed cable
infrastructure.
1080p/60 Deep Color and 1920x1200 signals — Supports digital signal transmission up
to 330 feet over a single twisted pair cable, maintaining superior image quality at the highest
resolutions.
CAT 5e, 6, 6a, and 7 compatible — Optimized for use with common unshielded and
shielded twisted pair cable types. XTP systems fully support a maximum transmission
distance of 330 ft (100 m) for all compatible resolutions. Shielded twisted pair cable provides
added protection from outside interference.
Bidirectional RS-232 and IR insertion — Allows a remote display to be controlled without
the need for additional cabling through bidirectional RS-232 and IR control signals inserted
into the XTP output.
HDMI specification features — Include data rates up to 6.75 Gbps, Deep Color up to
12-bit, 3D, and HD lossless audio formats.
HDCP compliance — Ensures display of content-protected media and interoperability with
other HDCP-compliant devices.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Introduction 2
EDID Minder — Automatically manages EDID communication between connected devices.
It ensures that all sources power up properly and reliably outputs content for display.
Key Minder — Authenticates and maintains continuous HDCP encryption between input
and output devices to ensure quick and reliable switching in professional AV environments,
while enabling simultaneous distribution of a single source signal to one or more displays.
Ethernet extension — Centralized 10/100 Ethernet communication can be implemented
via an Ethernet pass-through port to reduce the amount of independent network drops
required within a system.
Remote power capability — To simplify integration, XTP transmitters and receivers can be
powered by the XTP CrossPoint matrix switcher or XTP Power Injectors.
Multiple embedded audio formats — Compatible with a broad range of
multi-channel audio signals, providing reliable operation with HDMI sources.
Transmitter HDMI loop-through with selectable audio control — Features an active
HDMI output with support for embedded audio for connection to a local monitor.
Transmitter selectable analog stereo audio input embedding — Supports balanced
or unbalanced audio for extended transmission by embedding stereo audio into the signal
stream. This feature enables direct connection of separate stereo audio signals from a
laptop, Blu-ray Disc player, or other device.
Receiver HDMI audio de-embedding with analog stereo and digital S/PDIF audio
outputs — Digital HDMI audio is made available as a balanced or unbalanced analog
stereo signal on captive screw connectors or a S/PDIF connector.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Introduction 3
Installation and
abcd efg
Slee
Operation
This section contains the installation procedures for and operation of the XTP T HDMI and
the XTP R HDMI. Topics in this section include:
• Cabling
• Making Connections
• Operation
XTP HDMI transmitters and receivers can be mounted in a rack or under a desk or placed
on a tabletop (see Mounting on page 29 for more mounting details).
Cabling
XTP T HDMI Rear Panel Connectors
POWER
12V
1.0 A MAX
HDMI
INPUTS
LOOP-THRU
AUDIO
ON
OFF
AUDIO
LR
−+−+
OVER XTP
RS-232 IR
Rx GTx
SIG LINK
RxTx
XTP OUT
LAN
Figure 2. XTP T HDMI Rear Panel Connectors
NOTES:
• For HDMI cables, the maximum cable length is 15 feet.
• Use Extron LockIt lacing brackets to secure HDMI connectors to the device (see
HDMI LockIt on page 8).
• Video input from a DisplayPort source must be a dual mode DisplayPort source.
HDMI input connector — Connect a digital video source to the female HDMI
a
connector. It can accept HDMI, DVI (with an appropriate adaptor), or DisplayPort video
signals.
HDMI Loop-thru connector — Connect a digital video display to the female HDMI
b
Loop-thru connector to locally display the input source (see HDMI Audio Switch on
page 14 to select local audio output options). Displays that are not HDCP compliant
display a green screen when HDCP encrypted content is sent to them.
Analog audio inputs — Connect a balanced or unbalanced analog audio source to
c
the 5-pole captive screw connector for stereo analog audio input.
Tip
Ring
ves
Tip
Ring
LR
Tip
Sleeve
Tip
Sleeve
LR
Do not tin the wires!
RESET
Balanced Audio Input
Unbalanced Audio Input
Figure 3. Audio Input Wiring
4XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation
RS-232 Over XTP port — To pass bidirectional serial, Infrared, or other
d
control signals between XTP-compatible devices, connect a control device
to the 5-pole captive screw connector. The port includes only the 3 poles
labeled “RS-232.”
IR Over XTP port — To enable the ability to transmit and receive IR
signals (up to 40 kHz), connect a control device to the 5-pole captive screw
connector. This port includes only the 2 poles labeled “IR” and shares the
ground pole with the RS-232 port.
NOTE: RS-232 and IR data can be transmitted simultaneously (see
RS-232 and IR Communication on page 10 for wiring details).
XTP connector — Connect a twisted pair cable to the RJ-45 connector labeled
e
XTP Out and the XTP input port on another XTP device to pass all signals (see TP
Cable Termination and Recommendations on page 9). This cable carries the
following signals:
• Digital video
• Digital audio
• Bidirectional RS-232 and IR commands
• Remote power
• Ethernet communication
• System communication
The Link LED lights amber when XTP devices are connected and communication is
established.
The Signal LED lights green when the transmitter outputs video signal or test pattern.
IR
RS-232
Tx Rx G Tx Rx
IR
RS-232
Tx Rx G Tx Rx
ATTENTION:
• Do not connect this connector to a computer data or telecommunications
network.
• XTP remote power is intended for indoor use only. No part of the network that
uses XTP remote power should be routed outdoors (see Remote power on
page 12).
LAN connector — Connect a control device or device to be controlled to the
f
transmitter for 10/100 Ethernet communication through this pass-through port. LEDs
on the connector indicate link and activity status.
Power connector and LED — Connect the external 12 V, 1.0 A power supply into the
g
2-pole captive screw connector. The Power LED lights to indicate the device is receiving
power.
NOTE: XTP HDMI transmitters and receivers can also be powered remotely
(see Power Connection on page 11).
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 5
XTP R HDMI Rear Panel Connectors
ab cefghd
POWER
12V
1.0 A MAX
SIG LINK
XTP IN
LAN
OVER XTP
RS-232 IR
Rx GTx
AUDIO
ON
OFF
RxTx
HDMI
AUDIO
-+-+
RL
OUTPUTS RELAYS
1
S/PDIF
2
RESET
Figure 4. XTP R HDMI Connectors
XTP connector — Connect a twisted pair cable to the RJ-45 connector labeled
a
XTP In on the receiver and to an XTP output port on another XTP device to receive all signals
(see TP Cable Termination and Recommendations on page 9). This cable carries the
following signal:
• Digital video
• Digital audio
• Bidirectional RS-232 and IR commands
• Remote power
• Ethernet communication
• System communication
The Link LED lights amber when XTP devices are connected and communication is
established.
The Signal LED lights green when the receiver receives an active HDMI video signal or a test
pattern from the transmitter.
ATTENTION:
• Do not connect this connector to a computer data or telecommunications network.
• XTP remote power is intended for indoor use only. No part of the network that uses
XTP remote power should be routed outdoors (see Remote power on page 12).
LAN connector — Connect a control device or device to be controlled to the transmitter
b
for 10/100 Ethernet communication through this pass-through port. LEDs on the connector
indicate link and activity status.
RS-232 Over XTP port — To pass bidirectional serial, Infrared, or other control
c
signals between XTP-compatible devices, connect a control device to the 5-pole
captive screw connector. The port includes only the 3 poles labeled “RS-232.”
IR Over XTP port — To enable the ability to transmit and receive IR signals (up to
40 kHz), connect a control device to the 5-pole captive screw connector. This port
includes only the 2 poles labeled “IR” and shares the ground pole with the RS-232
port.
NOTE: RS-232 and IR data can be transmitted simultaneously (see RS-232 and IR
Communication on page 10 for wiring details).
HDMI output — Connect a digital video display to the female HDMI connector (see HDMI
d
Audio Switch on page 14 to select local audio output options). It can accept HDMI, DVI (with
an appropriate adaptor), or DisplayPort video signals.
NOTES:
• Maximum cable length is 15 ft.
• Use Extron LockIt lacing brackets to secure HDMI connectors to the device (see
HDMI LockIt on page 8).
• Video input from a DisplayPort source must be a dual mode DisplayPort source.
IR
RS-232
Tx Rx G Tx Rx
IR
RS-232
Tx Rx G Tx Rx
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 6
Analog audio output — Connect a balanced or unbalanced, stereo or mono audio
Slee
XTP R HDMI
e
output device to the 3.5 mm, 5-pole captive screw connector for 2-channel stereo
analog audio output. If the device is receiving 2-channel LPCM embedded on the HDMI
input signal and digital is the selected audio input format, it is extracted and converted
to a stereo analog signal.
Tip
Ring
ves
Tip
Ring
Balanced Audio Output
LR
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
LR
Do not tin the wires!
Figure 5. Audio Output Wiring
ATTENTION: For unbalanced audio, connect the sleeves to the center contact
ground. Do not connect the sleeves to the negative (-) contacts.
S/PDIF audio output — Connect an audio device to the female orange RCA
f
connector for digital S/PDIF audio output (see Audio Output Overview on page 15
for supported audio formats on the S/PDIF output). The type of audio present on this
output will be dictated by the following:
• The audio format selected on the source material or device.
• The source device automatically outputting an audio format through EDID.
Relays — Connect equipment that can be controlled via momentary or latching
g
contact, like as projector screens or lifts, to the normally open relays.
ATTENTION: Do not exceed 24 V at 1.0 A for each port.
Power connector and LED — Connect the external 12 V, 1.0 A power supply to the
h
2-pole captive screw connector. The Power LED lights to indicate the device is receiving
power.
NOTE: XTP HDMI transmitters and receivers can be powered remotely
(see Power Connection on page 11).
Front Panel Configuration Port
CONFIG
XTP T HDMI
a
CONFIG
Figure 6. Front Panel Configuration Port
SIGNAL
HDCP
XTP
SIGNAL
HDCP
INPUT
HDMI AUDIO
ANALOG AUDIO
HBR
HDMI
AUDIO SIGNAL CLIP
AUDIO
BITSTREAM
S/PDIF
XTP T HDMI
LPCM
ANALOG
XTP R HDMI
Front Panel Config Port — Connect a host device to the female mini-USB B port to
a
configure the connected transmitter or receiver or update firmware.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 7
Making Connections
HDMI LockIt
Use an Extron LockIt Lacing Bracket to secure an HDMI cable to each device as follows:
1. Plug the HDMI cable into the panel connection.
3
3
2
5
1
4
Figure 7. Installing the LockIt Lacing Bracket
2. Loosen the HDMI connection mounting screw from the panel enough to allow the
LockIt lacing bracket to be placed over it. The screw does not have to be removed.
3. Place the LockIt lacing bracket on the screw and against the HDMI connector, then
tighten the screw to secure the bracket.
ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield
it fastens to is very thin and can easily be stripped.
4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing
bracket (see figure 7).
5. While holding the connector securely against the lacing bracket, use pliers or similar
tools to tighten the tie wrap, then remove any excess length.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 8
TP Cable Termination and Recommendations
Pins:
Pin
1
2
3
4
5
6
7
8
Wire color
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
Wire color
T568A T568B
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Use the following pin configurations for twisted pair cables.
12345678
Insert Twisted
Pair Wires
RJ-45
Connector
Straight-through Cable
(for connection to a switch, hub, or router)
TIA/EIA T 568 A TIA/EIA T 568 B
Pin Wire Color Pin Wire Color
1 White-green 1 White-orange
2 Green 2 Orange
3 White-orange 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Orange 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown

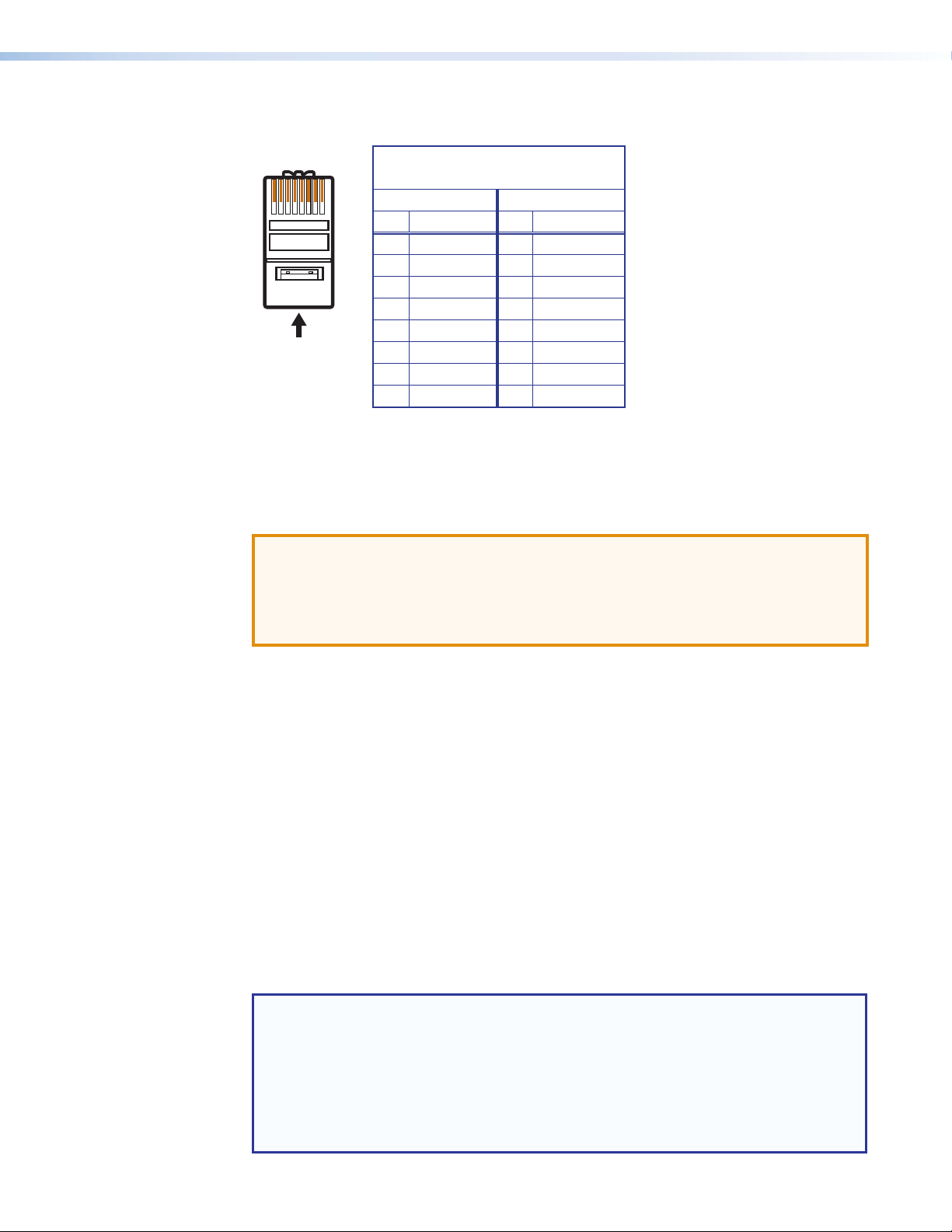

Figure 8. TP Cable Termination
Supported cables
The XTP T HDMI and XTP R HDMI are compatible with CAT 5e, 6, 6a, and 7 shielded
twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cable.
ATTENTION:
• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable
to link the XTP products.
• To ensure FCC Class A and CE compliance, STP cables and STP connectors are
required.
Cable recommendations
Extron recommends using the following practices to achieve full transmission distances up
to 330 feet (100 m) and reduce transmission errors.
• Use the following Extron XTP DTP 24 SF/UTP cables and connectors for the best
• If not using XTP DTP 24 cable, at a minimum, Extron recommends 24 AWG, solid
• Terminate cables with shielded connectors to the TIA/EIA T 568 B standard.
• Limit the use of more than two pass-through points, which may include patch points,
NOTE: When using CAT 5e or CAT 6 cable in bundles or conduits, consider the
performance:
• XTP DTP 24/1000 Non-Plenum 1000' (305 m) spool 22-236-03
• XTP DTP 24P/1000 Plenum 1000' (305 m) spool 22-235-03
• XTP DTP 24 Plug Package of 10 101-005-02
conductor, STP cable with a minimum bandwidth of 400 MHz.
punch down connectors, couplers, and power injectors. If these pass-through points
are required, use CAT 6 or 6a shielded couplers and punch down connectors.
following:
• Do not exceed 40% fill capacity in conduits.
• Do not comb the cable for the first 20 m, where cables are straightened, aligned,
and secured in tight bundles.
• Loosely place cables and limit the use of tie wraps or hook and loop fasteners.
• Separate twisted pair cables from AC power cables.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 9
RS-232 and IR Communication
Custom
The RS-232 and IR Over XTP connector is for pass-through transmission of serial signals,
such as projector control signals, and Infrared data (see figure 9 below for an example of
how to wire the connector).
IR Device
Tx/Rx
Pins
RxTx
IR
G
RxTx
RS-232
RS-232 Device
Figure 9. Wiring the RS-232 and IR Connector
Cross the Tx and Rx lines once between the source and target.
ATTENTION: The length of exposed wires is critical. The ideal length is
3/16 inch (5 mm).
• Longer bare wires can short together
• Shorter wires are not as secure in the connectors and could be pulled out.
TxRx
G
RxTx
G
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 10
Power Connection
AA
Apply power to the transmitter or receiver locally with the provided power supply or remotely
with a power injector or a matrix switcher.
ATTENTION: XTP remote power is intended for indoor use only. No part of the network
that uses XTP remote power should be routed outdoors.
Local power
Tie Wrap
Smooth
Power Supply
Output Cord
2-Pole Captive Screw
Connector
SECTION A–A
3/16”
(5 mm) Max.
Ridges
Figure 10. Power Wiring
Both the XTP T HDMI and the XTP R HDMI can be connected to a local power supply.
WARNING: Electric shock hazard. The two power cord wires must be kept separate
while the power supply is plugged in. Remove power before wiring.
ATTENTION:
• This product is intended to be supplied by a Listed Power Unit marked “Class 2”
or “LPS,” rated 12 VDC, 1.0 A minimum. Always use a power supply supplied by
or specified by Extron. Use of an unauthorized power supply voids all regulatory
compliance certification and may cause damage to the supply and the end product.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling
spaces or in wall cavities. The installation must always be in accordance with the
applicable provisions of National Electrical Code ANSI/NFPA 70, article 75 and
the Canadian Electrical Code part 1, section 16. The power supply shall not be
permanently fixed to a building structure or similar structure.
• Power supply voltage polarity is critical. Incorrect voltage polarity can damage the
power supply and the unit. The ridges on the side of the cord identify the power cord
negative lead.
• The length of the exposed (stripped) copper wires is important. The ideal length is
3/16 inch (5 mm).
TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the
captive screw connectors. Tinned wires are not as secure in the captive screw
connectors and could be pulled out.
Use the supplied tie wrap to strap the power cord to the extended tail of the connector.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 11
Remote power
The XTP HDMI transmitter and receiver can be powered remotely through an XTP Power
Injector or through an XTP matrix switcher.
ATTENTION: XTP remote power is intended for indoor use only. No part of the network
that uses XTP remote power should be routed outdoors.
Power injector
To power XTP HDMI transmitters and receivers remotely with an XTP Power Injector, power
one device locally (see Local power on page 11) and connect an XTP Power Injector to
the XTP cable run along the XTP ports (see the XTP Power Injector User Guide for more
installation information).
NOTE: The power injector provides remote power up to 330 feet with a CATx cable with
24 AWG wire.
12 V Local Power
Supply
100-240V
---A MAX
50/60 Hz
POWER
HDMI
12V
--A MAX
Extron
XTP T HDMI
XTP Transmitter
XTP
RESET
SIG LINK
SIG LINK
ACT LINK
LAN
LAN
OVER XTP
XTP OUT
XTP OUT
RS-232 IR
R
G
AUDIO
x
R
L
Tx
−+ −+
AUDIO
ON
OFF
INPUTS
LOOP-THRU
CATx Cable
RxTx
Extron
XTP PI 100
XTP Power
Injector
XTP PWR
PWR
HDMI
Blu-Ray
Player
Extron
XTP R HDMI
XTP Receiver
Remote
Power
RESET
RELAYS
2
1
OUTPUTS
RL
AUDIO
S/PDIF
-+ -+
AUDIO
ON
HDMI
OVER XTP
OFF
RS-232 IR
RxTx
GTx
Rx
SIG LINK
SIG LINK
LAN
ACT LINK
POWER
XTP IN
XTP IN
12V
--A MAX
HDMI
Display
Figure 11. Typical Point-to-Point Application with Remote Power
Direct power from an XTP matrix switcher
XTP matrix switchers have a fixed amount of power available to provide remote power
to connected XTP endpoints (refer to the user guide of the XTP matrix switcher for more
details). To manage available power from the XTP matrix switcher, use the XTP System
Configuration Software (see XTP System Configuration Software on page 23).
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 12
Operation
bca
XTP T HDMI Front Panel Indicators
After all transmitters, all receivers, and their connected devices are powered up, the system
is fully operational. If any problems are encountered, verify that the cables are routed and
connected properly. If problems persist, call the Extron S3 Sales & Technical Support
Hotline. See the contact numbers on the last page of this guide for the nearest Extron office.
INPUT
CONFIG
SIGNAL
HDCP
HDMI AUDIO
ANALOG AUDIO
AUDIO SIGNAL CLIP
XTP T HDMI
a b
Figure 12. XTP T HDMI Front Panel Features
Power LED — Lights when power is applied to the device from the power supply or
a
remotely from an XTP Power Injector or XTP matrix switcher. There are two Power LED
indicators, one on left side of the front panel and one on the left side of the rear panel.
Input indicators
b
Signal LED — Lights when an active video signal is detected from the source.
HDCP LED — Lights when the input signal is encrypted.
HDMI Audio LED — Lights when the HDMI audio input is selected.
Analog Audio LED — Lights when the analog audio input is selected.
Audio Signal Clip LED — Lights when the analog audio input signal remains above
-3 dBFS. The LED remains lit for 200 milliseconds after the signal falls below -3 dBFS.
XTP R HDMI Front Panel Indicators
XTP
CONFIG
Figure 13. XTP R HDMI Front Panel Features
Power LED — Lights when power is applied to the device from the power supply or
a
remotely from an XTP Power Injector or XTP matrix switcher, such as an
XTP CrossPoint. There are two Power LED indicators, one on left side of the front panel
and one on the left side of the rear panel.
XTP indicators
b
Signal LED — Lights when an active XTP input signal is received.
HDCP LED — Lights when the input signal is encrypted.
SIGNAL
HDCP
HBR
HDMI
AUDIO
BITSTREAM
S/PDIF
LPCM
ANALOG
XTP R HDMI
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 13
Audio indicators
AUDIO
c
HBR LED — Lights when the input audio signal is high bit rate audio.
Bitstream LED — Lights when the input audio signal is a Dolby® Digital, DTS® audio
format and 2-channel Dolby.
LPCM LED — Lights when the input audio signal is LPCM-2Ch.
HDMI LED — Lights when the input audio format is multi-channel, LPCM-2Ch, or
Hi-Def audio.
S/PDIF LED — Lights when the input audio format is multi-channel (except HBR), or
LPCM-2Ch,
Analog LED — Lights when the input audio format is LPCM-2Ch.
HDMI Audio Switch
EDID
The XTP T HDMI and XTP R HDMI have an HDMI audio switch that mutes the
embedded audio on the related HDMI connector. On the XTP T HDMI, the audio
switch mutes or enables the audio on the HDMI loop-thru connector. On the
ON
OFF
XTP R HDMI, the audio switch mutes or enables the audio on the HDMI output
connector. The LED next to the switch lights when HDMI audio is enabled.
Move and hold the rear panel HDMI audio switch up for about 1 second to enable
embedded audio on the associated HDMI connector, or move and hold the HDMI audio
switch down for about 1 second to disable embedded audio on the associated HDMI
connector. The switch returns to the middle position after it has been released so the device
can continue to be controlled through SIS commands.
NOTE: In matrix applications, EDID on the transmitter is assigned by the matrix
switcher using the XTP System Configuration Software.
The XTP T HDMI can record and save EDID in a user memory location on the transmitter.
EDID can come from the loop-through display on the transmitter or the output display on
the receiver (default). Connect a host device to the XTP transmitter for EDID control (see
SIS Configuration and Control on page 16 or XTP System Configuration Software on
page 23).
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 14
Audio Output Overview
RESET
By default, the XTP HDMI transmitter prioritizes embedded digital audio over analog audio.
Use SIS commands or the XTP System Configuration Software to manually select the audio
input (see SIS Configuration and Control on page 16 or the XTP System Configuration
Software on page 23).
Audio Input Format HDMI S/PDIF Analog
LPCM up to 7.1, 24 bit, 192 kHz X X X
Multi-channel PCM X
Dolby Digital 2/0 X X
Dolby Digital 2/0 Surround X X
Dolby Digital 5.1 X X
Dolby Digital EX X X
Dolby Digital Plus X
Dolby TrueHD X
DTS 2 Channel X X
DTS Digital Surround 5.1 X X
DTS-ES Matrix 6.1 X X
DTS-ES Discrete 6.1 X X
DTS-HD X
DTS-HD Master Audio X
Audio Output
NOTE: The transmitter uses a black signal to simulate a 720p or 1080p, 50 Hz or 60 Hz
signal so audio can be passed without video.
Reset Modes
Use the recessed Reset button on the rear panel of the transmitter or receiver to
return the device to default settings or to restore factory-shipped firmware.
Reset Mode Summary
Mode Mode Activation Result Purpose/Notes
1 Hold the recessed Reset
button down while applying
power to the device.
NOTE: After a mode 1
reset, update the device
with the latest firmware
Factory Reset
version. DO NOT operate
the firmware version that
results from this mode
reset.
The device reverts to the
factory default firmware.
NOTE: If you do not want
to update the firmware or
perform a mode 1 reset
by mistake, cycle power
to the device to return the
firmware version running
prior to the reset.
Use mode 1 to roll back to factory
firmware for a single power cycle
if an incompatibility issue arises.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Installation 15
SIS Configuration and Control
The XTP T HDMI and XTP R HDMI can be configured and controlled using Extron
Simple Instruction Set (SIS) commands or the XTP System Configuration Software (see
XTP System Configuration Software on page 23). This section contains basic SIS
communication details and SIS commands and responses when connected directly to an
XTP T HDMI or XTP R HDMI. Topics in this section include:
• Host Device Connection
• SIS Programming Guide
• Command and Response Tables for Transmitter SIS Commands
• Command and Response Tables for Receiver SIS Commands
Host Device Connection
Use a computer running the HyperTerminal or Extron DataViewer utility, or a control system
to make serial control of the transmitter and receiver possible. To connect directly to an
XTP T HDMI or XTP R HDMI, connect the computer to the XTP HDMI transmitter or receiver
through the front panel USB Config port.
SIS Programming Guide
Host-to-Device and Device-to-Host Communication
SIS commands consist of one or more characters per field. No special characters are
required to begin or end a command sequence. When the XTP T HDMI or the XTP R HDMI
determines that a command is valid, it executes the command and sends a response to the
host device. All responses from the transmitter or receiver to the host end with a carriage
return and a line feed (CR/LF = ]), which signals the end of the response character string.
A string is one or more characters.
16XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control
Error Responses
Space
When the XTP T HDMI or the XTP R HDMI receives an SIS command and determines that it
is valid, it performs the command and sends the corresponding response to the host device.
If the command is determined invalid or contains invalid parameters, the transmitter or
receiver returns an error response to the host. The error response codes are:
E01 = Invalid input number
E10 = Invalid command
E12 = Invalid port number
E13 = Invalid parameter
E14 = Not valid for this configuration
E17 = Invalid command for signal type
E22 = Busy
Using the Command and Response Table for SIS Commands
The command and response tables begin on page 19. Figure 14 shows the hexadecimal
equivalent of ASCII characters used in the command and response tables.
NOTE: Uppercase and lowercase text can be used interchangeably unless otherwise
stated.

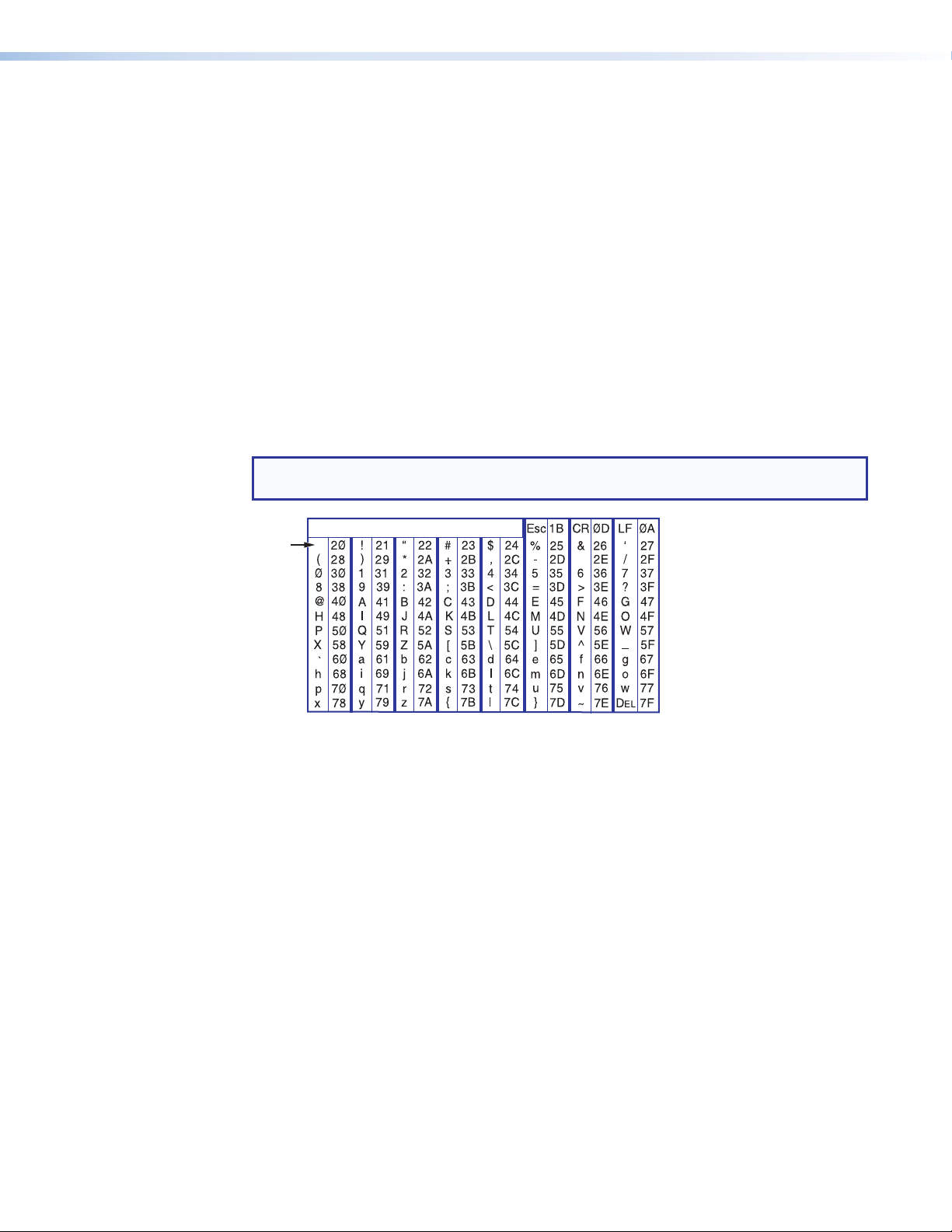

ASCII to Hex Conversion Table
•
Figure 14. ASCII to Hexadecimal Conversion
Symbol definitions
]
¦ or }
• = Space
E or W
XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control 17
= Carriage return and line feed
= Carriage return with no line feed
= Escape key
X2@
= EDID Emulation See the table below
EDID Emulation Table (where X2@ = the SIS value)
SIS
Value
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1280x720 with 2-ch audio* 60 HDMI
1920x1080 with 2-ch audio 60 HDMI
1280x720 with 2-ch audio 50 HDMI
Resolution Refresh
Rate (Hz)
Output
Receiver output
Transmitter loop-through output
800x600 60 DVI
1024x768 60 DVI
1280x768 60 DVI
1280x800 60 DVI
1280x1024 60 DVI
1360x768 60 DVI
1366x768 60 DVI
1400x1050 60 DVI
1440x900 60 DVI
1600x1200 60 DVI
1680x1050 60 DVI
1920x1200 60 DVI
800x600 50 DVI
1024x768 50 DVI
1280x768 50 DVI
1280x800 50 DVI
1280x1024 50 DVI
1360x768 50 DVI
1366x768 50 DVI
1400x1050 50 DVI
1440x900 50 DVI
* = default
XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control 18
Command and Response Tables for Transmitter SIS Commands
The following commands are for direct connections to the XTP T HDMI (see to the XTP
matrix switcher user guide for commands that can be sent from the matrix to endpoints).
Command ASCII Command
(Host to Device)
Response
(Device to Host)
Additional Description
Audio Configuration
Input audio format selection
Set input audio selection
View input audio selection
Audio gain and attenuation
NOTE: Audio gain (G) and attenuation (g) are case sensitive.
Set audio gain
Set audio attenuation
Increase gain
Decrease gain
View gain
Loop-through audio mute
Mute loop-through audio
Unmute the loop-through audio
View loop-through audio mute
status
Black signal for audio only
NOTE: The transmitter uses a black signal to simulate a 720p or 1080p, 50 Hz or 60 Hz signal so audio can
be passed without video.
Set black signal resolution
View black signal resolution
Enable black signal
Disable black signal
View black signal
EI X& AFMT} AfmtIX&]
EIAFMT} AfmtIX&]
X1@G AudX1@] Sets audio gain on current input to X1@.
X1#g AudX1#]
+G
-G
G
1Z
0Z
Z
Aud
Aud
Aud
Amt1
Amt0
Amt
X1$]
X1$]
X1$]
]
]
X1%]
EA X2) AFMT} AfmtAX2)]
EAAFMT} AfmtA X2)]
EB1AFMT} AfmtB1]
EB0AFMT} AfmtB0]
EBAFMT} AfmtB X@]
Set which audio input signal the
transmitter will send. Auto will prioritize
digital over analog audio.
View the input audio format setting.
Sets audio attenuation on current input
to X1#.
Increments audio level.
Decrements audio level.
View the audio level of the current input.
Mute the embedded audio.
Unmute the embedded audio.
View the embedded audio mute status.
Set the black signal resolution.
View the current black signal resolution.
Enable the black signal for audio only.
Disable the black signal.
View the black signal status.
NOTE: X@ = Enable or disable 0 = off or disable
1 = on or enable
X& = Input audio format 0 = auto (default)
1 = digital or embedded
2 = analog
X1@ = Audio gain 0 - 24 = decibels above 0
X1# = Audio attenuation –18 - 0 = decibels below 0
X1$ = Audio level –18 - +24 (0 dB = default)
X1% = Audio mute 0 = unmute all
1 = mute loop-through audio
X2) = Black signal resolution 2 = 1280 x 720p, 50 Hz
4 = 1280 x 720p, 60 Hz (default)
6 = 1920 x 1080p, 60 Hz
XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control 19
Command ASCII Command
(Host to Device)
Response
(Device to Host)
Additional Description
EDID
Set EDID information
View EDID information
EA X2@ EDID} EdidAX2@]
EAEDID} EdidAX2@]
Set the EDID resolution and refresh
rate.
View the EDID resolution and
refresh rate.
Advanced Configuration
HDCP authorized device
HDCP authorized device on
HDCP authorized device off
View HDCP authorized
device setting
Video mute
Mute output to black
Unmute output
View the video mute status
Test pattern
Set test pattern
View test pattern
Reset mode
Reset to factory defaults
Status
View input signal presence
Query HDCP input
Query firmware version
Query full firmware version
Query part number
EE1HDCP} HdcpE1]
EE0HDCP} HdcpE0]
EEHDCP} HdcpEX2!]
1B
0B
B
Vmt1
Vmt0
Vmt
]
]
X*]
X^J TstX^] Set color bars test pattern to X^.
J
Tst
X^]
EZXXX} Zpx]
OLS
Frq
X1^]
EIHDCP} HdcpIX(]
Q
*Q
N
]
x.xx
x.xx.xxxx
60-1043-12
]
]
Set the transmitter as an HDCP
authorized device.
Set the transmitter as not an HDCP
authorized device.
View the HDCP authorized device
setting.
Mutes video and displays a black
screen.
Unmute the video.
View the video mute status.
View the current test pattern.
Resets all user settings back to
factory defaults.
View the input signal presence.
Query the HDCP status.
Query the firmware version.
Query the full firmware version.
Query the device part number.
NOTE: X^ = Color bars test pattern 0 = off (default)
1 = 1280x720p at 50 Hz
3 = 1280x720p at 60 Hz
5 = 1920x1080p at 60 Hz
X* = Video mute 0 = off or disabled
1 = on or enabled (mute to black)
X( = HDCP status 0 = no source connected
1 = HDCP-compliant source connected
2 = non-HDCP-compliant source connected
X1^ = Video signal status 0 = video or TMDS signal not detected
1 = video or TMDS signal detected
X2! = HDCP authorized device status 0 = off
1 = on (default)
X2@ = EDID emulation See the table on page 18.
XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control 20
Command and Response Tables for Receiver SIS Commands
The following commands are for direct connection to the XTP R HDMI (refer to the XTP
matrix switcher user guide for commands that can be sent from the matrix to endpoints).
Command ASCII Command
(Host to Device)
Response
(Device to Host)
Additional Description
Audio Configuration
Volume control
Set volume
Increment volume
Decrement volume
View volume
Audio mute
Mute all
Unmute all
View mute status
X1!V VolX1!] Set the output volume to X1!.
+V
-V
V
3Z
0Z
Z
Vol
Vol
Vol
Amt3
Amt0
Amt
X1!]
X1!]
X1!]
]
]
X1%]
Increase the audio volume.
Decrease the audio volume.
View current volume setting.
Mute the audio.
Unmute the audio.
View the mute status.
Advanced Configuration
Relay control
Pulse relay
Toggle relay
Turn relay on
Turn relay off
View relay status
Mute video to black
Mute video to black
Unmute video
View video mute status
Reset mode
Reset to factory defaults
X1&*3*X1(O Rly X1** X@] Pulse relay X1* for X1( ms.
X1&*2O RlyX1**X@] Toggle relay X1*.
X1&*1O RlyX1**1] Turn relay X1* on.
X1&*0O RlyX1**0] Turn relay X1* off.
X1&O RlyX1** X@] View the on or off status of relay X1*.
1B
0B
B
Vmt1
Vmt0
Vmt
X*]
EZXXX} Zpx]
]
]
Mute the video and display black video.
Unmute the video.
View the video mute setting.
Resets all user settings back to factory
defaults.
NOTE: X@ = Enable or disable 0 = off or disable
1 = on or enable
X* = Video mute 0 = off or disable (default)
1 = on or enable (mute to black)
X1! = Audio volume 0 - 64 (64 = default)
X1% = Audio mute 0 = unmute all
3 = mute all
X1* = Relay number 1 = relay 1
2 = relay 2
X1( = Pulse time 1-65,535 (in 16 ms increments)
XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control 21
Command ASCII Command
(Host to Device)
Response
(Device to Host)
Additional Description
Status
View input signal presence
Query HDCP output
Query firmware version
Query full firmware version
Query part number
0LS
Frq
X1^]
EOHDCP} HdcpOX(]
Q
*Q
N
]
x.xx
x.xx.xxxx
60-1043-13
]
]
View the input signal presence.
Query the HDCP status.
Query the firmware version.
Query the full firmware version.
Query the device part number.
NOTE: X( = HDCP status 0, 2, 4, or 6 = no output connected
1, 3, or 5 = display connected and not currently encrypted
7 = display connected and currently encrypted
X1^ = Video signal status 0 = video or TMDS signal not detected
1 = video or TMDS signal detected
XTP T HDMI Transmitter and XTP R HDMI Receiver • SIS Configuration and Control 22
XTP System Configuration Software
This section contains installation and configuration procedures for the XTP System
Configuration Software to configure and control XTP HDMI transmitters and receivers.
Topics in this section include:
• Installing the XTP System Configuration Software
• Using the XTP System Configuration Software
The XTP System Configuration Software is convenient, user-friendly control software for
configuring an XTP system or individual XTP devices.
Installing the XTP System Configuration Software
The program is contained on the Extron Software DVD or available for download on the
Extron website, www.extron.com.
To install the software from the DVD:
1. To install the software, insert the DVD into the DVD drive. The Extron software DVD
window should appear automatically. If it does not self-start, run Launch.exe from the
DVD.
2. Click the Software tab, scroll to the desired program, and click Install.
3. Follow the instructions that appear on the screen. By default, the installation creates an
Extron directory in the Program Files folder, and places four icons into a group folder
named “Extron Electronics\XTP System Configuration.”
23XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software
To download the software from the website:

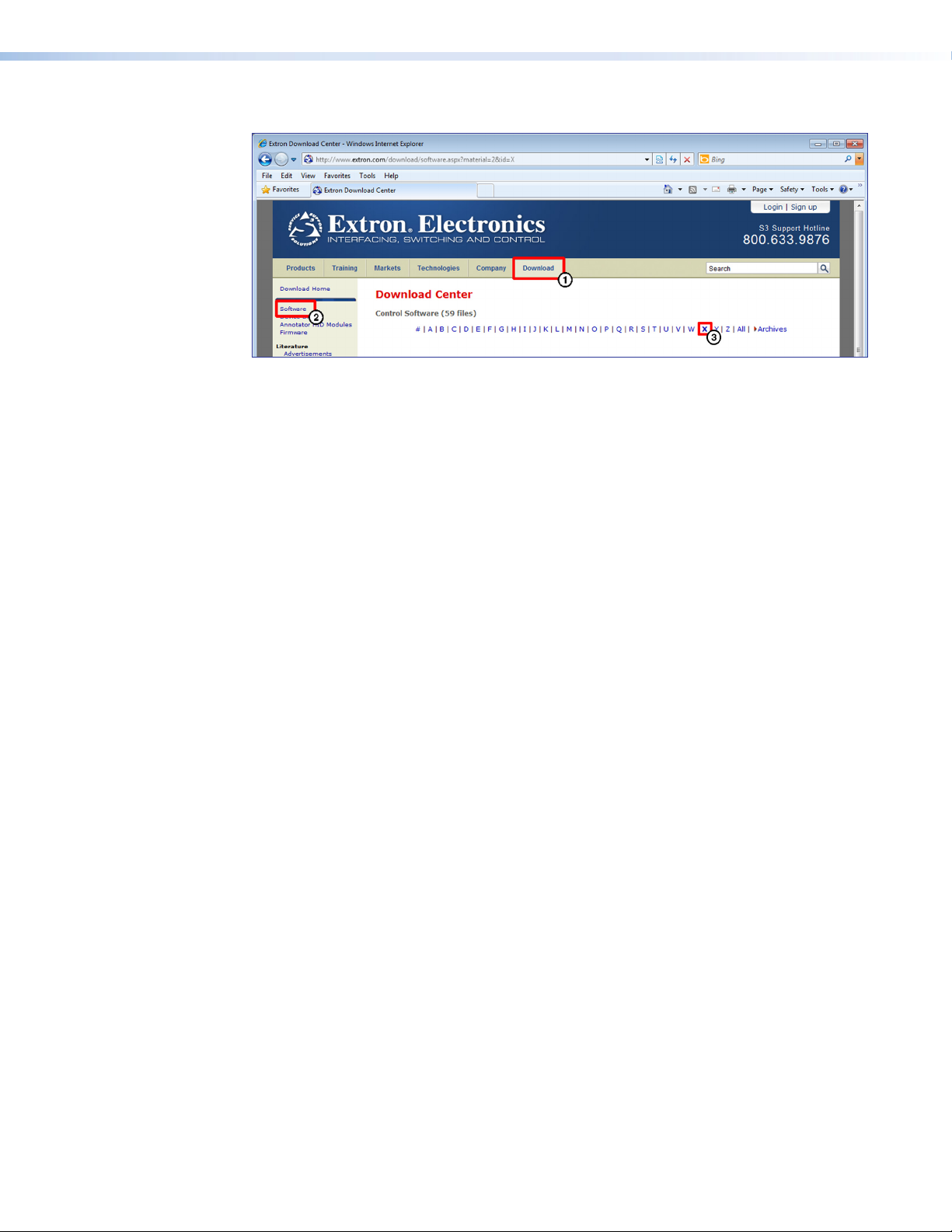

Figure 15. Extron Website Download Page
1. On the Extron website, click the Download tab.
2. From the left sidebar, click the Software link.
3. Navigate to XTP System Configuration.
4. Click the Download link to the right of the desired device.
5. Submit any required information to start the download. Note where the file is saved.
6. Open the executable (.exe) file from the save location.
7. Follow the instructions that appear on the screen. By default, the installation creates a
directory in the Program Files folder, and places four icons into a group folder named
“Extron Electronics\XTP System Configuration.”
Using the XTP System Configuration Software
XTP HDMI transmitters and receivers can be controlled directly from the front panel Config
port or remotely from a connected XTP matrix switcher.
Connection
When opening the XTP System Configuration Software, the Connections screen opens first.
This screen is used to establish communication with an XTP device via USB
(see Front Panel Configuration Port on page 7).
1. From the Connections screen, select the USB radio button.
2. Select the connected device to be controlled from the displayed list.
3. Click the Connect button.
XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software 24
Transmitter Configuration
The Device Settings screen allows a user to view and edit various device settings of the
transmitter connected to the host device.
Transmitter device settings
When connected directly to an XTP T HDMI, the Device Settings screen contains
configuration options for the transmitter only. Click the Device Settings icon on the
Global Navigation bar to open the Device Settings screen.
Figure 16. Transmitter Device Settings Screen
Video panel
Video input — Select the HDCP Authorized check box to set the transmitter as an HDCP
authorized device or deselect it to indicate that the device is not an HDCP authorized
device. This is checked by default.
Video output — Select or deselect the Color Bars Test Pattern check box to transmit
or not transmit a test pattern to an XTP receiver. This is not selected by default. If a color
bars text pattern is enabled, select a signal type from the Signal Type drop-down list.
Audio panel
Switch mode select — Select the Auto radio button to enable Auto Switch mode (default).
When in Auto Switch mode, HDMI audio has priority over analog audio. Select the Manual
radio button to disable Auto Switch mode.
Audio input select — If the switch mode is set to Manual, select the HDMI radio button to
transmit embedded audio from an HDMI signal or select the Analog radio button to transmit
an analog audio signal.
Analog audio — If the transmitter transmits analog audio, move the Analog Audio Gain
slider up or down or select the gain in the field below the slider to adjust the audio gain or
attenuation in decibels.
Audio output — Select the Allow Audio Only check box to enable the black signal for
audio-only transmission. This is not selected by default.
If enabled, select the black signal resolution from the Signal Type drop-down list. The
default resolution is 720p @ 60 Hz.
XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software 25
Factory reset
Click the Factory Reset button to reset the transmitter to factory settings except for
firmware.
NOTE: This is the same as the EZXXX SIS command.
EDID Minder
Use the EDID Minder screen to assign unique EDID to the input or match current output
resolutions to the input. This feature is only available for the XTP transmitters. Click the EDID
Minder
The EDID Minder screen displays a table of EDID options and connected output devices,
which are each represented by output display icons. Factory default EDID options are
displayed in blue and connected output devices are displayed in green. Custom loaded or
saved EDID options are displayed in yellow. Output resolutions are displayed in green.
icon on the global navigation bar. The EDID Minder screen opens.
Figure 17. EDID Minder Screen
Assign EDID
1. Select an available EDID setting (represented by a blue, green, or yellow output display
icon) from the Available EDID pane.
2. Select the check box of the connected input to the right of the Available EDID pane.
3. Click the Assign button below the input area.
TIP: Alternatively, EDID can be assigned by dragging and dropping the desired EDID
onto the input.
XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software 26
Import EDID
1. On the EDID Minder screen, click the Add EDID to Library button.
2. Select the desired EDID file and click Open. The EDID setting appears in the Available
EDID pane.
3. Assign the EDID from the Available EDID pane to import the EDID setting to the device.
Save output EDID
1. On the EDID Minder screen, right-click on the desired EDID setting in the Connected
Outputs
2. Select the Save EDID to PC option. The EDID setting is saved to the connected PC.
Alternatively, right-click on the desired EDID, select Copy, and then Paste the EDID into
the desired pane.
pane.
Set favorite EDID
Commonly used EDID settings can be added to the Favorites pane for quick access.
1. Click and drag the desired EDID setting to the Favorites pane. The EDID is copied to the
Favorites pane. Alternatively, right-click the desired EDID and select Copy. Then Paste
the EDID setting into the Favorites pane.
EDID filters
The filters can be used to easily and quickly locate specific EDID. Selectable filters include:
• Resolution
• Refresh rate
• Audio format
• Video format
To use a filter or combination of filters:
1. Select an EDID setting from one of the drop-down lists of the associated filter. The
available EDID options that match the filter selection are displayed in the Available EDID
pane.
2. Repeat step 1 to apply more filters.
To clear the currently applied filters:
1. Click the Clear button next to the filters. All filters are reset.
Common timings
This function automatically displays available EDID settings that are common among
multiple selected outputs or EDID files.
1. Hold <Ctrl> and click the desired outputs in the Connected Outputs pane. The Common
Timings
the selected outputs.
2. Select the desired common EDID setting. The EDID setting will be shown in the
Available EDID pane.
XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software 27
tab appears to the right of the pane, listing the EDID settings common among
Receiver Configuration
When connected directly to an XTP R HDMI, the Device Settings screen contains
configuration options for the receiver only.
Figure 18. Receiver Device Settings Screen
Video panel
Video mute — Click the Video Mute button to mute to black or unmute the video output.
NOTE: The button turns red when the video output is muted.
Relay Control panel
Toggle — Click the Toggle button under the desired relay section to toggle the relay.
NOTE: The Status indicator displays Open when the relay is open and Closed when the
relay is closed.
Pulse — Select a length of time from the Duration field under the desired relay section and
click the Pulse button to pulse the relay.
Audio panel
Mute All — Click the Mute All button to mute or unmute all audio outputs.
NOTE: The button turns red when the output HDMI embedded audio is muted.
Analog audio — If applicable, move the Analog Audio Volume slider up or down or
select an amount in the field below the slider to adjust the audio volume in decibels.
Factory reset
Click the Factory Reset button to reset the receiver to factory settings except for
firmware.
NOTE: This is the same as the EZXXX SIS command.
XTP T HDMI Transmitter and XTP R HDMI Receiver • XTP System Configuration Software 28
Reference
Information
This section contains mounting information and instructions for updating firmware. Topics in
this section include:
• Mounting
• Updating Firmware with Firmware Loader
Mounting
The XTP T HDMI and the XTP R HDMI can be placed on a tabletop or mounted in a rack or
underneath a desk.
Tabletop Mounting
Attach the provided rubber feet to the bottom four corners of the enclosure.
Mounting Kits
Mount the unit using any optional compatible rack shelf or mounting kit listed on the Extron
website (www.extron.com), in accordance with the directions included with the kit. For
rack-mounting, see UL guidelines for rack-mounted devices below.
UL guidelines for rack-mounted devices
The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the
XTP T HDMI and XTP R HDMI in a rack.
1. Elevated operating ambient temperature — If installed in a closed or multi-unit rack
2. Reduced air flow — Install the equipment in a rack so that the amount of air flow
3. Mechanical loading — Mount the equipment in the rack so that a hazardous
4. Circuit overloading — Connect the equipment to the supply circuit and consider the
5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted
assembly, the operating ambient temperature of the rack environment may be greater
than room ambient temperature, Therefore, install the XTP T HDMI and XTP R HDMI in
an environment compatible with the maximum ambient temperature
(Tma = +122 ˚F, +50 ˚C) specified by Extron.
required for safe operation of the equipment is no compromised.
condition is not achieved due to uneven mechanical loading.
effect that circuit overloading might have an overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
equipment. Pay particular attention to supply connections other than direct connections
to the branch circuit (for example, the use of power strips).
29XTP T HDMI Transmitter and XTP R HDMI Receiver • Reference Information
Updating Firmware with Firmware Loader
To upload and update firmware for the XTP T HDMI and XTP R HDMI, download the new
firmware to a connected computer and upload the firmware with the Firmware Loader utility.
Downloading Extron Firmware Loader
Figure 19. Locating Firmware Loader Software on the Extron Website
1. On the Extron website, www.extron.com, click the Download tab.
2. From the left sidebar, click the Software link.
3. Navigate to Firmware Loader.
4. Click the Download link on the right that corresponds with the program.
5. Submit any required information to start the download.
Installing Firmware Loader
1. Once Firmware Loader has been downloaded, run the .exe file from the save location.
The installation wizard window opens.
2. Follow the instructions on the Installation Wizard screens to install the new firmware on
the computer. A Release Notes file, giving information on what has changed in the new
firmware version, and a set of instructions for updating the firmware are also loaded.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Reference Information 30
Downloading Firmware
Figure 20. Downloading Firmware from the Extron Website
1. On the Extron website, www.extron.com, click the Download tab.
2. On the left sidebar, click the Firmware link.
3. Navigate to XTP T HDMI or XTP R HDMI.
4. Ensure the available firmware version is a later version than the current one on the
device.
NOTE: The firmware release notes are a PDF file that provides details about the
changes between different firmware versions. The file can be downloaded from the
same page as the firmware.
5. Click the Download link to the right of the desired device.
6. Submit any required information to start the download. Note where the file is saved.
7. Open the executable (.exe) file.
8. Follow the instructions on the Installation Wizard screens to install the new firmware on
the computer. A Release Notes file, giving information on what has changed in the new
firmware version, and a set of instructions for updating the firmware are also loaded.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Reference Information 31
Installing Firmware with Firmware Loader
1. Connect the host device to the front panel USB port.
2. Open Firmware Loader and establish a connection between the computer and the
device. The Add Device... dialog box opens.
Figure 21. Add Device... Dialog Box
3. Select XTP T HDMI or XTP R HMDI from the Device Name drop-down list.
4. Select the method of connection from the Connection Method drop-down list.
5. Depending on the connection method, additional options appear. Make the appropriate
selections for the current connection method.
6. Click Connect.
7. Click Browse in the New File Firmware (Optional) section.
8. On the Open dialog box, select the new firmware file, which has an .S19 extension, and
click Open.
ATTENTION: Valid firmware files must have the file extension .S19. A file with
any other extension is not a firmware upgrade for this device and could cause the
device to stop functioning.
9. Click Add. The Add Device... dialog box closes and the device and firmware are listed in
the Firmware Loader main window.
10. Click Begin to start the upload process.
11. Close Firmware Loader when the Remaining Time field shows 00.00.00, the
Progress column is 100%, and the Status field is completed.
XTP T HDMI Transmitter and XTP R HDMI Receiver • Reference Information 32
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
U.S.A.
Europe and Africa:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
Japan:
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
China:
Extron China
686 Ronghua Road
Songjiang District
Shanghai 201611
China
Asia:
Extron Asia Pte Ltd
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Middle East:
Extron Middle East
Dubai Airport Free Zone
F12, PO Box 293666
United Arab Emirates, Dubai
Singapore
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical
or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not
authorized by Extron.
NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return
Authorization) number. This will begin the repair process.
USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040
Asia: 65.6383.4400 Japan: 81.3.3511.7655
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage
during shipment. Returned units must include the serial number and a description of the problem, as well as the
name of the person to contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality,
performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct,
indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.
Please note that laws vary from state to state and country to country, and that some provisions of this warranty may
not apply to you.
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX +1.919.850.1001 FAX
Extron Europe
+800.3987.6673
(Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
© 2013 Extron Electronics All rights reserved. www.extron.com
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Korea
+82.2.3444.1571
+82.2.3444.1575 FAX
Extron India
1800.3070.3777
Inside India Only
+91.80.3055.3777
+91.80.3055.3737 FAX
Loading...
