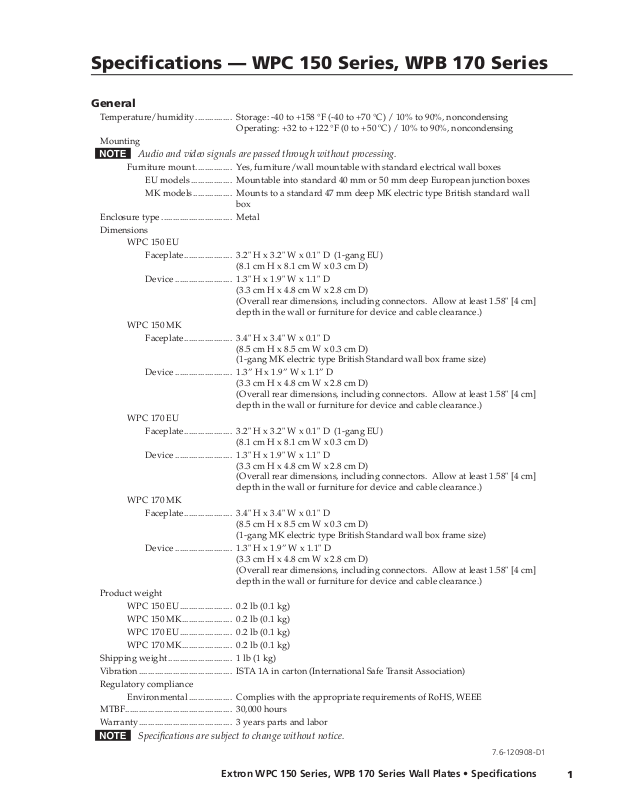

Specifications — WPC 150 Series, WPB 170 Series
General
Temperature/humidity ���������������� Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 ºC) / 10% to 90%, noncondensing
Mounting
Enclosure type ������������������������������� Metal Dimensions
Product weight
Shipping weight ���������������������������� 1 lb (1 kg) Vibration ����������������������������������������� ISTA 1A in carton (International Safe Transit Association) Regulatory compliance
MTBF ����������������������������������������������� 30,000 hours Warranty ����������������������������������������� 3 years parts and labor
Audio and video signals are passed through without processing.
Furniture mount ���������������� Yes, furniture/wall mountable with standard electrical wall boxes
EU models ������������������ Mountable into standard 40 mm or 50 mm deep European junction boxes MK models ����������������� Mounts to a standard 47 mm deep MK electric type British standard wall
box
WPC 150 EU
Faceplate ��������������������� 3�2" H x 3�2" W x 0�1" D (1-gang EU)
(8�1 cm H x 8�1 cm W x 0�3 cm D)
Device ������������������������� 1�3" H x 1�9" W x 1�1" D
(3�3 cm H x 4�8 cm W x 2�8 cm D) (Overall rear dimensions, including connectors� Allow at least 1�58" [4 cm] depth in the wall or furniture for device and cable clearance�)
WPC 150 MK
Faceplate ��������������������� 3�4" H x 3�4" W x 0�1" D
(8�5 cm H x 8�5 cm W x 0�3 cm D) (1-gang MK electric type British Standard wall box frame size)
Device ������������������������� 1�3” H x 1�9” W x 1�1” D
(3�3 cm H x 4�8 cm W x 2�8 cm D) (Overall rear dimensions, including connectors� Allow at least 1�58" [4 cm] depth in the wall or furniture for device and cable clearance�)
WPC 170 EU
Faceplate ��������������������� 3�2" H x 3�2" W x 0�1" D (1-gang EU)
(8�1 cm H x 8�1 cm W x 0�3 cm D)
Device ������������������������� 1�3" H x 1�9" W x 1�1" D
(3�3 cm H x 4�8 cm W x 2�8 cm D) (Overall rear dimensions, including connectors� Allow at least 1�58" [4 cm] depth in the wall or furniture for device and cable clearance�)
WPC 170 MK
Faceplate ��������������������� 3�4" H x 3�4" W x 0�1" D
(8�5 cm H x 8�5 cm W x 0�3 cm D) (1-gang MK electric type British Standard wall box frame size)
Device ������������������������� 1�3" H x 1�9” W x 1�1" D
(3�3 cm H x 4�8 cm W x 2�8 cm D) (Overall rear dimensions, including connectors� Allow at least 1�58" [4 cm] depth in the wall or furniture for device and cable clearance�)
WPC 150 EU ����������������������� 0�2 lb (0�1 kg) WPC 150 MK ���������������������� 0�2 lb (0�1 kg) WPC 170 EU ����������������������� 0�2 lb (0�1 kg) WPC 170 MK ���������������������� 0�2 lb (0�1 kg)
Environmental ������������������� Complies with the appropriate requirements of RoHS, WEEE
Specifications are subject to change without notice.
7.6-120908-D1
Extron WPC 150 Series, WPB 170 Series Wall Plates • Specications
