Extron electronic VYC 100P, VYC 100N, YCV 100 User Manual

User’s Manual

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.71 4.4 91.15 00
+1.71 4.4 91.15 17 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.9 19.8 63 .179 4
+1.9 19.8 63 .179 7 FAX

Extron EMEA

+800.3987.6673

Inside Europe Only

+31.33.453.4040
+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400
+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655
+81.3.3511.7656 FAX

© 2008 Extron Electronics. All rights reserved.

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568
+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800
+971.4.2991880 FAX

YCV 100

S-Video Encoder

VYC 100N and VYC 100P

Composite Video Decoder

68-779-01 Rev. C

08 08

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions in
the literature provided with the equipment.

This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of
electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be
hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation et
la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afi n de pouvoir

les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes

marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fi xation • Ne pas utiliser de pièces de fi xation ni d’outils

non recommandés par le fabricant du matériel car cela risquerait de poser
certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im
Lieferumfang enthaltenen Dokumentation
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam
machen, daß im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen
und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario
sobre instrucciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación
suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y

seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para

futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas

en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especifi camente recomendados por el fabricante, ya que podrian
implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power
system with a grounded (neutral) conductor. The third (grounding) pin is a safety
feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power

cords from the rear of the equipment, or the desktop power module (if detachable),
or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be

stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualifi ed service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly

replaced. Replace it only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale
comportant un fi l de terre (neutre). Le troisième contact (de mise à la terre) constitue
un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifi é. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afi n d’éviter tout danger d’électrocution, l’utilisateur ne doit
pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des
couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifi ces • Si le boîtier de l’appareil comporte des fentes ou des orifi ces, ceux-ci

servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures
ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.

Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent
recommande par le constructeur. Mettre au reut les batteries usagees conformement
aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer
Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte
Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten

Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung
(falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar
dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifi ziertem Servicepersonal

durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei.
Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses
Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,

dienen diese zur Vermeidung einer Überhitzung der empfi ndlichen Teile im
Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt

wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie
verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor neutro
a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia
ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida

de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación
en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera
independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben

instalar en lugares donde no sean pisados ni apretados por objetos que se puedan
apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

califi cado. En el interior no hay partes a las que el usuario deba acceder. Para evitar
riesgo de electrocución, no intentar personalmente la reparación/mantenimiento
de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orifi cios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship
for a period of three years from the date of purchase. In the event of malfunction during
the warranty period attributable directly to faulty workmanship and/or materials,
Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating
condition, provided that it is returned within the warranty period, with proof of
purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America: Extron Electronics, Europe

Extron Electronics Beeldschermweg 6C

1001 East Ball Road 3821 AH Amersfoort

Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper
handling care, electrical or mechanical abuse, abnormal operating conditions or non­Extron authorized modifi cation to the product.

If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at [phone] (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect
to the product and its quality, performance, merchantability, or fi tness for any particular
use. In no event will Extron Electronics be liable for direct, indirect, or consequential
damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.

Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct the
interference at his own expense.

N This unit was tested with shielded cables on the peripheral devices. Shielded

cables must be used with the unit to ensure compliance.

Table of Contents

Chapter 1 • Introduction .......................................................... 1-1

About the YCV 100, VYC 100N, and VYC 100P ........ 1-2

Features ...................................................................................... 1-2

Chapter 2 • Installation and Operation.......................... 2-1

Mounting the YCV 100, VYC 100N and VYC 100P .2-2

Tabletop use ...........................................................................2-2

UL rack mounting guidelines .................................................2-2

Rack mounting ....................................................................... 2-3

Back of the rack installation.................................................. 2-4

Furniture mounting ............................................................... 2-5

Projector mounting ................................................................2-6

Front Panel Features ........................................................... 2-6

Rear Panel Features and Cabling ..................................2-7

YCV 100 ................................................................................. 2-7

VYC 100N and VYC 100P .......................................................2-8

Troubleshooting....................................................................2-10

Appendix A • Specifications, Part Numbers,

and Accessories ............................................................................. A-1

Specifications ......................................................................... A-2

Included Parts ......................................................................... A-4

Optional Accessories........................................................... A-4

All trademarks mentioned in this manual are the properties of their respective owners.

68-779-01 Rev. C

YCV 100, VYC 100N, VYC 100P • Table of Contents

i

08 08

Table of Contents, cont’d

YCV 100, VYC 100N, and VYC 100P

Chapter One

1

i i

Introduction

About the YCV 100, VYC 100N and VYC 100P

Features

YCV 100, VYC 100N, VYC 100P • Table of Contents

Introduction

About the YCV 100, VYC 100N, and VYC 100P

The Extron YCV 100 is a high-performance S-video to
composite video encoder. It combines S-video Y and C
(luminance and chrominance) signals into a composite video
signal. The encoder is compatible with NTSC 3.58, NTSC 4.43,
PAL, and SECAM signals. The unit accepts S-video input on two
female BNC connectors or one 4-pin mini DIN connector and
outputs composite video on one female BNC connector.

The Extron VYC 100N and VYC 100P are composite video to
S-video decoders. It separates a composite video signal into
S-video Y and C signals. The VYC 100N decodes NTSC 3.58
signals only and the VYC 100P decodes PAL signals only. Both
decoders accept composite video input on one female BNC
connector and outputs S-video signals on two female BNC
connectors and/or one 4-pin mini DIN connector.

All units include an external 12 V power supply that accepts
100-240 VAC 50/60 Hz input.

Features

Furniture, projector, and rack mountability — The YCV 100,

VYC 100N, and VYC 100P can be mounted under a desk,
podium, or other furniture, or secured to a projector
mount with optional brackets. Alternatively, they can be
mounted on an optional VersaTools® or universal rack
shelf.

Versatile S-video input/output configuration — The encoder

and decoder can pass S-video signals via two female BNC
connectors or one 4-pin mini DIN connector.

YCV 100, VYC 100N, and VYC 100P

Chapter Two

2

Installation and Operation

1-2

Extron
VYC 100N

Composite Video
Decoder

VTR
Composite
Video

Extron
MAV 88 SVA

AV Matrix
Switcher

YCV 100, VYC 100N, VYC 100P • Introduction

VYC 100

P
M
O

CO

E

D
I
V

O

C
DE

E

W
O
P

2V
1

AM
5
.
0

E
T
I

S
O

R

E
D

R

X

A

N
I

O
E
D

I
V

T
U

O
O
E

D
I

V

-

S

Y

C

DVD Player
S-Video

Extron
YCV 100

T
U
O

O
E
D

I

S-Video

V

Y

YCV 100

EO

R

D

I

E

V

­S

O

C
N
E

E

W
O
P

V
2

M

1

A
5
.
0

U

P
T
U

O

3
4

1
S
T

2

U

P
N
I

7

8
5
6

A
3
.
0

3

V
0
4
2

-

0
0

4

1

1
2

z

H
0
6

­0

5

Encoder

D

C

R

R

N

O

I
EO
D

I
V

S-

X

A

Monitor
Composite
Video

A
V

S

88

AV

RS 232

M

R

7

L

R

8

R

L

5

L

R

6

R

L

3

L

R

4

R

L

S

T

1

U

P

L

T

U

R

O

2

L

R

7

L

R

8

R

L

5

L

R

6

R

L

3

L

R

4

R

L

S

1

T

U

C

L

P

N

R

N

I
Y
S

2

L

N
I
T
U

O

S

T

7

8
5
6

Video-

Mounting the YCV 100, VYC 100N, and VYC 100P

Front Panel Features

Rear Panel Features and Cabling

Troubleshooting

Conferencing
S-Video

Installation and Operation

Mounting the YCV 100, VYC 100N, & VYC 100P

The YCV 100, VYCN, and VYC 100P can be set on a table or
mounted on a rack shelf, under a desk or tabletop, or on a
projector mount.

Tabletop use

Four self-adhesive rubber feet are included with the YCV 100,
VYC 100N, and VYC 100P. For tabletop use, attach one foot at
each corner of the bottom side of the unit and place the unit in
the desired location.

UL rack mounting guidelines

The following Underwriters Laboratories (UL) guidelines
pertain to the safe installation of the YCV 100, VYC 100N, and
VYC 100P in a rack.

1. Elevated operating ambient temperature — If installed in
a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be
greater than room ambient temperature. Therefore,
install the unit in an environment compatible with the
maximum ambient temperature (Tma = +122 °F, +50 °C)
specified by Extron.

2. Reduced air flow — Install the equipment in a rack so that
the amount of air flow required for safe operation of the
equipment is not compromised.

3. Mechanical loading — Mount the equipment in the rack
so that a hazardous condition is not achieved due to
uneven mechanical loading.

4. Circuit overloading — Connect the equipment to the
supply circuit and consider the effect that circuit
overloading might have on overcurrent protection and
supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this
concern.

5. Reliable earthing (grounding) — Maintain reliable
grounding of rack-mounted equipment. Pay particular
attention to supply connections other than direct
connections to the branch circuit (e.g. use of power strips).

Rack mounting

For optional rack mounting, do not install the rubber feet.
Mount the YCV 100, VYC 100N, or YCV 100P, on a VersaTools
rack shelf (RSF 123, Extron part #60-190-20; RSB 123,
part #60-604-21), or on a 6" deep rack shelf (RSU 126,
part #60-190-10; RSB 126, part #60-604-11), or on a 1U universal
rack shelf (RSU 129, part #60-190-01; RSB 129, #60-604-02).

On the standard rack shelf, the YCV 100, VYC 100N, and
VYC 100P mount in one of eight locations to the rear of the
shelf or in one of eight locations to the front of the shelf.

1. Remove rubber feet if they were previously installed on
the bottom of the unit.

2. Mount the unit on the rack shelf, using two 4-40 x 3/16"
screws in opposite (diagonal) corners to secure the unit to
the shelf.

3. Install blank panel(s) or other unit(s) on the rack shelf.

VersaTools
Rack Shelf

D
IS

T
R

IB

U
T

IO

N
A

M

P
L

IF

IE

R

Quarter Rack Width
False Front Face Plate

Eighth Rack Width
False Front Face Plate

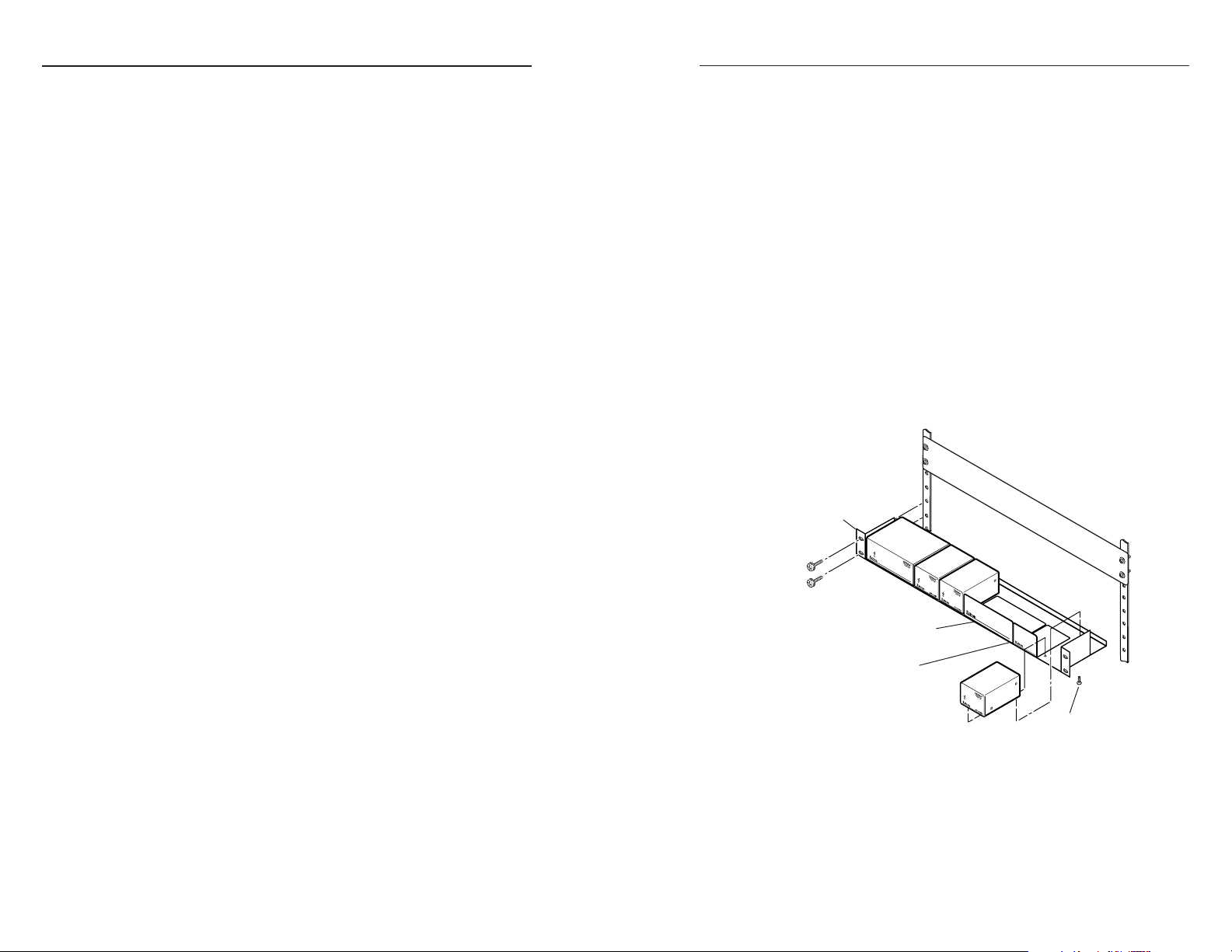

Mounting the YCV 100, VYC 100N, and VYC 100P on
a VersaTools rack shelf

™

(2) 4-40 x 3/16"
screws

2-2

YCV 100, VYC 100N, VYC 100P • Installation and Operation 2-3

YCV 100, VYC 100N, VYC 100P • Installation and Operation

Installation and Operation

D
I

S

T

R
I

B
U

T
I

O

N

A
M

P
L

I
F

I
E
R

D

Mounting the YCV 100, VYC 100N, and VYC 100P on
a 1U standard rack shelf

Back of the rack installation

The YCV 100, VYC 100N, and VYC 100P can be conveniently
mounted on the rear of a rack by using the Extron back of the
rack mounting kit (MBB 100, Extron part #70-367-01). The back­of-the-rack mounting kit allows the device to be vertically
positioned.

1. Attach the two back of the rack mounting brackets to the
sides of the unit using the four included mounting screws.

IPA T IPA

IPA T IPA

2. Mount the unit on the rack using the two included rack
screws. It can be vertically mounted facing in either
direction, as shown here.

0
.2

1

A

2

P

V

O

M

W

C

A

B

O

E

X

B

A

A

R

N

A

U

BUC

L

V

L

D

/U

E

/U

I

R

O

N

N

T

B

B

E

A

102

R

A

L

L
L
O
U
T

L

P

B

U

A

T

R

L

S

/U
N
B

R

A

1

S

L

P

O

I

A

U

2

N

N

R

N

E

B

P

A

U

L

T

S

B
A
L

MDA SERIES

IS

T
R

I
B
U

T
I

O
N

A

M
P

L
IF

I
E

R

I
R

1

2

3

IN

P
U

4

T

S

5

6

7

8

1

2

3

O

U

T
P

4

U

T

S

5

6

7

8

E
N
T

E
R

P
R

E

S

E
T

M

A

A

V

V

M

A

S

T

E

R

IX

R

I/O

S

I
E

W

S

IT

V

C
I
D

H

E
R

A

+

U

d

D

B

­d
B

A

U
D

I
O

S

E

T
U

P

+

R

+

L

Furniture mounting

Furniture mount the YCV 100, VYC 100N, or VYC 100P using the
optional MBU 123 mounting kit (part #70-212-01) as follows:

1. Remove rubber feet if they were previously installed on the
bottom of the unit.

2. Attach the furniture mounting brackets to the unit with the
machine screws provided.

3. Hold the unit with the attached brackets against the
underside of the table or other furniture. Mark the location
of the screw holes of the bracket on the mounting surface.

4. Drill 3/32" (2 mm) diameter pilot holes, 1/4" (6.3 mm) deep
in the mounting surface at the marked screw locations.

5. Insert #8 wood screws into the four pilot holes. Tighten
each screw into the mounting surface until just less than
1/4" of the screw protrudes.

6. Align the mounting screws with the slots in the brackets and
place the unit against the surface, with the screws through
the bracket slots. See the illustration below.

7. Slide the unit slightly forward or back, then tighten all four
screws to secure the unit in place.

2-4

YCV 100, VYC 100N, VYC 100P • Installation and Operation YCV 100, VYC 100N, VYC 100P • Installation and Operation 2-5

Installation and Operation, cont’d

Projector mounting

Projector mount the YCV 100, VYC 100N, or VYC 100P using the
optional PMK 100 mounting kit (part #70-217-01) as follows:

1. Remove rubber feet if they were previously installed on the
bottom of the unit.

2. Attach the projector mounting brackets to the unit with the
machine screws provided.

3. Secure the unit below the ceiling to a projector mount or
other surface by inserting the mounting bolt through the
bracket’s slotted hole, as shown below.

Projector

Ceiling

T
U
O
O
E
ID
V

Y
C

IN
R
O
E
O
D
I
V

-

0

S

0
1

R

O

E

V

E

D

D

C

I

O

V

C

Y

­N

S

R

E

E
W
O

X

P

A
M
V
2
A
1
.5
0

Mounting the YCV 100, VYC 100N, and VYC 100N
on a projector mount

Mounting
Bracket

Mounting
Bolt

Digital Projector

Rear Panel Features and Cabling

YCV 100

YCV 100

S-VIDEO
ENCODER

POWER

3

12V

0.1A MAX

4

Input connectors — Connect an S-video source to either:

1

• the two female BNC connectors or

• the 4-pin mini DIN connector.

Do not connect S-video sources to both types of
connectors at the same time.

Output connector — Connect a composite video output device

2

to this female BNC connector.

Power connector — An external 12 V power supply is included

3

with the unit. Plug it into this 2-pole captive screw connector.
Wire the connector as shown below.

CAUTION

VIDEO OUT

2

Y

C

OR

S-VIDEO IN

1

When connecting the power supply, voltage
polarity is extremely important. Applying power
with incorrect voltage polarity could damage the
power supply and the YCV 100. Identify the power
cord negative lead by the ridges on the side of the
cord or a black heat shrink wrapping around it.

Front Panel Features

1

Power LED — Lights to indicate that the YCV 100/VYC 100N/

1

VYC 100P is on.

2-6

YCV 100, VYC 100N, VYC 100P • Installation and Operation

Smooth

Ridges

AA

Power Supply

Output Cord

SECTION A–A

Tie Wrap

Orange Captive Screw

Connector

YCV 100, VYC 100N, VYC 100P • Installation and Operation

3/16”

(5 mm) Max.

2-7

Installation and Operation, cont’d

Strip the insulation from the wires to expose 5 mm
(3/16") of the conductors. Do not tin the stripped power
supply leads before installing the captive screw
connector. Tinned wires are not as secure in the captive
screw connectors and could be pulled out.

The two power cord wires must be kept separate
while the power supply is plugged in. Remove
power before wiring.

To verify the polarity before connection, check the no load
power supply output with a voltmeter.

Power LED — Lights to indicate that the YCV 100 is on.

4

VYC 100N and VYC 100P

The VYC 100N and VYC 100P have identical rear panel
connectors.

1

VYC 100N

COMPOSITE
VIDEO
DECODER

POWER

3

12V

0.5A MAX

VIDEO IN

Y

S-VIDEO OUT

4

C

2

Smooth

Ridges

AA

Power Supply

Output Cord

SECTION A–A

Tie Wrap

Orange Captive Screw

Connector

Strip the insulation from the wires to expose 5 mm
(3/16") of the conductors. Do not tin the stripped power
supply leads before installing the captive screw
connector. Tinned wires are not as secure in the captive
screw connectors and could be pulled out.

The two power cord wires must be kept separate
while the power supply is plugged in. Remove
power before wiring.

To verify the polarity before connection, check the no load
power supply output with a voltmeter.

Power LED — Lights to indicate that the VYC 100N/VYC 100P

4

is on.

3/16”

(5 mm) Max.

2-8

Input connector — Connect a composite video source to this

1

female BNC connector.

Output connectors — Connect an S-video output device to:

2

• the two female BNC connectors and/or

• the 4-pin mini DIN connector.

Power connector — An external 12 V power supply is included

3

with the unit. Plug it into this 2-pole captive screw connector.
Wire the connector as shown in the following illustration.

CAUTION

When connecting the power supply, voltage
polarity is extremely important. Applying power
with incorrect voltage polarity could damage the
power supply and the VYC 100N/VYC 100P.
Identify the power cord negative lead by the ridges
on the side of the cord or a black heat shrink
wrapping around it.

YCV 100, VYC 100N, VYC 100P • Installation and Operation

YCV 100, VYC 100N, VYC 100P • Installation and Operation

2-9

Installation and Operation, cont’d

Troubleshooting

Possible problems and their solutions include the following:

• Problem: No power at unit

Solution: Verify that the unit is receiving power by

• Problem: No video input

Solution: Verify that the source and output devices are

• Problem: Some chroma crawl on the vertical edges or a

Solution: This is a normal characteristic of the unit.

YCV 100, VYC 100N, and VYC 100P

checking the front or rear LED. If no LED is lit,
check the DC power plug termination and
polarity.

powered on and connected properly.

rainbow effect on some images

Appendix A

A

2-10

Specifications, Part Numbers,

and Accessories

Specifications

Included Parts

Optional Accessories

YCV 100, VYC 100N, VYC 100P • Installation and Operation

Specifications, Part Numbers, and Accessories

Video

Gain................................................ Unity

Bandwidth

YCV 100 ............................ 8 MHz (-3 dB)

VYC 100N, VYC 100P ..... 5.5 MHz (-5.5 dB)

Video input

Number/signal type

YCV 100 ............................ 1 S-video

VYC 100N, VYC 100P ..... 1 composite video

Connectors

YCV 100 ............................ 2 female BNC or 1 female 4-pin mini DIN

VYC 100N, VYC 100P ..... 1 female BNC

Nominal level ............................... 1 Vp-p for Y of S-video, and for composite

video

0.3 Vp-p for C of S-video

Minimum/maximum levels

S-video ............................... Analog: 0.3 V to 1.5 Vp-p for Y

Composite video ............. Analog: 0.3 V to 1.5 Vp-p with no offset

Impedance .................................... 75 ohms

Return loss .................................... -35 dB @ 5 MHz

DC offset (max. allowable) ......... 5 V

Video output

Number/signal type

YCV 100 ............................ 1 composite video

VYC 100N, VYC 100P ..... 2 S-video

Connectors

YCV 100 ............................ 1 female BNC

VYC 100N, VYC 100P ..... 2 female BNCs or (1) 4-pin mini DIN

Nominal level ............................... 1 Vp-p for Y of S-video and for composite

video

0.3 Vp-p for C of S-video

Minimum/maximum levels ....... 0.3 V to 1.5 Vp-p for Y of S-video or

composite video (follows input)

Impedance .................................... 75 ohms

Return loss .................................... -40 dB @ 5 MHz

DC offset ....................................... ±5 mV maximum with input at 0 offset

Sync

Standards

VYC 100N ......................... NTSC 3.58

VYC 100P .......................... PAL

YCV 100 ............................ NTSC 3.58, NTSC 4.43, PAL, SECAM

General

External power supply................ 100 VAC to 240 VAC, 50/60 Hz, external,

autoswitchable; to 12 VDC, 1 A (max.),
regulated

Power input requirements

VYC 100N, VYC 100P ..... 12 VDC, 0.2 A

YCV 100 ............................ 12 VDC, 0.1 A

Temperature/humidity .............. Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing

Rack mount .................................. Yes, with optional 1U, 9.5" deep rack

shelf, part #60-190-01 (RSU 129) or
60-604-01 (RSB 129); or VersaTools
deep rack shelf, part #60-190-20 (RSF 123)
or 60-604-21 (RSB 123)
Furniture mountable with optional mini
under-desk mounting kit, part #70-212-01
(MBU 123)
Attachable to a projector mount with
optional mounting kit, part #70-217-01

(PMK 100)

Enclosure type .............................. Metal

Enclosure dimensions ................. 1.7" H x 2.2" W x 3.0" D

(1U high, one eighth rack wide)

(4.3 cm H x 5.6 cm W x 7.6 cm D)

(Depth excludes connectors.)

Product weight ............................. 0.4 lbs (0.2 kg)

Shipping weight ........................... 1 lbs (1 kg)

Vibration ....................................... ISTA 1A in carton (International Safe

Transit Association)

Listings .......................................... UL, CUL

Compliances ................................. CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

All nominal levels are at ±10%.

Specifications are subject to change without notice.

®

3.5"

A-2

YCV 100, VYC 100N, VYC 100P • Specifications and PartsYCV 100, VYC 100N, VYC 100P • Specifications and Parts

A-3

Specifications, Part Numbers, Accessories, cont’d

Included Parts

These items are included in each order for a YCV 100,
VYC 100N, or VYC 100P:

Replacement

Included parts part number

YCV 100 60-559-01

or

VYC 100N 60-558-02

or

VYC 100P 60-558-03

12 VDC, 1 A external power supply 70-055-01

IEC power cord

3.5 mm, 2-pole captive screw connector

Tweeker (small screwdriver)

User’s Manual

Optional Accessories

These items can be ordered separately:

Accessories Part number

A-4

Mini under-desk mounting bracket 70-212-01

Mini projector mounting bracket 70-217-01

1U universal rack shelf kit 60-190-01

1U basic rack shelf 60-604-02

1U 6" deep universal rack shelf kit 60-190-10

1U 6" deep basic rack shelf 60-604-11

VersaTools rack shelf kit 60-190-20

VersaTools basic rack shelf 60-604-21

VersaTools back-of-the-rack mounting kit 70-367-01

YCV 100, VYC 100N, VYC 100P • Specifications and Parts
