VoiceLift™ Microphone

Installation Guide for VLM 1000 and VLM 2000

68-1629-01

Rev. A

01 09

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future reference.

Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user

information.

Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁn de pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de xation • Ne pas utiliser de pièces de ﬁxation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dies es Symbol soll dem Benut zer in der im Liefer umfang ent haltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched by

items placed upon or against them.

Servicing • Refer all servicing to qualiﬁed service personnel. There are no user-serviceable parts inside. To

prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un ﬁl de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les cordons

d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne ne

risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un technicien

qualiﬁé. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁn d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orices • Si le boîtier de l’appareil comporte des fentes ou des oriﬁces, ceux-ci servent à empêcher

les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel

aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von

anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte

Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especiﬁcamente recomendados

por el fabricante, ya que podrian implicar riesgos.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理解所有安全和使用说明。保存说明书 • 用户应保存安全说明书以备将来使用。遵守警告 • 用户应遵守产品和用户指南上的所有安全和操作说明。避免追加 • 不要使用该产品厂商没有推荐的工具或追加设备，以避免危险。

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación eléctrica

al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares donde

no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calicado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁcios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros

objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

警告

电源 • 该设备只能使用产品上标明的电源。设备必须使用有地线的供电系统供电。第三条线

（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市

电系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部没有用户可以更换的零件。为避免出现

触电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。不要用任何东

西挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或相近型号的电池。

按照生产厂的建议处理废弃电池。

Introduction — Overview

AUX/MIX IN

1A I N P U T

O U T P U T S

RS-232 MLC/IR

DC VOL

4/8

Ohms

AMPLIFIED OUTPUTS

VOL/MUTE

A B C

Rx IR

12V

10V

POWER

12V 3A MAX

LISTED 17

AUDIO/VIDEO

APPARATUS

RGB

VIDEO

RGB

VIDEO

STEREO

DUAL MONO

HIGH PASS FILTER

OFF

CONFIG

DISPLAY

MLC 104 IP Plus

VOLUME

OFF

VIDEO

AUX VIDEO

IMAGE MUTE

SI 3C LP

Plenum Full-Range Ceiling Speakers

PVS 204SA

PoleVault® Switcher / Amplier

TCP/IP

Network

VoiceLift

Receiver

VoiceLift

Pendant Microphone

MLC 104 IP Plus

MediaLink Controller

Free GlobalViewer Software

FCC Class B Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

About This Guide

This manual covers the installation of the Extron VoiceLift™ Microphone as part of an Extron PoleVault™ system. The VoiceLift VLR 102 receiver can be installed in a drop ceiling, a standard junction box, an octagonal ceiling box, or on a wall. It is assumed that the installer has some knowledge of and experience with A/V, electrical, or electronic device installation. This manual guides the A/V installer through the steps to install and connect each component of the system.

The VoiceLift Microphone

The Extron VoiceLift Microphone is an easy-to-use, low-power, classroom ampliﬁcation system that ensures the teacher can be clearly heard at a comfortable level throughout the classroom. Speech is picked up by the pendant microphone worn by the teacher and is transmitted wirelessly to a base station receiver. The signal is then fed to the PVS 204SA PoleVault Switcher, which powers strategically placed loudspeakers to improve the signal-to-noise ratio of the teacher's voice above ambient noise level.

VoiceLift Microphone installation and wiring overview

VoiceLift Microphone Installation • Introduction — Overview

1-1

Introduction — Planning

PVS 204SA

PoleVault Switcher

AUX/MIX IN

1A I N P U T S

O U T P U T S

RS-232 MLC/IR

DC VOL

4/8 Ohms

AMPLIFIED OUTPUTS

VOL/MUTE

A B C

Rx IR12V

10V

POWER

12V 3A MAX

LISTED

17TT

AUDIO/VIDEO

APPARATUS

RGB

VIDEO

RGB

VIDEO

STEREO

DUAL MONO

HIGH PASS FILTER

OFF

Extron

PWR

CHARGE

OFF/MUTE/CHG

Extron

CONFIG

DISPLAY

MLC 104 IP Plus

VOLUME

OFF

VIDEO

AUX VIDEO

IMAGE MUTE

COMPUTER IN

AUDIO IN

VIDEO IN

VLR 102

Receiver

VLC 102

Desktop Charging Station

VLP 102

Pendant Microphone

SI 3C LP

Plenum Full-Range Ceiling Speakers

TCP/IP

Network

Before You Begin — Planning the Installation

Before starting installation, you must consider several major factors to ensure that the installation of the VoiceLift

Microphone is as smooth and trouble free as possible, and that the result meets the needs of the users. Placement

of the receiver (sensor location) is very important for optimal performance of the VoiceLift Microphone. Because

IR technology requires line-of-sight placement, take into consideration anything that could impact or block the transmission of the IR signal from the microphone to the receiver.

The lists on the following pages, though not comprehensive, should be consulted to help ensure that key aspects have been considered.

1. Room layout

The application diagram below shows a typical classroom installation incorporating the VoiceLift Microphone.

Typical classroom installation

Due to the operating frequencies of the microphone and receiver, lighting ﬁxtures such as ﬂuorescent lights and

plasma displays should not affect performance of the system.

1-2

VoiceLift Microphone Installation • Introduction — Planning

Student Desks

Teacher’s Desk

TV / VCR / DVD Inputs

Screen/White Board Location

MLC Controller Location

PVT A/V Wallplate Location

Projector/ Switcher Location

Speaker Locations

Potential

VLR 102 IR Receiver

Locations

Room considerations

Room factors to be considered should include, but are not conﬁned to:

• Room conguration

 Room size, orientation, and layout

 Location of windows, doors, skylights, etc., for potential light interference

 Alcoves, bays, or sheltered areas

 Location of any dark or covered walls (Dark surfaces reduce reflection of the IR signal.)

– Wall art

– Curtains/blinds – Acoustical panels

– Wall material/texture

• Line-of-sight obstructions between microphone and receiver

 Existing movable furniture (desks, tables, podiums)  Existing installed furniture (bookcases, racks, cabinets, workbenches, sinks, etc.)

 Support pillars

 Projector

• Ceiling and wall type (important in assessing the installation hardware needed)

 Ceiling type (drop, spline, hard lid, etc.); structural type (wood, concrete, trusses)  Wall type (drywall, cement, brick, etc.)

• Receiver location

 Best location: on the ceiling, at the middle of the classroom

 If ceiling mounting is not possible, place high and centered on the longest wall.

 Locations to avoid:

– Places where line of sight could be obstructed; e.g., too close to the projector

– Corners of the room – On walls, at less than 6' or more than 12' up from the base – Areas that receive direct sunlight

Example of a classroom installation

VoiceLift Microphone Installation • Introduction — Planning

1-3

Introduction — Planning, cont’d

• Optional VLR 102SR Secondary receiver. One or more secondary receivers (VLR 102 SR) may be needed if any

of the following conditions exist:

 The room is larger than 40' by 40'.

 Obstructions exist between the microphone and the receiver.

 The room is odd-shaped, e.g., L-shaped or long.

 The room has recessed or sheltered areas, such as alcoves or bays.

 The room has large windows or windows on multiple walls.

 Portions of the walls are dark and/or covered. Dark surfaces reduce signal reﬂection. Take the following into

consideration:

– Wall art

– Curtains/blinds – Acoustical panels

– Wall material/texture

The following diagrams show examples of secondary receiver placement.

Receiver and one secondary receiver in an odd-shaped room

Receiver and three secondary receivers in a large room, or a room with dark walls, obstructions, and/or windows

Receiver and one secondary receiver in a long room

1-4

VoiceLift Microphone Installation • Introduction — Planning

VLP 102

Pendant Microphone

VLP 102 Pendant Microphone VLR 102 IR Receiver RJ-45 to C/S adapter Wall charger/power supply Ethernet cable, 15 ft.

VLM 1000 VoiceLift Microphone

#42-139-01

VLP 102

Pendant Microphones (2)

VoiceLift Microphone Devices and Hardware

VLM 2000 VoiceLift Microphone

#42-139-02

VLR 102

IR Receiver

VLR 102

IR Receiver

VLC 102

Charging Station

Adapter

Lanyard

Z Bracket

and Screw

Wall Charger/ Power Supply

Adapter

Z Bracket

and Screw

Lanyard (2)

15’ Ethernet Cable

Extron

PWR

CHARGEOFF/MUTE/CHG ON

Extron

PWR

CHARGEOFF/MUTE/CHG ON

Extron

PWR

CHARGEOFF/MUTE/CHG ON

Wall Charger/ Power Supply

Battery, AA 2500mAh Lanyard Z bracket Z bracket screw

VLP 102 Pendant Microphones (2) VLR 102 IR Receiver VLC 102 Charging Station RJ-45 to C/S adapter Wall charger/power supply

Ethernet cable, 15 ft. Batteries, AA 2500mAh (2) Lanyard (2) Z bracket Z bracket screw

AA Rechargeable

Battery

AA Rechargeable

Batteries (2)

Introduction — Inventory Overview

2. Inventory

a. Included items

The VoiceLift Microphone is shipped in one box and is available in two package conﬁgurations:

• VLM 1000 (part #42-139-01): one VLP 102 pendant microphone, a VLR 102 Receiver, and a wall charger. VLM 2000 (part #42-139-02): two VLP 102 pendant microphones, a VLR 102 Receiver, and a VLC 102

•

charging station.

Carefully check all the received items against the following inventory lists.

VoiceLift Microphone Installation • Introduction — Inventory Overview

1-5

Introduction — Inventory Overview, cont’d

If any items in the VoiceLift Microphone boxes are damaged or missing, contact the Extron Technical Hotline

(see rear cover for contact numbers).

b. Items not included

The following items are not included. However, some or all of these items may be needed for the installation at your

particular site.

• Additional length of RJ-45 cabling (CAT 5, 5e, or 6 with T568A or T568B straight-through wiring)

• Installation hardware (may vary by installation):

 Electrical ceiling box, 3.5" or 4.0"  Junction box  Plaster ring  Raceway  Bolts for concrete structural ceilings where needed  Dry wall anchors and screws  Spare ceiling tiles in case of accidental damage during installation  Safety wire, lag eye bolts, and strain reliefs  Heat shrink, extension cord

c. Optional items

The optional items suggested below can be added to or substituted for items in the standard VoiceLift Microphone

kit.

• VLR 102 SR Secondary VoiceLift Receiver

• VLC 102 Charging Station

• VLP 102 pendant microphone (additional)

• Wall charger

• Headset microphone

• Lapel microphone

• Lanyard

• Lanyard clip

• IPL T S1 Ethernet Control Interface

d. Installation tools:

• Tape measure

• Screwdriver set and Tweeker

• Hole saw, keyhole saw, or razor knife

• Appropriate drill and bit set for the mounting surface

• Stud nder

• Flashlight

• Safety goggles

• RJ-45 crimpers and connectors (plenum rated, if applicable)

• Zip ties

• Vacuum cleaner

1-6

VoiceLift Microphone Installation • Introduction — Inventory Overview

Installation — Overview

This overview outlines the basic steps for installing the VLR 102 VoiceLift Receiver. Detailed descriptions with illustrations of these steps are provided in three sections, stages One through Three. If VLR 102 SR Secondary

Receiver(s) are being used with your system, this installation procedure applies to them as well.

For operation and setup of other Extron PoleVault system components mentioned in this guide, refer to

the appropriate user manual provided with each product.

• Additionalinstallationhardwareisneededforthisinstallation,andshouldbesuppliedbytheinstaller.See 

“Items not included,” in chapter 1, “Introduction,” for a list of items that you may need.

• Optionalaccessoriesmaybedesiredforthisinstallation.See“Optionalitems”, in chapter 1, “Introduction,” for a list of available accessories, or visit www.extron.com for details.

• Refertolocalbuildingstandardsandcodestoverifythattheinstallationwillmeetalltheregulatoryrequirements.

• Observealllocalandnationalbuildingandsafetycodes,ULrequirements,andADAAccessibilityGuidelines.

Mounting the VoiceLift receiver to a wall

Mounting the VoiceLift receiver in a drop ceiling.

Mounting the VoiceLift receiver in a junction box

The following pages contain instructions for installing the VLR 102 IR Receiver. Where possible, line drawings and photos from an actual installation are used to clarify some of the steps discussed in the text. Each image has a number

corresponding to the step that is being described (e.g., Ñ).

VoiceLift Microphone Installation • Installation — Overview

2-1

Installation — Overview, cont’d

Outline of installation steps

Stage 1 — Install the VLR 102 Receiver

Drop ceiling:

c Cut a hole in the ceiling tile. (page 2-4) c Mount the receiver housing to the ceiling tile. (page 2-4) c Attach a conduit to the back plate if needed. (page 2-5)

Junction box:

c Install the junction box. (page 2-6) c Attach the receiver housing to the junction box. (page 2-6) c Attach a conduit to the junction box if needed. (page 2-6)

Wall or other hard surface:

c Install a raceway if needed. (page 2-7) c Mark the mounting screw locations on the surface. (page 2-7)

c If using a raceway, remove the appropriate knockout in the receiver

housing. (page 2-7)

c Mount the receiver housing to the surface. (page 2-8)

Stage 2 — Connect the VLR 102 Receiver to the PoleVault System

c Pull the cables to the receiver. (page 2-10) c Connect the cables to the receiver. (page 2-10) c Attach the receiver dome to the housing. (page 2-11) c Pull cables to the PoleVault switcher. (page 2-13)

Stage 3 — Configure and Test the System

c Congure the system. (page 2-14) c Set up the microphone. (page 2-14) c Test the system. (page 2-14) c Complete the installation. (page 2-15)

2-2

VoiceLift Microphone Installation • Installation — Overview

Raceway Knockouts (2)

Conduit Knockouts (2)

Receiver Housing

Back Plate

Installation — Stage 1

Stage 1

For instructions on the type of installation you are planning, proceed to one of the pages listed below:

• Drop ceiling — page 2-4

• Junction box — page 2-6

• Wall or other hard surface — page 2-7

This stage consists of installing the pieces of hardware shown below.

Receiver housing and back plate

Where it goes: The housing attaches to the

receiver dome, and the back plate mounts to a ceiling tile or a wall.

What it does: Protects the receiver base plate

and connectors. The housing contains knockouts for different sizes of raceways, and the back plate contains knockouts for conduits.

Z bracket and mounting screw (for installation in a drop ceiling)

Where it goes: The mounting screw passes

through the receiver’s back plate, through the hole in the ceiling tile, then through the ring in the bracket. The bracket is attached to the screw on the back side of the ceiling tile.

What it does: Fastens the receiver to a tile in a

drop ceiling.

VoiceLift Microphone Installation • Installation — Stage 1

2-3

Installation — Stage 1, cont’d

Installing the Receiver in a Drop Ceiling

1. Cut a hole in the ceiling tile.

a. Remove the ceiling tile in which the receiver will be

installed.

b. Determine the hole location, then cut a hole in the ceiling

tile 2" to 3.5" in diameter, using a circular saw (shown at

right) or other type of saw. (Saws are not included.)

2. Mount the receiver housing to the ceiling tile.

a. Insert the ceiling bracket screw through the back plate

(attached to the housing) and the hole in the ceiling tile.

b. Attach the Z bracket loosely to the screw on the back side

of the ceiling tile.

c. Align the back plate knockout over the hole in the ceiling

tile.

This hole should be large enough to expose the conduit knockout and the hole for the mounting screw in the receiver back plate, but it should not exceed the diameter of the receiver housing.

Cut a hole in the ceiling tile.

d. Tighten the screw to secure the back plate with the

housing to the ceiling tile.

e. Replace the ceiling tile.

2-4

VoiceLift Microphone Installation • Installation — Stage 1

Attach the Z bracket loosely to the

ceiling tile and the back plate.

Secure the back plate to the ceiling

tile and the Z bracket.

3. Attach a conduit to the back plate if

needed.

If desired, attach a conduit to the open knockout in the back plate.

 Observealllocalandnationalbuildingand 

safety codes to ensure that the installation meets all regulatory codes.

Attach a conduit to the back plate if

desired.

VoiceLift Microphone Installation • Installation — Stage 1

2-5

Mounting Screws

Junction Box Mounting Holes (2)

Junction Box

(Ceiling tile not shown for clarity.)

Plaster Ring

Ceiling Box Mounting Holes (2)

Installation — Stage 1, cont’d

Installing the Receiver in a Junction Box

1. Install the junction box.

Install the junction or ceiling box (not included) ﬂush to

the surface. Use a one-gang plaster ring (Raco 772) if the

junction box is larger than one-gang.

Attach the junction box ﬂush with

the mounting surface.

2. Attach the receiver housing to the junction box.

a. Align the receiver housing with the junction box. b. Secure the housing in place with the appropriate

mounting screws (not included).

3. Attach a conduit to the junction box if

needed.

2-6

 Observealllocalandnationalbuildingandsafety

codes.

VoiceLift Microphone Installation • Installation — Stage 1

Attach the receiver housing to the

junction box.

Attach a conduit to the junction box if

needed.

Raceway Knockouts (2)

Installing the Receiver in a Wall or Other Hard Surface

1. Install a raceway if needed.

If using a raceway for the cables, install it at the appropriate location on the mounting surface.

2. Mark the mounting screw locations on the surface.

Use the receiver housing to mark the screw locations on the

mounting surface.

 Racewayknockoutsonthereceiverhousingt

common types of raceways such as the Wiremold 500/700 series and the Wiremold 2400 series.

Install the raceway (if needed).

3. If using a raceway, remove the appropriate knockout in the receiver housing.

a. Use a knife to score around the edge of the selected

knockout to create a clean edge.

b. Press on the scored section to remove it.

VoiceLift Microphone Installation • Installation — Stage 1

Mark mounting screw locations in the

surface.

Remove a raceway knockout from the

housing, if needed.

2-7

Installation — Stage 1, cont’d

4. Mount the receiver housing to the

surface.

If not using a raceway:

Mount the receiver housing and base to the surface, using the appropriate screws for the type of surface. (Screws and wall anchors are not included.)

If using a raceway:

a. Position the receiver housing with the raceway

inserted through the knockout.

b. Mount the receiver housing and base to the surface,

using the appropriate screws for the type of surface. (Screws and wall anchors are not included.)

Mount the receiver housing to the

mounting surface using screws.

2-8

raceway through the knockout, then mount the housing.

VoiceLift Microphone Installation • Installation — Stage 1

If using a raceway, insert the

Ethernet Port for VLR 102 Receiver

Port for MLC Control Panel

Connector to Aux/Mix In Port

Connector to RS-232/MLC IR Port

Installation — Stage 2

Locking Tab (4)

RJ-45 Connectors

Captive Screw Connectors

DIP Switches

Locking Tab with Arrow

Stage 2

This stage consists of installing/connecting the items shown below.

Receiver dome

Where it goes: Attaches to the receiver’s housing

with a 1/8 clockwise turn.

What it does: Contains the photodiode IR

sensors; captive screw connectors

for auxiliary input, RS-232,

contact input, and relay output;

RJ-45 connectors for power,

communication, and audio output; and two DIP switches.

VoiceLift Adapter

Where it goes: Connects to the PVS 204 SA

PoleVault switcher.

What it does: Enables power and audio

between the VoiceLift Receiver and the PVS 204 SA Polevault

switcher.

Ethernet cable

CAT 5, 5E, or 6 with T568A or T568B straight

through wiring

Where it goes: Attaches to the receiver’s

RJ-45 OUT port and to the VoiceLift Adapter’s RJ-45 port.

What it does: Provides power to the receiver

and enables communication and audio between the receiver and

the PoleVault switcher.

VoiceLift Microphone Installation • Installation — Stage 2

2-9

Installation — Stage 2, cont’d

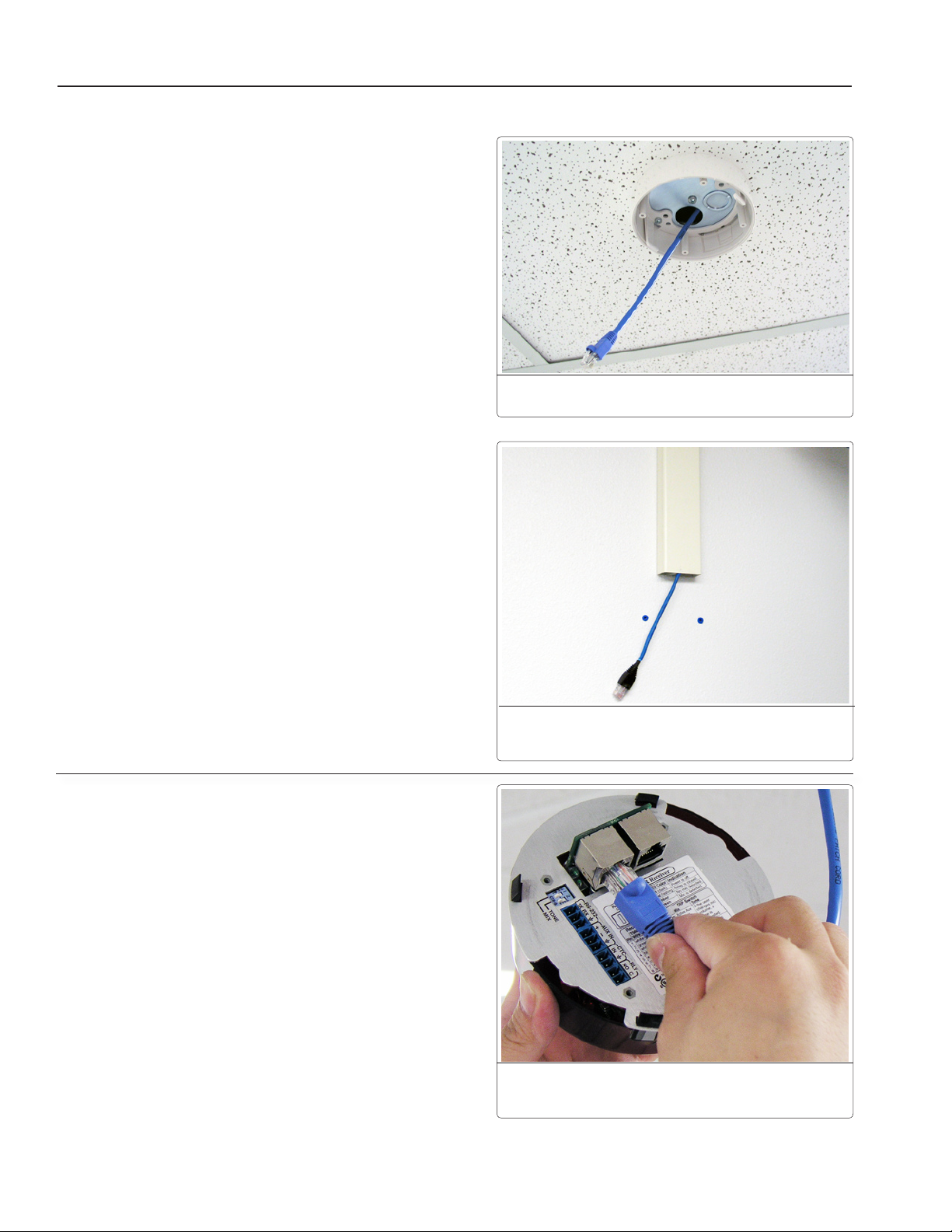

1. Pull the cables to the receiver.

a. Pull the communication/power Ethernet cable through

the receiver’s base, along with any other cables that will be attached to the receiver (RS-232, Ethernet cable to a secondary receiver, etc.)

b. If mounting to a wall and using a raceway, place the

cables in the raceway and replace the raceway cover.

Pull the cable(s).

2. Connect the cables to the receiver.

a. Connect the Ethernet cable to the Receiver Out port (the

RJ-45 connector on the left on the receiver base).

Place the cables in the raceway and

replace the raceway cover.

Connect the Ethernet cable to the

Receiver Out RJ-45 jack.

2-10

VoiceLift Microphone Installation • Installation — Stage 2

O N

CTS-2

1 2

CTS-2

MIX

TONE

RS-232

AUX IN

CTC

OUTIN

RLY

MIX

TONE

Base Plate

2. Connect the cables to the receiver (continued).

b. Install any optional devices and connect their cables to

the appropriate ports on the receiver base.

c. If desired, set the Tone and Mix DIP switches on the

receiver base.

• Mix (1): Up = Mix auxiliary input and microphone

together on microphone output.

Down = Output the microphone and aux

input separately (default).

• Tone (2): Up = Enable the microphone volume change

alert tone (default).

Down = Disable the microphone volume

change alert tone.

Set the Tone and Mix DIP switches

(optional).

3. Attach the receiver dome to the housing.

a. Locate the locking tab on the receiver dome that contains

an arrow etched into its surface.

b. Locate the arrow on the rim of the receiver housing.

Locate the locking tab marked with the

arrow.

Locate the arrow on the housing rim.

VoiceLift Microphone Installation • Installation — Stage 2

2-11

Arrow

Receiver Dome

Twist to Lock

Align Arrows

Arrow

Dot

Ta b

Arrow on Housing

Arrow on Tab

Dot on Housing

Arrow on Tab

Installation — Stage 2, cont’d

3. Attach the receiver dome to the housing (continued).

c. Place the dome onto the housing, aligning the arrow on

the dome’s locking tab with the arrow in the housing rim. The two tabs in the housing should slide into the two slots in the base.

d. Twist the dome to the right (clockwise) until it locks in

place (approximately 1/8 turn). The dot on the rim of

the housing should now align with the arrow on the dome’s locking tab.

Align the arrows on the housing rim and

the dome tab.

The arrow on the dome tab aligns

with the dot on the housing rim when the dome is locked into place.

2-12

VoiceLift Microphone Installation • Installation — Stage 2

3-pin Connector in Aux/Mix In Port

5-pin Connector in RS-232 MLC-IR Port

Ethernet Cable in RJ-45 Jack

MLC Pwr/RS232 Cable in MLC Port

4. Pull cables to the PoleVault switcher.

a. Pull the cables from the receiver to the PoleVault

switcher’s location.

b. Remove the base of the PMK Pole Mount Kit to access

the switcher.

c. Run the cables down through the top of the pole and

out through the access hole.

5. Connect cables to the PoleVault switcher.

a. Disconnect the cable from the PoleVault switcher’s

5-pole RS-232 MLC/IR port, and disconnect the power

cable from the switcher.

b. Connect the VoiceLift adapter to the PoleVault

switcher as follows:

• Connect the adapter’s three-pole captive screw

connector to the switcher’s three-pole Aux/Mix In port.

• Connect the adapter’s ve-pole connector to the

switcher’s RS-232 MLC/IR port.

c. Connect the Ethernet cable to the VoiceLift adapter’s

RJ-45 jack.

Run the cable(s) through the projector

pole.

â–ú

PoleVault switcher.

Connect the adapter to the

d. Connect the MLC controller’s power/communication

cable to the VoiceLift adapter’s ve-pole captive screw

connector.

e. Reconnect the power cable to the PoleVault switcher. f. Reattach the bottom section of the PMK (containing

the switcher) to the top section.

VoiceLift Microphone Installation • Installation — Stage 2

Connect the MLC cable to the adapter’s

ﬁve-pole MLC connector.

2-13

Extron

PWR

CHARGEOFF/MUTE/CHG ON

Volume Up

Volume Down

Power On/Off

Installation — Stage 3

Stage 3

1. Congure the system.

Follow the steps in your PoleVault installation guide to congure the PoleVault system.

2. Set up the microphone.

(Refer to the VoiceLiftMicrophoneSetupGuide card, provided with your microphone, for details of these procedures.)

a. Set the channels using the rotary switch. b. Apply the Teacher or Student label to the back of the

microphone.

c. Remove the battery door and insert the battery. d. Attach the lanyard to the rotating clip.

3. Test the system.

a. Power on all devices. The Power LEDs on the

microphone and receiver should light green.

b. Test the microphone for audio. Make sure that the

microphone is in the middle of the volume range by

pressing the Volume buttons to lower the levels all the

way down, then to raise them up six steps.

–

Set up the microphone.

–

Test the microphone for audio.

2-14

VoiceLift Microphone Installation • Installation — Stage 3

FRONT

REAR

Front Plate

Tighten Front Plate Screws (2)

Tu rn Aux/Mix Encoder.

Min/Max LED

3. Test the system (continued).

c. Use a screwdriver to adjust the audio to the proper

level by rotating the Aux/Mix encoder on the PoleVault

switcher’s front panel.

d. Walk around the room to check for sound quality and

coverage.

e. If you experience feedback, reduce the audio levels by

turning the Aux/Mix encoder counterclockwise.

4. Finish the installation.

a. Test any optional devices that have been installed. b. Reattach the front plate of the PMK.

 TheAux/Mixdistalencoderhasafullrange 

of approximately two rotations. Minimum and maximum levels are indicated by the red Min/Max LED located at the left of the encoder.

The audio should be barely audible to the person

speaking if the levels are adjusted properly. Have another person listen for the sound quality.

Adjust the audio level.

Reattach the front plate of the PMK.

VoiceLift Microphone Installation • Installation — Stage 3

2-15

Optional Installation Example — Instant Alert

Installation Example — Setting Up an Instant Alert

The following pages describe an example of an optional instant alert setup, in which the relay port of the VLR 102 is connected to a digital I/O port of an Extron MLC 104 IP Plus. This enables e-mail alerts to be sent out when both Volume buttons of the VLP 102 microphone are pressed and held for 3 seconds.

1. Connect the receiver to the MLC 104 IP Plus.

a. Wire one of the provided two-pole captive screw

connectors to one end of a communication cable.

b. Plug the communication cable into the receiver’s RLY

port.

If the MLC controller and the PoleVault switcher

are using separate power supplies, ground the

 Relayportcommonpintothereceiverusinga

jumper between the common pin and the ground

 pinoneithertheContactinput,theAuxInput,or  theRS-232port.

For separate power supplies, jumperconnect the C pin of the Rly port to the ground pin of the CTC, Aux In, or RS-232 port.

Connect a communication cable to the

VLR 102 RLY port.

c. Pull the communication cable to the MLC 104 IP Plus

location.

d. Connect the other end of the cable to a direct-insertion

Digital I/O port on the MLC:

• Insert the black wire into the Ground port.

• Insert the red wire into the rst available Digital I/O

port.

2-16

VoiceLift Microphone Installation • Optional Installation Example — Instant Alert

Connect the communication cable to

an MLC Digital I/O port.

Press and hold both volume buttons simultaneously.

2. Congure the MLC 104 IP Plus.

a. Using Global Congurator, congure the MLC’s

Digital I/O port for digital input with pull-up.

b. Conﬁgure a monitor to send an e-mail when the

Digital I/O port closes.

 RefertotheGlobalConguratorhelplefor 

MLC conﬁguration instructions.

Conﬁgure the MLC’s Digital I/O port for

digital input with pull-up.

3. Test the instant alert notication.

a. Ensure that the MLC 104 IP Plus is connected to the

network.

b. Press and hold the two Volume buttons on the

microphone simultaneously for 2 seconds. The receiver’s LED blinks alternating amber and green.

c. Check for the arrival of the e-mail notiﬁcation.

Make sure that the microphone is on either

 channelAorchannelB.

Press and hold both Volume buttons

for 2 seconds.

VoiceLift Microphone Installation • Optional Installation Example — Instant Alert

2-17

Reference Information

Specications — VLR 102 and VLR 102 SR

Audio

Tone control .................................... On or off, switch selectable

Audio input

Number/signal type

VLR 102............................... 1 infrared from VLM microphones

1 mono, balanced, aux/mix input 1 mono, balanced, from optional VLR 102SR

VLR 102SR .......................... 1 infrared from VLM microphones

1 mono, balanced, from optional VLR 102SR

Connectors

VLR 102............................... (1) 3.5 mm captive screw connector, 3 pole, for aux input

(1) RJ-45 female for input from a VLR 102SR

VLR 102SR .......................... (1) RJ-45 female for input from a VLR 102SR

0dBu=0.775Vrms,0dBV=1Vrms,0dBV≈2dBu

Audio output

Number/signal type ..................... 1 mono, balanced, line level

Connector ....................................... (1) RJ-45 female (shared with power input and some serial communication)

Pin conﬁguration ........................... 1 = mic +, 2 = mic -, 3 = aux +, 6 = aux -, 8 = GND

Nominal level ................................ -10 dBV (316 mVrms)

IR sensor

Receiver type ................................. Superheterodyne IR sensor

Photodiodes ................................... 6, radially spaced

Receiving frequencies ................... 2.3 MHz, 2.8 MHz

Operating distance ........................ 40' (12.2 m) maximum, line-of sight, typical

Reception area ............................... 1600 square feet (148.6 square meters) per VLR 102

Reception angles ............................ 360° horizontal, 60° vertical

Control — host ports, VLR 102 only

Serial host port ............................... 1 RS-232, 3.5 mm captive screw connector, 3 pole

Baud rate and protocol ................. 38400 baud, 8 data bits, 1 stop bit, no parity

Serial control pin conﬁguration .. 1 = TX, 2 = RX, 3 = GND

Control — relay output, VLR 102 only

Number/type ................................ 1 normally open

Connector ....................................... (1) 3.5 mm captive screw connector, 2 pole

Pin conﬁguration ........................... NO = normally open, C = common

Contact rating ................................ 24 V, 1 A

Control — contact closure (VLR 102 only)

Number/type ................................ 1 contact closure input

Connector ....................................... (1) 3.5 mm captive screw connector, 2 pole

Pin conﬁguration ........................... IN = contact input, GND = GND

2-18

VoiceLift Microphone Installation • Reference Information

General

Power .............................................. 12 VDC supplied by an Extron PoleVault® ampliﬁer or from an optional

external power supply via an RJ-45 jack shared with audio output (pin 5 = +12 VDC input, 8 = GND)

Power input requirements

VLR 102............................... +12 VDC, 0.25 A

VLR 102SR .......................... +12 VDC, 0.15 A

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling ........................................... Convection, no vents

Mounting ........................................ Mountable to a ceiling or wall

Enclosure type ............................... High impact plastic

Enclosure dimensions ................... 3.4" H* x 4.75" diameter

(8.6 cm H* x 12.1 cm diameter) *Height is measured out from the mounting surface.

Product weight .............................. 0.8 lb (0.4 kg)

Shipping weight ............................ 1 lb (1 kg)

Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety ................................... CUL, UL

EMI/EMC .......................... FCC Class B

Environmental ................... Complies with the appropriate requirements of RoHS and WEEE.

MTBF ............................................... 30,000 hours

Warranty ......................................... 3 years parts and labor

Allnominallevelsareat±10%.

Specicationsaresubjecttochangewithoutnotice.

VoiceLift Microphone Installation • Reference Information

2-19

Installation — Reference Information, cont’d

Specications — VLP 102 VoiceLift Microphone

Audio/acoustic and electrical

Microphone type ........................... Omnidirectional electret condenser

Microphone gain ........................... -6 dB to +6 dB, adjustable in 1 dB steps

Audio input

Number/signal type ..................... 1 mono, via integrated electret condenser microphone or

1 mono, unbalanced, via auxiliary mic input jack with 3.3 VDC plug-in power;

and

1 stereo, unbalanced, via auxiliary line input jack, mixed with mic input

Connectors ..................................... (1) 3.5 mm mini audio jack (tip = left, ring = right, sleeve = GND) for

auxiliary line input (Audio In)

(1) 2.5 mm mini audio jack (tip = signal + bias voltage, sleeve = GND) for

auxiliary mic input (Mic)

IR transmitter (microphone transmission)

Signal type ...................................... Infrared output

Carrier frequencies ........................ A and C: 2.3 MHz (selectable)

B and D: 2.8 MHz (selectable)

Operating range ............................ 40' (12.2 m) line of sight

Transmission angles ...................... 150° horizontally and 90° vertically

General

Power .............................................. Supplied by an internal battery

Charger requirements ................... +5 VDC, 0.5 A on a 3.5 mm o.d. DC power jack, center pin positive

Batteries

Number/type .................... 1 AA size NiMH or alkaline battery

Operating time (h:mm)..... Rechargeable 2700 mAh NiMH batteries: up to 8 hours, continuous use

Alkaline batteries: up to 8 hours, continuous use

Recharging time ................ 6 hours for a 2700 mAh NiMH battery

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling ........................................... Convection, no vents

Mounting ........................................ Can be used as a pendant with the included lanyard.

Enclosure type ............................... High impact plastic

Enclosure dimensions ................... 4.7" H x 1.4" W x 1.1" D*

(12.0 cm H x 3.5 cm W x 2.9 cm D*) (*Depth includes clip. Depth without clip = 0.9" [2.3 cm])

Product weight .............................. 1.7 oz (50 g) without battery

2.6 oz (75 g) with battery

Shipping weight ............................ 1 lb (<1 kg)

Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Environmental ................... Complies with the appropriate requirements of RoHS and WEEE.

Accessibility ....................... Section 508 of the Rehabilitation Act (29 U.S.C. 794d)

MTBF ............................................... 30,000 hours

Warranty ......................................... 3 years parts and labor

2-20

Allnominallevelsareat±10%.

Specicationsaresubjecttochangewithoutnotice.

VoiceLift Microphone Installation • Reference Information

Specications — VLC 102 Microphone Charging Station

General

External power supply ................. 110 VAC to 130 VAC, 50/60 Hz, external, 2 prong; to 5 VDC, 1 A, regulated

3.5 mm o.d. jack, center positive

Power input requirements ........... 5 VDC, 0.5 A

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling ........................................... Convection, no vents

Mounting ........................................ Set on desktop

Enclosure type ............................... High impact plastic

Enclosure dimensions ................... 1.8" H x 4.1" W x 3.0" D

(4.6 cm H x 10.4 cm W x 7.6 cm D)

Product weight .............................. 0.3 lbs (0.1 kg)

Shipping weight ............................ 1 lb (1 kg)

Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

EMI/EMC .......................... FCC Class B

Environmental ................... Complies with the appropriate requirements of ENERGY STAR® (ENERGY

STAR qualied power supply, efciency level IV), RoHS, and WEEE.

MTBF ............................................... 30,000 hours

Warranty ......................................... 3 years parts and labor

Specicationsaresubjecttochangewithoutnotice.

VoiceLift Microphone Installation • Reference Information

2-21

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714 .491.1500 +1.714 .491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794 +1.919.863.1797 FA X

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

Outline of installation steps

Stage 1 — Install the VLR 102 Receiver

Drop ceiling:

c Cut a hole in the ceiling tile. (page 2-4) c Mount the receiver housing to the ceiling tile. (page 2-4) c Attach a conduit to the back plate if needed. (page 2-5)

Junction box:

c Install the junction box. (page 2-6) c Attach the receiver housing to the junction box. (page 2-6) c Attach a conduit to the junction box if needed. (page 2-6)

Wall or other hard surface:

c Install a raceway if needed. (page 2-7) c Mark the mounting screw locations on the surface. (page 2-7)

c If using a raceway, remove the appropriate knockout in the

receiver housing. (page 2-7)

c Mount the receiver housing to the surface. (page 2-8)

Stage 2 — Connect the Receiver to the PoleVault System

Stage 3 — Configure and Test the System

c Congure the system. (page 2-14) c Set up the microphone (page 2-14) c Test the system. (page 2-14) c Complete the installation. (page 2-15)

Extron electronic VLM 2000, VLM 1000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction — Overview

About This Guide

The VoiceLift Microphone

Introduction — Planning

Before You Begin — Planning the Installation

1. Room layout

2. Inventory

a. Included items

b. Items not included

c. Optional items

Installation — Overview

Outline of installation steps

Installation — Stage 1

Installing the Receiver in a Drop Ceiling

Installing the Receiver in a Junction Box

Installing the Receiver in a Wall or Other Hard Surface

Installation — Stage 2

Installation — Stage 3

Optional Installation Example — Instant Alert

Reference Information
