TP T 15HD 45 and TP T A 45
Twisted Pair Video and Audio Transmitters
68-924-01 Rev. D
12 09
Precautions
Safety Instructions • English
This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions in
the literature provided with the equipment.
This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of
electric shock.
Caution
Read Instructions • Read and understand all safety and operating
instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future
reference.
Follow Warnings • Follow all warnings and instructions marked on the
equipment or in the user information.
Avoid Attachments • Do not use tools or attachments that are not
recommended by the equipment manufacturer because they may be
hazardous.
Consignes de Sécurité • Français
Ce s ymbole s ert à a vertir l’ut ilisateu r que l a
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation et
la maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de
sécurité et d’exploitation avant d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir
les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et consignes
marqués sur le matériel ou présentés dans la documentation utilisateur.
Eviter les pièces de xation • Ne pas utiliser de pièces de fixation ni d’outils
non recommandés par le fabricant du matériel car cela risquerait de poser
certains dangers.
Sicherheitsanleitungen • Deutsch
Dies es Sym bol so ll dem Benut zer in der i m
Li efe rum fan g en tha lte nen D oku men tat ion
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam
machen , daß im I nneren des Gehäuses diese s
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,
sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen
und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit
des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und
Anleitungen auf dem Gerät oder in der Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,
die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.
Instrucciones de seguridad • Español
Este símbolo se util iza para advertir al usuario
sobre instruc ciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destac ar en el c ontenido de la docume ntación
suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de operación y
seguridad, antes de usar el equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad para
futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones marcadas
en el equipo o en la documentación del usuario, deben ser obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no
sean especificamente recomendados por el fabricante, ya que podrian
implicar riesgos.
Warning
Power sources • This equipment should be operated only from the power source
indicated on the product. This equipment is intended to be used with a main power
system with a grounded (neutral) conductor. The third (grounding) pin is a safety
feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all power
cords from the rear of the equipment, or the desktop power module (if detachable),
or from the power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to be
stepped on or pinched by items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-
serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are
provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly
replaced. Replace it only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
Avertissement
Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation
indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale
comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue
un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,
déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de
manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-
maintenance par un technicien qualifié. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit
pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des
couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci
servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures
ne doivent jamais être bloquées par des objets.
Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.
Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent
recommande par le constructeur. Mettre au reut les batteries usagees conformement
aux instructions du fabricant.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene
Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer
Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte
Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten
Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung
(falls dies möglich ist) oder aus der Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im
Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar
dagegengestellt werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal
durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei.
Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses
Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,
dienen diese zur Vermeidung einer Überhitzung der empndlichen Teile im
Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt
wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie
verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo
de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor neutro
a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia
ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida
de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación
en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera
independiente), o desenchufar el cable del receptáculo de la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se deben
instalar en lugares donde no sean pisados ni apretados por objetos que se puedan
apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal
calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar
riesgo de electrocución, no intentar personalmente la reparación/mantenimiento
de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,
es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición
incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.
安全须知 • 中文
这个符号提示用户该设备用户手册中
有重要的操作和维护说明。
这个符号警告用户该设备机壳内有暴
露的危险电压，有触电危险。
注意
阅读说明书 • 用 户 使 用 该 设 备 前 必 须 阅 读 并 理
解 所 有 安 全 和 使 用 说 明 。
保存说明书 • 用户应保存安全说明书以备将来使
用。
遵守警告 • 用户应遵守产品和用户指南上的所有安
全和操作说明。
避免追加 • 不要使用该产品厂商没有推荐的工具或
追加设备，以避免危险。
警告
电源 • 该 设 备 只 能 使 用 产 品 上 标 明 的 电 源 。 设 备
必 须 使 用 有 地 线 的 供 电 系 统 供 电 。 第 三 条 线
（ 地 线 ） 是 安 全 设 施 ， 不 能 不 用 或 跳 过 。
拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后
或桌面电源的电源线，或任何接到市电系统的电源线。
电源线保护 • 妥善布线， 避免被踩踏，或重物挤压。
维护 • 所有维修必须由认证的维修人员进行。 设备内部
没有用户可以更换的零件。为避免出现触电危险不要自
己试图打开设备盖子维修该设备。
通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止
机内敏感元件过热。 不要用任何东西挡住通风孔。
锂电池 • 不正确的更换电池会有爆炸的危险。 必须使用
与厂家推荐的相同或相近型号的电池。 按照生产厂的
建议处理废弃电池。
声明
所使用电源为 A 级产品，在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需要用
户对其干扰采取切实可行的措施。
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. The Class A limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct the interference at his
own expense.
N
This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used
with the unit to ensure compliance with FCC emissions limits.
Table of Contents
Chapter One • Introduction ....................................................... 1
Introduction ................................................................................. 1-2
Features ........................................................................................1-3
Chapter Two • Installation ......................................................... 1
Rear Panel Connectors ............................................................. 2-2
Front Panel Connectors and Indicators ..............................2-5
Cabling and Setu ..................................................................... 2-6
Comatibilty with other Extron roducts ............................ 2-6
Cable testing ..........................................................................2-7
Skew delay roblems ............................................................2-7
Mounting ................................................................................ 2-8
Appendix A • Reference Information ............................A-1
Secications ..............................................................................A-2
Included Parts .............................................................................A-7
Accessories ...................................................................................A-7
All trademarks mentioned in this manual are the properties of their respective owners.
TP T 15HD 45 and TP T A 45 • Table of Contents
TOC-i
Table of Contents, cont’d
TOC-ii
TP T 15HD 45 and TP T A 45 • Table of Contents
TP T 15HD 45 and TP T A 45
Chapter One
1
Introduction
Features
Introduction
Introduction
The Extron TP T 15HD 45 twisted pair transmitter and the
matching TP T A 45 audio input module provide a system for
sending RGBHV, RGBS, RGsB, component, composite, or
S-video and stereo audio signals over an Extron Skew-Free™
A/V UTP or CAT 5/5e/6 UTP cable to a compatible TP or VTR
receiver. An external 12 VDC power supply provides power to
both the TP T 15HD 45 and the TP T A 45.
The TP T A 45 inputs unbalanced audio through a 3.5 mm stereo
phono jack and outputs digital audio to the TP T 15HD 45
transmitter.
The following table species the maximum recommended
transmission distances between the TP T 15HD 45 transmitter
and compatible Extron receivers at 60 Hz.
The maximum recommended distances for high quality (HQ)
and variable quality (VQ) transmissions are shown in the
table below.
Recommended
Video
format and
resolution
maximum range
to VTR Series
and
TP R 15HD A
HQ VQ HQ VQ
Composite* 700 feet 800 feet 1000 feet 1050 feet
S-video* 700 feet 800 feet 1000 feet 1050 feet
Component* 700 feet 800 feet 1000 feet 1050 feet
640 x 480 500 feet 550 feet 1000 feet 1050 feet
800 x 600 400 feet 450 feet 800 feet 900 feet
1024 x 768 300 feet 400 feet 600 feet 700 feet
1280 x 960 300 feet 350 feet 450 feet 600 feet
1280 x 1024 250 feet 300 feet 400 feet 500 feet
1360 x 765 250 feet 300 feet 400 feet 500 feet
1365 x 768 250 feet 300 feet 400 feet 500 feet
1366 x 768 250 feet 300 feet 400 feet 500 feet
1440 x 900 250 feet 300 feet 350 feet 450 feet
1400 x 1050 250 feet 300 feet 350 feet 450 feet
1600 x 1200 200 feet 250 feet 300 feet 400 feet
1920 x 1200 200 feet 250 feet 300 feet 400 feet
Recommended
maximum range
to all other
Extron receivers
1-2
TP T 15HD 45 and TP T A 45 • Introduction
Features
* VTR001 is not compatible with component, composite, or
S-video.
N
• 45 mm opening compatibility — The TP T 15HD 45 and
• Extron TP product compatibility — The TP T 15HD 45
It is possible to exceed the recommended distances,
however, image quality may be reduced.
TP T A 45 are designed to t into a 45 mm mounting
frame that is popular throughout Europe. The plate may
be wall-mounted or oor box-mounted.
and TP T A 45 are compatible with several Extron TP
receivers and matrix switchers including the TP R 15HD
A, TP R BNC A, TP R BNC AV, TPX 88, TPX 88A, and the
VTR series (RGBHV and RGBS only).
TP T 15HD 45 and TP T A 45 • Introduction
1-3
Introduction, cont’d
1-4
TP T 15HD 45 and TP T A 45 • Introduction
TP T 15HD 45 and TP T A 45
Chapter Two
2
Installation
Rear Panel Connectors
Front Panel Connectors and Indicators
Cabling and Setup
Installation
Power Wiring.eps
Rear Panel Connectors
TP T A 45
AUDIO
AUDIO
12 VDC
.5A MAX.
TP T A 45
1a
1b
TP T 15HD 45
12 VDC
.5A MAX.
AUDIO
AUDIO
TP T 15HD 45
OUTPUT
1 2 3 4 5 6 7 8
4
3
2
Figure 2-1 — Rear panel views
Power input captive screw connector — Connect the included
Ä
12 VDC external power supply to the 2-pole female direct
insertion captive screw connector.
N
The TP T 15HD 45 and the TP T A 45 share a single
power supply. Neither can be remotely powered by the
attached receiver.
A A
SECTION A–A
Power Supply
Output Cord
+
Captive Screw
Direct Insertion Connector
+
12 VDC
.5A MAX.
2-2
W
The two power supply leads must be kept separated
while the power supply is plugged into an electrical
outlet. Remove power before wiring.
C
Power supply voltage polarity is critical. Incorrect
voltage polarity can damage the power supply and
the transmitter. Identify the power cord negative
lead by the ridges on the side of the cord. When
stripping the wire ends, please note that stripped
wire ends that are too short may pull out from the
captive screw connector and stripped wire ends that
are too long could possibly touch and short together.
TP T 15HD 45 and TP T A 45 • Installation

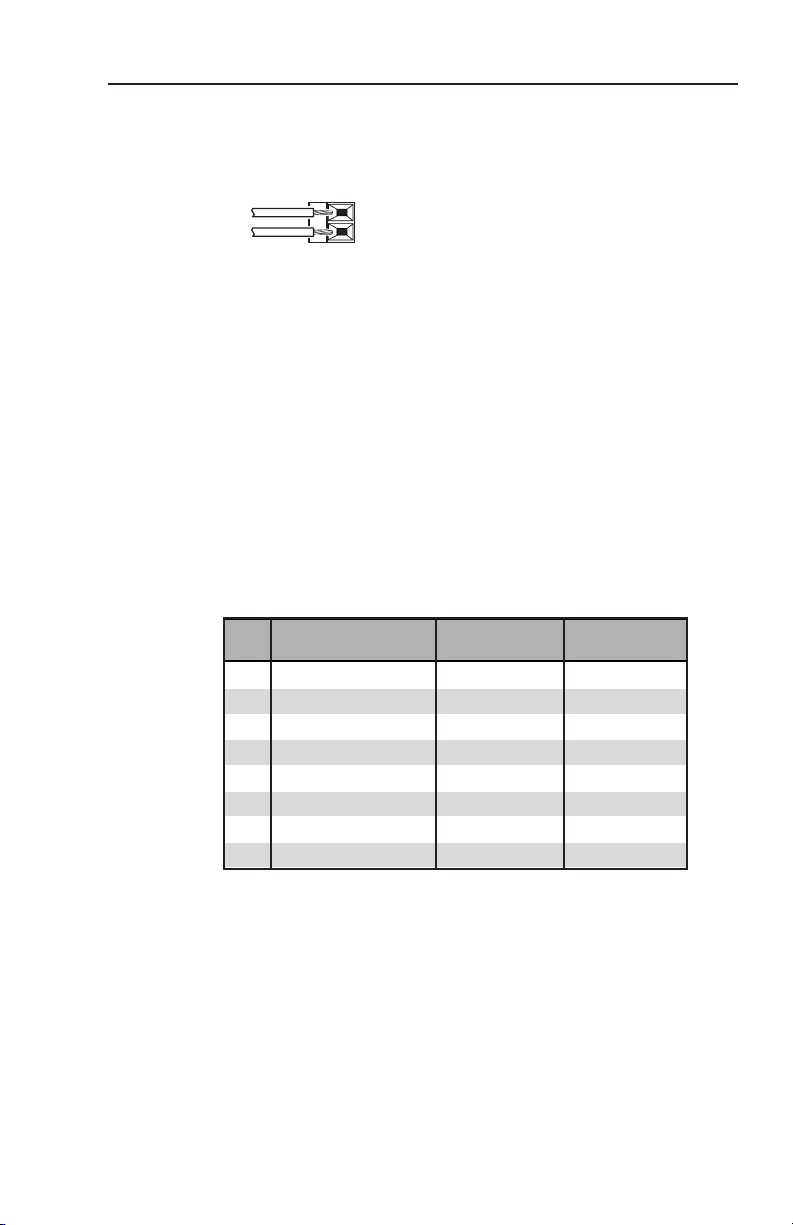

Captive screw digital audio input connector — Connect the
Å
digital audio input cables from the TP T A 45 (if installed) to the
2-pole female direct insertion captive screw connector.
+
-
Digital Audio Input Captive Screw
Direct Insertion Connector
AUDIO
AUDIO
+
-
W
N
Remove power before wiring.
The wire gauge should be 14 - 22 AWG and the
maximum distance betwee the modules should not exceed
25 feet.
Video and audio output 8-pin spring force connector —
b
Attach a UTP cable from a TP receiver to the 8-pin spring force
connector. Wire this connector according to the following pin
assignment table.
Twisted Pair Pin Assignments
Pin Signal
1
red / vertical sync +
red / vertical sync - green orange
2
digital audio + white-orange white-green
3
green + blue blue
4
green - white-blue white-blue
5
digital audio - orange green
6
blue / horizontal sync + white-brown white-brown
7
blue / horizontal sync - brown brown
8
TIA/EIA T-568-A
Wire Color
white-green white-orange
TIA/EIA T-568-B
Wire Color
N
T-568-A is recommended when using an Extron
Skew-Free™ cable.
C
Do not connect the transmitter to a computer data
or telecommunications network.
Using a small screwdriver and observing the correct wiring
colors in the previous table, insert the stripped wire ends (see
note below) of the twisted pairs into the spring force connector,
as shown in the following diagram.
TP T 15HD 45 and TP T A 45 • Installation
2-3
Installation
N
Strip approximately 0.43 inch (1.1 cm) of insulation
from each individual wire on one end of a TP cable.
1
23 4 56 78
1&2
3&6 4&5
Twisted Wire Pairs
Power input captive screw connector — Connect power
c
input cables to the 2-pole female direct insertion captive screw
7&8
connector.
+
-
Power Input Captive Screw
Direct Insertion Connector
W
12 VDC
.5A MAX.
Remove power before wiring.
2-4
Digital audio output captive screw connector — Connect the
d
digital audio output cables to the 2-pole female direct insertion
captive screw connector.
+
-
Digital Audio Output
Captive Screw Direct Insertion Connector
W
AUDIO
AUDIO
Remove power before wiring.
TP T 15HD 45 and TP T A 45 • Installation
TP T 15HD 45
TP T A 45
Front Panel Connectors and Indicators
1
COMPUTER
2
INPUT
1
AUDIO
3
INPUT
Figure 2-2 — Front panel views
Power LED indicator — The LED lights green whenever power
a
is applied.
15-pin HD video input connector — Connect
b
computer video input to this connector.
N
Input only sync signals, no video signals, on the sync
5 1
15 11
Female
pins, 13 and 14.
For component video, use the R (R-Y) and R return pins
(pins 1 and 6), G (Y) and G return pins (pins 2 and 7),
and B (B-Y) and B return pins (pins 3 and 8).
For S-video, use the R, R return (C-chroma), G, and G
return (Y-luma) pins.
610
For composite video, use the G pin and the associated
return pin. For additional genlocked video signals, use
the R, B, and associated return pins.
The TP T 15HD 45 and TP T A 45 are only compatible
with the RGBHV and RGBS VTR series of receivers.
3.5 mm stereo mini jack input— Connect
c
unbalanced audio to this stereo jack. Wire the
male plug as shown on the right.
N
Input only analog and line level audio signals on this
connector.
TP T 15HD 45 and TP T A 45 • Installation
Tip (L)
Ring (R)
Sleeve ( )
2-5
Installation, cont’d
Cabling and Setup
To install the TP T 15HD 45 and TP T A 45 models, follow these
steps:
Turn all of the equipment off and, if applicable, disconnect it
a
from the power source.
Connect the TP T 15HD 45 and its receiver to either end of the
b
UTP cable. See Cable testing and Skew delay problems in this
chapter.
N
Connect the external power supply to the TP T 15HD 45 and TP
c
T A 45 (if installed). See Rear Panel Connectors in this chapter.
If the TP T A 45 is being installed, connect the TP T A 45 to the
d
transmitter. See Rear Panel Connectors in this chapter.
Connect an output display device to the output connector of the
e
receiver.
Connect a computer to the 15-pin video input connector of the
f
transmitter.
For best results, use Extron Skew-Free cable available in
bulk or in various preterminated lengths. If necessary,
regular CAT 5, CAT 5e, and CAT 6 cable may be used.
Connect and power up all input and output devices, then
g
apply power to the TP T 15HD 45 power supply and test for
the display and/or audio outputs. If a problem is encountered,
check all connections before proceeding further.
If the previous display and/or audio test was successful, power
h
off and disconnect all equipment, detach cables, and install the
TP T 15HD 45 and/or TP T A 45 modules. See Mounting in this
chapter.
N
Connect all device and power cables. Power up all input and
i
output devices, apply power to the transmitter and receiver, and
test for the display, the audio, or both.
If the transmitter or receiver is to be wall-mounted and
the power supply will be inaccessible, power must be
applied to the power supply before final mounting.
Compatibilty with other Extron products
As a pair, the TP T 15HD 45 and TP T A 45 are compatible with
the following Extron receivers and matrix switchers:
• TP R 15HD A
• TP R BNC A, TP R BNC AV
2-6
TP T 15HD 45 and TP T A 45 • Installation
Cable testing
• TPX 88A
As a stand-alone transmitter, the TP T 15HD 45 is compatible
with:
• VTR001, VTR001 AAP, and VTR001 MAAP (RGBHV/
RGBS only)
• TPX 88
To ensure proper cable termination, each transmission cable
system that uses CAT 5e or CAT 6 cable should be tested (Extron
Skew-Free cable does not need to be tested). Testing the cable
from the transmitter and receiver gives the most accurate
indications of cable problems.
There are two varieties of cable runs: simple runs, in which a
single cable is terminated only at the transmitter and receiver,
and complex runs, which can include patch bays and multiple
terminations and lengths of cable. In either case, the entire
cabling system should be tested.
A complete test measures cable length and tests the wire map,
attenuation, NEXT, PSNEXT, ELFEXT, PSELFEXT, return loss,
ACR and PSACR. All of these tests are critical for digital data
transfer. While all of these tests are important indicators of
the quality of the cable termination, the most critical testing
parameters for video transfer are wire map (T-568-A or T-568-B
termination) and pair length measurements. The largest concern
is equalization of skew between cable pairs. Cable systems of
300 feet or less should exhibit no transmission problems if they
pass at least CAT 5e or preferably CAT 6-D5 channel certication
testing.
The Microtest OMNI SCANNER 2 performs comprehensive
certication testing to the proposed CAT 6 standards. Other
manufacturers also make testing equipment. The tests include
advanced diagnostics for troubleshooting the cause and location
of many cable and termination problems. For simple installation
testing, the Microtest MICRO SCANNER PRO tests wire map
and cable length, including individual cable pair length.
Skew delay problems
CAT 5 TP cable can lead to registration errors between the red,
green, and blue video signals. Pair skew can be measured with
test equipment or identied by viewing a crosshatch test pattern
with a critical eye to determine if either the red, green, or blue
video image leads (appears to the left of) the other two video
images. These images can be minimized or eliminated by one of
the following methods:
TP T 15HD 45 and TP T A 45 • Installation
2-7
Installation, cont’d
• Switch to Extron Skew-Free cable.
• Add a skew compensation cable equal to the length of
pair skew to the receiver’s output.
• Install an SEQ 100 15HD Skew Equalizer on the video
output of the receiver and adjust the skew for the leading
video image.
Mounting
The TP T 15HD 45 and TP T A 45 are designed to t into a wallmountable or oor box-mountable 45 mm mounting frame.
COMPUTER
INPUT
AUDIO
INPUT
The following application diagram illustrates one example of
installing these devices.
Projector
Mounting
Bracket
Mounting
A
V
IN
P
U
T
Bolt
R
G
B
O
UTPU
T
L R
AUDIO
C SYN
SO
C
G
C VIDEO
N/C
.34A MAX
15V
PO
W
ER
CAT 5/6 or
Extron
TM
Skew-Free
UTP Cable
Up to 500 feet
AUDIO
INPUT
Extron
TP T A 45
TP T 15HD 45
Twisted Pair
Transmitters
Extron
TP R 15HD A
Twisted Pair
Receiver
Ceiling
Projector-mountable
COMPUTER
INPUT
2-8
TP T 15HD 45 and TP T A 45 • Installation
TP T 15HD 45 and TP T A 45
Appendix A
A
Reference Information
Specifications
Parts Lists
Reference Information
Specications
Video— video models
Number/signal type ..................... 1, 2, or 4 sets of proprietary analog signals
Connectors
TP T 15HD 45 ..................... (1) 8-pin spring force captive wire
connector
All other models ................ 1, 2, or 4 shielded RJ-45 female
Video input— video models
Number/signal type
TP T 15HD A, TP T 15HD 45
1 analog RGBHV, RGBS, RGsB, component
video, or S-video; or
1 S-video and 1 NTSC/PAL/SECAM
composite video from a single source; or
3 NTSC/PAL composite video from a
single source
TP T 15HD AV ................... 1 analog RGBHV, RGBS, RGsB, component
video, or S-video; or
1 S-video and 1 NTSC/PAL/SECAM
composite video from a single source; or
3 NTSC/PAL/SECAM composite video
from a single source and
1 NTSC/PAL/SECAM composite video
TP T BNC DA4 .................. 1 analog RGBHV, RGBS, RGsB, component
video, or S-video; or
1 S-video and 1 NTSC/PAL/SECAM
composite video from a single source; or
3 NTSC/PAL/SECAM composite video
from a single source
N
Connectors
A-2
These products accept component video with bi-level sync only.
TP T 15HD A, TP T 15HD 45
(1) 15-pin HD female (Mac and Sun/SGI
to VGA adapters are available.)
TP T 15HD AV ................... (1) 15-pin HD female (Mac and Sun/SGI
to VGA adapters are available.)
1 RCA female
TP T BNC DA4 .................. 5 BNC female
TP T 15HD 45 and TP T A 45 • Reference Information
Nominal level ................................ 1 Vp-p for Y of component video and
S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of
component video
0.3 Vp-p for C of S-video
Minimum/maximum levels ........ 0.3 V to 1.45 Vp-p with no offset at unity
gain
Impedance ...................................... 75 ohms
Horizontal frequency .................... 15 kHz to 130 kHz
Vertical frequency .......................... 30 Hz to 150 Hz
Return loss ...................................... <-30 dB @ 5 MHz
DC offset (max. allowable)........... 100 mV
Video output— refer to the TP Receivers Family User’s
Manual,
part #68-547-02.
Audio — audio models
Number/signal type ..................... 1 or 2 sets of analog proprietary signals
Connectors
TP T A 45 ............................. (1) 2-pin direct insertion captive screw
connector
All other models ................ 1 or 2 female RJ-45
Frequency response ...................... 20 Hz to 20 kHz, ±0.05 dB
THD + Noise .................................. 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal
level
S/N .................................................. >63 dB at maximum output (unweighted)
Crosstalk ......................................... <-80 dB @ 1 kHz, fully loaded
Stereo channel separation ............ >66.6 dB @ 1 kHz
CMRR .............................................. >33 dB @ 20 Hz to 20 kHz
Audio input — audio models
Number/signal type
TP T 15HD A, TP T A 45 ... 1 stereo, unbalanced
TP T 15HD AV ................... 2 stereo, unbalanced
Connectors
TP T 15HD A, TP T A 45 ... (1) 3.5 mm mini jack
TP T 15HD AV ................... (1) 3.5 mm mini jack, 2 female RCA
Impedance ...................................... 5k ohms, unbalanced, DC coupled
Nominal level ................................ -10 dBV (316 mV)
TP T 15HD 45 and TP T A 45 • Reference Information
A-3
Reference Information, cont’d
Maximum level .............................. +5.5 dBu, (unbalanced) at 1%THD+N
CMRR .............................................. >75 dB @ 20 Hz to 20 kHz
N
0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output — refer to the TP Receivers Family User’s
Manual,
part #68-547-02.
General
Recommended cable type ............ Enhanced Skew-Free™ A/V UTP Cable or
CAT 5/5E/6 (shielded or unshielded)
Power
TP T 15HD A, TP T 15HD AV
15 VDC, 0.8 A, external or provided by the
TP R receiver for up to 300'
(91.4 m)
TP T BNC DA4 .................. 15 VDC, 0.8 A, external
TP T 15HD 45 ..................... 12 VDC, 1.0 A, external
TP T A 45 ............................. Shared with the TP T 15HD 45 transmitter
N
Temperature/humidity ................ Storage -40 to +158 °F (-40 to +70 °C) /
Cooling ........................................... Convection, no vents
Mounting
The TP R 15HD A receiver does not provide power to any
twisted pair transmitter.
10% to 90%, noncondensing
Operating +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
Rack mount
TP T 15HD A, TP T 15HD AV, TP T BNC, TP T BNC DA4
Yes, with the optional TP rack shelf
mounting kit and an optional standard
rack shelf kit
Furniture mount
TP T 15HD A, TP T 15HD AV, TP T BNC DA4
Yes, with an optional under-desk or
through-desk mounting kit
TP T 15HD 45, TP T A 45
No, but mountable in a 45 mm x 45 mm
opening in common European wall boxes,
oor boxes, or cable channel systems
A-4
TP T 15HD 45 and TP T A 45 • Reference Information
Enclosure type ............................... Metal
Enclosure dimensions
TP T 15 HD A, TP T 15 HD AV, TP T BNC DA4
1.3" H x 6.8" W x 4.5" D (<1U high, <half
rack width)
(3.3 cm H x 17.3 cm W x 11.4 cm D)
(Depth excludes connectors.)
TP T 15HD 45, TP T A 45
Plate ............................. 1.8" H x 1.8" W x 0.8" D
(4.5 cm H x 4.5 cm W x 2.0 cm D)
Device ......................... 1.1" H x 1.6" W x 1.2" D
(2.9 cm H x 4.1 cm W x 3.0 cm D)
(Depth excludes front and rear panel
connectors and controls.)
Product weight
TP T 15HD A, TP T 15HD AV
0.8 lbs (0.4 kg)
TP T BNC DA4 .................. 0.9 lbs (0.4 kg)
TP T 15HD 45, TP T A 45 .. 0.3 lbs (0.1 kg)
Shipping weight ............................ 3 lbs (2 kg)
Vibration ......................................... ISTA 1A in carton (International Safe
Transit Association)
Regulatory compliance (all models except TP T 15HD 45 and TP T A 45)
Safety ................................... CE, c-UL, UL
EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI
MTBF ............................................... 30,000 hours
Warranty ......................................... 3 years parts and labor
N
N
All nominal levels are at ±10%.
Specifications are subject to change without notice.
TP T 15HD 45 and TP T A 45 • Reference Information
A-5
Reference Information
A-6
TP T 15HD 45 and TP T A 45 • Reference Information
Included Parts
These items are included in each order for an IR 102 Remote Kit
(part #70-224-01):
Included parts Replacement
IR 102 Rx Remote Receiver
IR 102 Handheld Remote Control
12 VDC, 1 A external power supply kit 70-055-01
IR sensor on a 6-foot cable
RS-232 male-to-female cable, 6 feet (1.8 m) 26-433-03
IEC power cord
Tweeker (small screwdriver)
Hook-and-loop fasteners
3.5 mm, 2-pole captive screw connector 10-319-15
3.5 mm, 5-pole captive screw connector 10-319-10
3.5 mm, 10-pole captive screw connector 10-319-11
User’s manual
Accessories
part number
70-224-10
Accessories Part number
1U, 3.5 inch deep, rack shelf kit 60-190-20
1U, 3.5 inch deep, basic rack shelf 60-604-20
1U, 6 inch deep, universal rack shelf kit 60-190-10
1U, 6 inch deep, basic rack shelf 60-604-10
1U, 9.5 inch deep, universal rack shelf kit 60-190-01
1U, 9.5 inch deep, basic rack shelf 60-604-01
Mini under-desk mounting bracket kit 70-212-01
Multi-product projector mounting kit 70-374-01
1/4 rack width mini projector mounting
kit
70-217-01
TP T 15HD 45 and TP T A 45 • Reference Information
A-7
Reference Information
A-8
TP T 15HD 45 and TP T A 45 • Reference Information
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship
for a period of three years from the date of purchase. In the event of malfunction during
the warranty period attributable directly to faulty workmanship and/or materials,
Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating
condition, provided that it is returned within the warranty period, with proof of
purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron USA
1001 East Ball Road
Anaheim, CA 92805
U.S.A.
Europe, Africa, and the Middle East:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
Asia:
Extron Asia
135 Joo Seng Road #04-01
PM Industrial Bldg.
Singapore 368363
Singapore
