u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S

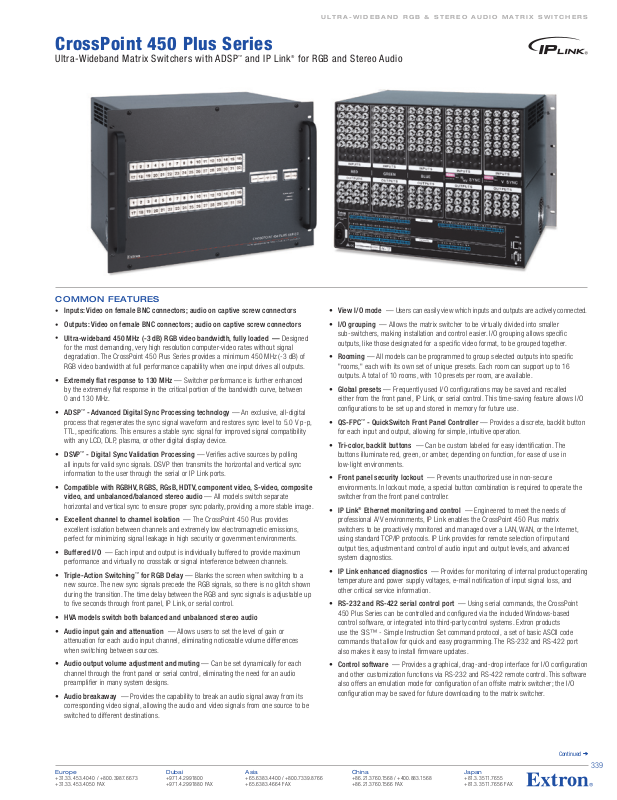

CrossPoint 450 Plus Series
Ultra-Wideband Matrix Switchers with ADSP™ and IP Link® for RGB and Stereo Audio
coMMo n feAt ureS
•
Inputs: Video on female BNC connectors; audio on captive screw connectors
•
Outputs: Video on female BNC connectors; audio on captive screw connectors
•
Ultra-wideband 450 MHz (-3 dB) RGB video bandwidth, fully loaded — Designed
for the most demanding, very high resolution computer-video rates without signal
degradation. The CrossPoint 450 Plus Series provides a minimum 450 MHz (-3 dB) of
RGB video bandwidth at full performance capability when one input drives all outputs.
•
Extremely flat response to 130 MHz — Switcher performance is further enhanced
by the extremely flat response in the critical portion of the bandwidth curve, between
0 and 130 MHz.
•
ADSP™ - Advanced Digital Sync Processing technology — An exclusive, all-digital
process that regenerates the sync signal waveform and restores sync level to 5.0 V p-p,
TTL, specifications. This ensures a stable sync signal for improved signal compatibility
with any LCD, DLP, plasma, or other digital display device.
•
DSVP™ - Digital Sync Validation Processing — Verifies active sources by polling
all inputs for valid sync signals. DSVP then transmits the horizontal and vertical sync
information to the user through the serial or IP Link ports.
•
Compatible with RGBHV, RGBS, RGsB, HDTV, component video, S-video, composite
video, and unbalanced/balanced stereo audio — All models switch separate
horizontal and vertical sync to ensure proper sync polarity, providing a more stable image.
•
Excellent channel to channel isolation — The CrossPoint 450 Plus provides
excellent isolation between channels and extremely low electromagnetic emissions,
perfect for minimizing signal leakage in high security or government environments.
•
Buffered I/O — Each input and output is individually buffered to provide maximum
performance and virtually no crosstalk or signal interference between channels.
•
Triple-Action Switching™ for RGB Delay — Blanks the screen when switching to a
new source. The new sync signals precede the RGB signals, so there is no glitch shown
during the transition. The time delay between the RGB and sync signals is adjustable up
to five seconds through front panel, IP Link, or serial control.
•
HVA models switch both balanced and unbalanced stereo audio
•
Audio input gain and attenuation — Allows users to set the level of gain or
attenuation for each audio input channel, eliminating noticeable volume differences
when switching between sources.
•
Audio output volume adjustment and muting — Can be set dynamically for each
channel through the front panel or serial control, eliminating the need for an audio
preamplifier in many system designs.
•
Audio breakaway — Provides the capability to break an audio signal away from its
corresponding video signal, allowing the audio and video signals from one source to be
switched to different destinations.
•
View I/O mode — Users can easily view which inputs and outputs are actively connected.
•
I/O grouping — Allows the matrix switcher to be virtually divided into smaller
sub-switchers, making installation and control easier. I/O grouping allows specific
outputs, like those designated for a specific video format, to be grouped together.
•
Rooming — All models can be programmed to group selected outputs into specific
"rooms," each with its own set of unique presets. Each room can support up to 16
outputs. A total of 10 rooms, with 10 presets per room, are available.
•
Global presets — Frequently used I/O configurations may be saved and recalled
either from the front panel, IP Link, or serial control. This time-saving feature allows I/O
configurations to be set up and stored in memory for future use.
•
QS-FPC™ - QuickSwitch Front Panel Controller — Provides a discrete, backlit button
for each input and output, allowing for simple, intuitive operation.
•
Tri-color, backlit buttons — Can be custom labeled for easy identification. The
buttons illuminate red, green, or amber, depending on function, for ease of use in
low-light environments.
•
Front panel security lockout — Prevents unauthorized use in non-secure
environments. In lockout mode, a special button combination is required to operate the
switcher from the front panel controller.
•
IP Link® Ethernet monitoring and control — Engineered to meet the needs of
professional A/V environments, IP Link enables the CrossPoint 450 Plus matrix
switchers to be proactively monitored and managed over a LAN, WAN, or the Internet,
using standard TCP/IP protocols. IP Link provides for remote selection of input and
output ties, adjustment and control of audio input and output levels, and advanced
system diagnostics.
•
IP Link enhanced diagnostics — Provides for monitoring of internal product operating
temperature and power supply voltages, e-mail notification of input signal loss, and
other critical service information.
•
RS-232 and RS-422 serial control port — Using serial commands, the CrossPoint
450 Plus Series can be controlled and configured via the included Windows-based
control software, or integrated into third-party control systems. Extron products
use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII code
commands that allow for quick and easy programming. The RS-232 and RS-422 port
also makes it easy to install firmware updates.
•
Control software — Provides a graphical, drag-and-drop interface for I/O configuration
and other customization functions via RS-232 and RS-422 remote control. This software
also offers an emulation mode for configuration of an offsite matrix switcher; the I/O
configuration may be saved for future downloading to the matrix switcher.
Continued
339
Signal: 1024x768 @ 60 Hz
Cable: Mini HR, 100'
R2
Ch 1 1.00V
ADSP Restored Sync
at output of Matrix
Original Sync Signal
Unprocessed Sync
After 100' of Cable
Rise 1.193ns
5.04 V
Rise 2.500ns
4.26 V
Rise 19.92ns
4.12 V
M 4.00ns
Leading Edge of Sync Pulse
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX
USA East
+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 FA X
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
CrossPoint 450 Plus Series
coMMo n feAt ureS (co nti nue d)
• Optional control panels and keypads — Provide
the flexibility to control a CrossPoint 450 Plus
Series matrix switcher from a remote location.
•
Rack-mountable metal enclosure — All
CrossPoint 450 Plus Series matrix switchers are
housed in 19-inch wide metal enclosures.
•
Internal international power supply — The
100-240VAC, 50/60 Hz, universal power supply
provides worldwide power compatibility.
deScr iPtio n
The Extron CrossPoint 450 Plus Series Ultra-Wideband RGBHV matrix switchers are designed
to meet or exceed the requirements of the most demanding high resolution computer-video and
audio routing systems, where no compromise switching between sources is mandatory.
Available in twenty I/O sizes, from 8x4 to 64x64, the CrossPoint 450 Plus Series is the
ideal solution for command and control operations, corporate and university CAD/graphics
development centers, bio-medical imaging and training facilities, financial services, digital
cinema projection, and other mission-critical system designs. The ultra-wideband performance
of the CrossPoint 450 Plus Series also makes it the logical choice for maximizing system
performance in demanding A/V system designs with multiple levels of signal processing.
Video Features
The CrossPoint 450 Plus Series is engineered with a minimum of 450 MHz (-3 dB) RGB video
bandwidth, fully loaded, when one input drives all outputs. Switcher performance is further
enhanced by a remarkably flat response in the critical portion of bandwidth curve, between
0 and 130 MHz. This underscores the switcher's consistent performance, with minimal signal
loss or gain, across the frequency spectrum. To ensure confidence and peace of mind in
critical switching applications, all CrossPoint 450 Plus Series matrix switchers feature three
exclusive Extron technologies: ADSP™ - Advanced Digital Sync Processing, DSVP™ - Digital Sync
Validation Processing, and IP Link® Ethernet monitoring and control.
ADSP
Extron's ADSP is an all-digital process that corrects and restores the sync signal as it passes
through the switcher. As shown below, sync voltage drops and the leading edge of the sync
waveform rolls off when a standard, XGA resolution computer-video signal is passed through
100 feet (30 meters) of Mini High Resolution cable. ADSP technology in the CrossPoint 450
Plus Series restores sync to TTL levels, 5.0 V p-p, unterminated, ensuring that the projector or
monitor accurately locks to sync and displays a stable image. Second, ADSP corrects the signal
waveform to create sharp rising and falling edges, ensuring a more stable and reliable image in
systems with different signal sources or cable lengths. Whether signal losses and distortion are
caused by long cable runs, variations in display graphic card outputs, or low sync levels from
many laptop computers, ADSP significantly reduces sync related problems, improving signal
compatibility with many digital display devices.
ADSP Sync Signal Resolution
Optional MKP 3000
X-Y Cont rol Panel
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
For the best possible signal routing, Extron recommends the use of a computer-video interface
with ADSP, such as the Extron RGB 109xi, with the CrossPoint 450 Plus Series. Interfaces
with ADSP include additional circuitry that restores the original sync timing relationship and
re-clocks the sync signal. This combination eliminates almost all projector synchronization
problems caused by unstable sync. System designs that utilize ADSP throughout the sync path
provide the optimum signal quality and reliability for all I/O combinations.
IP Link Ethernet Control
The CrossPoint 450 Plus Series is equipped with Extron's IP Link, an IP integration technology
specifically engineered to meet the needs of professional A/V environments — from K-12
classrooms to large universities, businesses, and residential media systems.
IP Link is built around an integ rated, high performance Web server that features global
compatibility with industry standard Ethernet communication protocols, multi-user support,
and GlobalViewer™ software. GlobalViewer, a Web-based application, enables a variety of asset
management functions including proactive maintenance and remote technical support from any
administrator authorized LAN, WAN, or Internet client.
On the CrossPoint 450 Plus Series, IP Link provides technical support personnel with the ability
to receive service and failure messages through an e-mail-enabled cell phone, PDA, pager, or
e-mail account. Utilizing IP Link, the help desk can also view embedded Web pages to manage,
monitor, and troubleshoot the switcher for the following:
Asset Management
•
Remotely select input and output ties for audio only, video only, or audio and video
•
Name and select global I/O presets
•
Set audio input and output volume levels
•
Set RGB delay time for glitch-free transitions
•
Upload firmware updates via the Internet
Operating Status and Diagnostics
•
Monitor primary and redundant power supply voltages
•
Monitor operating temperature
•
Recall firmware revision and other data for improved Help Desk support
•
Provides immediate notification via e-mail for loss of input signal, power supply failure,
and other critical service information
•
Upload firmware updates
DSVP
•
Verify active sources by polling inputs for horizontal and vertical sync rate information
340
CrossPoi nt 450 Plus Internal Web P ages
Continued
AUDIO
VIDEO
I/O
CONTROL
ENTER PRESET
VIEW
ESC
INPUTS
1
2
3
4
5
6
7
8
9
10
11
12
OUTPUTS
1
2
3
4
5
6
7
8
CROSSPOINT 450 PLUS SERIES
ULTRA-WIDEBAND MATRIX SWITCHER WITH ADSP™ AND IP LINK™
3 input, 2 output
S-video matrix
Monito r
Extron DVS 204
Docume nt Camera
Group 2
3
4
5 6 7
Input
Output
Monito r
Projec tor
Extron VSC 700
Comput er #8
Comput er #10
3 input, 4 output
RGBHV matrix
5
6
7
8
8 9 10
Input
Output
Group 3
4 input, 2 output
composite video matrix
Camer a #1
Camer a #4
Monito r
Monito r
Group 1
1 2 3
Input
1
2
4
Output
DVD
VCR
Extron
CrossPoint 450 Plus Series
Matrix Switcher
I/O Grouping
Group 2
Group 3
Group 1
1
DVS 204
DIGITAL VIDEO SCALER
2 3 4
BRT/CONT
COL/TNT
SIZE
CENTER
MENU
NEXT
ADJUST
IR
M E N U
SMSNSM
VSC 700
SCAN CONVERTER
SIZE
MIN/MAX
NEXTMENU
FREEZE
RESET
IR
CENTER/PAN/SIZE
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
CrossPoint 450 Plus Series
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
Continued
341
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
www.extron.com
© 2007 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA
714.4 91.1500 / 8 00.63 3.9876
714.4 91.1517 FAX
Europe
+31.3 3.453. 4040 / +80 0.3987.6673
+31.3 3.453. 4050 F AX
Asia
+65. 6383. 4400 / +80 0.7339.876 6
+65. 6383. 4664 FA X
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
CrossPoint 450 Plus Series
CrossPoint 450 Plus 84
8x4 Ultra-Wideband Matrix Switchers with ADSP™
and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
3U, full rack width
CrossPoi nt 450 Plus 84 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 84 HV 8x4 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-337-12
CrossPoint 450 Plus 84 HVA 8x4 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-337-11
CrossPoint 450 Plus 88
8x8 Ultra-Wideband Matrix Switchers with ADSP™
and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
3U, full rack width
CrossPoi nt 450 Plus 88 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 88 HV 8x8 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-336-12
CrossPoint 450 Plus 88 HVA 8x8 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-336-11
CrossPoint 450 Plus 816
8x16 Ultra-Wideband Matrix Switchers with
ADSP™ and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
6U, full rack width
CrossPoi nt 450 Plus 816 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 816 HV 8x16 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-395-12
CrossPoint 450 Plus 816 HVA 8x16 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-395-11
342
Continued
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
www.extron.com
© 2007 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA
714.4 91.1500 / 8 00.63 3.9876
714.4 91.1517 FAX
Europe
+31.3 3.453. 4040 / +80 0.3987.6673
+31.3 3.453. 4050 F AX
Asia
+65. 6383. 4400 / +80 0.7339.8766
+65. 6383. 4664 FA X
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
CrossPoint 450 Plus Series
CrossPoint 450 Plus 124
12x4 Ultra-Wideband Matrix Switchers with ADSP™
and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
3U, full rack width
CrossPoi nt 450 Plus 124 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 124 HV 12x4 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-335-12
CrossPoint 450 Plus 124 HVA 12x4 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-335-11
CrossPoint 450 Plus 128
12x8 Ultra-Wideband Matrix Switchers with ADSP™
and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
3U, full rack width
CrossPoi nt 450 Plus 128 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 128 HV 12x8 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-334-12
CrossPoint 450 Plus 128 HVA 12x8 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-334-11
CrossPoint 450 Plus 1212
12x12 Ultra-Wideband Matrix Switchers with ADSP™
and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
6U, full rack width
CrossPoi nt 450 Plus 1212 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 1212 HV 12x12 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-852-12
CrossPoint 450 Plus 1212 HVA 12x12 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-852-11
Continued
343
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX
USA East
+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 FA X
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
CrossPoint 450 Plus Series
CrossPoint 450 Plus 168
16x8 Ultra-Wideband Matrix Switchers with
ADSP™ and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
6U, full rack width
CrossPoi nt 450 Plus 168 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 168 HV 16x8 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-333-12
CrossPoint 450 Plus 168 HVA 16x8 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-333-11
CrossPoint 450 Plus 1616
16x16 Ultra-Wideband Matrix Switchers with
ADSP™ and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
6U, full rack width
CrossPoi nt 450 Plus 1616 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 1616 HV 16x16 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-332-12
CrossPoint 450 Plus 1616 HVA 16x16 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-332-11
CrossPoint 450 Plus 2412
24x12 Ultra-Wideband Matrix Switchers with
ADSP™ and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
8U, full rack width
•
Redundant power supplies
CrossPoi nt 450 Plus 2412 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 2412 HV 24x12 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-470-02
CrossPoint 450 Plus 2412 HVA 24x12 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-470-01
34 4
Continued
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
CrossPoint 450 Plus Series
CrossPoint 450 Plus 2424
24x24 Ultra-Wideband Matrix Switchers with
ADSP™ and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
10U, full rack width
•
Redundant power supplies
CrossPoi nt 450 Plus 2424 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 2424 HV 24x24 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-468-02
CrossPoint 450 Plus 2424 HVA 24x24 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-468-01
CrossPoint 450 Plus 3216
32x16 Ultra-Wideband Matrix Switchers with
ADSP™ and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
8U, full rack width
•
Redundant power supplies
CrossPoi nt 450 Plus 3216 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 3216 HV 32x16 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-471-02
CrossPoint 450 Plus 3216 HVA 32x16 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-471-01
CrossPoint 450 Plus 3232
32x32 Ultra-Wideband Matrix Switchers with
ADSP™ and IP Link® for RGB and Stereo Audio
uni que fe Ature S
•
10U, full rack width
•
Redundant power supplies
CrossPoi nt 450 Plus 3232 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 3232 HV 32x32 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-469-02
CrossPoint 450 Plus 3232 HVA 32x32 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-469-01
Continued
345
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX
USA East
+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 FA X
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
CrossPoint 450 Plus Series
CrossPoint 450 Plus Extended Sizes
Ultra-Wideband Matrix Switchers with ADSP™ and IP Link® for
RGB and Stereo Audio
uni que fe Ature S
•
30U, full rack width - HV Models
•
37U, full rack width - HVA Models
•
Redundant power supplies
CrossPoi nt 450 Plus 6464 HV CrossPoi nt 450 Plus 6464 HVA
Model VerSion d eScriPtion PArt #
CrossPoint 450 Plus 3248 HV 32x48 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-078-40
CrossPoint 450 Plus 3248 HVA 32x48 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-078-45
CrossPoint 450 Plus 3264 HV 32x64 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-079-40
CrossPoint 450 Plus 3264 HVA 32x64 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-079-45
CrossPoint 450 Plus 4832 HV 48x32 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-080-40
CrossPoint 450 Plus 4832 HVA 48x32 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-080-45
CrossPoint 450 Plus 4848 HV 48x48 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-081-40
CrossPoint 450 Plus 4848 HVA 48x48 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-081-45
CrossPoint 450 Plus 4864 HV 48x64 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-082-40
CrossPoint 450 Plus 4864 HVA 48x64 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-082-45
CrossPoint 450 Plus 6432 HV 64x32 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-083-40
CrossPoint 450 Plus 6432 HVA 64x32 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-083-45
CrossPoint 450 Plus 6448 HV 64x48 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-084-40
CrossPoint 450 Plus 6448 HVA 64x48 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-084-45
CrossPoint 450 Plus 6464 HV 64x64 RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-085-40
CrossPoint 450 Plus 6464 HVA 64x64 RGBHV & Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-085-45
346
Continued
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
CrossPoint 450 Plus Series
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
croSSPoint 450 PluS 84 thouGh 3232 SerieS
SPeci ficAti onS
Vid eo
Routing
84 Series . .. . .. .. . .. .. . .. .. .. . .. .. . 8 x 4 matrix
88 Series . .. . .. .. . .. .. . .. .. .. . .. .. . 8 x 8 matrix
816 Series . .. .. . .. .. . .. .. .. . .. .. . .. 8 x 16 matrix
124 Series . .. .. . .. .. . .. .. .. . .. .. . .. 12 x 4 matrix
128 Series . .. .. . .. .. . .. .. .. . .. .. . .. 12 x 8 matrix
1212 Series . .. .. . .. .. . .. .. .. . .. .. . 12 x 12 matrix
168 Series . .. .. . .. .. . .. .. .. . .. .. . .. 16 x 8 matrix
1616 Series . .. .. . .. .. . .. .. .. . .. .. . 16 x 16 matrix
2412 Series . .. .. . .. .. . .. .. .. . .. .. . 24 x 12 matrix
2424 Series . .. .. . .. .. . .. .. .. . .. .. . 24 x 24 matrix
3216 Series . .. .. . .. .. . .. .. .. . .. .. . 32 x 16 matrix
3232 Series . .. .. . .. .. . .. .. .. . .. .. . 32 x 32 matrix
Gain .. .. . .. .. .. . .. .. . .. .. . .. .. . .. .. . Unity
Bandwidth .. .. . .. .. . .. .. . .. .. . .. .. 450 MHz (-3 dB), fully loaded
Crosstalk . .. .. .. . .. .. . .. .. . .. .. . .. . -80 dB @ 1 MHz, -55 dB @ 10 MHz, -45 dB @ 30 MHz, -37 dB @ 100 MHz
Switching speed .. .. . .. .. . .. .. . .. 200 ns (max.)
Vid eo inPu t
Number / Signal type . .. .. . .. .. . 8, 12, 16, 24, or 32 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video,
Connectors
84/88/816 Series .. . .. .. . .. .. .. . .. 8 x 5 BNC female
124/128/1212 Series .. .. . .. .. .. . 12 x 5 BNC female
168/1616 Series .. .. . .. .. . .. .. . .. . 16 x 5 BNC female
2412/2424 Series .. .. . .. .. . .. .. . . 24 x 5 BNC female
3216/3232 Series .. .. . .. .. . .. .. . . 32 x 5 BNC female
Nominal level . .. . .. .. . .. .. . .. .. . . 1 VP-p for Y of component video and S-video, and for composite video
Minimum / Maximum levels .. . Analog: 0.5 V to 2.0 Vp-p with no offset
Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms
Return loss . .. .. . .. .. . .. .. . .. .. .. . <-30 dB @ 5 MHz
DC offset (max. allowable) .. .. .. . 1.5 V
Vid eo outP ut
Number / Signal type . .. .. . .. .. . 4, 8, 12, 16, 24, or 32 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video,
Connectors
84/124 Series .. . .. .. . .. .. . .. .. . .. . 4 x 5 BNC female
88/128/168 Series .. . .. .. . .. .. .. . 8 x 5 BNC female
1212/2412 Series .. .. . .. .. . .. .. . . 12 x 5 BNC female
816/1616/3216 Series . .. . .. .. .. 16 x 5 BNC female
2424 Series . .. .. . .. .. . .. .. .. . .. .. . 24 x 5 BNC female
3232 Series . .. .. . .. .. . .. .. .. . .. .. . 32 x 5 BNC female
Nominal level . .. . .. .. . .. .. . .. .. . . 1 Vp-p for Y of component video and S-video, and for composite video
Minimum / Maximum levels .. . 0 V to 2.0 Vp-p (follows input)
Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms
Return loss . .. .. . .. .. . .. .. . .. .. .. . -30 dB @ 5 MHz
DC offset .. .. . .. .. . .. .. . .. .. . .. .. . . ±5 mV with input at 0 offset
Switching type . .. .. .. . .. .. . .. .. . . Triple-Action
Syn c
Input type .. .. . .. .. .. . .. .. . .. .. . .. . RGBHV, RGBS, RGsB, RsGsBs
Output type .. .. .. . .. .. . .. .. . .. .. . . RGBHV, RGBS, RGsB, RsGsBs (follows input)
Input level . .. . .. .. . .. .. . .. .. . .. .. . 0.5 V to 5.0 Vp-p, 4.0 Vp-p normal
Output level . .. . .. .. . .. .. . .. .. . .. . AGC to TTL: 4.0 V to 5.0 Vp-p, unterminated
Input impedance . .. . .. .. . .. .. . .. Inputs 1 to 4: 75 or 510 ohms, switchable
Output impedance . .. . .. .. . .. .. . 75 ohms
Max input voltage .. . .. .. .. . .. .. . 5.0 Vp-p
Max. propagation delay .. .. . .. . <120 ns
Max. Rise / Fall time . .. .. .. . .. .. 4 ns
Polarity .. .. . .. .. . .. .. . .. .. . .. .. . .. . Positive or negative (follows input)
Aud io (AUD IO MO DELS ONLY)
Routing
84 Series . .. . .. .. . .. .. . .. .. .. . .. .. . 8 x 4 stereo matrix
88 Series . .. . .. .. . .. .. . .. .. .. . .. .. . 8 x 8 stereo matrix
816 Series . .. .. . .. .. . .. .. .. . .. .. . .. 8 x 16 stereo matrix
124 Series . .. .. . .. .. . .. .. .. . .. .. . .. 12 x 4 stereo matrix
128 Series . .. .. . .. .. . .. .. .. . .. .. . .. 12 x 8 stereo matrix
1212 Series . .. .. . .. .. . .. .. .. . .. .. . 12 x 12 stereo matrix
168 Series . .. .. . .. .. . .. .. .. . .. .. . .. 16 x 8 stereo matrix
1616 Series . .. .. . .. .. . .. .. .. . .. .. . 16 x 16 stereo matrix
2412 Series . .. .. . .. .. . .. .. .. . .. .. . 24 x 12 stereo matrix
2424 Series . .. .. . .. .. . .. .. .. . .. .. . 24 x 24 stereo matrix
3216 Series . .. .. . .. .. . .. .. .. . .. .. . 32 x 16 stereo matrix
3232 Series . .. .. . .. .. . .. .. .. . .. .. . 32 x 32 stereo matrix
Gain .. .. . .. .. .. . .. .. . .. .. . .. .. . .. .. . Unbalanced output: -6 dB; balanced output 0 dB
Frequency response .. .. . .. .. . .. 20 Hz to 20 kHz, ±0.05 dB
THD + Noise .. . .. .. . .. .. . .. .. . .. .. 0.03% @ 1 kHz at nominal level
S/N .. .. . .. .. . .. .. .. . .. .. . .. .. . .. .. . . >90 dB, balanced, at maximum output (21 dBu), unweighted
Crosstalk . .. .. .. . .. .. . .. .. . .. .. . .. . <-80 dB @ 1 kHz, fully loaded
0 - 10 MHz no more than +0.1 dB to -0.1 dB
0 - 130 MHz no more than +0.8 dB to -0.8 dB
S-video, composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
S-video, composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
™
Inputs 5 to 8, 12, or 16: 510 ohms
Stereo channel separation . .. . >80 dB @ 1 kHz
CMRR .. .. .. . .. .. . .. .. . .. .. . .. .. . .. . >75 dB @ 20 Hz to 20 kHz
Aud io inPu t ( AUDI O MOD ELS ONLY)
Number / Signal type . .. .. . .. .. . 8, 12, 16, 24, or 32 stereo, balanced/unbalanced
Connectors . .. .. . .. .. . .. .. . .. .. .. . (8, 12, 16, 24, or 32) 3.5 mm captive screw connectors, 5 pole
Impedance .. .. . .. .. . .. .. . .. .. . .. .. >10k ohm, balanced/unbalanced, DC coupled
Nominal level . .. . .. .. . .. .. . .. .. . . 0 dBu (775 mV)
Maximum level . .. . .. .. .. . .. .. . .. +19.5 dBu, (balanced or unbalanced) at 0.01% THD+N
Input gain adjustment .. .. . .. .. . -18 dB to +24 dB, adjustable per input by RS-232/422, Ethernet, or front panel
NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Aud io outP ut (AUD IO M ODELS ONLY)
Number / Signal type . .. .. . .. .. . 4, 8, 12, 16, 24, or 32 stereo, balanced/unbalanced
Connectors . .. .. . .. .. . .. .. . .. .. .. . (4, 8, 12, 16, 24, or 32) 3.5 mm captive screw connectors, 5 pole
Impedance .. .. . .. .. . .. .. . .. .. . .. .. 50 ohms unbalanced, 100 ohms balanced
Gain error .. .. . .. .. . .. .. . .. .. .. . .. . ±0.1 dB channel to channel
Maximum level (Hi-Z) .. . .. .. . .. . >+21 dBu, balanced or unbalanced at 0.10%THD+N
Maximum level (600 ohm) . .. . . >+15 dBm, balanced or unbalanced at 0.10%THD+N
Output volume range .. . .. .. . .. . 0 to 64 (-75.8 dB to 0 dB) in 1 dB increments from steps 1 to 64, 12 dB
con tro l / reM ote — Sw itc her
Serial control port . .. .. . .. .. . .. ..
2412, 2424, 3216, 3232 Series .. 1 RS-232 or RS-422, rear panel 9-pin female D connector
All other models. .. .. . .. .. .. . .. .. . . 1 bidirectional RS-232 or RS-422, rear panel 9-pin female D connector
Baud rate and protocol .. . .. .. . . 9600 (default), 19200, 38400, 115200 baud (adjustable);
Serial control
pin configurations
RS-232 . .. . .. .. . .. .. . .. .. . .. .. . .. ..
RS-422
88, 816, 1212, 168,
1616 Series .. . .. .. . .. .. .. . .. .. . 9-pin female D connector: 2 = TX-, 3 = RX-, 5 = GND, 7 = RX+, 8 = Tx+
All other models . .. .. .. . .. .. . .. 9-pin female D connector: 1 = TX+, 2 = TX-, 3 = Rx+, 4 = RX-, 5 = GND
Ethernet control port
(CrossPoint 450 Plus) . .. . .. .. . .. . 1 RJ-45 female connector
Ethernet data rate
(CrossPoint 450 Plus) . .. . .. .. . .. . 10/100Base-T, half/full duplex with autodetect
Ethernet protocol
(CrossPoint 450 Plus) . .. . .. .. . .. . ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP
Program control . .. .. .. . .. .. . .. .. Extron’s control/configuration program for Windows®
Gen erA l
Power
(24- and 32-input models) .. . .. .. 2 power supplies (1 primary, 1 redundant),
Power (all other models) .. . .. .. . . 100 VAC to 240 VAC, 50/60 Hz, internal, universal
Temperature / Humidity .. .. . .. . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount . .. . .. .. . .. .. . .. .. . .. . Yes
Enclosure type .. .. .. . .. .. . .. .. . .. Metal
Enclosure dimensions
84/88/124/128 Series .. .. . .. .. . . 5.25" H x 17.0" W x 9.4" D (3U high, full rack wide)
816/1212/168/1616 Series .. . .. 10.5" H x 17.0" W x 9.7" D (6U high, full rack wide)
2412/3216 Series .. .. . .. .. . .. .. . . 14.0" H x 17.0" W x 12.0" D (8U high, full rack wide)
2424/3232 Series .. .. . .. .. . .. .. . . 17.5" H x 17.0" W x 12.0" D (10U high, full rack wide)
Product weight
84/88/124/128 Series .. .. . .. .. . . 14.4 lbs (6.5 kg)
816/1212/168/1616 Series .. . .. 19.4 lbs (8.8 kg)
2412/3216 Series .. .. . .. .. . .. .. . . 39.0 lbs (17.7 kg)
2424/3232 Series .. .. . .. .. . .. .. . . 42.0 lbs (19.1 kg)
Shipping weight
84/88/124/128 Series .. .. . .. .. . . 21 lbs (10 kg)
816/1212/168/1616 Series .. . .. 26 lbs (12 kg)
2412/3216 Series .. .. . .. .. . .. .. . . 56 lbs (26 kg)
2424/3232 Series .. .. . .. .. . .. .. . . 60 lbs (28 kg)
DIM weight (International)
84/88/124/128 Series .. .. . .. .. . . 25 lbs (12 kg)
816/1212/168/1616 Series .. . .. 34 lbs (15.5 kg)
2412/2424/3216/3232 Series .. 89 lbs (41 kg)
Vibration . .. .. . .. .. . .. .. . .. .. . .. .. . ISTA 1A in carton (International Safe Transit Association)
Listings .. . .. .. . .. .. . .. .. . .. .. . .. .. . UL, CUL
Compliances . .. .. . .. .. . .. .. . .. .. . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. 30,000 hours
Warranty .. . .. .. .. . .. .. . .. .. . .. .. . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
increment from step 0 to 1, default = 64 = 0 dB
1 bidirectional RS-232, front panel 2.5 mm mini stereo jack
8 data bits, 1 stop bit, no parity
9-pin female D connector: 2 = TX, 3 = RX, 5 = GND
Mini stereo jack: tip = TX, ring = RX, sleeve = GND
Extron’s Simple Instruction Set (SIS™)
Microsoft® Internet Explorer, Telnet
100 VAC to 240 VAC, 50/60 Hz, internal, universal
2412/2424 Series: 150 watts
3216/3232 Series: 180 watts
84/88/124/128 Series: 30 watts
816/1212/168/1616 Series: 36 watts
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
13.3 cm H x 43.2 cm W x 23.9 cm D
26.7 cm H x 43.2 cm W x 24.6 cm D
(35.5 cm H x 43.2 cm W x 30.5 cm D)
(44.5 cm H x 43.2 cm W x 30.5 cm D)
(Depth excludes connectors. Width excludes rack ears.)
Continued
347
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX
USA East
+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 FA X
China
+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX
Japan
+81.3. 3511.7655
+81.3. 3511.7656 FAX
Europe
+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X
Dubai
+97 1.4.299 1800
+97 1.4.299 1880 FAX
Asia
+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX
CrossPoint 450 Plus Series
u l t r a - w i de b a n d r g b & S t e r e o au d i o M a t r i x S wi t c h e r S
croSS Point 450 PluS extended SizeS
SPeci ficAti onS
Vid eo
Routing . .. .. . .. .. . .. .. . .. .. .. . .. .. . 64 x 64, 64 x 48, 64 x 32, 48 x 64, 48 x 48, 48 x 32, 32 x 48, or
Gain .. .. . .. .. .. . .. .. . .. .. . .. .. . .. .. . Unity
Bandwidth .. .. . .. .. . .. .. . .. .. . .. .. 450 MHz (-3 dB), fully loaded
Crosstalk . .. .. .. . .. .. . .. .. . .. .. . .. . -80 dB @ 1 MHz, -62 dB @ 10 MHz, -52 dB @ 30 MHz
Switching speed .. .. . .. .. . .. .. . .. 200 ns (max.)
Vid eo inPu t
Number / Signal type . .. .. . .. .. . 32, 48, or 64 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video
Connectors . .. .. . .. .. . .. .. . .. .. .. . 32, 48, or 64 BNC female
Nominal level . .. . .. .. . .. .. . .. .. . . 1 Vp-p for Y of component video and S-video, and for composite video
Minimum / Maximum levels .. . Analog: 0.5 V to 2.0 Vp-p with no offset
Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms
Horizontal frequency.. . .. .. . .. .. 15 kHz to 150 kHz
Vertical frequency .. . .. .. .. . .. .. . 30 Hz to 150 Hz
Return loss . .. .. . .. .. . .. .. . .. .. .. . -30 dB @ 5 MHz
DC offset (max. allowable) .. .. .. . 1.5 V
Vid eo outP ut
Number / Signal type . .. .. . .. .. . 32, 48, or 64 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video
Connectors . .. .. . .. .. . .. .. . .. .. .. . 32, 48, or 64 BNC female
Nominal level . .. . .. .. . .. .. . .. .. . . 1 Vp-p for Y of component video and S-video, and for composite video
Minimum / Maximum levels .. . 0 V to 2.0 Vp-p (follows input)
Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms
Return loss . .. .. . .. .. . .. .. . .. .. .. . -30 dB @ 5 MHz
DC offset .. .. . .. .. . .. .. . .. .. . .. .. . . ±5 mV with input at 0 offset
Switching type . .. .. .. . .. .. . .. .. . . Triple-Action™
Syn c
Input type .. .. . .. .. .. . .. .. . .. .. . .. . RGBHV, RGBS, RGsB, RsGsBs
Output type .. .. .. . .. .. . .. .. . .. .. . . RGBHV, RGBS, RGsB, RsGsBs (follows input)
Input level . .. . .. .. . .. .. . .. .. . .. .. . 0.5 V to 5.0 Vp-p, 4.0 Vp-p normal
Output level . .. . .. .. . .. .. . .. .. . .. . AGC to TTL: 4.0 V to 5.0 Vp-p, unterminated
Input impedance . .. . .. .. . .. .. . .. Inputs 1 to 16: 75 or 510 ohms, switchable
Output impedance . .. . .. .. . .. .. . 75 ohms
Max. propagation delay .. .. . .. . 30 ns
Max. Rise / Fall time . .. .. .. . .. .. 4 ns
Polarity .. .. . .. .. . .. .. . .. .. . .. .. . .. . Positive or negative (follows input)
Aud io SEE MAV PLUS SERIE S AUD IO SP ECIFI CATION S, PAG E 307
Aud io inPu t SEE MAV P LUS SER IES A UDIO SPE CIFI CATION S, PAG E 307
Aud io outP ut SEE MAV PLUS SERIE S AUD IO SP ECIFI CATION S, PAG E 307
32 x 64 matrix
0 - 10 MHz: no more than +0.1 dB to -0.1 dB
0 - 130 MHz: no more than +1.0 dB to -1.0 dB
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Inputs 17 to 32, 48, or 64: 510 ohms
con tro l / reM ote — Sw itc her
Serial control port . .. .. . .. .. . .. .. 1 RS-232 or RS-422, 9-pin female D connector
Baud rate and protocol
9-pin D connector . .. . .. .. . .. .. . .. 9600 (default), 19200, 38400, 115200 baud (adjustable); 8 data bits, 1 stop bit,
2.5 mm phone jack . .. .. . .. .. . .. .. 9600 baud; 8 data bits, 1 stop bit, no parity
Serial control pin configurations
9-pin D connector . .. . .. .. . .. .. . .. RS-232: 2 = TX, 3 = RX, 5 = GND
2.5 mm phone jack . .. .. . .. .. . .. .. Tip = TX, ring = Rx, sleeve = GND
Ethernet control port . .. . .. .. . .. 1 RJ-45 female connector
Ethernet data rate .. . .. .. . .. .. . .. 10/100Base-T, half/full duplex with autodetect
Ethernet protocol . .. .. .. . .. .. . .. . ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP
Program control . .. .. .. . .. .. . .. .. Extron’s control/configuration program for Windows®
Gen erA l
Power .. .. . .. .. . .. .. . .. .. .. . .. .. . .. . 100 VAC to 240 VAC, 50/60 Hz, internal, universal, primary and redundant
NOTE: A redundant power supply is standard.
Temperature / Humidity .. .. . .. . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount . .. . .. .. . .. .. . .. .. . .. . Yes, with included parts
Enclosure type .. .. .. . .. .. . .. .. . .. Metal
Enclosure dimensions
Video BMEs .. . .. .. . .. .. . .. .. . .. .. .. 10.5" H x 17.0" W x 14.1" D (6U high, full rack wide)
Audio BMEs. .. .. . .. .. . .. .. .. . .. .. . . 12.25" H x 17.0" W x 14.1" D (7U high, full rack wide)
Product weight per BME
32 x 48 through 64 x 64 Series
wideband video BMEs .. .. . .. .. . .. 18.0 lbs (8.2 kg)
32 x 48 through 64 x 64 Series
sync BMEs . .. .. . .. .. .. . .. .. . .. .. . .. 17.0 lbs (7.7 kg)
Shipping weight per BME
32 x 48 through 64 x 64 Series
wideband video BMEs .. .. . .. .. . .. 30 lbs (14 kg)
32 x 48 through 64 x 64 Series
sync BMEs . .. .. . .. .. .. . .. .. . .. .. . .. 29 lbs (13 kg)
DIM weight per BME
(International) .. . .. .. . .. .. . .. .. . .. .. 44 lbs (20 kg)
NOTE: An RGBHV system will be shipped as 5 BMEs in 5 cartons.
Vibration . .. .. . .. .. . .. .. . .. .. . .. .. . ISTA 1A in carton (International Safe Transit Association)
Listings .. . .. .. . .. .. . .. .. . .. .. . .. .. . UL, CUL
Compliances . .. .. . .. .. . .. .. . .. .. . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. 30,000 hours
Warranty .. . .. .. .. . .. .. . .. .. . .. .. . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
no parity
RS-422: 2 = TX-, 3 = RX-, 5 = GND, 7 = RX+, 8 = Tx+
Extron’s Simple Instruction Set (SIS™)
Microsoft® Internet Explorer, Telnet
(64 or 48) x (32, 48, or 64) wideband: 110 watts at 115 VAC, 60 Hz
32 x (48 or 64) wideband: 50 watts at 115 VAC, 60 Hz
(64 x 64) sync: 65 watts at 115 VAC, 60 Hz
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
26.7 cm H x 43.2 cm W x 35.8 cm D
31.1 cm H x 43.2 cm W x 35.8 cm D
348
Loading...
