Extron electronic ISS 408 User Manual

ISS 408

Integration Seamless Switcher

68-575-01 Rev. G

02 08

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance
(servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous
voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future reference.
Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user

information.

Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel
contient des instructions importantes concernant l’exploitation et la maintenance
(réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil
de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afi n de pouvoir les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de fi xation • Ne pas utiliser de pièces de fi xation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen
Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung
(Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des
Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und
die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The
third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall
plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched by

items placed upon or against them.

Servicing • Refer all servicing to qualifi ed service personnel. There are no user-serviceable parts inside. To

prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing
covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un fi l de terre (neutre). Le troisième
contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la
désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les cordons

d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou
encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne ne

risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un technicien

qualifi é. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afi n d’éviter tout danger
d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le
retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifi ces • Si le boîtier de l’appareil comporte des fentes ou des orifi ces, ceux-ci servent à empêcher

les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des
objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les
batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen)
Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel

aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der
Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifi ziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks
versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr
eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empfi ndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von
anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte

Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller
empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes
de operación y mantenimiento (o cambio de partes) que se desean destacar en el
contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con
voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja
o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especifi camente recomendados

por el fabricante, ya que podrian implicar riesgos.

ᅝܼ乏ⶹ•Ё᭛

䖭Ͼヺোᦤ ⼎⫼᠋䆹䆒໛⫼᠋᠟ݠЁ᳝䞡㽕ⱘ᪡԰㓈 ᡸ䇈ᯢDŽ

䖭Ͼヺো䄺⫼᠋䆹䆒໛ᴎ໇ݙ᳝ᲈ䴆ⱘ䰽⬉ ˈ᳝㾺⬉䰽DŽ

⊼ᛣ

䯙䇏䇈ᯢк• 䑩ㅸỀ䑩嬦嫿⡈↎⼆枼敆嬼⶷䍇夤ㆁ㙊⫊₩⏍Ề䑩嬵㕏ɿ
ֱᄬ䇈ᯢк• 䑩ㅸⷕ἞⪙ ⫊₩嬵㕏ᶧḦ⡈⭇㚦Ề䑩ɿ
䙉ᅜ䄺• 䑩ㅸⷕ徶⫉󰶉␂⏍䑩ㅸ㉈⊘ᵋ䗅ㆁ㙊⫊₩⏍㐎ẝ嬵㕏ɿ
䙓ܡ䗑ࡴ• ᵎ壂Ề䑩嬦󰶉␂⋃⒇㯢㙊㋩劑䗅⴦₸ㅗ弾⇡嫿⡈澤Ḧ忀₎⊲斪ɿ

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución
general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no
puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación eléctrica

al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el
módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares donde

no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal califi cado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente
la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a
voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orifi cios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros
objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las
baterías usadas siguiendo las instrucciones del fabricante.

䄺

⬉⑤• 嬦嫿⡈⌫倾Ề䑩󰶉␂ᵋ㝈㕏䗅䑶㷑ɿ嫿⡈⼆枼Ề䑩㙊♱一䗅Ờ䑶䰼丠Ờ䑶ɿ䩭ᵊ 㚢一

澠♱一澡㕰 ⫊₩嫿 㓾澤ᵎ倾ᵎ䑩ㅗ崴弈ɿ

ᢨᥝ⬉⑤• ᵻ⫊₩♱ḏ嫿⡈㈕㋊䑶㷑澤嬸㈕㋊ㆁ㙊嫿⡈⍏ㅗ㞍暣䑶㷑䗅䑶㷑一澤ㅗḼẖ㋦ ⅱⵃ

䑶䰼丠䗅䑶㷑一ɿ

⬉⑤㒓ֱᡸ• ⣦Ⓟⵄ一澤忀₎埬嵪嵐澤ㅗ愎䆪㉥⋌ɿ
㓈ᡸ•ㆁ㙊丵Ἧ⼆枼䑲嫥嬂䗅丵Ἧ󰶜⎙弜垍ɿ嫿⡈⃆怩㯢㙊䑩ㅸ⌰Ḧ㘵㊣䗅昷ḷɿᵻ忀₎℻

䋱大䑶⊲斪ᵎ壂儫ⴲ嬖☿㆔⹁嫿⡈䘗⪑丵Ἧ嬦嫿⡈ɿ

䗮亢ᄨ• 㙊󰵽嫿⡈㙻⠴ᵋ㙊彛栏㤾ㅗ⪕澤⫄ḭ㕰䑩㚦敳㪣㙻⃆㒐だ₄ḷ弈䀮ɿᵎ壂䑩Ḽẖᵝ

壀㉢Ẑ彛栏 ⪕ɿ

䫖⬉∴ • ᵎ㪤䞯䗅㘵㊣䑶㮡ṛ㙊䅇㿹䗅⊲斪ɿ⼆枼Ề 䑩ᵏ⋃⫷㋩劑䗅䘹⍍ㅗ䘹弒⛌⌸䗅䑶㮡ɿ

㉊䂨䑠󰶉⋃䗅⸻嫯⡅䍇ⷠ⹄䑶㮡ɿ

FCC Class B Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

N

This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance with FCC emissions limits.

Quick Start — ISS 408

V

R

R

V

Y

1

8

1

2

N

Integration Seamless Switcher

Installation

Step 1

Turn off power to the ISS 408 and the input and
output devices, and remove the power cords from
them.

Step 2

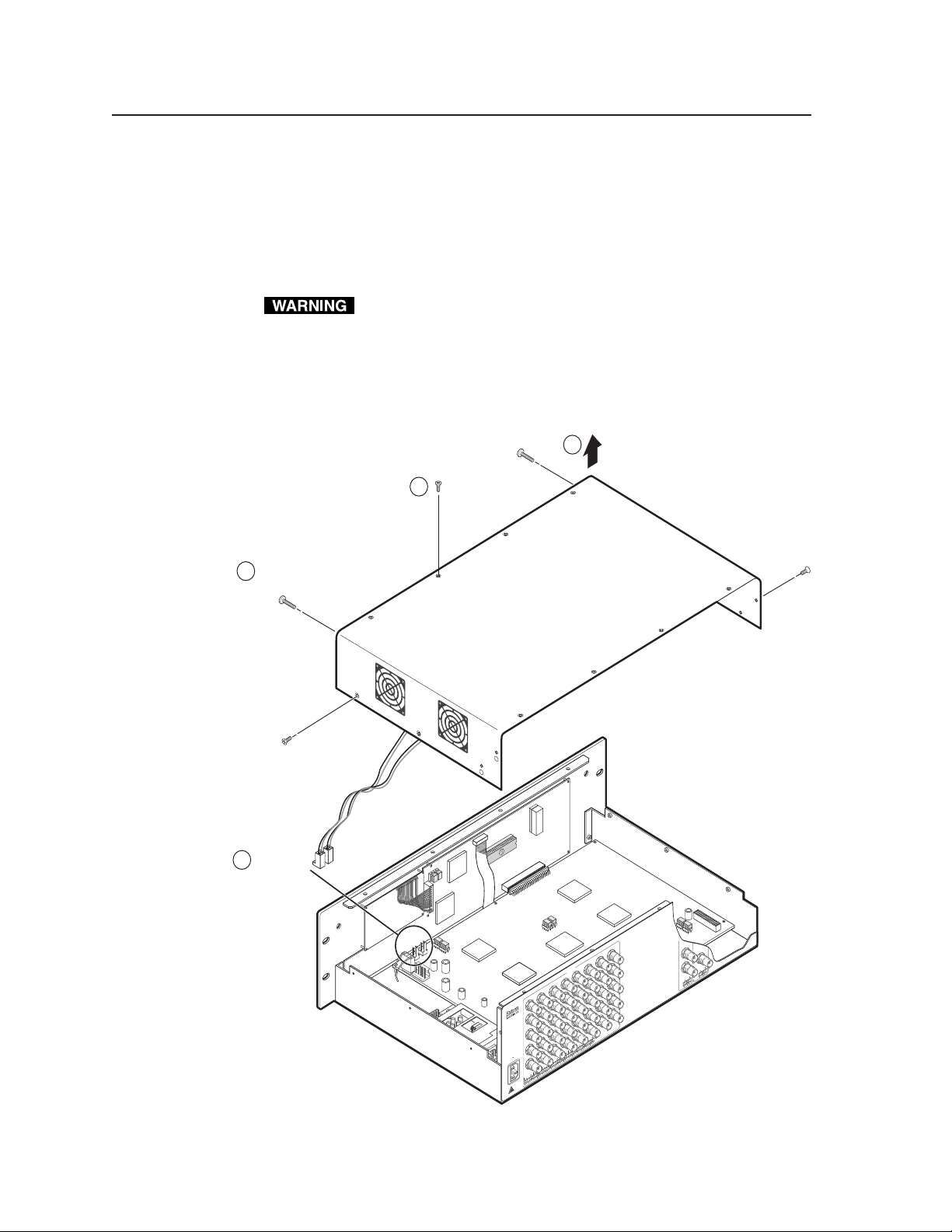

If desired, install an optional DVI output card into
the switcher. See chapter 7, “Maintenance and
Modifications”.

Step 3

Install four rubber feet on the bottom of the ISS or
mount the ISS in a rack.

ADJUST

ISS 408

INTEGRATION SEAMLESS SWITCHER

NEXT

SIZE CENTER FILTER

MENU
BRT/
CONT

COLOR/
TINT

CUT

VIDEO

DISSOLVE

8

OUTPUTS

6 7

AUDIO

5

8

4

7

3

6

2

5

1

4

BLACK

3

2

1

MUTE

Step 4

Connect up to eight computer/RGB video,
component video, S-video, or composite video
sources to the female BNC input connectors. The
figure below shows how to connect the various
video formats.

R/R-Y

G/Y

VID

B/C

B-Y

H/HV

R/R-Y

G/Y

VID

B/C

B-Y

H/HV

R/R-Y

G/Y

VID

B/C
B-Y

H/HV

R/R-Y

G/Y
VID

B/C
B-Y

H/HV

R/R-

H/H

G/Y

VID

B/C
B-Y

Step 5

Cable the switcher for
stereo audio input. Each
input has a 3.5 mm,
5-pole captive screw
connector for balanced or
unbalanced stereo or
mono audio input.
Connectors are included
with each switcher, but
you must supply the
audio cable. High
impedance is generally over 800 ohms.

Tip

Sleeve

Tip

Sleeve

Unbalanced Input

(high impedance)

Tip

Ring

Sleeve (s)

Tip

Ring

Balanced Input

(high impedance)

Step 6

Connect RGB video displays to
the Preview output and
Program output female BNC

R

and 15-pin HD connectors.
Connect the various video
formats to the BNC connectors

G

as shown.

Both output connector

B

types output the same
video signal and the
same sync format.

Step 7

GBHV

Video

H/HV

V

RGBS

Video

If the optional DVI output
card is installed, connect a DVI video

display to the Program output DVI
connector.

9

7

Step 8

Cable the switcher for stereo audio
output. Each output has a 3.5 mm,
5-pole captive screw connector that
outputs the selected unamplified, line
level audio. Connect an audio device,
such as an audio amplifier or powered speakers.

NO GROUND

NO GROUND.

Unbalanced Output

Tip

Ring

Sleeve (s)

Tip

Ring

Balanced Output

AUDIO AUDIO

CAUTIO

Connect the
sleeve to ground.
Connecting the
sleeve to a
negative (-)
terminal will
damage the audio
output circuits.

4

R

G

B

H/H

V

V

GBHV

Video

RGBS or
RGBcvS

Video

V

V

RGsB or

Component

Video

V

V

S-Video Composite

Video

QS-1ISS 408 Integration Seamless Switcher • Quick Start

Quick Start — ISS 408

1

Integration Seamless Switcher, cont’d

Step 9

If desired, connect a control system or computer to
the Remote RS-232 port.

RS-232 FunctionPin

1

—
TX

RX

—

Gnd

—
—
—
—

Not used
Transmit data
Receive data
Not used
Signal ground
Not used
Not used
Not used
Not used

2
3
4
5
6
7
8
9

51

9

6

Female

1

5

6

9

Male

Step 10

If desired, connect a network WAN or LAN hub, a
control system, or a computer to the Ethernet RJ-45
port.

• For connection to a network, wire the
interface cable as a straight-through cable.

• For connection to a computer or control
system, wire the interface cable as a crossover
cable.

Straight-through cable

Side 1 Side 2

Pin Wire color Pin Wire color

Clip Down

12345678

1

2345678

3&6

&2

4&5

RJ-45
connector

Twisted
Pairs

7&8

1 White-orange 1 White-orange
2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown

Crossover cable

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown

Step 11

Plug the Integration Seamless Switcher and input
and output devices into a grounded AC source, and
turn on the input and output devices.

Setup and Operation

Configure the inputs

1.Press Menu > Next.

2. Press an input button to select the input to

configure.

3. Rotate the Adjust

knob to select the input

video type.

4. Rotate the Adjust

knob to select the input

audio gain or attenuation level.

5. Select other inputs to configure as necessary

by pressing the appropriate input button.

6. Press Menu > Menu > Menu > Menu > Next

to return the default display cycle.

Configure the output

1. Press Menu > Menu > Next.

2. Rotate the Adjust

knob to select the output

rate.

3. Rotate the Adjust

knob to select the output

frequency.

4. Press Next.

5. Rotate the Adjust

knob to select the output

video sync format (RGBHV or RGBS).

6. Rotate the Adjust

knob to select the sync

polarity.

7. Press Menu > Menu > Menu > Next to

return the default display cycle.

Select a preview output, and
switch it to program output

Select video and/or audio to switch by pressing the
Video/Audio button to light the green Video LED
and/or the red Audio LED as desired.

Press an input button to select a video and/or
audio input for the preview output. The associated
input LEDs (green [for video] and/or red [for
audio]) flash to indicate that the input is selected
for the preview output.

Press either the Cut or Dissolve button to switch
the preview output to the program output. Cut
makes an immediate seamless switch. Dissolve
masks the seamless switch with a dissolve effect of
a user-assignable duration. The associated input
LEDs (green [for video] and/or red [for audio]) liht
steadily to indicate that the input is selected for the
program output.

Auto Image

Initiate the auto imaging function for a specific
input by pressing and holding the appropriate
input button until the LCD displays the message
Auto Image Input #n. Release, press, and release
the input button again.

™

ISS 408 Integration Seamless Switcher • Quick StartQS-2

Table of Contents

Chapter 1 • Introduction ....................................................................................................... 1-1

About this Manual ............................................................................................................. 1-2

About the Switcher............................................................................................................ 1-2

Features ................................................................................................................................... 1-4

Chapter 2 • Installation .......................................................................................................... 2-1

Mounting the Switcher .................................................................................................... 2-2

Tabletop placement ........................................................................................................... 2-2

Rack mounting ................................................................................................................... 2-2

UL requirements ........................................................................................................... 2-2

Mounting instructions

Cabling and Rear Panel Views...................................................................................... 2-4

Input connections .............................................................................................................. 2-4

Standard output connections ........................................................................................... 2-6

Optional output connection ............................................................................................. 2-7

Ethernet connection .......................................................................................................... 2-7

Cabling and RJ-45 connector wiring ............................................................................. 2-8

Choosing a network cable
Wiring the network cable

RS-232 connection ............................................................................................................. 2-9

.................................................................................................. 2-3

.................................................................................. 2-8

................................................................................... 2-8

Configuration ....................................................................................................................... 2-9

Chapter 3 • Operation ............................................................................................................. 3-1

Front Panel Controls and Indicators ......................................................................... 3-2

Black/Mute, input selection, and Cut/Dissolve controls ................................................... 3-2

Picture adjustment and menu system controls ................................................................ 3-3

Front Panel Operations .................................................................................................... 3-4

Power-on indications .........................................................................................................3-4

Selecting an input and switching it to the program output ...........................................3-5

Recalling a user preset ....................................................................................................... 3-7

Auto imaging an input ...................................................................................................... 3-7

Menu system overview ...................................................................................................... 3-8

Video & Audio Configuration menu............................................................................. 3-9

Input Configuration submenu ............................................................................ 3-9

Output Configuration menu

Output Resolution submenu ............................................................................. 3-10

Sync Type and Polarity submenu

Advanced Configuration menu .................................................................................. 3-12

Dissolve Speed submenu ................................................................................... 3-13

Test Pattern submenu
Blue Only Mode and Edge Smoothing submenu
Preview and Program Blanking submenus

RGB Delay submenu .......................................................................................... 3-13

Auto Imaging and Auto Memories submenu

...................................................................................... 3-10

....................................................................... 3-11

....................................................................................... 3-13

.............................................. 3-13

........................................................ 3-13

.................................................... 3-14

ISS 408 Integration Seamless Switcher • Table of Contents

i

Table of Contents, cont’d

Enhanced Mode submenu ................................................................................ 3-14

Pixel Phase submenu

Preview Switch Mode submenu ........................................................................ 3-14

PAL File Mode submenu
Reset submenu

User Presets menu

Save Preview Preset submenu ........................................................................... 3-16

Erase Preview Preset submenu

Exit menu

Picture adjustments ......................................................................................................... 3-18

Front panel security lockout (Executive mode) .............................................................. 3-19

IP information .................................................................................................................. 3-20

................................................................................................................... 3-17

Optimizing the Video...................................................................................................... 3-20

Setting up a DVD source ................................................................................................. 3-21

Optimizing the Audio ..................................................................................................... 3-22

Troubleshooting ................................................................................................................ 3-22

General checks ................................................................................................................. 3-22

Specific problems ............................................................................................................. 3-23

.................................................................................................. 3-15

...................................................................................................... 3-16

......................................................................................... 3-14

.................................................................................... 3-15

.......................................................................... 3-17

Chapter 4 • Programmer’s Guide ..................................................................................... 4-1

RS-232 Link ............................................................................................................................. 4-2

Ethernet Link......................................................................................................................... 4-2

Ethernet connection .......................................................................................................... 4-3

Default address .................................................................................................................. 4-3

Symbols ................................................................................................................................... 4-3

Switcher-Initiated Messages ......................................................................................... 4-4

Power-up ............................................................................................................................ 4-4

Input selection ................................................................................................................... 4-4

Busy (cut and dissolve) ....................................................................................................... 4-4

Cutting or dissolving in stay mode .................................................................................... 4-4

Cutting or dissolving in swap mode .................................................................................. 4-5

Input and output video type ............................................................................................. 4-5

Picture adjustments ........................................................................................................... 4-5

RGB delay and dissolve speed ........................................................................................... 4-6

Test pattern ........................................................................................................................ 4-7

Audio gain and attenuation ............................................................................................. 4-7

Output video and audio mute .......................................................................................... 4-7

Preview switch mode .........................................................................................................4-7

PAL film mode .................................................................................................................... 4-7

Automated adjustments .................................................................................................... 4-7

Host-to-Switcher Instructions....................................................................................... 4-8

Switcher Error Responses ............................................................................................... 4-8

ii ISS 408 Integration Seamless Switcher • Table of Contents

Using the Command/Response Table ........................................................................4-8

Command/response table for SIS commands .................................................................. 4-9

Command/response table for IP SIS commands ............................................................ 4-15

Command/response table for special function SIS commands ..................................... 4-16

Command/response table for advanced instruction Set commands ............................ 4-18

Chapter 5 • Switcher Software .........................................................................................5-1

Control Software for Windows

Installing the software ...................................................................................................... 5-2

Software Operation via Ethernet...................................................................................... 5-3

Ethernet protocol settings ............................................................................................ 5-3

Using the control program ................................................................................................ 5-4

Using the help program .................................................................................................... 5-6

Button-Label Generator................................................................................................... 5-6

Installing the software ...................................................................................................... 5-6

Using the software ............................................................................................................5-7

®

.................................................................................. 5-2

Chapter 6 • Ethernet Operation ....................................................................................... 6-1

Loading the Startup (Control) Page .......................................................................... 6-2

Control Page .......................................................................................................................... 6-3

Selecting and switching an input ..................................................................................... 6-4

Changing the RGB delay or dissolve speed ...................................................................... 6-4

Blacking out the screen and muting the audio ............................................................... 6-5

Freezing the output ........................................................................................................... 6-5

Outputing a test pattern ................................................................................................... 6-5

Previewing the scan rate ................................................................................................... 6-5

Using Blue-Only mode .......................................................................................................6-5

Front panel security lockout (executive mode) ................................................................6-6

System Configuration Page ........................................................................................... 6-6

Administration fields ......................................................................................................... 6-6

ISS IP settings field ............................................................................................................. 6-7

ISS IP address field ........................................................................................................ 6-7

ISS name field ............................................................................................................... 6-7

Hardware address field ................................................................................................. 6-7

File Management Page .................................................................................................... 6-8

I/O Configuration Page..................................................................................................... 6-9

Input configuration ........................................................................................................... 6-9

Output resolution, rate, sync format, and polarity ....................................................... 6-10

Output resolution ....................................................................................................... 6-11

Output rate ................................................................................................................ 6-11

Output format ............................................................................................................ 6-12

Output polarity .......................................................................................................... 6-12

ISS 408 Integration Seamless Switcher • Table of Contents

iii

Table of Contents, cont’d

Chapter 7 • Maintenance and Modifications .......................................................... 7-1

Opening and Closing the Switcher ............................................................................ 7-2

Installing a Firmware Upgrade .................................................................................... 7-4

Installing a DVI Output Card ......................................................................................... 7-5

Appendix A • Ethernet Connection .............................................................................. A-1

Cabling .................................................................................................................................... A-2

Determining Default Addresses ................................................................................. A-3

Pinging to determine the switcher’s IP address .............................................................. A-3

Pinging to determine Web IP address ............................................................................. A-3

Connecting as a Telnet Client ...................................................................................... A-4

Telnet tips .......................................................................................................................... A-4

Open............................................................................................................................ A-4

Escape character and Esc key ....................................................................................... A-5

Local echo .................................................................................................................... A-5

Set carriage return-line feed ....................................................................................... A-5

Close ............................................................................................................................ A-5

Help ............................................................................................................................. A-5

Quit ............................................................................................................................. A-5.

Appendix B • Reference Information ...........................................................................B-1

Specifications........................................................................................................................ B-2

Part Numbers ........................................................................................................................ B-4

Included parts .................................................................................................................... B-4

Optional accessories ..........................................................................................................B-4

Cables and connectors ...................................................................................................... B-4

Bulk cable .....................................................................................................................B-4

Assorted connectors ..................................................................................................... B-5

Pre-cut cables ...............................................................................................................B-5

Button Labels ........................................................................................................................ B-5

All trademarks mentioned in this manual are the properties of their respective owners.

iv ISS 408 Integration Seamless Switcher • Table of Contents

68-575-01 Rev. G

03 08

ISS 408 Integration Seamless Switcher

Chapter One

1

Introduction

About this Manual

About the Switcher

Features

Introduction, cont’d

Introduction

About this Manual

This manual contains installation, configuration, and operating information for the
Extron ISS 408 Integration Seamless Switcher.

In this manual, the terms “switcher” and “ISS” are used interchangeably to refer to
the ISS 408.

• Chapter 1, “Introduction”, identifies the switcher’s features.

• Chapter 2, “Installation”, details how to install the switcher.

• Chapter 3, “Operation”, describes how to operate the switcher and use all of
its features.

• Chapter 4, “Programer’s Guide”, provides information about programming
and operating the switcher under RS-232 control, such as from a PC or host
controller.

• Chapter 5, “Switcher Software”, details the Extron control software for
Windows
PC in a graphical environment.

• Chapter 6, “Ethernet Operation”, details configuration and operation of the
switcher using an Ethernet browser.

• Chapter 7, “Maintenance and Modifications”, provides procedures for
maintaining and modifying the switcher.

• Appendix A, “Ethernet Connection”, is a high-level Internet protocol (IP)
primer (Ethernet and Telnet).

• Appendix B, “Reference Information”, lists the switcher’s specifications and
pertinent part numbers.

®

, which allows you to configure and operate the switcher from a

About the Switcher

The ISS 408 is an eight-input, scaling, video and stereoor mono audio seamless
switcher. Figure 1-1 shows a typical ISS 408 application. The switcher accepts high
resolution RGB video, YUV (component) video, S-video (Y/C), and composite
video inputs; scale the inputs; and output RGBHV or RGBS video and stereo audio.
The ISS seamlessly switches among the input sources without a loss of sync. The
ISS can also mask the switch between sources with a dissolve effect for a
professional look.

Each video input is individually configurable to allow for different video formats.
The ISS allows analog RGBHV, RGBS, RGsB, and RGBcvS video, component video,
S-video, and composite video signals to be displayed on a device with a fixed
resolution and aspect ratio, such as a liquid crystal display (LCD) projector, digital
light processor (DLP) projector, plasma display, or digital visual interface (DVI)
device.

The ISS provides two separate outputs: the program output and the preview output.
The program output is the picture the audience sees. The preview output allows
the switcher operator to view the image before it is sent to the program output.
With an optional DVI output card, the ISS converts the scaled image to DVI as an
additional program output.

The switcher inputs all valid video signal formats on eight sets of five BNC
connectors. The ISS 408 scales the input up or down to a wide variety of output
resolutions and rates. The switcher outputs the scaled video, as RGBHV or RGBS,
on two sets (program and preview) of connectors. The program and preview
outputs each consist of five BNC connectors and a 15-pin HD connector. These
connectors share identical outputs.

ISS 408 Integration Seamless Switcher • Introduction1-2

Several of the output resolutions and rates include Extron’s Accu-RATE Frame

m

™

(AFL™), a proprietary technology that locks the output frame rate to the

Lock
input rate, solving the image tearing problem that can result from different input
and output rates. The ISS 408 features HDTV 576p, 720p, 1080p, and 1080i outputs.

Preview
Monitor

Program

Monitor

Projector

AM

Extron

ISS 408

DVD Player

8

7

R

6

R

5

R

INPUTS

G

4

R

G

3

R

G

B

2

R

G

B

1

R

G

B

H/HV

R

G

B

H/HV

G

B

H/HV

G

B

H/HV

B

H/HV

B

H/HV

7 8

6

H/HV

5

50/60 Hz

H/HV

240

­0

1.2A MAX.

4

10

1 23

PROGR

OUT

DVI

PREVIEW

OUTPUTS

R

PROGRAM

PREVIEW

R

G

RS-232

G

B

B

H/HV

ETHERNET

LINK
ACT

H/HV

V

V

Control Syste

(RS-232)

LAN/WAN

Network/

Internet

Codec

Extron

VCR

Laptop

RGB 109xi

Podium PC

Figure 1-1 — Typical ISS 408 Integration Seamless Switcher application

The ISS receives and outputs audio on 5-pole captive screw connectors. The audio
can be switched with cross fading; the previous audio channel fading out and the
new audio channel fading in.

For upscaling, the ISS 408 converts the horizontal and vertical sync timing and the
number of lines of the lower-resolution video input to match the native resolution
of the display. This produces an undistorted, brighter picture than an unscaled
input would.

For downscaling, the ISS 408 accepts any computer resolution, up to 1600 x 1200,
with horizontal scan rates up to 100 kHz and vertical scan rates up to 120 Hz, and
converts the input to match the native resolution of the display.

The switcher is ideal for displaying images on projectors with limited display
resolutions, such as LCD projectors, DLP projectors, plasma projectors, and (with
an optional DVI card) a DVI display or projector.

The switcher features built-in test patterns to aid in monitor or projector setup and
evaluation.

The switcher is housed in a rack-mountable, 3U high, 17.5" wide, metal enclosure.
The ISS has an internal 100 VAC to 240 VAC, 50/60 Hz, 30 watts power supply that
provides worldwide power compatibility.

1-3ISS 408 Integration Seamless Switcher • Introduction

Introduction, cont’d

Features

Inputs —

Video inputs — The ISS switches among eight fully-configurable RGB, HDTV

component video, component video, S-video, and composite video inputs on
five BNC connectors per input.

Audio inputs — The ISS switches among eight balanced or unbalanced stereo or

mono audio inputs on 5-pole captive screw connectors.

Outputs —

Standard video outputs — The ISS outputs individually scaled video signals as

RGBHV or RGBS. Two sets of BNC connectors and two 15-pin HD
connectors are provided. One set of BNC connectors and one 15-pin HD
connector display the program image, and the other set of BNC connectors
and 15-pin HD connector display the preview image.

Optional DVI video output — If you install the optional DVI output card, a

single buffered DVI-D signal can be output as an additional program output
image.

For output resolutions with less than 1024 pixels horizontally, the optional
DVI program output’s true horizontal resolution is limited to 1024 pixels. For
the 1365 x 1024, 1080p, and 1080i output resolutions, the optional DVI
program output’s true horizontal resolution is limited to 1280 pixels. The DVI
card outputs all other selected resolutions normally. See the table on page 3-11.

Audio outputs — The ISS outputs the selected unamplified, line level, balanced

or unbalanced stereo or mono audio on 5-pole captive screw connectors.

Accu-RATE Frame Lock (AFL) — This patented technology exclusive to Extron

solves frame rate conversion issues experienced by video scalers. When
video input and output refresh rates differ, occasionally the two rates cross
over each other. The result is a glitch or image freeze on the display. AFL
solves this problem by locking the output frame rate to the input frame rate.

Dynamic Motion Interpolation™ (DMI™) — This video processing technique is

an advanced motion prediction and compensation method that treats motion
content and still content with different algorithms to yield high fidelity images.

3:2 pulldown detection for NTSC and 2:2 film detection for PAL video sources —

These advanced, patent pending, film mode processing features help
maximize image detail and sharpness for video sources that originated from
film. When film is converted to NTSC video, the film frame rate has to be
matched to the video frame rate in a process called 3:2 pulldown. Jaggies and
other image artifacts can result if conventional deinterlacing techniques are
used on film-source video. The ISS’s advanced film mode processing
recognizes signals that originated from film. The ISS then applies video
processing algorithms that optimize the conversion of video that was made
with the 3:2 pulldown process. This results in richly detailed images with
sharply defined lines.

A similar process, 2:2 film detection, is used for PAL film-source video.

Audio follow and breakaway — Audio switching can follow its corresponding

video input signal or it can be broken away from the video input. Audio
breakaway switching can be done via front panel control or under RS-232 or
Ethernet remote control.

ISS 408 Integration Seamless Switcher • Introduction1-4

Audio gain/attenuation — Users can set the input level of audio gain or

attenuation (-24 dB to +9 dB) via the RS-232 port, Ethernet link, or from the
front panel. Individual input audio levels can be adjusted so there are no
noticeable volume differences between sources.

Audio cross-fading — This transition technique is applied during switching to

lower the audio level of the switched out source while simultaneously raising
the audio level of the activated source.

Ethernet port — Supports connection to an Ethernet LAN so that the switcher can

be accessed and operated from anywhere in the world with a computer
using a standard Internet browser.

Quad-standard video decoder — The switcher uses a digital, four-line adaptive

comb filter that can decode NTSC 3.58, NTSC 4.43, PAL, and SECAM.

Transitions — Controls the type of switch that will occur between the preview and

program outputs. The Cut button creates an instant switch between the
preview and program outputs. The Dissolve button switches with a dissolve
effect.

Test patterns — The switcher features built-in test patterns to aid in monitor or

projector setup and evaluation.

Blue mode — The switcher can be set to output the blue video signal and sync

signal(s) only, to help installers calibrate the monitor or projector.

™

Triple-Action Switching

(RGB delay) (preview output) — RGB delay mutes the

R, G, and B video planes to blank the preview screen while the scaler locks to
the new sync, so that a noise-filled scramble is not shown on the preview
monitor during the transition. The time delay between the RGB and sync
signals is user adjustable up to five seconds under front panel, Simple
Instruction Set (SIS

™

), and Windows program control.

Auto memories — The 8 inputs support 16 auto-recall memories each, based on the

incoming frequency. Information on sizing, centering, detail, contrast, and
brightness is saved.

™

Auto Image

— The auto imaging feature automatically sizes and centers the

selected input to fill the screen. Auto imaging can be selected for individual
inputs as desired or it can be set to automatically size and center each new
input selection.

Memory presets — The ISS 408 has memory for up to 128 presets that allow the

user to use RS-232 commands to save and recall color, tint, contrast,
brightness, centering, sizing, and filtering information.

Aspect ratio memories — Three memories for each input save different settings for

color, tint, contrast, brightness, detail, size, and centering.

Freeze mode (under SIS and Windows program control only) — Locks the output

display to the selected image. Once frozen, an input can be removed without
losing the output image. This feature lets the ISS function as a still store.

Rack mountable — The 3U high switcher can be mounted in any conventional 19"

wide rack.

1-5ISS 408 Integration Seamless Switcher • Introduction

Introduction, cont’d

ISS 408 Integration Seamless Switcher • Introduction1-6

ISS 408 Integration Seamless Switcher

Chapter Two

2

Installation

Mounting the Switcher

Cabling and Rear Panel Views

Configuration

Installation, cont’d

Installation

Mounting the Switcher

Four uninstalled rubber feet are included with the switcher. If you are going to
rack mount the switcher, mount it before you cable it (see “Rack mounting”,
below), and do not install the rubber feet. If you are not rack mounting the
switcher, see “Tabletop placement”, below.

Tabletop placement

For tabletop placement, install the self-adhesive rubber feet/pads (provided) onto
the four corners of the bottom of the switcher.

Rack mounting

UL requirements

The following Underwriters Laboratories (UL) requirements pertain to the
installation of the switcher into a rack (figure 2-1).

1. Elevated operating ambient temperature — If the equipment is installed in a

closed or multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient temperature.
Therefore, install the switcher in an environment compatible with the
maximum ambient temperature (Tma = +122 °F, +50 °C) specified by Extron.

2. Reduced air flow — Install the equipment in a rack so that the amount of air

flow required for safe operation of the equipment is not compromised.

3. Mechanical loading — Mount the equipment in the rack so that a hazardous

condition is not achieved due to uneven mechanical loading.

4. Circuit overloading — Connect the equipment to the supply circuit and

consider the effect that circuit overloading might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.

5. Reliable earthing (grounding) — Maintain reliable grounding of rack-

mounted equipment. Pay particular attention to supply connections other
than direct connections to the branch circuit (e.g., use of power strips).

ISS 408 Integration Seamless Switcher • Installation2-2

Mounting instructions

To rack mount the switcher, use two screws on each end of the switcher to attach
the switcher to the rack (see figure 2-1).

ADJUST

ISS 408

INTEGRATION SEAMLESS SWITCHER

NEXT

SIZE CENTER FILTER

MENU

BRT/
CONT

COLOR/

TINT

CUT

VIDEO

DISSOLVE

8

INPUTS

6 7

AUDIO

5

8

4

7

6

2 3

5

1

4

BLACK

3

2

1

MUTE

Figure 2-1 — Mounting the switcher

2-3ISS 408 Integration Seamless Switcher • Installation

Installation, cont’d

R

V

Y

Cabling and Rear Panel Views

All connectors are on the rear panel (figure 2-2).

12

R/R-Y

G/Y
VID

B/C

100-240

B-Y

50/60 Hz

1.2A MAX.

H/HV

V

1

1 6 7 9

Figure 2-2 — ISS 408 rear panel connectors

Input connections

AC power connector — Plug a standard IEC power cord into this connector

1

to connect the switcher to a 100 to 240 VAC, 50 Hz or 60 Hz power source.
Input video connectors — Connect computer or RGB video, component

2

video, S-video, or composite video sources to these female BNC connectors.
Figure 2-3 shows how to connect the various video formats.

2

INPUTS

3

4

5

6

7

R/R-Y

R/R-Y

R/R-Y

R/R-Y

R/R-Y

R/R-Y

G/Y

G/Y

G/Y

G/Y

G/Y

G/Y

VID

VID

VID

B/C

B/C

B/C

B-Y

B-Y

B-Y

H/HV

H/HV

H/HV

H/HV

V

V

V

234 5678

V

VID

VID

VID

B/C

B/C

B/C

B-Y

B-Y

B-Y

H/HV

H/HV

V

V

3

4 5

8

R/R-Y

G/Y
VID

B/C
B-Y

H/HV

V

PROGRAM

OUTPUTS

R

G

B

H/HV

V

PREVIEW

PROGRAM

R

PREVIEW

RS-232

ETHERNET

DVI OUT

8

LINK

ACT

G

B

H/HV

V

10

GBHV

Video

R/R-Y

G/Y

VID

B/C

B-Y

H/HV

V

RGBS or
RGBcvS

Video

R/R-Y

G/Y

VID

B/C

B-Y

H/HV

V

R/R-Y

H/HV

V

RGsB or

Component

Video

R/R-Y

G/Y

VID

B/C
B-Y

G/Y
VID

B/C
B-Y

H/HV

V

S-Video Composite

Video

R/R-

H/H

V

G/Y

VID

B/C
B-Y

Figure 2-3 — Connections for various input video formats

ISS 408 Integration Seamless Switcher • Installation2-4

Input audio connectors — Connect balanced or unbalanced stereo or mono

3

audio sources to these 3.5 mm, 5-pole captive screw connectors. Connectors
are included with the seamless switcher, but you must supply the audio cable.
Figure 2-4 shows how to wire a connector for the appropriate input type.
High impedance is generally over 800 ohms.

Ring

Sleeve (s)

Ring

Tip

Tip

0.2” (5 mm) max.

Do not tin the wires!

Tip

Sleeve

Tip

Sleeve

Unbalanced Stereo Input

(high impedance)

LR

Figure 2-4 — Captive screw connector wiring for inputs

CAUTION

The length of exposed wires is critical. The ideal length is 0.2" (5 mm).

• If the stripped section of wire is longer than 0.2", the exposed wires
may touch, causing a short circuit between them.

• If the stripped section of wire is shorter than 0.2", wires can be easily
pulled out even if tightly fastened by the captive screws.

When making connections for the seamless switcher from existing audio cables;
see figure 2-5. A mono audio connector consists of the tip and sleeve. A stereo
audio connector consists of the tip, ring, and sleeve. The tip, ring, and sleeve
wires are also shown on the captive screw audio connector diagram, figure 2-4.

Tip (+)

Tip (+)

Sleeve ( )

RCA Connector

Ring (-)

3.5 mm Stereo Plug Connector

Sleeve ( )

(balanced)

Balanced Stereo Input

(high impedance)

LR

Figure 2-5 — Typical audio connectors

The audio level for each input can be individually set, via the front panel, the
Ethernet link, or the RS-232 link, to ensure that the level on the output does
not vary from input to input. See chapter 3, “Operation”, chapter 4,
“Programmer’s Guide”, chapter 5, “Switcher Software”, and chapter 6,
“Ethernet Operation”, for details.

2-5ISS 408 Integration Seamless Switcher • Installation

Installation, cont’d

V

R

Standard output connections

The Program connectors (4) output the video image for the program monitor or
projector. The Preview connectors (
monitor.

Preview and Program video output BNC connectors — Connect RGB video

4

displays to these female BNC connectors. Figure 2-6 shows how to connect

5

the various video formats.

The two Program video outputs, consisting of five BNC connectors and a
15-pin HD connector, output the identical video signal and the same sync
format. The two Preview video outputs are also identical to each other.

5

) output the video image for the local

R

G

B

H/HV

V

GBHV

Video

R

G

B

H/H

V

RGBS
Video

Figure 2-6 — BNC output connections for RGBHV and RGBS video

Program and Preview video output 15-pin HD connectors —
Connect RGB video displays to these two female 15-pin HD
connectors.

Preview and Program audio output connectors — Connect audio devices,

6

such as an audio amplifier or powered speakers, to these 3.5 mm, 5-pole

7

captive screw connectors. The connectors output the selected unamplified,
line level audio. See figure 2-7 to properly wire an output connector.

Tip

Ring

Tip

Ring

Stereo Output

Balanced

0.2” (5 mm) max.

Do not tin the wires!

Tip

NO GROUND HERE.

Sleeve(s)

Tip

NO GROUND HERE.

Unbalanced

Stereo Output

LR

LR

Figure 2-7 — Captive screw connector wiring for audio output

CAUTION

Connect the sleeve to ground (Gnd). Connecting the sleeve to a
negative (-) terminal will damage the audio output circuits.

CAUTION

The length of exposed wires is critical. The ideal length is 0.2" (5 mm).

• If the stripped section of wire is longer than 0.2", the exposed wires
may touch, causing a short circuit between them.

• If the stripped section of wire is shorter than 0.2", wires can be easily
pulled out even if tightly fastened by the captive screws.

ISS 408 Integration Seamless Switcher • Installation2-6

K

By default, the audio output follows the video switch. Audio breakaway,

1

8

1

2

commanded via the front panel, the Ethernet link, or the RS-232 link, allows
you to select from any one of the audio input sources. See chapter 3,
“Operation”, chapter 4, “Programmer’s Guide”, chapter 5, “Switcher
Software”, and chapter 6, “Ethernet Operation”, for details.

Optional output connection

DVI output connector (optional) — If the optional DVI output

8

card is installed, connect a DVI/DFP-compatible video display to
this DVI connector. This connector outputs the program image
only.

For output resolutions with less than 1024 pixels horizontally, the
optional DVI program output’s true horizontal resolution is
limited to 1024 pixels. For the 1365 x 1024, 1080p, and 1080i
output resolutions, the optional DVI program output’s true
horizontal resolution is limited to 1280 pixels. The DVI
card outputs all other selected resolutions normally. See the table on page 3-1 1.

Ethernet connection

Ethernet port — If desired, connect the switcher to an Ethernet LAN or WAN

9

via this RJ-45 connector. Ethernet control allows the operator to control the
switcher from a remote location. When connected to an Ethernet LAN or
WAN, the switcher can be accessed and operated from a computer running a
standard Internet browser.

Ethernet connection indicators — The Link and Act LEDs indicate the status
of the Ethernet connection.

9

7

4

The Link LED indicates that the switcher is properly connected to an Ethernet

LAN. This LED should light steadily.

LIN
ACT

The Act LED indicates transmission of data packets on the RJ-45 connector.

This LED should flicker as the switcher communicates.

2-7ISS 408 Integration Seamless Switcher • Installation

Installation, cont’d

Patch (straight) cable

Cabling and RJ-45 connector wiring

It is vital that your Ethernet cables be the correct cables, and properly terminated
with the correct pinout.

Choosing a network cable

Ethernet links use Category (CAT) 3, 4, 5, 5e, or 6, unshielded twisted pair (UTP) or
shielded twisted pair (STP) cables, terminated with RJ-45 connectors. Ethernet
cables are limited to 328' (100 m).

The cable used depends on your network speed. The ISS supports both 10 Mbps
(10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex and
full-duplex, Ethernet connections.

• 10Base-T Ethernet requires at a minimum CAT 3 UTP or STP cable.

• 100Base-T Fast Ethernet requires at a minimum CAT 5 UTP or STP cable.

Wiring the network cable

The cable can be terminated as either a patch cable or a crossover cable (figure 2-8)
and must be properly terminated for your application:

Do not use standard telephone cables. Telephone cables do not support
Ethernet or Fast Ethernet.

Do not stretch or bend cables. Transmission errors can occur.

• Patch (straight through) cable — Connection of the ISS to an Ethernet hub,

router, or switcher that also hosts a controlling computer

• Crossover cable — Direct connection between the ISS and a controlling

computer

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-orange

Side

Pins:

12345678

Insert

twisted

pair wires.

RJ-45
Connector

2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown

Crossover cable

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown

Figure 2-8 — RJ-45 connector pinout table

ISS 408 Integration Seamless Switcher • Installation2-8

RS-232 connection

0

Male

Remote port — Connect a host device, such as a computer or touch panel

1

control, to the Integration Seamless Switcher via this 9-pin D connector for
serial RS-232 control (figure 2-9).

Figure 2-9 — Remote port pin assignments

See chapter 4, “Programmer’s Guide”, for definitions of the SIS commands
and chapter 5, “Switcher Software”, to install and use the control software.

Configuration

The ISS can be configured using either the front panel controls, the SIS, or the
Windows Control program. See chapter 3, “Operation”, chapter 4, “Programmer’s
Guide”, and chapter 5, “Switcher Software”.

RS-232 FunctionPin

1

—

2

TX

3

RX

4

—

5

Gnd

6

—

7

—

8

—

9

—

Not used
Transmit data
Receive data
Not used
Signal ground
Not used
Not used
Not used
Not used

51

9

6

Female

5

1

9

6

2-9ISS 408 Integration Seamless Switcher • Installation

Installation, cont’d

ISS 408 Integration Seamless Switcher • Installation2-10

ISS 408 Integration Seamless Switcher

Chapter Three

3

Operation

Front Panel Controls and Indicators

Front Panel Operations

Optimizing the Video

Optimizing the Audio

Troubleshooting

Operation, cont’d

Operation

Front Panel Controls and Indicators

All of the switcher’s controls and indicators are on the front panel (figure 3-1). A
label window above the input buttons can be labeled with text and/or graphics.
The 20 x 4 LCD display indicates the switcher status, menu selections, the data rate,
and the status of additional system features.

6

INPUTS

BLACK 1 2 3 4 5 6 7 8 VIDEO

1 2 3 4 5 6 7 8 AUDIO

MUTE

2

CUT

DISSOLVE

COLOR/

BRT/

SIZE CENTER FILTER

TINT

CONT

MENU NEXT

31

4

8 9

Figure 3-1 — Integration Seamless Switcher front panel

Black/Mute, input selection, and Cut/Dissolve controls

Black/Mute button and LEDs — The Black/Mute button switches the

1

program output to a black screen and/or muted audio. The black screen
and/or mute audio is deselected when a cut or dissolve is selected to switch
the preview output to the program output.

Input selection buttons — The Input 1 through 8 buttons select the associated

2

input to scale and display on the preview monitor.
Input selection LEDs — The green Input 1 through 8 LEDs above the input

buttons indicate the video selection. The red Input 1 through 8 LEDs below
the input buttons indicate the audio selection.

75

ADJUST

INTEGRATION SEAMLESS SWITCHER

ISS 408

Flashing LED(s) (green for video and red for audio) indicate the input selected
for the preview output. Solid LED(s) indicate the input selected for the
program output. If there are no flashing LEDs, the same input is selected for
the preview and program outputs.

Video/Audio button — The Video/Audio button selects video, audio, video

3

and audio, or neither for input selection.
Video and Audio LEDs — The green Video LED and red Audio LED indicate

whether video, audio, video and audio, or neither will be selected when you
press the the Input buttons and be indicated by the Input LEDs (

2

Figure 3-2 shows the sequence displayed by the LEDs when you cycle
through video and/or audio selection by pressing the Video/Audio button.

VIDEO

AUDIO

Default

(Video &

Audio)

Press

button

VIDEO

AUDIO

None

Press
button

VIDEO

AUDIO

Video

only

Press

button

VIDEO

AUDIO

Audio

only

Press
button

VIDEO

LED key:

= on, = off

AUDIO

Video &

Audio

Figure 3-2 — Video and/or audio selection cycle

).

ISS 408 Integration Seamless Switcher • Operation3-2

Cut button — Pressing the Cut button causes the ISS to immediately switch

4

the input selected as the preview output to the program output, with no
switching effects added. If black screen and/or mute audio is selected for the
program output, it is deselected when a cut is selected.

Dissolve button — Pressing the Dissolve button causes the ISS to switch the
input selected as the preview output to the program output using the dissolve
effect. If black screen and/or mute audio is selected for the program output,
it is deselected when a dissolve is selected.

Input label panel — This translucent panel can be removed and replaced to

5

insert a label behind the panel. To remove the panel, insert the Philips-head
end of an Extron Tweeker or small Philips-head screwdriver into the hole in
one end of the panel, and gently slide the tab on the edge of the panel out of
the recess in the switcher housing.

Input labels can be created easily with Extron’s button label generator
software, which is shipped with every Extron ISS, or with any Brother
P-Touch™ labeler. Each input can be labeled with names, alphanumeric
characters, or even color bitmaps for easy and intuitive input and output
selection (figure 3-3). See chapter 5, “Switcher Software”, for details on using
the label software.

INPUTS

Rack DVD
(DVS 100)

12345678

12345678

Figure 3-3 — Sample label

Picture adjustment and menu system controls

Picture Adjustment buttons and LEDs — The picture adjustment buttons

6

select individual image adjustments that are adjusted using the Adjust
Adjust
pressed. See “Picture adjustments” later in this chapter.

knobs (9). The LEDs above these buttons light when the button is

®

and

Color/Tint control button — The Color/Tint button selects the display color
and tint adjustments. The color adjustment range is from 0 to 127. The tint
adjustment range is from 0 to 255.

The Color/Tint control affects only composite video and S-video inputs.

Brightness/Contrast control button — The Brightness/Contrast button
selects the display brightness and contrast adjustments. The adjustment
range for both brightness and contrast is from 0 to 63. See “Picture
adjustments” later in this chapter.

Size control button — The Size button selects the display size adjustment.
The adjustment range depends on the output resolution selected. See “Picture
adjustments” later in this chapter.

3-3ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

Center control button — The Center button selects the display centering
adjustment. The adjustment range depends on the output resolution selected.

Filter control (Detail) button — The Detail button selects the display image
detail (sharpness) adjustment. There are separate horizontal and vertical
filters for RGB and component video. There is a single filter for S-video and
composite video. The sharpness adjustment compensates for long cable runs.

• For RGB and component video, the Adjust

horizontal filter and the Adjust
adjustment range for the horizontal filter is from 0 to 3. The adjustment
range for the vertical filter is from 0 to 7.

• For S-video and composite video, either Adjust knob controls the filter

setting. The range of the adjustment is from 0 to 7.

Status display — The 20-column by 4-line LCD displays configuration menus

7

and status information. See “Front Panel Operations”, later in this chapter,
for details.

Menu button — The Menu button enters and moves through the main menu

8

system in the ISS. See “Front Panel Operations”, later in this chapter, for
details.

Next button — The Next button steps through the submenus in the ISS menu
system. See “Front Panel Operations”, later in this chapter, for details.

Adjust (horizontal) and Adjust (vertical) knobs — The Adjust and

9

Adjust
adjustment buttons or the menu system. Rotate these knobs to change picture
settings when one of the picture adjustment buttons is selected. In the menu
system, rotate these knobs to scroll through the selection options and make
adjustments.

knobs change settings when used in conjunction with the picture

Front Panel Operations

The following paragraphs detail the power-up process and then describe input
selection, preset selection, Auto-Imaging, and then details the menu system, the
picture adjustments, and selection of executive mode.

knob controls the

knob controls the vertical filter. The

Power-on indications

Power is automatically applied when the power cord is connected to an AC source.
When AC power is applied, the switcher performs a self-test that blinks all of the
front panel LEDs and then lights only the LEDs for the inputs previously selected
for the preview output (blinking LED[s]) and program output (solid LED[s]). The
self-test also displays the model name, part number, and the firmware version in
the LCD display. After approximately 2 seconds, the LCD reverts to its default
display cycle, alternating between two displays: one showing the selected program
and preview inputs and their rates, and the other showing the selected output rate
(figure 3-4). An error-free power up self-test sequence leaves all of the LEDs off,
with the exception of the selected input’s LED, and the LCD cycling through the
default displays.

The selected preview and program inputs, the picture adjustments, and other
current settings are saved in nonvolatile memory. When power is applied, the
latest configuration is retrieved.

ISS 408 Integration Seamless Switcher • Operation3-4

Power

on

On figure 3-4 and all other flowcharts in this chapter, solid lines indicate
screen changes initiated by the operator. Dashed lines indicate screen changes
that are the result of a timeout function.

Default Display Cycle

Extron Electronics

ISS 408

Integration

Seamless Switcher

Extron Electronics

2
sec.

60-423-01

Version

ISS 408

x.xx

2
sec.

Program #1 RGB

0.00 kHz 0.00Hz

Preview #3 S-Video

0.00 kHz 0.00Hz

2
sec.

Output Rate

1280 x 1024 @ 60

2
sec.

Figure 3-4 — LCD power up and default display cycle

Selecting an input and switching it to the program output

1. Press and release the Video/Audio button as necessary to select either video

and audio, video only, or audio only (figure 3-5).

VIDEO

The video LED lights green
when video is selected.

Press the button to cycle

through the selections.

The audio LED lights red
when audio is selected.

AUDIO

Figure 3-5 — Selecting video and audio

2. Press and release an input button (figure 3-6).

Press and release the Input 3 button.
The Input 3 video (upper) LED and Input 3 audio (lower) LED

blink to indicate that the video and audio inputs are selected,
the video is scaled, and output as the preview output.

345678 VIDEO

345678 AUDI O

The Input 6 video (upper) LED and Input 6 audio (lower) LED
remain lit steadily to indicate that the video and audio inputs
are selected, the video is scaled, and output as the program
output.

Figure 3-6 — Selecting an input

CUT

DISSOLVE

LED key:

= on, = blinking, = off

3-5ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

3. Press and release either the Cut or Dissolve button.
Cut button — The ISS immediately switches the input selected as the preview

output to the program output, with no switching effects added (figure 3-7).

CUT

Press and release the Cut button.
The Input 3 video (upper) LED and Input 3 audio (lower) LED

immediately light steadily to indicate that the video and audio
inputs are selected, the video is scaled, and output as the

program output.

3 4 5 6 7 8 VIDEO

3 4 5 6 7 8 AUDIO

The Input 6 video (upper) LED and Input 6 audio (lower) LED go
out to indicate that the video and audio inputs are deselected.

LED key:

= on, = off

Figure 3-7 — Cutting to the selected input

Dissolve button — The ISS switches the input selected as the preview output
to the program output using the dissolve effect (figure 3-8).

DISSOLVE

Press and release the Dissolve button.
After a user-defined interval, the Input 3 video (upper) LED

and Input 3 audio (lower) LED light steadily to indicate that
the video and audio inputs are selected, the video is scaled,
and output as the program output.

3 4 5 6 7 8 VIDEO

345678AUDIO

The Input 6 video (upper) LED and Input 6 audio (lower) LED go
out to indicate that the video and audio inputs are deselected.

LED key:

= on, = off

Figure 3-8 — Dissolving to the selected input

ISS 408 Integration Seamless Switcher • Operation3-6

Recalling a user preset

3

3

3

3

There are three user presets per input. The presets save color, tint, contrast,
brightness, detail, sizing, and centering settings. See “User Presets menu”, later in
this chapter, to save and erase presets. Cycle through and recall these memories by
repeatedly pressing the appropriate input button. The LCD panel identifies the
recalled preset (figure 3-9).

Press Button

3

User Preset #2

Recalled

Figure 3-9 — Recalling user presets

Auto imaging an input

The auto imaging feature automatically sizes and centers the selected input to fill
the screen. Command the auto imaging feature for a specific input by pressing and

holding the appropriate input button until the LCD displays the message
Auto Image Input #n. Release the input button then press and release the input

button again. The LCD displays AutoSizing and Centering Please Wait... until the
operation is complete.

Alternatively, using the menu system, you can set this feature to apply the Auto
Image adjustments to every input as it is selected (see “Auto Imaging and Auto
Memories submenu”, later in this chapter).

3

User Preset #3

Recalled

Press Button

3

User Preset #1

Recalled

Press Button

3

User Preset #2

Recalled

3-7ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

Menu system overview

Figure 3-10 shows a flowchart of the main menus in the menu system.

Power

Extron Electronics

ISS 408

Integration

Seamless Switcher

Extron Electronics

ISS 408

60-423-01

Version x.xx

Default

Cycle

Menu

on

2 sec.

2 sec.

Video & Audio

Configuration

10 sec.

Menu

Menu

10 sec.

Output

Configuration

User Presets

Menu

Menu

Press Next to Exit

10 sec.

Advanced

Configuration

Exit Menu

Menu

10 sec.10 sec.

Next

Figure 3-10 — Menu system flowchart

Menu button — Press the Menu button to activate the menu system and to scroll

through the five main menus.

Next button — Press the Next button to move between the submenus of a selected

main menu, to activate one for viewing or configuration, and to save a
selection. Pressing the Next button during input configuration causes the
current input’s number and format type to be displayed on the LCD.

Adjust

and Adjust knobs — When a submenu is active, rotate the Adjust

knob and Adjust knob to scroll through the submenu options and select a
setting. Refer to the flowcharts in this chapter and to specific sections for
explanations on knob adjustments.

If you press the Menu button while a main menu or a submenu is active, the
next main menu becomes active. For example, the display changes from the
Video & Audio Configuration main menu or the Input Configuration
submenu to the Output Configuration main menu.

To return to the default screens, let the switcher remain idle for 10 seconds
until the selected screen times out; or press the Menu button until the Exit
Menu appears, then press the Next button.

ISS 408 Integration Seamless Switcher • Operation3-8

From any menu or submenu, after 10 seconds of inactivity, the ISS saves all
adjustment settings and times out to the default LCD display cycle.

Video & Audio Configuration menu

Figure 3-11 is a flowchart that shows an overview of the Video & Audio
Configuration menu and the available settings.

Default

Cycle

Menu

Video & Audio

Configuration

Configuration

Advanced

Configuration

User Presets

Menu

Exit Menu

Press Next to Exit

Next

Menu

Output

Menu

Menu

Menu

10 sec. 10 sec.

Next

Input Configuration:

Select an input to configure
by pressing an Input button.

Rotate the knob to select
the video type.

Input video type

• RGB • Betacam 60

• RGBcvS • HDTV

• YUVi • S-video

• YUVp • Composite

• Betacam 50

Next

Video/Audio Config

Input #1 Composite

Menu

Audio #3 Level -12db

1

1

Rotate the knob to select
the audio level.

Input audio level

-24dB to +9dB

NOTE The audio is broken

away in this example.

Input Configuration:

If necessary, select
another input and
repeat.

Figure 3-11 — Video and Audio Configuration menu flowchart

2

2

Input Configuration submenu

Select an input to configure by pressing and releasing an input button. Rotate the
Adjust

knob while in the Input Configuration submenu to select the correct
video format (RGB, RGBcvS, YUVi, YUVp, Betacam 50, Betacam 60, HDTV, S-video,
or composite video) for the selected input. Rotate the Adjust knob to select the
audio gain or attenuation value, from -24 dB to +9 dB. The defaults for each input
are RGB video and a 0 dB audio level.

3-9ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

Output Configuration menu

Figure 3-12 is a flowchart that shows an overview of the Output Configuration
menu, the submenus, and the available settings.

Default

Cycle

Menu

10 sec.

Video & Audio

Configuration

Configuration

Configuration

User Presets

Menu

Press Next to Exit

Menu

Output

Menu

Next

Advanced

Menu

Menu

Output resolutions

See the table on the next
page for available
combinations of
resolutions and refresh
rates.

Default: 1024x768, 60 Hz

Exit Menu

Next

Figure 3-12 — Output Configuration menu flowchart

Output Resolution submenu

Rotate the Adjust
output resolutions.

10 sec.

Output Resolution

1280 x 1024

Refresh Rate

60 Hz

Output frequencies

NOTE Lock = AFL

Next Next

Output Sync Type

H Neg V Pos

Output signal format

• RGBHV

• RGBS

10 sec.

RGBHV

Sync Polarity

Polarity combinations

• H-/V- (default)

• H-/V+

Menu

• H+/V-

• H+/V+

knob while this submenu is active to select one of the available

Rotate the Adjust

knob while in this submenu to select one of the available refresh
(vertical scanning) rates. Selecting Lock enables the Extron Accu-RATE Frame Lock
(AFL) feature. Accu-RATE Frame Lock eliminates image tearing and other artifacts
of scaling motion video by eliminating frame rate conversion. It exactly matches
the output rate of the ISS to the frame rate of input 1. Select this feature if you will
be using motion video sources with a display that is capable of a variety of refresh
rates. AFL is compatible with 50 Hz and 60 Hz only.

The default resolution and rate is 1024 x 768 @ 60 Hz.

ISS 408 Integration Seamless Switcher • Operation3-10

Resolution

p

50 Hz 56 Hz 60 Hz 75 Hz 85 Hz

Lock at 50/60 Hz Actual DVI output

✝

640 x 480

800 x 600

832 x 624

848 x 480

852 x 480

1024 x 768*

1280 x 768*

1280 x 1024*

1360 x 765*

1365 x 768*

1365 x 1024

1366 x 768*

1400 x 1050*

576p HDTV*

720p* HDTV @ 60 Hz only

1080p HDTV @ 60 Hz only

1080i HDTV

* Native DVI output resolution

✝✝ The out

•

•

•

ut refresh rate is auto-selected, based on the video refresh rate of input 1.

•••

•••

••

•

•

•

•

•

••

••• ••

••

•

••

•

•••

•

•

•

••

•

•

•

•

•

••

• For output resolutions with less than 1024 pixels horizontally, the
optional DVI program output’s true horizontal resolution is limited to
1024 pixels. The vertical resolution is the selected vertical resolution. For
these resolutions, the ISS DVI output is 1024 x {selected vertical size}.
For example, if the output resolution is set to 640 x 480, the DVI output
card’s actual resolution is 1024 × 480.

• For the 1365 x 1024, 1080p, and 1080i output resolutions, the optional
DVI program output’s true horizontal resolution is limited to 1280 pixels.
For these resolutions, the ISS DVI output is 1280 x {selected vertical
size}. For example, if the output resolution is set to 1080p, the DVI output
card’s actual resolution is 1280 x 1080.

• The DVI card outputs all other selected resolutions normally.

• Resolutions marked with an asterisk (*) in the table above are native DVI
outputs, meaning that the DVI output fully supports the selected
horizontal and vertical resolution. The DVI output resolution for these
rates exactly matches the analog resolution.

•

•

•

1024 x 480

1024 x 600

1024 x 624

1024 x 480

1024 x 480

1024 x 768

1280 x 768

1280 x 1024

1360 x 765

1365 x 768

1280 x 1024

1366 x 768

1400 x 1050

720 x 576

1280 x 720

1280 x 1080

1280 x 540

Sync Type and Polarity submenu

Rotate the Adjust
(RGBHV or RGBS).

The display or projector may require a particular combination of horizontal (H) and
vertical (V) sync signal polarities. Select the appropriate combination of positive or

negative H and V sync by rotating the Adjust

knob while in this submenu to select the output video type

knob.

3-11ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

Advanced Configuration menu

Figure 3-13 is a flowchart that shows an overview of the Advanced Configuration
menu, the submenus, and the available settings.

Default

Cycle

Menu

Video & Audio
Configuration

Configuration

Configuration

User Presets

Menu

Press Next to Exit

Menu

Output

Menu

Advanced

Menu

Menu

Exit Menu

Next

10 sec.

Next

Select a test pattern
with the Adjust knob.

10 sec.

Next

Set test pattern type

• Color Bars

• Crosshatch

• 4x4 crosshatch

• Grayscale

• Crop

Next

Next

Select preview/program
off/on with the Adjust
knob.

Test Pattern
Color Bars

Program Preview

Off Off

• Alternating pixels

• Film aspect 1.78

• Film aspect 1.85

• Film aspect 2.35

• Ramp

Select top blanking with
the Adjust knob.

Select bottom blanking
with the Adjust knob.

10 sec.

Program Blanking

Top Bottom
000 000

Change this setting
with either Adjust knob.

Enhanced Mode

<

Off> On

Change this value with
either Adjust knob.

Dissolve Speed

1.0 Second

Time of the dissolve
(Dissolve button)

0.1 – 5.0 seconds

Select top blanking with
the Adjust knob.

Select bottom blanking
with the Adjust knob.

Preview Blanking

Top Bottom
000 000

10 sec. 10 sec. 10 sec.

Select auto imaging
with the Adjust knob.

Select auto memories
with the Adjust knob.

Auto Imaging

<

Off> On

Auto Memories

<

Off> On

10 sec. 10 sec. 10 sec.

Select blue mode with
the Adjust knob.

Select edge smoothing

with the Adjust knob.

Next

Next

Next

Blue Only Mode

<

Edge Smoothing

<

• Output blue video
and sync only

• Enhance edges

Change this value with
either Adjust knob.

Preview 0.8 Seconds

Change both values
simultaneously with
either Adjust knob.

Program Preview

016 016

10 sec.

Off> On

Off> On

Next

RGB Delay

Next

Pixel Phase

Next

To reset the switcher, press and
hold the Black button until
the reset message appears.
*Adjust knobs do not affect

this submenu.

Next

Press and Hold

BLACK/MUTE

Reset Unit?

To Reset

Menu

Next

Default

Cycle

Change this setting
with either Adjust knob.

Preview Switch Mode

<

Swap

Stay

10 sec.

>

Select an input.
Change this setting

with either Adjust knob.

Next

PAL Film Mode

Input #2

<

Off> On

10 sec. 10 sec.10 sec.

If necessary, select
another input and
repeat.

Figure 3-13 — Advanced Configuration menu flowchart

ISS 408 Integration Seamless Switcher • Operation3-12

Dissolve Speed submenu

The Dissolve Speed submenu displays and allows you to set the duration of the
dissolve effect when switching the preview output to the program output.

Use either the Adjust

knob or the Adjust knob to select the dissolve speed from

0.1 seconds to 5.0 seconds in 0.1 second steps. The default is 1.0 seconds.

Test Pattern submenu

The Test Pattern submenu lets you select from among several test patterns and
assigns the selected pattern to an output. The test patterns are helpful when you
are adjusting the connected displays for color, convergence, focus, resolution,
contrast, grayscale, and aspect ratio.

Use the Adjust

knob to select a test pattern. The options are: Color Bars,

crosshatch, 4 x 4 crosshatch, grayscale, crop, alternating pixels, film aspect ratios

1.78, 1.85, 2.35, and ramp.
Use the Adjust

knob to assign the output(s) for the selected test pattern. Select

among neither output (both off), the preview output, the program output, or both
outputs.

Blue-Only Mode and Edge Smoothing submenu

The Blue-Only Mode and Edge Smoothing submenu lets you turn the blue mode
and edge smoothing features on and off. Blue-only mode is helpful in the setup of
the color and tint of the incoming video signal. In the blue-only mode, only the
sync and blue video signals are passed to the display. Edge enhancement mode
smooths edges of a picture by minimizing the differences between pixels.

Use the Adjust
Use the Adjust

knob to turn blue-only mode On or Off. The default is Off.

knob to turn edge enhancement mode On and Off. The default is

Off.

Preview and Program Blanking submenus

The Preview Blanking submenu and Program Blanking submenu allow you to
adjust the top and bottom line blanking on the preview and program monitors
within a range of 0 to 200 lines. During scaling, captioning and tapehead switching
in the video’s blanking area may show up as picture noise. Using blanking, you
can add black lines at the top and bottom edges of the image to eliminate edge
noise.

Use the Adjust

knob to increase or decrease the top line blanking. The default is

0 lines.
Use the Adjust

knob to increase or decrease the bottom line blanking. The default

is 0 lines.

RGB Delay submenu

The RGB Delay submenu displays and lets you set the RGB delay when switching a
selected input to the preview output. With RGB delay, sync is never removed from
the preview display. Rather, the ISS blanks the RGB (video) outputs while the
scaler locks to the new sync, and then switches the RGB signals. This allows a brief
delay for the displays to adjust to the new sync timing before displaying the new
picture, which appears without glitches. RGB delay is also known as
Triple-Action Switching

Use either the Adjust

™

or video mute switching.

knob or the Adjust knob to select the blanking period

(RGB delay time) from 0 seconds to 5 seconds in 0.1 second steps. The default is

0.2 seconds.

3-13ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

Auto Imaging and Auto Memories submenu

The Auto Imaging and Auto Memories menu provides a means to turn the auto
imaging and auto presets features on or off for all input selections.

If auto imaging is set to on, the ISS automatically sizes and centers the selected
input to fill the screen when a new frequency is input. If auto imaging is set to off,
the ISS sizes and centers the selected input only when it is commanded using the
input button. See “Auto imaging an input”, earlier in this chapter. Rotate the
Adjust

The auto memories feature saves and recalls centering, sizing, and filtering
information, based on the input frequency. Auto memory settings may conflict
with user preset settings. When you use a control system to switch inputs and then
recall a user memory, the delay in recalling the auto memory settings could result
in the recalled auto memory settings overwriting the recalled user memory settings.
To prevent this conflict, turn auto memories off. Rotate the Adjust
auto memories on or off.

Enhanced Mode submenu

The Enhanced Mode submenu provides a means to turn enhanced mode on or off.
Enhanced mode is an automatic gain control for S-video or composite video input
signals scaled and applied to the program output. If the input signal level is too
weak, the signal gain is increased; if the input signal level is strong, the signal gain
is decreased.

Use either the Adjust
on for the program output. The default is Off.

knob to toggle auto imaging on or off for all input selections.

knob to toggle

or the Adjust knob to select among enhanced mode off or

Enhanced mode is effective only for S-video and composite video input signals.

Pixel Phase submenu

The Pixel Phase submenu displays and lets you set the pixel phase, which is the
timing of the digital scaler’s sampling. Sampling at the optimum pixel phase
results in a brighter scaled output.

Use either the Adjust
outputs simultaneously from 0 to 31. The default is 16.

Preview Switch Mode submenu

The Preview Switch Mode submenu lets you set the way the preview output
responds to the cut or dissolve operation.

• Stay mode — When you initiate either a cut or dissolve operation, the video

and audio signals on the preview output are applied to the program output
(figure 3-14) and also continue to be applied to the preview output until
another input is selected.

The video input switches between the switcher’s two internal scalers,
resulting in a switching report being issued on the RS-232 port (see
“Switcher-Initiated Messages” in chapter 4, “Operation”).

• Swap mode — When you initiate either a cut or dissolve operation, the

preview and program outputs are swapped (figure 3-14). The video and
audio signals on the preview output are applied to the program output. The
video and audio signals that had been applied to the program output are
applied to the preview output.

Each of the switcher’s two internal scalers retains the same video inputs; only
the outputs are swapped. No switching report is issued on the RS-232 port
(see “Switcher-Initiated Messages” in chapter 4, “Operation”).

or the Adjust knob to select the pixel phase for both

ISS 408 Integration Seamless Switcher • Operation3-14

CUT

(

or

r

ISS

CUT

ISS

Input 1

program output)

Input 2

(preview output)

DISSOLVE

Press Cut or
Dissolve

Scaler A

Scaler B

RS-232 Report

Stay Mode

Program Monitor

(input 2)

Preview Monitor

(input 2)

Input 1

(program output)

Input 2

(preview output)

DISSOLVE

Press Cut or
Dissolve

Scaler A

Scaler B

NO RS-232 Report

Swap Mode

Scaler A Changes Inputs Neither Scaler Changes Inputs

Figure 3-14 — Stay mode and swap mode

Use either the Adjust

knob or the Adjust knob to select Stay or Swap.

PAL Film Mode submenu

The PAL Film Mode submenu lets you turn PAL film mode (2:2 pulldown
detection) on and off for the selected input. The PAL film mode should be used for
a video source that is PAL video that originated from film. PAL film mode applies
video processing algorithms that optimize the conversion of video that was made
with the 2:2 pulldown (PAL video from film) process.

Use either the Adjust

knob or the Adjust knob to select On or Off. Select other

inputs as necessary to configure.

Program Monit

(input 2)

Preview Monito

(input 1)

Reset submenu

The Reset submenu resets the ISS 408 to the default values. Reset the switcher by
pressing and holding the Black/Mute button while this submenu is active. The
LCD displays Unit Reset to Factory Defaults when the reset is complete. Release
the Black/Mute button.

3-15ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

User Presets menu

Figure 3-15 is a flowchart that shows an overview of the User Presets menu, the
Save Preview Preset and Erase Preview Preset submenus, and the available
settings.

Default

Cycle

Menu

Video & Audio

Configuration

Menu

Output

Configuration

Menu

Advanced

Configuration

10 sec.

User Presets

Menu

Press Next to Exit

Menu

Menu

Exit Menu

Next

Next

10 sec.

Save Preview Preset

<N/A> 1 2 3

Use either Adjust knob
to select a preset or no
preset (N/A). Press Next.

Next

Erase Preview Preset

<N/A> 1 2 3

Use either Adjust knob
to select a preset or no
preset (N/A). Press Next.

10 sec.

Figure 3-15 — User Presets menu flowchart

Save Preview Preset submenu

Rotate either the Adjust

or the Adjust knob while in the Save Preview Preset
submenu to highlight (< >) one of three memory presets for the selected input or to
highlight N/A for no preset. Press the Next button to save the current settings to
the selected preset. Select N/A and press the Next button to exit without saving
the settings.

User presets are are saved values of the current color, tint, contrast, brightness,
detail, sizing, and centering settings. Presets are saved in nonvolatile memory;
when the ISS is powered down and later powered back up, the settings are
available for selection. Saving the settings to a preset number overwrites the
settings previously written to that preset number.

The color, tint, contrast, brightness, detail, sizing, and centering settings are
tailored for the selected output rate. If you change the output rate and then
recall a preset for the earlier rate, the adjustments recalled in the preset have no
effect on the video output. However, if you then change back to the earlier
output rate, the effects of the adjustments appear on the screen if they were not
overwritten for the old output rate.

Menu

Next

ISS 408 Integration Seamless Switcher • Operation3-16

User presets are recalled using the Input buttons. See “Recalling a user preset”,
earlier in this chapter, for instructions on recalling a user preset.

Erase Preview Presets submenu

Rotate either the Adjust

or the Adjust knob while the Erase Preview Presets
submenu is active to highlight (< >) one of three user presets to erase or to highlight
N/A for no preset. Press the Next button to erase the user preset. Highlight N/A
and press the Next button to exit without erasing the presets.

Exit menu

From the Exit menu (figure 3-16), press the Next button to return to the default
display cycle, or press the Menu button to return to the Video & Audio
Configuration menu.

User Presets

Menu

Exit Menu

Press Next to Exit

Menu

Video & Audio
Configuration

Next

Default

Cycle

Figure 3-16 — Exit menu flowchart

3-17ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

Picture adjustments

The picture adjustments allow you to fine tune the image quality of the selected
input. When you press one of the Picture Adjustments buttons (Color/Tint,
Brightness/Contrast, Size, Center, or Filter) once, the corresponding image
adjustment menu for the preview image appears on the LCD screen. Press the
button again, and the corresponding image adjustment menu for the program
image appears. In either screen, adjustments can then be made by rotating the
Adjust
nonvolatile memory; when the switcher is powered down and powered up, the
settings are restored.

Adjust an image for centering, sizing, brightness, contrast, color, tint, zoom, or
detail as follows (figure 3-17).

knob or the Adjust knob. Picture adjustment settings are stor ed in

COLOR/

TINT

Preview
Color Tint
127 128
Press again for Prog

COLOR/

TINT

Program
Color Tint
127 128
Press again for Prev

Brightness Contrast
063 063
Press again for Prog

Brightness Contrast
063 063
Press again for Prev

BRT/

CONT

Preview

BRT/

CONT

Program

Extron Electronics

ISS 408 with DVI

Power

on

Horz Size Vert

450 400

Press again for Prog

Horz Size Vert
450 400

Press again for Prev

Integration

Seamless Switcher

SIZE CENTER FILTER

Preview

SIZE CENTER FILTER

Program

Extron Electronics

ISS 408 with DVI

2 sec.

Preview
Horz Center Vert
500 550

Press again for Prog

Program
Horz Center Vert
500 550

Press again for Prev

60-423-01

x.xx

Version

Horz Filter Vert

3 7

Press again for Prog

Horz Filter Vert

3 7

Press again for Prev

2 sec.

Preview

Program

10 sec.
timeout

Display

Cycle

10 sec.

NOTE The Adjust knob and the Adjust knob are used to adjust the

timeout

image settings on the left and right sides of the LCD screen, respectively.

Figure 3-17 — Picture adjustments flowchart

1. Press the desired input button to select the input to adjust.

The adjustments are made to the input signal as it is switched to the output
(preview or program) shown in the LCD only. The adjustments do not affect
the same input switched to the other output.

Color adjustments are available only for component video, S-video, and
composite video inputs.

Tint adjustments are available only for S-video and composite video inputs.

ISS 408 Integration Seamless Switcher • Operation3-18

2. Press the appropriate picture adjustment button: color and tint, brightness

and contrast (Brt/Cont), sizing (Size), centering (Center), or filter. The LCD
display shows the name of the adjustment and the current setting value.

3. Rotate the Adjust

knob or the Adjust knob to vary the settings within the

following adjustment ranges:

The Adjust knobs have no mechanical limits to their rotation.

• Color/Tint: Color adjusts within a range of 0 to 127.

Tint adjusts within a range of 0 to 255.

• Brightness/Contrast: The range for both adjustments is 0 to 63.

• Size: Observe the display and turn the Adjust

decrease the horizontal size of the image. Turn the Adjust

knob to increase or

knob
to increase or decrease the vertical size of the image. The
adjustment range depends on the selected output resolution.

• Center: Observe the display and turn the Adjust

knob to center the
image horizontally or the Adjust knob to center the image
vertically. The adjustment range depends on the selected
output resolution.

• Horizontal and vertical filter (RGB or component video input):

Horizontal (Horz) adjusts within a range of 0 to 3.
Vertical (Vert) adjusts within a range of 0 to 7.

• Filter (S-video and composite video input):

Either knob adjusts within a range of 0 to 7.

4. Repeat steps 2 and 3 for each image adjustment to be made for that input.

Front panel security lockout (Executive mode)

The front panel security lockout limits the operation of the Integration Seamless
Switcher from the front panel. When the switcher’s front panel is locked, all of the
front panel functions are disabled except for input selection, black/mute, cut, and
dissolve.

To toggle the front panel lock on and off, press and hold the Color/Tint and Center
buttons for approximately 2 seconds (figure 3-18). The LCD displays Executive
Mode Enabled or Executive Mode Disabled to indicate the mode. Release the
buttons. The LCD also displays Executive Mode Enabled if you push a locked out
button when the switcher’s front panel is locked.

Default

Cycle

Press and hold both buttons

simultaneously for 2 seconds

Executive Mode

10 sec.
timeout

ISS 408

Enabled

COLOR/

TINT

CENTER

OR

Executive Mode

Disabled

ISS 408

Figure 3-18 — Front panel security lockout flowchart

3-19ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

IP information

To set up the ISS for operation via its Ethernet port, you need to know and be able
to change the IP address. One way to do this is via the IP address and hardware
address screen.

To access the IP address and hardware address screen, press and hold the
Color/Tint and Detail buttons while you apply power to the ISS (figure 3-19).
When the ISS is finished intializing, it displays both addresses.

Press and hold both buttons

simultaneously while applying power.

COLOR/

>

Hardware Address

00-80-00-00-04-04

Select the IP address subfield
with the Adjust knob.

192.168.255

Hardware Address

00-80-00-00-04-04

TINT

192.168.254.254

DETAIL

IP Address

IP Address

>

10 sec.

Powe r

Change the subfield value
with the Adjust knob.

253

NOTE The hardware address is

hardcoded and cannot

Default

Cycle

be changed.

Figure 3-19 — IP information flowchart

If you need to change the IP address, use the Adjust knob to select the desired
subfield. Rotate the Adjust knob to change the value. Repeat the adjustment for
other subfields as required.

Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields separated by
dots (periods). Each field can be numbered from 000 through 255. Leading zeroes,
up to three digits total per field, are optional. Values of 256 and above are invalid.

If the local system administrators have not changed the value, the factory­specified default, 192.168.254.254, is the correct value for this field.

The hardware address is hard-coded and cannot be changed.

Optimizing the Video

Perform the following steps, in sequence, after you have installed the ISS. This
procedure will help you to configure the switcher for the best settings for your
display environment. In a multi-screen environment, perform this procedure for
each display.

See “Advanced Configuration menu”, earlier in this chapter, to select and output a
test pattern and to select and output blue-only video.

See “Picture adjustments”, earlier in this chapter, to make adjustments to the
picture quality.

See “User Presets menu”, earlier in this chapter, to save presets.

ISS 408 Integration Seamless Switcher • Operation3-20

1. If you are using a digital display, such as an LCD or DLP projector, use the

alternating pixels test pattern as a reference to adjust the phase and dot clock
on the display devices. Proceed to step 3.

If you are using a CRT display, use the cross hatch test pattern as a reference
to converge the display.

2. Set the ISS to output either the crop test pattern for 4:3 video or the

appropriate aspect ratio test pattern.

3. Use the display’s positioning controls to position the image so that you can

see all sides of the test pattern on the display.

For the best results of this optimizing procedure, do not use the ISS’s centering
controls to position the image.

4. Select an input. Use the ISS’s size and center functions to fill the crop or

aspect ratio test pattern.

If the input source is a DVD, set the DVD player to output a 16:9 aspect ratio
before sizing the image using the ISS’s size function to correct the aspect ratio.
See “Setting up a DVD source”, below.

When you are sizing and centering a letterbox movie video source, increasing
the brightness on the ISS makes it easier to see the top and bottom of the active
video.

5. If the input source is RGB, use the horizontal and vertical detail adjustments

to increase the sharpness.

6. For S-video and composite video inputs, set the ISS to output blue-only

video and to output the Color Bars test pattern. Using the blue Color Bars as
a reference, use the ISS’s color and tint controls to adjust the video’s color and
tint.

7. For RGB video inputs, set brightness and contrast levels. See “Picture

adjustments”, earlier in this chapter.

8. Save this setting into one of the user memories using the User Presets menu.

See “User Presets menu”, earlier in this chapter.

Setting up a DVD source

To get the best results when using a DVD as a video source, Extron recommends
that the DVD player itself be set up to output an aspect ratio of 16:9 and not 4:3.
Because all DVDs are mastered as 16:9, having them set up for anything else causes
the player to internally scale and compress the signal. The DVD player’s scaling
and compression defeats the advantage of having 3:2 pulldown detection in the ISS.

All sizing adjustments to correct aspect ratio should be done using the ISS.
To change the output aspect ratio of most DVD players:

1. Enter the DVD player’s setup or action menu while the disc is stopped.

2. Select the 16:9 aspect ratio.

3-21ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

Optimizing the Audio

Each individual input audio level can be adjusted within a range of -24 dB to +9 dB,
so there are no noticeable volume differences between sources and for the best
headroom and signal-to-noise ratio. Adjust the audio gain and attenuation as
follows:

1. Connect audio sources to all desired inputs and connect the audio outputs to

output devices such as audio players. See “Input connections” and “Standard
output connections”, in chapter 2, “Installation”. For best results, wire all of
the inputs and the outputs unbalanced.

2. Power on the audio sources, the switcher, and the audio players.

3. Switch among the inputs (see “Selecting an input and switching it to the

program output”, earlier in this chapter), listening to the audio with a critical
ear or measuring the output audio level with test equipment, such as a VU
meter.

4. As necessary, adjust the audio level of each input (see “V ideo & Audio

Configuration menu”, earlier in this chapter) so that the output level is
approximately the same for all selected inputs.

Troubleshooting

The following tips may help you in troubleshooting.

• Some symptoms may resemble others, so you may want to look through all
of the examples before attempting to solve the problem.

• Be prepared to backtrack in case the action taken does not solve the problem.

• It may help to keep notes and sketches in case the troubleshooting process
gets lengthy. This will also give you something to discuss if you call for
technical support.

• Try simplifying the system by eliminating components that may have
introduced the problem or made it more complicated.

• For sync-related problems: Portable digital projectors are designed to operate
close to the video source. Sync problems may result from using long cables
or from improper termination. A sync adapter, such as Extron’s ASTA (active
sync termination adapter), may help solve these problems.

• For LCD and DLP projectors and plasma displays: In addition to the sync­related information above, check the user’s manual that came with the
projector for troubleshooting tips, as well as for settings and adjustments.
Each manufacturer may have its own terms, so look for terms like “auto
setup”, “auto sync”, “pixel phase”, and “tracking”.

General checks

1. Ensure that all devices are plugged in and powered on. The switcher is

receiving power if the LCD is displaying the default display cycle.

2. Ensure that an active input is selected on the switcher.

3. Ensure that the proper signal format is supplied.

4. Check the cabling and make corrections as necessary.

5. Call the Extron S

3

Sales & Technical Support Hotline if necessary.

ISS 408 Integration Seamless Switcher • Operation3-22

Specific problems

The table below shows some common operating problems and their solutions.

Problem Cause Solution

No image appears. The input signal is Connect an input device that is

The image is flashing. The scaled output Change the scaled output to a

The image is too soft. The detail level Use the Filter button to change the

incompatible with the. compatible with the ISS.
ISS.

The input is improperly Use the Video & Audio
configured. Configuration submenu to select

the correct input format.

Freeze mode was Deactivate freeze mode via an SIS
entered via an SIS command.
command when the
image was black.

The scaled output Change the scaled output to a
rate is too high for compatible resolution.
the display.

rate is too high for compatible resolution.
the display.

needs to be detail level.
changed.

3-23ISS 408 Integration Seamless Switcher • Operation

Operation, cont’d

ISS 408 Integration Seamless Switcher • Operation3-24

ISS 408 Integration Seamless Switcher

Chapter Four

4

Programmer’s Guide

RS-232 Link

Ethernet Link

Symbols

Switcher-Initiated Messages

Host-to-Switcher Instructions

Switcher Error Responses

Using the Command/Response Table

Programmer’s Guide

Male

Patch (straight) cable

E

K

RS-232 Link

The switcher’s rear panel Remote port 9-pin D female connector (figure 4-1) can be
connected to the RS-232 serial port output of a host device, such as a computer
running the HyperTerminal utility or a control system. This connection makes
software control of the switcher possible.

Figure 4-1 — Remote connector pin arrangement

The protocol is 9600 baud, 8-bit, 1 stop bit, no parity, and no flow control.

Ethernet Link

The rear panel Ethernet connector on the switcher can be connected to the an

THERNET

Side

Pins:

12345678

RS-232 FunctionPin

1

—

2

TX

3

RX

4

—

5

Gnd

6

—

7

—

8

—

9

—

Not used
Transmit data
Receive data
Not used
Signal ground
Not used
Not used
Not used
Not used

51

9

6

Female

5

1

9

6

Ethernet LAN or WAN. This connection makes SIS control of the
switcher possible using a computer connected to the same LAN or
WAN.

LIN
ACT

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-orange

RJ-45
Connector

2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown

Crossover cable

Insert

twisted

pair wires.

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown

Figure 4-2 — RJ-45 connector pinout table

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-2

Ethernet connection

1

2

3

4

5

6

7

8

9

X11

X12

X13

X14

X15

X16

X17

X18

X19

X20

X21

X22

X23

X24

X25

X26

X27

X28

X29

The cable can be terminated as either a patch cable or a crossover cable (figure 4-2)
and must be properly terminated for your application:

• Patch (straight) cable — Connection of the ISS to an Ethernet hub, router, or

switcher that also hosts a controlling computer

• Crossover cable — Direct connection between the ISS and a computer

Default address

To access the switcher via the Ethernet port, you need the switcher’s IP address. If
the address has been changed to an address comprised of words and characters, the
actual numeric IP address can be determined
information" in chapter 3, Operation) or the Ping utility (see
the switcher’s IP address” or “Pinging to determine the Web IP address” in
appendix A
changed, the factory-specified default is 192.168.254.254.

Symbols

Symbols (Xn values), defined below, are used throughout the discussions of the
switcher-initiated messages that begin on the next page and the command/
response table that begins on page 4-9. The symbols represent variables in the
switcher-initiated messages and the command/response table fields.

using the front panel (see "IP

“Pinging to determine

, “Ethernet Connection”, for more details). If the address has not been

= CR/LF (carriage return/line feed) (hex 0D 0A)
= CR (no line feed)

• = Space

Esc

= Escape key

X

= Input number (1 through 8)
= Output number (1 [program] or 2 [preview])

X

= 0 = off, 1 = on

X
X

= Take level: 0 = video and audio, 1 = video, 2 = audio

X

= Video type:

0 = RGB 5 = Betacam 60
1 = RGBcvS 6 = HDTV
2 = YUV i 7 = S-video
3 = YUVp 8 = Composite
4 = Betacam 50

= Switcher resolution:

X

00 = 640x480 09 = 1365x1024
01 = 800x600 10 = 720p*
02 = 832x624 11 = 1080p
03 = 848x480 12 = 1080i
04 = 852x480 13 = 1400 x 1050
05 = 1024x768* 14 = 576p
06 = 1280x768* 15 = 1366x768
07 = 1280x1024* 16 = 1365x768
08 = 1360x765

* Native DVI resolution.

= Video refresh rate:

X

0 = 50 Hz 3 = 75 Hz
1 = 56 Hz 4 = 85 Hz
2 = 60 Hz 5 = AFL*

Lock or AFL is Accu-RATE Frame Lock
(PAL = 50 Hz, NTSC = 59.94 Hz).

X

= Output video type: 0 = RGBHV, 1 = RGBS
= Output sync polarity:

X

0 = H–/V– 2 = H+/V–
1 = H–/V+ 3 = H+/V+

X10

= Color value (0 thru 127)
= Tint value (0 thru 255)
= Brightness and contrast value (0 thru 63)
= Size value (range depends on the resolution)
= Centering value (range depends on the resolution)
= Blanking value (000 thru 200)
= Pixel sampling phase (000 thru 031)
= Horizontal filter value (0 thru 3)
= Vertical filter or composite/S-video detail filter (1 thru 7)
= Preset number (01 thru 03)
= RGB delay/dissolve speed (00 [RGB] or 01 [dissolve] to 50)
= Program/preview output selection

Prog/Prev Prog/Prev
0 = Off/Off 2 = Off/On
1 = On/Off 3 = On/On

= T est pattern type (001 through 010)

001 = Color Bars 006 = alternating pixels
002 = crosshatch 007 = film aspect ratio 1.78
003 = 4x4 crosshatch 008 = film aspect ratio 1.85
004 = gray scale 009 = film aspect ration 2.35
005 = crop 010 = ramp

= Gain/attenuation: -24dB to +•9 dB, each step = 1 dB
= Gain value: Numeric dB value, 0 to +9

=Attenuation value: Numeric dB value, -1 to -24

= Preview switch mode: 0 = stay mode, 1 = swap mode
= Frequency: nnn.nn (kHz [horizontal] or Hz [vertical])
= Detected input signal standard (0 through 4)

™

0 = none 3 = NTSC 4.43
1 = NTSC 3.58 4 = SECAM
2 = P AL

Dash (–) = not applicable (occurs when the input is
set for RGB or progressive YUV).

= “Take” ef fect: 00 = cut, 01 = dissolve

4-3ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

2

1

2

1

2

1

2

1

2

1

2

1

3

3

4

1

Switcher-Initiated Messages

When a local event such as power-up or a front panel operation occurs, the
switcher responds by sending a message to the host. The switcher-initiated
messages are listed in the following pages. The messages are underlined.

The switcher does not expect a response from the host; but the host program may
request a new status.

Power-up

(c) Copyright 2002, Extron Electronics, ISS 408 Vx.xx
The copyright message is initiated by the switcher when it is first powered on.

Vx.xx is the firmware version number.

Input selection

X

Out
A front panel video and audio switching, cut, or dissolve operation has occurred.

X

is the output number and
Out
A front panel video-only switching, cut, or dissolve operation has occurred.

the output number and
Out
A front panel audio-only switching, cut, or dissolve operation has occurred.

the output number and

X

•In

•All

X

X

•In

•RGB

X

is the input number.

X

X

•In

•Aud

X

is the input number.

X

is the input number.

X

is

X

is

Busy (cut and dissolve)

X

Bsy
A cut or dissolve operation has been initiated or completed and the switcher is

reporting its busy status (
(Bsy1 ), it ignores all SIS commands until it completes the operation and reports
that it is no longer busy (Bsy0 ).

Cutting or dissolving in stay mode

The switcher issues the following reports when you switch the input that is applied
to the preview output to the program output in stay mode:

The sequence of commands may vary, but you should see all of the listed
commands.

X

Tke

Bsy1

X

Out1•In

Bsy0

•All (or RGB or Aud) The input to the program output has

X

). After the switcher has reported that it is busy

(SIS operation response only) The
switcher has received the SIS “Take” (%)
command.

The switcher is busy and will not respond
to any SIS commands.

changed (to the input that had been
switched to preview output).

The switcher is no longer busy and is able
to respond to SIS commands.

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-4

Cutting or dissolving in swap mode

4

1

1

1

5

1

5

7

6

7

8

8

9

9

2

2

2

2

2

2

2

2

The switcher issues the following reports when you swap the preview and program
outputs in swap mode:

X

Tke

Bsy1

X

Out1•In

Out2•In

•All (or RGB or Aud) The input to the program output has

X

•All (or RGB or Aud) The input to the preview output has

Bsy0

Input and output video type

X

X

Typ

A front panel input video type selection has occurred.

X

is the input video type.

X6X

Rte
A front panel output video format selection has occurred.

resolution and

X

Syn
A fr ont panel output video type selection has occurred.

format (RGBHV or RGBS).

X

Pol
A fr ont panel output video polarity selection has occurred.

polarity.

X

is the output refresh rate.

(SIS operation response only) The
switcher has received the SIS “Take” (%)
command.

The switcher is busy and will not respond
to any SIS commands.

changed (to the input that had been
switched to preview output).

changed (to the input that had been
switched to program output).

The switcher is no longer busy and is able
to respond to SIS commands.

X

is the input number and

X

is the output

X

is the output video

X

is the output sync

Picture adjustments

X

X10

Col

A front panel color adjustment has occurred.

X10

the adjusted input and

X

X11

Tin

is the color variable.

A front panel tint adjustment has occurred.
the adjusted input and

X

X12

Brt

X11

is the tint variable.

A front panel color brightness adjustment has occurred.
switched to the adjusted input and

X

X12

Con

X12

is the brightness variable.

A front panel contrast adjustment has occurred.
to the adjusted input and

X12

is the contrast variable.

X

is the output number switched to

X

is the output number switched to

X

is the output number

X

is the output number switched

4-5ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

3

3

3

3

X

X13

Hsz
A front panel horizontal size adjustment has occurred.

X13

and

A front panel vertical size adjustment has occurred.

A front panel horizontal centering adjustment has occurred.
number and

A front panel vertical centering adjustment has occurred.
and

A front panel top line blanking adjustment has occurred.
and

A fr ont panel bottom line blanking adjustment has occurred.
number and

A front panel pixel phase adjustment has occurred.

A front panel horizontal detail filter adjustment has occurred for the RGB or
component video input tied to output

A front panel vertical detail filter adjustment has occurr ed for the RGB or
component video input tied to output

A front panel vertical detail filter adjustment has occurred for the S-video or
composite video input tied to output

Blu
The blue-only mode has been turned on for both outputs or off for both outputs

from the front panel.
Fil
The edge enhancement mode has been turned on for both outputs or off for both

outputs from the front panel.

is the size variable.

X

X13

Vsz

X13

is the size variable.

X

X14

Hph

X14

is the centering variable.

X

X14

Vph

X14

is the centering variable.

X

X15

Blt

X15

is the blanking variable.

X

X15

Blb

X15

is the blanking variable.

X

X16

Phs

X16

is the pixel phase variable.

X

X17

Dhz

X

X18

Dvz

X

X18

Dvz

X

X

X

is the on/off status for the two outputs.

X

is the output number

X

is the output number and

X

is the output

X

is the output number

X

is the output number

X

is the output

X

is the output number and

X

X17

.

is the filter variable.

X

X18

.

is the filter variable.

X

X18

.

is the filter variable.

X

is the on/off status for the two outputs.

RGB delay and dissolve speed

X20

Dly
A fr ont panel RGB delay adjustment has occurred. RGB delay affects input

X20

selections for the preview output only.

X20

can be as much as 50 = 5.0 seconds.

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-6

is the delay value, in 0.01 second steps.

X20

1

1

2

3

2

3

2

3

2

3

1

3

1

3

3

3

3

3

Dur
A front panel dissolve speed adjustment has occurred. Dissolve speed affects the

duration of the dissolve function when switching the preview output to the

X20

program output.

is the delay value, in 0.01 second steps.

50 = 5.0 seconds.

Test pattern

X21*X22

Tst
A test pattern has been turned on or off from the front panel for one or both

outputs.

X21

is the on/off status for either or both outputs and

selected.

Audio gain and attenuation

X

X23

Aud

A fr ont panel audio input level adjustment has occurred.

X23

is the audio gain or attenuation level.

Output video and audio mute

X

X

Vmt

A front panel video mute operation has occurred.
mute status: 0 = off (video not muted), 1 = on (video muted).

X

X

Amt

A front panel audio mute operation has occurred.
mute status: 0 = off (audio not muted), 1 = on (audio muted).

X20

can be as much as

X22

X

is input number and

X

is the output and

X

is the output and

is the test pattern

X

is the

X

is the

Preview switch mode

X26

Psm
A front panel audio input level adjustment has occurred.

status for preview switch mode. See “Preview Switch Mode submenu” in
chapter 3, “Operation”, for a description of the two switch modes.

PAL film mode

X

X

Flm

The PAL film mode has been selected or deselected from the front panel for the
selected input.

X

is input number and

Automated adjustments

X

The Auto Image feature has been turned on or off from the front panel for all input

selections.

X

Aut
The Auto Presets feature has been turned on or off from the front panel for all input

selections.

X

is the on/off status.

X

is the on/off status.

X26

is the stay or swap

X

is the on/off status for PAL film mode.

4-7ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

3

3

2

2

X

Enh
The enhanced mode feature has been turned on or off from the front panel for

S-video or composite video that is tied to both outputs.
the two outputs.

X

Reconfig
The input selected for the

feature or a user preset.

Host-to-Switcher Instructions

The switcher accepts SIS commands through its RS-232 port and/or its Ethernet
port. SIS commands consist of one or more characters per command field. They do
not require any special characters to begin or end the command character sequence.
Each switcher response to an SIS command ends with a carriage return and a line
feed (CR/LF =

), which signals the end of the response character string. A string

is one or more characters.

Switcher Error Responses

When the switcher receives an SIS command and determines that it is valid, it
performs the command and sends a response to the host device. If the switcher is
unable to perform the command because the command is invalid or contains
invalid parameters, the switcher returns an error response to the host. The error
response codes are:

E01 — Invalid input channel number (too large)

E10 — Invalid command

E11 — Invalid preset number (too large)

E12 — Invalid output number (too large)

E13 — Invalid value (out of range)

X

X

is the on/off status for

output has been adjusted using the Auto Image

Using the Command/Response Table

The command/response table begins on the next page. Except for the gain and
attenuation settings and the filter settings, upper or lower case letters are acceptable
in the command field. The table below shows the hexadecimal equivalent of each
ASCII command.

With the exception of the audio gain and attenuation (G and g) and horizontal
and vertical filtering (D and d) commands, the SIS commands are not case
sensitive.

ASCII to HEX Conversion Table

Space

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-8

Command/response table for SIS commands

2

1

2

1

1

2

2

1

2

1

1

2

2

1

2

1

1

2

2

1

1

2

2

1

1

2

1

1

1

2

2

3

2

2

2

3

2

2

3

3

2

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Input selection

You can select an input for either output (preview or program) using SIS commands.

X

Select video and audio

X

*

! Out

Example: 1*2! Out1•In2•All

X

X

•In

•All Select input

X

X

to

output.

Input 2 video and audio selected
to program output.

Select video only

X

*

& Out

X

X

•In

•RGB Select video input

X

X

to

X

output.

Example: 2*5& Out2•In5•RGB Input 5 video only selected to

preview output.

Select audio only

X

*

$ Out

X

X

•In

•Aud Select audio input

X

X

to

X

output.

View video only

X

&

X

Video input

X

is tied to

X

output.

View audio only

X

$

X

Audio input

X

is tied to

X

output.

Take (switch preview output to program output)

The cut or dissolve effect is determined by the Switching Effect,

X29

(0 = cut, 1 = dissolve) *4#

command. See “Command/Response Table for Special Function SIS Commands”.
The preview switch mode, stay or swap, determines the preview output after the take command.

• In stay mode, the preview output remains unchanged (both outputs share the same input).

• In swap mode, the program output switches to the preview output (the two outputs swap inputs).

Switch video and audio % Tke0 Switch preview video and audio

output to the program output.

Switch video only 1% Tke1 Switch preview video output to

the program output.

Switch audio only 2% Tke2 Switch preview audio output to

the program output.

The response (Tke0 , Tke1 , or Tke2 ) indicates that the switcher has received and is responding
to the “Take” command. A larger series of switcher-initiated messages follows the Tke response
during a cut or dissolve operation. The following two examples show the sequence of responses to a
“Take” command in stay and swap mode. See Busy (cut and dissolve) earlier in this chapter for
more details about the responses after the Tke response.

Example (stay mode): % Tke0 Take command.

Bsy1 Busy.
Out1•In
Bsy0 Clear busy.

X

•All Switch input to program scaler.

Example (swap mode): 1% Tke1 Take command.

Bsy1 Busy.
Out1•In
Out2•In

X

•All Switch input to program scaler.

X

•All Switch input to preview scaler.

Bsy0 Clear busy.

Video mute

Video mute on
Video mute off

View video mute status

X

*1B

X

*0B

X

B

X

X

Vmt

X

X

Vmt

Set the
Set the

X

video output to black.

X

video output to the

selected input 1 through 8.

X

Video mute is

X

X

for

output.

4-9ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

1

5

1

5

1

1

5

1

5

6

7

6

7

6

7

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

Command/response table for SIS commands (cont’d)

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Input video type

Set video type

X

*

\

X

Typ

X

Specify input

X

video type.

X

Example: 4*3\ 4Typ3 Specify input 4 type as YUVp.

View video type

X

\

X

Input

X

video type is

X

.

Scaler output video type

Set output resolution and rate

X

*

= Rte

X

X

*

Command character is “equals”.

X

Example: 5*4= Rte05*4 Set output to 1024x768 at 85 Hz.

X

View resolution and rate = Rte

X

*

Color

Color adjustments are available only for interlaced component video (YUVi), S-video, and
composite video inputs.

X

The

value specified is the output to which the adjusted input is switched.

X

Set a specific color value
Increment color value
Decrement color value
View the color value

X10

*

C

X

+C

X

-C

X

C

X

X10

Col

X

X10

Col

X

X10

Col

X10

Specify the color adjustment.
Increase the color setting by one.
Decrease the color setting by one.
Show the color setting.

Tint

Tint adjustments are available only for S-video and composite video inputs.

X

The

value specified is the output to which the adjusted input is switched.

X

Set a specific tint value
Increment tint value
Decrement tint value
View the tint value

X11

*

T

X

+T

X

-T

X

T

X

X11

Tin

X

X11

Tin

X

X11

Tin

X11

Specify the tint adjustment.
Increase the tint setting by one.
Decrease the tint setting by one.
Show the tint setting.

Brightness

X

The

value specified is the output to which the adjusted input is switched.

Set a specific brightness value

Increment brightness value
Decrement brightness value
View the brightness value

Contrast

X

The

value specified is the output to which the adjusted input is switched.

Set a specific contrast value
Increment contrast value
Decrement contrast value
View the contrast value

Horizontal size

Set a specific horizontal size
Increase the horizontal size
Decrease the horizontal size
View the horizontal size

X

X12

*

Y

X

+Y

X

-Y

X

Y

X

X12

*

^

X

+^

X

-^

X

^

X

X13

*

:

X

+:

X

-:

X

:

X

X12

Brt

Specify the brightness
adjustment.

X

X12

Brt

X

X12

Brt

X12

X

X12

Con

X

X12

Con

X

X12

Con

X12

X

X13

Hsz

X

X13

Hsz

X

X13

Hsz

X13

Increase the brightness.
Decrease the brightness.
Show the brightness setting.

Specify the contrast adjustment.
Increase the contrast.
Decrease the contrast.
Show the contrast setting.

Specify the horizontal size.
Widen the picture.
Make the picture narrower.
Show the horizontal size.

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-10

Command/response table for SIS commands (cont’d)

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

n

2

2

2

2

2

2

2

2

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Vertical size

Set a specific vertical size
Increase the vertical size
Decrease the vertical size
View the vertical size

X13

*

;

X

+;

X

-;

X

;

X

X13

Vsz

X

X13

Vsz

X

X13

Vsz

X13

Specify the vertical size.
Make the picture taller.
Make the picture shorter.
Show the vertical size.

X

Horizontal shift

Set a specific horizontal position
Increment right
Decrement left
View the horizontal position

X14

*

H

X

+H

X

-H

X

H

X

X14

Hph

X

X14

Hph

X

X14

Hph

X14

Specify the horizontal position.
Shift the picture right.
Shift the picture left.
Show the horizontal position.

X

Vertical shift

Set a specific vertical position
Increment up
Increment down
View the vertical position

X14

*

/

X

+/

X

-/

X

/

X

X14

Vph

X

X14

Vph

X

X14

Vph

X14

Specify the vertical position.
Shift the picture up.
Shift the picture down.
Show the vertical position.

X

Top blanking

X

Set a top blanking value

X15

*

(

Example: 1*2( 1Blt2 Blank the top two lines of

Increment top blanking value
Decrement top blanking value
View the top blanking value

X

+(

X

-(

X

(

X

X15

Blt

output 1.

X

X15

Blt

X

X15

Blt

X

X15

Blt

Increase blanking value 1 line.
Decrease blanking value 1 line.

Bottom blanking

Set a bottom blanking value

X15

*

)

X

X15

Blb

X

Example: 2*5) 2Blb5 Blank the bottom five lines of

output 2.
Increment bottom blanking value
Decrement bottom blanking value
View the bottom blanking value

X

+)

X

-)

X

)

X

X15

Blb

X

X15

Blb

X

X15

Blb

Increase blanking value 1 line.

Decrease blanking value 1 line.

Pixel phase

Set a specific pixel sampling phase
Increment sampling value
Decrement sampling value
View the sampling value

X16

*

U

X

+U

X

–U

X

U

X

X16

Phs

X

X16

Phs

X

X16

Phs

X16

Specify the pixel sampling phase.

Increase the phase value.

Decrease the phase value.

Show the pixel sampling phase.

X

Horizontal detail filter (RGB and component video inputs)

The horizontal detail filter is available only for RGB and component video inputs. The same
command with a different

X

variable is available to set a combined detail filter for S-video and

composite video inputs.

X

The

value specified is the output to which the filtered input is switched.

The command (D) is case sensitive.

X

Set a specific filter value
Increment filter value

Decrement filter value

View the horizontal filter value

X17

*

D

X

+D

X

-D

X

D

X

X17

Dhz

X

X17

Dhz

Set the horizontal detail level.

Increase the horizontal detail

level.

X

X17

Dhz

Decrease the horizontal detail

level.

X17

Show the horizontal detail level.

4-11ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

3

3

3

3

2

2

2

2

2

2

2

2

2

2

2

2

3

2

X21

X21

Command/response table for SIS commands (cont’d)

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Vertical detail filter (RGB and component video inputs)

The vertical detail filter is available only for RGB and component video inputs.

X

value specified is the output to which the filtered input is switched.

The
The command (d) is case sensitive.

Set a specific filter value
Increment filter value
Decrement filter value
View the vertical filter value

X18

*

d

X

+d

X

-d

X

d

X

X18

Dvz

X

X18

Dvz

X

X18

Dvz

X18

Set the vertical detail level.
Increase the vertical detail level.
Decrease the vertical detail level.
Show the vertical detail level.

X

Detail filter (S-video and composite video inputs)

Composite and S-video inputs support a single detail filter only, rather than separate horizontal and
vertical filters. To apply a detail filter to the scaled output when the input is composite video or

X18

S-video, use the same command as the horizontal filter (D) with the

X

value specified is the output to which the filtered input is switched.

The

Set a specific filter value
Increment filter value
Decrement filter value
View the vertical filter value

X

X18

*

D

X

+D

X

-D

X

D

X

X18

Dvz

X

X18

Dvz

X

X18

Dvz

X18

variable.

Set the detail filter level.
Increase the detail filter level.
Decrease the detail filter level.
Show the detail filter level.

Auto Memories

Auto memories on 1M Aut

Auto memories off 0M Aut

View auto memories status M

X

Set the ISS to apply auto
memories settings to all selected
inputs.

X

Set the ISS to not apply auto
memories settings.

X

Auto memories is

X

(on or off)

for all inputs.

User presets

X

The

value specified is the output to which the input with the associated user preset is switched.

X

Save user preset

Recall user preset

X19

*

, Spr

X

X19

*

. Rpr

X

X19

•

X

X19

•

Command code is comma. Save

X

the

outputs settings as preset

X19

.

Command code is period. Recall
preset

X19

settings for

X

output.

Freeze

Enable
Disable

View the freeze status

Example:

X

*1F

X

*0F

X

F

X

F0 Freeze mode is off.

X

Frz1 Output a “frozen” video image.

X

Frz0 Turn off freeze (output motion

video).

X

Show the freeze status.

Test pattern

Select test pattern for an output

X21*X22

JTst

View test pattern J

Example: j 3*002 Crosshatch test pattern was

X22

*

Select a test pattern for the

X21

output(s).

X22

*

Show the test pattern.

selected for both outputs.

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-12

Command/response table for SIS commands (cont’d)

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

3

2

2

2

3

2

2

3

3

2

3

3

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Set audio gain and attenuation

The set gain (G) and set attenuation command (g) are case sensitive. The increment, decrement
and view commands are not case sensitive.

Set gain

X24

*

G

X

Aud

X23

Set gain for input

X

X24

to

dB.

X

Example: 4*3G 4Aud+•3 Set gain for input 4 to 3 dB.

Set attenuation

Increment level

X25

*

g

X

+G

X

X23

Aud

X

X15

Aud

Set attenuation for input

X23

dB.

Increase input

X

X

to

audio level by

X

+1 dB.
Decrement level

X

-G

X

Aud

X15

Decrease input

X

audio level by

-1 dB.

View audio level

X

g

X15

View gain for input

X

.

Example: 4G -•3 The ISS reports that the input 4

audio level is at -3 dB of

attenuation.

Audio mute

Audio mute on
Audio mute off
View audio mute status

X

*1Z

X

*0Z

X

Z

X

X

Amt

X

X

Amt

X

Mute the

Unmute the

Audio mute is

X

audio output.

X

audio output.

X

for

X

output.

Executive mode

Disable 0X Exe0 Adjustments and selections can

be made from the front panel.
Enable (lock image adjustments) 1X Exe1 Lock front panel adjustments;

adjust image via RS-232 only.
View the executive mode status X

Example:X 0 Executive mode is off.

X

Show executive mode status.

Verbose mode

The default for verbose mode is on for the RS-232 connection and off for Ethernet connections.

Disable (block reports)

Disabling verbose mode blocks reports for front panel operations only , to this connection
(RS-232 or Ethernet)

The ISS continues to send reports for front panel operations to other connections.

Enable (allow reports)

View the verbose mode status

Example:

Esc

0CV Vrb0 Turn off verbose mode. The ISS

does not send the reports listed

in “Switcher-initiated messages”

earlier in this chapter.

only. The ISS continues to send responses to SIS commands to all ports.

Esc

1CV Vrb1 Turn on verbose mode. The ISS

sends all reports.

Esc

CV

Esc

CV 1 Verbose mode is on (the ISS

X

Show verbose mode status.

issues reports).

4-13ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

2

1

1

3

Command/response table for SIS commands (cont’d)

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Information requests

Query firmware version number Q x.xx Show the controller firmware

version.
Request part number N 60-423-01 Show the ISS’s part #.
Request general information

X

I (See below) Show the ISS’s status.

Vid

X

•Aud

X

•Frz

X

•Hrt

X27

•Vrt

X27

•Std

X28

where: Hrt = horizontal rate (kHz)

and Vrt = vertical rate (Hz).

xxx:xx means the signal is out of range.
The response to the View File Directory command differs, depending on whether the command is

sent via an RS-232 or Telnet connection or sent via a Web browser connection.

View file directory (RS-232)

View file directory (Web)

Esc

DF filename date/time length

filename date/time length
filename date/time length
filename date/time length
nnnn Bytes Left

Esc

DF Switcher response

File [1] = ‘filename1, date1, filesize1’;
File [2] = ‘filename2, date2, filesize2’;
File [3] = ‘filename3, date3, filesize3’;
File [4] = ‘filename4, date4, filesize4’;
File [n] = ‘filenamen, daten, filesizen’;

Resets

Zap all audio adjustments
Zap all ISS settings

Absolute reset

Esc

zA ZapA Reset all audio levels to 0 dB.

Esc

zXXX Zapx Reset all settings:

All inputs: RGB

Ouput: RGBHV 1024x768 @ 60Hz

RGB delay: 1.0 sec.

Audio level: 0 dB

Filtering: Horz. = 3, Vert. = 7

Blanking: 0, top and bottom

Pixel phase: 16

Dissolve speed (duration) 1.0 sec.

Auto Image: Off

Auto Memory recall: On

Esc

ZQQQ Zpq Similar to Zap all ISS settings,

plus clears IP address to

192.168.254.254 and deletes user

and administrator passwords.

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-14

Command/response table for IP SIS commands

= ISS name (Up to 240 characters)

X30

= GMT Time and date (set) MM/DD/YY-HH:MM:SS, wher e

X31

MM = month: 01 (January) through 12 (December)
DD = day: 01 through 31
YY = year: 00 through 99
HH = hour: 00 through 23
MM = minutes: 00 through 59
SS = seconds: 00 through 59

X32

= Time and date (read) In the format: Day,•DD•MMM•YYYY•HH:MM:SS GMT, where

Day = weekday: Mon through Sun
DD = day: 01 through 31
MM = month: Jan through Dec
YYYY = year: 2000 through 2099
HH = hour: 00 through 23
MM = minutes: 00 through 59
SS = seconds: 00 through 59

= IP address ###.###.###.###

X33

= Password 12 digits, alphanumeric

X34

X35

= Hardware address ##-##-##-##-##-##
= Number of open connections 0 - 255

X36

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Set ISS name (location)
Read ISS name (location)
Set GMT/date

Esc X30

CN Ipn•

Esc

CN

Esc X31

CT Ipt•

X30

X30

X32

The date and time entered should be Greenwich Mean Time (GMT).

Read GMT/date
Set IP address

Read IP address
Read hardware address
Read # of open connections
Set administrator password
Read administrator password
Set user password
Read user password

Esc

CT

Esc X33

CI Ipi•

Esc

CI

Esc

CH

Esc

CC

Esc•X34

CA Ipa•

Esc

CA

Esc•X34

CU Ipu•

Esc

CU

X32

X33

X35

X36

X34

X34

X33

The switcher sends the response,
but the host may not receive it.

X34

X34

When the computer is connected to the switcher via the RS-232 link, the Admin and User password
fields are not masked. If a password has been inadvertently changed to an unknown value, you can
look up and, if desired, change a password in this window without knowing the current password.

4-15ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

n

n

X20

X20

X29

8

8

9

9X9

3

3

3

3

3

3

Command/response table for special function SIS commands

The syntax for setting a special function is
(such as 35 in the first example below),

X

*X?# where

X?

is the function number (such as “set RGB

delay” in the first example below), and # is the execute command. To view a

X?

function’s setting, use

# where X? is the function number.

X

is the value or variable

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

RGB delay and dissolve speed

RGB delay (T riple-Action Switching)

Example: 35*3# Dly35 RGB delay set to 3.5 seconds.
Dissolve speed

X20

*3# Dly

X20

*5# Dur

Switching delay of the selected

input to the preview output.

Adjustable in 0.01 second steps

from 0 up to 50 = 5.0 seconds. 0

= 0.0 seconds (default), 1 = 0.1

seconds, 2 = 0.2 seconds, and so

on.

Adjustable in 0.1 second steps

from 1 up to 50 = 5.0 seconds. 1

= 0.1 seconds (default), 1 = 0.1

seconds, 2 = 0.2 seconds, and so

on.

Switch effect

Switching effect

X29

*4# Eff

Set the switch effect, 00 = cut or

01 = dissolve, used by the Take,

%, command.

Scaler output settings

Output sync format

X

*6# Syn

Example: 1*6# Syn1 RGBHV output signal.
Output polarity

X

*7# Pol

Example: 1*7# Pol1 H-/V+ output polarity.

X

00 = RGBHV (default).

01 = RGBS.

X

: Horizontal/Vertical polarity

0 = H–/V– 2 = H+/V–

1 = H–/V+ 3 = H+/V+

Blue screen

Blue screen (blue & sync output only)

X

*8# Blu

Example: 1*8# Blu1 Blue and sync output for setup.

X

0 = off (normal output).

1 = on (blue video and sync

output).

Edge smoothing

Edge smoothing

X

*16# Fil

Example: 1*16# Fil01 Enable edge smoothing.

X

00 = off.

01 = on (default).

Enhanced mode

Enhanced mode

X

*12# Enh

Example: 1*12# Enh01 Enable enhanced mode.

X

0 = off.

1 = on.

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-16

Command/response table for special function SIS commands (cont’d)

3

3

2

2

2

2

2

1

3

1

3X3

1

3

Command ASCII Command Response Additional description

(host to switcher) (switcher to host)

Auto Image

Set Auto Image

X

*13# Img

Example: 1*13# Img01 Set Auto Image on.
Execute Auto Image

X18

*14# Img

If Auto Image adjustments are not necessary for an input, the

X

00 = off.
01 = on.

X18

X18

output:

Prog/Prev Prog/Prev

01 = Yes/No 03 = Yes/Yes
02 = No/Yes

X

Reconfig Output

complete.

X

Reconfig Output

complete.

X

Reconfig message may not be

: Auto Image input tied to

X

Auto Image is

X

Auto Image is

received.

If both outputs are receiving the same input, both outputs are auto imaged regardless of the

X18

received.

PAL film mode

X

Set PAL film mode

X

*

*18#

Example: 8*1*18# 8Flm01 The ISS uses its 2:2 pulldown

Read PAL film mode

X

*18#

X

X

Flm

: 0 = off.

1 = on.

(PAL) video processing
algorithms to scale input 8.

X

0 = off.
1 = on.

Preview switch mode

Set preview switch mode

X26

*20# Psm

Example: 1*20# Psm01 The ISS swaps the preview and

Read preview switch mode 20#

X26 X26

X26

: 0 = stay mode.

1 = swap mode.

program outputs when you
perform a cut or dissolve
operation.

0 = stay mode.
1 = swap mode.

4-17ISS 408 Integration Seamless Switcher • Programmer’s Guide

Programmer’s Guide, cont’d

2

2

2

2

Command/response table for advanced instruction set commands

The advanced instruction set consists of four hexadecimal commands for uploading
and downloading all or a portion of the switcher’s memory. These commands are
for use by knowledgeable programmers, and result in a dump of data from
(upload) or to (download) the switcher. Programmers can use the commands to
exactly duplicate the settings among switchers with a minimum of effort.

Command Hex Command Response Additional description

(host to switcher) (switcher to host)

Memory backup

Read all memory contents 90 91 {8226 data bytes+1 byte checksum} Upload (switcher to control

device) all color, tint, contrast,
brightness, detail, sizing, and
centering settings; all user presets;
and all auto memories for all
inputs and both outputs.

Write all memory contents 90 92+8226 data bytes+1 byte checksum Download (control device to

Read partial contents

Write partial contents

Dn1

X

90 93 {26 data bytes+1 byte checksum} Upload (switcher to control

X

90 94+26 data bytes+1 byte checksum Download (control device to

Dn1 switcher) color, tint, contrast,

switcher) all color, tint, contrast,
brightness, detail, sizing, and
centering settings; all user presets;
and all auto memories for all
inputs and both outputs.

device) color, tint, contrast,
brightness, detail, sizing, and
centering settings; all user presets;
and all auto memories for the
input selected for output

brightness, detail, sizing, and
centering settings; all user presets;
and all auto memories for the
input selected for output

X

X

.

.

ISS 408 Integration Seamless Switcher • Programmer’s Guide4-18

ISS 408 Integration Seamless Switcher

Chapter Five

5

Switcher Software

Control Software for Windows

Button-Label Generator

®

Switcher Software

Control Software for Windows

The Windows-based Extron ISSISM Control Program communicates with the
switcher via the Ethernet LAN port or the rear panel Remote RS-232/RS-422 port to
provide an easy way to set up and operate the switcher. The program is compatible
with Windows 2000 and Windows XP. Updates to these programs can be
downloaded from the Extron Web site (http://www.extron.com).

Installing the software

The program is contained on the Extron Software Products CD-ROM. Install the
software as follows:

1. Insert the CD-ROM into the drive. The installation program should start

automatically. If it does not self-start, run Launch.exe from the CD.
The Extron software CD window appears (figure 5-1).

®

Figure 5-1 — Software CD window

2. Click the Software tab (figure 5-1).

3. Scroll to the desired pr ogram and click Install (figure 5-2).

Figure 5-2 — Software installation

ISS 408 Integration Seamless Switcher • Switcher Software5-2

4. Follow the on-screen instructions. By default, the installation of the

installation routine creates a C:\Program Files\Extron\ISSISM directory, and
it places the following five icons into a group folder named “Extron
Electronics\ISSISM”:

• Button-Label Generator-

• Check for ISSISM Control Program Update

• ISSISM Control Program

• ISSISM Help

• Uninstall ISSISM Control Program

Software operation via Ethernet

When an ISS is connected to an Ethernet WAN or LAN, any number of users can
operate it, locally or remotely, using the ISS/ISM Control Program. See “Ethernet
connection” in chapter 2, “Installation”, for installation details

Connection to the switcher via the Ethernet is password protected. There are two
levels of password protection: administrator and user. Administrators have full
access to all ISS switching capabilities and editing functions. Users can select video
and/or audio for output, select inputs and outputs, select test patterns, set RGB
and audio mutes, select a blue screen, and view all settings with the exception of
passwords. If the same passwords or no password is required for logging on, all
personnel log on with administrator privileges. Fields and functions that exceed
user privileges are grayed out in the ISS/ISM Control Program when the operator
is logged on as a user.

Ethernet protocol settings

The IP Settings/Options screen (figure 5-8 on page 5-6) provides a location for
observing and, if you are connected via the RS-232 link or if logged on via the
Ethernet port as an administrator, editing settings unique to the Ethernet interface.
None of the fields on this screen can be edited while you are logged on as a user.
See “System Configuration Page” in chapter 6, “Ethernet Operation”, for details on
the contents of these fields. See appendix A, “Ethernet Connection”, for other basic
information about Internet protocol.

Editing variables on the IP Settings/Options screen while connected via the
Ethernet port can immediately disconnect the user from the ISS. Extron
recommends editing the settings on this screen using the RS-232 link and
protecting the Ethernet access to this screen by assigning an administrator’s
password to qualified and knowledgeable personnel only.

5-3ISS 408 Integration Seamless Switcher • Switcher Software

Switcher Software, cont’d

Using the control program

Many items found in the ISS/ISM Control Program are also accessible via front
panel controls and the LCD menus, see chapter 3, “Operation”, and under SIS
control, see chapter 4, “Programmer’s Guide”. The ISS/ISM Help Program
provides information on settings and on how to use the control program itself.

1. To run the control program, click Start > Programs >

Extron Electronics > ISSISM. The Comm menu appears on the

screen (figure 5-3).

Figure 5-3 — Comm port selection window

2. Select the comm port that is connected to the ISS’s Remote port or select

IP [LAN] and click OK.

If you selected a comm port, proceed to step 5.
If you selected IP [LAN], proceed to step 3.

3. If you selected IP [LAN] in step 2, the IP connection window appears

(figure 5-4). The window displays the last IP address that this computer was
logged on to via the ISS/ISM Control Program. If no one has logged on to the
ISS from this computer, enter the ISS IP address. If the address has not been
changed, the factory-specified default is 192.168.254.254.

Figure 5-4 — Address and password entry

4. If you selected IP [LAN] in step 2, when prompted, enter the appropriate

administrator or user password and click Connect.
If you logged on using the administrator password, the program connects you

to the ISS with all of the administrator rights and privileges.
If you logged on using the user password, the program connects you to the

ISS with only user capabilities.
If an incorrect password was entered, the program beeps and returns to the

password entry display.

ISS 408 Integration Seamless Switcher • Switcher Software5-4

The Extron ISS/ISM Control Program window (figure 5-5) appears.

Figure 5-5 — Windows Control program window

5. If desired, on the task bar, click Tools > I/O Configuration to configure the

video inputs and outputs in the I/O configuration window (figure 5-6).

Figure 5-6 — Control program I/O Configuration window

6. If desired, on the task bar, click Tools > Audio Settings to set each input’s

audio level or attenuation in the Audio Settings window (figure 5-7).

Figure 5-7 — Control program Audio Settings window

5-5ISS 408 Integration Seamless Switcher • Switcher Software

Switcher Software, cont’d

7. If desired, on the task bar, click Tools > IP Options to set the switcher’s IP

parameters in the IP Settings/Options window (figure 5-8).

Figure 5-8 — Control program IP Setting/Options window

When the control program is connected to the switcher via the RS-232 link, the
Administrator and User password fields are not masked. If a password has
been inadvertently changed to an unknown value, you can look up and, if
desired, change a password in this window without knowing the current
password.

Using the help program

For information on program features, press the F1 computer key; click the Help
menu from within the ISS/ISM Control Program; or double-click the ISS/ISM
Help icon, shown at right, in the Extron Electronics group or folder.

For explanations of buttons or functions, click the tabs in the help screen to reach
the desired screen. Use a mouse or the Tab and Enter keys to select a button/
function. A description and tips on using the program appear on the screen.

Button-Label Generator

You may wish to customize the labeling of the ISS’s front panel buttons. Blank
templates for the ISS’s button label windows are included in appendix B,
“Reference Information”. However, you can easily create, customize, and print
labels for the switcher’s button label windows by using the Button-Label Generator
software.

Installing the software

The program is included on the same CD-ROM as the ISS/ISM Control Program
and is installed automatically when you install that program. It can also be
downloaded from the Extron Web site (http://www.extron.com).

By default, the files are installed in either the C:\ISSISM directory, if installed
automatically with the ISS/ISM Control Program, or the C:\BUTTONS directory if
installed as a stand-alone program. The Button-Label Generator icon is placed in
the “Extron Electronics” group or folder.

ISS 408 Integration Seamless Switcher • Switcher Software5-6

Using the software

1. To run the Button-Label Generator program, click Start >

Programs > Extron Electronics > Button-Label Generator. The

Extron’s Button-Label Generator window appears (figure 5-9).

2. Under Systems selection, choose ISS 408/ISM 482. This

selection creates the correctly sized labels for the ISM’s label
strip. The button label editing area changes to reflect the
number and arrangement of buttons on the device.

Figure 5-9 — Extron’s Button-Label Generator window

3. Using standard Windows controls, you can create and print labels that can be

cut out and placed in the label windows on the front panel of the ISS.
For information about using the program, you can access a help file by

clicking on the Help menu on the main screen and choosing Show Help.
You can also see an example of a completed Extron Button-Label Generator

window by clicking the Help menu on the main screen, choosing Show Help,
and clicking the Load Demo button.

5-7ISS 408 Integration Seamless Switcher • Switcher Software

Switcher Software, cont’d

ISS 408 Integration Seamless Switcher • Switcher Software5-8

ISS 408 Integration Seamless Switcher

Chapter Six

6

Ethernet Operation

Loading the Startup (Control) Page

Control Page

System Configuration Page

File Management Page

I/O Configuration Page

Ethernet Operation, cont’d

Ethernet Operation

The ISS 408 can be controlled and operated through its Ethernet port, connected via
a LAN or WAN, using a Web browser such as the Microsoft
This chapter describes the factory-installed HTML pages, which are always
available and cannot be erased or overwritten.

If your Ethernet connection to the ISS is unstable, try turning off the proxy
server in your Web browser. In Internet Explorer, click Tools > Internet

Options > Connections > LAN Settings, uncheck the “Use a proxy
server...” box, and then click Ok.

Loading the Startup (Control) Page

Access the switcher using HTML pages as follows:

1. Start the Web browser program.

2. Click in the browser’s Address field.

3. Type the switcher’s IP address in the browser’s Address field.

If the value has not been changed, the factory-specified default,

192.168.254.254, is the correct value for this field.

4. If you want the browser to display a page other than the default page (such as
a custom page that you have created and uploaded), enter a slash (/) and the
name of the file to open.

The browser’s Address field should display the address in the following format:

xxx.xxx.xxx.xxx/{optional_file_name.html}
The following characters are invalid in file names: {space} ~ @ = ‘ [ ] { }

< > ’ “ ; : | \ and ?.

5. Press the keyboard Enter key. The switcher checks to see if it is password
protected.

If the switcher is not password protected, proceed to step 7.
If the switcher is password protected, the Enter Network Password page

(figure 6-1) appears.

®

Internet Explorer

®.

Figure 6-1 — Enter Network Password page

A User Name entry is not required.

6. Click in the Password field and type in the appropriate administrator or user
password.

ISS 408 Integration Seamless Switcher • Ethernet Operation6-2

7. Click OK. The switcher checks several possibilities, in the following order,

and then responds accordingly.
a. Does the address include a specific file name, such as

10.13.156.10/file_name.html? If so, the switcher downloads that HTML
page.

b. Is there a file in the switcher’s memory that is named “index.html”?

If so, the switcher loads “index.html” as the default startup page.

c. If neither of the above conditions is true, the switcher loads the factory-

installed default startup page, “nortxe_index.html” (figure 6-2), also
known as the Control page.

Figure 6-2 — Control page

Control Page

The Control page (figure 6-2) provides a means to control the switcher and includes
links to three other pages: System Configuration, File Management, and I/O
Configuration. On the Control page, you can select an input to the preview output
and then cut or dissolve it to the program output or select an input to the program
ouput directly. The Control page also provides tools to check the frequency of an
input and to mute and freeze the outputs. Access the Control page by clicking the
Control tab.

6-3ISS 408 Integration Seamless Switcher • Ethernet Operation

Ethernet Operation, cont’d

Selecting and switching an input

Select and switch an input as follows:

1. Click the Video/Audio, Video, or Audio button to select both the video and

audio planes, the video plane only, or the audio plane only for switching
(audio follow or audio breakaway).

2. Select an input for the preview or program monitor by clicking the desir ed

input button in either the Preview or the Program row. After the RGB delay
(for the preview output only), the selected input is displayed on the preview
or program monitor. The selected input button turns blue to indicate a video
and audio or video only selection, or yellow to indicate an audio selection.
The RGB delay is user-selectable. See “Changing the RGB delay or dissolve
speed”, below.

3. When you are ready to display the preview image on the pr ogram monitor,

click either the Cut or Dissolve button.
If you click Cut, the preview image is immediately and seamlessly switched to

the program output.
If you click Dissolve, the preview image is seamlessly switched to the program

image and the switch is masked by a dissolve effect. The dissolve effect’s
duration is user-selectable, see “Changing the RGB delay or dissolve speed”,
below.

Changing the RGB delay or dissolve speed

The RGB delay interval defines how long the screen is blanked when you are
selecting a new input for the preview monitor. The dissolve speed specifies the
length of the dissolve effect that can be used when switching the preview monitor
image to the program monitor.

Change the RGB delay or dissolve speed as follows:

1. Click in either the RGB Delay or Dissolve Speed field. A drop-down scroll

box appears (figure 6-3).

Figure 6-3 — RGB Delay and Dissolve Speed scroll boxes

2. Click and drag the slider or click the scroll up (

until the desired rate is visible.

3. Click the desired variable.

) or scroll down ( ) button

ISS 408 Integration Seamless Switcher • Ethernet Operation6-4

Blacking out the screen and muting the audio

You can mute the video (black out the screen) and/or audio to the program or
preview output from the Control page as follows:

1. Click the Video/Audio, Video, or Audio button to select both the video and

audio planes, the video plane only, or the audio plane only for muting.

2. Click the Program or Preview Black/Mute button. The Black/Mute button

turns blue to indicate a video and audio mute or video only mute, or it turns
yellow to indicate audio mute. If you muted the program output, the front
panel Black and/or Mute LEDs light.

Click the Black/Mute button again to unmute the video and/or audio.

Freezing the output

You can freeze the program or preview video output by clicking the Program or
Preview Freeze button. The Freeze button turns blue. When the output is frozen,
the input source can be removed and the ISS functions as a video store.

Click the Freeze button again to toggle freeze mode off.

Outputting a test pattern

You can select a test pattern to output on the program and/or preview monitor.
The test patterns are helpful when adjusting the connected displays for color,
convergence, focus, resolution, contrast, grayscale, and aspect ratio.

Output a test pattern as follows:

1. Click in the Test Pattern field. A drop-down box appears (figure 6-4).

Figure 6-4 — Test pattern drop box

2. Click the desired test pattern.

3. Click the Program and/or Preview check box to turn on the test pattern.

Previewing the scan rate

You can read the horizontal and
vertical scan rates of the
preview and program output by
clicking the View Preview Scan Rate or View Program Scan Rate button. The
horizontal and vertical frequencies are displayed in the Horizontal and Vertical
fields on the page.

Using Blue-Only mode

You can toggle Blue-Only mode on and off by clicking the Blue Screen Mode On
check box. Blue-Only mode is helpful in the setup of the color and tint of the
incoming video signal. In the Blue Only-mode, only the sync and blue video
signals are passed to the display.

6-5ISS 408 Integration Seamless Switcher • Ethernet Operation

Ethernet Operation, cont’d

Front panel security lockout (Executive mode)

You can toggle the front panel security lockout on and off by clicking the Executive
Mode On or Off check box. The security lockout limits the operation of the
Integration Seamless Switcher from the front panel. When the switcher is locked,
all of the front panel functions are disabled except for input selection.

System Configuration Page

The ISS downloads the System Configuration page (figure 6-5) when you click the
System Configuration tab. The screen consists of fields in which you can observe
and edit IP administration and system settings.

Figure 6-5 — System Configuration page

Administration fields

The administration fields on the System Configuration page are for entering and
verifying administrator and user passwords.

• Ethernet connection to the switcher, either by entering SIS commands via
Telnet (see chapter 4, “Programmer’s Guide”) or using the control program
(see chapter 5, “Switcher Software”) is password protected.

• Connection via Web pages and connection via the RS-232 port are not
password protected.

ISS 408 Integration Seamless Switcher • Ethernet Operation6-6

Access to the ISS settings using Web control is not password protected.
Ensure only knowledgeable and qualified personnel have access to the switcher
under Web control.

On password-protected connections, there are two levels of protection:
administrator and user. Administrators have full access to all ISS switching
capabilities and editing functions. Users can select video and/or audio for output,
select test patterns, set RGB and audio mutes, select a blue screen, and view all
settings except passwords.

Passwords are case sensitive and are limited to 12 upper case and lower case
alphanumeric characters. Each password must be entered twice: once in the
password field and then repeated in the re-enter password field. Characters in
these fields are masked by asterisks (*****). If you do not want to password-protect
an access level, leave the password field and the re-enter password field blank.
After entering the desired password in both fields, click the Submit button.

The program will not allow you to create a user password unless you have
already created an administrator password.

If a password has been inadvertently changed to an unknown value, you can
still connect to the switcher via the RS-232 link, which is not password
protected. When connected via the RS-232 link, using either SIS commands
(see chapter 4, “Programmer’s Guide”) or under program control (see chapter
5, “Switcher Software”), you can look up and, if desired, change a password.

ISS IP Settings fields

The ISS IP Settings fields provide a location for observing and editing settings
unique to the Ethernet interface. After editing any of the settings on this page, click
the Submit button.

ISS IP Address field

The ISS IP address field contains the IP address of the connected ISS. This value is
encoded in the flash memory on the controller circuit board.

Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields separated by
dots (periods). Each field can be numbered from 000 through 255. Leading zeroes,
up to 3 digits total per field, are optional. Values of 256 and above are invalid.

The default address is 192.168.254.254, but if this conflicts with other equipment at
your installation, you can change the IP address to any valid value.

ISS Name field

The ISS name field contains the name of the switcher. This is helpful in identifying
the switcher in multiple-unit networks. This name field can be changed to any
valid name, up to 12 alphanumeric characters.

Hardware Address field

The hardware address (also known as the MAC address) is hardcoded on the
controller board and cannot be changed.

6-7ISS 408 Integration Seamless Switcher • Ethernet Operation

Ethernet Operation, cont’d

File Management Page

To delete files such as HTML pages from the ISS or to upload your own files to the
ISS, click the File Management tab. The switcher downloads the file management
Web page (figure 6-6).

Figure 6-6 — File Management page

To delete a file, check the associated Delete check box and click the Delete Files
button.

Upload your own files as follows:

1. Click the Browse button.

2. Browse through your system and select the desired file(s).

3. Click the Upload File button.

ISS 408 Integration Seamless Switcher • Ethernet Operation6-8

I/O Configuration Page

You can set up the input configurations and the output format on the I/O
Configuration page (figure 6-7). Access the I/O Configuration page by clicking the
I/O Configuration tab.

Figure 6-7 — Setup page

Input configuration

You can specify the format of each input. The available formats are RGB, RGBcvS
(identified as RGBcS in the drop-down box), YUVi, YUVp, Betacam 50, Betacam 60,
HDTV, S-video, and composite video. Specify the input format as follows:

1. Click in the desired input’s configuration field. A drop-down box appears

(figure 6-8).

Figure 6-8 — Input configuration drop box

2. Click the desired input format.

3. Click the Submit button.

6-9ISS 408 Integration Seamless Switcher • Ethernet Operation

Ethernet Operation, cont’d

p

Output resolution, rate, sync format, and polarity

The ISS 408 scales the input input up or down to any a number of output
resolutions and rates. The switcher outputs the scaled video, as RGBHV or RGBS,
with user-selectable polarity, via either the program or preview connectors. The
table below shows the resolutions and rates available on the ISS 408.

Resolution

640 x 480

800 x 600

832 x 624

848 x 480

852 x 480

1024 x 768*

1280 x 768*

1280 x 1024*

1360 x 765*

1365 x 768*

1365 x 1024

1366 x 768*

1400 x 1050*

576p HDTV*

720p* HDTV @ 60 Hz only

1080p HDTV @ 60 Hz only

1080i HDTV

* Native DVI output resolution

✝✝ The out

50 Hz 56 Hz 60 Hz 75 Hz 85 Hz

•

•

•

ut refresh rate is auto-selected, based on the video refresh rate of input 1.

Lock at 50/60 Hz Actual DVI output

•••

•••

••

•

•

•

•

•

••

••• ••

••

•

••

•

•••

•

•

•

••

•

•

•

•

•

••

•

•

•

✝

1024 x 480

1024 x 600

1024 x 624

1024 x 480

1024 x 480

1024 x 768

1280 x 768

1280 x 1024

1360 x 765

1365 x 768

1280 x 1024

1366 x 768

1400 x 1050

720 x 576

1280 x 720

1280 x 1080

1280 x 540

• For output resolutions with less than 1024 pixels horizontally, the
optional DVI program output’s true horizontal resolution is limited to
1024 pixels. The vertical resolution is the selected vertical resolution. For
these resolutions, the ISS DVI output is 1024 x {selected vertical size}.
For example, if the output resolution is set to 640 x 480, the DVI output
card’s actual resolution is 1024 × 480.

• For the 1365 x 1024, 1080p, and 1080i output resolutions, the optional
DVI program output’s true horizontal resolution is limited to 1280 pixels.
For these resolutions, the ISS DVI output is 1280 x {selected vertical
size}. For example, if the output resolution is set to 1080p, the DVI output
card’s actual resolution is 1280 x 1080.

• The DVI card outputs all other selected resolutions normally.

• Resolutions marked with an asterisk (*) in the table above are native DVI
outputs, meaning that the DVI output fully supports the selected
horizontal and vertical resolution. The DVI output resolution for these
rates exactly matches the analog resolution.

ISS 408 Integration Seamless Switcher • Ethernet Operation6-10

Output resolution

Select the output resolution as follows:

1. Click in the Resolution field. A drop-down scroll box appears (figure 6-9).

Figure 6-9 — Resolution scroll box

2. Click and drag the slider or click the scroll up (

until the desired rate is visible.

3. Click the desired output resolution.

4. Click the Submit button.

Output rate

Select the output rate as follows:

1. Click in the Rate field. A drop-down box appears (figure 6-10).

Figure 6-10 — Rate drop box

2. Click the desired output frequency.

Frequencies that are not available for a specific resolution are marked N/A in
the Rate drop box.

The drop box selection Locked enables the Extron Accu-RATE Frame Lock
(AFL™) feature. Accu-RATE Frame Lock eliminates image tearing and other
artifacts of scaling motion video by eliminating frame rate conversion. It
exactly matches the output rate of the ISS to the frame rate of the selected
input. Select this feature if you will be using motion video sources with a
display that is capable of a variety of refresh rates.

3. Click the Submit button.

) or scroll down ( ) button

6-11ISS 408 Integration Seamless Switcher • Ethernet Operation

Ethernet Operation, cont’d

Output format

Select between separate horizontal (H) and vertical (V) sync or composite (S) sync
as follows:

1. Click in the Type field. A drop-down box appears (figure 6-11).

Figure 6-11 — Type drop box

2. Click the desired sync type.

3. Click the Submit button.

Output polarity

Select the output polarity as follows:

1. Click in the Polarity field. A drop-down box appears (figure 6-12).

Figure 6-12 — Polarity drop box

2. Click the desired polarity.

3. Click the Submit button.

ISS 408 Integration Seamless Switcher • Ethernet Operation6-12

ISS 408 Integration Seamless Switcher

Chapter Seven

7

Maintenance and Modifications

Opening and Closing the Switcher

Installing a Firmware Upgrade

Installing a DVI Output Card

Maintenance and Modifications

D

Opening and Closing the Switcher

To replace the firmware or install the optional DVI output card, you need to open
the ISS’s case. Extron recommends that you send the unit in to Extron for service
and updates.

Open and close the switcher as follows:

1. Disconnect the AC power cord from the ISS to remove power from the unit.

To prevent electric shock, always unplug the ISS from the AC power
source before opening the enclosure.

2. If the ISS is installed in a rack, disconnect all signal and control cables and

remove the ISS from the rack.

3. Remove the 16 screws, 8 on the top and 4 on each side of the ISS cover

(figure 7-1).

3

Remove (16)
screws.

5

Lift cover straight up.

Remove top two

4

front panel screws.

isconnect from/

connect to

6

J8 and J13.

J13

J8

3

2

R

1

R

R

G

G

G

B

B

B

H/HV

H/HV

50/60 Hz

H/HV

240

-

0

1.2A MAX.

10

34

2

1

8

7

R

6

R

5

R

INPUTS

4

5

G

R

G

R

G

B

G

B

G

B

H/HV

B

H/HV

B

H/HV

H/HV

H/HV

8

7

6

B

H/HV

H/HV

V

V

Figure 7-1 — Removing the ISS cover

ISS 408 Integration Seamless Switcher • Maintenance and Modifications7-2

4. Remove the top two front panel screws.

5. Lift the top cover straight up approximately 5 inches until you can access

the fan power cords.

CAUTION

6. Disconnect the two fan power cords from connectors J8 and J13 on the main

board.

7. Lift the top cover out of the way.

8. Perform the desired maintenance procedure. See “Installing a Firmware

Upgrade” or “Installing a DVI Output Card”, later in this chapter.

9. Reconnect the two fan power cords to connectors J8 and J13 on the main

board. It does not matter which fan is connected to which connector.

10. Replace the top cover on the ISS.

11. Fasten the top cover with the screws that were removed in step 3 and step 4.

12. Rack mount the switcher, if desired, and reconnect all cables.

Do not touch any switches or other electronic components inside the ISS.
Doing so could damage the switcher. Electrostatic discharge (ESD) can
damage IC chips even though you cannot feel it. You must be
electrically grounded before proceeding with firmware replacement.
A grounding wrist strap is recommended.

7-3ISS 408 Integration Seamless Switcher • Maintenance and Modifications

Maintenance and Modifications, Cont’d

s.

Installing a Firmware Upgrade

In some cases the ISS’s firmware may require replacement with an updated
version. There are nine user-replaceable firmware chips (figure 7-2): U1, U2, and
U6 on the front panel circuit board and U98, U99, U100, U101, U102, and U103
on the main circuit board. The U-numbers are printed on the circuit boards.
Extron recommends that you send the unit in to Extron for service and updates.

U6

U102
U103

U1
U2

8

7

R

6

R

5

R

U100
U101

Extron

INPUTS

4

3

R

2

R

1

R

G

R

G

G

B

G

B

B

H/HV

B

H/HV

H/HV

50/60 Hz

240

­0

1.2A MAX.

10

5

H/HV

4

2 3

1

G

R

G

G

B

G

B

B

H/HV

B

H/HV

H/HV

H/HV

8

7

6

ISS 408

Switcher

Figure 7-2 — ISS firmware chip locations

• Chips U1 and U2 are replaced as a pair.

• Chip U6 is replaced alone.

• Chips U98, U99, U100, and U101 are replaced as a set.

• Chips U102 and U103 are replaced as a pair.

CAUTION

Changes to firmware must be performed by authorized service personnel
only. Some ISS firmware updates must be performed at the Extron
factory.

Replace firmware in the ISS as follows:

U98
U99

B

H/HV

H/HV

V

V

To prevent electric shock, always unplug the
ISS from the AC power source before opening
the enclosure.

1. Open the switcher. See “Opening and Closing the

Switcher” on page 7-2.

2. Locate the firmware chip(s) to be replaced on the

main or front panel circuit board (figure 7-2).

3. After you are electrically grounded, use a DIP chip

puller to grasp each IC chip and pull it out of the
socket(s).

U102

Align notche

ISS 408 Integration Seamless Switcher • Maintenance and Modifications7-4

4. Align the slots of each new firmware chip with the angled corners of the

socket in the same orientation as the old chip. Gently, but firmly, press the
chip into place in the socket.

5. Close the switcher. See “Opening and Closing the Switcher”, starting with
step 9 on page 7-3.

Installing a DVI Output Card

You can install an optional digital visual interface (DVI) output card in the ISS.
With the card installed, an additional program output is available as DVI video
on a standard DVI connector. This program output is in addition to the standard
RGB video on BNC connector and 15-pin HD connectors. Extron recommends
that you send the unit to Extron for service and updates.

Install an optional DVI output card in the ISS as follows:

Changes to electronic components must be performed by authorized
service personnel only.

To prevent electric shock, always unplug the ISS from the AC power
source before opening the enclosure.

1. Open the switcher. See “Opening and Closing the Switcher” on page 7-2.

CAUTION

2. Locate the DVI output card connector opening on the rear panel and the
DVI output card connector J14. When viewed from the front, connector J14
is in the far left corner of the main circuit board (figure 7-3).

Do not touch any switches or other electronic components inside the ISS.
Doing so could damage the ISS. Electrostatic discharge (ESD) can
damage IC chips even though you cannot feel it. You must be
electrically grounded before proceeding with any electronic component
replacement. A grounding wrist strap is recommended.

DVI Output Card
Connector Opening
in ISS Rear Panel

DVI Output Card
Connector J14 on
Main Circuit Board

Figure 7-3 — DVI output card connector opening and socket J14

7-5ISS 408 Integration Seamless Switcher • Maintenance and Modifications

Maintenance and Modifications, Cont’d

3. If the rear panel DVI connector opening is still covered, remove the two

screws that secure the cover to the back panel and remove the cover.

4. Position the DVI card above connector J14 with the DVI connector facing

toward the rear of the switcher. Ensure that the pins on the DVI card
properly align with the J14 connector to prevent bending the pins.

5. Carefully mate the 45-pin connector on the DVI output board with

connector J14 on the main circuit board (figure 7-4).

DVI Connector on
DVI Output Card

DVI Output Card

DVI Output Card
Mated to the
Main Board via
Connector J14

Figure 7-4 — Output DVI board installation

6. Secure the DVI card to the rear panel with the two screws removed in step 3.

7. Close the switcher. See “Opening and Closing the Switcher”, starting with
step 9 on page 7-3.

ISS 408 Integration Seamless Switcher • Maintenance and Modifications7-6

ISS 408 Integration Seamless Switcher

Appendix A

A

Ethernet Connection

Cabling

Determining Default Addresses

Connecting as a Telnet Client

Ethernet Connection, cont’d

Patch (straight) cable

The rear panel Ethernet connector (figure A-1) on the ISS switcher can be connected
to an Ethernet LAN or WAN. This connection makes SIS control of the switcher
possible using a computer connected to the same LAN.

Cabling

The Ethernet cables can be terminated as straight-through cables or crossover
cables (figure A-1) and must be properly terminated for your application:

• Patch (straight through) cable — Connection of the ISS to an Ethernet hub,

router, or switcher that also hosts a controlling computer

• Crossover cable — Direct connection between the ISS and a controlling

computer

Side

Pins:

12345678

RJ-45
Connector

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-orange
2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown

Insert

twisted

pair wires.

Pin Wire color Pin Wire color

1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown

Figure A-1 — RJ-45 connector pinout table

Crossover cable

Side 1 Side 2

ISS 408 Integration Seamless Switcher • Ethernet ConnectionA-2

Determining Default Addresses

C:\>ping 192.168.254.254

Pinging 192.168.254.254 with 32 bytes of data:

Reply from 192.168.254.254: bytes=32 time<10ms TTL=128
Reply from 192.168.254.254: bytes=32 time<10ms TTL=128
Reply from 192.168.254.254: bytes=32 time<10ms TTL=128
Reply from 192.168.254.254: bytes=32 time<10ms TTL=128

Ping statistics for 192.168.254.254:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 0ms, Average = 0ms

To access the ISS switcher via the Ethernet port, you need the Extron ISS IP address.
If the address has been changed to an address comprised of words and characters,
the actual numeric IP address can be determined using the Ping utility. If the
address has not been changed, the factory-specified default is 192.168.254.254.

Ping can also be used to test the Ethernet link to the ISS.

Pinging to determine the switcher’s IP address

The Microsoft Ping utility is available at the DOS prompt. Ping tests the Ethernet
interface between the computer and the ISS. Ping can also be used to determine the
actual numeric IP address from an alias and to determine the Web address.

Access the DOS prompt and ping the switcher as follows:

1. Click Start > Run.

2. At the Open prompt, type command.

3. Click the OK button.

4. At the DOS prompt, type ping {IP address} and press the keyboard

Enter

Enter key (
The line Pinging ... reports the actual numeric IP address, regardless of

whether you entered the actual numeric IP address or an alias name.

). The computer returns a display similar to figure A-2.

Figure A-2 — Ping response

Pinging to determine Web IP address

The Ping utility has a modifier, -a, that directs the command to return the Web
address rather than the numeric IP address.

At the DOS prompt, type ping -a {IP address} and then press the keyboard
Enter key. The computer’s return display is similar to the Ping response shown in
figure A-2, except that when you specify the -a modifier, the line Pinging mail...
reports the Web IP address rather than the numeric IP address, regardless of
whether you entered the actual numeric IP address or an alias name.

A-3ISS 408 Integration Seamless Switcher • Ethernet Connection

Ethernet Connection, cont’d

Microsoft (R) windows 2000 (TM) Version 5.0 (Build 2195)
Welcome to Microsoft Telnet Client
Telnet Client Build 5.00.99203.1

Escape Character is 'CTRL+]'

Microsoft Telnet>

Connecting as a Telnet Client

The Microsoft Telnet utility is available from the DOS prompt. Telnet allows you to
input SIS commands to the ISS from the PC via Ethernet.

Access the DOS prompt and start Telnet as follows:

1. Click Start > Run.

2. At the Open prompt, type command.

3. Click the OK button.

4. At the DOS prompt, type telnet and press the keyboard Enter key. The

computer returns a display similar to figure A-3.

Figure A-3 — Telnet screen

Telnet tips

It is not the intention of this manual to detail all of the operations and functionality
of Telnet; however, some basic level of understanding is necessary for operating the
ISS via Telnet.

Open

Connect to the ISS using the Open command. Once you are connected to the
switcher, you can enter the SIS commands the same as you would if you were using
the RS-232 link.

Connect to the ISS as follows:

1. At the Telnet prompt, type open {IP address} and then press the

keyboard Enterkey.
If the switcher is not password protected, no further prompts are displayed

until you break or disconnect the connection to the ISS.

If the switcher is password protected, Telnet displays the password prompt.

2. If necessary, at the password prompt, type the appropriate password and then

press the keyboard Enterkey.
Connection to the switcher via the Ethernet can be password protected. There

are two levels of password protection: administrator and user. A person
logged on as an administrator has full access to all ISS switching capabilities
and editing functions. Users can select video and/or audio for output, select
test patterns, set RGB and audio mutes, select a blue screen, and view all
settings with the exception of passwords. By default, the ISS is shipped with
no password assigned.

ISS 408 Integration Seamless Switcher • Ethernet ConnectionA-4

Once you are logged in, the ISS returns either Login Administrator or
Login User. No further prompts are displayed until you break or disconnect

the connection to the ISS.

Escape character and Esc key

When Telnet is first started, the utility advises that the Escape character is ‘Ctrl+]’.

Esc

Many SIS commands include the keyboard

key. Consequently, some confusion

may exist between the Escape character and the Escape key.

Ctrl

The Telnet Escape character is a key combination, the

key and the ] key
pressed simultaneously, that returns you to the Telnet prompt while leaving the
connection to the ISS intact.

Esc

The Escape key is the

key on the computer keyboard.

Local echo

Once the computer is connected to the ISS, by default Telnet does not display your
keystrokes on the screen. SIS commands are typed in blindly and the SIS responses
are displayed on the screen. To command Telnet to show keystrokes, type set

Enter

local_echo at the Telnet prompt, and then press

before you open the

connection to the switcher.
With local echo turned on, keystrokes and the switcher’s response are displayed on

the same line. For example: 1*1!In1 Out1 All, where 1*1! is the SIS command and
In1 Out1 All is the response.

With local echo turned on, all keystrokes are displayed, even those that should be
masked, such as the password entry. For example, when entering a password with
local echo turned on, you see a display such as a*d*m*i*n*, where admin is the
keyed in password and ***** is the masked response.

Local echo can be turned off by typing unset local_echo and then pressing

Enter

at the Telnet prompt. If you are connected to the ISM and need to access the

Telnet prompt to turn local echo off, type the Escape character (

Ctrl

+]).

Set carriage return-line feed

Unless commanded otherwise, Telnet transmits a line feed character only (no
carriage return) to the connected ISS when you press the

Enter

key. This is the

correct setting for SIS communication with the switcher. The Telnet set crlf
command forces Telnet to transmit carriage return and line feed characters when

Enter

is pressed, but if crlf is set, the SIS link with the switcher will not function

properly. Do

not set crlf on. If necessary, issue the unset crlf command to turn

off crlf.

Close

To close the link to the switcher, access the Telnet prompt by typing the Escape

Ctrl

character (

+]). At the Telnet prompt, type close and then press

Help

For Telnet command definitions, at the Telnet prompt, type ? and then press

Quit

Exit the Telnet utility by typing quit and then press

Enter

at the Telnet prompt. If
you are connected to the ISS, access the Telnet prompt beforehand by typing the
Escape character (

Ctrl

+]).

Enter

.

Enter

.

A-5ISS 408 Integration Seamless Switcher • Ethernet Connection

Ethernet Connection, cont’d

ISS 408 Integration Seamless Switcher • Ethernet ConnectionA-6

ISS 408 Integration Seamless Switcher

Appendix B

B

Reference Information

Specifications

Part Numbers

Button Labels
