Extron electronic ISM 182 User Manual 2

ISM 482 & ISM 182
Integration Scaling Matrix Switchers
68-576-01 Rev. C
11 04
Precautions
Safety Instructions • English
This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.
This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.
Read Instructions • Read and understand all safety and operating instructions before using the
equipment.
Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user
information.
Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment
manufacturer because they may be hazardous.
Consignes de Sécurité • Français
Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant
d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir les consulter à l’avenir. Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou
présentés dans la documentation utilisateur.
Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni d’outils non recommandés par le
fabricant du matériel car cela risquerait de poser certains dangers.
Sicherheitsanleitungen • Deutsch
Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und
Bedienungsanleitungen genau durchlesen und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie
aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in
der Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom
Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.
Warning
Power sources • This equipment should be operated only from the power source indicated on the
product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all power cords from
the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to be stepped on or
pinched by items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-serviceable parts
inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to
prevent overheating of sensitive components inside. These openings must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only
with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Avertissement
Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur
l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous
les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que
personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un
technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci servent à
empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.
Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la batterie. Remplacer
uniquement avec une batterie du meme type ou d'un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben
werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle
Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und
niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem Servicepersonal durchgeführt
werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese
zur Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie
verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Instrucciones de seguridad • Español
Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar
el equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta. Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la
documentación del usuario, deben ser obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especificamente
recomendados por el fabricante, ya que podrian implicar riesgos.
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación
eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de
alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en
lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calificado. En el
interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento, es para evitar el
sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar
esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.
Quick Start — Integration Scaling Matrix Switcher
Unbalanced Input
Tip
Sleeve
Tip
Sleeve
Balanced Input
Tip
Ring
Sleeve (s)
Tip
Ring
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Input
(high impedance)
(high impedance)
(600 ohms)
600 ohms
600 ohms
Installation
Step 1
Turn off power to the ISM 182 or ISM 482 and the input and output devices, and remove the power cords from them.
Step 2
Install four rubber feet on the bottom of the ISM or mount the ISM in a rack.
T
S U J
D A
2 8
4
X I
M
R
S
T
I
A M G
N
I L A
R
C
E
S
T
IL
N
F
O
I T A
R
R
E
G
T
E
N
T
E
N
C
I
T
X
E
E Z I
N
S
U
/
N
T
E
R
M
B
T
N O C
/
R O L
O
T
C
N I
1
T
O
E D I
T
V
U P T
U O
8
S T
U
P N I
2
67
O I
D U A
5
8
4
7
3
6
2
5
1
4
K C A
L B
3
2
1
E T U
M
Step 4
Cable the switcher for audio input. Each input has a 3.5 mm, 5-pole captive screw connector for balanced or unbalanced stereo or mono audio input. Connectors are included with each switcher, but you must supply the audio cable. High impedance is generally over 800 ohms.
Step 5
Connect RGB video displays to the Output 1 and Output 2 female BNC and 15-pin HD connectors. Connect the various video formats to the BNCs as shown.
Both output connector
types output the same video signal and the same sync format.
R
G
B
H/HV
R
G
B
H/HV
Step 3
Connect up to eight computer/RGB video, component video, S-video, or composite video sources to these female BNC input connectors. The figure below shows how to connect the various video formats.
RGBHV
Video
R/R-Y
G/Y
VID
B/C
B-Y
H/HV
V
RGBS or RGBcvS
Video
R/R-Y
G/Y
VID
B/C
B-Y
H/HV
V
R/R-Y
G/Y
VID
B/C B-Y
H/HV
V
RGsB or
Component
Video
R/R-Y
G/Y VID
B/C B-Y
H/HV
V
S-Video Composite
Video
R/R-Y
G/Y
VID
B/C B-Y
H/HV
V
Step 6
Cable the switcher for audio output. Each output has a
RGBHV
Video
V
RGBS
Video
3.5 mm, 5-pole captive screw connector that outputs the selected unamplified, line level audio. Connect an audio device, such as an audio amplifier or powered speakers.
Tip
See caution
Sleeve
Tip
See caution
Unbalanced Output
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Output
AUDIO AUDIO
CAUTION
Connect the sleeve to ground. Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.
Step 7
If desired, connect a control system or computer to the Remote RS-232 port.
RS-232 FunctionPin
Not used
1 2 3 4 5 6 7 8 9
TX RX
Gnd
— — — —
Transmit data Receive data Not used Signal ground Not used Not used Not used Not used
51
9
6
Female
5
1
9
6
Male
V
QS-1
Quick Start — Integration Scaling Matrix Switcher, cont’d
Step 8
If desired, connect a network WAN or LAN hub, a control system, or computer to the Ethernet RJ-45 port. For connection to a network hub, router, or switch, wire the network interface cable as a straight-through cable. For connection to a computer or control system, wire the network interface cable as a crossover cable.
Straight-through cable
Side 1 Side 2
Pin Wire color Pin Wire color
Clip Down
12345678
1
1&2
2345678
3&6
4&5
RJ-45 connector
Twisted Pairs
7&8
1 White-orange 1 White-orange 2 Orange 2 Orange 3 White-green 3 White-green 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Green 7 White-brown 7 White-brown 8 Brown 8 Brown
Crossover cable
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-green 2 Orange 2 Green 3 White-green 3 White-orange 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Orange 7 White-brown 7 White-brown 8 Brown 8 Brown
Step 9
Plug the Integration Seamless Matrix switcher and input and output devices into a grounded AC source, and turn on the input and output devices.
Setup and Operation
Configure the inputs
1. Press Menu > Next.
2. Press an input button (to select the input to
configure).
3. Rotate the Adjust video type.
4. Rotate the Adjust audio gain or attenuation level.
5. Select other inputs to configure as necessary by pressing the appropriate input button.
6. Press Menu > Menu > Menu > Menu > Next to return to the default display cycle.
knob to select the input
knob to select the input
Configure the outputs
1. Press Menu > Menu > Next.
2. Rotate the Adjust
knob to select the output rate for the output indicated on the LCD (for example, output 1).
3. Rotate the Adjust
knob to select the output
frequency.
4. Configure the unselected output (for example, output 2) by pressing the appropriate output button and rotating the knobs as necessary.
5. Press Next.
6. Rotate the Adjust
knob to select the output
video sync format (RGBHV or RGBS).
7. Rotate the Adjust
knob to select the sync
polarity.
8. Configure the unselected output (for example, output 1) by pressing the appropriate output button and rotating the knobs as necessary.
9. Press Menu > Menu > Menu > Next to return to the default display cycle.
Create a tie
1. Select video and/or audio to switch by pressing the Video/Audio button as necessary to light the green Video LED and/ or the red Audio LED as desired.
2. As necessary, press the Output 1 or Output 2 button to select the desired output. (Only one output can be selected at a time.) The Output LED indicates the selected output.
3. Press an input button to select a video and/ or audio input for the selected output. The output 1 selection is indicated by the solid green (video) and/or red (audio) Input LED(s).
4. Press the unselected Output button to tie an input to that output or to view that tie. Both input selections can be viewed in the LCD display cycle.
Auto Image
Initiate the auto imaging function for a specific input by pressing and holding the appropriate input button until the LCD displays the message Auto Image Input #n, releasing the input button, and then pressing and releasing the input button again.
QS-2
Table of Contents
Chapter 1 • Introduction .......................................................................................................1-1
About this Manual .............................................................................................................1-2
About the Switcher............................................................................................................ 1-2
Features ................................................................................................................................... 1-4
Chapter 2 • Installation.......................................................................................................... 2-1
Mounting the Switcher.................................................................................................... 2-2
Tabletop placement ........................................................................................................... 2-2
Rack mounting ................................................................................................................... 2-2
Cabling and Rear Panel Views...................................................................................... 2-3
Input connections .............................................................................................................. 2-3
Output connections ........................................................................................................... 2-5
Ethernet connection .......................................................................................................... 2-6
Cabling and RJ-45 connector wiring ............................................................................. 2-6
Choosing a network cable .................................................................................. 2-6
Wiring the network cable ................................................................................... 2-7
RS-232 connection ............................................................................................................. 2-8
Configuration ....................................................................................................................... 2-8
Chapter 3 • Operation ............................................................................................................. 3-1
Front Panel Controls and Indicators ......................................................................... 3-2
Video/Audio selection button and LEDs ........................................................................... 3-2
Outputs buttons and LEDs ................................................................................................ 3-3
Input buttons, LEDs, and label window ........................................................................... 3-3
Front panel input label window ................................................................................... 3-3
Selecting an input ........................................................................................................ 3-4
Recalling a user preset .................................................................................................. 3-4
Auto imaging an input .................................................................................................3-4
Black/Mute button and LEDs ............................................................................................. 3-4
Picture adjustment buttons ............................................................................................... 3-4
LCD display .........................................................................................................................3-5
Menu control buttons ....................................................................................................... 3-5
Adjustment knobs.............................................................................................................. 3-5
Front Panel Operations .................................................................................................... 3-6
Power ................................................................................................................................. 3-6

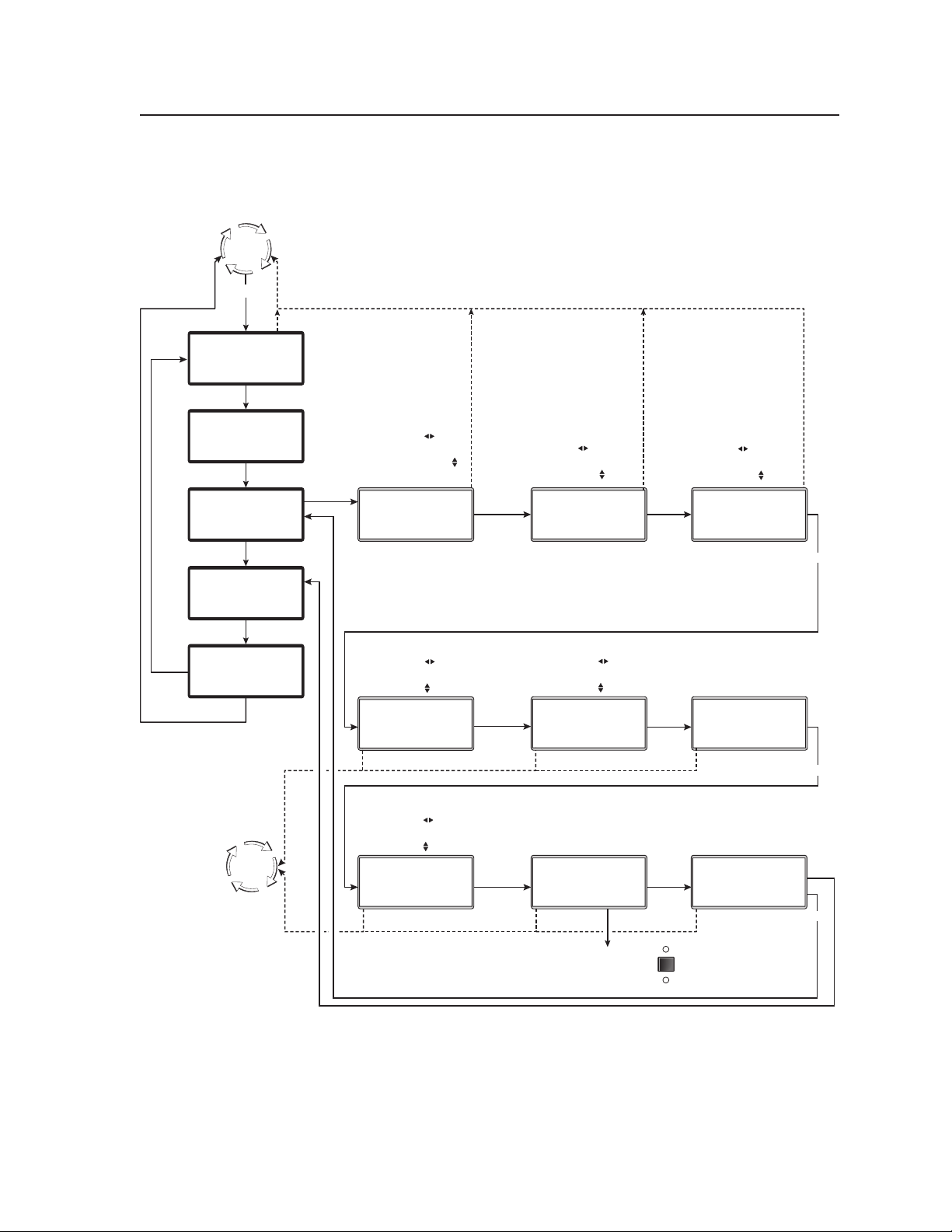

Menu system overview ...................................................................................................... 3-7
Video & Audio Configuration menu............................................................................. 3-8
Input Configuration submenu ............................................................................ 3-8
Output Configuration menu ........................................................................................ 3-9
Output Resolution submenu ...............................................................................3-9
Sync Type and Polarity submenu .......................................................................3-10
Advanced Configuration menu .................................................................................. 3-11
Test Pattern submenu ....................................................................................... 3-12
Blue Only Mode and Edge Smoothing submenu .............................................. 3-12
Integration Scaling Matrix Switcher Table of Contents
i
Table of Contents, cont’d
Blanking submenu ............................................................................................3-12
RGB Delay submenu .......................................................................................... 3-12
Auto Imaging and Auto Memories submenu .................................................... 3-13
Enhanced Mode submenu ................................................................................ 3-13
Pixel Phase submenu ......................................................................................... 3-13
PAL Film Mode submenu .................................................................................. 3-13
Reset submenu .................................................................................................. 3-13
User Presets menu ...................................................................................................... 3-14
Save Preset submenu ........................................................................................ 3-14
Erase Presets submenu ......................................................................................3-15
Exit menu ................................................................................................................... 3-15
Picture adjustments ......................................................................................................... 3-16
Front panel security lockout (executive mode) .............................................................. 3-17
IP information ..................................................................................................................3-18
Optimizing the Video...................................................................................................... 3-18
Setting up a DVD source ................................................................................................. 3-19
Optimizing the Audio ..................................................................................................... 3-20
Troubleshooting ................................................................................................................ 3-20
General checks ................................................................................................................. 3-20
Specific problems .............................................................................................................3-21
Chapter 4 • Programmer’s Guide ..................................................................................... 4-1
RS-232 Link ............................................................................................................................. 4-2
Ethernet Link......................................................................................................................... 4-2
Ethernet connection .......................................................................................................... 4-3
Default address .................................................................................................................. 4-3
Symbols ................................................................................................................................... 4-3
Switcher-Initiated Messages ......................................................................................... 4-4
Power-up ............................................................................................................................ 4-4
Ties creation .......................................................................................................................4-4
Input and output video type ............................................................................................. 4-4
Picture adjustments ........................................................................................................... 4-5
RGB delay ........................................................................................................................... 4-6
Test pattern ........................................................................................................................ 4-6
Audio gain and attenuation ............................................................................................. 4-6
Video and audio mute ....................................................................................................... 4-6
PAL film mode.................................................................................................................... 4-6
Automated adjustments .................................................................................................... 4-6
Host-to-Switcher Instructions....................................................................................... 4-7
Switcher error responses ................................................................................................... 4-7
Using the command/response table ................................................................................. 4-7
Command/response table for SIS commands ................................................................... 4-8
Command/respnse table for IP SIS Commands ...............................................................4-13
Command/response table for special function SIS commands ......................................4-14
Command/response table for advanced instruction set commands ............................. 4-16
ii Integration Scaling Matrix Switcher Table of Contents
Chapter 5 • Switcher Software .........................................................................................5-1
Control Software for Windows
Installing the software ...................................................................................................... 5-2
Software operation via Ethernet ...................................................................................... 5-2
Ethernet protocol settings ............................................................................................ 5-2

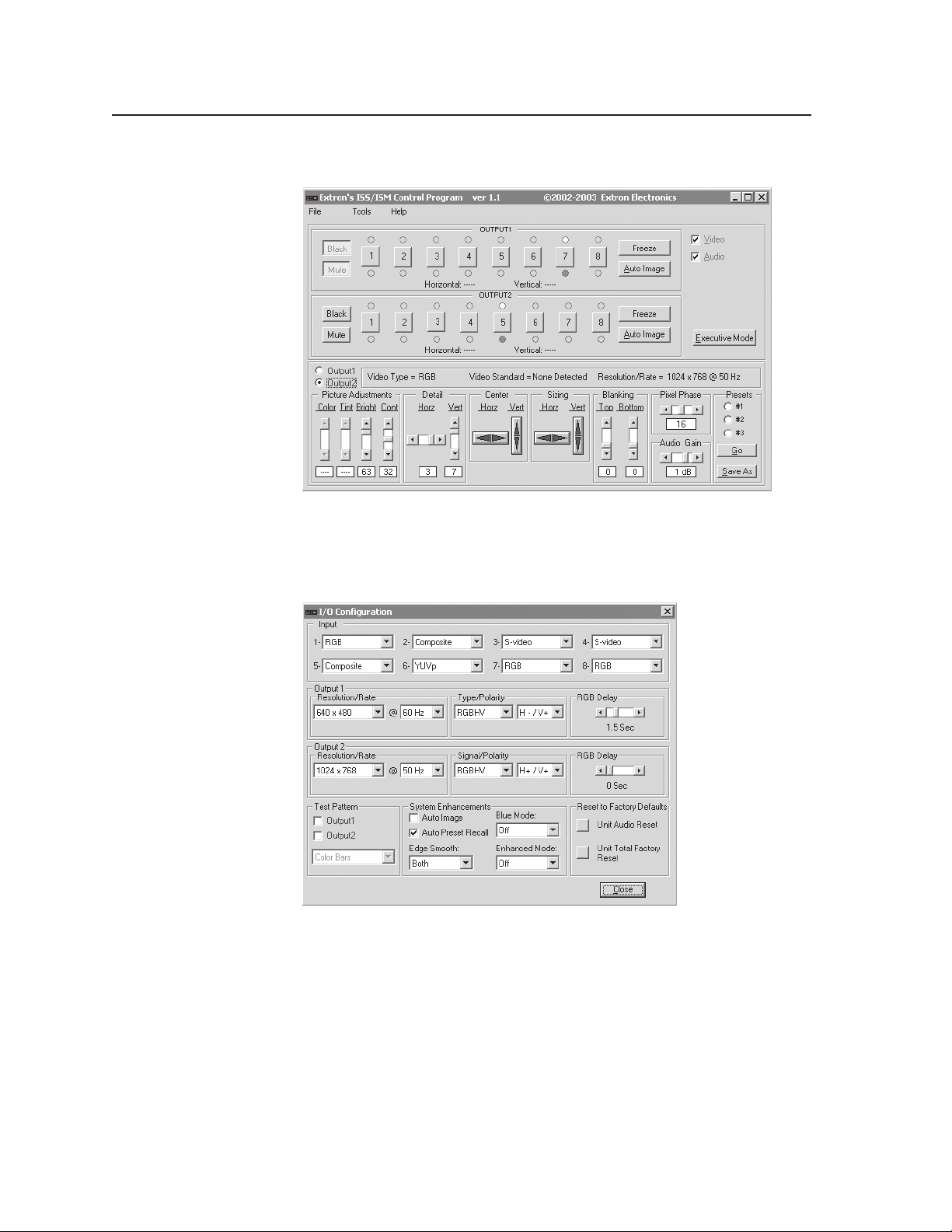

Using the control program ................................................................................................ 5-3
Using the help program .................................................................................................... 5-5
Button-Label Generator................................................................................................... 5-5
Installing the software ...................................................................................................... 5-6
Using the software ............................................................................................................ 5-6
®
.................................................................................. 5-2
Chapter 6 • Ethernet Operation ....................................................................................... 6-1
Load the Startup (Control) Page ................................................................................. 6-2

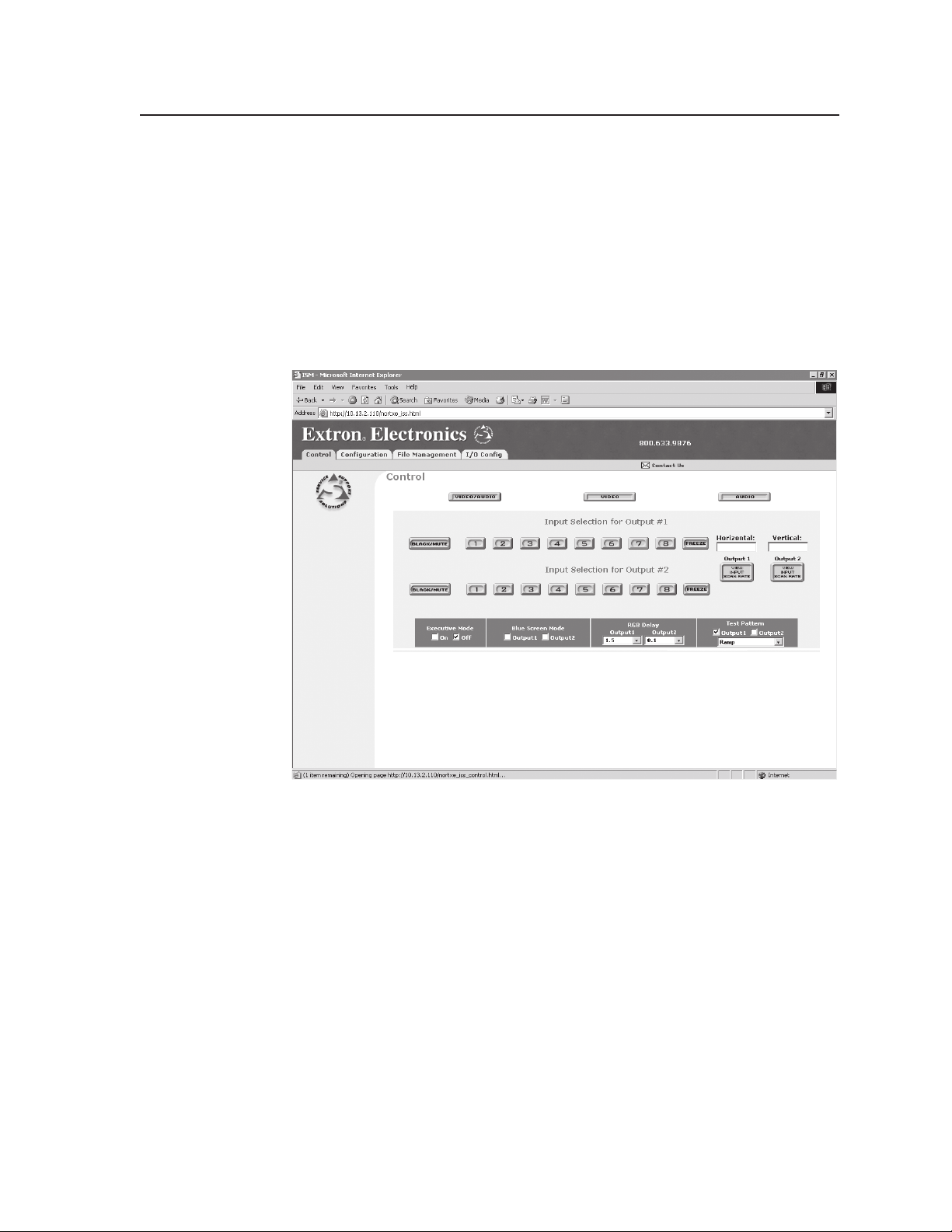

Control Page .......................................................................................................................... 6-4
Create a tie ......................................................................................................................... 6-4

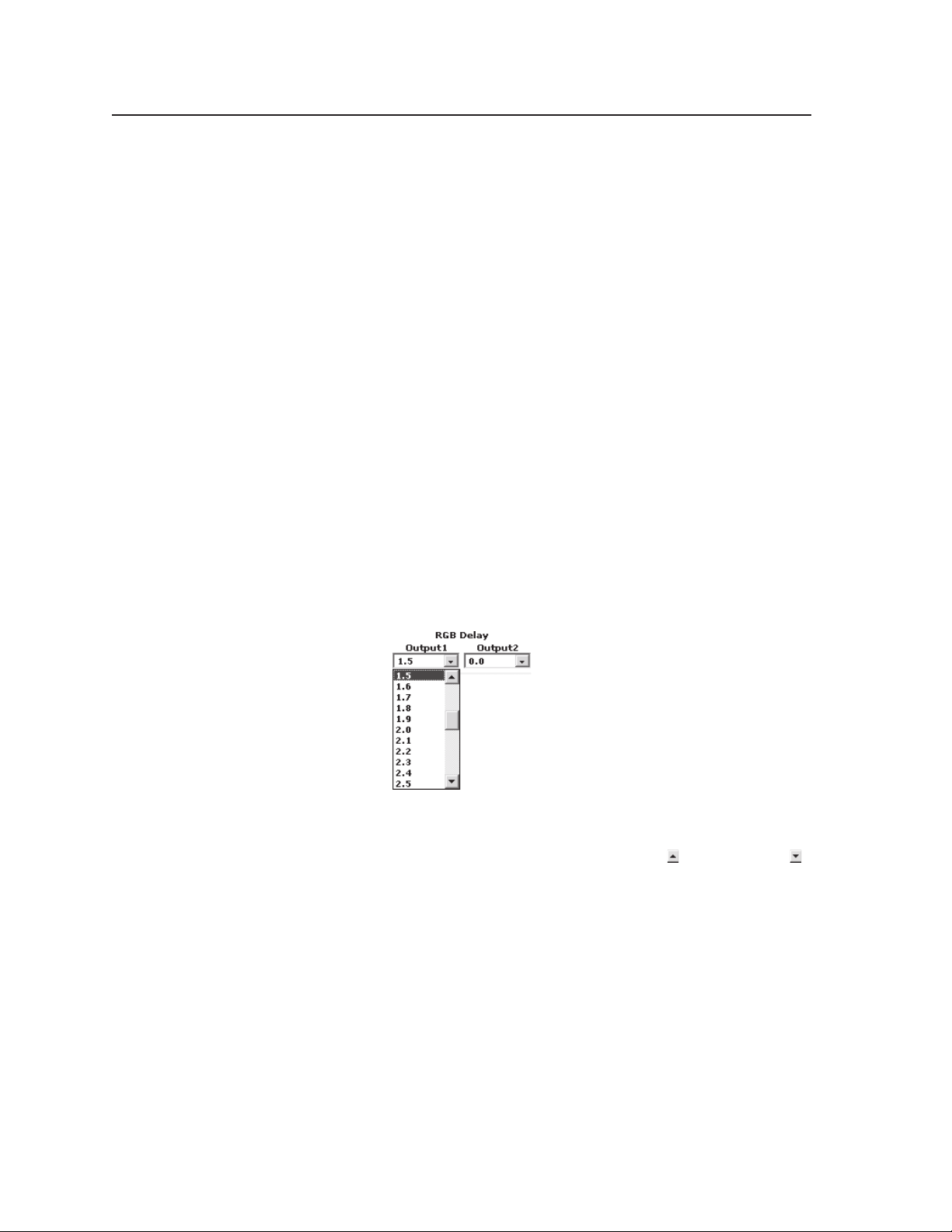

Change the RGB delay .......................................................................................................6-4
Black out the screen and mute the audio ........................................................................ 6-4
Freeze the output ..............................................................................................................6-5
Output a test pattern ........................................................................................................ 6-5
Preview the scan rate ........................................................................................................ 6-5
Blue screen ......................................................................................................................... 6-5
Executive mode .................................................................................................................. 6-5

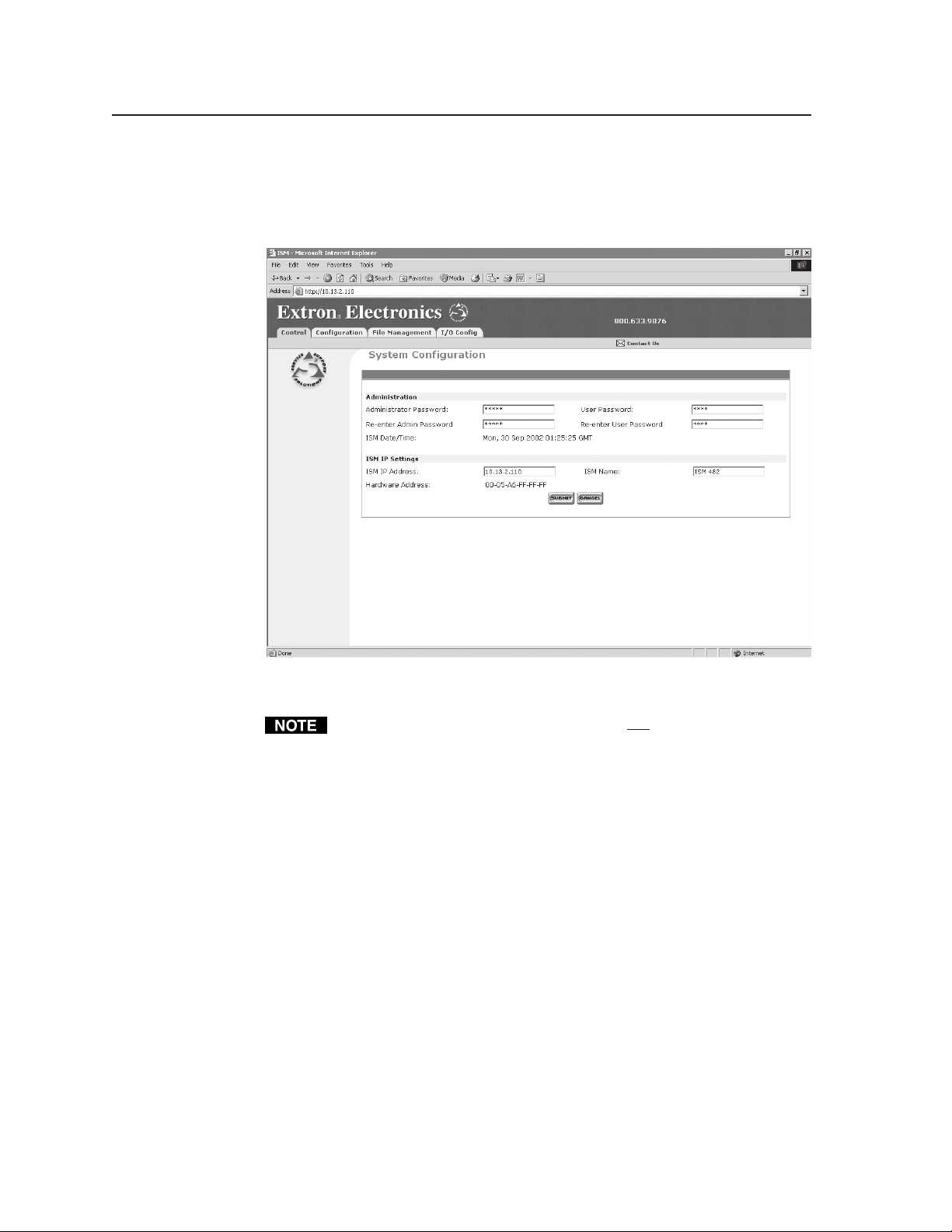

System Configuration Page........................................................................................... 6-6
Administration fields ......................................................................................................... 6-7
ISM IP settings fields .......................................................................................................... 6-7
ISM IP Address field ...................................................................................................... 6-7
ISM Name field ............................................................................................................. 6-7
Hardware Address field ................................................................................................ 6-7
File Management Page .................................................................................................... 6-8
I/O Configuration Page..................................................................................................... 6-9
Input configuration ........................................................................................................... 6-9
Output resolution, rate, sync format, and polarity ....................................................... 6-10
Output resolution....................................................................................................... 6-11
Output rate ................................................................................................................ 6-11
Output format ............................................................................................................ 6-12
Output polarity .......................................................................................................... 6-12
iiiIntegration Scaling Matrix Switcher Table of Contents
Table of Contents, cont’d
Appendix A • Ethernet Connection .............................................................................. A-1
Ethernet Link........................................................................................................................ A-2
Ethernet connection ......................................................................................................... A-2
Default address ................................................................................................................. A-3
Ping to determine the switcher’s IP address ................................................................ A-3
Ping to determine the Web IP address ........................................................................ A-3
Connect as a Telnet client................................................................................................. A-4
Telnet tips .................................................................................................................... A-4
Open .................................................................................................................. A-4
Escape character and Esc key ............................................................................. A-5
Local echo
Set carriage return-line feed .............................................................................. A-5
Close
Help ................................................................................................................... A-5
Quit
Appendix B • Reference Information ...........................................................................B-1
Specifications........................................................................................................................B-2
.......................................................................................................... A-5
.................................................................................................................. A-5
.................................................................................................................... A-5
Part Numbers ........................................................................................................................ B-4
Included parts ....................................................................................................................B-4
Optional accessories .......................................................................................................... B-4
Cables and connectors .......................................................................................................B-4
Bulk cable .....................................................................................................................B-4
Assorted connectors ..................................................................................................... B-5
Pre-cut cables ............................................................................................................... B-5
Firmware Upgrade Installation....................................................................................B-6
Button Labels ........................................................................................................................B-8
All trademarks mentioned in this manual are the properties of their respective owners.
iv Integration Scaling Matrix Switcher Table of Contents
68-576-01 Rev. C
11 04
Integration Scaling Matrix Switcher
Chapter One
1
Introduction
About this Manual
About the Switcher
Features
Introduction, cont’d
Introduction
About this Manual
This manual contains installation, configuration, and operating information for the Extron ISM 182 and ISM 482 Integration Scaling Matrix switchers.
The ISM 182 and ISM 482 are similar in function and operation; the differences exist in scaling capabilities. In this manual, the terms “switcher” and “ISM” are used interchangeably to refer to either model, except where differences exist, in which case the specific model is noted.
Chapter 1 identifies the switcher’s features.
Chapter 2 details how to install the switcher.
Chapter 3 describes how to operate the switcher and use all of its features.
Chapter 4 provides information about programming and operating the switcher under RS-232 control, such as from a PC or host controller.
Chapter 5 details the Extron control software for Windows, which allows you to operate the switcher from a PC in a graphical environment.
Chapter 6 details operation of the switcher using an Ethernet browser.
Appendix A is a high-level Internet protocol (IP) primer (Ethernet and Telnet).
Appendix B lists the switcher’s specifications and pertinent part numbers and provides procedures for replacing the switcher’s firmware.
About the Switcher
The Extron ISM 182 and ISM 482 are eight-input, two-independently-scaled-output, video and stereo audio matrix switchers. Figure 1-1 shows a typical ISM 482 application. The switchers accept high resolution RGB video, YUV (component) video, S-video (Y/C), and composite video inputs; scale the inputs; and output RGBHV or RGBS video and stereo audio. Triple-Action Switching™ (RGB delay) blanks the screen during the switch to prevent distracting video glitches. The switchers’ two independent scalers permit differing video formats on each input to be displayed in different resolutions on different projectors.
Each video input is individually configurable to allow for different video formats. The ISM allows analog RGBHV, RGBS, RGsB, and RGBcvS video, component video, S-video, and composite video signals to be displayed on a device with a fixed resolution and aspect ratio, such as a liquid crystal display (LCD) projector, digital light processor (DLP) projector, or plasma display.
The ISM provides two separate outputs. The selected input can be switched to either or both outputs.
The switchers input all valid video signal formats on eight sets of five BNC connectors. The ISM 482 scales the input up or down to any of 40 output resolutions and rates. The ISM 182 scales the inputs to any of 20 resolutions and rates. Either switcher outputs the scaled video, as RGBHV or RGBS, on two sets of output connectors, consisting of five BNCs and a 15-pin HD connector. The BNCs and 15-pin HD connector share identical outputs. Several of the output resolutions and rates include Extron’s Accu-RATE Frame Lock™ (AFL™), a proprietary technology that locks the output frame rate to the input rate, solving the image tearing problem that can result from different input and output rates. The ISM 482 features HDTV 576p, 720p, 1080p, and 1080i outputs.
Integration Scaling Matrix Switcher • Introduction1-2
Projector
Extron ISM 482
DVD Player
Projector
1
T
U
S
2
O
T
I
U
V
P
D
T U
O
1
R
2
R
G
2 3 2
-
S R
G
B
B
8
7
R
6
R
S
5
T U P N
R
I
G
4
R
G
3
R
G
B
2
R
G
B
1
R
G
V
B
H / H
R
G
V
B
H / H
G
B
V H /
H
G
B
V H / H
V
B
H / H
8
V
B
/H
H
7
V
6
/H
H
z H 0
5
/6 0
V
5
.
/H
X
H
A
0
M
4 2
A
-
2 .
0
1
0
4
1
3
2
1
V
/H
H
ETHERNET
K N I L T C A
V /H H
V
V
RS-232
LAN/WAN
Network/
Internet
Codec
Extron
VCR
Laptop
RGB 112xi
Podium PC
Figure 1-1— Typical ISM 482 Integration Scaling Matrix Switcher application
The ISM receives and outputs the stereo audio on 5-pole captive screw connectors. For upscaling, the ISM 482 converts the horizontal and vertical sync timing and the
number of lines of the lower-resolution video input to match the native resolution of the display. This produces an undistorted, brighter picture than an unscaled input would.
For downscaling, the ISM 482 accepts any computer resolution, up to 1600 x 1200, with horizontal scan rates up to 100 kHz and vertical scan rates up to 120 Hz, and converts the input to match the native resolution of the display.
The switchers are ideal for displaying images on projectors with limited display resolutions, such as LCD projectors, DLP projectors, and plasma projectors.
The switchers feature built-in test patterns to aid in monitor or projector set-up and evaluation.
The switchers are housed in a rack-mountable, 3U high, 17.5” wide, metal enclosure. The ISM has an internal 100VAC to 240VAC, 50/60 Hz, 30 watts autoswitchable power supply that provides worldwide power compatibility.
1-3Integration Scaling Matrix Switcher • Introduction
Introduction, cont’d
Features
Inputs —
Video inputs — The ISM switches among eight fully-configurable RGB, HDTV
component video (ISM 482), component video, S-video, and composite video inputs on five BNC connectors per input.
Audio inputs — The ISM switches among eight balanced or unbalanced stereo or
mono audio inputs on 5-pole captive screw connectors.
Outputs —
Video outputs — The ISM outputs individually scaled video signals as RGBHV
or RGBS. Two sets of BNC connectors and two 15-pin HD connectors are provided. One set of BNC connectors and one 15-pin HD connector display the output 1 image, and the other set of BNC connectors and 15-pin HD connector display the output 2 image.
Audio outputs — The ISM outputs the selected unamplified, line level, balanced
or unbalanced stereo or mono audio on 5-pole captive screw connectors.
Accu-RATE Frame Lock™ (AFL™) — A patented technology exclusive to Extron
that solves frame rate conversion issues experienced by video scalers. When video input and output refresh rates differ, occasionally the two rates cross over each other. The result is a glitch or image freeze on the display. AFL solves this problem by locking the output frame rate to the input frame rate.
Dynamic Motion Interpolation™ (DMI™) — This video processing technique is
an advanced motion prediction and compensation method that treats motion content and still content with different algorithms to yield high fidelity images.
3:2 pulldown detection for NTSC video sources and 2:2 film detection for PAL
These advanced, patent pending, film mode processing feature helps maximize image detail and sharpness for video sources that originated from film. When film is converted to NTSC video, the film frame rate has to be matched to the video frame rate in a process called 3:2 pulldown. Jaggies and other image artifacts can result if conventional deinterlacing techniques are used on film-source video. The ISM’s advanced film mode processing recognizes signals that originated from film. The ISM then applies video processing algorithms that optimize the conversion of video that was made with the 3:2 pulldown process. This results in richly detailed images with sharply defined lines.
A similar process is used for PAL film-source video.
Audio follow and breakaway — Audio switching can follow its corresponding
video input signal or it can be broken away from the video input. Audio breakaway switching can be done via front panel control or under RS-232 or Ethernet remote control.
Audio gain/attenuation — Users can set the input level of audio gain or
attenuation (-24dB to +9dB) via the RS-232 or Ethernet link or from the front panel. Individual input audio levels can be adjusted so there is no noticeable volume difference between sources.
Ethernet port — Supports connection to an Ethernet LAN so that the switcher can
be accessed and operated from a computer running a standard Internet browser anywhere in the world.
Quad-standard video decoder — The switcher uses a digital, four-line adaptive
comb filter that can decode NTSC 3.58, NTSC 4.43, PAL, and SECAM.
Integration Scaling Matrix Switcher • Introduction1-4
Test patterns — The switcher features built-in test patterns to aid in monitor or
projector set-up and evaluation.
Blue mode — The switcher can be set to output the blue video signal only, to help
installers calibrate the monitor or projector.
Triple-Action Switching
(RGB delay) — RGB delay mutes the R, G, and B video planes to blank the screen while the scaler locks to the new sync, so that a noise-filled scramble is not shown on the monitor during the transition. The time delay between the RGB and sync signals is user adjustable up to five seconds under front panel, SIS, and program control.
Auto memories — The eight inputs support 16 auto-recall memories each, based on
the incoming frequency. Information on sizing, centering, detail, contrast, and brightness is saved.
Auto Image
The auto imaging feature automatically sizes and centers the selected input to fill the screen. Auto imaging can be selected for individual inputs as desired or set to automatically size and center each new input selection.
Memory presets — The ISM 482 has memory for up to 128 presets that allow the
user to use RS-232 commands to save and recall color, tint, contrast, brightness, centering, and sizing, and filtering information.
Aspect ratio memories — Three memories for each input save different color, tint,
contrast, brightness, detail, size, and centering settings.
Freeze mode (under SIS and Windows program control only) — Locks the output
display to the selected image. Once frozen, an input can be removed without losing the output image. This feature lets the ISM store a still image.
Rack mounting — The 3U high switcher can be mounted in any conventional 19”
wide rack.
1-5Integration Scaling Matrix Switcher • Introduction
Introduction, cont’d
Integration Scaling Matrix Switcher • Introduction1-6
Integration Scaling Matrix Switcher
Chapter Two
2
Installation
Mounting the Switcher
Cabling and Rear Panel Views
Configuration
Installation, cont’d
Installation
Mounting the Switcher
Four uninstalled rubber feet are included with the switcher . If you are going to rack mount the switcher, mount it before you cable it (see Rack mounting, below), and do not install the rubber feet. If you are not rack mounting the switcher, see Tabletop placement below.
Tabletop placement
For tabletop placement, install the self-adhesive rubber feet/pads (provided) onto the four corners of the bottom of the switcher.
Rack mounting
To rack mount the switcher, use two screws on each end of the switcher to attach the switcher to the rack (see figure 2-1).
O
E D I
V
U
O
8
7
INPUTS
6
O I D
U A
5
8
4
7
3
6
2
5
1
4
K
C A L
B
3
2
1
E
T U M
Figure 2-1 — Mounting the switcher
T
S U J
D
A
2
8
4
IX
M
R T
IS
A
M
G
IN L A
R
C
E
T
S
L
I
N
F
IO T A
R
R
E
G
T
E
N
T
E C
IN
T
X
E
E
Z
I
N
S
U
/
N
T
E
R
M
B
T
N
O
1
T
U P T
2
C
/
R O L
O
T
C
N I
T
Integration Scaling Matrix Switcher Installation2-2
Cabling and Rear Panel Views
All connectors are on the rear panel (figure 2-2).
2 4
100-240
50/60 Hz
1.2A MAX.
1 3 5 6
Figure 2-2 — ISM 482 rear panel connectors
Input connections
AC power connector — Plug a standard IEC power cord into this connector
1
to connect the switcher to a 100 to 240VAC, 50 Hz or 60 Hz power source. Input video connectors — Connect computer or RGB video, component
2
video, S-video, or composite video to these female BNC connectors. Figure 2-3 shows how to connect the various video formats.
R/R-Y
G/Y VID
B/C B-Y
R/R-Y
INPUTS
3
4
5
6
R/R-Y
R/R-Y
R/R-Y
G/Y
G/Y
G/Y
VID
VID
VID
B/C
B/C
B/C
B-Y
B-Y
B-Y
H/HV
H/HV
H/HV
V
V
V
R/R-Y
12
R/R-Y
R/R-Y
G/Y VID
B/C B-Y
H/HV
H/HV
V
V
234 5678
1
OUTPUTS
8
7
R/R-Y
R/R-Y
R/R-Y
G/Y
G/Y
G/Y
VID
VID
VID
B/C
B/C
B/C
B-Y
B-Y
B-Y
H/HV
H/HV
H/HV
V
V
V
2
1
R
G
B
H/HV
V
1
R
2
G
B
RS-232
H/HV
V
ETHERNET
LINK AC
T
7
R/R-Y
R/R-Y
RGBHV
Video
G/Y
VID
B/C
B-Y
H/HV
V
RGBS or RGBcvS
Video
G/Y
VID
B/C
B-Y
H/HV
V
G/Y
VID
B/C B-Y
H/HV
V
RGsB or
Component
Video
G/Y VID
B/C B-Y
H/HV
V
S-Video Composite
Video
G/Y
VID
B/C B-Y
H/HV
V
Figure 2-3 — Connections for various input video formats
2-3Integration Scaling Matrix Switcher • Installation
Installation, cont’d
Input audio connectors — Connect balanced or unbalanced stereo or mono
3
audio to these 3.5 mm, 5-pole captive screw connectors. Connectors are included with the seamless switcher, but you must supply the audio cable. Figure 2-4 shows how to wire a connector for the appropriate input type and impedance level. High impedance is generally over 800 ohms.
Tip
Sleeve
Tip
Sleeve
Unbalanced Input
(high impedance)
Tip
Ring
Sleeve (s)
Ring
Tip
Sleeve (s)
Balanced Input
(high impedance) (600 ohms)
Tip
Ring
Tip
Ring
Balanced Input
600 ohms
600 ohms
Figure 2-4 — Captive screw connector wiring for inputs
When making connections for the seamless switcher from existing audio cables, see figure 2-5. A mono audio connector consists of the tip and sleeve. A stereo audio connector consists of the tip, ring and sleeve. The ring, tip, and sleeve wires are also shown on the captive screw audio connector diagram, figure 2-4.
Tip (+)
Tip (+)
Sleeve ( )
RCA Connector
Ring (-)
3.5 mm Stereo Plug Connector
Sleeve ( )
(balanced)
Figure 2-5 — Phono audio connectors
The audio level for each input can be individually set, via the front panel, the Ethernet link, or the RS-232 link, to ensure that the level on the output does not vary from input to input. See chapter 3, Operation, chapter 4, Programmer’s Guide, chapter 5, Switcher Software, and chapter 6, Ethernet Operation for details.
Integration Scaling Matrix Switcher Installation2-4
Output connections
The two Output 1 outputs, consisting of five BNC connectors and a 15-pin HD connector, output the identical video signal and the same sync format. The two Output 2 outputs are also identical to each other.
Video output BNC connectors— Connect RGB video displays to these two
4
sets of female BNC connectors. Figure 2-6 shows how to connect the various video formats.
R
G
B
H/HV
V
RGBHV
Video
R
G
B
H/HV
V
RGBS Video
Figure 2-6 — BNC output connections for RGBHV and RGBS video
Video output 15-pin HD connectors — Connect RGB video displays to these two female 15-pin HD connectors.
Audio output connectors — Connect audio devices, such as an audio
5
amplifier or powered speakers to these two 3.5 mm, 5-pole captive screw connectors. The connectors output the selected unamplified, line level audio. See figure 2-7 to properly wire an output connector.
See caution
Sleeve
See caution
Tip
Tip
Ring
Sleeve (s)
Ring
Tip
Tip
Unbalanced Output
Balanced Output
Figure 2-7 — Captive screw connector wiring for audio output
CAUTION
Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.
By default, the audio output follows the video switch. Audio breakaway, commanded via the front panel, the Ethernet link, or the RS-232 link, allows you to select from any one of the audio input sources. See chapter 3, Operation, chapter 4, Programmer’s Guide, chapter 5, Switcher Software, and chapter 6, Ethernet Operation for details.
2-5Integration Scaling Matrix Switcher • Installation
Installation, cont’d
Ethernet connection
Ethernet port — If desired connect the switcher to an Ethernet LAN or WAN
6
via this RJ-45 connector. Ethernet control allows the operator to control the switcher from a remote location. When connected to an Ethernet LAN or WAN , the switcher can be accessed and operated from a computer running a standard Internet browser.
Ethernet connection indicators — The Link and Act LEDs indicate the status of the Ethernet connection.
LINK ACT
Cabling and RJ-45 connector wiring
It is vital that your Ethernet cables be the correct cables, and that they be properly terminated with the correct pinout.
Choosing a network cable
Ethernet links use Category (CAT) 3, 4, 5, 5e, or 6, unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45 connectors. Ethernet cables are limited to 328’ (100 m).
The Link LED indicates that the switcher is properly connected to an Ethernet LAN. This LED should light steadily.
The Act LED indicates transmission of data packets on the RJ-45 connector. This LED should flicker as the switcher communicates.
Do not use standard telephone cables. Telephone cables will not support Ethernet or Fast Ethernet.
Do not stretch or bend cables. Transmission errors can occur.
The cable used depends on your network speed. The ISM supports both 10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex and full-duplex, Ethernet connections.
10Base-T Ethernet requires, at a minimum, CAT 3 UTP or STP cable.
100Base-T Fast Ethernet requires, at a minimum, CAT 5 UTP or STP cable.
Integration Scaling Matrix Switcher Installation2-6
Wiring the network cable
The cable can be terminated as either a patch cable or a crossover cable (figure 2-8) and must be properly terminated for your application:
Patch (straight) cable — Connection of the ISM to an Ethernet hub, router, or switcher that also hosts a controlling computer.
Crossover cable — Direct connection between the ISM and a controlling computer.
Patch (straight) cable
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-orange
1&2
Clip DownSide
1Pins 2345678
1
2345678
3&6 4&5
7&8
RJ-45 connector
Twisted Pairs
2 Orange 2 Orange 3 White-green 3 White-green 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Green 7 White-brown 7 White-brown 8 Brown 8 Brown
Crossover cable
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-green 2 Orange 2 Green 3 White-green 3 White-orange 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Orange 7 White-brown 7 White-brown 8 Brown 8 Brown
Figure 2-8 — RJ-45 connector pinout tables
2-7Integration Scaling Matrix Switcher • Installation
Installation, cont’d
RS-232 connection
Remote port — Connect a host device, such as a computer or touch panel
7
control, to the Integration Seamless Matrix switcher via this 9-pin D connector for serial RS-232 control (figure 2-9).
Figure 2-9 — Remote port pin assignments
See chapter 4, Programmer’s Guide, for definitions of the SIS commands and chapter 5, Switcher Software to install and use the control software.
Configuration
The ISM can be configured using either the front panel controls, the SIS, or the Windows Control program. See chapter 3, Operation, chapter 4, Programmer’s Guide, and chapter 5, Switcher Software.
RS-232 FunctionPin
Not used
1
— — — —
Transmit data Receive data Not used Signal ground Not used Not used Not used Not used
TX
2
RX
3 4
Gnd
5 6 7 8 9
51
9
6
Female
5
1
9
6
Male
Integration Scaling Matrix Switcher Installation2-8
Integration Scaling Matrix Switcher
Chapter Three
3
Operation
Front Panel Controls and Indicators
Front Panel Operations
Optimizing the Video
Optimizing the Audio
Troubleshooting
Operation, cont’d
ISM 482
INTEGRATION SEAMLESS SWITCHER
BLACK 1 2 3 4 5 6 7 8 VIDEO
1
2
OUTPUTS
12345678AUDIO
MUTE
COLOR/
TINT
BRT/ CONT
SIZE CENTER FILTER
ADJUST
MENU NEXT
INPUTS
ISM 482
15
73
4
6
2
8 9
4
Operation
Front Panel Controls and Indicators
All of the switcher’s controls and indicators are on the front panel (figure 3-1). A label window above the input buttons can be labeled with text and/or graphics. The 20 x 4 LCD display indicates the switcher status, menu selections, the data rate, and the status of additional system features.
Figure 3-1 — Integration Scaling Matrix Switcher front panel
Video/Audio selection button and LEDs
Video/Audio button — The Video/Audio button selects video, audio, video
1
and audio, or neither for creating ties. Video and Audio LEDs — The green Video LED and red Audio LED indicate
whether video, audio, video and audio, or neither will be selected using the Input buttons and indicated by the Input LEDs (
).
Figure 3-2 shows the sequence displayed by the LEDs when you cycle through video and/or audio selection by pressing the Video/Audio button repeatedly as follows.
VIDEO
AUDIO
Default
(Video &
audio)
Press button
VIDEO
AUDIO
None
Press
button
VIDEO
AUDIO
Video
only
Press
button
VIDEO
AUDIO
Audio
only
Press
button
VIDEO
LED key:
= on, = off
AUDIO
Video &
Audio
Figure 3-2 — Video and/or audio selection cycle
Integration Scaling Matrix Switcher • Operation3-2
Outputs buttons and LEDs
Output 1 and Output 2 buttons — The Output 1 and Output 2 buttons select
2
output 1 or output 2. Press an output button to select that output and automatically deselect the other output (figure 3-3).
Output 1 and 2 LEDs — The Output 1 and Output 2 LEDs indicate the output that is selected (figure 3-3). Only one Output LED can be lit at a time.
Only one of the two outputs can be selected at a time.
1
OUTPUTS
2
Press
button
1
OUTPUTS
2
Press
button
1
OUTPUTS
2
Figure 3-3 — Output selection cycle
When an output is selected, its tied input is indicated by the associated Input LED. You can select a different input to tie to this output by pressing the desired input button.
Input buttons, LEDs, and label window
Front panel input label window
Input label panel — This translucent panel can be removed and replaced to
3
insert a label behind the panel. To remove the panel, insert the Phillips-head end of an Extron tweeker or small Phillips-head screwdriver into the hole in one end of the panel, and gently slide the tab on the edge of the panel out of the recess in the switcher housing.
Input labels can be created easily with Extron’s button label generator software, which ships with every Extron Matrix Switcher, or with any Brother alphanumeric characters, or even color bitmaps for easy and intuitive input and output selection (figure 3-4). See chapter 5, Switcher Software, for details on using the label software.
®
P-Touch™ labeler. Each input can be labeled with names,
INPUTS
LED key:
= on, = off
Rack DVD (DVS 100)
12345678
12345678
Figure 3-4 — Sample label
3-3Integration Scaling Matrix Switcher • Operation
Operation, cont’d
3
User Preset #2
Recalled
3
User Preset #2
Recalled
33
User Preset #3
Recalled
User Preset #1
Recalled
Press button Press buttonPress button
Selecting an input
Input selection buttons — The Input 1 through Input 8 buttons select the
4
associated input to scale and display on the selected output(s). Input selection LEDs — The green input LEDs above the input buttons
indicate the video selection. The red input LEDs below the input buttons indicate the audio selection. To view the input tied to the unselected output, press the unselected output button. Both outputs’ input selections can also be viewed in the LCD display cycle.
Recalling a user preset
There are three user presets per input. The presets save color, tint, contrast, brightness, detail, sizing, and centering settings. See User Presets menu later in this chapter to save and erase presets. Cycle through and recall these memories by repeatedly pressing the appropriate input button. The LCD panel identifies the recalled preset (figure 3-5).
Auto imaging an input
Black/Mute button and LEDs
Picture adjustment buttons
Figure 3-5 — Recalling user presets
The auto imaging feature automatically sizes and centers the selected input to fill the screen. Initiate the auto imaging feature for a specific input by pressing and holding the appropriate input button until the LCD displays the message Auto Image Input #n, releasing the input button, and then pressing and releasing the input button again. The LCD displays AutoSizing and Centering Please Wait... until the operation is complete. Alternatively, using the menu system, this feature can be set to apply the Auto Image adjustments to every input as it is selected (see Auto Imaging and Auto Memories submenu later in this chapter).
Black/Mute button and LEDs The Black/Mute button switches the
5
selected output(s) to a black screen and/or muted audio. The black screen and/or mute audio is deselected when a new input is selected.
The picture adjustment buttons select individual image adjustments that are
6
adjusted using the Adjust
and Adjust knobs (9). The LEDs above these
buttons light when the button is pressed. Color/Tint control button The Color/Tint button selects the display color
and tint adjustments. The color adjustment range is from 0 to 127. The tint adjustment range is from 0 to 255. See Picture adjustments in this chapter.
The Color/Tint control affects only composite video and S-video inputs.
Integration Scaling Matrix Switcher • Operation3-4
Brightness/Contrast control button The Brightness/Contrast button selects the display brightness and contrast adjustments. The adjustment range for both brightness and contrast is from 0 to 63. See Picture adjustments in this chapter.
Size control button The Size button selects the display size adjustment. The adjustment range depends on the output resolution selected. See Picture adjustments in this chapter.
Center control button The Center button selects the display centering adjustment. The adjustment range depends on the output resolution selected. See Picture adjustments in this chapter.
Filter control (Detail) button The Detail button selects the display image detail (sharpness) adjustment. There are separate horizontal and vertical filters for RGB and component video. There is a single filter for S-video and composite video. The sharpness adjustment compensates for long cable runs. See Picture adjustments in this chapter.
For RGB and component video, the Adjust horizontal filter and the Adjust adjustment range for the horizontal filter is from 0 to 3. The adjustment range for the vertical filter is from 0 to 7.
For S-video and composite video, either Adjust knob controls the filter setting. The range of the adjustment is from 0 to 7.
LCD display
Status display — The 20-column by 4-line LCD displays configuration menus
7
and status information. See Front Panel Operations in this chapter for details.
Menu control buttons
Menu button — The Menu button enters and moves through the main menu
8
system in the ISM. See Front Panel Operations in this chapter for details. Next button — The Next button steps through the submenus in the ISM
menu system. See Front Panel Operations in this chapter for details.
Adjustment knobs
Adjust (horizontal) and Adjust (vertical) knobs — The Adjust and
9
Adjust adjustment buttons or the menu system. Rotate these knobs to change picture settings when one of the picture adjustment buttons is selected. In the menu system, rotate these knobs to scroll through the selection options and make adjustments.
knobs change settings when used in conjunction with the picture
knob controls the
knob controls the vertical filter. The
3-5Integration Scaling Matrix Switcher • Operation
Operation, cont’d
Front Panel Operations
The following paragraphs detail the power-up process and then describe the menu system, the picture adjustments, and selection of executive mode.
Power
Power is automatically applied when the power cord is connected to an AC source. When AC power is applied, the switcher performs a self-test that blinks all of the front panel LEDs and then lights only the LED for the previously selected output and the tied input. The self-test also displays the model name, part number, and the firmware version in the LCD display. After approximately 2 seconds, the LCD reverts to its default display cycle, alternating between two displays; one showing the inputs selected for outputs 1 and output 2, and the other showing the selected output rates (figure 3-6). An error-free power up self-test sequence leaves all of the LEDs, with the exception of the selected output’s and input’s LEDs, off and the LCD cycling through the default displays.
Extron Electronics
Power
on
ISM 482
Integration
Scaling Matrix
2 sec.
Extron Electronics
ISM 482
60-425-01
x.xx
Version
2 sec.
Default Display Cycle
Out #1 In # 1 RGB
0.00 kHz 0.00Hz
Out #3 In # 3 S-Video
0.00 kHz 0.00Hz
2 sec.
Output Rate
#1 1280 x 1024 @ 60 #2 1280 x 1024 @ 60
2 sec.
Figure 3-6 — LCD power up and default display cycle
The selected inputs for output 1 and output 2, the picture adjustments, and other current settings are saved in nonvolatile memory. When power is applied, the latest configuration is retrieved.
On figure 3-6 and all other flowcharts in this chapter, solid lines indicate screen changes initiated by the operator. Dashed lines indicate screen changes that are the result of a timeout function.
Integration Scaling Matrix Switcher • Operation3-6
Menu system overview
Figure 3-7 shows a flowchart of the main menus in the menu system.
Power
on
Extron Electronics
ISM 482
Integration
Scaling Matrix
2 sec.
Extron Electronics
ISM 482
60-425-01
x.xx
Version
2 sec.
Default
Cycle
Menu
10 sec.
Video & Audio
Configuration
Menu
Menu
10 sec.
Output
Configuration
User Presets
Menu
Menu
Press Next to Exit
10 sec.
Advanced
Configuration
Exit Menu
Menu
10 sec.10 sec.
Next
Figure 3-7 — Menu system flowchart
Menu button Press the Menu button to activate the menu system and to scroll
through the five main menus.
Next button Press the Next button to move between the submenus of a selected
main menu, to activate one for viewing or configuration, and to save a selection. Pressing the Next button during input configuration causes the current input’s number and format type to be displayed on the LCD.
Adjust
and Adjust knobs — When in a submenu, rotate the Adjust knob
and Adjust
knob to scroll through the submenu options and select a setting. Refer to the flowcharts in this chapter and to specific sections for explanations on knob adjustments.
If you press the Menu button while a main menu or a submenu is active, the next main menu becomes active. For example, the display changes from the Video & Audio Configuration main menu or the Input Configuration submenu (a submenu of the Video & Audio Configuration menu) to the Output Configuration main menu.
To return to the default screens, let the switcher remain idle for 10 seconds until the selected screen times out, or press the Menu button until the Exit Menu appears, then press the Next button.
3-7Integration Scaling Matrix Switcher • Operation
Operation, cont’d
Video & Audio Configuration menu
Figure 3-8 is a flowchart that shows an overview of the Video & Audio Configuration menu and the available settings.
From any menu or submenu, after 10 seconds of inactivity, the ISM saves all adjustment settings and times out to the default LCD display cycle.
Default
Cycle
Menu
Video & Audio
Configuration
Configuration
Configuration
User Presets
Menu
Press Next to Exit
Menu
Output
Menu
Advanced
Menu
Menu
Exit Menu
Next
10 sec. 10 sec.
Next
Input Configuration:
Select an input to configure by pressing an Input button.
Rotate the knob to select the video type.
Input video type
• RGB • Betacam 60
• RGBcvS • HDTV
• YUVi • S-video
• YUVp • Composite
• Betacam 50
Next
Video/Audio Config
Input #1 Composite
Menu
Audio #3 Level -12db
1
1
Rotate the knob to select the audio level.
Input audio level
-24dB to +9dB
Figure 3-8 — Input Configuration menu flowchart
NOTE The audio is broken
away in this example.
Input Configuration:
If necessary, select another input and repeat.
2
2
Input Configuration submenu
Select an input to configure by pressing and releasing an input button. Rotate the Adjust
knob while in the Input Configuration submenu to select the correct video format (RGB, RGBcvS, YUVi, YUVp, Betacam 50, Betacam 60, HDTV, S-video, or composite video) for the selected input. Rotate the Adjust knob to select the audio gain or attenuation value, from -24 dB to +9 dB. The default for each input is RGB video and a 0 dB audio level.
Integration Scaling Matrix Switcher • Operation3-8
Output Configuration menu
Figure 3-9 is a flowchart that shows an overview of the Output Configuration menu, the submenus, and the available settings.
Default
Cycle
Menu
10 sec.
Video & Audio
Configuration
Configuration
Configuration
User Presets
Menu
Press Next to Exit
Menu
Output
Menu
Advanced
Menu
Menu
Exit Menu
Next
Output Resolution submenu
10 sec.
Next Next Next
Output resolutions
See the table on the next page for available combinations of resolutions and refresh rates.
Default: 1024x768, 60 Hz
Output #1 Resolution
1280 x 1024
Refresh Rate
60 Hz
1
Output Configuration:
OUTPUTS
If necessary, select the other output and repeat.
2
Output frequencies
NOTE Lock = AFL
Output signal format
• RGBHV
• RGBS
Output #1 Sync Type
H Neg V Pos
10 sec.
RGBHV
Sync Polarity
1
Output Configuration:
OUTPUTS
If necessary, select the other output and repeat.
2
Polarity combinations
• H-/V- (default)
• H-/V+
• H+/V-
• H+/V+
Menu
Figure 3-9 — Output Configuration menu flowchart
Select the output whose resolution and refresh rate you want to set by pressing the desired Output button.
Rotate the Adjust
knob while in this submenu to select one of the available
output resolutions. Rotate the Adjust
knob while in this submenu to select one of the available refresh (vertical scanning) rates. Selecting Lock enables the Extron Accu-RATE Frame Lock (AFL) feature. Accu-RATE Frame Lock eliminates image tearing and other artifacts of scaling motion video by eliminating frame rate conversion. It exactly matches the output rate of the ISM to the frame rate of input 1. Select this feature if you will be using motion video sources with a display that is capable of a variety of refresh rates. AFL is compatible with 50 Hz and 60 Hz only.
The default resolution and rate is 1024 x 768 @ 60 Hz. If you need to set the resolution and refresh rate on the other output, press the
other output button. You do not need to exit this submenu.
3-9Integration Scaling Matrix Switcher • Operation
Operation, cont’d
noituloseRzH05zH65zH06zH57zH58zH06/05takcoL ✝✝✝✝✝
p027 * ylnozH06@VTDH
p0801ylnozH06@VTDH
* .noitulosertuptuoIVDevitaN
✝✝✝✝✝ .1tupnifoetarhserferoedivehtnodesab,detceles-otuasietarhserfer
084x046284,281
006x008284,281
426x238
084x848
084x258
867x4201 * 284,281
867x0821 *
4201x0821 *
567x0631 ylno284 ylno284
4201x5631
0501x0041ylno284
VTDHp675ylno284
VTDHi0801ylno284
tuptuoehT
ylno284 ylno284
ylno284 ylno284
284,281284,281 284,281
284,281284,281 284,281
284,281284,281 284,281
284,281 284,281
284,281 284,281
284,281284,281284,281284,281
ylno284 ylno284
ylno284 ylno284
ylno284 ylno284
ylno284 ylno284
ylno284 ylno284
ylno284
Sync Type and Polarity submenu
Select the output whose sync type and polarity you want to set by pressing the desired Output button.
Rotate the Adjust
knob while in this submenu to select the output video type
(RGBHV or RGBS) for the selected output. The display or projector may require a particular combination of horizontal (H) and
vertical (V) sync signal polarities. Select the appropriate combination of positive or negative H and V sync for the selected output by rotating the Adjust
knob.
If you need to set the sync type and polarity on the other output, press the other output button. You do not need to exit this submenu.
Integration Scaling Matrix Switcher • Operation3-10
Video & Audio
Configuration
Configuration
Configuration
User Presets
Menu
Press Next to Exit
Advanced Configuration menu
Figure 3-10 is a flowchart that shows an overview of the Advanced Configuration menu, the submenus, and the available settings.
Default
Cycle
Menu
10 sec.
Menu
Output
Menu
Next
Advanced
Menu
Menu
Exit Menu
Next
Select a test pattern with the Adjust knob.
Select preview/program off/on with the Adjust knob.
Test Pattern
Color Bars
Out #1 Out # 2
Off Off
Set test pattern type
• Color Bars
• Crosshatch
• 4x4 crosshatch
• Grayscale
• Crop
Select the output 1 delay with the Adjust knob.
Select the output 2 delay with the Adjust knob.
RGB Delay
Out #1 0.8 Seconds Out #2 0.5 Seconds
10 sec. 10 sec. 10 sec.
10 sec.
Next
• Alternating pixels
• Film aspect 1.78
• Film aspect 1.85
• Film aspect 2.35
• Ramp
Next
Select blue mode with the Adjust knob.
Select edge smoothing with the Adjust knob.
Blue Only Mode
Off
Edge Smoothing
Output #2
Display blue and sync only
• Off (default), Input 1, Input 2, Both
Edge smoothing
• Off (default), Input 1, Input 2, Both
Select auto imaging with the Adjust knob.
Select auto presets with the Adjust knob.
Auto Imaging
<
Off> On
Auto Memories
<
Off> On
10 sec.
Press an output button to select an output.
Select top blanking with the Adjust knob.
Select bottom blanking with the Adjust knob.
Next
Next
Top Bottom 000 000
Change this submenu with either Adjust knob.
10 sec.
Output #1 Blanking
Next
Enhanced Mode
<
Off> On
Next
Default
Cycle
Set the output 1 pixel phase with the Adjust knob.
Set the output 2 pixel phase with the Adjust knob.
Pixel Phase
Out #1 Out # 2
000 000
10 sec.
Next
Select an input. Set the PAL film mode on or off with either Adjust knob.
PAL Film Mode
Input #2
<
Off> On
10 sec. 10 sec.10 sec.
If necessary, select another input and repeat.
To reset the scaler, press and hold the Black button until the reset message appears. *Adjust knobs do not affect
this submenu.
Next
2
2
Figure 3-10 — Advanced Configuration menu flowchart
Reset Unit?
Press and Hold
BLACK/MUTE
To Reset
Menu
Next
3-11Integration Scaling Matrix Switcher • Operation
Operation, cont’d
Test Pattern submenu
The Test Pattern submenu lets you select from among several test patterns and assign the selected pattern to an output. The test patterns are helpful when adjusting the connected displays for color, convergence, focus, resolution, contrast, grayscale, and aspect ratio.
Use the Adjust crosshatch, 4 x 4 crosshatch, gray scale, crop, alternating pixels, film aspect ratios
1.78, 1.85, 2.35, and ramp.
knob to select a test pattern. The options are: Color Bars,
Use the Adjust among neither output (both off), output 2, output 1, or both outputs.
Blue Only Mode and Edge Smoothing submenu
The Blue Only Mode and Edge Smoothing submenu lets you turn the blue mode and edge smoothing features on and off. Blue-only mode is helpful in the setup of the color and tint of the incoming video signal. In the blue-only mode, only the sync and blue video signals are passed to the display. Edge enhancement mode smooths edges of a picture by minimizing the differences between pixels.
Use the Adjust output 2, output 1, or both outputs. The default is Off.
Use the Adjust output 2, output 1, or both outputs. The default is Off.
Blanking submenu
The Output Blanking submenu displays and allows you to adjust the top and bottom line blanking on the output monitors within a range of 0 to 200 lines. During scaling, captioning and tapehead switching in the video’s blanking area may show up as picture noise. Using blanking, you can add black lines at the top and bottom edges of the image to eliminate edge noise.
Select the output that you want to blank by pressing the desired Output button. Use the Adjust
0 lines. Use the Adjust
is 0 lines.
knob to assign the output(s) for the selected test pattern. Select
knob to assign Blue Only Mode to neither output (both off),
knob to assign Edge Smoothing to neither output (both off),
knob to increase or decrease the top line blanking. The default is
knob to increase or decrease the bottom line blanking. The default
RGB Delay submenu
The RGB Delay submenu displays and lets you set the RGB delay when a switch is made. With RGB delay, sync is never removed from the display. Rather, the ISM blanks the RGB (video) outputs while the scaler locks to the new sync, and then switches the RGB signals. This allows a brief delay for the displays to adjust to the new sync timing before displaying the new picture, which will appear without glitches. RGB delay is also known as Triple-Action Switching switching.
Use the Adjust from 0 seconds to 5 seconds in 0.1 second steps. The default is 0.2 seconds. Use the Adjust knob to select the blanking period for output 2.
knob to select the blanking period (RGB delay time) for output 1
or video mute
Integration Scaling Matrix Switcher • Operation3-12
Auto Imaging and Auto Memories submenu
The Auto Imaging and Auto Memories submenu provides a means to turn the auto imaging and auto presets features on or off for all input selections.
If auto imaging is set to on, the ISM automatically sizes and centers the selected input to fill the screen when a new frequency is input. If auto imaging is set off, the ISM sizes and centers the selected input only when it is commanded using the input button, see Auto imaging an input, earlier in this chapter. Rotate the Adjust knob to toggle auto imaging on or off for all input selections.
The auto memories feature saves and recalls centering and sizing information, based on the input frequency. With some control systems, the delay involved in recalling the memory can be a problem so it may improve system performance to turn auto memories off. Rotate the Adjust
knob to toggle auto memories on or off
Enhanced Mode submenu
The Enhanced Mode submenu provides a means to turn enhanced mode on or off. Enhanced mode is an automatic gain control for S-video or composite video input signals scaled and applied to an output. If the input signal level is too weak, the signal gain is increased; if the input signal level is strong, the signal gain is decreased.
Use either the Adjust
or Adjust knob to turn on enhanced mode for neither
output (off for both), output 2, output 1, or both outputs. The default is Off.
Enhanced mode is only effective for S-video and composite video input signals.
Pixel Phase submenu
The Pixel Phase submenu displays and lets you set the pixel phase, which is the timing of the digital scaler’s sampling. Sampling at the optimum pixel phase results in a brighter scaled output.
Use the Adjust default is 16. Use the Adjust
knob to select the pixel phase for output 1 from 0 to 31. The
knob to select the pixel phase for output 2.
PAL Film Mode submenu
The PAL Film Mode submenu lets you turn PAL film mode on and off for the selected input. The PAL film mode should be used for a video source that is PAL video that originated from film. PAL film mode applies video processing algorithms that optimize the conversion of video that was made with the 2:2 pulldown (PAL video from film) process.
Use either the Adjust
knob or the Adjust knob to select On or Off. Select other
inputs as necessary to configure.
Reset submenu
The Reset submenu resets all ISM 482 settings and adjustments to the default values and erases all presets. The front panel reset performs the identical functions as the
zXXX SIS command (see chapter 4, Programmer’s Guide).
Esc
Reset the switcher by pressing and holding the Black/Mute button while this submenu is active. The LCD displays Unit Reset to Factory Defaults when the reset is complete. Release the Black/Mute button.
3-13Integration Scaling Matrix Switcher • Operation
Operation, cont’d
User Presets menu
Figure 3-11 is a flowchart that shows an overview of the User Presets menu, the Save Preset and Erase Preset submenus, and the available settings.
Default
Cycle
Menu
10 sec.
Video & Audio
Configuration
Menu
Output
Configuration
Menu
Configuration
Menu
Press Next to Exit
Advanced
Menu
Memory
Menu
Exit Menu
Next
Next
NOTE To save a preset for the second
output after saving for the first, start over from the default cycle.
1
OUTPUTS
If necessary, select the unselected
2
output.
<N/A> 1 2 3
Use either Adjust knob to select a preset or no preset (N/A). Press Next.
10 sec.
Save Out #2 Preset
Next
NOTE To erase a preset for the second
output after erasing for the first, start over from the default cycle.
1
OUTPUTS
2
If necessary, select the unselected output.
Erase Out #1 Preset
<N/A> 1 2 3
Use either Adjust knob to select a preset or no preset (N/A). Press Next.
Figure 3-11 — User Presets menu flowchart
Save Preset submenu
Select the output with the settings that you want to save as a preset by pressing the desired Output button.
Rotate either the Adjust
or the Adjust knob while in the Save Preset submenu to highlight (< >) one of three memory presets for the selected output or highlight N/A for no preset. Press the Next button to save the current settings to the selected preset. Select N/A and press the Next button to exit without saving the settings.
Presets, which are saved values of the current color, tint, contrast, brightness, detail, sizing, and centering settings, are saved in nonvolatile memory; when the ISM is powered down and later powered back up, the settings are available for selection. Saving the settings to a preset overwrites the settings previously written to that preset.
The color, tint, contrast, brightness, detail, sizing, and centering adjustments are tailored for the selected output rate. If you change the output rate and then recall a preset for the earlier rate, the adjustments recalled in the preset have no effect on the video output. However, if you then change back to the earlier output rate, the effects of the adjustments appear on the screen if they were not overwritten for the old output rate.
10 sec.
Menu
Next
Integration Scaling Matrix Switcher • Operation3-14
User presets are recalled using the Input buttons. See Recalling a user preset earlier in this chapter for instructions on recalling a user preset.
Erase Preset submenu
Select the output with the settings that you want to erase by pressing the desired Output button.
Rotate either the Adjust
or the Adjust knob while in the Erase Presets submenu to highlight (< >) one of three memory presets to erase or highlight N/A for no preset. Press the Next button to erase the preset. Highlight N/A and press the Next button to exit without erasing the settings.
Exit menu
From the Exit menu (figure 3-12), press the Next button to return to the default display cycle, or press the Menu button to return to the Video & Audio Configuration menu
User Presets
Menu
Exit Menu
Press Next to Exit
Menu
Video & Audio
Configuration
Next
Default
Cycle
Figure 3-12 — Exit menu flowchart
3-15Integration Scaling Matrix Switcher • Operation
Operation, cont’d
Picture adjustments
The picture adjustments allow you to fine tune the image quality of the selected input. When you press one of the Picture Adjustments buttons (Color/Tint, Brightness/Contrast, Size, Center, or Filter) once, the corresponding image adjustment menu for the selected output (lit Output LED) image appears on the LCD screen. Select the other output using the Output buttons to call the image adjustment menu for the other output. In either screen, adjustments can then be made by rotating the Adjust knob or the Adjust knob. Picture adjustment settings are stored in nonvolatile memory; when the switcher is powered down and powered up, the settings are restored.
Adjust an image for centering, sizing, brightness, contrast, color, tint, zoom, or detail as follows (figure 3-13):
COLOR/
TINT
Output #1
Color Tint 127 128
NOTE
Press the appropriate output button
BRT/
CONT
Output #1
Brightness Contrast 063 063
to select the desired output.
Figure 3-13 — Picture adjustments flowchart
1. Press the desired input button and output button to select an input-output tie to adjust.
The adjustments are made to the input signal as it is switched to the tied output (1 or 2 [the output LED is lit and the selected output is shown in the LCD]) only. The adjustments do not affect the same input tied to the other output.
Color adjustments are available only for component video, S-video, and composite video inputs.
Tint adjustments are available only for S-video and composite video inputs.
2. Press the appropriate picture adjustment button: color and tint (Col/Tnt), brightness and contrast (Brt/Cont), sizing (Size), centering (Center), or filter. The LCD display shows the name of the adjustment and the current setting value.
3. Rotate the Adjust following adjustment ranges:
The Adjust knobs have no mechanical limits to their rotation.
Extron Electronics
ISM 482
Power
on
Horz Size Vert 450 400
Integration
Scaling Matrix
SIZE CENTER FILTER
Output #1
NOTE
Horz Center Vert 500 550
The Adjust knob and the Adjust knob
Extron Electronics
2 sec.
Output #1
ISM 482
60-425-01
xxxx
Version
Output #1
Horz Filter Vert
3 7
are used to adjust the image settings on the left and right sides of the LCD screen, respectively.
knob or Adjust knob to vary the settings within the
2 sec.
10 sec. timeout
Display
Cycle
Integration Scaling Matrix Switcher • Operation3-16
Color/Tint: Color adjusts within a range from 0 to 127. Tint adjusts within a range from 0 to 255.
Brightness/Contrast: The range for both adjustments is 0 to 63.
Size: Observe the display and turn the Adjust
decrease the horizontal size of the image. Turn the Adjust to increase or decrease the vertical size of the image. The adjustment range depends on the input rate applied and the output resolution selected.
Center: Observe the display and turn the Adjust knob to center the
image horizontally or the Adjust
knob to center the image vertically. The adjustment range depends on the input rate applied and the selected output resolution selected.
Horizontal and vertical filter (RGB or component video input): Horizontal (Horz) adjusts within a range from 0 to 3. Vertical (Vert) adjusts within a range from 0 to 7.
Filter (S-video and composite video input): Either knob adjusts within a range from 0 to 7.
4. Repeat steps 2 and 3 for each image adjustment to be made for that output.
5. If you want to set picture adjustment on the another tie, press the another
input button or the other output button.
Front panel security lockout (executive mode)
The front panel security lockout limits the operation of the Integration Scaling Matrix switcher from the front panel. When the switcher’s front panel is locked, all of the front panel functions are disabled except for input and output selection and black/mute selection.
To toggle the front panel lock on and offf, press and hold the Color/Tint and Center buttons for approximately two seconds (figure 3-14). The LCD displays Executive Mode Enabled or Executive Mode Disabled to indicate the mode. Release the buttons. The LCD also displays Executive Mode Enabled if you push a locked out button when the switcher’s front panel is locked.
knob to increase or
knob
Default
Cycle
Press and hold both buttons simultaneously for 2 seconds
Executive Mode
10 sec. timeout
ISM 482
Enabled
COLOR/
TINT
CENTER
OR
Executive Mode
ISM 482
Enabled
Figure 3-14 — Front panel security lockout flowchart
3-17Integration Scaling Matrix Switcher • Operation
Operation, cont’d
IP information
To set up the ISM for operation via its Ethernet port, you need to know and be able to change the IP address. One way to do this is via the IP address and hardware address screen.
To access the IP address and hardware address screen, press and hold the Color/Tint and Detail buttons while you apply power to the ISM (figure 3-15). When the ISM is finished intializing, it displays both addresses.
Press and hold both buttons
simultaneously while applying power
COLOR/
TINT
>
192.168.254.254
Hardware Address
00-80-00-00-04-04
Select the IP address subfield with the Adjust knob.
192.168.254
Hardware Address
00-80-00-00-04-04
DETAIL
IP Address
IP Address
>
10 sec.
Power
Change the subfield value with the Adjust knob.
253
NOTE The hardware address is
hardcoded and cannot
Default
Cycle
be changed.
Figure 3-15 — IP information flowchart
If you need to change the IP address, use the Adjust subfield. Rotate the Adjust
knob to change the value. Repeat the adjustment for
knob to select the desired
other subfields as required. Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields separated by
dots (periods). Each field can be numbered from 000 through 255. Leading zeroes, up to 3 digits total per field, are optional. Values of 256 and above are invalid.
If the local system administrators have not changed the value, the factory­specified default, 192.168.254.254, is the correct value for this field.
The hardware address is hardcoded and cannot be changed.
Optimizing the Video
Perform the following steps, in sequence, after you have installed the ISM. This procedure will help you to configure the switcher for the best settings for your display environment. In a multi-screen environment, perform this procedure for each display.
See Advanced Configuration menu earlier in this chapter to select and output a test pattern and to select and output blue only video.
See Picture adjustments earlier in this chapter to make adjustments to the picture quality.
See User Presets menu earlier in this chapter to save presets.
Integration Scaling Matrix Switcher • Operation3-18
1. If you are using a digital display such as an LCD or DLP projector, use the alternating pixels test pattern as a reference to adjust the phase and dot clock on the display devices. Proceed to step 3.
2. If you are using a CRT display, use the cross hatch test pattern as a reference to converge the display.
3. Set the ISM to output either the crop test pattern for 4:3 video or the appropriate aspect ratio test pattern. Use the display’s positioning controls to position the image so that you can see all sides of the test pattern on the display.
For the best results of this optimizing procedure, do not use the ISM’s center controls to position the image.
4. Select an input. Use the ISM’s size and center functions to fill the crop or aspect ratio test pattern.
If the input source is a DVD, set the DVD player to output a 16:9 aspect ratio, see Setting up a DVD source below, before sizing the image using the ISM’s size function to correct the aspect ratio.
When sizing and centering a letterbox movie video source, increasing the brightness on the ISM makes it easier to see the top and bottom of the active video.
5. If the input source is RGB, use the horizontal and vertical detail adjustments to increase the sharpness.
6. For S-video and composite video inputs, set the ISM to output blue-only video and to output the Color Bars test pattern. Using the blue Color Bars as a reference, use the ISM’s color and tint controls to adjust the video’s color and tint.
7. For RGB video inputs, set brightness and contrast levels. See Picture adjustments, earlier in this chapter.
8. Save this setting into one of the user memories using the User Presets menu.
Setting up a DVD source
To get the best results when using a DVD as a video source, Extron recommends that the DVD player itself be set up to output an aspect ratio of 16:9 and not 4:3. Because all DVDs are mastered as 16:9, having them set up for anything else causes the player to internally scale and compress the signal. The DVD player’s scaling and compression defeats the advantage of having 3-2 pulldown detection in the ISM.
All sizing adjustments to correct the aspect ratio should be done using the ISM. To change the output aspect ratio of most DVD players:
1. Enter the DVD player’s setup or action menu while the disc is stopped.
2. Select the 16:9 aspect ratio.
3-19Integration Scaling Matrix Switcher • Operation
Operation, cont’d
Optimizing the Audio
Each individual input audio level can be adjusted within a range of -24dB to +9dB, so there are no noticeable volume differences between sources and for the best headroom and signal-to-noise ratio. Adjust the audio gain and attenuation as follows:
1. Connect audio sources to all desired inputs and connect the audio outputs to output devices such as audio players. See Input connections and Output connections, in chapter 2, Installation. For best results, wire all of the inputs and the outputs unbalanced.
2. Power on the audio sources, the switcher, and the audio players.
3. Switch among the inputs (see Selecting an input, in this chapter), listening to
the audio with a critical ear or measuring the output audio level with test equipment, such as a VU meter.
4. As necessary, adjust the audio level of each input (see Video & Audio Configuration menu, in this chapter) so that the approximate output level is the
same for all selected inputs.
Troubleshooting
The following tips may help you in troubleshooting.
Some symptoms may resemble others, so you may want to look through all of the examples before attempting to solve the problem.
Be prepared to backtrack in case the action taken does not solve the problem.
It may help to keep notes and sketches in case the troubleshooting process gets lengthy. This will also give you something to discuss if you call for technical support.
Try simplifying the system by eliminating components that may have introduced the problem or made it more complicated.
For sync-related problems: Portable digital projectors are designed to operate close to the video source. Sync problems may result from using long cables or from improper termination. A sync adapter, such as Extron’s ASTA (active sync termination adapter), may help solve these problems.
For LCD and DLP projectors and plasma displays: In addition to the sync­related information above, check the user’s manual that came with the projector for troubleshooting tips, as well as for settings and adjustments. Each manufacturer may have its own terms, so look for terms like “auto setup”, “auto sync”, “pixel phase”, and “tracking”.
General checks
1. Ensure that all devices are plugged in and powered on. The switcher is receiving power if the LCD is displaying the default display cycle.
2. Ensure an active input is selected on the switcher.
3. Ensure that the proper signal format is supplied.
4. Check the cabling and make corrections as necessary.
5. Call the Extron S
3
Sales & Technical Support Hotline if necessary.
Integration Scaling Matrix Switcher • Operation3-20
Specific problems
The table below shows some common operating problems and their solutions.
Problem Cause Solution
No image appears. The input signal is Connect an input device that is
The image is flashing. The scaled output Change the scaled output to a
The image is too soft. The detail level Use the Filter button to change the
incompatible. compatible with the ISM.
The input is improperly Use the Video & Audio configured. Configuration submenu to select
the correct input format.
Freeze mode was Deactivate freeze mode via an SIS entered via an SIS command. command when the image was black.
The scaled output Change the scaled output to a rate is too high for compatible resolution. the display.
rate is too high for compatible resolution. the display.
needs to be detail level. changed.
3-21Integration Scaling Matrix Switcher • Operation
Operation, cont’d
Integration Scaling Matrix Switcher • Operation3-22
Integration Scaling Matrix Switcher
Chapter Four
4
Programmer’s Guide
RS-232 Link
Ethernet Link
Symbols
Switcher-Initiated Messages
Host-to-Switcher Instructions
Programmer’s Guide
RS-232 Link
The switcher’s rear panel Remote 9-pin D female connector (figure 4-1) can be connected to the RS-232 serial port output of a host device such as a computer running the HyperTerminal utility or a control system. This connection makes software control of the switcher possible.
Figure 4-1 — Remote connector pin arrangement
The protocol is 9600 baud, 8-bit, 1 stop bit, no parity, and no flow control.
Ethernet Link
The rear panel Ethernet connector on the switcher can be connected to the an
ETHERNET
RS-232 FunctionPin
Not used
1
— — — —
Transmit data Receive data Not used Signal ground Not used Not used Not used Not used
TX
2
RX
3 4
Gnd
5 6 7 8 9
51
9
6
Female
5
1
9
6
Male
Ethernet LAN or WAN (figure 4-2). This connection makes SIS control of the switcher possible using a computer connected to the same LAN or WAN.
LINK ACT
Clip DownSide
1Pins 2345678
RJ-45 connector
Pin Wire color Pin Wire color
1 White-orange 1 White-orange 2 Orange 2 Orange 3 White-green 3 White-green 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Green 7 White-brown 7 White-brown 8 Brown 8 Brown
Patch (straight) cable
Side 1 Side 2
1
1&2
2345678
3&6 4&5
7&8
Twisted Pairs
Pin Wire color Pin Wire color
1 White-orange 1 White-green 2 Orange 2 Green 3 White-green 3 White-orange 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Orange 7 White-brown 7 White-brown 8 Brown 8 Brown
Crossover cable
Side 1 Side 2
Figure 4-2 — RJ-45 connector pinout tables
Integration Scaling Matrix Switcher • Programmer’s Guide4-2
Ethernet connection
X11
X12
X13
X14
X15
X16
X17
X18
X19
X20
X21
X22
X23
X24
X25
X26
The cable can be terminated as either a patch cable or a crossover cable (figure 4-2) and must be properly terminated for your application:
Patch (straight) cable — Connection of the ISM to an Ethernet hub, router, or switcher that also hosts a controlling computer.
Crossover cable — Direct connection between the ISM and a computer.
Default address
To access the switcher via the Ethernet port, you will need the switcher’s IP address. If the address has been changed to an address comprised of words and characters, the (see IP information in chapter 3, Operation) or the Ping utility (see
switcher’s IP address or Ping to determine the Web IP address in Connection, for more details). If the address has not been changed, the factory-
specified default is 192.168.254.254.
Symbols
Symbols ( switcher-initiated messages that begins on the next page and the command/ response table that begins on page 4-8. The symbols represent variables in the switcher-initiated messages and the command/response table fields.
actual numeric IP address can be determined using the front panel
Ping to determine the
appendix A
values), defined below, are used throughout the discussions of the
X
n
, Ethernet
= CR/LF (carriage return/line feed) (hex 0D 0A) = CR (no line feed)
= Space = Escape key
Esc
= Input number 1 through 8
X1
= Output number 1 or 2
X2
X3
= 000 = off, 001 = on
X4
= Input video type:
000 = RGB 005 = Betacam 60 001 = RGBcS 006 = HDTV 002 = YUVi 007 = S-video 003 = YUVp 008 = Composite 004 = Betacam 50
= Scaler resolution:
X5
00 = 640x480 08 = 1360x765 01 = 800x600 09 = 1365x1024 02 = 832x624 10 = 720p* 03 = 848x480 11 = 1080p 04 = 852x480 12 = 1080i 05 = 1024x768* 13 = 1400 x 1050 06 = 1280x768* 14 = 576p 07 = 1280x1024*
X6
= Video refresh rate:
000 = 50 Hz 003 = 75 Hz 001 = 56 Hz 004 = 85 Hz 002 = 60 Hz 005 = AFL*
Lock or AFL is Accu-RATE Frame Lock (PAL = 50 Hz, NTSC =59.94 Hz)
X7
= Output video type: 00 = RGBHV, 01 = RGBS
X8
= Output sync polarity:
00 = H–/V– 02 = H+/V– 01 = H–/V+ 03 = H+/V+
= Color value (0 thru 127)
X9
X10
= Tint value (0 thru 255)
= Brightness and contrast value (000 thru 63) = Size value (range depends on the resolution) = Centering value (range depends on the resolution) = Blanking value (000 thru 200) = Pixel sampling phase (000 through 031) = Horizontal filter value (000 thru 003) = Vertical filter or composite/S-video detail filter (001 thru 007) = Preset number (01 thru 03) = Output 1/ Output 2 selection:
Output 1/Output 2 Output 1/Output 2 00 = Off/Off 02 = Off/On
01 = On/Off 03 = On/On = RGB delay in 0.01 second steps (00 [no delay] to 50 [5.0 secs]) = Test pattern type (1 through 10):
001 = Color Bars 006 = alternating pixels
002 = crosshatch 007 = film aspect ratio 1.78
003 = 4x4 crosshatch 008 = film aspect ratio 1.85
004 = gray scale 009 = film aspect ration 2.35
005 = crop 010 = ramp = Gain/attenuation (–24dB to +9dB, each step = 1dB) = Gain value (numeric dB value, 0 to +9) = Attenuation value (numeric dB value, –1 to –24) = nnn.nn where
Hrt = horizontal rate (kHz)
Vrt = vertical rate (Hz)
xxx:xx means signal out of range = Detected input signal standard (0 through 4):
0 = none
1 = NTSC 3.58
2 = PAL
3 = NTSC 4.43
4 = SECAM
– = not applicable (occurs when the input is set
for RGB, YUV, or progressive YUV)
4-3Integration Scaling Matrix Switcher • Programmer’s Guide
Programmer’s Guide
Switcher-Initiated Messages
When a local event such as power-up or a front panel operation occurs, the switcher responds by sending a message to the host. The switcher-initiated messages are listed in the following pages. The messages are underlined.
The switcher does not expect a response from the host, but, for example, the host program might request a new status.
Power-up
(c) Copyright 2002, Extron Electronics, ISM 482, Vx.xx The switcher initiates the copyright message when it is first powered on. Vxxxx is
the firmware version number.
Ties creation
OutX2•InX1•All A front panel video and audio switching operation has occurred. X2 is the output
number and OutX2•InX1•RGB A front panel video-only switching operation has occurred. X2 is the output
number and OutX2•InX1•Aud A front panel audio-only switching operation has occurred. X2 is the output
number and
is the input number.
X1
is the input number.
X1
is the input number.
X1
Input and output video type
Ty p
X1
X4
A front panel input video type selection has occurred. X1 is the input number and
is the input video type.
X4
Rte
X2
X5 X6
A front panel output video format selection has occurred. X2 is the output number,
is the output resolution, and X6 is the output refresh rate.
X5
Syn
X2
X7
A front panel output video type selection has occurred. X2 is the output number
is the output video format (RGBHV or RGBS).
and
X7
X2
X8
Pol
A front panel output video polarity selection has occurred. X2 is the output number
is the output sync polarity.
and
X8
Integration Scaling Matrix Switcher • Programmer’s Guide4-4
Picture adjustments
Col
X2
X9
A front panel color adjustment has occurred. X2 is the output number tied to the adjusted input and
Tin
X2
X10
A front panel tint adjustment has occurred. X2 is the output number tied to the adjusted input and
X2
X11
Brt
A front panel color brightness adjustment has occurred. X2 is the output number tied to the adjusted input and
X2
X11
Con
A front panel contrast adjustment has occurred. X2 is the output number tied to the adjusted input and
Hsz
X2
X12
A front panel horizontal size adjustment has occurred. X2 is the output number
X12
and
A front panel vertical size adjustment has occurred. X2 is the output number and
A front panel horizontal centering adjustment has occurred. X2 is the output number and
A front panel vertical centering adjustment has occurred. X2 is the output number and
A front panel top line blanking adjustment has occurred. X2 is the output number and
A front panel bottom line blanking adjustment has occurred. X2 is the output number and
A front panel pixel phase adjustment has occurred. X2 is the output number and
A front panel horizontal detail filter adjustment has occurred for the RGB or component video input tied to output
A front panel vertical detail filter adjustment has occurred for the RGB or component video input tied to output
A front panel horizontal detail filter adjustment has occurred for the S-video or composite video input tied to output
is the size variable.
Vsz
X2
X12
is the size variable.
X12
Hph
X2
X13
is the centering variable.
X13
Vph
X2
X13
is the centering variable.
X13
Blt
X2
X14
is the blanking variable.
X14
X2
X14
Blb
is the blanking variable.
X14
Phs
X2
X15
X15
is the pixel phase variable.
Dhz
X2
X16
Dvz
X2
X17
Dvz
X2
X17
is the color variable.
X9
is the tint variable.
X10
is the brightness variable.
X11
X11
is the contrast variable.
X2
X2
X2
.
is the filter variable.
X16
.
is the filter variable.
X17
.
is the filter variable.
X17
4-5Integration Scaling Matrix Switcher • Programmer’s Guide
Programmer’s Guide, cont’d
X20
X19
1Blu The blue-only mode has been turned on or off for one or both outputs from the
front panel. is meaningless.
1Fil
X19
The edge enhancement mode has been turned on or off for one or both outputs from the front panel. leading “1” is meaningless.
RGB delay
X2
Dly
A front panel RGB delay adjustment has occurred. X2 is output number and the delay value, in 0.01 second steps.
Test pattern
Tst
X19*X21
A test pattern has been turned on or off for one or both outputs from the front panel. selected.
X19
is the on/off status for the either or both outputs. The leading “1”
is the on/off status for the either or both outputs. The
X19
X20
is the on/off status for the two outputs and
X19
can be as much as 50 = 5.0 seconds.
is the test pattern
X21
X20
is
Audio gain and attenuation
X1
X22
Aud
A front panel audio input level adjustment has occurred. X1 is input number and
is the audio gain or attenuation level.
X22
Video and audio mute
Vmt
X2
X3
A front panel video mute operation has occurred. X2 is output number and X3 is the mute status: 0 =off (video not muted, 1 = on (video muted).
Amt
X2
X3
A front panel audio mute operation has occurred. X2 is output number and X3 is the mute status: 0 =off (audio not muted, 1 = on (audio muted).
PAL film mode
Flm
X1
X3
The PAL film mode has been selected or deselected from the front panel for the selected input.
is input number and X3 is the on/off status for PAL film mode.
X1
Automated adjustments
X3
The Auto Image feature has been turned on or off from the front panel for all tie creations.
Aut
X3
The auto presets feature has been turned on or off from the front panel for all tie creations.
is the on/off status.
X3
is the on/off status.
X3
Integration Scaling Matrix Switcher • Programmer’s Guide4-6
X19
1Enh The enhanced mode feature has been turned on or off from the front panel for
S-video or composite video tied to one or both outputs. the two outputs. The leading “1” is meaningless.
Reconfig
X2
The input selected for the X2 output has been adjusted using the Auto Image feature or a user preset.
Host-to-Switcher Instructions
The switcher accepts SIS commands through its RS-232 port and/or its Ethernet port. SIS commands consist of one or more characters per command field. They do not require any special characters to begin or end the command character sequence. Each switcher response to an SIS command ends with a carriage return and a line feed (CR/LF = ), which signals the end of the response character string. A string is one or more characters.
Switcher error responses
When the switcher receives an SIS command and determines that it is valid, it performs the command and sends a response to the host device. If the switcher is unable to perform the command because the command is invalid or contains invalid parameters, the switcher returns an error response to the host. The error response codes are:
E01 — Invalid input channel number (too large) E10 — Invalid command E11 — Invalid preset number (zero or too large) E12 — Invalid output number (zero or too large) E13 — Invalid value (out of range)
X19
is the on/off status for
Using the command/response table
The command/response table begins on the next page. Except for the gain and attenuation settings and the filter settings, upper or lower case letters are acceptable in the command field. Command and response examples are shown throughout the table.
The table below shows the hexadecimal equivalent of each ASCII command.

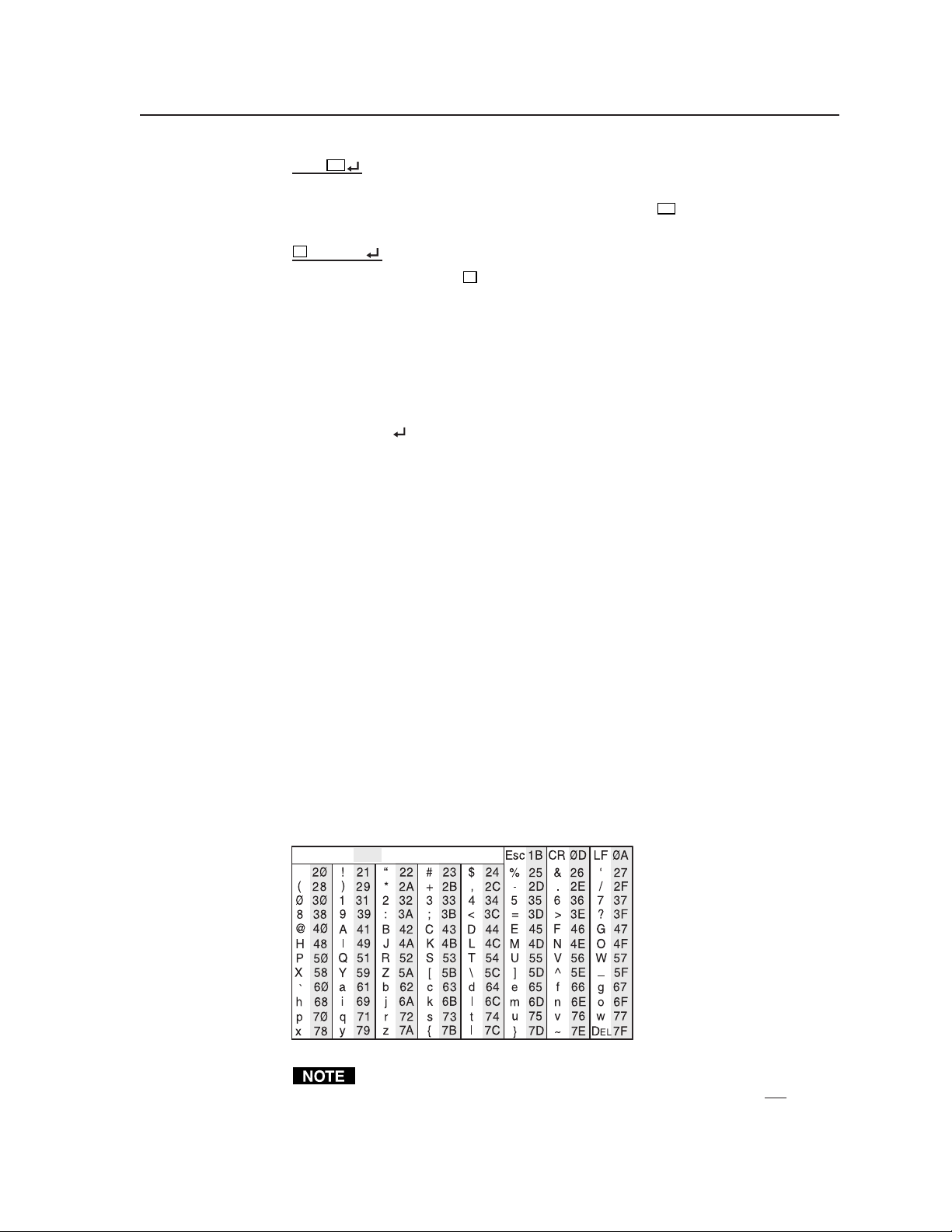

ASCII to HEX Conversion Table
Space
With the exception of the audio gain and attenuation (G and g) and horizontal and vertical filtering (D and d) commands, the SIS commands are sensitive.
not case
4-7Integration Scaling Matrix Switcher • Programmer’s Guide
Programmer’s Guide, cont’d
X10
X10
X10
X10
Command/response table for SIS commands
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Creating ties
Create video and audio tie
Example: 1*2! Out2In1All Input 1 video and audio selected
Create video only tie
Example: 5*2& Out2In5RGB Input 5 video only selected to
Create audio only tie
X1*X2
! OutX2•InX1•All Select input X1 to output X2.
to output 2.
& OutX2•InX1•RGB Select video input X1 to output
X1*X2
.
X2
output 2.
$ OutX2•InX1•Aud Select audio input X1 to output
X1*X2
.
X2
Read ties
Read video and audio tie
Read video only tie Read audio only tie
X2
!
X2
&
X2
$
X1
Video and audio input X1 tied to output X2.
X1
X1
Video input X1 tied to output X2. Audio input X1 tied to output X2.
Video mute
Video mute on Video mute off
View video mute status
X2
*1B *0B
X2
X2
B
X2
X3
Vmt Vmt
X2
X3
Set the X2 video output to black. Set the X2 video output to the
selected input 1 through 8.
X3
Video mute is X3 for output X2.
Input video type
Set video type
Example: 4*3\ 4Typ003 Specify input 4 type as YUVp.
View video type
\
X1*X4
X1
\
Ty p
X1
X4
X4
Specify input X1 video type.
Input X1 video type is X4.
Scaler output video type
Set output resolution and rate
X2*X5*X6
=
Example: 1*5*4= 1Rte005*004 Set output 1 to 1024x768 at 85Hz.
View resolution and rate
X2
=
X2
RteX5*
X2
RteX5*
X6
X6
Command character is “equals”.
Color
Color adjustments are available only for interlaced component video (YUVi), S-video and composite video inputs.
The
value specified is the output to which the adjusted input is tied.
X2
Set a specific color value Increment color value Decrement color value View the color value
C
X2*X9
+C
X2
–C
X2
C
X2
Col
X2
X9
Col
X2
X9
Col
X2
X9
X9
Specify the color adjustment. Increase the color setting by one. Decrease the color setting by one. Show the color setting.
Tint
Tint adjustments are available only for S-video and composite video inputs. The
value specified is the output to which the adjusted input is tied.
X2
Set a specific tint value Increment tint value Decrement tint value View the tint value
T
X2*X10
+T
X2
–T
X2
T
X2
Tin
X2
Tin
X2
Tin
X2
Specify the tint adjustment. Increase the tint setting by one. Decrease the tint setting by one. Show the tint setting.
Integration Scaling Matrix Switcher • Programmer’s Guide4-8
Command/response table for SIS commands (cont’d)
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Brightness
The X2 value specified is the output to which the adjusted input is tied.
Set a specific brightness value
Increment brightness value Decrement brightness value View the brightness value
Y
X2*X11
+Y
X2
–Y
X2
Y
X2
Brt
X2
X11
Specify the brightness adjustment.
Brt
X2
X11
Brt
X2
X11
X11
Increase the brightness. Decrease the brightness. Show the brightness setting.
Contrast
The X2 value specified is the output to which the adjusted input is tied.
Set a specific contrast value Increment contrast value Decrement contrast value View the contrast value
^
X2*X11
X2
+^
X2
–^ ^
X2
Con
X2
X11
X2
X11
Con
X2
X11
Con
X11
Specify the contrast adjustment. Increase the contrast. Decrease the contrast. Show the contrast setting.
Horizontal size
Set a specific horizontal size Increase the horizontal size Decrease the horizontal size View the horizontal size
:
X2*X12
X2
+:
X2
:
:
X2
Hsz
X2
X12
X2
X12
Hsz
X2
X12
Hsz
X12
Specify the horizontal size. Widen the picture. Make the picture narrower. Show the horizontal size.
Vertical size
Set a specific vertical size Increase the vertical size Decrease the vertical size View the vertical size
;
X2*X12
X2
+;
X2
;
;
X2
Vsz
X2
X12
X2
X12
Vsz
X2
X12
Vsz
X12
Specify the vertical size. Make the picture taller. Make the picture shorter. Show the vertical size.
Horizontal shift
Set a specific horizontal positionX2* Increment right Decrement left View the horizontal position
H
X13
X2
+H
X2
–H H
X2
Hph
X2
X13
X2
X13
Hph
X2
X13
Hph
X13
Specify the horizontal position. Shift the picture right. Shift the picture left. Show the horizontal position.
Vertical shift
Set a specific vertical position Increment up Increment down View the vertical position
/
X2*X13
X2
+/
X2
–/ /
X2
Vph
X2
X13
X2
X13
Vph
X2
X13
Vph
X13
Specify the vertical position. Shift the picture up. Shift the picture down. Show the vertical position.
Top blanking
Set a top blanking value
Example: 1*2( 1Blt2 Blank the top two lines of the
Increment top blanking value Decrement top blanking value View the top blanking value
(
X2*X14
X2
+(
X2
–( (
X2
Blt
X2
X14
program outut.
X2
X14
Blt
X2
X14
Blt
X14
Increase blanking value 1 line. Decrease blanking value 1 line.
4-9Integration Scaling Matrix Switcher • Programmer’s Guide
Programmer’s Guide, cont’d
X14
X14
X14
X14
X15
X15
X15
X15
X17
Command/response table for SIS commands (cont’d)
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Bottom blanking
Set a bottom blanking value
X2*X14
)
Example: 2*5) 2Blb5 Blank the bottom five lines of the
Increment bottom blanking valueX2+) Decrement bottom blanking valueX2–) View the bottom blanking valueX2)
X2
Blb
preview output.
X2
Blb Blb
X2
Increase blanking value 1 line. Decrease blanking value 1 line.
Pixel phase
Set a specific pixel sampling phaseX2* Increment sampling value Decrement sampling value View the sampling value
X2
X2
X2
X15
U +U –U U
X2
Phs
X2
Phs Phs
X2
Specify the pixel sampling phase. Increase the phase value. Decrease the phase value. Show the pixel sampling phase.
Horizontal detail filter (RGB and component video inputs)
The horizontal detail filter is available only for RGB and component video inputs. The same command with a different
variable is available to set a combined detail filter for S-video and
Xn
composite video inputs. The
value specified is the output to which the filtered input is tied.
X2
The command (D) is case sensitive.
Set a specific filter value Increment filter value
Decrement filter value
View the horizontal filter value
D
X2*X16
+D
X2
–D
X2
X2
D
Dhz
X2
X16
Dhz
X2
X16
Set the horizontal detail level. Increase the horizontal detail
level.
Dhz
X2
X16
Decrease the horizontal detail level.
X16
Show the horizontal detail level.
Vertical detail filter (RGB and component video inputs)
The vertical detail filter is available only for RGB and component video inputs. The
value specified is the output to which the filtered input is tied.
X2
The command (d) is case sensitive.
Set a specific filter value Increment filter value Decrement filter value View the vertical filter value
d
X2*X17
+d
X2
–d
X2
X2
d
Dvz
X2
Dvz
X2
Dvz
X2
Detail filter (S-video and composite video inputs)
Composite and S-video inputs support a single detail filter only, rather than separate horizontal and vertical filters. To apply a detail filter to the scaled output when the input is composite video or S-video, use the same command as the horizontal filter (D) with the
value specified is the output to which the filtered input is tied.
The
X2
Set a specific filter value Increment filter value Decrement filter value View the vertical filter value
X2*X17
D +D
X2
–D
X2
D
X2
X2
Dvz Dvz
X2
Dvz
X2
X17
X17
X17
X17
X17
X17
X17
X17
Set the vertical detail level. Increase the vertical detail level. Decrease the vertical detail level. Show the vertical detail level.
variable.
Set the detail filter level. Increase the detail filter level. Decrease the detail filter level. Show the detail filter level.
Integration Scaling Matrix Switcher • Programmer’s Guide4-10
Command/response table for SIS commands (cont’d)
X22
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Auto Memories
Auto memories on 1M Aut
Auto memories off 0M Aut
View auto memories status M
X3
X3
X3
Set the ISM to apply auto memories settings to all inputs as selected.
Set the ISM to not apply auto memories settings.
Auto memories is X3 (on or off) for all inputs.
User presets
The X2 value specified is the output to which the input with the associated user preset is tied.
Save user preset
Recall user preset
, Spr
X2*X18
X2*X18
. Rpr
X2•X18
X2•X18
Command code is a comma. Save the X2 outputs settings as
X18
preset
.
Command code is a period. Recall preset
X18
settings for
output.
Freeze
Enable Disable
View the freeze status
Example:1f 0 Freeze mode off.
*1F
X2
X2
*0F
Frz1 Output a “frozen” video image.
X2
X2
Frz0 Turn off freeze (output motion
video).
X2
F
X3
Show the freeze status.
X2
Test pattern
Select test pattern for an output
View test pattern J
Example: j 1*002 Crosshatch test pattern selected
J Tst
X19*X21
X19*X21
X19*X21
Select a test pattern for the output(s).
Show the test pattern.
for output 1 only.
Audio gain and attenuation
Set gain
X1*X23
G
Example: 4*3G 4Aud+•3 Set gain for input 4 to +3dB.
X1
Aud
X22
Set gain for input X1 to +
The command (G) is case sensitive.
Set attenuation
X1*X24
g
X1
Aud
X22
Set attenuation for input X1 to
X22
dB.
The command (g) is case sensitive.
Increment level
Decrement level
View audio level
X1
+G
X1
–G
X1
G
Example 4G •3 The ISM reports that the input 4
X1
X1
Aud
Aud
X22
X22
Increase input X1 audio level by +1dB.
Decrease input X1 audio level by –1dB.
View gain for input X1.
audio level is at –3dB of attenuation.
Audio mute
Audio mute on Audio mute off View audio mute status
X2
*1Z *0Z
X2
Z
X2
X2
X3
Amt Amt
X2
X3
X3
Mute the X2 audio output. Unmute the X2 audio output. Audio mute is X3 for output X2.
X23
X19
dB.
4-11Integration Scaling Matrix Switcher • Programmer’s Guide
Programmer’s Guide, cont’d
Command/response table for SIS commands (cont’d)
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Executive mode
Enable (lock image adjustments) 1X Exe1 Lock front panel adjustments;
adjust image via RS-232 only.
Disable 0X Exe0 Adjustments & selections can
be made from the front panel.
View the executive mode status X
X3
Show executive mode status.
Example:X 0 Executive mode is off.
Verbose mode
The default for verbose mode is on for the RS-232 connection and off for Ethernet connections.
Disable (block reports)
0CV Vrb0 Turn off verbose mode. The ISM
Esc
does not send the reports listed in switcher-initiated messages earlier in this chapter.
Disable verbose mode blocks reports for front panel operations only to this connection (RS-232 or Ethernet)
only. The ISM continues to send responses to SIS commands to all ports. The ISM
continues to send reports for front panel operations to other connections.
Enable (allow reports)
View the executive mode status
Example:
Esc
1CV Vrb1 Turn on verbose mode. The ISM
sends all reports.
CV
Esc
Esc
CV 1 Verbose mode is on (the ISS
X3
Show verbose mode status.
issues reports).
Information requests
Query firmware version number Q x.xx Show the controller firmware
version.
Request part number N zz-zzz-zz Show the ISM’s part #. Request general information
X2
I (See below) Show the ISM’s status.
VidX1•AudX1•FrzX3•Hrt
X25
•Vrt
X25
•Std
X26
The response to the View File Directory command differs, depending on whether the command is sent via an RS-232 or Telnet connection or sent via a Web browser connection.
View file directory (RS-232)
View file directory (Web)
Esc
DF filename date/time length
filename date/time length filename date/time length filename date/time length nnnn Bytes Left
Esc
DF Switcher response
File [1] = ‘filename1, date1, filesize1’; File [2] = ‘filename2, date2, filesize2’; File [3] = ‘filename3, date3, filesize3’; File [4] = ‘filename4, date4, filesize4’; File [n] = ‘filenamen, daten, filesizen’;
Integration Scaling Matrix Switcher • Programmer’s Guide4-12
Command/response table for SIS commands (cont’d)
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Resets
Zap all audio adjustments Zap all ISM settings
Absolute reset
zA ZapA Reset all audio levels to 0dB.
Esc
zXXX Zapx Reset all settings:
Esc
All inputs: RGB Ouput: RGBHV 1024x768 @ 60Hz RGB delay: 1.0 sec. (both outputs) Audio level: 0dB Filtering: Horz. = 3, Vert. = 7 Blanking: 0, top and bottom Pixel phase: 16 Auto Image: Off Auto Memory recall: On
ZQQQ Zpq Similar to Zap all ISM settings,
Esc
plus clears IP address to
192.168.254.254 and deletes user and adminstrator passwords.
Command/response table for IP SIS commands
= ISM name (Up to 240 characters)
X30
= GMT Time and date (set) MM/DD/YY-HH:MM:SS, where
X31
MM = month: 01 (January) through 12 (December) DD = day: 01 through 31 YY = year: 00 through 99 HH = hour: 00 through 24 MM = minutes: 00 through 59 SS = seconds: 00 through 59
= Time and date (read) In the format: Day,•DD•MMM•YYYY•HH:MM:SS GMT, where
X32
Day = weekday: Mon through Sun DD = day: 01 through 31 MM = month: Jan through Dec YYYY = year: 2000 through 2099 HH = hour: 00 through 24 MM = minutes: 00 through 59 SS = seconds: 00 through 59
X33
= IP address ###.###.###.### = Password 12 digits, alphanumeric
X34
= Hardware address ##-##-##-##-##-##
X35
X36
= Number of open connections 0 - 255
4-13Integration Scaling Matrix Switcher • Programmer’s Guide
Programmer’s Guide, cont’d
X20
X7
X30
X32
X33
X34
X34
X
n
Command/response table for IP SIS commands
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Set ISM name (location) Read ISM name (location) Set GMT/date
CN Ipn•
Esc
X30
CN
Esc
CT Ipt•
Esc
X31
X30
The date and time entered should be Greenwich Mean Time (GMT).
Read GMT/date Set IP address
Read IP address Read hardware address Read # of open connections Set administrator password Read administrator password Set user password Read user password
CT
Esc
CI Ipi•
Esc•X33
CI
Esc
CH
Esc
Esc
CC
Esc•X34
CA Ipa
CA
Esc
CU Ipu
Esc•X34
CU
Esc
X32
The switcher sends the response, but the host may not receive it.
X33
X35
X36
X34
X34
When the computer is connected to the switcher via the RS-232 link, the Admin and User password fields are not masked. If a password has been inadvertently changed to an unknown value, you can look up and, if desired, change a password in this window without knowing the current password.
Command/response table for special function SIS commands
X
The syntax for setting a special function is (such as 35 in the first example below),
*X?# where
is the function number (such as “set RGB
X?
delay” in the first example below), and # is the execute command. To view a function’s setting, use X? # where X? is the function number.
n
is the value or variable
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Delay times
RGB delay (Triple-Action Switching)X2*
X20
*3#
Example: 1*35*3# 1Dly35 RGB delay for output 1 set to 3.5
Read RGB delay
*3#
X2
X2
X20
Dly
Switching delay of the selected input to the selected output. Adjustable in 0.01 second steps up to 50 = 5.0 seconds. 0 = 0.0 seconds (default), 1 = 0.1 seconds, 2 = 0.2 seconds, and so on.
seconds.
Scaler settings
Output sync format
Example: 2*0*6# Syn00 RGBHV signal on output 2.
Read output sync format Output polarity
Example: 1*1*7# Pol01 H–/V+ polarity on output 1.
Read output sync polarity
*6# Syn
X2*X7
*6#
X2
*7# Pol
X2*X8
X2
*7#
0 = RGBHV (default). 1 = RGBS.
X7
X8
:Horizontal/Vertical polarity
X8
0 = H–/V– 2 = H+/V– 1 = H–/V+ 3 = H+/V+
X8
Integration Scaling Matrix Switcher • Programmer’s Guide4-14
Command/response table for special function SIS commands (cont’d)
X19
X19
X19
X19
X3
Command ASCII Command Response Additional description
(host to switcher) (switcher to host)
Blue screen
Blue screen (blue & sync output only)
X19
*8# Blu
Example: 1*8# Blu1 Blue & sync output for setup. Read blue screen 8#
X19
X19
:Output 1/2 Output 1/2 00 = Off/Off 02 = Off/On 01 = On/Off 03 = On/On
Edge smoothing
Edge smoothing
Example: 1*16# Fil01 Enable edge smoothing. Read edge smoothing 16#
*16# Fil
X19
X19
:Output 1/2 Output 1/2
X19
00 = Off/Off 02 = Off/On 01 = On/Off 03 = On/On
Enhanced mode
Enhanced mode
Example: 1*12# Enh01 Enable enhanced mode. Read enhanced mode 12#
*12# Enh
X19
X19
:Output 1/2 Output 1/2
X19
00 = Off/Off 02 = Off/On 01 = On/Off 03 = On/On
Auto Image
Set Auto Image Example: 1*13# Img001 Set Auto Image on.
Execute Auto Image
*13# Img
X3
*14# Img
X19
X3
X19
0 = off, 1 = on.
: Auto Image input tied to
X19
output:
Output 1/2 Output 1/2
01 = Yes/No 03 = Yes/Yes 02 = No/Yes
Reconfig Output X2 Auto Image complete.
X2
Reconfig Output X2 Auto Image complete.
X2
If Auto Image adjustments are not necessary for an input, the X2Reconfig message may not be received.
Read auto image 14#
PAL film mode
Set PAL film mode Example: 8*1*18# 8Flm01 The ISM uses its 2:2 pulldown
Read PAL film mode
X1*X3
*18#
X1
*18#
Flm
X1
(PAL) video processing algorithms to scale input 8.
X3 X3
: 0 = off, 1 = on.
X3
: 0 = off, 1 = on.
4-15Integration Scaling Matrix Switcher • Programmer’s Guide
Programmer’s Guide, cont’d
Command/response table for advanced instruction set commands
The advanced instruction set consist of four hexadecimal commands for uploading and downloading all or a portion of the switcher’s memory. These commands are for use by knowledgeable programmers, and result in a dump of data from (upload) or to (download) the switcher. Programmers can use the commands to exactly duplicate the settings among switchers with a minimum of effort.
Command Hex Command Response Additional description
(host to switcher) (switcher to host)
Memory backup
Read all memory contents 90 91 {8226 data bytes+1 byte checksum} Upload (switcher to control
device) all color, tint, contrast, brightness, detail, sizing, and centering settings; all user presets; and all auto memories for all inputs and both outputs.
Write all memory contents 90 92+8226 data bytes+1 byte checksum Dn1 Download (control device to
switcher) all color, tint, contrast, brightness, detail, sizing, and centering settings; all user presets; and all auto memories for all inputs and both outputs.
Read partial contents
Write partial contents
90 93 {26 data bytes+1 byte checksum} Upload (switcher to control
X2
device) color, tint, contrast, brightness, detail, sizing, and centering settings; all user presets; and all auto memories for the input selected for output X2.
90 94+26 data bytes+1 byte checksum Dn1 Download (control device to
X2
switcher) color, tint, contrast, brightness, detail, sizing, and centering settings; all user presets; and all auto memories for the input selected for output X2.
Integration Scaling Matrix Switcher • Programmer’s Guide4-16
Integration Scaling Matrix Switcher
Chapter Five
5
Switcher Software
Control Software for Windows
Button-Label Generator
®
Switcher Software
Control Software for Windows
Two software programs accompany the ISM 182 and ISM 482:
The Extron ISS/ISM Control Program (Extron part #29-054-01), which communicates with the switcher via the rear panel Remote port, provides an easy way for you to control the switcher.
The Extron Button-Label Generator, which allows you to design and print a label strip for the switcher’s front panel input selection button window.
Both programs are compatible with Windows 95/98, Windows NT, Windows ME, and Windows 2000. Updates to these programs can be downloaded from the Extron Web site (http://www.extron.com).
Installing the software
The programs are contained on a set of 3.5-inch diskettes. Load and run the program from the hard drive.
To install the program from the floppy disk to the hard drive, run SETUP.EXE from the first floppy disk and follow the instructions that appear on the screen. The program occupies approximately 1.5 Mb (megabytes) of hard-drive space.
By default the installation creates a C:\ISSISM folder, and it places three icons (ISS/ISM Control Pgm, ISS/ISM Help, and Button-Label Generator) into a group or folder named “Extron Electronics”.
Software operation via Ethernet
When an ISM is connected to an Ethernet WAN or LAN, any number of users can operate it, locally or remotely, using the ISS/ISM Control program. See Ethernet connection in chapter 2, Installation, for installation details
Connection to the switcher via the Ethernet is password protected. There are two levels of password protection: administrator and user. Administrators have full access to all ISM switching capabilities and editing functions. Users can select video and/or audio for output, select inputs and outputs, select test patterns, set RGB and audio mutes, select a blue screen, and view all settings with the exception of passwords. If the same passwords or no password is required for logging on, all personnel log on with administrator privileges. Fields and functions that exceed user privileges are grayed out in the ISS/ISM Control program when the operator is logged on as a user.
®
Ethernet protocol settings
The IP settings/options screen (figure 5-6 on page 5-5) provides a location for observing and, if connected via the RS-232 link or if logged on via the Ethernet port as an administrator, editing settings unique to the Ethernet interface. None of the fields on this screen can be edited while logged on as a user. See System Configuration Page in chapter 6, Ethernet Operation, for details on the contents of these fields. See appendix A, Ethernet Connection, for other basic information about Internet protocol.
Editing variables on the IP settings/options screen while connected via the Ethernet port can immediately disconnect the user from the ISM. Extron recommends editing the settings on this screen using the RS-232 link and protecting the Ethernet access to this screen by assigning an administrator’s password to qualified and knowledgeable personnel only.
Integration Scaling Matrix Switcher • Switcher Software5-2
Using the control program
Many items found in the ISS/ISM Control Program are also accessible via front panel controls and the LCD menus, see chapter 3, Operation, and under SIS control, see chapter 4, Programmer’s Guide. The ISS/ISM Help Program provides information on settings and on how to use the control program itself.
1. To run the control program, double-click the ISS/ISM Control Pgm icon in the Extron Electronics group or folder. The Comm menu appears on the screen (figure 5-1).
Figure 5-1 — Comm port selection window
2. Select the comm port that is connected to the ISM’s Remote port or select IP
[LAN] and click OK.
If you selected a comm port, proceed to step 5. If you selected IP [LAN], proceed to step 3.
3. If you selected IP [LAN] in step 2, the IP connection window appears
(figure 5-2). The window displays the last IP address that this computer was logged on to via the ISS/ISM Control program. If no one has logged on to the ISM from this computer, enter the switcher’s ISM IP address. If the address has not been changed, the factory-specified default is 192.168.254.254.
Figure 5-2 — Address and password entry
4. If you selected IP [LAN] in step 2, when prompted, enter the appropriate
administrator or user password and click Connect. If you logged on using the administrator password, the Windows program
connects you to the ISM with all of the administrator rights and privileges. If you logged on using the user password, the Windows program connects
you to the ISM with only user capabilities. If an incorrect password was entered, the program beeps and returns to the
password entry display.
5-3Integration Scaling Matrix Switcher • Switcher Software
Switcher Software, cont’d
5. The Extron ISS/ISM Control Program window (figure 5-3) appears.
Figure 5-3 — Windows Control program window
6. If desired, on the task bar click Tools > I/O Configuration to configure the video inputs and outputs in the I/O configuration window (figure 5-4).
Figure 5-4 — Control program I/O Configuration window
Integration Scaling Matrix Switcher • Switcher Software5-4
7. If desired, on the task bar, click Tools > Audio Settings to set each input’s audio level or attenuation in the Audio Settings window (figure 5-5).
Figure 5-5 — Control program Audio Settings window
8. If desired, on the task bar, click Tools > IP Options to set the switcher’s IP parameters in the IP Settings/Options window (figure 5-6).
Figure 5-6 — Control program IP Setting/Options window
When the control program is connected to the switcher via the RS-232 link, the Administrator and User password fields are not masked. If a password has been inadvertently changed to an unknown value, you can look up and, if desired, change a password in this window without knowing the current password.
Using the help program
For information on program features, press the F1 computer key, or click the Help
menu from within the ISS/ISM Control Program, or double-click the ISS/ ISM Help icon in the Extron Electronics group or folder.
For explanations of buttons or functions, click the tabs in the help screen
to reach the desired screen. Use a mouse or the Tab and Enter keys to select a button/function. A description and tips on using the program appear on screen.
Button-Label Generator
You may wish to customize the labeling of the ISM’s front panel buttons. Blank templates for the ISM’s button label windows are included in appendix B of this manual. However, you can easily create, customize, and print labels for the switcher’s input label window by using the Button-Label Generator software. This program creates and prints labels that can be inserted into the input label window on the switcher.
5-5Integration Scaling Matrix Switcher • Switcher Software
Switcher Software, cont’d
Installing the software
The program is included on the same set of 3.5-inch diskettes as the ISS/ISM control program and is installed automatically when you install that program. It can also be downloaded from the Extron Web site (http://www.extron.com).
By default, the Windows installation goes in either the C:\ISSISM directory, if installed automatically with the ISS/ISM Control Program or the C:\BUTTONS directory if installed as a stand-alone program. The Button-Label Generator icon is placed in the “Extron Electronics” group or folder.
Using the software
1. To run the Button-Label Generator program, double-click the Button-Label Generator icon (shown at left) in the Extron Electronics group or folder, and click OK when prompted. Extron’s Button­Label Generator window appears (figure 5-7).
2. Under System selection, choose Mtx50/MAV/XPoint. This selection creates the
correctly sized labels for the ISM’s label strip. The button label editing area changes to reflect the number and arrangement of buttons on the device.
Figure 5-7 — Extron’s Button-Label Generator window
3. Using normal Windows controls, you can create and print labels that can be
cut out and placed in the label windows on the front panel of the ISM. For information about using the program, you can access a help file by
clicking on the Help menu on the main screen and choosing Show Help. You can also see an example of a completed Extron Button-Label Generator
window by clicking on the Help menu on the main screen, choosing Show Help, and clicking on the Load Demo button.
Integration Scaling Matrix Switcher • Switcher Software5-6
Integration Scaler Matrix Switcher
Chapter Six
6
Ethernet Operation
Control Page
System Configuration Page
File Management Page
I/O Configuration Page
Ethernet Operation, cont’d
Ethernet Operation
The ISM 182 and ISM 482 can each be controlled and operated through its Ethernet port, connected via a LAN or WAN, using a web browser such as Microsoft’s Internet Explorer. The browser’s display of the switcher’s status or operation has the appearance of web pages. This chapter describes the factory-installed HTML pages, which are always available and cannot be erased or overwritten.
If your Ethernet connection to the ISM is unstable, try turning off the proxy server in your web browser. In Microsoft’s Internet Explore, click Tools > Internet Options > Connections > LAN Settings, uncheck the “Use a proxy server...” box, and then click Ok.
Load the Startup (Control) Page
Access the switcher using HTML pages as follows:
1. Start the Web browser program.
2. Click in the browser’s Address field.
3. Enter the switcher’s IP address in the browser’s Address field.
If the local system administrators have not changed the value, the factory­specified default, 192.168.254.254, is the correct value for this field.
4. If you want the browser to display a page other than the default page (such as a custom page that you have created and uploaded), enter a slash (/) and the file name to open.
The browser’s Address field should display the address in the following format:
xxx.xxx.xxx.xxx/{optional_file_name.html} The following characters are invalid in file names: {space} ~ @ = ‘ [ ] { }
< > ’ “ ; : | \ and ?.
5. Press the keyboard Enter key. The switcher checks to see if it is password protected.
If the switcher is not password protected, proceed to step 7. If the switcher is password protected, the switcher downloads the Enter
Network Password page (figure 6-1).
Figure 6-1 Enter Network Password page
A User Name entry is not required.
6. Click the Password field and type in the appropriate administrator or user password. Click the OK button.
Integration Scaling Matrix Switcher • Ethernet Operation6-2
7. The switcher checks several possibilities, in the following order, and then responds accordingly:
a. Does the address include a specific file name, such as
10.13.156.10/file_name.html? If so, the switcher downloads that HTML page.
b. Is there a file in the switcher’s memory that is named “index.html”?
If so, the switcher loads “index.html” as the default startup page.
c. If neither of the above conditions is true, the switcher loads the factory-
installed default startup page, “nortxe_index.html” (figure 6-2), also known as the Control page.
Figure 6-2 Control page
6-3Integration Scaling Matrix Switcher • Ethernet Operation
Ethernet Operation, cont’d
Control Page
On the Control page (figure 6-1), you can select an input to either or both outputs. The Control page also provides facilities to check the frequency of an input and to mute outputs. Access the Control page by clicking the Control tab.
Create a tie
Select and switch an input to an output as follows:
1. Click the Video/Audio, Video, or Audio button to select both the video and audio planes, the video plane only, or the audio plane only for switching (audio follow or audio breakaway).
2. Select an input for output 1 or output 2 by clicking the desired input button for either output 1 or output 2. After the RGB delay, the selected input is displayed on the designated monitors. The selected input button turns blue to indicate a video and audio or video only selection and yellow to indicate an audio only selection. The RGB delay is user-selectable, see Change the RGB delay, below.
Change the RGB delay
The RGB delay interval for each output defines how long the screen is blanked when selecting a new input for the connected monitor.
Change the RGB delay for an output as follows:
1. Click the RGB Delay field for the desired output. A drop down scroll box appears (figure 6-3).
Figure 6-3 — RGB delay scroll box
2. Click and drag on either the slider or click the scroll up ( buttons until the desired interval is visible.
3. Click the desired output.
Black out the screen and mute the audio
You can mute the video (blackout the screen) and/or audio to output 1 and/or output 2 from the control page as follows:
1. Click the Video/Audio, Video, or Audio button to select both the video and audio planes, the video plane only, or the audio plane only for muting.
2. Click the Output 1 or Output 2 Black/Mute button. The Black/Mute button turns blue to indicate a video and audio mute or video only mute or yellow to indicate audio mute. If you muted the output that is selected on the front panel, the front panel Black and/or Mute LEDs light.
Click the Black/Mute button again to unmute the video and/or audio.
) or scroll down ( )
Integration Scaling Matrix Switcher • Ethernet Operation6-4
Freeze the output
You can freeze either output by clicking the Output 1 or Output 2 Freeze button. The Freeze button turns blue. When the output is frozen, the input can be removed and the ISM functions as a video store.
Click the Freeze button again to toggle freeze mode off.
Output a test pattern
You can select a test pattern to output on the output 1 and/or output 2 monitors. The test patterns are helpful when adjusting the connected displays for color, convergence, focus, resolution, contrast, grayscale, and aspect ratio.
Output a test pattern as follows:
1. Click the test pattern field. A drop down box appears (figure 6-4).
Figure 6-4 — Test pattern drop box
2. Click the desired test pattern.
3. Click the Output 1 and/or Output 2 checkbox to turn on the test pattern.
Preview the scan rate
You can read the horizontal and vertical scan rate of output 1 and output 2 by clicking the Output 1 or Output 2 View Input Scan Rate button. The horizontal and vertical frequency are displayed in the Horizontal and Vertical windows on the page.
Blue screen
You can toggle Blue Only mode on and off for either output by clicking the Blue Screen Mode Output 1 and/or Output 2 checkbox. Blue Only mode is helpful in the setup of the color and tint of the incoming video signal. In the Blue Only mode, only the sync and blue video signals are passed to the display.
Executive mode
You can toggle executive mode on and off by clicking the Executive Mode On or Off checkbox. The executive mode limits the operation of the Integration Scaling Matrix Switcher from the front panel. When the switcher is in executive mode, all of the front panel functions are disabled except for input selection.
6-5Integration Scaling Matrix Switcher • Ethernet Operation
Ethernet Operation, cont’d
System Configuration Page
The ISM downloads the System Configuration page (figure 6-5) when you click the Configuration tab. The screen consists of fields in which you can observe and edit IP administration and system settings.
Figure 6-5 System Configuration page
Access to the ISM settings using web control is not password protected. Ensure only knowledgeable and qualified personnel have access to the switcher under Web control.
Integration Scaling Matrix Switcher • Ethernet Operation6-6
Administration fields
Ethernet connection to the switcher, either by entering SIS commands (see chapter 4, Programmer’s Guide) or using the Control Program (see chapter 5, Switcher Software) is password protected.
Connection via HTML pages and connection via the RS-232 port are password protected.
On password-protected connections, there are two levels of protection: administrator and user. Administrators have full access to all ISM switching capabilities and editing functions. Users can select video and/or audio for output, select test patterns, set RGB and audio mutes, select a blue screen, and view all settings with the exception of passwords.
The administration fields on the System Configuration page are for entering and verifying administrator and user passwords. Passwords are case sensitive and are limited to 12 upper case and lower case alphanumeric characters. Each password must be entered twice; once in the password field and then repeated in the re-enter password field. Characters in these fields are masked by asterisks (*****). If you do not want to password protect an access level, leave the password field and the re­enter password field blank. After entering the desired password in both fields, click the Submit button.
If a password has been inadvertently changed to an unknown value, you can still connect to the switcher via the RS-232 link, which is not password protected. When connected via the RS-232 link, using either SIS commands (see chapter 4, Programmer’s Guide) or under Windows program control (see chapter 5, Switcher Software), you can look up and, if desired, change a password.
not
ISM IP Settings fields
The ISM IP Settings fields provides a location for observing and editing settings unique to the Ethernet interface. After editing any of the settings on this page, click the Submit button.
ISM IP Address field
The ISM IP Address field contains the IP address of the connected ISM. This value is encoded in the flash memory on the controller circuit board.
Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields separated by dots (periods). Each field can be numbered from 000 through 255. Leading zeroes, up to 3 digits total per field, are optional. Values of 256 and above are invalid.
The default address is 192.168.254.254, but if this conflicts with other equipment at your installation, you can change the IP address to any valid value.
ISM Name field
The ISM Name field contains the name of the switcher. This is helpful in identifying the switcher in multiple-unit networks. This name field can be changed to any valid name, up to 12 alphanumeric characters.
Hardware Address field
The Hardware Address is hardcoded on the controller board and cannot be changed.
6-7Integration Scaling Matrix Switcher • Ethernet Operation
Ethernet Operation, cont’d
File Management Page
To delete files such as HTML pages from the ISM or to upload your own files to the ISM, click the File Management tab. The switcher downloads the file management HTML page (figure 6-6).
Figure 6-6 File Management page
To delete a file, check the associated delete check box and click the Delete Files button.
Upload your own files as follows:
1. Click the Browse button.
2. Browse through your system and select the desired file.
3. Click the Upload File button.
Integration Scaling Matrix Switcher • Ethernet Operation6-8
I/O Configuration Page
You can set up the input configurations and the output format on the I/O Configuration page (figure 6-7). Access the Setup page by clicking the I/O Config tab.
Figure 6-7 I/O Configuration page
Input configuration
You can specify the format of each input. The available formats are RGB, RGBcvS (identified as RGBcS in the drop box), YUVi, YUVp, Betacam 50, Betacam 60, HDTV, S-video, and composite video. Specify the input format as follows:
1. Click the desired input’s Configuration field. A drop down box appears (figure 6-8).
Figure 6-8 — Input configuration drop box
2. Click the desired input format.
3. Click the Submit button.
6-9Integration Scaling Matrix Switcher • Ethernet Operation
Ethernet Operation, cont’d
Output resolution, rate, sync format, and polarity
The ISM 482 scales the input up or down to any 1 of 40 output resolutions and rates. The ISM 182 scales the inputs to 1 of 20 resolutions and rates. Either switcher outputs the scaled video as RGBHV or RGBS, with user-selectable polarity, via either the program or preview connectors. The table below shows the resolutions and rates available on the ISM 482 and ISM 182.
noituloseRzH05zH65zH06zH57zH58zH06/05takcoL ✝✝✝✝✝
084x046284,281
006x008284,281
426x238
084x848
084x258
867x4201 * 284,281
867x0821 *
4201x0821 *
567x0631 ylno284 ylno284
4201x5631
0501x0041ylno284
VTDHp675ylno284
p027 * ylnozH06@VTDH
p0801ylnozH06@VTDH
VTDHi0801ylno284
* .noitulosertuptuoIVDevitaN
✝✝✝✝✝ .1tupnifoetarhserferoedivehtnodesab,detceles-otuasietarhserfer
tuptuoehT
284,281284,281 284,281
284,281284,281 284,281
284,281284,281 284,281
284,281 284,281
284,281 284,281
284,281284,281284,281284,281
ylno284 ylno284
ylno284 ylno284
ylno284 ylno284
ylno284 ylno284
ylno284
ylno284 ylno284
ylno284 ylno284
ylno284 ylno284
Integration Scaling Matrix Switcher • Ethernet Operation6-10
Output resolution
Select the output resolution as follows:
1. Click the resolution field. A drop down scroll box appears (figure 6-9).
Figure 6-9 — Resolution scroll box
2. Click and drag on either the slider or click the scroll up ( buttons until the desired rate is visible.
3. Click the desired output.
4. Click the Submit button.
Output rate
Select the output rate as follows:
1. Click the Rate field. A drop down box appears (figure 6-10).
Figure 6-10 — Rate @ drop box
2. Click the desired output frequency. Frequencies that are not available for a specific resolution are marked N/A in
the Rate @ drop box. The drop box selection Locked enables the Extron Accu-RATE Frame Lock
(AFL) feature. Accu-RATE Frame Lock eliminates image tearing and other artifacts of scaling motion video by eliminating frame rate conversion. It exactly matches the output rate of the ISM to the frame rate of the selected input. Select this feature if you will be using motion video sources with a display that is capable of a variety of refresh rates.
3. Click the Submit button.
) or scroll down ( )
6-11Integration Scaling Matrix Switcher • Ethernet Operation
Ethernet Operation, cont’d
Output format
Select between separate horizontal (H) and vertical (V) sync or composite (S) sync as follows:
1. Click the Type field. A drop down box appears (figure 6-11).
Figure 6-11 — Type drop box
2. Click the desired sync type.
3. Click the Submit button.
Output polarity
Select the output polarity as follows:
1. Click the Polarity field. A drop down box appears (figure 6-12).
Figure 6-12 — Polarity drop box
2. Click the desired output sync polarity.
3. Click the Submit button.
Integration Scaling Matrix Switcher • Ethernet Operation6-12
Integration Scaling Matrix Switcher
Appendix A
A
Ethernet Connection
Ethernet Link
Ethernet Connection, cont’d
Ethernet Link
The rear panel Ethernet connector (figure A-1) on the ISM switcher can be connected to an Ethernet LAN or WAN. This connection makes SIS control of the switcher possible using a computer connected to the same LAN.
Ethernet connection
The Ethernet cables can be terminated as straight-through cables or crossover cables (figure A-1) and must be properly terminated for your application:
Patch (straight) cable — Connection of the ISM to an Ethernet hub, router, or switcher that also hosts a controlling computer.
Crossover cable — Direct connection between the ISM and a controlling computer.
Clip DownSide
1Pins 2345678
RJ-45 connector
Patch (straight) cable
Side 1 Side 2
Pin Wire color Pin Wire color
1 White-orange 1 White-orange 2 Orange 2 Orange 3 White-green 3 White-green 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Green 7 White-brown 7 White-brown 8 Brown 8 Brown
1
2345678
Pin Wire color Pin Wire color
1 White-orange 1 White-green
1&2
3&6 4&5
7&8
Twisted Pairs
2 Orange 2 Green 3 White-green 3 White-orange 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Orange 7 White-brown 7 White-brown 8 Brown 8 Brown
Figure A-1 — RJ-45 connector pinout tables
Crossover cable
Side 1 Side 2
Integration Scaling Matrix Switcher Ethernet ConnectionA-2
Default address
To access the ISM switcher via the Ethernet port, you will need the Extron ISM IP address. If the address has been changed to an address comprised of words and characters, the actual numeric IP address can be determined using the Ping utility. If the address has not been changed, the factory-specified default is 192.168.254.254.
Ping can also be used to test the Ethernet link to the ISM.
Ping to determine the switcher’s IP address
The Microsoft Ping utility is available at the DOS prompt. Ping tests the Ethernet interface between the computer and the ISM. Ping can also be used to determine the actual numeric IP address from an alias and to determine the web address.
Access the DOS prompt and Ping the switcher as follows:
1. Click on Start > Run.
2. At the Open prompt, type command.
3. Click on the OK button.
4. At the DOS prompt, type ping {IP address} and press [Enter]. The computer
returns a display similar to figure A-2. The line Pinging ... reports the actual numeric IP address, regardless of
whether you entered the actual numeric IP address or an alias name.
C:\>ping 192.168.254.254
Pinging 192.168.254.254 with 32 bytes of data:
Reply from 192.168.254.254: bytes=32 time<10ms TTL=128 Reply from 192.168.254.254: bytes=32 time<10ms TTL=128 Reply from 192.168.254.254: bytes=32 time<10ms TTL=128 Reply from 192.168.254.254: bytes=32 time<10ms TTL=128
Ping statistics for 192.168.254.254: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 0ms, Average = 0ms
Figure A-2 — Ping response
Ping to determine the Web IP address
The Ping utility has a modifier, -a, that directs the command to return the Web address rather than the numeric IP address.
At the DOS prompt, type ping -a {IP address} and then press [Enter]. The computer’s return display is similar to the Ping response shown in figure A-2, except that when you specify the -a modifier, the line Pinging mail... reports the web IP address rather than the numeric IP address, regardless of whether you entered the actual numeric IP address or an alias name.
A-3Integration Scaling Matrix Switcher Ethernet Connection
Ethernet Connection, cont’d
Connect as a Telnet client
The Microsoft Telnet utility is available from the DOS prompt. Telnet allows you to input SIS commands to the ISM from the PC via the Ethernet link and the LAN.
Access the DOS prompt and start Telnet as follows:
1. Click on Start > Run.
2. At the Open prompt, type command.
3. Click on the OK button.
4. At the DOS prompt, type telnet and press [Enter]. The computer returns a
display similar to figure A-3.
Microsoft (R) windows 2000 (TM) Version 5.0 (Build 2195) Welcome to Microsoft Telnet Client Telnet Client Build 5.00.99203.1
Escape Character is 'CTRL+]'
Microsoft Telnet>
Figure A-3 — Telnet screen
Telnet tips
It is not the intention of this manual to detail all of the operations and functionality of Telnet, however some basic level of understanding is necessary for operating the ISM via Telnet.
Open
Connect to the ISM using the Open command. Once you are connected to the switcher, you can enter the SIS commands the same way that you would if you were using the RS-232 link.
Connect to the ISM as follows:
1. At the Telnet prompt, type open {IP address} and then press [Enter]. If the switcher is not password protected, no further prompts are displayed
until you break or disconnect the connection to the ISM.
If the switcher is password protected, Telnet displays the password prompt.
2. If necessary, at the password prompt, type {password} and then press [Enter].
Connection to the switcher via the Ethernet can be password protected. There are two levels of password protection: administrator and user. A person logged on as an administrator has full access to all ISM switching capabilities and editing functions. Users can select video and/or audio for output, select test patterns, set RGB and audio mutes, select a blue screen, and view all settings with the exception of passwords. By default, the ISM ships with both passwords cleared (no password assigned).
Once you are logged in, the ISM returns either Login Administrator or Login User. No further prompts are displayed until you break or disconnect the connection to the ISM.
Integration Scaling Matrix Switcher Ethernet ConnectionA-4
Escape character and Esc key
When Telnet is first started, the utility advises that the Escape character is ‘Ctrl+]’.
Esc
Many SIS commands include the keyboard
key. Consequently, some confusion
may exist between the Escape character and the Escape key.
Ctrl
The Telnet Escape character is a key combination, the
key and the ] key pressed simultaneously, that returns you to the Telnet prompt while leaving the connection to the ISM intact.
The Escape key is the
Esc
key on the computer keyboard.
Local echo
Once connected to the ISM, by default Telnet does not display your keystrokes on the screen. SIS commands are typed in blindly and the SIS responses are displayed on the screen. To command Telnet to show keystrokes, at the Telnet prompt, type set local_echo and then press [Enter] before you open the connection to the switcher.
With local echo turned on, keystrokes and the switcher’s response are displayed on the same line. For example: 1*1!In1 Out1 All, where 1*1! is the SIS command and In1 Out1 All is the response.
With local echo turned on, all keystrokes are displayed, even those that should be masked, such as the password entry. For example, when entering a password with local echo turned on, you will see a display such as a*d*m*i*n*, where admin is the keyed in password and ***** is the masked response.
Local echo can be turned off by typing unset local_echo and then pressing [Enter] at the Telnet prompt. If you are connected to the ISM and need to access the Telnet
Ctrl
prompt to turn local echo off, type the Escape character (
+]).
Set carriage return-line feed
Unless commanded otherwise, Telnet transmits a line feed character only (no
Enter
carriage return) to the connected ISM when you press the
key. This is the correct setting for SIS communication with the switcher. The Telnet set crlf command forces Telnet to transmit carriage return and line feed characters when
Enter
is pressed, but if crlf is set, the SIS link with the switcher will not function
properly.
Close
To close the link to the switcher, access the Telnet prompt by typing the Escape character (
Ctrl
+]). At the Telnet prompt, type close and then press [Enter].
Help
For Telnet command definitions, at the Telnet prompt, type ? and then press [Enter].
Quit
Exit the Telnet utility by typing quit and then press [Enter] at the Telnet prompt. If you are connected to the ISM, access the Telnet prompt beforehand by typing the Escape character (
Ctrl
+]).
A-5Integration Scaling Matrix Switcher Ethernet Connection
Ethernet Connection, cont’d
Integration Scaling Matrix Switcher Ethernet ConnectionA-6
Integration Scaling Matrix Switcher
Appendix B
B
Reference Information
Specifications
Part Numbers
Firmware Upgrade Installation
Button Labels
Reference Information
Specifications
Video
Routing .......................................... 8 x 2 matrix
Video input
Number/signal type ................... 8 RGBHV, RGBS, RGsB, RGBcvS, component video, S-video, composite
video
Connectors ................................... 8 x 5 female BNC
Nominal level ............................... 1V p-p for Y of component video and S-video, and for composite video
0.7V p-p for RGB
0.3V p-p for R-Y and B-Y of component video, and for C of S-video
Minimum/maximum levels ....... Analog: 0V to 1.0V p-p with no offset
Impedance .................................... 75 ohms
Horizontal frequency.................. Autoscan 15 kHz to 100 kHz
Vertical frequency ....................... Autoscan 50 Hz to 100 Hz
Resolution range .......................... Autoscan 720 x 525 to 1600 x 1200
Video processing
Decoder ......................................... 9 bit digital
Digital sampling ........................... 24 bit, 8 bits per color; 13.5 MHz standard (video), 140 MHz standard (RGB)
Colors ............................................ 16.78 million
Horizontal filtering ...................... 4 levels
Vertical filtering ........................... 8 levels
Video output
Number/signal type ................... 2 RGBHV, RGBS
Connectors ................................... 2 x 5 BNC female, (2) 15-pin HD female
Nominal level ............................... 0.7V p-p for RGB
Minimum/maximum levels ....... 0V to 0.7V p-p
Impedance .................................... 75 ohms
Scaled resolutions
ISM 182 .............................. 640x480
ISM 482 .............................. 640x480
1280x7682, 1280x1024
3,5
720p
1
= at 50 Hz 2 = at 56 Hz 3 = at 60 Hz 4 = at 75 Hz
5
= locked to the current input’s vertical refresh rate
1,3,4,5
, 800x600
1,3,4,5
, 800x600
, 1080p
3,5
, 1080i
1,3,4,5
, 832x624
1,3,4,5
, 832x624
1,3,5
, 1360x7653, 1365x1024
1,3,5
3,4,5
3,4,5
Return loss .................................... -30dB @ 5 MHz
DC offset ....................................... ±5mV maximum with input at 0 offset
Sync
Input type ..................................... Autodetect RGBHV, RGBS, RGsB, RGBcvS
Output type .................................. RGBHV, RGBS
Standards ...................................... NTSC 3.58, NTSC 4.43, PAL, SECAM
Input level ..................................... 0V to 5.0V p-p
Output level .................................. 0V to 5.0V p-p, unterminated
Input impedance .......................... 510 ohms
Output impedance ....................... 75 ohms
Max input voltage ........................ 5.0V p-p
Max. propagation delay .............. 20 ns
Polarity .......................................... Positive or negative (selectable)
, 848x4803, 852x4803, 1024x768 , 848x4803, 852x4803, 1024x768
3,5
, 1400x1050
1,3,5
, 576p
1,3,4,5
1,3,4,5
1,5
,
,
Integration Scaling Matrix Switcher • Reference InformationB-2
Audio
Routing .......................................... 8 x 2 stereo matrix
Gain ................................................ Unbalanced output: 0dB; balanced output: +6dB
Frequency response .................... 20 Hz to 20 kHz, ±0.05dB
THD + Noise................................. 0.03% @ 1 kHz at nominal level
S/N ............................................... >90dB at rated maximum output
Crosstalk ....................................... <-80dB @ 1 kHz, fully loaded
Stereo channel separation .......... >90dB @ 1 kHz
CMRR ............................................ >75dB @ 20 Hz to 20 kHz
Audio input
Number/signal type ................... 8 stereo, balanced/unbalanced
Connectors ................................... (8) 3.5 mm captive screw connectors, 5 pole
Impedance .................................... >10 kohms unbalanced/balanced, DC coupled
Nominal level ............................... Configurable: -60dBV (1mV), +4dBu (1.23V), 0dBu (0.775V), -10dBV
(316mV), -20dBV (100mV)
Maximum level ............................ +19.5dBu, (balanced or unbalanced) at 1%THD+N
Input gain adjustment ................. –24dB to +9dB, adjustable per input
Audio output
Number/signal type ................... 2 stereo, balanced/unbalanced
Connectors ................................... (2) 3.5 mm captive screw connectors, 5 pole
Impedance .................................... 50 ohms unbalanced, 100 ohms balanced
Gain error ..................................... ±0.1dB channel to channel
Maximum level (Hi-Z) ................ >+21dBu, balanced or unbalanced at stated %THD+N
Maximum level (600 ohm) ......... >+15dBm, balanced or unbalanced at stated %THD+N
0dBu = 0.775 volts (RMS).
Control/Remote
Serial control port ........................ RS-232, 9-pin female D connector
Baud rate and protocol ............... 9600, 8-bit, 1 stop bit, no parity
Serial control pin configurations 2 = TX, 3 = RX, 5 = GND
Ethernet control port .................. 1 RJ-45 female connector
Ethernet data rate ........................ 10/100Base-T, half/full duplex with autodetect
Ethernet protocol......................... ARP, ICMP (ping), TCP/IP, Telnet
Program control .......................... Extron’s control program for Windows®
Extron’s Simple Instruction Set™ – SIS™
Microsoft Explorer, Netscape Navigator, Telnet
General
Power ............................................ 100VAC to 240VAC, 50/60 Hz, 60 watts, internal, autoswitchable
Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, non-condensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, non-condensing
Rack mount .................................. Yes
Enclosure type .............................. Metal
Enclosure dimensions ................. 5.25" H x 17.5" W x 11.2" D (3U high, full rack width)
13.3 cm H x 48.3 cm W x 28.4 cm D
(Depth excludes connectors and knobs. Width excludes rack ears.)
Product weight ............................. 11.2 lbs (5.1 kg)
Shipping weight ........................... 17 lbs (7.7 kg)
B-3Integration Scaling Matrix Switcher • Reference Information
Reference Information, cont’d
DIM weight
USA/Canada .................... 18 lbs (8.2 kg)
International ..................... 21 lbs (9.5 kg)
Vibration ....................................... ISTA/NSTA 1A in carton (International Safe Transit Association)
Listings .......................................... UL, CUL
Compliances ................................. CE, FCC Class B
MTBF ............................................. 30,000 hours
Warranty....................................... 3 years parts and labor
Specifications are subject to change without notice.
Part Numbers
Included parts
These items are included in each order for an ISM 182 or ISM 482:
Included parts Part number
ISM 182 60-424-01 ISM 482 60-425-01 Rubber feet (self-adhesive) (4) IEC power cord Tweeker (small screwdriver) ISM 182 and ISM 482 User’s Manual ISM/ISM Windows-based control program
Optional accessories
Part Part number
Captive screw audio connector 10-319-10 RCA-to-BNC adapter 10-264-01 SVHS - BNC adapter 26-353-01
Cables and connectors
When using signals with a scanning frequency of 15-125 kHz and running distances of 100 feet or more, use high resolution BNC cables to achieve maximum performance.
Bulk cable
Super High Resolution Cable Part #
SHR-1 bulk , 500’ 22-098-02 SHR-1 bulk , 1000’ 22-098-03 SHR-4 bulk , 500’ 22-099-02 SHR-5 bulk , 500’ 22-100-02
Integration Scaling Matrix Switcher • Reference InformationB-4
BNC-4 Mini HR Cable Part #
BNC-4 Mini HR bulk, 500’ 22-032-02 BNC-4 Mini HR bulk, 1000’ 22-032-03
BNC-5 Mini HR Cable
BNC-5 Mini HR bulk, 500’ 22-020-02 BNC-5 Mini HR bulk, 1000’ 22-020-03
Plenum BNC-5 Mini HR Cable
Plenum BNC-5 Mini HR bulk, 500’ 22-103-02 Plenum BNC-5 Mini HR bulk, 1000’ 22-103-03
Assorted connectors
BNC connectors
BNC Mini HR crimp connectors, qty. 50 100-074-51 SHR male crimp connectors, qty. 50 100-075-51 BNC bulkhead connectors, qty. 50 (for custom wall plates) 100-076-51
Pre-cut cables
BNC-4 Mini HR cable is used for RGBS cable runs, and BNC-5 Mini HR cable is used for RGBHV cable runs. Either type can also be used for composite video, S-video, or RGsB. All Extron BNC cables have male connectors on both ends. A plenum version of the BNC-5 Mini HR cable is also available.
BNC-4 Mini HR Cable
BNC-4-25’ MHR (25 feet/7.5 meters to 300 feet /90.0 meters) 26-210-xx
BNC-5 Mini HR Cable
BNC-5-25’ MHR (25 feet/7.5 meters to 300 feet /90.0 meters) 26-260-xx
Bulk cable in lengths up to 5000' (1524 meter) rolls is available with or without connectors.
B-5Integration Scaling Matrix Switcher • Reference Information
Reference Information, cont’d
Firmware Upgrade Installation
In some cases the ISM’s firmware may require replacement with an updated version. There are nine user-replaceable firmware chips, U1, U2, and U6 on the front panel circuit board and U98, U99, U100, U101, U102, and U103 on the main circuit board. The U-numbers are printed on the circuit boards. We recommend that you send the unit in to Extron for service and updates.
• Chip set U1 and U2 are replaced as a pair.
• Chip U6 is replaced alone.
• Chip set U98, U99, U100, and U101 are replaced as a set.
• Chip set U102 and U103 are replaced as a pair.
CAUTION
Replace firmware in the ISM as follows:
1. Disconnect the AC power cord from the ISM to remove power from the unit.
2. If the ISM is installed in a rack, disconnect all signal and control cables and
remove the ISM from the rack.
3. Remove the 16 screws, 8 on the top and 4 on each side of the ISM cover (figure B-1).
4. Remove the top two front panel screws.
5. Lift the top cover straight up approximately five inches until you can access
the fan power cords.
CAUTION
6. Disconnect the two fan power cords from connectors J8 and J13 on the main board.
7. Lift the top cover out of the way.
Changes to firmware must be performed by authorized service personnel only. Some ISM firmware updates must be performed at the Extron factory.
To prevent electric shock, always unplug the ISM from the AC power source before opening the enclosure.
Do not touch any switches or other electronic components inside the ISM. Doing so could damage the switcher. Electrostatic discharge (ESD) can damage IC chips even though you cannot feel it. You must be electrically grounded before proceeding with firmware replacement. A grounding wrist strap is recommended.
Integration Scaling Matrix Switcher • Reference InformationB-6
1
2
3
4
5
6
7
8
1
0
0
-
2
4
0
5
0
/
6
0
H
z
1
.
2
A
M
A
X
.
R
1
G
B
H/HV
R
2
G
B
H/HV
R
3
G
B
H/HV
R
INPUTS
4
G
B
H/HV
R
5
G
B
H/HV
R
6
G
B
H/HV
R
7
G
B
H/HV
R
8
G
B
H/HV
B
H/HV
V
H/HV
V
Remove (16) screws.
Remove top two front panel screws.
Lift cover straight up.
Extron ISM 482
Switcher
U1 U2
J8
J13
Connect to J8 and J13.
U100 U101
U6
U102 U103
U98 U99

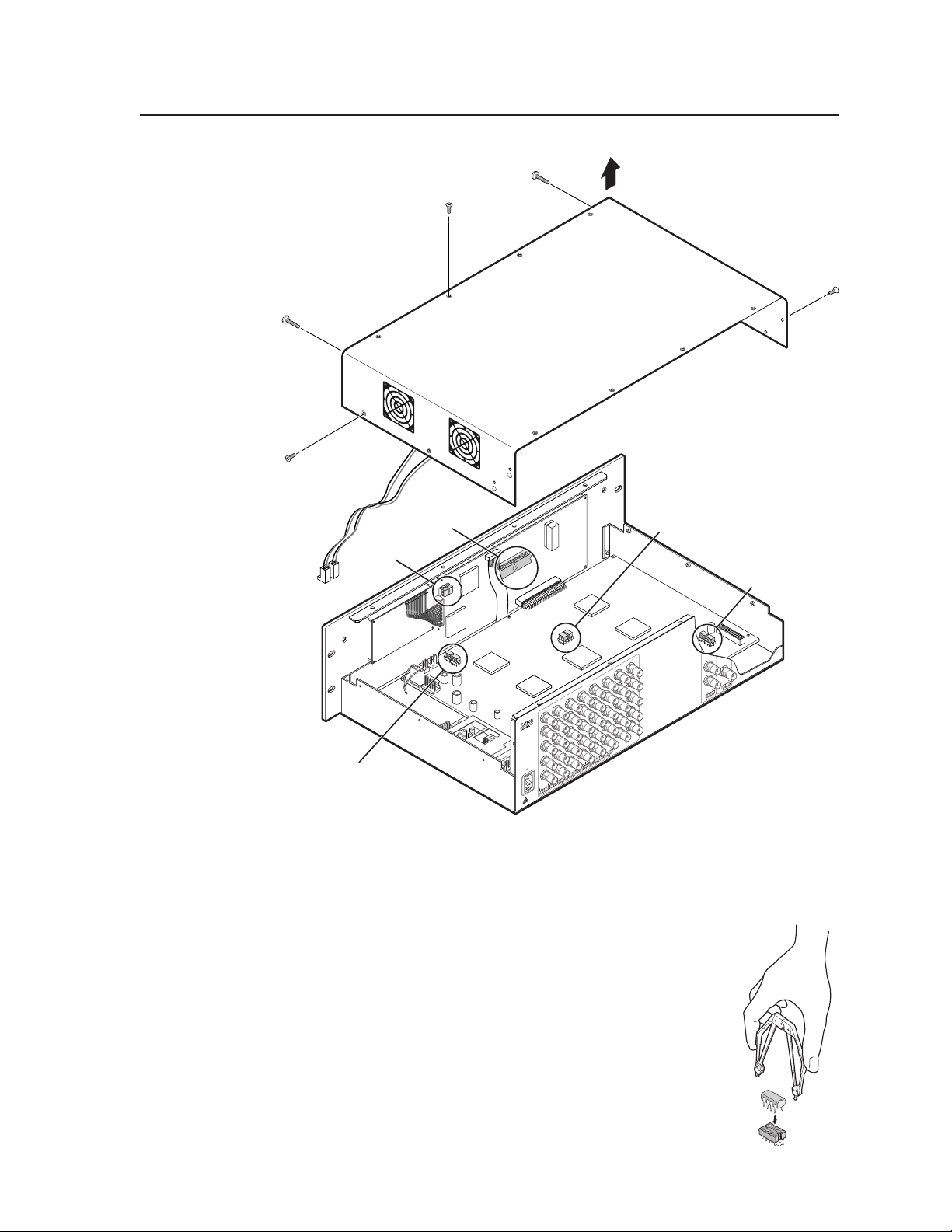

Figure B-1 — Removing the ISM cover
8. Locate the firmware chip(s) to be replaced on the main or front panel circuit board (figure B-1).
9. After you are electrically grounded, use a DIP chip puller to grasp the IC chip(s) and pull it (them) out of the socket.
10. Align the slots of the new firmware chip(s) with the angled corners of the socket in the same orientation as the old chip(s). Gently, but firmly, press the chip(s) into place in the socket.
11. Reconnect the two fan power cords to connectors J8 and J13
12. Replace the top cover on the ISM.
on the main board. It does not matter which fan is connected to which connector.
U102
B-7Integration Scaling Matrix Switcher • Reference Information
Reference Information, cont’d
13. Secure the cover in place with the screws that were removed in steps 3 and 4
14. Rack mount the switcher if desired and reconnect all cables.
Button Labels
Eight sets of button labels are provided on the next page. Feel free to cut them out of the manual, write the applicable button information in each button area, and place them in the switcher’s label window.
.
Integration Scaling Matrix Switcher • Reference InformationB-8
B-9Integration Scaling Matrix Switcher • Reference Information
Reference Information, cont’d
Integration Scaling Matrix Switcher • Reference InformationB-10
FCC Class B Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.
Extron’s Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America, Europe, Africa, and the Middle East: and Central America:
Extron Electronics Extron Electronics, Europe 1001 East Ball Road Beeldschermweg 6C Anaheim, CA 92805, USA 3821 AH Amersfoort
The Netherlands
Asia: Japan:
Extron Electronics, Asia Extron Electronics, Japan 135 Joo Seng Road, #04-01 Daisan DMJ Bldg. 6F, PM Industrial Bldg. 3-9-1 Kudan Minami Singapore 368363 Chiyoda-ku, Tokyo 102-0074
Japan
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.
If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.
www.extron.com
Extron Electronics, USA
1230 South Lewis Street Anaheim, CA 92805 USA
714.491.1500 Fax 714.491.1517
Extron Electronics, Europe
Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050
Extron Electronics, Asia
135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664
© 2004 Extron Electronics. All rights reserved.
Extron Electronics, Japan
Daisan DMJ Building 6F 3-9-1 Kudan Minami Chiyoda-ku, Tokyo 102-0074 Japan +81.3.3511.7655 Fax +81.3.3511.7656
Loading...
