DSC 301 HD

Digital Scaling Converter

User Guide

SCALERS AND SIGNAL PROCESSORS

68-2338-01 Rev. A

02 13

Precautions

Safety Instructions

• English

WARNING: This symbol, , when used on the product, is intended to alert the user

of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 69-290-01, on the Extron website,

www.extron.com.

• Français

AVERTISSEMENT: Ce pictogramme, , lorsqu’il est utilisé sur le

produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.

ATTENTION: Ce pictogramme, , lorsqu’il est utilisé sur le produit,

signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 69-290-01, sur le site Extron,

www.extron.fr.

• Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer

darauf aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.

• Chinese Simplified（简体中文）

警告：产品上的这个标志意在警告用户该产品机壳内有暴露的危险

电压，有触电危险。

注意：产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、

使用的特性等相关内容，敬请访问

安全规范指南，产品编号

69-290-01。

EMI/EMF 的兼容性、无障碍

Extron 网站 www.extron.com，参见 Extron

• Chinese Traditional（繁體中文）

警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

注意 若產品上使用此符號，是為了提醒使用者。

有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資訊，請瀏覽 Extron 網站：

法規遵守手冊》，準則編號 69-290-01。

www.extron.com，然後參閱《Extron 安全性與

• Japanese

警告: この記号が製品上に表示されている場合は、筐体内に絶縁されて

いない高電圧が流れ、感電の危険があることを示しています。

注意: この記号が製品上に表示されている場合は、本機の取扱説明書に記載されて

いる重要な操作と保守 (整備) の指示についてユーザーの注意を喚起するものです。

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in

der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung, EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den ExtronRichtlinien für Sicherheit und Handhabung (Artikelnummer 69-290-01) auf der Extron-Website,

www.extron.de.

• Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada

con el equipo

Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 69-290-01, en el sitio Web

www.extron.es.

de Extron,

安全上のご注意、法令遵守、EMI/EMF適合性、その他の関連項目については、エクストロンのウェブサイト www.extron.comより

『Extron Safety and Regulatory Compliance Guide 』 (P/N 69-290-01) をご覧ください。

• Korean

경고: 이 기호 , 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.

주의: 이 기호 , 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와

있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및 규제 준수 안내서, 69-290-01 조항을 참조하십시오.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference; the user must correct the interference at his own expense.

NOTE: This unit was tested with shielded I/O cables on the peripheral devices.

Shielded cables must be used to ensure compliance with FCC emissions limits.

For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the “Extron Safety and

Regulatory Compliance Guide” on the Extron website.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks

AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field,GlobalViewer, Hideaway, Inline, IP Intercom, IP Link, Key Minder, LockIt, MediaLink, PoleVault, PURE3, Quantum, SoundField, System Integrator, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall

Registered Service Mark

AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), AIS (Advanced Instruction Set), Auto-Image, CDRS (Class D Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, PowerCage, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedMount, SpeedNav, SpeedSwitch, Triple-Action Switching, XTP, XTP Systems, XTRA, ZipCaddy, ZipClip

(SM)

(R)

, registered service marks

: S3 Service Support Solutions

(SM)

, and trademarks

Registered Trademarks

(TM)

are the property of RGB Systems, Inc. or Extron Electronics:

(®)

Trademarks

(™)

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

CAUTION: A caution indicates a situation that may result in minor injury.

NOTE: A note draws attention to important information.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C

[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]

E X! *X1&* X2)* X2#* X2! CE}

NOTE: For commands and examples of computer or device responses

mentioned in this guide, the character “0” is used for the number zero and “O” represents the capital letter “o.”

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t

SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New. Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Introduction............................................................ 1

DSC 301 HD Description .................................... 1

Key Features ...................................................... 2

Inputs ............................................................. 2

Outputs .......................................................... 2

General ........................................................... 3

Rear Panel Connections ..................................... 5

Rear Panel Cabling ............................................. 5

Operation ................................................................ 7

Front Panel Overview .......................................... 7

The DSC 301 HD OSD Menu System —

Conﬁguration and Adjustments .......................... 8

OSD Menu Navigation Using Front Panel

Controls ......................................................... 8

Menu Overview ............................................... 8

Resolutions and Refresh Rates ..................... 18

Custom EDID or Custom Output Resolution . 19

Power Save ................................................. 19

Output Rate Reset ....................................... 19

Front Panel Lockout (Executive Modes) ............ 19

SIS Communication and Control .................... 20

Host-to-Scaler Communications ....................... 20

Scaler-initiated Messages ............................. 20

Error Responses ........................................... 21

Error Response References .......................... 21

Commands and Responses ............................. 21

Using the Command and Response Tables .. 21

Symbol Definitions ........................................ 22

SIS Command and Response Table ................. 26

Part Numbers and Accessories ........................ 36

Included Parts .............................................. 36

Optional Accessories .................................... 36

Warranty....................................................................

Contact Information ...............................................

DSC 301 HD • Contents v

DSC 301 HD • Contents vi

Introduction

This guide contains information about the Extron DSC 301 HD Digital Scaling Converter with instructions for experienced installers on how to install, configure, and operate the equipment.

In this guide the terms “digital scaler” and “scaler” are used interchangeably and refer to the DSC 301 HD model.

This section gives a basic description and the key features of the DSC 301 HD scaler.

DSC 301 HD Description

The DSC 301 HD is a 1-inch high, half rack wide, three input, HDCP-compliant video scaler that includes an HDMI input, configurable high resolution analog and composite video inputs, and a single HDMI output.

The DSC 301 HD accepts a wide variety of video formats including HDMI, HDTV, RGB, component, and standard definition video. It features advanced Extron video signal processing with 1080i deinterlacing, EDID Minder, Key Minder, and automatic input switching. Audio from any of three stereo inputs may be embedded onto the HDMI output. Front panel controls, an intuitive on-screen display, plus USB and RS-232 connections provide flexible control and monitoring.

The unit can be rack mounted or installed under a desk using the optional MBU 125 rack mounting brackets.

The DSC 301 HD features advanced video processing with the ability to scale HDMI, HDTV, RGB, and standard definition video signals to a common high resolution output. It accepts and outputs signals up to 1920x1200, including HDTV 1080p/60 and 2048x1080. The DSC 301 HD also features Deep Color processing and high performance deinterlacing of 1080i to deliver optimal image quality through advanced motion compensation. In addition, the color space and chroma subsampling of the HDMI output can be automatically set to ensure compatibility with a connected DVI or HDMI display.

Output scan rates are available from VGA (640x480) to 1920x1200 resolution, as well as HDTV at 720p, 1080i, 1080p/60 Hz, and 2k/60Hz.

NOTE: See the Resolution and Refresh Rate table on page 18 for a complete

list.

The DSC 301 HD features automatic 3:2 and 2:2 pulldown detection, which maximizes the image detail and sharpness for content sources originating from film. The scaler also uses a digital 3D adaptive comb filter that optimizes decoding of NTSC, PAL, and SECAM sources for integration into systems worldwide.

DSC 301 HD • Introduction 1

Key Features

Inputs

• Video — The DSC 301 HD has the following connectors: one HDMI connector,

one 15-pin HD connector for RGBHV or HD/SD component video, and one BNC connector for composite video.

• Auto-Image setup — When activated, the unit automatically detects the resolution

of the incoming video signal and sets the total pixels, phase, active pixels, and active lines, as well as the horizontal and vertical starting points.

• Auto Input memory — When activated, the unit automatically saves input sampling

and picture settings based on the incoming signal. When the same signal is detected again, these image settings are automatically recalled from memory.

• Auto-switching between inputs — Auto-switching allows for simple, unmanaged

installation in locations such as in a lectern or under a conference table. When multiple inputs are active, the switching priority is configurable.

• HDMI, RGB, HDTV, and video scaling to HDMI — Digital and analog video sources

can all be scaled to high resolution HDMI output.

• Clean switching — Clean cut through black and fade through black transition

effects are available to enhance presentations by eliminating distractions during input switching.

• Audio — The DSC 301 HD has the following connectors: three 3.5 mm stereo mini

jacks for analog audio input, and an embedded HDMI digital audio input.

• HDMI audio embedding — Analog input audio signals can be embedded onto the

HDMI output signal.

• Audio input gain and attenuation — Gain or attenuation can be adjusted for each

analog audio input to eliminate noticeable differences when switching between sources.

• Audio input assignment — Each video input can be assigned to any analog audio

input. This enables all three video inputs to share a single analog audio input. The HDMI input can be set to pass incoming digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected.

Outputs

• Video and Audio — The DSC 301 HD has one HDMI output.

• Selectable output — Available output rates include computer-video 640x480 up to

1920x1200, HDTV rates up to 1080p/60, and 2048x1080.

• Output Standby Mode — Can be set to automatically mute video and sync

output to the display device when no active input signal is detected. This allows the projector or flat-panel display to automatically enter into standby mode to save energy and enhance lamp or panel life.

• Aspect ratio control — The aspect ratio of the video output can be controlled by

selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal.

• HDCP authentication and signal presence confirmation — Provides real-time

verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs or RS-232, providing valuable feedback to a system operator or helpdesk support staff.

DSC 301 HD • Introduction 2

General

• HDCP Visual Confirmation — This provides a full screen green output signal when

HDCP-encrypted content is transmitted to a non-HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.

• HDMI to DVI Interface Format Correction — Automatically enables or disables

embedded audio and infoframes, and sets the correct color space for proper connection to HDMI and DVI displays.

• AFL (Accu-RATE Frame Lock) — A patented technology exclusive to Extron that

locks the output frame rate to a designated input to eliminate stuttering caused by frame rate conversion.

• Audio switching transitions — The audio output level automatically ramps down

and then ramps up during switching transitions.

• Integrated audio delay — The audio output is automatically delayed to compensate

for latency introduced by the video processing.

• Advanced scaling engine with 30-bit processing and 1080i deinterlacing —

Image scaling and video format conversion are performed at 30-bit precision for enhanced color accuracy and picture detail. High performance deinterlacing for 1080i signals from HD sources delivers optimized image quality.

• HDCP compliant — Fully supports HDCP-encrypted sources, with selectable

authorization for unencrypted content.

• Supported HDMI — This features include data rates up to 6.75 Gbps, Deep Color,

and HD lossless audio formats

• Key Minder — Key Minder authenticates and maintains continuous HDCP

encryption between input and output devices to ensure quick and reliable switching in professional AV environments.

• EDID Minder — EDID Minder automatically manages EDID communication and

ensures that all sources power up properly and reliably output content for display.

• Image freeze control — A live image can be frozen using RS-232 serial control.

• On-screen display — Displays status information pertaining to the currently selected

input, including resolution, format, and HDCP status, and facilitates easy system setup and troubleshooting.

• Power Save Mode — Can be placed in a low power standby state to conserve

energy when not in use.

• Picture control adjustment — Used for brightness, contrast, color, tint, and detail

settings, as well as horizontal and vertical positioning, and sizing.

• Automatic 3:2 and 2:2 pulldown detection — Advanced film mode processing

techniques that help maximize image detail and sharpness for NTSC, PAL, and HDTV 1080i sources that originated from film.

• Quad standard, 3D composite video decoding — A temporal, 3D adaptive comb

filter provides advanced decoding of composite NTSC 3.58, NTSC 4.43, PAL, and SECAM for integration into systems worldwide.

• User presets — Memory presets are available for each input to store and recall

optimized image settings.

• Internal test patterns for calibration and setup — The DSC 301 HD offers a crop

pattern, crosshatch, grayscale, color bars, alternating pixels, blue mode, and audio pink noise.

DSC 301 HD • Introduction 3

• Front panel security lockout — This feature can block all front panel control, or limit

front panel to input selection only. All functions however, are available through RS-232 control.

• RS-232 control port — Enables the use of serial commands for complete control

and configuration or integrated into a control system. Extron products use the SIS™ Simple Instruction Set command protocol, a set of basic ASCII code commands that allow for quick and easy programming.

• Front-panel USB configuration port — Enables easy configuration without having

to access the rear panel.

• 1 inch (2.5 cm) high, half rack width metal enclosure

• Includes LockIt HDMI cable lacing brackets

• Energy-efficient external universal power supply included, replacement

PS-1210C part number 70-775-01 — Provides worldwide power compatibility, low power consumption, and reduced operating costs.

DSC 301 HD • Introduction 4

Rear Panel

Connections

This section describes how to connect cables to a DSC 301 HD scaler.

Rear Panel Cabling

The illustration below shows the rear panel features of the DSC 301 HD.

DSC 301 HD

POWER

12V

1.0A MAX

INPUTS

DSC 301 HD

REMOTE

RS-232

VIDEO RGB/R-Y,Y,B-Y HDMI

AUDIO

OUTPUT

Figure 1. DSC 301 HD Rear Panel Features

a Power input — Insert the cord from the supplied 12 V, 1.0 A power source into

this 2-pole connector. The front panel control and input selection buttons light in sequence during power-up.

b Input 1 — Connect a suitable composite video input to this BNC connector. c Input 2 — Connect a suitable input to this configurable analog 15-pin HD (VGA)

connector for RGBHV, HD component video, or YUVi signals.

The analog input port can be configured to accept RGB (RGBHV, RGBs) or

component video (bi- or tri-level) signals. The default setting is for RGB. The table below shows the pinouts for each format type on the 15-pin HD (VGA) connector. The 15-pin HD supports EDID emulation.

Pinout Table for 15-pin HD Connector

Pin RGBHV RGBs Component

1 Red Red R-Y

2 Green Green Y

3 Blue Blue B-Y

4 No Connection No Connection

5 No Connection No Connection

6 Red Return Red Return R-Y Return

7 Green Return Green Return Y Return

8 Blue Return Blue Return B-Y Return

10 Ground Ground

11 No Connection No Connection

12 EDID/DDC EDID/DDC

13 H Sync C Sync

14 V Sync

15 EDID/DDC EDID/DDC

Tx Rx G

DSC 301 HD • Rear Panel Connections 5

d Input 3 — Connect an HDMI source to this HDMI connector.

Audio from the HDMI input can be de-embeded from the HDMI source. This allows

the user to choose to select audio either from the HDMI input or the analog audio 3.5 mm TRS inputs. The default selection is 2-channel digital audio from the HDMI input.

Secure the HDMI input to the HDMI connector c using the LockIt bracket as follows:

1. Plug the HDMI cable into the panel connection.

2. Loosen the HDMI connection mounting screw

from the panel enough to allow the LockIt lacing bracket to be placed over it.

3. Place the LockIt lacing bracket onto the screw and

slide it up against the HDMI connector. Tighten the screw to secure the bracket.

OUTPUT

4. Loosely place the included tie wrap around the

HDMI connector and LockIt lacing bracket.

While holding the connector securely against the lacing bracket, tighten the tie wrap, then remove

any excess length.

e Audio inputs 1-3 — Connect audio sources to these

three 3.5 mm stereo mini jack TRS connectors.

f HDMI output — Connect an HDMI display device to this HDMI connector. g RS-232 port — For serial RS-232 control, connect a host computer or control

system to the 3-pole captive screw connector.

NOTE: The default protocol is 9600 baud, 1 stop bit, no parity, 8 data bits, no

flow control.

DSC 301 HD• Rear Panel Connections 6

Operation

This section of the manual discusses the operation of a DSC 301 HD device, and is divided into the following sections:

• Front Panel Overview

• The DSC 301 HD Menu System — Configuration and Adjustments

• Front Panel Lockout (Executive Modes)

Front Panel Overview

Extron

CONFIG

132

HDCP

INPUT

OUTPUT

MENU ENTER

ADJUST

DSC 301 HD

Figure 2. DSC 301 HD Front Panel Features

a Status LED (power and signal) — This LED lights amber when power is present but

no signal, and green when power and signal are both present.

b Front Panel mini USB configuration port — Connect a control system or computer

to this mini USB port for device configuration, control, and firmware upgrades.

c Input selection buttons and LEDs (1-3) —

Input LEDs — The LED of the selected input lights when the button is pressed.

Input 1 (composite video input button) — Input 1 selects the composite video

input.

Input 2 (configurable input button) — Input 2 selects the RGB (RGBHV, RGBS) or

YUV (YUV-HD, YUVp, YUVi) input.

Input 3 (HDMI/DVI button) — Input 3 selects the HDMI or DVI input signal.

d HDCP content LEDs — These LEDs indicate HDCP status for inputs and output;

• Light green when the input or connected display is HDCP encrypted.

• Remain unlit when the current input or HDMI output is not HDCP encrypted.

• Flash amber when the video output has been disabled (such as when in sync mute

or screen saver mode).

e Menu Navigation buttons (Menu and Enter) —

Menu — Press this button to access and move through the OSD menu system. Enter — Press this button to step through the OSD submenus.

See the “The DSC 301 HD OSD Menu System — Configuration and

Adjustments” section on the next page.

g Adjustment knobs (horizontal [and vertical {) — When using the menu system,

rotate either of these two knobs to scroll through the menu options and to make any adjustments.

DSC 301 HD • Operation 7

The DSC 301 HD OSD Menu System — Configuration and Adjustments

Scaler configuration and adjustments can be performed by using the On-screen Display (OSD) menu or the Extron Simple Instruction Set (SIS) of commands (see the “SIS

Communication and Control” section).

The OSD menu can be seen on the connected display device.

OSD Menu Navigation Using Front Panel Controls

Menu button — Press the Menu button to activate or deactivate the main menu.

Enter button — Press the Enter button to move between the submenus of a selected

main menu item and to exit and accept the setting. Adjust ({, [) knobs — In the menu configuration mode, rotate the Adjust horizontal

([) knob and Adjust vertical ({) knob to scroll through submenu options and to make adjustment selections.

Menu Overview

The OSD menu has nine configuration submenus; two of which are read only information menus. The table below shows the submenus and submenu items.

OSD Menu

Submenu Submenu Item

Quick Setup Auto-Image Input x

User Presets Recall Save Clear

Picture Controls Image Position

Input Auto-Image Input x

Output Resolution HDMI

Audio Audio Mute Input x

Advanced Test Pattern Screen

Communication Remote Port

Device Info

(read only menu)

(H and V)

Temperature Active Input

Format

Image Size

(H and V)

Input

Format

Audio

Format

Saver

Details

Input 2

EDID

Brightness Contrast Color Tint Detail

Input x

Film Mode

HDCP

Notification

Input x

Gain/

Attenuation

Screen Saver

Timeout

Output

Details

Input 3

EDID

Pixel Start

(H and V)

Input AFL

Input x

Auto-


AFL Status HDCP

Output

Resolution

Active

Pixels

(H and V)

Input x Aspect

Ratio

Status

Audio Mute Test

Total Pixels Phase Input x

Input x

Auto-

Memory

Display

Information

Pattern

Overscan Auto Switch Factory

Firmware

Build

Details

HDCP

Authorized

Input x

EDID

Reset

NOTE: “Input x” refers to the selected input; for example “Input 2”.

NOTE: The Device Info menu and the Communication menu are read-only and

gives current device status.

Using each of the submenus, the video and audio inputs and the HDMI output of the DSC 301 HD can be configured. In addition, the user can save and recall the input configuration as an User Preset. The Advanced submenu allows the user to choose a test pattern to aid in the system setup, as well as set up a screen saver display when there are no active input signals. The remote control port configuration can be viewed using the read-only Communication submenu. Elements of the device status can be viewed using the read-only Device Info submenu. See each submenu on the following pages for details.

DSC 301 HD • Operation 8

To navigate and use the OSD menu:

1. Press the Menu button once to open the menu on the display, The menu opens with

the Quick Setup submenu (see figure 3).

Figure 3. OSD Menu — Quick Setup Submenu

2. If the desired submenu is not showing, use the Adjust knobs ({, [) to navigate to

the desired menu.

3. Press the Enter button to access the submenu.

4. Rotate either Adjust knob to cycle through the submenu to the desired option.

5. Press the Enter button to access the submenu item.

6. Rotate either Adjust knob to adjust the value as desired.

7. Press Enter to accept the new value. Press it again if action confirmation is required.

8. Press Menu to exit the sub menu. Press it again to exit and close the main menu.

NOTE: In any submenu, values that do not apply to the current input will be

shown as “N/A”.

Quick Setup Submenu

This submenu (see figure 3 above) allows the user to make basic configuration adjustments to the DSC 301 HD.

The configurable variables are:

Auto-Image — Select this to start a one-time Auto-Image on the current input.

INx: Input Format — Select this to change the input format.

NOTES:

• “INx” refers to the selected input; for example “Input 2”, as shown in

figure 4.

• View only for inputs 1 (composite video) and 3 (HDMI), selectable for input 2

(RGB or YUV).

DSC 301 HD • Operation 9

IN2: EDID — Select this to match the output rate or to set a discrete EDID (see the table

on page 18 for EDID data).

IN3: EDID — Select this to match the output rate or to set a discrete EDID (see the table on page 18 for EDID data).

Output Resolution — Select this to set the resolution and refresh rate for the output. There are 83 factory installed output resolutions and rates, and 3 custom user defined blocks. See the table on page 18 for details.

Audio Mute — Select this to turn the audio mute option on or off.

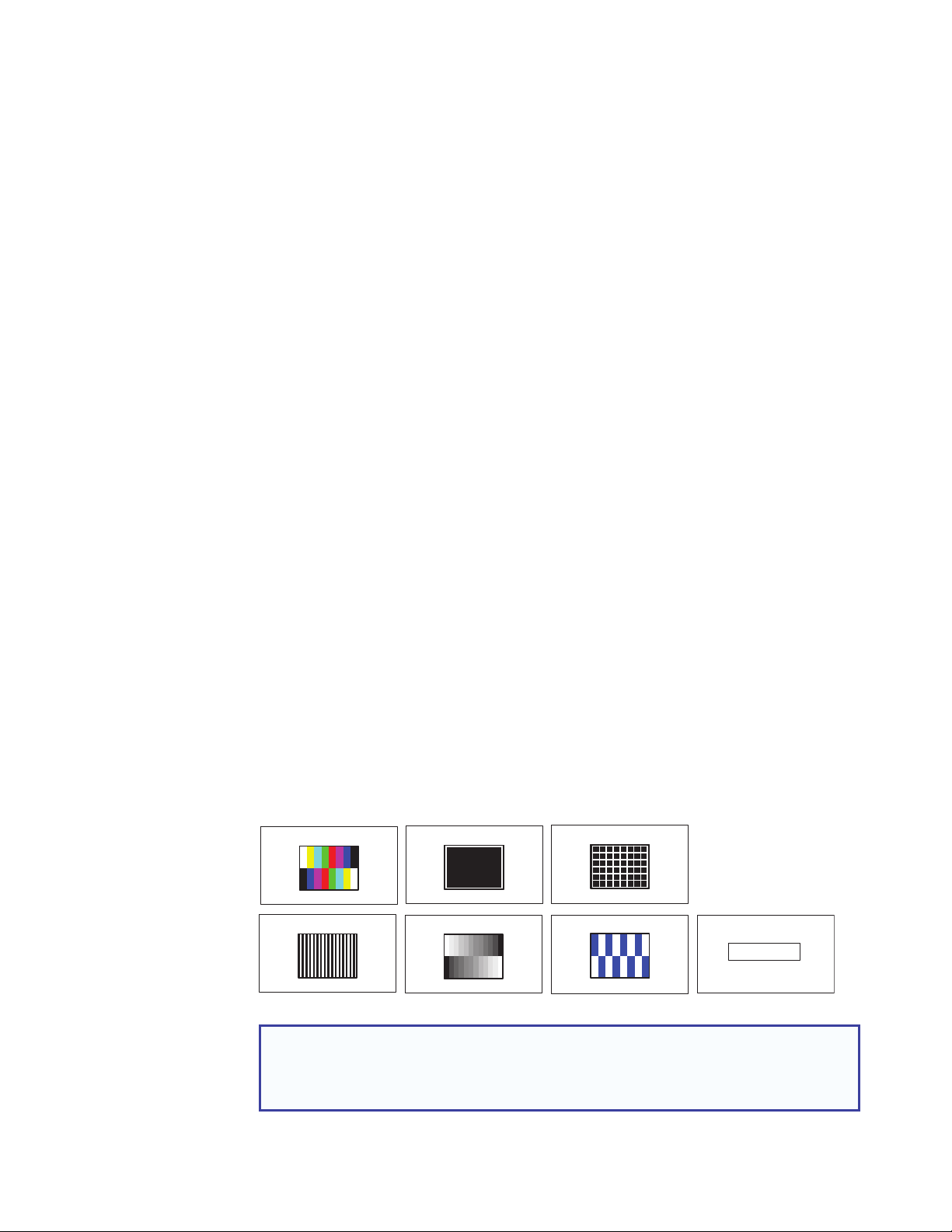

Test Pattern — Select this to choose a suitable test pattern when setting up the

DCS 301 HD and the corresponding output display. Available patterns are: Off (no test pattern), Crop, Alternating pixels, Color bars, Gray scale, Blue Mode, and Audio test (pink noise).

User Preset Submenu

This submenu allows the user to save centering and sizing information and picture adjustments as a User preset for future recall.

Figure 4. OSD Menu — User Presets Submenu

Up to three user presets per input can be saved or recalled. The submenu also has a “clear preset” setting.

Select save, recall, or clear and use the adjust knobs to select the applicable user preset. Press Enter to recall, save or clear the preset as required. Press Enter again to confirm the chosen action.

A user preset can be saved on one input resolution (for example saved on 480p) and later recalled onto another resolution (for example, recalled onto 1080p).

NOTE: If an unsaved user preset is recalled, INVALID PRESET is displayed.

An additional 128 global Input presets are available via SIS commands (see the SIS

Communication and Controls section on page 20, for commands).

DSC 301 HD • Operation 10

A summary and comparison of the User and Input Presets stored values is shown below.

User Presets Input Presets

Color H Image Size Input Type Color H Start H Image Size

Tint V Image Size Preset Name Tint V Start V Image Size

Contrast H Image Position Audio Gain/Attenuation Contrast H Active H Image Position

Brightness V Image Position Film Mode Brightness V Active V Image Position

Detail Preset Name Detail Phase Total Pixels

Figure 5. User and Input Preset Values

Picture Controls Submenu

This submenu allows the user to adjust all of the picture settings.

Figure 6. OSD Menu — Picture Controls Submenu

Image Position — Select this to adjust the horizontal and vertical position of the image (range depends on the current output rate).

Image Size — Select this to adjust the horizontal and vertical size of the image. The range is limited by the output resolution (maximum size is 2x the output resolution).

Brightness and Contrast — Select this to independently adjust brightness and contrast (range is 0 to 127, default is 64).

Color and Tint — Select this to adjust the color and tint (range is 0 to 127, default is 64).

NOTE: Color and Tint only apply to NTSC inputs.

Detail — Select this to adjust the detail (range is 0 to 127, default is 64).

DSC 301 HD • Operation 11

Input Submenu

This submenu allows the user to configure the active input.

Figure 7. OSD Menu — Input Submenu

Auto-Image — Select this to start a one-time Auto-Image on the active input.

Input x: Input Format — Select this to change the active input format.

NOTE: Only input 2 can be changed (RGB or YUV). Input 1 is always composite

video and input 3 is always HDMI.

Input x: Film Mode — Select this to turn Film Mode on (auto detect mode) or off.

(Pixel) Start — Select this to adjust the horizontal and vertical pixel start (range is 0 to

+255, default is 128).

Active (pixels) — Select this to adjust the horizontal and vertical active pixels (range is dependant on input).

Total Pixels and Phase — Select this to set the number of active pixels and the phase value.

Input x: HDCP Authorized — Select this to turn the HDCP Authorized on (default) or off.

NOTE: Applicable to HDMI input 3 only.

When disabled (off) the DSC 301 HD will not display content that requires HDCP, and displays ether a blank screen or a warning message from the input source.

Input x: EDID — Select this to change the EDID (resolution and refresh rate) for the active input. Set to either match output rate, or a custom user-defined EDID, or a factory setting (see table on page 18 for EDID data).

DSC 301 HD • Operation 12

Output Submenu

This submenu allows the user to configure the output.

Figure 8. OSD Menu — Output Submenu

Resolution — Select this to change the resolution and refresh rate for the connected output display (see the table on page 18 for details).

HDMI Format — Select this to set the HDMI output format. Choices are :

• Auto — (based on sink EDID), default

• DVI RGB 444

• HDMI RGB 444 Full

• HDMI RGB 444 Limited

• HDMI YUV 444 Full

• HDMI YUV 444 Limited

• HDMI YUV 422 Full

• HDMI YUV 422 Limited

HDCP Notification — Select this to turn HDCP Notification on (default) or off.

The HDCP Notification provides a means of determining if HDCP content restrictions are preventing a video signal from passing. The DSC 301 HD has the ability to notify the user that they are currently trying to view HDCP protected content through a non-HDCP compliant HDMI or DVI display. The options presented to the user during this scenario are the ability to show a green screen with a moving “OSD bug” reading “HDCP CONTENT,” or to disable this message, and instead output muted (black) video on non-HDCP compliant displays.

Figure 9. Green HDCP Notification Screen

DSC 301 HD • Operation 13

Input AFL — Select this to turn the Extron Accu-Rate Frame Lock (AFL) on or off.

When enabled, this mode locks the output vertical refresh rate to the vertical refresh rate of the currently selected input using Accu-Rate Frame Lock technology. This ensures no frames of the input are repeated or dropped due to frame rate conversion. Input AFL mode will cause glitches and/or interruptions in the output sync when a new input is selected, or when a new signal has been routed to the selected input, as the DSC 301 HD locks to the new vertical refresh rate.

If no input signal is detected (AFL disabled), or if locking to the input signal is not possible, a free running pixel clock is generated by the DSC 301 HD.

Audio Submenu

This submenu allows the user to configure the audio.

Figure 10. OSD Menu — Audio Submenu

Audio Mute — Select this to turn global Audio Mute on or off Input x: Audio Format — Select this to select the audio input format. Choices are:

Audio Input format Details Inputs

None Mutes all audio for selected input All

Analog TRS 1 Sets selected input to analog TRS 1 (default for input 1) All

Analog TRS 2 Sets selected input to analog TRS 2 (default for input 2) All

Analog TRS 3 Sets selected input to analog TRS 3 All

LPCM-2Ch Digital Sets selected input to 2Ch digital audio (default for input 3) Input 3 only

Multi-Ch Digital Sets selected input to Multi-Ch digital audio Input 3 only

LPCM-2Ch Auto (TRS 3) Sets selected input to use 2Ch digital audio (when present),

else use analog TRS 3

Multi-Ch Auto (TRS 3) Sets selected input to use Multi-Ch digital audio

(when present), else use analog TRS 3

Input 3 only

NOTES:

• Multiple video inputs can share a single TRS audio input.

• HDMI Input 3 can be set to use any analog TRS input, or to embedded digital,

or to automatically use embedded digital audio when present or when not use analog TRS 3.

Input x: Gain/Attenuation — Select this to set the gain and attenuation for analog audio inputs (range is -18 dB to +12 dB).

NOTE: For analog inputs TRS1, TRS2, and TRS3, or for digital “Auto” modes only

DSC 301 HD • Operation 14

An Example of Audio Setup using an Extron Cable Cubby

• The Extron cable cubby has three video inputs (composite, RGB, and HDMI), and are

connected to the DCS 301 HD, inputs 1-3.

• A single 3.5 mm TRS audio cable is connected to the analog TRS 3 input on the

DSC 301 HD.

• Configure input 1 and input 2 to use audio from the analog TRS 3 input.

• Configure input 3 to LPCM-2Ch Auto to use digital audio when present, or when not

present, to use analog TRS 3.

Advanced Submenu

This submenu allows the user to configure the global settings for the unit.

Figure 11. OSD Menu — Advanced Submenu

Test Pattern — Select this to use a test pattern during the setup of the system and checking the display device. Test pattern options are:

COLOR BARS (8)

ALT PIXE LS

CROP

GRAY SCALE

CROS SH TCH

BLUE MODE

AUDIO TEST

Figure 12. Test Pattern Options

NOTES:

• The audio test outputs pink noise on the embedded digital audio output

(Ch 1/2, 48kHz, 16 bit).

• All test patterns include a single pixel crop pattern line (except Blue mode).

DSC 301 HD • Operation 15

Screen Saver and Timeout — Select the screen saver to mute the video output when no active video is detected. The screen saver can be set to a black (default) or a blue background for a specific (time-out) duration, before the output sync is disabled. The time-out duration can be set to Never (default), or to any duration from 1-500 seconds.

The screen saver option allows connected display devices to go into a low power standby mode when the DSC 301 HD has no active input.

Input x: Auto-Image — Select this to turn the per-input Auto-Imaging mode on or off. Auto-Image automatically attempts to size and position the image to Fill (or Follow the native aspect ratio of the input) the screen every time a new input signal is detected.

When enabled, Auto Image mode is activated by switching physical inputs on the DSC (e.g. IN2 to IN3), or by any interruption in input sync, even if the same input resolution is detected (e.g. disconnecting and reconnecting the same input), or by a power cycle.

Input x: Aspect Ratio — Select this to set the per-input Aspect Ratio to FILL (fills the entire output raster) or to FOLLOW (follows the native aspect ratio of the input).

When in Fill mode, if an Aspect Ratio adjustment for a single input rate is desired, the correct size and center can be manually set up under Picture Controls (Image Size and Position).

When in the Follow mode, each input rate will be displayed with its native aspect ratio (4:3, 5:4, 15:9, 16:9, 16:10) with the correct letter box or pillar box settings visible under the Image Size and Center Picture Controls.

Input x: Auto Memory — Select this to turn the per-input Auto Memory on or off.

The DSC 301 HD has 32 Auto Memory locations per input, for RGB/YUV and HDMI inputs. YUV and RGB signals on the same input have unique Auto Memories; for example 720p YUV and 720p RGB are stored with unique Auto Memory settings.

Auto memory locations store the same Input Config and Picture Control values as an Input Preset, except for Input Type, Preset Name, Film Mode, or Audio Gain/Att.

Overscan — Select this to set the overscan mode (0%, 2.5% or 5.0%) per input type.

This zooms and crops SMPTE inputs to mask edge effects and ancillary data that are common in broadcast signals. Issuing an Auto-Image with overscan enabled, runs an Auto Phase routine (YUV and RGB only) and centers and sizes the input according to table values.

NOTE: Overscan is valid only on SMPTE input rates (NTSC, PAL, SECAM, 480p,

576p, 720p, 1080i, or 1080p, or 2k).

Auto Switch — Select this to turn the Auto Switch mode on or off, and to set the priority.

The Auto Switch setting allows for basic, unmanaged, input switching based on the presence of active input signals. Auto Switch mode options are:

• disabled (off)

• setting priority to “high to low” (input 3 to input 1)

• setting priority to “low to high” (input 1 to input 3).

Factory Reset — This resets the device back to factory defaults (retains current firmware).

NOTE: “FACTORY RESET” is displayed on the OSD for 1 minute after the reset to

allow time for the display device to sync with the DSC 301 HD output.

To reset the DSC 301 HD to factory setting, including original shipped firmware, press and hold the Enter button for 20 seconds while applying power. The message “FIRMWARE RESET” is displayed on the OSD to indicate the reset is completed.

When a FIRMWARE RESET is applied, the loaded current firmware is deleted and only the factory firmware remains on the device.

DSC 301 HD • Operation 16

Communication Submenu

This submenu allows the remote port settings for the unit to viewed. No adjustment is possible via the OSD menu.

Figure 13. OSD Menu — Communication Submenu

Device Submenu

This read-only menu allows the user to view the current device status.

Figure 14. OSD Menu — Device Info Submenu

DSC 301 HD • Operation 17

The viewable device status information is:

• device internal temperature (in degrees F and C)

• the current active input details (resolution, signal format, and total lines)

• output resolution and refresh rate and output format

• AFL status (locked or disabled)

• HDCP status (input status and HDMI output status)

• Display Info (resolution and refresh rate)

• Firmware build details

Resolutions and Refresh Rates

In addition to the 83 factory rates, there are also three custom, user-defined or captured rates available (C1 - C3). When no rate is captured or uploaded to any of the custom slots, they revert to the default setting — 720p/60 Hz.

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz 75 Hz

Custom 1 through 3 For captured or uploaded EDID tables

640 x 480 X X X

800 x 600 X X X

852 x 480 X X X

1024 x 768 X X X

1024 x 852 X X X

1024 x 1024 X X X

1280 x 768 X X X

1280 x 800 X X X

1280 x 1024 X X X

1360 x 765 X X X

1360 x 768 X X X

1365 x 768 X X X

1366 x 768 X X X

1365 x 1024 X X X

1440 x 900 X X X

1400 x 1050 X X

1600 x 900 X X

1680 x 1050 X X

1600 x 1200 X X

1920 x 1200 X X

480p X X

576p X

720p X X X X X

1080i X X X

1080p X X X X X X X X

2048 x 1080 X X X X X X X X

* = default value

Figure 15. Resolution and Refresh Rates

When a new custom rate is captured or uploaded, the On-screen Display (OSD) dynamically updates with the new rate for that custom slot. For example, if a custom 480p EDID is uploaded to slot C1, the LCD would read “C1: 720x480”. These three custom slots are shared between custom output resolutions (based on preferred timings 1 block) and custom EDID tables, which can be assigned to any input.

DSC 301 HD • Operation 18

Custom EDID or Custom Output Resolution

The user has the ability to capture EDID or upload EDID files to make custom EDID available for emulation on inputs, or for the generation of custom output resolutions. The user can import a 128 or 256 byte EDID “.bin” file from a PC or can capture the EDID from an attached sink (display) device. This EDID can then be saved and stored in one of three custom EDID slots, which are then available for custom EDID emulation or custom output rate generation (custom rate based on the EDIDs preferred timings). These functions are available via SIS (see the table on page 18).

Power Save

The DSC 301 HD has a power save mode that allows the user the ability to put the unit into a low power state, via SIS command (see “Power Save Mode” on page 31). This state effectively cuts the power consumption of the DSC in half. While in this mode, no audio or video input processing takes place, the HDMI output and all front panel LEDs are disabled.

The user has the ability to exit Power Save mode via any front panel button press, or by disabling Power Save via SIS command.

The Power Save state is entered instantly after the associated command has been received, but 5-10 seconds are required to resume from the Power Save state.

Output Rate Reset

If an output image cannot be displayed due to an incompatible output rate, the DSC 301 HD can be reset via the front panel to either 1024x768 @60 Hz or 720p @60Hz.

To set the rate or toggle between 1024x768 @60 Hz and 720p @60Hz :

Press and hold inputs 1 and 3 simultaneously for approximately 3 seconds. The output rate becomes 1024x768 @60 Hz. Again, press and hold inputs 1 and 3 simultaneously for another 3 seconds and the output rate becomes 720p @60 Hz.

NOTE: The output rate will subsequently toggle between 1024x768 @60 Hz and

720p @60Hz each time inputs 1 and 3 are simultaneously pressed and held down for 3 seconds.

Front Panel Lockout (Executive Modes)

The DSC 301 HD has three modes of front panel security lock that limit the operation of the unit from the front panel.

Executive mode 0 (disabled) — The front panel is fully unlocked. This is the default setting.

Executive mode 1 (enabled) — The front panel is completely locked. This mode can only be enabled and disabled using SIS commands.

NOTE: When Executive mode 1 is implemented and a front panel button is

pressed, an OSD message indicates that Executive Mode 1 is enabled.

Executive mode 2 (enabled) — The front panel is locked except for input switching. This mode can be enabled and disabled using front panel buttons or SIS commands.

To prevent accidental changes to settings, press the Menu and Next buttons simultaneously for 2 seconds to enable front panel lockout mode (Executive Mode 2). An OSD message is displayed indicating Executive Mode 2 is enabled.

To unlock it via the front panel, press the Menu and Next buttons simultaneously for 2 seconds. An OSD message is displayed indicating Executive Mode 2 is disabled.

DSC 301 HD • Operation 19

SIS Communication and Control

The DSC 301 HD can be configured and controlled via a host computer or other device (such as a control system) attached to the rear panel RS-232 connector or the front panel USB port. Control is made using the Extron Simple Instruction Set (SIS) of commands.

Commands can be entered using a Telnet application such as the Extron DataViewer, available at www.extron.com. See the DataViewer Help file for use.

This section describes SIS communication and control. Topics that are covered include:

• Host to Scaler Communications

• Commands and Responses

The scaler uses a protocol of 9600 baud, 1 stop bit, no parity, and no flow control and the rear panel remote port RS-232 captive screw connector has the pin assignments as shown at right.

Host-to-Scaler Communications

SIS commands consist of one or more characters per field. No special characters are required to begin or end a command sequence. When the DSC 301 HD determines that a command is valid, it executes the command and sends a response to the host device. All responses from the scaler to the host end with a carriage return and a line feed

(CR/LF = ]), indicating the end of the response character string (one or more characters).

REMOTE

RS-232

Tx Rx G

Scaler-initiated Messages

When a local event such as a front panel selection or adjustment takes place, the DSC 301 HD scaler responds by sending a message to the host. No response is required from the host. Example scaler-initiated messages are listed here.

• In X! All ] (where X! is the input number during an input switch).

• Reconfig ] The DSC 301 HD sends this response when a new signal is detected.

• HplgO X@ ] The DSC 301 HD sends this response when a hot plug event on

output X@ is detected.

Copyright Information

DSC 301 HD • SIS Communication and Control 20

Error Responses

ASCII to HEX Conversion Table

•

Space

When the DSC 301 HD receives a valid command, it executes the command and sends a response to the host device. If the unit is unable to execute the command because the command contains invalid parameters, it returns an error response to the host.

Error Numbers

E01 — Invalid input number E14 — Not valid for this configuration E10 — Invalid command E17 — Invalid command for signal type E11 — Invalid preset number E22 — Busy E13 — Invalid parameter E25 — Device not present

Error Response References

= Commands that give an E14 (invalid command for this configuration) error if sent to a

product whose current configuration does not support the command

Commands and Responses

Using the Command and Response Tables

The command and response table for SIS commands later in this chapter lists the commands that the DSC 301 HD scaler recognizes as valid, the responses that are returned to the host, a description of the command’s function or the results of executing the command, and an example of each command in ASCII (Telnet) and URL encoded (web).

NOTE: Upper and lower case text can be used interchangeably.

Figure 16. ASCII to Hexadecimal Character Conversion Table

DSC 301 HD • SIS Communication and Control 21

Symbol Definitions

• = Space

] = Carriage return with line feed

¦ or} = Carriage return with no line feed

or W = Escape

= Superscripts indicate the error message displayed if the command is entered incorrectly or

with invalid parameters. See “Error Response References” on page 21.

X! = Input selection, 1-3 X@ = Output selection, 1 = HDMI

X# = Input video format:

1 = RGB 2 = YUV 3 = Composite 4 = HDMI

X$ = Horizontal or vertical start — 0 to 255 (default midpoint = 128) X% = Pixel phase — 0 to 63 (default = 31) X^ = Total pixels — (±512 of the default value) X& = Active pixels — (±512 of the default value) X* = Active lines — (±256 of the default value) X( = Enable or disable; 0 = Off or disable, 1 = On or enable X1) = Input standard:

0 = No signal detected 3 = NTSC 4.43 1 = NTSC 3.85 4 = SECAM 2 = PAL

- = N/A (occurs when input is an active RBG, YUV [but not NTSC/PAL], or HDMI signal

X1! = Internal temperature (in degrees Celsius)

X1@ = Horizontal and vertical frequencies (format is three-digit with single decimal and leading zeros

for example, 075.3

X1# = Text label or preset name: up to 16 characters

)

NOTE: User and input presets saved without a name are saved with the default names

“User Preset xx” (for example, User Preset 12) or Input Preset xxx (for example Input Preset 006).

X1$ = Picture adjustment — 0 to 127 (default 64) X1% = Horizontal and vertical position, range depends on resolution, with leading “+” or “-”,

for example, “-1075” X1^ = Horizontal and vertical size, range range depends on resolution

DSC 301 HD • SIS Communication and Control 22

X1& = Scaler resolution or EDID emulation: 0 = Automatic: match current output resolution (default for EDID emulation) OSD reads “Match Output” 1

= Output #1 (HDMI connector — available for Export EDID commands only) 2 = Custom EDID or output rate #1 3 = Custom EDID or output rate #2 4 = Custom EDID or output rate #3

SIS variables for EDID resolution and refresh rate combination (where

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz 75 Hz

640x480 10 11 12

800x600 13 14 15

852x480 16 17 18

1024x768 19 20 21

1024x852 22 23 24

1024x1024 25 26 27

1280x768 28 29 30

1280x800 31 32 33

1280x1024 34 35 36

1360x765 37 38 39

1360x768 40 41 42

1365x768 43 44 45

1366x768 46 47 48

1365x1024 49 50 51

1440x900 52 53 54

1400x1050 55 56

1600x900 57 58

1680x1050 59 60

1600x1200 61 62

1920x1200 63 64

480p 65 66

576p 67

720p 68 69 70 71 72

1080i 74 75 76

1080p 77 78 79 80 81 82 83 84

2048x1080 2k 85 86 87 88 89 90 91 92

X1& = 10 through 92)

* Default output resolution

Figure 17. SIS Command EDID Table

X1* = Test patterns:

0 = Off (default) 1 = Crop 2 = Alternating pixels 3 = Crosshatch 4 = Color bars 5 = Grayscale 6 = Blue mode 7 = Audio Test (crop pattern, OSD text “Audio Test”, pink noise; Ch 1/2, 48 kHz, 24 bit)

X1( = User presets — 1 to 3 (for each input) X2) = Input presets — 1 to 128 (global for device)

DSC 301 HD • SIS Communication and Control 23

X2! = On-screen menu time-out or screen saver sync timeout, (default = 60 seconds)/output sync

time-out (default = 501 - never) 0 = OSD never displayed or output sync is instantly disabled with no active input 1 to 500 = 1 second increments 501 = OSD never times out, output sync is never times out

X2@ = Executive mode status: 0 = Off or disable, (default) 1 = Exec Mode 1 — Complete front panel lockout 2 = Exec Mode 2 — Partial front panel lockout (only input selection available)

X2# = Overscan (applied to SMPTE [NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i, 1080p] input rates): 0 = 0.0% (default for RGB, HDMI) — a “true” Auto-Image will be executed on SMPTE inputs. 1 = 2.5% (default for YUV, composite) — an Auto-Image command snaps to a 2.5% table; no true Auto-Image. 2 = 5.0% an Auto-Image command snaps to a 5.0% table; no true Auto-Image.

X2$ = Aspect ratio: 1 = Fill: each input rate will automatically fill the entire output raster (default) 2 = Follow: each input rate will be displayed with its native aspect ratio

X2% = Screen saver mode:

1 = Black screen (default) 2 = Blue output

X2^ = Video mute;

0 = Off or disable 1 = On or enable (mute to black) 2 = mute all output sync and video

X2& = Auto-Image threshold value, 0 (black) though 100 (white), default = 25 X2* = HDCP status (valid only on TMDS inputs or outputs):

0 = No sink or source detected 1 = Sink or source detected with HDCP 2 = Sink or source detected but no HDCP is present

X2( = Video switching effect: 0 = Cut (audio ramps-down and ramps-up between inputs) 1 = Fade thought black (default) (audio ramps-down and ramps-up between inputs)

X3! = HDMI output format: 0 = Auto (default), based on sink EDID 1 = DVI 2 = HDMI RGB “Full” 3 = HDMI RGB “Limited” 4 = HDMI 444 YUV “Full” 5 = HDMI 444 YUV “Limited” 6 = HDMI 422 YUV “Full” 7 = HDMI 422 YUV “Limited”

X3@ = Auto switch mode: 0 = Disable (default) 1 = Gives priority to the highest input (3 then 2 then 1) 2 = Gives priority to the lowest input (1 then 2 then 3)

X3# = Audio gain and attenuation: -18 through + 12 dB, (with leading “+” or “–“)

DSC 301 HD • SIS Communication and Control 24

X3$ = Audio input type: 0 = None, input is muted 1 = Analog, (TRS 1) 2 = Analog, (TRS 2) 3 = Analog, (TRS 3) 4 = LPCM-2Ch, (embedded in HDMI input, LPCM-2Ch audio requested from source via EDID) 5 = Multi-Ch, (embedded in HDMI input, all audio formats allowed via EDID) 6 = LCPM-2Ch Auto, (LCPM 2Ch audio requested from source via EDID). Scaler uses embedded digital audio when present, or defaults to TRS input 3 7 = Multi-Ch Auto, (Multi-Ch audio is requested from source via EDID). Scaler uses embedded digital audio when present, or defaults to TRS input 3

NOTE: Inputs 1 and 2 can only be set to X3$ = 0, 1, 2 or 3; attempting to set these inputs

to a digital format gives an “E14” error message.

X3% = Video signal status 0 = Video / TMDS signal not detected 1 = Video / TMDS signal detected

X3^ = Power Save mode 0 = Full power mode (Default) 1 = Low power state

X3& = Screen saver status 0 = Active input detected; timer not running 1 = No active input; timer is running; output sync still active 2 = No active input; timer has expired; output sync disabled

X3* = Input AFL 0 = Disabled; (default); free running pixel clock is generated internally 1 = Input lock enabled; locks output vertical to the selected input vertical refresh rate.

X3( = Input AFL status 0 = Input signal AFL disabled 1 = Input signal AFL enabled, but cannot lock to applied input signal. Device defaults to set output rate/refresh 2 = Input signal AFL enabled, output locked to applied input signal

X4) = HDMI input HDCP authorization status: 0 = Block HDCP encryption 1 = Allow HDCP encryption (default for input 3)

The command and response tables for SIS commands start on the next page

DSC 301 HD • SIS Communication and Control 25

SIS Command and Response Table

Command ASCII Command

(host to scaler)

Response

(scaler to host)

Additional Description

Input selection

Video and audio

View current input

X!! InX!•All]

X!]

Select video and audio from input X!.

View current selected input X! (video only).

Input video format

Set video format

View set format

X!*X#\ TypX!*X#] X!\

X#]

Set input X! to format X#.

View set video format of input X!.

Input EDID (VGA and HDMI)

Assign EDID to input

View assigned EDID data

Save an output EDID to custom slot

EAX!*X1&EDID} EdidAX!*X1&]

EAX!EDID}

X1&]

EdidAX!*X1&]

ESX@*X1&EDID} EdidSX@*X1&]

Assign EDID resolution and refresh rate X1& for input X!.

View assigned EDID resolution and refresh rate X1& for input X!.

(Verbose mode response) Save output X@ EDID to X1&. (Valid for

X1& = 2, 3, 4 only and X@ = 1 only.)

Auto-Image

Enable

Disable

View

Execute

Execute and Fill

Execute and Follow

X!*1A ImgX!*1] X!*0A ImgX!*0] X!A

X(]

A Img]

1*A Img1]

2*A Img2]

Activate Auto-Image for input X!.

Turn Auto-Image off for input X!. View Auto-Image setting X( for X!.

Execute an Auto-Image to the selected input (follows current aspect setting).

Execute an Auto-Image and ﬁll entire output.

Execute an Auto-Image and follow the aspect ratio of the input.

Auto-Image threshold value (luminosity value which the scaler deﬁnes as active video for Auto-Image)

Set value

View

EX2&ALVL} AlvlX2&]

EALVL} X2&]

Set global Auto-Image luminosity value X2&.

View global Auto-Image luminosity value X2&.

NOTE: X! = Input number: 1 to 3

X@ = Output selection: 1 = HDMI X# = Input video format: 1 = RGB, 2 = YUV, 3 = Composite, 4 = HDMI X( = Enable/Disable: 0 = Off or disable, 1 = On or enable X1& = Scaler resolution or EDID emulation, 0 = Automatic: match current output resolution (default), 2 = Custom EDID or output rate

#1, 3 = Custom EDID or output rate #2, 4 = Custom EDID or output rate #3. For variables 10-92, see the SIS EDID table on page 23. X2& = Auto-Image threshold value: 0 (black) though 100 (white), default = 25

DSC 301 HD • SIS Communication and Control 26

Command ASCII Command

(host to scaler)

Response

(scaler to host)

Horizontal start

Specify a value

Increment value

Decrement value

View

EX$HSRT} HsrtX!*X$]

E+HSRT} HsrtX!*X$] E-HSRT} HsrtX!*X$] EHSRT}

X$]

Vertical start

Specify a value

Increment value

Decrement value

View

EX$VSRT} VsrtX!*X$]

E+VSRT} VsrtX!*X$] E-VSRT} VsrtX!*X$] EVSRT}

X$]

Pixel phase (available only for RGB and YUV input signals)

Specify a value

Increment value

Decrement value

View

EX%PHAS} PhasX!*X%]

E+PHAS} PhasX!*X%] E-PHAS} PhasX!*X%]

EPHAS}

]

Additional Description

Set horizontal location of ﬁrst active pixel for current input.

Increment horizontal start position.

Decrement horizontal start position.

Show horizontal location of ﬁrst active pixel for current input.

Set vertical location of ﬁrst active pixel for current input.

Increase vertical start.

Decrease vertical start.

Show vertical location of ﬁrst active pixel for current input.

Adjust the pixel phase to speciﬁed value X% for current input.

Increase the pixel phase.

Decrease the pixel phase.

Show pixel phase for current input.

Total pixels (available only for RGB and YUV input signals)

Specify a value

Increment value

Decrement value

View

EX^TPIX} TpixX!*X^]

E+TPIX} TpixX!*X^] E-TPIX} TpixX!*X^] ETPIX}

X^]

Active pixels

Specify a value

Increment value

Decrement value

View

EX&APIX} ApixX!*X&]

E+APIX} ApixX!*X&] E-APIX} ApixX!*X&] EAPIX}

X&]

Active lines

Specify a value

Increment value

Decrement value

View

EX*ALIN} AlinX!*X*]

E+ALIN} AlinX!*X*] E-ALIN} AlinX!*X*] EALIN}

X*]

NOTE: X! = Input selection: 1 to 3

X$ = Horizontal or vertical start: 0 to 255 (default midpoint = 128) X% = Pixel phase: 0 to 63 (default = 31) X^ = Total pixels: ±512 of the default value

X& = Active pixels: ±512 of the default value X* = Active lines: ±256 of the default value

Adjust the total pixels to speciﬁed value X^ for current input.

Increase the total pixels.

Decrease the total pixels.

Show the total pixels for current input.

Adjust the active pixels to a speciﬁed value X& for current input.

Increase the active pixels.

Decrease the active pixels.

Show active pixels for current input.

Adjust the active lines to a speciﬁed value X* for current input.

Increase the active lines.

Decrease the active lines.

Show the active lines for current input.

DSC 301 HD • SIS Communication and Control 27

Command ASCII Command

(host to scaler)

3:2, 2:2, and 24:1 Film Mode detect

Enable auto detection

Disable

View

EX!*1FILM} FilmX!*1]

EX!*0FILM} FilmX!*0] EX!FILM}

Picture Adjustments

Video mute

Mute output to black

Mute all sync and video

Unmute output

View

1B Vmt1]

2B Vmt2]

0B Vmt0]

Color

Set a speciﬁc value

Increment value

Decrement value

View

EX1$COLR} ColrX!*X1$] E+COLR} ColrX!*X1$] E-COLR} ColrX!*X1$] ECOLR}

Tint

Set a speciﬁc value

Increment value

Decrement value

View

EX1$TINT} TintX!*X1$] E+TINT} TintX!*X1$] E-TINT} TintX!*X1$] ETINT}

Response

(scaler to host)

X(]

X2^]

X1$]

Additional Description

Enable Auto Film Mode detection.

Disable Film Mode detection.

View the current Film Mode setting.

Mutes video and displays black video on output.

Mutes sync and video output.

Unmutes output. View the mute status X2^.

Set color level to X1$ for current input.

Increment color level.

Decrement color level.

View current setting for current input.

Set tint level to X1$ for current input.

Increment tint level.

Decrement tint level.

View current setting for current input.

Contrast

Set a speciﬁc value

Increment value

Decrement value

View

EX1$CONT} ContX!*X1$]

E+CONT} ContX!*X1$] E-CONT} ContX!*X1$] ECONT}

Brightness

Set a speciﬁc value

Increment value

Decrement value

View

EX1$BRIT} BritX!*X1$]

E+BRIT} BritX!*X1$] E-BRIT} BritX!*X1$] EBRIT}

Detail ﬁlter

Set detail level

Increment value

Decrement value

View detail value

EX1$HDET} HdetX!*X1$]

E+HDET} HdetX!*X1$] E-HDET} HdetX!*X1$] EHDET}

NOTE: X! = Input selection: 1 to 3

X( = Enable/disable: 0 = Off/disable, 1 = On/enable X1$ = Picture adjustment: 0 to 127 (default 64) X2^ = Video mute: 0 = Off/disable, 1 = On/enable (mute to black), 2 = mute output sync and video

Set contrast level to X1$ for current input.

Increment contrast level.

Decrement contrast level.

X1$]

View current setting for current input.

Set brightness level to X1$ for current input.

Increment brightness level.

Decrement brightness level.

View current setting for current input.

Specify detail level to X1$ for current input.

Increase the detail level.

Decrease the detail level.

Show detail setting for current input.

DSC 301 HD • SIS Communication and Control 28

Command ASCII Command

(host to scaler)

Horizontal position (image)

Speciﬁc value

Increment value

Decrement value

View

EX1%HCTR} HctrX1%] E+HCTR} HctrX1%] E-HCTR} HctrX1%] EHCTR}

Vertical position (image)

Speciﬁc value

Increment value

Decrement value

View

EX1%VCTR} VctrX1%] E+VCTR} VctrX1%] E-VCTR} VctrX1%] EVCTR}

Horizontal size (image)

Speciﬁc value

Increase size

Decrease size

View

EX1^HSIZ} HsizX1^] E+HSIZ} HsizX1^] E-HSIZ} HsizX1^] EHSIZ}

Vertical size (image)

Speciﬁc value

Increase size

Decrease size

View

EX1^VSIZ} VsizX1^] E+VSIZ} VsizX1^] E-VSIZ} VsizX1^] EVSIZ}

Response

(scaler to host)

X1%]

X1^]

Additional Description

Set horizontal position to X1%.

Shift image right.

Shift image left.

View the horizontal position value X1%.

Set vertical position to X1%.

Shift image down.

Shift image up.

View the vertical position value X1%.

Set horizontal sizing to X1^.

Widen the image.

Make the image narrower.

View horizontal sizing value X1^.

Set vertical sizing to X1^.

Make the image taller.

Make the image shorter.

View vertical sizing value X1^.

Compound Image Position and Size

Speciﬁc value

View

EX1%*X1%*X1^*X1^XIMG} XimgX1%*X1%*X1^*X1^]

EXIMG} X1%*X1%*X1^*X1^]

Set x, y position and x, y size for image.

View x, y position and x, y size for image.

Presets

User presets

Recall preset

Save preset

Delete/clear preset

1*X1(. 1RprX1(]

1*X1(, 1SprX1(]

EX1*X1(PRST} PrstX1*X1(]

Recall user preset X1( for selected input.

Save user preset X1( for selected input.

Clears user preset X1(, and sets user preset X1( name to [unassigned].

User preset name

Write name

Read name

E1*X1(,X1#PNAM} Pnam1*X1(,X1#] E1*X1(PNAM}

X1#]

Set the user preset X1( to X1#.

Read the name for user preset X1(.

NOTE: Unassigned presets = “[unassigned]”. To restore a default user preset name, enter a single space character for X1#. Valid only

for previously saved presets.

NOTE: X1# = Text label/preset name, up to 16 characters

X1% = Horizontal or vertical position: -2200 to +2200 X1^ = Horizontal or vertical size: 0000 to 4400 X1( = User preset, 1-3 for each input

DSC 301 HD • SIS Communication and Control 29

Command ASCII Command

(host to scaler)

Input presets

Recall preset

Save preset

Delete/clear preset

2*X2). 2RprX2)]

2*X2), 2SprX2)]

EX2*X2)PRST} PrstX2*X2)]

Input preset name

Write name

Read name

E2*X2),X1#PNAM} Pnam2*X2),X1#] E2*X2)PNAM}

Response

(scaler to host)

X1#]

Additional Description

Recall input preset X2) for selected input.

Save input preset X2) for selected input.

Clears input preset X2), and sets input preset X2) name to [unassigned].

Set the input preset X2) to X1#. Read the name for input preset X2).

NOTE: Unassigned presets = “[unassigned]”. To restore a default user preset name, enter a single space character for X1#. Valid only

for previously saved presets.

User Presets Input Presets

Color H/V Image

Position

Tint H/V Image

Size

Contrast Preset Name Contrast Preset Name Film Mode H Active

Brightness Brightness Total Pixels V Active

Detail Detail Phase

Color H/V Image

Position

Tint H/V Image

Size

Input Type H Start

Audio Gain/ Attenuation

V Start

Figure 18. Values Saved in User and Input Presets

Auto memories (per input)

Enable

Disable

View setting

EX!*1AMEM} AmemX!*1]

EX!*0AMEM} AmemX!*0]

EX!AMEM}

X(]

Set auto memory on. Previous settings for incoming signal are auto recalled.

Set auto memory off. Manual recall of input presets needed to conﬁgure input.

View current auto memory for input

X!.

NOTE: X! = Input selection: 1 to 3

X( = Enable or disable: 0 = Off or disable, 1 = On or enable X1# = Text label or preset name, up to 16 characters X2) = Input presets, 1-128 (global)

DSC 301 HD • SIS Communication and Control 30

Command ASCII Command

(host to scaler)

Response

(scaler to host)

Additional Description

Output Conﬁguration

Output scaler rate

Set output rate

View output rate

EX1&RATE} RateX1&]

ERATE}

X1&]

Select output resolution and refresh rate.

Show selected output rate.

HDMI output format

Set format

View setting

EX3!VTPO} VtpoX3!]

EVTPO}

X3!]

Set output color space/format for the HDMI output X3!. Show current HDMI format.

Power save mode

Power save off

Power save on

View setting

E0PSAV} Psav0] E1PSAV} Psav1]

EPSAV}

X3^]

DSC runs in full power mode (default).

DSC enters low power mode. Can only be exited using E0PSAV} command or front panel button press.

View power save status.

Screen saver mode (action that takes place when no signal is detected on the selected input)

Set mode

View mode

EMX2%SSAV} SsavMX2%]

EMSSAV}

X2%]

Sets the screen saver mode to X2% (default: 1 = black)

View the current screen saver mode.

Set sync time out duration

View sync time out duration

View screen saver status

ETX2!SSAV} SsavTX2!]

ETSSAV}

ESSSAV}

NOTE: X1& = Scaler resolution or EDID emulation:

Examples: 1024x768/60, 720p/60, 1080p/60, 1920x1200/60. See SIS command EDID table on page 18 for full details. X2! = On-screen menu time-out: (default = 60 seconds), output sync time-out (default = 501 - never) 0 = OSD never displayed/output sync is instantly disabled with no active input, 1 to 500, in 1 second increments, 501 = OSD never times out/output sync never times out

X2% = Screen saver mode: 1 = Black screen (default), 2 = Blue screen with OSD text X3! = HDMI output format:

0 = Auto (default) 1 = DVI 2 = HDMI RGB “Full” 3 = HDMI RGB “Limited” 4 = HDMI 444 YUV “Full” 5 = HDMI 444 YUV “Limited” 6 = HDMI 422 YUV “Full” 7 = HDMI 422 YUV “Limited” See command description for full details.

X3^ = Power save mode: 0 = Full power mode (default), 1 = Low power state X3& = Screen saver status: 0 = Active input detected; timer not running, 1 = No active input; timer is running;

output sync still active, 2 = No active input; timer has expired; output sync disabled

X2!]

X3&]

Sets sync time out duration to X2! seconds (default: 501 = never).

View sync time out duration X2!.

View the screen saver status X3&.

DSC 301 HD • SIS Communication and Control 31

Command ASCII Command

(host to scaler)

Response

(scaler to host)

Audio Conﬁguration

Audio mute (global setting)

Mute on

Mute off

View status

1Z Amt1] 0Z Amt0]

X(]

Audio gain and attenuation (per analog input)

Set gain/ attenuation

Increment

Decrement

View

X3#G AudX3#]

+G AudX3#]

-G AudX3#]

X3#]

Audio input format

NOTES: • Selects between analog (3.5 mm TRS) or digital (embedded in HDMI input) audio sources.

• Inputs 1 and 2 X3$ can only be set to 0, 1, 2, or 3; attempting to set these inputs to a digital format yields an E14 response.

• Digital auto modes (6 or 7) detect and use embedded audio when present, or use TRS 3 if digital audio is not detected

Additional Description

Mute audio output.

Un-mute audio output.

View mute status.

Set gain/attenuation on current input to X3# dB.

Increment audio level (up).

Decrement audio level (down).

View current audio level.

Set None

Set Analog TRS 1

Set Analog TRS 2

Set Analog TRS 3

Set LPCM-2Ch

Set Multi-Ch

Set LPCM-2Ch Auto

Set Multi-Ch Auto

View audio type

EIX!*0AFMT} AfmtIX!*0] EIX!*1AFMT} AfmtIX!*1]

EIX!*2AFMT} AfmtIX!*2]

EIX!*3AFMT} AfmtIX!*3] EIX!*4AFMT} AfmtIX!*4]

EIX!*5AFMT} AfmtIX!*5] EIX!*6AFMT} AfmtIX!*6]

EIX!*7AFMT} AfmtIX!*7]

EIX!AFMT}

X3$]

Mutes all audio for input X!.

Select analog audio for input X! (default for input 1).

Select analog audio for input X! (default for input 2).

Select analog audio for input X!.

Select LPCM-2Ch audio for input X! (default for input 3).

Select Multi-Ch audio for input X!.

Select auto detect audio for input X! (valid for input 3 only — EDID set to

LPCM-2Ch). Select auto detect audio for input X!

(valid for inputs 3 only — EDID set to Multi-Ch).

View the audio input type X3$ for input X!.

NOTE: X! = Input selection: 1 to 3

X( = Enable or disable:

0 = Off or disable, 1 = On or enable

X3# = Audio gain and attenuation: -18 through + 12 dB, (with leading “+” or “–“) X3$ = Audio Input type:

0 = None, 1 = Analog TRS 1, 2 = Analog TRS 2, 3 = Analog TRS 3, 4 = LPCM-2Ch, 5 = Multi-Ch, 6 = LPCM-2Ch Auto, 7 = Multi-Ch Auto. See the command description on page 25 for variable details.

DSC 301 HD • SIS Communication and Control 32

Command ASCII Command

(host to scaler)

Advanced Conﬁguration

Test pattern

Set test pattern

View test pattern

EX1*TEST} TestX1*] ETEST}

Freeze

Enable

Disable

View

1F Frz1] 0F Frz0]

Input aspect ratio (per input)

Enable Fill mode

Enable Follow mode

View aspect setting

EX!*1ASPR} AsprX!*1]

EX!*2ASPR} AsprX!*2]

EX!ASPR}

Auto switch mode

Disable

Priority to highest active

Priority to lowest active

View setting

E0AUSW} Ausw0] E1AUSW} Ausw1]

E2AUSW} Ausw2]

EAUSW}

Response

(scaler to host)

X1*]

X(]

X2$]

X3@]

Additional Description

Set the test pattern to X1*.

View the current test pattern.

Freeze selected input.

Unfreeze selected input.

Show the freeze status.

Sets input X! to always ﬁll the entire raster (default).

Sets input X! to preserve its native aspect.

View aspect ratio setting for input X!.

Manual switching only (default).

Gives priority to the highest numbered active input.

Gives priority to the lowest numbered active input.

View the current auto switch mode.

Video effect

Cut

Fade though black

View setting

E0SWEF

E1SWEF} Swef1] ESWEF}

}

Front panel security lockout (Executive Mode)

Enable Executive mode 1

Enable Executive mode 2

Disable Executive mode

View Executive mode status

1X Exe1]

2X Exe2]

0X Exe0]

NOTE: X! = Input selection: 1 to 3

X( = Enable or disable: 0 = Off/ or disable, 1 = On or enable X1* = Test patterns:

0 = Off (default), 1 = Crop, 2 = Alternating pixels, 3 = Crosshatch, 4 = Color bars, 5 = Grayscale 6 = Blue mode, 7 = Audio Test (crop pattern, OSD text “Audio Test”, pink noise; Ch 1/2, 48 kHz, 24 bit)

X2@ = Executive mode: 0 = Off or disable (default), 1 = Exec mode 1 (complete panel lockout), 2 = Exec mode 2 (partial lockout- input switching only).

X2$ = Aspect ratio: 1 = Fill; each input rate will automatically ﬁll the entire output raster (default) 2 = Follow; each input rate will be displayed with its native aspect ratio

X2( = Video switching effect: 0 = Cut, 1 = Fade through black (default)

X3@ = Auto switch mode: 0 = Disable (default), 1 = Priority to highest numbered input, 2 = Priority to lowest numbered input

Swef0]

X2(]

X2@]

Sets the switch to cut.

Sets the switch to fade through black.

View setting.

Lock entire front panel.

Limited front panel adjustments (input selection) can be made.

Unlock front panel controls. All front panel adjustments can be made.

View the current status.

DSC 301 HD • SIS Communication and Control 33

Command ASCII Command

(host to scaler)

Response

(scaler to host)

Additional Description

Overscan mode (applies only to SMPTE [NTSC, PAL, SECAM, 480p-1080p 50/60] input rates)

Set value

EX#*X2#OSCN} OscnX#*X2#]

Set input format X# to overscan mode

X2#.

View status

EX#OSCN}

X2#]

Show overscan mode status for input format X#.

HDCP notiﬁcation (green screen/message)

Enable notiﬁcation

Disable notiﬁcation

Query notiﬁcation

EN1HDCP} HdcpN1] EN0HDCP} HdcpN0]

ENHDCP}

X(]

Enable the HDCP notiﬁcation.

Disable the HDCP notiﬁcation; instead mute output.

Query the HDCP notiﬁcation.

HDCP status (valid for HDMI input and HDMI ouput only)

Query input

Query output

EIX!HDCP}

EOX@HDCP}

X2*]

HdcpIX!*X2*] X2*]

HdcpOX@*X2*]

Query the HDCP status of the current input

X!.

(verbose mode response)

Query the HDCP status of the HDMI output

X@.

(verbose mode response)

HDCP input authorization (valid for HDMI input only)

Enable HDCP encryption support

Disable HDCP encryption support

Query encryption support status

EEX!*1HDCP} HdcpEX!*1]

EEX!*0HDCP} HdcpEX!*0]

EEX!HDCP}

X4)]

Enable HDCP encryption support for input

X! (default).

Disable HDCP encryption support for input

X!.

Query HDCP encryption support status for input

X!.

NOTE: X! = Input selection: 1 to 3

X@ = Output selection: 1 = HDMI X# = Input video format:

1 = RGB 2 = YUV 3 = Composite 4 = HDMI

X( = Enable or disable: 0 = Off or disable, 1 = On or enable X2# = Overscan (applied to SMPTE [NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i, 1080p] input rates):

0 = 0.0% (default for RGB, HDMI) — a “true” Auto-Image will be executed on SMPTE inputs. 1 = 2.5% (default for YUV, composite) — an Auto-Image command snaps to a 2.5% table; no true Auto-Image. 2 = 5.0% — an Auto-Image command snaps to a 5.0% table; no true Auto-Image.

X2* = HDCP status (valid only on TMDS inputs or outputs): 0 = No sink or source detected 1 = Sink or source detected with HDCP 2 = Sink or source detected but no HDCP is present

X4) = HDMI input HDCP authorization status: 0 = Block HDCP encryption 1 = Allow HDCP encryption (default for input 3)

DSC 301 HD • SIS Communication and Control 34

Command ASCII Command

(host to scaler)

Response

(scaler to host)

Additional Description

AFL

Disable AFL

Enable input lock

View AFL setting

View AFL status

EOGLOK} Glok0]

E1GLOK} Glok1]

EGLOK}

E41STAT}

X3*]

X3(] 41Stat•X3(]

Disables global input lock/AFL (default).

Locks the output refresh rate to the refresh rate of the selected input.

View the current input lock/AFL setting.

View the current input lock/AFL status.

(verbose mode response)

Video signal presence

View signal presence

E0LS

}

X3%*X3%*X3%]

Input 1*2*3.

On-Screen menu conﬁguration

Menu time-out

NOTE: Setting the time-out to 501 disables the OSD time-out (never times out). Setting the time-out to 0 disables the OSD.

Set menu time-out

View time-out

EX2!MDUR} MdurX2!] EMDUR}

Reset commands

Reset all device settings to factory default settings

EZXXX} Zpx]

Information request

General information

Query ﬁrmware version Query full ﬁrmware version Query Boot Loader version, factory ﬁrmware version, and current ﬁrmware version. Query part number

View internal temperature

I/i VidX!•TypX#•StdX1)•BlkX2^•HrtX1@•VrtX1@] Q/q x.xx]

*Q/*q x.xx.xxxx]

0Q x.xx-x.xx.xxxx-x.

N/n 60-1253-01]

E 20STAT}

NOTE: X! = Input selection: 1 to 3

X# = Input video format: 1 = RGB, 2 = YUV, 3 = Composite, 4 = HDMI X1) = Input standard output selection: 0 = No signal detected, 1 = NTSC 3.85, 2 = PAL, 3 = NTSC 4.43, 4 = SECAM

- = N/A (occurs when input is an active RBG, YUV [but not NTSC/PAL], or an HDMI signal)

X1! = Internal temperature (in degrees Celsius) X1@ = Horizontal and vertical frequencies (format is three-digit with single decimal and leading zeros for example, 075.3 X2! = On-screen menu time-out: (default = 60 seconds), output sync time-out (default = 501 - never),

0 = OSD never displayed and output sync is instantly disabled with no active input, 1 to 500, in 1 second increments, 501 = OSD never times out/output sync never times out

X2^ = Video mute; 0 = Off or disable, 1 = On or enable (mute to black), 2 = mute all output sync and video

X3% = Video signal status: 0 = Video or TMDS not detected, 1 = Video/TMDS detected X3* = Input AFL: 0 = Disabled (default), 1 = Input signal AFL enabled. See command description on page 25 for variable details. X3( = Input AFL status: 0 = Input signal lock disabled, 1 = Input signal lock enabled, but cannot lock to applied input signal.

2 = Input signal lock enabled, output locked to applied input signal. See command description on page 25 for variable details.

X2!]

xx.xxxx]

Stat20•X1!]

Set the OSD to X2! seconds

View time-out settings

View ﬁrmware version.

View full ﬁrmware version details.

View boot loader version, view factory ﬁrmware version, view current ﬁrmware version.

View part number.

Temperature in degrees Celsius.

DSC 301 HD • SIS Communication and Control 35

Part Numbers and Accessories

Included Parts

Description Part Number

DSC 301 HD 60-1253-01

Rubber feet (not attached) (4)

IEC power cord (1)

LockIt HDMI Cable Lacing Bracket (1) 101-020-01

Tweeker (1)

DSC 301 HD Setup Guide

Optional Accessories

Description Part Number

MBD 129 70-077-02

MBU 125 70-077-01

PS 124 60-1022-01

RFF 052 70-972-01

RSB 126 60-604-11

RSU 129 60-190-01

USB CFG Cable 26-654-06

DSC 301 HD • Reference Information 36

DSC 301 HD • Reference Information 37

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1230 South Lewis Street Anaheim, CA 92805 U.S.A.

Europe and Africa:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Asia:

Extron Asia Pte Ltd 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modiﬁcations were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040 Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East +1.714.491.1500 +1.919.850.1000 +1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673 (Inside Europe Only)

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

800.3987.6673 (Inside Asia Only) +65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+4000. 398766 (Insidse China Only)

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800 +971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571 +82.2.3444.1575 FAX

Extron India

1800.3070.3777 (Inside India Only)

+91.80.3055.3777 +91.80.3055.3737 FAX

Extron electronic DSC 301 HD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Instructions

FCC Class A Notice

Conventions Used in this Guide

Notifications

Software Commands

Specifications Availability

Contents

Introduction

DSC 301 HD Description

Key Features

Inputs

Outputs

General

Rear Panel Cabling

Operation

Front Panel Overview

The DSC 301 HD OSD Menu System — Configuration and Adjustments

OSD Menu Navigation Using Front Panel Controls

Menu Overview

Resolutions and Refresh Rates

Custom EDID or Custom Output Resolution

Power Save

Output Rate Reset

Front Panel Lockout (Executive Modes)

SIS Communication and Control

Host-to-Scaler Communications

Scaler-initiated Messages

Copyright Information

Error Responses

Error Response References

Commands and Responses

Using the Command and Response Tables

Symbol Definitions

SIS Command and Response Table

Part Numbers and Accessories

Included Parts

Optional Accessories
