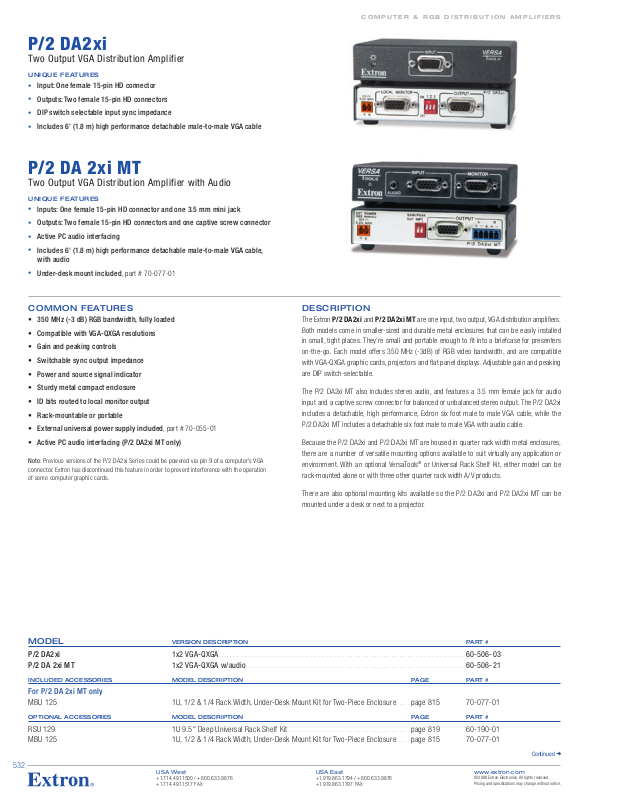

P/2 DA2xi

Two Output VGA Distribution Amplifier

uni que feAt ures

•

Input: One female 15-pin HD connector

•

Outputs: Two female 15-pin HD connectors

•

DIP switch selectable input sync impedance

•

Includes 6' (1.8 m) high performance detachable male-to-male VGA cable

P/2 DA 2xi MT

Two Output VGA Distribution Amplifier with Audio

uni que feAt ures

•

Inputs: One female 15-pin HD connector and one 3.5 mm mini jack

•

Outputs: Two female 15-pin HD connectors and one captive screw connector

•

Active PC audio interfacing

•

Includes 6' (1.8 m) high performance detachable male-to-male VGA cable,

with audio

•

Under-desk mount included, part # 70-077-01

c o m p u t e r & r G b D i s t r i b u t i o n A m p l i f i e r s

Commo n f eAtu res

• 350 MHz (-3 dB) RGB bandwidth, fully loaded

• Compatible with VGA-QXGA resolutions

• Gain and peaking controls

• Switchable sync output impedance

• Power and source signal indicator

• Sturdy metal compact enclosure

• ID bits routed to local monitor output

• Rack-mountable or portable

• External universal power supply included, part # 70-055-01

• Active PC audio interfacing (P/2 DA2xi MT only)

Note: Previous versions of the P/2 DA2xi Ser ies could be powered via pin 9 of a computer's VGA
connector. Extron has discontinued this f eature in order to prevent interfe rence with the operation
of some computer gr aphic cards.

DesCr iPt ion

The Extron P/2 DA2xi and P/2 DA2xi MT are one input, two output, VGA distribution amplifiers.
Both models come in smaller-sized and durable metal enclosures that can be easily installed
in small, tight places. They're small and portable enough to fit into a briefcase for presenters
on-the-go. Each model offers 350 MHz (-3dB) of RGB video bandwidth, and are compatible
with VGA-QXGA graphic cards, projectors and flat panel displays. Adjustable gain and peaking
are DIP switch-selectable.

The P/2 DA2xi MT also includes stereo audio, and features a 3.5 mm female jack for audio
input and a captive screw connector for balanced or unbalanced stereo output. The P/2 DA2xi
includes a detachable, high performance, Extron six foot male to male VGA cable, while the
P/2 DA2xi MT includes a detachable six foot male to male VGA with audio cable.

Because the P/2 DA2xi and P/2 DA2xi MT are housed in quarter rack width metal enclosures,
there are a number of versatile mounting options available to suit virtually any application or
environment. With an optional VersaTools® or Universal Rack Shelf Kit, either model can be
rack-mounted alone or with three other quarter rack width A/V products.

There are also optional mounting kits available so the P/2 DA2xi and P/2 DA2xi MT can be
mounted under a desk or next to a projector.

moDeL version D esCriPtion PArt #

P/2 DA2xi 1x2 VGA-QXGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-506-03

P/2 DA 2xi MT 1x2 VGA-QXGA w/audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-506-21

inCLuDeD ACCessories moDeL DesCriPt ion PAGe PArt #

For P/2 DA 2xi MT only

MBU 125 1U, 1/2 & 1/4 Rack Width, Under-Desk Mount Kit for Two-Piece Enclosure

oPtionAL ACCessories moDeL Des CriPtion PAGe PArt #

. . . . . page 815 70-077-01

RSU 129 1U 9.5" Deep Universal Rack Shelf Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 819 60-190-01

MBU 125 1U, 1/2 & 1/4 Rack Width, Under-Desk Mount Kit for Two-Piece Enclosure . . . . . page 815 70-077-01

532

Continued

Extron
VGA Cable
Up to 250' / 76 m

Extron
P/2 DA2xi

VGA Distribution Amplier

PC

Projector

INPU

T

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

P/2 DA2xi Series

c o m p u t e r & r G b D i s t r i b u t i o n A m p l i f i e r s

sPeCi fiC Atio ns

viD eo

Gain

. .. .. . .. .. . .. .. . .. .. .. . .. . Output: 0 dB or 0.4 dB, selectable

P/2 DA2xi

. .. . .. .. .. . .. .. . .. .. . Output: 0 dB or 0.6 dB, selectable

P/2 DA2xi MT

Peaking

. .. .. . .. .. . .. .. . .. .. .. . .. . Output: selectable, 0.7 dB or 1.4 dB at 100 MHz

P/2 DA2xi

. .. . .. .. .. . .. .. . .. .. . Output: selectable, 0 dB or 0.6 dB at 100 MHz

P/2 DA2xi MT

Bandwidth .. .. . .. .. . .. .. . .. .. . .. .. 350 MHz (-3 dB)

viD eo i nPu t

Number / Signal type . .. .. . .. .. . 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video (with adapter)

Connectors . .. .. . .. .. . .. .. . .. .. .. . (1) 15-pin HD female

Nominal level . .. . .. .. . .. .. . .. .. . . 1.0 Vp-p for Y of component video

Minimum / Maximum levels . . . Analog, 0.3 V to 1.5 Vp-p with no offset at unity gain

Impedance . . .. .. . .. .. . .. .. .. . .. .. . 75 ohms

Horizontal frequency.. . .. .. . .. .. 15 kHz to 135 kHz

Vertical frequency . . .. .. . .. .. . .. . 30 Hz to 170 Hz

Return loss . .. .. . .. .. . .. .. . .. .. .. . <-38 dB @ 5 MHz

DC offset (max. allowable) . .. . .. . 1.0 V

Input coupling . . .. .. . .. .. . .. .. .. . . DC

viD eo o utP ut

Number / Signal type . .. .. . .. .. . 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video (with adapter)

Connectors . .. .. . .. .. . .. .. . .. .. .. . (2) 15-pin HD female

Nominal level . .. . .. .. . .. .. . .. .. . . 1.0 Vp-p for Y of component video

Minimum / Maximum levels . . . Analog, 0.3 V to 1.5 Vp-p (follows input)

Impedance . . .. .. . .. .. . .. .. .. . .. .. . 75 ohms

Return loss . .. .. . .. .. . .. .. . .. .. .. . <-40 dB @ 5 MHz

DC offset .. .. . .. .. . .. .. . .. .. . .. .. . . ±5 mV with input at 0 offset

syn C

Input type .. .. . .. .. .. . .. .. . .. .. . .. . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync

Output type .. .. .. . .. .. . .. .. . .. .. . . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync

Input level . .. . .. .. . .. .. . .. .. . .. .. . 1.5 V to 5.0 Vp-p

Output level . .. . .. .. . .. .. . .. .. . .. . TTL, 4 V to 5 Vp-p, unterminated

Input impedance

. .. .. . .. .. . .. .. . .. .. .. . .. . <1k ohm (default) or 10k ohms, selectable

P/2 DA2xi

. .. . .. .. .. . .. .. . .. .. . 510 ohms (fixed)

P/2 DA2xi MT

Output impedance . .. . .. .. . .. .. . 75 ohms or 55 ohms, switchable

Max input voltage .. . .. .. .. . .. .. . 5.0 Vp-p

Max. propagation delay .. .. . .. . 60 ns

Max. Rise / Fall time . .. .. .. . .. .. 4 ns

Polarity .. .. . .. .. . .. .. . .. .. . .. .. . .. . Positive or negative (follows input)

Local monitor output: unity

Local monitor output: unity

Local monitor output: fixed

Local monitor output: fixed

0.7 Vp-p for RGB and for R-Y and B-Y of component video

1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs local monitor loop-through
(i.d. bits are passed through)

0.7 Vp-p for RGB and for R-Y and B-Y of component video at unity gain

(output impedance resistors are 50 and 30 ohms)

AuD io ( P/2 DA2XI MT O NLY)

Gain .. .. . .. .. .. . .. .. . .. .. . .. .. . .. .. . Unbalanced output: 0 dB; balanced output: +6 dB

Frequency response .. .. . .. .. . .. 20 Hz to 20 kHz, +0.05 dB, -0.1 dB

THD + Noise .. . .. .. . .. .. . .. .. . .. .. 0.03% @ 1 kHz at nominal level

S/N .. .. . .. .. . .. .. .. . .. .. . .. .. . .. .. . . >90 dB (balanced) at maximum output

Crosstalk . .. .. .. . .. .. . .. .. . .. .. . .. . <-80 dB @ 1 kHz, fully loaded

Stereo channel separation . .. . >80 dB @ 1 kHz, >60 dB @ 20 kHz

CMRR .. .. .. . .. .. . .. .. . .. .. . .. .. . .. . >67 dB @ 20 Hz to 20 kHz

AuD io i nPu t (P/ 2 DA 2XI M T ONLY)

Number / Signal type . .. .. . .. .. . 1 stereo, unbalanced

Connectors . .. .. . .. .. . .. .. . .. .. .. . (1) 3.5 mm stereo jack, female; tip (L), ring (R), sleeve (GND)

Impedance . . .. .. . .. .. . .. .. .. . .. .. . >18k ohms unbalanced, DC coupled

Nominal level . .. . .. .. . .. .. . .. .. . . -10 dBV (316 mV)

Maximum level . .. . .. .. .. . .. .. . .. >+10 dBV (3.16 V) (unbalanced) at 1%THD+N

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

AuD io o utP ut ( P/2 D A2XI MT O NLY)

Number / Signal type . .. .. . .. .. . 1 stereo, balanced/unbalanced

Connectors . .. .. . .. .. . .. .. . .. .. .. . (1) 3.5 mm captive screw connector, 5 pole

Impedance . . .. .. . .. .. . .. .. .. . .. .. . 50 ohms unbalanced, 100 ohms balanced

Gain error .. .. . .. .. . .. .. . .. .. .. . .. . ±0.5 dB channel to channel

Nominal level . .. . .. .. . .. .. . .. .. . . -2 dBu (632 mV) balanced output

Maximum level (Hi-Z) .. . .. .. . .. . >+15 dBu (4.36 V), balanced at 1% THD+N, with external power supply

Maximum level (600 ohms) .. . . >+9 dBm (2.18 V), balanced at 1% THD+N, with external power supply

Gen erAL

External power supply . .. . .. .. . 100 VAC to 240 VAC, 50/60 Hz, 4.5 watts, external, universal; to 12 VDC,

Power input requirements .. . .. 12 VDC

. .. . .. .. . .. .. . .. .. . .. .. . .. 0.1 A

P/2 DA2x

. .. . .. .. .. . .. .. . .. .. . 0.2 A

P/2 DA2xi MT

Temperature / Humidity . . .. .. . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Rack mount . .. . .. .. . .. .. . .. .. . .. . Yes, with optional 1U, 9.5” deep rack shelf, part #60-190-01 (RSU 129) or

Enclosure type .. .. .. . .. .. . .. .. . .. Metal

Enclosure dimensions . .. .. . .. .. 1.0" H x 4.3" W x 3.0" D (quarter rack wide)

Product weight . .. . .. .. . .. .. . .. .. 0.5 lbs (0.3 kg)

Shipping weight .. . .. .. .. . .. .. . .. 3 lbs (2 kg)

Vibration . .. .. . .. .. . .. .. . .. .. . .. .. . ISTA 1A in carton (International Safe Transit Association)

Listings .. . .. .. . .. .. . .. .. . .. .. . .. .. . UL, CUL

Compliances . .. .. . .. .. . .. .. . .. .. . CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. 30,000 hours

Warranty .. . .. .. .. . .. .. . .. .. . .. .. . . 3 years parts and labor

NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.

-10 dBV (316 mV) unbalanced output

1 A, regulated

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

®

60-604-01 (RSB 129); or VersaTools
part #60-190-20 (RSF 123) or 60-604-20 (RSB 123)
Projector mountable with an optional bracket kit, part #70-077-04 (PMK 200)
Under-furniture mountable with optional VersaTools mini under desk mounting
kit, part #70-077-01 (MBU 123)

2.5 cm H x 10.9 cm W x 7.6 cm D
(Depth excludes connectors.)

1U, 3.5” deep rack shelf,
