User’s Manual

CSVEQ 100 D

Composite Video and S-Video Line Driver

with Audio

Extron USA - West

Headquarters

+800.633.9876

Inside USA / C anada Only

+1.714.491.1500

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.9 19.8 63 .179 4 +1.9 19.8 63 .179 7 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Dubai

+971.4.2991800 +971.4.2991880 FAX

68-1598-01 Rev. A

08 08

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁ n de pouvoir

les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes

marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de ﬁ xation • Ne pas utiliser de pièces de ﬁ xation ni d’outils

non recommandés par le fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y

seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para

futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas

en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especiﬁ camente recomendados por el fabricante, ya que podrian implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power

cords from the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be

stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualiﬁ ed service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly

replaced. Replace it only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un ﬁ l de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualiﬁ é. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁ n d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et oriﬁ ces • Si le boîtier de l’appareil comporte des fentes ou des oriﬁ ces, ceux-ci

servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.

Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten

Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiﬁ ziertem Servicepersonal

durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,

dienen diese zur Vermeidung einer Überhitzung der empﬁ ndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt

wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida

de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben

instalar en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

caliﬁ cado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁ cios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America: Extron Electronics, Europe

Extron Electronics Beeldschermweg 6C

1001 East Ball Road 3821 AH Amersfoort

Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan 135 Joo Seng Road, #04-01 Kyodo Building PM Industrial Bldg. 16 Ichibancho Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or nonExtron authorized modiﬁ cation to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁ tness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴

露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理

解所有安全和使用说明。

保存说明书 • 用户应保存安全说明书以备将来使

用。

遵守警告 • 用户应遵守产品和用户指南上的所有安

全和操作说明。

避免追加 • 不要使用该产品厂商没有推荐的工具或

追加设备，以避免危险。

警告

电源 • 该设备只能使用产品上标明的电源。设备

必须使用有地线的供电系统供电。第三条线（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后

或桌面电源的电源线，或任何接到市电系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部

没有用户可以更换的零件。为避免出现触电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止

机内敏感元件过热。不要用任何东西挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用

与厂家推荐的相同或相近型号的电池。按照生产厂的建议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used

with the unit to ensure compliance with FCC emissions limits.

Quick Start Guide — CSVEQ 100 D

To install and set up the line driver, follow these steps and see the appropriate sections of this manual for details.

Installation and service must be performed by authorized

personnel only. These line drivers must be used with UL approved, grounded electrical boxes.

Step 1

Turn the input and output devices off and unplug their power cords.

Verify that the line driver is disconnected from the power source before proceeding.

Step 2

Attach output cables to the rear panel of the line driver and to the output devices. See "Rear Panel Features and Operation" in chapter 3 for details.

Step 3

Attach input cables from the input devices to the line driver’s front panel input connectors. See "Front Panel Features and Operation" in chapter 3.

Step 4

Connect power cords and turn on the output devices (project or/ monitor, speakers) and input devices.

Step 5

The picture should appear and sound should be audible. If not, ensure that all devices are plugged in and receiving power. Check the cabling, make adjustments as needed. For further details, see "Testing and troubleshooting" in chapter 2.

Step 6

While watching the display, adjust the video gain and equalization by using the rotary gain and equalization (EQ) control

potentiometers. An oscilloscope can be used to achieve a more precise adjustment. See “Gain adjustment control" and "Equalization (EQ) adjustment control” in chapter 3 for details.

Make all adjustments using an Extron Tweeker or small screwdriver. If using very short output cables, set all potentiometers to the default setting (the arrow on the control pointing to the dot beside it).

CSVEQ 100 D • Quick Start Guide

QS-1

Quick Start — CSVEQ 100 D, cont’d

When using long cables, follow these steps:

. Supply the color bars test signal to the input. (Recommendation:

use an Extron VTG 300 Video Test Generator to generate the test signal.)

. Adjust the Gain control(s) for the output until the signal level

at the far end is the same as the input (or the display shows the correct brightness and contrast).

. Adjust the EQ control for the output so that no overshoot or

round front corner appears at the far end on the oscilloscope or you see a sharp picture with no smearing.

Step 7

See "Installation Instructions" in chapter 2 for further installation details.

QS-2

CSVEQ 100 D • Quick Start Guide

Table of Contents

Chapter One • Introduction ................................................... 1-1

About this Manual ....................................................................1-2

Features ........................................................................................1-2

Chapter Two • Installation ..................................................... 2-1

Application Example ................................................................. 2-2

Installing the CSVEQ 100 D .................................................... 2-3

Preparing the site and installing the wall box ....................2-3

Mounting the line driver ....................................................... 2-4

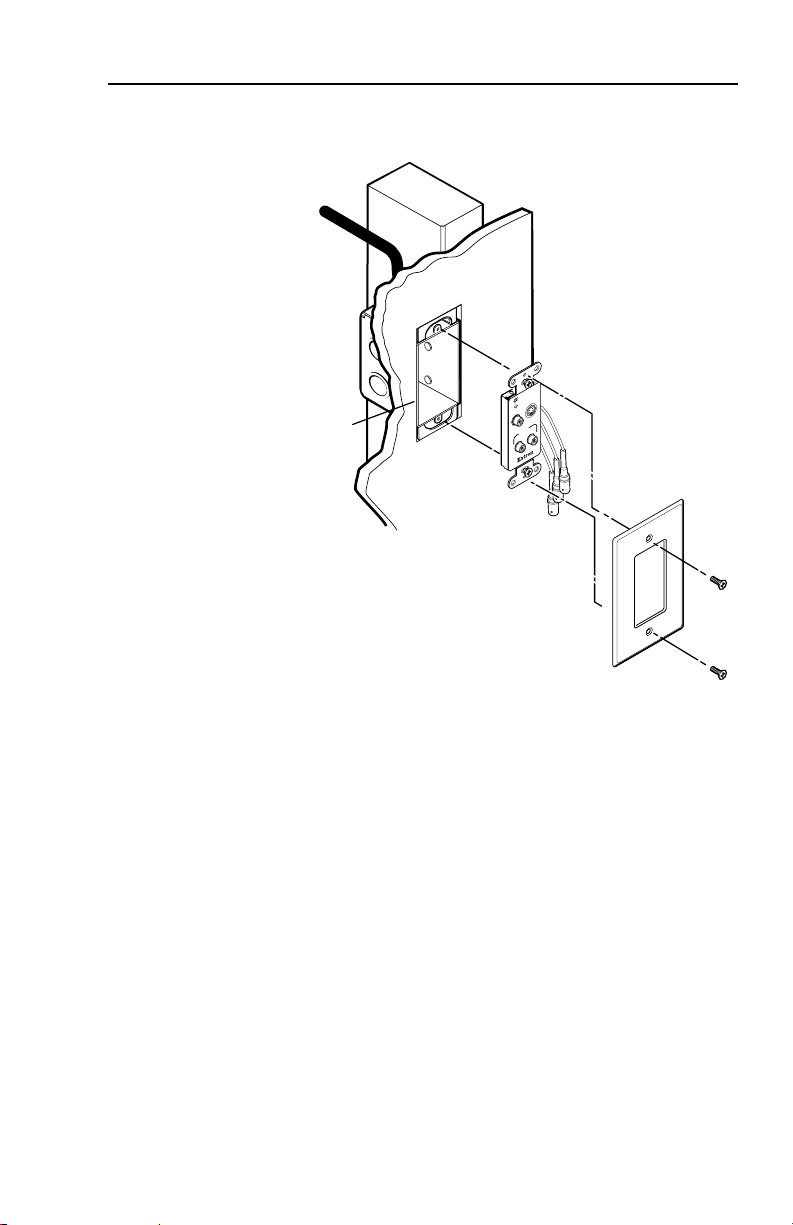

Installing the mud ring bracket ............................................2-5

Testing and troubleshooting ................................................. 2-7

If the image does not appear or there is no sound .............2-7

If the image is not displayed correctly ..................................2-7

Chapter Three • Operation ..................................................... 3-1

Front Panel Features and Operation ................................... 3-2

Rear Panel Features and Operation ..................................... 3-4

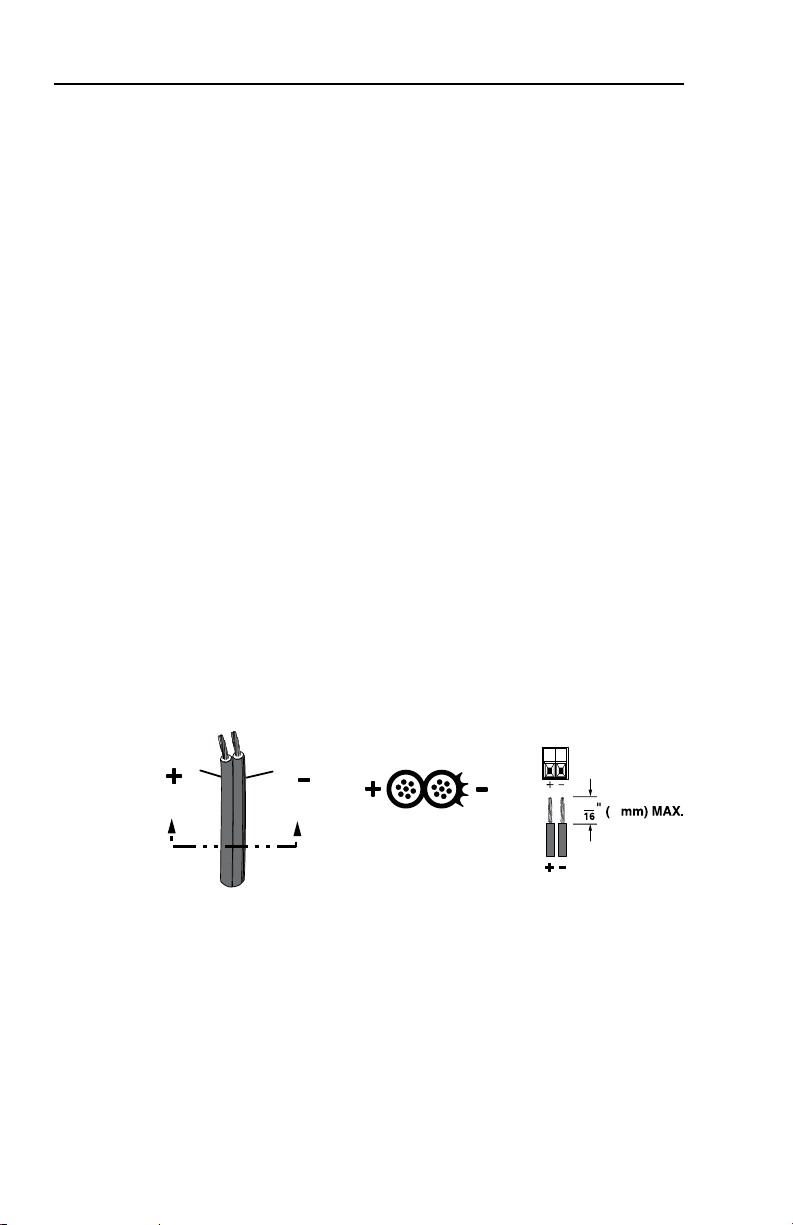

Power supply wiring .............................................................. 3-6

Gain adjustment control ........................................................ 3-7

Equalization (EQ) adjustment control .................................. 3-7

Replacing the Decora Faceplate ............................................ 3-8

Appendix A • Speciﬁcations, Part Numbers, and

Accessories ........................................................................................A-1

Specications ..............................................................................A-2

Included Parts .............................................................................A-5

Optional Accessories ................................................................A-5

Appendix B • Dimensions and Template .....................B-1

CSVEQ 100 D Dimensions .......................................................B-2

Cut-out Template .......................................................................B-3

All trademarks mentioned in this manual are the properties of their respective owners.

68-1598-01 Rev. A

CSVEQ 100 D • Table of Contents

08 08

TOC-i

Table of Contents, cont’d

TOC-ii

CSVEQ 100 D • Table of Contents

CSVEQ 100 D

Chapter One

Introduction

About this Manual

Features

Introduction

About this Manual

The CSVEQ 100 D is a high performance composite video, S-video, and audio line driver designed to compensate for signal attenuation and high frequency loss encountered during long cable runs. It is capable of simultaneously driving composite video and S-video plus audio signals up to 1000 feet (300 m) on Extron MHR or RG59 high resolution video cables and STP series audio cables. The CSVEQ 100 D mounts in a Decora style wallplate and is ideal for use in residential and commercial environments where video and audio signals need to be extended over a long distance.

Features

Long distance line driving — Drives composite video or

S-video signals up to 1000 feet (300 meters) using Extron's MHR cable.

Balanced or unbalanced stereo or dual mono output —

Unbalanced stereo audio input can be output as balanced or unbalanced stereo audio or as dual mono.

Video gain adjustment — Offers a video gain adjustment for

composite video and Y of S-video with a range of

-1 dB to +3 dB, and C of S-video with a range of 0 dB to +10 dB.

Equalization adjustment — Features an equalization

adjustment range of 0 dB to +7 dB at 5 MHz that changes the level and peaking of the output signal to compensate for use of long cables.

Stereo or dual mono output jumper — A rear panel jumper

selects between stereo and dual mono output formats.

Front panel LED indicator — Indicates when the line driver is

receiving power or a video signal.

Compatibility — Compatible with NTSC, PAL, and SECAM

1-2

CSVEQ 100 D • Introduction

CSVEQ 100 D

Chapter Two

Installation

Application Examples

Installing the CSVEQ 100 D

Installation

- AUDIO IN -

S-VIDEO IN

VIDEO IN

DVD/VCR Combo

Extron MPA 122

Mini Power Amplier

Extron SI 26X

Two-way Ceiling Speakers

Extron CSVEQ 100 D

Composite Video, S-Video, and Audio Line Driver

S-Video

Composite Video

1,000 Feet

Projector

Balanced Audio

Application Example

To get started, refer to the "Quick Start Guide" at the beginning of this manual.

Installation and service must be performed by authorized personnel only.

2-2

CSVEQ 100 D application example

CSVEQ 100 D • Installation

Installing the CSVEQ 100 D

The CSVEQ 100 D is a wall-mounted product and can be mounted into an electrical wall box. This section includes site preparation, wall box installation, and the mounting of the line driver in the wall box.

Preparing the site and installing the wall box

Choose a location that allows cable runs without interference. Allow enough depth for both the wall box and the cables. You may need to install the cables into the wall or conduits before installing the line driver.

The line driver can be installed in a standard one-gang electrical wall box. The installation must conform to national and local electrical codes. A dimensional drawing and a cutout template of the line driver are provided in appendix B of this manual.

1. Mark the guidelines for the opening on the wall.

2. Cut out the material from the marked area.

3. Check the opening size by inserting the wall box (if used)

4. Feed cables through the wall box punch-out holes, and

5. Insert the wall box into the opening, and attach it to the

The line driver must be installed into an Underwriters

Laboratories (UL) approved electrical wall box. The box is not included with the line driver; the installer is responsible for obtaining and installing the box.

The cutout template shown in appendix B is not full size.

Pay attention to the measurements shown on the template.

• If the line driver is to be installed in a wall box, place the box against the installation surface and draw a line on it around the outside of the box.

• If the line driver is to be installed without a wall box (fastening it directly to the wall), measure and mark the surface for the cutout area indicated in the cutout template.

or the line driver (if no box is used) into the opening. The box and line driver should t easily into the opening. Enlarge or smooth the edges of the opening if needed.

secure them with cable clamps to provide strain relief.

wall or stud using nails or screws. The front edge should be ush with the outer wall surface. See the following illustration.

CSVEQ 100 D • Installation

2-3

Installation, cont’d

Installation Cable

Cable Clamp

Wall Stud

Screws or NailsScrews or Nails

Attaching the wall box to a wall stud

If attaching the wall box to wood, use four #8 or #10

If attaching the wall box to metal studs, use four #8 or

Mounting the line driver

Before mounting the line driver and if it has not already been tested, test the system to make sure that the connections and settings are correct. See "Testing and troubleshooting" in this chapter.

If the system is operating correctly, the line driver can be installed in the wall. Adjust the gain and equalization, and set the Audio Out switch to Stereo or Dual Mono before fastening the line driver into the wall box. The controls and cables will be inaccessible after installation. See “Rear Panel Features and Operation" in chapter 3 for details about settings and adjustments.

Continue mounting the line driver by following the steps below.

1. Remove power from the line driver by disconnecting the

2. Connect the output cables to the rear of the device.

3. Place the line driver through the opening in the wall and

screws or 10-penny nails. A minimum of ½" (1.3 cm) of screw threads must penetrate the wood.

#10 self-tapping sheet metal screws or machine bolts with matching nuts.

power supply from the AC source.

into the wall box. Take care not to damage the output cable(s), which t behind the line driver at the back of the wall box.

2-4

CSVEQ 100 D • Installation

Wall opening

is flush with

edge of box.

Wall Box

Decora

Faceplate

Extron CSVEQ 100 D

VIDEO IN

S-VIDEO

AUDIO IN

4. Mount the line driver to the wall box with machine screws as shown in the following illustration.

Mounting the line driver to a wall box

5. Attach the Decora® wall plate to the line driver as shown in the illustration above.

6. Reconnect the power supply, connect input cables to the line driver, and restore power to the equipment.

Installing the mud ring bracket

The CSVEQ 100 D can also be installed using the included mud ring bracket. See the illustration below.

1. Once the proper wall location for mounting the line driver

2. Carefully cut away the mounting surface material inside

3. Test the t of the mud ring. The doglegs should t easily

4. Rotate all doglegs inward.

has been determined, cut an opening in the wall using the proper mounting template found in the appendix.

the traced template lines

into the hole and the at portion should rest ush against the wall. See the note in the following illustration.

CSVEQ 100 D • Installation

2-5

Installation, cont’d

Decora

Faceplate

Extron CSVEQ 100 D

Wall

VIDEO IN

S-VIDEO

AUDIO IN

Extron

Wall Mounting Bracket

5. Insert the mud ring into the hole.

6. Tighten all of the dogleg screws until the doglegs clamp

the mud ring to the mounting surface. Do not overtighten.

Standard mud rings only: If you are going to screw the

mud ring to the surface, rather than using the detachable doglegs, mark the four surface mounting screw holes at the corners of the mud ring.

2-6

Installation using a mud ring

CSVEQ 100 D • Installation

Testing and troubleshooting

1. Apply power to the line driver. The power/signal LED on the line driver lights amber (power) or green (video input).

2. If the LED does not light, check the wiring at both the line driver and the power supply, and make sure the power supply is connected to a power source.

If the image does not appear or there is no sound

. Make sure that all the devices are powered on.

2. Ensure that the connectors are wired correctly at both ends of the cables. Audio cables must be wired for an unbalanced stereo input signal and for the appropriate (unbalanced or balanced) output signal.

3. Check the video source’s user’s guide or contact Extron to determine if there are special requirements to output video to the external video port.

4. Call the Extron S3 Sales and Technical Support Hotline if the image still does not appear or there is no sound.

If the image is not displayed correctly

. If the picture is too bright or too dark, or if the edges of the

image seem to exceed their boundaries, or if thin lines and sharp edges look thick and fuzzy, change the gain setting.

If the picture appears and is stable, but it has ghosting

or blooming, verify that the video input is properly terminated. If the problem is not resolved by changing the termination, try using a different input cable. Poor quality or damaged cable can cause ghosting and blooming.

2. If the picture still is not displayed correctly, call the Extron S3 Sales and Technical Support Hotline.

CSVEQ 100 D • Installation

2-7

Installation, cont’d

2-8

CSVEQ 100 D • Installation

CSVEQ 100 D

Chapter Three

Operation

Front Panel Features and Operation

Rear Panel Features and Operation

Replacing the Decora Faceplate

Operation

VIDEO IN

S-VIDEO

AUDIO IN

CSVEQ 100 D Front Panel

Faceplate

Wall Plate

Wall Plate Mounting Screw

PIN NAME DESCRIPTION

1GND Ground (Y)

2GND Ground (C)

3Y Luminance

4CChrominance

S-video Pinout Ta ble

Front Panel Features and Operation

Power indicator LED — This LED lights:

• Amber when the line driver is receiving full power

• Green when the line driver is receiving a video signal

Video input connector — Connect a composite video input

source to this RCA connector.

S-video input connector — Connect an S-video input source to

this 4-pin mini DIN connector. See the following pinout table.

3-2

CSVEQ 100 D • Operation

Tip (+)

Sleeve ( )

Audio input connectors — Connect an unbalanced stereo audio

source to these left (L) and right (R) RCA connectors. Wire the male connector as shown in the following illustration.

CSVEQ 100 D • Operation

3-3

Operation, cont’d

VIDEO

AUDIO OUTPUT

JUMPER POSITION OFF = DUAL MONO ON = STEREO

AUDIO OUTPUT CONFIG

CSVEQ 100 D

VIDEO

OUTPUT

Y C

GAINGAINGAIN EQEQ

CSVEQ 100 D Rear Panel

Rear Panel Features and Operation

Power connector — Connect the external 12 VDC power supply

into this 2-pin, 3.5 mm direct insertion connector. The power supply is included with the unit. The "Power supply wiring" section in this chapter explains how to wire the connector.

Audio output connector — Wire a balanced/unbalanced audio

output device to this 3.5 mm, 5-pole, direct insertion captive screw connector. See the following wiring diagrams.

3-4

CSVEQ 100 D • Operation

Balanced Stereo

Sleeve (s)

Left Tip (+)

Left Ring (-)

Right Tip (+)

Right Ring (-)

Set Audio Output jumper to Stereo.

Balanced Mono

Sleeve

Tip (+)

Ring (-)

Unbalanced Stereo

Sleeve

Left Tip (+)

Right Tip (+)

Use either the left or the right channel.

Unbalanced Mono

Sleeve

Tip (+)

Use either the left or the right channel.

Set Audio Output jumper to Dual Mono. Set Audio Output jumper to Dual Mono.

Set Audio Output jumper to Stereo.

Do not tin the wires!

CAUTION Connect the sleeve to ground

(Gnd).

Connecting the sleeve to a negative (–) terminal will damage the audio output circuits.

JUMPER POSITION OFF = DUAL MONO ON = STEREO

AUDIO OUTPUT CONFIG

JUMPER POSITION OFF = DUAL MONO ON = STEREO

AUDIO OUTPUT CONFIG

JUMPER POSITION OFF = DUAL MONO ON = STEREO

AUDIO OUTPUT CONFIG

JUMPER POSITION OFF = DUAL MONO ON = STEREO

AUDIO OUTPUT CONFIG

Balanced audio is more resistant to noise and can be driven

for longer distances than unbalanced audio. For best results, wire the output for balanced audio.

Video output connector (green cable) — Connect a composite

video output device to the BNC connector.

S-video Y connector (luma, white cable) — Connect the luma of an S-video output device to the BNC connector.

S-video C connector (chroma, yellow cable) — Connect the chroma of an S-video output device to the BNC connector.

Audio output jumper — Set this jumper to select either stereo

(jumper on) or dual mono (jumper off) output.

When set for dual mono, the left and right channels output the same signal (either channel or both channels can be used). The audio output can be wired for balanced/unbalanced mono or stereo output. The wiring and the jumper setting must match.

Output gain potentiometer (chroma) — Use a small

screwdriver to rotate this potentiometer to adjust the chroma gain when the line driver is connected to long output cables. The adjustment range is 0 dB to +10 dB. The default is unity (the dot position). See "Gain adjustment control" in this chapter.

CSVEQ 100 D • Operation

3-5

Operation, cont’d

Power Supply

Output Cord

SECTION A–A

Ridges

Smooth

A A

Captive Screw

Connector

Output equalization (EQ) potentiometer (luma) — Use a

small screwdriver to rotate this control to adjust equalization when the line driver is connected to long output cables. The adjustment range is 0 dB to +7 dB. The default is set to 0 dB (the dot position). See "Equalization (EQ) adjustment control" in this chapter.

Output gain potentiometer (luma) — Use a small screwdriver

to rotate this potentiometer to adjust the luminance gain when the line driver is connected to long output cables. The adjustment range is -1 dB to +3 dB. The default is unity (the dot position). See "Gain adjustment control" in this chapter.

Output gain potentiometer (video) — Use a small screwdriver

to rotate this control to adjust the gain when the line driver is connected to long output cables. The adjustment range is -1 dB to +3 dB. The default is unity (the dot position). See "Gain adjustment control" in this chapter.

Output equalization (EQ) potentiometer (video) — Use a

Power supply wiring

Wire the line driver's power connector as shown below.

Power connector wiring

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

3-6

CSVEQ 100 D • Operation

Power supply voltage polarity is critical. Incorrect

voltage polarity can damage the power supply and the line driver. Identify the power cord negative lead by the ridges on the side of the cord.

The two power cord wires must be kept separate while

the power supply is plugged in. Remove the power before wiring.

Do not tin the power supply leads before installing in the

direct insertion connector. Tinned wires are not as secure in the connectors and could be pulled out.

Gain adjustment control

The gain control adjusts picture brightness by compensating for signal amplitude loss caused by cable resistance. To adjust the output gain, view the display while using a small, at-blade screwdriver to rotate the potentiometer. This control produces a gain adjustment ranging from -1 dB to + 3 dB (video and luma of S-video) and from 0 dB to +10 dB (chroma of S-video). Select the setting that gives the best picture brightness.

You can judge the adjustment visually by viewing the display. For a more precise setting use an oscilloscope or a waveform monitor connected to the far end of the output cable, and adjust the gain so that the level at the waveform monitor is 100 IRE.

The gain control is a potentiometer with a mechanical stop

at the high and the low end. After you have reached the high or low end of the adjustment, no change is apparent on the display. The default is unity (the dot position)

Equalization (EQ) adjustment control

The equalization control adjusts the output level and peaking to get a sharp picture. This adjustment changes the level and peaking of the output signal to compensate for capacitance caused by up to 1000 feet (300 meters) of Extron MHR cable.

This control produces an equalization adjustment ranging from 0 dB to + 7 dB (video and luma of S-video).

CSVEQ 100 D • Operation

3-7

Operation, cont’d

Faceplate (rear)

VIDEO

AUDIO OUTPUT

JUMPER POSITION OFF = DUAL MONO ON = STEREO

AUDIO OUTPUT CONFIG

CSVEQ 100 D

VIDEO

OUTPUT

Y C

GAINGAINGAIN EQEQ

Mounting Screws

Use a small, at-blade screwdriver to rotate this control. View the display and select the setting that gives the sharpest picture. For a more precise setting, you can use an oscilloscope or a waveform monitor connected to the far end of the output cable, and adjust the equalization so that the color burst ranges between -20 IRE and +20 IRE.

The EQ control is a potentiometer with a mechanical stop

at the high and the low end. After you have reached the high or low end of the adjustment, no change is apparent on the display. The default is set to 0 dB (the dot position).

Replacing the Decora Faceplate

The front faceplate is replaced by removing the two rear panel mounting screws, replacing the faceplate, then reattaching the two screws, as shown in the CSVEQ 100 D example below.

3-8

Removing the CSVEQ 100 D faceplate

CSVEQ 100 D • Operation

CSVEQ 100 D

Appendix A

Speciﬁcations, Part Numbers,

and Accessories

Speciﬁcations

Included Parts

Optional Accessories

Speciﬁcations, Part Numbers, and Accessories

Speciﬁcations

Video

Gain ................................................. Composite video and Y of S-video:

-1 dB to +3 dB (x0.9 to x1.4), adjustable C of S-video: 0 dB to +10 dB (x1 to x3), adjustable

Equalization

Bandwidth (Y of S-video)

Output cable driving distance ..... Up to 1000' (300 m) with Extron MHR

Video input

Number/signal type ..................... 1 S-video, 1 composite video

Connectors ..................................... 1 female 4-pin mini DIN, 1 female RCA

Nominal level ................................ 1 Vp-p for Y of S-video, and for composite

Minimum/maximum levels

Impedance

Return loss ...................................... <-25 dB @ 0 to 5 MHz

DC offset (max. allowable)........... 4.0 V

Input coupling ............................... AC

................................... 0 dB to +7 dB (x1 to x2) at 5 MHz,

adjustable

............. 185 MHz (-3 dB)

cable

video (including sync)

0.3 Vp-p for C of S-video

........ 0.4 to 2.0 Vp-p with no offset at unity gain

for composite video (including sync) or for Y of S-video

...................................... 75 ohms

Video output

Number/signal type ..................... 1 composite video, 1 S-video

Connectors ..................................... 3 female BNC attached via 4" pigtails

Nominal level ................................ 1 Vp-p for Y of S-video, and for composite

video (including sync)

0.3 Vp-p for C of S-video Minimum/maximum levels

Impedance ...................................... 75 ohms

Return loss ...................................... -30 dB @ 5 MHz

DC offset ......................................... ±5 mV with no input signal

........ 0.4 to 2.0 Vp-p (follows input)

Floating: +0.1 to -0.6 V, depending on input signal content

A-2

CSVEQ 100 D • Specications and Parts

Sync

Standards ........................................ NTSC 3.58, NTSC 4.43, PAL, SECAM

Audio

Gain ................................................. Unbalanced output: 0 dB; balanced output:

+6 dB Frequency response

THD + Noise .................................. 0.03% @ 1 kHz at nominal level

S/N .................................................. >90 dB at maximum output (unweighted)

Stereo channel separation ............ >80 dB @ 1 kHz

Output cable driving distance ..... Up to 1000' (300 m) with Extron STP cable

Audio input

Number/signal type ..................... 1 stereo unbalanced

Connectors ..................................... 2 female RCA

Impedance ...................................... 18k ohms unbalanced, DC coupled

Nominal level ................................ -10 dBV (316 mVrms)

Maximum level .............................. +8 dBV, unbalanced at 1% THD+N

...................... 20 Hz to 20 kHz, ±0.5 dB

0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output

Number/signal type ..................... 1 stereo or dual mono (jumper-selectable),

balanced/unbalanced Connectors

Impedance

Gain error ....................................... ±0.5 dB channel to channel

Nominal level ................................ -10 dBV, unbalanced; -2 dBu, balanced

Maximum level ............................. +9 dBV, unbalanced; +17 dBu, balanced at

..................................... (1) 3.5 mm direct insertion captive screw

connector, 5 pole

...................................... 50 ohms unbalanced, 100 ohms balanced

1% THD+N with a 10k ohm load

General

External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, external;

to 12 VDC, 2 A, regulated

Power input requirements ........... 12 VDC, 0.2 A

CSVEQ 100 D • Specications and Parts

A-3

Speciﬁcations, Part Numbers, Accessories, cont’d

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing Cooling

Mounting ........................................ Wall or furniture mountable with standard

Enclosure Enclosure dimensions

Product weight

Shipping weight ............................ 2 lbs (1 kg)

Vibration ......................................... ISTA 1A in carton (International Safe

Listings Regulatory compliance

MTBF ............................................... 30,000 hours

Warranty ......................................... 3 years parts and labor

........................................... Convection, no vents

US electrical wall boxes or mud rings

........................................ Metal rear enclosure, plastic faceplate

Faceplate

Device

............................................ UL, CUL

Safety

EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI

............................. 2.6" H x 1.3" W x 0.1" D

(6.6 cm H* x 3.3 cm W x 0.3 cm D)

(Fits the opening in a 1 gang Decora

faceplate. *Height is 3.8" [9.5 cm],

including mounting tabs.)

(Depth excludes connectors.)

................................. 2.7" H x 1.8" W x 0.75" D

(6.9 cm H x 4.6 cm W x 1.9 cm D)

(Depth excludes connectors; height

excludes mounting tabs.)

.............................. 0.2 lbs (0.1 kg)

Transit Association)

................................... CE, C-tick, CUL, UL

A-4

All nominal levels are at ±10%.

Speciﬁcations are subject to change without notice.

CSVEQ 100 D • Specications and Parts

Included Parts

These items are included in each order of the CSVEQ 100 D.

Included parts Replacement

CSVEQ 100 D (black, white) 60-951-02, -03

Faceplate, black (included with 60-951-02 only)

Faceplate, white (included with 60-951-03 only)

Decora® wall plate, black included with 60-951-02 only)

Decora® wall plate, white (included with 60-951-03 only)

One-gang Decora

12 VDC, 2 A external power supply

IEC power cord

User’s manual

part number

21-xxx-0xLF

21-xxx--0xLF

mud ring 70-581-12

28-181-01LF

Optional Accessories

These items are optional accessories for the CSVEQ 100 D.

Accessory Part number

MHR-2 mini high resolution non-plenum cable, bulk

MHR-2P mini high resolution plenum cable, bulk

RG59 high resolution non-plenum cable, bulk

RG59P high resolution plenum cable, bulk

RG6 super high resolution non-plenum cable, bulk

RG6P super high resolution plenum cable, bulk

CSVEQ 100 D • Specications and Parts

22-123-xx

22-129-xx

22-145-xx

22-146-xx

22-098-xx

22-164-xx

A-5

Speciﬁcations, Part Numbers, Accessories, cont’d

Accessory Part number

MHR-2 SV mini high resolution S-video cables

AV RCA cable IN8906, IN8920

STP cable Various

26-316-xx

A-6

CSVEQ 100 D • Specications and Parts

CSVEQ 100 D

Appendix B

Dimensions and Template

CVEQ 100 D Dimensions

Cut-out Template

Dimensions and Template

0.00” (0.00 cm)

1.72” (4.30 cm)

0.05” (0.13 cm)

0.16” (0.39 cm)

1.45” (3.67 cm)

1.55” (3.94 cm)

1.60” (4.06 cm)

0.00” (0.00 cm)

0.06” (0.15 cm)

0.10” (0.25 cm)

0.23” (0.57 cm)

0.00” (0.00 cm)

2.74” (6.96 cm)

0.11” (0.28 cm)

0.92” (2.32 cm)

2.72” (6.91 cm)

2.83” (7.19 cm)

0.06” (0.15 cm)

0.10” (0.25 cm)

0.46” (1.55 cm)

Front View Side View

0.56” (1.43 cm)

1.92” (4.86 cm)

CSVEQ 100 D Dimensions

Dimensions are shown in inches [mm}.

B-2

CSVEQ 100 D • Dimensions and Template

CSVEQ 100 D

Cut-Out Template for the Extron

4.50"

(11.43 cm)

To install line driver directly into furniture or wall, cut along this line.

Wall Plate

SURFACE

CUT-OUT AREA

FOR

FURNITURE

MOUNT

2.79"

(7.09 cm)

1.75"

(4.5 cm)

2.8"

(7.1 cm)

Location of Line Driver

TEMPLATE IS NOT FULL SIZE

Cut-out Template

Always check and go by the dimensions given in this

appendix. The template is not full size.

CSVEQ 100 D • Dimensions and Template

B-3

Dimensions and Template, cont’d

B-4

CSVEQ 100 D • Specications and Parts

CSVEQ 100 D

• Specications and Parts

B-5

Dimensions and Template, cont’d

B-6

CSVEQ 100 D • Specications and Parts

Extron electronic CSVEQ 100 D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter One

Introduction

About this Manual

Features

Chapter Two

Installation

Application Example

Installing the CSVEQ 100 D

Preparing the site and installing the wall box

Mounting the line driver

Installing the mud ring bracket

Testing and troubleshooting

If the image does not appear or there is no sound

If the image is not displayed correctly

Chapter Three

Operation

Front Panel Features and Operation

Rear Panel Features and Operation

Power supply wiring

Gain adjustment control

Equalization (EQ) adjustment control

Replacing the Decora Faceplate

Appendix A

Included Parts

Optional Accessories

Appendix B

Dimensions and Template

CSVEQ 100 D Dimensions

Cut-out Template
