Quick Start Guide — IPL M PDP-ES

To install and set up the IPL M PDP-ES interface card, follow these steps:

Step 1

Turn all of the equipment off and disconnect it from the power source.

Step 2

Remove the preinstalled Pioneer communication ES card from the Pioneer plasma. Refer to Removing the Pioneer communication ES card in chapter 2 for more information.

Step 3

Install the Extron IPL M PDP-ES interface card into the Pioneer plasma. Refer to Installing the Extron IPL M PDP-ES card in chapter 2 for more information.

Step 4

Affix the Extron IPL M PDP-ES sticker label to the display, covering the existing Pioneer label.

Step 5

Attach the network (LAN) cable to the LAN port of the IPL M PDP-ES interface card installed in the Pioneer plasma. Attach the other end to a switch, hub, router, or a host PC, as shown below. See Ethernet/LAN port in chapter 3 for more information on this connection.

Extron IPL M PDP-ES

Pioneer Plasma Ethernet Card

ACT LINK

IPL M PDP-ES

LAN

RS-232

RESET

LAN

RS-232

DISPLAY POWER

VCR DVD Laptop

VOLUME

MAX/

MIN

Extron MLC 206

MediaLink Controller

MLC 206

IPL M PDP-ES • Quick Start Guide

QS-1

Quick Start Guide — IPL M PDP-ES, cont’d

Table of Contents

Step 6

Attach the serial communication cable to the RS-232 port of the IPL M PDP-ES interface card within the Pioneer plasma. Attach the other end to a controller or host PC, as shown under step 5.

Step 7

Configure the IPL M PDP-ES interface card using the ARP command. Refer to IPL M PDP-ES interface card configuration in chapter 3 for more information.

Step 8

Communicate with the IPL M PDP-ES interface via the default Web pages. Refer to Communication with the interface card in chapter 4 for more information.

RS-232

IPL M PDP-ES

The IPL M PDP-ES interface card

ACT LINK

LAN

RESET

Chapter 1 • Introduction .......................................................... 1-1

About this Manual ................................................................ 1-2

About the IPL M PDP-ES Interface Card ..................... 1-2

Features ...................................................................................... 1-2

Chapter 2 • Installation and Operation ......................... 2-1

Installation Overview.......................................................... 2-2

Installation of IPL M PDP-ES Interface Card ............ 2-2

Removing the Pioneer communication ES card...................2-2

Installing the Extron IPL M PDP-ES card ...............................2-3

Panel Features and Cabling..............................................2-5

Ethernet/LAN communication .............................................. 2-5

Power ..................................................................................... 2-5

RS-232 communication .......................................................... 2-6

Operation................................................................................... 2-6

Resetting the unit .................................................................. 2-7

Chapter 3 • Connection and Configuration................ 3-1

Connecting the Hardware ................................................. 3-2

Direct PC connection ............................................................. 3-2

Ethernet/LAN port ................................................................. 3-2

RS-232 port.............................................................................3-3

PC connection ........................................................................ 3-3

Serial connection ................................................................... 3-3

Configuring the Hardware................................................3-3

PC configuration .................................................................... 3-3

IPL M PDP-ES interface card configuration ..........................3-4

Configuring the IPL M PDP-ES using the ARP command .... 3-4

Configuring the IPL M PDP-ES using direct PC connection .3-6

Configuring the IPL M PDP-ES using the RS-232 port ......... 3-7

Firmware upgrades................................................................ 3-8

QS-2

IPL M PDP-ES • Quick Start Guide

Chapter 4 • Communication and Control..................... 4-1

Communication with the Interface Card .................. 4-2

Accessing and using the Web server .................................... 4-2

Navigating the default Web pages ...................................... 4-2

Status tab................................................................................ 4-2

Configuration tab ..................................................................4-3

File Management tab ......................................................... 4-10

Pioneer tab .......................................................................... 4-12

iIPL M PDP-ES • Table of Contents

Table of Contents, cont’d

Programmer’s Guide for the Telnet and Web Browser

Pioneer Plasma A/V Device Control ........................... 4-29

Troubleshooting ...................................................................4-31

Appendix A • Specifications, Part Numbers, and Accessories

Specifications ......................................................................... A-2

Parts ................................................................................ A-3

Appendix B • Glossary ...............................................................B-1

..................................................................................... 4-18

Using the command/response table ................................... 4-18

Symbol definitions .............................................................. 4-19

Password information ........................................................ 4-21

Error responses .................................................................... 4-21

References to errors ............................................................ 4-22

Command/response table for Simple Instruction Set (SIS)

commands ............................................................................ 4-23

Custom Web pages .............................................................. 4-29

Telnet (port 23) .................................................................... 4-29

Accessing and using Telnet ................................................ 4-29

Direct port access (port 2001) ............................................. 4-30

Using direct access .............................................................. 4-30

Port redirect ........................................................................ 4-31

Power connections .............................................................. 4-31

Data connections ................................................................. 4-31

Serial connections ................................................................ 4-32

.............................................................................. A-1

Included parts ....................................................................... A-3

IPL M PDP-ES

Chapter One

Introduction

About this Manual

All trademarks mentioned in this manual are the properties of their respective owners.

68-1021-01

IPL M PDP-ES • Table of Contents

About the IPL M PDP-ES Interface Card

Features

Rev A

11 04

Introduction

About this Manual

This manual contains information about the Extron IPL M PDP-ES interface card, including its installation, configuration, and operation.

This compact Ethernet interface card installs into the Expansion Solutions (ES) slot of a compatible Pioneer plasma display. Compatible Pioneer plasma displays include the following models:

• PDP-504CMX

• PDP-504CMX-S

• PDP-434CMX

• PDP-50MXE1

• PDP-50MXE1-S

• PDP-43MXE1

• PDP-43MXE1-S

About the IPL M PDP-ES Interface Card

The Extron IPL M PDP-ES is an Ethernet-based interface card designed to enhance the support and control of Pioneer’s fourth generation plasma displays.

The IPL M PDP-ES is powered directly from the plasma, and includes factory-loaded control and scheduling features accessible via a standard Web browser.

The IPL M PDP-ES additionally provides an RS-232 port to connect locally for diagnosis or third-party control.

• Email Alerts — Email reminders can be sent to a

specified mailbox automatically when certain conditions are true. When a scheduled or monitored event occurs (such as the number of usage hours on the plasma) maintenance personnel can be notified via an email message.

Built-in multi-level security — Multiple levels of password

protection provide appropriate security and functional access to features on the Pioneer plasma.

Easily connected — Provides an RS-232 port on a 9-pin D

connector and an RJ-45 auto-sense 10/100 Mbs Ethernet LAN connection.

Direct port access (2001) — Allows a direct, one-to-one

connection (from PC to plasma) through the IPL M PDP-ES, and passes the data without any processing.

User customizable — Develop your own Web pages using off-

the-shelf Web authoring software.

Features

1-2

IPL M PDP-ES • Introduction

Locally powered — No external power supply is necessary

because power is taken directly from the plasma itself.

Remote management — The IPL M PDP-ES allows you to

remotely manage the fourth generation Pioneer plasma displays.

• Real time control — Using the on-board Web server,

administrative users have complete remote control of the Pioneer plasma in real time.

• Monitor/Schedule — Using the schedule or monitor

pages, you can monitor the condition of the Pioneer plasma and schedule key maintenance activities. When specified conditions are met or exceeded, an email notification can be sent to a recipient.

IPL M PDP-ES • Introduction

1-3

Introduction, cont’d

IPL M PDP-ES

Chapter Two

1-4

Installation and Operation

Installation Overview

Installation of the IPL M PDP-ES Interface Card

Panel Features and Cabling

Operation

IPL M PDP-ES • Introduction

Installation and Operation

Installation Overview

To install and set up the IPL M PDP-ES interface card, follow these steps:

Turn all of the equipment off. Make sure that the Pioneer

plasma is turned off and disconnected from its power source.

Remove the Pioneer communication ES card from the

plasma.

Install the Extron IPL M PDP-ES interface card.

Attach the LAN and serial cables to the Extron interface

card. See Connecting the Hardware in chapter 3.

Turn on the devices in the following order: serial

controller or computer (PC), the switcher or hub, the Pioneer plasma.

Configure the IP address on the IPL M PDP-ES using ARP

commands (see Configuring the Hardware in chapter 3), then access and control the unit using a Web browser.

Installation of the IPL M PDP-ES Interface Card

Within an IPL M PDP-ES compatible plasma are two ES Card Slots in the plasma’s connection panel. These slots are designed to house removable cards that provide communication and enhanced data. The Extron IPL M PDP-ES replaces the Pioneer communication ES card.

To remove the Pioneer communication ES card, do the following:

1. Ensure that the Pioneer plasma is turned off and disconnected from the power source.

2. If the plasma display is laid with its screen side facing down, ensure that it is on a flat surface with a blanket or other soft material underneath it.

CAUTION

3. If the plasma display stand blocks the communication ES card slot, remove or slide the stand away from the working area.

4. Remove the two side screws that keep the Pioneer communication ES card in place, and gently pull the center knob toward you to remove the card.

Gently pull the center knob

Never rest the plasma in such a way that weight or pressure is placed on the screen surface.

Figure 2-2 — Removing the Pioneer communication ES card

Removing the Pioneer communication ES card

Before installing the Extron IPL M PDP-ES interface card, you must remove the Pioneer communication ES card shipped within the plasma. The communication ES card is found in the communication ES Card Slot of the connection panel, as shown below.

Pioneer Plasma Display

2-2

Connection Panel

Figure 2-1— Pioneer ES Card Slots

IPL M PDP-ES • Installation and Operation

Pioneer ES Card Slot (communication)

Installing the Extron IPL M PDP-ES card

To install the Extron IPL M PDP-ES interface card, do the following:

1. Insert the IPL M PDP-ES gently and evenly in between the two rails inside the ES card Slot. Press on the center of the card faceplate to push the card securely into the slot. (See the illustration on the following page).

IPL M PDP-ES • Installation and Operation

2-3

Installation and Operation, cont’d

Clip Down

1&2

3&6

4&5

7&8

2345678

12345678

RJ-45 connector

Straight-through cable

Twisted Pairs

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-orange 2 Orange 2 Orange 3 White-green 3 White-green 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Green 7 White-brown 7 White-brown 8 Brown 8 Brown

Crossover cable

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-green 2 Orange 2 Green 3 White-green 3 White-orange 4 Blue 4 Blue 5 White-blue 5 White-blue 6 Green 6 Orange 7 White-brown 7 White-brown 8 Brown 8 Brown

Panel Features and Cabling

See figure 2-6 below for detailed information about connections, LEDs, and power.

Push gently

Figure 2-3 — Inserting the IPL M PDP-ES card into the communication slot

CAUTION

Be very careful when inserting the card. Do not use excessive force, and push the card in as straight as possible; a crooked entry could damage the card or the plasma.

2. When the card is seated securely in the slot, use the spring loaded thumb screws on either end of the card faceplate to secure the card in place.

Thumb screws

Figure 2-4 — Securing the IPL M PDP-ES

3. Affix the Extron IPL M PDP-ES sticker label (Extron part # 33-1154-01) to the display, covering the existing Pioneer label, as shown below.

RS-232

213

RESET

IPL M PDP-ES

ACT LINK

LAN

Figure 2-6 — IPL M PDP-ES interface card

Ethernet/LAN communication

With the use of Ethernet/LAN communication, the IPL M PDP-ES can be used to control the plasma display. See chapter 4, Communication and Control, for more details.

LAN Activity LED — The yellow LED blinks to indicate

LAN activity.

LAN connector — Plug an RJ-45 jack into this socket to

connect the unit to a computer network. Use a straightthrough cable to connect to a switch, hub, or router; and a crossover cable to connect directly to a PC.

LAN Link LED — The green LED lights to indicate a good

LAN connection.

2-4

Insure that the sticker is placed so that it completely covers the existing Pioneer label.

Figure 2-5 — The IPL M PDP-ES sticker label

IPL M PDP-ES • Installation and Operation

Power

Figure 2-7 — RJ-45 connector wiring

For best performance, use a shielded Ethernet cable.

On/Off indicator LED — The green LED lights to indicate

that the card is receiving power. It also indicates different reset modes.

IPL M PDP-ES • Installation and Operation

2-5

Installation and Operation, cont’d

Reset button (recessed) — See Resetting the unit, later in

this chapter, for additional details on this multiple function reset button.

RS-232 communication

RS-232 port — Plug a serial cable into this 9-pin D

connector for a serial connection.

Factory default protocol for the IPL M PDP-ES interface card is

• 9600 baud

• No parity

• 8 data bits

• 1 stop bit

This port accepts Pioneer’s standard RS-232 commands and passes them through to the display. Contact Pioneer for a list of current commands.

See the chart below for the pin assignments of the 9-pin D connector RS-232 port.

Pin Function

1, 4, 6, 7, 8, 9

Figure 2-8 — RS-232, 9-pin D connector pin assignments

Tr ansmit Data/Transmit Data -

Receive Data/Receive Data Signal Ground Not Connected

Operation

Once the IPL M PDP-ES has been successfully installed and cabled, check the unit’s On/Off indicator LED (4) to ensure that the card is plugged in and communicating. At this point, the IPL M PDP-ES is ready to be configured (see chapter 3, Connection and Configuration).

If connection or communication problems occur, see Troubleshooting in chapter 4. If the troubleshooting tips do not help, check with your local network administrator, or call the Extron S

Sales & Technical Support Hotline.

DB9 Pin Locations

(Female)

RS-232

TX RX

GND

Resetting the unit

There are five reset modes available by using the Reset button (

) on the front panel. The Reset button is recessed, so use of

a pointed stylus, ballpoint pen, or Extron Tweeker is suggested.

CAUTION

If the reset button is continuously held down, every three seconds the LED pulses (blink) and puts the unit in a different reset mode, corresponding to the underscored notes in modes 3 through 5. The mode 5 LED blinks three times, the third blink indicating that it’s the last mode.

The following modes are listed as separate functions, not as a continuation from mode 1 to mode 5.

Mode 1 — Holding the reset button while applying power

defaults the unit back to the base firmware that shipped with the unit from the factory. Event scripting does not start when the unit is powered on in this mode. This allows you to recover a unit that has incorrect code or updated firmware running. All user files and settings are maintained. User Web pages may not work correctly with an earlier firmware version.

Mode 2 — Momentarily (<1 second) pressing the reset button

and entering three “+”s into the RS-232 port of the interface card (e.g., “+++” within 2 seconds of the momentary press) enables the connected COM port to be used as a console port to send SIS commands. If the three “+”s are not entered in the 2 second time frame, the COM port remains or returns to being a control port only.

A mode 2 reset disconnects a pass-through connection.

Mode 3 — Holding the reset button until the Power LED

once (3 seconds), followed by a momentary (<1 second) press turns events either On or Off, depending on the current state of the events:

• If the events are currently stopped following the

momentary (<1 second) press, the Power LED flashes twice, indicating the starting of events.

Review the reset modes carefully. Use of the wrong reset mode may result in unintended loss of flash memory programming, reassignment of ports, or a IPL M PDP-ES reboot.

The listed reset modes (with the exception of mode 2) closes all open IP connections to the unit.

blinks

2-6

IPL M PDP-ES • Installation and Operation

2-7

Installation and Operation, cont’d

• If events are currently running following the

momentary (<1 second) press, the Power LED flashes three times, indicating the stopping of events.

Each flash lasts for .25 seconds. Nothing happens if the momentary press does not occur within 1 second.

Mode 4 — Holding the reset button until the Power LED blinks

twice (6 seconds), followed by a momentary (<1 second) press resets IP settings. The Power LED blinks four times in quick succession, confirming a mode 4 reset. This mode does the following:

1. Enables ARP program capability.

2. Sets the IP address back to its factory IP address.

3. Sets the Subnet address back to its factory default.

4. Sets the Gateway back to its factory default.

5. Sets Port mapping back to its factory default.

6. Turns DHCP off.

7. Turns events off.

Nothing happens if the momentary press does not occur within one second.

Mode 5 — Holding the reset button until the Power LED blinks

three times (9 seconds) followed by a momentary (<1 second) press causes an absolute system reset back to factory default conditions (except for firmware upgrades). Nothing happens if the momentary press does not occur within 1 second. The power LED blinks four times in quick succession, confirming a mode 5 reset.

IPL M PDP-ES

Chapter Three

Connection and Configuration

2-8

Connecting the Hardware

Configuring the Hardware

IPL M PDP-ES • Installation and Operation

Connection and Configuration

Connecting the Hardware

The IPL M PDP-ES interface card is housed inside of an expansion slot (namely, the ES Card Slot) of a fourth generation Pioneer plasma. Figure 3-1 illustrates a typical setup.

Extron IPL M PDP-ES

Pioneer Plasma Ethernet Card

RESET

ACT LINK

IPL M PDP-ES

LAN

Figure 3-1 — IPL M PDP-ES interface connections

Direct PC connection

This type of connection is used initially to connect to and configure the IPL M PDP-ES card.

1. Plug one end of a Cat 5, crossover Ethernet cable into the rear panel Ethernet connector of the IPL M PDP-ES interface card. Refer to figure 2-7 for RJ-45 connector wiring.

2. Plug the other end of the Ethernet cable into the Ethernet port on your PC.

Ethernet/LAN port

This type of connection is used on an ongoing basis to connect the IPL M PDP-ES interface card to a LAN for remote control of the Pioneer plasma and other connected devices.

1. Plug one end of a Cat 5, straight-through Ethernet cable into the LAN port of the IPL M PDP-ES interface card. Refer to figure 2-7 for RJ-45 connector wiring.

2. Plug the other end of the Ethernet cable into a network switch, hub, or router connected to an Ethernet LAN or to the Internet.

3-2

IPL M PDP-ES • Connection and Configuration

RS-232

DISPLAY POWER

VOLUME

MAX/

MIN

Extron MLC 206

MediaLink Controller

VCR DVD Laptop

3. Ensure that your PC is connected to the network switch, hub, or router.

RS-232 port

The IPL M PDP-ES can be connected to a controller device or a local PC through its RS-232 port.

PC connection

1. Connect one end of a straight-through serial cable (Extron part #26-433-03) to the RS-232 port of the interface card. Refer to figure 2-8 for pin assignments.

2. Connect the other end of the cable to a local PC.

Serial connection

1. Connect the male end of an RS-232 cable (Extron part# 26-437-04) to the RS-232 port of the interface card. Refer to

figure 2-8 for pin assignments.

2. Connect the bare end of the cable to a controller device, such as the MLC 206, using the termination illustrated

MLC 206

BCDE

RS-232

below.

MLC Display/Source Control port (RS-232)

Transmit (Tx)

Receive (Rx)

Ground ( )

Orange Red

Green

To the Pioneer plasma’s RS-232 port

Figure 3-2 — Controller device wiring

Configuring the Hardware

To function together properly, both the controlling PC and the IPL M PDP-ES interface card must be configured correctly: the PC must be network-capable, with the proper protocols installed and the hardware configured correctly.

PC configuration

This manual assumes that you have a Windows PC equipped with an operating network adapter. To allow your PC to work with Extron’s Ethernet-controlled products, the TCP/IP protocol must be installed and properly configured.

To use the IPL M PDP-ES on an existing Ethernet LAN intranet, your network administrator can provide you with a unique IP address or confirm whether you need to set up the

IPL M PDP-ES • Connection and Configuration

3-3

Connection and Configuration, cont’d

IPL M PDP-ES card for DHCP (Dynamic Host Configuration protocol) to have an address assigned automatically.

IPL M PDP-ES interface card configuration

When you connect with the IPL M PDP-ES card for the first time, there are three ways to set up the IP address:

1. Use the ARP command method.

2. Use the direct PC method.

3. Use SIS commands through the RS-232 port.

Once the IPL M PDP-ES has an IP address assigned and on an active network, the on-board default Web pages allow you to configure the interface card.

Configuring the IPL M PDP-ES using the ARP command

You can make use of the ARP (Address Resolution Protocol) command to set up an IP address for your IPL M PDP-ES. The ARP command tells your computer to associate the interface card’s MAC address with the assigned IP address. You must then use ping to access the IPL M PDP-ES unit, at which point the device server’s IP address is reconfigured.

In order for you to use this setup method, both your computer and the IPL M PDP-ES interface card must be connected to the same LAN. Ensure that your PC is on the same subnet mask as the IPL M PDP-ES card.

Use ARP to configure the IP address as follows:

1. Obtain a valid IP address for your IPL M PDP-ES card from your network administrator.

2. Obtain the IPL M PDP-ES card’s MAC address (UID #) from the label on its face panel.

3. If the interface card has never been configured and is still set for factory defaults, go to step 4. If it has been configured previously, perform a mode 4 system reset. For detailed information on reset modes, see Resetting the unit in chapter 2.

CAUTION

4. Access the MS-DOS command prompt, then execute the arp –s command as follows:

Your IPL M PDP-ES card must be configured with the factory default IP address — 192.168.254.254 —before you execute the ARP command, as described below.

Enter the desired new IP address and the MAC address (located on the face panel) for the interface card. For example:

arp –s 10.13.170.15 00-05-A6-00-0A-90

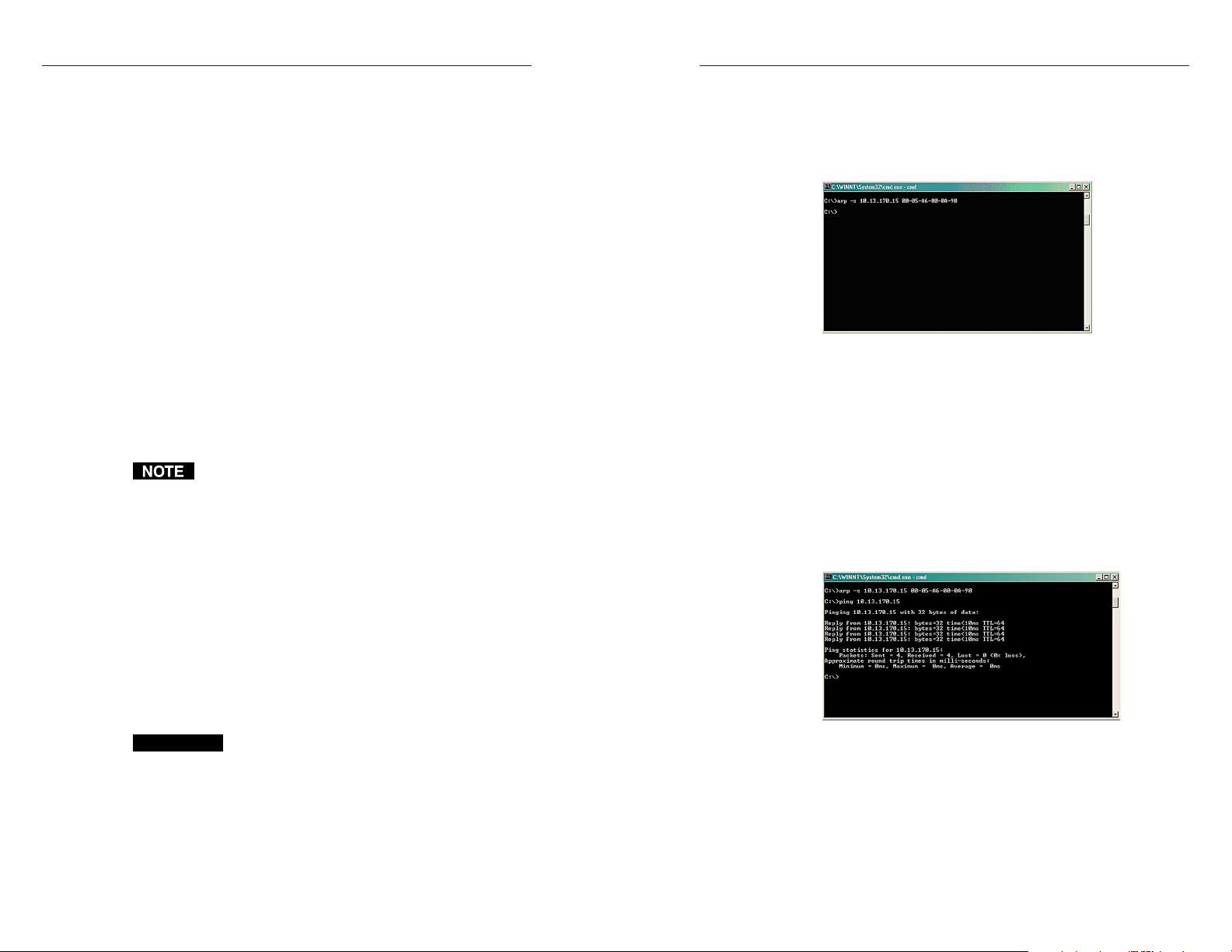

Figure 3-3 — Executing the ARP command

5. Execute a ping command by entering your new IP address at the command prompt. For example:

ping 10.13.170.15

After you issue this command, the unit changes to the new address and starts responding to the ping requests, as shown below. The interface card’s IP address should now be updated to the new address. You can now reconnect using either Telnet or the Web to verify that the update was successful.

Figure 3-4 — Unit response to a ping request

3-4

IPL M PDP-ES • Connection and Configuration

3-5

Connection and Configuration, cont’d

6. After verifying that the change was successful, issue the arp –d command at the DOS prompt. For example:

arp –d 10.13.170.15 removes 10.13.170.15 from the ARP table

or arp –d removes all static IP addresses from the ARP table.

Configuring the IPL M PDP-ES using direct PC connection

This type of connection is used to initially connect to and configure the IPL M PDP-ES interface card. You must change the card’s default settings (IP address, Subnet mask, and [optional] administrator password) in order to use the IPL M PDP-ES on an intranet (LAN) or on the Internet (WAN).

1. Plug one end of a Cat 5, crossover Ethernet cable into the LAN connector of the IPL M PDP-ES interface card. Refer to figure 2-7 for RJ-45 connector wiring.

2. Plug the other end of the Ethernet cable into the Ethernet port on your PC.

3. Right click on the Network Neighborhood or My Network Places icon on your Windows (98, 2000, NT, ME, or XP) desktop, and select Properties from the menu.

4. Right click Local Area Connection and select Properties from the menu.

5. Select Internet Protocol (TCP/IP) from the list and click on Properties again.

If Internet Protocol (TCP/IP) is not on the list, it must be added (installed). Refer to your Windows user’s manual or the online Help system for information on how to install the TCP/IP protocol.

6. Write down your current IP address and Subnet Mask below. If your PC is set to “Obtain an IP address automatically,” make a note of that, instead.

IP Address:

. . .

Subnet Mask: . . .

7. Click on “Specify an IP address” or “Use the following IP address” (depending on your operating system), and leave the default gateway blank. Enter the following values:

IP address: 192.168.254.253 Subnet mask: 255.255.0.0

8. Save the changes and exit the Network setup. Reboot the PC, if required, for the changes to become effective.

9. Launch your Web browser (Internet Explorer), and type “http://192.168.254.254/” in the address box. The IPL M PDP-ES default Web page is displayed. Refer to Navigating the default Web pages, later in this chapter, for information on configuring your unit.

10. After configuring your IPL M PDP-ES, repeat steps 3 and 4, and change your TCP/IP settings back to their original configuration.

Configuring the IPL M PDP-ES using the RS-232 port

Using a straight cable, this type of connection can be used to initially connect to and configure the IPL M PDP-ES interface card.

1. Plug one end of a straight cable to the RS-232 port of the IPL M PDP-ES interface card and the other end to a PC. Refer to figure 2-8 for pin assignments.

2. Obtain a valid IP address for your IPL M PDP-ES card from your network administrator.

3. Run a communication program (such as HyperTerminal or DataViewer) accessed through the COM port.

4. Perform a mode 2 reset. See Resetting the unit in chapter 2 for detailed information on the reset modes.

5. Use the Set IP address command to set the IP address. For example, enter

Esc 10.13.170.15 CI

The unit should respond with

Ipi • 10.13.170.15

Refer to Command/Response Table for Simple Instruction Set (SIS) Commands in chapter 4 for more detailed information

regarding the SIS commands.

6. Launch your Web browser (Internet Explorer), and type “http://10.13.170.15” in the address box.

The IPL M PDP-ES default Web page is displayed. Refer to Communication with the Interface Card in chapter 4 for information on accessing the Web server.

3-6

IPL M PDP-ES • Connection and Configuration

3-7

Connection and Configuration, cont’d

Firmware upgrades

Firmware upgrades become available periodically as improvements are made to the versatility and functionality of the IPL M PDP-ES interface card. These upgrades are available for download from the Extron Web site. For details on how to upgrade the firmware, see Upgrading the firmware in chapter 4.

IPL M PDP-ES

Chapter Four

3-8

Communication and Control

Communication with the Interface Card

Programmer’s Guide for the Telnet and Web Browser

Pioneer Plasma A/V Device Control

Troubleshooting

IPL M PDP-ES • Connection and Configuration

Communication and Control

Communication with the Interface Card

The on-board Web server has a set of built in, default Web pages, which can be accessed via a Web browser. These pages are used to control the IPL M PDP-ES interface card within the Pioneer plasma, as well as monitoring and scheduling events. In using Internet Explorer (version 5.5 or higher), you must also have Microsoft Script (version 5.6 or higher).

This chapter describes these default Web pages, which are always available and cannot be erased or overwritten.

Accessing and using the Web server

Access the IPL M PDP-ES interface card through the built in Web server pages as follows:

1. Launch your Web browser.

2. Click in the browser’s Address field.

3. Enter your IPL M PDP-ES IP address in the browser’s

Address field. The browser’s Address field should display the address in the following format: http://xx.xx.xxx.xx. For example:

http://10.13.170.15

If the local system administrators have not changed the value, the factory-specified default, 192.168.254.254, is the correct value for this field.

4. Press the keyboard Enter key.

If the interface card is password protected, see

Passwords page, later in this chapter.

If you are unable to access the Web server, see Troubleshooting at the end of this chapter.

Navigating the default Web pages

The IPL M PDP-ES default Web pages include four tabs (Status, Configuration, File Management, and Pioneer) for easy navigation of several administrative options, including system status, password control, file management, and control of the Pioneer plasma itself.

Figure 4-1 — System Status page

Configuration tab

The Configuration tab includes pages that show the current System Settings, Port settings, Passwords, Email Alerts, and Firmware Upgrade data for the IPL M PDP-ES interface card. These pages can be accessed from the left side-bar menu.

System Settings page

The Systems Settings page (figure 4-2) consists of fields where you can view and edit IP administration and system settings. Date and time information can be easily updated.

IP Link products support United States (USA), European Union (EU), and Brazil Daylight Saving Time

(DST), “Summer Time”.

Status tab

The Status tab includes the System Status page (figure 4-1). The System Status page is the default page of the on-board Web

server, and displays the IP settings and serial port settings for the IPL M PDP-ES interface card.

IPL M PDP-ES • Communication and Control

Figure 4-2 — System Settings page

IPL M PDP-ES • Communication and Control

4-34-2

Communication and Control

IP settings fields

The IP settings fields provide a location for viewing and editing settings unique to the interface card. After editing any of the settings on this page, click the Submit button. Explanations for some of these fields follow.

Unit Name

This name field can be changed to any valid name, up to 12 alphanumeric characters.

The following characters are invalid in the unit name: {space} ~ @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

DHCP

The Dynamic Host Configuration Protocol (DHCP) is an Internet protocol for automating the configuration of computers that use TCP/IP. DHCP can be used to automatically assign IP addresses, deliver TCP/IP stack configuration parameters such as the subnet mask and default router, and provide other configuration information such as the addresses for printer, time and news servers.

With DHCP “on,” you can also fill the Unit Name with your own host name (e.g., classroom1). For specific settings information, see your system administrator.

IP Address

The Address field contains the IP address of the IPL M PDP-ES interface card. This value is encoded in the flash memory of the interface card.

Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields separated by dots (periods). Each field can be numbered from 000 through 255. Leading zeroes, up to 3 digits total per field, are optional. Values of 256 and above are invalid.

The default address is 192.168.254.254, but if this conflicts with other equipment at your installation, you can change the IP address to any valid value.

Edit this field and the following fields (Gateway IP Address and Subnet Mask) as follows:

1. Click in the address field.

2. Edit the address as needed.

3. Press the Tab key on the keyboard or click in another field

to exit the IP Address field.

4. Click the Submit button to make the address change take affect.

Gateway IP address

The Gateway IP Address field identifies the address of the gateway to the mail server to be used if the interface card and the mail server are not on the same subnet.

To use Email Alert functions, the Gateway IP must be set. See Email Alerts page later in this chapter.

The gateway IP address has the same validity rules as the system IP address.

Subnet mask field

The Subnet Mask field is used to determine whether the IPL M PDP-ES is on the same subnet as the mail server when you are subnetting.

Port Settings page

The Port Settings page allows you to view the ports settings and specify the baud rate.

To do so

1. Click Port Settings on the menu (on the left side of the window) and the Port Settings screen (figure 4-3) is displayed.

2. Use the drop-down menu to select the desired Baud rate.

3. Click the Submit button to enter the changes, or click the

Cancel button to revert to the previous settings.

If using a control product (e.g., an MLC 206 or the Pioneer PlasmaTrol software) through the

IPL M PDP-ES card serial port, the card’s baud rate must match the requirements of the control product.

Figure 4-3 — web server Port Settings screen

4-4

IPL M PDP-ES • Communication and Control

4-5

Communication and Control, cont’d

Passwords page

The fields on the Passwords page are for entering and verifying passwords. Passwords are case sensitive and are limited to 12 uppercase and lowercase alphanumeric characters. Each password must be entered twice; once in the Password field and then again in the Re-enter Password field. Characters in these fields are masked by asterisks (*****).

The following characters are invalid in passwords: {space} + ~ @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

As shown in figure 4-4, password-protected connections allow two levels of protection: administrator and user. Administrators have access to status information and all function control. Users have access to status information and limited function control. Read-only users have no privileges, and can only view current settings.

Users without a password when passwords have been set are referred to as read-only users.

To set passwords for each level of user, do the following on the Passwords page:

1. Click Passwords on the menu (on the left side of the window). The Passwords screen (figure 4-4) is displayed.

2. Enter the password(s) for administrator, and user.

If there is no administrator password, your user password is not saved.

3. Tab over to the second field to reenter the same password.

4. Click the Submit button to enter the changes, or click the

Cancel button to revert to previous settings. If a field is left blank, no password(s) is assigned.

To clear a password, enter a single space in each field and click the Submit button.

Figure 4-4 — Web server Passwords screen

After you press the Submit button, the password window should appear (figure 4-5).

Figure 4-5 — Web server password window

5. Enter your administrator or user password. A User Name entry is not required.

6. Click the OK button.

Once passwords have been set, the Web server window appears whenever a user accesses the unit (figure 4-5). If you click OK without entering a password, you are a read-only user.

If you want to clear a password protection at a certain access level, enter a single space in each appropriate field and click the Submit button.

4-6

Email Alerts page

If you have created scheduled events or monitoring tasks on the IPL M PDP-ES interface card, you can write an email alert with a message corresponding to that event or task (e.g., a timer

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

4-7

Communication and Control, cont’d

notification indicating the number of operation hours remaining). The scheduled notification is sent to the appropriate mailbox.

To edit notification email addresses from the Email Alerts page:

1. Click Email Alerts on the menu (on the left side of the window) and the Email Alerts screen (figure 4-6) is displayed.

Figure 4-6 — Email Alerts screen

2. Click the corresponding Edit button to go into edit mode.

3. Add, update, or change the IP address and domain name

of your mail server under Email Settings.

4. Click Save to keep the changes.

5. Click the Edit buttons to independently edit each numeric

Email Address and File Name. a. Under Email Address, enter the email address of the

alert recipient in one of the numeric mailboxes.

b. Under File Name, enter the name of the file

containing the alert message.

c. Click Save to keep changes to recipient email

addresses and file names.

CAUTION

File names must end with an .eml extension.

Due to the 7 character limit for full file names, it’s advised that you use numeric titles (e.g., 1.eml, 24.eml). Numeric titles reduce the characters of the file name, and assist in keeping the alert files organized. However, alphabetical titles are permitted.

7. Click System Settings on the menu (figure 4-2) on the left side of the window.

8. Place the gateway IP address into the Gateway IP Address field.

9. Click the Submit button.

Sending an email alert through Telnet

To complete the process of sending an email alert, you must send it through a Telnet session and receive confirmation. To do so

1. Open a Telnet session. For instructions on how to do this, see Accessing and using Telnet later in this chapter.

2. Use the “Send email” SIS command to send the alert to the email address of a numeric mailbox (see figure 4-6). Refer to the “Email” section of the Command/Response Table for Simple Instruction Set (SIS) Commands, later in this chapter, for specific command codes.

For example, the code for sending an alert from the 4th numeric mailbox would be

Esc 4 SM

For information on creating monitoring and scheduling events with email notification from the Web server, see the Pioneer tab section, later in this chapter.

Firmware upgrade page

The Firmware Upgrade page (figure 4-7) provides a way to replace the firmware that is coded on the interface card’s control board without replacing the firmware chip.

4-8

If an email file (.eml) is missing from a scheduled or monitored event, the user is sent a “Report File

Missing” message.

To finalize your new email alerts within the Web server, do the following:

6. Obtain your gateway IP address from your system administrator.

Figure 4-7 — Firmware Upgrade page

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

4-9

Communication and Control, cont’d

Update the firmware as follows:

1. Visit the Extron web site at www.extron.com.

2. Select the IPL product category from the “Product

Shortcut” drop-down box, and select the latest firmware file for download.

3. Note the folder to which you save the firmware file.

4. Access the IPL M PDP-ES interface card using the

on-board Web server.

5. Select the Configuration tab.

6. Click the Firmware Upgrade link on the left side of the

Configuration page.

7. Click the Browse button. An open file window appears.

8. Navigate to the folder where you saved the firmware

upgrade file. Select, then double-click the file.

Valid firmware files must have the file extension “.S19”. Any other file extension is not a firmware upgrade.

The original factory-installed firmware is permanently available on the IPL M PDP-ES interface card. If the

attempted firmware upload fails for any reason, the card reverts to the factory-installed firmware.

9. Click the Upload button. The firmware upload to the interface card may take a few minutes.

If you have access to view the IPL M PDP-ES interface card, you can get visual confirmation of success: the power LED blinks three times after the upgrade is complete.

File Management tab

The File Management tab includes the File Management page (figure 4-8).

The File Management page is a useful tool that allows you to use and upload existing and custom Web pages. Custom pages can be developed using a third-party Web page development program such as FrontPage or Dreamweaver. File management also allows you to remove unnecessary or outdated files when they are no longer needed.

To add or update files:

1. Select the File Management tab. The File Management

screen (figure 4-8) is displayed.

Figure 4-8 — Web server File Management screen

2. Click the Browse button to locate the file(s) you want to upload.

If you want one of the pages that you create and upload to be the default start-up page, name that file

“index.html.”

3. Click the Upload File button to upload the file.

The file is added to the list of files under the Files column. You can also create directories within the File Management

page.

To create a directory:

1. Enter the new directory name in the Dir field alongside the

forward slash.

2. Click the Add Dir button. The new directory opens.

3. Click the Browse button, locate your chosen file, and

double click.

4. Click the Upload button. The new file appears under the file column.

A new directory does not appear on the root level unless a file has been placed within it.

To delete unwanted files or directories:

1. Find the file or directory you wish to delete under the Files

list.

2. Click the Delete button of the file or directory to be deleted. If you wish to delete additional files, wait for the screen to refresh before clicking the delete button of the next file.

4-10 4-11

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

Communication and Control, cont’d

If you wish to delete all files, click the Delete All button from the root directory. The file count reverts to 0, and all subsequent pages will be deleted.

If the last file in a directory is deleted, the empty directory is automatically deleted.

Pioneer tab

The Pioneer tab includes pages that provide information about the Pioneer plasma. Some of these pages are restricted according to the user’s password privileges (see Passwords page, earlier in this chapter).

• Pages accessible to administrator users include all

functions: Status, Controls, Advanced, Schedule, and Monitor.

• Pages accessible to users include: Status, Controls,

Schedule (view only), and Monitor (view only).

• Read-only users have no access to this tab.

Certain actions may turn IPL M PDP-ES card events to an “off” status. If this occurs, an error message appears. Click the OK button to return events back to an “on” status.

The Pioneer plasma must have an ID set to 01 to obtain status and control information.

Display Status page

Accessed through the Status link on the left side of the window, Display Status (figure 4-9) is the default page of the Pioneer tab and allows users to view the description and current status of the Pioneer plasma.

password level, the buttons and fields on this page allow you to control and/or view the status of the Pioneer plasma display. Explanations for some of these functions follow.

For specific functionality details and supported commands, refer to the Pioneer plasma documentation.

Figure 4-10 — Pioneer Display Controls screen

The status of the Input buttons are visible through buttons of three different colors:

• A blue button indicates normal input.

• A red button indicates no input.

• A yellow button indicates that the signal

is out of range.

Power

These buttons power the Pioneer plasma on or off.

An “off” status implies standby only. The plasma cannot be completely powered off via the default Web pages.

Input

These buttons show you the status of the input devices connected to the five ports of the Pioneer plasma.

• Input 1 provides status for the IPL M PDP-ES port

supporting an analog RGBHV signal.

Figure 4-9 — Pioneer Display Status screen

Display Controls page

The Display Controls page (figure 4-10) is accessible from the Controls link on the left side of the window. According to

4-12 4-13

• Input 2 provides status for the IPL M PDP-ES port

supporting a digital RGB signal.

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

Communication and Control, cont’d

Control for Input 3, Input 4, and Input 5 is available only with use of the Expansion Solution video slots for the PDA-5003 or PDA-5004 interface card. See the Pioneer Operating Instructions for additional information.

Aspect ratio

You can define the aspect ratio of Input 1 or Input 2 by clicking on each button and setting it accordingly. Each Input is defined separately.

Show Picture Controls

This button toggles between showing and hiding image adjustment and image size options. These functions can be controlled only with administrator access.

Auto Image

This button sets the screen position and clock to best match the current RGB image input. See the Pioneer Operating Instructions for additional information.

Volume

Set the volume by entering a number within the range of 0 to 45 and clicking the Set button.

Sub Volume

This menu can be used to independently set the volume of Inputs 1 and 2.

PIP (Picture in Picture, or PinP)

The Pioneer plasma display’s multi-screen function allows the simultaneous display of two inputs. PIP allows a subscreen to display in one of the six areas of the main screen. This function can be toggled off or on. See the Pioneer Operating Instructions for additional information.

Advanced Controls page

The Advanced Controls page (figure 4-11) is accessible from the Advanced link on the left side of the window. Explanations for these functions follow.

Viewing the on-screen menu on the Pioneer plasma will disable communication with and control of the display. A warning message will appear on the Web page if the on-screen menu is accessed.

Based on the input device, some aspect ratio options may not be available.

Figure 4-11 — Pioneer Advanced Control screen

Integrator Mode

These buttons allow you to toggle advanced configurations off or on.

Display Layout

These buttons allow you to toggle between normal (full screen) and 2x2 viewing. Clicking the 2x2 button allows you to specify the position of the picture by enabling the buttons below it. The four positioning buttons dictate where the picture will appear on the Pioneer display.

Mullion Compensation allows you to adjust the mullion for images displayed across several monitors and images from separate video sources. This function can be toggled off or on.

OSD (On-screen display)

These buttons allow the on-screen display to be toggled off or on.

Function Lock

These buttons allow administrator level users to lock the Pioneer main panel, IR controls, or both on the Pioneer plasma.

Orbiter

The orbiter button allows you to control the movement of pixels, preventing “screen burn” of the LCD screen. This function can be toggled off or on.

4-14 4-15

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

Communication and Control, cont’d

Energy Save

When an energy save function is selected, power consumption is reduced compared to the normal operating mode. When set to Auto, this sensor measures the level of light inside the viewing room. See the Pioneer Operating Instructions for additional information.

Schedule page

Using the schedule page (figure 4-12), you can create scheduled events such as power on/off, input changes, or send status email.

Figure 4-12 — Pioneer Schedule screen

To enable an event to occur at a specified time

1. Click Schedule on the menu on the left side of the window. The Schedule screen (figure 4-12) is displayed.

2. Select the check box beside a task.

3. Click Edit to view the calendar options and schedule the

time and date of the weekly event (figure 4-13).

Monitor page

Using the Monitor page (figure 4-13), you can monitor power levels, internal temperature and usage of the Pioneer plasma. An email notification can be sent to a recipient when specified conditions are met or exceeded.

To do so

1. Click Monitor on the menu on the left side of the window. The Monitor screen (figure 4-14) is displayed.

2. Select the check box for the appropriate condition.

3. Make appropriate changes.

4. Click Submit to input the changes.

For Users, this is a view-only function.

Figure 4-14— Pioneer Monitor screen

4-16

Figure 4-13— Pioneer Schedule calendar

4. Click Save to submit the schedule.

For Users, this is a view-only function.

If status is unavailable, the system email notification states that the internal temperature is 509° Celsius, and

the usage is 65535 hours.

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

4-17

Communication and Control, cont’d

ASCII to HEX Conversion Table

•

Programmer’s Guide for the Telnet and Web Browser

Using the command/response table

The following are either Telnet (port 23) or Web browser (port

80) commands. There are some minor differences when you are implementing these commands via Telnet or via URL encoding using a Web browser. All commands listed below will work using either connection method but, due to some limitations of the Web browser, the encapsulation characters are modified to make sure that the Web browser will properly handle them. All examples in the command/response table show the proper implementation in a Telnet or Web browser session.

Note for Web browsers: all non-alphanumeric characters must be represented as their hex equivalent,

such as %xx where xx equals the two character representation of the hex byte that needs to be sent (e.g., a comma would be represented as %2C).

Telnet Web Browser Escape (Hex 1B) W [must not be encoded]

Carriage Return (Hex 0D) Pipe Character

[must not be encoded]

When SIS commands are used through a Web browser, the URL reference is used below to shorten the examples. This would in practice be the full URL of the control interface and Web page reference including all path information.

(e.g., http://192.168.254.254/index.html) To send any of the commands using a Web browser you need to

prefix them with the full URL followed by ?cmd=. See URL

Encoding later in this chapter.

With Telnet you can use either the Escape commands or the W commands, and the carriage return or the

character. With the Web browser you are required to use the W commands and the pipe character.

In either method {Data} = Data is directed to a specified port and must be encoded if non-alphanumeric.

The Command/response table for Simple Instruction Set (SIS) commands later in this chapter lists the commands that the IPL M PDP-ES interface recognizes as valid, the responses that are returned to the host, a description of the command’s function or the results of executing the command, and an

example of each command in ASCII (Telnet) and URL Encoded (Web).

Upper and lower case text can be used interchangeably except where noted.

Symbol definitions are shown below. An ASCII to HEX conversion table is also provided in figure 4-9 (below).

Figure 4-9 — ASCII-to-HEX conversion table

Symbol definitions

)

(

= CR/LF (carriage return/line feed)

=Carriage return (no line feed)

• = Space (hard) character = Command data section

Note: For Web encoding only - Data is directed to a specified port and must be encoded (URL encoding) if non-alphanumeric. Since data can include either command terminator, they must be encoded as follows when used within the data section: space (hex: 20) would be encoded as %20 and Plus sign (hex: 2B) would be encoded as %2B.

= Greenwich Mean Time (GMT) offset value (-12.0 to +14.0)

)

pipe (

= On/Off status: 0 = Off/Disable; 1 = On/Enable

=Unit version number

X11

=Name is a text string up to 24 characters drawn from the

X12

alphabet (A-Z), digits (0-9), minus sign/hyphen (-). No blank or space characters are permitted as part of a name. No distinction is made between upper- and lowercase. The first character must be an alpha character. The last character must not be a minus sign/hyphen.

4-18

IPL M PDP-ES • Communication and Control

4-19

Communication and Control

=Set local date and time format (MM/DD/YY-HH:MM:SS)

X13

(e.g., 11/18/04-10:54:00)

Read local date and time format (day of week, date month year HH:MM:SS) (e.g., Thu, 18 Nov 2004 18:19:33)

=IP address (xxx.xxx.xxx.xxx) Leading zeros in each of four fields

X14

are optional in setting values, and are suppressed in returned values.

=Mail Domain name (e.g., extron.com, icia.org)

X15

=Hardware (MAC) address (xx-xx-xx-xx-xx-xx)

X18

=Subnet mask (xxx.xxx.xxx.xxx); leading zeros in each of four

X19

fields are optional in setting values, and are suppressed in returned values.

= Verbose/Response mode: 0 = clear/none; 1 = verbose mode;

X22

2=tagged responses for queries; 3 =v erbose mode and tagged responses for queries. Default = 0 for Telnet connections.

If tagged responses are enabled, all read commands return the constant string + the data, as setting the

value does. (e.g., Command: Esc CN Ipn •x12 ).

= Priority status for receive timeout: 0 = priority set to Send Data

X23

String command parameters; 1 = priority set to Configure rcv timeout command parameters.

=Baud rate: 1200, 2400, 4800, 9600, 19200, 38400

X25

X33

= Password: allows a maximum length of 12 characters.

User password cannot be assigned if no administrator password exists and returns E14. If an admin password is cleared, then the user password is removed too.

=Daylight saving time: 0 = Off/ignore; 1 = U.S.; 2 =Europe;

X34

3 = Brazil.

Reading Password: If a password exists, it responds with 4

X41

asterisks (****). If no password exists, it appears empty.

=Email number: Range = 1-48 (max.)

X45

=Email recipient address

X46

=Name of email file to be sent. The first line of file is the subject;

X47

the rest is the body of the email.

Response:

There is a 7 character limit for full file names. It is advised that you use numeric titles (e.g., 1.eml, 24.eml). Numeric titles reduce the characters of the file name, and assist in keeping the alert files organized. However, alphabetical titles are permitted.

=Default Name: combination of model-name and last 3 pairs of

X49

MAC address (e.g., IPL-M-PDP-ES 00-02-3D)

=Connection’s security level: 00 = anonymous; 11 = user;

X52

12 = Administrator

= The number of seconds before timeout: (min = 1; max = 65535;

X69

default = 30 = 300 seconds). If no data is received during the timeout period, the Ethernet connection is closed. Each step = 10 seconds. The response is returned with leading zeros.

Applicable to Ethernet only.

= Number (as optional parameter) inserted into an email message

X70

if .eml file has an embedded ESC CR command with no params.

© COPYRIGHT 2004, EXTRON ELECTRONICS IPL M PDP-ES, Vx.xx Thur, 18 Feb 2004 11:27:33 The copyright message is displayed upon connecting to IP Link product via TCP/IP or Telnet. Mxx is the model and Vx.xx is the firmware version number. The current date and time are displayed. This is followed by a Password prompt.

Password information

The

Password: prompt requires a password (administrator level or user level) followed by a carriage return. The prompt is repeated if the correct password is not entered.

If the correct password is entered, the unit responds with

Login Administrator or Login User , depending on password entered. If passwords are the same for both administrator and user, the unit defaults to administrator privileges.

Error responses

When the IPL T S interface receives a valid command, it executes the command and sends a response to the host device. If the unit is unable to execute the command because the

4-20

Email files must have the file extension .eml.

IPL M PDP-ES • Communication and Control

4-21

Communication and Control

command contains invalid parameters, it returns an error response to the host.

E12 — Invalid port number E13 — Invalid parameter E14 — Not valid for this configuration E17 — System timed out E22 — Busy E24 — Privilege violation E25 — Device not present E26 — Maximum number of connections exceeded E27 — Invalid Event number E28 — Bad Filename/File not found

References to errors (at command descriptions on the following pages)

= Commands that give E14 (Invalid Command for this

configuration) if sent to Extron product whose current

configuration does not support the command.

= Commands that give E24 (Privilege violation) if not

administrator level

= Commands that may give E27 (Invalid Event number)

= Commands that may give E28 (File not found)

,N,8,1

X25

,N,8,1

X25

response from command

%2CN%2C8%2C1CP| Cpn1•Ccp

X25

X11

(plus web ver.-desc-UL date/time)

X11

(plus web ver.-desc-UL date/time)

X11

Card

4-22

IPL M PDP-ES • Communication and Control

W1%2A300%2A100%2A3DRS|

,N,8,1CP W1%2A

X25

Esc 1*0CD W1%2A0CD| Cpn 1• Ccd 00000,00000,00000L

Esc 1*

Esc 1*400*200*0*3DCE W1%2A400%2A 200%2A0%2A3DCE| Cpn1•Cce400,200,0,3D

Send data string Esc 1*300*100*3D RS

Configure parameters

View parameters Esc 1CP W1CP|

Command/Response Table for Simple Instruction Set (SIS) commands

Command ASCII (Telnet) URL Encoded (Web) Response

Bidirectional Serial Data port

Set receive timeout

Esc 2*1*500*3DCD W2%2A1%2A500%2A3DCP| Cpn 2•Ccd 1, 00500,00003D

View receive timeout Esc 1CE W1CE| 00400, 00200, 0, 00003D

Set redirect mode

Terminated redirect mode

View redirect mode Esc 1CD W1CD| 00002,00500,00003D

Query firmware version Q Q

Query verbose version information 0Q 0Q sum of responses from 2Q-3Q-4Q

Query firmware version 1Q 1Q

Firmware Version/Part Number/Information

Query bootstrap version 2Q 2Q

Query factory firmware version 3Q 3Q

Query updated firmware version 4Q 4Q

(Note: An asterisk (*) placed after the version number indicates which version is currently running. Question marks (?.??) indicate

that only the factory firmware version is loaded. A caret (^) after the version number indicates the firmware version that should be

running, but a Mode 1 reset was executed The default factory firmware version is loaded. An exclamation point (!) after the version

IPL M PDP-ES • Communication and Control

Request part number N N 60-725-01

Request model name 1I 1I IPL M PDP-ES

Request model description 2I 2I Pioneer PDP Expansion Solution Interface

Request system memory usage 3I 3I # Bytes used out of 1024 Kbytes

number indicates corrupted firmware.)

Request user memory usage 4I 4I # Bytes used out of 704 Kbytes

4-23

Communication and Control, cont’d

X34

X22

X41

X12

X49

X12

X13

X34

X14

X18

X19

X14

X22

X41

X52

var file - new Array():

file [1] = ‘filename1, date1, filesize1’;

file [2] = ‘filename2, date2, filesize2’;

file [n] = ‘filename n, date n, filesize n’;

file [n+1] = ‘space remaining, Bytes left’

W LF|

CN| Ipn•

X12

CN W

X12

Esc

Command ASCII (Telnet) URL Encoded (Web) Response

Set Unit name

IP Setup Commands

CT| Ipt•

X13

CT W

X13

Esc •CN W%20CN| Ipn•

Esc

Set Unit name to factory default

View Unit name Esc CN WCN|

Set time/date

View time/date Esc CT WCT|

CX| Ipx

CZ| Ipz

X34

CX W

CZ W

X34

Esc

Esc 1DH W1DH| Idh 1

Set GMT offset

View GMT offset Esc CZ WCZ|

Set daylight savings time

View daylight savings time Esc CX WCX|

Set DHCP on

Esc 0DH W0DH| Idh 0

Set DHCP off

View DHCP mode Esc DH WDH| X5Set IP address

CI| Ipi•

X14

CI W

X14

Esc

View IP address Esc CI WCI|

CS| Ips•

CG| Ipg•

X19

X14

CS W

CG W

X19

X14

Esc

View hardware address (MAC) Esc CH WCH|

Set subnet mask

View subnet mask Esc CS WCS|

Set gateway IP address

CV| Vrb

X22

CV W

X22

Esc CG WCG|

Esc

View gateway IP address

Set verbose mode

View verbose mode Esc CV WCV|

Get connection listing Esc CC WCC| Number of connections

CA| Ipa•

X33

CA W

X33

Esc

Command ASCII ( Telnet) URL Encoded (Web) Response

Set administrator password

Password and Security Settings

CU| Ipu•

X33

CU W

X33

Esc •CA W%20CA| Ipa•

Esc CA WCA|

Esc

Esc •CU W%20CU| Ipu•

Esc CU WCU|

Clear administrator password

View administrator password

Set user password

Clear user password

View user password

View connection’s security level Esc CK W CK|

Telnet text responses: Web responses:

filename x• date/time • length

List files from current directory Esc DF W DF|

File Commands

... ...

space_remaining • Bytes Left

List Files from current Dir. & below Esc LF

4-24

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

4-25

Communication and Control, cont’d

X45

X14

00000

X47

X46

X45

X47

X46

X45

X15

X14

X15

X14

X45

SM| Eml

X47

Esc /EF W /EF| Ddl

24 28

Esc //EF W //EF| Ddl

24 28

Esc filename EF WfilenameEF| Del•filename

24 28

Esc {port#}MT W{port#}MT| Pmt {port#}

Esc 23MT W23MT| Pmt 00023

Esc 0MT W0MT| Pmt 00000

Esc MT WMT| {port#}

Esc {port#}MH W{port#}MH| Pmh {port#}

Esc 80MH W80MH| Pmh 00080

Esc 0MH W0MH| Pmh 00000

{port#}MD| Pmd {port#}

2001MD| Pmd 02001

Esc MH WMH| {port#}

Esc {port#}MD W

Esc 2001MD W

0MD| Pmd

Esc 0MD W

Esc MD WMD| {port#}

CR| Ipr

X47

X46

CR|

SM| Eml

X45

CR W

X47

X46

CR W

SM W

X45

Esc

%2C

CM|

CM| Ipm•

X70

X15

%2C

X45

X14

SM W

X47

CM W

X70

X15

X14

X45

Esc

Change / Create directory Esc path/directory/CJ W path/directory/CJ| Dir•path/directory/

Back to root directory Esc / CJ W%2F CJ| Dir•/

Up one directory Esc ..CJ W%2E%2E CJ| Dir•path/directory/

Command ASCII ( Telnet URL Encoded (Web) Response

Directories

View current directory Esc CJ W CJ| Dir•path/directory/

Note: Directory does not truly exist until a file has been copied into that path.

Erase current dir. & its files

Erase current dir. & subdirectories

Erase user-supplied Web page and files

Set Telnet port map

Reset Telnet port map

Disable Telnet port map

View Telnet port map

Re-map port designations

Set Web port map

Reset Web port map

Disable Web port map

View Web port map

Set Direct Access port map

Reset Direct Access port map

Disable Direct Access port map

Command ASCII ( Telnet) URL Encoded (Web) Response

Re-map port designations, continued

View Direct Access port map

Read response from last URL cmd Esc UB WUB| response from command

Web Browser Specific

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

Configure email events

View email events Esc

Send email (event)

Set mail server IP, domain name

View mail server IP, domain name Esc CM W

Send email (using different file)

4-274-26

Communication and Control, cont’d

Pioneer Plasma A/V Device Control

Once the IPL M PDP-ES interface card is configured, control of A/V devices may be accomplished in several ways. These include Web pages, Telnet, and direct port access.

X69

TC| Pti 0*

TC| Pti 1*

X69

TC W0 %2A

TC W1 %2A

X69

Custom Web pages

These pages can be either modified versions of the existing Web pages, or new Web pages developed in the field.

Web page development can be done with a Web site development tool such as FrontPage or Dreamweaver. Custom Web pages are loadable with the Web server File Manager (see

File Management tab earlier in this chapter).

If you want one of the pages that you create and upload to be the default start-up page, name that file

“index.html.”

Telnet (port 23)

Telnet, short for Telecommunications Network, provides a way for you to connect to a computer or server (in this case the IPL M PDP-ES interface card) on a network. Once connected via Telnet, you can send ASCII commands (see the Command/ response table for Simple Instruction Set (SIS) commands earlier in this chapter) to the IPL M PDP-ES.

Accessing and using Telnet

1. From the Windows Start menu, Click Run, then enter “Telnet” and click OK. The Telnet program starts (see figure 4-18).

Set current conn port timeout Esc 0*

View current conn port timeout Esc 0TC W0TC|

Ethernet Data Port

Command ASCII ( Telnet) URL Encoded (Web) Response

Set global IP port timeout Esc 1*

View global IP port timeout Esc 1TC W1TC|

Esc 1AE W1AE| Ego

Esc 0AE W0AE| Est

Start Events

Stop Events

Event Control

Esc filename EF W filename EF| Del•filename

Esc ZFFF WZFFF| Zpf

Esc ZXXX WZXXX| Zpx

24 28

Query number of events running Esc AE WAE| #####

Erase user-supplied Web page/file

Reset (ZAP)/Erase Commands

Esc ZQQQ WZQQQ| Zpq

Erase flash memory

Reset all device settings to factory

Absolute System Reset

(Includes IP address = 192.168.254.254, subnet mask = 255.255.0.0)

Figure 4-18 — Telnet command prompt

2. At the command prompt, enter “open” and press Enter.

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

4-294-28

Communication and Control, cont’d

3. At the < to > prompt, enter the IP address of the

IPL M PDP-ES. (The default IP address is 192.168.254.254, but it may have been changed in the setup or configuration process. If it was changed, use the new address.) Telnet defaults to port 23.

Figure 4-19 — Connecting to the IP address

4. If passwords were set up for the connected system, you are prompted to log in as an administrator or a user. Otherwise the system responds with a <cr/lf>.

5. Once you are connected, you can enter SIS commands as desired.

6. When you are finished entering commands to the interface, enter CTRL + to close the open connection.

7. Enter “quit” at the command prompt to quit Telnet.

Direct access (port 2001)

Direct access allows a direct, one-to-one connection to the plasma via a reserved IP port number. When a TCP session is initiated to port 2001, all data sent and received passes directly to and from that port without any processing.

Using direct access

1. Open a direct access Telnet session by entering the IP address followed by a space, then a port number 2001 (e.g., 192.168.244.244 2001).

2. Send Pioneer commands directly to the Pioneer plasma.

For specific functionality details and supported commands, refer to the Pioneer Plasma documentation.

3. Close the Telnet session to end the direct access session.

4. Use port redirect to finish the process. See the next section

for detailed instructions.

You can force the direct access session to close by logging on as administrator and entering “Esc 1 * 0CD .”

Port redirect

Using the port redirector, the card allows data to be sent and received directly to and from the display and back to the client (e.g., a PC or the MLC 206) without any processing.

1. Open another Telnet session (see the previous section for details).

2. Reestablish a pass-through by using the “set redirect mode” command:

Esc 2*1*500*3DCD

Troubleshooting

Turn on the plasma display and the control devices (PC, laptop, etc.).

If the output Pioneer plasma cannot be remotely controlled, check the following:

Power connections

1. Ensure that the Pioneer plasma is plugged in.

2. If the Pioneer and the IPL M PDP-ES are receiving power,

its Power LED should be on.

Data connections

1. Check the cabling connections and make adjustments as needed. The Link LEDs on the IPL M PDP-ES and the computer should be solid green if a network connection is detected. If these LEDs are not lit, the cable is either faulty or not plugged in; or the wrong type of cable is being used (refer to Connecting the Hardware, in chapter 3).

2. Try to ping the unit by entering ping 192.168.254.254 at the DOS command prompt; or use the Web address provided to you by your system administrator. If you get no response:

a. Make sure your unit is using the appropriate subnet

mask and/or gateway IP address (check with your system administrator).

b. Make sure your PC does not have a software firewall

program that might block the IP address of the unit.

4-30

IPL M PDP-ES • Communication and ControlIPL M PDP-ES • Communication and Control

4-31

Communication and Control, cont’d

3. If contact is established with the unit, but the unit’s Web pages cannot be accessed by your Web browser, verify (in the Options or Preferences menu) that your Web browser is configured for direct network connection and not set up to use a proxy server.

Serial connections

1. Ensure that Pioneer plasma ID is set to 01 (see the Pioneer plasma documentation for details).

2. Check to see that events are running.

3. Ensure that the on-screen display is off.

4. Check that the IPL M PDP-ES interface card baud rate

matches that of the control device (e.g., a PC or the MLC

206).

If status is missing or unavailable, check the following:

1. Ensure that the Pioneer plasma ID is set to 01 (see the

Pioneer plasma documentation for details).

2. Check that the IPL M PDP-ES interface card baud rate matches that of the control device (e.g., a PC or the MLC 206).

3. Ensure that the redirect port has been enabled.

If you are unable to access the Web server, do the following:

Ensure that your PC is on the same subnet mask as the IPL M PDP-ES card. If not, see Configuring the IPL M PDP-ES using direct PC connection in chapter 3 for detailed instructions on setting up the subnet mask.

If you are still experiencing problems, call the Extron S Technical Support Hotline.

Sales &

IPL M PDP-ES

Appendix A

Specifications, Part Numbers,

and Accessories

4-32

Specifications

Parts

IPL M PDP-ES • Communication and Control

Specifications, Part Numbers, and Accessories

Specifications

Ethernet control interface

Connectors .................................... 1 RJ-45 male connector

Data rate ........................................ 10/100 Base-T, half/full duplex with

autodetect

Protocols ....................................... ARP, DHCP, ICMP (ping), TCP/IP, UDP/

IP, Telnet, HTTP, SMTP

Default settings ............................ Link speed and duplex level =

autodetected, IP address = 192.168.254.254, subnet mask = 255.255.0.0, default gateway = 0.0.0.0, DHCP = off

Serial control interface

Port number/type ....................... 1 RS-232

Connectors .................................... (1) 9-pin female D

Baud rate and protocol ............... 1200, 2400, 4800, 9600 (default), 19200,

38400 baud (adjustable); 8 data bits, 1 stop bit, no parity

Pin configurations (RS-232)........ 2 = RX, 3 = TX, 5 = GND

General

Power............................................. Supplied by a Pioneer plasma display

Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) /

10% to 90%, noncondensing Operating +32° to +122°F (0° to +50°C) /

10% to 90%, noncondensing

Rack mount................................... No

Enclosure type.............................. Metal faceplate

Product dimensions

Faceplate ................... 1.09" H x 4.80" W x 0.26" D (2.6 cm H x

12.2 cm W x 0.7 cm D)

Device ........................ 0.9" H x 3.6" W x 3.5" D (2.3 cm H x 9.2 cm

W x 8.8 cm D)

(Depth excludes connectors.) Product weight………………… 0.2 lbs (0.11kg) Shipping weight……………….. 1 lb (1 kg)

Vibration ....................................... ISTA 1A in carton (International Safe

Transit Association)

Listings .......................................... UL1950/UL6500, CUL

Compliances ................................. CE, FCC part 15 B class B, VCCI class B,

AS/NZS, ICES, IFCC Class A, IEC60950, IEC60056, EN550ee class B, EN55024,

EN61000-3-2,-3-3

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

Parts

Included parts

Included parts Replacement part number

IPL M PDP-ES 60-725-01 IPL M PDP-ES User’s Manual 68-1021-01 IPL M PDP-ES Quick Start Card 68-1021-10 Connector Label (Apply to Pioneer display) 33-1154-01 Tweeker

A-2

IPL M PDP-ES • Specifications, Part Numbers, Accessories

A-3

Specifications, Part Numbers, Accessories, cont’d

IPL M PDP-ES

Appendix B

A-4

Glossary

IPL T S Series • Specifications, Part Numbers, and Accessories

Glossary

GLOSSARY

10/100Base-T is Ethernet that uses Unshielded Twisted Pair (UTP - Cat 5, etc.) cable, in which the amount of data transmitted between two points in a given amount of time is equal to either 10 Mbps or 100 Mbps.

Address Resolution Protocol (ARP) is a protocol that assigns an IP address to a device based on the device’s MAC or physical machine address.

Custom Web-page is any file that can be loaded into an IPL box and served by the IPL’s internal Web-server. A custom Web page can provide control of devices attached to the IPL without use of the Global Viewer (GV) or Global Viewer Configurator (GVC). This is true with or without an accompanying event script. Any number and size of graphics can be used, but if they are too large to fit on the IPL, you can write your Web page so that they can be served from another Web server. If you install Microsoft Internet Information Services (IIS) on your desktop, you can serve any page on its hard disk. The IPL functions like a little computer with a Web-server—you can use it for various Web tasks.

DHCP (Dynamic Host Configuration Protocol) is a standardized communications protocol that enables network administrators to locally and automatically manage the assignment of IP addresses in an organization’s network.

Driver is a Global Viewer Configurator (GVC) compatible package. It includes the event script that controls devices.

Ethernet is a network protocol that uses MAC addresses instead of IP addresses to exchange data between computers. Using ARP (see above) with TCP/IP support, Ethernet devices can be connected to the Internet. An Ethernet LAN typically uses unshielded twisted pair (UTP) wires. Ethernet systems currently provide transmission speeds of 10 Mbps or 100 Mbps.

Event script is a program that runs on an IPL box and issues queries and commands to the attached devices. As long as event scripts are turned on, event scripts run continuously on the box.

Global Viewer Configurator (GVC) is a Windows-based program that, based on user input, creates a Global Viewer (GV). The GVC requests system information such as which

devices you have and your current list of IP addresses. With this information, GVC creates a GV for your specific devices. The GVC also compiles the event scripts and loads the GV and event scripts onto the box. When using the GVC, the user must specify the port number for each device (for attached devices to be controlled, they must be on that port). In order for multiple IP-link boxes to appear in the same GV, all the boxes must be configured at the same time, using the GVC.

Global Viewer (GV) is a Web application that is loaded into the memory of an IPL unit. These pages provide an interface for control of devices attached to the IPL product. They communicate with the event scripts running on the unit, and the event scripts issue the commands and queries. This communication between the Web pages and the event scripts occurs through predetermined memory locations in the IPL unit.

HTTP (HyperText Transfer Protocol) is a Web protocol based on TCP/IP, that is used to fetch HyperText objects from remote Web pages.

Internet Protocol (IP) is the protocol or standard used to send information from one computer to another on the Internet.

IP address is a unique, 32-bit binary number (12 digit decimal number, xxx.xxx.xxx.xxx) that identifies each sender and each receiver of information connected to a LAN, WAN, or the Internet. IP addresses can be static (see Static IP) or dynamic (see DHCP).

IP Netmask is a 32-bit binary number (12 digit decimal number, xxx.xxx.xxx.xxx) used on subnets (smaller, local networks) to help the router determine which network traffic gets routed internally to local computers and which network traffic goes out on the Internet.

Media Access Control (MAC) Address is a unique hardware number given to devices that connect to the Internet. When your computer or networking device (router, hub, interface, etc.) is connected to the Internet, a table (see ARP) relates the device’s IP address to its corresponding physical (MAC) address on the LAN.

Pass-through allows control systems to work with the IPL and provides a link between two ports.

Ping is a utility that tests network connections. It is used to determine if the host has an operating connection and is able to exchange information with another host.

B-2

IPL M PDP-ES • Glossary

B-3

Glossary, cont’d

Port number is a preassigned address within a server that provides a direct route from the application to the Transport layer, or from the Transport layer to the application, of a TCP/IP system.

Static IP refers to an IP address that has been specifically (instead of dynamically; see DHCP earlier in this chapter) assigned to a device or system in a network configuration. This type of address requires manual configuration of the actual network device or system and can be changed only manually or by enabling DHCP.

Transmission Control Protocol/Internet Protocol (TCP/IP ) is the communication protocol (language) of the Internet. Computers and devices with direct access to the Internet are provided with a copy of the TCP/IP program to allow them to send and receive information in an understandable form.

Telnet is a utility available on most PCs that allows the computer system to communicate with one of its remote users/ clients. A user who wishes to access a remote system initiates a Telnet session, using the address of the remote client. The user may be prompted to provide a user name and password if the client is set up to require them.

URL encoding allows you to send information and commands to the unit to change its configuration or provide you with feedback.

IPL M PDP-ES • GlossaryIPL M PDP-ES • Glossary

B-5B-4

Glossary, cont’d

B-6

IPL M PDP-ES • Glossary

Extron electronic 68-1021-01 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
