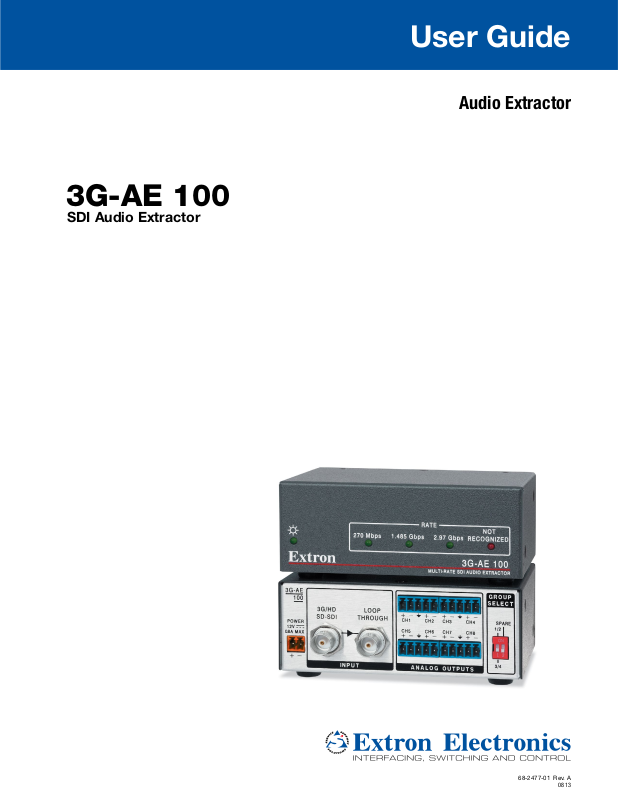

3G-AE 100
SDI Audio Extractor
User Guide
Audio Extractor
68-2477-01 Rev. A
08 13
Safety Instructions
Safety Instructions • English
WARNING: This symbol, , when used on the product, is intended
to alert the user of the presence of uninsulated dangerous voltage
within the product’s enclosure that may present a risk of electric
shock.
ATTENTION: This symbol, , when used on the product, is intended
to alert the user of important operating and maintenance (servicing)
instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron
website, www.extron.com.
Instructions de sécurité • Français
Avertissement: Ce pictogramme, , lorsqu’il est utilisé sur
le produit, signale à l’utilisateur la présence à l’intérieur du boîtier
du produit d’une tension électrique dangereuse susceptible de
provoquer un choc électrique.
Attention: Ce pictogramme, , lorsqu’il est utilisé sur le produit,
signale à l’utilisateur des instructions d’utilisation ou de maintenance
importantes qui se trouvent dans la documentation fournie avec le
matériel.
Pour en savoir plus sur les règles de sécurité, la conformité à la
réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets
connexes, lisez les informations de sécurité et de conformité Extron,
réf. 68-290-01, sur le site Extron, www.extron.fr.
Sicherheitsanweisungen • Deutsch
wArnung: Dieses Symbol auf dem Produkt soll den
Benutzer darauf aufmerksam machen, dass im Inneren des
Gehäuses dieses Produktes gefährliche Spannungen herrschen,
die nicht isoliert sind und die einen elektrischen Schlag
verursachen können.
Chinese Simplified（简体中文）
警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险
电 压 ，有 触 电 危 险 。
注意： 产品上的这个标志意在提示用户设备随附的用户手册中有
重要的操作和维护(维修）说明。
关于我们产品的安全指南、遵循的规范、
使用的特性等相关内容，敬请访问 Extron
安全规范指南，产品编号 68-290-01
EMI/EMF 的兼容性、无障碍
网站 www.extron.cn，参见 Extron
。
Chinese Traditional（繁體中文）
警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著
可能會導致觸電之風險的未絕緣危險電壓。
注意 若產品上使用此符號，是為了提醒使用者。
有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細
資訊，請瀏覽 Extron 網站：www.extron.cn，然後參閱《Extron 安全性與法規
遵守手冊》，準則編號 68-290-01。
Japanese
警告: この記 号 が製品上に表示されている場合は、筐体内に絶縁されて
いない高電圧が流れ、感電の危険があることを示しています。
注意: この 記号 が製品上に表示されている場合は、本機の取扱説明書に
記載されている重要な操 作と保守(整備)の指示についてユーザーの
注意を喚起するものです。
vorsicht: Dieses Symbol auf dem Produkt soll dem Benutzer in
der im Lieferumfang enthaltenen Dokumentation besonders wichtige
Hinweise zur Bedienung und Wartung (Instandhaltung) geben.
Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung,
EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie
in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer
68-290-01) auf der Extron-Website, www.extron.de.
Instrucciones de seguridad • Español
ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,
avisa al usuario de la presencia de voltaje peligroso sin aislar dentro
del producto, lo que puede representar un riesgo de descarga
eléctrica.
AtenciÓn: Este símbolo, , cuando se utiliza en el producto, avisa
al usuario de la presencia de importantes instrucciones de uso y
mantenimiento recogidas en la documentación proporcionada con
el equipo.
Para obtener información sobre directrices de seguridad, cumplimiento
de normativas, compatibilidad electromagnética, accesibilidad y
temas relacionados, consulte la Guía de cumplimiento de normativas
y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,
www.extron.es.
安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に
つ い て は 、エ ク ストロ ン の ウ ェブ サ イト www.extron.jpより
『Extron Safety and Regulatory Compliance Guide 』 (P/N 68-290-01) をご覧くだ さ い 。
Korean
경고: 이 기호 , 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 접지되지
않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.
주의: 이 기호 , 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와
있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.
안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련
항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.co.kr)의
Extron 안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference; the user must correct the interference at
his own expense.
NOTE: This unit was tested with shielded I/O cables on the peripheral devices. Shielded cables
must be used to ensure compliance with FCC emissions limits.
For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility,
accessibility, and related topics, see the “
Extron Safety and Regulatory Compliance
Guide” on the Extron website.
Copyright
© 2013 Extron Electronics. All rights reserved.
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks®, registered service marks
(SM)
, and trademarks
RGBSystems, Inc. or Extron Electronics:
Registered Trademarks
AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, GlobalViewer, Hideaway, Inline, IPIntercom, IPLink,
Key Minder, LockIt, MediaLink, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, System Integrator,
TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP and XTP Systems
(SM)
Registered Service Mark
AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), AIS (Advanced Instruction Set), Auto-Image, CDRS (Class D
Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), DriverConfigurator, DSPConfigurator, DSVP
(Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, ProDSP, QS-FPC (QuickSwitch Front Panel
Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, XTRA, ZipCaddy, ZipClip
: S3 Service Support Solutions
Trademarks
(®)
(™)
(TM)
are the property of
Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
ATTENTION: Attention indicates a situation that may damage or destroy the product or
associated equipment.
NOTE: A note draws attention to important information.
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.
Contents
Introduction............................................................ 1
About the 3G-AE 100 ......................................... 1
Features ............................................................. 1
Panels and Cabling .............................................. 2
Front Panel Features ........................................... 2
Rear Panel Features and Cabling ........................ 2
Operation ................................................................ 5
Audio Group Selection ........................................ 5
Reference Information ........................................ 6
SDI Audio Channel Designation .......................... 6
Mounting ............................................................ 7
Tabletop Placement ........................................ 7
Rack Mounting ............................................... 7
Under-desk and Furniture Mounting ................ 7
v3G-AE 100 • Contents
Introduction
H
HD-SDI Monitor
This section covers the following:
• About the 3G-AE 100
• Features
About the 3G-AE 100
The Extron 3G-AE 100 extracts embedded audio from a 3G-SDI, HD-SDI, or SDI signal,
converts digital audio to analog audio, and provides analog stereo audio to the output ports.
Figure 1 shows a typical 3G-AE 100 application.
Extron
3G-AE 100
SDI Audio
Extractor
D Media Server
Extron
DMP 64
Digital Matrix
Processor
3G-AE
100
POWER
12V
0.8A MAX
Multi-rate SDI
1
21
DMP 64
POWER
12V
45 34
1.0A MAX
MIC/LINE INPUTS
Analog
Audio
3G/HD
LOOP
SD-SDI
THROUGH
CH 1 CH 2 CH 3 CH 4
CH 5 CH 6 CH 7 CH 8
INPUT ANALOG OUTPUTS
Loop
Through
1
23
1
OUTPUTS
23G
I/O
REMOTE
456G
MIC
+48V
123
6
456
Ethernet
GROUP
SELECT
SPARE
1/2
ON
Audio
1
2
3/4
100-240V 0.5A, 50-60Hz
XPA 1002
1
2
LIMITER/PROTECT
SIGNAL
Extron
XPA 1002
Audio Power Amplier
RS-232 (1)
TxRx G
RS-232 (2)
TxRx G
ATTENUATION
10
12
14
18
26
∞
LAN
TCP/IP
Network
21
10
12
8
8
6
6
14
4
4
2
2
0
0
∞
RESET
INPUTS
8Ω / 4Ω OUTPUTS
REMOTE
1
1
2
2
50mA
10V
G
STANDBY
GCV
CLASS 2 WIRING
Audio
Extron
SI 28
Surface-mount
Speakers
Figure 1. 3G-AE 100 Application Diagram
Features
• Supports up to 2.97 Gbps of SDI and 3G-SDI data
• Compatible with Extron SDI products such as SW4 3G HD-SDI, 3G HD-SDI 101 and
FOX 3G HD-SDI.
• One SDI input
• One SDI buffered loop through
• Eight analog audio outputs
• One DIP switch for audio group selection
3G-AE 100 • Introduction 1
Panels and Cabling
This section covers the following:
• Front Panel Features
• Rear Panel Features and Cabling
Front Panel Features
1 2
270 Mbps 1.485 Gbps 2.97 Gbps
a Power LED — lights green when the unit is receiving power.
b Rate LEDs — indicate the data rate of the incoming SDI signal (270 Mbps,
1.485 Gpbs, or 2.97 Gbps). If a signal is unrecognized, the “Not Recognized” LED will
light.
Rate LEDs will light once from left to right as a power up sequence when the unit is
powered.
Rear Panel Features and Cabling
The following section covers rear panel features and cabling procedures. If mounting is
necessary before connecting cables, see the Mounting section on page 7.
ATTENTION: Turn the input and output devices off and unplug their power cords.
Verify that the 3G-AE 100 is disconnected from the power source before proceeding.
RATE
MULTI-RATE SDI AUDIO EXTRACTOR
NOT
RECOGNIZED
3G-AE 100
3G-AE 100 • Panels and Cabling 2
3G-AE
Smooth
Power Supply Output Cord
100
POWER
12V
0.8A MAX
3G/HD
SD-SDI
LOOP
THROUGH
INPUT ANALOG OUTPUTS
CH 1 CH 2 CH 3 CH 4
CH 5 CH 6 CH 7 CH 8
GROUP
SELECT
SPARE
1/2
ON
1
2
3/4
1
2 3
4
5
Figure 2. 3G-AE 100 Rear Panel
a Power input — Wire the power supply as shown in figure 3, and connect it to the
power connector.
Ridges
SECTION A–A
Figure 3. Power Connection
ATTENTION:
• Do not tin the wires. For best results and to reduce the risk of short circuits,
trim just 3/16 inch (5 mm) of the jacket from the wires. If it is any longer, the
exposed wires may touch, causing a short circuit between them. If it is any
shorter, the wires can be easily pulled out even if tightly fastened by the captive
screws.
• Always use a power supply supplied by or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification and
may cause damage to the supply and the end product.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air
handling spaces or in wall cavities. The power supply is to be located within the
same vicinity as the Extron AV processing equipment in an ordinary location,
Pollution Degree 2, secured to the equipment rack within the dedicated closet,
podium or desk.
• The installation must always be in accordance with the applicable provisions of
National Electrical Code ANSI/NFPA 70, article 75 and the Canadian Electrical
Code part 1, section 16. The power supply shall not be permanently fixed to
building structure or similar structure.
A
3/16”
A
(5 mm) Max.
NOTE: Do not tin the wires. Tinned wire does not hold its shape and can become
loose over time.
b 3G-SDI Input — Connect an input device to the 3G-SDI input connector. The incoming
SDI signal is automatically detected and equalized.
Input equalization will allow signal transmission distances as follows:
• SDI: Up to 1400 feet (426 m) using RG6 cable
• HD-SDI: Up to 600 feet (182 m) using RG6 cable
• 3G-SDI: Up to 500 feet (152 m) using RG6 cable
3G-AE 100 • Panels and Cabling 3
c Loop Through connector — If necessary, plug in an output device to the
Do not tin the wires!
Balanced Audio Output
Unbalanced Audio Output
No Ground Here
Loop Through connector. The SDI input signal is equalized, re-clocked, and routed
to the Loop Through connector. This connector may also be used for cascading to
another 3G-AE 100.
NOTE: It is not required to connect a device to the Loop Through connector in
order to extract audio from the input device.
d Analog Outputs — Connect up to four audio output devices to the Analog Outputs,
using a cable with a balanced or unbalanced 3.5 mm, 5-pole captive screw connector.
Wire as shown below.
Tip
Ring
Sleeves
Tip
Ring
LR
Sleeves
Tip
Tip
No Ground Here
LR
Figure 4. Analog Output Connector Wiring
ATTENTION: Connect the sleeve to the ground (Gnd) terminal. Connecting the
sleeve to a negative (-) terminal will damage the audio output circuits.
e Group Select DIP switch — see the Operation section on the next page for
instructions on using the Group Select DIP switch.
3G-AE 100 • Panels and Cabling 4
Operation
3G/HD
SD-SDI
3G-AE
100
LOOP
THROUGH
3G
3G/HD
-
SD S
DI
E
E
0
0
O
P
THRO
GH
Group 3 is output on
these ports.
3G/HD
SD-SDI
3G-AE
100
LOOP
THROUGH
INPUT ANALOG OUTPUTS
12V
- - A MAX
POWER
3
G
INPU
T
- -
3G
/HD
-
SD S
DI
0
0
O
P
THROUGH
Group 1 is output on
these ports.
ERR
Group 2 is output on
these ports.
3G/HD
SD-SDI
3G-AE
100
LOOP
THROUGH
INPUT ANALOG OUTPUTS
12V
- - A MAX
POWER
3G
INPUT
1
2
-
-
P
O
3G/HD
-
SD SDIEE0
0
O
P
THRO
GH
Group 3 is output on
these ports.
A M
X
R
Group 4 is output on
these ports.
3G/HD
SD-SDI
3G-AE
100
LOOP
THROUGH
INPUT ANALOG OUTPUTS
12V
- - A MAX
POWER
3
G
INPU
T
- -
3G
/HD
-
SD S
DI00
O
P
THROUGH
Group 1 is output on
these ports.
A M
X
ERR
Group 2 is output on
these ports.
CH 5 CH 6 CH 7 CH 8
CH 1 CH 2 CH 3 CH 4
ANALOG OUTPUTS
GROUP
SELECT
SPARE
1
1/2
3/4
2
ON
Group 1 is output on
the top ports.
Group 2 is output on
the bottom ports.
Audio Group Selection
The 3G-AE 100 supports up to sixteen channels (eight stereo pairs) of embedded digital
audio. SDI audio is divided into four groups; each group has four channels (two stereo
pairs). When a group is enabled, its channels are extracted and routed to the 3G-AE 100
analog output ports.
The Group Select DIP switch can enable two groups at the same time:
• To enable groups 1 and 2, set the Group Select switch to 1/2.
Group 1 is output on
the top ports.
Group 2 is output on
the bottom ports.
CH 1 CH 2 CH 3 CH 4
CH 5 CH 6 CH 7 CH 8
ANALOG OUTPUTS
GROUP
SELECT
SPARE
1/2
ON
1
2
3/4
• To enable groups 3 and 4, set the Group Select switch to 3/4.
GROUP
Group 3 is output on
the top ports.
Group 4 is output on
the bottom ports.
CH 1 CH 2 CH 3 CH 4
CH 5 CH 6 CH 7 CH 8
SELECT
SPARE
1/2
ON
1
2
3/4
ANALOG OUTPUTS
NOTE: All sixteen channels can be extracted at the same time by cascading two
3G-AE 100 devices via the Loop Through input (see
on the previous page).
c
3G-AE 100 • Operation 5
Reference Information
This section covers the following:
• SDI Audio Channel Designation
• Mounting
SDI Audio Channel Designation
The following table shows the typical SDI audio channel designations for SDI audio groups
1/2 and 3/4.
• Audio groups 1/2 (AES channel pairs 1-4):
AES
Pair
Group
number
Pair 1
1
Pair 2
Pair 3
2
Pair 4
AES
Channel
number
1 1 L/Left Far left screen loudspeaker
2 2 R/Right Far right screen loudspeaker
1 3 C/Center Center screen loudspeaker
2 4
1 5
2 6
1 7
2 8
SDI
Channel
No.
Label/
Name Description
LFE/
Screen
Ls/Left
surround
Rs/Right
surround
Lc/Left
center
Rc/Right
center
Screen low frequency effects
subwoofer loudspeakers
Left wall surround loudspeakers
Right wall surround
loudspeakers
Mid left to center screen
loudspeaker
Mid right to center screen
loudspeaker
• Audio groups 3/4 (AES channel pairs 5-8):
Group
3
4
AES
Pair
number
Pair 5
Pair 6
Pair 7
Pair 8
AES
Channel
number
1 9
2 10 SMPTE reserved
1 11 SMPTE reserved
2 12 SMPTE reserved
1 13 SMPTE reserved
2 14 SMPTE reserved
1 15 User defined
2 16 User defined
SDI
Channel
No.
Label/
Name Description
Cs/Center
surround
3G-AE 100 • Reference Information 6
Rear wall surround
loudspeakers
Mounting
Tabletop Placement
Rack Mounting
Attach the four provided rubber feet to the bottom of the unit and place it in any convenient
location.
UL Guidelines for Rack Mounting
The following Underwriters Laboratories (UL) guidelines are relevant to the safe installation of
these products in a rack:
• Elevated operating ambient temperature — If the unit is installed in a closed or
multi-unit rack assembly, the operating ambient temperature of the rack environment
may be greater than room ambient temperature. Therefore, install the equipment in an
environment compatible with the maximum ambient temperature
(TMA = +122 °F, +50°C) specified by Extron.
• Reduced air flow — Install the equipment in the rack so that safe operation and
adequate air flow is provided to the unit.
• Mechanical loading — Mount the equipment in the rack so that a hazardous
condition is not achieved due to uneven mechanical loading.
• Circuit overloading — Connect the equipment to the supply circuit and consider the
effect that circuit overloading might have on overcurrent protection and supply wiring.
Consider the equipment nameplate ratings when addressing this concern.
• Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted
equipment. Pay particular attention to supply connections other than direct
connections.
Rack Mounting Procedure
These units can be mounted an optional rack systems listed on the website (see
www.extron.com). To mount the unit on a rack shelf, follow the instructions provided with
the shelf accessories.
Back of the Rack Mounting Procedure
The 3G-AE 100 can be mounted to the rear of a rack using an optional back of rack
mounting kit (see www.extron.com). The kit allows the product to be vertically mounted to
the front or rear rack supports and facing either towards the front or the rear of the rack. To
mount the unit, follow the instructions provided with the kit.
Under-desk and Furniture Mounting
Mount the unit under a desk or podium, using the optional Extron MBU 123 under-desk
mounting kit. Follow the instructions provided with the kit.
3G-AE 100 • Reference Information 7
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
Japan:
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
U.S.A.
Europe and Africa:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
China:
Extron China
686 Ronghua Road
Songjiang District
Shanghai 201611
China
Asia:
Extron Asia Pte Ltd
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Middle East:
Extron Middle East
Dubai Airport Free Zone
F12, PO Box 293666
United Arab Emirates, Dubai
Singapore
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical
or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not
authorized by Extron.
NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return
Authorization) number. This will begin the repair process.
USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040
Asia: 65.6383.4400 Japan: 81.3.3511.7655
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage
during shipment. Returned units must include the serial number and a description of the problem, as well as the
name of the person to contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality,
performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct,
indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.
Please note that laws vary from state to state and country to country, and that some provisions of this warranty may
not apply to you.
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX +1.919.850.1001 FAX
Extron Europe
+800.3987.6673
(Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
© 2013 Extron Electronics All rights reserved. www.extron.com
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Korea
+82.2.3444.1571
+82.2.3444.1575 FAX
Extron India
1800.3070.3777
(Inside India Only)
+91.80.3055.3777
+91.80.3055.3737 FAX
Loading...
