XTP T USW 103

Three Input Switcher with an Integrated XTP Transmitter

User Guide

XTP Switcher

68-2292-01 Rev. D

04 14

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended to

alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website,

www.extron.com.

Instructions de sécurité • Français

AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le

produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.

ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit,

signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site Extron, www.extron.com.

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer

darauf aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.

Инструкция по технике безопасности • Русский

ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан

на продукте, предупреждает пользователя о наличии неизолированного опасного напряжения внутри корпуса продукта, которое может привести к поражению электрическим током.

ВНИМАНИЕ: Данный символ, , если указан на продукте,

предупреждает пользователя о наличии важных инструкций по эксплуатации и обслуживанию в руководстве, прилагаемом к данному оборудованию.

Для получения информации о правилах техники безопасности, соблюдении нормативных требований, электромагнитной совместимости (ЭМП/ЭДС), возможности доступа и других вопросах см. руководство по безопасности и соблюдению нормативных требований Extron на сайте Extron: www.extron.com, номер по каталогу - 68-290-01.

Chinese Simplified（简体中文）

警告：产品上的这个标志意在警告用户该产品机壳内有暴露的危险电压，

有触电危险。

注意：产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使用的特性等相关内容，敬请访问 Extron 网站 www.extron.com，参见 Extron 安全规范指南，产品编号 68-290-01。

Chinese Traditional（ )

警告: 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer in der

im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung, EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer 68-290-01) auf der Extron-Website, www.extron.com.

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo, , cuando se utiliza en el producto,

avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo, , cuando se utiliza en el producto, avisa

al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.

Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,www.extron.com.

注意 若產品上使用此符號，是為了提醒使用者，設備隨附的用戶手冊中有重

要的操作和維護（維修）説明。

有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資訊，請瀏覽 Extron 網站：www.extron.com，然後參閱《Extron 安全性與法規遵守手冊》，準則編號 68-290-01。

Japanese

警告: この記号が製品上に表示されている場合は、筐体内に絶縁されて

いない高電圧が流れ、感電の危険があることを示しています。

注意: この記号が製品上に表示されている場合は、本機の取扱説明書

に記載されている重要な操作と保守 ( 整備)の指示についてユーザーの注意を喚起するものです。

安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目については、エクストロンのウェブサイト www.extron.com より『 Extron Safety and Regulatory Compliance Guide』 ( P/N 68-290-01) をご覧ください。

Korean

경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.

주의: 이 기호 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와

있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

ATTENTION: The Twisted Pair Extension technology works with shielded twisted pair

(STP) cables only. To ensure FCC Class A and CE compliance, STP cables and STP connectors are also required.

For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the “Extron Safety and Regulatory

Compliance Guide” on the Extron website.

Copyright

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks

(®)

, registered service marks

(SM)

, and trademarks

(TM)

are the property of

RGBSystems, Inc. or Extron Electronics:

Registered Trademarks

AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, GlobalViewer, Hideaway, Inline, IPIntercom, IPLink, Key Minder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP and XTP Systems

Registered Service Mark

AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), Auto-Image, CDRS (Class D Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), DriverConfigurator, DSPConfigurator, DSVP (Digital Sync Validation Processing), FastBite, FOXBOX, IP Intercom HelpDesk, LinkLicense, MAAP, MicroDigital, LinkLicense, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, XTRA, ZipCaddy, ZipClip

(SM)

: S3 Service Support Solutions

Trademarks

(®)

(™)

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: A warning indicates a situation that has the potential to result in death or

severe injury.

ATTENTION: Attention indicates a situation that may damage or destroy the product or

associated equipment.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C

[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]

E X! *X1&* X2)* X2#* X2! CE}

NOTE: For commands and examples of computer or device responses mentioned

in this guide, the character “0” is used for the number zero and “O” represents the capital letter “o.”

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t

SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Introduction ................................................... 1

About this Guide ................................................. 1

About the XTP T USW 103 ................................. 1

Key Features ...................................................... 2

Installation ..................................................... 3

Rear Panel Connectors ....................................... 3

Making Connections ........................................... 5

HDMI Connection ........................................... 5

TP Cable Termination and Recommendations 6

Contact Closure Communication .................... 7

RS-232 and IR Communication ...................... 7

Power Connection .......................................... 8

Operation ..................................................... 10

Front Panel Features ......................................... 10

Front Panel Operation ....................................... 10

Selecting an Input ......................................... 11

Setting the Front Panel Lockout Mode

(Executive Mode) ......................................... 11

Enabling Auto Switch Mode .......................... 11

Enabling Normal Switch Mode ...................... 11

EDID ............................................................. 11

Reset Mode .................................................. 12

SIS Conﬁguration and Control .................. 13

Host Device Connection ................................... 13

SIS Programming Guide ................................... 13

Host-to-Device and Device-to-Host

communication ............................................ 13

Device-Initiated Message .............................. 13

Error Responses ........................................... 14

Using the Command and Response Table for

SIS Commands ........................................... 14

Symbol Deﬁnitions ........................................ 14

Command and Response Tables for SIS

Commands ..................................................... 15

Input Commands .......................................... 15

Audio Conﬁguration Commands ................... 15

Picture Adjustment Commands (Analog Only) 16

Preset Commands ........................................ 16

EDID Commands .......................................... 17

Advanced Conﬁguration Commands ............ 17

XTP System Conﬁguration Software ........ 19

Installing the XTP System Conﬁguration Software .

Using the XTP System Conﬁguration Software .. 20

Connections ................................................. 20

Top Menu ..................................................... 21

Device Settings ............................................. 24

Reference Information ............................... 32

Mounting .......................................................... 32

Tabletop Placement ...................................... 32

Mounting Kits ............................................... 32

Updating Firmware with Firmware Loader ......... 33

Downloading Extron Firmware Loader .......... 33

Installing Firmware Loader ............................ 34

Downloading Firmware ................................. 34

Installing Firmware with Firmware Loader ...... 35

vXTP T USW 103 Switcher • Contents

XTP T USW 103 Switcher • Contents vi

Introduction

Audi

TP T USW 103

ORMA

ADJ

XTP

This section contains general information about this guide and the Extron XTP T USW 103 Universal Switcher with an integrated XTP transmitter and selected device features. Topics in this section include:

• About this Guide

• About the XTP T USW 103

• Key Features

About this Guide

This guide contains installation, operation, and control procedures, and reference information for the XTP T USW 103 Universal Switcher. In this guide, the terms “XTP T USW 103” and “switcher” are used interchangeably to refer to the XTP T USW 103 Universal Switcher.

About the XTP T USW 103

The Extron XTP T USW 103 is a three input universal switcher with an integrated XTP transmitter that sends HDMI or digitized analog video, audio, bidirectional RS-232 and IR, and Ethernet up to 330 feet (100 meters) over a single shielded twisted pair cable (STP). It is HDCP compliant, and supports 1080p/60 Deep Color and 1920x1200 signals. The XTP T USW 103 works with XTP Systems for signal distribution and long-distance transmission between remote endpoints.

The XTP T USW 103 can be powered locally or remotely through an Extron Power Injector or XTP matrix switcher (see Power Connection on page 8).

To configure and control the XTP T USW 103, connect it to a host device, such as a computer, and enter Simple Instruction Set (SIS) commands (see SIS Configuration and

Control on page 13) or use the XTP System Configuration Software (see XTP System Configuration Software on page 19).

The following diagram shows a typical application of the XTP T USW 103.

HDMI Cable

onference Ta ble

Extron XTP T USW 103

XTP T USW 103

AUTO SWITCH

CONFIG

xtron

HDMI Cable

DVI Cable

MODE

HDMI Cable

DVI-HDMI Cable

XTP

VGA

Cable (330')

Cable

VGA Cable

Audio Cable

Extron Cable Cubby

Audio

Cable

able

G I

CONF

AUTO

NORMAL

STATUS

SIGNAL

HDCP

XTP T USW 103

L ORMA N

TP T USW 103 X

XTP

SIGNAL

CONFIG

HDCP

Extron

xtro

XTP SR HDMI

XTP SR HDM

HBR HDMI

Projector

AUDIO

BITSTREAM S/PDIF

JUST

XTP SR HD

TER

U EN

MEN

LPCM

OG L

AUDIO

ANA BITSTREA PDIF

XTP

HDMI

SIGNAL

HDC

CONFI

MENU ENTER

ADJUST

XTP SR HDMI

LPCM ANALOG

Figure 1. Typical XTP T USW 103 Application

1XTP T USW 103 Switcher • Introduction

Key Features

Reliable cable infrastructure — Transmits HDMI or digitized analog video, audio, bidirectional RS-232 and IR, and Ethernet up to 330 feet (100 meters) over a single CATx cable.

Inputs — Include two HDMI inputs and one VGA input. Support for Computer-video to 1920x1200, including HDTV 1080p/60 Deep Color

and 2K signals — Supports digital signal transmission up to 330 feet over a single twisted

pair cable, maintaining superior image quality at the highest resolutions. Shielded twisted pair cable compatibility — Optimized for use with common shielded

twisted pair cable types. XTP systems fully support a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.

Digital conversion of analog video and audio input signals — Digitizes analog signals, ensuring that a reliable, high quality digital video signal is sent to the output destination.

Auto-input switching — Can be set to automatically switch to the highest or lowest priority input with an active video signal for simplified operation.

Bidirectional RS-232 and IR insertion — Allows a remote display to be controlled without the need for additional cabling through bidirectional RS-232 control and IR signals inserted into the XTP output.

HDMI specification features — Support data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through.

HDCP-compliance — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.

EDID Minder — Automatically manages Extended Display Identification Data (EDID) communication between connected devices to ensure that all sources properly power up and reliably display content.

Key Minder — Authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.

Ethernet extension — Centralized 10/100 Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.

Remote power capability — To simplify integration, the XTP T USW 103 can be powered by an XTP CrossPoint Matrix Switcher or XTP Power Injectors.

Multiple embedded audio formats — Compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.

Selectable analog stereo audio input embedding — Supports unbalanced audio for extended transmission. This feature enables direct connection of separate stereo audio signals from a laptop, Blu-ray Disc™ player, or other device.

RS-232 control — Features an RS-232 serial port for control and configuration. Contact closure remote control availability

XTP T USW 103 Switcher • Introduction 2

Installation

ACBDEFGHI

Tip (+)

Sleeve ( )

Ring (-)

Tip (+)

RCA Connector

(balanced)

This section contains information for connecting and wiring the XTP T USW 103. Topics in this section include:

• Rear Panel Connectors

• Making Connections

The XTP T USW 103 can be mounted in a rack, under a desk, or on a tabletop (see

Mounting on page 32 for more mounting details).

Rear Panel Connectors

POWER 12V

1.0 A MAX

Audio connector

Analog video connector (input 1)

HDMI connectors (inputs 2 and 3)

XTP output connector

LAN connector

AUDIO

INPUTS

RGB HDMI HDMI

SIG LINK

XTP OUT

RS-232 and IR Over XTP connector

Contact closure connector

Remote RS-232 connector

DC power connector

OVER XTP REMOTE

RS-232 IR

LAN

CONTACT

RxTx

123

Rx GGTx

Figure 2. XTP T USW 103 Rear Panel Connectors

Audio connector — Connect an analog audio source to the 3.5 mm TRS jack. All

three video inputs can share this audio input.

Tip (L)

Ring (R)

Sleeve ( )

Figure 3. Wiring for TRS Audio

RS-232

Tx Tx

3XTP T USW 103 Switcher • Installation

By default, audio input is selected automatically (see Audio input selection SIS commands on page 15 to manually select audio inputs). When input 2 or 3 is selected with automatic audio input selections, the switcher prioritizes embedded digital audio. The following table shows the audio format that is sent over the XTP connection when a specific audio format is not specified.

Selected

Video Input

VGA N/A Yes Analog audio

VGA N/A No No audio HDMI Yes No HDMI embedded audio HDMI Yes Yes HDMI embedded audio HDMI No Ye s Analog audio HDMI No No No audio

Analog video connector — Connect a video source to the female 15-pin HD

connector, labeled input 1. It accepts RGBHV video signals.

HDMI connectors — Connect a digital video source device to either or both female

HDMI connectors, labeled inputs 2 and 3. They can accept HDMI, DVI, or dual mode DisplayPort video sources.

NOTES:

• The maximum cable length is 15 feet.

• Use Extron LockIt lacing brackets to secure HDMI connectors to the device

(see HDMI Connection on page 5).

XTP connector — Connect a twisted pair cable to the RJ-45 connector labeled

XTP Out and the XTP input port on another XTP device to pass all signals (see

TP Cable Termination and Recommendations on page 6). This cable carries the

following signals:

• Digital video

• Digital audio

• Bidirectional RS-232 and IR commands

• Remote power

• Ethernet communication

• System communication

Link LED indicator — Lights yellow when XTP devices are connected and communication is established.

Signal LED indicator — Lights green when the transmitter outputs a video signal or a test pattern.

HDMI Embedded

Audio Present

Analog Audio

Present

Audio Sent Over XTP

ATTENTION:

• Do not connect this connector to a computer data or telecommunications

network.

• XTP remote power is intended for indoor use only. No part of the network that

uses XTP remote power should be routed outdoors (see Remote power on page 9).

LAN connector — Connect a control device or device to be controlled to this LAN

connector for 10/100 Ethernet communication through this pass-through port. LEDs on this connector indicate link and activity status.

XTP T USW 103 Switcher • Installation 4

RS-232 Over XTP port — To pass bidirectional serial or other control signals

Tx Rx G Tx Rx

RS-232

between XTP-compatible devices, connect a control device to the 5-pole captive screw connector. The port includes only the 3 poles labeled “RS-232.”

IR Over XTP port — To transmit and receive IR signals (up to 40 kHz), connect a control device to the 5-pole captive screw connector. This port includes only the 2 poles labeled “IR” and shares the ground pole with the RS-232 port.

NOTE: RS-232 and IR data can be transmitted simultaneously (see RS-232 and IR

Communication on page 7 for wiring details).

Contact closure connector — Connect an Extron KP 6 Keypad Remote Control or

similar device to the 3.5 mm, 4-pole captive screw connector. The first three ports are used for selecting inputs 1 through 3 when momentarily shorted to the ground port.

Remote RS-232 connector — Connect a host device to the 3.5 mm, 3-pole captive

screw connector for serial control of the switcher.

Power connector and LED — Connect an external power supply to the 3.5 mm,

2-pole captive screw connector (see Power Connection on page 8). The Power LED lights to indicate the device is receiving power.

NOTE: The XTP T USW 103 can be powered remotely (see Remote power on

page 9).

RS-232

Making Connections

HDMI Connection

Use an Extron LockIt Lacing Bracket to secure an HDMI cable to top mounting screw of an HDMI connector.

Figure 4. Installing the LockIt Lacing Bracket

1. Plug the HDMI cable into the panel connection (see figure 4, 1).

2. Loosen the HDMI connection mounting screw from the panel (see 2) enough to allow

the LockIt lacing bracket to be placed over it. The screw does not have to be removed.

3. Place the LockIt lacing bracket on the screw and against the HDMI connector (see 3),

then tighten the screw to secure the bracket.

ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield

to which it fastens is very thin and can easily be stripped.

4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing

bracket (see 4).

5. While holding the connector securely against the lacing bracket, use pliers or similar

tools to tighten the tie wrap, then remove any excess length (see 5).

XTP T USW 103 Switcher • Installation 5

TP Cable Termination and Recommendations

Inser

Pins:

1 2 3

4 5 6 7

Wire color

White-green Green White-orange

Blue White-blue Orange White-brown

Brown

Wire color

T568A T568B

White-orange Orange White-green

Blue White-blue Green White-brown

Brown

Use the following pin configurations for twisted pair cables.

12345678

t Twisted

Pair Wires

RJ-45

Connector

Straight-through Cable

(for connection to a switch, hub, or router)

TIA/EIA-T568A TIA/EIA-T568B

Pin Wire Color Pin Wire Color

1 White-green 1 White-orange

2 Green 2 Orange

3 White-orange 3 White-green

4 Blue 4 Blue

5 White-blue 5 White-blue

6 Orange 6 Green

7 White-brown 7 White-brown

8 Brown 8 Brown

Figure 5. TP Cable Termination

Supported cables

The XTP T USW 103 is compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cables.

ATTENTION:

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201

cable to link the XTP products.

• To ensure FCC Class A and CE compliance, STP cables and STP connectors are

required.

Cable recommendations

Extron recommends using the following practices to achieve full transmission distances up to 330 feet (100 meters) and reduce transmission errors.

• Use the following Extron XTP DTP 24 SF/UTP cables and connectors for the best

• If not using XTP DTP 24 cable, at a minimum, Extron recommends 24 AWG, solid

• Terminate cables with shielded connectors to the TIA/EIA-T568B standard (see ﬁgure 5).

• Use no more than two pass-through points, which may include patch points, punch

NOTE: When using STP cable in bundles or conduits, consider the following:

performance:

• XTP DTP 24/1000 Non-Plenum 1000' (305 m) spool 22-236-03

• XTP DTP 24P/1000 Plenum 1000' (305 m) spool 22-235-03

• XTP DTP 24 Plug Package of 10 101-005-02

conductor, STP cable with a minimum bandwidth of 400 MHz.

down connectors, couplers, and power injectors. If these pass-through points are required, use shielded couplers and punch down connectors.

• Do not exceed 40% ﬁll capacity in conduits.

• Do not comb the cable for the ﬁrst 20 meters, where cables are straightened,

aligned, and secured in tight bundles.

• Loosely place cables and limit the use of tie wraps or hook and loop fasteners.

• Separate twisted pair cables from AC power cables.

XTP T USW 103 Switcher • Installation 6

Contact Closure Communication

CONTACT

Custom

RS-232 Device

Each port senses an external switch or contact closure. Use these ports to select an input on the switcher from a contact closure device. Wire the connector as shown in figure 6.

123G

Heat

Shrink

Over

Shield

Wires

Ground

Wire Nut

3 2 1

Switch

Figure 6. Wiring the Contact Closure Connector

RS-232 and IR Communication

The RS-232 and IR Over XTP connector is for pass-through transmission of serial signals, such as projector control signals, and infrared data. To pass bidirectional serial command signals between XTP-compatible devices, connect a control device to the three leftmost poles (Tx, Rx, and G) of the 5-pole captive screw connector. To transmit and receive IR signals, connect a control device to the three rightmost poles (G, Tx, and Rx). The ground (G) pole is shared.

NOTE: RS-232 and IR data can be transmitted or received simultaneously

(see figure 7 below for wiring considerations).

IR Device

Tx/Rx

Pins

RxTx

RS-232

Device 3

Device 2

Device 1

TxRx

RxTx

(Switches,

relays, or

Power Connection

Output Cord

Tie

Apply power to the switcher locally with the provided power supply or remotely with a power injector or a matrix switcher.

ATTENTION: XTP remote power is intended for indoor use only. No part of the network

that uses XTP remote power should be routed outdoors.

Local power

Wrap

Smooth

Power Supply

2-Pole Captive Screw Connector

SECTION A–A

3/16”

(5 mm) Max.

Ridges

Figure 8. Power Wiring

The XTP T USW 103 can be connected to a local power supply.

WARNING: Electric shock hazard. The two power cord wires must be kept separate

while the power supply is plugged in. Remove power before wiring.

ATTENTION:

• This product is intended to be supplied by a Listed Power Unit marked “Class 2”

or “LPS,” rated 12 VDC, 1.0 A minimum. Always use a power supply supplied by or speciﬁed by Extron. Use of an unauthorized power supply voids all regulatory compliance certiﬁcation and may cause damage to the supply and the end product.

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling

spaces or in wall cavities. The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently ﬁxed to a building structure or similar structure.

• Power supply voltage polarity is critical. Incorrect voltage polarity can damage the

power supply and the unit. The ridges on the side of the cord identify the power cord negative lead.

• The length of the exposed (stripped) copper wires is important. The ideal length is

3/16 inch (5 mm).

TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the

captive screw connectors and could be pulled out.

Use the supplied tie wrap to strap the power cord to the extended tail of the connector.

XTP T USW 103 Switcher • Installation 8

Remote power

XTP Receiver

The XTP T USW 103 can be powered remotely through an XTP Power Injector or through an XTP matrix switcher.

ATTENTION: XTP remote power is intended for indoor use only. No part of the network

that uses XTP remote power should be routed outdoors.

Power injector

To power the XTP T USW 103 remotely with an XTP Power Injector, power one device locally (see Local power on page 8) and connect an XTP Power Injector to the XTP cable run along the XTP ports (see the XTP Power Injector User Guide for more installation information).

NOTE: The power injector provides remote power up to 330 feet with a shielded twisted

pair cable with 24 AWG wire.

POWER 12V

AUDIO

1.0 A MAX

INPUTS

Extron XTP T USW 103

XTP Transmitter

12V Local Power Supply

RGB HDMI HDMI

100-240V

---A MAX

Power

Extron XTP PI 100

XTP Power Injector

Extron XTP R HDMI

POWER 12V 1A MAX

SIG LINK

XTP OUT

50/60 Hz

XTP

XTP PWR

Shielded Twisted Pair Cable

SIG LINK

XTP IN

LAN

Remote Power

PWR

LAN

OVER XTP REMOTE

CONTACT

RS-232 IR

RxTx

1 2 3

Rx GGTx

OVER XTP

AUDIO

RS-232 IR

OFF

RxTx

Rx GTx

RS-232

Tx Rx

XTP R HDMI

RELAYS

OUTPUTS

AUDIO

−+−+

HDMI

S/PDIF

RESET

Figure 9. Typical Pont-to-point Application with Remote Power

Remote power from an XTP matrix switcher

XTP matrix switchers have a fixed amount of power available to provide remote power to connected XTP devices (see the XTP matrix switcher user guide for more details). To manage available power from the XTP matrix switcher, use the XTP System Configuration Software with the XTP matrix switcher (see XTP System Configuration Software on page 19).

XTP T USW 103 Switcher • Installation 9

Operation

AB CDE

This section describes the front panel features and operations of the XTP T USW 103. Topics in this section include:

• Front Panel Features

• Front Panel Operation

Front Panel Features

AUTO

SWITCH

Figure 10. XTP T USW 103 Front Panel Features

Auto Switch LED — Lights when the transmitter is in auto switch mode.

Config port — Connect a host device to the front panel mini USB B Config port.

Input selection buttons — Select inputs 1 through 3 or modes of operation. The

corresponding LEDs light to indicate the active input.

Status LEDs — The Signal LEDs light to indicate the signal presence of each input.

The HDCP LEDs light when the signal on the corresponding input is HDCP-compliant. Input 1 (the VGA connector) does not have an HDCP LED.

Audio Signal Clip LED — Lights when the analog audio input signal is -3 dBFS or

above. The light remains lit for 200 ms after the audio input signal drops below -3 dBFS.

CONFIG

MODE

STATUS

AUDIO

SIGNAL CLIP

XTP T USW 103

AUTO

SIGNAL

HDCP

NORMAL

Front Panel Operation

The input selection buttons are used to manually select inputs 1 through 3 or enable and disable device modes. The LEDs indicate status and provide feedback of the currently selected input. Press and hold the input selection buttons in the combinations shown in the table below to enable or disable device modes.

Front Panel Button Combinations for Device Modes

Mode Button Combination Indicator Response

Executive (disabled by default) 1, 2, and 3 All front panel LEDs

Auto switch (prioritize the highest numbered active input)

Normal switch (default switch mode) 1 and 2 Auto Switch LED

Front panel operations can also be performed remotely with SIS commands (see SIS

Configuration and Control on page 13) or the XTP Configuration Software

(see XTP System Configuration Software on page 19).

blink 3 times.

1 and 3 Auto Switch LED

lights.

turns off.

10XTP T USW 103 Switcher • Operation

Selecting an Input

To select an input from the front panel, press the input selection button that corresponds with the desired rear panel input connector. The corresponding LED lights to indicate the active input.

Setting the Front Panel Lockout Mode (Executive Mode)

To enable or disable front panel lockout mode, press and hold (for about 5 seconds) input buttons 1, 2, and 3 simultaneously until all front panel LEDs blink three times.

In front panel lockout mode, input selection from the front panel is disabled, but RS-232 and USB control and contact closure are still available.

Enabling Auto Switch Mode

Press and hold (for about 3 seconds) inputs 1 and 3 simultaneously until the Auto Switch LED lights. In auto switch mode, the switcher automatically switches to the highest numbered input with an active video signal.

NOTE: Setting auto switch mode to prioritize the lowest numbered active input can be

done only with SIS commands (see Auto switch mode SIS commands on page 15). Normal switch mode is the default switch mode.

The audio input selected depends on the audio input selection setting (see Audio input

selection SIS commands on page 15).

Enabling Normal Switch Mode

Press and hold (for about 8 seconds) inputs 1 and 2 simultaneously until the Auto Switch LED turns off. This is the default switch mode.

EDID

To manage EDID on the XTP T USW 103, use the XTP System Configuration Software (see EDID Minder on page 30). The XTP T USW 103 can record and save EDID in a user memory location, select a pre-defined EDID, or use EDID from a display connected to a receiver. EDID stored in the user memory location can come from the display connected to a receiver or a custom EDID imported through the XTP System Configuration Software.

NOTE: In matrix applications, EDID on the switcher is assigned by the XTP matrix

switcher using the XTP System Conﬁguration Software.

XTP T USW 103 Switcher • Operation 11

Reset Mode

Use the recessed Reset button on the rear panel of the switcher to return the device to default settings or to restore factory-shipped firmware.

POWER 12V

1.0 A MAX

AUDIO

SIG LINK

OVER XTP REMOTE

RS-232 IR

CONTACT

RS-232

INPUTS

RGB HDMI HDMI

XTP OUT

LAN

Rx GGTx

Figure 11. Rear Panel Reset Button

Reset Mode Summary

Mode Activation Result Purpose/Notes

Press the recessed Reset button while applying power to the device.

NOTE: After a mode 1 reset,

update the device with the latest firmware version. DO NOT operate the system

Factory Reset

with the firmware version that results from this mode reset.

The device reverts to the factory default firmware.

NOTE: If you do not want to

update the firmware or perform a mode 1 reset by mistake, cycle power to the device to return the firmware version running prior to the reset.

Use mode 1 to roll back to factory firmware for a single power cycle if an incompatibility issue arises.

RxTx

123

Tx Tx

XTP T USW 103 Switcher • Operation 12

SIS Configuration and Control

The XTP T USW 103 can be configured and controlled using Extron Simple Instruction Set (SIS) commands or the XTP System Configuration Software (see XTP System

Configuration Software on page 19). This section contains basic SIS communication

details and SIS commands and responses that are issued when a host is connected directly to the XTP T USW 103. Topics in this section include:

• Host Device Connection

• SIS Programming Guide

• Command and Response Tables for SIS Commands

Host Device Connection

Use a computer running HyperTerminal or the Extron DataViewer utility, or a control system to enable serial control of the switcher. To connect directly to an XTP T USW 103, connect the computer to the XTP T USW 103 through the front panel USB Config port or the rear panel RS-232 connector. The protocol for the serial port is as follows: 9600 baud, no parity, 8 data bits, 1 stop bit, no flow control.

SIS Programming Guide

Host-to-Device and Device-to-Host communication

SIS commands consist of one or more characters per field. No special characters are required to begin or end a command sequence. When the XTP T USW 103 determines that a command is valid, it executes the command and sends a response to the host device. All responses from the switcher to the host end with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string. A string is one or more characters.

Device-Initiated Message

When the switcher is connected through the serial port only and a local event occurs, the device responds by sending a message to the host.

YYYY is the year of the firmware version release. Vx.xx is the firmware version number.

13XTP T USW 103 Switcher • SIS Configuration and Control

Error Responses

Space

When the XTP T USW 103 receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the switcher returns an error response to the host. The error response codes are:

E01 = Invalid input number E12 = Invalid port number E06 = Invalid switch attempt in this mode E13 = Invalid parameter E10 = Invalid command E14 = Not valid for this configuration E11 = Invalid preset number E17 = Invalid command for signal type

Using the Command and Response Table for SIS Commands

The command and response tables begin on page 16. Figure 12 shows the hexadecimal equivalent of ASCII characters used in the command and response tables.

NOTE: Upper and lowercase text can be used interchangeably unless otherwise stated.

ASCII to Hex Conversion Table

•

Figure 12. ASCII to Hexadecimal Conversion

Symbol Definitions

| or }

W or

= Carriage return and line feed

]

= Carriage return with no line feed

= Space

•

= Escape key

XTP T USW 103 Switcher • SIS Configuration and Control 14

Command and Response Tables for SIS Commands

Command ASCII Command

(Host to Device)

Input Commands

Input selection

Select input

View the selected input

Auto switch mode

Disable auto switch mode

Set priority to the highest numbered active input

Set priority to the lowest numbered active input

View setting

X!! InX!] Select input X!.

E0AUSW} Ausw0]

E1AUSW} Ausw1]

E2AUSW} Ausw2]

EAUSW} AuswX*]

Audio Configuration Commands

Audio gain and attenuation

NOTE: Gain and attenuation commands are case-sensitive.

Set gain

Set attenuation

Increment audio level

Decrement audio level

View audio level

Audio input selection

Set audio input format

View audio input format

Black signal resolution

Set black signal resolution

View black signal resolution

X%G AudX&] Set gain to X%.

X^g AudX&] Set attenuation to X^.

+G or +g

-G or -g

G or g

EIX#AFMT} AfmtIX#] Set the audio input format to X#.

EIAFMT} AfmtIX#]

EAX2#AFMT} AfmtAX2#] Set the black signal resolution to X2#.

EAAFMT} AfmtAX2#]

Response

(Device to Host)

X!]

Aud

X&]

Aud

X&]

Aud

X&]

Additional Description

View the selected input.

Switch inputs manually (default).

Automatically switch to the highest numbered active input.

Automatically switch to the lowest numbered active input.

View the auto switch mode.

Increase the audio level.

Decrease the audio level.

View the audio level.

View the audio input format.

View the black signal resolution.

NOTE: X! = Input selection 1 = VGA (input 1)

2 = HDMI (input 2) 3 = HDMI (input 3)

X# = Audio input format 0 = auto (default)

1 = digital embedded 2 = analog

X% = Audio gain adjustment 0 - 24 = decibels above 0 X^ = Audio attenuation adjustment –18 - 0 = decibels below 0 X& = Audio level adjustment –18 - +24 (0 dB = default) X* = Auto switch mode 0 = disable (default)

1 = priority to the highest numbered active input 2 = priority to the lowest numbered active input

X2# = Black signal resolution 2 = 720p @ 50 Hz

4 = 720p @ 60 Hz 6 = 1080p @ 60 Hz

XTP T USW 103 Switcher • SIS Configuration and Control 15

Command ASCII Command

(Host to Device)

Black signal for audio only

NOTE: The switcher uses a black signal to simulate a 720p or 1080p, 50 Hz or 60 Hz signal so audio can

be passed without video.

Response

(Device to Host)

Additional Description

Enable black signal

Disable black signal

View black signal setting

EB1AFMT} AfmtBX$]

EB0AFMT} AfmtBX$]

EBAFMT} AfmtBX$]

Picture Adjustment Commands (Analog Only)

Pixel phase

Set a pixel phase value

Increment value

Decrement value

View pixel phase value

Horizontal shift

Set horizontal shift value

Increment value

Decrement value

View horizontal shift value

Vertical shift

Set vertical shift value

Increment value

Decrement value

View vertical shift value

Image reset

Execute an image reset

EX1@ PHAS} PhasX1@] Adjust the pixel phase to X1@.

E+PHAS} PhasX1@]

E-PHAS} PhasX1@]

EPHAS} Phas X1@]

EX1# HCTR} HctrX1#]

E+HCTR} HctrX1#]

E-HCTR} HctrX1#]

EHCTR} Hctr X1#]

EX1# VCTR} VctrX1#]

E+VCTR} VctrX1#]

E-VCTR} VctrX1#]

EVCTR} Vctr X1#]

Aadj1

Preset Commands

Input presets

Save an input preset

Recall an input preset

X1$, SprX1$]

X1$. RprX1$] Recall the preset X1$ configuration.

]

Enable a black signal for audio only.

Disable the black signal.

View the black signal setting.

Increase the pixel phase value.

Decrease the pixel phase value.

Show the pixel phase value.

Set the horizontal location of the first active pixel in the active window.

Move the image to the right.

Move the image to the left.

Show the horizontal location of the first active pixel in the active window.

Set the vertical location of the first active pixel in the active window.

Move the image down.

Move the image up.

Show vertical location of the first active pixel in the active window.

Set picture adjustment settings to the default values.

Save the current configuration to preset X1$.

NOTE: X$ = Enable or disable 0 = disable

1 = enable

X1@ = Pixel phase 0-255 (128 = default) X1# = Horizontal or vertical shift 0-65535 (32768 = default) X1$ = Preset number 1-8

XTP T USW 103 Switcher • SIS Configuration and Control 16

Command ASCII Command

(Host to Device)

Response

(Device to Host)

Additional Description

EDID Commands

NOTE: For EDID management, use the XTP System Configuration Software (see EDID Minder on page 30).

Advanced Configuration Commands

Front panel lockout mode (executive mode)

Set front panel lockout mode

View front panel lockout mode status

HDCP authorized device (HDMI inputs only)

HDCP authorized device On

HDCP authorized device Off

Query HDCP authorized device status

NOTE: X! = Input selection 1 = VGA (input 1)

2 = HDMI (input 2) 3 = HDMI (input 3)

X$X Exe X$]

Exe

X$]

EEX@*1HDCP} HdcpEX@*1] Set HDMI input X@ as an HDCP

EEX@*0HDCP} HdcpEX@*0] Set HDMI input X@ as a

EEX@HDCP} HdcpEX@*X2) ]

Lock or unlock the front panel.

View the executive mode status.

authorized device.

non-HDCP authorized device. View the HDCP authorized

device status of input X@.

X@ = HDMI input selection 1 = HDMI (input 2)

2 = HDMI (input 3)

X$ = Enable or disable 0 = disable or unlock (default for executive mode)

1 = enable or lock

X2) = HDCP Authorization 0 = HDCP authorization off

1 = HDCP authorization on (default)

XTP T USW 103 Switcher • SIS Configuration and Control 17

Command ASCII Command

Test pattern

Set a test pattern

View the current test pattern

Factory defaults

System reset

Status

View input signal presence

Query HDCP input

Query firmware version

Query full firmware version

Query part number

NOTE: X1) = Color bar test pattern 0 = disable (default)

1 = 720p @ 50 Hz 3 = 720p @ 60 Hz 5 = 1080p @ 60 Hz

(Host to Device)

X1)J Tst X1)]

EZXXX} Zpx]

0LS

EIHDCP} HdcpI0X2!X2!]

Response

(Device to Host)

X1)]

Tst

X2@X2@ X2@ ]

Frq

]

x.xx

x.xx.xxxx

60-1198-01

]

X2! = HDCP status 0 = no source connected

1 = HDCP compliant source 2 = non-HDCP compliant source

X2@ = Video signal status 0 = video or TMDS not detected

1 = video or TMDS detected

Additional Description

Set or disable a test pattern.

View the current test pattern.

Resets unit to factory default.

View the input signal presence of each input.

View the HDCP input status of inputs 2 and 3.

View the firmware version.

View the full firmware version.

View the device part number.

XTP T USW 103 Switcher • SIS Configuration and Control 18

XTP System Configuration

Software

The XTP T VGA can be configured and controlled using Extron Simple Instruction Set (SIS) commands (see SIS Configuration and Control on page 13) or the XTP System Configuration Software. This section contains installation and configuration procedures for the XTP System Configuration Software for configuring and controlling the XTP T USW 103. Topics in this section include:

• Installing the XTP System Configuration Software

• Using the XTP System Configuration Software

Installing the XTP System Configuration Software

The program is available for download on the Extron website, www.extron.com.

Figure 13. Extron Website Download Page

1. On the Extron website, click the Download tab (see figure 13, 1).

2. On the left sidebar, click the XTP System Configuration Software link (see 2).

3. Click the Download Now button (see 3).

4. Submit any required information to start the download. Note where the file is saved.

5. Open the executable (.exe) file from the save location.

6. Follow the instructions that appear on the screen. By default, the installation creates a

directory in the appropriate Program Files folder named “Extron Electronics\XTP System Configuration.”

19XTP T USW 103 Switcher • XTP System Configuration Software

Using the XTP System Configuration Software

The XTP T USW 103 can be controlled directly from the front panel config port or remotely from an XTP matrix switcher.

Connections

When opening the XTP System Configuration Software, the Connections screen opens first. This screen is used to establish communication with an XTP device through a USB connection (see Config port on page 10).

Figure 14. Connections Screen

1. From the Connections screen in the software, select the USB radio button (see

figure 14, 1).

2. From the displayed list, select the connected device to be controlled (see 2).

3. Click the Connect button (see 3). The Device Settings screen opens.

XTP T USW 103 Switcher • XTP System Configuration Software 20

Top Menu

The top menu contains three menus for configuring software settings.

File menu

The File menu contains options for disconnecting from the switcher and exiting the program. To access the menu, click the File menu.

Figure 15. File Menu

Disconnect

This option disconnects the XTP System Configuration Software from the connected device.

From the File menu, select Disconnect. The Connections screen opens.

NOTE: If the device is already disconnected, the Disconnect option is disabled until a

device is connected.

Exit

This option disconnects the switcher from the software and closes the application.

From the File menu, select Exit. The application closes.

Tools menu

The Tools menu contains an option for updating firmware. To access this menu, click the

Tools menu.

Figure 16. Tools Menu

NOTE: The Backup and Restore and Software Preference options are not

available when directly connected to the XTP T USW 103.

XTP T USW 103 Switcher • XTP System Configuration Software 21

Update Firmware

This option uploads firmware from the host device to the connected device.

NOTE: If necessary, download new firmware from the Extron website (see

Downloading Firmware on page 34).

1. From the Tools menu, select Update Firmware. A dialog box opens to ask permission

to disconnect from the device.

Figure 17. Confirm Disconnect Dialog Box

2. Click the Yes button to disconnect from the device and continue with the firmware

update process. The Update Firmware dialog box opens.

Figure 18. Update Firmware Dialog Box

3. Click the Check network for updates icon to search the LAN or WAN for firmware

files or click the Select file from computer icon to select a firmware file from the connected host device.

4. Select the desired firmware file and click the Open button.

5. Click the Close button after the firmware finishes updating.

XTP T USW 103 Switcher • XTP System Configuration Software 22

Help menu

The Help menu contains XTP System Configuration Software information, the help file, and a link to the Extron website.

Figure 19. Help Menu

NOTE: The Tutorial (System Configuration) option is not available when directly

connected to the XTP T USW 103.

About the Software

This option provides basic information about the XTP System Configuration Software, including version number and copyright information.

Figure 20. About - XTP Dialog Box (Example)

1. From the Help menu, select About the Software. The About - XTP dialog box opens.

2. Click the Details button for more information.

3. Click the Ok button to close the dialog box.

Help

This option opens the XTP System Configuration Software help file in a Web browser.

From the Help menu, select Help.

Extron Website

This option opens the Extron website in a Web browser.

From the Help menu, select Extron Website.

XTP T USW 103 Switcher • XTP System Configuration Software 23

Device Settings

The Device Settings screen allows a user to view and edit various device settings for the device directly connected to the host device. Click the Device Settings icon (see figure 21, 1) on the Global Navigation bar to open the Device Settings screen.

Figure 21. Transmitter Device Settings Screen

AV Controls panel

The AV Controls panel, located on the left, is used to select an input. The image to the right does not have any active inputs.

Input selection — Click an Input button to select an input. As a new

input is selected, the summary within the panel changes to reflect the currently selected input.

NOTE: The signal indicators on the AV input buttons display

green when a signal is present on the corresponding input or gray when there is no signal present.

XTP T USW 103 Switcher • XTP System Configuration Software 24

Input/Output tab

Click the Input/Output tab (see figure 22, 1) to open the Input/Output screen. It contains input information and options to apply automatic settings to individual inputs.

Figure 22. Input/Output Tab

Input Name— Displays the input name.

Signal Type — Displays the signal type of each input. Input 1 is analog. Inputs 2 and 3

are HDMI/DVI.

Auto-Image — Attempts to size and center the input signal based on the aspect ratio

setting. Auto-Image is applied whenever there is a change in the input sync.

Auto Memory — Recalls input and image settings for signals that have previously been

applied. When it is disabled, the XTP T USW 103 treats every newly applied input as a new source.

HDCP Authorized — Select either HDCP Authorized check box to have the input

report as an HDCP authorized device. If the box is not checked, the source is blocked from encrypting its output. This may result in some content not being passed by the source device.

NOTE: HDCP authorization is for inputs 2 and 3 only.

XTP T USW 103 Switcher • XTP System Configuration Software 25

Analog Video tab

Click the Analog Video tab (see figure 23, 1) to open the Analog Video screen. It contains signal sampling, image shifting, and saving and recalling input preset options.

Figure 23. Analog Video Tab

Signal Sampling panel

Signal sampling optimizes the input signal to the switcher for the currently selected input.

Signal Sampling — To adjust signal sampling settings, enter a value within acceptable

range displayed in parentheses to the right of the corresponding field or click the Up and

Down arrows.

Shift panel

Shifting moves the position of an image.

Horizontal and Vertical Shift — To adjust the horizontal and vertical shift settings,

enter a value within the Min and Max values displayed to the right of the corresponding field or click the Up or Down arrows.

Image Reset — Click the Image Reset button to set pixel phase, horizontal shift, and

vertical to the default values.

Input Presets panel

Input presets save signal sampling and shift settings to be recalled later.

Save Preset — To save a preset, select one from the list of presets and click the Save

Preset

Recall Preset — To recall a saved preset, select the desired preset from the list of

presets and click the Recall Preset button.

button.

XTP T USW 103 Switcher • XTP System Configuration Software 26

Audio tab

Click the Audio tab (see figure 24, 1) to open the Audio screen. It contains settings for input format and analog audio gain.

Figure 24. Audio Tab

Input format section

Input Audio Format — From the Audio Format drop-down list, select the format for

inputs 2 and 3. They can be Auto, HDMI, or Analog.

Analog Audio Gain — Click and drag the handle of the Gain slider, enter a value in the

field, or click the Up or Down arrow to adjust the analog input gain.

XTP T USW 103 Switcher • XTP System Configuration Software 27

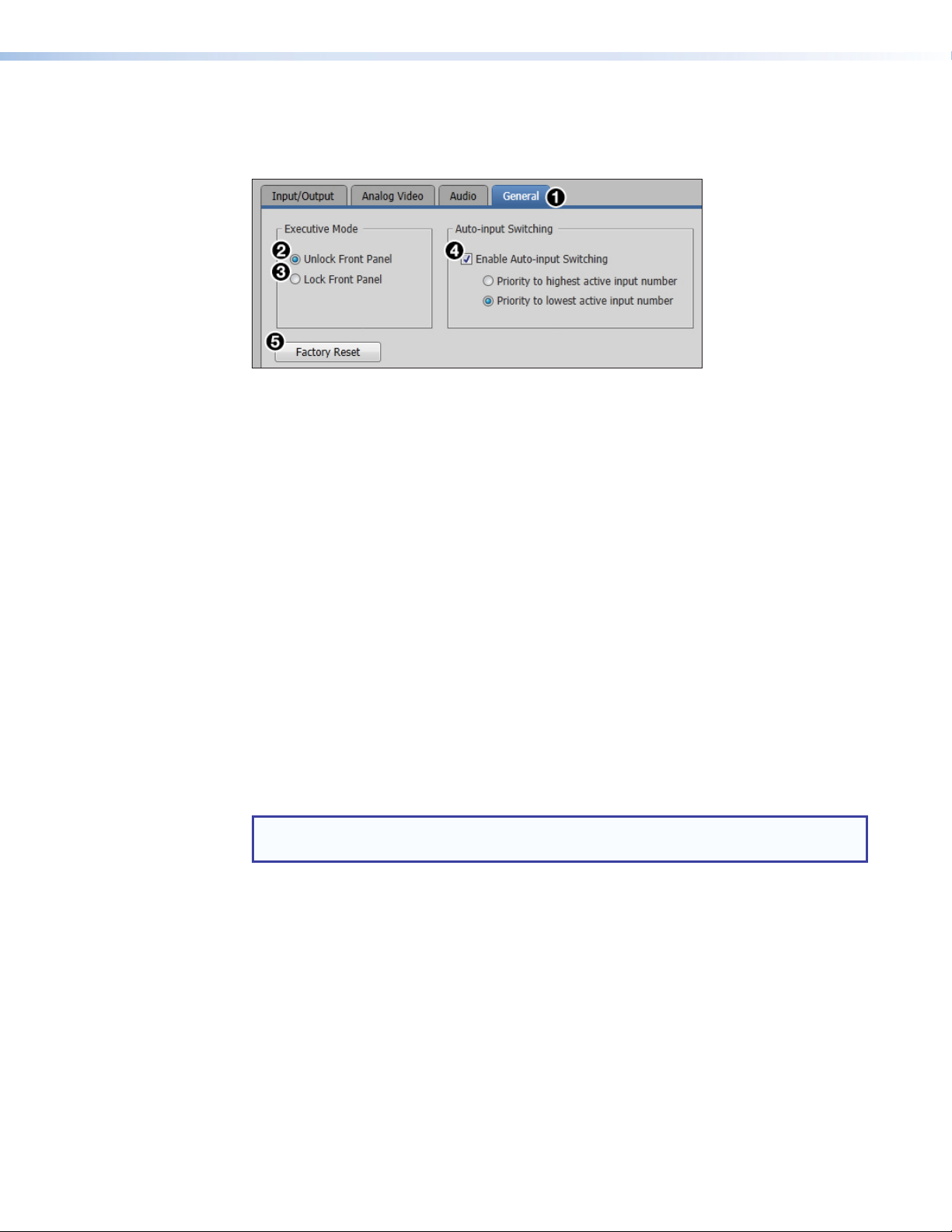

General tab

Click the General tab (see figure 25, 1) to open the General screen. It contains settings for front panel lockout (executive) mode, auto switch mode, and factory reset.

Figure 25. General Tab

Executive Mode panel

Unlock the Front Panel — Click the Unlock Front Panel radio button (default) to

disable front panel lockout (executive) mode.

Lock the Front Panel — Click the Lock Front Panel radio button to enable

front panel lockout (executive) mode (see Setting the Front Panel Lockout Mode

(Executive Mode) on page 11).

Auto-input Switching panel

Auto-input Switching — Click the Enable Auto-Input Switching check box to

enable auto switch mode. Two settings are available for this mode.

• Click the Priority to highest active input number radio button to

automatically switch to the highest numbered active input.

• Click the Priority to lowest active input number radio button to

automatically switch to the lowest numbered active input.

Factory reset

Click the Factory Reset button to reset the transmitter to factory settings except for

firmware.

NOTE: This is the same as the E ZXXX SIS command (see the System reset SIS

command on page 18).

XTP T USW 103 Switcher • XTP System Configuration Software 28

Device Information panel

The Device Information panel displays device information and settings.

General Information section

Model — Displays the device model.

Firmware Version — Displays the full firmware

version.

Signal Information section

Selected Input — Displays the input number of

the currently selected input.

Auto-input Switching — Displays the On or Off

status of auto switch mode.

Signal Present — Displays the signal presence of

all three inputs.

HDCP — Displays the HDCP status of inputs 2

and 3.

Audio Information section

Selected Audio Input — Displays the type of the

currently selected audio input.

Analog Audio Gain — Displays the analog audio

gain in dB.

XTP T USW 103 Switcher • XTP System Configuration Software 29

EDID Minder

Use the EDID Minder screen to assign unique EDID to the input or match current output resolutions to the input. Click the EDID Minder icon (see figure 26, 1) on the global navigation bar. The EDID Minder screen opens.

The EDID Minder screen displays a table of EDID options and connected output devices, which are each represented by output display icons.

• Factory default EDID options are displayed in blue.

• Connected output resolutions and devices are displayed in green.

• Custom loaded or saved EDID options are displayed in yellow.

Figure 26. EDID Minder Screen

Assign EDID

To assign EDID to selected inputs:

1. Select an available EDID setting (represented by a blue, green, or yellow output display

icon) from the Favorites, Connected Outputs, or Available EDID panel (see 2-4).

2. In the list of Inputs on the right side of the screen, select the check box of the

connected inputs (see 5).

3. Click the Assign button below the input area (see 6).

TIP: Alternatively, EDID can be assigned by dragging and dropping the desired EDID

onto the input.

To assign EDID to all inputs:

1. Select an available EDID setting (represented by a blue, green, or yellow output display

icon) from the Favorites, Connected Outputs, or Available EDID panel (see 2-4).

2. Below the list of inputs on the right side of the screen, click the Assign to All button

(see 7).

XTP T USW 103 Switcher • XTP System Configuration Software 30

Import EDID

1. On the EDID Minder screen, click the Add EDID to Library button (see figure 26, 8).

The Browse window opens.

2. Select the desired EDID file and click Open. The EDID appears in the Available EDID

panel (see figure 26, 4).

3. Assign the EDID from the Available EDID panel to import the EDID setting to the device.

Save output EDID

1. On the EDID Minder screen, right-click on the desired EDID setting in the Connected

Outputs

2. Select the Save EDID to PC option. The EDID setting is saved to the connected PC.

Alternatively, right-click on the desired EDID, select Copy, and then paste the EDID into the Favorites or Available EDID panel.

panel (see figure 26, 3).

Set favorite EDID

Commonly used EDID settings can be added to the Favorites pane for quick access.

1. Click and drag the desired EDID from the Connected Outputs or the Available EDID

panel to the Favorites panel. The EDID setting is copied to the Favorites panel (see figure 26, 2). Alternatively, right-click the desired EDID and select Copy. Then Paste the EDID setting into the Favorites panel.

EDID filters

The filters can be used to easily and quickly locate specific EDID. Selectable filters include:

Resolution

Refresh rate

Video format

Audio format

Figure 27. EDID Filters

To use a filter or combination of filters:

1. Select an EDID setting from one of the drop-down lists of the associated filter (see

figure 27, 1-4). The available EDID options that match the filter selection are displayed in the Available EDID panel.

2. Repeat step 1 to apply more filters.

To clear the currently applied filters:

1. Click the Clear button next to the filters (see figure 27, 5). All filters are reset.

Common timings

This function automatically displays available EDID settings that are common among multiple selected outputs.

1. Hold <Ctrl> and click the desired outputs in the Connected Outputs panel (see

figure 26, 3). The Common Timings tab appears, listing the EDID settings common among the selected outputs.

2. Select the desired common EDID setting. The EDID is shown in the Available EDID

panel.

XTP T USW 103 Switcher • XTP System Configuration Software 31

Reference Information

This section contains mounting information and instructions for updating firmware. Topics in this section include:

• Mounting

• Updating Firmware with Firmware Loader

Mounting

The XTP T USW 103 can be placed on a tabletop, mounted in a rack, or mounted underneath a desk.

Tabletop Placement

Attach the provided rubber feet to the bottom four corners of the enclosure.

Mounting Kits

Mount the unit using any optional compatible rack shelf or mounting kit listed at

www.extron.com, in accordance with the directions included with the kit. For

rack-mounting, see “UL guidelines for rack-mounted devices” below.

UL guidelines for rack-mounted devices

The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the XTP T USW 103 in a rack.

1. Elevated operating ambient temperature — If installed in a closed or multi-unit

2. Reduced air flow — Install the equipment in a rack so that the amount of air flow

3. Mechanical loading — Mount the equipment in the rack so that a hazardous

4. Circuit overloading — Connect the equipment to the supply circuit and consider the

5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted

rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the XTP T USW 103 in an environment compatible with the maximum ambient temperature (Tma = +122 ˚F, +50 ˚C) specified by Extron.

required for safe operation of the equipment is no compromised.

condition is not achieved due to uneven mechanical loading.

effect that circuit overloading might have an overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

32XTP T USW 103 Switcher • Reference Information

Updating Firmware with Firmware Loader

To upload and update firmware for the XTP T USW 103, download the new firmware to a connected computer and upload the firmware to the XTP T USW 103 with the Firmware Loader utility.

Downloading Extron Firmware Loader

Figure 28. Locating Software on the Extron Website

1. On the Extron website, click the Download tab (see figure 28, 1).

2. On the left sidebar, click the Software link (see figure 28, 2).

Figure 29. Locating Firmware Loader on the Extron Website

3. Click the F link and navigate to Firmware Loader (see figure 29, 3).

4. Click the Download link on the right that corresponds with the program (see

figure 29, 4).

5. Submit any required information to start the download. Note where the file is saved.

XTP T USW 103 Switcher • Reference Information 33

Installing Firmware Loader

1. Once Firmware Loader has been downloaded, run the .exe file from the save location.

The installation wizard window opens.

2. Follow the instructions on the Installation Wizard screens to install Firmware Loader on

the computer.

Downloading Firmware

Figure 30. Downloading Firmware from the Extron Website

1. On the Extron website, click the Download tab (see figure 30, 1).

2. On the left sidebar, click the Firmware link (see 2).

3. Navigate to the XTP T USW 103.

4. Ensure the available firmware version is a later version than the current one on the

device (see Device Information panel on page 29).

NOTE: The firmware release notes are a PDF file that provides details about the

changes between different firmware versions. The file can be downloaded from the same page as the firmware.

5. Click the Download link to the right of the desired device.

6. If required, enter any required information to start the download. Note where the file is

saved.

XTP T USW 103 Switcher • Reference Information 34

Installing Firmware with Firmware Loader

1. Connect the host device to the front panel USB port.

2. Open Firmware Loader and establish a connection between the computer and the

device. The Add Device... dialog box opens.

Figure 31. Add Device... Dialog Box

3. From the Device Name drop-down list, select XTP T USW 103.

4. From the Connection Method drop-down list, select the method of connection. The

Available Devices drop-down list appears.

5. From the Available Devices drop-down list, select the desired device.

6. Click the Connect button.

7. Click the Browse button in the New File Firmware (Optional) panel.

8. On the Open dialog box, navigate to the new firmware file, which has an .S19

extension, and select it.

ATTENTION: Valid ﬁrmware ﬁles must have the ﬁle extension .S19. A ﬁle with any

other extension is not a ﬁrmware upgrade for this device and could cause the device to stop functioning.

9. Click the Open button. The Browse dialog box opens.

10. Click the Add button. The Add Device... dialog box closes and the device and firmware

are listed in the Firmware Loader main window.

11. Click the Begin button to start the upload process.

12. Close Firmware Loader when the Remaining Time field shows 00.00.00, the

Progress column shows 100%, and the Status field shows completed.

XTP T USW 103 Switcher • Reference Information 35

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1230 South Lewis Street Anaheim, CA 92805 U.S.A.

Europe and Africa:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Asia:

Extron Asia Pte Ltd 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modiﬁcations were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040 Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East +1.714.491.1500 +1.919.850.1000 +1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673 (Inside Europe Only)

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800 +971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571 +82.2.3444.1575 FAX

Extron India

1800.3070.3777 Inside India Only

+91.80.3055.3777 +91.80.3055.3737 FAX

Extron XTP T USW 103 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Instructions

FCC Class A Notice

Copyright

Conventions Used in this Guide

Notifications

Software Commands

Specifications Availability

Contents

Introduction

About this Guide

About the XTP T USW 103

Key Features

Installation

Rear Panel Connectors

Making Connections

HDMI Connection

TP Cable Termination and Recommendations

Contact Closure Communication

RS-232 and IR Communication

Power Connection

Operation

Front Panel Features

Front Panel Operation

Selecting an Input

Setting the Front Panel Lockout Mode (Executive Mode)

Enabling Auto Switch Mode

Enabling Normal Switch Mode

EDID

Reset Mode

SIS Configuration and Control

Host Device Connection

SIS Programming Guide

Host-to-Device and Device-to-Host communication

Device-Initiated Message

Error Responses

Using the Command and Response Table for SIS Commands

Symbol Definitions

Command and Response Tables for SIS Commands

Input Commands

Audio Configuration Commands

Picture Adjustment Commands (Analog Only)

Preset Commands

EDID Commands

Advanced Configuration Commands

Installing the XTP System Configuration Software

2. On the left sidebar, click the XTP System Configuration Software link (see 2).

Using the XTP System Configuration Software

Connections

Top Menu

Device Settings

Reference Information

Mounting

Tabletop Placement

Mounting Kits

Updating Firmware with Firmware Loader

Downloading Extron Firmware Loader

Installing Firmware Loader

Downloading Firmware

Installing Firmware with Firmware Loader

Extron Warranty
