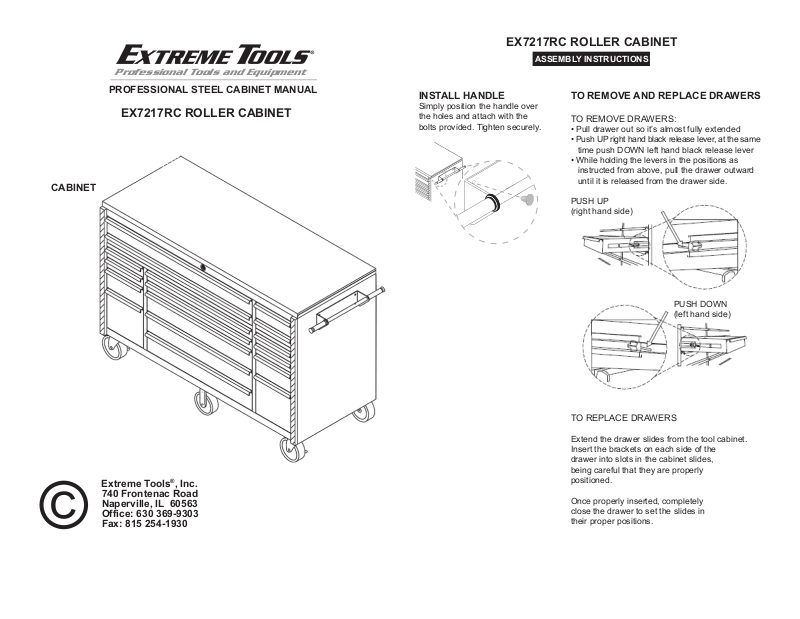

Extreme Tools EX7217RC User Manual
Professional Tools and Equipment
EX7217RC ROLLER CABINET
ASSEMBLY INSTRUCTIONS
CABINET
PROFESSIONAL STEEL CABINET MANUAL
EX7217RC ROLLER CABINET
INSTALL HANDLE
Simply position the handle over
the holes and attach with the
bolts provided. Tighten securely.
TO REMOVE AND REPLACE DRAWERS
TO REMOVE DRAWERS:
• Pull drawer out so it’s almost fully extended
• Push UP right hand black release lever, at the same
time push DOWN left hand black release lever
• While holding the levers in the positions as
instructed from above, pull the drawer outward
until it is released from the drawer side.
PUSH UP
(right hand side)
PUSH DOWN
(left hand side)
Extreme Tools®, Inc.
740 Frontenac Road
Naperville, IL 60563
Office: 630 369-9303
Fax: 815 254-1930
TO REPLACE DRAWERS
Extend the drawer slides from the tool cabinet.
Insert the brackets on each side of the
drawer into slots in the cabinet slides,
being careful that they are properly
positioned.
Once properly inserted, completely
close the drawer to set the slides in
their proper positions.
Professional Tools and Equipment
EX7217RC ROLLER CABINET
PARTS LIST
PROFESSIONAL STEEL CABINET MANUAL
EX7217RC ROLLER CABINET
The keys are taped to the
inside of the first drawer.
REF# DESCRIPTION PART# QTY
__________________________________________
1 Lock 304049 2 pcs.
2 Cabinet Handle 103948 1 pc.
3 M10x25 Hex Bolt 321047 4 pcs.
4 Safe Drawer 101798 1 pc.
5 Drawer Pull 301305 10 pcs.
6 Swivel Caster 302005 4 pcs.
7 M10x25 Hex Bolt 321047 24 pcs.
8 Washer 324304 24 pcs.
9 Drawer Liner 362430 5 pcs.
10 Trim 315020 5 pcs.
11 Drawer Pull 301285 5 pcs.
12 Drawer 101795 3 pcs.
13 Drawer 101792 2 pcs.
14 Slide(R) 300005R 26 pcs.
15 Rigid Caster 302006 2 pcs.
16 Drawer Liner 362429 10 pcs.
17 Drawer 101797 2 pcs.
18 Slide(L) 300005L 26 pcs.
19 Drawer 101794 2 pcs.
20 Drawer 101791 5 pcs.
21 Drawer 101793 1 pc.
22 Drawer 101796 1 pc.
23 Drawer Pull 301307 2 pcs.
24 Drawer Liner 362431 2 pcs.
25 SS Top 101789 1 pc.
26 Detent 314064 52 pcs.
Extreme Tools®, Inc.
740 Frontenac Road
Naperville, IL 60563
Office: 630 369-9303
Fax: 815 254-1930
1. Replacement keys may be ordered, the code
which appears on the face of the lock is required.
2. Give the information for service parts: part number
and quantity.
