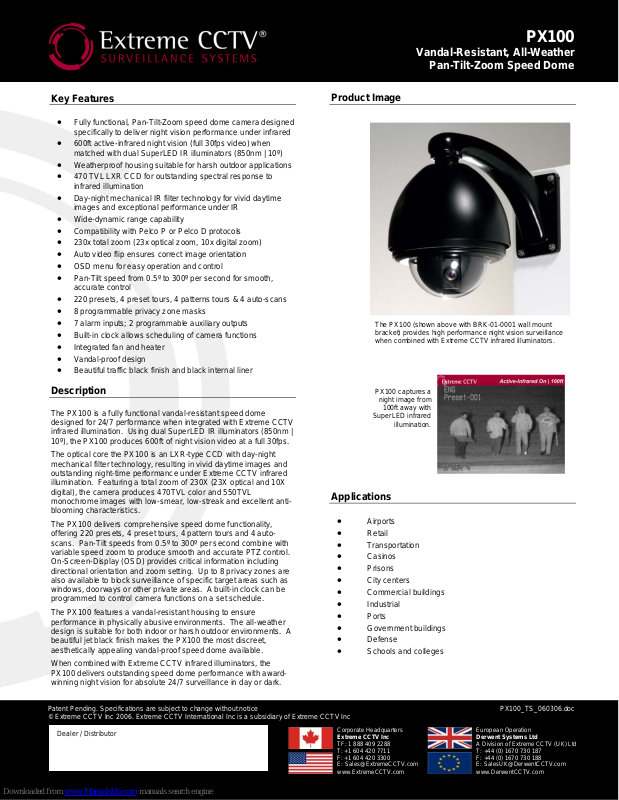

PX100

Vandal-Resistant, All-Weather

Pan-Tilt-Zoom Speed Dome

Key Features

• Fully functional, Pan-Tilt-Zoom speed dome camera designed

specifically to deliver night vision performance under infrared

• 600ft active-infrared night vision (full 30fps video) when

matched with dual SuperLED IR illuminators (850nm | 10º)

• Weatherproof housing suitable for harsh outdoor applications

• 470 TVL LXR CCD for outstanding spectral response to

infrared illumination

• Day-night mechanical IR filter technology for vivid daytime

images and exceptional performance under IR

• Wide-dynamic range capability

• Compatibility with Pelco P or Pelco D protocols

• 230x total zoom (23x optical zoom, 10x digital zoom)

• Auto video flip ensures correct image orientation

• OSD menu for easy operation and control

• Pan-Tilt speed from 0.5º to 300º per second for smooth,

accurate control

• 220 presets, 4 preset tours, 4 patterns tours & 4 auto-scans

• 8 programmable privacy zone masks

• 7 alarm inputs; 2 programmable auxiliary outputs

• Built-in clock allows scheduling of camera functions

• Integrated fan and heater

• Vandal-proof design

• Beautiful traffic black finish and black internal liner

Description

The PX100 is a fully functional vandal-resistant speed dome designed for 24/7 performance when integrated with Extreme CCTV infrared illumination. Using dual SuperLED IR illuminators (850nm | 10º), the PX100 produces 600ft of night vision video at a full 30fps.

The optical core the PX100 is an LXR-type CCD with day-night mechanical filter technology, resulting in vivid daytime images and outstanding night-time performance under Extreme CCTV infrared illumination. Featuring a total zoom of 230X (23X optical and 10X digital), the camera produces 470TVL color and 550TVL monochrome images with low-smear, low-streak and excellent antiblooming characteristics.

The PX100 delivers comprehensive speed dome functionality, offering 220 presets, 4 preset tours, 4 pattern tours and 4 autoscans. Pan-Tilt speeds from 0.5º to 300º per second combine with variable speed zoom to produce smooth and accurate PTZ control. On-Screen-Display (OSD) provides critical information including directional orientation and zoom setting. Up to 8 privacy zones are also available to block surveillance of specific target areas such as windows, doorways or other private areas. A built-in clock can be programmed to control camera functions on a set schedule.

The PX100 features a vandal-resistant housing to ensure performance in physically abusive environments. The all-weather design is suitable for both indoor or harsh outdoor environments. A beautiful jet black finish makes the PX100 the most discreet, aesthetically appealing vandal-proof speed dome available.

When combined with Extreme CCTV infrared illuminators, the PX100 delivers outstanding speed dome performance with awardwinning night vision for absolute 24/7 surveillance in day or dark.

Patent Pending. Specifications are subject to change without notice PX100_TS_060306.doc © Extreme CCTV Inc 2006. Extreme CCTV International Inc is a subsidiary of Extreme CCTV Inc

Dealer / Distributor

Product Image

Applications

• Airports

• Retail

• Transportation

• Casinos

• Prisons

• City centers

• Commercial buildings

• Industrial

• Ports

• Government buildings

• Defense

• Schools and colleges

Corporate Headquarters

Extreme CCTV Inc

TF: 1 888 409 2288 T: +1 604 420 7711 F: +1 604 420 3300 E: [email protected] m www.ExtremeCCTV.com

The PX100 (shown above with BRK-01-0001 wall mount bracket) provides high performance night vision surveillance when combined with Extreme CCTV infrared illuminators.

PX100 captures a

night image from

100ft away with

SuperLED infrared

illumination.

European Operation

Derwent Systems Ltd

A Division of Extreme CCTV (UK) Ltd T: +44 (0) 1670 730 187 F: +44 (0) 1670 730 188 E: [email protected] www.DerwentCCTV.com

Page 2

Key Features

Model PX100MX Day-Night Speed Dome

Sensor Format 1/4” LXR CCD w/ Mechanical Filter Technology Effective Pixel NTSC: 768 x 494 | PAL: 752 x 582 Resolution 470 TVL color | 550 TVL monochrome Daytime Sensitivity 0.08 Lux Night-Time Sensitivity 0.013 Lux | Zero Lux under infrared illumination Day-Night Switching Automatic White Balance Automatic, via controller S/N Greater than 50dB Video Output 1.0 Vp-p Scanning System 2:1 interlacing Protocol Pelco D standard (configurable for Pelco P) Presets 220 configurable presets with titles Pan Range 360º continuous Tilt Range 90º Preset Pan-Tilt Speed 300º per second Manual Pan-Tilt Speed 0.5º to 160º per second Focus and Iris Automatic, via controller Zoom 230x (optical 23x | digital 10x) Optical Zoom Length 3.6mm to 82.8mm Zoom Speed High or low Auto-Flip Automatic Communication RS-485 | RS-422 Baud Rate 4800 bps Construction Vandal-resistant, all-weather housing Finish Black Heater Automatic start Fan Continuous operation Operating Temperature -40ºC to +50ºC | -40ºF to 122ºF Operating Humidity < 95% relative humidity Input Voltage 24 VAC, 50/60Hz Power Consumption 50 W Dimensions 308mm x 236mm | 12.1” x 9.3” Weight 3.2kg | 7.0lbs

Part Number

PX100MX-N PX100 day-night speed dome w/ mech. filter

vandal-resistant, all-weather housing NTSC model

PX100MX-P PX100 day-night speed dome w/ mech. filter

vandal-resistant, all-weather housing PAL model

Optional Accessories

EXPS.010 Power supply, 120 VAC / 24 VAC, 2.5 A BRK-01-0001 Wall mount bracket, black BRK-01-0002 Pendant ceiling mount bracket, black EXMB.015 Pole mount adapter, black MC-IPN2 IP200 video web server for PTZ support
