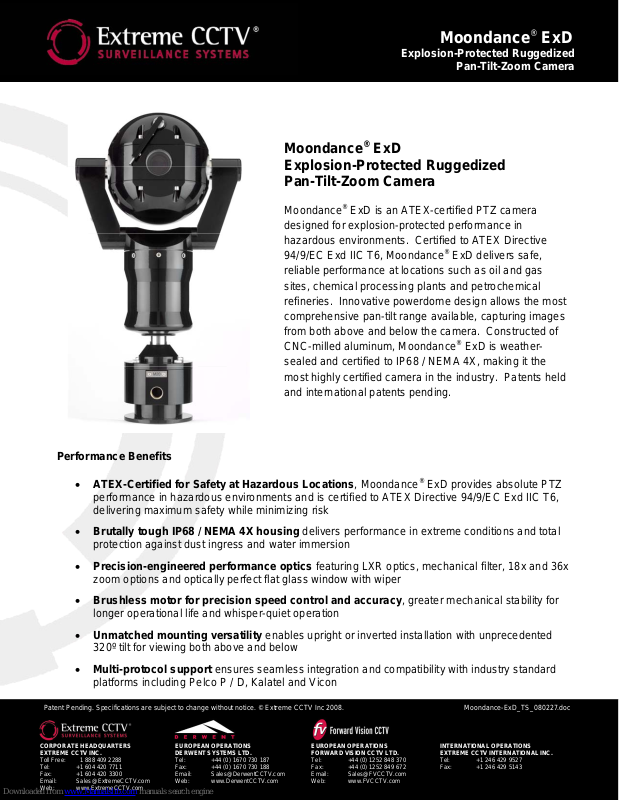

Moondance® ExD
Explosion-Protected Ruggedized
Pan-Tilt-Zoom Camera
Moondance® ExD
Explosion-Protected Ruggedized
Pan-Tilt-Zoom Camera
Moondance
designed for explosion-protected performance in
hazardous environments. Certified to ATEX Directive
94/9/EC Exd IIC T6, Moondance
reliable performance at locations such as oil and gas
sites, chemical processing plants and petrochemical
refineries. Innovative powerdome design allows the most
comprehensive pan-tilt range available, capturing images
from both above and below the camera. Constructed of
CNC-milled aluminum, Moondance
sealed and certified to IP68 / NEMA 4X, making it the
most highly certified camera in the industry. Patents held
and international patents pending.
®
ExD is an ATEX-certified PTZ camera
®
ExD delivers safe,
®
ExD is weather-
Performance Benefits
• ATEX-Certified for Safety at Hazardous Locations, Moondance
performance in hazardous environments and is certified to ATEX Directive 94/9/EC Exd IIC T6,
delivering maximum safety while minimizing risk
• Brutally tough IP68 / NEMA 4X housing delivers performance in extreme conditions and total
protection against dust ingress and water immersion
• Precision-engineered performance optics featuring LXR optics, mechanical filter, 18x and 36x
zoom options and optically perfect flat glass window with wiper
• Brushless motor for precision speed control and accuracy, greater mechanical stability for
longer operational life and whisper-quiet operation
• Unmatched mounting versatility enables upright or inverted installation with unprecedented
320º tilt for viewing both above and below
• Multi-protocol support ensures seamless integration and compatibility with industry standard
platforms including Pelco P / D, Kalatel and Vicon
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-ExD_TS_080227.doc
CORPORATE HEADQUARTERS
EXTREME CCTV INC.
Web: www.ExtremeCCTV.com
EUROPEAN OPERATIONS
DERWENT SYSTEMS LTD.
Tel: +44 (0) 1670 730 187
Fax: +44 (0) 1670 730 188
Email: [email protected]
Web: www.DerwentCCTV.com
EUROPEAN OPERATIONS
FORWARD VISION CCTV LTD.
®
ExD provides absolute PTZ
INTERNATIONAL OPERATIONS
EXTREME CCTV INTERNATIONAL INC.
Tel: +1 246 429 9527
Fax: +1 246 429 5143
Page 2

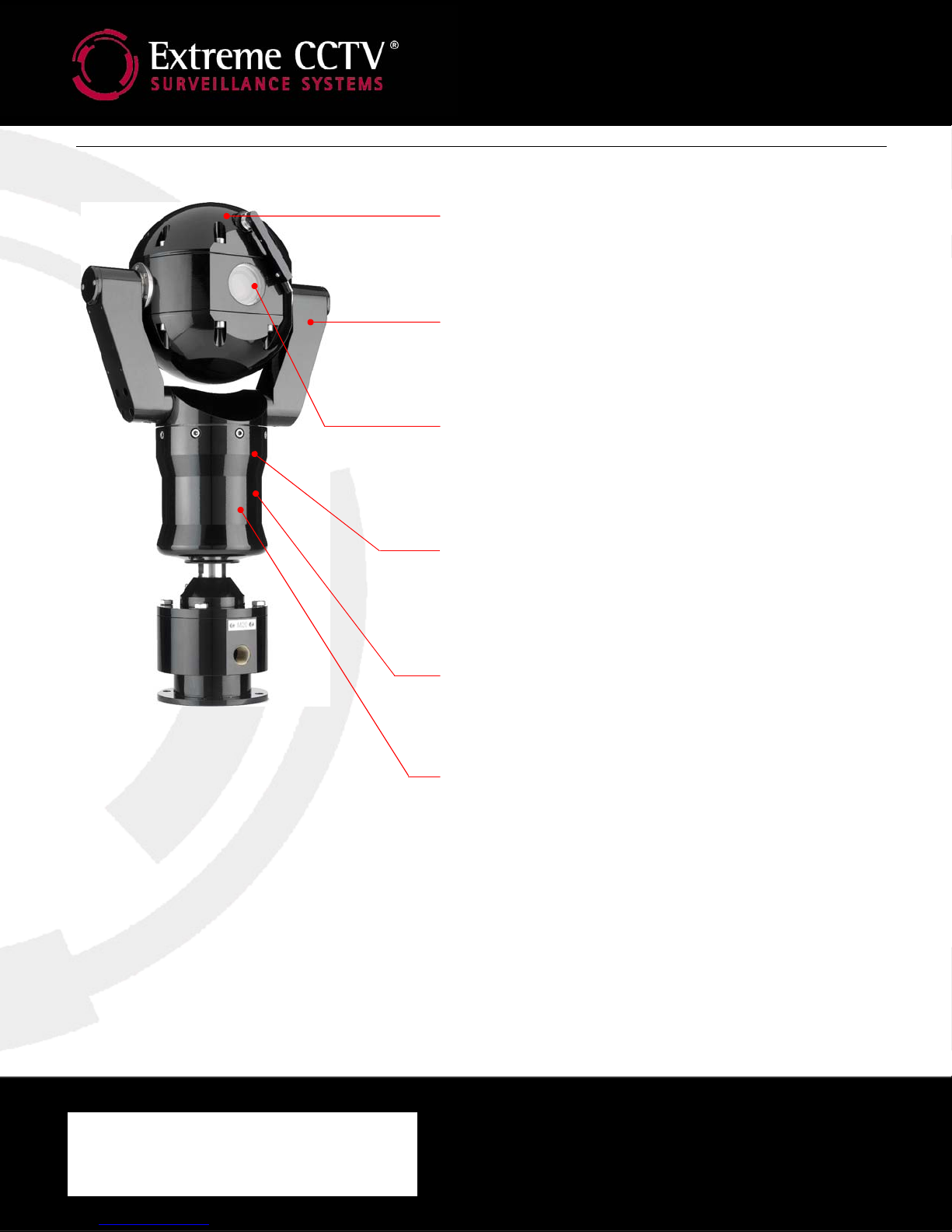

Key Attributes
Moondance® ExD
Explosion-Protected Ruggedized
Pan-Tilt-Zoom Camera
ATEX-Certified for Safety at Hazardous Locations
• Explosion-protected design for maximum safety and minimal
operational risk
• Certified to ATEX Directive 94/9/EC Exd IIC T6
• Rated IP68 / NEMA 4X for performance in extreme environments
Unmatched mounting versatility
• Enables effective imaging from both above and below the camera
• Eliminates blind spots inherent to conventional PTZ cameras
• Mountable upright or inverted on walls and ceilings
• Unprecedented 320º tilt for viewing both above and below
Precision-engineered performance optics
• 18x or 36x zoom module for powerful video interrogation
• LXR CCD for outstanding infrared sensitivity
• Mechanical filter technology produces vivid daytime color
and sharp focus under infrared
Flat glass window with wiper for distortion-free optical clarity
•
Brutally tough IP68 / NEMA 4X housing
• Rated IP68 / NEMA 4X for performance in extreme environments
• Environmentally sealed for total protection against dust ingress and
water immersion
• Mechanically stabilized for physical durability in mobile applications
• Ruggedized, vandal-resistant construction
Multi-protocol support
• Ensures seamless integration and compatibility with industry
standard platforms including Pelco P / D, Kalatel and Vicon
• Full functionality and control of Moondance’s resolver technology
and closed-loop electronics for accurate pan-tilt positioning
Brushless motor
• Precision speed control and accuracy
• Greater mechanical stability for longer operational life
• Whisper-quiet operation ideal for public areas and residences
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-ExD_TS_080227.doc
Dealer / Distributor
Page 3
Explosion-Protected Ruggedized
Specifications Specifications

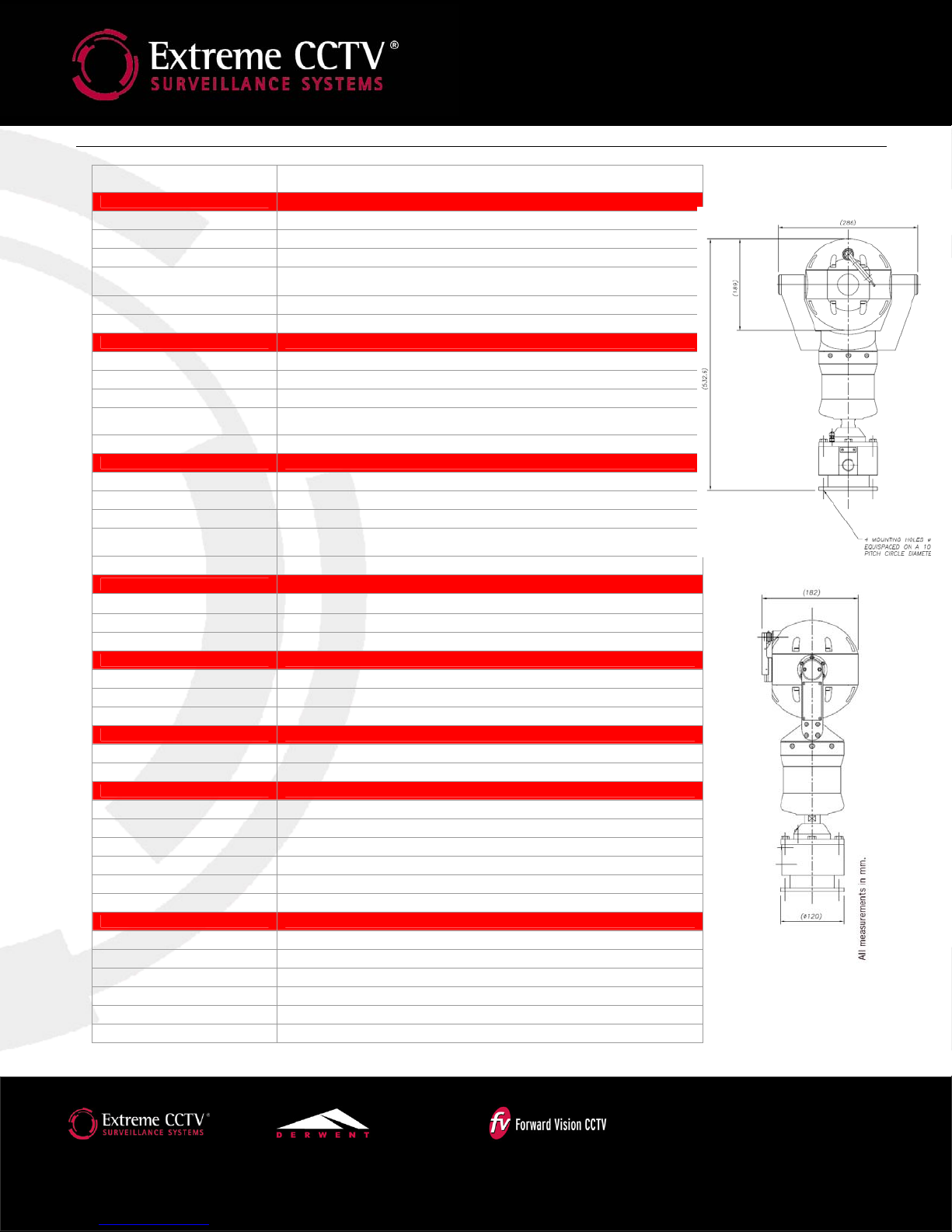

Moondance® ExD Explosion-Protected Ruggedized Pan-Tilt-Zoom Camera
Camera Module
Image Sensor 1/4” LXR CCD
Filter Automatic mechanical IR cut filter
Resolution 470 TVL NTSC standard (PAL available)
Effective Pixels 768 x 494 NTSC standard (PAL available)
Minimum Working Distance 290mm (wide end), 800mm (tele end) | 11.4” (wide end), 31.5” (tele end)
Focus system Auto or manual focus
18x Optical Zoom Module
Lens F=4.1mm (WIDE) to 73.8mm (TELE), F1.4 to F3.0
Zoom 18x optical (12x digital)
Angle of View 48 º (WIDE end) to 2.8º (TELE end)
Minimum Illumination
Shutter Speed 1/1 to 1/10,000s (22 steps) NTSC, PAL
36x Optical Zoom Module
Lens F=3.4mm (WIDE) to 122.4mm (TELE), F1.6 to F4.5
Zoom 36x optical (12x digital)
Angle of View 57.8º (WIDE end) to 1.7º (TELE end)
Minimum Illumination
Shutter Speed 1/4 to 1/10,000s (20 steps) NTSC, 1/3 to 1/10,000s (20 steps) PAL
Operational
Presets Up to 64 telemetry presets accurate to less than 0.08° utilizing resolver technology
Preset tours Up to 6 tours
Home Position Yes (preset 1 or tour)
Communications & Protocols
Communication RS485 / RS422
Control Protocol Pelco P / D standard (Refer to Available Options section for additional proto c ols)
Telemetry Control Card Supplied as standard
Alarms
Alarm inputs 1 x tamper input (additional inputs possible with optional alarm card in PSU)
Alarm Communication Tamper switch (ground connection)
Mechanical
Drive Unit Brushless motor drive | Integral pan / tilt | Steel gear driven
Pan angle and speed 360° continuous pan | Variable speed: up to 48º per second
Tilt angle and speed 320° | Variable speed: 0.2º to 48º per second
Speed Control Closed loop electronics
Preset Accuracy Better than 0.08°
Proportional P/T to Zoom position Yes
Physical
Construction 6mm thick aluminum
Viewing Window Tempered flat glass (optical)
Window Wiper External window wiper included
Standard Color(s) Black
Dimensions ( W x H xD) 286mm x 533mm x 189mm | 11.3” x 21.0” x 7.4” (includes deep conduit adaptor)
Weight 34.1lbs | 15.5kg (includes ATEX certified deep conduit base)
0.7 lux (F1.4, 1/60s NTSC, 1/50s PAL), 0.1 lux (F1.4, 1/4s NTSC, 1/3s PAL),
0.01 lux or less (F1.4, 1/4s NTSC, 1/3s PAL, ICR ON)
1.4 lux (F1.6, 1/60s NTSC, 1/50s PAL), 0.1 lux (F1.6, 1/4s NTSC, 1/3s PAL),
0.01 lux or less (F1.6, 1/4s NTSC, 1/3s PAL, ICR ON)
Moondance® ExD
Pan-Tilt-Zoom Camera
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-ExD_TS_080227.doc
CORPORATE HEADQUARTERS
EXTREME CCTV INC.
Web: www.ExtremeCCTV.com
EUROPEAN OPERATIONS
DERWENT SYSTEMS LTD.
Tel: +44 (0) 1670 730 187
Fax: +44 (0) 1670 730 188
Email: [email protected]
Web: www.DerwentCCTV.com
EUROPEAN OPERATIONS
FORWARD VISION CCTV LTD.
INTERNATIONAL OPERATIONS
EXTREME CCTV INTERNATIONAL INC.
Tel: +1 246 429 9527
Fax: +1 246 429 5143
Page 4
Explosion-Protected Ruggedized
Environmental
Operational Temp. -20˚C to +60˚C | -4˚F to 140˚F
Environmental Designed to IP68 and NEMA 4X Outdoor Weather Rating
Certifications
Certifications Certified to ATEX Directive 94/9/EC Exd IIC T6
Electrical
Power Consumption 25.2W max.
Available Options
Mounting Upright mount or inverted mount options
Camera Module (optical) 18x camera module or 36x camera module
Camera Color System NTSC or PAL
Installed Protocol Vidimech Vertex, Kalatel or Vicon (contact Extreme for additional protocol support)
Alarm Card Optional (In PSU), factory fit
Technical sheets available for individual accessories
Accessories
Composite Cable (required)
Power Supply (required)
Mounting bracket
Deep Conduit Base
(required – included)
Mounting bracket
Wall
Mounting bracket
Corner
Mounting bracket
Pole
NOTE: Cabling, power supplies and brackets shown below are NOT ATEX-rated
unless otherwise noted. Equipment installers are advised to comply with any
applicable local regulatory standards for explosion protected equipment installation.
MDCL-02 2m composite lead with plug for power/data video
MDCL-10 10m composite lead with plug for power/data video
MDCL-25 25m composite lead with plug for power/data video
MDPS-115 Power supply, 115 VAC input
MDPS-240 Power supply, 240 VAC input
MDPS-024 Power supply, 24 VAC input
MDPS-012 Power supply, 12-24 VDC input
MDMB-BAS
MDMB-WAL
MDMB-WAL-1
MDMB-WAL-2
MDMB-COR
MDMB-COR-1
MDMB-COR-2
EXMB.019B Pole mount adaptor bracket, black
EXMB.019W
Mounting bracket, deep conduit base included (ATEX certified)
Mounting bracket, wall, black
Mounting bracket, wall, grey
Mounting bracket, wall, stainless steel
Mounting bracket, corner, black
Mounting bracket, corner, grey
Mounting bracket, corner, stainless steel
Pole mount adaptor bracket, white
Moondance® ExD
Pan-Tilt-Zoom Camera
Part Numbers
Model
Moondance-ExD
MD 440 N 03 B S PP 01
Video Output
N: NTSC (standard)
P: PAL (available)
Housing
03: Aluminum Round - ExD
Wiper included
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-ExD_TS_080227.doc
Dealer / Distributor
Color
B: Black (standard)
Optics
00: 18x zoom
01: 36x zoom
Protocol
PP: Pelco P / D (standard)
VV: Vidimech Vertex (available)
Physical Configuration
S: 0º Straight (standard)
OK: Kalatel (available)
OV: Vicon (available)
