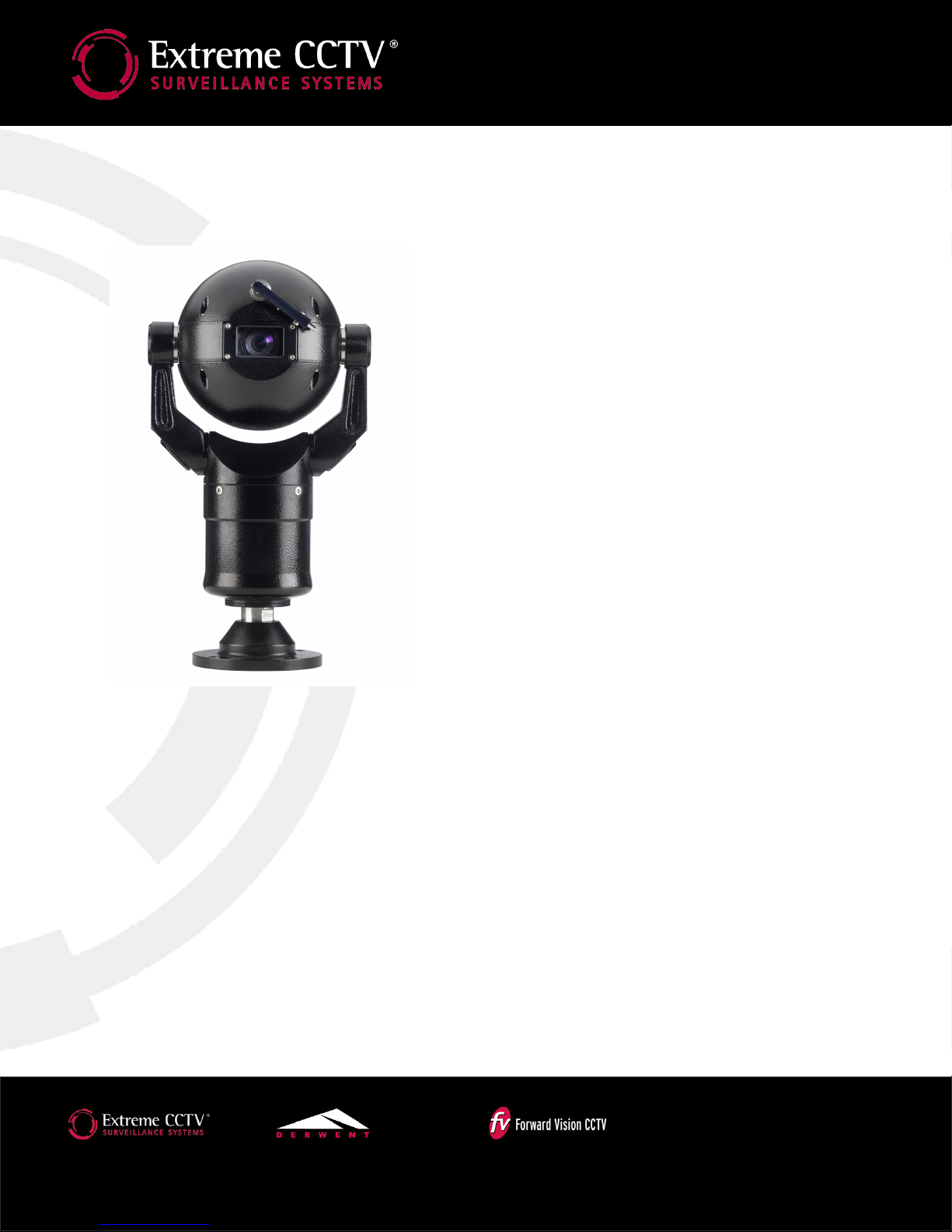

Moondance® Ruggedized
Pan-Tilt-Zoom Camera
Standard Aluminum and Stainless Steel
Performance Benefits
• Brutally tough IP68 / NEMA 4X housing delivers performance in extreme conditions and total
protection against dust ingress and water immersion
• Precision engineered performance optics featuring LXR CCD, mechanical filter, 18x and 36x
zoom options and optically perfect flat glass window with wiper
Moondance® Ruggedized
Pan-Tilt-Zoom Camera
Standard Aluminum and Stainless Steel
Featuring an innovative metal powerdome design,
Moondance
engineered for security applications that demand
the very best performance. The Moondance
machined metal ball head allows the most versatile
pan-tilt operation of any speed dome, capturing
images from both above and below the camera.
Constructed of CNC-milled 6mm thick aluminum or
vandal resistant grade 316 stainless steel,
Moondance
performance in extreme weather environments.
Three-year product warranty. Patents held and
international patents pending.
®
is a ruggedized PTZ camera
®
is certified to IP68 / NEMA 4X for
®
• Brushless motor for precision speed control and accuracy, greater mechanical stability for
longer operational life and whisper-quiet operation
• Unmatched mounting versatility enables upright or inverted installation with unprecedented 320º
tilt for viewing both above and below
• Multi-protocol support ensures seamless integration and compatibility with industry standard
platforms including Pelco P / D, Kalatel and Vicon
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-Aluminum-Stainless_TS_080121.doc
CORPORATE HEADQUARTERS
EXTREME CCTV INC.
Web: www.ExtremeCCTV.com
EUROPEAN OPERATIONS
DERWENT SYSTEMS LTD.
Tel: +44 (0) 1670 730 187
Fax: +44 (0) 1670 730 188
Email: [email protected]
Web: www.DerwentCCTV.com
EUROPEAN OPERATIONS
FORWARD VISION CCTV LTD.
INTERNATIONAL OPERATIONS
EXTREME CCTV INTERNATIONAL INC.
Tel: +1 246 429 9527
Fax: +1 246 429 5143
Page 2
®

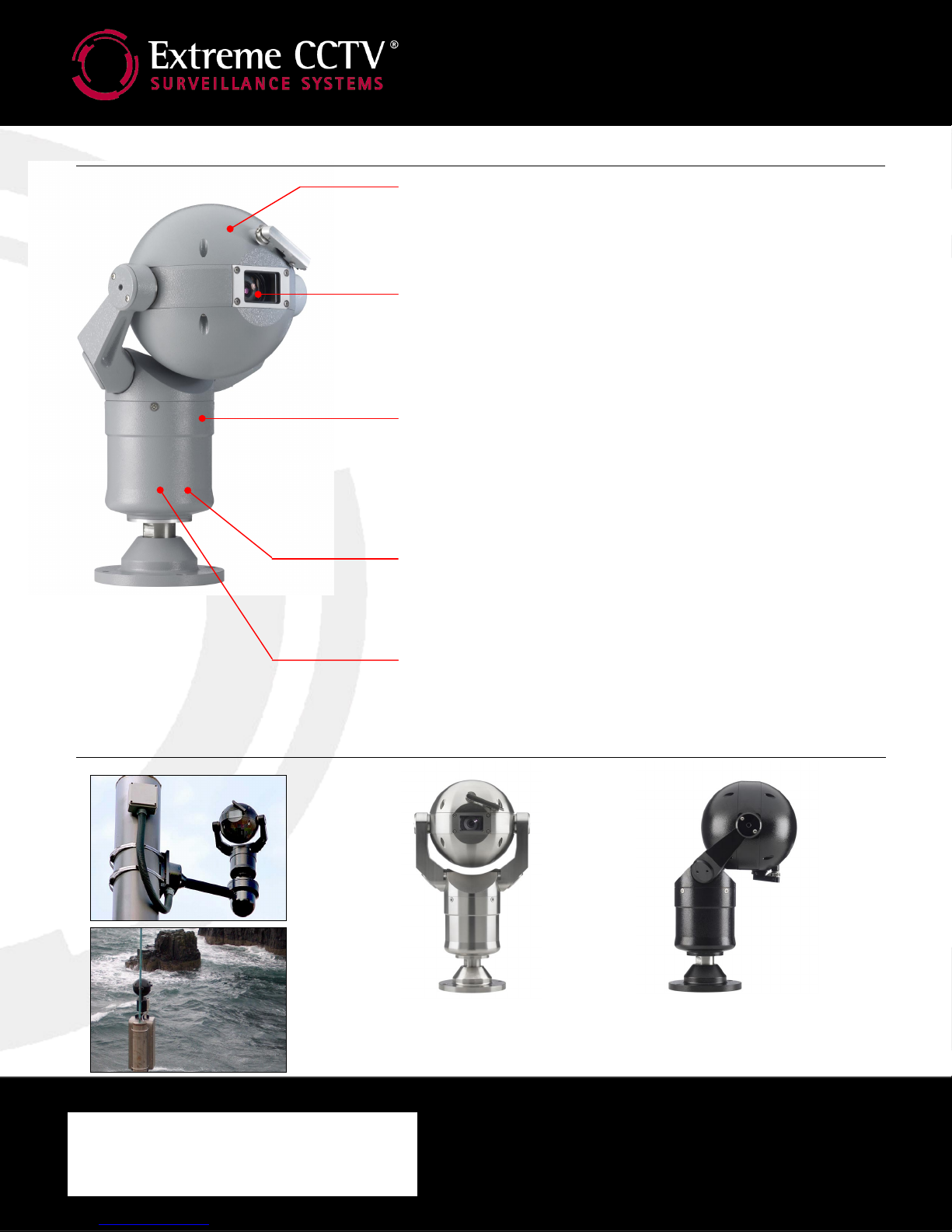

Key Attributes
Moondance® Ruggedized
Pan-Tilt-Zoom Camera
Standard Aluminum and Stainless Steel
Unmatched mounting versatility
• Enables effective imaging from both above and below the camera
• Eliminates blind spots inherent to conventional PTZ cameras
• Mountable upright or inverted on walls and ceilings
• Unprecedented 320º tilt for viewing both above and below
Precision-engineered performance optics
• 18x or 36x zoom module for powerful video interrogation
• LXR CCD for outstanding IR sensitivity
• Mechanical filter technology produces vivid daytime color and
sharp focus under infrared
Flat glass window with wiper for distortion-free optical clarity
•
Brutally tough IP68 / NEMA 4X housing
• Rated IP68 / NEMA 4X for performance in extreme environments
• Environmentally sealed for total protection against dust ingress and
water immersion
• Anti-corrosion grade 316 stainless steel construction ensures long
life and reliable operation in harsh weather and corrosive conditions
• Mechanically stabilized for physical durability in mobile applications
Multi-protocol support
• Ensures seamless integration and compatibility with industry
standard platforms including Pelco P / D, Kalatel and Vicon
• Full functionality and control of Moondance’s resolver technology
and closed-loop electronics for accurate pan-tilt positioning
Brushless motor
• Precision speed control and accuracy
• Greater mechanical stability for longer operational life
• Whisper-quiet operation ideal for public areas and residences
Application & Product Images
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-Aluminum-Stainless_TS_080121.doc
Dealer / Distributor
Featuring metal powerdome design,
Moondance
316 stainless steel construction for
performance in extreme weather and
corrosive conditions.
®
also is available in grade
Moondance
Yoke option that enables the camera to
capture images from directly above and
directly below, as illustrated here.
comes in an innovative 45º
Page 3
Moondance® Ruggedized
Standard Aluminum and Stainless Steel

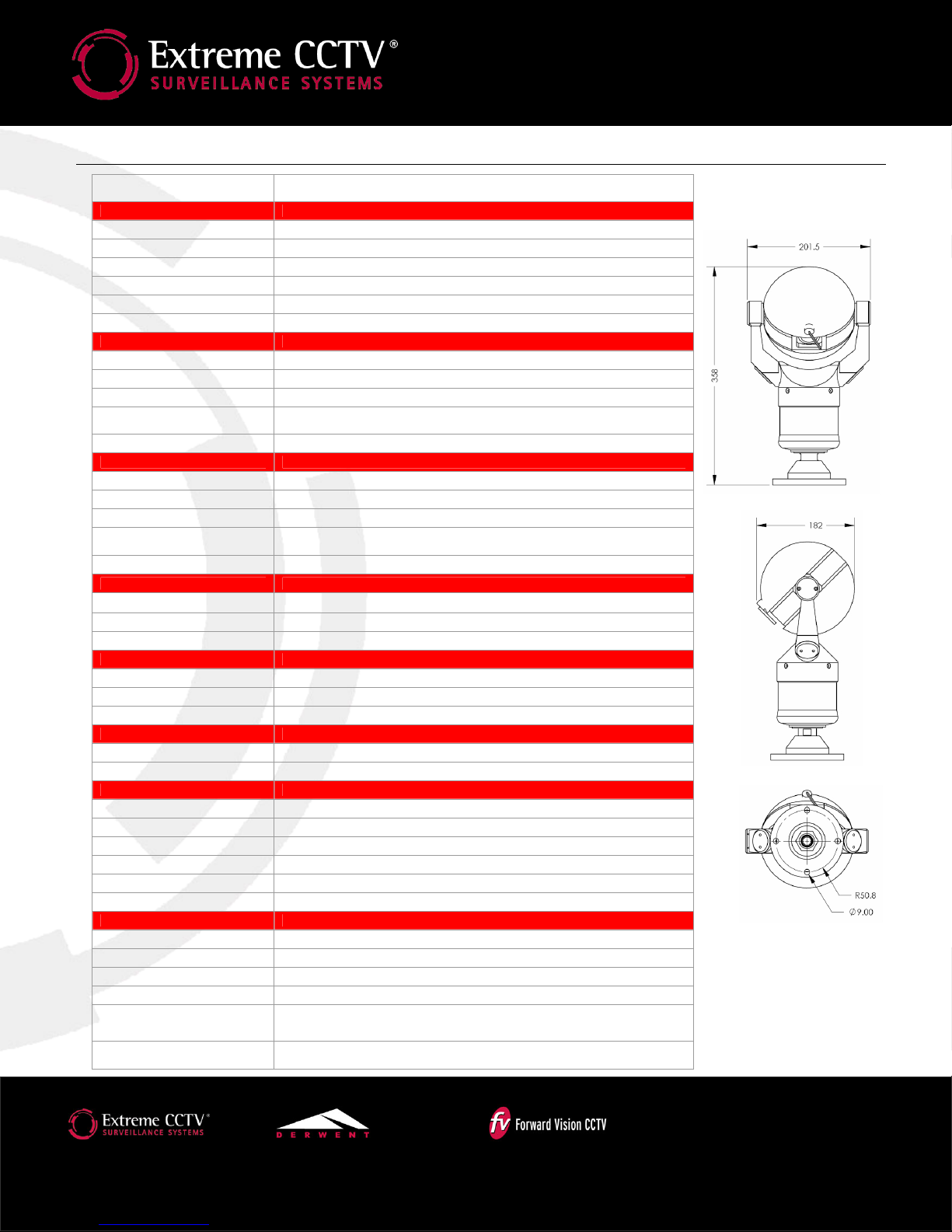

Specifications
®
Camera Module
Moondance
Image Sensor 1/4” LXR CCD
Filter Automatic mechanical IR cut filter
Resolution 470 TVL NTSC standard (PAL available)
Effective Pixels 768 x 494 NTSC standard (PAL available)
Minimum Working Distance 290mm (wide end), 800mm (tele end) | 11.4" (wide end), 31.5" (tele end)
Focus system Auto or manual focus
18x Optical Zoom Module
Lens F=4.1mm (WIDE) to 73.88mm (TELE), F1.4 to F3.0
Zoom 18x optical (12x digital)
Angle of View 48 º (W IDE end) to 2.8º (TELE end)
Minimum Illumination
0.7 lux (F1.4, 1/60s NTSC, 1/50s PAL), 0.1 lux (F1.4, 1/4s NTSC, 1/3s PAL),
0.01 lux or less (F1.4, 1/4s NTSC, 1/3s PAL, ICR ON)
Shutter Speed 1/1 to 1/10,000s (22 steps) NTSC, PAL
36x Optical Zoom Module
Lens F=3.4mm (WIDE) to 122.4mm (TELE), F1.6 to F4.5
Zoom 36x optical (12x digital)
Angle of View 57.8º (W IDE end) to 1.7º (TELE end)
Minimum Illumination
1.4 lux (F1.6, 1/60s NTSC, 1/50s PAL), 0.1 lux (F1.6, 1/4s NTSC, 1/3s PAL),
0.01 lux or less (F1.6, 1/4s NTSC, 1/3s PAL, ICR ON)
Shutter Speed 1/4 to 1/10,000s (20 steps) NTSC, 1/3 to 1/10,000s (20 steps) PAL
Operational
Presets Up to 64 telemetry presets accurate to less than 0.08° utilizing resolver technology
Preset tours Up to 6 tours
Home Position Yes (preset 1 or tour)
Communications & Protocols
Communication RS485 / RS422
Control Protocol Pelco P / D standard (Refer to Available Options section for additional protocols)
Telemetry Control Card Supplied as standard
Alarms
Alarm inputs 1 x tamper input (additional inputs possible with optional alarm card in PSU)
Alarm Communication Tamper switch (ground connection)
Mechanical
Drive Unit Brushless motor drive | Integral pan / tilt | Steel gear driven
Pan angle and speed 360° continuous pan | Variable speed: up to 90º per second
Tilt angle and speed 320° | Variable speed: 0.2º to 90º per second
Speed Control Closed loop electronics
Preset Accuracy Better than 0.08°
Proportional P/T to Zoom position Yes
Physical
Construction Aluminum: 6mm thick aluminium | Stainless steel: Grade 316 stainless steel
Viewing Window Tempered flat glass (optical)
Window Wiper External window wiper included
Standard Color(s) Aluminum: Black | Stainless steel: Stainless steel natural finish
Dimensions (D x H x W)
Weight (w/o accessories)
Aluminum: Ø182mm x 358mm x 201.5mm | Ø7.2” x 14.1” x 7.9”
Stainless steel: Ø182mm x 360mm x 205mm | Ø7.2” x 14.2” x 8.1”
Aluminum: 10lbs | 4.5Kg
Stainless Steel: 29lbs | 13.2kg
Ruggedized Pan-Tilt-Zoom Camera
Pan-Tilt-Zoom Camera
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-Aluminum-Stainless_TS_080121.doc
CORPORATE HEADQUARTERS
EXTREME CCTV INC.
Web: www.ExtremeCCTV.com
EUROPEAN OPERATIONS
DERWENT SYSTEMS LTD.
Tel: +44 (0) 1670 730 187
Fax: +44 (0) 1670 730 188
Email: [email protected]
Web: www.DerwentCCTV.com
EUROPEAN OPERATIONS
FORWARD VISION CCTV LTD.
INTERNATIONAL OPERATIONS
EXTREME CCTV INTERNATIONAL INC.
Tel: +1 246 429 9527
Fax: +1 246 429 5143
Page 4
Y
Moondance® Ruggedized
Pan-Tilt-Zoom Camera
Standard Aluminum and Stainless Steel
Environmental
Operational Temp. -20˚C to +50˚ C | -4˚F to 122˚F
Environmental Designed to IP68 and NEMA 4X Outdoor W eather Rating
Certifications
Certifications
Electrical
Power Consumption 25.2W max
Available Options
Mounting Upright mount or inverted mount options
Yoke 45º yoke
Color Aluminum: grey
Camera Module (optical) 18x camera module or 36x camera module
Camera Color System NTSC or PAL
Installed Protocol Vidimech Vertex, Kalatel or Vicon (contact Extreme for additional protocol support)
Alarm Card Optional (In PSU), factory fit
Accessories Technical sheets available for individual accessories
Composite Cable (required)
Power Supply (required)
Mounting bracket
Deep Conduit Base
(required)
Mounting bracket
Wall
Mounting bracket
Corner
Mounting bracket
Pole
Part Numbers
Model
Moondance
Patent Pending. Specifications are subject to change without notice. © Extreme CCTV Inc 2008. Moondance-Aluminum-Stainless_TS_080121.doc
Dealer / Distributor
MD 400 N 01 B S PP 01
Video Output
N: NTSC (standard)
P: PAL (available)
Housing
01: Aluminum Round w/ wiper
02: Stainless Steel Round w/ wiper*
(available - select color “S”)
CSA Type 4X | Outdoor Weather Rating
CSA C22.2 No 0-M1991 | General Electrical Requirements, Part II
CSA C22.2 No 1-M94 | Audio, Video, and Similar Equipment
CSA C22.2 No 94-M91 | Special Purpose Enclosures
UL Std No 50 | Enclosures for Electrical Equipment
UL Std No 2044 | Commercial CCTV Equipment
MDCL-02 2m composite lead with plug for power/data video
MDCL-10 10m composite lead with plug for power/data video
MDCL-25 25m composite lead with plug for power/data video
MDPS-115 Power supply, 115 VAC input
MDPS-240 Power supply, 240 VAC input
MDPS-024 Power supply, 24 VAC input
MDPS-012 Power supply, 12-24 VDC input
MDMB-BAS
MDMB-BAS-1
MDMB-BAS-2
MDMB-WAL
MDMB-WAL-1
MDMB-WAL-2
MDMB-COR
MDMB-COR-1
MDMB-COR-2
EXMB.019B Pole mount adaptor bracket, black
EXMB.019W
Mounting bracket, deep conduit base, black
Mounting bracket, deep conduit base, grey
Mounting bracket, deep conduit base, stainless steel
Mounting bracket, wall, black
Mounting bracket, wall, grey
Mounting bracket, wall, stainless steel
Mounting bracket, corner, black
Mounting bracket, corner, grey
Mounting bracket, corner, stainless steel
Pole mount adaptor bracket, white
Protocol
PP: Pelco P / D (standard)
VV: Vidimech Vertex (available)
Physical Configuration
S: 0º Straight (standard)
: 45º Yoke (available)
Color
B: Black (standard)
G: Grey (available)
S: Stainless steel natural finish*
(available with housing “02” only)
Optics
00: 18x zoom
01: 36x zoom
OK: Kalatel (available)
OV: Vicon (available)
*Stainless steel housing available with
stainless steel natural finish only.
Stainless steel natural finish available
with stainless steel housing only.
