Extralite The Post UL2 User Manual

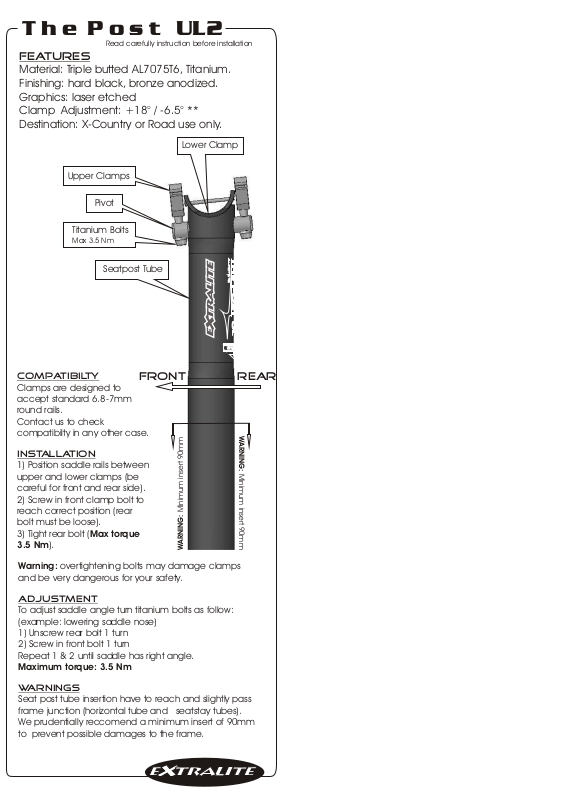

T h e P o s t UL2

Read carefully instruction before installation

Features

Material: Triple butted AL7075T6, Titanium.
Finishing: hard black, bronze anodized.
Graphics: laser etched
Clamp Adjustment: +18° / -6.5° **
Destination: X-Country or Road use only.

Lower Clamp

Upper Clamps

Pivot

Titanium Bolts

Max 3.5 Nm

Seatpost Tube

Compatibilty

ontFr

Clamps are designed to
accept standard 6.8-7mm
round rails.
Contact us to check
compatibilty in any other case.

Installation

1) Position saddle rails between
upper and lower clamps (be
careful for front and rear side).

2) Screw in front clamp bolt to
reach correct position (rear
bolt must be loose).

3) Tight rear bolt (Max torque

3.5 Nm).

0 m
9

t

r m
s

n

i e

u
i m

n
M m

G: i
IN

RN
A

W

Warning: overtightening bolts may damage clamps

and be very dangerous for your safety.

adjustment

To adjust saddle angle turn titanium bolts as follow:
(example: lowering saddle nose)

1) Unscrew rear bolt 1 turn

2) Screw in front bolt 1 turn
Repeat 1 & 2 until saddle has right angle.

Maximum torque: 3.5 Nm

Rear

R

N
G
:

M
i

n m
i

um r

in
s

e t
9 m

0

mWA NI

Warnings

Seat post tube insertion have to reach and slightly pass
frame junction (horizontal tube and seatstay tubes).
We prudentially reccomend a minimum insert of 90mm
to prevent possible damages to the frame.
