pellet stoves User manUal
004276519 - Rev 005
ENGLISH
2
ENGLISH
ENGLISH .................................................................................................................................................................................................4
WarNINGS ........................................................................................................................................................................................................ 4
SafEty .............................................................................................................................................................................................................. 4
routINE MaINtENaNcE ................................................................................................................................................................................ 5
INStaLLatIoN .................................................................................................................................................................................................. 6
General ........................................................................................................................................................................................................................................................ 6
INStaLLatIoN .................................................................................................................................................................................................. 8
assembly with slidinG base ............................................................................................................................................................................................................8
PEdEStaL aSSEMbLy (oPtIoNaL) ................................................................................................................................................................ 9
froNt PELLEt fEEdING kIt (oPtIoNaL) ..................................................................................................................................................... 9
aIr cIrcuLatIoN PIPES .................................................................................................................................................................................. 9
insert extraction ...............................................................................................................................................................................................................................11
mountinG the frames ......................................................................................................................................................................................................................12
PELLEtS aNd fEEdING ................................................................................................................................................................................. 12

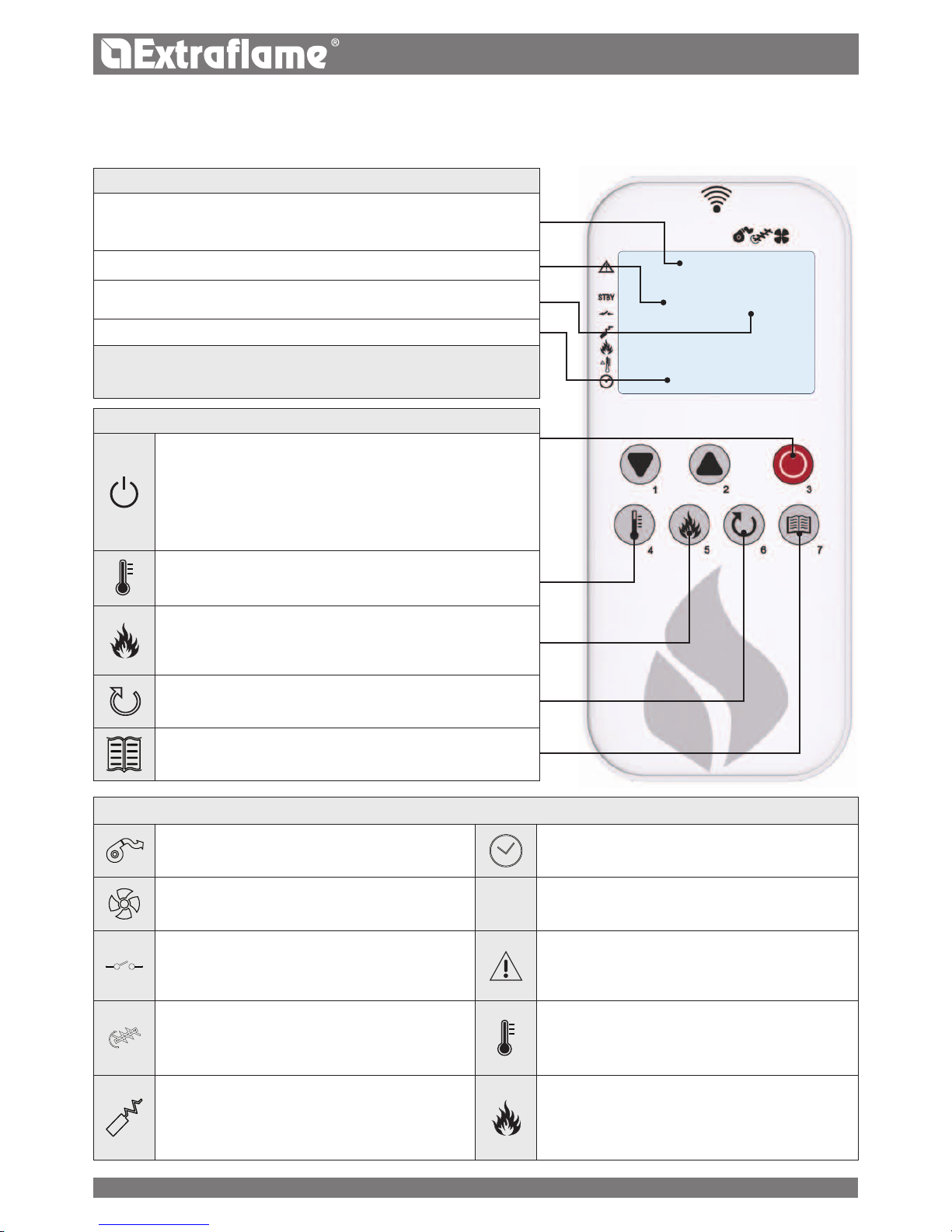

tHE rEMotE coNtroL ................................................................................................................................................................................ 13
General features ................................................................................................................................................................................................................................14
confiGuration of remote control .......................................................................................................................................................................................14
MENu StructurE ......................................................................................................................................................................................... 15
baSIc INStructIoNS ................................................................................................................................................................................... 15
coMMISSIoNING SEttINGS ......................................................................................................................................................................... 16
mains frequency 50/ 60hz ..............................................................................................................................................................................................................16
adjustinG time, day, month and year ...................................................................................................................................................................................16
adjustinG lanGuaGe.........................................................................................................................................................................................................................17
ENabLE cHroNo ........................................................................................................................................................................................... 17
fuNctIoNING aNd LoGIc ...........................................................................................................................................................................18
room probe and stand by function: ....................................................................................................................................................................................19
StovE fuNctIoNING WItH addItIoNaL ExtErNaL tHErMoStat (oPtIoNaL) ................................................................................19
uSEr MENu..................................................................................................................................................................................................... 20
pellet feed adjustment .................................................................................................................................................................................................................20
INStaLLatIoN aNd actIvatIoN of rooM ProbE (oPtIoNaL)............................................................................................................ 20
V1- fan .........................................................................................................................................................................................................................................................21
stand - by ..................................................................................................................................................................................................................................................21
Keys locKed .............................................................................................................................................................................................................................................22
room probe .............................................................................................................................................................................................................................................22
reset .............................................................................................................................................................................................................................................................22
StatuS ............................................................................................................................................................................................................ 22
cHroNo .......................................................................................................................................................................................................... 22
proGramminG example ...................................................................................................................................................................................................................23
cLEaNING aNd MaINtENaNcE ...................................................................................................................................................................24
MaINtENaNcE ............................................................................................................................................................................................... 24
cleaninG and maintenance by the user .............................................................................................................................................................................24
routINE MaINtENaNcE carrIEd out by autHorISEd tEcHNIcIaNS .............................................................................................28
puttinG the equipment out of serVice (end of the season) .................................................................................................................................28
dISPLayS ........................................................................................................................................................................................................ 29
aLarMS .......................................................................................................................................................................................................... 30
GuaraNtEE tErMS ...................................................................................................................................................................................... 31
attENtIoN
SurfacES caN bEcoME vEry Hot!
aLWayS uSE ProtEctIvE GLovES!
During combustion, thermal energy is released that signicantly increases the heat of surfaces, doors, handles, controls, glass, exhaust
pipes, and even the front of the appliance. Avoid contact with those elements if not wearing protective clothing (protective gloves
included). Make sure children are aware of the danger and keep them away from the stove during operation.
3
ENGLISH
Warnings
This instructions manual is an integral part of the product: make sure that it always accompanies the
appliance, even if transferred to another owner or user, or if transferred to another place. If it is damaged
or lost, request another copy from the area technician. This product is intended for the use for which it has
been expressly designed. The manufacturer is exempt from any liability, contractual and extracontractual,
for injury/damage caused to persons/animals and objects, due to installation, adjustment and maintenance
errors and improper use.
Installation must be performed by qualied sta, which assumes complete responsibility for the
denitive installation and consequent good functioning of the product installed. One must also bear
in mind all laws and national, regional, provincial and town council Standards present in the country in
which the appliance has been installed, as well as the instructions contained in this manual.
The Manufacturer cannot be held responsible for the failure to comply with such precautions.
After removing the packaging, ensure that the content is intact and complete. Otherwise, contact the
dealer where the appliance was purchased.
All electric components that make up the product must be replaced with original spare parts exclusively
by an authorised after-sales centre, thus guaranteeing correct functioning.
safety
THE APPLIANCE MAY BE USED BY CHILDREN 8 YEARS OF AGE OR OLDER AND INDIVIDUALS
WITH REDUCED PHYSICAL, SENSORY, OR MENTAL CAPACITIES OR WITHOUT EXPERIENCE OR
THE NECESSARY KNOWLEDGE, PROVIDED THAT THEY ARE SUPERVISED OR HAVE RECEIVED
INSTRUCTIONS ON SAFE USE OF THE APPLIANCE AND THAT THEY UNDERSTAND THE INHERENT
DANGERS.
THE GENERATOR MUST NOT BE USED BY PERSONS (INCLUDING CHILDREN) WITH REDUCED
PHYSICAL, SENSORY AND MENTAL CAPACITIES OR WHO ARE UNSKILLED PERSONS, UNLESS THEY
ARE SUPERVISED AND TRAINED REGARDING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE
FOR THEIR SAFETY.
THE CLEANING AND MAINTENANCE REQUIRED BY THE USER MUST NOT BE PERFORMED BY
CHILDREN WITHOUT SUPERVISION.
CHILDREN MUST BE CHECKED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
DO NOT TOUCH THE GENERATOR WHEN YOU ARE BAREFOOT OR WHEN PARTS OF THE BODY
ARE WET OR DAMP.
THE SAFETY AND ADjUSTMENT DEVICES MUST NOT BE MODIFIED WITHOUT THE AUTHORISATION
OR INDICATIONS OF THE MANUFACTURER.
DO NOT PULL, REMOVE, TWIST THE ELECTRICAL CABLES COMING OUT OF THE PRODUCT EVEN
IF IT IS DISCONNECTED FROM THE MAINS.
IT IS ADVISED TO POSITION THE POWER SUPPLY CABLE SO THAT IT DOES NOT COME INTO
CONTACT WITH HOT PARTS OF THE APPLIANCE.
THE POWER SUPPLY PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
DO NOT CLOSE OR REDUCE THE DIMENSIONS OF THE AIRING VENTS IN THE PLACE OF
INSTALLATION. THE AIRING VENTS ARE ESSENTIAL FOR CORRECT COMBUSTION.
We thank you for having chosen our company; our product is a great heating solution developed from the
most advanced technology with top quality machining and modern design, aimed at making you enjoy
the fantastic sensation that the heat of a ame gives, in complete safety.
4
ENGLISH
DO NOT LEAVE THE PACKAGING ELEMENTS WITHIN REACH OF CHILDREN OR UNASSISTED
DISABLED PERSONS.
THE HEARTH DOOR MUST ALWAYS BE CLOSED DURING NORMAL FUNCTIONING OF THE
PRODUCT.
WHEN THE APPLIANCE IS FUNCTIONING AND HOT TO THE TOUCH, ESPECIALLY ALL EXTERNAL
SURFACES, ATTENTION MUST BE PAID
CHECK FOR THE PRESENCE OF ANY OBSTRUCTIONS BEFORE SWITCHING THE APPLIANCE ON
FOLLOWING A PROLONGED PERIOD OF INACTIVITY.
THE GENERATOR HAS BEEN DESIGNED TO FUNCTION IN ANY CLIMATIC CONDITION. IN
PARTICULARLY ADVERSE CONDITIONS (STRONG WIND, FREEzING) SAFETY SYSTEMS MAY
INTERVENE THAT SWITCH THE GENERATOR OFF. IF THIS OCCURS, CONTACT THE TECHNICAL AFTERSALES SERVICE AND ALWAYS DISABLE THE SAFETY SYSTEMS.
IN THE EVENT THE FLUE CATCHES FIRE, USE SUITABLE SYSTEMS FOR SUFFOCATING THE FLAMES
OR REQUEST HELP FROM THE FIRE BRIGADE.
THIS APPLIANCE MUST NOT BE USED TO BURN WASTE
DO NOT USE ANY FLAMMABLE LIQUIDS FOR IGNITION
DURING THE FILLING PHASE DO NOT PUT THE BAG OF PELLETS TO INTO CONTACT WITH THE
PRODUCT
THE MAjOLICAS ARE TOP QUALITY ARTISAN PRODUCTS AND AS SUCH CAN HAVE MICRO-DOTS,
CRACKLES AND CHROMATIC IMPERFECTIONS. THESE FEATURES HIGHLIGHT THEIR VALUABLE
NATURE. DUE TO THEIR DIFFERENT DILATION COEFFICIENT, THEY PRODUCE CRACKLING, WHICH
DEMONSTRATE THEIR EFFECTIVE AUTHENTICITY. TO CLEAN THE MAjOLICAS, IT IS RECOMMENDED
TO USE A SOFT, DRY CLOTH. IF A DETERGENT OR LIQUID IS USED, THE LATTER COULD PENETRATE
INSIDE THE CRACKLES, HIGHLIGHTING THEM.
routine Maintenance
Based on Decree 22 January 2008 n°37 art.2, routine maintenance means interventions aimed at reducing
degradation due to normal use, as well as dealing with accidental events entailing the need of rst
interventions, which however do not modify the structure of the system upon which one is intervening or
its intended use according to the requirements laid down by the technical standards in force and by the
manufacturer's use and maintenance manual.
5
ENGLISH
Air inlet
REFERENCES INFLAMMABLE OBJECTS NONINFLAMMABLE OBJECTS
A 200 mm 100 mm
B 1500 mm 750 mm
C 200 mm 100 mm
oor protection
InstallIng Inserts
When installing inserts, access must be prevented to the internal parts of the appliance and it must not be possible to access live parts during
extraction operations.
Any wiring, for example the power cable or room probe, must be positioned so as not to be damaged during movement of the insert and
must not come into contact with hot parts.
VentIlatIon and aeratIon of the InstallatIon premIses
Ventilation is deemed sucient when the room is equipped with air inlets according to the table:
Appliance categories Reference standard
Percentage of the
net opening section with respect to
the appliance fumes outlet section
Minimum net opening value of
the ventilation duct
Pellet stoves UNI EN 14785 - 80 cm²
Boilers UNI EN 303-5 50% 100 cm²
In any case ventilation is deemed sucient when the pressure dierence between the external and internal environment is equal to or less
than 4 Pa.
InstallatIon
general
The ue gas exhaust and hydraulic connections must be carried out by qualied personnel who must issue installation conformity
documentation compliant with national standards.
The installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity,
supplied with:
1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);
2) photocopy or photograph of the chimney plaque;
3) system booklet (where applicable).
The installer must ask to be issued with a receipt stating that the documentation has been provided, and must keep it with a copy of the technical
documentation relating to the installation.
For installation in a condominium, prior approval from the condominium's administrator must be requested.
Where required, check the exhaust gas emissions after installation. Should a sampling point be installed, it must be airtight.
CompatIBIlItY
Installation in premises with re hazards is forbidden. Installation in residential premises (except for sealed operation appliances) is also forbidden:
in which there are liquid fuel-operated appliances with continuous or intermittent operation, which draw the combustion air in the
room in which they are installed, or
in which there are type B gas appliances intended for room heating, with or without production of domestic hot water and in adjacent
and adjoining premises, or
in which, in any case, the depression measured during installation between the internal and external environment is greater than 4 Pa
InstallatIons In Bathrooms, Bedrooms and studIo flats
Installation in bathrooms, bedrooms and studio ats is only allowed for sealed or closed hearth appliances with ducted combustion air taken
from the outside.
posItIonIng and safetY dIstanCes
The support surfaces and/or points must have a suitable capacity to bear the overall weight
of the appliance, accessories and coverings.
If the oor is made of a combustible material,
we recommending using a non-combustible material to protect the front part from any
burnt material which might fall during routine cleaning operations.
The generator must be level to function properly.
The adjacent, side and rear walls and the supporting surface must be made of noncombustible material. Installation adjacent to combustible or heat sensitive materials is
allowed as long as there is a suitable safety distance in between, which for pellet stoves is:
6
3 - 5%
Max 3 mt
ENGLISH
In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or
ventilation opening.
The air inlets must meet the following requirements:
they must be protected with grids, metal mesh, etc., but without reducing the net useful section;
they must be made so as to make the maintenance operations possible;
positioned so that they cannot be obstructed;
The clean and non-contaminated air ow can also be obtained from a room adjacent to that of installation (indirect aeration and
ventilation), as long as the ow takes place freely through permanent openings communicating with the outside.
The adjacent room cannot be used as a garage, or to store combustible material or for any other activity with a re hazard, bathroom,
bedroom or common room of the building.
flue gas eXhaust
The heat generator works in depression and is equipped with an outlet fan for ue gas extraction. There must be a single exhaust system for
the generator. Using a ue that is shared with other devices is not allowed.
The components of the ue gas exhaust system must be chosen in relation to the type of appliance to be installed in compliance with:
UNI/ TS 11278 in the event of metal chimneys, with particular attention to that stated in the specication;
UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, UNI EN 1806 in the event of non-metallic chimneys.
The length of the horizontal section must be minimal and, in any case, no longer than 3 metres, with a minimum upward slope of 3%
There must not be more than 4 direction changes including the one due to the use of the "T" element.
A “T” tting with a condensation collection cap must be provided at the base of the vertical section.
If the exhaust is not inserted in an existing ue, a vertical section with a windproof end piece is required (UNI 10683).
The vertical duct can be inside or outside the building. If the smoke duct is inserted in an existing ue, it must be certied for solid fuel.
If the smoke duct is outside the building, it must always be insulated.
The smoke ducts must have at least one airtight inlet for ue gas sampling.
All the sections of the ue gas duct must be accessible to inspection.
Inspection openings must be provided for cleaning.
If the generator has a fume temperature lower than 160°C+ ambient temperature caused by the high yield (contact technicians) it
MUST be resistant to humidity.
ChImneY Cap
The chimney caps must meet the following requirements:
they must have a useful outlet section no less than double that of the chimney/ducted system on which it is installed;
they must be adapted in order to prevent the penetration of rain and snow in the chimney/ducted system;
they must be built so that, in the event of winds coming from all directions and from any angle, the expulsion of combustion products
is in any case ensured;
Protection from rain
and wind
Condensation-proof
"T" tting with
inspection plug
Insulated ue
Insulated "T" tting
with inspection
plug
Protection from rain and wind
"T" tting
with
inspection
plug
eXamples of CorreCt ConneCtIon to the ChImneY
ConneCtIon to the maIns eleCtrIC supplY
The generator is supplied with an electric power cable to be plugged into a 230V 50 Hz socket, possibly with a circuit breaker switch. The
socket must be easily accessible.
The electrical system must be compliant with standards. The eciency of the earthing circuit must be checked. Unsuitable earthing of the
system can cause malfunctioning for which the manufacturer will not be held liable.
Power supply variations beyond 10% can cause faulty operation of the product.
7
A
B
D
C
E
ENGLISH
INSTALLATION
The insert is supplied with an iron sliding base that allows to install it in a pre-existing ue.
This sliding base allows the easy extraction of the insert both for pellet feeding inside the feed-box and for any maintenance or cleaning at
the end of the season. If there is no pre-existing ue, one can be built using the insert-holder pedestal (optional kit); in fact, the latter xes the
insert to the oor.
Component description:
A. Primary air intake pipe
B.Flue exhaust pipe
C.Adaptation frame
D.Sliding base and rails
E.Socket
ASSEMBLY WITH SLIDING BASE
Take the sliding base and position it in the pre-existing ue. Use chalk to mark the blocking holes of the base on the ue surface. Drill 8 mm
holes for the steel expansion inserts.
Make a hole measuring 60 mm in correspondence with the air intake.
Envision a current socket on the rear of the insert so that the plug is accessible once installation is completed.
Fix the base using the locking screws.
Create a ue exhaust and socket connection respecting the points described previously.
Take the insert, incline it in a way that the wheels insert into the relative rails, make it run until the ue gas auger is completely inserted into
the ue gas conveyor box.
8
A
ENGLISH
FRONT PELLET FEEDING KIT OPTIONAL
The optional pellet feeding kit allows to feed pellets from the front
inside the tank without having to extract the insert (operation that
requires machine switch-o).
Further information on the accessories is available on the website:
www.extraame.it/support, in the category "accessories".
AIR CIRCULATION PIPES
It is necessary to create air recirculation inside the structure that covers the insert for correct functioning. This prevents the appliance from
over-heating.
To guarantee this, just realise one or more openings in the lower part and in the upper part of the covering.
PEDESTAL ASSEMBLY OPTIONAL
Position the base in the desired point and use the feet to adjust the desired height
(the bolts are positioned in the four external sides of the pedestal in the lower
part).
Envision a current socket on the rear of the pedestal so that the plug is accessible
once installation is completed.
Fix the pedestal to the oor using strong steel plugs with a diameter of 8 mm.
Fix the sliding base to the frame using bolts.
Connect the ue gas exhaust pipe and the air vent as stated in the previous
paragraph.
Take the insert, incline it in a way that the wheels insert into the relative rails, make
it run until the ue gas auger is completely inserted into the ue gas conveyor box.
Finally open the re door and use the supplied Allen key to turn the screw at the
bottom left corner clockwise.
To understand whether the insert is correctly attached to the base, connect the
plug to the socket and make sure the display switches on.
Mount the hopper support for the pellet and insert it into the relevant coupling.
PRIMARY AIR VENT:
THE AIR VENT MUST BE MADE OUTSIDE THE FLUE AS
IT MUST NOT SUCK HEATED AIR.
PERFORMING THIS CONNECTION INCORRECTLY CAN
JEOPARDISE FUNCTIONING OF THE PRODUCT.
Primary air
intake
pipe
Note: If our pedestal is used, a slot must be created in the ue that allows to check the pellet level in the feed-box, thus preventing escape during
lling.
9
5 cm
5 cm
5 cm
ENGLISH
THIS VENTILATION SYSTEM IS TOTALLY INDEPENDENT FROM THE AIR INTAKE FOR COMBUSTION!!
Minimum 5 cm
THE INSERT MUST LIE AT LEAST 1 CM ABOVE THE FIRE SURFACE IN COVERING MARBLE.
The following measurements must be respected:
LOWER PART COLD AIR INLET WITH TOTAL MINIMUM SURFACE 550 CM².
UPPER PART HOT AIR OUTLET WITH TOTAL MINIMUM SURFACE 500 CM².
It is just as important to guarantee the minimum distance of 5 cm on both sides as shown in the gures above.
Reference A
Hot convection air: The heat accumulated inside the covering must be vented to prevent excessive overheating of the insert.
Reference B
Forced ventilation:
The tangential fan distributes the heat developed by the insert into the environment.
Reference C
Air inlet from the environment:
To allow air recirculation an air inlet point must be envisioned, which is preferably positioned in the
lower part of the structure in order to favour convection. The air must be withdrawn from the machine's working environment.
THE FLUE OUTLET PIPE MUST ALWAYS MAINTAIN A MINIMUM DISTANCE OF 50 MM FROM INFLAMMABLE PARTS.
10
86 mm
A
B
C
ENGLISH
For correct functioning of the insert, during construction of the ue the measurements between the insert and internal walls of the ue must
be respected (gure below).
From the clearance measurements of the stove given in the technical features, it is necessary to consider at least 50 mm of air in the upper
part and on the 2 sides.
INSERT BLOCKING AND RELEASING SAFETY DEVICE
Open the fire door and use the supplied Allen key to turn the screw at the bottom left corner clockwise.
To understand whether the insert is correctly attached to the base, connect the plug to the socket and make sure it works with the supplied
remote control.
INSERT EXTRACTION
The extraction of the insert allows to load pellets inside the feedbox and to perform routine maintenance, (cleaning the ash pipe at
the end of the year) or extraordinary maintenance (replacement of
mechanical parts if the product should break).
Follow this procedure to extract the insert:
Open the re door and use the supplied Allen key to turn the screw
at the bottom left corner anticlockwise.
Using the relevant re irons, pull the machine towards yourself until
it blocks automatically.
11
ENGLISH
The 2 side frames are xed to the upper frame
by means of 2 screws each side.
The remaining holes on the side frames allow
to x the entire frame to the sides of the
machine by means of self-drilling screws.
Open the tank lid and load the pellets using a scoop.
MOUNTING THE FRAMES
Front frame
Side frames
N.B. Any wooden beams situated above the insert must be protected
with non-inammable material.
Frame assembly is important as it allows correct recirculation of the
air and consequently optimal product functioning.
PELLETS AND FEEDING
The pellets used must comply with the features described by the
Standard:
EN PLUS UNI EN 14961 2 UNI EN ISO 172252 class A1
- A2
Extraame recommends the use of pellets with
a 6 mm diameter with its products.
To guarantee combustion without problems, the pellets must be kept in a dry place.
We recommend the use of pellets with diameter of 6mm with our products.
See the images for feeding pellets.
Open the tank lid and load the pellets using a scoop.
In the event of the inserts, only load when the machine is o and cold, by extracting it from the compartment.
In the event of installation with feeding kit (optional) the machine must not be extracted.
THE INSERT MUST LIE AT LEAST 1 CM ABOVE THE
SURFACE IN COVERING MARBLE.
MAINTENANCE OPERATIONS MUST BE PERFORMED
WHEN THE INSERT IS OFF, WITH THE PLUG
DISCONNECTED FROM THE SOCKET.
THE USE OF EXPIRED PELLETS OR ANY OTHER MATERIAL DAMAGES THE FUNCTIONS OF YOUR STOVE AND CAN
DETERMINE THE INVALIDITY OF THE WARRANTY AND THE ANNEXED RESPONSIBILITY OF THE MANUFACTURER.
12
21° P-4
20:00
ENGLISH
THE REMOTE CONTROL
The display changes in relation to the status of the stove or the menu shown.
In the rest status the display shows the following items:
DISPLAY ICONS KEY
It indicates functioning of the fumes motor.
O = fumes motor not working
On = fumes motor working
It indicates weekly programming functioning
Indicator on = Weekly programming on
Indicator o = Weekly programming o
It indicates functioning of the tangential fan
O = not working
On = working
STBY
Indicates the stby function
O = Stby deactivated
On = Stby activated
Additional external thermostat input status
O = open contact
On = closed contact
Indicates the presence of an alarm.
On: indicates the presence of an alarm
O: indicates the absence of alarms
It indicates functioning of the pellet feed motor.
O = pellet feed motor deactivated
On = pellet feed motor active.
Indicates the room T°. status
On = Room T° lower than desired setting
O=room T°higher that set-point set
Feed box probe
O = normal functioning
On = anomaly
Indicates the stove modulation
On = the stove is working at the set power
O = the power at which the stove is working is dierent
to the power set, the stove is modulating (for various
reasons)
THE KEYBOARD
BUTTON 3 ON/OFF
When the key is pressed for two seconds it allows the stove to be
ignited and switched o. If the stove is in alarm conditions, therefore
blocked, the button allows the release and successive passage
to the OFF status. During programming of the user parameters it
allows to escape and go back to the previous menu.
BUTTON 4 SET THERMOSTAT ACCESS
Buttons 1 and 2 allow to adjust room temperature.
BUTTON 5 SET POWER ACCESS
Buttons 1 and 2 allow to regulate the functioning power from a
minimum of 1 to a maximum of 5; this value is given on the upper
display.
BUTTON 6 to go back
BUTTON 7 ACCESS TO MENU Allows to enter and set the user
parameters.
DISPLAY
TIME: The current time is stated.
The regulation of the same is found inside the weekly programmer
(see SET CLOCK menu).
ROOM TEMPERATURE: Indicates the room temperature.
HEATING POWER: indicates the functioning power. It is set by the user during
stove functioning.
STOVE STATUS: Indicates the stove status.
After a determined amount of time, the display switches o to save
battery consumption.
It switches back on after any key is pressed.
WORK
J
13
ENGLISH
CONFIGURATION OF REMOTE CONTROL
The remote control operates in 2 ways:
via radio
via cable (when connecting the cable, no conguration is necessary)
THE CODING PROCEDURE IS THE FOLLOWING:
1. Cut power from the insert.
2. Press keys 1 and 2 simultaneously.
3. By means of buttons 1 or 2 or selecting the UNIT (from 0 to 7) (the unit selected must be dierent than the other insert)
4. Power the insert. An acoustic signal "Beep" will be emitted within 10 seconds, keep the key 3 pressed to conrm.
The remote control will indicate "UNIT XX LOADED".
The insert is ready and correctly congured.

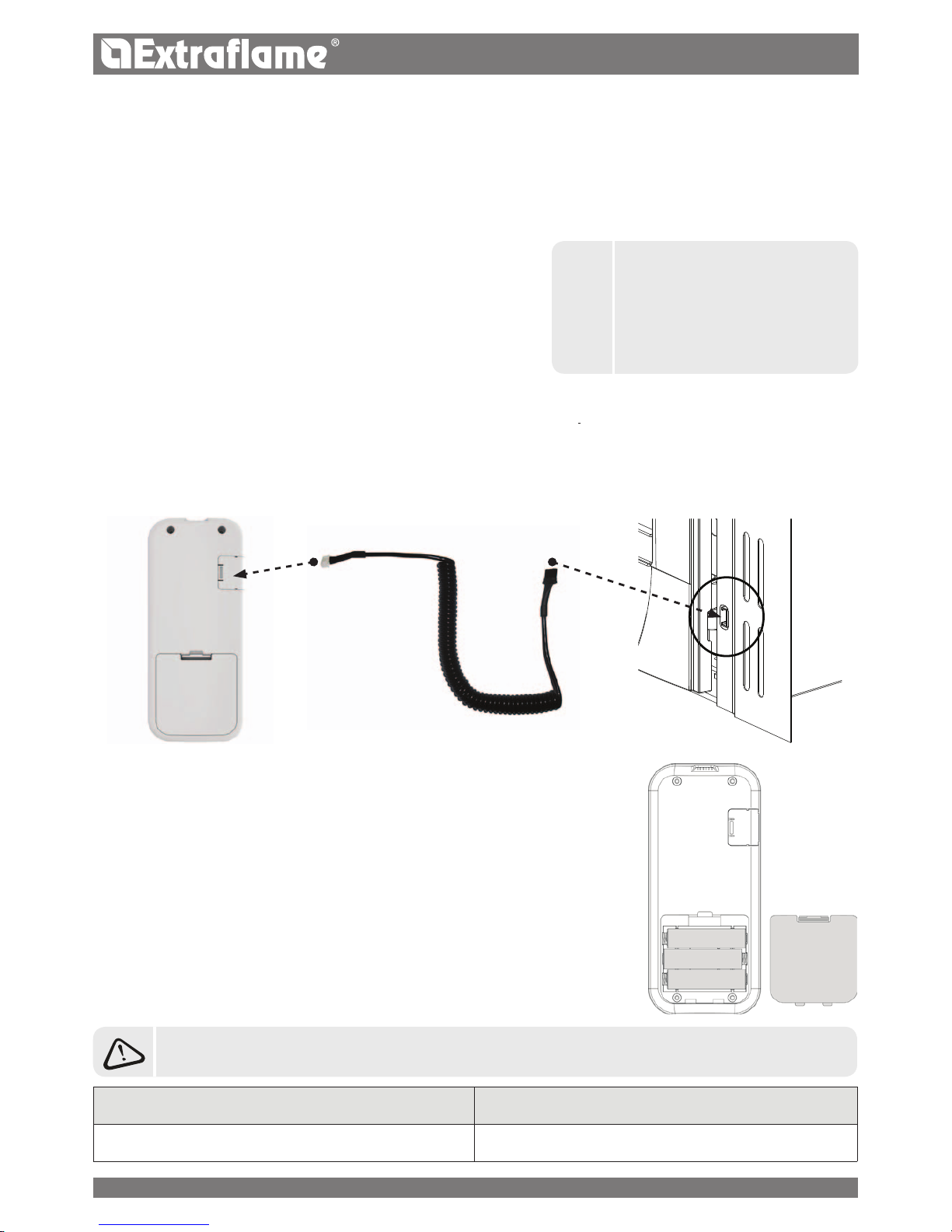

If the communication between remote control and chimney is very disturbed or imprecise, the remote control can be connected directly to
the appliance via cable as illustrated in the gure below.
TYPE AND REPLACEMENT OF BATTERIES
The batteries are housed in the lower part of the remote control.
To replace them, remove the battery holder (as indicated in the gure at the back of the remote
control), remove or insert the battery according to the symbol on the remote control and on the
battery itself.
Three 1.5 V AAA batteries are required for operation.
Dimensions 61 x 150 x 120 (B x H x P) mm.
GENERAL FEATURES
The user interface is provided with a backlit LCD display. The backlighting lasts about 4 seconds.
Display backlighting time can be set. Press keys 1 and 7 simultaneously to access.
After having accessed, use keys 1 or 2 to select the time in seconds from 0 to 9.
Direct controls for ignition/switch-o, power change, room temperature. Weekly programming setting The insert emits an acoustic "Beep"
signal every time the keys are pressed.
J
THE REMOTE CONTROL IS ALREADY
CONFIGURED WITH THE UNIT
0". SHOULD THERE BE ANOTHER
IC MINI, MINI CRYSTAL, p80, TO
AVOID INTERFERENCE, A NEW
CONFIGURATION MUST BE DONE
MODIFYING ONE OF THE TWO INSERTS.
SOME RADIO FREQUENCY APPLIANCES E.G. MOBILE PHONES ETC... COULD INTERRUPT THE COMMUNICATION
BETWEEN THE REMOTE CONTROL AND THE STOVE.
The batteries used contain metals harmful for the environment. They must therefore be
disposed of separately in appropriate containers.
FREQUENCY BANDS MAXIMUM POWER TRANSMITTED
433,92 MHz 10mW
14
IT,EN,FR,DE,ES
1 2
7
7
7
7
7
7
7
7
7
7
7
2
2
2
7
7
7
7
2
2
7
7
7
RESET
OFF ON
7
7
ENGLISH
BASIC INSTRUCTIONS
The following recommendations must be followed the rst times the
stove is ignited:
It is possible that slight odours are produced due to the drying
of the paints and silicones used. Do not remain in the environment
for long periods.
Do not touch the surfaces as they could still be unstable.
Air the room well several times.
The hardening of the surfaces is terminated after several
heating processes.
This appliance must not be used to burn waste.
Before igniting the stove, the following points must be veried:
the feed-box must be full of pellets
the combustion chamber must be clean
The burn pot must be completely free and clean
check the hermetic closure of the re door and the ash drawer
make sure the power supply cable is connected correctly
the bipolar switch in the rear right part must be positioned on
1
IT IS FORBIDDEN TO USE THE APPLIANCE WITHOUT THE
DIVIDER AND/OR GLASS PROTECTION.
SEE FIGURE AT THE
SITE JEOPARDISES THE SAFETY OF THE PRODUCT AND LEADS
TO THE IMMEDIATE VOIDING OF THE WARRANTY PERIOD. IN
THE CASE OF WEAR OR DETERIORATION REQUEST AFTERSALES
ASSISTANCE FOR REPLACEMENT OF THE PART REPLACEMENT
THAT IS NOT UNDER GUARANTEE AS THE COMPONENT IS
SUBJECT TO WEAR.
DIVIDER
GLASS PROTECTION
MENU STRUCTURE
YEAR
1 2
MONTH
1 2
DATE
1 2
MINUTES
1 2
HOURS
1 2
DAY
1 2
REPEAT THE SAME STEPS FOR
THE OTHER 3 TIME SLOTS
MONDAY SUNDAY
1 2
STOP PROG 1
1 2
START PROG 1
1 2
SET PRG1
1 2
PELLETS
1 2
AIR V1
1 2
STANDBY
1 2
CONFIRM
WITH KEY 3
KEYS LOCKED
1 2
REMOTE CONTROL PROBE
1 2
SET CLOCK
CHRONO SETTING
LANGUAGE
USER
STOVE STATUS
TECHNIC SET
J
KEYS 1 & 2: to set - enable data and parameters.
KEY 3: to conrm the parameter and exit.
KEY 4: to adjust the thermostat setting
KEY 5: to adjust the power setting
KEY 6: to go back in the menu.
KEY 7: to go forwards in the menu.
*ENABLE CHRONO
ENABLE CHRONO
PROG. 1 - 2 - 3 - 4
ON/OFF
*Where present
15
ENGLISH
COMMISSIONING SETTINGS
Once the power cable at the back of the stove has been connected, move the switch to (I).
The stove switch powers the stove board.
The stove remains o and a rst screen appears on the panel reading OFF .
MAINS FREQUENCY 50/ 60Hz
In the event the stove is installed in a country with 60Hz frequency, the stove will display "frequenza rete errata" ("mains frequency incorrect").
Vary the frequency as described below.
CONTROLS PROCEDURE
Press key 7,
Select the frequency required using key 1 or 2.
Press key 7 to conrm and key 3 to return to the previous menus up to the initial status.
FILL THE FEED BOX WITH PELLETS
• Open the tank lid and load the pellets using a scoop.
• Be careful not to drop the pellet to the side or inside the stove.
For further details see the previous chapter "pellets and feeding"
THE LID OF THE PELLET CONTAINER MUST ALWAYS BE CLOSED. IT MUST ONLY BE OPENED DURING THE FUEL
FEEDING PHASE.
THE BAGS OF PELLETS MUST BE KEPT AT LEAST 1.5 METRES FROM THE STOVE.
IT IS RECOMMENDED THAT THE FEEDBOX IS ALWAYS HALF FULL.
MAKE SURE THE APPLIANCE IS OFF BEFORE FILLING THE PELLET TANK.
ADJUSTING TIME, DAY, MONTH AND YEAR
CONTROLS PROCEDURE
Press key 7 for a few seconds, until SET CLOCK appears.
Confirm using key 7.
Use key 1 or 2 to set the day.
Press key 7 to conrm and continue.
Use the same procedure (7 to move forward 1 and 2 to
set) to
adjust the hours, minutes, day, month and year.
Press key 3 several times to conrm and exit the Menu.
SET CLOCK
DAY MON, TUE, WED, ...SUN
HOURS 0...23
MINUTES 00...59
DAT E 1...31
MONTH 1...12
YEAR 00...99
16
ENGLISH
LANGUAGE
ITALIAN
ENGLISH
GERMAN
FRENCH
SPANISH
ADJUSTING LANGUAGE
CONTROLS PROCEDURE
Press key 7 for a few seconds, until SET CLOCK appears.
Press key 2 twice until set Language appears.
Conrm using key 7.
Select the language using key 1 or 2.
Press key 3 several times to conrm and exit the Menu.
J
NO IGNITION ALARM
FIRST IGNITION COULD EVEN FAIL AS THE AUGER IS EMPTY AND IS NOT ALWAYS ABLE TO LOAD THE BURN POT
WITH THE REQUIRED AMOUNT OF PELLETS ON TIME TO REGULARLY START THE FLAME.
IF THE PROBLEM OCCURS AFTER ONLY A FEW MONTHS WORKING, CHECK THAT ROUTINE CLEANING STATED IN THE
STOVE BOOKLET, HAS BEEN CARRIED OUT CORRECTLY.
DO NOT USE ANY INFLAMMABLE LIQUIDS FOR IGNITION!
DO NOT ALLOW THE BAG OF PELLETS TO COME INTO CONTACT WITH THE BOILING HOT STOVE DURING THE FILLING
PHASE!
IN THE EVENT OF CONTINUOUS NO IGNITION, CONTACT AN AUTHORISED TECHNICIAN.
ENABLE CHRONO
It allows to enable/disable the chrono and the various time slots.
CONTROLS PROCEDURE
Press key 7 and SET CLOCK will appear.
Press key 2 until ENABLE CHRONO IS DISPLAYED.
Press key 7, to conrm and use keys 1 - 2 to enable "ON" or disable "OFF" the chrono.
Use key 7 to select the desired time slot
Press keys 1 - 2 to enable "ON" or disable "OFF" the selected time slot.
Press key 3 several times to conrm and exit the menu.
17
ENGLISH
SET
FUNCTION
21°
SET
POWER
5
FUNCTIONING AND LOGIC
START
21° P-4
20:00
IGNITION
Once the points listed previously have been checked, press
key 3 for three seconds to ignite the stove. 15 minutes
are available for the ignition phase. After
ignition and having reached the control temperature, the
stove interrupts the ignition phase and passes to STARTING.
STARTING
During the starting phase, the stove stabilises combustion, increasing it progressively, to then start ventilation and pass on to WORK.
WORK
During the work phase, the stove reaches the set power and works to reach the set room temperature. See following item.
ADJUSTING THERMOSTAT SETTING
The room temperature can be set with button 4
(access) 1 and 2 (adjustment), from 07 to 40°C.
ADJUSTING POWER SETTING
The power setting has 5 functioning levels, by means of button 5,
(access) 1 and 2 (adjustment).
Power 1 = minimum level - Power 5 = maximum level.
WORKING WITH REMOTE CONTROL ROOM PROBE AS PER STANDARD
The appliance controls room temperature by means of the room probe integrated in the remote control.
Having reached the set temperature, it will automatically go to the minimum or switch o activating the Stand by function, reducing pellet
consumption to a minimum.
In the factory the STBY function is always set at OFF (STBY indicator light o)
For its activation and logic, follow the indications on the following page, chapter:
Room probe and Stand by function.
BURN POT CLEANING
While working, the stove has an internal counter which cleans the burn pot after a set amount of time.
This phase will be shown on the display, it will bring the stove to a lower power level and will increase the ue gas motor for a programmed
amount of time.
When the cleaning phase is nished, the stove will continue work going back to the selected power level.
SWITCHOFF
Press key 1 for three seconds.
When the operation has been performed, the appliance automatically enters the switch- o phase, blocking the supply of pellets.
The ue exhaust motor and the hot air ventilation motor will remain on until the temperature of the stove has dropped below the
factory parameters.
REIGNITION
The stove can only be re-ignited if the ue gas temperature has lowered and the preset timer has been reset to zero.
18
ENGLISH
STOVE FUNCTIONING WITH ADDITIONAL EXTERNAL THERMOSTAT OPTIONAL
The appliance can check the room temperature using an additional external thermostat (optional).
After ignition (pressing key 1 or via chrono mode), the stove will work to reach the setting displaying
WORK (closed contact).
When the room temperature has been reached (open contact) the stove will go to minimum, displaying MODULATION.
TO INSTALL AND ENABLE IT:
A mechanical or digital thermostat is required.
Switch the appliance o by removing the insert and cutting power.
Remove the plug from the socket.
Referring to the gure to the side, connect the two thermostat wires
(potential free contact- no 220 V!) on the relative terminals at the back of the
machine one red and the other black (with the label STBY).
Power the stove.
Press key 4, and by means of key 1 set the temperature at LOW.
The stove is now congured correctly.
It will work controlling the additional external thermostat.
ADDITIONAL EXTERNAL THERMOSTAT OPTIONAL AND STAND BY FUNCTION:
The Stby function is used if immediate stove switch-o is required when temperature has been reached.
The STBY function can be set at ON or OFF using the procedure that will be described.
J
THE FIRST IGNITION MUST ALWAYS BE PERFORMED MANUALLY. FROM THEN ON IT WILL BE MANAGED
AUTOMATICALLY WITH THE ROOM PROBE.
ROOM PROBE AND STAND BY FUNCTION:
The STBY function is used if immediate stove switch-o is required when the set temperature has been reached.
In the factory the STBY function is always set at OFF (STBY indicator light o)
STBY FUNCTION SET AT OFF FACTORY SETTING
If the STBY function is not active (OFF), if the stove reaches the room temperature set, it will go to minimum, modulating and displaying
MODULATION. When the room temperature is lower by 2°C than the setting, the stove will start to work again at the power set on the display,
showing WORK.
STBY FUNCTION SET AT ON
When the STBY function is activated (ON), the stove, upon reaching the set room temperature and exceeding it by 2°C,
will switch o after a delay set in the factory, displaying STAND - BY.
When the room temperature is 2°C less than the setting, the stove will start to work again at the set power
displaying WORK.
FOLLOW THESE INSTRUCTIONS TO ACTIVATE STBY:
Press key 7 for a few seconds, until SET CLOCK appears.
Press key 2 several times to reach SET USER.
Conrm using key 7.
Press key 7 several times to reach STAND BY.
By means of key 2 select ON.
Press key 3 several times to conrm and exit the Menu.
The STAND-BY function is activated.
19
ENGLISH
INSTALLATION AND ACTIVATION OF ROOM PROBE OPTIONAL
It is also possible to install an optional room thermostat directly on the stove.
Contact an authorised technician to install and activate it.
USER MENU
PELLET FEED ADJUSTMENT
The following menu allows the adjustment of pellet feed as a percentage. If the stove has functioning problems owing to the quantity of
pellets, adjust pellet feeding directly from the control board. The problems correlated to the amount of fuel can be divided into 2 categories:
NO FUEL:
the stove can never develop a suitable ame, tending to remain very low even at high powers.
at minimum power the stove tends to almost switch o taking the stove into “NO PELLETS” alarm conditions.
when the stove displays the “NO PELLETS” alarm, there may be non-burned pellets inside the burn pot.
EXCESS FUEL:
the stove develops a very high ame even at low power.
the panoramic glass is very dirty, obscuring it almost totally.
the burn pot tends to become encrusted, blocking the holes for air intake due to the excessive pellet feed, as it is only burned partially.
The regulation to be performed is a percentage. Therefore a modication of this parameter will lead to a proportional variation of all stove
feeding speeds. Feeding is from -30% to +20%.
STBY FUNCTION SET AT OFF FACTORY SETTING
If the STBY function is not active (OFF), if the stove reaches the room temperature set, it will go to minimum, modulating and displaying
MODULATION. When the room temperature is lower by 2°C than the setting, the stove will start to work again at the power set on the display,
showing WORK.
STBY FUNCTION SET AT ON
With the stby function set at ON: when the additional thermostat has a request (closed contact) the stove switches-on automatically and
works to reach the temperature set, showing WORK. When the additional external thermostat detects that the temperature has been reached
(open contact), the stove switches o after a delay pre-set in the factory, displaying STAND BY EXT.
FOLLOW THESE INSTRUCTIONS TO ACTIVATE STBY:
Press key 7 for a few seconds, until the text
SET CLOCK appears.
Press key 2 several times to reach SET USER.
Conrm using key 7.
Press key 2 several times to reach STAND BY.
By means of key 2 select ON
Press key 3 several times to conrm and exit the Menu.
J
THE FIRST IGNITION MUST ALWAYS BE PERFORMED MANUALLY. FROM THEN ON IT WILL BE MANAGED
AUTOMATICALLY WITH THE ROOM PROBE.
NOTE:
ONLY ONE PROBE AT A TIME CAN BE USED! ACTIVATE JUST ONE CONFIGURATION:
1. REMOTE CONTROL PROBE; 2. ROOM PROBE OPTIONAL NTC; 3. ROOM THERMOSTAT OPTIONAL
20
+/-10%
ENGLISH
Follow the procedure on the display to perform this adjustment:
J
FIRST IGNITION COULD EVEN FAIL AS THE AUGER
IS EMPTY AND IS NOT ALWAYS ABLE TO LOAD
THE BURN POT WITH THE REQUIRED AMOUNT
OF PELLETS ON TIME TO REGULARLY START THE
FLAME.
J
IF THE PROBLEM OCCURS AFTER ONLY A FEW
MONTHS WORKING, CHECK THAT ROUTINE
CLEANING STATED IN THE STOVE BOOKLET, HAS
BEEN CARRIED OUT CORRECTLY.
Press key 7 for a few seconds, until SET CLOCK appears.
Press key 2 several times to reach
SET USER.
Conrm using key 7.
Pellet is displayed.
By means of the keys 1 and 2 the feeding can be increased (2)
or decreased (1) during the WORK phase.
Press key 3 several times to conrm and exit
the Menu.
FOLLOW THESE INSTRUCTIONS TO PERFORM THE ADJUSTMENT:
Press key 7 for a few seconds, until the text
SET CLOCK appears.
Press key 2 several times to reach SET USER.
Conrm using key 7.
Press key 7 several times to reach V1 - FAN.
By means of the keys 1 and 2 the speed of the tangential fan can
be increased (2) or decreased (1) by +/-10%.
Press key 3 several times to conrm and exit the Menu.
FOLLOW THESE INSTRUCTIONS TO ACTIVATE STBY:
Press key 7 for a few seconds, until SET CLOCK appears.
Press key 2 several times to reach SET USER.
Conrm using key 7.
Press key 7 several times to reach STAND BY.
By means of key 2 select ON
Press key 3 several times to conrm and exit the Menu.
The STBY function can be set at ON or OFF using the procedure that will be described.
In the factory the STBY function is always set at OFF.
Its functioning is compatible with:
REMOTE CONTROL ROOM PROBE AS PER STANDARD
ROOM PROBE OPTIONAL
ADDITIONAL THERMOSTAT OPTIONAL
STAND BY
The Stby function is used if immediate stove switch-o is required. By activating STAND-BY in the standard
conguration (remote control integated with the room probe), when the stove reaches the set temperature +
2°C (settable) it switches o, to switch back on when it drops 2°C below the set temperature (settable).
V1 FAN
The menu allows to adjust the speed percentage of the tangential fan.
21
ENGLISH
To activate or deactivate the key
lock, press key 6 for 5 seconds
Press key 7 for a few seconds, until the text
SET CLOCK APPEARS.
Press key 2 several times to reach SET USER.
Conrm using key 7.
Press key 2 several times to reach KEYS LOCKED.
Via key 2 select ON
Press key 3 several times to conrm and exit the Menu.
KEYS LOCKED
The function allows to lock the display keys (like mobile phones).
Follow these instructions to activate key locking:
ROOM PROBE
The function allows to select between the probe integrated in the remote control and the additional room probe (optional).
CHRONO
The chrono allows to program 4 time spans within a day to use every day of the week.
The switch-on and switch-o time can be set in every time slot, along with the days of use of the
programmed time slot and the desired temperature.
RECOMMENDATIONS
The ignition and switch-o times must be within the arc of one day,
from 0 to 24 and not over several days:
Before using the chrono function, set the current day and time.
Therefore check that the points listed in the “Set clock” sub-chapter
have been followed, so that the chrono function works. Aside from
programming it, activate it as well.
Example:
Switch-on time 07:00 CORRECT
Switch-o time 18:00
Switch-on time 22:00 INCORRECT
Switch-o time 05:00
RESET
Allows to reset all values modiable by the user to the default values.
Press key 7 for a few seconds, until the text
SET CLOCK APPEARS.
Press key 2 several times to reach SET USER.
Conrm using key 7.
Press key 2 several times to reach RESET.
Via key 2 select ON
Press key 3 to conrm and exit the Menu.
STATUS
References reserved to the technician
22
08:00
START
PRG1
STOP
PRG1
12:00
SET
CRONO
SET
PRG1
19°
START
PRG1
START
PRG2
ENGLISH
MONDAY..
PRG1
ON
SET
CLOCK
2ND TIME SLOT SWITCHON
At this point, the second time slot must be programmed.
The sequence to be followed is the same and is repeated as per the 1ST TIME SLOT SWITCHON. On this occasion simply enter the time,
for example start at 15:00 and Stop at 22:00 and to activate the days Saturday and Sunday by setting them at "ON". The temperature in SET
PRG2 must be set as for example 21°C.
PROGRAMMING EXAMPLE
Let's suppose that the weekly Programmer function is to be used and 4 time slots are to be used in the following way:
- 1st time slot: from 08:00 to 12:00 every day of the week, with room temperature at 19°C, excluding Saturday and Sunday
- 2nd time slot: from 15:00 to 22:00 only on Saturday and Sunday, with room temperature at 21°C
CONTROLS PROCEDURE:
Press key 7 and SET CLOCK will appear.
Press key 2 until ENABLE CHRONO appears
Enable the CHRONO
Enable SLOT 1 AND 2.
Press key 3 to exit
1ST TIME SLOT SWITCHOFF
Using keys 1 - 2, enter the time “12:00”,
which corresponds to the switch-o time of
the 1st time period. The STOP PRG1 text will
appear followed by the time set.
To conrm and continue programming,
press button 7. Press button 6 to go back to
the previous parameter.
* Where “ENABLE CHRONO” is not present in
the menu, enabling is done directly in SET
CHRONO.
CONTROLS PROCEDURE:
Press key 2 and SET CHRONO will appear.
ENABLING THE 1ST TIME SLOT DAYS
To do this, use keys 1 and 2 as follows:
Key 7 - allows to scroll the various days, the
text with the day of the week will appear,
with the indication OFF
Use key 1 or 2 to enable-disable (ON/OFF)
all days.
Press key 7 to conrm and continue
programming. The scrolling text
START PRG1
SETTING TEMPERATURE OF FIRST TIME
SLOT
Press key 7, the text SET PRG1 and the
temperature will appear.
Press key 1 or 2 to set the temperature at 19°
as in the example.
Press key 7 to conrm
1ST TIME SLOT SWITCHON
Using keys 1 - 2, enter the time “08:00”,
which corresponds to the switch-on time of
the 1st time span. The START PRG1 text will
appear followed by the time set.
To conrm and continue programming,
press button 7. Press button 6 to go back to
the previous parameter.
2ND TIME SLOT SWITCHON*
At this point, the second time slot must be
programmed.
The sequence to be followed is the same
and is repeated as per the 1ST TIME SLOT
SWITCHON.
J
WHEN THE WEEKLY PROGRAMMER IS ACTIVE, A BOX OF THE RELATIVE ICON WILL APPEAR ON THE
CONTROL BOARD.
23
ENGLISH
SCRAPERS:
Use the scrapers, moving upwards (for models with upper scrapers) or pulling and pushing them (for the inserts and models with front
scrapers).
Please note: scrapers are preferably used when the stove is cold; if used when the stove is hot, it is recommended to use special
gloves to protect against the heat as they can get very hot.
DAILY
CLEANING AND MAINTENANCE
ALWAYS FOLLOW THE INSTRUCTIONS IN MAXIMUM SAFETY CONDITIONS!
Make sue the power cable is unplugged since the generator could be programmed to start.
That the generator is cold in its entirety.
The ashes are completely cold.
Ensure an eective exchange of air in the room during the cleaning of the product.
A poor cleaning is detrimental to the proper functioning and safety!
MAINTENANCE
For correct operation, the generator must undergo routine maintenance by a qualified technician at least once a year.
The routine checks and maintenance operations must always be performed by qualified trained technicians in accordance with the applicable
regulations in force and with the instructions provided in this use and maintenance manual.
EVERY YEAR MAKE THE EXHAUST FUMES, SMOKE DUCTS AND "T"FITTINGS, INCLUDING CAPS AND INSPECTION
DOORS BE CLEANED IF ANY CURVES AND ANY HORIZONTAL SECTIONS!
THE CLEANING OF THE GENERATOR FREQUENCY IS APPROXIMATE! THEY DEPEND ON THE QUALITY OF THE PELLETS
USED AND THE FREQUENCY OF USE.
IT CAN HAPPEN THAT THESE OPERATIONS SHOULD BE PERFORMED MORE FREQUENTLY.
CLEANING AND MAINTENANCE BY THE USER
Routine cleaning operations, as specified in this use and maintenance manual, must be performed with the utmost care according to the
instructions, procedures and frequency intervals described in this use and maintenance manual
CLEANING THE SURFACES AND COVERING
Never use abrasive or chemically aggressive detergents for cleaning!
The surface cleaning must take place when both the generator and the coating are completely cold. For the maintenance of surfaces and
metal parts, simply use a damp cloth with water or mild soap and water.
Failure to observe the instructions may damage the surface of the generator and invalidate the warranty.
CLEANING THE CERAMIC GLASS
Never use abrasive or chemically aggressive detergents for cleaning!
The cleaning of the ceramic glass is allowed only when the latter is completely cold.
To clean the ceramic glazing, simply use a dry brush and some damp newspaper dabbed in the ash. If the glazing is very dirty, only use a
specic ceramic glazing detergent. Spray a modest amount onto a cloth and wipe the ceramic glazing.
Do not spray cleaner or any other liquid directly on the glass or on the gaskets.
Failure to observe the instructions may damage the surface of the ceramic glass and invalidate the warranty.
CLEANING THE TANK PELLETS
When the tank empties completely, unplug the power cord from the generator and remove residues (dust, chips, etc..) from the tank empty,
before lling it.
24
1. 2. 3.
3.1 3.1
4.
5. 6.
ENGLISH
CLEANING THE BURN POT AND COMBUSTION CHAMBER
1. Vacuum the residues in the burn pot
2. Take out the burn pot from the designated compartment;
3. Vacuum the ash from the burn pot's seat and the combustion chamber (3.1)
4. Use the special poker supplied to clear the holes in the burn pot.
5. Place back the burn pot and push it towards the hearth wall.
6. If there is an ash collector tray, vacuum the ash deposits
PLEASE NOTE: USE A SUITABLE VACUUM CLEANER WITH A SPECIAL CONTAINER TO SEPARATE THE COLLECTED ASH.
Open the door - Clean the glass with a damp cloth
Never spray the detergent or any other liquid used for cleaning directly on the ceramic glass
25
ENGLISH
EVERY 3/4 DAYS WEEKLY
MONTHLY
ASH DRAWER
Every 3-4 days check the ash drawer and empty it at least one/twice a week.
If there is a lower door, open/remove it.
Take out the removable ash drawer and empty it in a special container.
Vacuum the area underneath the removable ash drawer. Once you have cleaned it, place back the removable drawer and close/place back
the external door.
In some stoves the ash collector tray is located in the combustion chamber. In this case, just open the door and vacuum the ash from the
tray.

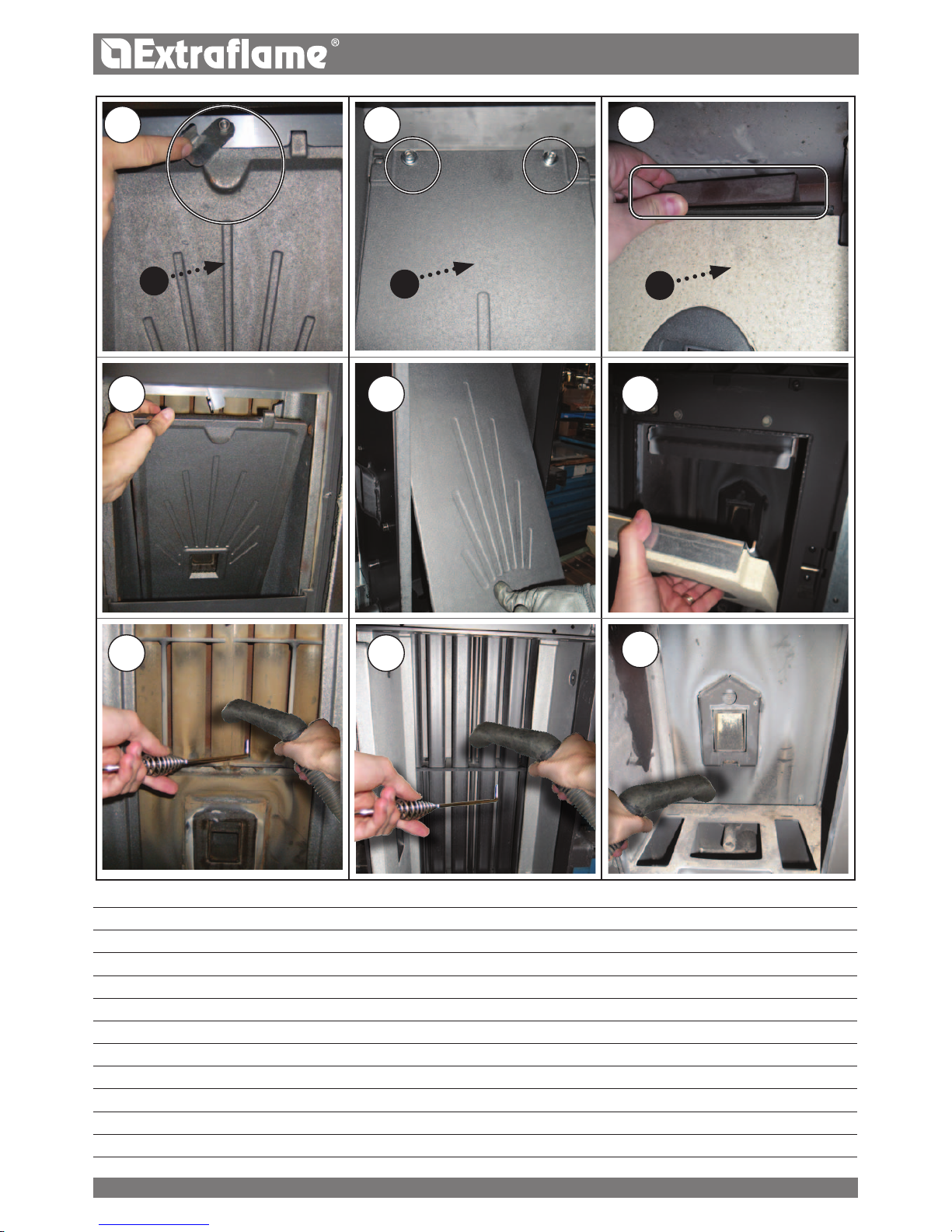

CLEANING THE HEAT EXCHANGER:
The heat exchangers chamber must be cleaned every month as the soot deposited on the rear of the hearth wall obstructs the regular ow
of fumes, thereby aecting the performance and regular operation of the stove.
Open the door to access the combustion chamber. Take out the burn pot.
Remove or rotate, depending on the model, the upper lockbolt (A) the screws (B) or the wall lock (C) of the hearth wall (D), take out the
hearth wall (E) and clean with the poker and a suitable vacuum cleaner (F).
When cleaning has been completed, reposition the removable hearth wall (D) and secure it again with the designated screws by turning the
lockbolt in the opposite direction in relation to the one used to remove it or by placing back the hearth wall lock.
Place back the burn pot.
26
A B C
E
E E
F F
D
F
D
D
ENGLISH
27
F
D
A
C
D
E
B
A
ENGLISH
ROUTINE MAINTENANCE CARRIED OUT BY AUTHORISED TECHNICIANS
Routine maintenance must be performed at least once a year.
As the generator uses pellets as solid fuel, it needs an annual routine maintenance interval that needs to be performed by an authorised
Technician by only using original spare parts.
Failure to do so can aect the appliance's safety and you may no longer be entitled to the warranty conditions.
By following the cleaning schedule reserved to the user and reported in the user and maintenance manual, one ensures correct combustion
in the generator over time, thereby preventing any anomalies and/or malfunctions that may require more work to be performed by the
technician. Requests for routine maintenance are not covered by the product's warranty.
DOOR, ASH DRAWER AND BURN POT GASKETS
The gaskets ensure the tightness of the stove and its consequent proper operation.
They must be checked periodically: in the event they are worn or damaged they must be replaced immediately.
These operations must be carried out by a qualied technician.
CONNECTION TO THE FLUE
Vacuum and clean the pipe that leads to the ue yearly or whenever necessary. If there are horizontal sections, any residue must be removed
before it obstructs the ue.
PUTTING THE EQUIPMENT OUT OF SERVICE END OF THE SEASON
At the end of every season, before turning o the stove, we recommend completely emptying the pellet tank and using a vacuum cleaner to
clear up any pellets and dust residue inside it.
You should also disconnect the generator from the mains and, to ensure greater safety especially if there are any children around, remove the
power supply cable.
Routine maintenance must be performed at least once a year.
IF THE POWER SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY THE AFTERSALES SERVICE OR BY A SIMILARLY
QUALIFIED PERSON, SO AS TO AVOID ALL RISKS.
The images are for illustration purposes
A
Fumes motor (disassembly and cleaning and
fumes pipe), new silicone in required points
B
Inspection of gaskets and door (replace them
and apply silicone where required)
C
Combustion chamber (total cleaning of the
entire chamber) and ignition plug holder tube
cleaning
D
Tank (complete emptying and
cleaning)
E
Room air fan disassembly and
removal of dust and any pellet
debris
F
Air intake pipe inspection and any
ow sensor cleaning
28
ENGLISH
Displays
Display Reason solution
off
Stove o -
staRt
The start-up phase is in progress -
pellet feeDing
The feeding of the pellet during the ignition phase is in progress
ignition
The ignition phase is in progress -
BuRning
The start-up phase is in progress -
opeRant
The normal work phase is in progress -
MoDulation
The stove is modulating -
BuRn pot Cleaning
The automatic burn pot cleaning is in
progress.
The automatic burn pot cleaning (not in 1st power) is performed
at pre-established intervals of continued working.
final Cleaning
When the stove is switched-o, nal cleaning is in progress. The nal cleaning phase lasts about 10
minutes.
stanD-By
Stove o due to temperature reached
and in stand-by for re-ignition.
To deactivate the STAND-BY function see the specic chapter.
stanD By ext
Stove o due to an external
thermostat, waiting for re-ignition
To deactivate the STAND-BY function see the specic chapter.
Cooling stanD-By
A new ignition is attempted when
the stove has just been switched-o
When the stove switches o, it is necessary to wait for the
complete shutdown of the fumes motor before cleaning the burn
pot.
The stove can only be re-ignited when these operations have
been performed.
Cool. stDBy -
BlaCk out
The stove is cooling due to black out On completion of the cooling phase, it will re-ignite automatically.
low
Room thermostat set at minimum
value.
In this way the stove only works at 1st power independently
from the power set. To exit this function just raise the room
temperature using button 4 and then key 2.
Hot
Set room thermostat set at maximum
value.
The stove works at set start, without ever modulating. To escape
this function just lower the set temperature using key 4 and then
key 1.
seRviCe
When this message appears, contact the authorised technician for ordinary cleaning of the appliance.
If cleaning is not performed, the message will be displayed at every ignition but without interrupting
normal stove operation.
29
ENGLISH
alaRMs
Display
explanation solution
Indicates the presence of an alarm.
On: indicates the presence of an alarm
O: indicates the absence of alarms
Flashing: indicates the deactivation of the depression sensor.
The alarm can be reset by pressing key 1 for 3 seconds only if the
fumes motor has stopped and if 15 minutes have passed from
displaying the same alarm.
fuMes failuRe
Fault related to the ue gas exhaust
motor.
The restoration operations must be carried out by an authorised
technician.
fuMes pRoBe
Fault related to the fumes probe.
The restoration operations must be carried out by an authorised
technician.
fuMes
oveRteMp al.
The ue gas temperature has
exceeded 310°C
Check the pellet ow (see “Pellet feed adjustment”).
Check that the machine is clean, including the fumes route.
Do not rest cloths on the machine.
Other restoration operations must be carried out by an authorised
technician.
Clean CHeCk up 1 - 2
(1 = in BuRning pHase)
(2 = in opeRant pHase)
The combustion chamber or burn pot
bottom are dirty.
The door is not closed correctly.
The ash pan is not closed correctly.
The depression sensor is faulty.
The ue exhaust pipe is blocked.
Incorrect installation
Make sure the holes at the burn pot bottom are completely free.
Check cleanliness of the fumes pipe and the combustion chamber.
Check hermetic door closure.
Check hermetic closure of the ash drawer.
Other restoration operations must be carried out by an authorised
technician.
DepRession
alaRM
The mechanical depression sensor
has tripped
Contact after-sales centre
no
ignition
The pellet feed-box is empty.
Pellet feed calibration inadequate.
Incorrect installation
Check for the presence of pellets in the feed-box.
Adjust the pellet ow (see “Pellet feed adjustment”).
Check the procedures described in the “Ignition” chapter.
Other restoration operations must be carried out by an authorised
technician.
BlaCk-out no ign.
No power during the ignition phase.
Switch the stove to OFF using key 1 and repeat the procedure
described in the "Ignition" chapter.
Other restoration operations must be carried out by an authorised
technician.
no pellet
In the work phase, the t° of the ue
gases has dropped below factory
parameters
Check for the presence of pellets in the feed-box.
Regulate the pellet ow.
Other restoration operations must be carried out by an authorised
technician.
Cooling stanD-By
Attempt to release the alarm with
stove still in cooling mode.
Every time the stove displays one of the alarms listed above it will
switch-o automatically.
The stove will block any release attempt during this phase,
showing the alarm itself and STANDBY alternately on the display.
The alarm can be reset by pressing key 1 for 3 seconds only if the
fumes motor has stopped and if 15 minutes have passed from
displaying the same alarm.
DaMage DepR
sensoR
Component disconnected or faulty Contact after-sales assistance
CoMManD augeR
alaRM
Abnormal functioning
of pellet feeding
Contact after-sales assistance
30
ENGLISH
1. Extraame S.p.A. products are guaranteed, within the European community, for 24 months from the date of purchase.
Purchase has to be proved by means of a valid scal document issued by the seller (receipt, invoice or shipment document) identifying the
purchased product and its purchase and/or delivery date.
WARNING: This conventional guarantee does not replace the guarantee regulated by the European legislation on consumer rights.
The conventional guarantee is only applicable to the Italian region and to those areas, within the European Community, where the Authorised
Technical Assistance Centres are active (see the www.lanordica-extraame.com website)
It is also limited to the state of residence of the consumer, which must coincide with the premises and/or registered oce of the seller of the
Extraame S.p.A. product
These regulations do not apply if the product is purchased within commercial, entrepreneurial, or professional circumstances. In these cases
the product guarantee will be limited to a period of 12 months from the date of purchase.
ITALIAN GUARANTEE
What must be done if there is a product malfunction:
Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction is
included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. When requesting
the intervention of the Assistance service at the Authorised Assistance Centre, always specify: - type of malfunction - model of the appliance
- complete address - phone number
EUROPEAN GUARANTEE
What must be done if there is a product malfunction:
Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction
is included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. Request the
intervention of the Assistance service or the address of the Authorised Technical Assistance Centre to the seller; always specify: type of
malfunction, model of the appliance, complete address and phone number
If the malfunction arises in the rst 6 months of the product's life, the consumer has the right to have the product repaired with no expense.
From the seventh to the twenty-fourth month, if a malfunction arises, the consumer will bear the cost of the call, while the seller will pay for the
manpower and for any spare parts used.
2. If the malfunction is linked to external events and/or conditions such as, including but not limited to, insucient capacity of the systems;
wrong installation and/or maintenance by the personnel which hasn't got the skills prescribed by the laws of the country of residence of
the consumer; negligence; inability to use the product and wrong maintenance by the consumer, with respect to what is reported and
recommended by the instructions manual of the product, which is part of the sales contract, this guarantee will be void.
Damage to the product that cannot be related to manufacturing defects are also not included in this guarantee. Similarly are excluded defects
related to incorrect operation of the ue, according to the legislation in force in the country at the moment of purchase. Other exclusions
include all product defects due to carelessness, accidental breakdown, tampering and/or damage during transport (scratches, dents, etc.),
interventions carried out by unauthorised personnel and further damage caused by incorrect interventions by the consumer trying to arrange
the initial malfunction.
The following consumables are excluded by the guarantee: gaskets, ceramic or tempered glasses, cast iron grilles or coatings, refractory
materials (e.g. Nordiker or others), painted, chrome-plated or golden parts, majolica ware, handles, the brazier and its related components.
For Idro products the heat exchanger is not covered by the guarantee if a suitable condensation-proof circuit is not set up to ensure a return
temperature of the device of at least 55°C. The guarantee excludes all the external components on which the consumer can directly operate
during use and/or maintenance or that can be subject to wear and/or rust and stains on steel due to aggressive detergents.
If malfunctions are signalled which are not later conrmed during check by an authorised technician, the cost of the intervention will be borne
entirely by the consumer.
3. If it is not possible to restore product conformity by repairing it, the product/component will be replaced, the guarantee expiration date and
conditions will remain the same established when the product/component to be replaced has been purchased.
4. Extraame S.p.A. cannot be held liable for injury or damage which may - either directly or indirectly - be caused to persons, animals
and property ensuing from failure to observe all the instructions provided in the relevant instruction manual and the warnings regarding
installation, use and maintenance of the product, that can also be downloaded on the website.
5. Interventions for adjusting and/or regulating the product for the type of fuel or other reasons are excluded by the guarantee.
6. If the product is repaired in one of the Authorised Technical Assistance Centres indicated by Extraame S.p.A. and if the product is replaced,
transport will be free of charge. If the technician can repair the product at the user's place of residence and they refuse, transport to the
workshop and redelivery will be paid by the consumer.
7. After the 24 months of the guarantee have elapsed any repair intervention cost will be completely borne by the consumer.
8. In the case of disputes the only competent court is that of the Extraame S.p.A. registered oce - (Vicenza-Italy)
GUARANTEE TERMS
31
ENGLISH
AddITIONAL wARNINGs
Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator.
Do not use the product as a ladder or supporting structure.
Do not place laundry on the product to dry it. Any clothes-horse or similar objects must be kept at due distance from the product.
Danger of re or damage to the coating.
The user is fully liable for any incorrect use of the product. The manufacturer bears no civil or criminal liability for incorrect use.
Unauthorised tampering of any nature or replacement of spare parts of the product with non-original parts may endanger the operator
and the manufacturer bears no civil or criminal liability for this.
Large parts of the surface of the product can get very hot (door, handle, glass, smoke outlet pipes, etc.). Please therefore avoid coming
into contact with these parts without wearing suitable protective clothing or using appropriate measures, such as heat protective gloves.
DO NOT use the product with the door open or if the glass is broken.
The product must be electrically connected to a system equipped with an operational earthing system.
Turn o the product in the event of a failure or malfunctioning.
Unburned pellets that build up in the burner following each failed start-up must be removed before attempting to start up the product
again. Make sure that the burner is clean and correctly positioned before starting it up again.
Do not wash the product with water. Water may penetrate into the unit and cause faults in the electrical insulation. This can cause
electric shocks.
Installations not complying with the regulations in force, as well as incorrect use and failure to comply with the maintenance scheduled
by the manufacturer, will invalidate the guarantee.
32
ENGLISH
33
ENGLISH
34
ENGLISH
35
004276519_MAN_UT_INSERTO PELLET MINI CRYSTAL_005
10/07/2017
MADE IN ITALY
design & production
Extraame S.p.A. Via Dell’Artigianato, 12 36030 - MONTECCHIO PRECALCINO (VI) - ITALY
+39.0445.865911 - +39.0445.865912 - info@extraame.it - www.lanordica-extraame.com
TO FIND THE SERVICE CENTRE NEAREST TO YOU
CONTACT YOUR DEALER OR CONSULT
THE SITE WWW.LANORDICA-EXTRAFLAME.COM
The manufacturer reserves the right to vary the characteristics and the data reported in this pamphlet at any
moment and without notice, in order to improve its products.
This manual, therefore, cannot be regarded as a contract towards other parties.
Loading...
