Extraflame COSTANZA IDRO User Manual

Download

Page 1

MADE IN ITALY

design & production

costanza IDRo

004277268 - Rev 002

THERMO PRODUCTS USER MANUAL

Page 2

ENGLISH

Page 3

ENGLISH

ENGLISH ............................................................................................................................................................................................................ 6

WarNINGS ........................................................................................................................................................................................................ 6

SafEty .............................................................................................................................................................................................................. 6

routINE MaINtENaNcE ................................................................................................................................................................................ 8

INStaLLatIoN .................................................................................................................................................................................................. 9

MINIMUM DISTANCES .............................................................................................................................................................................................................................. 9

PREPARATIONS FOR MAINTENANCE ..................................................................................................................................................................................................9

HErMEtIcaLLy SEaLEd INStaLLatIoN ..................................................................................................................................................... 11

COMbUSTION AIR ....................................................................................................................................................................................................................................11

FUMES EXHAUST SYSTEM.....................................................................................................................................................................................................................11

HydrauLIc SyStEM ...................................................................................................................................................................................... 12

INSTALLATION AND SAFETY DEVICES .............................................................................................................................................................................................12

aNtI-coNdENSatIoN dEVIcE (MaNdatory) .......................................................................................................................................... 13

dEtaILS coStaNZa Idro .............................................................................................................................................................................14

ON/OFF .........................................................................................................................................................................................................................................................14

fEaturES........................................................................................................................................................................................................ 15

cHEckS aNd MEaSurES for coMMISSIoNING ....................................................................................................................................... 15

THE PELLET LOAD MOTOR DOES NOT FUNCTION: ....................................................................................................................................................................15

bULb THERMOSTATS - REARM ............................................................................................................................................................................................................15

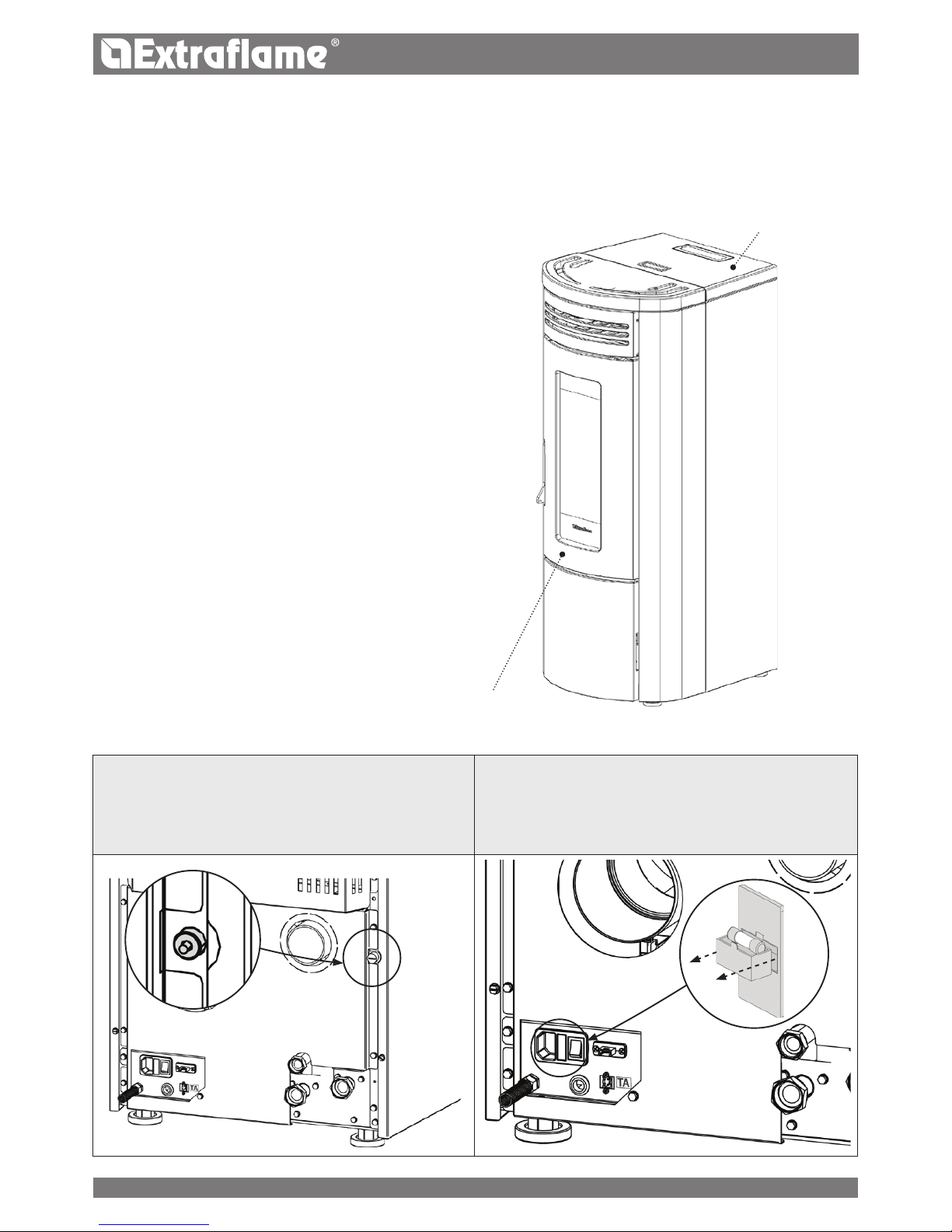

StoVE poSItIoNING ..................................................................................................................................................................................... 16

NotE for corrEct opEratIoN ................................................................................................................................................................ 16

REARMING ...................................................................................................................................................................................................................................................16

FUSE ...............................................................................................................................................................................................................................................................16

pELLEtS aNd fEEdING ................................................................................................................................................................................. 17

pELLEt HoppEr - prESSurISEd cLoSurE. ................................................................................................................................................ 17

rEMotE coNtroL ......................................................................................................................................................................................... 18

REMOTE CONTROL ICONS ....................................................................................................................................................................................................................19

INSERTING THE bATTERIES ...................................................................................................................................................................................................................19

ADVICE AND PRECAUTIONS FOR THE USE OF THE REMOTE CONTROL ............................................................................................................................19

toucH ScrEEN dISpLay .............................................................................................................................................................................. 20

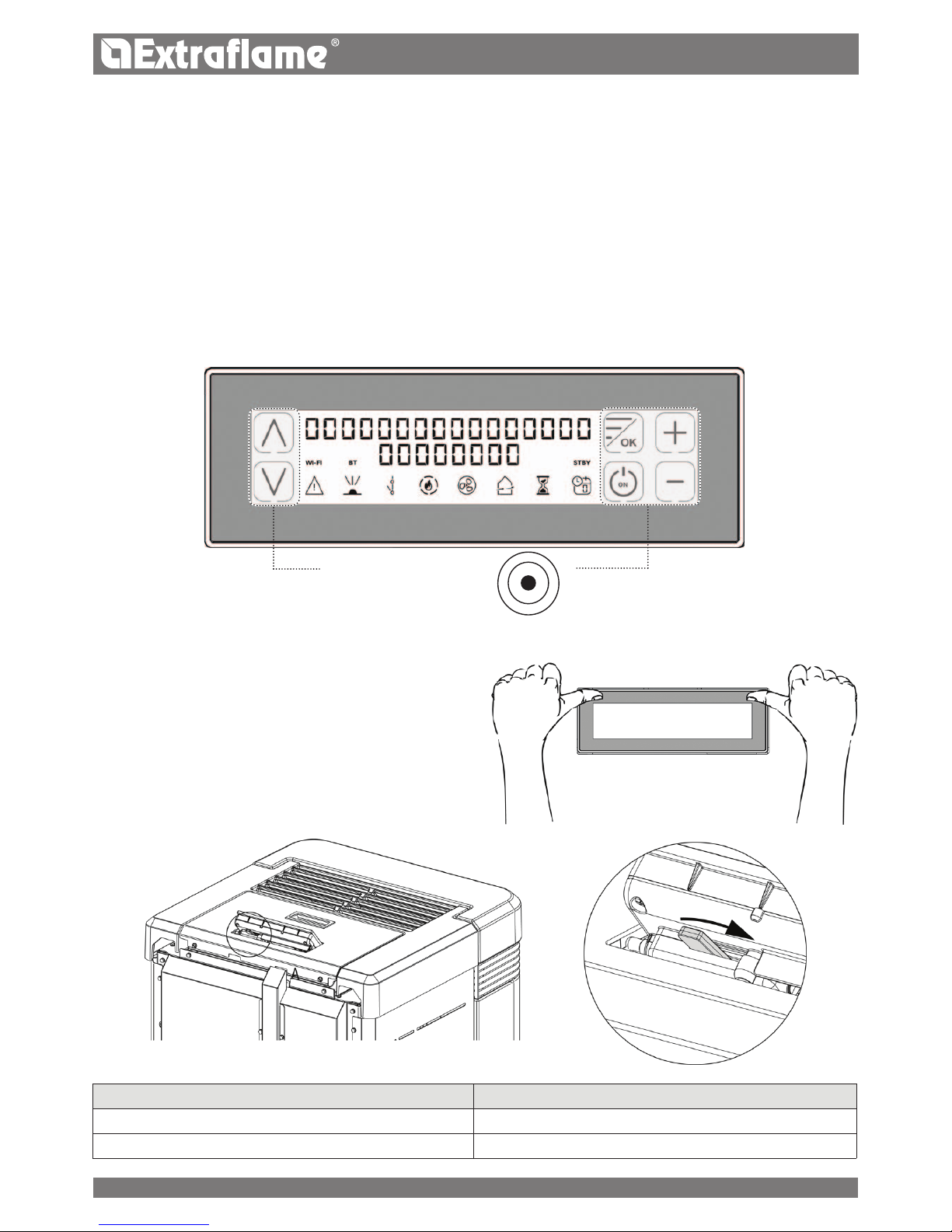

DISPLAY OPENING ...................................................................................................................................................................................................................................20

DISPLAY CLOSURE....................................................................................................................................................................................................................................20

coNtroL Board ........................................................................................................................................................................................... 21

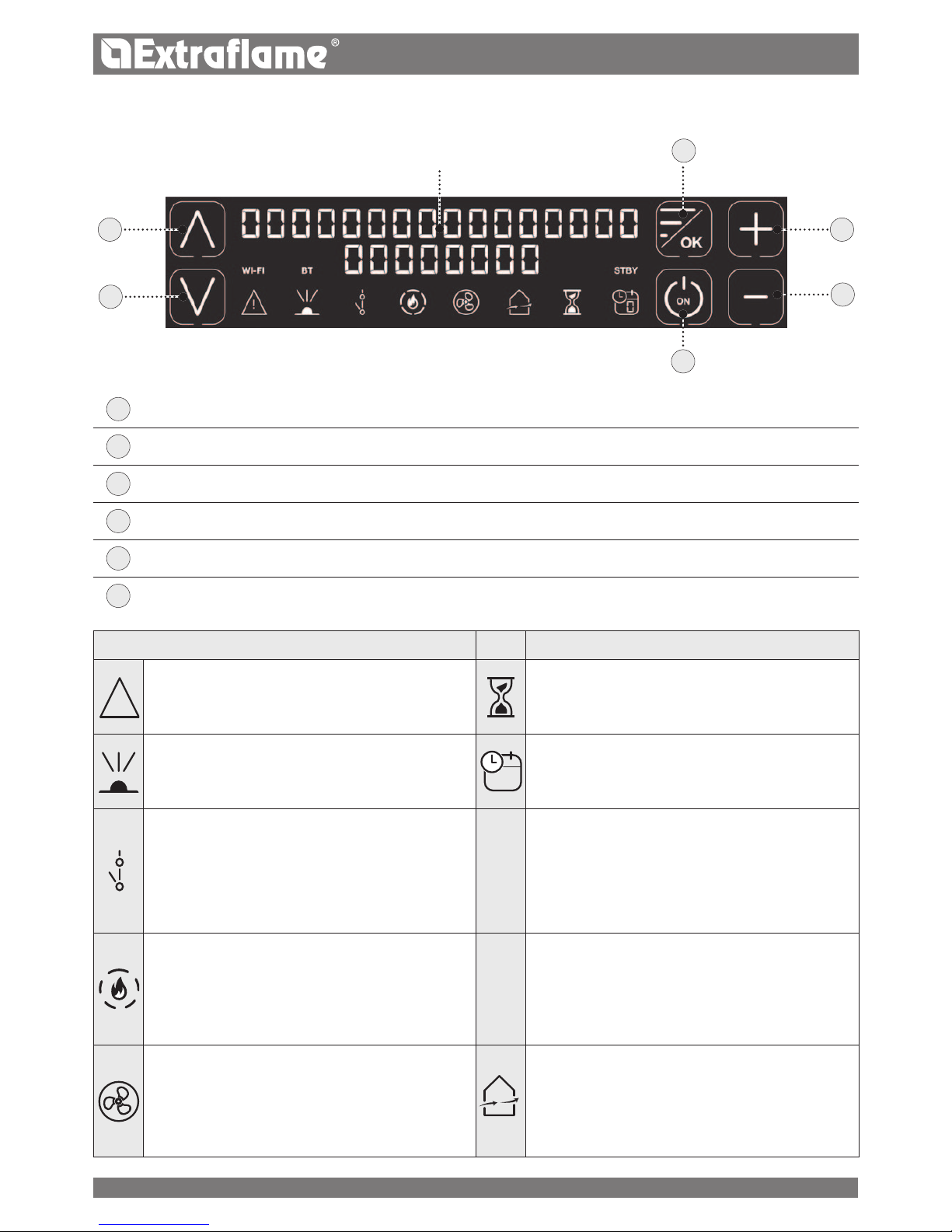

ICON kEY ......................................................................................................................................................................................................................................................21

GENERAL MENU ........................................................................................................................................................................................................................................22

bASIC INSTRUCTIONS ............................................................................................................................................................................................................................22

coMMISSIoNING SEttINGS ......................................................................................................................................................................... 23

MAINS POwER FREqUENCY 50/ 60Hz .............................................................................................................................................................................................23

DATE-TIME ...................................................................................................................................................................................................................................................23

LANGUAGE ..................................................................................................................................................................................................................................................23

DEGREES ......................................................................................................................................................................................................................................................23

opEratIoN aNd LoGIc ................................................................................................................................................................................ 24

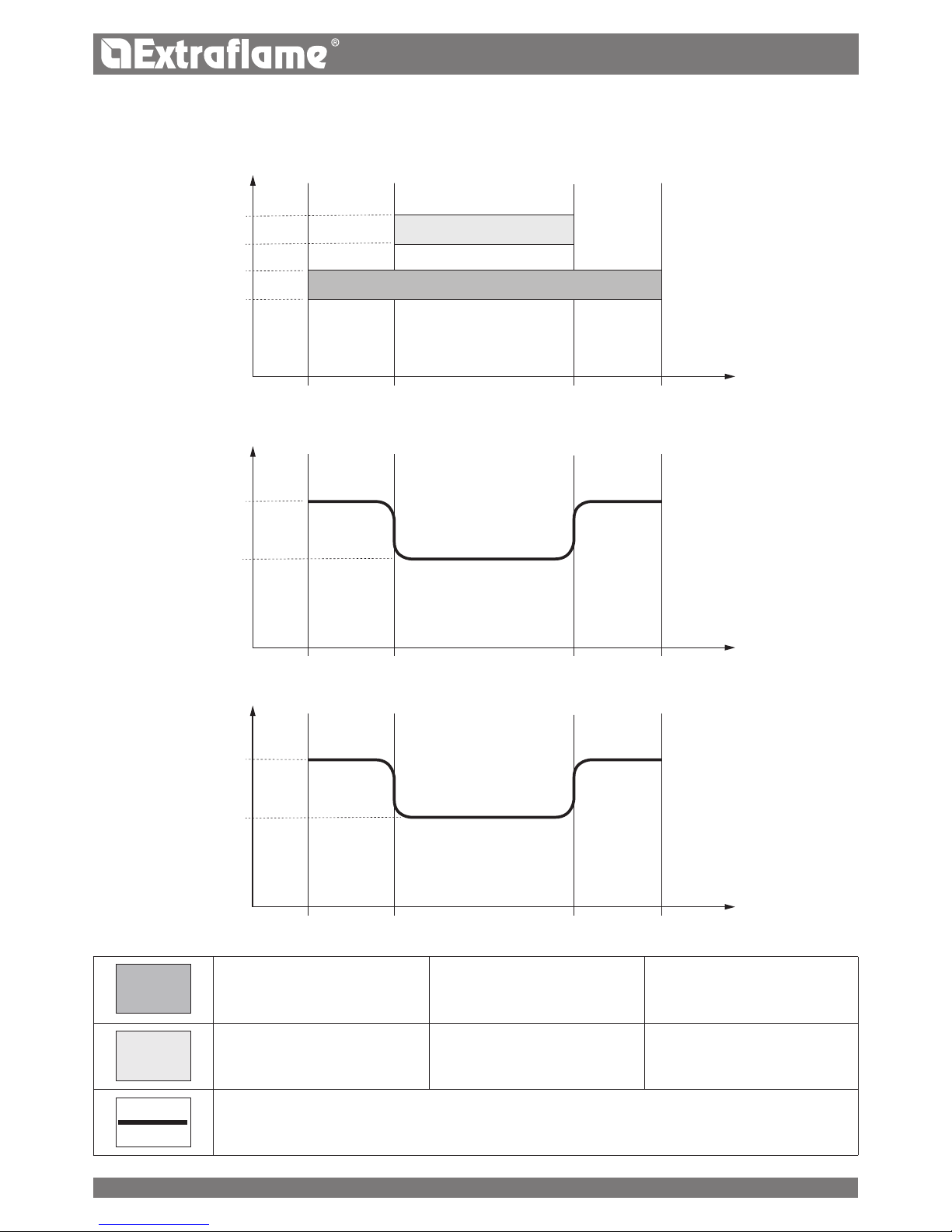

addItIoNaL tHErMoStat .......................................................................................................................................................................... 25

AdditionAl thermostAt functioning with

STAND-bY

Active.......................................................................................................25

ADDITIONAL THERMOSTAT OPERATION wITH

STAND-bY

DEACTIVATED .................................................................................................................25

ADDITIONAL THERMOSTAT INSTALLATION ...................................................................................................................................................................................25

VENtILatIoN.................................................................................................................................................................................................. 26

EaSy SEtup ................................................................................................................................................................................................... 26

cHroNo .......................................................................................................................................................................................................... 27

ENAbLING/DISAbLING THE CHRONO ..............................................................................................................................................................................................27

SEttINGS ........................................................................................................................................................................................................ 29

DISPLAY ........................................................................................................................................................................................................................................................29

STAND - bY ..................................................................................................................................................................................................................................................29

FIRST LOAD .................................................................................................................................................................................................................................................29

OUTLET AIR .................................................................................................................................................................................................................................................29

wi-Fi ...............................................................................................................................................................................................................................................................30

RESET .............................................................................................................................................................................................................................................................30

cLEaNING aNd MaINtENaNcE ...................................................................................................................................................................31

MaINtENaNcE ............................................................................................................................................................................................... 31

PERIODIC CLEANING UNDER USER'S RESPONSIbILITY .............................................................................................................................................................31

routINE MaINtENaNcE pErforMEd By quaLIfIEd tEcHNIcIaNS .................................................................................................... 33

DECOMMISSIONING (END OF SEASON) .........................................................................................................................................................................................33

dISpLayS ........................................................................................................................................................................................................ 36

aLarMS .......................................................................................................................................................................................................... 36

GuaraNtEE tErMS ...................................................................................................................................................................................... 38

dISpoSaL........................................................................................................................................................................................................ 40

attENtIoN

SurfacES caN BEcoME VEry Hot!

aLWayS uSE protEctIVE GLoVES!

During combustion, thermal energy is released that signicantly increases the heat of surfaces, doors, handles, controls, glass, exhaust pipes, and even the front of the appliance. Avoid contact with those elements if not wearing protective clothing (protective gloves included). Make sure children are aware of the danger and keep them away from the stove during operation.

Page 4

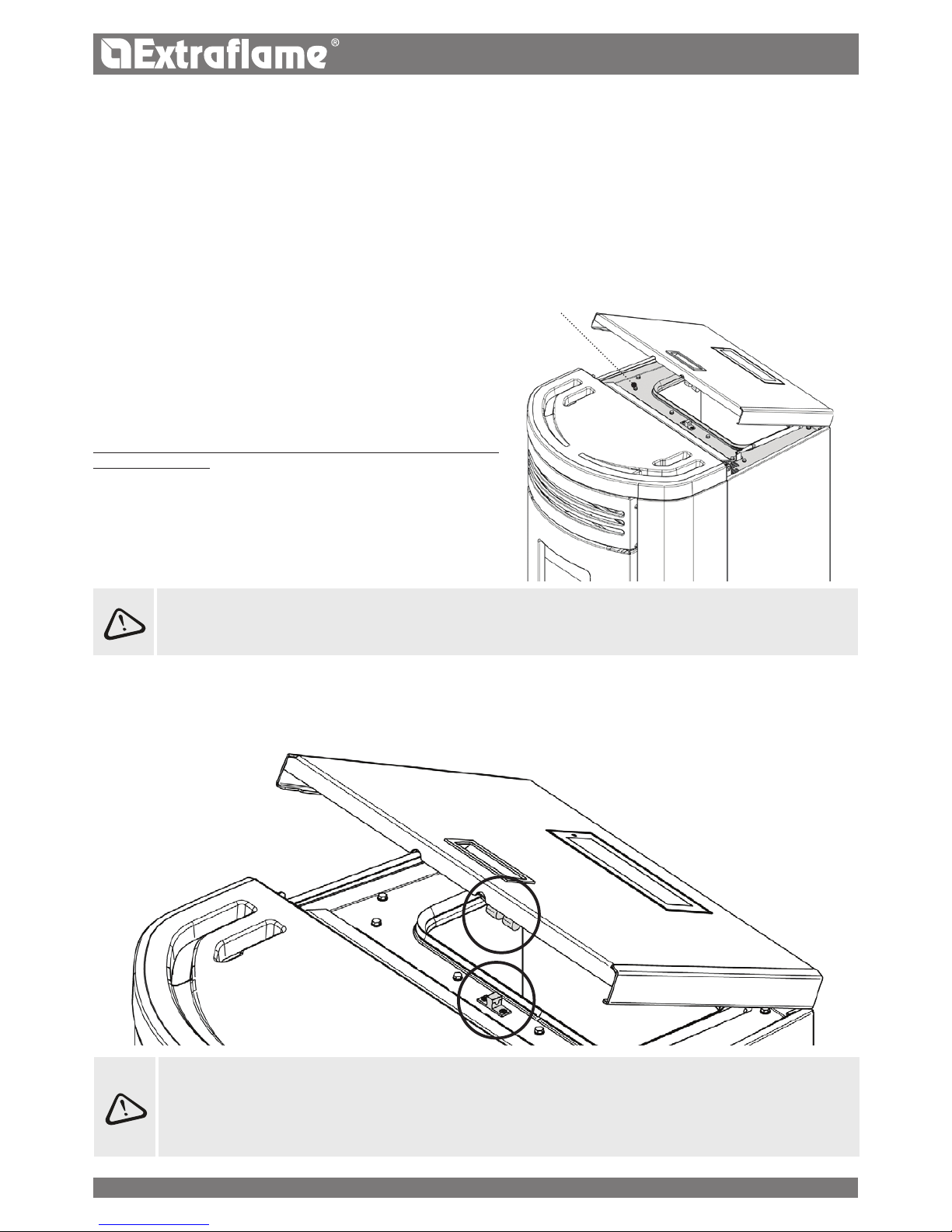

ATTENZIONE TASSATIVO

PrImA dI mOVImENTArE lA STufA TOglIErE lE mAIO-

lIchE INdIcATE PEr EVITArE dANNI.

PEr l’AllINEAmENTO dEl TOP uTIlIZZArE lE 4 VITI.

ATENÇÃO - OBrIgATÓrIO

ANTES dE mOVImENTAr A SAlAmANdrA, rETIrAr AS

cErâmIcAS INdIcAdAS PArA EVITAr dANOS.

PArA O AlINhAmENTO SuPErIOr uSE 4 PArAfuSOS.

ATTENTION - cOmPulSOrY

BEfOrE mOVINg ThE STOVE, kINdlY TAkE ThE cErA-

mIcS Off IN OrdEr TO AVOId ANY dAmAgES.

uSE ThE 4 ScrEwS TO AlIgN ThE TOP PArT

TÄhElEPANu!

ENNE Ahju lIIguTAmIST EEmAldAgE SEllElT

NÄIdATud kErAAmIlISEd OSAd, ET VÄlTIdA

kAhjuSTuSI.

TOPI jOONdAmISEkS kASuTAgE 4 kruVI.

ATTENTION - OBlIgATOIrE

AVANT dE BOugEr lE POêlE , fAIrE ATTENTION à lE-

VEr lES cérAmIquES

INdIquéES POur éVITEr dES dégâTS.

POur l’AlIgNEmENT du TOP, uTIlISEr lES 4 VIS

OBVEZNA POZOrNOST

PrIjE POmIcANjA PEćI, uklONITE OZNAčENE PlOčIcE

kAkO BISTE IZBjEglI OšTEćENjA.

ZA POrAVNANjE gOrNjEg dIjElA kOrISTITI 4 VIjkA.

VOrSIchT - OBlIgATOrISch

BEVOr SIE dEN OfEN BEwEgEN, BITTE uNBEdINgT

dIE BEZEIchNETE kErAmIk kAchElN ENTfErNEN um

SchÄdEN Zu VErmEIdEN.

VErwENdEN SIE dIE 4 SchrAuBEN, um dAS OBErE

VErklEIduNgSSTück ANZuglEIchEN

POZOr OBVEZNO

PrEd PrEmIkANjEm PEčI OdSTrANITE OZNAčENE

mAjOlIkE, dA PrEPrEčITE POškOdOVANjE.

ZA POrAVNAVO VrhA uPOrABITE 4 VIjAkA.

ATENcIÓN - PErENTOrIO

ANTES dE mOVEr lA ESTufA SAcAr lAS

mAYÓlIcAS INdIcAdAS PArA EVITAr dAñOS.

PArA El AlINEAmIENTO dE lA TAPA , uTIlIZAr lOS 4

TOrNIllOS

AdVArSEl - OBlIgATOrISk

før du flYTTEr OVNEN, Bør du TAgE

kErAmIkflISErNE Af fOr AT uNdgå SkAdEr.

TIl juSTErINg Af TOPPEN Brug dE 4 SkruEr.

ENGLISH

Page 5

Silicone

ENGLISH

Page 6

ENGLISH

Warnings

This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if transferred to another owner or user, or if transferred to another place. If it is damaged or lost, request another copy from the area technician. This product is intended for the use for which it has been expressly designed. The manufacturer is exempt from any liability, contractual and extracontractual, for injury/damage caused to persons/animals and objects, due to installation, adjustment and maintenance errors and improper use.

Installation must be performed by qualied sta, which assumes complete responsibility for the denitive installation and consequent good functioning of the product installed. One must also bear in mind all laws and national, regional, provincial and town council Standards present in the country in which the appliance has been installed, as well as the instructions contained in this manual. The Manufacturer cannot be held responsible for the failure to comply with such precautions. After removing the packaging, ensure that the content is intact and complete. Otherwise, contact the dealer where the appliance was purchased.

All electric components that make up the product must be replaced with original spare parts exclusively by an authorised after-sales centre, thus guaranteeing correct functioning.

safety

 THE APPLIANCE MAY BE USED BY CHILDREN 8 YEARS OF AGE OR OLDER AND INDIVIDUALS WITH REDUCED PHYSICAL, SENSORY, OR MENTAL CAPACITIES OR WITHOUT EXPERIENCE OR THE NECESSARY KNOWLEDGE, PROVIDED THAT THEY ARE SUPERVISED OR HAVE RECEIVED INSTRUCTIONS ON SAFE USE OF THE APPLIANCE AND THAT THEY UNDERSTAND THE INHERENT DANGERS.

We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a ame gives, in complete safety.

Page 7

ENGLISH

 THE GENERATOR MUST NOT BE USED BY PERSONS INCLUDING CHILDREN WITH REDUCED PHYSICAL, SENSORY AND MENTAL CAPACITIES OR WHO ARE UNSKILLED PERSONS, UNLESS THEY ARE SUPERVISED AND TRAINED REGARDING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

 THE CLEANING AND MAINTENANCE REQUIRED BY THE USER MUST NOT BE PERFORMED BY CHILDREN WITHOUT SUPERVISION.

 CHILDREN MUST BE CHECKED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

 DO NOT TOUCH THE GENERATOR WHEN YOU ARE BAREFOOT OR WHEN PARTS OF THE BODY ARE WET OR DAMP.

 THE SAFETY AND ADJUSTMENT DEVICES MUST NOT BE MODIFIED WITHOUT THE AUTHORISATION OR INDICATIONS OF THE MANUFACTURER.

 DO NOT PULL, REMOVE, TWIST THE ELECTRICAL CABLES COMING OUT OF THE PRODUCT EVEN IF IT IS DISCONNECTED FROM THE MAINS.

 IT IS ADVISED TO POSITION THE POWER SUPPLY CABLE SO THAT IT DOES NOT COME INTO CONTACT WITH HOT PARTS OF THE APPLIANCE.

 THE POWER SUPPLY PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.

 DO NOT CLOSE OR REDUCE THE DIMENSIONS OF THE AIRING VENTS IN THE PLACE OF INSTALLATION. THE AIRING VENTS ARE ESSENTIAL FOR CORRECT COMBUSTION.

 DO NOT LEAVE THE PACKAGING ELEMENTS WITHIN REACH OF CHILDREN OR UNASSISTED DISABLED PERSONS.

 THE HEARTH DOOR MUST ALWAYS BE CLOSED DURING NORMAL FUNCTIONING OF THE PRODUCT.

 WHEN THE APPLIANCE IS FUNCTIONING AND HOT TO THE TOUCH, ESPECIALLY ALL EXTERNAL SURFACES, ATTENTION MUST BE PAID

 CHECK FOR THE PRESENCE OF ANY OBSTRUCTIONS BEFORE SWITCHING THE APPLIANCE ON FOLLOWING A PROLONGED PERIOD OF INACTIVITY.

 THE GENERATOR HAS BEEN DESIGNED TO FUNCTION IN ANY CLIMATIC CONDITION. IN PARTICULARLY ADVERSE CONDITIONS STRONG WIND, FREEZING SAFETY SYSTEMS MAY INTERVENE

Page 8

ENGLISH

THAT SWITCH THE GENERATOR OFF. IF THIS OCCURS, CONTACT THE TECHNICAL AFTERSALES SERVICE AND ALWAYS DISABLE THE SAFETY SYSTEMS.

 IN THE EVENT THE FLUE CATCHES FIRE, USE SUITABLE SYSTEMS FOR SUFFOCATING THE FLAMES OR REQUEST HELP FROM THE FIRE BRIGADE.

 THIS APPLIANCE MUST NOT BE USED TO BURN WASTE

 DO NOT USE ANY FLAMMABLE LIQUIDS FOR IGNITION

 DURING THE FILLING PHASE DO NOT PUT THE BAG OF PELLETS TO INTO CONTACT WITH THE PRODUCT

 THE MAJOLICAS ARE TOP QUALITY ARTISAN PRODUCTS AND AS SUCH CAN HAVE MICRODOTS, CRACKLES AND CHROMATIC IMPERFECTIONS. THESE FEATURES HIGHLIGHT THEIR VALUABLE NATURE. DUE TO THEIR DIFFERENT DILATION COEFFICIENT, THEY PRODUCE CRACKLING, WHICH DEMONSTRATE THEIR EFFECTIVE AUTHENTICITY. TO CLEAN THE MAJOLICAS, IT IS RECOMMENDED TO USE A SOFT, DRY CLOTH. IF A DETERGENT OR LIQUID IS USED, THE LATTER COULD PENETRATE INSIDE THE CRACKLES, HIGHLIGHTING THEM.

 SINCE THE PRODUCT CAN TURN ON AUTOMATICALLY THANKS TO THE TIMER, OR REMOTELY USING THE DEDICATED APPLICATIONS, IT IS STRICTLY FORBIDDEN TO LEAVE ANY COMBUSTIBLE OBJECT WITHIN THE SAFETY DISTANCES INDICATED ON THE TECHNICAL DATA PLATE.

routine Maintenance

Based on Decree 22 January 2008 n°37 art.2, routine maintenance means interventions aimed at reducing degradation due to normal use, as well as dealing with accidental events entailing the need of rst interventions, which however do not modify the structure of the system upon which one is intervening or its intended use according to the requirements laid down by the technical standards in force and by the manufacturer's use and maintenance manual.

Page 9

ENGLISH

INSTALLING INSERTS

When installing inserts, access must be prevented to the internal parts of the appliance and it must not be possible to access live parts during extraction operations. Any wiring, for example the power cable or room probe, must be positioned so as not to be damaged during movement of the insert and must not come into contact with hot parts. If a cavity made of combustible material is installed, we recommend taking all the safety precautions indicated by the installation standards.

VENTILATION AND AERATION OF INSTALLATION ROOMS

Ventilation in the event of a non-hermetic generator and/or of non-sealed installation must take place respecting the minimum area indicated below:

Appliance categories Reference standard

Percentage of the

net opening section with respect to the

appliance fumes outlet section

Minimum net opening value of the

ventilation duct

Pellet stoves UNI EN 14785 - 80 cm²

Boilers UNI EN 303-5 50% 100 cm²

INSTALLATION

GENERAL

The ue gas exhaust and hydraulic connections must be carried out by qualied personnel who must issue installation conformity documentation compliant with national standards.

The installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity, supplied with:

1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);

2) photocopy or photograph of the chimney plaque;

3) system booklet (where applicable).

The installer must ask to be issued with a receipt stating that the documentation has been provided, and must keep it with a copy of the technical documentation relating to the installation.

For installation in a condominium, prior approval from the condominium's administrator must be requested. Where required, check the exhaust gas emissions after installation. Should a sampling point be installed, it must be airtight.

COMPATIBILITY

Do not install in rooms with a re hazard. It is also forbidden to install it in living areas with the following characteristics:

1. where there are liquid fuel appliances with continuous or discontinuous operation that draw the combustion air into the room in which they are installed.

2. where there are type B gas appliances intended for heating, with or without domestic hot water production and in adjacent and communicating rooms.

3. where the depression measured in situ between the external and internal environment is greater than 4 Pa.

N.B.: Watertight appliances can also be installed in the cases indicated in points 1, 2 and 3 of this paragraph.

INSTALLATIONS IN BATHROOMS, BEDROOMS AND STUDIO FLATS

Installation in bathrooms, bedrooms and studio ats is only allowed for sealed or closed hearth appliances with ducted combustion air taken from the outside.

oor protection

POSITIONING AND SAFETY DISTANCES

The support surfaces and/or points must have a suitable capacity to bear the overall weight of the appliance, accessories and coverings. If the oor is made of a combustible material, we recommend using a non-combustible material to protect the front part from any burnt material which might fall during routine cleaning operations. The generator must be level to function properly. The side walls, the rear walls and the oor support surface should be made of non-combustible material.

One must also bear in mind all laws and national, regional, provincial and town council regulations in force in the country in which the appliance has been installed, as well as the instructions contained in this manual.

Air inlet

Under any condition, including in the presence of extractor hoods and/or of controlled forced ventilation systems, the pressure dierence between the generator installation rooms and the outside must always be equal to or less than 4 Pa.

MINIMUM DISTANCES

Installation next to ammable or heat-sensitive materials is permitted only if the special safety distances specied on the label at the beginning of the manual (pag.2) are observed. If the materials are not ammable, you must keep a side and rear distance of at

least 100 mm (without the inserts). For products equipped with rear spacers, wall-mounting installation is permitted exclusively for the rear side.

PREPARATIONS FOR MAINTENANCE

To carry out extraordinary maintenance operations on the product, it may be necessary to move it away from the adjacent walls. This must be done by a technician authorised to disconnect the combustion product evacuation ducts and then reconnect them. For heaters connected to the hydraulic system, the connection between the system itself and the product must be made in such a way that, when an authorised technician is about to carry out extraordinary maintenance operations, it is possible to move the heater at least 1 metre away from the adjacent walls.

Page 10

3 - 5%

Max 3 mt

ENGLISH

EXAMPLES OF CORRECT CONNECTION TO THE CHIMNEY

In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or ventilation opening.

The air inlets must meet the following requirements:

 they must be protected with grids, metal mesh, etc., but without reducing the net useful section;  they must be made so as to make the maintenance operations possible;  positioned so that they cannot be obstructed; The clean and non-contaminated air ow can also be obtained from a room adjacent to that of installation (indirect aeration and ventilation), as long as the ow takes place freely through permanent openings communicating with the outside. The adjacent room cannot be used as a garage, or to store combustible material or for any other activity with a re hazard, bathroom, bedroom or common room of the building.

FLUE GAS EXHAUST

The heat generator works in depression and is equipped with an outlet fan for ue gas extraction. There must be a single exhaust system for the generator. Using a ue that is shared with other devices is not allowed.

The components of the ue gas exhaust system must be chosen in relation to the type of appliance to be installed in compliance with:

 UNI/ TS 11278 in the event of metal chimneys, with particular attention to that stated in the specication;  UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, UNI EN 1806 in the event of non-metallic chimneys.  The length of the horizontal section must be minimal and, in any case, no longer than 3 metres, with a minimum upward slope of 3%  There must not be more than 4 direction changes including the one due to the use of the "T" element.  A “T” tting with a condensation collection cap must be provided at the base of the vertical section.  If the exhaust is not inserted in an existing ue, a vertical section with a windproof end piece is required (UNI 10683).  The vertical duct can be inside or outside the building. If the smoke duct is inserted in an existing ue, it must be certied for solid fuel.  If the smoke duct is outside the building, it must always be insulated.  The smoke ducts must have at least one airtight inlet for ue gas sampling.  All the sections of the ue gas duct must be accessible to inspection.  Inspection openings must be provided for cleaning.  If the generator has a fume temperature lower than 160°C+ ambient temperature caused by the high yield (contact technicians) it

MUST be resistant to humidity.

 A ue system that does not respect the previous points or, in general, that does not comply with the regulations, may cause condensation

phenomena inside it.

CHIMNEY CAP

The chimney caps must meet the following requirements:

 they must have a useful outlet section no less than double that of the chimney/ducted system on which it is installed;  they must be adapted in order to prevent the penetration of rain and snow in the chimney/ducted system;  they must be built so that, in the event of winds coming from all directions and from any angle, the expulsion of combustion products

is in any case ensured;

Protection from rain and wind

Condensationproof "T" tting with inspection plug

Insulated ue

Insulated "T" tting with inspection plug

Protection from rain and wind

"T" tting with inspection plug

CONNECTION TO THE MAINS ELECTRIC SUPPLY

The generator is supplied with an electric power cable to be plugged into a 230V 50 Hz socket, possibly with a circuit breaker switch. The socket must be easily accessible. The electrical system must be compliant with standards. The eciency of the earthing circuit must be checked. Unsuitable earthing of the system can cause malfunctioning for which the manufacturer will not be held liable. Power supply variations beyond 10% can cause faulty operation of the product.

Page 11

ENGLISH

installation example

One must also bear in mind all laws and national, regional, provincial and town council standards present in the country in which the appliance has been installed, as well as the instructions in this manual.

Max 1.5 m -

max 2 bends

Hermetically sealed installation

The generator is a fully sealed product with respect to the environment in which it is installed. This means that it is ideal for passive houses because it does not take air in from within the house.

combustion air

To ensure the stove remains hermetically sealed, the connection pipe for the combustion air must be directly connected to the exterior, using special pipes and sealed connectors.

Fumes exHaust system

• If the generator has a fumes temperature of less than 160°C+ room temperature due to the high performance (refer to technical data), the fumes exhaust system must be completely waterproof.

• If there is a possibility that fumes may condense, an external inspection hatch must be tted.

Page 12

ENGLISH

HYDRAULIC SYSTEM

Certain concepts referring to the Italian Standard UNI 10412-2 (2009) are described in this chapter. As previously described, when installing, all national, regional, provincial and council Standards in force provided by the country in which the appliance has been installed must be complied with. During installation of the generator it is MANDATORY to adjust the system with a manometer in order to display the water pressure.

TABLE OF SAFETY DEVICES FOR CLOSED VESSEL SYSTEM AND NOT PRESENT IN THE PRODUCT

Safety valve

Pump control thermostat (it is managed by the water probe and the board program)

Water temperature indicator (display)

Pressure transducer with display

Automatic circuit breaker adjustment switch (managed by board program)

Pressure transducer with minimum and maximum pressure switch alarm

Water overheating automatic circuit breaker switch (block thermostat)

Circulation system (pump)

Expansion system

INSTALLATION AND SAFETY DEVICES

The installation, relative system connections, commissioning and inspection of correct functioning must be carried out perfectly, in full compliance with Standards in force, national, regional and municipal, as well as these instructions. For Italy, installation must be carried out by professionally qualied sta (Ministerial Decree dated 22.01.08 n°37).

Extraame S.p.A. declines all responsibility for damage to objects and/or persons caused by the system.

TYPE OF SYSTEM

 There are 2 dierent types of system:  Open vessel system and closed vessel system.  The product has been designed and made to work with closed vessel systems.

CHECK THAT THE PRELOAD OF THE EXPANSION VESSEL IS SET TO 1.5 BAR.

SAFETY DEVICES FOR CLOSED VESSEL SYSTEM

In accordance with the UNI 10412-2 (2009) regulation in force in Italy, all the closed systems must be tted with: safety valve, pump control thermostat, temperature indicator, pressure indicator, automatic circuit breaker block switch (block thermostat), circulation system, expansion system, and safety dissipation built-in to the generator with thermal safety valve (self-activated), if the appliance does not have a temperature self-adjustment system.

Pay attention to the correct sizing of the system:

 generator power compared to the thermal requirement  possible need for a buer tank

Page 13

ENGLISH

DISTANCES OF SAFETY DEVICES ACCORDING TO THE STANDARD

The temperature safety sensors must be in place on the machine at a distance no greater than 30 cm from the ow connection. Whenever the generators lack a device, those missing can be installed on the generator ow pipe, within a distance no greater than 1 m from the machine.

COMMISSIONING CHECKS

Before connecting the boiler: a) wash all system piping thoroughly in order to remove any residues which might compromise the correct functioning of certain system components (pumps, valves, etc.). b) The company recommends installing a magnetic lter in the generator return, to increase the operational life of the boiler, make it easier to remove impurities and increase the overall eciency of the system. It is also advisable to perform an inspection using appropriate instruments, to check for any stray currents that may cause corrosion. c) check to verify that the ue has adequate draught, that it is not narrowed and that other appliances do not discharge into the ue. This is to prevent unexpected power increases. The ue tting can be mounted between the boiler and the ue only after this inspection. An inspection of the connections with pre-existing ues is recommended.

ANTICONDENSATION DEVICE MANDATORY

Make sure a suitable anti-condensate circuit has been realised, which guarantees an appliance return temperature of at least 55°C. The automatic thermostatic valve, for instance, is used in solid fuel boilers as it prevents cold water from returning into the exchanger. A high return temperature allows eciency improvement, reduces formation of smoke condensation and prolongs the generator’s life span. The manufacturer recommends using the 55°C model with 1” hydraulic connections.

For the products with the *PWM pump control thermostat, installation is considered equivalent to the realisation of a suitable anti-condensate circuit in the case where::

- the heat generator pump is the only one in the installation, or

- there is a plate heat exchanger between the heat generator and the installation, or

- there is a hydraulic compensator or an inertial storage tank (buer) between the heat generator and the installation

*Check technical data sheet on website. Valve on sale as an accessory (optional)

Page 14

ON/OFF

ENGLISH

Details COstaNZa iDRO

HyDRauliC iNstallatiON

t1 3 bar safety drain

t2 Boiler ow/output

t3 Boiler return/input

Combustion air inlet

Pellet hopper

pressurised closure

Door handle

Fumes exhaust

Fuse

Power supply

230V

Access to the ash drawer

Room air outlet

Display

Rearming

Page 15

0 0,5 1 1,5 2 2,5 3 3,5

ENGLISH

CHeCks aND measuRes fOR COmmissiONiNg

CautiON!

fOR CORReCt geNeRatOR OpeRatiON, tHe HyDRauliC system pRessuRe must be betweeN 0.6 aND 3 baR.

Whenever the pressure detected by the digital pressure switch is lower than 0.6 or over 2.7 bar, the boiler goes into alarm mode. By taking the pressure of the water within standard values, the alarm can be reset by pressing the

key for 3 seconds

(The alarm can be reset only if the fumes motor has stopped and 15 minutes have passed since the alarm was displayed)

tHe pellet lOaD mOtOR DOes NOt fuNCtiON:

It is normal that there is air inside the circuit due to lling the system. On the 1st ignition cycle, the movement of the water causes the air bubbles to move and be bled by the system automatic venting. This can cause the pressure to drop and the minimum pressure switch to intervene, which interrupts operation of the pellet conveying motor and therefore operation of the heat generator.

The system must be bled several times to eliminate the air and loaded when the pressure is too low. It is not an anomaly, but normal phenomenon, due to lling. Following lling, the system must always be bled using the relevant vents in the circuit and having the machine perform the "air vent" function. (Following commissioning and with the machine cold, activate the "air vent" function again. - see "SETTINGS" chapter)

bulb tHeRmOstats - ReaRm

Check by pressing rearm (95°C) , before contacting a technician (see REARM chapter).

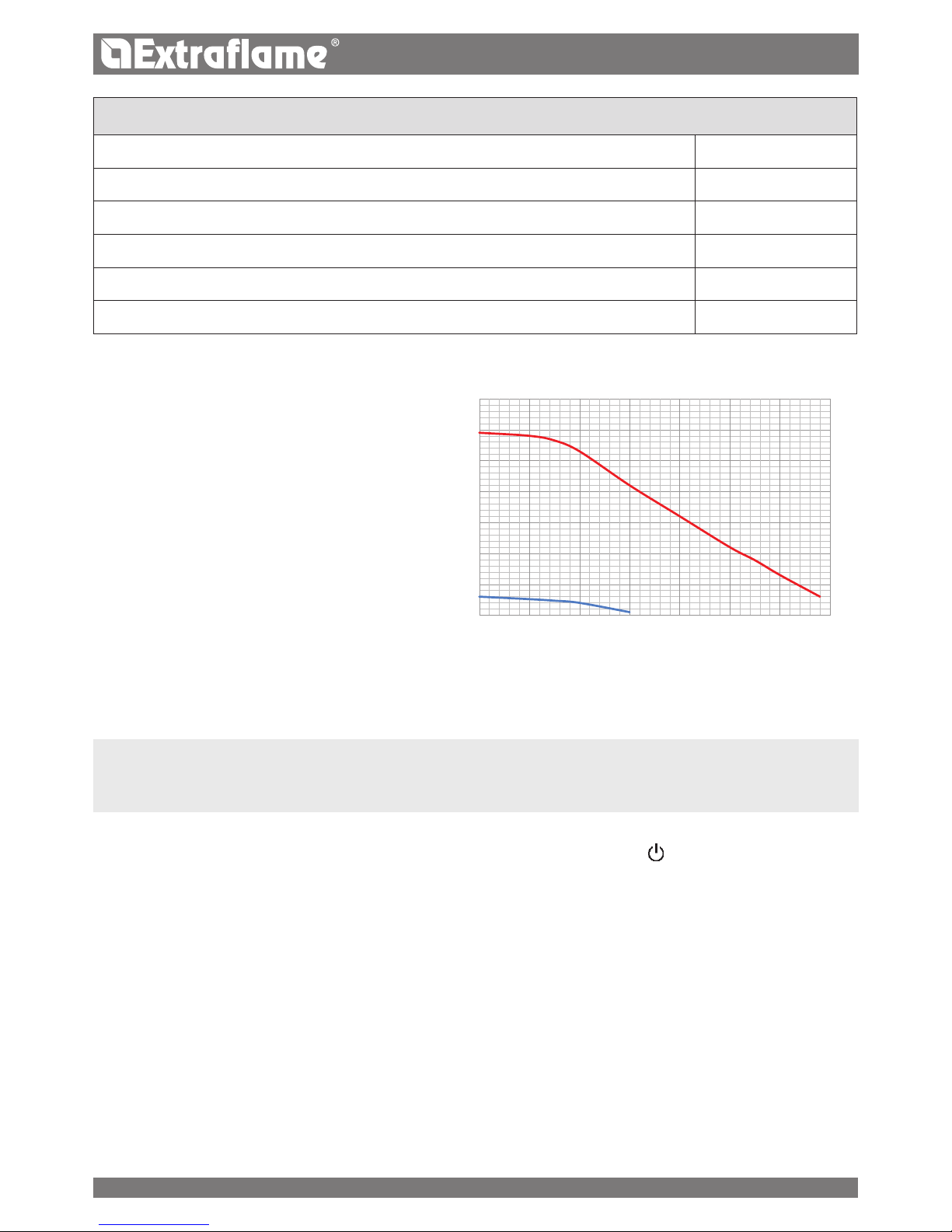

The diagram at the side illustrates the behaviour of the pump used on our thermo-products at the speeds that can be set.

Flow rate (m

/h)

Head (m)

featuRes

Water content of the thermo-product heat exchanger (l) 15

Volume of expansion vessel integrated into thermo-product (l) *6

3 bar safety valve integrated into the thermo-product YES

Minimum and maximum pressure switch integrated into the thermo-product YES

PWM Pump integrated into the thermo-product YES

Pump max. head (m) 6

* ENVISION ANY INTEGRATIVE EXPANSION VESSEL ON THE BASIS OF THE SYSTEM WATER CONTENT.

Page 16

ENGLISH

NOte fOR CORReCt OpeRatiON

Pellet hopper lid

Fire door

The following indications must be respected for correct pellet stove operation:

During stove operation, the pellet hopper lid and the door must always be closed. Failure to comply with the above during operation will cause the display to show the following:

"CLOSE HOPPER  STOVE DOOR"

This indication means that you have 60" to close the hatch/door and the pellet lid.

If not, during ignition the stove will go into "DEPR ALARM" mode, while during normal operation the stove will go into "COOLING  WAITING TIME" mode and then re-start automatically when the correct conditions are present (stove cold, etc.).

stOve pOsitiONiNg

To ensure the stove works correctly, it should always be positioned so that it is perfectly level, using a spirit level.

ReaRmiNg

The gure below shows the rearm position (100°C). It is recommended to contact the qualied technician if one of the rearms should be triggered, so as to verify the cause.

fuse

If there is no power supply to the stove, check the state of the fuse located in the box between the stove switch and the power cable connection.

Page 17

ENGLISH

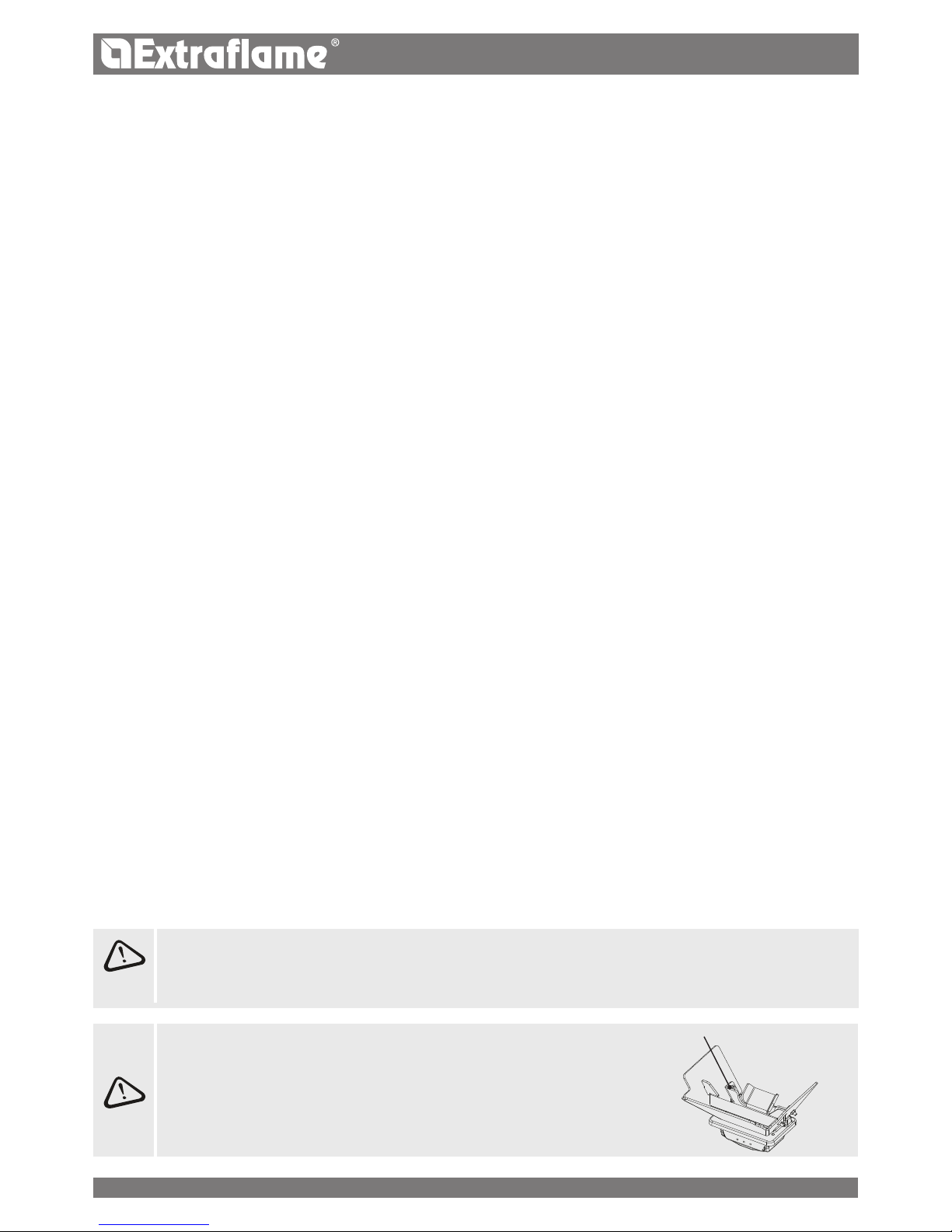

Pellets and feeding

Pellets are made by subjecting wood shavings i.e. the rejects of pure wood (without paint) sawmill, carpenter products and products from other activities connected to working and transforming wood, to very high pressures. This type of fuel is fully ecological as no glues are used to hold it together. Indeed, the compactness of the pellets over time is guaranteed by a natural substance found in wood: lignite. As well as being an ecological fuel, as wood residues are made the most of, the pellet also has technical advantages. While wood has a caloric value of 4.4 kWh/kg. (with 15% humidity, thus after 18 months of seasoning), the caloric value of the pellet is 5 kWh/kg. Pellet density is about 650 kg/m3 and water content is equal to 8% of its weight. For this reason the pellets do not need to be seasoned in order to obtain a suciently adequate heat yield.

tHe Use Of POOR QUalitY Pellets OR anY OtHeR MateRial daMages tHe fUnCtiOns Of tHe geneRatOR and MaY inValidate tHe WaRRantY and fRee tHe ManUfaCtUReR fROM ResPOnsiBilitY.

Pellet HOPPeR - PRessURised ClOsURe.

During stove operation, the pellet hopper lid must always be closed.

Keep clean

Do not place the bag Directly on the stove to loaD the tank. always use a scoop to loaD the tank. Do not rub or place weights on the tank seal. keep the tank cover seal supporting surface clean at all times. check the conDitions of the seal frequently. if DamageD, contact your local authoriseD technician.

The pellets used must comply with the characteristics described by the following standards:

en PlUs, Uni en 14961-2, (Uni en isO 17225-2), Class A1 or A2 and Uni en 303-5 with the following characteristics: water content ≤ 12%, ash content ≤ 0.5% and lower caloric value >17 MJ/kg (in the case of boilers).

The manufacturer always recommended using pellets with a diameter of 6 mm with its products.

Pellet stORage

In order to ensure problem-free combustion pellets must be stored in a dry place. Open the tank lid and load the pellets using a scoop.

Page 18

ENGLISH

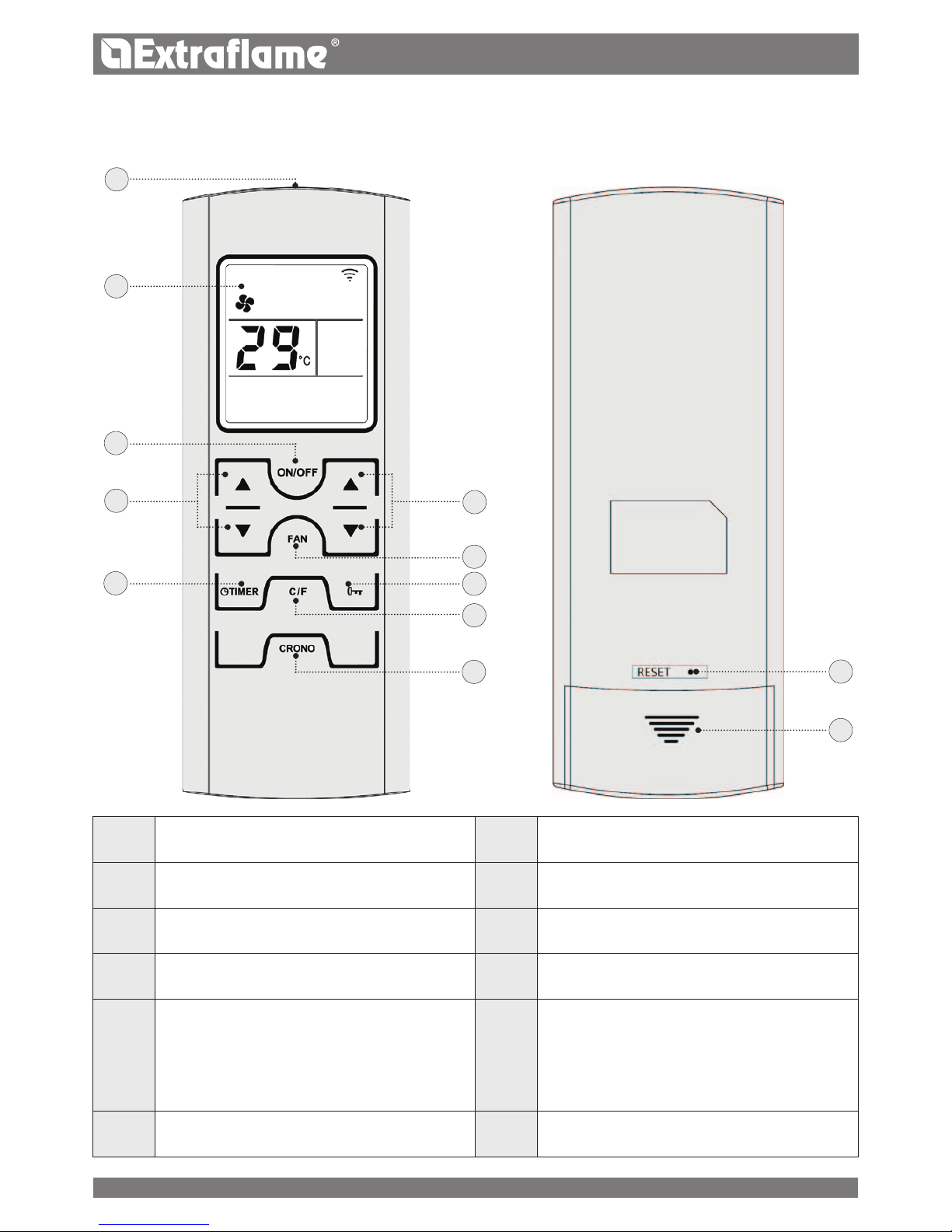

Remote contRol

The remote control can be used to adjust the main stove functions.

Transmitter

Select air mode*

Display

Lock keyboard

On/o stove (hold for 3 seconds)

Degrees Celsius / Fahrenheit

Set power

Press the button once to enable or disable the chrono

Set switch-o delay: The button allows to set the switcho delay. For example, if you set it to one hour, the stove will automatically switch o after the set time *

Reset*

Set room temperature

Battery compartment

* not available in this model

Page 19

ENGLISH

InseRtIng the batteRIes

Remove the battery compartment cover by sliding it down. Insert 2 AAA batteries. Insert the batteries respecting the correct polarity (+) and (-). Close the cover of the battery compartment.

Respect the environment!

Used batteries contain metals that are harmful to the environment, and therefore must be disposed of separately in special containers.

If the Remote contRol Is swItched off due to no batteRy Installed, the stove can be contRolled fRom the command panel located on the uppeR paRt of the stove. when changIng the batteRIes, make suRe you follow the symbols pRInted InsIde the Remote contRol.

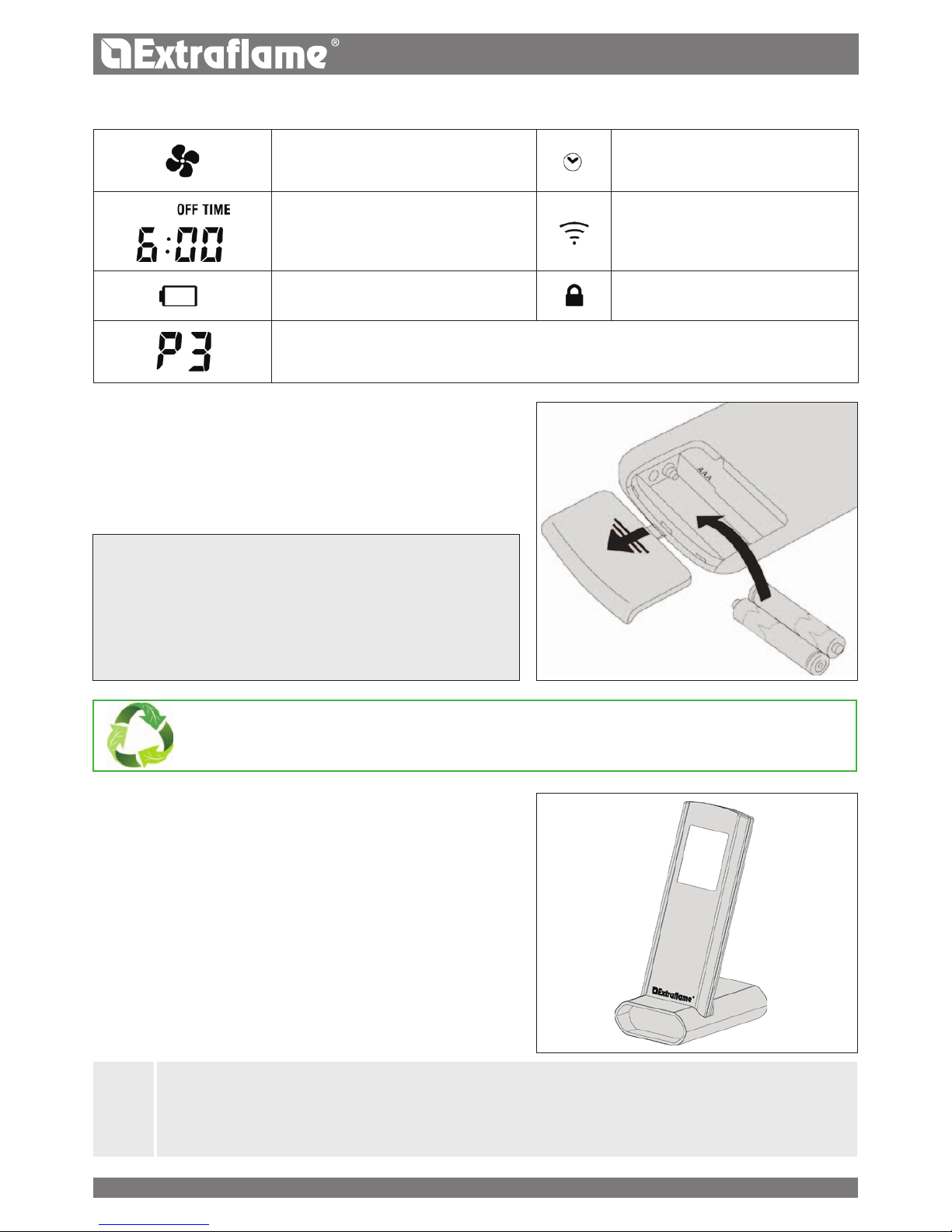

Remote contRol Icons

advIce and pRecautIons foR the use of the Remote contRol

 Remove the batteries if it is not used for a long time.  When being used, direct it towards the stove's signal receiver.  Handle the remote control with care. When it is not being used, place it

on the special base supplied.

 The remote control must not be left in a place where it is exposed to

direct sunlight or near a source of heat.

 The quality of the signal may be aected by other IR sources.

* Not available in this model

Air mode selected: * Flashing COMFORT On AUTO

Enable chrono Light on = activated Light o = deactivated

Set switch-o delay *

Indicates the transmission of the radio signal On = during all radio communication O = radio communication absent

Battery low Keys locked

Set power level. The power level is displayed, instead of the set room temperature, for 3 seconds when one of the set power buttons is pressed (4).

THE REMOTE CONTROL IS FITTED WITH AN LCD BACKLIT DISPLAY. THE BACKLIGHTING LASTS 20 SECONDS FROM THE LAST PRESS OF A BUTTON. AFTER A CERTAIN TIME, TO SAVE BATTERY POWER, THE DISPLAY TURNS OFF ENERGY SAVING MODE. THE FUNCTIONS OF THE REMOTE CONTROL WILL BE REACTIVATED ONCE IT HAS BEEN REMOVED FROM ITS BASE.

Page 20

ENGLISH

TOUCH SCREEN DISPLAY

The stove is equipped with a modern touch screen display with WiFi technology that allows for the individual functions of the unit to be adjusted by the user in an easy and intuitive manner. Touch the buttons (icons) on the display to activate the actions. The touch screen display reacts with the touch of you ngers.

CAUTION!

 Do not use screen protectors: the display might not work properly  Do not place the touch screen display in direct or indirect contact with water. The touch screen display may not work properly in the

presence of humidity or if it is exposed to water.

 To avoid damaging the touch screen display, do not touch it with sharp objects and do not press it too hard with your ngers.  During the opening and closing operation, only press the display's external frame.

TOUCH.SENSITIVE PARTS

FREQUENCY BANDS MAXIMUM POWER TRANSMITTED:

WiFi 20.0 DBM

BLUETOOTH Class-3

DISPLAY OPENING

Unlock the display by pressing on the edges of the display (A). Raise the display until "click".

DISPLAY CLOSURE

Unlock the display by moving the rear lever to the display (B). Lower the display as shown in gure (A) until it is completely closed

Page 21

ENGLISH

CONTROL BOARD

VIEWING OF VARIOUS

TEXT MESSAGES

On/o stove.

Increase operating power / scroll through the menus.

Decrease operating power / scroll through the menus.

Increase operating thermostat set / scroll through the menus.

Decrease operating thermostat set / scroll through the menus.

To access the menu / conrm key.

ICON KEY

Indicates the presence of an alarm. O: indicates there are no alarms On: indicates the presence of an alarm.

Delayed switch-o icon. O: deactivated. On: activated.

Indicates the reception of the IR signal On = IR command received O = IR communication absent

Indicates the weekly programming status O: deactivated. On: activated. The number indicates the current reference time frame.

Indicates contact of the external additional thermostat Closed contact: the contact of the external additional thermostat is closed. Open contact: the contact of the external additional thermostat is open.

WI-FI BT STBY

WiFi icon O: deactivated. On: activated and connected to the home network. Flashing: activated but not connected to the home network.

Indicates the stove power. Flame on: stable power. Flame ashing: the power is changing. The dashes indicate the actual power of the machine.

STANDBY function icon O: deactivated. On: activated.

It indicates the operation of the tangential fan. O = ventilation not active. On = ventilation active. Flashing: ventilation at reduced speed for compensation.

It indicates the operation of the pump. O = pump stopped. On = pump active. Flashing = electronic anti-condensation function active.

Page 22

ENGLISH

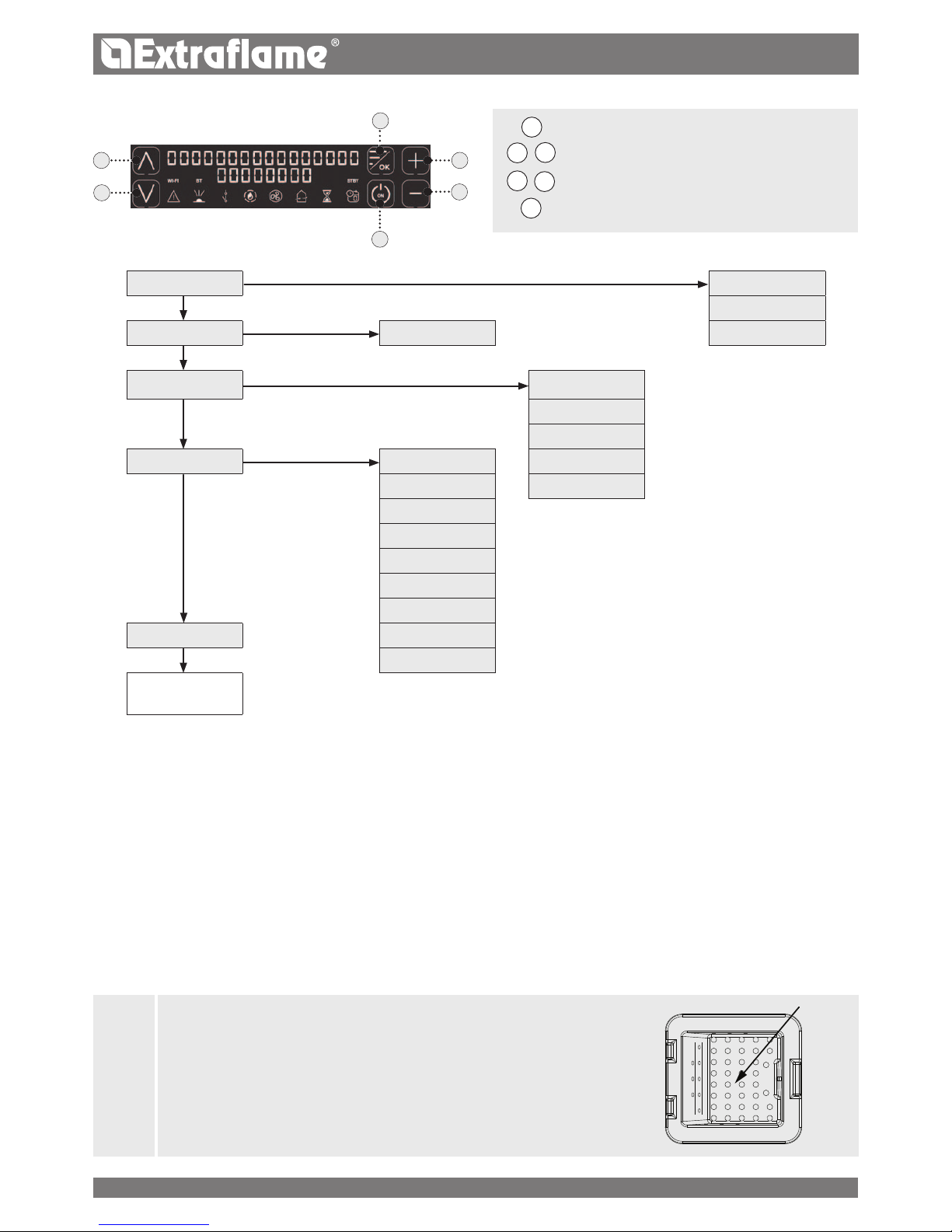

GENERAL MENU

Go back - exit

Scroll parameters: next (3); previous (2)

Modify data settings: increase (4); decrease (5)

Conrm - access menu

BASIC INSTRUCTIONS

The following recommendations must be followed the rst times the stove is ignited:

 It is possible that slight odours are produced due to the drying of the paints and silicone used. Do not remain in the room for long periods.

 Do not touch the surfaces as they could still be unstable.

 Ventilate the room well several times.

 The hardening of surfaces will stop after several heating cycles.

 This appliance must not be used to burn waste.

Before lighting the stove, the following points must be checked:

 The hydraulic system must be completed in compliance with

regulatory guidelines and the instructions in the manual.

 The hopper must be loaded with pellets  The combustion chamber must be clean  The burn pot must be completely free and clean  Check the hermetic closure of the re door and the ash drawer  Check that the power cable is properly connected  The bipolar switch in the rear right part must be positioned on

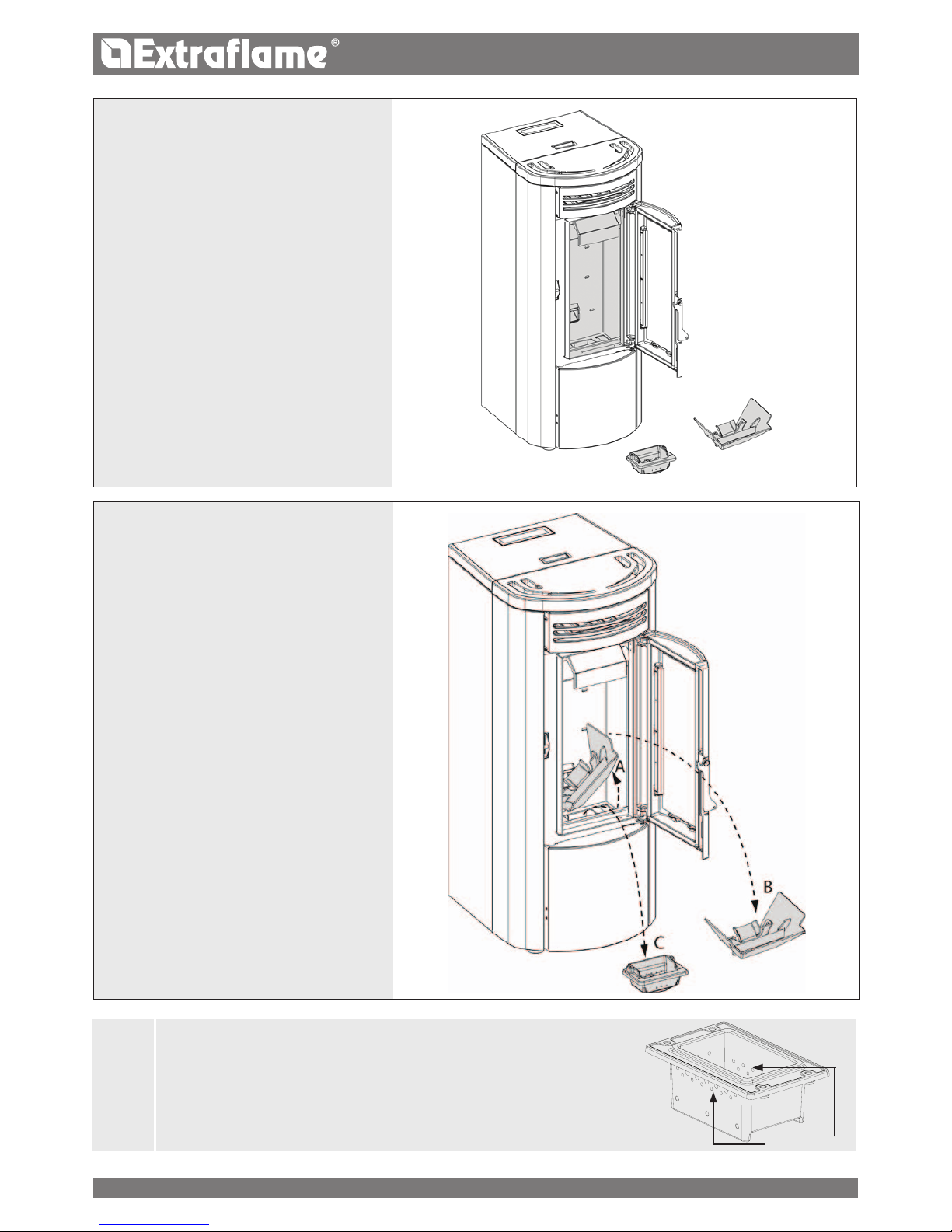

MAKE SURE THAT THE BOTTOM OF THE BURN POT IS FREE FROM RESIDUE AND DEPOSITS. THE HOLES AT THE BOTTOM MUST BE COMPLETELY FREE TO GUARANTEE CORRECT COMBUSTION. THE "EASY SETUP" FUNCTION CAN BE USED TO ADAPT COMBUSTION ON THE BASIS OF THE NEEDS DESCRIBED.

BURN POT BASE

VENTILATION ENABLING

SPEED

EASY SETUP

SET SET THERMOSTAT

CHRONO ENABLING

PRG1

PRG2

SETTINGS

DATETIME PRG3

LANGUAGE PRG4

DISPLAY

STANDBY

FIRST LOAD

OUTLET AIR

DEGREES

*STOVE STATUS WIFI

TECHNICIANS ONLY

RESET

*MENU

TECHNICIAN

Page 23

ENGLISH

COMMISSIONING SETTINGS

Once the power cable at the back of the stove has been connected, move the switch, also located on the back, to (I). The switch at the back of the stove powers the stove board. The stove remains o and a rst screen appears on the panel reading OFF .

MAINS POWER FREQUENCY 50/ 60HZ

If the generator is installed in a country with a frequency of 60Hz, the display will show "POWER FREQ ERROR". Change the frequency as described below.

CONTROLS PROCEDURE

 Press the 6 key.  Select the frequency required with keys 4 or 5.  Press key 6 to conrm and key 1 to return to the previous menus to the initial state.

DATETIME

This menu allows the date and time to be set.

CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Conrm DATETIME by pressing 6 and using 4 and 5 to set the day.  Continue by pressing 6.  Use the same procedure with 4 or 5 to choose the setting and 6 to move continue, to set the hour, minutes, date, month and year.  Press key 6 to conrm and key 1 to return to the previous menus to the initial state.

LANGUAGE

This menu allows the preferred language to be selected. The languages available are: Italian - English - German - French - Spanish - Portuguese.

CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Press 3 until LANGUAGE appears and conrm by pressing 6.  Select the language with keys 4 or 5.  Press key 6 to conrm and key 1 to return to the previous menus to the initial state.

DEGREES

This menu allows you to set the temperature unit of measurement. The value is preset to °C.

CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Press 3 until DEGREES appears and conrm by pressing 6.  Use keys 4 and 5 to select Celsius or Fahrenheit.  Press key 6 to conrm and key 1 to return to the previous menus to the initial state.

NO IGNITION THE APPLIANCE MAY FAIL TO LIGHT BECAUSE THE AUGER IS EMPTY AND NOT ALWAYS ABLE TO LOAD THE BURN POT

WITH THE NECESSARY QUANTITY OF PELLETS IN TIME TO REGULARLY IGNITE THE FLAME. IF THE PROBLEM OCCURS AFTER ONLY A FEW MONTHS OF OPERATION, CHECK THAT THE ROUTINE CLEANING DESCRIBED IN THE STOVE BOOKLET HAS BEEN CARRIED OUT CORRECTLY.

Page 24

ENGLISH

OPERATION AND LOGIC

IGNITION

Once the points listed previously have been checked, press key 1 for three seconds to ignite the stove. 15 minutes are available for the ignition phase. After ignition and having reached the control temperature, the stove interrupts the ignition phase and passes to STARTING.

PREPARATION

During the start-up phase, the stove stabilises combustion, increasing it progressively, to then start ventilation and pass on to WORK.

WORK

During the work phase, the stove reaches the set power set; see following item.

SET POWER

Set the operating power from 1 to 5 (using keys 2 and 3). Power 1 = minimum level - Power 5 = maximum level.

SET H2O

Set the boiler temperature from 65 to 80°C (using keys 4 and 5).

PUMP OPERATION

The pump activates water circulation when the t° of the water inside the stove reaches approx. 60°C. As the pump always functions above 60°, it is recommended to keep a heating area open at all times to allow for uniform operation, preventing blocks due to overheating. Normally this area is dened as the “safety zone”.

SET THERMOSTAT

It is possible to activate/deactivate front ventilation and check the room temperature by means of the room temperature probe (integrated in the product). (See the chapter "ventilation" on the following pages.)

BLOW

During the working phase, the stove has an internal timer, which after a pre-set period of time cleans the burn pot. This phase is shown on the display, it lowers the stove power level and increases the ue gas exhaust motor for a programmed period of time. When the cleaning phase is nished, the stove will re-start automatically and continue the working phase, returning to the selected power level.

MODULATION and HOFF

As the water temperature approaches the set point, the boiler starts to modulate automatically bringing itself to the minimum power. If the temperature increases beyond the set point, it will automatically switch o indicating HOFF, and will automatically go back on when the temperature drops below the set point.

SWITCHOFF

Press key 1 for three seconds. Once this operation has been performed, the appliance automatically enters the switch-o phase, blocking the supply of pellets.

The ue gas exhaust motor and the hot air ow motor will remain on until the stove temperature has dropped below the default parameters.

REIGNITION

The stove can only be re-ignited automatically or manually when the cooling cycle conditions and the preset timer have been satised.

DO NOT USE ANY INFLAMMABLE LIQUIDS FOR IGNITION! DO NOT ALLOW THE BAG OF PELLETS TO COME INTO CONTACT WITH THE BOILING HOT STOVE DURING THE FILLING PHASE! IN THE EVENT OF CONTINUED FAILURE TO LIGHT, CONTACT AN AUTHORISED TECHNICIAN.

IT IS PROHIBITED TO USE THE APPLIANCE WITHOUT THE PARTITION AND/ OR FLAME GUARD SEE FIGURE ON SIDE. REMOVAL WILL COMPROMISE THE SAFETY OF THE PRODUCT AND RESULT IN THE IMMEDIATE NULLIFICATION OF THE WARRANTY PERIOD. IN THE CASE OF WEAR OR DETERIORATION, REQUEST AFTERSALES ASSISTANCE FOR REPLACEMENT OF THE PART REPLACEMENT THAT IS NOT UNDER GUARANTEE AS THE COMPONENT IS SUBJECT TO WEAR.

Upper BURN POT PARTITION

Page 25

ENGLISH

ADDITIONAL THERMOSTAT

N.B. : INSTALLATION MUST BE PERFORMED BY AN AUTHORISED TECHNICIAN

There is a possibility to control the temperature of a room adjacent to the room where the stove has been placed; simply connect a thermostat following the procedure described in the following section (it is advisable to place the optional mechanical thermostat at a height from the ground equal to 1.50m). Stove operation with the external thermostat connected in the clamp TA can be dierent depending on the activation or deactivation of the STANDBY function.

By factory default, the clamp TA is jumpered, therefore it always has closed contact (on request).

ADDITIONAL THERMOSTAT FUNCTIONING WITH

STANDBY

ACTIVE

When the STANDBY function is active, the STBY icon will be on. When the contact or external thermostat is not satised (open contact / temperature reached), the stove will switch o. As soon as the contact or external thermostat switches to the "not satised" status (closed contact / temperature to be reached) it will re-ignite.

NB: stove operation depends on the temperature of the water inside the stove and relative factory setting restrictions. If the stove is in HOFF (water temperature reached), any additional contact or thermostat request will be ignored.

ADDITIONAL THERMOSTAT OPERATION WITH

STANDBY

DEACTIVATED

When the STANDBY function is not active, the STBY icon will be o. When the contact or external thermostat is satised (open contact / temperature reached), the stove will go to minimum. As soon as the contact or external thermostat switches to the "not satised" status (closed contact / temperature to be reached) the stove will start to work again at the pre-set power.

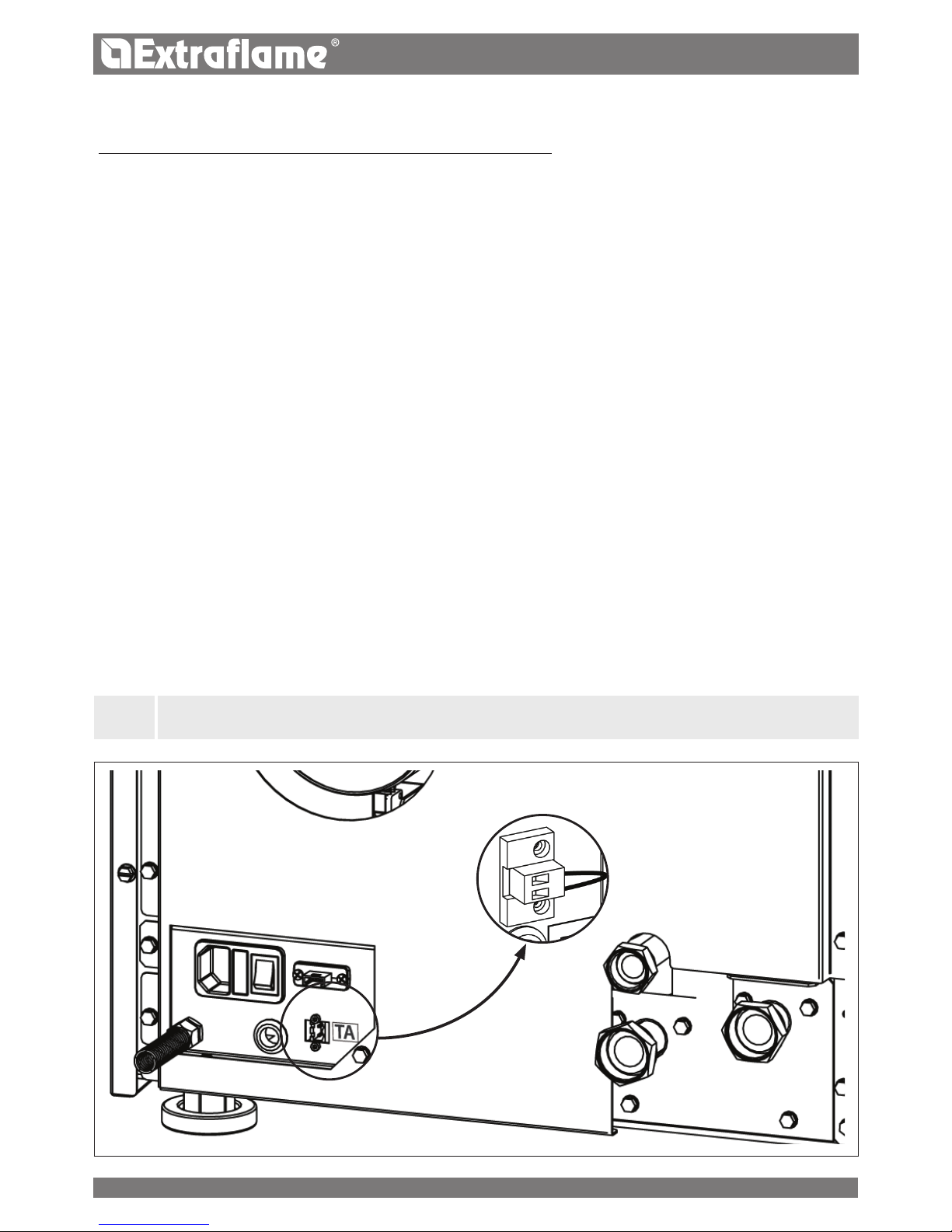

ADDITIONAL THERMOSTAT INSTALLATION

 Switch the appliance o using the master switch positioned on the rear of the stove.  Remove the plug from the socket.  Refer to the wiring diagram and connect the two thermostat wires in the relevant terminals located on the back of the stove, one red

and one black (clamp TA). Each model may have a dierent terminal location on the back of the stove. The image is given as an

example.

TO ACTIVATE STAND-BY, REFER TO THE “SETTINGS” CHAPTER

Page 26

ENGLISH

EASY SETUP

The volumetric weight of the pellet is the ratio between the weight and the volume of the pellet. This ratio may change while keeping the quality of the pellet unchanged. By using the EASY SETUP function, it is possible to change the calibration of the volumetric weight by increasing or decreasing the pre-set values.

In the stove program, the available values go from “– 3” to “+ 3”; all stoves are calibrated during production with the optimal value which is 0.

If you notice an excessive deposit on the burning pot, access the EASY SETUP program and lower the value to “- 1”; then wait until the next day and if there is no improvement, decrease again, to a maximum of “- 3”.

Instead, if it is necessary to increase the calibration of the volumetric weight of the pellet, go from the factory value “0” to “+ 1, + 2, + 3” as required.

EXCESSIVE PELLET DEPOSIT IN THE BURN POT NORMAL OPERATION MINIMUM PELLET DEPOSIT IN THE BURN POT

-3 -2 -1 0 +1 +2 +3

THIRD

DECREASE

RANGE IF THE

FIRST TWO ARE

NOT ENOUGH

SECOND

DECREASE

RANGE IF THE

FIRST IS NOT

ENOUGH

FIRST DECREASE

RANGE (TEST

FOR 1 DAY)

OPTIMAL FACTORY

VALUE

FIRST INCREASE

RANGE

SECOND

INCREASE

RANGE IF THE

FIRST IS NOT

ENOUGH

THIRD INCREASE

RANGE IF THE

FIRST TWO ARE

NOT ENOUGH

CONTROLS PROCEDURE

 Press key 6.  Press key 3 until EASY SETUP appears and conrm by pressing key 6.  Use keys 4 and 5 to set the range.  Press key 6 to conrm and key 1 to return to the previous menus to the initial state.

N.B.: IF THIS CALIBRATION DOES NOT SOLVE THE PELLET DEPOSIT IN THE BURN POT, PLEASE CONTACT YOUR LOCAL AFTER SALES CENTRE.

VENTILATION

The menu allows you to enable and adjust the speed (-2, -1, 0, +1, +2) of the front fan.

ENABLING CONTROLS PROCEDURE

 Press key 6.  Press 3 until VENTILATION appears and conrm by pressing 6.  Conrm ENABLING by pressing the 6 key.  Use keys 4 -5 to enable (ON) or disable (OFF) and conrm by pressing 6.  Press 1 to return to the previous menus to the initial state.

SPEED CONTROLS PROCEDURE

 Press key 6.  Press 3 until VENTILATION appears and conrm by pressing 6.  Keep pressing 3 until SPEED appears and conrm by pressing 6.  Use keys 4 -5 to adjust the speed (-2, -1, 0, +1, +2) and conrm by pressing 6.  Press 1 to return to the previous menus to the initial state.

SET THERMOSTAT controls procedure

 Press key 6.  Press 3 until VENTILATION appears and conrm by pressing key 6.  Keep pressing 3 until SET THERMOSTAT appears and conrm by pressing 6.  Use keys 4 5 to adjust the room temperature (7°C - 37°C) and conrm by pressing 6.  Press 1 to return to the previous menus to the initial state.

Page 27

ENGLISH

ENABLING/DISABLING THE CHRONO

CONTROLS PROCEDURE

 Press key 6.  Press 3 until CHRONO appears and conrm by pressing key 6.  Conrm ENABLING by pressing 6.  Use keys 4 -5 to enable (ON) or disable (OFF)  Press key 6 to conrm and key 1 to return to the previous menus to the initial state.

IF WEEKLY PROGRAMMER IS ACTIVE ON THE COMMAND PANEL, A SMALL ICON IS DISPLAYED

CHRONO > ENABLING > PRG1

On/o Enabling/disabling PRG 1

PRG2

On/o Enabling/disabling PRG 2

PRG3

On/o Enabling/disabling PRG 3

PRG4

On/o Enabling/disabling PRG 4

PRG1 > START PRG1

OFF-00:00 PRG1 start time

STOP PRG1

OFF-00:00 PRG1 stop time

MONDAY...SUNDAY

On/o Enabling/disabling days for PRG1

SET PRG1

65°C - 80°C (149°F - 176°F) SET H2O PRG1

POWER PRG1

1-5 Set power PRG1

PRG2 > START PRG2

OFF-00:00 PRG2 start time

STOP PRG2

OFF-00:00 PRG2 stop time

MONDAY...SUNDAY

On/o Enabling/disabling days for PRG2

SET PRG2

65°C - 80°C (149°F - 176°F) SET H2O PRG2

POWER PRG2

1-5 Set power PRG2

PRG3 > START PRG3

OFF-00:00 PRG3 start time

STOP PRG3

OFF-00:00 PRG3 stop time

MONDAY...SUNDAY

On/o Enabling/disabling days for PRG3

SET PRG3

65°C - 80°C (149°F - 176°F) SET H2O PRG3

POWER PRG3

1-5 Set power PRG3

PRG4 > START PRG4

OFF-00:00 PRG4 start time

STOP PRG4

OFF-00:00 PRG4 stop time

MONDAY...SUNDAY

On/o Enabling/disabling days for PRG4

SET PRG4

65°C - 80°C (149°F - 176°F) SET H2O PRG4

POWER PRG4

1-5 Set power PRG4

CHRONO

This function allows the stove's ignition and switch-o to be automatically programmed. The factory setting for CHRONO is o. The chrono allows the programming of 4 time slots within a day, which can be used every day of the week.

Ignition and switch-o times can be set for each time slot, along with the specic days of application for the programmed time slot, the desired temperature and power setting. Current day and time settings are essential for the correct operation of the Chrono.

Recommendations

Before using the chrono function, you must set the current day and time, so check that you have followed the points listed in the sub-chapter “DATETIME”. To use the chrono function correctly, you must activate it as well as program it. The four time slots can be overlapped using the time switch on and o settings. This allows you to obtain a combination of times in which you can set dierent temperatures and power without inuencing the stove work status.

NB: if overlapping time slots are set, the stove will stay on until the latest switch-o time.

Page 28

02:00 23:0008:00 16:30

72°

68°

ENGLISH

Time slot 1

start 02:00 stop 23:00

power 3 - SET H2O 72°C

Time slot 2

start 08:00

stop 16:30

power 1 - SET H2O 68°C

stove operation

TIME SLOT

SET POWER

SET H2O

EXAMPLE OF CHRONO OVERLAPPING TIME/SLOTS

Page 29

ENGLISH

SETTINGS

• DATETIME

• LANGUAGE

• SET DEGREES

See chapter: commiSSioning SettingS.

DISPLAY

This menu allows you to adjust the brightness of the display. The values range from OFF, 1 to 20. If set to OFF, the display backlighting is set to maximum brightness and then, turns o after a 60 second delay. The backlighting can be turned on again by pressing any key or if the stove is in alarm status.

CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Keep pressing 3 until DISPLAY appears and conrm by pressing 6.  Use keys 4 -5 to set the desired intensity (SET)  Press key 6 to conrm and key 1 to return to the previous menus to the initial state.

STAND  BY

The STANDBY function, if enabled, is used to turn the stove via an additional thermostat.

CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Keep pressing 3 until STANDBY appears and conrm by pressing 6.  Use keys 4-5 to enable (ON) / disable (OFF).  Press 1 several times to conrm and exit the menu

FIRST LOAD

This function allows to ll the auger, facilitating the rst start-up phases of the stove, or in the event that the pellet hopper is empty. With the stove cold and "OFF", make sure the pellet has been introduced inside the tank and activate the FIRST LOAD function, conrming with OK. To interrupt continuous loading, simply press key 1 for 3 seconds.

CONTROLS PROCEDURE

 Press key 6.  press 3 until SETTINGS appears and conrm by pressing 6.  Keep pressing 3 until FIRST LOAD appears and conrm by pressing 6.  Use keys 4 and 5 for enabling “ON” or disabling “OFF”  Press key one several times to conrm and exit the menu.

OUTLET AIR

This function allows any air in the stove to be discharged. By activating the pump function, it will be powered alternatively with 30 second work phases and 30" stop for 15 minutes. With the stove cold and in "OFF", activate the OUTLET AIR function, pressing key 6 to conrm. To interrupt, press and hold key 1 for 3 seconds.

CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Keep pressing 3 until OUTLET AIR appears and conrm by pressing 6.  Use keys 4 and 5 for enabling “ON” or disabling “OFF”  Press key one several times to conrm and exit the menu.

Page 30

ENGLISH

WiFi

The display can connect to the Internet using Wi-Fi technology. This allows for the stove to be managed and controlled remotely via the special APP for Smartphones "TotalControl 2.0" ( Apple Store / Play Store).

It is possible to congure the WiFi network directly from the display following this procedure (Home network conguration).

RESET

Allows the user to reset all modiable values to the default values.

CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Press key 3 until RESET appears and conrm by pressing key 6.  Use keys 4 and 5 for enabling “ON” or disabling “OFF”  Press key one several times to conrm and exit the menu.

ONLY ALPHANUMERIC CHARACTERS ARE ALLOWED FOR THE PASSWORD AND FOR THE NAME OF THE WIFI NETWORK. OTHERWISE USE THE SPECIAL APP FOR SMARTPHONES.

HIDDEN NETWORKS CAN BE MANAGED ONLY VIA THE APP FOR SMARTPHONES.

WIFI ENABLING CONTROLS PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Keep pressing 3 until WiFi appears and conrm by pressing 6.  Press 6 to access ENABLING.  Use keys 4-5 to select enabling "ON"/ disabling "OFF" and press 6 to conrm.  Press 1 several times to exit the menu.

HOME NETWORK CONFIGURATION PROCEDURE

 Press key 6.  Press 3 until SETTINGS appears and conrm by pressing 6.  Keep pressing 3 until WiFi appears and conrm by pressing 6.  Press 3 until CONFIGURATION appears and press 6 (on this page it is possible to select the WiFi network to connect to)  Use keys 4/5 to scroll through the available networks, and conrm by pressing 6.  Enter the PASSWORD using keys 4/5 (select character) and 2/3 to go to the next/previous character.  Conrm the PASSWORD by pressing 6.  Press 1 several times to exit the menu.

THE MANUFACTURER HAS AN OPTIONAL ADDITIONAL DATA SHEET WHICH ALLOWS THE BOILER TO HAVE THE FOLLOWING ADDITIONAL SYSTEM MANAGEMENT FUNCTIONS. THE TABLE BELOW INDICATES THE VARIOUS POSSIBILITIES THAT THE OPTIONAL CAN OFFER.

DHW Storage Management

Buffer Tank management

3 heating areas

Instant DHW option

Buer tank pump or 4th heating area management

Anti-legionella management for DHW storage

DHW storage chrono management

Auxiliary output management and control

Page 31

ENGLISH

CLEANING AND MAINTENANCE

ALWAYS FOLLOW THE INSTRUCTIONS IN COMPLETE SAFETY!

 Make sure that the power cord is unplugged because the generator may have been programmed to turn on.

 That the generator is cold all over.

 The ashes are completely cold.

 Ensure ecient air exchange in the room during the product cleaning operations.

 Poor cleaning will compromise correct operation and safety!

MAINTENANCE

For correct operation, the generator must undergo routine maintenance by a qualied technician, at least once a year. The periodic inspection and maintenance operations must always be performed by specialised, qualied technicians, who operate in accordance with the laws in force and the instructions given in this use and maintenance manual.

PERIODIC CLEANING UNDER USER'S RESPONSIBILITY

The periodic cleaning operations, as indicated in this use and maintenance manual, must be performed with the utmost care after reading the instructions, procedures and frequency described in this use and maintenance manual.

CLEANING THE SURFACES AND COATING Never use abrasive or chemically aggressive detergents for cleaning!

The surfaces must be cleaned when the generator and coating are completely cold. For the maintenance of the surfaces and metal parts, simply use a cloth dampened with water or water and neutral soap. Failure to comply with these instruction may damage the surfaces of the generator and cause the invalidation of the warranty.

CLEANING THE CERAMIC GLASS Never use abrasive or chemically aggressive detergents for cleaning!

The ceramic glass must only be cleaned when the glass is completely cold. To clean the ceramic glass, simply use a dry brush and some damp newspaper dipped in ash. If the glass is very dirty, use a specic cleaning

agent for ceramic glass. Spray a small amount on a cloth and use it on the ceramic glass. Do not spray the cleaning agent or any other liquid directly on the glass or seals! Failure to comply with these instructions may damage the surfaces of the ceramic glass and cause the invalidation of the warranty.

CLEANING THE PELLET TANK

When the tank is completely empty, disconnect the power cable of the generator and remove the residues rst (dust, chippings, etc.) from the empty tank, and then ll it.

EVERY YEAR, GET THE FUME DISCHARGE SYSTEM, THE FLUE PIPES AND THE "T" FITTINGS AND INSPECTION CAPS CLEANED  IF PRESENT, ALSO THE ELBOWS AND HORIZONTAL SECTIONS! THE GENERATOR CLEANING FREQUENCY IS INDICATIVE! IT DEPENDS ON THE QUALITY OF THE PELLETS USED AND ON THE FREQUENCY OF USE. SOMETIMES THESE OPERATIONS MUST BE PERFORMED MORE OFTEN

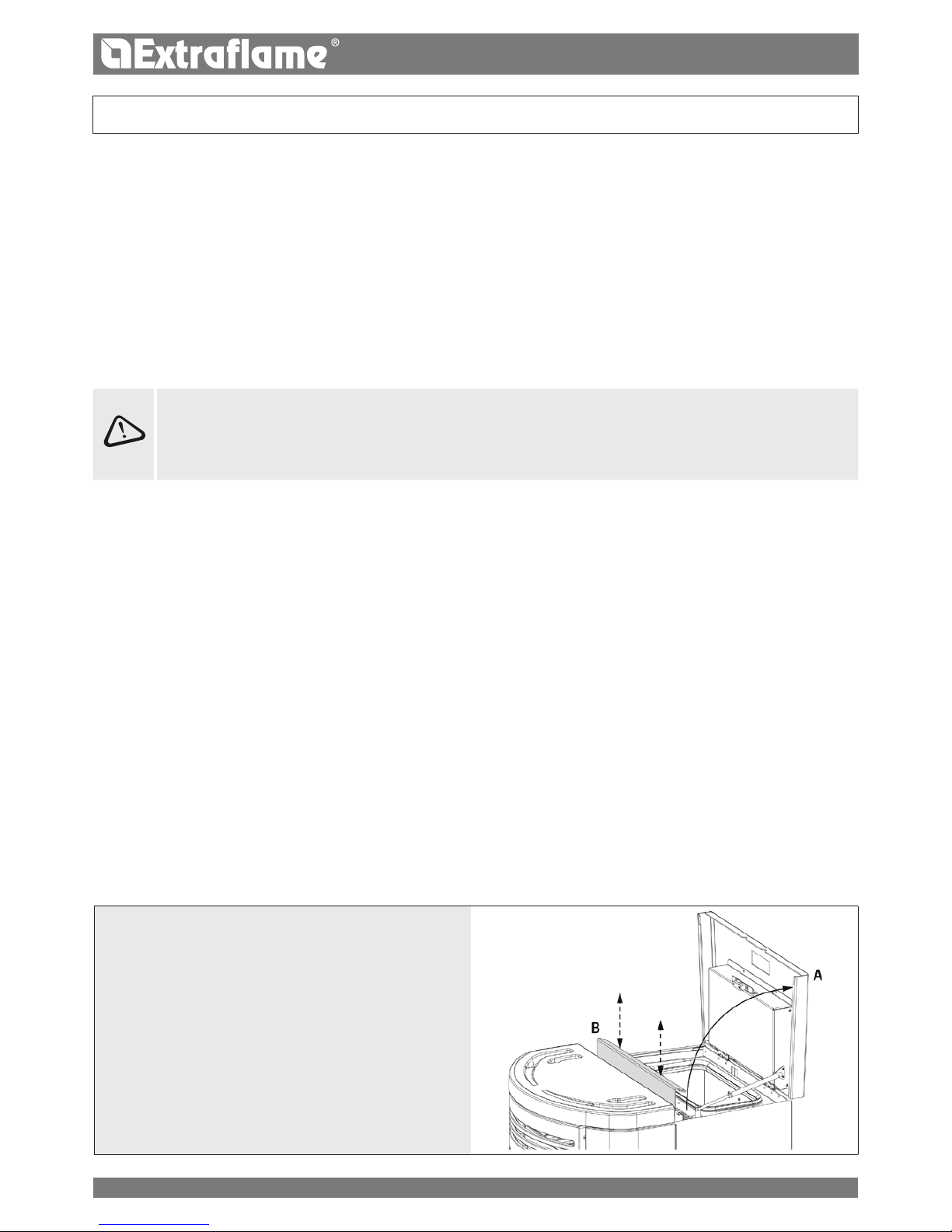

SCRAPERS:

The scrapers must be cleaned when the generator is completely cold! Its cleaning guarantees constant heat output over time. This maintenance must be performed at least once a day. To do this, simply lift the pellet hopper cover (A). Use the special scrapers (B) situated at the top of the generator, moving

from bottom to top and vice versa several times.

THE FOLLOWING IMAGES ARE FOR ILLUSTRATIVE PURPOSES.

TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE:

WWW.LANORDICA-EXTRAFLAME.COM

THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY.

Page 32

ENGLISH

A CLEAN BURN POT GUARANTEES CORRECT OPERATION! BY MAKING SURE THE BURN POT AND ITS HOLES ARE ALWAYS CLEAN FROM ANY COMBUSTION RESIDUE, EXCELLENT COMBUSTION BY THE GENERATOR IS GUARANTEED OVER TIME, PREVENTING ANY MALFUNCTIONING THAT MAY REQUIRE THE INTERVENTION OF A TECHNICIAN. THE "EASY SETUP" FUNCTION IN THE USER MENU CAN BE USED TO ADAPT COMBUSTION ON THE BASIS OF THE NEEDS DESCRIBED.

BURN POT HOLES

BURN POT AND COMBUSTION CHAMBER:

 Open the re door.  Suck the ash deposited between the partition

and the re door.

 Remove the resistor assembly.  Remove the burn pot.

 Clean the combustion chamber and the bottom of the burn pot completely, using a suitable vacuum cleaner.

THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY.

DETAILS ON BURN POT CLEANING

To clean the burn pot it is necessary to remove the resistor assembly rst.

 Remove the resistor assembly by lifting it on

one side before pulling it out (see A-B)

 Remove the burn pot (C)

 Perform the same operation in reverse order

to re-assemble.

After cleaning the burn pot, always make sure:

 That the pellet slide has been positioned

correctly towards the pellet output.

 That the pellet slide assembly rests on the

burn pot correctly, and not on another surface of the combustion chamber.

 That the slide assembly has been pushed

towards the wall.

Page 33

ENGLISH

IF THE POWER SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY THE AFTERSALES SERVICE OR BY A SIMILARLY QUALIFIED PERSON, SO AS TO AVOID ALL RISKS.

ROUTINE MAINTENANCE PERFORMED BY QUALIFIED TECHNICIANS

Routine maintenance must be performed at least once a year. Using pellets as solid fuel, the generator requires annual routine maintenance, which must be performed by a qualied technician, using only original spare parts.

Failure to comply can jeopardise the safety of the appliance and make the warranty null and void. Respecting the frequencies of cleaning reserved for the user described in the use and maintenance manual, the generator is guaranteed correct combustion over time, preventing any anomalies and/or malfunctioning that could require more interventions of the technician. Requests for routine maintenance are not contemplated in the product warranty.

GASKETS: PELLET HOPPER LID, DOOR, ASH DRAWER AND BURN POT

The gaskets guarantee the tightness of the stove and its consequent good functioning. They must be controlled periodically. They must be replaced immediately if they are worn or damaged. These operations must be carried out by a qualied technician.

CONNECTION TO THE FLUE

Vacuum and clean the pipe that leads to the ue yearly or any time that it is necessary. If there are horizontal tracts, the residue must be removed before it can prevent the passage of the fumes.

DECOMMISSIONING END OF SEASON

At the end of each season, before turning the stove o, it is advisable to empty the pellet hopper out completely and vacuum any residue of pellets and dust.

IT IS ADVISABLE NOT TO DISCONNECT THE GENERATOR FROM THE POWER SUPPLY TO ALLOW THE PUMP TO CARRY OUT THE NORMAL ANTI-BLOCK CYCLES.

Routine maintenance must be performed at least once a year.

TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE:

WWW.LANORDICA-EXTRAFLAME.COM

THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY.

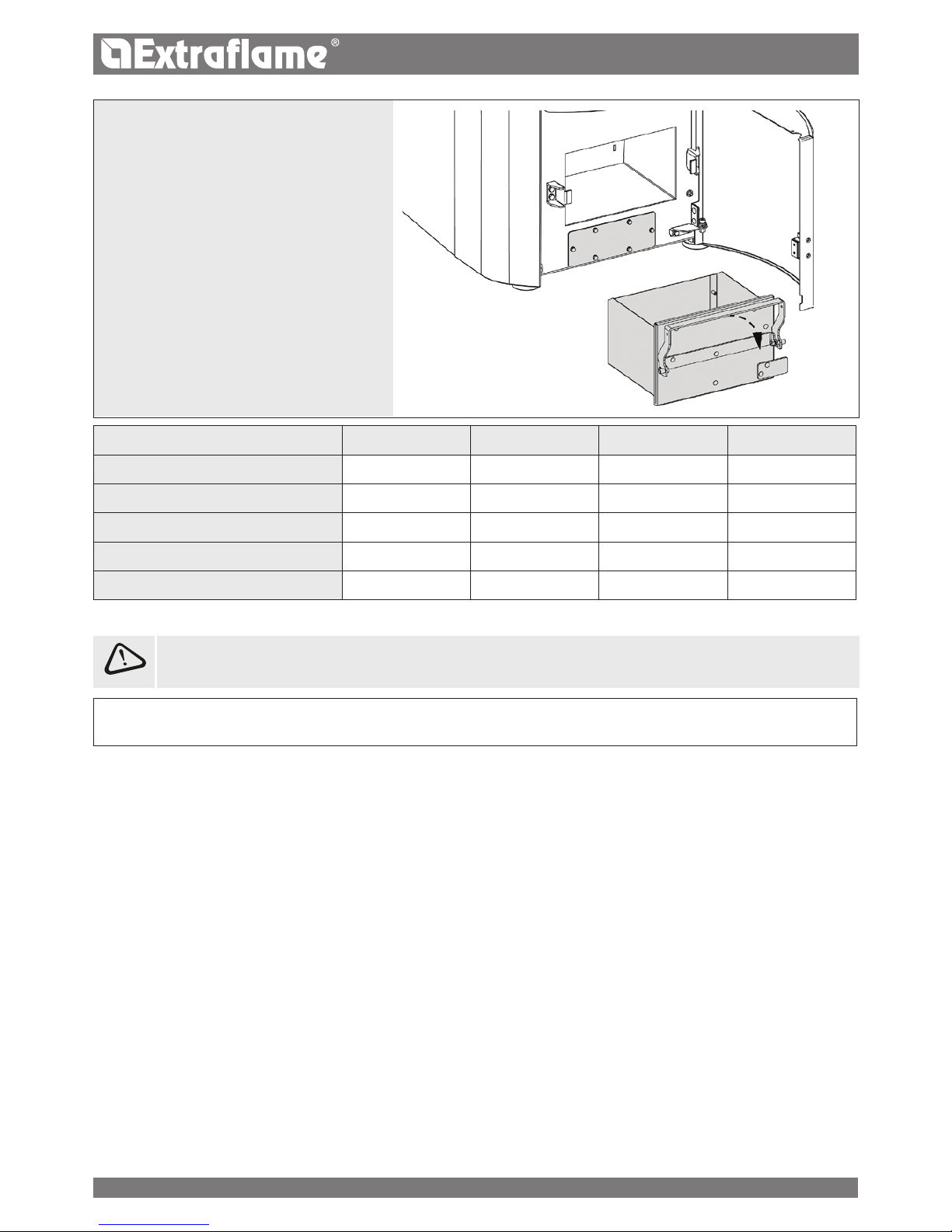

ASH DRAWER:

 Remove the ash drawer and empty it into a suitable container.

 Also eliminate any ash in the ash drawer holder.

PARTS/FREQUENCY EVERY DAY EVERY 2-3 DAYS EVERY 7 DAYS EVERY 20/30 DAYS

SCRAPERS

BURN POT

COMBUSTION CHAMBER

T-SHAPED FITTING/ SMOKE DUCT

ASH DRAWER*

X X

* How often the ash drawer is emptied depends on a number of factors: the type of pellets, the stove output, the use of the stove and the type of installation.

Page 34

ENGLISH

THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY.

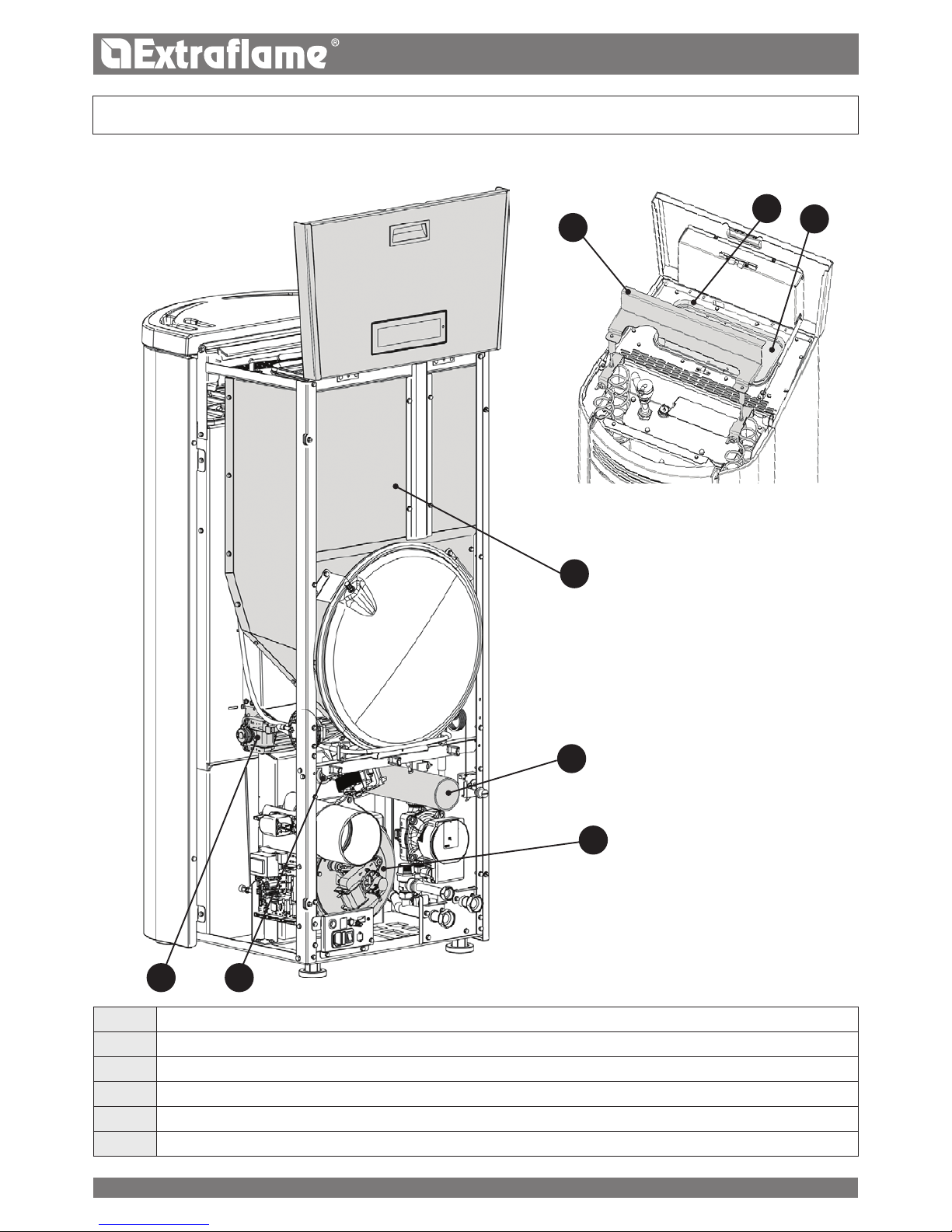

Fumes motor (dismantle and clean the smoke duct and "T"), new seal where required

Seals, pallet hopper, inspections, ash drawer and door (replace and apply a new seal where required)

Combustion chamber and heat exchanger (full cleaning) including ignition-plug pipe

Hopper (complete emptying and cleaning).

Check air intake pipe and cleaning of the ow sensor

Room air fan disassembly and removal of dust and pellet debris.

TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE:

WWW.LANORDICA-EXTRAFLAME.COM

Page 35

ENGLISH

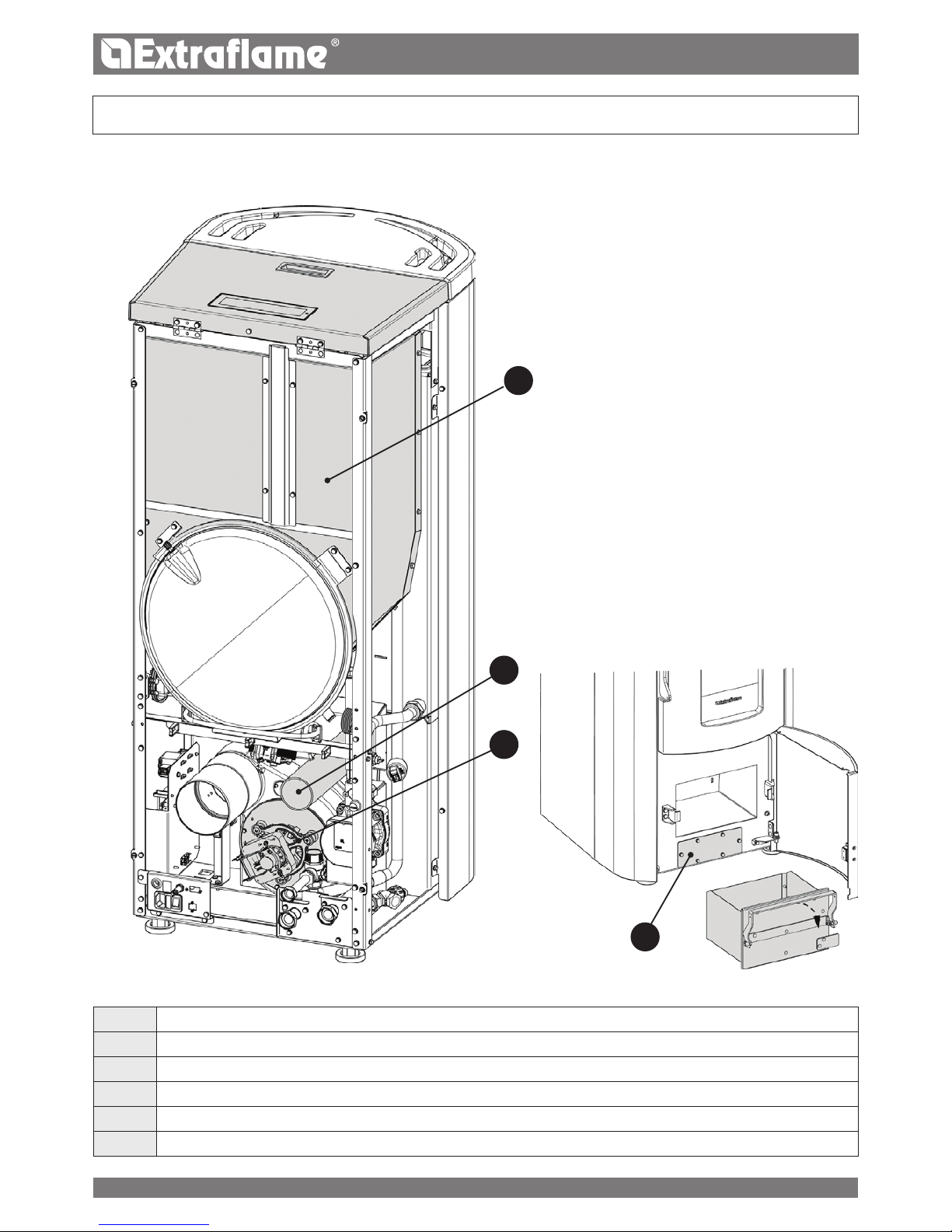

THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY.

TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE:

WWW.LANORDICA-EXTRAFLAME.COM

Fumes motor (dismantle and clean the smoke duct and "T"), new seal where required

Seals, pallet hopper, inspections, ash drawer and door (replace and apply a new seal where required)

Combustion chamber and heat exchanger (full cleaning) including ignition-plug pipe

Hopper (complete emptying and cleaning).

Check air intake pipe and cleaning of the ow sensor

Room air fan disassembly and removal of dust and pellet debris.

Page 36

ENGLISH

TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE WWW.LANORDICA-EXTRAFLAME.COM

Displays

Display

Reason

off

Generator

o

sTaRT

The start-up phase is in progress

pelleT loaDinG

Continuous pellet loading is in progress during the ignition phase

iGniTion

The ignition phase is in progress

pRepaRaTion

The preparation phase is in progress

WoRk

The normal work phase is in progress

MoDulaTion

The

generator

is working at minimum

BloW

The automatic blow is active

final cleaninG

The nal cleaning is in progress

sTanD-By

Generator o waiting for re-ignition due to an external thermostat

WaiTinG coolinG

A new ignition is attempted when the generator has just been switched o. When the generator switches o, one must wait for the complete shutdown of the fumes motor, then clean the burn pot. The

generator can only be re-ignited when these

operations have been performed.

H-off

Generator o due to water temperature over set.

Toff

Generator o waiting for re-ignition due to all requests met

WaiTinG

Black ouT

The generator

is cooling after a power cut.

Once cooling is completed, it will re-start automatically

anTi-fReeze

The anti-freeze function is in progress as the H2O temperature is below the factory set threshold the pump is active until the water reaches the pre-set factory parameter +2°C

anTi-Block

The pump anti-block function is in progress (only if the generator has been in an OFF state for at least 96 hours); the pump is activated for the time pre-set by the manufacturer, in order to prevent it from blocking

alaRMs

Display

eXplanaTion soluTion

Indicates the presence of an alarm.

On: indicates the presence of an alarm Flashing: indicates the deactivation of the depression sensor. The alarm can be reset only if the fumes motor has stopped and 15 minutes

have passed since the alarm was displayed, by pressing the key 1/

for 3

seconds.

fuMes MoToR

faulT

Fumes motor fault Contact after-sales centre

fuMes pRoBe

Fumes probe fault. Contact after-sales centre

HoT fuMes

High fumes temperature

Check pellet feed (see “EASY SETUP”), if the problem cannot be solved, contact an authorised technician.

Page 37

ENGLISH

TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE WWW.LANORDICA-EXTRAFLAME.COM

no flaMe

The pellet hopper is empty. No pellet feed. The gearmotor does not feed pellets.

Check for the presence of pellets in the hopper. Adjust the pellet ow (see “EASY SETUP”).

DepR alaRM

The door is not closed correctly. The ash drawer is not closed correctly. The combustion chamber is dirty. The fumes exhaust pipe is blocked/dirty

Check hermetic door closure. Check hermetic closure of the ash drawer. Check cleanliness of the fumes pipe and the combustion chamber.

iGniTion

The pellet hopper is empty. Pellet feed calibration inadequate. Thermostat bulbs tripped.

Check for the presence of pellets in the hopper. Adjust the pellet ow (see “EASY SETUP”). Check the procedures described in the “Ignition” chapter. Check the thermostats with bulbs (see chapter on Resetting)

iGniTion

Black ouT

No current during the ignition phase.

Take the stove to OFF conditions using key 1 and repeat the procedure described in the "Ignition" chapter.

coMManD auGeR

alaRM

Abnormal pellet loading. Contact after-sales centre

Min H20 pRessuRe

alaRM

The system pressure read by the pressure switch is too low.

Possible air in the system; bleed the system. Possible lack of water or leaks due to anomalies in some system component. If the problem persists, contact the after-sales centre

MaX H20 pRessuRe

alaRM

Air in the system Inadequate circulation

Possible air in the system; bleed the system. Lack of adequate circulation. Lack of or inadequate safety zone. The water in the stove has exceeded 95°C.

Possible pump anomaly. If the problem persists, restore operations must be performed by an authorised technician.

H2o pRoBe

H2O probe fault Contact after-sales centre

* DHW pRoBe

Fault in DHW probe. Contact after-sales centre

* BuffeR Tank pRoBe

Fault in Buffer tank probe. Contact after-sales centre

HoppeR - sToVe

DooR

Pellet hopper open. Stove door open. Air inlet clogged or dirty.

Check that the pellet hopper and the combustion chamber door are closed correctly. Check air inlet.

BlockeD pWM

alaRM

The pump has stopped permanently Pump blocked. Electronic module damaged

Contact after-sales centre

HoT pWM alaRM

The pump is operating but not with good performance. Undervoltage 160-194v. Pump in circuit breaker protection mode.

Contact after-sales centre

sToppeD pWM

alaRM

The pump has stopped but is still operational. Undervoltage < 160v. Overvoltage. Unexpected external ow.

Contact after-sales centre

sToppeD 2 pWM

alaRM

The pump has stopped but is still operational. Problem in a component dierent to the pump. Debris in installation. Positioning in high temperature.

Contact after-sales centre

floW pWM alaRM

Pump blocked. Liquid with high density. Pipe obstructed. Presence of air in the system.

Contact after-sales centre

pWM inTeRface

alaRM

IPWM output interface damaged, in short circuit or not connected

Contact after-sales centre

* if there is an additional system data-sheet.

Page 38

ENGLISH

1. Extraame S.p.A. products are guaranteed, within the European community, for 24 months from the date of purchase.

Purchase has to be proved by means of a valid scal document issued by the seller (receipt, invoice or shipment document) identifying the purchased product and its purchase and/or delivery date.

WARNING: This conventional guarantee does not replace the guarantee regulated by the European legislation on consumer rights.

The conventional guarantee is only applicable to the Italian region and to those areas, within the European Community, where the Authorised Technical Assistance Centres are active (see the www.lanordica-extraame.com website) It is also limited to the state of residence of the consumer, which must coincide with the premises and/or registered oce of the seller of the Extraame S.p.A. product These regulations do not apply if the product is purchased within commercial, entrepreneurial, or professional circumstances. In these cases the product guarantee will be limited to a period of 12 months from the date of purchase.

ITALIAN GUARANTEE

What must be done if there is a product malfunction: Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction is included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. When requesting the intervention of the Assistance service at the Authorised Assistance Centre, always specify: - type of malfunction - model of the appliance

- complete address - phone number

EUROPEAN GUARANTEE

What must be done if there is a product malfunction: Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction is included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. Request the intervention of the Assistance service or the address of the Authorised Technical Assistance Centre to the seller; always specify: type of malfunction, model of the appliance, complete address and phone number

If the malfunction arises in the rst 6 months of the product's life, the consumer has the right to have the product repaired with no expense. From the seventh to the twenty-fourth month, if a malfunction arises, the consumer will bear the cost of the call, while the seller will pay for the manpower and for any spare parts used.

2. If the malfunction is linked to external events and/or conditions such as, including but not limited to, insucient capacity of the systems;

wrong installation and/or maintenance by the personnel which hasn't got the skills prescribed by the laws of the country of residence of the consumer; negligence; inability to use the product and wrong maintenance by the consumer, with respect to what is reported and recommended by the instructions manual of the product, which is part of the sales contract, this guarantee will be void. Damage to the product that cannot be related to manufacturing defects are also not included in this guarantee. Similarly are excluded defects related to incorrect operation of the ue, according to the legislation in force in the country at the moment of purchase. Other exclusions include all product defects due to carelessness, accidental breakdown, tampering and/or damage during transport (scratches, dents, etc.), interventions carried out by unauthorised personnel and further damage caused by incorrect interventions by the consumer trying to arrange the initial malfunction. The following consumables are excluded by the guarantee: gaskets, ceramic or tempered glasses, cast iron grilles or coatings, refractory materials (e.g. Nordiker or others), painted, chrome-plated or golden parts, majolica ware, handles, the brazier and its related components. For Idro products the heat exchanger is not covered by the guarantee if a suitable condensation-proof circuit is not set up to ensure a return temperature of the device of at least 55°C. The guarantee excludes all the external components on which the consumer can directly operate during use and/or maintenance or that can be subject to wear and/or rust and stains on steel due to aggressive detergents. If malfunctions are signalled which are not later conrmed during check by an authorised technician, the cost of the intervention will be borne entirely by the consumer.

3. If it is not possible to restore product conformity by repairing it, the product/component will be replaced, the guarantee expiration date and

conditions will remain the same established when the product/component to be replaced has been purchased.

4. Extraame S.p.A. cannot be held liable for injury or damage which may - either directly or indirectly - be caused to persons, animals

and property ensuing from failure to observe all the instructions provided in the relevant instruction manual and the warnings regarding installation, use and maintenance of the product, that can also be downloaded on the website.

5. Interventions for adjusting and/or regulating the product for the type of fuel or other reasons are excluded by the guarantee.

6. If the product is repaired in one of the Authorised Technical Assistance Centres indicated by Extraame S.p.A. and if the product is replaced,

transport will be free of charge. If the technician can repair the product at the user's place of residence and they refuse, transport to the workshop and redelivery will be paid by the consumer.

7. After the 24 months of the guarantee have elapsed any repair intervention cost will be completely borne by the consumer.

8. In the case of disputes the only competent court is that of the Extraame S.p.A. registered oce - (Vicenza-Italy)

GUARANTEE TERMS

Page 39

ENGLISH

AddITIONAL wARNINGs

 Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator.  Do not use the product as a ladder or supporting structure.  Do not place laundry on the product to dry it. Any clothes-horse or similar objects must be kept at due distance from the product.

Danger of re or damage to the coating.

 The user is fully liable for any incorrect use of the product. The manufacturer bears no civil or criminal liability for incorrect use.  Unauthorised tampering of any nature or replacement of spare parts of the product with non-original parts may endanger the operator

and the manufacturer bears no civil or criminal liability for this.

 Large parts of the surface of the product can get very hot (door, handle, glass, smoke outlet pipes, etc.). Please therefore avoid coming

into contact with these parts without wearing suitable protective clothing or using appropriate measures, such as heat protective gloves.

 DO NOT use the product with the door open or if the glass is broken.  The product must be electrically connected to a system equipped with an operational earthing system.  Turn o the product in the event of a failure or malfunctioning.  Unburned pellets that build up in the burner following each failed start-up must be removed before attempting to start up the product

again. Make sure that the burner is clean and correctly positioned before starting it up again.

 Do not wash the product with water. Water may penetrate into the unit and cause faults in the electrical insulation. This can cause

electric shocks.

 Installations not complying with the regulations in force, as well as incorrect use and failure to comply with the maintenance scheduled

by the manufacturer, will invalidate the guarantee.

Page 40

ENGLISH

Disposal

InformatIon for management of electrIc and electronIc applIance waste contaInIng batterIes or accumulators

This symbol, which is used on the product, batteries, accumulators or on the packaging or documents, means that at the end of its useful life, this product, the batteries and the accumulators included must not be collected, recycled or disposed of together with domestic waste. Improper management of electric or electronic waste or batteries or accumulators can lead to the leakage of hazardous substances contained in the product. For the purpose of preventing damage to health or the environment, users are kindly asked to separate this equipment and/ or batteries or accumulators included from other types of waste and to arrange for disposal by the municipal waste service It is possible to ask your local dealer to collect the waste electric or electronic appliance under the conditions and following the methods provided by national laws transposing the Directive 2012/19/EU.

Separate waste collection and recycling of unused electric and electronic equipment, batteries and accumulators helps to save natural resources and to guarantee that this waste is processed in a manner that is safe for health and the environment. For more information about how to collect electric and electronic equipment and appliances, batteries and accumulators, please contact your local Council or Public Authority competent to issue the relevant permits.

Page 41
