COMFORT PLUS CRYSTAL
004276732 - Rev 001
UK
PeLLeT STOveS USeR MANUAL
Page 2
2
ENGLISH
Page 3
3
ENGLISH
ENGLISH ...................................................................................................................................................................................... 4
WarNINGS ..................................................................................................................................................................................4
SafEty ........................................................................................................................................................................................ 4
routINE MaINtENaNcE .......................................................................................................................................................... 5
INStaLLatIoN ............................................................................................................................................................................ 6
INStaLLING INSErto coMfort PLuS cryStaL ................................................................................................................... 8
Assembly with sliding bAse.................................................................................................................................................................................8
inserto ComFort PlUs CrystAl ........................................................................................................................................................................ 8

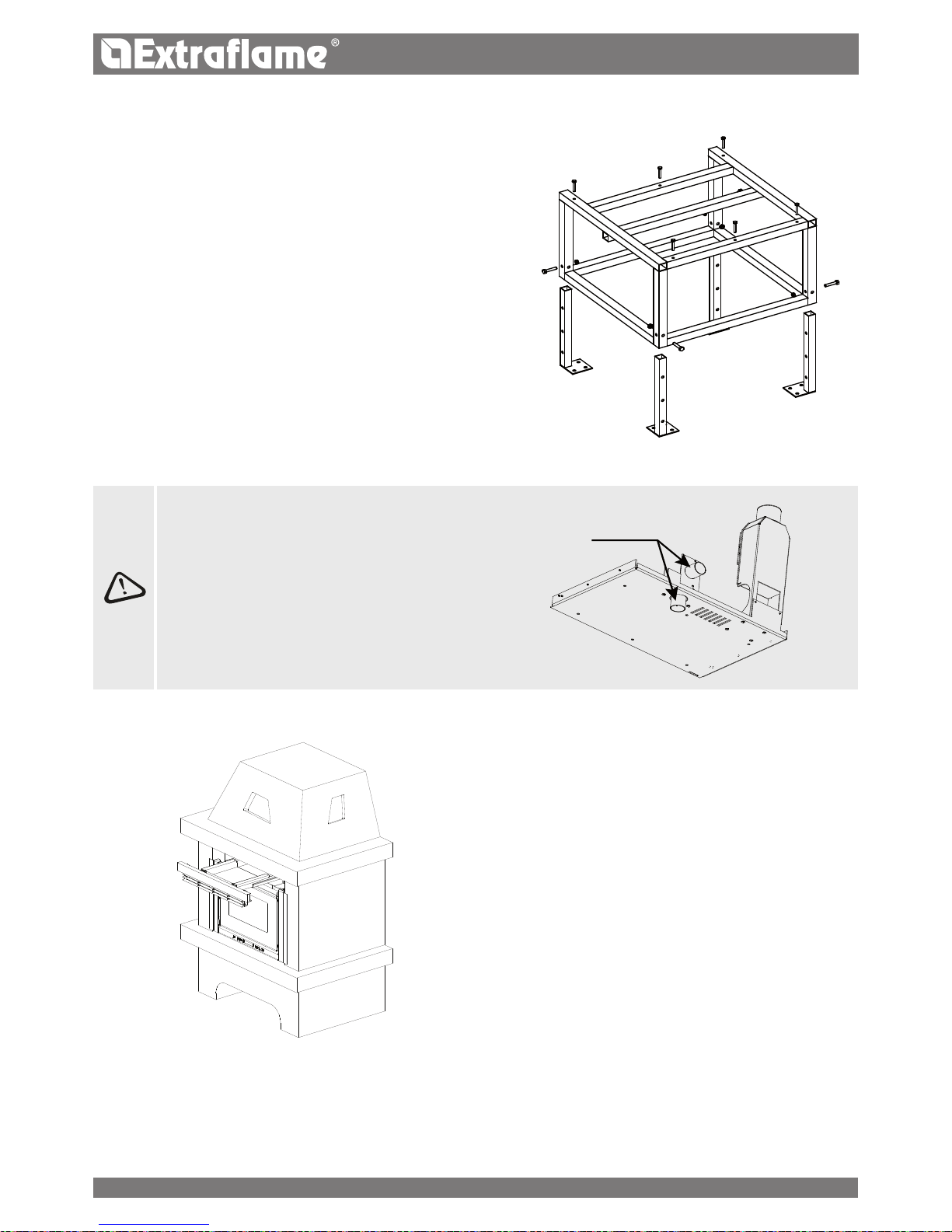

PEdEStaL aSSEMbLy (oPtIoNaL): ......................................................................................................................................... 9
froNt PELLEt fEEdING kIt (oPtIoNaL) ............................................................................................................................... 9
aIr cIrcuLatIoN PIPES ............................................................................................................................................................ 9

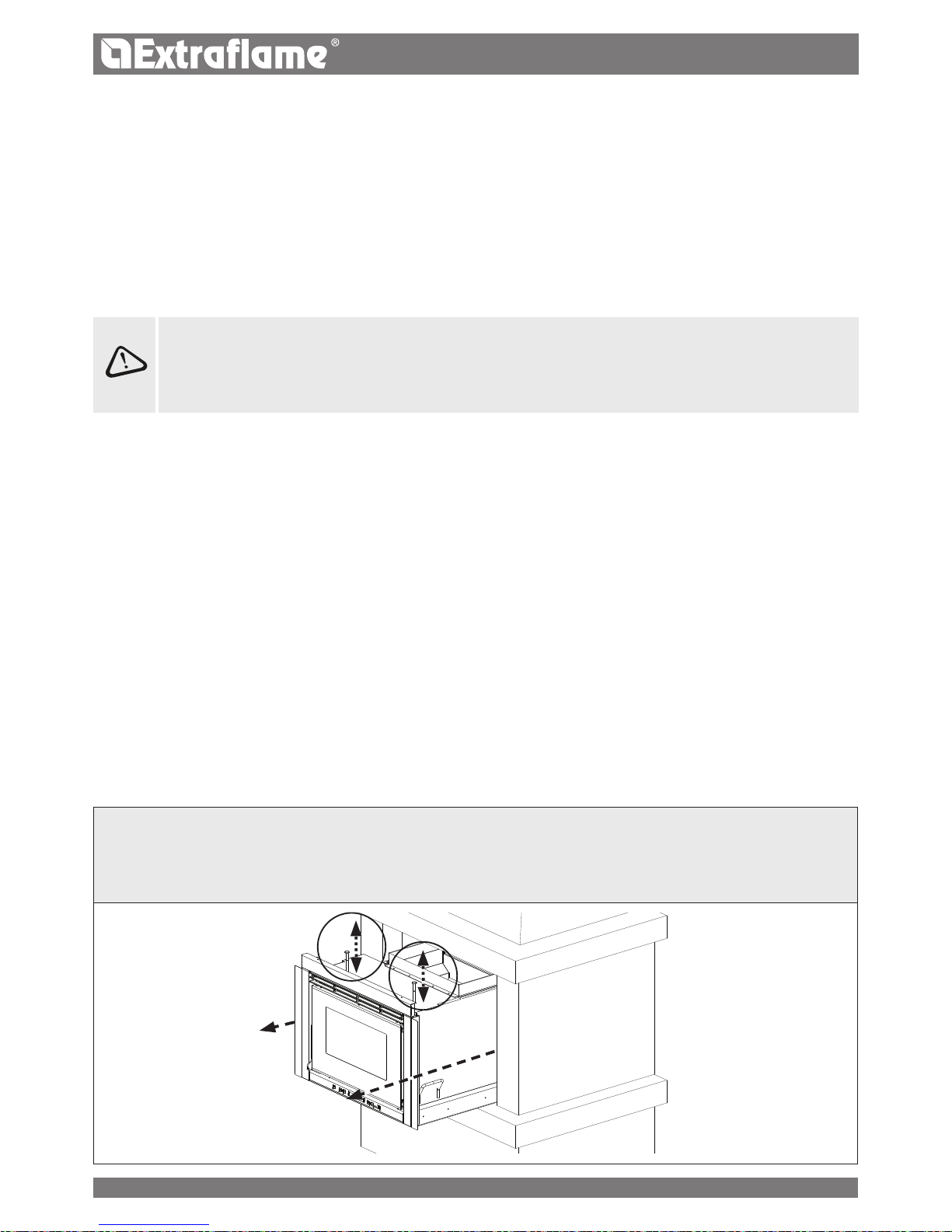

insert extrACtion....................................................................................................................................................................................................11
moUnting the FrAmes ...........................................................................................................................................................................................12
PELLEtS aNd fEEdING ...........................................................................................................................................................12
froNt tILtING dEfLEctor ...................................................................................................................................................13
deFleCtor oPening .................................................................................................................................................................................................13
deFleCtor Closing ..................................................................................................................................................................................................13
coNtroL PaNEL ...................................................................................................................................................................... 14
disPlAy iCons key ......................................................................................................................................................................................................14
GENEraL MENu .......................................................................................................................................................................15
bAsiC instrUCtions .................................................................................................................................................................................................15
tHE rEMotE coNtroL ........................................................................................................................................................... 16
delAyed switCh-oFF enAbling .........................................................................................................................................................................16
tyPe And rePlACement oF bAtteries............................................................................................................................................................16
coMMISSIoNING SEttINGS ...................................................................................................................................................16
mAins FreqUenCy 50/ 60hz ..................................................................................................................................................................................17
AdjUsting time, dAy, month And yeAr ........................................................................................................................................................17
AdjUsting lAngUAge .............................................................................................................................................................................................17
oPEratIoN aNd LoGIc ..........................................................................................................................................................18
addItIoNaL tHErMoStat (oPtIoNaL) ..............................................................................................................................19
uSEr MENu...............................................................................................................................................................................19
disPlAy .............................................................................................................................................................................................................................19
Pellet Feed regUlAtion........................................................................................................................................................................................19
V1- Air ...............................................................................................................................................................................................................................20
stAnd by ..........................................................................................................................................................................................................................20
keys loCked ..................................................................................................................................................................................................................21
V2 - Air ..............................................................................................................................................................................................................................22
reset ..................................................................................................................................................................................................................................22
ENabLE cHroNo .....................................................................................................................................................................22
cHroNo .................................................................................................................................................................................... 22
ProgrAmming exAmPle ........................................................................................................................................................................................23
cLEaNING aNd MaINtENaNcE .............................................................................................................................................24
MaINtENaNcE ......................................................................................................................................................................... 24

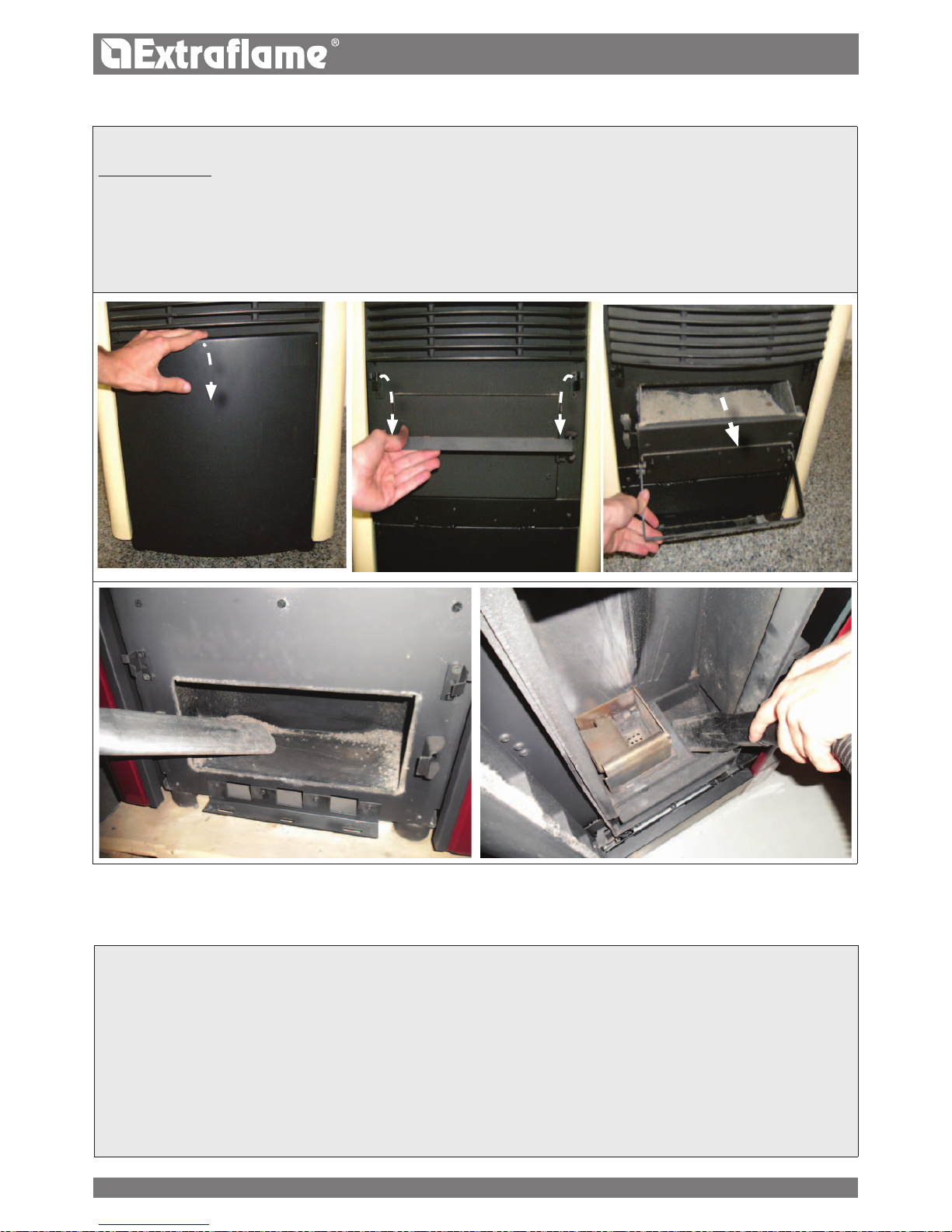

CleAning And mAintenAnCe by the User ..................................................................................................................................................24
routINE MaINtENaNcE carrIEd out by autHorISEd tEcHNIcIaNS .......................................................................28
PUtting the eqUiPment oUt oF serViCe (end oF the seAson) ......................................................................................................28
dISPLayS ..................................................................................................................................................................................29
aLarMS ....................................................................................................................................................................................29
GuaraNtEE tErMS ................................................................................................................................................................ 31
attENtIoN
SurfacES caN bEcoME VEry Hot!
aLWayS uSE ProtEctIVE GLoVES!
During combustion, thermal energy is released that signicantly increases the heat of surfaces, doors, handles, controls, glass, exhaust
pipes, and even the front of the appliance. Avoid contact with those elements if not wearing protective clothing (protective gloves
included). Make sure children are aware of the danger and keep them away from the stove during operation.
Page 4
4
ENGLISH
Warnings
This instructions manual is an integral part of the product: make sure that it always accompanies the
appliance, even if transferred to another owner or user, or if transferred to another place. If it is damaged
or lost, request another copy from the area technician. This product is intended for the use for which it
has been expressly designed. The manufacturer is exempt from any liability, contractual and extracontractual, for injury/damage caused to persons/animals and objects, due to installation, adjustment and
maintenance errors and improper use.
Installation must be performed by qualied sta, which assumes complete responsibility for the denitive installation and consequent good functioning of the product installed. One must also bear in
mind all laws and national, regional, provincial and town council Standards present in the country in
which the appliance has been installed, as well as the instructions contained in this manual.
The Manufacturer cannot be held responsible for the failure to comply with such precautions.
After removing the packaging, ensure that the content is intact and complete. Otherwise, contact the
dealer where the appliance was purchased.
All electric components that make up the product must be replaced with original spare parts exclusively
by an authorised after-sales centre, thus guaranteeing correct functioning.
safety
THE APPLIANCE MAY BE USED BY CHILDREN 8 YEARS OF AGE OR OLDER AND INDIVIDUALS
WITH REDUCED PHYSICAL, SENSORY, OR MENTAL CAPACITIES OR WITHOUT EXPERIENCE OR
THE NECESSARY KNOWLEDGE, PROVIDED THAT THEY ARE SUPERVISED OR HAVE RECEIVED
INSTRUCTIONS ON SAFE USE OF THE APPLIANCE AND THAT THEY UNDERSTAND THE INHERENT
DANGERS.
THE GENERATOR MUST NOT BE USED BY PERSONS INCLUDING CHILDREN WITH REDUCED
PHYSICAL, SENSORY AND MENTAL CAPACITIES OR WHO ARE UNSKILLED PERSONS, UNLESS THEY
ARE SUPERVISED AND TRAINED REGARDING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE
FOR THEIR SAFETY.
THE CLEANING AND MAINTENANCE REQUIRED BY THE USER MUST NOT BE PERFORMED BY
CHILDREN WITHOUT SUPERVISION.
CHILDREN MUST BE CHECKED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
DO NOT TOUCH THE GENERATOR WHEN YOU ARE BAREFOOT OR WHEN PARTS OF THE BODY
ARE WET OR DAMP.
THE SAFETY AND ADJUSTMENT DEVICES MUST NOT BE MODIFIED WITHOUT THE AUTHORISATION
OR INDICATIONS OF THE MANUFACTURER.
DO NOT PULL, REMOVE, TWIST THE ELECTRICAL CABLES COMING OUT OF THE PRODUCT EVEN
IF IT IS DISCONNECTED FROM THE MAINS.
IT IS ADVISED TO POSITION THE POWER SUPPLY CABLE SO THAT IT DOES NOT COME INTO
CONTACT WITH HOT PARTS OF THE APPLIANCE.
THE POWER SUPPLY PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
DO NOT CLOSE OR REDUCE THE DIMENSIONS OF THE AIRING VENTS IN THE PLACE OF
INSTALLATION. THE AIRING VENTS ARE ESSENTIAL FOR CORRECT COMBUSTION.
DO NOT LEAVE THE PACKAGING ELEMENTS WITHIN REACH OF CHILDREN OR UNASSISTED
We thank you for having chosen our company; our product is a great heating solution developed from the
most advanced technology with top quality machining and modern design, aimed at making you enjoy the
fantastic sensation that the heat of a ame gives, in complete safety.
Page 5
5
ENGLISH
DISABLED PERSONS.
THE HEARTH DOOR MUST ALWAYS BE CLOSED DURING NORMAL FUNCTIONING OF THE
PRODUCT.
WHEN THE APPLIANCE IS FUNCTIONING AND HOT TO THE TOUCH, ESPECIALLY ALL EXTERNAL
SURFACES, ATTENTION MUST BE PAID
CHECK FOR THE PRESENCE OF ANY OBSTRUCTIONS BEFORE SWITCHING THE APPLIANCE ON
FOLLOWING A PROLONGED PERIOD OF INACTIVITY.
THE GENERATOR HAS BEEN DESIGNED TO FUNCTION IN ANY CLIMATIC CONDITION. IN
PARTICULARLY ADVERSE CONDITIONS STRONG WIND, FREEZING SAFETY SYSTEMS MAY
INTERVENE THAT SWITCH THE GENERATOR OFF. IF THIS OCCURS, CONTACT THE TECHNICAL AFTER
SALES SERVICE AND ALWAYS DISABLE THE SAFETY SYSTEMS.
IN THE EVENT THE FLUE CATCHES FIRE, USE SUITABLE SYSTEMS FOR SUFFOCATING THE FLAMES
OR REQUEST HELP FROM THE FIRE BRIGADE.
THIS APPLIANCE MUST NOT BE USED TO BURN WASTE
DO NOT USE ANY FLAMMABLE LIQUIDS FOR IGNITION
DURING THE FILLING PHASE DO NOT PUT THE BAG OF PELLETS TO INTO CONTACT WITH THE
PRODUCT
THE MAJOLICAS ARE TOP QUALITY ARTISAN PRODUCTS AND AS SUCH CAN HAVE MICRODOTS,
CRACKLES AND CHROMATIC IMPERFECTIONS. THESE FEATURES HIGHLIGHT THEIR VALUABLE
NATURE. DUE TO THEIR DIFFERENT DILATION COEFFICIENT, THEY PRODUCE CRACKLING, WHICH
DEMONSTRATE THEIR EFFECTIVE AUTHENTICITY. TO CLEAN THE MAJOLICAS, IT IS RECOMMENDED
TO USE A SOFT, DRY CLOTH. IF A DETERGENT OR LIQUID IS USED, THE LATTER COULD PENETRATE
INSIDE THE CRACKLES, HIGHLIGHTING THEM.
routine Maintenance
Based on Decree 22 January 2008 n°37 art.2, routine maintenance means interventions aimed at reducing degradation due to normal use, as well as dealing with accidental events entailing the need of rst
interventions, which however do not modify the structure of the system upon which one is intervening
or its intended use according to the requirements laid down by the technical standards in force and by
the manufacturer's use and maintenance manual.
Page 6
A
C
B
6
ENGLISH
Air inlet
REFERENCES INFLAMMABLE OBJECTS NONINFLAMMABLE OBJECTS
A 200 mm 100 mm
B 1500 mm 750 mm
C 200 mm 100 mm
oor protection
InstallIng Inserts
When installing inserts, access must be prevented to the internal parts of the appliance and it must not be possible to access live parts during
extraction operations.
Any wiring, for example the power cable or room probe, must be positioned so as not to be damaged during movement of the insert and
must not come into contact with hot parts.
VentIlatIon and aeratIon of the InstallatIon premIses
Ventilation is deemed sucient when the room is equipped with air inlets according to the table:
Appliance categories Reference standard
Percentage of the
net opening section with respect to the
appliance fumes outlet section
Minimum net opening value of the
ventilation duct
Pellet stoves UNI EN 14785 - 80 cm²
Boilers UNI EN 303-5 50% 100 cm²
In any case ventilation is deemed sucient when the pressure dierence between the external and internal environment is equal to or less
than 4 Pa.
InstallatIon
general
The ue gas exhaust and hydraulic connections must be carried out by qualied personnel who must issue installation conformity
documentation compliant with national standards.
The installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity,
supplied with:
1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);
2) photocopy or photograph of the chimney plaque;
3) system booklet (where applicable).
The installer must ask to be issued with a receipt stating that the documentation has been provided, and must keep it with a copy of the technical
documentation relating to the installation.
For installation in a condominium, prior approval from the condominium's administrator must be requested.
Where required, check the exhaust gas emissions after installation. Should a sampling point be installed, it must be airtight.
CompatIBIlItY
Installation in premises with re hazards is forbidden. Installation in residential premises (except for sealed operation appliances) is also forbidden:
in which there are liquid fuel-operated appliances with continuous or intermittent operation, which draw the combustion air in the
room in which they are installed, or
in which there are type B gas appliances intended for room heating, with or without production of domestic hot water and in adjacent
and adjoining premises, or
in which, in any case, the depression measured during installation between the internal and external environment is greater than 4 Pa
InstallatIons In Bathrooms, Bedrooms and studIo flats
Installation in bathrooms, bedrooms and studio ats is only allowed for sealed or closed hearth appliances with ducted combustion air taken
from the outside.

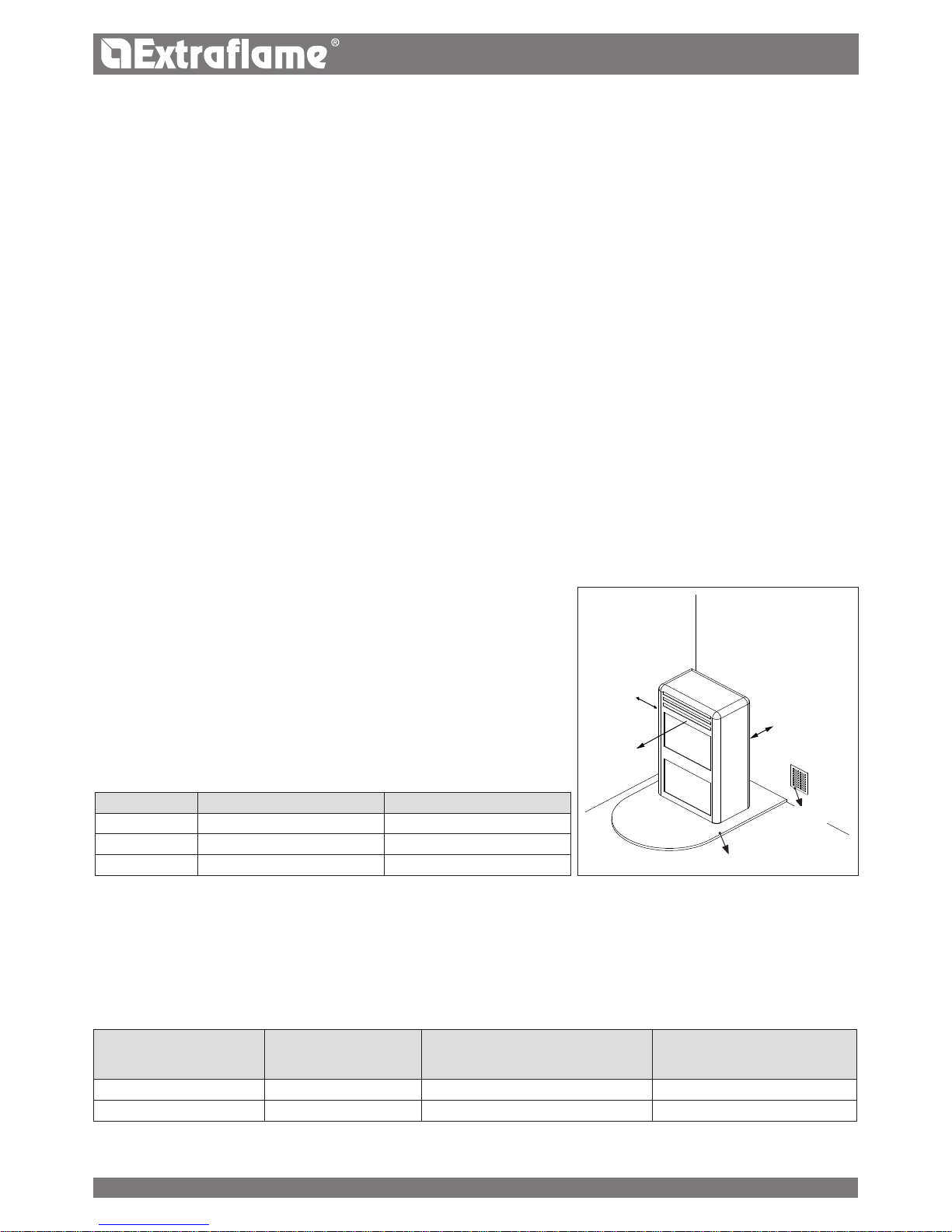

posItIonIng and safetY dIstanCes
The support surfaces and/or points must have a suitable capacity to bear the overall weight
of the appliance, accessories and coverings.
If the oor is made of a combustible material,
we recommending using a non-combustible material to protect the front part from any
burnt material which might fall during routine cleaning operations.
The generator must be level to function properly.
The adjacent, side and rear walls and the supporting surface must be made of noncombustible material. Installation adjacent to combustible or heat sensitive materials is
allowed as long as there is a suitable safety distance in between, which for pellet stoves is:
Page 7
3 - 5%
Max 3 mt
7
ENGLISH

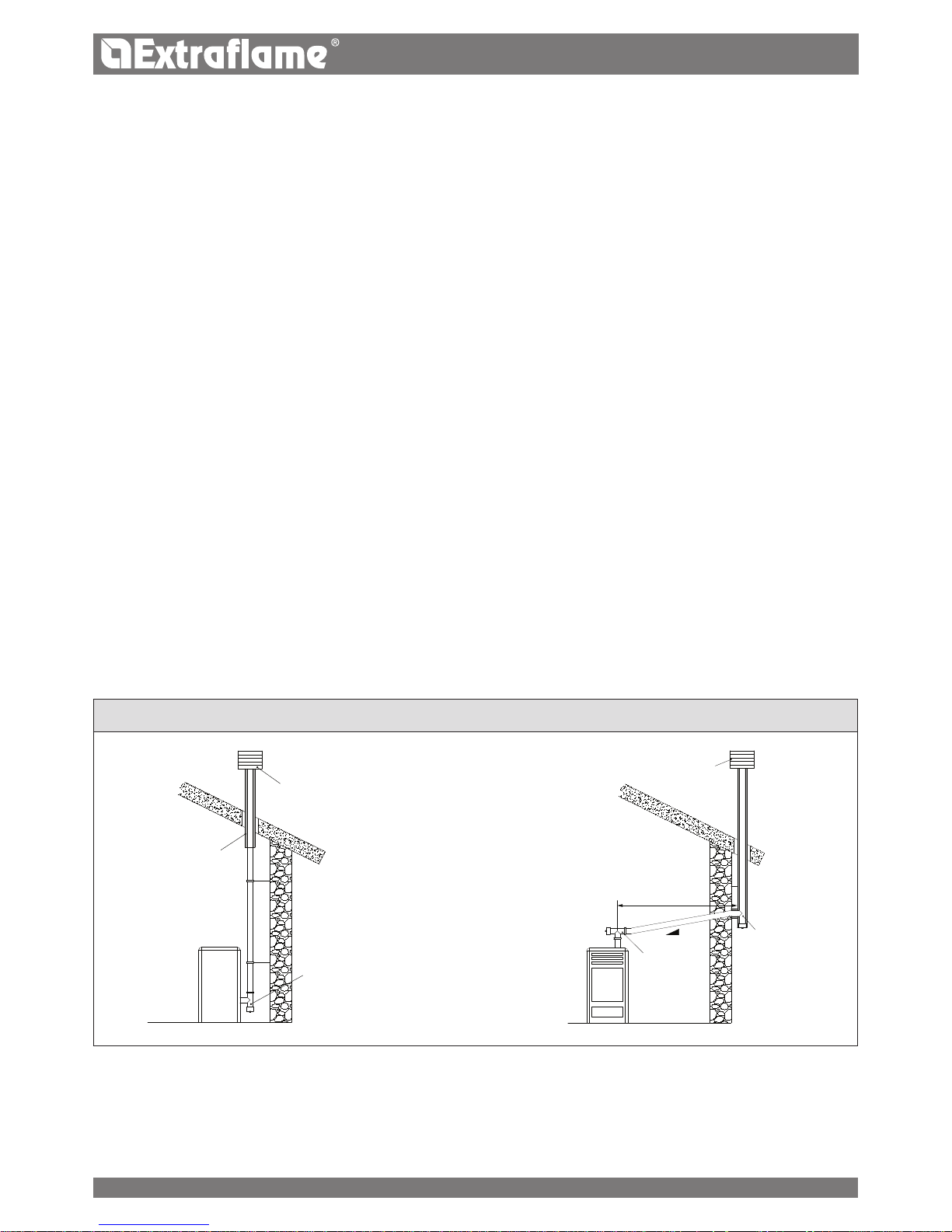

EXAMPLES OF CORRECT CONNECTION TO THE CHIMNEY
In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or
ventilation opening.
The air inlets must meet the following requirements:
they must be protected with grids, metal mesh, etc., but without reducing the net useful section;
they must be made so as to make the maintenance operations possible;
positioned so that they cannot be obstructed;
The clean and non-contaminated air ow can also be obtained from a room adjacent to that of installation (indirect aeration and
ventilation), as long as the ow takes place freely through permanent openings communicating with the outside.
The adjacent room cannot be used as a garage, or to store combustible material or for any other activity with a re hazard, bathroom,
bedroom or common room of the building.
flue gas eXhaust
The heat generator works in depression and is equipped with an outlet fan for ue gas extraction. There must be a single exhaust system for
the generator. Using a ue that is shared with other devices is not allowed.
The components of the ue gas exhaust system must be chosen in relation to the type of appliance to be installed in compliance with:
UNI/ TS 11278 in the event of metal chimneys, with particular attention to that stated in the specication;
UNI EN 13063-1 and UNI EN 13063-2, UNI EN 1457, UNI EN 1806 in the event of non-metallic chimneys.
The length of the horizontal section must be minimal and, in any case, no longer than 3 metres, with a minimum upward slope of 3%
There must not be more than 4 direction changes including the one due to the use of the "T" element.
A “T” tting with a condensation collection cap must be provided at the base of the vertical section.
If the exhaust is not inserted in an existing ue, a vertical section with a windproof end piece is required (UNI 10683).
The vertical duct can be inside or outside the building. If the smoke duct is inserted in an existing ue, it must be certied for solid fuel.
If the smoke duct is outside the building, it must always be insulated.
The smoke ducts must have at least one airtight inlet for ue gas sampling.
All the sections of the ue gas duct must be accessible to inspection.
Inspection openings must be provided for cleaning.
If the generator has a fume temperature lower than 160°C+ ambient temperature caused by the high yield (contact technicians) it
MUST be resistant to humidity.
ChImneY Cap
The chimney caps must meet the following requirements:
they must have a useful outlet section no less than double that of the chimney/ducted system on which it is installed;
they must be adapted in order to prevent the penetration of rain and snow in the chimney/ducted system;
they must be built so that, in the event of winds coming from all directions and from any angle, the expulsion of combustion products
is in any case ensured;
Protection from rain
and wind
Condensationproof "T" tting with
inspection plug
Insulated ue
Insulated "T"
tting with
inspection plug
Protection from rain and wind
"T" tting with
inspection
plug
ConneCtIon to the maIns eleCtrIC supplY
The generator is supplied with an electric power cable to be plugged into a 230V 50 Hz socket, possibly with a circuit breaker switch. The
socket must be easily accessible.
The electrical system must be compliant with standards. The eciency of the earthing circuit must be checked. Unsuitable earthing of the
system can cause malfunctioning for which the manufacturer will not be held liable.
Power supply variations beyond 10% can cause faulty operation of the product.
Page 8
A
B
C
D
E
F
8
ENGLISH
INSTALLING INSERTO COMFORT PLUS CRYSTAL
The insert is supplied with a sliding metal base that allows it to be installed in a pre-existing ue.
The sliding base allows the easy extraction of the insert both for feeding pellets into the feed-box and for any maintenance or cleaning at the
end of the season. If there is no pre-existing ue, it can be built using the insert support pedestal (optional kit); in fact, the latter attaches the
insert to the oor.

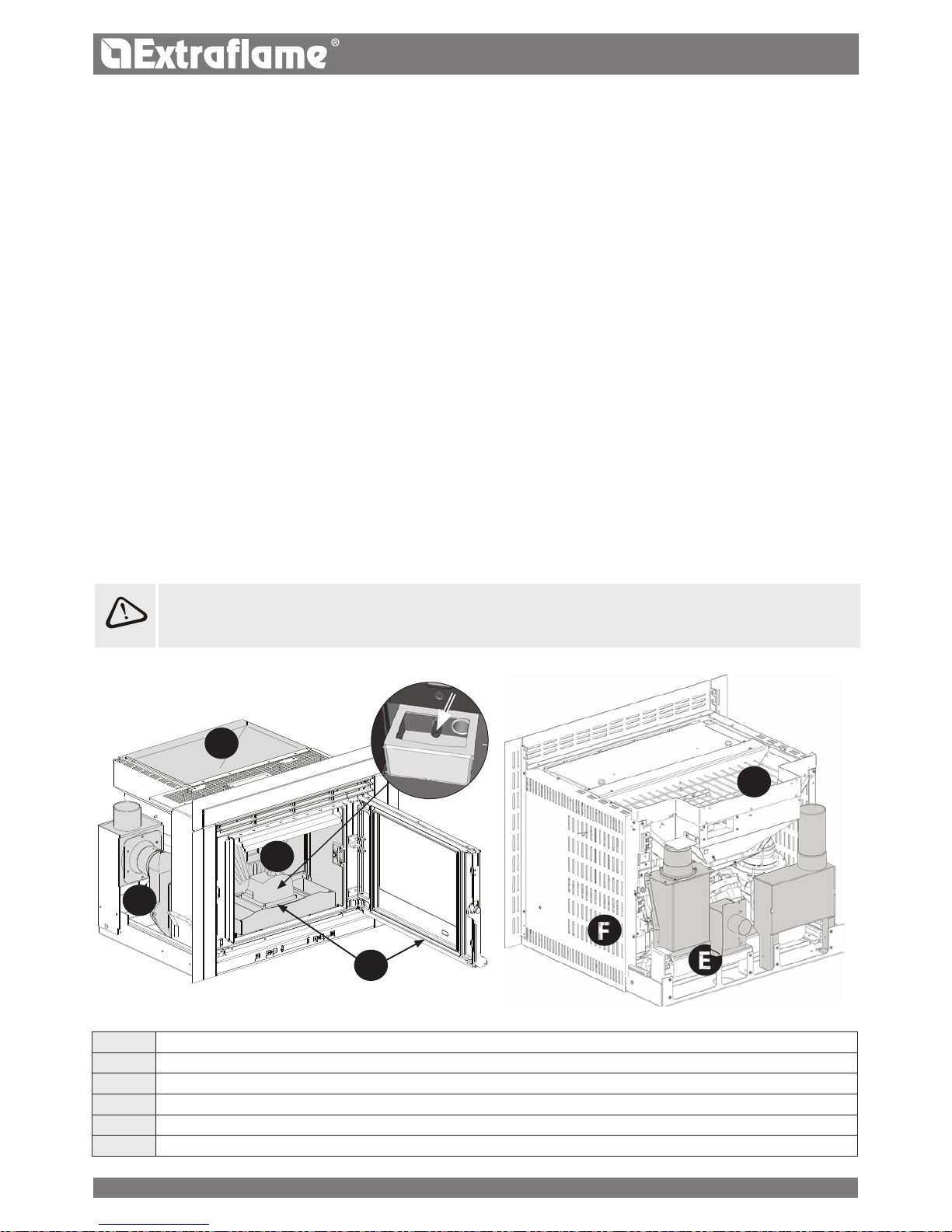

Components description:
A. Primary air intake pipe
B. Flue exhaust pipe
C. Adaptation frame
D. Sliding base and rails
E. Plug for power socket
F. Ducting pipe

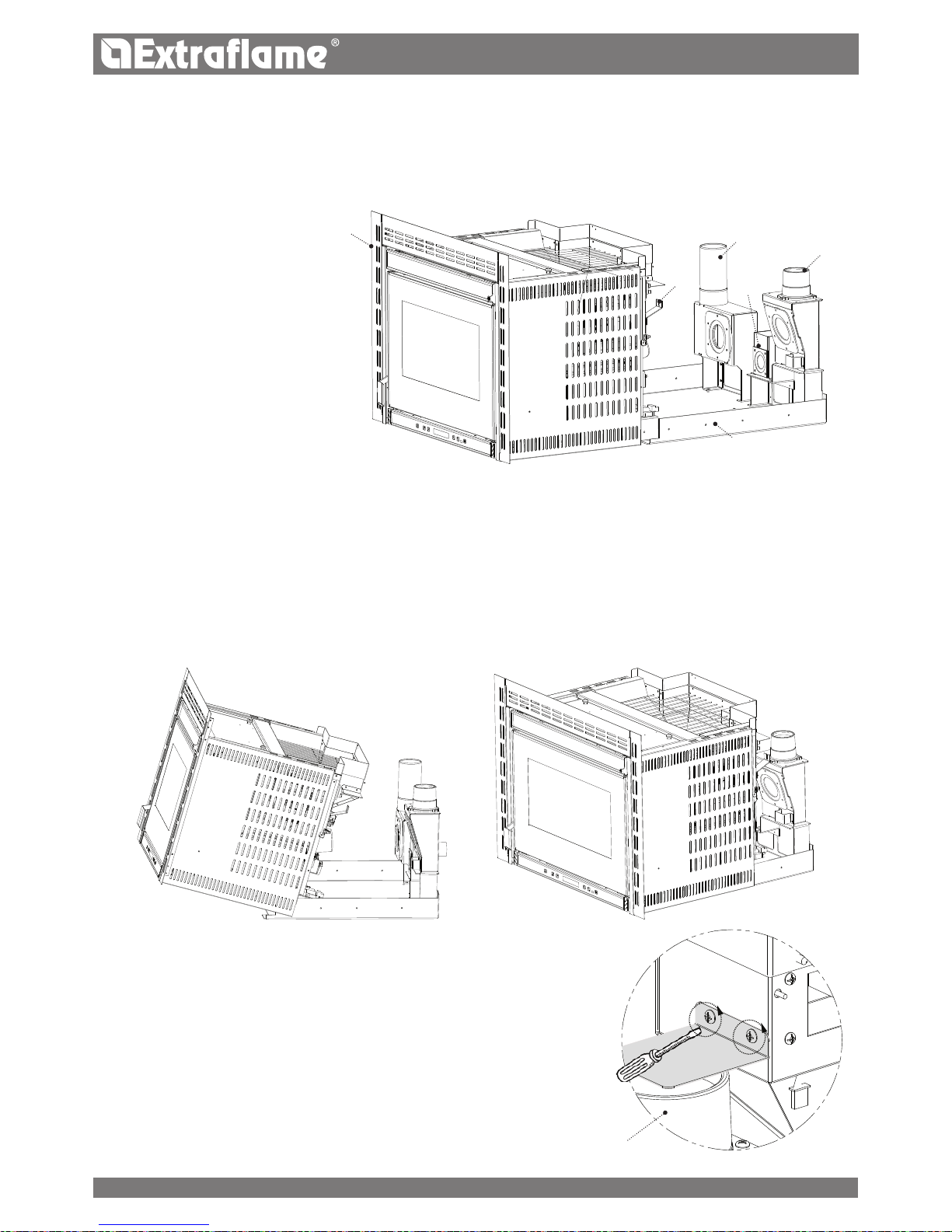

ASSEMBLY WITH SLIDING BASE
Take the sliding base and position it in the pre-existing ue. Use chalk to mark the blocking holes of the base on the ue surface. Drill 8 mm
holes for the steel expansion inserts.
Make a hole measuring 60 mm in line with the air intake.
Remember the power socket on the rear of the insert so that the plug is accessible once installation is completed.
Fix the base using the clamping screws.
Create a ue exhaust and socket connection respecting the points described previously.
Take the insert, tilt it so that the wheels t into the relative rails, make it run until the ue gas insert is completely inserted into the ue gas
conveyor box.
INSERTO COMFORT PLUS CRYSTAL
For the model it is mandatory to duct the hot air.
There is a cover on the back, which must necessarily be removed, and connected to the
ducting.
F. Ducting pipe
Page 9
A
9
ENGLISH
FRONT PELLET FEEDING KIT OPTIONAL
The optional pellet feeding kit allows pellets to be fed into the feedbox from the front without having to extract the insert (operation
that requires machine switch-o).
Further information on the accessories is available on the website,
in the category "accessories".
AIR CIRCULATION PIPES
Create air recirculation inside the structure that covers the insert for correct operation. This prevents the appliance from over-heating.
To guarantee this, just make one or more openings in the lower and upper parts of the covering.
PEDESTAL ASSEMBLY OPTIONAL:
Position the base in the desired point and use the feet to adjust the desired
height (the bolts are positioned in the four external sides of the pedestal in
the lower part).
Remember the power socket on the rear of the pedestal so that the plug is
accessible once installation is completed.
Fix the pedestal to the oor using strong steel plugs with a diameter of 8
mm.
Fix the sliding base to the frame using bolts.
Connect the ue gas exhaust pipe and the air vent as stated in the previous
paragraph.
Take the insert, tilt it so that the wheels t into the relative rails, make it run
until the ue gas auger is completely inserted into the ue gas conveyor box.
Finally open the re door and use the supplied Allen key to turn the screw at
the bottom left corner clockwise.
To understand whether the insert is correctly attached to the base, connect
the plug to the socket and make sure the display switches on.
Mount the hopper support for the pellet and insert it into the relevant
coupling.
PRIMARY AIR VENT:
THE AIR VENT MUST BE MADE OUTSIDE THE FLUE AS
IT MUST NOT SUCK IN OVERHEATED AIR.
PERFORMING THIS CONNECTION INCORRECTLY CAN
JEOPARDISE PRODUCT OPERATION.
Primary air
intake
pipe
N.B.If our pedestal is used, a slot must be created in the ue that allows the pellet level in the feed-box to be checked, thus preventing spillage during
lling.
Page 10
5 cm
5 cm
5 cm
A
B
C
10
ENGLISH
THIS VENTILATION SYSTEM IS TOTALLY INDEPENDENT FROM THE AIR INTAKE FOR COMBUSTION!!

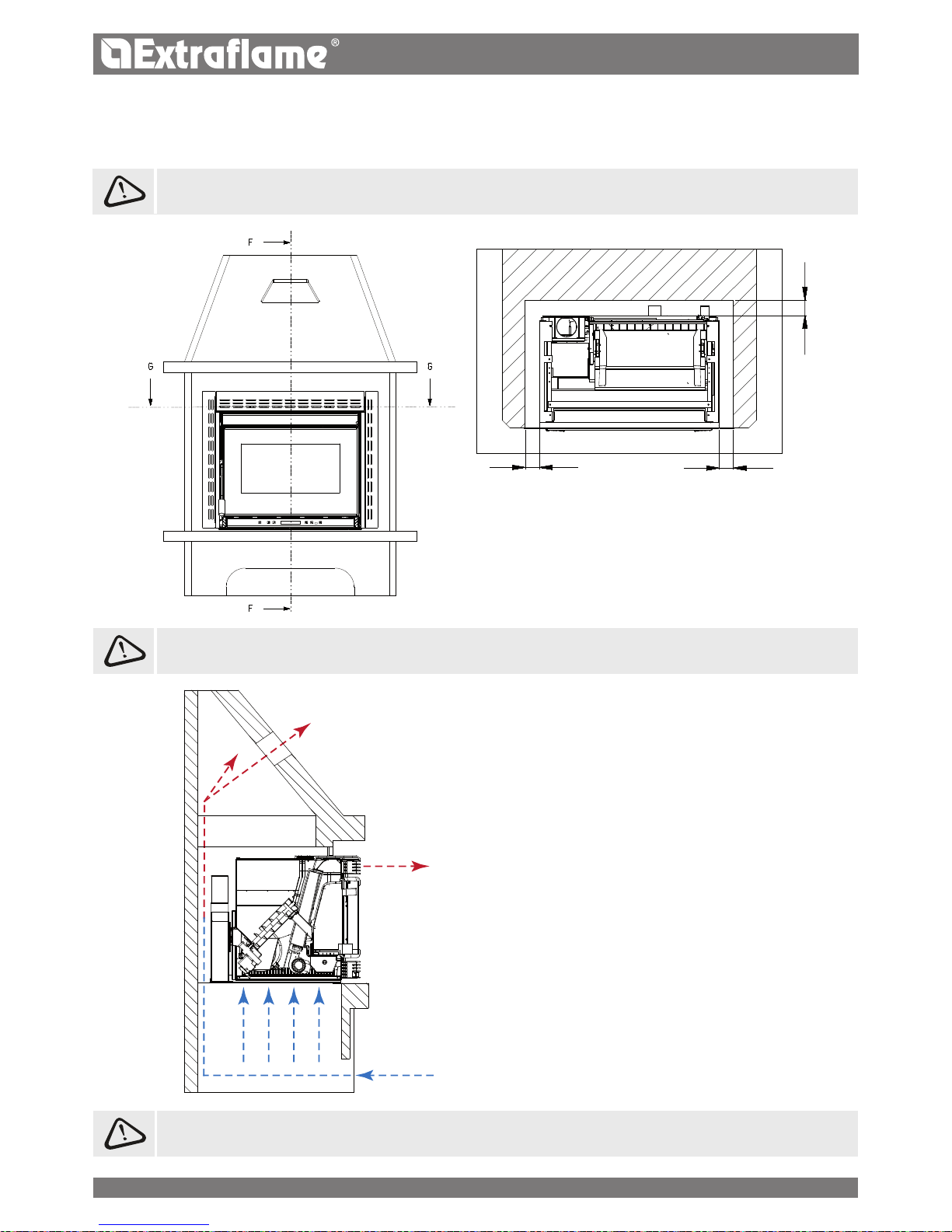

The following measurements must be respected:
LOWER PART COLD AIR INLET WITH TOTAL MINIMUM SURFACE 550 CM².
UPPER PART HOT AIR OUTLET WITH TOTAL MINIMUM SURFACE 550 CM².
For correct functioning of the insert, during construction of the ue
the measurements between the insert and internal walls of the ue
must be respected (gure below).
From the clearance measurements of the stove given in the technical
features, it is necessary to consider at least 50 mm of air in the upper
part and on the 2 sides.
Minimum 5 cm
THE INSERT MUST LIE AT LEAST 1 CM ABOVE THE FIRE SURFACE IN COVERING MARBLE.
It is just as important to guarantee the minimum distance of 5 cm
on both sides as shown in the gures above.
Reference A

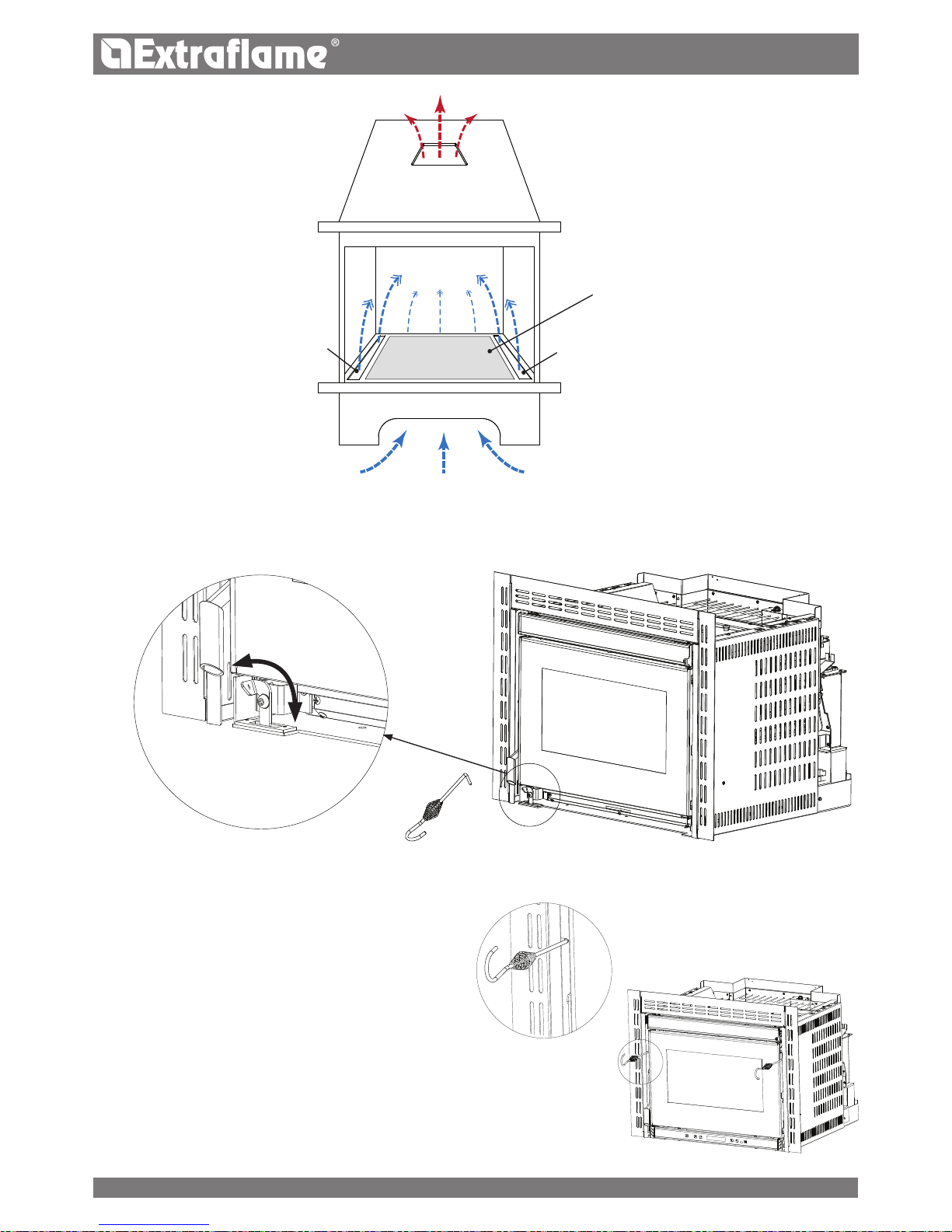

Hot convection air The heat accumulated inside the
covering must be vented to prevent excessive overheating of
the insert.
Reference B
Forced ventilation
The tangential fan distributes the heat developed by the insert
into the environment.
Reference C
Air inlet from the room:
To allow air recirculation an air inlet point must be envisioned,
which is preferably positioned in the lower part of the structure in
order to encourage convection. The air must be withdrawn from
the machine's working environment.
THE FLUE OUTLET PIPE MUST ALWAYS MAINTAIN A MINIMUM DISTANCE OF 50 MM FROM INFLAMMABLE PARTS.
Page 11
A
C
11
ENGLISH
Fixed
Inserto COMFORT
PLUS CRYSTAL
Air inlet
275cm²
Air inlet
275cm²
INSERT LOCKING AND RELEASING SAFETY DEVICE
Open the fire door and, by means of the supplied poker, turn the lockbolt located at the bottom left corner clockwise.
To understand whether the insert is attached to the base properly, connect the plug to the socket and make sure it works with the supplied
remote control.
INSERT EXTRACTION
The extraction of the insert allows pellets to be loaded inside the
feed-box and to perform routine maintenance, (cleaning the ash
pipe at the end of the year) or special maintenance (replacement of
mechanical parts if the product should break).
Follow this procedure to extract the insert:
Open the re door and, by means of the supplied poker, turn the
lockbolt located at the bottom left corner anticlockwise.
Using the relevant pokers, pull the machine towards yourself until it
blocks automatically.
Page 12
12
ENGLISH

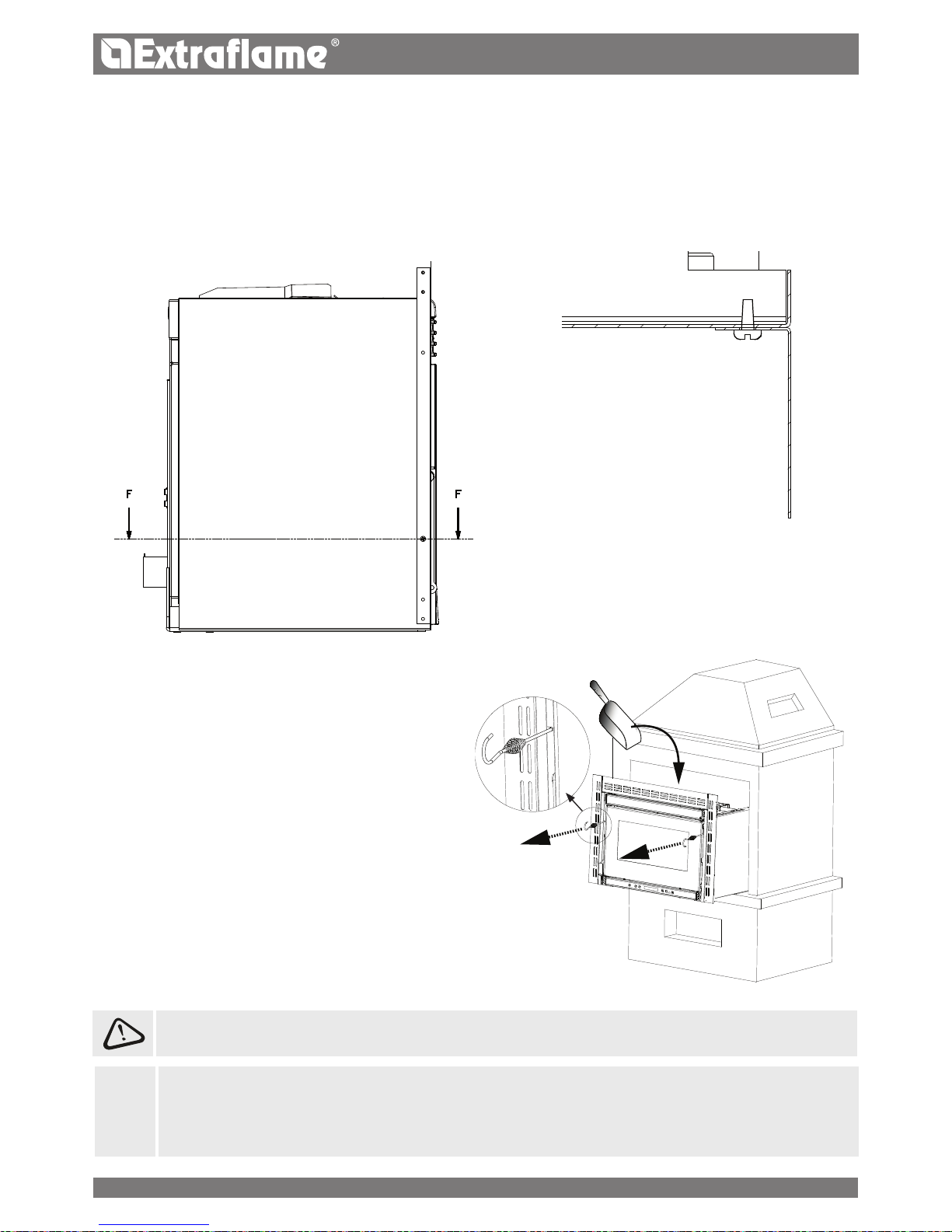

The 2 side frames are xed to the upper frame by means of 2 screws
each side.
The remaining holes on the side frames allow to x the entire frame
to the sides of the machine by means of self-drilling screws.
MOUNTING THE FRAMES
Front frame
Side frames
N.B. Any wooden beams located above the insert must be protected
with non-inammable material.
Frame assembly is important as it allows correct recirculation of the
air and consequently optimal product operation.
PELLETS AND FEEDING
The pellet used must comply with the features described by
Standards
EN PLUS UNI EN 14961 2 UNI EN ISO 172252 class
A1 A2
For its products, the manufacturer always recommends
using pellets with a diameter of 6 mm.
To guarantee combustion without problems, the pellets must be
kept in a dry place.
We recommend using pellets with a diameter of 6 mm with our
products.
See the images for feeding pellets.
THE USE OF POOR QUALITY PELLETS OR ANY OTHER MATERIAL DAMAGES THE FUNCTIONS OF YOUR STOVE AND
CAN VOID THE WARRANTY AND THE RESPONSIBILITY OF THE MANUFACTURER
.
J
OPEN THE TANK LID AND LOAD THE PELLETS USING A SCOOP.
IN THE EVENT OF THE INSERTS, ONLY LOAD WHEN THE MACHINE IS OFF AND COLD, BY EXTRACTING IT FROM THE
COMPARTMENT.
IN THE EVENT OF INSTALLATION WITH FEEDING KIT OPTIONAL THE MACHINE MUST NOT BE EXTRACTED.
Page 13
13
ENGLISH
Front tilting deFlector
The insert is supplied with a front deector, which must be opened before starting the insert.
If you attempt ignition with the deector closed, the screen will display "GRATE CLOSED - CAUTION".

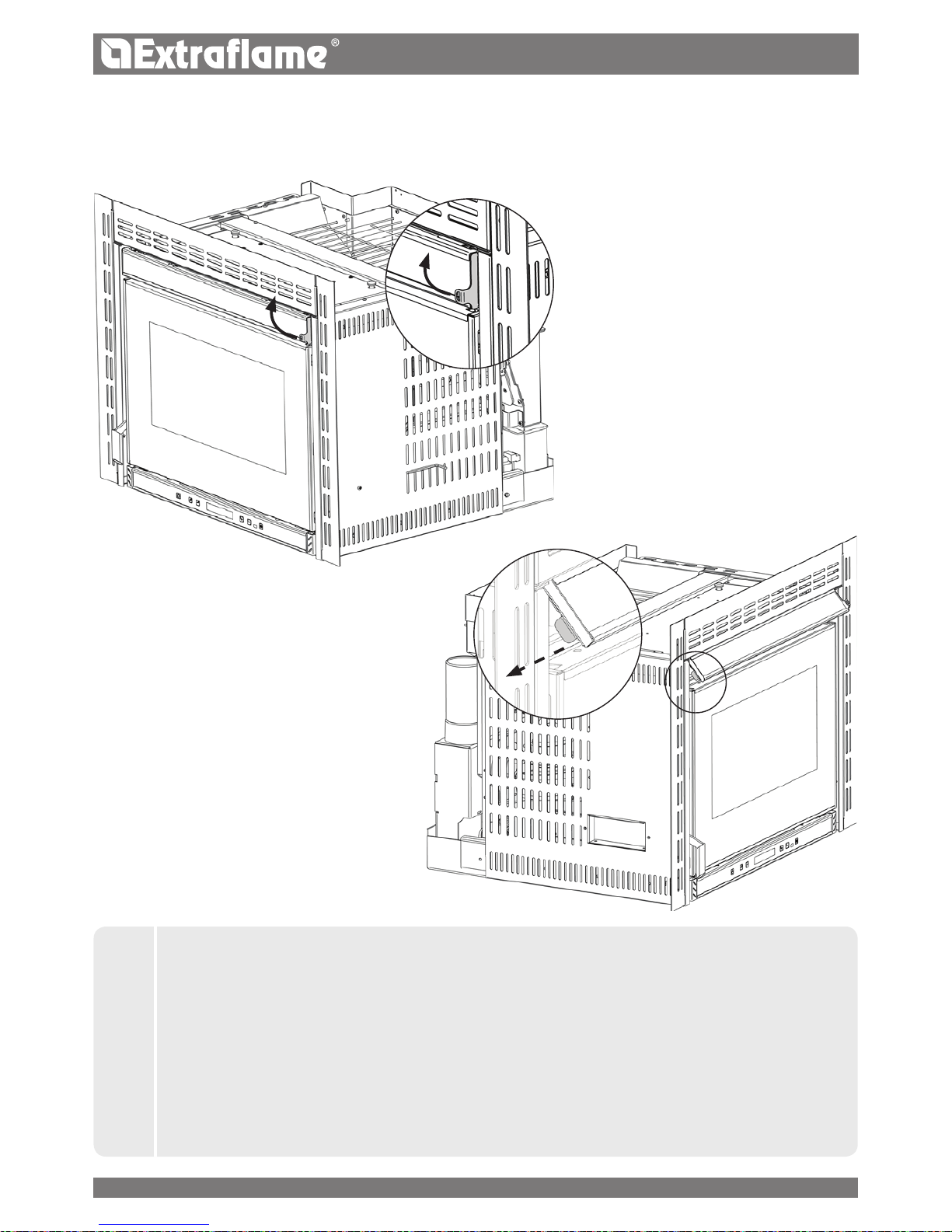

deFlector oPening
Lift the deector by the provided tang on the right
side until blocking it in an open position.
(See gure to the side)
J
imPortant notes:
• If the insert start-up button is pressed when the deector is closed, the display will signal "GRATE CLOSED - CAUTION"
and will not enable start-up of the insert.
• If the deector is closed during the functioning phase, the display will signal "GRATE CLOSED - CAUTION" for 30 seconds
together with an intermittent acoustic signal. If the deector is not opened during signalling, the insert will automatically
go into switch o "FINAL CLEANING" phase.
• To enable the chrono function, you must rst open the deector. If the CHRONO function is enabled and the deector
is closed, the display will immediately signal "GRATE CLOSED - CAUTION" and will not permit start-up at the preset time.
deFlector closing
Pull the tang, which is located to the left, outwards to
unblock the deector.
(See gure to the side)
attention:
the deFlector mUst onlY Be closed UPon total
comPletion oF the cooling Phase (oFF).
Page 14
1
2
3
4
5
OFF
6
4
5
OFF
14
ENGLISH
CONTROL PANEL

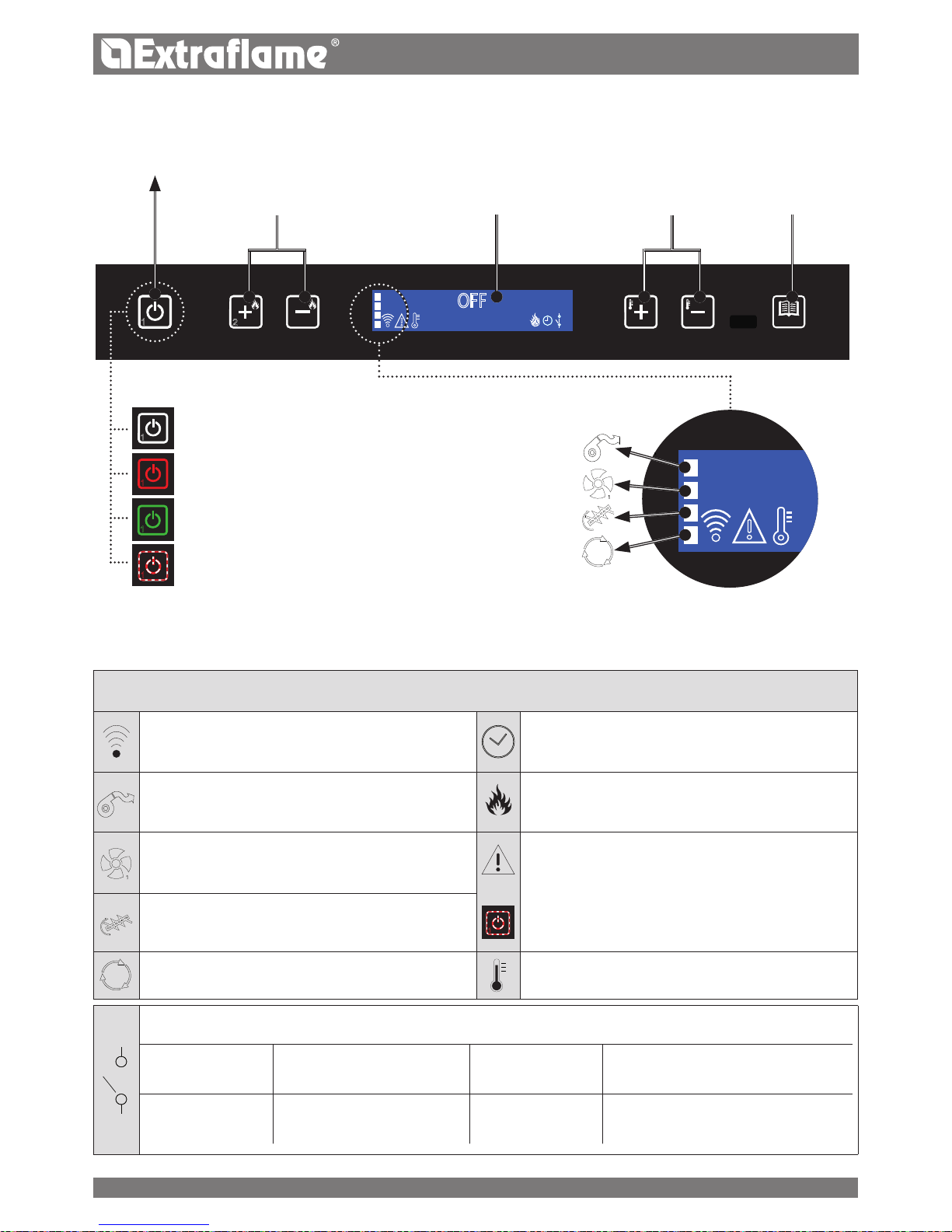

DISPLAY ICONS KEY
Indicates the receipt of the radio signal
On = during radio communication
O = no radio communication
Fixed on = serial input disabled
It indicates weekly programming functioning
Indicator on = weekly programming active
Indicator o = weekly programming disabled
It indicates fumes motor operation.
O = fumes motor disabled
On = fumes motor active
Flashing = breakdown
Indicates the stove modulation
On = the stove is working at the set power
Flashing = the power at which the stove is working is dierent to
the power set, the stove is modulating (for various reasons)
1
It indicates tangential fan operation (where applicable)
O = not working
On = working
Flashing = motor at minimum
Indicates the presence of an alarm.
Triangle On + 1 ashing key:
Indicates the presence of an alarm
It indicates pellet feed motor operation
O = pellet feed motor disabled
On = pellet feed motor active
1
1
1
1
Indicates the compensation function
O = the function is disabled
On = the function is active
Indicates the room temperature status
O = the T° read by the probe is above the set temperature
On = the T° read by the probe is below the set temperature
Indicates the contact of the external additional thermostat
Contact closed: the contact of the external additional
thermostat is closed and the STBY
function is disabled
Flashing with closed
contact:
the contact of the external additional thermostat
is closed and the STBY function is active
Contact open: the contact of the external additional
thermostat is open and the STBY
function is disabled
Flashing with open
contact:
the contact of the external additional thermostat
is open and the STBY function is active

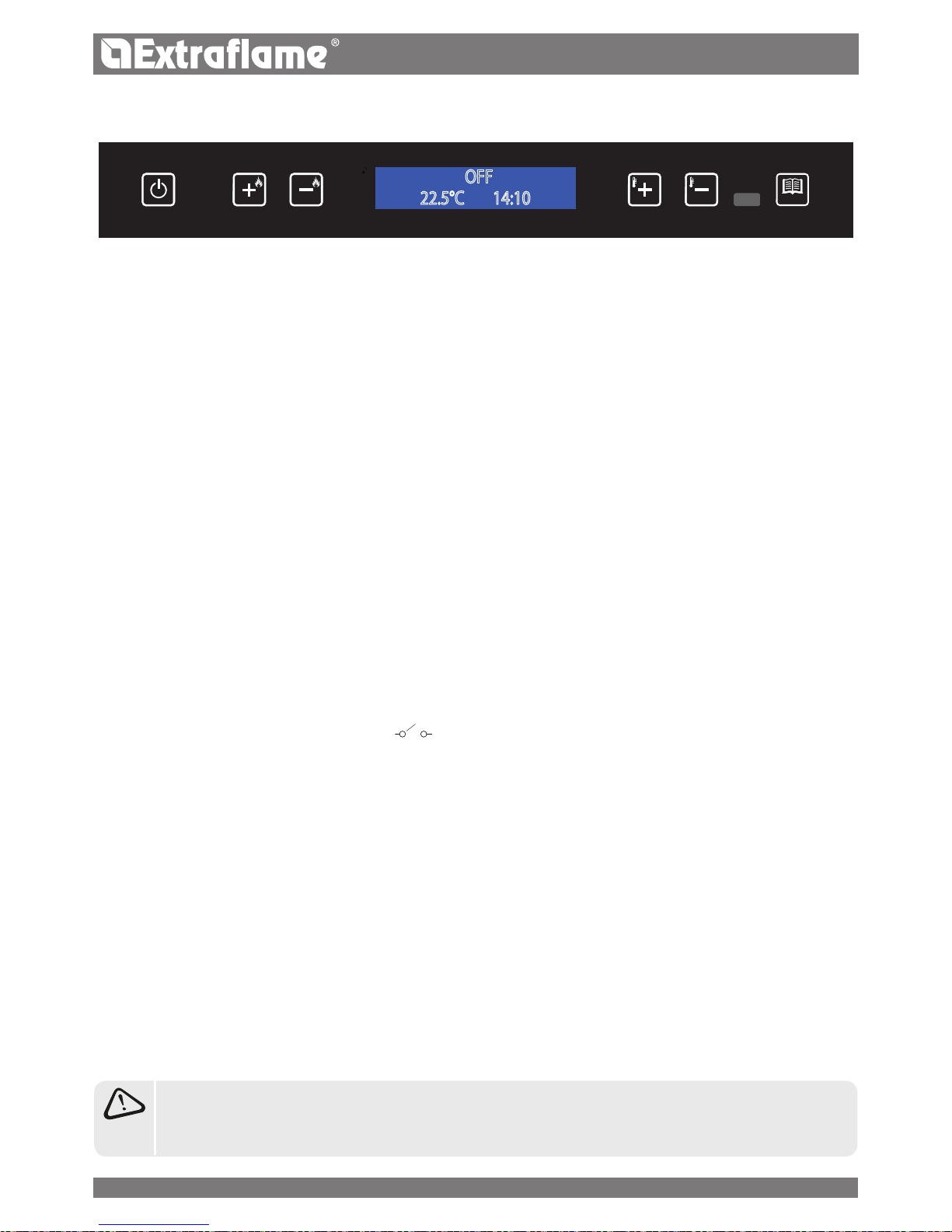

DISPLAY OF VARIOUS
TEXT MESSAGES
TO ACCESS
THE MENU
OPERATION POWER
ADJUSTMENT
TEMPERATURE
SETTING
+
ON/OFF
BUTTON
1
White - On
Flashing white - Pellet tank reserve
1
1
Red - O
1
1
1
Green – STBY
1
1
1
1
Flashing red - In alarm
1
Page 15
6
1
2
3
4
5
6
1 2
3
4
5
OFF
22.5°C 14:10
6
2
2
2
6
6
6
6
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
6
2
15
ENGLISH

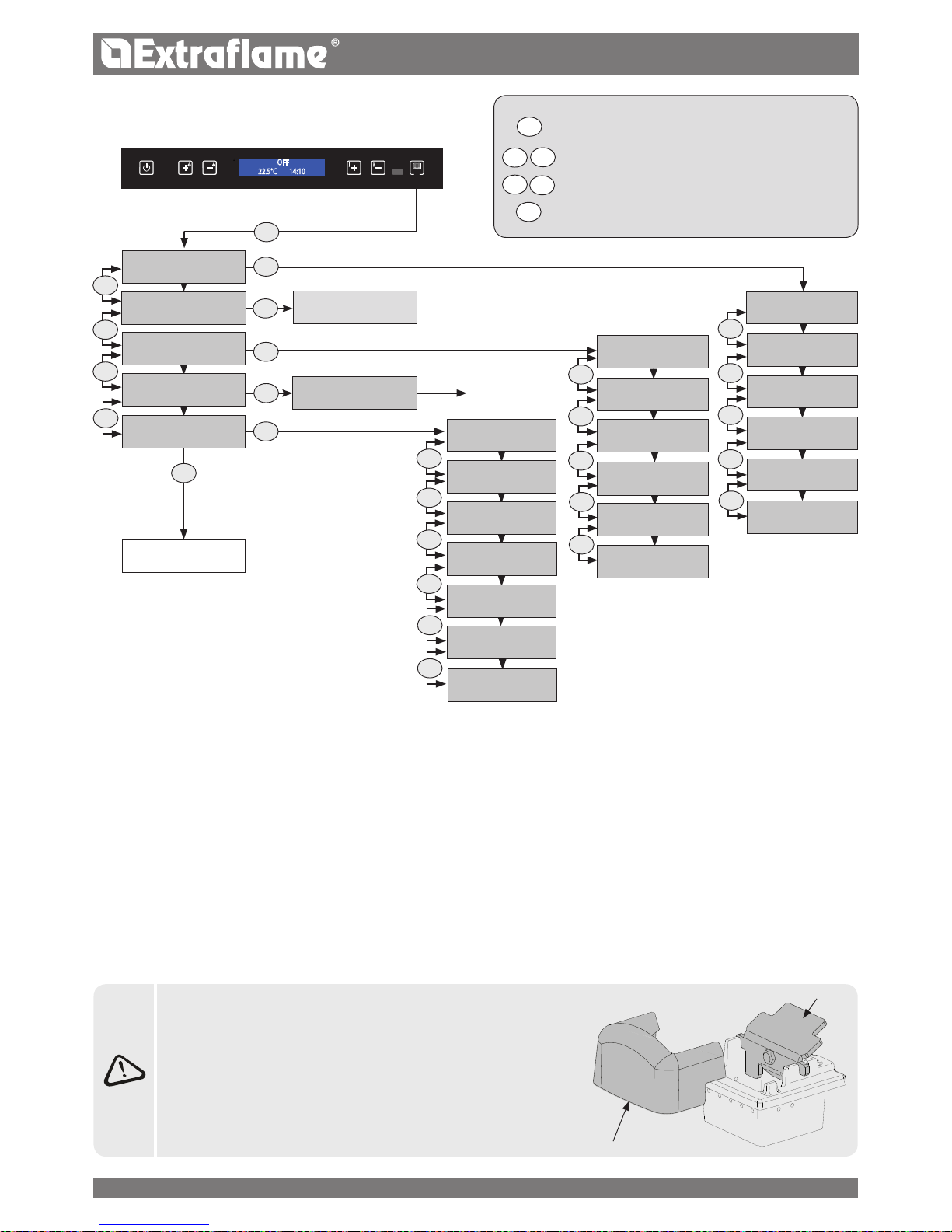

GENERAL MENU
GO BACK EXIT
PARAMETER SCROLLING: NEXT 2 ; PREVIOUS 3
MODIFY SETTINGS DATA: INCREASE 4; DECREASE 5
CONFIRM ACCESS MENU
BASIC INSTRUCTIONS
The following recommendations must be followed the rst times the
stove is ignited:
Faint smells may be produced due to the drying of the paints
and silicones used. Do not remain in the environment for long
periods.
Do not touch the surfaces as they could still be unstable.
Air the room well several times.
The hardening of the surfaces is terminated after several
heating processes.
This appliance must not be used to burn waste.
Before lighting the stove, the following points must be veried:
The hydraulic system must be completed in compliance with
the guidelines of the regulations and the manual.
The tank must be full of pellets
The combustion chamber must be clean
The burn pot must be completely free and clean
Check the hermetic closure of the re door and the ash drawer
Check that the power supply cable is connected correctly
The bipolar switch in the rear right part must be positioned on 1.
IT IS FORBIDDEN TO USE THE APPLIANCE WITHOUT THE DIVIDER AND/
OR GLASS PROTECTION SEE THE FIGURE TO THE SIDE.
ITS REMOVAL JEOPARDISES THE SAFETY OF THE PRODUCT AND
IMMEDIATELY VOIDS THE WARRANTY PERIOD.
IN THE EVENT OF WEAR OR DETERIORATION CONTACT THE ASSISTANCE
SERVICE TO REPLACE THE PART
THE REPLACEMENT IS NOT COVERED BY THE PRODUCT WARRANTY
AS IT IS A PART SUBJECT TO WEAR.
BURN POT DIVIDER
GLASS PROTECTION
YEAR
MONTH
DATE
MINUTES
HOURS
DAY
REPEAT THE SAME STEPS FOR
THE OTHER 3 TIME SLOTS
SET PRG1
07°C
MONDAY PRG1...
ONOFF
STOP PRG1
START PRG1
...SUNDAY PRG1
ONOFF
CONFIRM
WITH KEY 6
DISPLAY
PELLETS
IN %
V1 AIR
TANGENTIAL
STAND BY
KEYS LOCKED
V2 AIR
DUCTING
RESET
IT,EN,FR,DE,ES,PT
ENABLE CHRONO
PROG. 1 - 2 - 3 - 4
ON/OFF
SET CLOCK
SET CHRONO
LANGUAGE
USER
TECHNICIAN SET
QUALIFIED TECHNICIAN USE
ONLY
ENABLE CHRONO
Page 16
16
ENGLISH
If the remote control is o because it has no batteries, the stove can be controlled from the control panel on top of it.
While replacing the battery, pay attention to the polarity by observing the symbol on the inside compartment of the remote
control.
The batteries used contain metals harmful for the environment. They must therefore be disposed of separately in appropriate
containers.

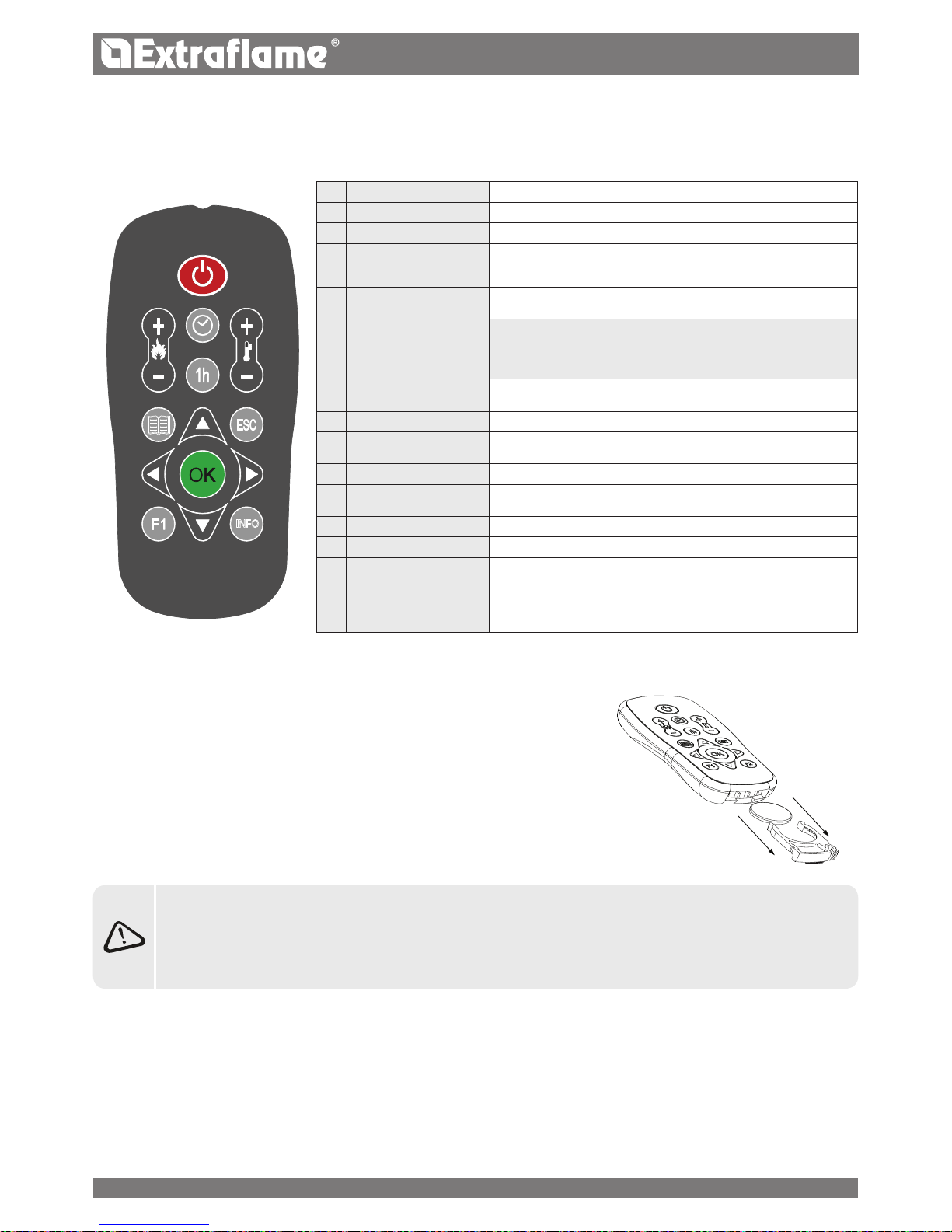

THE REMOTE CONTROL
All that can normally be implemented through the LCD can be adjusted using the remote control.
The table below provides a detailed description of the various functions:
INFO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1 ON / OFF Pressing the key for three seconds, the stove will switch on or o
2 POWER INCREASE Pressing the key will increase the operating power
3 POWER DECREASE Pressing the key will decrease the operating power
4 T° INCREASE The temperature setting can be increased by pressing this key
5 T° DECREASE The set temperature can be decreased by pressing this key
6
ENABLE / DISABLE
CHRONO
Pressing the key once will enable or disable the chrono
7
DELAYED SWITCHOFF
ENABLING
The delayed switch-o can be set by pressing this key.
For example, if the stove is set to switch-o in an hour, it shall switch-o
automatically once the set time elapses, displaying the countdown every
minute for delayed automatic shutdown.
8 MENU
This key allows to access the user and technical menu (the technical
menu is reserved for assistance)
9 INCREASE The temperature setting can be increased by pressing this key
10 ESC KEY
The key allows the user to exit any program or display and returns to the
main menu without saving the data
11 BACK The key returns to the display of the various menus
12 CONFIRMATION KEY
This key conrms the adjustments made during the user menu
programming phase
13 FORWARD The key allows to go forward in the various menus
14 ENABLE FUNCTION F1 Pre-set key for future applications
15 DECREASE The key decreases the value to be set
16 STOVE STATUS Pressing this key will display the general status of the stove
TYPE AND REPLACEMENT OF BATTERIES
The batteries are housed in the lower part of the remote control.
To replace them, remove the battery holder (as indicated in the gure at the back of the
remote control), remove or insert the battery following symbols on the remote control and
on the battery.
For operation, 1 CR2025, 3V lithium buer battery is required.
Important note: the numbers shown on the remote control are purely indicative and are not present on the remote control supplied with the product.

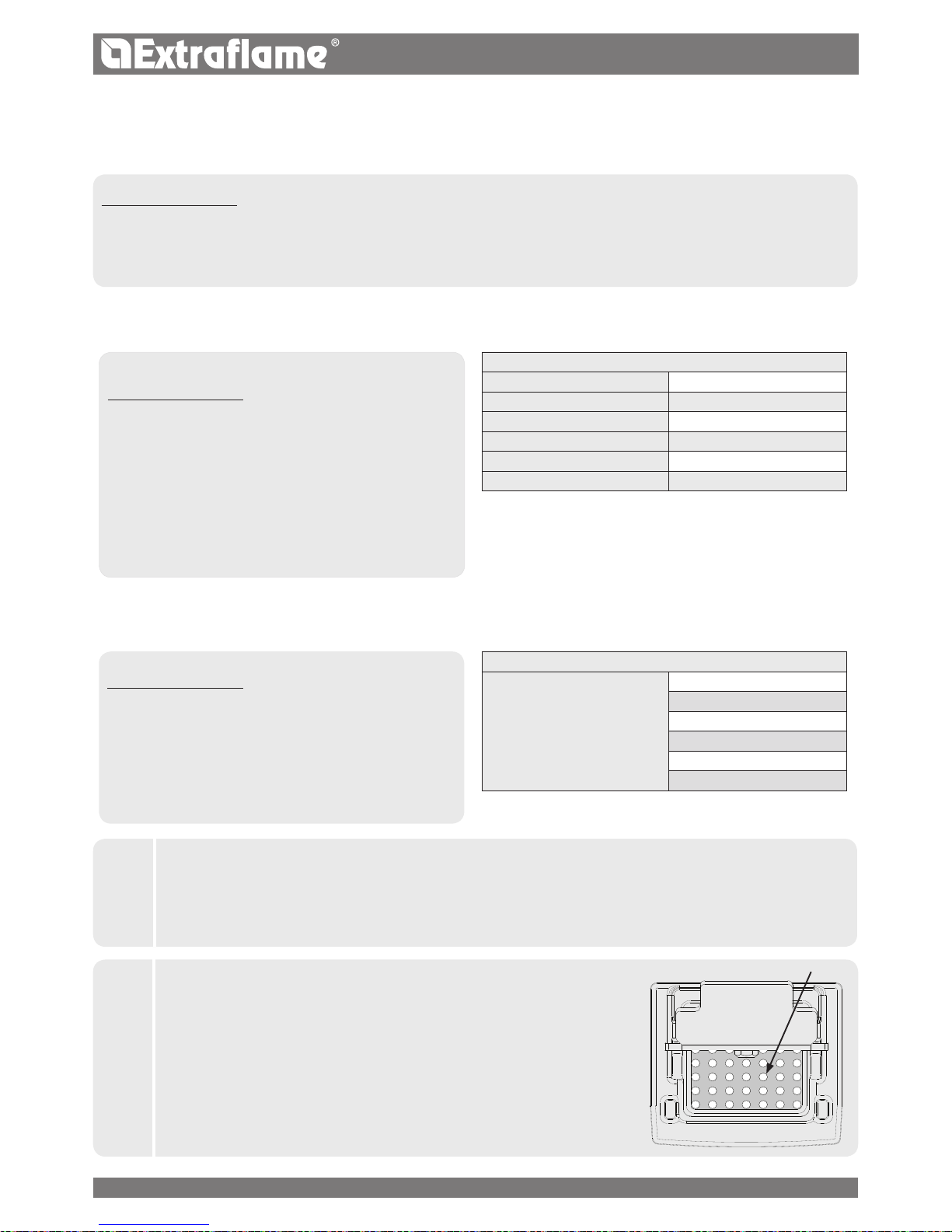

COMMISSIONING SETTINGS
Once the power cable at the back of the stove has been connected, move the switch, also located on the back, to (I).
The switch at the back of the stove powers the stove board.
The stove remains o and a rst screen appears on the panel reading OFF.
Page 17
17
ENGLISH
J
CLEAN CHECK UP 1 2
IN THE EVENT THE "NO FLOW ALARM ALL CLEAN CHECK UP" ALARM IS
TRIGGERED, MAKE SURE THAT THE BOTTOM OF THE BURN POT IS FREE FROM
RESIDUES OR SCALES. THE HOLES AT THE BOTTOM MUST BE COMPLETELY
FREE TO GUARANTEE CORRECT COMBUSTION. ONE CAN USE THE "PELLET
FEED REGULATION" TO ADJUST COMBUSTION ACCORDING TO THE
DESCRIBED REQUIREMENTS. IF THE ALARM PERSISTS AND THE ABOVE LISTED
CONDITIONS HAVE BEEN CHECKED, CONTACT THE QUALIFIED AFTERSALES
ASSISTANCE CENTRE.
ADJUSTING TIME, DAY, MONTH AND YEAR
Set clock allows to adjust the time and date
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Confirm using key 6.
Use keys 4 and 5 to select the day.
Proceed by pressing key 2.
With the same procedure, use keys 4 or 5 to set and key 2 to
move forward, to adjust the hours, minutes, day, month and year
Press key 6 to conrm and key 1 to return to the previous
menus up to the initial status.
SET CLOCK
DAY MON, TUE, WED, ...SUN
HOURS 0...23
MINUTES 00...59
DAT E 1...31
MONTH 1...12
YEAR 00...99
ADJUSTING LANGUAGE
It is possible to select the preferred language to display the various messages.
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 until SET LANGUAGE appears.
Conrm using key 6.
Select the language using key 4 or 5.
Press key 6 to conrm and key 1 to return to the previous
menus up to the initial status.
SET LANGUAGE
LANGUAGE
ITALIAN
ENGLISH
GERMAN
FRENCH
SPANISH
PORTUGUESE
J
NO IGNITION
FIRST IGNITION COULD EVEN FAIL AS THE AUGER IS EMPTY AND IS NOT ALWAYS ABLE TO LOAD THE BURN POT WITH
THE REQUIRED AMOUNT OF PELLETS ON TIME TO REGULARLY START THE FLAME.
IF THE PROBLEM OCCURS AFTER ONLY A FEW MONTHS WORKING, CHECK THAT ROUTINE CLEANING STATED IN THE
STOVE BOOKLET, HAS BEEN CARRIED OUT CORRECTLY.
MAINS FREQUENCY 50/ 60HZ
In the event the stove is installed in a country with 60Hz frequency, the stove will display "incorrect line frequency" ("mains frequency
incorrect").
Vary the frequency as described below.
CONTROLS PROCEDURE
Press key 6,
Select the frequency required using key 4 or 5.
Press key 6 to conrm and key 1 to return to the previous menus up to the initial status.
Page 18
1 2
3
4
5
OFF
22.5°C 14:10
6
18
ENGLISH
OPERATION AND LOGIC
IGNITION
Once the points listed previously have been checked, press key 1 for three seconds to ignite the stove. 15 minutes are given for the ignition
stage, after ignition and once the control temperature has been reached, the stove interrupts the ignition phase and switches to the START-UP
mode.
STARTING
During the start-up stage, the stove stabilises combustion, increasing it gradually, to then start ventilation and switch to the WORK mode.
WORK
During the work stage, the stove reaches the set power and works to reach the set room temperature. See following item.
SET THERMOSTAT ADJUSTMENT
The room temperature setting can be set using buttons 4 and 5, from Low-07 to 40°C -Hot
LOW HOT
If the temperature setting is on “Low” (set below the 7°C threshold) the stove will always function at minimum.
If the setting is on “Hot” (set above the 40°C threshold) the stove will not modulate, always functioning and only at the set power.
SET POWER ADJUSTMENT
Set the functioning power from 1 to 5 (settable using keys 2 - 3).
Power 1 = minimum level - Power 5 = maximum level.
WORK WITH ROOM PROBE STANDARD
The appliance controls the room temperature via a probe tted on the appliance.
Once the the set temperature has been reached, it will automatically go to minimum or switch o activating the Stand by function, reducing
pellet consumption to a minimum.
By default the STBY function is always set on OFF (light
on).
For its activation and logic, follow the indications on the next page, chapter: Stand by.
BURN POT CLEANING
During the work stage, the stove has an internal counter which cleans the burn pot after a set amount of time.
This stage will be shown on the display, it will bring the stove to a lower power level and will increase the fumes motor for a programmed
amount of time.
When the cleaning stage is nished, the stove will continue its work, going back to the selected power level.
SWITCHOFF
Press key 1 for three seconds.
When the operation has been performed, the appliance automatically enters the switch- o phase, blocking the supply of pellets.
The fumes motor and the hot air ventilation motor will remain on until the temperature of the stove has dropped below the factory
parameters.
REIGNITION
The stove can only be re-ignited if the ue gas temperature has lowered and the preset timer has been reset to zero.
DO NOT USE ANY INFLAMMABLE LIQUIDS FOR IGNITION!
DO NOT ALLOW THE BAG OF PELLETS TO COME INTO CONTACT WITH THE BOILING HOT STOVE DURING THE FILLING
PHASE!
IN THE EVENT OF CONTINUOUS NO IGNITION, CONTACT AN AUTHORISED TECHNICIAN.
Page 19
19
ENGLISH
PELLET FEED REGULATION
The following menu allows to adjust the percentage of pellet feed.
If the stove has functioning problems owing to the quantity of pellets, adjust pellet feeding directly from the control board.
The problems correlated to the amount of fuel can be divided into 2 categories:
NO FUEL:
USER MENU
DISPLAY
This menu allows to adjust the brightness of the display. By default set on OFF, the display and keys backlight will switch o after a preset
delay.
The back light will go on as soon as a key is pressed or if an alarm should be triggered in the machine.
By setting between 10 and 31, adjust the lighting intensity of the display (10 = minimum brightness, 31 = maximum brightness) and the
backlight always stays active.
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 several times until USER is displayed.
Press key 6.
"DISPLAY" will appear.
Use keys 4 -5 to select the brightness of the display.
Press key 6 to conrm and key 1 to return to the previous menus
up to the initial status.
2
2
OFF
22.5°C 14:10
2
2
OFF
22.5°C 14:10
INSTALLATION MUST BE PERFORMED BY QUALIFIED STAFF AND/OR THE MANUFACTURER'S TECHNICAL AFTER
SALES ASSISTANCE
J
THERE ARE TWO STOVE OPERATING MODES, WHICH ARE DIFFERENT ACCORDING TO THE STAND BY FUNCTION. SEE
“STAND BY” CHAPTER.

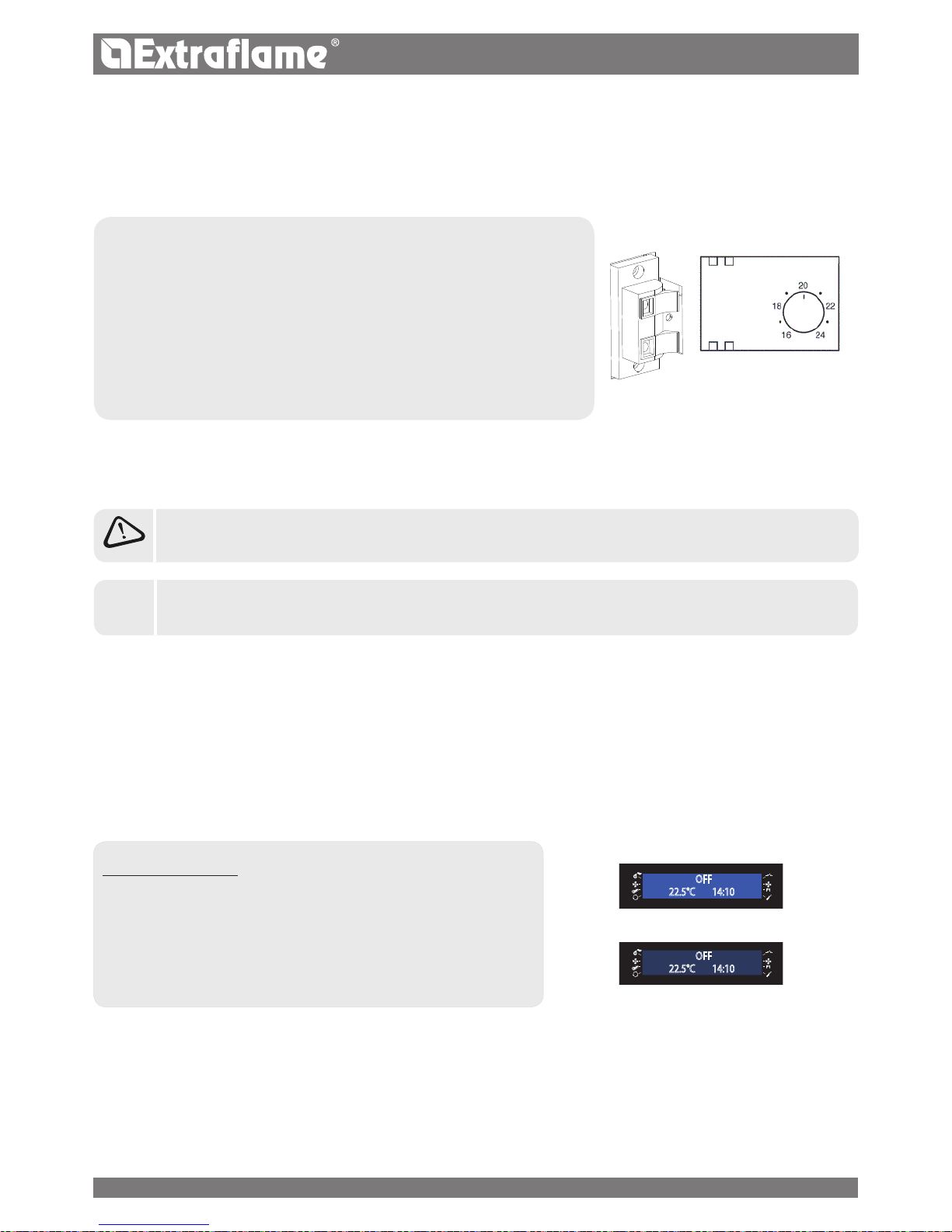

ADDITIONAL THERMOSTAT OPTIONAL
The appliance can control the room temperature using an additional external thermostat (optional).
After ignition (pressing key 1 or via chrono mode), the stove will work to reach the setting set on the thermostat, displaying
WORK (contact
closed). The standard room probe is automatically ignored.
When the room temperature has been reached (open contact) the stove will go to minimum, displaying
MODULATION.
TO INSTALL AND ENABLE IT:
A mechanical or digital thermostat is required.
Remove the plug from the socket.
Referring to the gure to the side, connect the two thermostat wires (dry contact - not
220 V!) on the relative terminals at the back of the machine, one is red and the other
one is black.
Power the stove.
Press key 5, setting the temperature on LOW.
The stove is now congured correctly.
It will work controlling the additional external thermostat.
Page 20
20
ENGLISH
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 several times until USER is displayed.
Press key 6.
"DISPLAY" will appear.
Press key 2 until "PELLET" appears.
Use keys 4 - increase 5 to(4) or decrease (5) the load during the WORK stage.
Press key 6 to conrm and key 1 to return to the previous menus up to the
initial status.
V1 AIR
The menu allows to adjust the speed of the front fan in percentage.
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 several times until USER is displayed.
Press key 6.
"DISPLAY" will appear.
Press key 2 until "V1 AIR" appears.
Use keys 4 -5 to increase (4) or decrease (5)
Press key 6 to conrm and key 1 to return to the previous menus up to the
initial status.
1
the stove can never develop a suitable ame, tending to remain very low even at high powers.
at minimum power the stove tends to almost switch-o taking the stove into “NO PELLETS” alarm condition.
when the stove displays the “NO PELLETS” alarm, there may be non-burned pellets inside the burn pot.
EXCESS FUEL:
the stove develops a very high ame even at low power.
the panoramic glass is very dirty, obscuring it almost totally.
the burn pot tends to become encrusted, blocking the holes for air intake due to the excessive pellet feed, as it is only burned partially.
The adjustment to be performed is in percentage. Therefore changing this parameter will lead to a proportional variation of all stove feeding
speeds. Feeding is from -20% to +30%.
Follow the procedure on the display to perform the procedure:
STAND BY
STAND BY WITH DIGITAL THERMOSTAT STANDARD
STBY FUNCTION SET AT ON
If the Stby function is active (ON), when the stove reaches the set room temperature and exceeds it by 2°C, it will switch o after a default delay
time, displaying stand - by.
When the room temperature is 2°C lower than the setting and once the stove has cooled, it will start to work again at the set power and
displaying work.
STBY FUNCTION SET AT OFF DEFAULT SETTING
Page 21
21
ENGLISH
If the Stby function is not active (OFF), if the stove reaches the set room temperature, it will go to minimum, modulating and displaying
modulate. When the room temperature is below the setting, it will start to work again at the set power and displaying work.
STAND BY WITH ADDITIONAL THERMOSTAT
The STBY function is used if immediate stove switch-o is required when the set temperature has been reached.
By default the STBY function is always set on OFF (light
on).
• STBY FUNCTION SET AT OFF DEFAULT SETTING
If the STBY function is not active (OFF), if the stove reaches the set room temperature, it will go to minimum, modulating and displaying
MODULATION. When the room temperature is below the setting, it will start to work again at the set power and displaying WORK.
• STBY FUNCTION SET AT ON
When the STBY function is activated (ON), the stove, upon reaching the set room temperature and exceeding it by 2°C, will switch o after
a pre-set default delay, displaying STAND - BY.
When the room temperature is 2°C lower than the setting, the stove will start to work again at the set power displaying WORK.
CONTROLS PROCEDURE
Press key 6 and SET CLOCK WILL APPEAR.
Press key 2 several times to reach SET USER.
Conrm using key 6.
Press key 2 several times to reach STANDBY.
Using key 4 or 5 select at ON.
Press key 6 to conrm and key 1 to return to the previous menus up to the
initial status.
The STANDBY function is active
KEYS LOCKED
The menu allows to lock the display keys (like with mobile phones).
With the function engaged, every time a key is pressed, “KEYS LOCKED” will appear.
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 several times until USER is displayed.
Press key 6.
"DISPLAY" will appear.
Press key 2 until "KEYS LOCKED" appears.
Use keys 4 -5 to select enable/disable.
Press key 6 to conrm and key 1 to return to the previous menus up to the
initial status.
J
ONCE THE FUNCTION IS ACTIVATED, USE KEYS 1 AND 5 AT THE SAME TIME TO LOCK OR UNLOCK THE KEYBOARD
Page 22
22
ENGLISH
CHRONO
The chrono allows to program 4 time spans within a day to use every day of the week.
The switch-on and switch-o time can be set in every time slot, along with the days of use of the programmed time slot and the
desired room temperature (07 - 40°C).
RECOMMENDATIONS
The ignition and switch-o times must be within the arc of one day,
from 0 to 24 and not over several days:
Before using the chrono function, set the current day and time.
Therefore check that the points listed in the “Set clock” sub-chapter
have been followed, so that the chrono function works. Aside from
programming it, activate it as well.
EXAMPLE:
SWITCHON TIME 07:00
SWITCHOFF TIME 18:00
CORRECT
IGNITION 22:00 SWITCH
OFF 05:00
INCORRECT
V2 AIR
The menu allows to adjust the speed of the ducted fan in percentage.
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 several times until USER is displayed.
Press key 6.
Press key 2 until "V2 AIR" appears.
Use keys 4 -5 to increase (4) or decrease (5)
Press key 6 to conrm and key 1 to return to the previous menus up to the
initial status.
2
ENABLE CHRONO
It allows to enable/disable the chrono and the various time slots.
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 several times until ENABLE CHRONO is displayed.
Press key 6, to conrm and use keys 4-5 to enable "ON" or disable "OFF" the chrono.
Use keys 2 -3 to select the desired time slot
Use keys 4-5 to enable "ON" or disable "OFF" the selected time slot.
Press key 1 several times to conrm and exit the menu.
RESET
Allows to reset all values modiable by the user to the default values. The modied data is the following:
CONTROLS PROCEDURE
Press key 6 and SET CLOCK will appear.
Press key 2 several times until USER is displayed.
Press key 6.
Press key 2 until "RESET" appears.
Press keys 4-5 to select ON and press key 6.
"DONE" will appear on the display to conrm
Page 23
23
ENGLISH
*2ND TIME SLOT SWITCHON
At this point, the second time slot must be programmed.
The sequence to be followed is the same and is repeated as per the 1ST TIME SLOT SWITCHON.
On this occasion simply enter the time, for example start at 15:00 and Stop at 22:00 and to activate the days Saturday and Sunday by setting
them at "ON".
J
WHEN THE WEEKLY PROGRAMMER IS ACTIVE, A BOX OF THE RELATIVE ICON WILL APPEAR ON THE
CONTROL BOARD.
PROGRAMMING EXAMPLE
Let's suppose that the weekly Programmer function is to be used and 4 time slots are to be used in the following way:
- 1st time slot: from 08:00 to 12:00 every day of the week, with room temperature at 19°C, excluding Saturday and Sunday
- 2nd time slot: from 15:00 to 22:00 only on Saturday and Sunday, with room temperature at 21°C
CONTROLS PROCEDURE:
Press key 6 and SET CLOCK will appear.
Press key 2 until enable chrono appears
Enable the chrono
Enable slot 1 and 2.
Press key 1 to exit
SET
CLOCK
ENABLE
CHRONO
1ST TIME SLOT SWITCHOFF
Use keys 4 - 5 to enter the time “12:00”,
which corresponds to the switch-o time of
the 1st time slot.
To conrm and continue programming,
press button 6. Press button 3 to go back to
the previous parameter.
STOP PRG1
12:00
* Where “ENABLE CHRONO” is not present
in the menu, enabling is done directly in
SET CHRONO.
CONTROLS PROCEDURE:
Press key 2 and SET CHRONO will appear.
CHRONO
SETTING
ENABLING THE 1ST TIME SLOT DAYS
To enable/ disable the days use keys 4 and
5; key 2 and 3 to scroll the various days, the
day of the week will appear, followed by
OFF
select from Monday to Friday on ON,
excluding Saturday and Sunday (OFF)
MONDAY..PRG1
ONOFF
Press key 6 to conrm and continue
programming.
START PRG1 OFF will appear.
START PRG1
OFF
1ST TIME SLOT H2O TEMPERATURE
SETTING
Press key 6 to conrm and continue
programming.
Using buttons 4 - 5 select the desired
temperature.
(Low -07 - 40°C Hot)
To conrm and proceed press key 6.
SET PRG1
19°C
1ST TIME SLOT SWITCHON
Use keys 4 - 5 to enter the time “08:00”,
which corresponds to the switch-on time of
the 1st time slot.
To conrm and continue programming,
press button 6. Press button 3 to go back to
the previous parameter.
START PRG1
08:00
2ND TIME SLOT SWITCHON*
At this point, the second time slot must be
programmed.
The sequence to be followed is the same
and is repeated as per the 1ST TIME SLOT
SWITCHON.
START PRG2
OFF
Page 24
24
ENGLISH
SCRAPERS:
Use the scrapers, moving upwards (for models with upper scrapers) or pulling and pushing them (for the inserts and models with front
scrapers).
Please note: scrapers are preferably used when the stove is cold; if used when the stove is hot, it is recommended to use special
gloves to protect against the heat as they can get very hot.
DAILY
CLEANING AND MAINTENANCE
ALWAYS FOLLOW THE INSTRUCTIONS IN MAXIMUM SAFETY CONDITIONS!
Make sue the power cable is unplugged since the generator could be programmed to start.
That the generator is cold in its entirety.
The ashes are completely cold.
Ensure an eective exchange of air in the room during the cleaning of the product.
A poor cleaning is detrimental to the proper functioning and safety!
MAINTENANCE
For correct operation, the generator must undergo routine maintenance by a qualified technician at least once a year.
The routine checks and maintenance operations must always be performed by qualified trained technicians in accordance with the applicable
regulations in force and with the instructions provided in this use and maintenance manual.
EVERY YEAR MAKE THE EXHAUST FUMES, SMOKE DUCTS AND "T"FITTINGS, INCLUDING CAPS AND INSPECTION
DOORS BE CLEANED IF ANY CURVES AND ANY HORIZONTAL SECTIONS!
THE CLEANING OF THE GENERATOR FREQUENCY IS APPROXIMATE! THEY DEPEND ON THE QUALITY OF THE PELLETS
USED AND THE FREQUENCY OF USE.
IT CAN HAPPEN THAT THESE OPERATIONS SHOULD BE PERFORMED MORE FREQUENTLY.
CLEANING AND MAINTENANCE BY THE USER
Routine cleaning operations, as specified in this use and maintenance manual, must be performed with the utmost care according to the
instructions, procedures and frequency intervals described in this use and maintenance manual
CLEANING THE SURFACES AND COVERING
Never use abrasive or chemically aggressive detergents for cleaning!
The surface cleaning must take place when both the generator and the coating are completely cold. For the maintenance of surfaces and
metal parts, simply use a damp cloth with water or mild soap and water.
Failure to observe the instructions may damage the surface of the generator and invalidate the warranty.
CLEANING THE CERAMIC GLASS
Never use abrasive or chemically aggressive detergents for cleaning!
The cleaning of the ceramic glass is allowed only when the latter is completely cold.
To clean the ceramic glazing, simply use a dry brush and some damp newspaper dabbed in the ash. If the glazing is very dirty, only use a
specic ceramic glazing detergent. Spray a modest amount onto a cloth and wipe the ceramic glazing.
Do not spray cleaner or any other liquid directly on the glass or on the gaskets.
Failure to observe the instructions may damage the surface of the ceramic glass and invalidate the warranty.
CLEANING THE TANK PELLETS
When the tank empties completely, unplug the power cord from the generator and remove residues (dust, chips, etc..) from the tank empty,
before lling it.
Page 25
1. 2. 3.
3.1 3.1
4.
5. 6.
25
ENGLISH

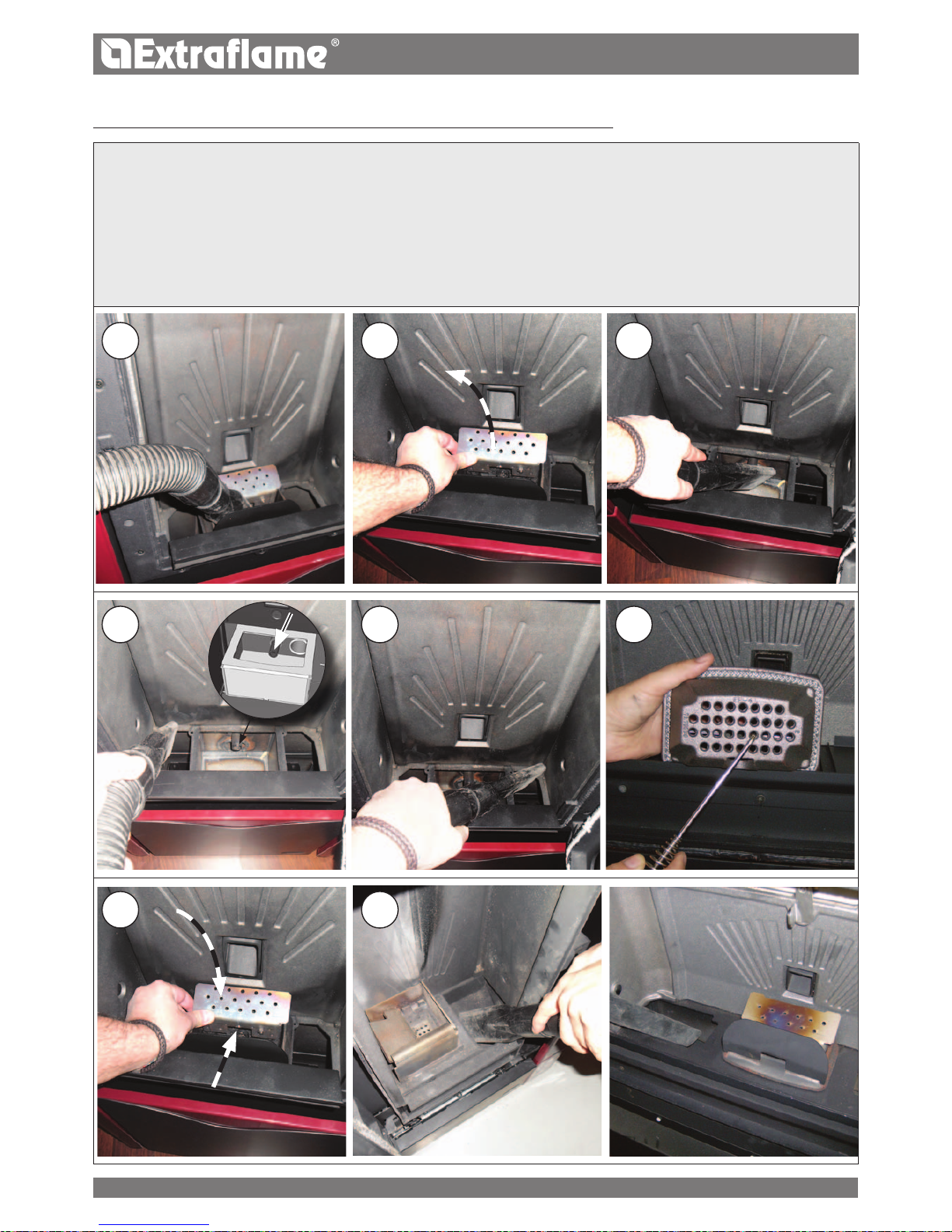

CLEANING THE BURN POT AND COMBUSTION CHAMBER
1. Vacuum the residues in the burn pot
2. Take out the burn pot from the designated compartment;
3. Vacuum the ash from the burn pot's seat and the combustion chamber (3.1)
4. Use the special poker supplied to clear the holes in the burn pot.
5. Place back the burn pot and push it towards the hearth wall.
6. If there is an ash collector tray, vacuum the ash deposits
PLEASE NOTE: USE A SUITABLE VACUUM CLEANER WITH A SPECIAL CONTAINER TO SEPARATE THE COLLECTED ASH.
Open the door - Clean the glass with a damp cloth
Never spray the detergent or any other liquid used for cleaning directly on the ceramic glass
Page 26
26
ENGLISH
EVERY 3/4 DAYS WEEKLY
MONTHLY
ASH DRAWER
Every 3-4 days check the ash drawer and empty it at least one/twice a week.
If there is a lower door, open/remove it.
Take out the removable ash drawer and empty it in a special container.
Vacuum the area underneath the removable ash drawer. Once you have cleaned it, place back the removable drawer and close/place back
the external door.
In some stoves the ash collector tray is located in the combustion chamber. In this case, just open the door and vacuum the ash from the
tray.

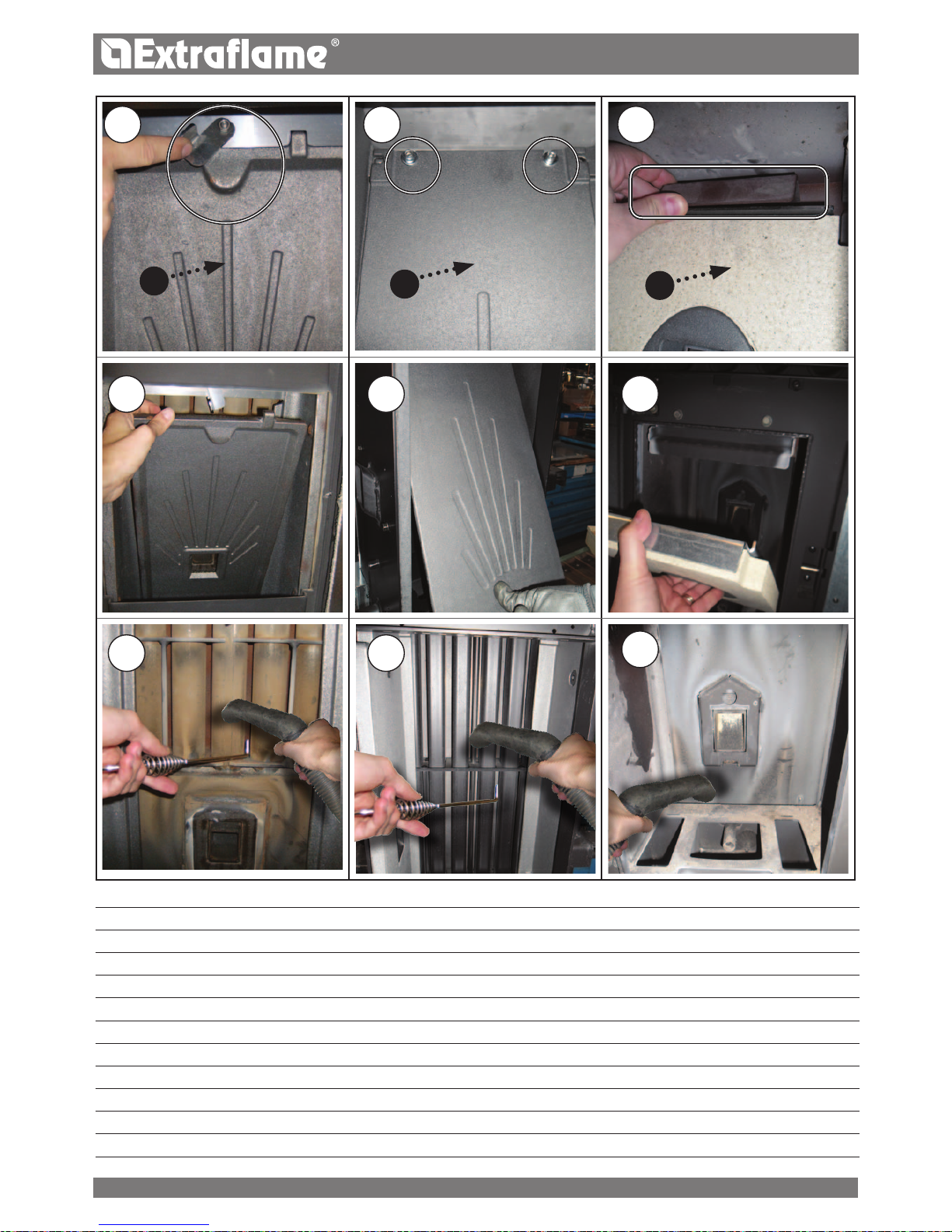

CLEANING THE HEAT EXCHANGER:
The heat exchangers chamber must be cleaned every month as the soot deposited on the rear of the hearth wall obstructs the regular ow
of fumes, thereby aecting the performance and regular operation of the stove.
Open the door to access the combustion chamber. Take out the burn pot.
Remove or rotate, depending on the model, the upper lockbolt (A) the screws (B) or the wall lock (C) of the hearth wall (D), take out the
hearth wall (E) and clean with the poker and a suitable vacuum cleaner (F).
When cleaning has been completed, reposition the removable hearth wall (D) and secure it again with the designated screws by turning the
lockbolt in the opposite direction in relation to the one used to remove it or by placing back the hearth wall lock.
Place back the burn pot.
Page 27
A B C
E
E E
F F
D
F
D
D
27
ENGLISH
Page 28
A
C
D
B
E
F
D
28
ENGLISH
The images are for illustration purposes
ROUTINE MAINTENANCE CARRIED OUT BY AUTHORISED TECHNICIANS
Routine maintenance must be performed at least once a year.
As the generator uses pellets as solid fuel, it needs an annual routine maintenance interval that needs to be performed by an authorised
Technician by only using original spare parts.
Failure to do so can aect the appliance's safety and you may no longer be entitled to the warranty conditions.
By following the cleaning schedule reserved to the user and reported in the user and maintenance manual, one ensures correct combustion
in the generator over time, thereby preventing any anomalies and/or malfunctions that may require more work to be performed by the
technician. Requests for routine maintenance are not covered by the product's warranty.
DOOR, ASH DRAWER AND BURN POT GASKETS
The gaskets ensure the tightness of the stove and its consequent proper operation.
They must be checked periodically: in the event they are worn or damaged they must be replaced immediately.
These operations must be carried out by a qualied technician.
CONNECTION TO THE FLUE
Vacuum and clean the pipe that leads to the ue yearly or whenever necessary. If there are horizontal sections, any residue must be removed
before it obstructs the ue.
PUTTING THE EQUIPMENT OUT OF SERVICE END OF THE SEASON
At the end of every season, before turning o the stove, we recommend completely emptying the pellet tank and using a vacuum cleaner to
clear up any pellets and dust residue inside it.
You should also disconnect the generator from the mains and, to ensure greater safety especially if there are any children around, remove the
power supply cable.
Routine maintenance must be performed at least once a year.
IF THE POWER SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY THE AFTERSALES SERVICE OR BY A SIMILARLY
QUALIFIED PERSON, SO AS TO AVOID ALL RISKS.
A
Fumes motor (disassembly and cleaning and fumes pipe), new silicone in required points
B
Inspection of gaskets, ash drawer and burn pot door (replace them and apply silicone where required)
C
Combustion chamber (total cleaning of the entire chamber) and ignition plug pipe cleaning
D
Tank (complete emptying and cleaning)
E
Room air fan disassembly and removal of dust and any pellet debris
F
Air intake pipe inspection and any ow sensor cleaning
Page 29
29
ENGLISH
ALARMS
DISPLAY EXPLANATION SOLUTION
1
1
1
1
The xed triangle on the display and
key 1 ashing slowly indicate the
presence of an alarm.
On and ashing: indicates the presence of an alarm
The alarm can be reset by pressing button 3 for 3 seconds only if
the fumes motor has stopped and if 15 minutes have elapsed from
when the alarm was displayed.
DISPLAYS
DISPLAY REASON
Off
Stove o
START
The start phase is in progress
PELLET fEEDINg
Pellet feeding during the ignition phase is in progress
IgNITION
The ignition phase is in progress
START-UP
The start phase is in progress
WORk
The normal work phase is in progress
MODULATION
The stove is modulating
BURN POT CLEANINg
The automatic burn pot cleaning is in progress.
fINAL CLEANINg
When the stove is switched-o, nal cleaning is in progress. The nal cleaning phase lasts about 10
minutes.
STAND BY
Stove o due to temperature reached and in stand-by for re-ignition.
STAND BY EXT
Stove o due to an external thermostat, in stand-by for re-ignition
COOLINg STAND-BY
A new ignition is attempted when the stove has just been switched o. When the stove switches o, one
must wait for the complete shutdown of the fumes motor, then clean the burn pot.
The stove can only be re-ignited when these operations have been performed.
COOL. STDBY
BLACk OUT
The stove is cooling due to black out
LOW
Room thermostat set at minimum value.
In this mode the stove only works at 1st power independently from the power set. To exit this function
just raise the room temperature using button 4 and then key 2.
HOT
Room thermostat set at maximum value.
The stove works at the set speed, without ever modulating. To exit this function just lower the set
temperature using button 4 and then key 1.
PELLETS
LOW
The "PELLETS LOW" message combined with key 1 ashing slowly indicates that the pellets tank is at
minimum.
With the machine switched o and fully cooled down, load the pellets tank.
1
Page 30
30
ENGLISH
Indicates the presence of an alarm.
On: indicates the presence of an alarm
O: indicates the absence of alarms
Flashing: indicates the deactivation of the depression sensor.
The alarm can be reset by pressing button 1 for 3 seconds only if
the fumes motor has stopped and if 15 minutes have elapsed from
when the alarm was displayed.
ASPIRAT - fAULTY
Fault correlated to the ue gas
exhaust motor.
The restoration operations must be carried out by an authorised
technician.
fUMES PROBE
Fault correlated to the fumes probe.
The restoration operations must be carried out by an authorised
technician.
ALARM
fUMES OvERHEATINg
The ue gas temperature has
exceeded 310°C
Check pellet ow (see “Pellet feed adjustment”).
Check that the machine is clean, including the fumes passage.
Do not rest cloths on the machine.
Other restoration operations must be carried out by an authorised
technician.
CLEAN CHECk UP 1 - 2
(1 = IN START-UP STAgE)
(2= IN OPERATINg STAgE)
The combustion chamber or burn pot
bottom are dirty.
The door is not closed correctly.
The ash drawer is not closed
correctly.
The depression sensor is faulty.
The ue exhaust pipe is blocked.
Incorrect installation
Make sure the holes at the burn pot bottom are completely free.
Check cleanliness of the fumes pipe and the combustion chamber.
Check hermetic door closure.
Check hermetic closure of the ash drawer.
Other restoration operations must be carried out by an authorised
technician.
DEPR ALARM
The mechanical depression sensor
has tripped
Contact after-sales centre
NO
IgNITION
The pellet feed-box is empty.
Pellet feed calibration inadequate.
Incorrect installation
Check for the presence of pellets in the feed-box.
Adjust pellet ow (see “Pellet feed adjustment”).
Check the procedures described in the “Ignition” chapter.
Other restoration operations must be carried out by an authorised
technician.
BLACk-OUT NO IgN.
No current during the ignition phase.
Set the stove on OFF using key 1 and repeat the procedure
described in the "Ignition" chapter.
Other restoration operations must be carried out by an authorised
technician.
NO PELLETS
In the work phase, the t° of the ue
gases has dropped below default
parameters
Check for the presence of pellets in the feed-box.
Regulate the pellet ow.
Other restoration operations must be carried out by an authorised
technician.
COOLINg STAND-BY
Attempt to release the alarm with
stove still in cooling mode.
Every time the stove displays one of the alarms listed above it will
switch-o automatically.
The stove will block any alarm unlock attempt during this phase,
showing the alarm itself and STANDBY alternately on the display.
The alarm can be reset by pressing button 1 for 3 seconds only if
the fumes motor has stopped and if 15 minutes have elapsed from
when the alarm was displayed.
DEBIMETER
fAULT
Component disconnected or faulty Contact after-sales assistance
AUgER CONTROL
ALARM
Anomalous functioning
of pellet feeding
Contact after-sales assistance
AUgER BLOCk
Abnormal functioning
of pellet motor
Contact after-sales assistance
Page 31
31
ENGLISH
1. Extraame S.p.A. products are guaranteed, within the European community, for 24 months from the date of purchase.
Purchase has to be proved by means of a valid scal document issued by the seller (receipt, invoice or shipment document) identifying the
purchased product and its purchase and/or delivery date.
WARNING: This conventional guarantee does not replace the guarantee regulated by the European legislation on consumer rights.
The conventional guarantee is only applicable to the Italian region and to those areas, within the European Community, where the Authorised
Technical Assistance Centres are active (see the www.lanordica-extraame.com website)
It is also limited to the state of residence of the consumer, which must coincide with the premises and/or registered oce of the seller of the
Extraame S.p.A. product
These regulations do not apply if the product is purchased within commercial, entrepreneurial, or professional circumstances. In these cases
the product guarantee will be limited to a period of 12 months from the date of purchase.
ITALIAN GUARANTEE
What must be done if there is a product malfunction:
Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction is
included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. When requesting
the intervention of the Assistance service at the Authorised Assistance Centre, always specify: - type of malfunction - model of the appliance
- complete address - phone number
EUROPEAN GUARANTEE
What must be done if there is a product malfunction:
Consult the instructions manual to make sure the malfunction cannot be solved by using the product correctly. Make sure the malfunction
is included in those covered by the guarantee; otherwise the cost of the intervention will be borne entirely by the consumer. Request the
intervention of the Assistance service or the address of the Authorised Technical Assistance Centre to the seller; always specify: type of
malfunction, model of the appliance, complete address and phone number
If the malfunction arises in the rst 6 months of the product's life, the consumer has the right to have the product repaired with no expense.
From the seventh to the twenty-fourth month, if a malfunction arises, the consumer will bear the cost of the call, while the seller will pay for the
manpower and for any spare parts used.
2. If the malfunction is linked to external events and/or conditions such as, including but not limited to, insucient capacity of the systems;
wrong installation and/or maintenance by the personnel which hasn't got the skills prescribed by the laws of the country of residence of
the consumer; negligence; inability to use the product and wrong maintenance by the consumer, with respect to what is reported and
recommended by the instructions manual of the product, which is part of the sales contract, this guarantee will be void.
Damage to the product that cannot be related to manufacturing defects are also not included in this guarantee. Similarly are excluded defects
related to incorrect operation of the ue, according to the legislation in force in the country at the moment of purchase. Other exclusions
include all product defects due to carelessness, accidental breakdown, tampering and/or damage during transport (scratches, dents, etc.),
interventions carried out by unauthorised personnel and further damage caused by incorrect interventions by the consumer trying to arrange
the initial malfunction.
The following consumables are excluded by the guarantee: gaskets, ceramic or tempered glasses, cast iron grilles or coatings, refractory
materials (e.g. Nordiker or others), painted, chrome-plated or golden parts, majolica ware, handles, the brazier and its related components.
For Idro products the heat exchanger is not covered by the guarantee if a suitable condensation-proof circuit is not set up to ensure a return
temperature of the device of at least 55°C. The guarantee excludes all the external components on which the consumer can directly operate
during use and/or maintenance or that can be subject to wear and/or rust and stains on steel due to aggressive detergents.
If malfunctions are signalled which are not later conrmed during check by an authorised technician, the cost of the intervention will be borne
entirely by the consumer.
3. If it is not possible to restore product conformity by repairing it, the product/component will be replaced, the guarantee expiration date and
conditions will remain the same established when the product/component to be replaced has been purchased.
4. Extraame S.p.A. cannot be held liable for injury or damage which may - either directly or indirectly - be caused to persons, animals
and property ensuing from failure to observe all the instructions provided in the relevant instruction manual and the warnings regarding
installation, use and maintenance of the product, that can also be downloaded on the website.
5. Interventions for adjusting and/or regulating the product for the type of fuel or other reasons are excluded by the guarantee.
6. If the product is repaired in one of the Authorised Technical Assistance Centres indicated by Extraame S.p.A. and if the product is replaced,
transport will be free of charge. If the technician can repair the product at the user's place of residence and they refuse, transport to the
workshop and redelivery will be paid by the consumer.
7. After the 24 months of the guarantee have elapsed any repair intervention cost will be completely borne by the consumer.
8. In the case of disputes the only competent court is that of the Extraame S.p.A. registered oce - (Vicenza-Italy)
GUARANTEE TERMS
Page 32
32
ENGLISH
AddITIONAL wARNINGs
Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator.
Do not use the product as a ladder or supporting structure.
Do not place laundry on the product to dry it. Any clothes-horse or similar objects must be kept at due distance from the product.
Danger of re or damage to the coating.
The user is fully liable for any incorrect use of the product. The manufacturer bears no civil or criminal liability for incorrect use.
Unauthorised tampering of any nature or replacement of spare parts of the product with non-original parts may endanger the operator
and the manufacturer bears no civil or criminal liability for this.
Large parts of the surface of the product can get very hot (door, handle, glass, smoke outlet pipes, etc.). Please therefore avoid coming
into contact with these parts without wearing suitable protective clothing or using appropriate measures, such as heat protective gloves.
DO NOT use the product with the door open or if the glass is broken.
The product must be electrically connected to a system equipped with an operational earthing system.
Turn o the product in the event of a failure or malfunctioning.
Unburned pellets that build up in the burner following each failed start-up must be removed before attempting to start up the product
again. Make sure that the burner is clean and correctly positioned before starting it up again.
Do not wash the product with water. Water may penetrate into the unit and cause faults in the electrical insulation. This can cause
electric shocks.
Installations not complying with the regulations in force, as well as incorrect use and failure to comply with the maintenance scheduled
by the manufacturer, will invalidate the guarantee.
Page 33
33
ENGLISH
Page 34
34
ENGLISH
Page 35
35
ENGLISH
Page 36
004276732-001_MAN_UT_COMFORT_PLUS_CRYSTAL
08/11/2017
MADE IN ITALY
design & production
Extraame S.p.A. Via Dell’Artigianato, 12 36030 - MONTECCHIO PRECALCINO (VI) - ITALY
+39.0445.865911 - +39.0445.865912 - info@extraame.it - www.lanordica-extraame.com
TO FIND THE SERVICE CENTRE NEAREST TO YOU
CONTACT YOUR DEALER OR CONSULT
THE SITE WWW.LANORDICA-EXTRAFLAME.COM
The manufacturer reserves the right to vary the characteristics and the data reported in this pamphlet at any
moment and without notice, in order to improve its products.
This manual, therefore, cannot be regarded as a contract towards other parties.
Loading...
