Extraflame COMFORT, PLUS, COMFORT PLUS User Manual
Stufe a Pellet
COMFORT
Read the instructions carefully before installation, use and maintenance.
The instruction book is an integral part of the product.
User Manual
PLUS
2
3
Congratulations! You are now the owner of an Extra ame stove!
The Extra ame pellet stove is an ideal heating solution. It utilises the most advanced technology and is
manufactured to the highest standards with a contemporary design, allowing you to enjoy the ambience
and warmth of a natural ame in complete safety.
This manual tells you how to use your stove correctly. Please read the entire manual carefully before using
your stove.
IMPORTANT
Make sure that the dealer completes the following box with the details of the authorised specialist who
will help you if you have any problems in using your new pellet stove.
AUTHORISED SPECIALIST
COMPANY __________________________________________________________________
Full name __________________________________________________________________
Address ______________________________________________ No. __________________
Postal Code ____________ City __________________ County. ______________________
TEL. ________________________________ FAX __________________________________
All Extra ame products are manufactured according to the following directives:
89/106 CEE (Construction Products)
89/366 CEE (EMC Directive)
2004/108 CE (EMC Directive)
2006/95 CE (Low Voltage Directive)
And the following standards:
EN 14785
EN 60335-1
EN 60335-2-102
EN 61000-3-2
EN 61000-3-3
EN 50366
EN 55014-1
EN 55014-2
4
5
Index
Chapter 1
PRECAUTIONS AND SAFETY .................................................................................................................... 7
Chapter 2
TECHNICAL FEATURES ............................................................................................................................. 8
Chapter 3
WHAT IS THE PELLET? ............................................................................................................................. 11
PELLET STORAGE .................................................................................................................................................................. 11
PELLET FEEDING ................................................................................................................................................................... 11
OPTIONAL SUPPORT KIT WITH LATERAL PELLET FEEDING ..........................................................................12
FRONT PELLET FEEDING OPTIONAL KIT ............................................................................................................... 12
STANDARD SUPPLY ....................................................................................................................................................... 13
Chapter 4
ASSEMBLY AND INSTALLATION INSTRUCTIONS .................................................................................14
GLOSSARY ............................................................................................................................................................................... 14
INSTALLATION ........................................................................................................................................................................ 15
ADMISSIBLE INSTALLATIONS .................................................................................................................................... 15
PROHIBITED INSTALLATIONS .................................................................................................................................... 15
CONNECTION TO THE EXHAUST VENTING SYSTEM ...............................................................................................16
EXHAUST CHANNEL OR PIPE ....................................................................................................................................16
CHIMNEY OR SINGLE FLUE ........................................................................................................................................17
CONNECTION TO THE FLUE AND COMBUSTION PRODUCT EXHAUST VENTING ................................ 19

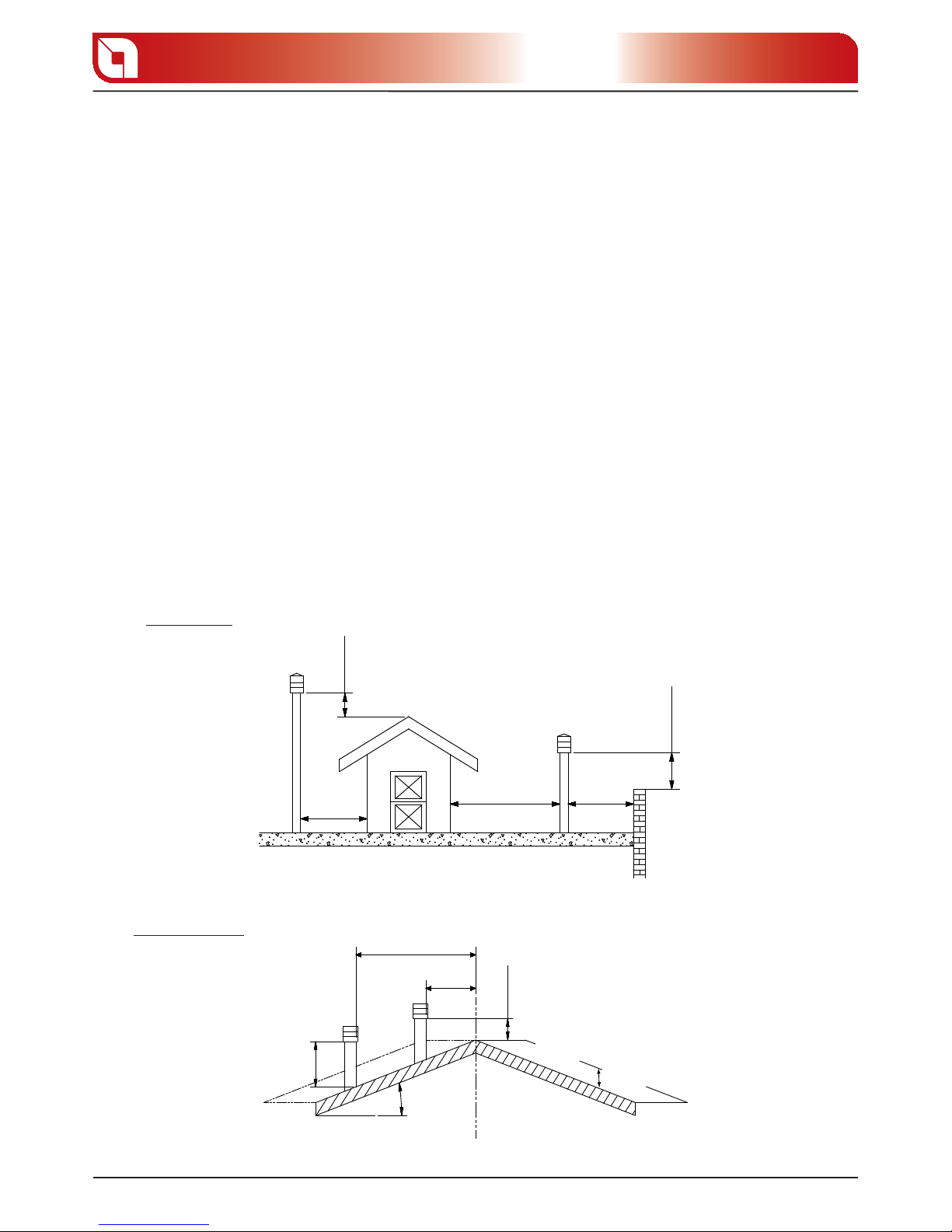

CHIMNEY CAP ................................................................................................................................................................. 19
CONNECTION TO EXTERNAL AIR INTAKES ................................................................................................................. 20
INSULATION, TRIMS, FACINGS, AND SAFETY PRECAUTIONS .............................................................................. 20
NATIONAL, REGIONAL, PROVINCIAL AND MUNICIPAL LAWS ............................................................................ 20
Chapter 5
COMFORT PLUS INSTALLATION ............................................................................................................21
ASSEMBLY ................................................................................................................................................................................ 21
ASSEMBLY ON EXISTING BASE ........................................................................................................................................ 21
PEDESTAL ASSEMBLY OPTIONAL ................................................................................................................................22
INSERT EXTRACTION ........................................................................................................................................................... 23
MOUNTING THE FRAMES .................................................................................................................................................. 23
AIR CIRCULATION PIPES ..................................................................................................................................................... 24
DUCTING .................................................................................................................................................................................. 28
Chapter 6
PRODUCT FUNCTIONALITY ...................................................................................................................29

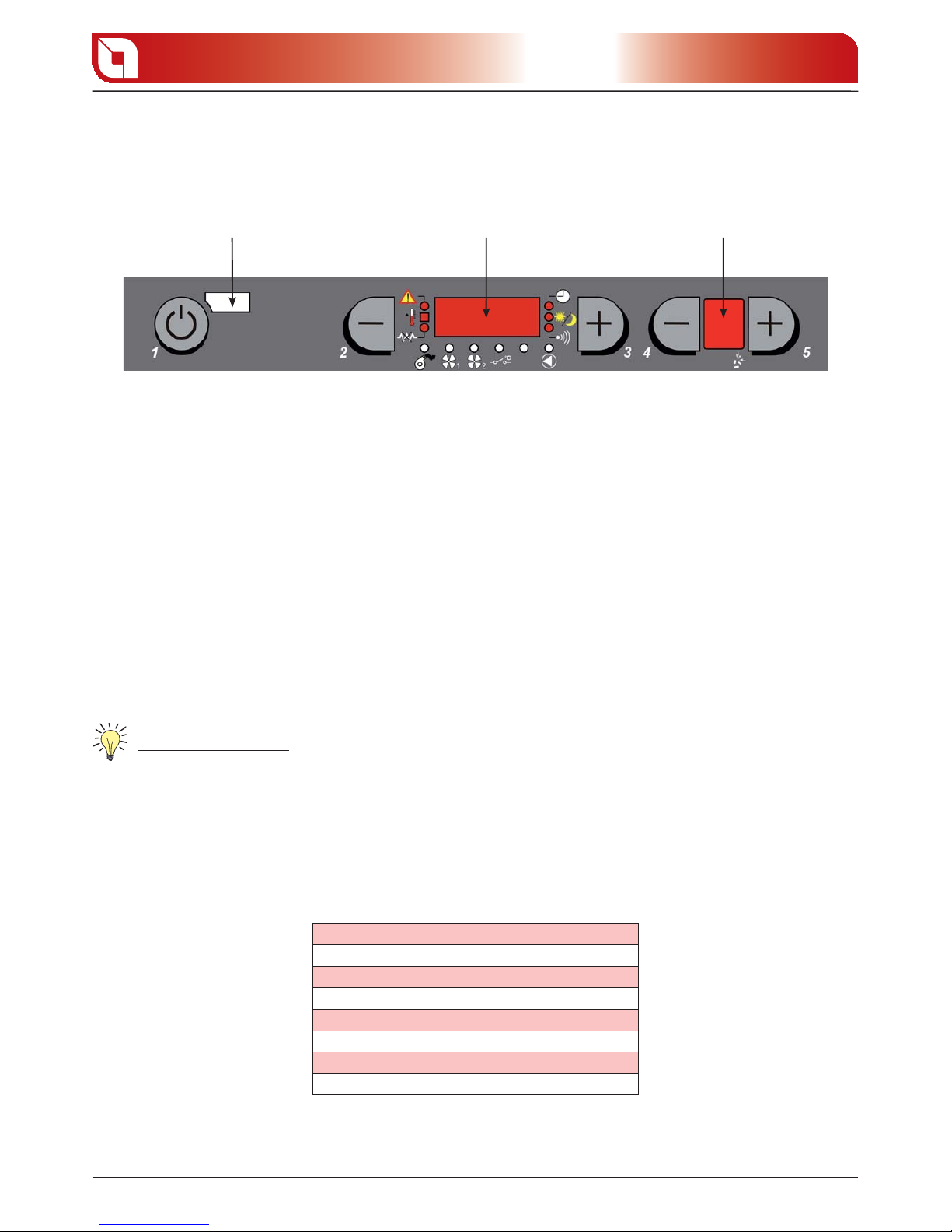

CONTROL BOARD ................................................................................................................................................................. 29
CURRENT DAY AND TIME ADJUSTMENT ..................................................................................................................... 29
FUNCTIONING CYCLE ......................................................................................................................................................... 30
BASIC INSTRUCTIONS ..................................................................................................................................................30
SWITCHON ...................................................................................................................................................................... 30
NORMAL FUNCTIONING ............................................................................................................................................. 31
SWITCHOFF.....................................................................................................................................................................31
Chapter 7
ROOM THERMOSTAT ..............................................................................................................................32
DIGITAL THERMOSTAT AS PER STANDARD..............................................................................................................32
6
MECHANICAL THERMOSTAT OPTIONAL .................................................................................................................. 32
MECHANICAL THERMOSTAT INSTALLATION OPTIONAL ...................................................................................32
MECHANICAL THERMOSTAT FUNCTIONING IN STDBY MODE TO ALSO BE USED FOR TELEPHONIC
ACTUATOR ............................................................................................................................................................................. 32
MECHANICAL THERMOSTAT FUNCTIONING FOR DUCTING MOTOR CONTROL ........................................ 33
Chapter 8
USER PARAMETERS ................................................................................................................................34
WEEKLY PROGRAMMER ..................................................................................................................................................... 34
DAYNIGHT TEMPERATURE FUNCTION ....................................................................................................................... 37
PELLET FEED ADJUSTMENT ............................................................................................................................................. 38
DUCTING MOTOR % ADJSUTMENT............................................................................................................................... 39
Chapter 9
CLEANING ................................................................................................................................................40

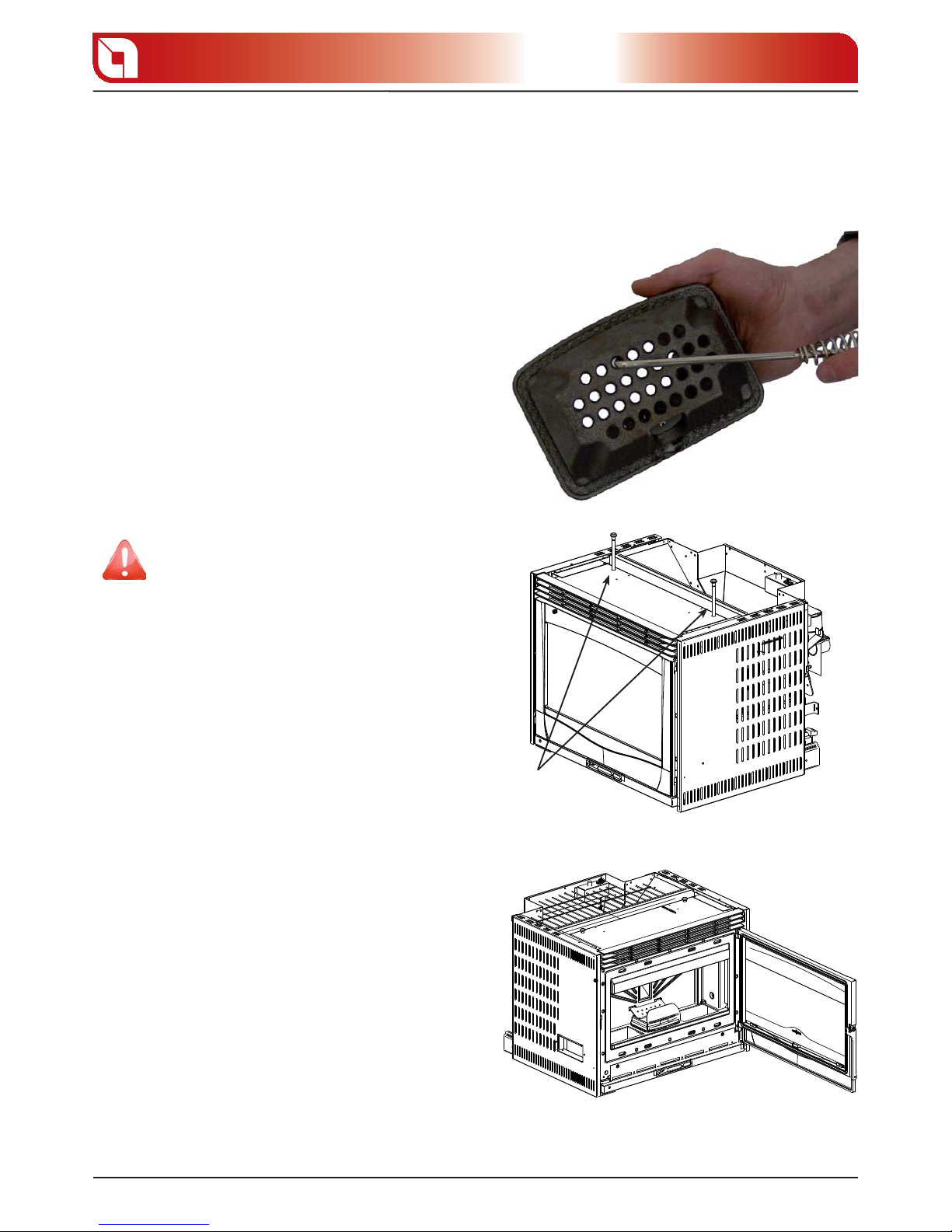

CLEANING THE BRAZIER ....................................................................................................................................................40
USING THE SCRAPERS ......................................................................................................................................................... 40
CLEANING THE ASH COLLECTOR TRAYS ..................................................................................................................... 40
CLEANING THE HEAT EXCHANGER MONTHLY ....................................................................................................... 41
DOOR, ASH DRAWER AND BRAZIER GASKETS ......................................................................................................... 41
CONNECTION TO THE FLUE .............................................................................................................................................. 41
Chapter 10
WIRING DIAGRAM ................................................................................................................................... 42
WIRING DIAGRAM ................................................................................................................................... 43
Chapter 11

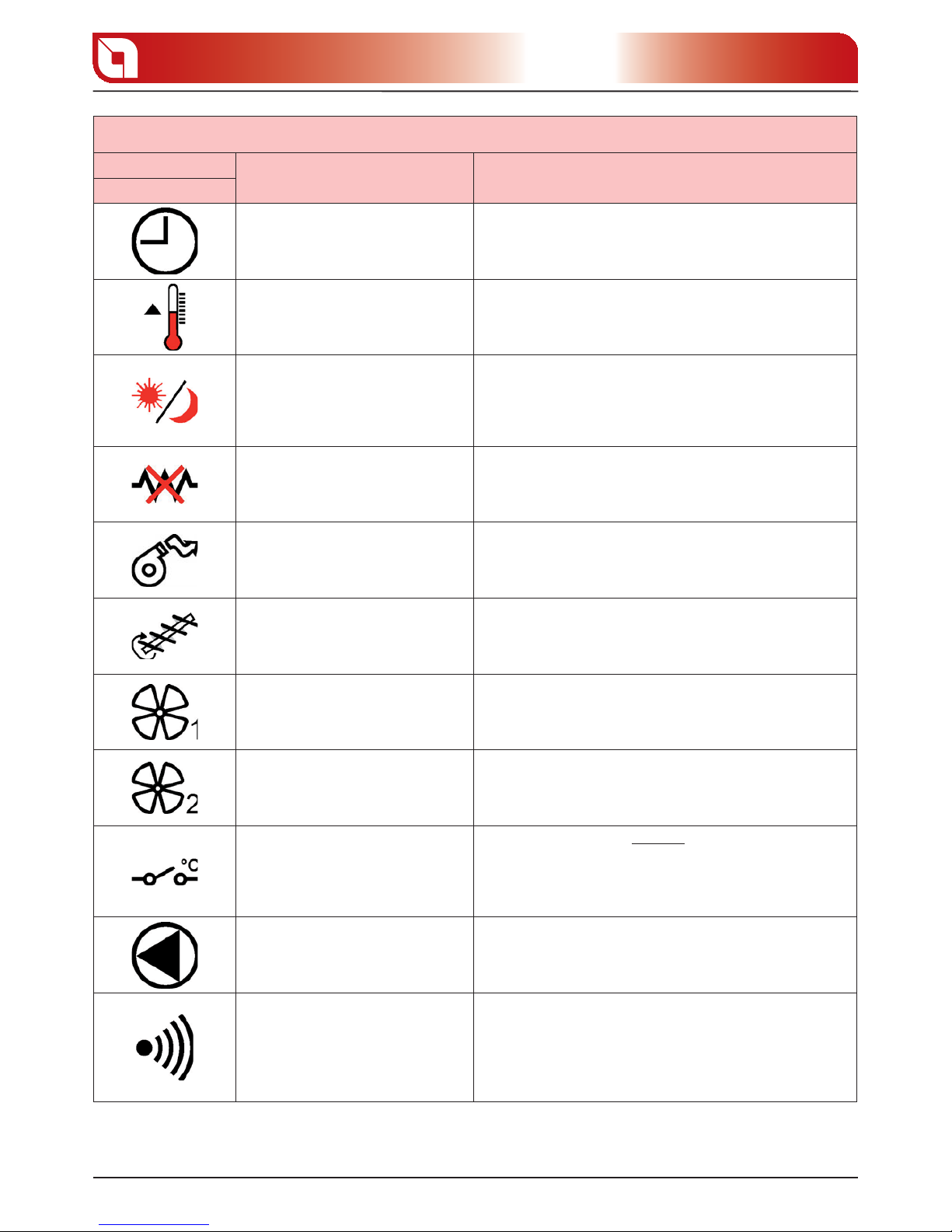

PRODUCT DISPLAY TABLES ................................................................................................................... 44
Chapter 12
WARRAN TY ..............................................................................................................................................47
Chapter 13
QUALITY CONTROL ................................................................................................................................. 49
WARNINGS AND SAFETY DEVICES
7
The stoves produced by our establishment are built with
attention to the individual components in a way to protect
both the user and the installer from any accidents. It is
therefore recommended that after any intervention on the
product, authorised sta pay particular attention to the
electric connections, especially the stripped parts of the
wires. These must not escape from the terminal board in any
situation, thus preventing possible contact with the live parts
of the wire.
Installation must be carried out by authorised sta , who
must provide the buyer with a declaration of conformity
for the system and will assume full responsibility for nal
installation and as a consequence the correct functioning
of the installed product. It is necessary to bear in mind all
laws and national, regional, provincial and town council
Standards present in the country the appliance has been
installed.
Extra ame S.p.A. cannot be held responsible for the
failure to comply with such precautions.
The instruction manual is an integral part of the product:
make sure that it always accompanies the appliance, even
if transferred to other owners or user or is transferred to
another place. If it is damaged or lost, request another copy
from the area technician.
This stove must be destined for the use for which it has been
expressly realised. The manufacturer is exempt from any
liability, contractual and extracontractual, for injury/damage
caused to persons/animals and objects, due to installation,
adjustment and maintenance errors and improper use.
After the packaging has been removed, check the integrity
and completeness of the contents. If this does not comply,
contact the dealer where the appliance was purchased.
All electric components that make up the stove must be
replaced with original spare parts exclusively by an authorised
after-sales centre, thus guaranteeing correct functioning.
The stove must be serviced at least once a year,
programming it in advance with the technical after-sales
service.
Nota bene: In case of thermo product or boiler, the
product or system venting is not covered by the
warranty.
For safety reasons, remember that:
The stove must not be used by children or unassisted
disabled persons.
Do not touch the stove when you are barefoot or when
parts of the body are wet or humid.
The safety and adjustment devices must not be
modi ed without the authorisation or indications of the
manufacturer.
Do not pull, disconnect, twist electric cables leaving the
stove, even if disconnected from the electric power supply
mains.
Do not close or reduce the dimensions of
the airing vents in the place of installation.
The airing vents are indispensable for correct combustion.
Do not leave the packaging elements within reach of
children or unassisted disabled persons.
The hearth door must always be closed during normal
functioning of the product.
Avoid direct contact with parts of the appliance that
tend to heat up during functioning.
Check for the presence of any obstructions before
switching the appliance on following a prolonged standstill
period.
The stove has been designed to function in
any climatic condition (also critical). In particularly
adverse conditions (strong wind, freezing) safety
systems may intervene that switch the stove o .
If this occurs, contact the technical after-sales service and
always disable the safety system.
If the ue should catch re, be equipped with suitable
systems for su ocating the ames or request help from the
re service.
MAJOLICAS
The company have chosen majolica tiles, which are the
result of high-quality artisan work and therefore the
majolica may present crackles, speckles, and shadings.
These characteristics certify their precious origin.
Enamel and majolica, due to their di erent coe cient
of dilatation, produce microcrackles, which show their
authentic feature.
For the cleaning of the majolica we suggest you use a soft
and dry cloth; if you use a detergent or liquid, the latter
might soak in and make the crackles more visible.
WARNINGS AND SAFETY DEVICES
8
WHAT IS THE PELLET?
Chapter 2 Chapter 2
WHAT IS THE PELLET?
Pellets are realised by subjecting wood shavings i.e. the rejects of pure wood (without paint), sawmill,
carpenter products and products from other activities connected to working and transforming wood, to
very high pressures.
This type of fuel is absolutely ecological as no glues are used to hold it together. In fact, the compactness
of the pellets is guaranteed through time by a natural substance that is found in wood: lignite
As well as being an ecological fuel, as wood residues are made the most of, the pellet also has technical
advantages.
Pellet density is about 650 kg/m3 and water content is equal to 8% of its weight. For this reason the pellet
does not have to be seasoned in order to obtain a su ciently adequate heat yield.
The pellet used must comply with the features described by the Standard:
Ö-Norm M 7135
DIN plus 51731
UNI CEN/TS 14961
Extra ame recommends the use of pellets with a diameter of 6mm with its products.
WARNINGS!!!
THE USE OF EXPIRED PELLETS OR ANY OTHER MATERIAL DAMAGES THE FUNCTIONS OF
YOUR STOVE AND CAN DETERMINE THE INVALIDITY OF THE WARRANTY AND THE ANNEXED
RESPONSIBILITY OF THE MANUFACTURER.
PELLET STORAGE
To guarantee combustion without problems, the pellets must be kept in a dry place.
PELLET FEEDING
Use the most congenial system to the type of installation made to feed the pellets:

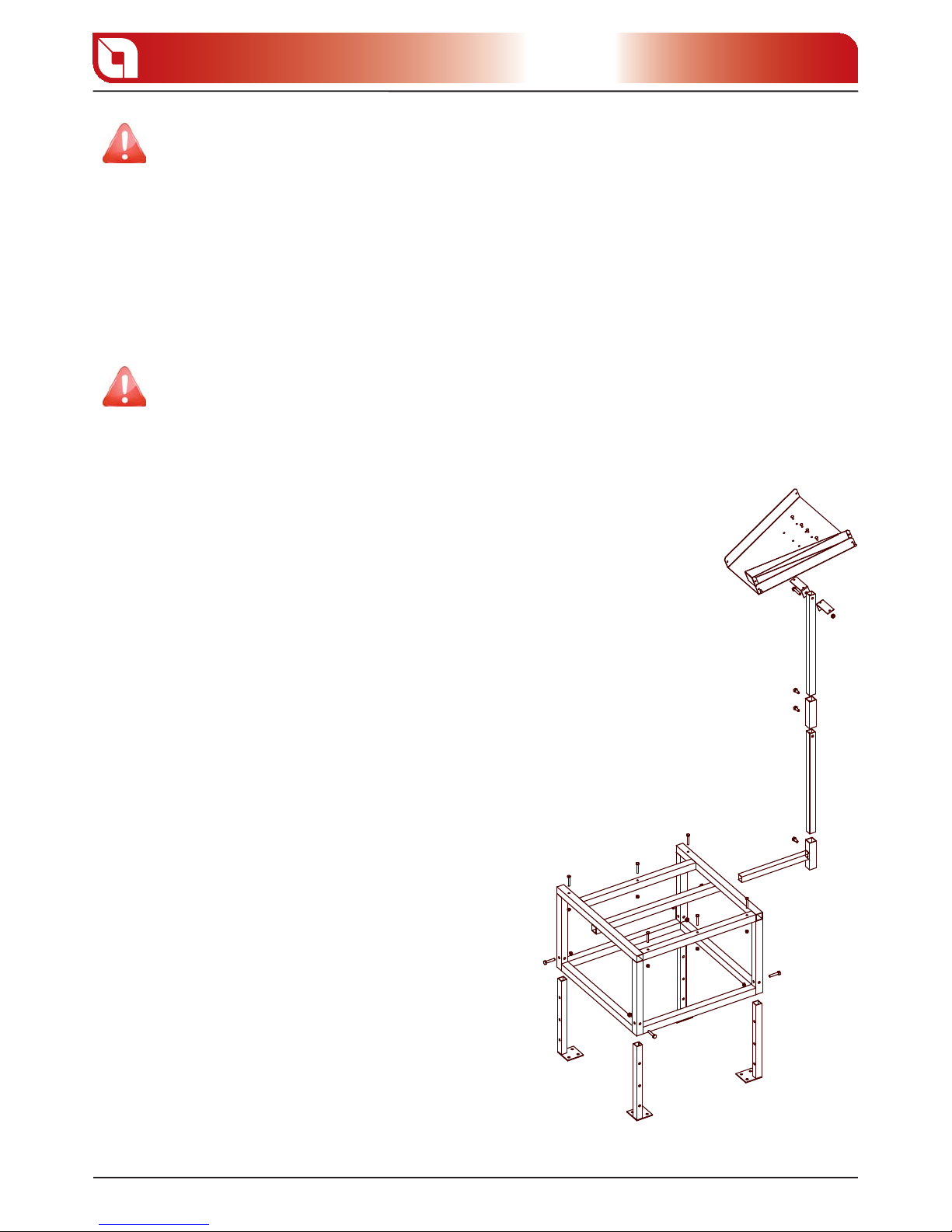

with OPTIONAL SUPPORT KIT WITH LATERAL PELLET FEEDING
with FRONT PELLET FEEDING OPTIONAL KIT
supplied as standard

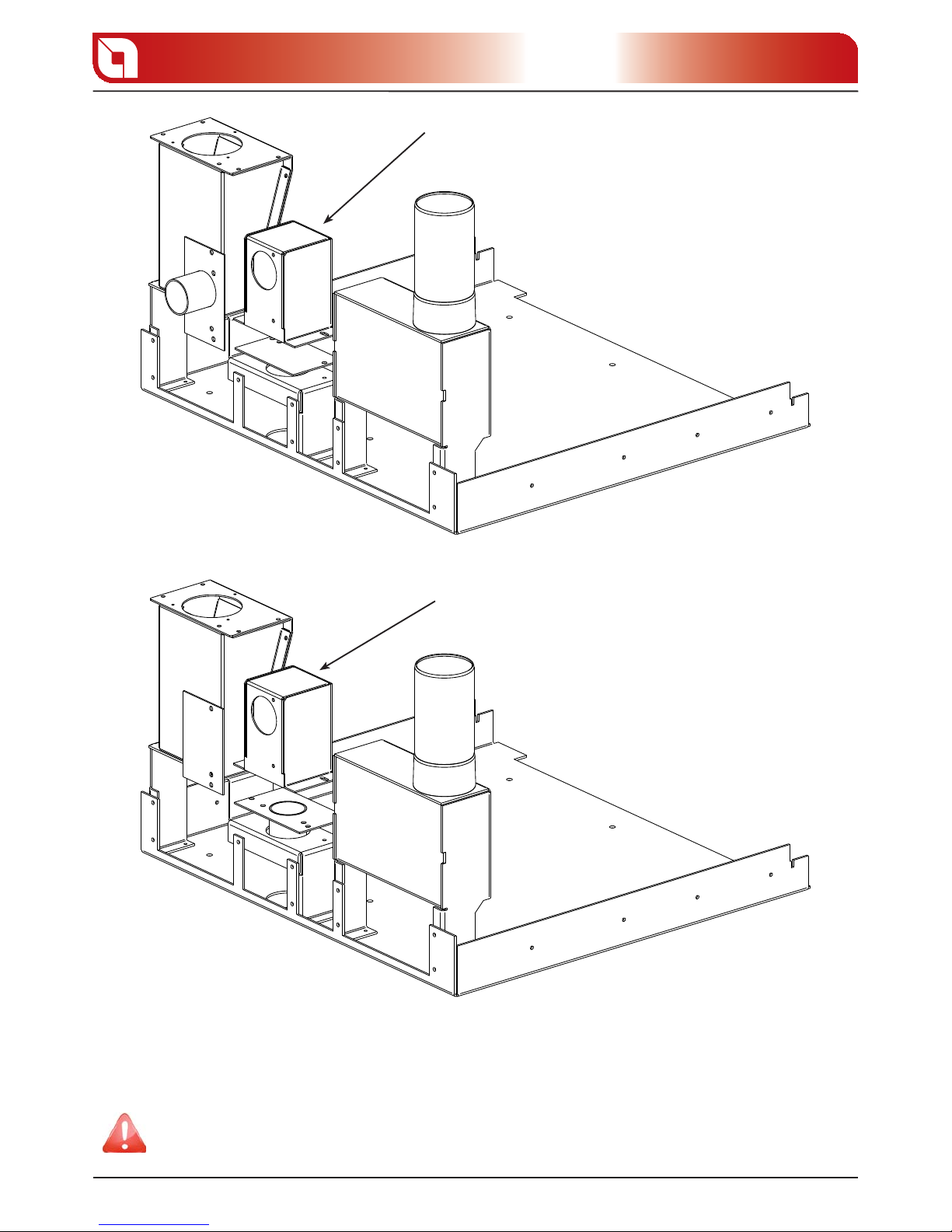

OPTIONAL SUPPORT KIT WITH LATERAL PELLET FEEDING
9
WHAT IS THE PELLET?
Chapter 2

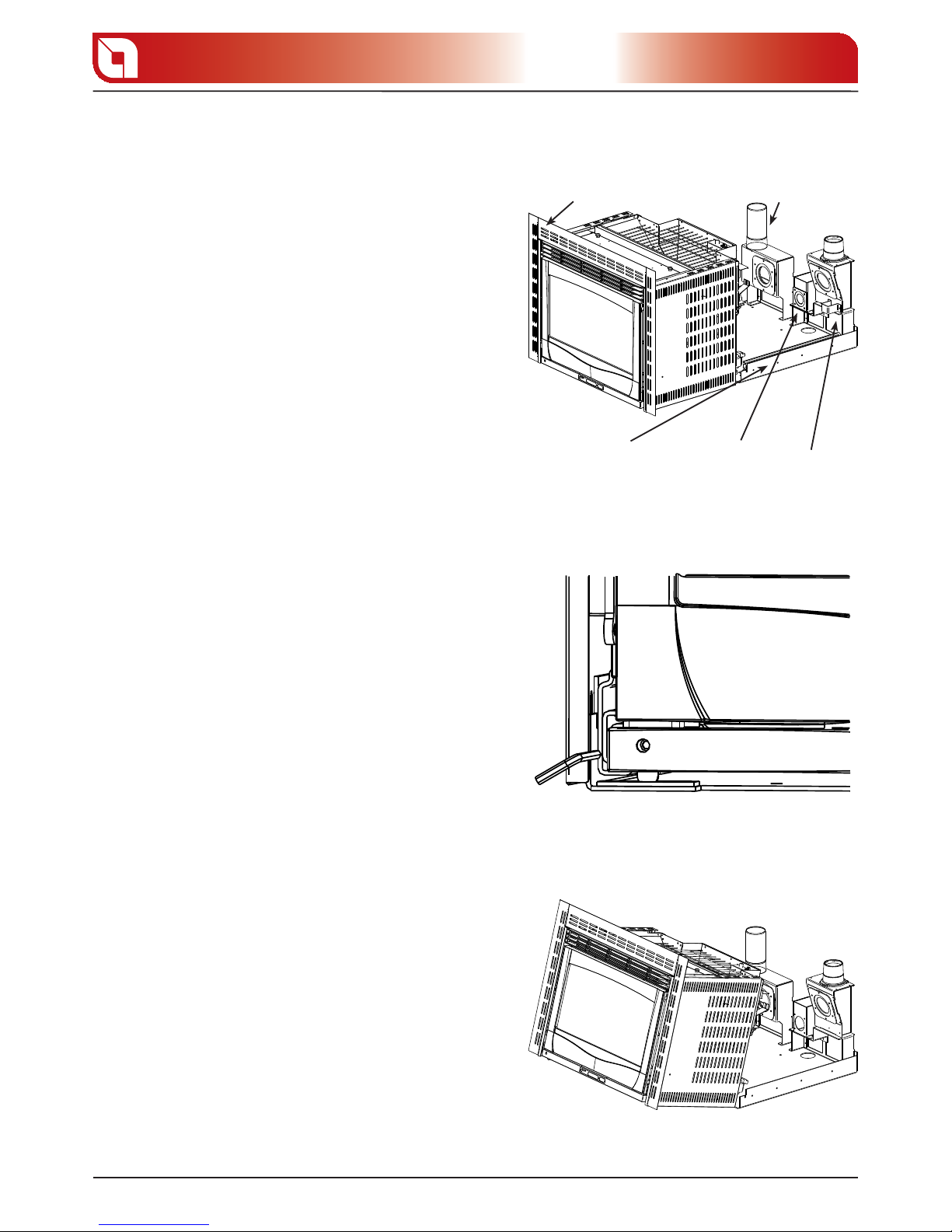

If installation has been performed using this optional kit, the insert can be extracted or, more comfortably,
use the appropriate lateral chute whenever a relevant opening has been made in the covering of the
appliance.

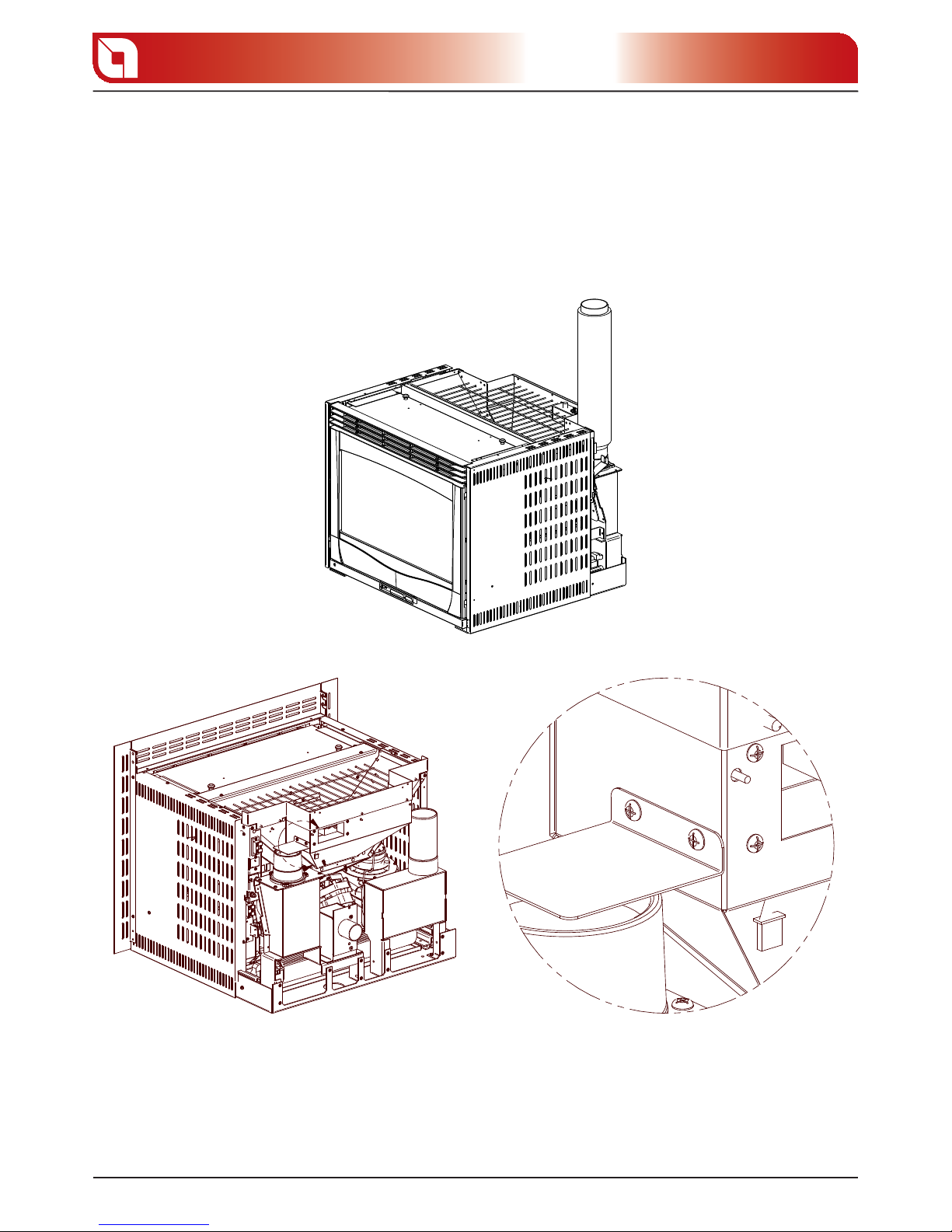

FRONT PELLET FEEDING OPTIONAL KIT
The use of this optional kit allows to feed the pellets into the feed-box from the front without extracting
the ue, therefore without switching it o .

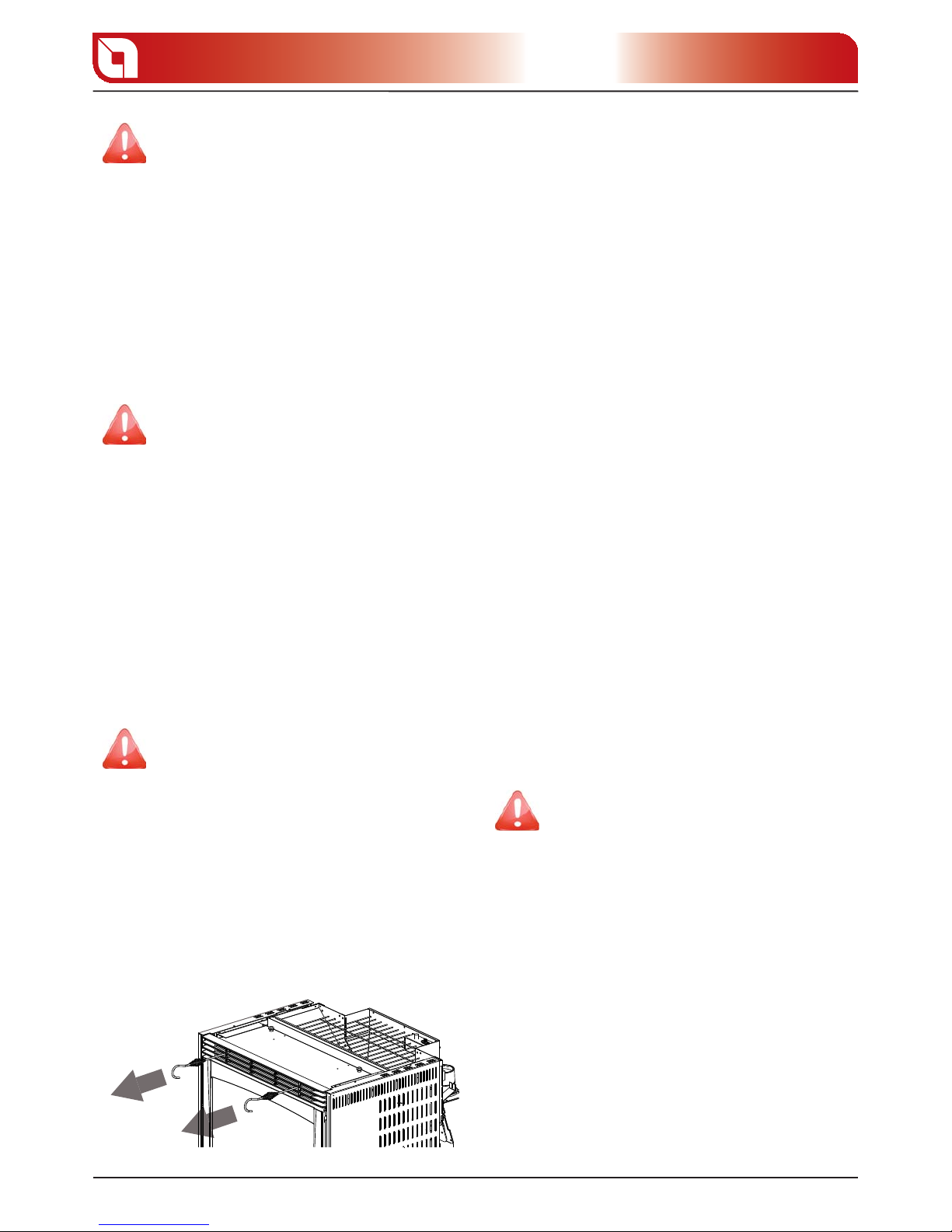

First, remove the front, upper frame by unhooking it from the 2 lateral frames: to do this, lift it by about 10 mm
FRONT UPPER FRAME
and then pull it towards yourself.
The frame must be picked-up using protection for the hands as it could have over-heated during functioning.
Take the supplied re irons, attach them to the slots in the drawer and pull to maximum extension.
gure 2.1
gure 2.2 gure 2.3 gure 2.4
10
WHAT IS THE PELLET?
Chapter 2
Take the supplied Allen wrench, insert it into the relevant seat
and turn in an anti-clockwise direction until fully home.
If this operation has been carried out correctly the drawer will
be blocked and cannot be moved forwards or backwards.
At this point, take the internal drawer and pull it towards yourself
to maximum opening: carry out this operation by attaching the
two re irons to the lateral holes in the drawer.
This allows to extract the internal drawer partially: in order to
extract it to maximum, protect the hands using a common oven
FIRE IRONS
ALLEN WRENCH
glove or similar, as the walls could over-heat during normal
functioning.
Pour the pellet into the drawer and use the scraper to push it
into the ue tank, making sure that it does not remain in the
drawer.
After having lled the feed-box, repeat the operations in the
reverse order to make the product go back to its original state.
During normal functioning the ue must always be as illustrated
in the gure i.e. with the drawer completely closed. the front
INTERNAL
DRAWER
pellet loading drawer must only be open for the loading time in order to prevent product over-heating.
STANDARD SUPPLY
Installation of the insert with the standard supply envisions switch-o and extraction of the ue for every
pellet feed.
FIRE IRONS
SCRAPER
gure 2.5
gure 2.6 gure 2.7
gure 2.8
gure 2.9 gure 2.10
11
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 3Chapter 3
ASSEMBLY AND INSTALLATION INSTRUCTIONS
The installation must comply with:
UNI 10683 (2005) heat generators fed with wood and other solid fuels: installation.
The chimneys must comply with:
UNI 9731 (1990) chimneys: classi cation according to thermal resistance.
EN 13384-1 (2006) calculation method of the thermal and uid-dynamic features of the chimney.
UNI 7129 point 4.3.3 provisions, local rules and prescriptions of the re brigade.
UNI 1443 (2005) chimneys: general requirements.
UNI 1457 (2004) chimneys: internal ducts in terracotta and ceramics.
GLOSSARY
CLOSED HEARTH DEVICE
Heat generator that can only be opened to load fuel during use.
BIOMASS
Material of organic origin, excluding the material incorporated in geological formations and fossilised.
BIOFUEL
Fuel produced directly or indirectly from biomass.
FLUE or CHIMNEY
Vertical duct for collecting and expelling combustion products from a single appliance at a suitable height
from the oor.
EXHAUST CHANNEL OR PIPE
Duct or connecting element between the heat generating device and the chimney for extracting the
combustion products.
INSULATION
The series of measures taken and materials used to prevent heat transmission through a wall dividing
rooms at di erent temperatures.
CHIMNEY CAP
Device located at the top of the chimney that facilitates dispersion of the combustion products in the
atmosphere.
CONDENSATE
Liquid products that form when the temperature of the combustion gas is lower than or equal to the dew
point of the water.
HEAT GENERATOR
Device that permits the production of thermal energy (heat) by the rapid transformation of the chemical
energy of the fuel by means of combustion.
AIR LOCK
Mechanism for modifying the dynamic resistance of the combustion gasses.
12
Chapter 3
ASSEMBLY AND INSTALLATION INSTRUCTIONS
EXHAUST VENTING SYSTEM
A system for fume exhaust venting that is independent from the appliance, composed of a pipe or channel,
chimney or single ue, and chimney cap.
FORCED DRAUGHT
Air circulation by means of a fan driven by an electric motor.
NATURAL DRAUGHT
Draught resulting in a chimney/ ue due to the di erence in the volume mass existing between the (hot)
fumes and the surrounding atmospheric air, without any mechanical suction aid installed inside or on top
of it.
RADIANCE AREA
Area immediately adjacent to the hearth in which the heat produced by combustion is di used; this area
must not contain any objects made of combustible material.
REFLUX AREA
Area in which the combustion products come out from the appliance towards the room in which it is
installed.
INSTALLATION
Before carrying out installation, it is necessary to check the positioning of the chimneys, ues or exhaust
terminal ducts of the appliance, keeping in mind the following:
Installation prohibitions
Legal clearances
Limitations set forth by local administrative regulations or speci c regulations of the authorities.
Common limitations deriving from building regulations, and easement or contract regulations.
ADMISSIBLE INSTALLATIONS
In the room in which the heat generator is to be installed, any existing or installed appliances must be airtight
to the room and must not cause depression in the room with respect to the external environment.
Appliances used for cooking foods and the related hoods without extractor can only be installed in rooms
used as kitchens.
PROHIBITED INSTALLATIONS
The room in which the heat generator is to be installed must not contain any of the following devices,
either pre-existing or installed:
Hoods with or without extractor;
Ventilation ducts of the collective type.
Should these devices be located in adjacent rooms communicating with the installation room, it is
forbidden to use the heat generator simultaneously where there is the risk that one of the two rooms may
be subject to depression with respect to the other.
45°
<
45°
<
13
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 3
CONNECTION TO THE EXHAUST VENTING SYSTEM
EXHAUST CHANNEL OR PIPE
For the assembly of the exhaust channels it is imperative to use non- ammable materials that are resistant to
combustion products and any condensates.
It is forbidden to use exible metal pipes and asbestos cement for connecting the stove to the ue, also for preexisting exhaust channels.
There must be continuity between the exhaust channel and the ue so that the ue does not lean on the stove.
The exhaust channels must not pass through rooms in which the installation of combustion devices is
forbidden.
The assembly of the exhaust channels must be carried out in such a way as to ensure that they are airtight for
the operating conditions of the appliance, as well as to limit the formation of condensates and prevent them
from being conveyed towards the appliance.
The assembly of horizontal sections must be avoided where possible.
Where roof or wall exhaust outlets have to be reached that are not coaxial in relation to the exhaust outlet
from the appliance, the direction changes must be made using open elbows no greater than 45° (see gures
below).
Insulation
Flue
Inspection
For heat generating devices equipped with an electric exhaust fan, i.e. all products made by Extra ame, it
is necessary to observe the following instructions:
Horizontal sections must have a minimum slope of 3% upwards.
The length of the horizontal section must be as short as possible, and in any case no greater than 3
meters.
No more than four direction changes may be used, including the one resulting from the use of the “T”-
element. (When four bends are used, use double wall piping with a 120 mm diameter.)
In any case, exhaust channels must be sealed in relation to combustion products and condensates, as well
as insulated, if they pass outside the installation room.
It is forbidden to use elements in counter-slope.
The exhaust channel must allow soot recovery and cleaning using a swab.
The exhaust channel must have a constant cross-section. Any changes in cross-section are allowed only at
gure 3.1 gure 3.2
B
C
20 cm
A
14
Chapter 3
ASSEMBLY AND INSTALLATION INSTRUCTIONS
the ue connection.
It is forbidden to run other air feed channels or piping for utilities inside the exhaust channels, even if
they are oversized. It is also forbidden to t manual draught adjustment devices on the forced draught
appliance.
CHIMNEY OR SINGLE FLUE
The chimney or ue must meet the following requirements:
be airtight to combustion products, waterproof and properly insulated according to the usage conditions;
be made of materials suitable to resist normal mechanical stress, as well as heat and the action of combustion
products and any condensates;
have a predominantly vertical layout with deviations from the axis no greater than 45°;
be situated at a proper distance from combustible or ammable materials by means of an air gap or suitable
insulation material;
Minimum80 cm
2
Floor protection
REFERENCES
Flammable
objects
Non- ammable
objects
A 200 100
B 1500 750
C 200 100
preferably have a round internal section: square or rectangular sections must have rounded edges
with radius no less than 20 mm;
have a constant, free and independent internal section;
have rectangular sections with a maximum ratio between sides of 1.5.
The exhaust duct should be equipped with a chamber for the collection of solid materials and any
condensates located below the mouth of the exhaust channel, so that it is easy to open and inspect from
the airtight hatch.
gure 3.3 gure 3.4
< 3 m
3 - 5 %
< 3 m
45°
45°
15
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 3
Inspection
Windproof
chimney cap
Flue
Inspection
External
insulated
duct
Inspection
Inspection
gure 3.5 gure 3.6
gure 3.7 gure 3.8
Loading...
