Extollo Communications
LANPlug 2000 Product Guide
Contents
Introduction ................................................................................................................................ 5
Product Overview ....................................................................................................................... 7
Multiple-Input Multiple-Output with Beamforming .................................................................... 7
G.hn Powerline Overview ........................................................................................................... 8
LANPlug 2000 Package Contents .............................................................................................10
LANPlug 2000 Kit ..................................................................................................................10
LANPlug 2000 Single ............................................................................................................10
LANPlug 2000 Interfaces ..........................................................................................................12
LANPlug 2000 LED Status Overview ........................................................................................14
Creating a Powerline Network with the LANPlug 2000 ..............................................................16
Hardware Installation and Setup ...............................................................................................18
Internet Router Connection ....................................................................................................18
Remote Device Connection ...................................................................................................18
Pairing the LANPlug 2000’s ...................................................................................................19
Adding Additional LANPlug 2000’s ........................................................................................20
Pairing Tip .............................................................................................................................20
Logging into the LANPlug 2000 .................................................................................................22

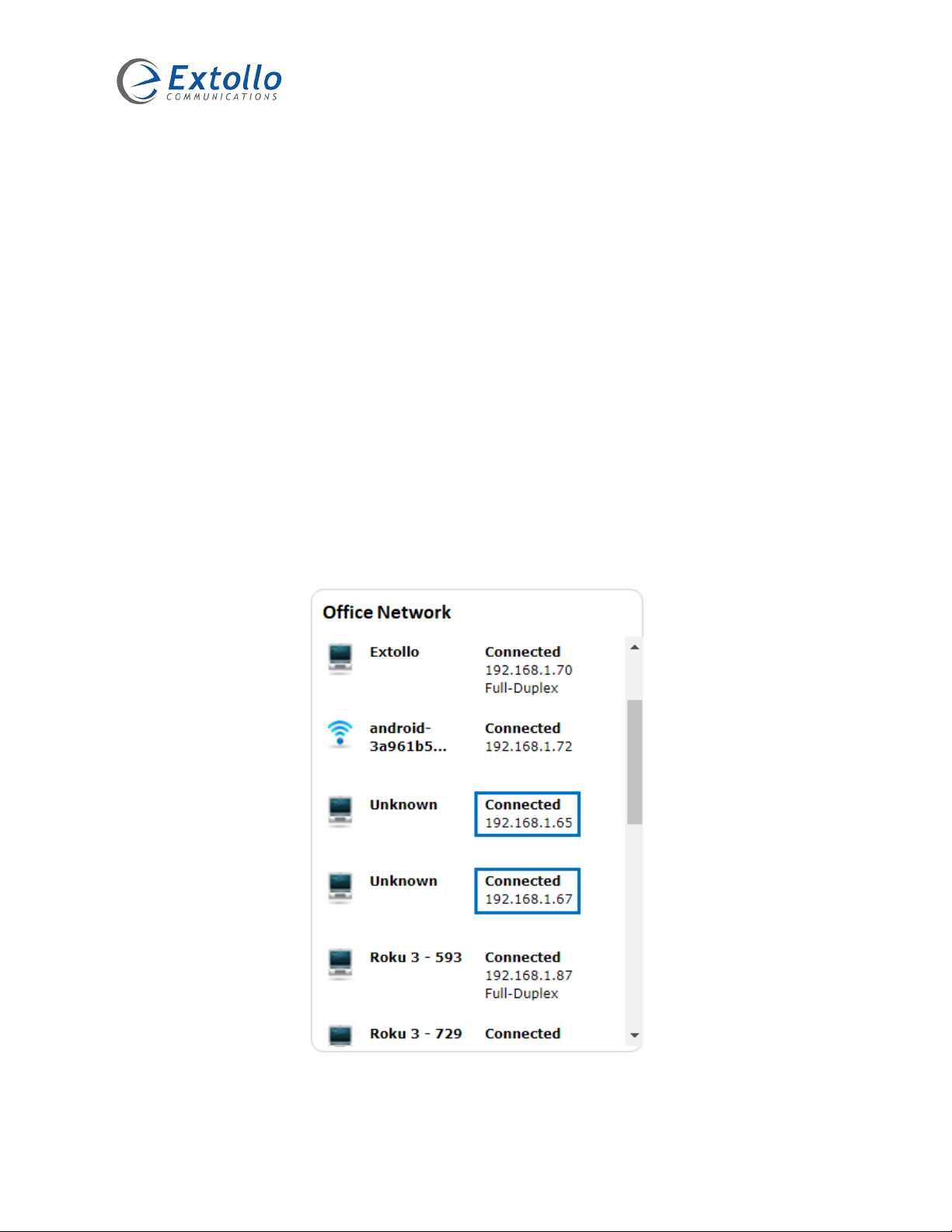

Determining the IP Address ...................................................................................................22

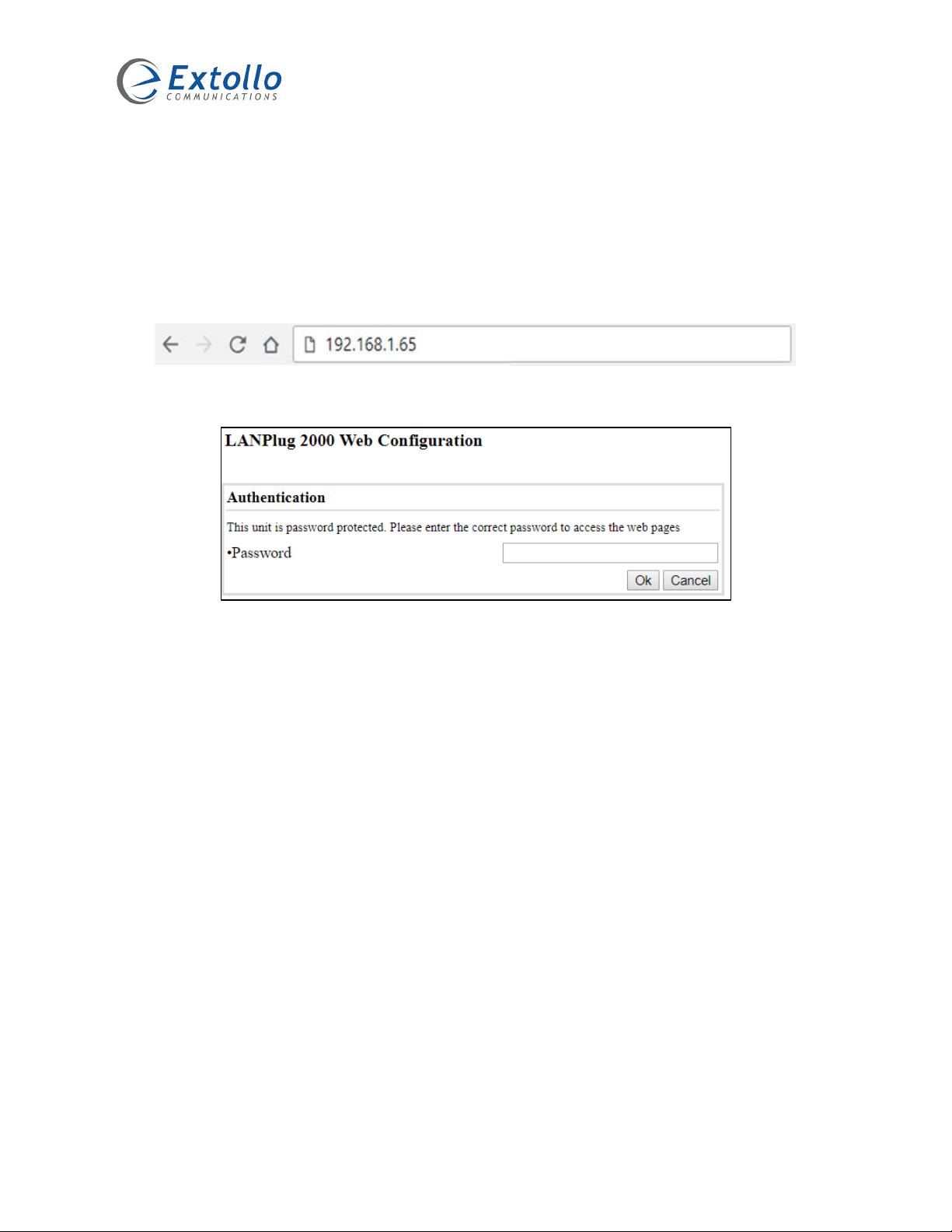

Log In Window .......................................................................................................................23
Manage the Settings on the LANPlug 2000 ...............................................................................25

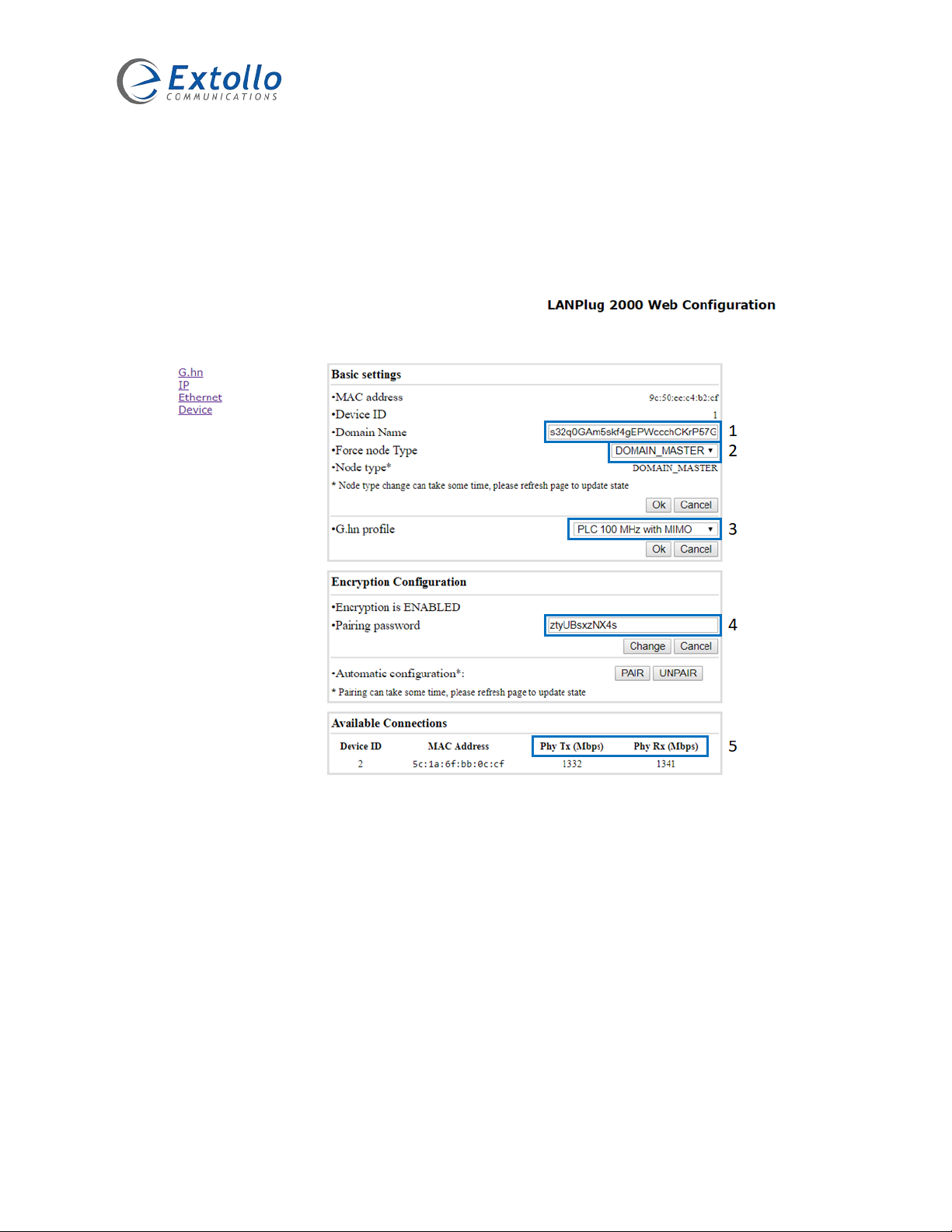

G.hn Menu ............................................................................................................................25

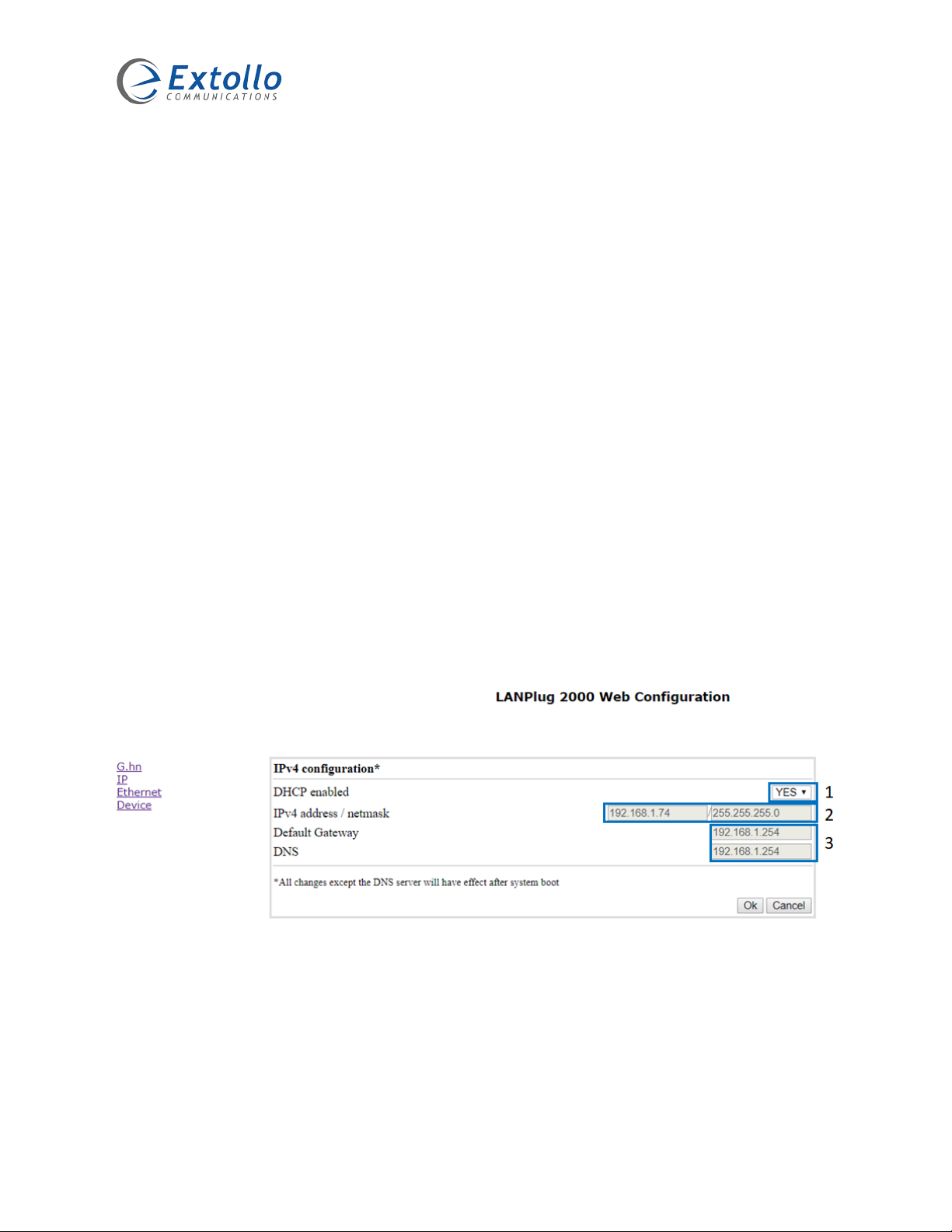

IP Menu .................................................................................................................................26

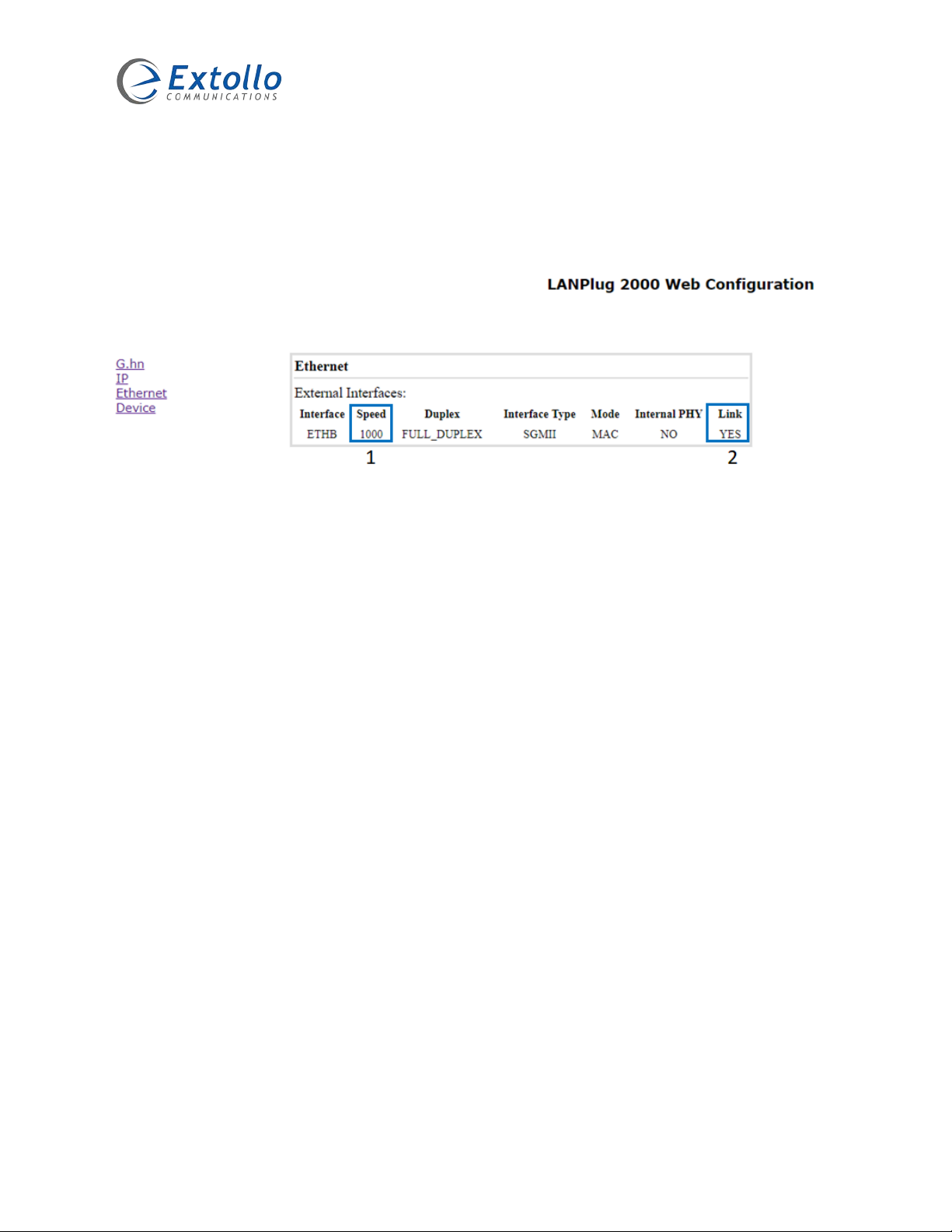

Ethernet Menu .......................................................................................................................28

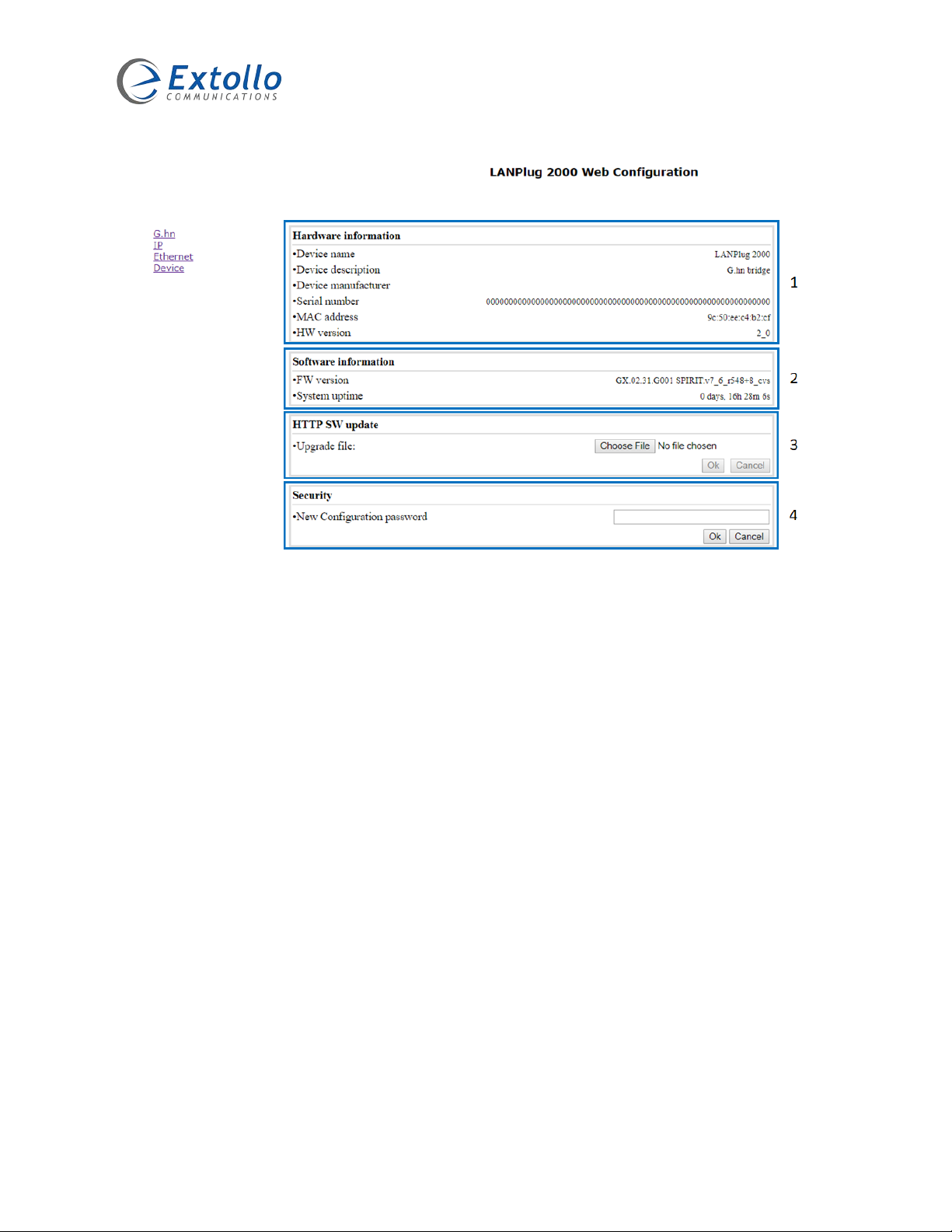

Device Menu .........................................................................................................................29
Restoring the LANPlug 2000 to Factory Default ........................................................................32
Troubleshooting the LANPlug 2000 ...........................................................................................34
Symptoms .............................................................................................................................34
None of the LED’s Light Up After Installation .....................................................................34
Power LED is Off: ..............................................................................................................34
Powerline Performance LED is Amber or Red: ..................................................................34
The Ethernet LED Does Not Light Up: ...............................................................................34
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
2
The LANPlug 2000 Suddenly Stops Working .....................................................................34
Contact Technical Support .................................................................................................34
Powerline Network Optimization ...............................................................................................36
Quick Tips .............................................................................................................................36
Optimizing Network Performance ..........................................................................................36
Technical Specifications ............................................................................................................38
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
3
Introduction 1
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
4
Introduction
The LANPlug 2000 Powerline adapters are sold as a kit (2 x LANPlug 2000’s) and as a single unit
(1 x LANPlug 2000).
The Local Area Network (LAN) LANPlug 2000 G.hn Powerline adapters create a self-contained,
secure home network using the existing electrical wiring within the home and to remote
buildings/workshops, turning every electrical outlet into an Internet connection.
This high performance, low latency Powerline adapter, is well suited for bandwidth intensive and
real-time applications such as Ultra-HD/4K Smart TV’s, Streaming Video Boxes, Online Gaming
Consoles, Voice over Internet Protocol (VoIP) and Video Surveillance systems.
Quickly and intuitively create a multimedia home network to share residential Internet access
among all Internet capable devices within the home.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
5
Product Overview 2
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
6
Product Overview
The LANPlug 2000 has been designed and built around the G.hn Powerline standard (referenced
as ITU-T G.9963). It’s embedded wit h a Maxlinear processor, integrated DDR memory and an
advanced high-speed Multiple Input / Multiple Output (MIMO) system optimized for 2 x 2
transmission across all three (3) electrical lines – Phase, Neutral and Ground.
The 2000 series of Powerline adapters have a 1Gbps Ethernet interface, a 1.5Gbps Powerline
PHY and act as a bridge using the power lines as the transmission medium.
Packets arriving at the Ethernet interface are stored in internal memory. Those packets are
classified according to QoS criteria. The packets are fragmented, then encrypted with AES 128bit algorithm and after that encoded with advanced quasi-cyclic low-density parity check (QCLDPC) Forward Error Correction (FEC) algorithms. The resulting blocks are mapped onto an
Orthogonal Frequency-Division Multiplexing (OFDM) transceiver with 4096 carriers in the 0-80
MHz band and transmitted in Powerline frames over the power lines using Multiple-Input /
Multiple-Output (MIMO) with beamforming according to the MAC protocols specified in the G.hn
Powerline standard.
In the reception direction, the transceiver synchronizes with the Powerline frames to receive
them, demodulate and decoding them, and after that, the resulting segments are reassembled
to form the corresponding Ethernet packets. The Ethernet packets are delivered to the bridge
QoS, which prioritize the packets to the Ethernet interface.
Multiple-Input Multiple-Output with Beamforming
Extollo’s 2000 series of Powerline adapters support 2x2 MIMO with beamforming.
MIMO increases the number of transmission paths across the powerlines. Two, line drivers and
receivers enable the LANPlug 2000 adapters to simultaneously transmit on two of the three
electrical power line wires; Phase, Neutral and Ground. The LANPlug 2000 MIMO paths cons ist
of: Line-Neutral or Line-Ground.
Beamforming works by improving what is called the rate over range, at a given distance from the
transmitting adapter; a receiving adapter will have improved performance. This is accomplished
by creating two independent signal paths to optimally focus transmission energy to and from client
adapters on a per-packet basis.
Beamforming enables Extollo adapters at either side of a link to get maximum performance by
taking advantage of channels that have strong performance while av oiding paths and carriers that
have weak performance. A reasonable expectation is that beamforming can result in a gain of
anywhere between 2 to 5 dB in performance. Beamforming is adaptive, which means it can
constantly adjust Powerline performance based on real-time events.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
7
The combination of 2x2 MIMO with beamforming improves bandwidth utiliz ation and increase the
LANPlug 2000 network’s range. This, in turn, improves video streaming, voice quality, and other
bandwidth and latency sensitive transmission protocols.
G.hn Powerline Overview
A G.hn Powerline network can consists of one or more domains. Typically, a residential G.hn
Powerline network will consist of a single domain. In G.hn, a do main is constituted by all Powerline
adapters that can communicate with each other.
One of th e Powerline adapters in a G.hn Powerline network becomes the Domain Master (DM).
The
function of the DM is to control and coordi nate the operation of all Powerline adapters in
the domain, including admission to the domain, b andwidth reserv ation, resignation,
other management operations.
At any given time, only one Powerline adapter is allowed to act as a DM for a domain. In case a
DM fails, the DM function is passed to another Powerline adapter in the domain.
priorities and
Since all the Powerline adapters in the domain can communicate or directly interfere with each
other, the DM avoids interference between Powerline adapters by coordinating their transmission
time using Time Division Multiple Access (TDMA).
TDMA is a channel access multiplexing scheme that assigns a transmission time slot to each
Powerline adapter in the domain. It allows several Powerline adapters to share the same
frequencies between 2 to 80MHz by dividing the signal into different time slots. The Powerline
adapters transmit in rapid succession, one after the other, each usin g its own time slot. This allows
multiple Powerline adapters to share the same electrical power lines.
The DM
receives signals from all the Powerline adapters within the domain. Thus, any
Powerline adapter wit hin the dom ai n can comm unicat e with anoth er Po werline a dapter o nly
through the DM. The DM further forwards the signals to the corresponding Powerline
addressee within the domain.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
8
Unpack 3
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
9

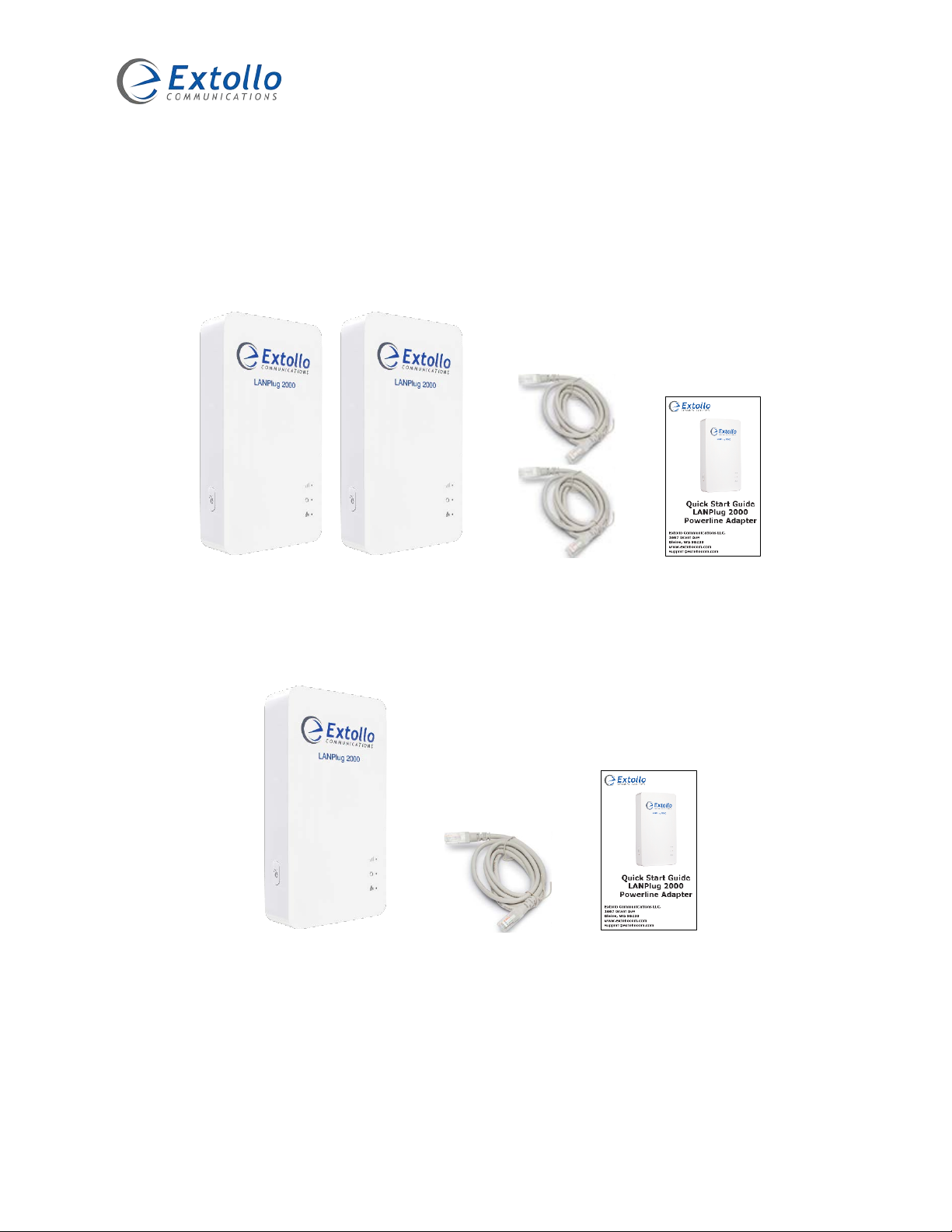

LANPlug 2000 Package Contents
The LANPlug 2000 comes as a starter kit (2 x LAN Plug 2000’s) and as a single unit (1 x LANPlug
2000), Ethernet cable(s) and a quick install guide.
LANPlug 2000 Kit
LANPlug 2000 Single
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
10
Interfaces 4
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
11

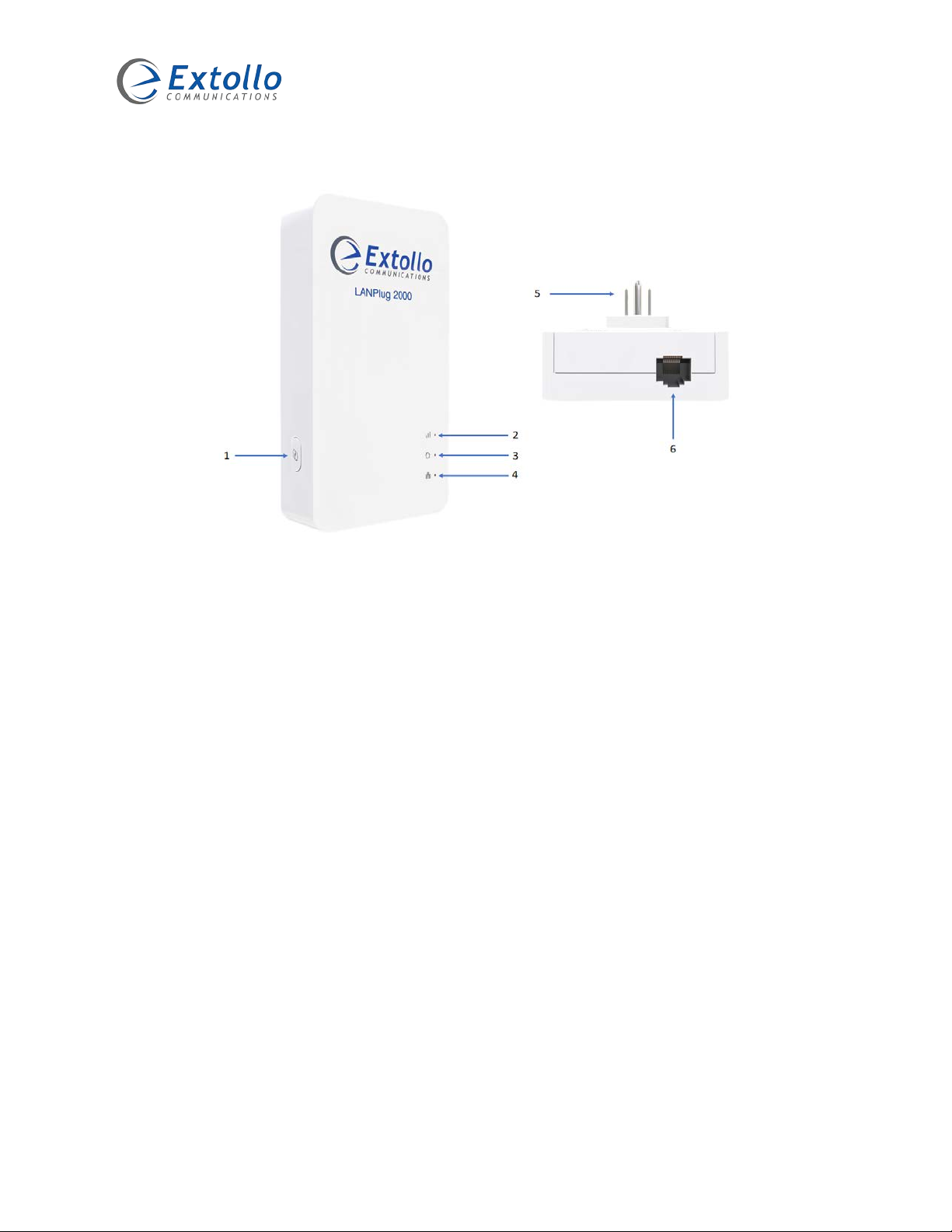

LANPlug 2000 Interfaces
1. Paring Button
The paring button can perform several functions. It is used to:
a. Create the Powerline network during initial configuration.
b. Add another LANPlug 2000 to the Powerline network.
c. Reset the LANPlug 2000 to factory defaults.
2. Powerline Performance LED Indicator
The Powerline performance indicator LED provides a visual indication of the Powerline throughput
for the electrical outlet that the LANPlug 2000 is plugged in to.
3. Powerline LED
The Powerline LED indicates whether the LANPlug 2000 is pared and part of the Powerline
network.
4. Ethernet LED
The Ethernet LED shows the status of the Ethernet connection between the LANPlug 2000 and
the attached device.
5. NEMA 5 120VAC and Powerline Interface
Provides power to the LANPlug 2000 and used to transmit the Powerline frames across the
electrical power lines.
6. Ethernet RJ45 Interface
The LANPlug 2000 supports an auto sensing 10/100/1000Mbps Ethernet wired connection.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
12
LED Overview 5
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
13
LED
Description
Powerline
Powerline
Ethernet
Pairing Button
LANPlug 2000 LED Status Overview
Performance
• Blinking Red: Powerline throughput is less than 100Mbps.
• Blinking Amber: Powerline throughput is greater than 100Mbps,
but less than 200Mbps.
• Blinking Green: Powerline throughput is greater than 200Mbps.
• Solid Amber: Adapter is ON but not paired with any other
adapters.
• Blinking Amber: Adapter is in Powerline pairing mode.
• Solid Green: Adapter is paired with another Powerline adapter
and is active.
• Solid Green: Ethernet link is up.
• OFF: No Ethernet connectivity.
• Powerline Pairing: Pressing the pairing button between 3 to 5
seconds (amber Powerline LED starts blinking), the pairing
process starts.
Boot - Up
The information contained within this document is confidential and cannot be reproduced

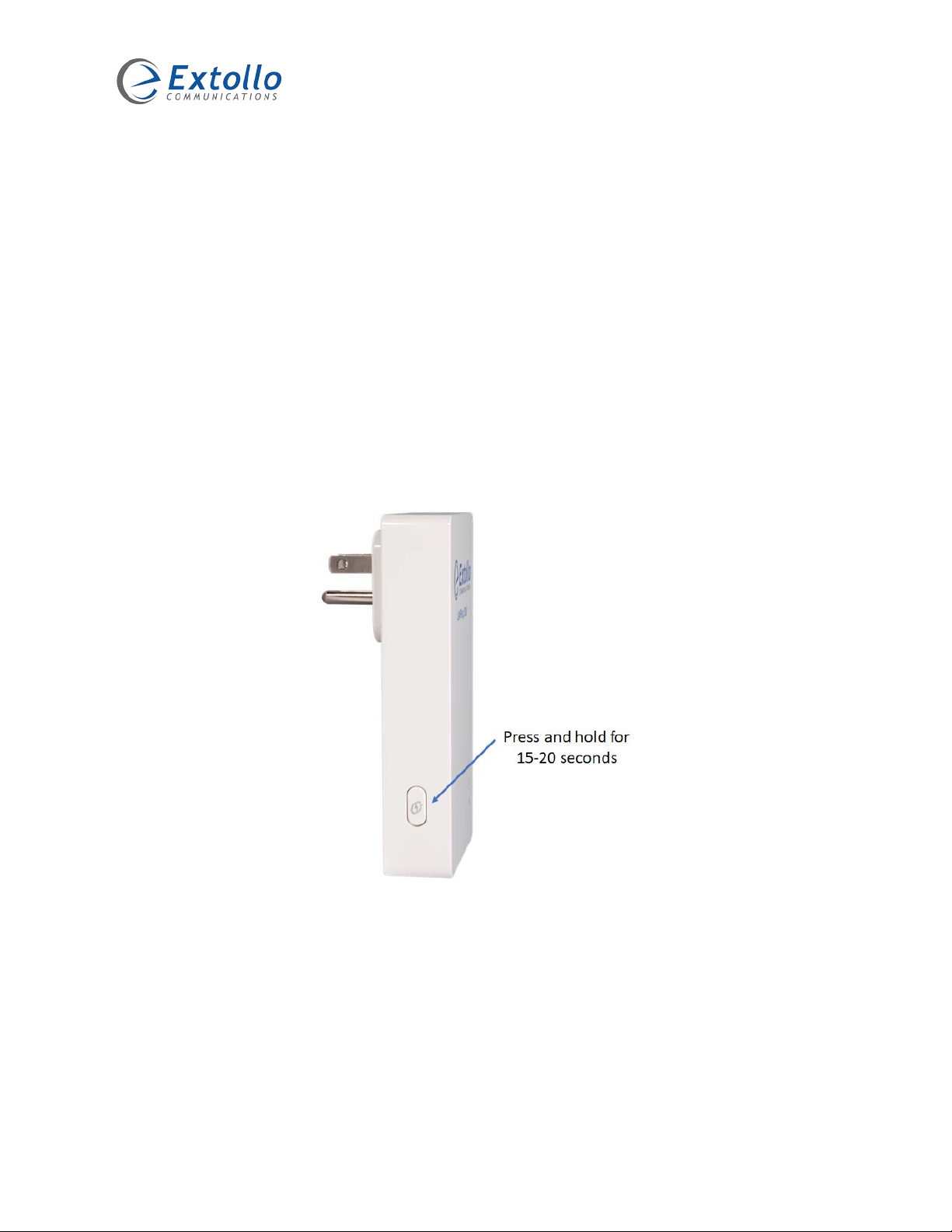

• Factory Reset: Press the pairing button and hold approximately
20 seconds until the Powerline and Ethernet LEDs turn on. The
powerline LED turns amber once the process is completed.
• During the boot up process, the Powerline LED will be green and
then turn amber once the process is completed, approximately
20 seconds.
without the approval of Extollo Communications.
14
Creating a Network 6
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
15

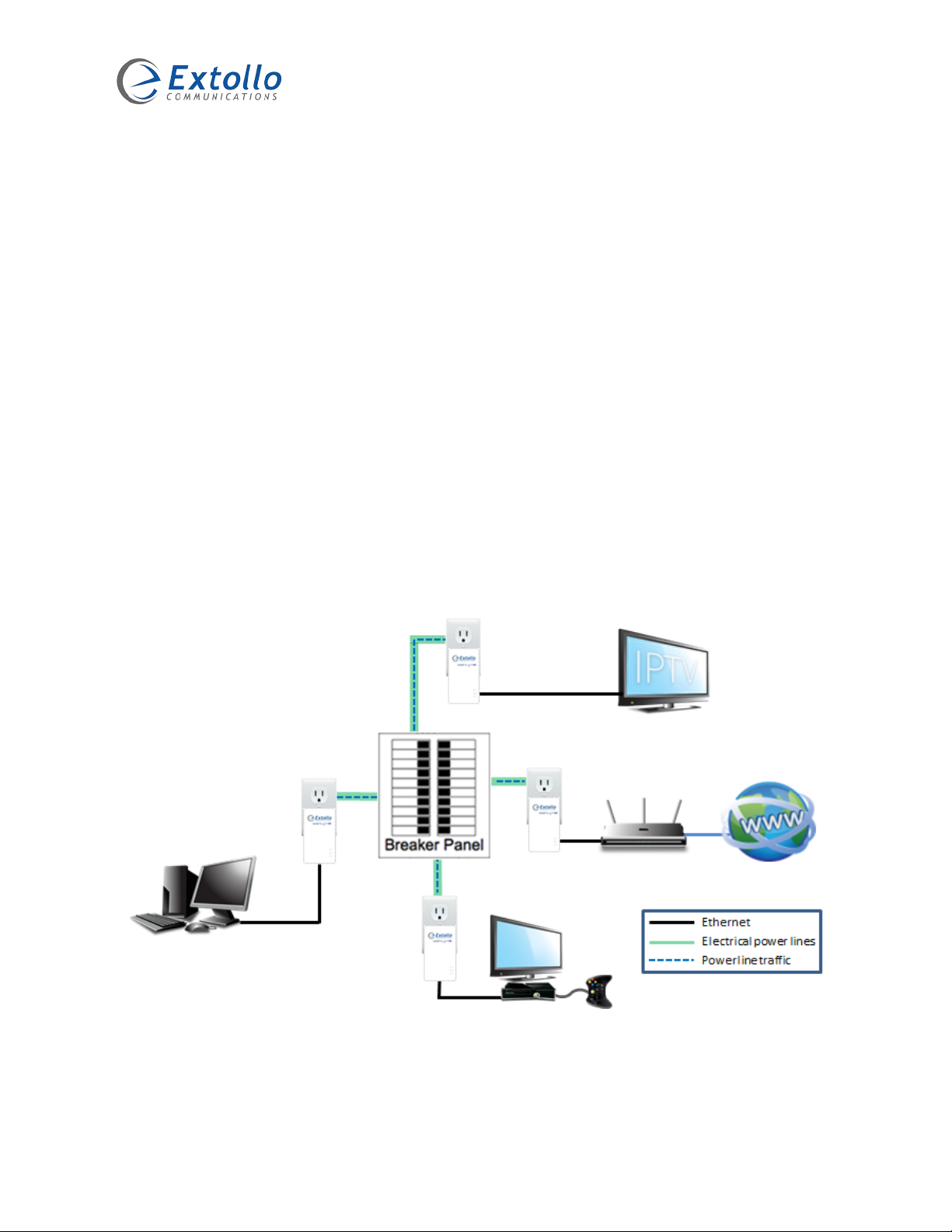

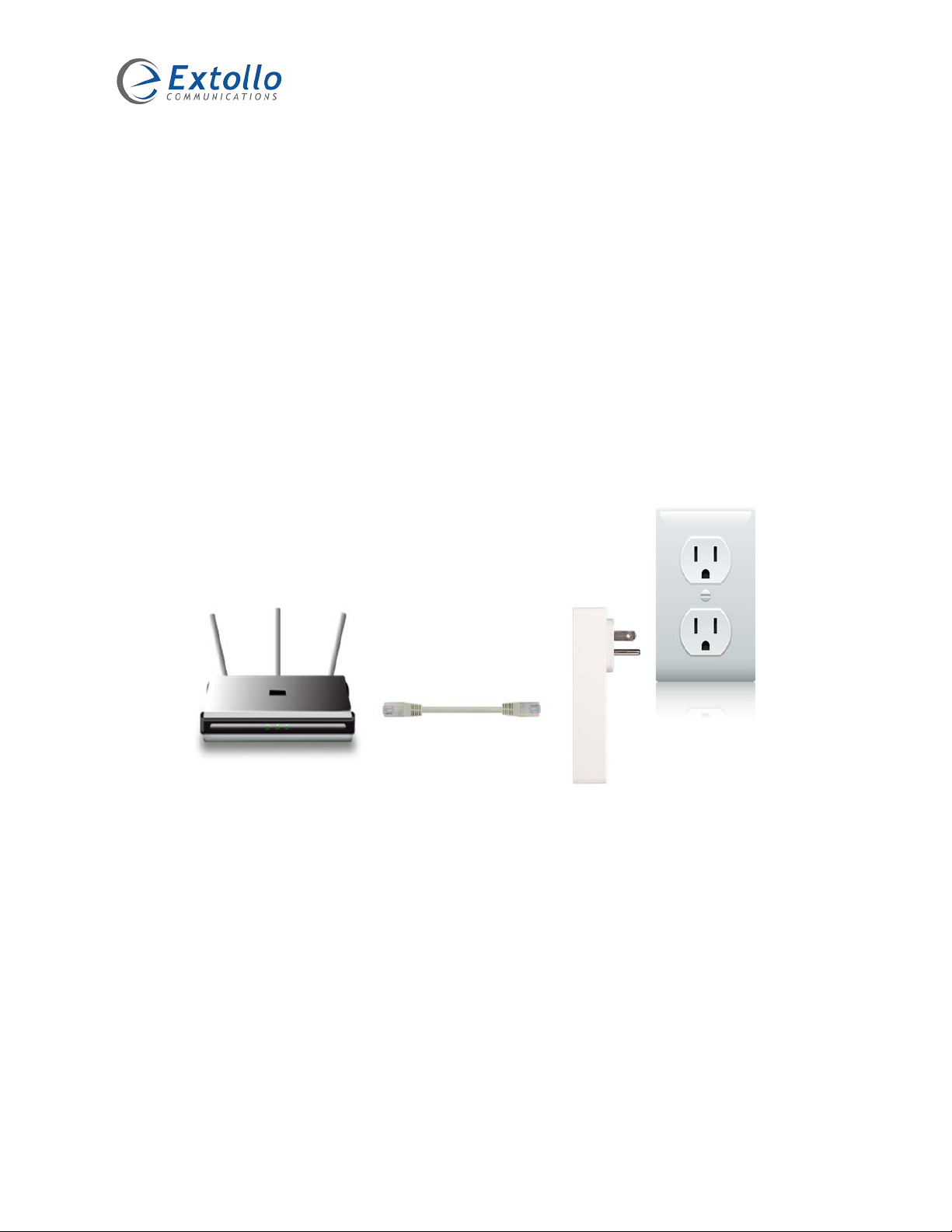

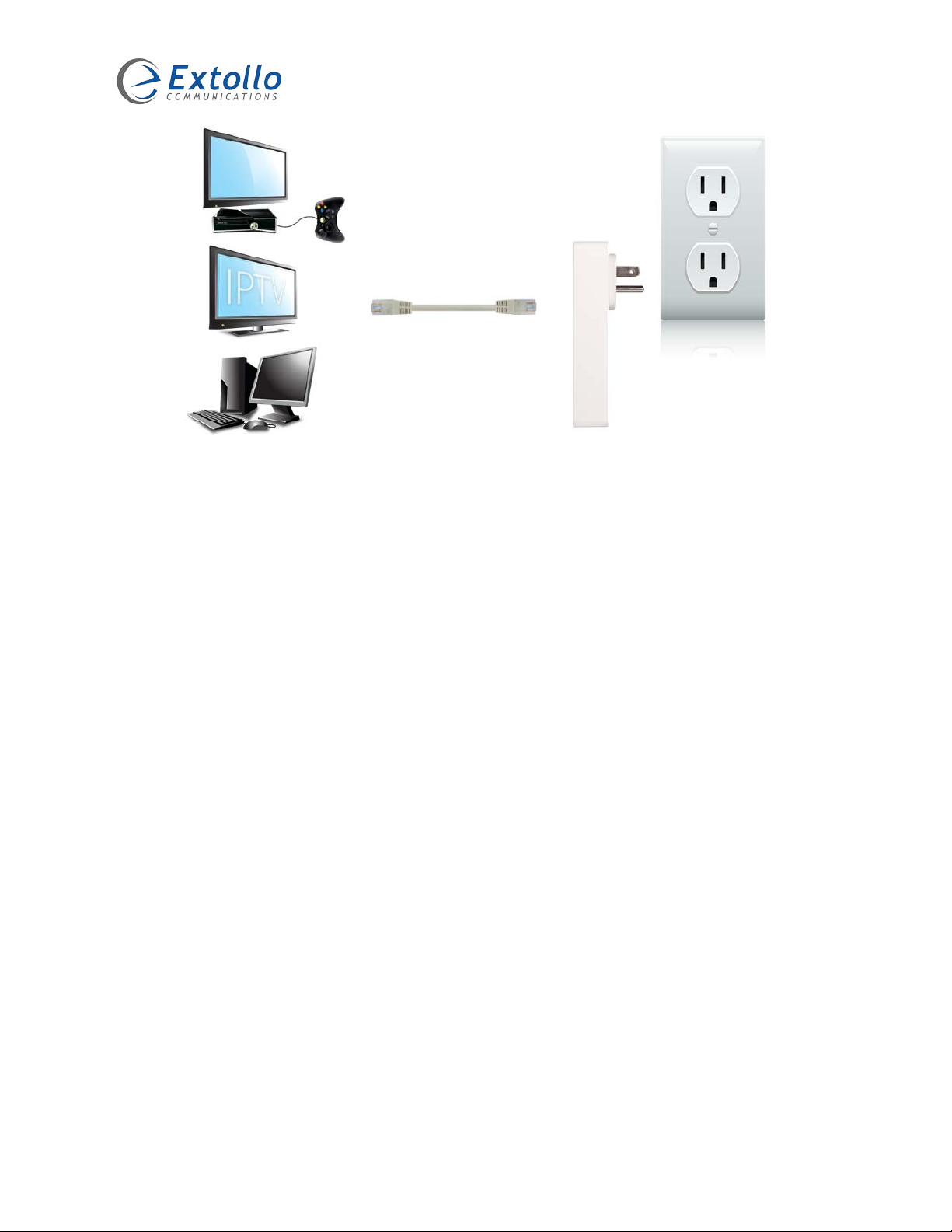

Creating a Powerline Network with the LANPlug 2000
The LANPlug 2000 Powerline adapters extends the Ethernet connection from your Internet rou ter
across the home’s electrical power lines to remote locations within your home or to remote
buildings.
Similar to coax cable and telephone lines, the electrical power lines are also capable of
transmitting digital signals such as Voice, Video and Data.
A Powerline network setup consists of two or more LANPlug 2000 Powerline adapters. Connect
one LANPlug 2000 to your Internet router with the provided Ethernet cable and plug it into an
electrical outlet. P lug the second LANPlug 2000 into an electrical outlet close to the device that
requires an Internet connection and connect the device with the Ethernet cable.
Pair the LANPlug 2000’s to establish the Powerline network. Internet traffic now flows across the
electrical power lines to the remote LANPlug 2000. Every other electrical outlet in the home is
now capable of becoming an Internet connection by plugging in and pairing additional LANPlug
2000 Powerline adapters.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
16
Installation Setup 7
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
17
Hardware Installation and Setup
Internet Router Connecti on
Step 1
1. Connect one end of the Ethernet cable to the home’s Internet router.
2. Connected the other end of the Ethernet cable to the LANPlug 2000 Powerline adapter.
3. Plug the LANPlug 2000 Powerline adapter directly into the electrical outlet.
4. The Powerline LED on the LANPlug 2000 will be green and then turn amber once it has
finished its boot-up process.
Remote Device Connection
Step 2
1. In the area where an Internet connection is required, connect one end of the Ethernet
cable to the device that requires an Internet connection.
2. Connect the other end of the Ethernet cable to the LANPlug 2000 Powerline adapter.
3. Plug the LANPlug 2000 Powerline adapter direct ly into the electrical outlet.
4. The Powerline LED on the LANPlug 2000 will be green and then turn amber once it has
finished its boot-up process.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
18
After both LANPlug 2000’s have booted up (Powerline LED will be amber), pair the LANPlug
2000’s to create a Powerline network using t he pairing button. Pairing is to be performed one
LANPlug 2000 at a time. Pair one LANPlug 2000 and then pair the second, third etc. It is
recommended to start the pairing process with the LANPlug 2000 that is connected to the Internet
router. By initiating the pairing process from the LANPlug 2000 that is connected to the Internet
router, it then becomes the domain master.
Pairing the LANPlug 2000’s
Step 3
1. Press and hold the pairing button for 3 to 5 seconds on the LANPlug 2000 connected to
the Internet router first until the Powerline LED starts to blink – release the pairing button.
2. Press and hold the pairing button for 3 t o 5 seconds on the second LANPlug 2000 until
the Powerline LED starts to blink – release the pairing button.
3. The blinking Powerline LED indicates that the pairing process has started. The pairing
process takes approximately 40 to 60 seconds to complete.
4. The pairing process is complete when the Powerline LED on the LANPlug 2000
connected to the Internet router stops blinking and is solid green and the second LANPlug
2000 Powerline LED is solid green.
NOTE: If the Powerline LED is off or amber, perform a reset to factory default on the LANPlug
2000 that is exhibiting the issue and repeat the pairing process.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
19
Adding Additional LANPlug 2000’s
A total of sixteen LANPlug 2000’s can coexsist in a single G.hn Powerline domain.
1. Press and hold the pairing button for 3 to 5 seconds on the LANPlug 2000 connected to
the Internet router first until the Powerline LED starts to blink – release the pairing button.
2. Press and hold the pairing button for 3 to 5 seconds on the new LANPlug 2000 that is
being added to the network until the Powerline LED starts to blink – release the pairing
button.
3. The blinking Powerline LED indicates that the pairing process has started. The pairing
process takes approximately 40 to 60 seconds to complete.
4. The pairing process is complete when the Powerline LED on the LANPlug 2000
connected to the Internet router stops blinking and is solid green and the new LANPlug
2000 Powerline LED is solid green.
Pairing Tip
The easiest way to pair t he LANPlug 2000’s without having to run all-over the house is to pl ug
them into a power bar that has multiple electrical outlets.
1. Plug the LANPlug 2000’s into the power bar.
2. Connect one of the LANPlug 2000’s to the Internet router with the provided Ethernet cable.
3. Follow the pairing procedure.
4. Once the pairing process is complete, remove them from the power bar and plug them
directly into the electrical outlets close to the device that requires Internet access.
NOTE: The pairing configuration is stored in flash memory. Therefore, it is not lost when the unit
is unplugged.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
20
Logging In 8
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
21
Logging into the LANPlug 2000
Determining the IP Address
Step 1
The LANPlug 2000 has an integrated web Graphical User Interface (GUI) for management
purposes. It also has Dynamic Host Configuration Protocol (DHCP) enabled, which means that
the LANPlug 2000 will automatically
To access the web GUI on the LANPlug 2000, the IP address that was assigned to the LANPlug
2000 is required. To determined what IP address was ass ign ed to a LANPlug 2000, log int o the
Internet router and see what devices are connected and their associated IP address.
For example: Below is a captured window from an Internet router that shows the connected
devices and their assigned IP addresses. The “unknown” devices are the LANPlug 2000’s which
were assigned the IP address of 192.168.1.65 and 192.168.1.67.
NOTE: The IP addresses assigned to your LANPlug 2000 may differ from this example.
obtain an IP address from the Internet router.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
22
Log In Window
Step 2
Use the IP address that was assigned to the LANPlug 2000 to access the GUI.
1. Launch an Internet web browser from a computer.
2. In the web browser bar, type the IP address that was assigned to the LANPlug 2000.
3. The following login window is displayed.
4. Enter the login password. The default password is: ECLP2000 and is case sensitive.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
23
Manage Settings 9
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
24
Manage the Setti ngs on the LANPlug 2000
The LANPlug 2000’s software settings are optimized for its hardware. Several of the configurable
options are dynamically created and assigned during the pairing process It’s not recommended
to change the dynamically assigned settings.
G.hn Menu
1. Domain Name
The Domain Name i s dynamically created during the initial pairing process. All LANPlug 2000’s
being paired will be assigned the same Domain Name. The factory default domain name is
“HomeGrid”.
2. Force Node Type
The Force Node Type is used to change the operational mode of the LANPlug 2000 in the G.hn
domain. The options are “Domain Master” or “End Point”. The LANPlug 2000 that initiates the
pairing process is made t he Domain Master. It’s recommended that the LANPlug 2000 attached
to the Internet router initiates the pairing process. The factory default domain name i s “Automatic”.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
25
3. G.hn Profile
The G.hn Profile defines the physical medium’s max imum throughput and associated frequencies
for transmission across the electrical lines. The profiles are defined in accordance with the FCC
rules and regulations. The factory default G.hn Profile is “PLC 100 MHz with MIMO” which
provides the maximum throughput performance for the LANPlug 2000.
4. Pairing Password
The Pairing Password is dynamically created during the initial pairing process. It is assigned to
new LANPlug 2000’s when added to the G.hn domain during the pairing process. It is also used
as the seed parameter to generate a random encryption key.
5. PHY TX and PHY RX
The TX and RX PHY rate is the maximum speed that data can be transferred across the el ectrical
power lines. TX is the abbreviation for Transmit, RX is the abbreviation for Receive and PHY is
the abbreviation for Physical Layer.
IP Menu
The Internet Protocol (IP) menu displays the I P address, subnet mask and def ault gateway that
were assigned to the LANPlug 2000. IP addresses can be assigned dynamicly by a Dynamic Host
Configuration Protocol (DHCP) server or manually.
1. DHCP enabled
DHCP is a protocol that runs on both the Internet router and the LANPlug 2000. It automatically
provides an IP address to the LANPlug 2000 and other configuration information such as the
subnet mask and default gateway. The factory default setting is “YES” which means that the
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
26
LANPlug 2000 will be assigned an IP, default gateway and DNS addresses from the Internet
router.
If the DHCP setting is set to “NO”, a static IP address must be assigned to the LANPlug 2000
manually for t he given network. After assigning the IP address, default gateway and DNS, select
“OK” to save the change.
2. IPv4 address / netmask
The IPv4 address setting displays the IP address that was assigned to the LANPlug 2000
dynamically or statically and its associated subnet mask.
To change the IP address from DHCP to static, perform the following:
1. Log into the LANPlug 2000.
2. Select IP and then set the DHCP to NO.
3. Change the IPv4, address.
4. Select OK.
3. Default Gateway and DNS
The default gateway setting, displays the IP addr es s that is used to forward information from the
home network to the Internet. Typically, the default gateway’s IP address is the IP address of the
Internet router.
The Domain Name Servers (DNS) setting displays the I P address for the DNS. The DNS is the
Internet's equivalent of a phone book. It maintains a directory of domain names and translate
them to Internet Protocol (IP) addresses. This is n ecessary because, although domain na mes are
easy for people to remember, computers or machines, access websites based on IP addresses.
Typically, the default gateway’s IP address is the IP address of the Internet router.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
27
Ethernet Menu
The LANPlug 2000 is equipped with a 10/100/1000 IEEE 802.3-2008 standards c ompliant auto
sensing MDI-X Gigabit Ethernet interface.
1. Speed
The Speed setting displays the Ethernet connection speed between the LANPlug 2000 and the
connected device.
2. Link
The Link setting displays the status of the connection between the LANPlug 2000 and the
connected device.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
28
Device Menu
1. Hardware Information
The hardware information section provides an overview of the LANPlug 2000’s hardware.
2. Software Information
The software information section provides an overview of the software release that is running on
the LANPlug 2000.
3. Software Update
Extollo will periodically provide new software for the LANPlug 2000. The software will be made
available for down load from Extollo’s website.
1. Download the latest software for the LANPlug 2000 from Extollo’s website.
2. Save the software on your computer’s local hard drive in a location/directory that you can
remember. Do not change the file name or extension.
3. Select the Choose File button and navigate to the location/directory where the software
was stored and select the file.
4. Select the OK button to initiate the software upgrade.
5. The LANPlug 2000 will load the new software and then reboot its self.
NOTE: Do not unplug the LANPlug 2000 while it’s installing the new software. The LANPlug 2000
will become inoperable.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
29
4. Security
Change the administrative access password on the LANPlug 2000. It is recommended that you
change the password. The default password is ECLP2000. We recommen d t hat you set a mor e
secure password.
1. Log into the LANPlug 2000.
2. Select Device and then Set Password.
3. Enter the new administrative access password in the provided field.
4. Select OK.
Note: If you forget the new admin password, use the Factory Reset button to reset the
LANSocket 2000 to factory defaults.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
30
Factory Default 10
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
31
Restoring the LANPlug 2000 to Factory Default
This section describes the process to restore the LANPlug 2000 to its factory default settings.
Performing this process erases all settings that have been configured on the LANPlug 2000.
1. Hold the Pairing button down for mor e than 2 0 seconds until the Powerline and Ethernet
LEDs turn on.
2. Release the pairing button.
3. The LANPlug 2000 reboots and restores all settings to factory defaults.
4. The Powerline LED turns amber once the process is completed.
5. Perform the pairing procedure to add the LANPlug 2000 to the Powerline network.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
32
Troubleshooting 11
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
33
Troubleshooting the LANPlug 2000
The following information will help in isolating problems with the LANPlug 2000.
Symptoms
None of the LED’s Light Up After Installation
• Unplug the LANPlug 2000 from the electrical outlet and remove the Ethernet cable.
• Make sure there is power to the electrical outlet and it’s working properly.
• Ensure the LANPlug 2000 is not plugged into an extension cord, power strip, or surge
protector.
Power LED is Off:
• Make sure there is power supplied to the electrical outlet.
• Ensure the LANPlug 2000 is securely plugged directly to the electrical outlet.
• Try another electrical outlet.
Powerline Performance LED is Amber or Red:
• Try a different electrical outlet.
• Reset the LANPlug 2000 to factory defaults and perform the pairing process.
The Ethernet LED Does Not Light Up:
• The Ethernet LED indicator on the Powerline adapter will light up once it detects a network
device plugged into the Ethernet port.
• Check if the Ethernet cable is securely connected.
• Make sure that the device you are connecting to the LANPlug 2000 is powered ON.
• Check the Ethernet adapter on your computer to see if it is working/enabled.
• Try a different Ethernet cable.
The LANPlug 2000 Suddenly Stops Working
• Perform a power cycle of the adapter.
• Perform a reset to factory default and perform the pairing procedure.
Contact Technical Support
support@extollocom.com
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
34
Powerline
Optimization
12
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
35
Powerline Network Optimization
Powerline adapt ers work best when plugged into a wall outlet without power strips, extension
cords, surge protectors, or uninterruptable power supplies.
If you’re Extollo adapters are having difficulty communicating with each other, please read the
following section for corrective actions.
Quick Tips
• Plug powerline adapters directly into electrical outlets.
• Try plugging the powerline adapter into an adjacent electrical outlet.
• Try power cycling the adapter - unplugging it from the electrical outlet for 10 seconds and
then plugging it back in.
• Make sure that the electrical outlet is working properly.
• Do not use the powerline adapters in areas with excessive heat.
• Perform a reset to factory defaults.
Optimizing Network Per f orm a nc e
The distance between sockets shouldn’t be a problem in most homes, but the age o f the electrical
wiring may affect performance in some older buildings.
There are a few things to bear in mind if you w ant to get the bes t performance from y our powerline
network.
• Avoid UPS devices, GFI protected electrical outlets, power strips, multi-way extension
bars or extension cords as these will cause the powerline signal to attenuate (weaken).
• Surge protectors in particular interfere with the operation of powerline adapters.
• Some electrical devices, such as mobile phone chargers, certain florescent or
incandescent lights can cause interference or completely block the powerline signals if
they’re plugged in to close to the Powerline adapter.
• Avoid using HomePlug Powerline adapters with G.hn Powerline adapters as they are not
compatible.
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
36
Specifications 13
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
37
Technical Specifications
Main Chipset Maxlinear wave two G.hn Powerline SOC
Computer Interface IEEE802.3 /u/ab 10/100/1000 BASE-T
Operating mode ITU-T G.hn G.9963
PHY Data rate 1.5 Gbps from 2 to 80MHz
1 x RJ-45 (10/100/1000Base-T Ethernet)
Network Interface
1 x NEMA 5 120VAC 1.5 Gbps Powerline interface
Quality of Service 8 levels of Powerline packet-prioritized QoS
Security 128-bit AES Link Encryption with Key Management
Modulation Schemes
OFDM Symbol Modulation on Line synchronization
1024/256/64/16/8—QAM, QPSK, BPSK, ROBO Carrier Modulation
Protocols TDMA channel access scheme
Operational Range Estim ated range of 1,000 feet across power lines
Cabling 1000Base-T; UTP Cable
Operating Temperature
Storage Temperature
-5° C to +45° C ambient temperature
-20° C to +85° C ambient temperature
Humidity 5% to 95% maximum (non-condensing)
Power Input 100 ~ 240V @ 50/60Hz Internal
Power consumption Normal: 5.81W @ 80dB_Bidirectional
Dimensions H 4.73” x W 2.56” x D 1.15”
cUL 60950 & UL 2043
Regulatory Compliance
FCC Part 15 Class B
CE IEC 60950-1
The information contained within this document is confidential and cannot be reproduced
without the approval of Extollo Communications.
38
Loading...
