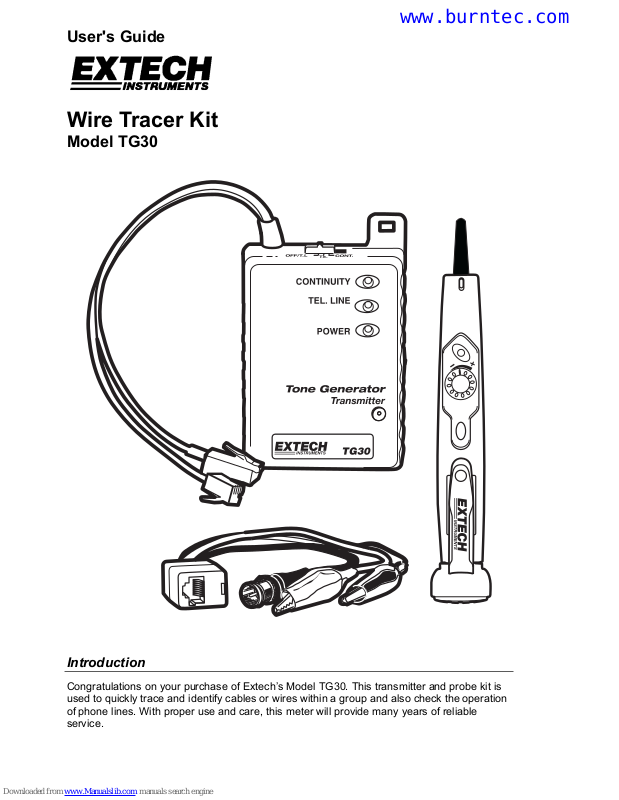

Extech Instruments TG30 User Manual

User's Guide

Wire Tracer Kit

Model TG30

Introduction

Congratulations on your purchase of Extech’s Model TG30. This transmitter and probe kit is
used to quickly trace and identify cables or wires within a group and also check the operation
of phone lines. With proper use and care, this meter will provide many years of reliable
service.

www.burntec.com

TG30 V1.3 10/02

2

Specifications

Power Transmitter; 9V NEDA 1604/1604AL
Probe; (4) LR44, 157, AG13, A76 or equivalent
Operating Temperature 14 to 122

o

F (-100 to 50oC)
Operating Humidity <80% RH
Altitude 2000 meters
Dimensions Probe:5.8x1.1x1.1(147x28x28mm),
Transmitter:2.6x4.1x0.9”(67x103x23mm)
Weight Probe 1.1oz(30g); Transmitter 4.2oz(120g)

Meter Description

Transmitter

1. Function switch (OFF/T.L., Tx,
CONT)

2. Continuity led

3. Telephone Line led

4. Power led

5. Battery compartment (rear)

6. Modular connectors

Probe

1. Signal receiver

2. Power LED

3. Sensitivity adjustment

4. Power button

5. Pocket clip

6. Battery compartment

7. Speaker

Adaptor

1. RJ11 socket (connect to transmitter modular
connector)

2. CATV Type F connector

3. Alligator clips

12 3
