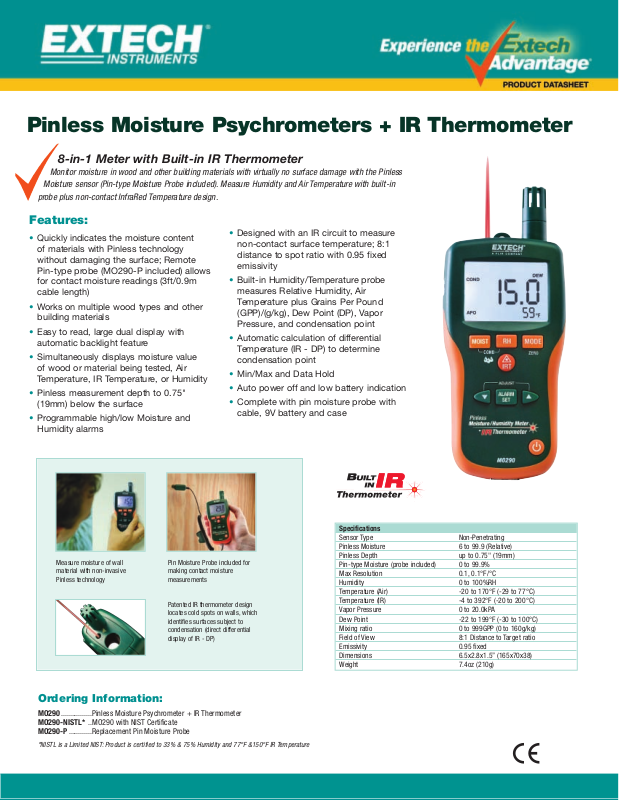

Extech Instruments MO290, MO290-NISTL, MO290-P Data Sheet

Pinless Moisture Psychrometers + IR Thermometer

8-in-1 Meter with Built-in IR Thermometer

Monitor moisture in wood and other building materials with virtually no surface damage with the Pinless

Moisture sensor (Pin-type Moisture Probe included). Measure Humidity and Air Temperature with built-in

probe plus non-contact InfraRed Temperature design.

Features:

• Quickly indicates the moisture content

of materials with Pinless technology
without damaging the surface; Remote
Pin-type probe (MO290-P included) allows
for contact moisture readings (3ft/0.9m
cable length)

• Works on multiple wood types and other

building materials

• Easy to read, large dual display with

automatic backlight feature

• Simultaneously displays moisture value

of wood or material being tested, Air
Temperature, IR Temperature, or Humidity

• Pinless measurement depth to 0.75"

(19mm) below the surface

• Programmable high/low Moisture and

Humidity alarms

• Designed with an IR circuit to measure

non-contact surface temperature; 8:1
distance to spot ratio with 0.95 fixed
emissivity

• Built-in Humidity/Temperature probe

measures Relative Humidity, Air
Temperature plus Grains Per Pound
(GPP)/(g/kg), Dew Point (DP), Vapor
Pressure, and condensation point

• Automatic calculation of differential

Temperature (IR - DP) to determine
condensation point

• Min/Max and Data Hold

• Auto power off and low battery indication

• Complete with pin moisture probe with

cable, 9V battery and case

Measure moisture of wall
material with non-invasive
Pinless technology

Pin Moisture Probe included for
making contact moisture
measurements

Patented IR thermometer design
locates cold spots on walls, which
identifies surfaces subject to
condensation (direct differential
display of IR - DP)

Ordering Information:

MO290................Pinless Moisture Psychrometer + IR Thermometer

MO290-NISTL* ..MO290 with NIST Certificate

MO290-P ............Replacement Pin Moisture Probe

*NISTL is a Limited NIST: Product is certified to 33% & 75% Humidity and 77°F &150°F IR Temperature

Specifications

Sensor Type Non-Penetrating
Pinless Moisture 6 to 99.9 (Relative)
Pinless Depth up to 0.75" (19mm)
Pin-type Moisture (probe included) 0 to 99.9%
Max Resolution 0.1, 0.1°F/°C
Humidity 0 to 100%RH
Temperature (Air) -20 to 170°F (-29 to 77°C)
Temperature (IR) -4 to 392°F (-20 to 200°C)
Vapor Pressure 0 to 20.0kPA
Dew Point -22 to 199°F (-30 to 100°C)
Mixing ratio 0 to 999GPP (0 to 160g/kg)
Field of View 8:1 Distance to Target ratio
Emissivity 0.95 fixed
Dimensions 6.5x2.8x1.5” (165x70x38)
Weight 7.4oz (210g)

Humidity and Temperature USB Datalogger

Records up to 16,000 readings for each parameter

Datalogs 16,000 Humidity and 16,000 Temperature readings with a user

programmable sample rate

Features:

• Datalogs 32,000 readings (16,000 for each parameter:

Humidity/Temperature)

• Dew point indication via Windows

• RHT10-SW optional software to calculate Grains per Pound

(grams per kilogram) to 1120GPP (160g/kg)

• Selectable data sampling rate: 2s, 5s, 10s, 30s, 1m, 5m,

10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr

• User-programmable alarm thresholds for RH and Temperature

• Status Indication via Red/Yellow LED and Green LED

• Long battery life (

approx. 1 year)

• Complete with 3.6V Lithium battery and Windows

Vista, 7, 8 and 10 compatible analysis software

®

software (included)

®

98, 2000, XP,

Monitors Humidity and Temperature levels in
warehouse, storage rooms, freezers, shipping
vans, and water damage restoration

USB connector easily plugs into a computer for
data analysis of Temperature and Humidity

Ordering Information:

RHT10 ............Humidity and Temperature USB Datalogger

RHT10-SW ....GPP (g/kg) Software for RHT10

42299 ............3.6V Lithium Batery (pkg of 2)

Specifications Range Resolution Accuracy (%rdg+digits)

Temperature -40 to 158°F 0.1°F/°C ±1.8°F (14 to 104°F)

±3.6°F (-40 to +14 and 104 to 158°F)

-40 to 70°C ±1.0°C (-10 to 40°C)
±2.0°C (-40 to -10 and +40 to 70°C)

Humidity 0 to 100%RH 0.1%RH ±3%RH
Datalogging interval 2 seconds to 24 hours
Memory Temperature: 16,000 points; Relative Humidity: 16,000 points
Dimensions 5.1 x 1.1 x 0.98" (130 x 30 x 25mm)
Weight 1oz (20g)
