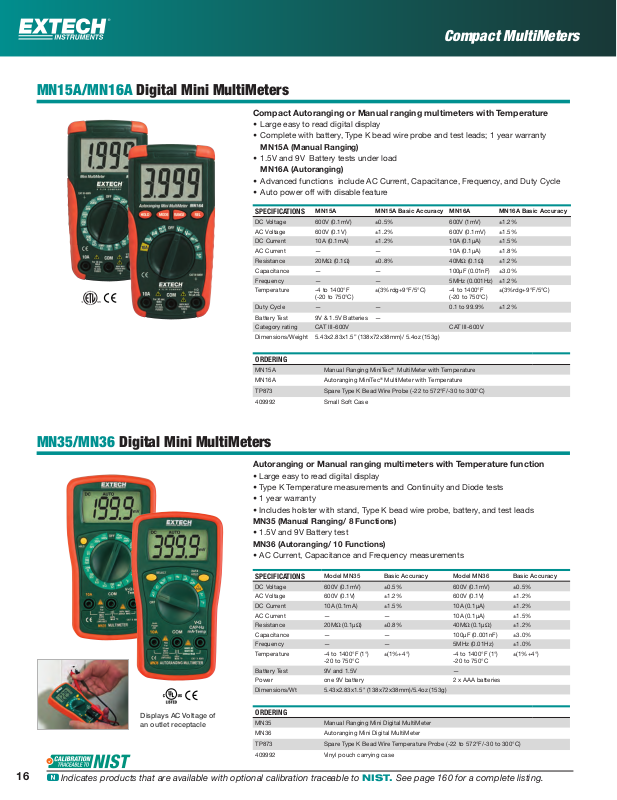

Extech Instruments MN15A, MN16A, MN35, MN36 Catalog Page
MN15A/MN16A Digital Mini MultiMeters
Compact Autoranging or Manual ranging multimeters with Temperature
• Large easy to read digital display
• Complete with battery, Type K bead wire probe and test leads; 1 year warranty
MN15A (Manual Ranging)
• 1.5V and 9V Battery tests under load
MN16A (Autoranging)
• Advanced functions include AC Current, Capacitance, Frequency, and Duty Cycle
• Auto power off with disable feature
Compact MultiMeters
SPECIFICATIONS
DC Voltage 600V (0.1mV) ±0.5% 600V (1mV) ±1.2%
AC Voltage 600V (0.1V) ±1.2% 600V (0.1mV) ±1.5%
DC Current 10A (0.1mA) ±1.2% 10A (0.1µA) ±1.5%
AC Current — — 10A (0.1µA) ±1.8%
Resistance 20MΩ (0.1Ω) ±0.8% 40MΩ (0.1Ω) ±1.2%
Capacitance — — 100µF (0.01nF) ±3.0%
Frequency — — 5MHz (0.001Hz) ±1.2%
Temperature -4 to 1400°F
Duty Cycle — — 0.1 to 99.9% ±1.2%
Battery Test 9V & 1.5V Batteries —
Category rating CAT III-600V CAT III-600V
Dimensions/Weight 5.43x2.83x1.5” (138x72x38mm)/ 5.4oz (153g)
ORDERING
MN15A Manual Ranging MiniTec®MultiMeter with Temperature
MN16A Autoranging MiniTec®MultiMeter with Temperature
TP873 Spare Type K Bead Wire Probe (-22 to 572°F/-30 to 300°C)
409992 Small Soft Case
MN35/MN36 Digital Mini MultiMeters
Autoranging or Manual ranging multimeters with Temperature function
• Large easy to read digital display
• Type K Temperature measurements and Continuity and Diode tests
•1yearwarranty
• Includes holster with stand, Type K bead wire probe, battery, and test leads
MN35 (Manual Ranging/ 8 Functions)
• 1.5V and 9V Battery test
MN36 (Autoranging/ 10 Functions)
• AC Current, Capacitance and Frequency measurements
MN15A MN15A Basic Accuracy MN16A MN16A Basic Accuracy
(-20 to 750°C)
±(3%rdg+9°F/5°C) -4 to 1400°F
(-20 to 750°C)
±(3%rdg+9°F/5°C)
SPECIFICATIONS
DC Voltage 600V (0.1mV) ±0.5% 600V (0.1mV) ±0.5%
AC Voltage 600V (0.1V) ±1.2% 600V (0.1V) ±1.2%
DC Current 10A (0.1mA) ±1.5% 10A (0.1µA) ±1.2%
AC Current — — 10A (0.1µA) ±1.5%
Resistance 20MΩ (0.1µΩ) ±0.8% 40MΩ (0.1µΩ) ±1.2%
Capacitance — — 100µF (0.001nF) ±3.0%
Frequency — — 5MHz (0.01Hz) ±1.0%
Temperature -4 to 1400°F (1°)
Battery Test 9V and 1.5V —
Power one 9V battery 2 x AAA batteries
Dimensions/Wt 5.43x2.83x1.5" (138x72x38mm)/5.4oz (153g)
Displays AC Voltage of
an outlet receptacle
16
ÿ Indicates products that are available with optional calibration traceable to NIST. See page 160 for a complete listing.
ORDERING
MN35 Manual Ranging Mini Digital MultiMeter
MN36 Autoranging Mini Digital MultiMeter
TP873 Spare Type K Bead Wire Temperature Probe (-22 to 572°F/-30 to 300°C)
409992 Vinyl pouch carrying case
Model MN35 Basic Accuracy Model MN36 Basic Accuracy
-20 to 750°C
±(1%+4°) -4 to 1400°F (1°)
-20 to 750°C
±(1%+4°)
