Extech Instruments HDV7C-P28-30 User manual

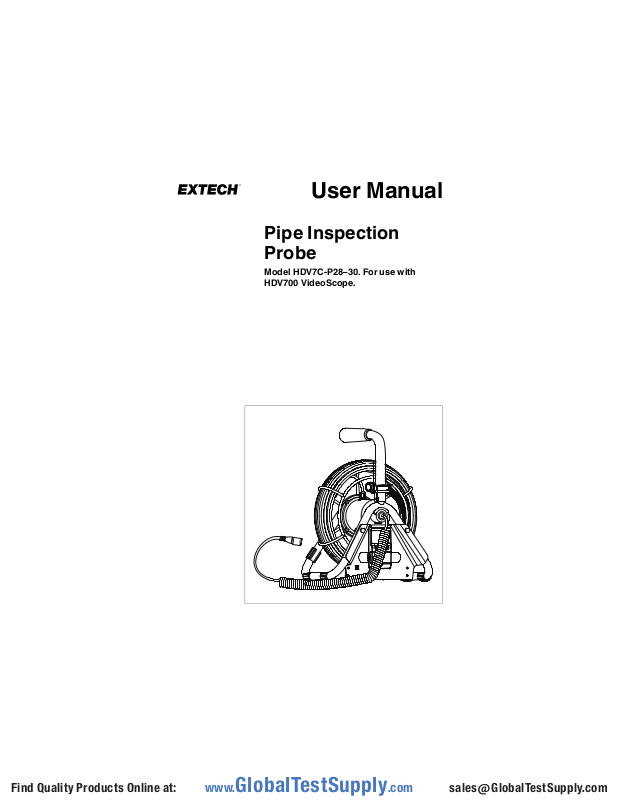

User Manual

Pipe Inspection
Probe

Model HDV7C-P28–30. For use with
HDV700 VideoScope.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Introduction

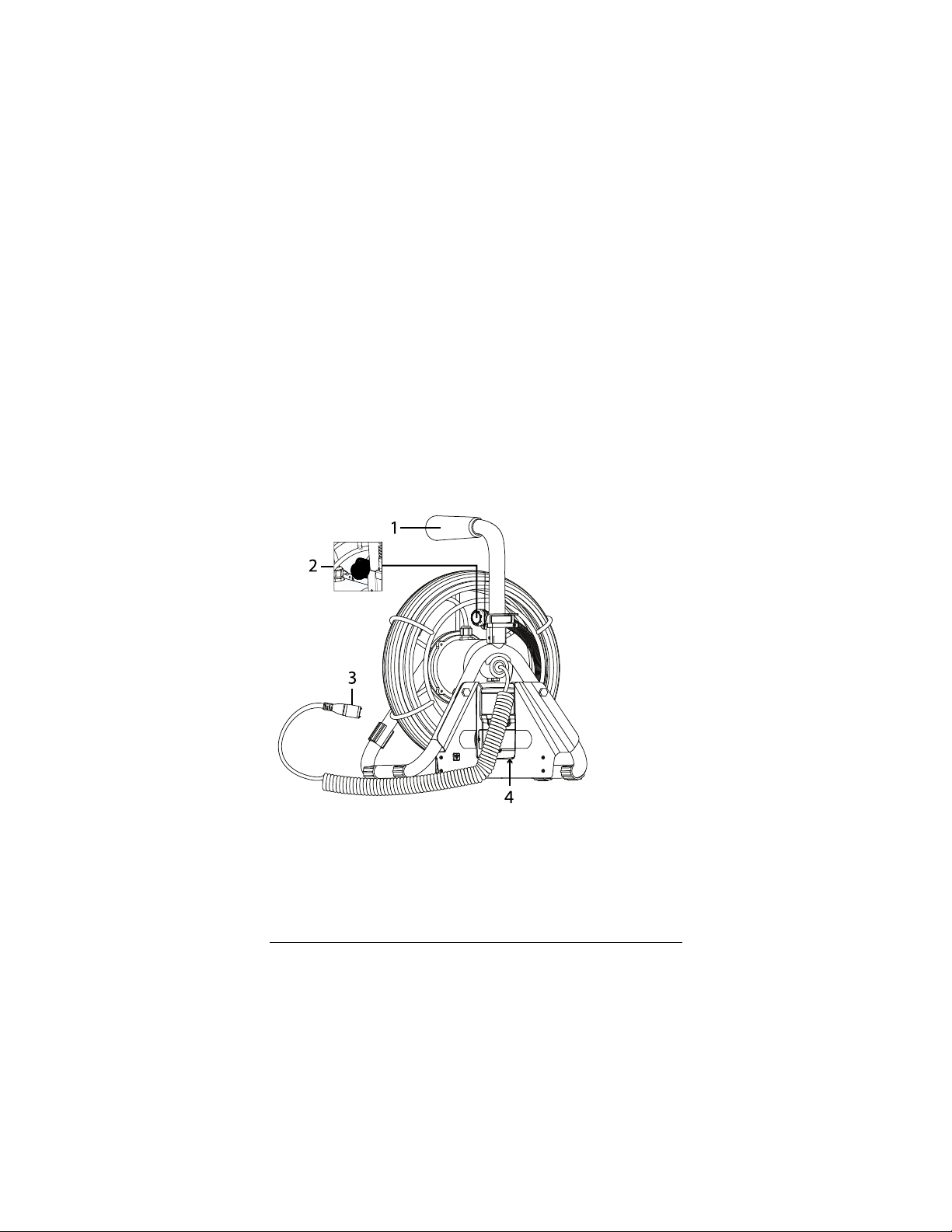

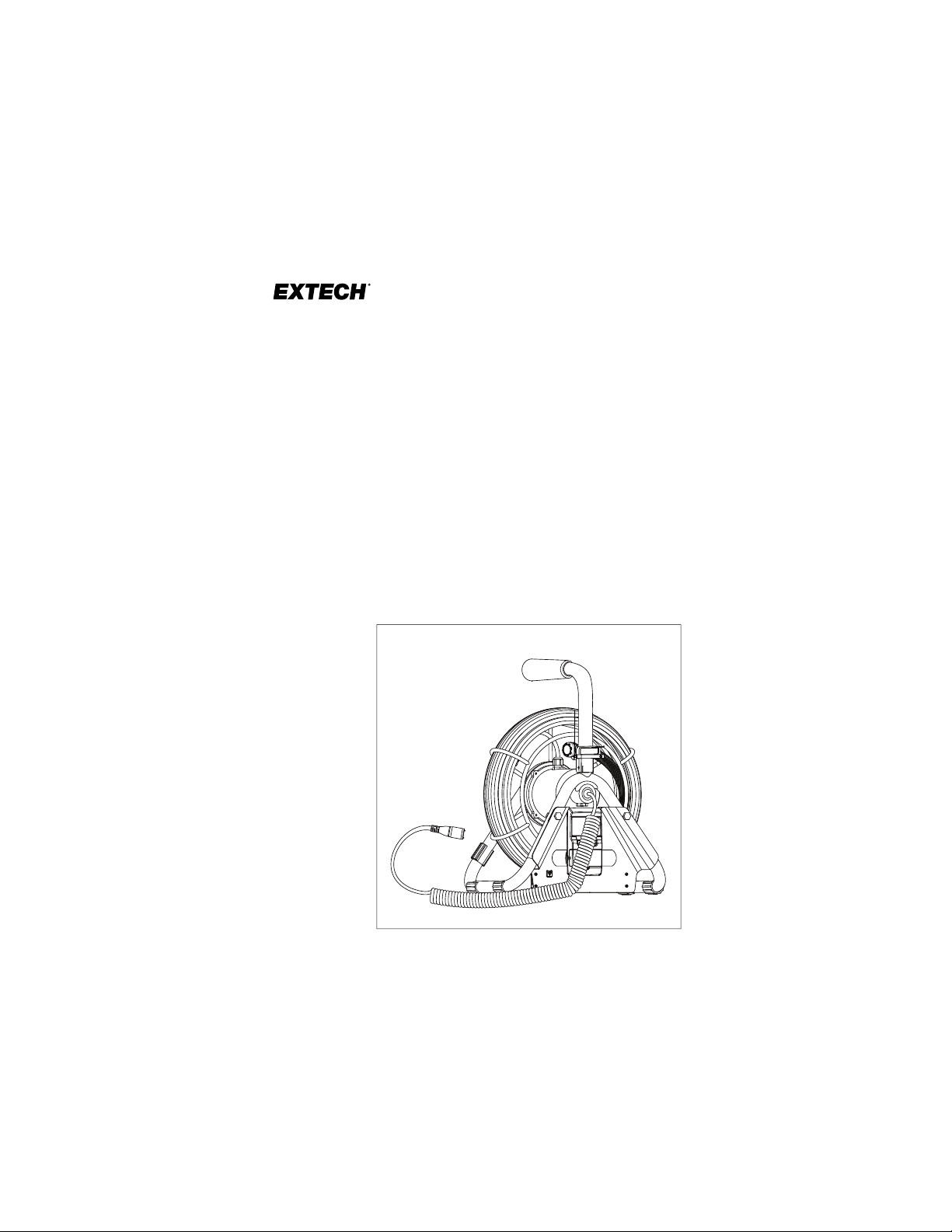

1. Handle

2. Camera head with stopper

3. HDV700 connector

4. Distance gauge

Thank you for selecting the Extech pipe inspection probe. The
probe includes a digital camera with a coiled 98.4 ft. (30 m) probe
spool, a brush accessory, and a digital distance gauge.

The probe is intended for use with the HDV700 VideoScope. See
the HDV700 manual for complete instructions covering image and
video management, split-screen mode, and other features.

Product Description

#NAS100128; r. AC/88003/88004; en-US

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

1

Safety

CAUTION

Do not insert the probe into flammable liquid or gas.

This product is designed for industrial use only. It is not intended for use in hu­man or other biological inspection.

CAUTION

To clean the probe, wipe with a soft cloth dampened with a mild detergent and
clean water. Do not use abrasive detergents, solvents, corrosives, or alcohol
to clean the probe. Use a high quality lens cleaning fluid and a lint-free swab
to clean the camera and worklight lenses.

Do not disassemble the product, damage to the product and electrical shock
may occur.

Avoid direct sun exposure. Store in a cool, dry, and well-ventilated area.

The probe contains sensitive circuitry that controls
the optics and electronics of the camera. Do not
strike the probe or allow it to impact objects
forcefully.

The following liquids have been approved for sub­mersion of the camera probe: Brake and transmis­sion fluid, diesel fuel, unleaded gasoline, engine
oil, and CPC hydraulic oil (46AWS).

Safety Note

Please read and understand all safety cautions before use.

Find Quality Products Online at: [e-mail]

#NAS100128; r. AC/88003/88004; en-US

www.GlobalTestSupply.com

2

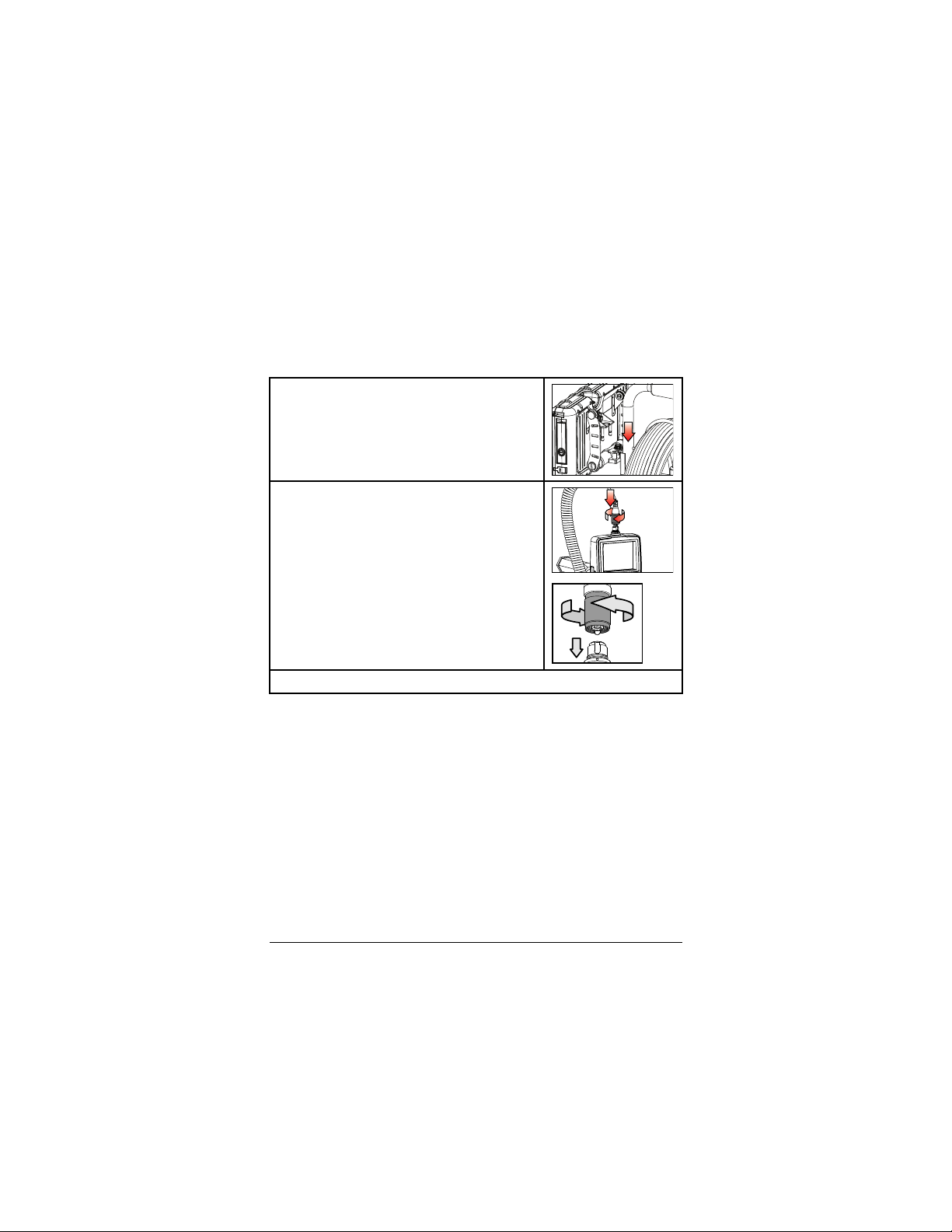

Connect the Probe

Connect the probe to the HDV700 by first aligning
the white dot on the probe connector with the white
dot on the HDV700 connector and then pushing
the probe into the HDV700 cavity until it seats
firmly.

Tighten the collar nut to secure the connection. Do not overtighten.

The steps below explain how to safely connect the HDV700 Video­Scope with the probe. Always switch the HDV700 power off when
making connections.

Attach the HDV700 to the reel.

#NAS100128; r. AC/88003/88004; en-US

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3

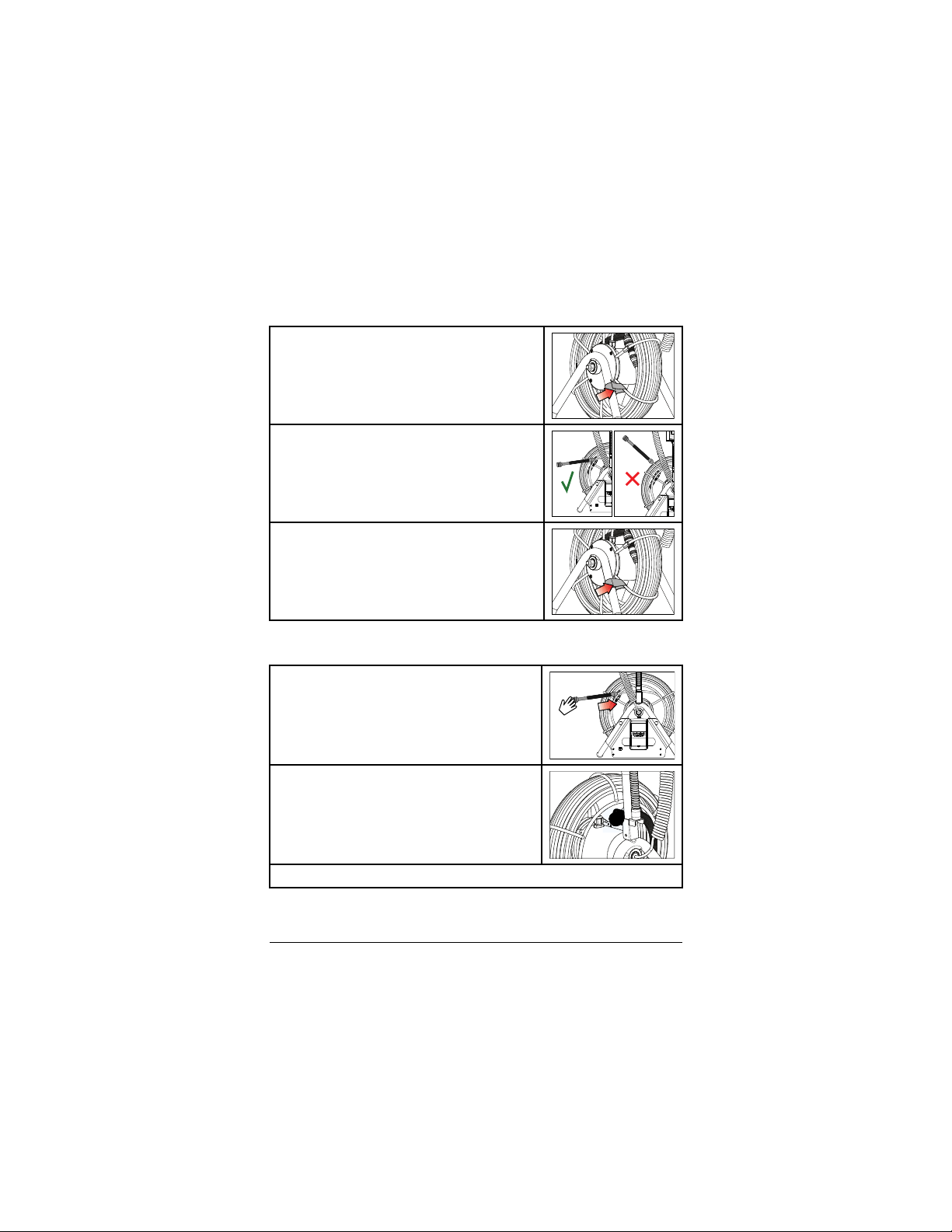

Uncoiling the Probe

Uncoil the probe horizontally from the camera
head stopper. Do not pull probe up over a 45°
angle.

After uncoiling the desired probe length, fasten the
wheel stopper.

Recoiling the Probe

After coiling the probe onto the wheel, affix the
camera head on the camera head stopper.

Ensure that the wheel stopper is secured.

Loosen the wheel stopper.

Carefully coil the probe back onto the wheel
horizontally.

#NAS100128; r. AC/88003/88004; en-US

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

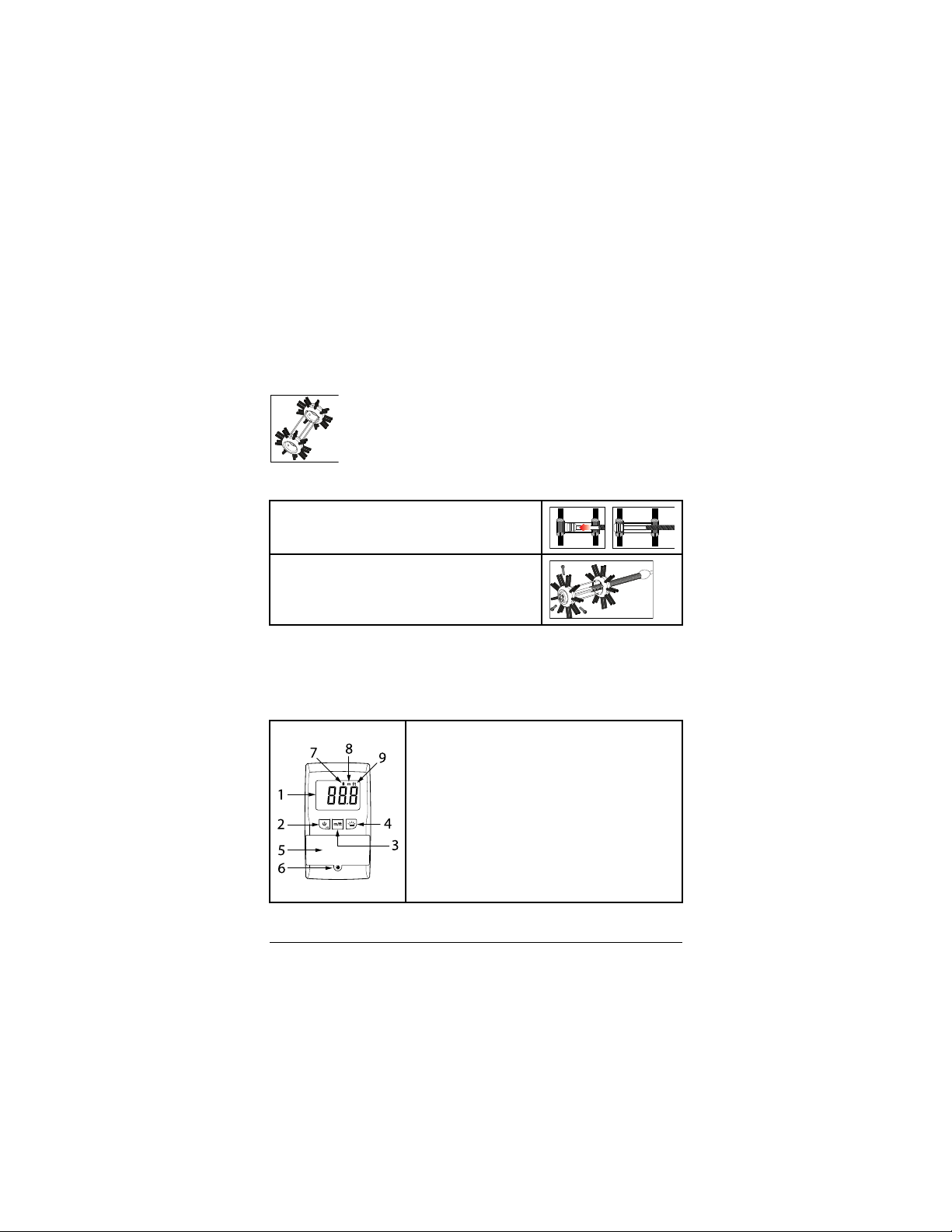

Brush Accessory

To attach the brush, follow the instructions below.

Tighten the screws.

Distance Gauge

1. Backlit digital display shows probe travel
distance

2. Power/Reset button. Press for 3 seconds to
switch ON or OFF. Short press to reset/zero
the display

3. Unit of measure button (meters and feet)

4. Display backlight button

5. Battery compartment cover

6. Battery compartment screw

7. Battery status

8. Unit of distance measure (meters)

9. Unit of distance measure (feet)

The probe includes a brush accessory that assists the probe as it
moves through the pipe under inspection. The brush can clear de­bris that may impede the probe. The brush diameter is 4 in. (100
mm).

Position the mounting ring so that it aligns with the
screw holes.

The electronic gauge measures and displays the distance that the
probe travels into the inspection area. The gauge tracks forward
and reverse movement.

#NAS100128; r. AC/88003/88004; en-US

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5

Powering the Distance Gauge

The distance gauge is switched ON or OFF by pressing the power
button (2) for three seconds. After one hour, the gauge will auto­matically switch off, to conserve battery energy.

The battery status icon (7) shows the current battery power. To re­place the batteries, follow the steps below:

1. Switch the meter off by pressing the power button (2) for three
seconds.

2. Remove the battery compartment screw (6).

3. Remove the compartment cover (5).

4. Remove the old batteries and dispose of them responsibly.

5. Install the two new AAA batteries, observing correct polarity.

6. Close the compartment and secure it with the compartment
screw.

Change the Measurement Units

The display shows the probe travel distance in meters (m) and feet
(ft), short press the units button (3) to toggle the displayed units.

Reset (Zero) the Distance Gauge Display

With the gauge powered, short press the power/reset button (2) to
reset the display to zero.

For the best accuracy, zero the display at the point of probe entry
into the inspection area.

If you wish to set a reference point, other than the starting point,
press the reset button at any time during an inspection. Now you
can monitor the distance travelled from this new reference point.

Distance Gauge Backlight

Short press the backlight button (4) to switch the display backlight
ON or OFF. The backlight will automatically switch OFF after 10
seconds to conserve battery energy.

#NAS100128; r. AC/88003/88004; en-US

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6

Measurement Considerations

• Ensure that the camera lens cap is removed before inserting the

probe into the pipe.

• Store the lens cap safely while it is removed.

• For protection, attach the lens cap when storing the camera.

• After connecting the probe to the HDV700, verify that a clear

camera image is displayed. If not, or if the image is flickering or
otherwise compromised, remove the probe and reattach it.

• Turn the probe wheel slowly when moving the probe through a

pipe. Do not force the wheel if resistance is detected. Check the
nature of the resistance and clear as necessary before
continuing.

• Use the distance gauge to keep track of the probe travel dis-

tance. Zero the display when you first insert the probe into the
pipe for best accuracy.

• Take still images and video, adjust display parameters, and more

from the HDV700 touch screen (refer to the HDV700 user
manual).

• When the inspection is complete, carefully recoil the probe

slowly onto the storage wheel.

Cleaning

Clean the probe with a damp cloth and mild detergent as necessary.

Clean the camera, mirror, and worklight lenses, using a high quality
lens cleaning fluid and a lint-free swab.

#NAS100128; r. AC/88003/88004; en-US

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

7

Specifications

Camera Specifications

Camera image resolution

Frame rate 30 frames per second (fps)

Probe head and body
diameter

Probe length and diameter 98.4 ft. (30 m) length; 0.2 in. (6 mm) diameter

Probe head material Stainless steel

Reel frame diameter 11.8 in. (300 mm)

Reel material

Worklights Eight (8) front facing LED lamps

Field of View (FOV)

Depth of Field (DOF) 0.4 to 4.0 in. (10 to 100 mm)

Accessories Probe brush attachment (included)

Operating and storage
temperature

Water-proof, ingress rating Probe tip and body: IP 67 (IEC 60529);

Liquids approved for probe
submersion

Weight 7.7 lbs. (3.5 kg)

640 x 480 pixels

1.1 in. (28 mm)

Steel frame; HDPE cable reel

150°

14℉ to 140℉ (–10℃ to 60℃)

Protected from submersion in water up to

32.8 ft. (10 m) for 30 minutes, maximum

Brake and transmission fluid, diesel fuel, un­leaded gasoline, engine oil, and CPC hy­draulic fluid (46AWS)

#NAS100128; r. AC/88003/88004; en-US

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8

Distance Gauge Specifications

Display type Backlit LCD

Display digits 3 digits with 0.1 resolution (99.9)

Unit of measure Meters (m) and feet (ft); selectable

Accuracy 1.3 ft (0.4 m)

Control buttons Power/reset, unit of measure, and display

Power Two (2) AAA batteries, included

Operating and storage
temperature

Dimensions 2.4 x 4.3 x 10.0 in. (62 x 110 x 25 mm)

backlight

≥ 90 hours operation

14℉ to 120℉ (-10℃ to 60℃)

Two-Year Warranty
