Page 1

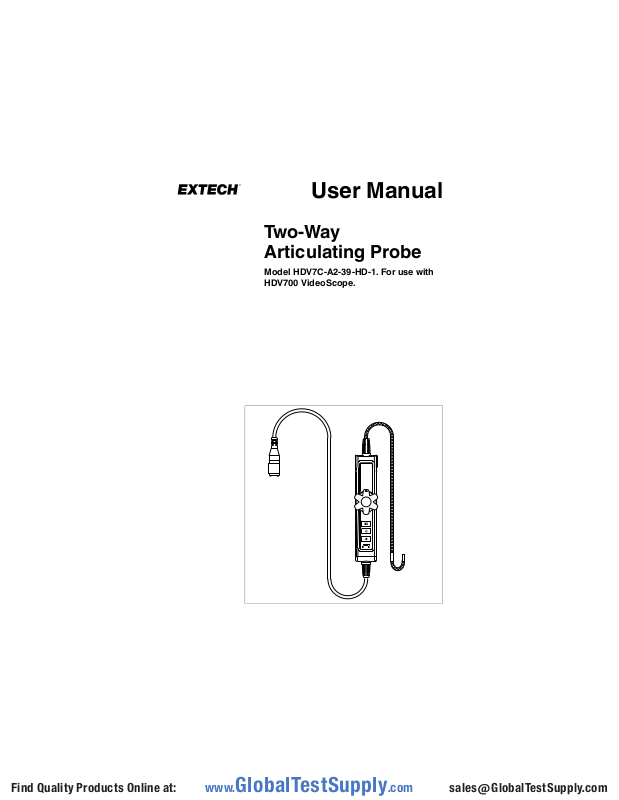

User Manual
Two-Way Articulating Probe
Model HDV7C-A2-39-HD-1. For use with HDV700 VideoScope.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Page 2
CAUTION
• Do not insert the probe into flammable liquid or gas.
• Before inspecting a vehicle, shut off the engine. Allow the metal and liquids in the vehicle to cool before inspection.
• This product is designed for industrial use only. It is not intended for use in human or other biological inspection.
• Do not disassemble the product, damage to the product and electrical shock may occur.
• Do not allow the camera head to come in contact with acidic, corrosive or heated material, serious damage to the equipment can occur.
Thank you for selecting the Extech two-way articulation probe with High Definition (HD) camera. The probe is intended for use with the HDV700 VideoScope. Obtain the HDV700 user manual and addi­tional translations of this user manual on the support site

Safety

Please read and understand all safety cautions before use.
#NAS100125; r. AB/88002/88004; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1
Page 3

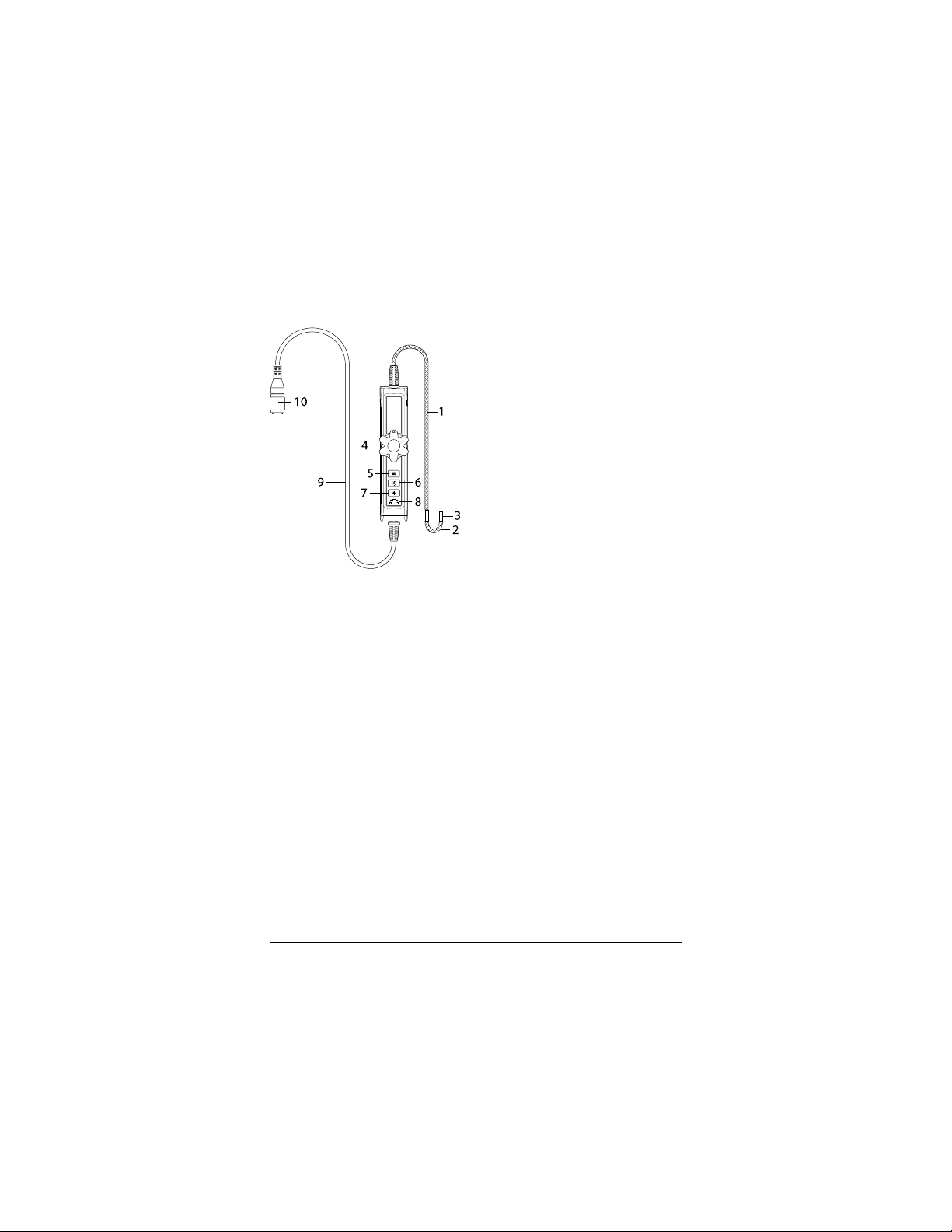

Description

1. Probe
2. Articulating neck
3. Camera head
4. Articulation control dial
5. Image and video recording button
6. Brightness increase button
7. Brightness decrease button
8. Button lock/unlock button
9. Connecting cable to HDV700
10. HDV700 connector
Find Quality Products Online at: sales@GlobalTestSupply.com
#NAS100125; r. AB/88002/88004; en-US
www.GlobalTestSupply.com
2
Page 4

Connecting the Probe

1. Align the white dot on the probe connector with the white dot on the monitor connector.
2. Plug the probe into the monitor unit, ensuring proper alignment and full insertion.
3. Tighten the collar nut to secure the connection. Do not overtighten.
CAUTION
Do not use excessive force when turning the control dial, damage to the cam­era probe can result. Do not attempt to force the flexible neck past its maxi­mum angle. Stop turning the control dial when the maximum angle is reached.
Use caution when removing the probe from an inspection area; if the neck is at an angle, it may bind and become difficult to remove. Straighten the neck before removing the probe from the inspection area.
The steps below explain how to safely connect the probe to the HDV700 monitor. Always turn the HDV700 power off before replac­ing the probe.

Operation

Controlling Articulation

Turn the control dial (4) clockwise to bend the probe neck to the right; turn the dial counter-clockwise to bend the neck to the left, as shown in the image below. The articulation range is 180° maximum.
#NAS100125; r. AB/88002/88004; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3
Page 5

Image and Video Capture Button

to capture a still image. Long press to start or stop video recording. Images and videos are stored on the micro SD card.
The HDV700 user manual provides detailed information regarding media management. Obtain the user manual from the support web­site (see Support section below).
(6, 7) to increase and decrease
the brightness of the camera images.
Short press the Image and Video Capture button (5)

Brightness Control Buttons

Use the brightness controls

Control Button Lock Switch

Use the locking switch (8) to disable the three control buttons (5, 6,
7).

Measurement Considerations

• The probe contains small circuitry that controls the optics and electronics of the camera. To ensure reliability, do not bend the probe more than 90°.
• Do not coil the probe < 6 in. (15 cm) in diameter in use.
• To avoid camera damage, please straighten the neck before re­moving it from the inspection area. Failure to do so may cause the camera to become stuck in the inspection area.
• The neck, near tip of the probe, is particularly sensitive to exces­sive force. Never bend the neck by hand; use only the control dial.
• Please keep the probe’s alignment as straight as possible while in use.
• Do not force the control dial when resistance to movement is felt; Damage to the camera can result.
• Do not allow the probe to forcefully impact an object.
• Do not put excessive weight on any area of the probe.
• Never use the probe as a hammer, hook, or other tool.
• Never use the probe tip to clear pathways or to unclog a pipe.
#NAS100125; r. AB/88002/88004; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4
Page 6

Storage and Maintenance

• To clean the probe, wipe with a soft cloth dampened with a mild detergent and clean water. Do not use abrasive detergents. Do not use corrosives or solvents to clean the probe. Use a high quality lens cleaning fluid and a lint-free swab to clean the cam­era and worklight lenses.
• To protect the camera, keep the lens cap, and other supplied protective coverings, attached when not in use. Store in the origi­nal case.
• Straighten the neck angle before placing in storage.
• Avoid direct sun exposure. Store in a cool, dry, and well-venti­lated area.
• Do not coil the probe < 6 in. (15 cm) in diameter when storing, damage to the probe may result.

Specifications

HD Camera resolution 1280(H) x 720(V) pixels
Frame rate 30 frames per second (fps)
Probe diameter 0.15 in. (3.9 mm)
Probe head diameter 0.2 in. (4.5 mm)
Probe head length 0.5 in. (17 mm)
Probe length 3.3 ft (1 m)
Articulation angle 180° maximum (the angle may decrease if
Probe head material
Probe body material Braided mesh stainless steel
Worklights LED lamps encircle the camera lens
Field of View (FOV)
Depth of Field (DOF) 0.4 to 4.0 in. (1 to 10 cm)
Operation and Storage temperature
the probe is looped)
Stainless steel
90°
14to 140(–10to 60)
#NAS100125; r. AB/88002/88004; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
5
Page 7
Liquids approved for probe submersion
Ingress protection
Brake and transmission fluid, diesel fuel, un­leaded gasoline, engine oil, and CPC hy­draulic oil (46AWS)
Probe tip and body: IP 67 (IEC 60529)
Protected from submersion in water up to 3.3 ft (1 m) for 30 minutes maximum. In use: rain, splashes, and accidental submersion

Two-Year Warranty

FLIR Systems, Inc. warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment (a six-month limited warranty applies to sensors and cables).
#NAS100125; r. AB/88002/88004; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6
