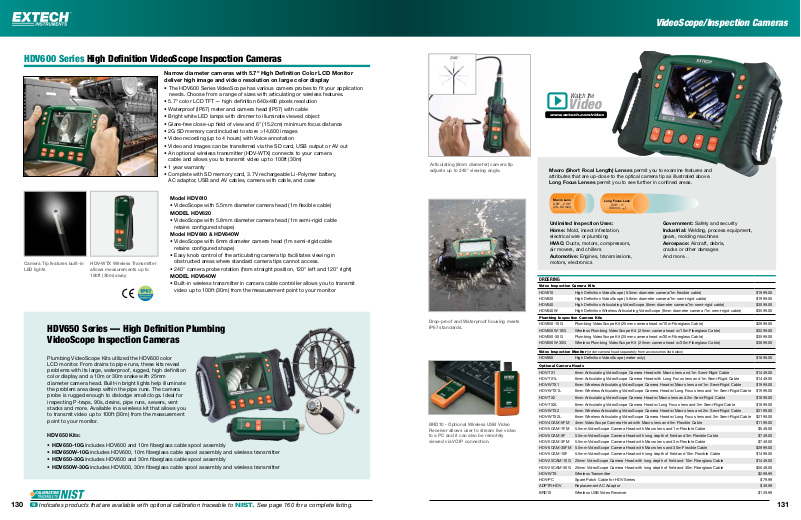

Extech Instruments HDV600 Series Catalog Page

HDV600 Series High Definition VideoScope Inspection Cameras

Macro Lens

0.59" - 2.36"
(20 - 60 mm)

N Indicates products that are available with optional calibration traceable to NIST. See page 160 for a complete listing.

Narrow diameter cameras with 5.7" High Definition Color LCD Monitor
deliver high image and video resolution on large color display

• The HDV600 Series VideoScope has various camera probes to fit your application
needs. Choose from a range of sizes with articulating or wireless features.

• 5.7" color LCD TFT — high definition 640x480 pixels resolution

• Waterproof (IP67) meter and camera head (IP57) with cable

• Bright white LED lamps with dimmer to illuminate viewed object

• Glare-free close-up field of view and 6" (15.2cm) minimum focus distance

• 2G SD memory card included to store >14,600 images

• Video recording (up to 4 hours) with Voice annotation

• Video and images can be transferred via the SD card, USB output or AV out

• An optional wireless transmitter (HDV-WTX) connects to your camera

cable and allows you to transmit video up to 100ft (30m)

• 1 year warranty

• Complete with SD memory card, 3.7V rechargeable Li-Polymer battery,

AC adaptor, USB and AV cables, camera with cable, and case

Articulating (6mm diameter) camera tip
adjusts up to 240° viewing angle.

VideoScope/Inspection Cameras

Watch the

Video

www.extech.com/video

Macro (Short Focal Length) Lenses permit you to examine features and
attributes that are up-close to the optical camera tip as illustrated above.
Long Focus Lenses permit you to see further in confined areas.

Camera Tip features built-in
LED lights

HDV650 Series — High Definition Plumbing
VideoScope Inspection Cameras

Plumbing VideoScope Kits utilized the HDV600 color
LCD monitor. From drains to pipe runs, these kits reveal
problems with its large, waterproof, rugged, high definition
color display and a 10m or 30m snake with 25mm
diameter camera head. Built-in bright lights help illuminate
the problem area deep within the pipe runs. The camera
probe is rugged enough to dislodge small clogs. Ideal for
inspecting P-traps, 90s, drains, pipe runs, sewers, vent
stacks and more. Available in a wireless kit that allows you
to transmit video up to 100ft (30m) from the measurement
point to your monitor.

HDV650 Kits:

• HDV650-10G includes HDV600 and 10m fiberglass cable spool assembly

• HDV650W-10G includes HDV600, 10m fiberglass cable spool assembly and wireless transmitter

• HDV650-30G includes HDV600 and 30m fiberglass cable spool assembly

• HDV650W-30G includes HDV600, 30m fiberglass cable spool assembly and wireless transmitter

HDV-WTX Wireless Transmitter
allows measurements up to
100ft (30m) away

Model HDV610

• VideoScope with 5.5mm diameter camera head (1m flexible cable)

MODEL HDV620

• VideoScope with 5.8mm diameter camera head (1m semi-rigid cable
retains configured shape)

Model HDV640 & HDV640W

• VideoScope with 6mm diameter camera head (1m semi-rigid cable
retains configured shape)

• Easy knob control of the articulating camera tip facilitates viewing in
obstructed areas where standard camera tips cannot access.

• 240° camera probe rotation (from straight position, 120° left and 120° right)

MODEL HDV640W

• Built-in wireless transmitter in camera cable controller allows you to transmit
video up to 100ft (30m) from the measurement point to your monitor

Drop-proof and Waterproof housing meets
IP67 standards.

BRD10 - Optional Wireless USB Video
Receiver allows user to stream live video
to a PC and it can also be remotely
viewed via VOIP connection.

Macro Lens

0.59" - 2.36"
(20 - 60 mm)

Unlimited Inspection Uses:
Home: Mold, insect infestation,

electrical wire or plumbing
HVAC: Ducts, motors, compressors,

air movers, and chillers
Automotive: Engines, transmissions,

motors, electronics

Long Focus Lens

2.36" -



(60 mm- )

Government: Safety and security
Industrial: Welding, process equipment,

gears, molding machines
Aerospace: Aircraft, debris,

cracks or other damages
And more…

ORDERING

Video Inspection Camera Kits

HDV610 High Definition VideoScope (5.5mm diameter camera/1m flexible cable) $1999.00
HDV620 High Definition VideoScope (5.8mm diameter camera/1m semi-rigid cable) $1999.00
HDV640 High Definition Articulating VideoScope (6mm diameter camera/1m semi-rigid cable) $3099.00
HDV640W High Definition Wireless Articulating VideoScope (6mm diameter camera /1m semi-rigid cable) $3599.00

Plumbing Inspection Camera Kits

HDV650-10G Plumbing VideoScope Kit (25mm camera head w/10m Fiberglass Cable) $2999.00
HDV650W-10G Wireless Plumbing VideoScope Kit (25mm camera head w/10m Fiberglass Cable) $3299.00
HDV650-30G Plumbing VideoScope Kit (25mm camera head w/30m Fiberglass Cable) $3599.00
HDV650W-30G Wireless Plumbing VideoScope Kit (25mm camera head w/30m Fiberglass Cable) $3899.00

Video Inspection Monitor (order camera head separately from accessories list below)

HDV600 High Definition VideoScope (meter only) $1699.00

Optional Camera Heads

HDV-TX1 6mm Articulating VideoScope Camera Head with Macro lens and 1m Semi-Rigid Cable $1449.00
HDV-TX1L 6mm Articulating VideoScope Camera Head with Long Focus lens and 1m Semi-Rigid Cable $1449.00
HDV-WTX1 6mm Wireless Articulating VideoScope Camera Head w/Macro lens and 1m Semi-Rigid Cable $1999.00
HDV-WTX1L 6mm Wireless Articulating VideoScope Camera Head w/Long Focus lens and 1m Semi-Rigid Cable $1999.00

HDV-TX2 6mm Articulating VideoScope Camera Head w/Macro lens and 2m Semi-Rigid Cable $1699.00
HDV-TX2L 6mm Articulating VideoScope Camera Head w/Long Focus lens and 2m Semi-Rigid Cable $1699.00
HDV-WTX2 6mm Wireless Articulating VideoScope Camera Head w/Macro lens and 2m Semi-Rigid Cable $2199.00
HDV-WTX2L 6mm Wireless Articulating VideoScope Camera Head w/Long Focus lens and 2m Semi-Rigid Cable $2199.00
HDV-4CAM-5FM 4mm VideoScope Camera Head with Macro lens and 5m Flexible Cable $1199.00
HDV-5CAM-1FM 5.5mm VideoScope Camera Head with Macro lens and 1m Flexible Cable $549.00
HDV-5CAM-3F 5.5mm VideoScope Camera Head with long depth of field and 3m Flexible Cable $749.00
HDV-5CAM-3FM 5.5mm VideoScope Camera Head with Macro lens and 3m Flexible Cable $749.00
HDV-5CAM-30FM 5.5mm VideoScope Camera Head with Macro lens and 30m Flexible Cable $2999.00
HDV-5CAM-10F 5.5mm VideoScope Camera Head with long depth of field and 10m Flexible Cable $1499.00

HDV-25CAM-10G 25mm VideoScope Camera Head with long depth of field and 10m Fiberglass Cable $1449.00
HDV-25CAM-30G 25mm VideoScope Camera Head with long depth of field and 30m Fiberglass Cable $2049.00
HDV-WTX Wireless Transmitter $299.99
HDV-PC Spare Patch Cable for HDV Series $79.99
ADPTR-HDV Replacement AC Adaptor $39.99
BRD10 Wireless USB Video Receiver $129.99
