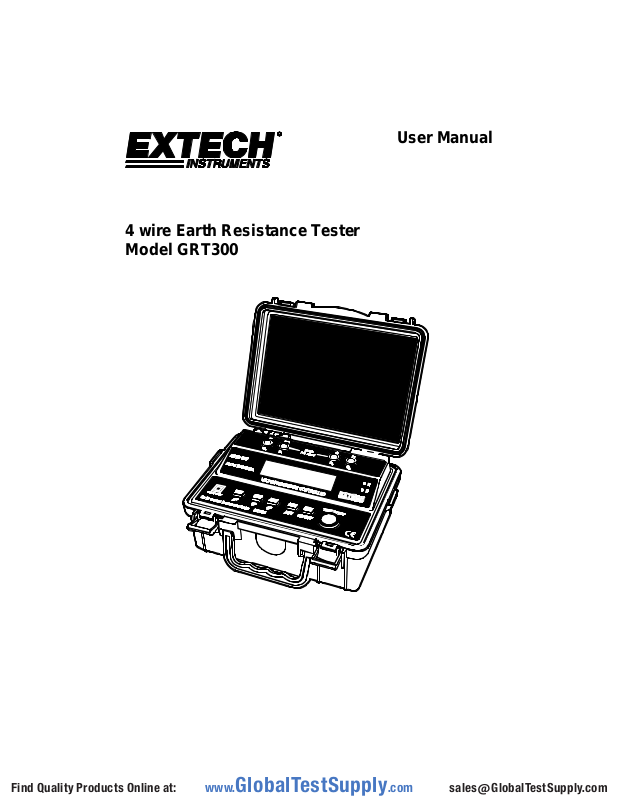

User Manual
4 wire Earth Resistance Tester
Model GRT300
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GRT300-en-GB_v1.2 12/17
2
Introduction
Congratulations on your purchase of Extech’s 4 Wire Earth Resistance Tester. The Model GRT300
has been designed and tested according to the IEC Publication 348, safety requirements for Electronic
Measuring Apparatus, EN 61010-1, EN 61326-1, EN 61557-1, EN 61557-5 and other safety
standards. Proper use and care of this meter will provide many years of reliable service.
Safety Notes
Read the all safety information carefully before attempting to operate or service the meter.
Use the meter only as specified in this manual. Otherwise, the protection provided by the meter
may be impaired.
Rated environmental conditions.
Indoor & outdoor use.
Installation Category IV 300V.
Pollution Degree 2.
Altitude up to 2000m.
Relative Humidity 80% max.
Ambient temperature 0-40°C.
Observe the International Electrical Symbols listed below:
Detector is protected throughout by double insulation or reinforced insulation.
Warning! Risk of electric shock.
Caution! Refer to this manual before using the detector.
Earth(ground) terminal.
Equipment complies with current EU directives.
WARNING
To avoid electrical shock, do not touch the terminals during tests
Never apply Voltage higher than 300V across P1 and P2 terminals.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GRT300-en-GB_v1.2 12/17
3
Features
Microprocessor controlled with advanced safety features
Two line LCD display
Auto-Ranging
Earth resistance testing with four ranges: 0-2Ω/0-20Ω/0-200Ω/0-2kΩ
Earth voltage measuring range of 0-300Vac
Automatic C spike check.
Automatic P spike check.
2-wire test
3-wire test
4-wire test
Auto power off
Data hold
Safety standard: EN 61010-1 CATIV 300V, EN 61326-1
Meter Description
1. C1 terminal
(Black test lead connection)
2. P1 terminal
(Green test lead connection)
3. P2 terminal
(Yellow test lead connection)
4. C2 terminal
(Red test lead connection)
5 Display
6. Rc LED
7. Rp LED
8. 2 Wire button
9. 3 Wire button
10. 4 Wire button
11. ACV button
12. Power button
13. TEST/STOP button
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GRT300-en-GB_v1.2 12/17
4
Operation
Battery Voltage check
1. Press the "ON/OFF" button, if "Battery Low" appears on the display, replace the batteries.
Earth Voltage measurement
1. Connect the test leads as shown below.
(1) Earth electrode (rod) under test (2) Test spike
2. Press the "ON/OFF" button and wait for “Select Function” to appear on the display.
3. Press the "ACV" button and then the "TEST/STOP" button.
4. The earth voltage will be displayed on the display.
Note: When the earth voltage is more than 10V, errors in earth resistance measurements may
occur. Make sure that the indicated value is less than 10V.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GRT300-en-GB_v1.2 12/17
5
Earth Resistance measurement
Note: The measured results may be influenced by inductive or capacitive coupling if the test leads
are twisted or adjacent to each other. When connecting the Probes, keep the leads separated.
Setup
Insert the Potential spike and the Current spike (if required) as deep as possible into the soil. The
distance between spikes must be 5 to 10 meters (16 to 32 feet).
Four-terminal earth resistance measurements
(1) Earth electrode (rod) under test (2) Potential spike (3) Current spike
Three-terminal earth resistance measurements
(1) Earth electrode (rod) under test (2) Potential spike (3) Current spike
Two-terminal earth resistance measurements
(1) Earth electrode (rod) under test (2) Potential spike
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GRT300-en-GB_v1.2 12/17
6
Testing
1. Connect the test leads for 2, 3 or 4 terminal testing.
2. Press the ON/OFF button and wait for the “Select Function” screen to appear.
3. Press the "2P", "3P" or "4P" button that agrees with the setup.
4. Press "TEST/STOP" button to begin the test.
5. The meter will beep while the test is in progress (approximately 10 seconds) and then the
reading will appear on the lower line of the display.
Notes:
"Rc" & "Rp" LED indications:
Rc: No test current output. Check connections.
Rp: If Rp is on and the display indicates “> 2 kΩ”, the earth resistance is greater than 2000Ω.
If, in "4P" mode, the display shows "Vp Error", short circuit C1(black) and P1(green).
Measurement Considerations
Two (2) terminal testing of earth resistance is appropriate for most general purpose testing in
normally conductive soil. But, 2 terminal measurements include test lead and contact resistance in
the measurement and the result will be a reading slightly higher than the true earth resistance.
When measured results are higher than desired or if measurement directives require multi-terminal
techniques, switch to the 3 or 4 terminal techniques as needed.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GRT300-en-GB_v1.2 12/17
7
Maintenance
1. Rear cover
2. Battery
3. Fuse
Fuse Replacement
1. Disconnect the test leads from the instrument.
2. Remove the rear cover by removing two screws.
3. Remove and replace the fuse with the new one of the same value and size 0.1A/250V, 5 x
20mm.
4. Replace and secure the rear cover.
Battery replacement
When "Battery Low" appears on the display, replace the batteries.
1. Disconnect the test leads from the instrument and remove the rear cover and the batteries.
2. The tester's battery is located under the tester.
3. Replace with eight 1.5V AA light batteries, taking care to observe correct polarity.
4. Reinstall battery holder and the battery cover.
Cleaning and Storage
WARNING: To avoid electrical shock or damage to the meter, do not get water inside the case.
Periodically wipe the case with a damp cloth and detergent, do not use abrasives or solvents.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GRT300-en-GB_v1.2 12/17
8
Specifications
General Specifications
Test Frequency
820Hz
Test Current
2mA
Temperature & Humidity
Operating: 0 to 50°C (32 to 122°F) ≦80%R.H.
Storage : -10 to 60°C (14 to 140°F) ≦80%R.H.
Test Leads
Red – 15m, Black-10m, Yellow-10m, Green-5m
Power Source
1.5V(AA) x 8
Dimensions
250(L) x 190(W) x 110(D)mm (9.84x7.5x4.33”)
Weight
Approx. 1430g(battery included)
Fuse
0.1A/250V 5 x 20mm
Range Specifications
Earth Ground Resistance
Range
Resolution
Accuracy
0 to 2 Ω
0.01 Ω
±(2%rdg+0.1Ω)
0 to 20 Ω
0.1 Ω
±(2%rdg+3dgt)
0 to 200 Ω
1 Ω
±(2%rdg+3dgt)
0 to 2 kΩ
0.01 kΩ
±(2%rdg+3dgt)
Earth Voltage
0 to 300 VAC
(40 to 500Hz)
1VAC
±(2%rdg+3dgt)
