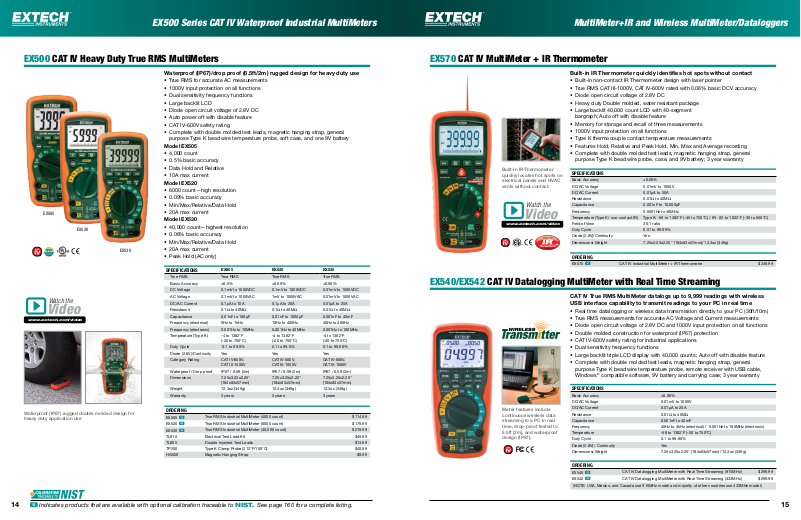

Extech Instruments EX500 Series Catalog Page
EX500 Series CAT IV Waterproof Industrial MultiMeters
N Indicates products that are available with optional calibration traceable to NIST. See page 160 for a complete listing.
MultiMeter+IR and Wireless MultiMeter/Dataloggers
EX500 CAT IV Heavy Duty True RMS MultiMeters
Waterproof (IP67)/drop proof (6.5ft/2m) rugged design for heavy duty use
• True RMS for accurate AC measurements
• 1000V input protection on all functions
• Dual sensitivity frequency functions
• Large backlit LCD
• Diode open circuit voltage of 2.8V DC
• Auto power off with disable feature
• CAT IV-600V safety rating
• Complete with double molded test leads, magnetic hanging strap, general
purpose Type K bead wire temperature probe, soft case, and one 9V battery
Model EX505
• 4,000 count
• 0.5% basic accuracy
• Data Hold and Relative
• 10A max current
Model EX520
• 6000 count—high resolution
• 0.09% basic accuracy
• Min/Max/Relative/Data Hold
EX505
EX520
EX530
Watch the
Video
www.extech.com/video
Waterproof (IP67) rugged double molded design for
heavy duty application use
• 20A max current
Model EX530
• 40,000 count—highest resolution
• 0.06% basic accuracy
• Min/Max/Relative/Data Hold
• 20A max current
• Peak Hold (AC only)
SPECIFICATIONS
True RMS True RMS True RMS True RMS
Basic Accuracy ±0.5% ±0.09% ±0.06%
DC Voltage 0.1mV to 1000VDC 0.1mV to 1000VDC 0.01mV to 1000VDC
AC Voltage 0.1mV to 1000VAC 1mV to 1000VAC 0.01mV to 1000VAC
DC/AC Current 0.1µA to 10A 0.1µA to 20A 0.01µA to 20A
Resistance 0.1Ω to 40MΩ 0.1Ω to 40MΩ 0.01Ω to 40MΩ
Capacitance 0.01nF to 100µF 0.01nF to 1000µF 0.001nF to 40mF
Frequency (electrical) 5Hz to 1kHz 10Hz to 400Hz 40Hz to 400Hz
Frequency (electronic) 0.001Hz to 10MHz 0.001Hz to 40MHz 0.001Hz to 100MHz
Temperature (Type K) -4 to 1382°F
Duty Cycle 0.1 to 99.9% 0.1 to 99.9% 0.1 to 99.90%
Diode (2.8V)/Continuity Yes Yes Yes
Category Rating CAT IV-600V,
Waterproof / Drop proof IP67 / 6.5ft (2m) IP67 / 6.5ft (2m) IP67 / 6.5ft (2m)
Dimensions 7.25x3.25x2.25"
Weight 12.3oz (349g) 12.3oz (349g) 12.3oz (349g)
Warranty 3 years 3 years 3 years
ORDERING
EX505 N
EX520
N
EX530
N
TL810 Electrical Test Lead Kit $49.99
TL805 Double Injected Test Leads $13.99
TP200 Type K Clamp Probe (212°F/100°C) $40.99
HG500 Magnetic Hanging Strap $9.99
True RMS Industrial MultiMeter (4000 count) $114.99
True RMS Industrial MultiMeter (6000 count) $179.99
True RMS Industrial MultiMeter (40,000 count) $219.99
EX505 EX520 EX530
(-20 to 750°C)
CAT III-1000V
(184x83x57mm)
-4 to 1382°F
(-20 to 750°C)
CAT IV-600V,
CAT III-1000V
7.25x3.25x2.25"
(184x83x57mm)
-4 to 1382°F
(-20 to 750°C)
CAT IV-600V,
CAT III-1000V
7.25x3.25x2.25"
(184x83x57mm)
EX570 CAT IV MultiMeter + IR Thermometer
Built-in IR Thermometer quickly identifies hot spots without contact
• Built-in non-contact IR Thermometer design with laser pointer
• True RMS CAT III-1000V, CAT IV-600V rated with 0.06% basic DCV accuracy
• Diode open circuit voltage of 2.8V DC
• Heavy duty Double molded, water resistant package
• Large backlit 40,000 count LCD with 40-segment
bargraph; Auto off with disable feature
• Memory for storage and recall of three measurements
• 1000V input protection on all functions
• Type K thermocouple contact temperature measurements
• Features Hold, Relative and Peak Hold, Min, Max and Average recording
• Complete with double molded test leads, magnetic hanging strap, general
purpose Type K bead wire probe, case, and 9V battery; 3 year warranty
Built-in IR Thermometer
quickly locates hot spots on
electrical panels and HVAC
vents without contact.
Watch the
Video
www.extech.com/video
SPECIFICATIONS
Basic Accuracy ±0.06%
DC/AC Voltage 0.01mV to 1000V
DC/AC Current 0.01µA to 20A
Resistance 0.01Ω to 40MΩ
Capacitance 0.001nF to 10,000µF
Frequency 0.0001Hz to 40MHz
Temperature (Type K/ non-contact IR) Type K: -50 to 1382°F (-45 to 750°C) / IR: -22 to 1022°F (-30 to 550°C)
Field of View 30:1 ratio
Duty Cycle 0.01 to 99.99%
Diode (2.8V)/Continuity Yes
Dimensions/ Weight 7.25x3.25x2.25" (184x83x57mm)/ 12.3oz (349g)
ORDERING
EX570 N
CAT IV Industrial MultiMeter + IR Thermometer $249.99
EX540/EX542 CAT IV Datalogging MultiMeter with Real Time Streaming
CAT IV True RMS MultiMeter datalogs up to 9,999 readings with wireless
USB interface capability to transmit readings to your PC in real time
• Real time datalogging or wireless data transmission directly to your PC (30ft/10m)
• True RMS measurements for accurate AC Voltage and Current measurements
• Diode open circuit voltage of 2.8V DC and 1000V input protection on all functions
• Double molded construction for waterproof (IP67) protection
• CAT IV-600V safety rating for industrial applications
• Dual sensitivity frequency functions
• Large backlit triple LCD display with 40,000 counts; Auto off with disable feature
• Complete with double molded test leads, magnetic hanging strap, general
Meter features include
continuous wireless data
streaming to a PC in real
time, drop-proof tested to
6.5ft (2m), and waterproof
design (IP67).
purpose Type K bead wire temperature probe, remote receiver with USB cable,
Windows
SPECIFICATIONS
Basic Accuracy ±0.06%
DC/AC Voltage 0.01mV to 1000V
DC/AC Current 0.01µA to 20A
Resistance 0.01Ω to 40MΩ
Capacitance 0.001nF to 40mF
Frequency 40Hz to 4kHz (electrical) / 0.001Hz to 100MHz (electronic)
Temperature -58 to 1382°F (-50 to 750°C)
Duty Cycle 0.1 to 99.90%
Diode (2.8V) / Continuity Yes
Dimensions/ Weight 7.25x3.25x2.25" (184x83x57mm)/ 12.3oz (349g)
ORDERING
EX540 N
EX542 N
(NOTE: USA, Mexico, and Canada use 915MHz model and majority of other countries use 433MHz model)
®
compatible software, 9V battery and carrying case; 3 year warranty
CAT IV Datalogging MultiMeter with Real Time Streaming (915MHz) $299.99
CAT IV Datalogging MultiMeter with Real Time Streaming (433MHz) $299.99
