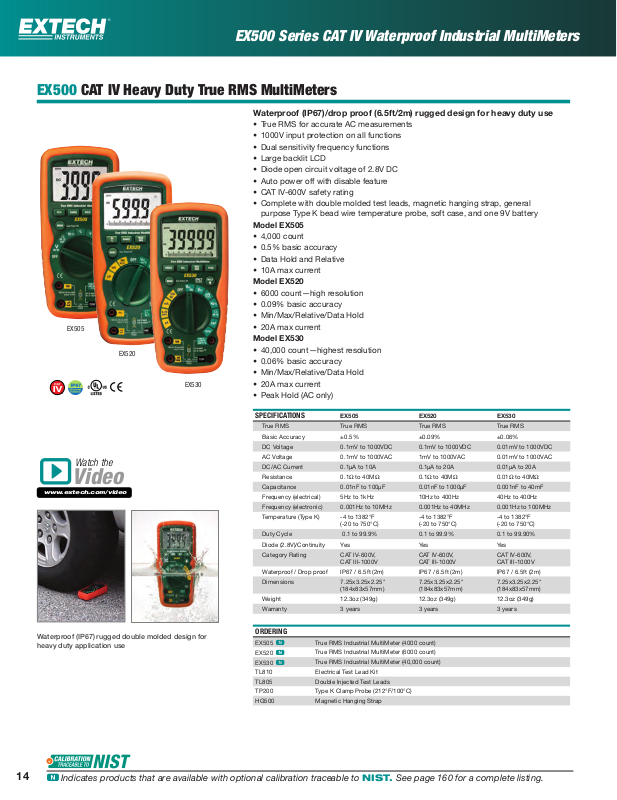

EX500 Series CAT IV Waterproof Industrial MultiMeters
EX500 CAT IV Heavy Duty True RMS MultiMeters
Waterproof (IP67)/drop proof (6.5ft/2m) rugged design for heavy duty use
• True RMS for accurate AC measurements
• 1000V input protection on all functions
• Dual sensitivity frequency functions
• Large backlit LCD
• Diode open circuit voltage of 2.8V DC
• Auto power off with disable feature
• CAT IV-600V safety rating
• Complete with double molded test leads, magnetic hanging strap, general
purpose Type K bead wire temperature probe, soft case, and one 9V battery
Model EX505
• 4,000 count
• 0.5% basic accuracy
• Data Hold and Relative
• 10A max current
Model EX520
• 6000 count—high resolution
• 0.09% basic accuracy
• Min/Max/Relative/Data Hold
EX505
EX520
EX530
• 20A max current
Model EX530
• 40,000 count—highest resolution
• 0.06% basic accuracy
• Min/Max/Relative/Data Hold
• 20A max current
• Peak Hold (AC only)
Watch the
Video
www.extech.com/video
Waterproof (IP67) rugged double molded design for
heavy duty application use
SPECIFICATIONS
True RMS True RMS True RMS True RMS
Basic Accuracy ±0.5% ±0.09% ±0.06%
DC Voltage 0.1mV to 1000VDC 0.1mV to 1000VDC 0.01mV to 1000VDC
AC Voltage 0.1mV to 1000VAC 1mV to 1000VAC 0.01mV to 1000VAC
DC/AC Current 0.1µA to 10A 0.1µA to 20A 0.01µA to 20A
Resistance 0.1Ω to 40MΩ 0.1Ω to 40MΩ 0.01Ω to 40MΩ
Capacitance 0.01nF to 100µF 0.01nF to 1000µF 0.001nF to 40mF
Frequency (electrical) 5Hz to 1kHz 10Hz to 400Hz 40Hz to 400Hz
Frequency (electronic) 0.001Hz to 10MHz 0.001Hz to 40MHz 0.001Hz to 100MHz
Temperature (Type K) -4 to 1382°F
Duty Cycle 0.1 to 99.9% 0.1 to 99.9% 0.1 to 99.90%
Diode (2.8V)/Continuity Yes Yes Yes
Category Rating CAT IV-600V,
Waterproof / Drop proof IP67 / 6.5ft (2m) IP67 / 6.5ft (2m) IP67 / 6.5ft (2m)
Dimensions 7.25x3.25x2.25"
Weight 12.3oz (349g) 12.3oz (349g) 12.3oz (349g)
Warranty 3 years 3 years 3 years
EX505 EX520 EX530
(-20 to 750°C)
CAT III-1000V
(184x83x57mm)
-4 to 1382°F
(-20 to 750°C)
CAT IV-600V,
CAT III-1000V
7.25x3.25x2.25"
(184x83x57mm)
-4 to 1382°F
(-20 to 750°C)
CAT IV-600V,
CAT III-1000V
7.25x3.25x2.25"
(184x83x57mm)
ORDERING
EX505 ÿ
EX520
ÿ
EX530
ÿ
TL810 Electrical Test Lead Kit
TL805 Double Injected Test Leads
TP200 Type K Clamp Probe (212°F/100°C)
HG500 Magnetic Hanging Strap
True RMS Industrial MultiMeter (4000 count)
True RMS Industrial MultiMeter (6000 count)
True RMS Industrial MultiMeter (40,000 count)
14
ÿ Indicates products that are available with optional calibration traceable to NIST. See page 160 for a complete listing.
