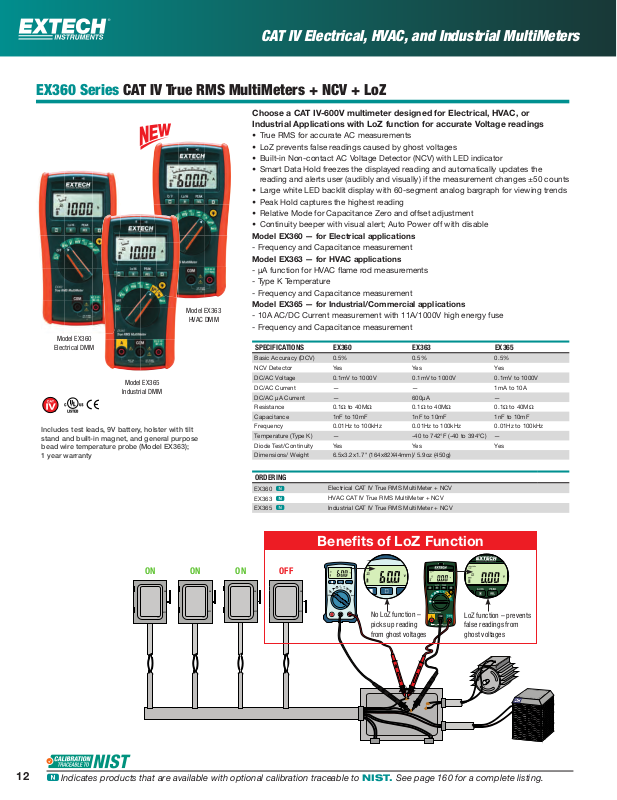

Extech Instruments EX360 Series Catalog Page

CAT IV Electrical, HVAC, and Industrial MultiMeters

EX360 Series CAT IV True RMS MultiMeters + NCV + LoZ

Choose a CAT IV-600V multimeter designed for Electrical, HVAC, or
Industrial Applications with LoZ function for accurate Voltage readings

• True RMS for accurate AC measurements

• LoZ prevents false readings caused by ghost voltages

• Built-in Non-contact AC Voltage Detector (NCV) with LED indicator

• Smart Data Hold freezes the displayed reading and automatically updates the
reading and alerts user (audibly and visually) if the measurement changes ±50 counts

• Large white LED backlit display with 60-segment analog bargraph for viewing trends

• Peak Hold captures the highest reading

• Relative Mode for Capacitance Zero and offset adjustment

• Continuity beeper with visual alert; Auto Power off with disable

Model EX360 — for Electrical applications

- Frequency and Capacitance measurement

Model EX363 — for HVAC applications

- µA function for HVAC flame rod measurements

- Type K Temperature

- Frequency and Capacitance measurement

Model EX363

HVAC DMM

Model EX360

Electrical DMM

Model EX365

Industrial DMM

Includes test leads, 9V battery, holster with tilt
stand and built-in magnet, and general purpose
bead wire temperature probe (Model EX363);
1 year warranty

Model EX365 — for Industrial/Commercial applications

- 10A AC/DC Current measurement with 11A/1000V high energy fuse

- Frequency and Capacitance measurement

SPECIFICATIONS EX360 EX363 EX365

Basic Accuracy (DCV) 0.5% 0.5% 0.5%
NCV Detector Yes Yes Yes
DC/AC Voltage 0.1mV to 1000V 0.1mV to 1000V 0.1mV to 1000V

DC/AC Current — — 1mA to 10A
DC/AC µA Current — 600µA —
Resistance 0.1Ω to 40MΩ 0.1Ω to 40MΩ 0.1Ω to 40MΩ
Capacitance 1nF to 10mF 1nF to 10mF 1nF to 10mF
Frequency 0.01Hz to 100kHz 0.01Hz to 100kHz 0.01Hz to 100kHz
Temperature (Type K) — -40 to 742°F (-40 to 394°C) —
Diode Test/Continuity Yes Yes Yes
Dimensions/ Weight 6.5x3.2x1.7" (164x82X44mm)/ 5.9oz (450g)

ON ON

ON

OFF

ORDERING

EX360 ÿ

EX363

ÿ

EX365

ÿ

Electrical CAT IV True RMS MultiMeter + NCV

HVAC CAT IV True RMS MultiMeter + NCV

Industrial CAT IV True RMS MultiMeter + NCV

Benefits of LoZ Function

ON

ON

OFF

OFF

ON

OFF

ON

OFF

No LoZ function –
picks up reading
from ghost voltages

LoZ function – prevents
false readings from
ghost voltages

12

ÿ Indicates products that are available with optional calibration traceable to NIST. See page 160 for a complete listing.
