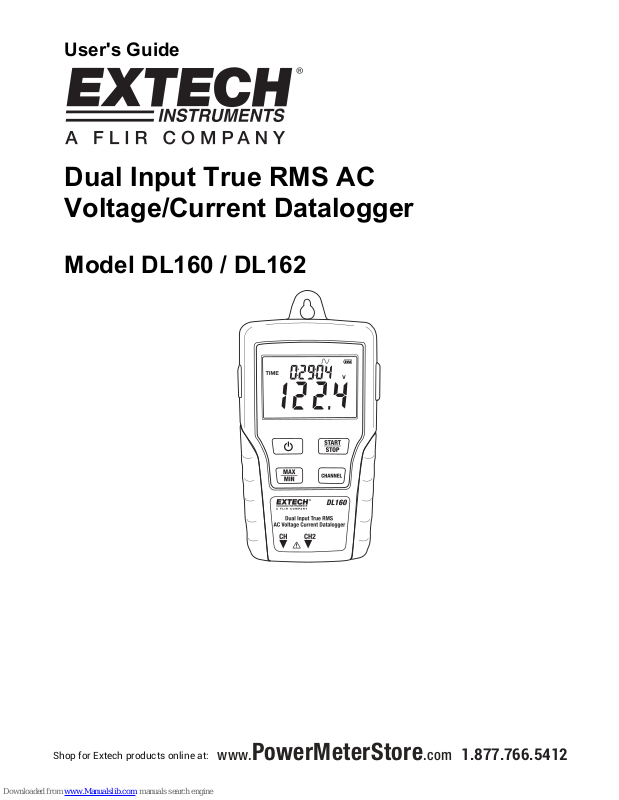

User's Guide
Dual Input True RMS AC
Voltage/Current Datalogger
Model DL160 / DL162
Shop for Extech products online at:
1.877.766.5412
www.Power MeterStore.com
DL160-EU-EN-V1.2-4/12
2
Introduction
Congratulations on your purchase of this Dual Input Voltage / Current datalogger. With this meter,
you can monitor and log data (Voltage/Voltage, Current/Current or Voltage/Current) over long
periods of time and then easily transfer the data to a pc for viewing and evaluation. The LCD
display provides real time data, Max/Min data and time information. This meter is shipped fully
tested and calibrated and, with proper use, will provide years of reliable service.
Safety
Warning!
• Do not attempt to make measurement in flammable gaseous areas!
• When testing a non-insulated cable, pay attention to avoid short circuits.
• Do not attempt to use the instrument when your hand is wet!
• Do not input over range during measurements.
• Never open the battery cover during measurements.
• Stop using the instrument when there is any structural defect or exposed metal parts.
• Do not install substitute parts or make modifications on the meter.
• Never replace the battery in moist areas.
• Ensure the meter is disconnected and switch off before opening the battery cover to replace
the battery.
• Do not attempt to place the instrument in high vibration areas.
• Do not expose the meter to direct sunlight, high temperature and high moisture environment.
• Switch off the meter after use. Remove the AAA batteries when the meter will be stored for a
period of time..
• When cleaning, do not use abrasives or solvents on the meter, use a damp cloth and mild
detergent only.
