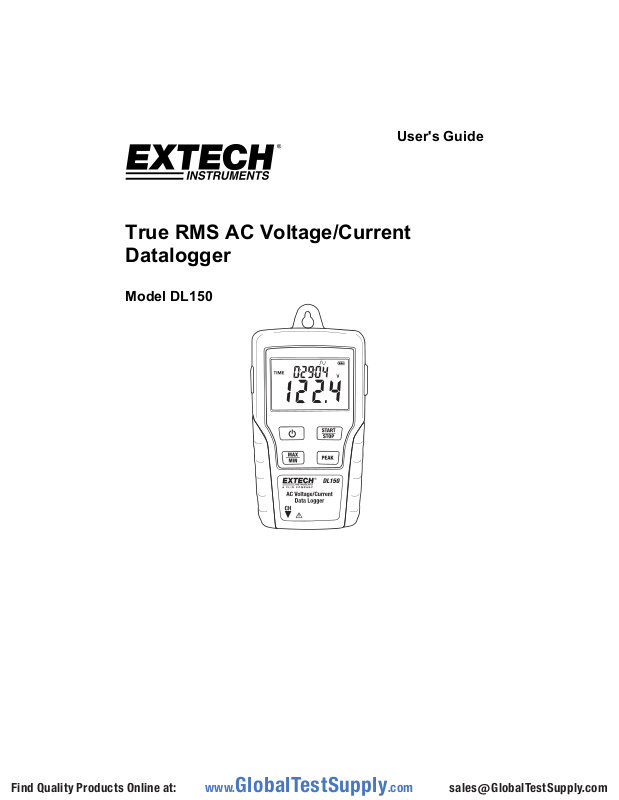

User's Guide
True RMS AC Voltage/Current Datalogger
Model DL150
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Page 2
Congratulations on your purchase of this Voltage or Current datalogger. With this meter, you can monitor and log data over long periods of time and then easily transfer the data to a pc for viewing and evaluation. The LCD display provides real time data, Max/Min data and time information. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
Safety
Warning!
Do not attempt to make measurement in flammable gaseous areas!
When testing a non-insulated cable, pay attention to avoid short circuits.
Do not attempt to use the instrument when your hand is wet!
Do not input over range during measurements.
Never open the battery cover during measurements.
Stop using the instrument when there is any structural defect or exposed metal parts.
Do not install substitute parts or make modifications on the meter.
Never replace the battery in moist areas.
Ensure the meter is disconnected and switch off before opening the battery cover to replace
the battery.
Do not attempt to place the instrument in high vibration areas.
Do not expose the meter to direct sunlight, high temperature and high moisture environment.
Switch off the meter after use. Remove the AAA batteries when the meter will be stored for a
period of time..
When cleaning, do not use abrasives or solvents on the meter, use a damp cloth and mild
detergent only.
2
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
DL150-EU-EN V2.5 5/13
Page 3
Description and Button Functions

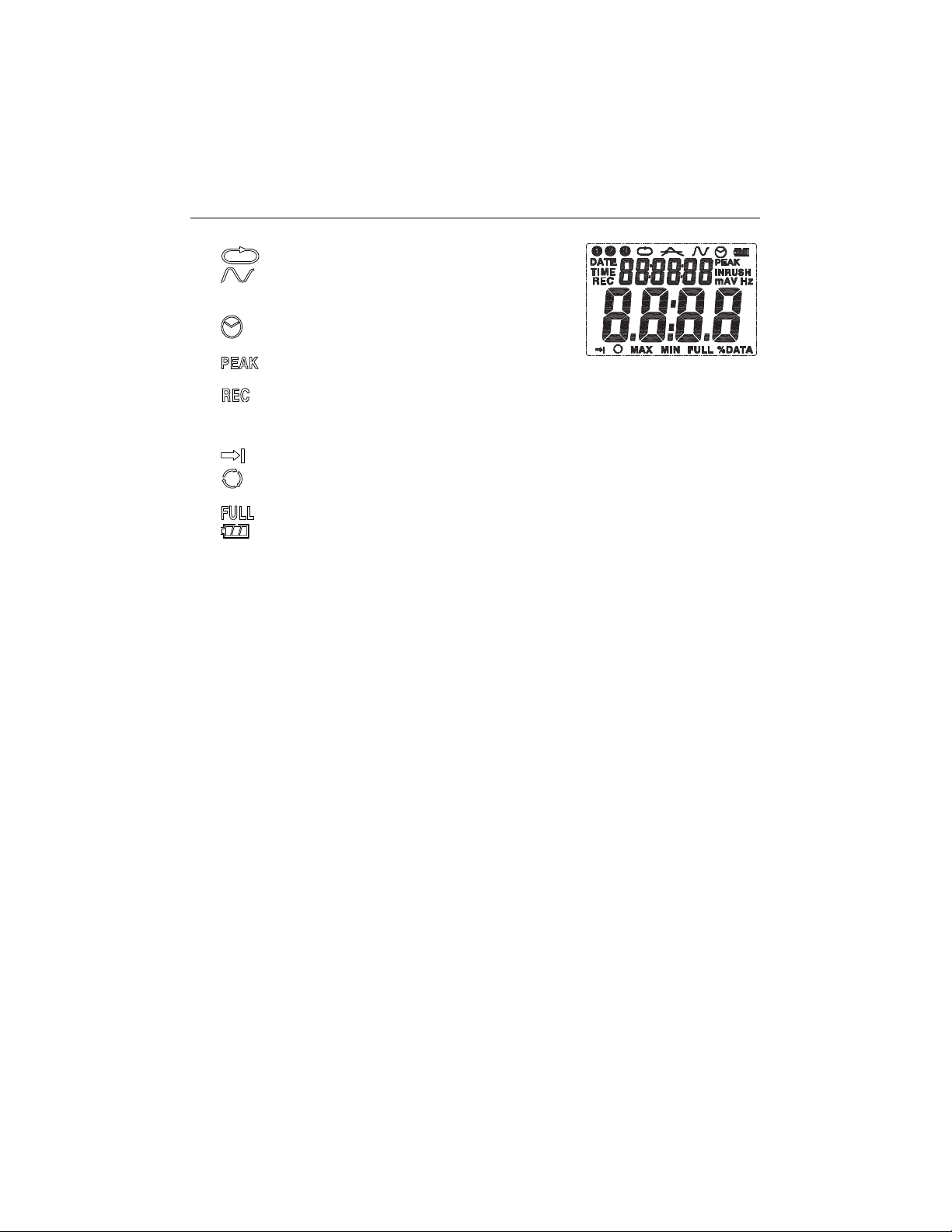

1. LCD Description
: Normal record mode is selected
: Capture record mode is selected. Records the sine
wave when the measure value exceeds the Capture Detection set level.
: Auto power off setting, the meter will automatically
shuts off after 5mins without any button presses.
: Average peak measure and record mode selected
(about 195ms)
: Recording status. After the record mode is set up by the software, press the
START/STOP button for more than 4 seconds to begin recording. This icon will be displayed and indicates the meter is recording data. Press the same button again for more than 4 seconds to stop recording.
: Record until full is selected. When the memory is full, the datalogger will stop recording.
: Continuous recording is selected. When the memory is full, the data will overwrite the
oldest data.
: Memory full and recording has stopped.
: Battery sign, when display completely the battery power is full. When there is only a
frame icon displayed, the battery is exhausted and should be replaced with a new one.
3
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
DL150-EU-EN V2.5 5/13
Page 4

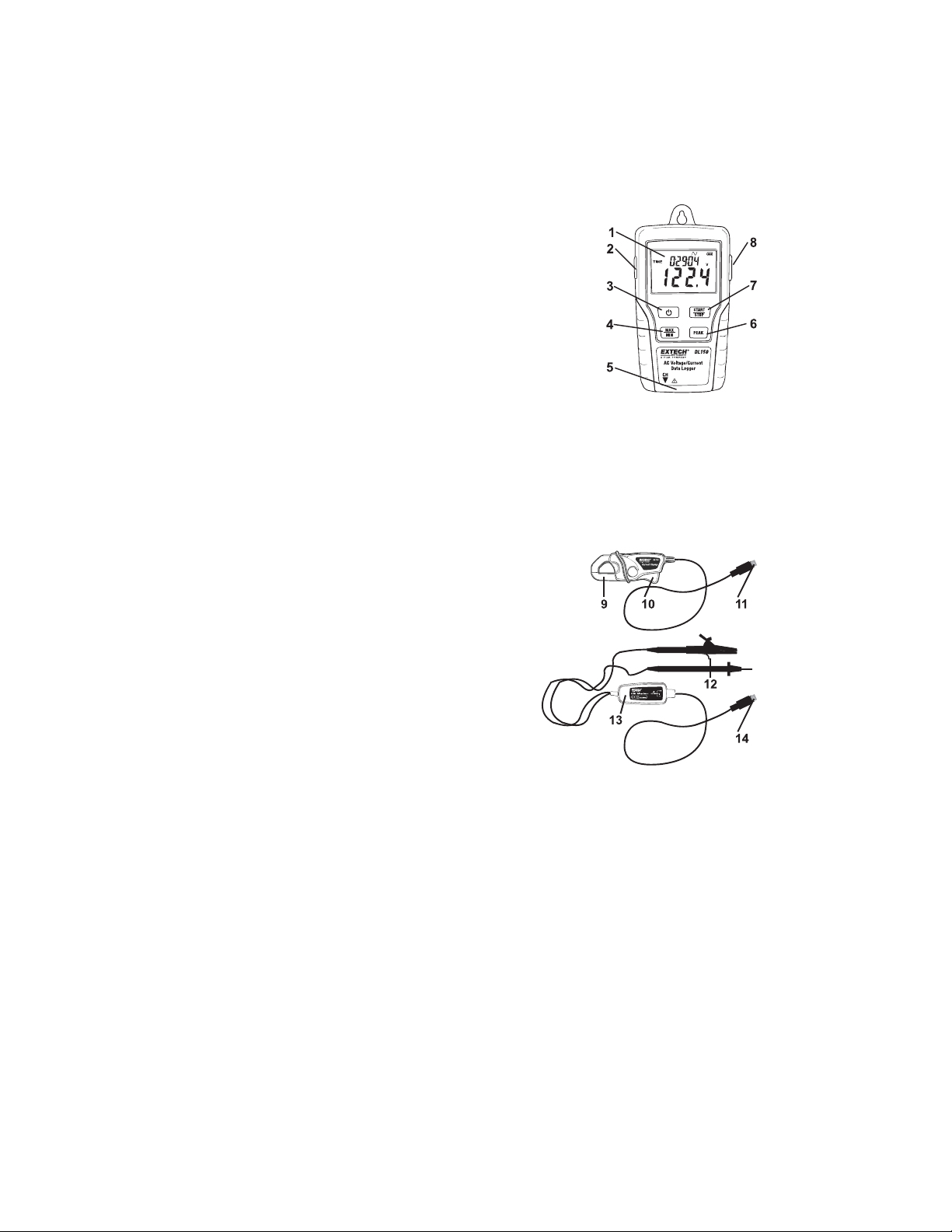

2. AC adaptor Jack
3. ON/OFF Button
4. MAX/MIN : Press the button one time to display the MAX
(maximum) reading . Press again to display the MIN (minimum) reading. A third press will exit MAX/MIN mode. The meter will automatically exit MAX/MIN mode in 10 seconds if no button is pressed.
5. CH Input Jack: Insert the current or voltage sensor to this COM to measure and record the data.
6. PEAK HOLD: In the non-PEAK measurement mode, press the PEAK HOLD button to display the average Peak value of the present value. Press the button again to exit PEAK display. The meter will automatically exit in 10s if no button is pressed.
7. START/STOP: Press the START/STOP button for one time to pause data. Press again to resume. After setting the record mode, press this button for more than 4 seconds and then release it after REC is shown on the LCD. The meter will measure and record data according to the software setup.
8. USB Port
9. AC Current Clamp Jaw: Clamp the jaws around a single
conductor for AC current measurements to 200A
10. Jaw Opening Trigger:
11. CH Plug:
12. AC Voltage Probes or Alligator clips
13. Voltage module
14. CH Plug
4
DL150-EU-EN V2.5 5/13
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Page 5
Operation
1. Install 4 fresh AAA batteries or connect the AC adaptor.
2. Set-up the datalogger using the software provided.
3. Connect the voltage test leads or the current probe to the meter and hen to the AC source to
be measured.
4. Press and Hold the START/STOP button for four seconds to start recording. The REC icon
will appear in the display indication that recording has begun.
5. Press and Hold the START/STOP button for four seconds to stop recording. The REC icon
will disappear from the display.
6. Remove the probe, connect the datalogger to a PC and use the supplied software to download
the data.
7. After each recording you will need to connect to the PC and supplied software to download the
data and set up for the next recording.
You, as the end user, are legally bound (Battery ordinance) to return all used batteries and accumulators; disposal in the household garbage is prohibited!
You can hand over your used batteries / accumulators at collection points in your community or wherever batteries / accumulators are sold!
Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle.
Note: If the clock does not set to the correct time, replace the 3V button battery.
Software Introduction
1. Place the CD in the drive and then follow the on-screen installation instruction.
2. After the software is installed, keep the CD in the drive and connect the datalogger to the PC
by the USB cable.
3. A USB Driver installation window will pop-up. Follow the directions to install the driver.
System Required:
Windows 2000, Windows XP, Vista, Windows 7, or Windows 8
Minimum Hardware Required:
PC or NoteBook with Pentium 90MHz or higher 32 MB RAM At least 7 MB hard disk space available to install Datalogger USB software Recommended display resolution 1024 x 768 with High Color (16 bit)
Software Operation
The Software operation is described in the HELP file located on the software disk.
5
DL150-EU-EN V2.5 5/13
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Page 6
Specifications
Display Multi-function LCD Maximum data points 100,000 Channels Single channel, TRMS AC Voltage or Current Sample rate 1s to 24h selectable Transient capture >0.244mS Analysis software Windows 2000/XP/ Vista/7/8 Data output USB port Open input indication "LO" appears on the LCD Low battery indication Empty battery symbol appears on the LCD Power supply 4 AAA Batteries and 1 CR 3V memory button battery (CR2032 or
Battery life 5 days (approximately) AC Adaptor 9V, 0.5A
Standards
Operating Temperature 0 to 50°C (32 to 122°F) Operating Humidity <70% RH Current Clamp Jaw opening 12.7mm (0.5 ) Dimensions 114 x 63 x 34mm (4.5 x 2.5 x 1.3 ) Weight 248g (8.7oz.)
Range Accuracy
Voltage 40Hz to 1kHz
Current 50/60Hz
Peak Measurement 8.0 to 850.0V ±5.0%
10VAC to 600.0VAC ±2.0%±1V
10A to 200.0A ±2.0%±1A
equivalent)
CAT III 600V
