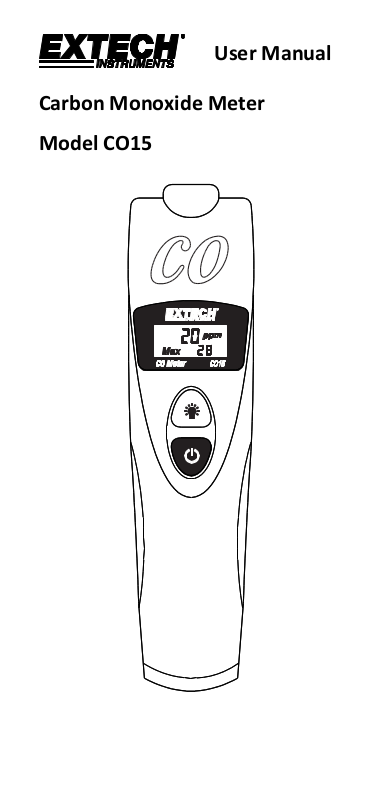

User Manual
Carbon Monoxide Meter
Model CO15
2
Introduction
Thank you for selecting the Extech CO15 Carbon
Monoxide Meter. The CO15 is a digital, pen style meter,
that measures and displays carbon monoxide (CO)
concentrations between 0 and 999 parts per million
(ppm). The CO15 can be used for ambient air safety
checks of residential areas, appliances, HVAC service on
furnaces and hot water heaters, home inspections, and
industrial environments where the accumulation of CO
is possible.
This device is shipped fully tested and calibrated and,
with proper use, will provide years of reliable service.
Features
Adjustable carbon monoxide warning level
Dual Display
Long life electrochemical sensor
Audible alarm
Backlit LCD for easy viewing in dimly lit areas
Low battery indicator
Auto power off
Included wrist strap and carry pouch
Safety Information
IMPORTANT SAFETY NOTES
The CO15 Carbon Monoxide Monitor is intended for
general purpose Air Quality monitoring only, and has
not been certified for use pursuant to any state or city
safety Carbon Monoxide Alarm or Monitoring
requirements.
The CO15 Carbon Monoxide Monitor has not been
tested by an independent lab to comply with UL 2034
or IAS 6-96 standard.
It is the responsibility of the customer to obtain and
apply current local, state, and national regulations with
regard to CO alarms, monitoring and testing.
CO15-en-GB_v1.0 6/17
3
Electromagnetic (EMI) interference my cause erratic
0-1 PPM
Normal background levels
9 PPM
Maximum allowable short term
exposure
50 PPM
Maximum allowable continuous
exposure level in any 8-hour period,
according to OSHA
200 PPM
Mild headache, fatigue, nausea and
dizziness after 2-3 hours
400 PPM
Frontal headache with 1-2 hours, life
threatening after 3 hours
800 PPM
Dizziness, nausea, convulsions within
45 minutes. Unconsciousness within 2
hours. DEATH WITHIN 2 TO 3 HOURS
1600 PPM
Headache, dizziness, nausea within 20
minutes, DEATH WITHIN 1 HOUR
3200 PPM
Headache, dizziness, nausea within 510 minutes. DEATH WITHIN 25-30
MINUTES
6400 PPM
Headache, dizziness, nausea within 12 minutes. DEATH WITHIN 10-15
MINUTES
12800 PPM
DEATH WITHIN 1 TO 3 MINUTES
meter readings; do not place meter near areas of high
EMI when taking CO measurements.
Recovery time is required after the meter has been
exposed to high levels of CO (the longer the exposure,
the longer the recovery time).
Carbon monoxide is life threatening even at
relatively low concentrations; learn and
recognize the effects of CO poisoning (see Table
below). Do not use this meter as a personal
safety monitoring device.
Effects of Carbon Monoxide (CO) Poisoning
Warning: Ensure that the meter is powered on in room
temperature and in an area free of CO. If not, the meter
will read incorrectly when subsequently measuring CO.
CO15-en-GB_v1.0 6/17
4

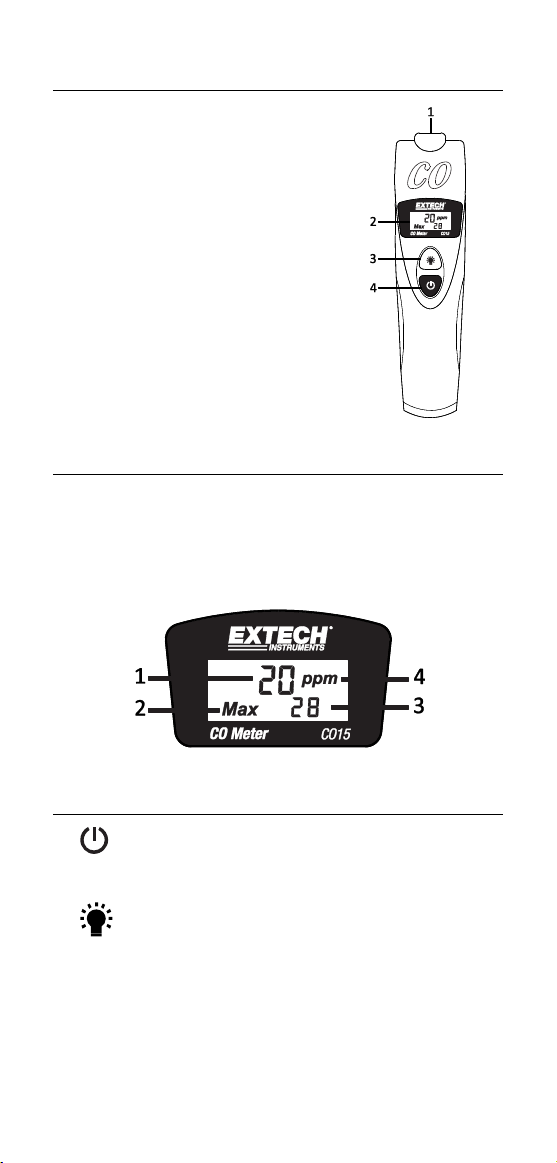

Meter Description
1. CO Sensor
2. LCD
3. Backlight/Units button
4. Power/Alarm limit button
Note: Battery compartment located
on back of meter.
LCD Display
1. Primary Display
2. MAX reading mode
3. Secondary Display
4. Unit of measure
Button Descriptions
Turn the meter on and off (short press); Select alarm
setpoint value (long press from a powered OFF state;
release the button when desired alarm limit is displayed)
Turn the backlight on and off (short press); Toggle
temperature units (long press during self-test period).
Reset Maximum CO value (long press in normal
operating mode)
CO15-en-GB_v1.0 6/17
5
Operation
Power the meter
IMPORTANT: Power the meter in a room temperature
environment and in an area free of CO; otherwise the
meter will read incorrectly when subsequently measuring
CO.
Press the button to power on the meter. The LCD will
switch ON and display the programmed CO alarm limit in
the primary display and the ambient air temperature in
the secondary display (as shown in the LCD description
section above). Replace the batteries if the display does
not switch ON.
The meter performs a 15-second self-test during which
the displayed values will blink. When the self-test is
finished, the meter beeps and enters the normal
operating mode.
Measurements
The CO15 detects the existence of carbon monoxide (CO)
in the environment and displays the reading in parts per
million (PPM) in the primary display.
1. To take a measurement, trace the CO15 around the
area of the suspected leak.
2. The meter indicates the presence of carbon
monoxide (CO) in PPM in the primary display. The
secondary display indicates the maximum value
since powered on.
3. Long press the “backlight” button while in
measurement mode to reset the maximum value.
4. When high CO levels are detected an audible beeper
sounds at 25 ppm alerting the user to the dangerous
CO levels. The higher the concentration of CO, the
faster the beeper will sound.
5. To turn the meter off, press the button. The
meter powers off after 15 minutes of inactivity.
Change Temperature Units
The temperature shows on the display during the self-test
only. Power the meter in a room temperature
environment for the most accurate readings. Long press
the button during the self-test to change the
temperature units to oC or oF.
CO15-en-GB_v1.0 6/17
6
Alarm Settings
An audible beep sounds at 25ppm alerting the user to
dangerous CO levels. Change the alarm limit value by
following the steps below.
1. Turn OFF the meter by pressing the button.
2. Long press the button until the options display
on the screen.
3. The LCD cycles through these options: 25, 30, 35,
45, 50, 70, 100, 200 ppm.
4. Release the button at the desired alarm limit
value.
5. The meter enters the self-test mode.
Backlight
The meter features a backlit LCD for use in dimly lit areas.
Press the button to power ON and OFF the backlight.
Auto Power OFF
The meter automatically powers OFF after 15 minutes of
inactivity.
Maintenance
Battery Replacement
1. To access the batteries, remove the rear battery
compartment cover by pushing up on the tab at the
bottom of the meter. Do not operate the meter with
the battery compartment open.
2. Replace the (3) 1.5V AAA batteries observing correct
polarity.
3. Re-assemble the meter before use.
Safety: Please dispose of batteries responsibly; never dispose of
batteries in a fire, batteries may explode or leak. If the meter is not
to be used for 60 days or more, remove the battery and store
separately.
Never dispose of used batteries or rechargeable batteries
in household waste.
As consumers, users are legally required to take used
batteries to appropriate collection sites, the retail store
where the batteries were purchased, or wherever
batteries are sold.
Disposal: Do not dispose of this instrument in household
waste. The user is obligated to take end-of-life devices to
a designated collection point for the disposal of electrical
and electronic equipment.
CO15-en-GB_v1.0 6/17
7
Specifications
Error
Problem
Solution
Display
No display when pressing
power button
Ensure batteries are
properly installed with
correct polarity
Replace batteries
Display
Display switches off
Check for low battery
indicator; replace
batteries
Display
Calibration Failure
Check for low battery
indicator; replace
batteries
E2
Measurement is below
the range of the meter
Check readings in a
different area
E3
Measurement is above
the range of the meter
Check readings in a
different area
E4
Data error
Contact Extech for service
E31
A/D failure
Contact Extech for service
E33
Measurement circuit
failure
Contact Extech for service
E35
Self-test failure
Power meter in an area
free of carbon monoxide
Sensor Failure
Contact Extech for service
Measurement range 0-999 ppm
Resolution 1 ppm
Accuracy 0 ~ 100 ppm: ± 20%
100 ~ 500 ppm: ± 15%
Accuracy stated for ambient
conditions: 20oC ±5oC (68oF ±9oF)
and 50% RH ±20%RH
Sensor Type Electrochemical
Power supply (3) 1.5V ‘AAA’ batteries
Battery life Approx. 250 hours (backlight
off); 35 hours (backlight on)
Dimensions / Weight: 175 x 47 x 28mm (6.9 x 1.8 x
1.1”) / 158.8g (5.6 oz.)
Troubleshooting
