User Manual

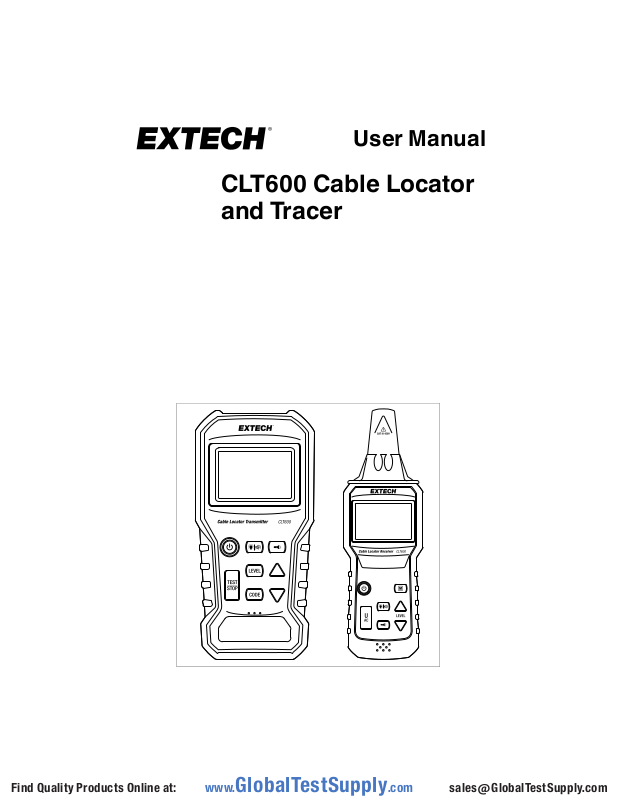

CLT600 Cable Locator and Tracer
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Table of contents
1 Introduction..... ........................... ..... ........................... ..... ... 1
2 Safety ..... ..... ..... ..... ................. ..... ..... ..... ................. ..... ..... . 3
3 Product Description .................. ..... ..... ................................ 4
4 Transmitter Operating Modes . ..... ..... ..... ............ ..... ..... ..... ....9
5 Receiver Operating Modes ............... ..... ..... ..... ................. .. 10
5.1 Automatic Detection Mode.... ..... ..... ..... ................. ..... . 10
5.2 Manual Detection Mode .... ..... ..... ..... .......................... 10
5.3 Non-Contact Voltage Detection Mode (U
6 Applications ... ................................ ..... ........................... .. 11
6.1 Single-pole applications . ..... ..... ..... ............ ..... ..... ..... .. 11
6.1.1 Locating Opened Wires . ..... ..... ...................... .. 11
6.1.2 Locating and Tracing Lines and
Receptacles . ................. ..... ..... ..... ................ 11
6.2 Two-pole Applications.......... ..... ..... ..... ................. ..... . 13
6.2.1 Tracing Connections .............................. ..... .... 13
6.2.2 Broken Line Detection .................... ..... ............ 14
6.3 Other Applications ... ..... ..... ..... ..... ............ ..... ..... ..... .. 15
6.3.1 Tracing an Underground Circuit.. ................. ..... . 15
6.3.2 Detecting Faults in a Floor Heating
System .. ............ ..... ..... ..... ..... ............ ..... ..... 15
6.3.3 Detecting Faults in a Floor Heating System
(using two kits) ... ..... ..... ................. ..... ..... ..... . 16
6.3.4 Non-Contact Voltage Detection ... ...................... 17
6.3.5 Using the Ground Spike. ..... ............ ..... ..... ..... .. 18
)... ..... ............ 10
AC
#NAS100035; r. AA/71038/71038; en-US ii
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Table of contents
7 Maintenance.. ..... ..... ..... ..... ............ ..... ..... ..... ..... ............... 19
7.1 Battery Replacement (Transmitter) .. ..... ..... ................. .. 19
7.2 Battery Replacement (Receiver) . ...................... ..... ..... . 19
7.3 Cleaning and Storage....... ..... ..... ..... ................. ..... .... 20
8 Specifications.......................... ..... ..... ..... ................. ..... .... 21
8.1 Transmitter Specifications..... ..... ..... ..... ................. ..... . 21
8.2 Receiver Specifications.... ..... ...................... ..... ..... ..... 21
8.3 General Specifications...... ..... ..... ..... .......................... 22
9 Warranty and Customer Support ... ..... ..... ..... ................. ..... . 23
9.1 Two-Year Warranty ... ..... ..... ..... ..... ............ ..... ..... ..... .. 23
9.2 Calibration and Repair Services.... ..... ................. ..... .... 23
9.3 Contact Customer Support ........................ ..... ..... ....... 23
#NAS100035; r. AA/71038/71038; en-US iii
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1

Introduction

Thank you for selecting the Extech CLT600 Cable Locator and Tracer. The system allows you to easily locate cable faults, diagnose and trace cables and circuits, test AC outlet wiring, detect faults in floor heating systems, perform non-contact voltage detection on energized circuits, locate fuses or breakers on panels, and more.
The CLT600 includes a Transmitter that can measure voltage and inject sig­nals through cables or pipes, and a Receiver for tracing the transmitted sig­nals. The Receiver also detects voltage in the non-contact voltage detection mode.
These instruments are shipped fully tested and, with proper use, they will pro­vide years of reliable service. Please visit our website (www.extech.com) for additional information including the latest version of this User Manual and Customer Support.

1.1 Transmitter Features

• Locates and identifies powered and de-energized cables and individual conductors.
• Measures voltage from 12 V ~ 450 V AC / DC using the supplied test leads.
• Transmits high frequency signal through wires or pipes.
• Selectable transmission power level setting (1 ~ 3).
• Selectable transmission signal codes.
• Transmission power level bar graph indicator.

1.2 Receiver Features

• Identifies and traces powered or de-energized wires and cables.
• Traces signal sent from Transmitter.
• Displays the Level setting, Code, and strength of detected signal.
• Bar graph and variable tone indicate detected signal strength.
• Auto and Manual signal detection modes.
• Selectable Sensitivity (8 levels) in Manual mode.
• Non-contact voltage detection.
• Warning display and audible tone when voltage is detected.

1.3 Common Features

• LED Worklights.
• Backlit display.
• Silent mode of operation with button beeper and frequency tone disabled.
• Automatic power off (APO).
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1
1
Introduction
• Battery status indication.

1.4 Supplied Materials

This kit includes the following items.
• Transmitter and Receiver.
• Printed Quick Start.
• Test lead set.
• Alligator clips (2).
• Earth ground rod/spike.
• Batteries (12).
• Socket adapter with North America 3 pin (type B) plug.
• Hard-shell carrying case.
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
2
2
WARNING
Read the safety notes, below, before using this device.
Figure 2.1 Meter is protected throughout by double insulation or reinforced insulation.
Figure 2.2 Warning! Risk of electrical shock.
Figure 2.3 Caution! Refer to this manual before using this meter.
Figure 2.4 Earth Ground.

Safety

NOTE
These devices have been designed and tested according to CE Safety Requirements for Electronic Measuring Apparatus, EN 61010-1 EN 61326-1 and other safety standards. Follow all warnings to ensure safe operation.

2.1 Safety Notes

• Read the following safety information carefully before attempting to operate or service these devices.
• Use these devices only as specified in this manual, otherwise the protec­tion provided by these devices may be impaired.
• Rated environmental conditions:
1. Indoor use only.
2. Installation Category III 450 V.
3. Pollution Degree 2.
4. Altitude up to 2000 m (6562’).
5. Relative Humidity 80% maximum.
6. Ambient temperature: 32 ~ 104℉ (0 ~ 40℃).

2.2 International Safety Symbols

Find Quality Products Online at: sales@GlobalTestSupply.com
#NAS100035; r. AA/71038/71038; en-US
www.GlobalTestSupply.com
3
3
1. Negative (COM) terminal This is the ground, or common, terminal. Connect the black test lead to this terminal.
2. Positive ‘+’ terminal Connect the red test lead to this terminal.
3. Worklight
4. LCD Screen
5. Power ON/OFF button Short press to switch ON or OFF
6. LEVEL button Short press to access the Level selection mode. The ‘LEVEL’ text will flash on the display. Use the arrow buttons to select from three available signal levels.

Product Description

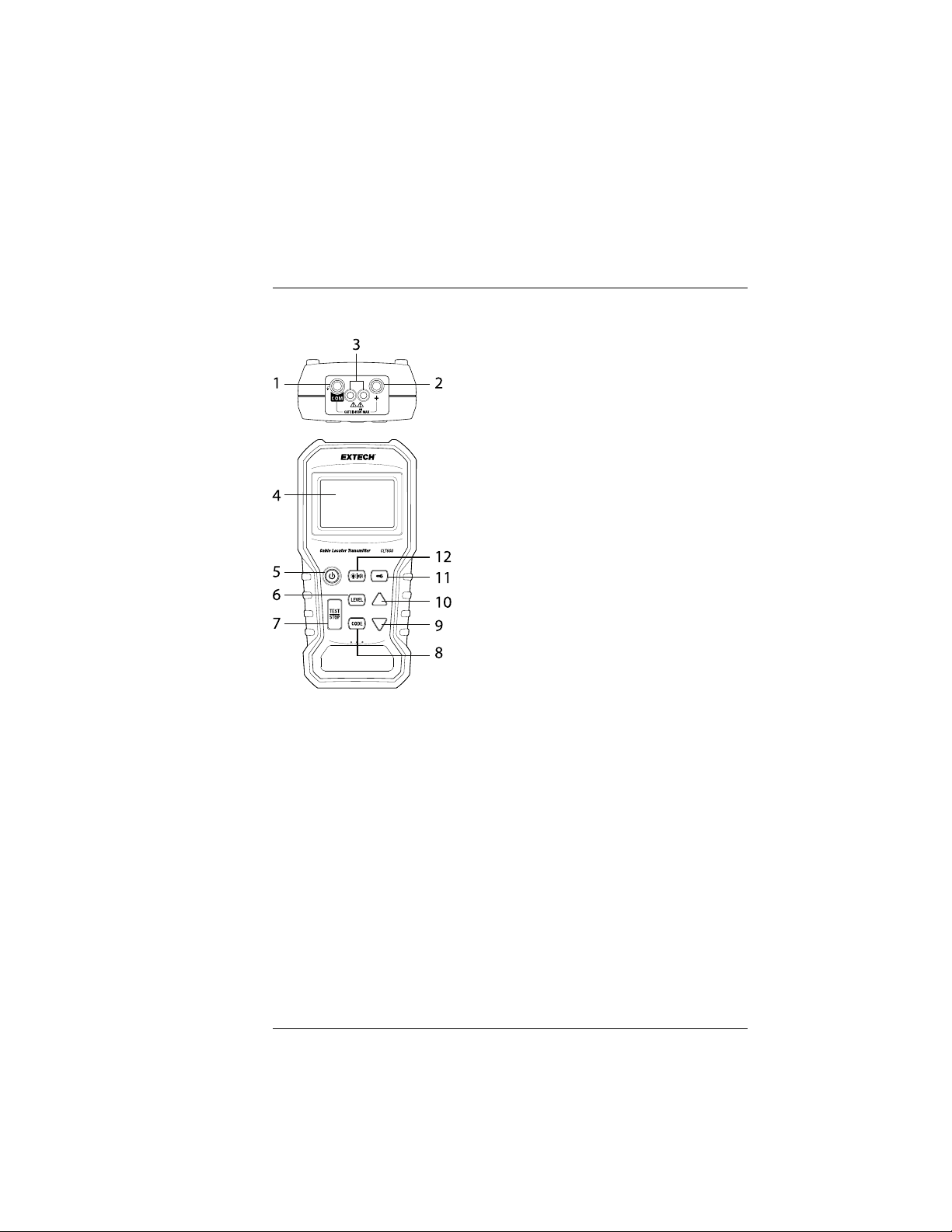

3.1 Transmitter Description

Find Quality Products Online at: sales@GlobalTestSupply.com
#NAS100035; r. AA/71038/71038; en-US
www.GlobalTestSupply.com
4
3
Product Description
7. TEST/STOP button Press to send or to stop the transmission signal.
8. CODE button Long press this button to access the Code selection mode. The ‘CODE’ text will flash on the display. Use the arrow buttons to scroll through and select an optional code (F, E, H, d, L, C, O, A). This feature is handy in identifying Transmitters when 2 or more CLT600 systems are used.
9. Down arrow button Short press to increase the signal level in the LEVEL mode or to scroll through the codes in the CODE selection mode.
10. Up arrow button Short press to decrease the signal level in the LEVEL mode or to scroll through the codes in the CODE selection mode.
11. Worklight button Short press to switch the Worklights ON or OFF.
12. Backlight and Mute button Short press to switch the LCD backlight ON or OFF. Long press to switch the beeper ON or OFF.
The battery compartment is located on the back of the instrument.
#NAS100035; r. AA/71038/71038; en-US
5
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3
1. Receiver Antenna Detects and traces a transmitted signal or a voltage source in the non-con­tact detector mode.
2. Worklights
3. LCD
4. Backlight and Mute button Short press to switch the LCD backlight ON or OFF. Long press to switch the beeper ON or OFF.
5. Power ON/OFF button Short press to switch ON or OFF
6. U
Product Description

3.2 Receiver Description

button
Find Quality Products Online at: sales@GlobalTestSupply.com
AC
Short press to access the non-contact voltage detection mode. Press again to return to normal Receiver mode.
7. Worklight button Short press to switch the Worklights ON or OFF.
#NAS100035; r. AA/71038/71038; en-US
www.GlobalTestSupply.com
6
3

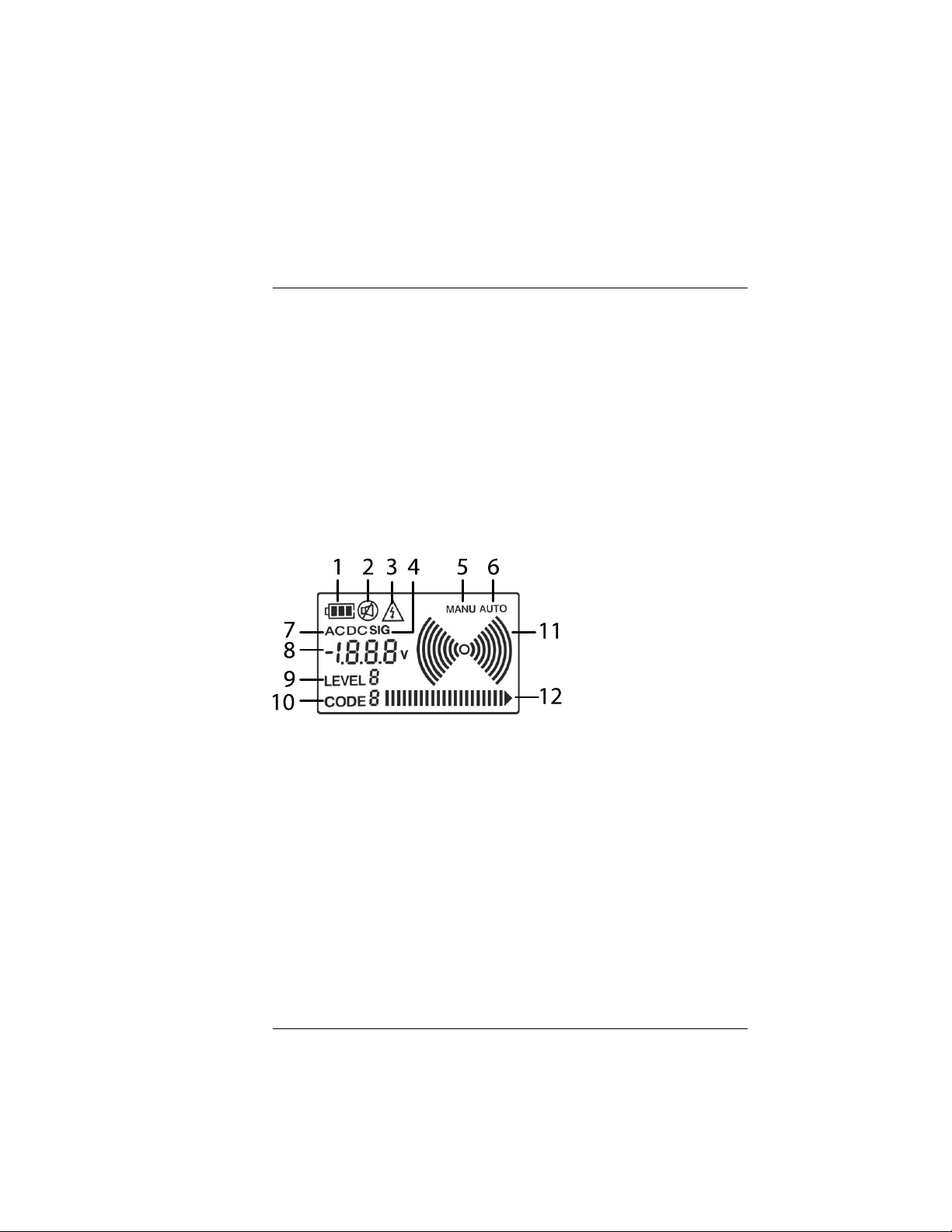

Figure 3.1 Display Description
Product Description
8. Down arrow button Short press to decrease the sensitivity level in the Manual signal detection mode.
9. Up arrow button Short press to increase the sensitivity level in the Manual signal detection mode.
10. Manual (M) button Short press to access the Manual signal detection mode. Select from eight sensitivity levels using the LEVEL buttons.
The battery compartment is located on the back of the instrument.

3.3 Display Description

1. Battery status.
2. Beeper ON/OFF status.
3. Voltage warning.
4. Signal indicator (indicates that the digital display is showing the received signal strength).
5. Manual detection mode.
6. Automatic detection mode.
7. Voltage AC or DC (digital display is showing an AC or DC voltage measurement).
8. Digital display for voltage measurement (Transmitter) or strength of de­tected signal (Receiver).
9. Transmission strength (Level) selection.
10. Code ID indication.
#NAS100035; r. AA/71038/71038; en-US
7
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3
Product Description
11. Signal indicator. Radiating arc graphics appear when Transmitter is send­ing a signal. On the Receiver, the number of arcs corresponds to the re­ceiver 'sensitivity level'.
12. Bar-graph shows signal level.
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
8
4

Transmitter Operating Modes

4.1 Transmitter TESTand TRANSMIT Mode

When the power is on, the Transmitter defaults to the Test mode. In this mode you can measure AC or DC voltage with the test leads. In this mode you can also transmit a signal. Press the TEST/STOP button to allow the Transmitter to send a signal. Press the TEST/STOP button again to switch the signal OFF.

4.2 Transmitter LEVEL Selection Mode

Press the LEVEL button to access the transmission strength selection mode, the ‘LEVEL’ symbol text will flash. Use the up/down arrow buttons to select the strength of the transmission signal (level: 1~3). Press the LEVEL button again to return to the Test Mode. Select signal level ‘3’ when using the ground spike.

4.3 CODE Selection Mode

Codes can be used to differentiate two or more transmitters that are being used to detect a break in a circuit.
Long press the CODE button to access the code selection mode, the ‘CODE’ text symbol will flash. Use the up/down arrow buttons to select a code (F, E, H, d, L, C, O, A). Press the CODE button again to return to the Test Mode.
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
9
5

Receiver Operating Modes

5.1 Automatic Detection Mode

When the power is on, the Receiver defaults to the auto detection mode where it can trace the high frequency transmission signal at the highest sensi­tivity. The Receiver responds to the detected signal with a variable tone (550 Hz ~ 1.6 kHz) and a bar-graph indication. The stronger the signal, the higher the frequency of the tone and the higher the number of bars in the bar-graph.
The receiver displays SIG (Signal) and the numeric value of the received sig­nal strength. The optional transmission identifier Code, sent from the Trans­mitter, is also displayed.

5.2 Manual Detection Mode

Press the M button to access the manual detection mode where you can se­lect the signal sensitivity level (8 steps) using the up/down arrow buttons. Press the M button to return to the Auto Detection mode.
5.3 Non-Contact Voltage Detection Mode (U
Press the U this mode you can detect a voltage source without having to make contact with the wiring, circuit, AC power line, or wall outlet.
button to access the non-contact voltage detection mode. In
AC
AC
)
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
10
6
Figure 6.1 Locating opened wires. Diagram shows one transmitter in a fixed location and
one Receiver being used in two locations. The Receiver position on the left is detecting a sig­nal, while the Receiver position on the right is not detecting a signal.
WARNING
Do not perform this test on a live circuit.

Applications

6.1 Single-pole applications

6.1.1 Locating Opened Wires

1. Connect the red, positive (+) terminal to a single conductor.
2. Connect the black (COM) terminal to earth ground. If convenient, use the supplied ground spike for an outdoor earth ground connection.
3. If there are additional conductors in the same conduit or cable, they will al­so have to be connected to earth ground.
4. The Receiver can now detect the location of the wiring fault.

6.1.2 Locating and Tracing Lines and Receptacles

#NAS100035; r. AA/71038/71038; en-US
11
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6
!
!
Figure 6.2 Locating and Tracing Lines and Receptacles
Applications
1. Connect the red, positive (+) terminal to the live (hot) conductor.
2. Connect the black (COM) terminal to earth ground. When working out­doors, you can use the supplied ground spike for an earth ground connection.
3. Note that if the signal carrying cable is near other conductors, in parallel, (cable tray, channel, etc.) or is interlaced or crossed with these conduc­tors, signals may propagate into a cable and create spurious signals that could be detected.
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
12
6
Figure 6.3 Matching connected points in a circuit.
Applications

6.2 Two-pole Applications

6.2.1 Tracing Connections

1. Connect the supplied Socket Adaptor to the Transmitter and plug the AC connector into an AC receptacle.
2. The Transmitter can now measure the voltage of the mains and transmit the signal through the mains.
3. The Receiver can then trace the mains and determine if the receptacle is located on the same line, if another receptacle or breaker is connected on the same circuit'.
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
13
6
Figure 6.4 Two Examples of Broken Line Detection (the top diagram shows a two-conductor
test, while the bottom diagram shows a single-conductor test). Diagrams show one transmit­ter in a fixed location and one Receiver being used in two locations. On the top diagram, the Receiver position on the left is detecting a signal, while the Receiver position on the right is not detecting a signal.
Applications

6.2.2 Broken Line Detection

1. Method 1: Connect both terminals of the transmitter, one to each wire, at one end of the line. At the other end of the line, connect the wires together.
2. Method 2: Connect both terminals of the transmitter to each end of a sin­gle wire in the line.
Find Quality Products Online at: sales@GlobalTestSupply.com
3. The Receiver can now determine the position of the broken wire in the sig­nal line in the wall or floor.
#NAS100035; r. AA/71038/71038; en-US
www.GlobalTestSupply.com
14
6
WARNING
The circuit under test must not be live.
Figure 6.5 Tracing Underground Circuits
Applications

6.3 Other Applications

6.3.1 Tracing an Underground Circuit

1. Connect the Transmitter’s positive (+) terminal as shown in the diagram.
2. The Transmitter’s COM terminal must be correctly connected to earth ground. When working outdoors, you can use the supplied ground spike for an earth ground connection.
3. Use the Auto Detect mode of the Receiver to locate and trace the circuit.
4. The distance between the earth wire and the circuit to be located must be as wide as possible, otherwise the earth connection may interfere with the detection of the circuit line.

6.3.2 Detecting Faults in a Floor Heating System

Refer to the application image in Figure 6.1 earlier in this manual for a visual example.
1. Connect the red, positive (+) terminal to a single conductor.
2. Connect the black (COM) terminal to earth ground. When working out­doors, you can use the supplied ground spike for an earth ground connection.
3. If there are additional conductors in the same conduit or cable, they will al­so have to be connected to earth ground.
4. The Receiver can now detect a broken wire location.
#NAS100035; r. AA/71038/71038; en-US
15
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6
WARNING
The circuit under test must not be live.
Figure 6.6 Detecting Faults in a Floor Heating System
Applications

6.3.3 Detecting Faults in a Floor Heating System (using two kits)

1. The right end of the circuit is connected to the Transmitter that is sending an ‘x’ Code signal, and the left side of the circuit is connected to the other Transmitter that is sending a ‘y’ Code signal (both Transmitters must be earth grounded). The 'x' and 'y' codes used in this example represent the transmission codes that the user can program to identify which transmitter is being detected (see more about Codes in Section 4.1, Transmitter Op- erating Modes).
2. When the line is traced, the place at which the signal, detected by the Re­ceiver, falls off suddenly is the location of the break.
#NAS100035; r. AA/71038/71038; en-US
16
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6
Figure 6.7 Non-Contact Voltage Detection
Applications

6.3.4 Non-Contact Voltage Detection

1. The circuit under test must be live and connected to the mains.
2. Set the Receiver to the U
3. Hold the tip of the Receiver close to the source of AC voltage to test.
4. The mains AC voltage detected by the Receiver in the U cates whether or not the circuit is live.
5. While searching for the ends of the supply lines, the lines must be con­nected separately, one by one.
6. The number of bars on the bar graph and the frequency of the audible tone increases as the strength of the detected signal increases. The clos­er the sensor is to the source of voltage, the stronger the signal detection.
AC
mode.
mode only indi-
AC
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
17
6
U
AC
MANU
RECE IVER
LEVE
L
TRAN SM ITTER
CAT III 450V
Figure 6.8 Earth Ground Spike
Applications

6.3.5 Using the Ground Spike

1. Refer to the accompanying diagram.
2. In applications that require an earth ground connection, you can use the
3. Carefully drive the supplied rod into the ground at the test area.
4. Connect the test leads and set up the test as shown in the application in-
#NAS100035; r. AA/71038/71038; en-US
supplied ground rod (spike) for convenience.
structions in the accompanying sections.
18
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
7
Figure 7.1 Replacing Transmitter Batteries
Figure 7.2 Replacing the Receiver’s Batteries

Maintenance

7.1 Battery Replacement (Transmitter)

When the battery symbol appears and flashes on the LCD, replace the bat­teries as follows:
• Disconnect the test leads from the Transmitter and switch off the Transmit-
ter’s power.
• Open the battery compartment by first removing the compartment screw
(1) and then removing the cover (2).
• Replace the batteries (1.5 V AAA x 6) observing correct polarity (3).
• Replace the compartment cover securely before operating the Transmitter.

7.2 Battery Replacement (Receiver)

When the battery symbol appears and flashes on the LCD, replace the bat­teries as follows:
• Switch off the Receiver’s power.
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
19
7
WARNING
To avoid electrical shock or damage to the instrument, do not allow water to access the housing.
Maintenance
• Open the battery compartment by first removing the compartment screw
(2) and then removing the cover (1).
• Replace the batteries (1.5 V AAA x 6) observing correct polarity (3).
• Replace the compartment cover securely before operating the Receiver.

7.3 Cleaning and Storage

• Periodically wipe the cases with a damp cloth and mild detergent. Do not
use abrasives or solvents.
• If the instruments are not to be used for > 60 days, please remove the bat-
teries and store them separately.
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
20
8

Specifications

8.1 Transmitter Specifications

Output signal frequency 125 kHz
Voltage measurement range
Voltage measurement accuracy ± (2% reading + 2 digits)
Display Backlit LCD with bar graph
Function displays Transmission signal level, Voltage meas-
Power source 1.5 V (AAA) battery x 6
Fuse 690 V / 0.5 A (6.3 x 32 mm)
Operating temperature and humidity 32℉ ~ 104℉ (0℃ ~ 40℃) 80% R.H. Max.
Storage temperature and humidity 14℉ ~ 122℉ (–10℃ ~ 50℃) 80% R.H.
Dimensions 188 (L) × 90 (W) × 47 (D) mm
Weight 13.7 oz. (389 g) with batteries
12 ~ 450 V AC / DC
urement (AC / DC), Battery level, Mode (Auto/Manual), and signal Code
Max.
7.4 (L) x 3.5 (W) x 1.8” (D) inches
(approximately)

8.2 Receiver Specifications

Maximum Detection depth (typical) Level 3: 19.66 in. (50 cm)
Level 2: 11.81 in. (30 cm)
Level 1: 3.94 in. (10 cm)
Display
Function displays Transmitted signal level, Received signal
Power source 1.5 V (AAA) battery x 6
Operating temperature and humidity 32℉ ~ 104℉ (0℃ ~ 40℃) 80% R.H. Max.
Storage temperature and humidity 14℉ ~ 122℉ (–10℃ ~ 50℃) 80% R.H.
#NAS100035; r. AA/71038/71038; en-US
Backlit LCD with bar graph
level, Battery level, Mode (Auto/Manual), signal Code
Max.
21
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
8
Specifications
Dimensions 247(L) × 78 (W) × 45 (D) mm
9.7 (L) x 3.1 (W) x 1.8 (D) inches
Weight 11.4 oz. (324 g) with batteries
(approximately)

8.3 General Specifications

Safety standard compliance EN 61010–1 CAT III 450 V
EN 61326–1
Low battery indication Battery symbol appears and flashes on the
Work lights Two (2) LED Work lights on Transmitter and
Supplied accessories Printed Quick Start, test leads, alligator
Optional accessories This product is supplied with a US adapter
Hard-shell case dimensions 41.5 (L) × 29.9 (W) × 9 (H) cm
Kit weight (includes all supplied materials) Approx. 5.51 lbs. (2.5 kg)
LCD
Receiver
clips, socket adapter with North America 3 pin (type B) plug, ground spike, batteries (1.5 V AAA x 12), and hard-shell carrying case.
test lead set. Adapter leads for Europe (CLT-ADP-EU) and UK (CLT-ADP-UK) are available separately.
16.34 (L) × 11.77 (W) × 3.54 (H) inches
#NAS100035; r. AA/71038/71038; en-US
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
22
#NAS100035; r. AA/71038/71038; en-US
24
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
