Extech Instruments BR250-5 User manual

USER MANUAL

Video Borescope
Wireless Inspection Camera

Models BR200, BR250, and KITS

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Introduction

Thank you for selecting the Extech Video Borescope Model BR200 (17mm camera), BR250 (9mm
camera), BR250-4 (4.5mm camera), or BR250-5 (5.2mm).
Cameras provide a glare-free close-up field of view. They include a 3.5" color TFT LCD wireless
monitor that can be detached from the base and viewed from a remote location up to 10m (33
ft.) from the measurement point. Capture images and videos (with date/time stamp) on the SD
card and view them on the supplied Monitor, an alternate monitor (video out jack), or a PC (USB
connection). This device is ideal for home inspections (mold, insect infestation, electrical wire or
water pipe location), HVAC (inspect ducts, behind motors and compressors), and automotive
applications (view inside and around engines and transmissions). We ship these devices fully
tested and, with proper use, will provide years of reliable service.

Features

17mm (BR200), 9mm (BR250), 4.5mm (BR250-4), or 5.2mm (BR250-5) diameter water-proof

(IP67) camera head with 1m (39") flexible cable

Bright LED lamps on camera head with dimmer to illuminate viewed object
Glare-free close-up field of view
Detachable color TFT monitor wirelessly displays video remotely from the camera, to a

distance of 10m (33 ft.) maximum

Micro SD memory card (included) stores images and video
Captured video and still images with date/time stamp can be viewed on the supplied

wireless monitor, an additional monitor (via video out jack), or a PC (USB connection)

Video and images can also be transferred to your PC via the micro SD card (included SD

adaptor)

Menus in 10 languages: English, Chinese, German, French, Spanish, Portuguese, Italian,

Japanese, Dutch, and Russian

Includes four (4) AA batteries for camera controller, rechargeable battery for monitor, micro

SD memory card with SD adaptor, USB cable, video connect cable, AC adaptor (100-240Vac,
50/60Hz, adapters for US, UK, EU, AUS), magnetic mount for monitor, and hard case. BR200
and BR250 also include hook, mirror, and magnet attachment accessories

2 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

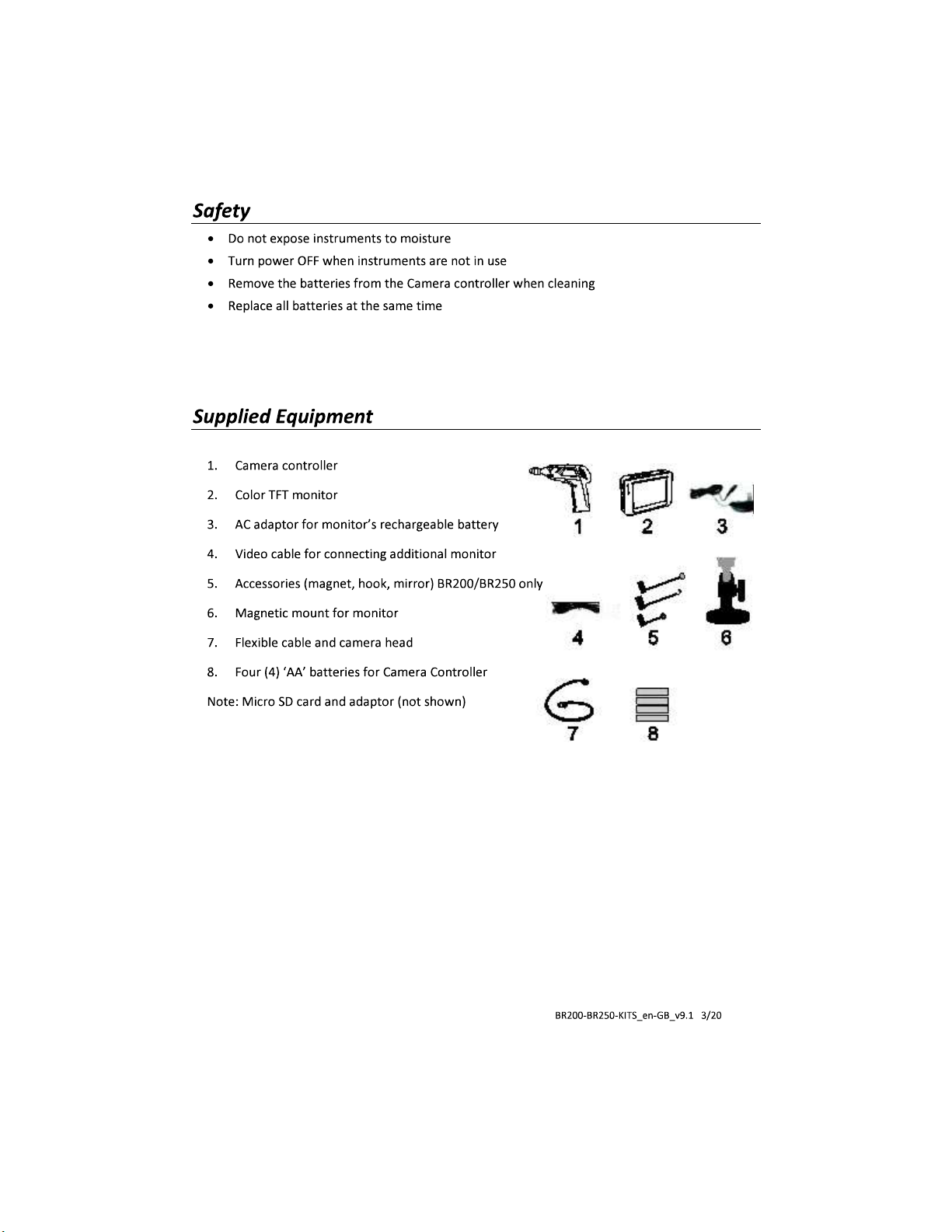

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

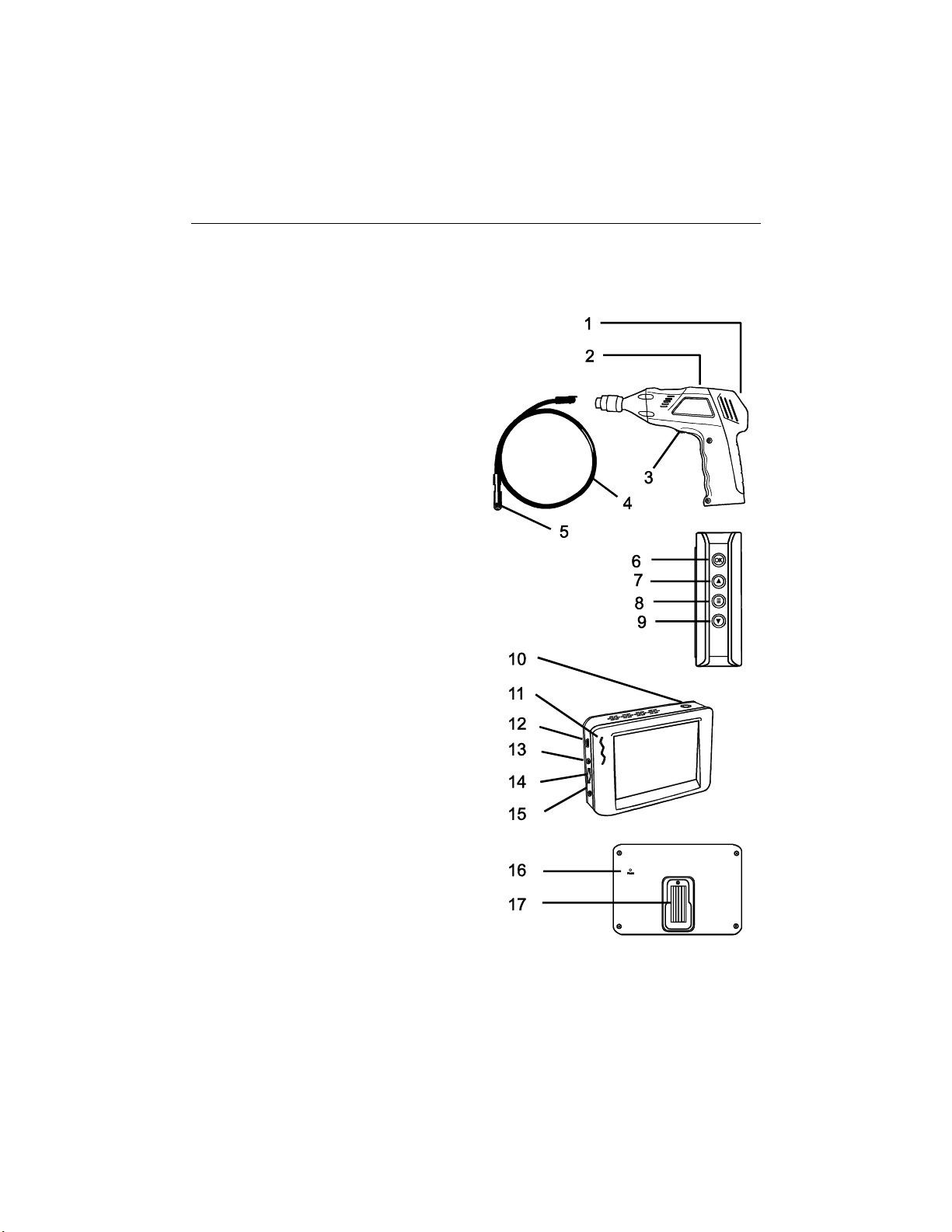

Description

1 Monitor mount (signal output)
2 Camera controller power indicator
3 Camera controller power ON/OFF switch and LED dimmer
4 Flexible cable
5 Camera head and LEDs
6 OK button
7 Up arrow and video/image button
8 Menu button
9 Down arrow button
10 Monitor power ON/OFF button
11 Monitor power indicator
12 USB jack for PC connection
13 Video output jack for alternate monitor
14 SD card slot
15 AC power adaptor jack
16 Reset button
17 Monitor mount (input signal)

4 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Preparation for use

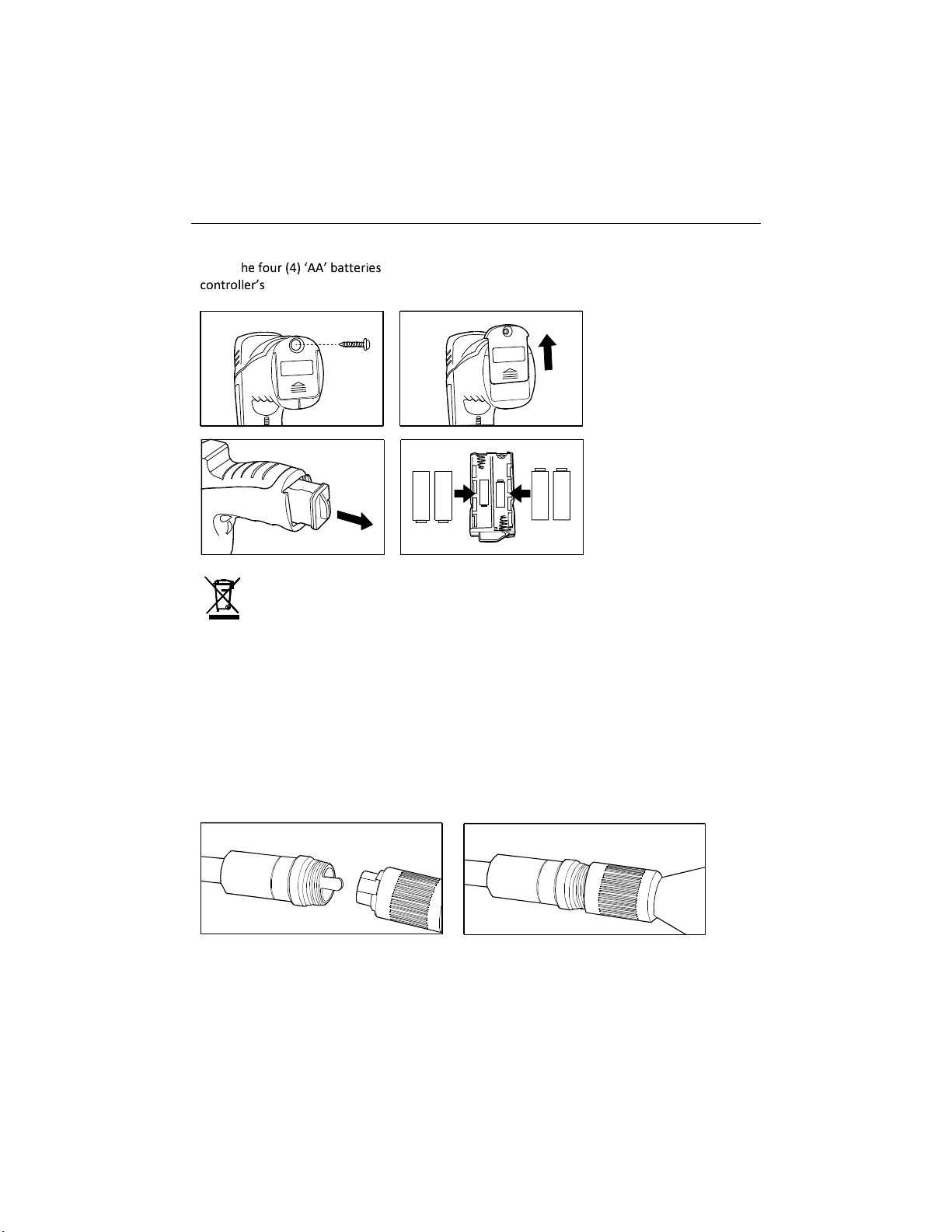

Camera controller power

Insert t (supplied) into the battery carrier located in the camera

handle as illustrated in accompanying diagrams. Observe correct polarity when

installing batteries.

Never dispose of used batteries or rechargeable batteries in household waste. As consumers, users are legally
required to take used batteries to appropriate collection sites, the retail store where the batteries were
purchased, or wherever batteries are sold.

Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices
to a designated collection point for the disposal of electrical and electronic equipment.

Monitor power

The monitor uses a rechargeable battery. To charge the battery, plug the supplied AC adaptor
into an AC power source and then connect the other end of the adaptor cable to the power jack
on the monitor. The battery capacity icon on the monitor screen and the red LED power
indicator on the side of the monitor will blink while the battery is charging.

Connect the flexible cable to the camera controller

Align the flexible cable with the camera controller, noting the keyed pairing; and then tighten the
knurled collar to hold the connection firmly in place.

Warning: Damage to the flexible cable can occur if it is forcibly bent into too narrow a radius.

5 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Inserting the micro SD card

Insert card with arrow pointing toward slot. Gently apply
pressure until the card locks into the spring loaded slot. To
remove, gently push the card inward and then release to eject it
from the card slot. Please use a Class 6 or better TF Flash
memory card.

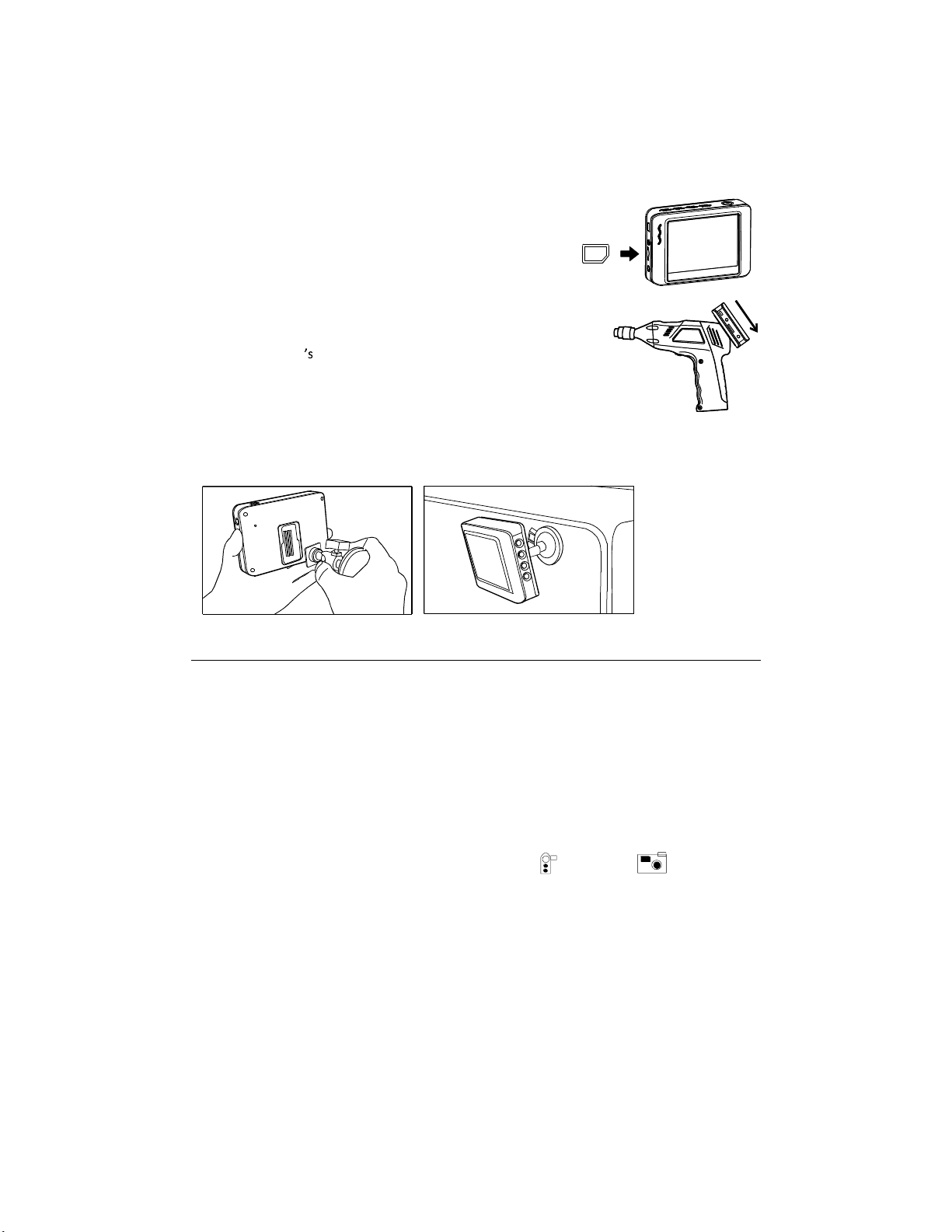

Attaching the monitor to the camera controller

Insert the monitor plug into the jack at the back of the camera
controller and slide the monitor downward to lock it into position.
See accompanying diagram.

Remotely mounting the monitor

The supplied magnetic bracket slides onto the rear of the monitor. Mount the monitor on a
magnetic surface for convenient remote viewing. See diagrams below. The wireless feature of
this system allows you to place the monitor up to 10m (33 ft.) from the measurement location.

Operation

1. Turn the ON/OFF dial switch on the cameral controller to power the camera. The power
indicator on the controller will switch on. The ON/OFF switch then acts as a dimmer for the
LEDs on the camera head.

2. Press and hold the monitor power button for at least 2 seconds to power the monitor; the
power indicator will illuminate and a Welcome screen will appear on the monitor.

3. Remove the protective cap from the camera lens and store it safely in the carry case.

4. The real-time image will then appear on the display LCD monitor.
Note: If the picture does not properly synchronize or has poor color, check that the

NTSC/PAL setting is correct. See the Settings Menu section.

5. Use the up arrow button on the monitor to select video or still image mode.

6. Turn the dimmer dial on the camera controller to adjust the LED light intensity.

7. Bend the flexible cable into the desired position. The cable can be bent into the shape of
most examination areas, but please do not bend the cable excessively as this can cause
damage to the system.

6 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8. Use the supplied accessories to help locate and retrieve small items (BR200 and BR250
only). Refer to the separate section in this manual for connecting the attachment
accessories.

Capturing still images

Use the up arrow button on the Monitor to select the Image mode, and then press OK to
capture a still image. The image will automatically save to the SD card.

Recording video

Use the up arrow button on the Monitor to select Video mode, and then press OK to begin

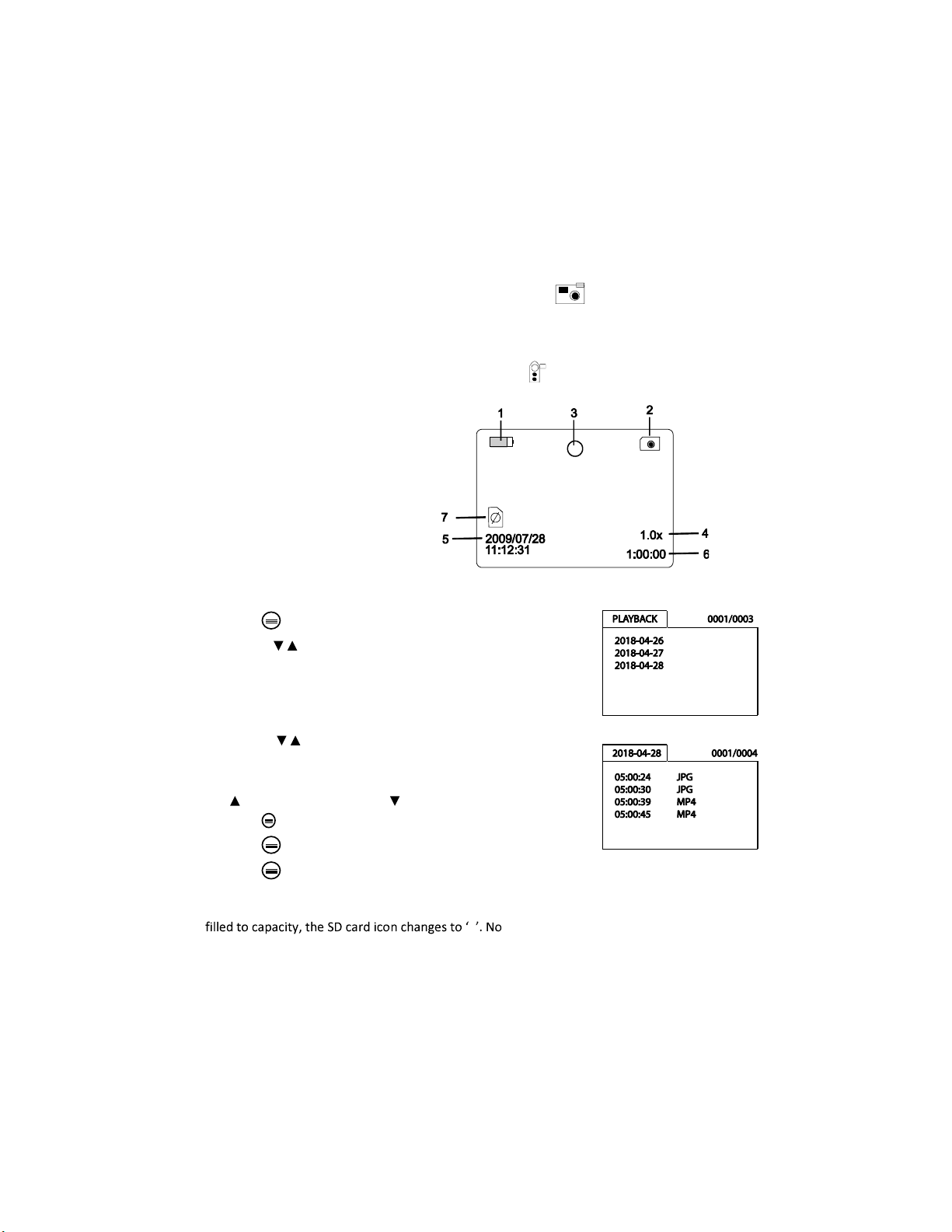

recording; refer to the following diagram for display icon descriptions:

1. Battery capacity

2. Function icon (video/image)

3. Recording in progress

4. ZOOM level

5. Date and Time

6. Recording time remaining

7. SD card status

Playback: Viewing images and video on the monitor

1. Press to display a list of playback folders sorted by date

2. Use the buttons to select a folder

3. Press OK to open the selected folder and view the list of

images and/or video files contained in the folder

4. Files are sorted by time of day; image files are in JPG format
and video files are in MP4 format

5. Use the buttons to select a file

6. Press OK to display the selected image or video.
For video files: Press OK to pause and resume

Fast Forwards the video; Rewinds the video

Press to stop video

7. Press to return to menu

8. Press again to exit

Note: Video automatically saves to a file on the SD card every 30 minutes. When the SD card is

F images or video can be recorded if the SD

card is not inserted in the slot or if the SD card has reached maximum capacity.

7 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Delete a single video or image

1. Press to display the list of available file folders

2. Use the buttons to select a folder

3. Press OK to open the selected folder to see the list of image and/or video files

4. Use the buttons to select a file

5. Long press the button and DELETE CURRENT FILE?

6. Use the arrow buttons to select YES or NO

7. Press OK to confirm

8. Press twice to exit the Delete screen

Delete an empty file folder

To delete an empty folder, use the same instructions for deleting a single video or image.
Folders that are not emptied cannot be deleted. Delete the contents of a folder before
attempting to delete a folder. If you attempt to delete a folder that is not empty, the following
message will appear: FOLDER NOT EMPTY.

Using SD card to view and transfer images and video

There are two ways to use the SD card:

1. SD card adaptor: Insert the SD card into the SD adaptor and then insert the adaptor into
the PC SD card slot (if available)

2. USB adaptor: Insert the SD card into a USB adaptor and plug the adaptor into a USB port
on the PC

Once the PC recognizes the SD card, you can view the images and video that are stored on the
card using a PC multimedia player. In addition, you can transfer image and video files from the
SD card to the PC as you would with any external storage medium (memory stick, hard drive,
etc.).

Using a PC (USB connection) to transfer video and images

Connect the monitor to a PC using the supplied USB cable. When the PC recognizes the
connection, you can use the monitor as you would any external storage drive (moving
images and videos to and from the drive). If the PC does not recognize the monitor,
please contact our technical support staff.

Using an additional video monitor

If you wish to use an additional video monitor, connect the supplied video cable to the
VIDEO OUT jack on the Extech monitor and then connect the other end of the cable to the
VIDEO IN jack of the additional monitor. The Extech monitor will output a high quality
video image to the additional monitor.

8 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

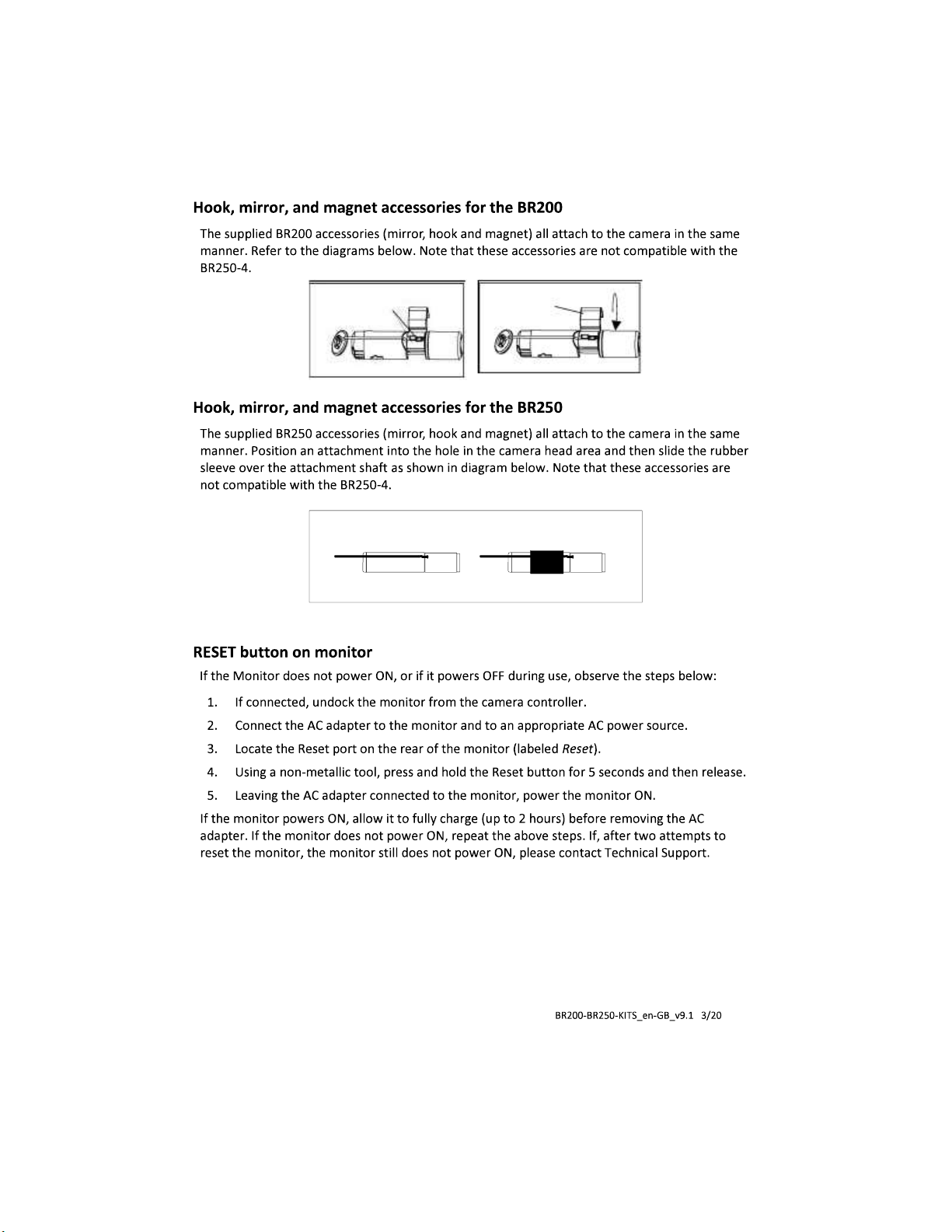

9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Settings Menu

Long press this button to enter the Settings Menu. Four icons will appear. The System
settings icon (green) is on the upper left, the Date/Time settings icon (yellow) is on the upper
right, the Recorder settings icon (red) is on the lower left, and the Playback* icon (blue) is on the
lower right. Use the arrow buttons to step through the icons and use the OK button to open

one of the setting modes. Short press to back out of menus as needed. Refer to the
instructions below for modifying the settings.

Language Settings

1. In the Settings Menu, use buttons to select the System setting (green icon)

2. Press OK to call up the System icon list

3. Use the arrows to highlight the Language icon (globe)

4. Press OK and the Language icon list will appear (flags)

5. Use the arrows to highlight the desired language

6. Press OK to select the highlighted language and exit

7. Press the button to return to the main Settings Menu or use the arrows to move to
another icon in the System settings menu

Video System Settings

1. In the Settings Menu, use buttons to select the System setting (green icon)

2. Press OK to call up the System icon list

3. Use the arrows to highlight the Video System icon (yellow)

4. Press OK and the Video format selections will appear (NTSC, PAL)

5. Use the arrows to highlight NTSC

6. Press OK to select the highlighted format and exit

7. Press the button to return to the main Settings Menu or use the arrows to move to
another icon in the System settings menu

Format/Erase SD Card Media

1. In the Settings Menu, use buttons to select the System setting (green icon)

2. Press OK to call up the System icon list

3. Use the arrows to highlight the FORMAT icon (blue)

4. Press OK and the FORMAT selection screen will appear (YES, NO)

5. Use the arrows to highlight YES (format/erase) or NO (leave unchanged)

6. Press OK to accept the selection and exit

7. Press the button to return to the main Settings Menu or use the arrows to move to
another icon in the System settings menu

10 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Restoring Factory Default Settings

1. In the Settings Menu, use buttons to select the System setting (green icon)

2. Press OK to call up the System icon list

3. Use the arrows to highlight the DEFAULT icon (red)

4. Press OK and the DEFAULT selection screen will appear (YES, NO)

5. Use the arrows to highlight YES (factory default) or NO (leave unchanged)

6. Press OK to accept the selection

7. Press the button to return to the main Settings Menu or use the arrows to move to
another icon in the System settings menu

View Version

1. In the Settings Menu, use buttons to select the System setting (green icon)

2. Press OK to call up the System icon list

3. Use the arrows to highlight the VERSION icon (green)

4. Press OK to view the version

5. Press OK again to exit

6. Press the button to return to the main Settings Menu or use the arrows to move to
another icon in the System settings menu

Frame Rate Setting

1. In the Settings Menu, use the buttons to select Recorder settings (red icon)

2. Press OK to call up the Recorder options

3. Use the arrows to highlight the FPS (frames per second) icon (green)

4. Press OK to open the FPS parameter

5. Use the arrows to select the frame rate: 10, 15, 20, 25, or 30

6. Press OK to confirm

7. Press the button to return to the main Settings Menu or use the arrows to move to

another icon in the Recorder settings menu

Time Stamp ON/OFF Setting

1. In the Settings Menu, use the buttons to select Recorder settings (red icon)

2. Press OK to call up the Recorder options

3. Use the arrows to highlight the Time Stamp icon (purple)

4. Press OK to open the parameter

5. Use the arrows to select ON or OFF

6. Press OK to confirm

7. Press the button to return to the main Settings Menu or use the arrows to move to

another icon in the Recorder settings menu

11 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Setting Still Image or Video as default Record mode

1. In the Settings Menu, use the buttons to select Recorder settings (red icon)

2. Press OK to call up the Recorder Mode options

3. Use the arrows to select the Recording mode icon (blue)

4. Press OK to open the parameter

5. Use the arrows to highlight the Still image or Video icon

6. Press OK to confirm

7. Press the button to return to the main Settings Menu or use the arrows to move to

another icon in the Recorder settings menu

Date/Time Setting

1. In the Settings Menu, use the buttons to select Date/Time settings (yellow icon)

2. Press OK to call up Date and Time settings window

3. Use OK to step through the fields

4. Use the arrows to change a setting

5. Press the button to return to the main Settings Menu

*Playback Icon

Playback: Viewing Images and Video on the Monitor

complete details. You can access the Playback mode from this Settings Menu; however, we
have provided complete instructions for viewing and deleting images and video in earlier
sections of this manual. Familiarize yourself with the process of viewing/deleting images and
video and then you can conveniently access the playback functions using one of two options.

12 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Specifications

CAMERA and CAMERA CONTROLLER

Imaging sensor CMOS
Total pixels (NTSC) BR200: 712 x 486; BR250, BR250-4, BR250-5: 640 x 480
Horizontal view angle BR200: 50 degrees; BR250: 45 degrees; BR250-4: 63 degrees;

Focal distance BR200: 20cm ( ); BR250: 10cm (4 ); BR250-4: 6cm (2.4 ;

Minimum illumination 0 Lux
Wireless transmission frequency 2.4 GHz
Wireless modulation type Frequency Modulation (FM)
Wireless bandwidth 18MHz
Wireless range 10m (33 ft.) maximum (unobstructed)
Waterproof capacity IP67 (imager head only)
Operating temperature -10°C~+50°C (+14°F~+122°F)
Power supply 4 x AA batteries
Dimensions (controller) 186 x 145 x 41mm (7.3 x 5.7 x cluding flex cable
Weight (controller) BR200: 530g (1.2 lbs.); BR250: 450g (1.0 lbs.); BR250-4: 450g (1.0 lbs.);

Camera-head diameter BR200: 17mm ( ); BR250: 9mm (0.36 ); BR250-4: 4.5mm :

MONITOR

Screen type 3.5 Color TFT
Effective pixels 320 (R.G.B.) x 240
Video system PAL/NTSC
Transmission frequency 2.4 GHz (Channel 4)
AC adapter 5VDC, (100-240Vac), adapters for US, UK, EU, AUS
Consumption current (Max.) 500mA
Charge time 3 hours
Operation time 2 hours
Video output level 0.9-1.3VP-P@75
Receiving sensitivity -85dBm
Operating temperature -10°C~+50°C (+14°F~+122°F)
Operating humidity (Max.) 15~85%RH
Dimensions (W x D x H)
Weight 140g (5.0 oz.)

FCC Information

This device complies with part 15 of the FCC rules.
BR200/BR250/BR250-4/BR250-5: FCC-ID TW5GB8802-GB8803
Operation is subject to the following two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may cause undesired
operation.

BR250-5: 48 degrees

BR250-5:

BR250-5 381g (13.4oz)

BR250-

13 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Copyright © 2014-2020 FLIR Systems, Inc.

All rights reserved including the right of reproduction in whole or in part in any form

14 BR200-BR250-KITS_en-GB_v9.1 3/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
