Extech Instruments 450 User Manual

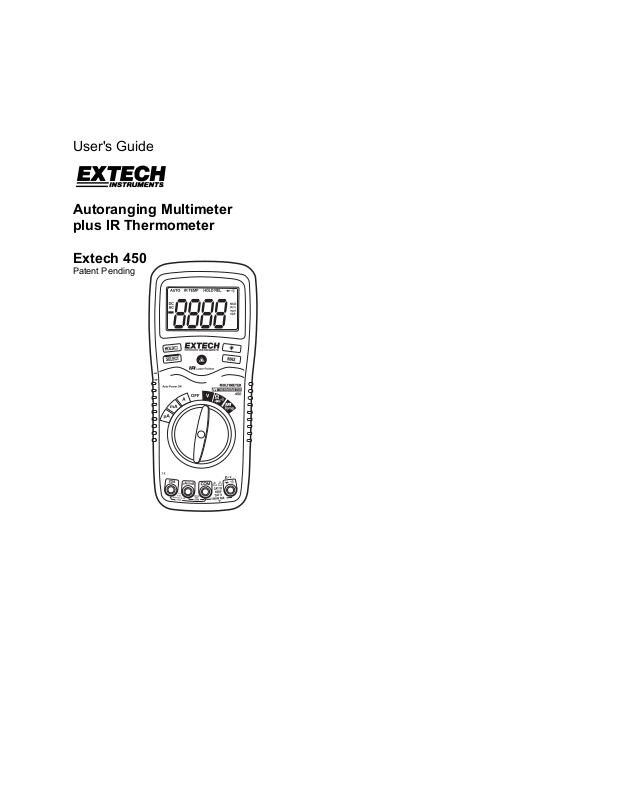

User's Guide

Autoranging Multimeter
plus IR Thermometer

Extech 450

Patent Pending

Introduction

Congratulations on your purchase of the Extech 450 (part number
EX450) Autoranging Multimeter plus IR Thermometer. This meter
measures AC/DC Voltage, AC/DC Current, Resistance, Diode
Test, and Continuity plus Non-Contact IR Temperature. Proper use
and care of this meter will provide many years of reliable service.

Safety

This symbol adjacent to another symbol,
terminal or operating device indicates that the
operator must refer to an explanation in the
Operating Instructions to avoid personal injury
or damage to the meter.

WARNING

CAUTION

MAX
1000V

This WARNING symbol indicates a potentially
hazardous situation, which if not avoided,
could result in death or serious injury.

This CAUTION symbol indicates a potentially
hazardous situation, which if not avoided, may
result damage to the product.

This symbol advises the user that the
terminal(s) so marked must not be connected
to a circuit point at which the voltage with
respect to earth ground exceeds (in this case)
750 VAC or 1000VDC.

This symbol adjacent to one or more terminals
identifies them as being associated with
ranges that may, in normal use, be subjected
to particularly hazardous voltages. For
maximum safety, the meter and its test leads
should not be handled when these terminals
are energized.

This symbol indicates that a device is
protected throughout by double insulation or
reinforced insulation.

This symbol indicates there is a potential
hazard from a laser light source.

EX450V5.0V 10/06 2

OVERVOLTAGE CATEGORY III

This meter meets the IEC 610-1-95 standard for OVERVOLTAGE
CATEGORY III. Cat III meters are protected against overvoltage
transients in fixed installation at the distribution level. Examples
include switches in the fixed installation and some equipment for
industrial use with permanent connection to the fixed installation.

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated
with caution. The rules listed below must be carefully followed for
safe operation.

1. NEVER apply voltage or current to the meter that exceeds the
specified maximum:

V DC or V AC 1000V DC/750V AC, 200Vrms on

Function Maximum Input

mA AC/DC 200mA 250V fast acting fuse
A AC/DC 20A 250V fast acting fuse(30

Resistance, Diode Test,
Continuity

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input
jack exceeds 1000V above earth ground.

4. NEVER connect the meter leads across a voltage source
while the function switch is in the current, resistance, or diode
mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and
disconnect the power when making resistance or diode tests.

6. ALWAYS turn off the power and disconnect the test leads
before opening the cover to replace the fuse or battery.

7. NEVER operate the meter unless the back cover and the
battery and fuse covers are in place and fastened securely.

8. NEVER look directly at the laser light source or aim the
pointer at an eye.

Input Protection Limits

200mV range

seconds max every 15 minutes)
250Vrms for 15sec max

EX450V5.0V 10/06 3

Controls and Jacks

1. IR Thermometer and laser pointer

2. 2000 count LCD display

3. HOLD button

4. SELECT button

5. Function switch

6. mA, uA and A input jacks

7. COM input jack

8. Positive input jack

9. MAX hold button (voltage and current)

10. BACKLIGHT button

11. Laser pointer button

12. Protective holster

Note: Tilt stand and battery compartment are on rear of unit.

Symbols and Annunciators

•))) Continuity

Diode test

Laser pointer

Battery status

Test lead connection
error

µ micro (10
m milli (10
k kilo (10
M mega (10
MAX Maximum hold V Volts
AUTO Autoranging DC Direct current
HOLD Display hold ºF Degrees Fahrenheit
ºC Degrees Centigrade

-6

) (amps)

-3

) (volts, amps) A Amps

3

) (ohms) F Farads (capacitance)

6

) (ohms) Ω Ohms

EX450V5.0V 10/06 4

Specifications

Function Range Resolution Accuracy

DC
Voltage

AC
Voltage

DC
Current

AC
Current

NOTE: Accuracy is stated at 65oF to 83oF (18oC to 28oC) and less

200mV 0.1mV

2V 0.001V

20V 0.01V

200V 0.1V

1000V 1V

50 to 400Hz 400Hz to 1kHz

2V 0.001V

20V 0.01V

200V 0.1V

750V 1V

200µA 0.1µA

2000µA 1µA

20mA 0.01mA

200mA 0.1mA

2A 0.001A

20A 0.01A

50 to 400Hz 400Hz to 1KHz

200µA 0.1µA

2000µA 1µA

20mA 0.01mA

200mA 0.1mA

2A 0.001A
20A 0.01A

than 75% RH.

±(0.5% reading + 2 digits)

±(0.8% reading + 2 digits)

±(1.0% reading + 3 digits)

±(1.0% reading

+ 4 digits)

±(1.5% reading

+ 4 digits)

±(2.0% reading

+ 6 digits)

±(1.5% reading + 3 digits)

±(2.5% reading + 5 digits)

±(1.8% reading

+ 8 digits)

±(3.0% reading
+ 8 digits)

±(2.5% reading

+ 8 digits)

±(3.0% reading

+ 8 digits)

±(3.5% reading

+ 8 digits)

±(3.0% reading
+ 7 digits)

±(3.5% reading
+ 10 digits)

EX450V5.0V 10/06 5

Function Range Resolution Accuracy

Resistance

Temp
(IR)

NOTE: Accuracy specifications consist of two elements:

• (% reading) – This is the accuracy of the measurement circuit.

• (+ digits) – This is the accuracy of the analog to digital converter.

200Ω 0.1Ω ±(0.8% reading + 4 digits)

2kΩ 0.001kΩ ±(0.8% reading + 2 digits)

20kΩ 0.01kΩ

200kΩ 0.1kΩ

2MΩ 0.001MΩ

20MΩ 0.01MΩ ±(3.0% reading + 5 digits)

-58 to 518°F 1°F

-50 to270°C 1°C

±(1.0% reading + 2 digits)

±2.0% reading or ±2°C, ± 4 °F

Diode Test Test current of 0.3mA maximum,

Continuity Check Audible signal will sound if the

IR Spectral response 6 to 16µm
IR Emissivity 0.95 fixed
IR distance ratio 8:1
Input Impedance >7.5MΩ (VDC & VAC)
AC Response Average responding
ACV Bandwidth 50Hz to 1kHz
Display 2000 count backlit liquid crystal
Overrange indication “OL” is displayed
Auto Power Off 15 minutes (approximately)
Polarity Automatic (no indication for

Measurement Rate 2 times per second, nominal
Low Battery Indication “ ” is displayed if battery voltage

open circuit voltage 1.5V DC typical

resistance is less than 150Ω
(approx.), test current <0.7mA

positive); Minus (-) sign for negative

drops below operating voltage

EX450V5.0V 10/06 6

Battery One 9 volt (NEDA 1604) battery

Fuses mA, µA ranges; 0.2A/250V fast blow

A range; 20A/250V ceramic fast blow

Operating Temperature 41ºF to 104ºF (5ºC to 40ºC)

Storage Temperature -4

o

F to 140oF (-20oC to 60oC)

Operating Humidity Max 80% up to 87ºF (31ºC) decreasing

linearly to 50% at 104ºF(40ºC)

Storage Humidity <80%

Operating Altitude 7000ft. (2000meters) maximum.

Weight 0.753lb (342g) (includes holster).

Size 7.36” x 3.2” x 2.0” (187 x 81 x 50mm)

(includes holster)

Safety For indoor use and in accordance with

the requirements for double insulation to
IEC1010-1 (1995): EN61010-1 (1995)
Overvoltage Category III 600V and
Category II 1000V, Pollution Degree 2.

EX450V5.0V 10/06 7

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC
and DC, are very dangerous and should be measured with great
care.

1. ALWAYS turn the function switch to the OFF position when the

meter is not in use.

2. If “OL” appears in the display during a measurement, the value

exceeds the range you have selected. Change to a higher range.

NOTE: On some low AC and DC voltage ranges, with the test

leads not connected to a device, the display may show a
random, changing reading. This is normal and is caused by the
high-input sensitivity. The reading will stabilize and give a proper
measurement when connected to a circuit.

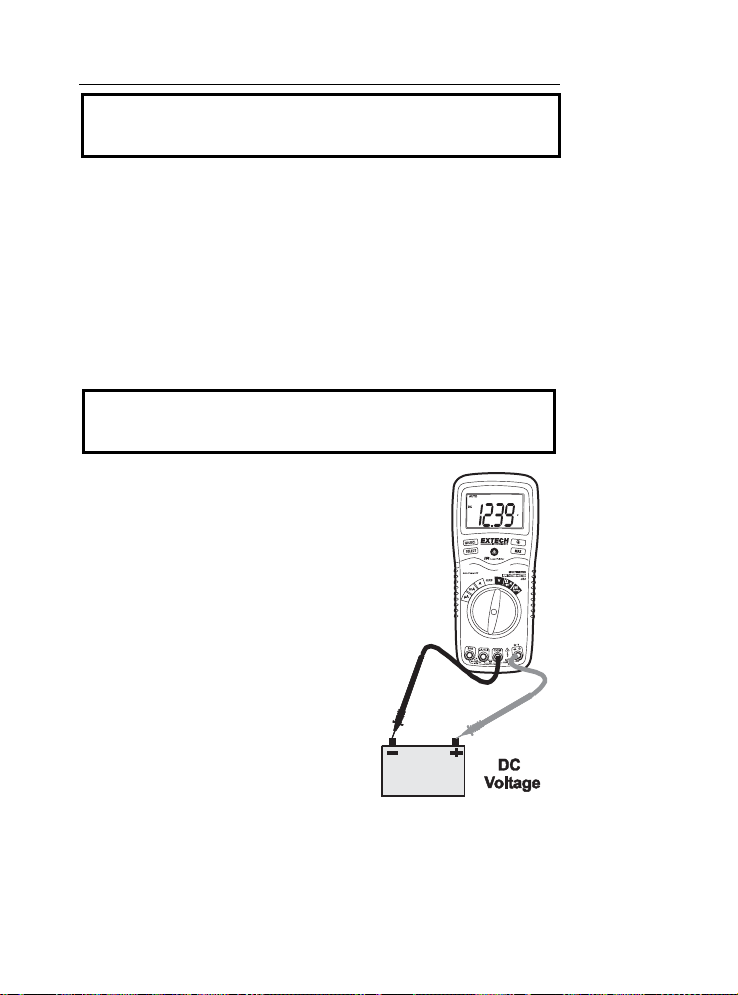

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the

circuit is being switched ON or OFF. Large voltage surges may
occur that can damage the meter.

1. Set the function switch to the green

V position.

2. Press the SELECT button to

indicate “DC” on the display.

3. Insert the black test lead banana

plug into the negative COM jack.
Insert the red test lead banana plug
into the positive V jack.

4. Touch the black test probe tip to

the negative side of the circuit.
Touch the red test probe tip to the
positive side of the circuit.

5. Read the voltage in the display.

EX450V5.0V 10/06 8

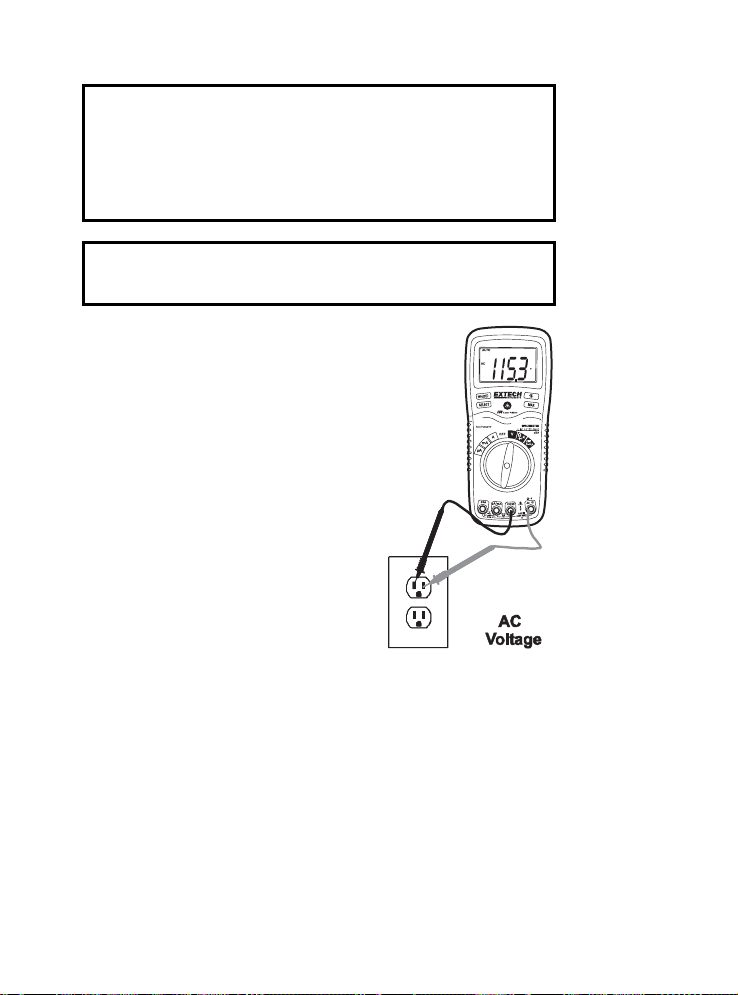

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be

long enough to contact the live parts inside some 240V outlets
for appliances because the contacts are recessed deep in the
outlets. As a result, the reading may show 0 volts when the
outlet actually has voltage on it. Make sure the probe tips are
touching the metal contacts inside the outlet before assuming
that no voltage is present.

CAUTION: Do not measure AC voltages if a motor on the
circuit is being switched ON or OFF. Large voltage surges may
occur that can damage the meter.

1. Set the function switch to the green

V position.

2. Press the SELECT button to

indicate “AC” on the display.

3. Insert the black test lead banana

plug into the negative COM jack.
Insert red test lead banana plug into
the positive V jack.

4. Touch the black test probe tip to the

neutral side of the circuit.
Touch the red test probe tip to the
“hot” side of the circuit.

5. Read the voltage in the display.

EX450V5.0V 10/06 9

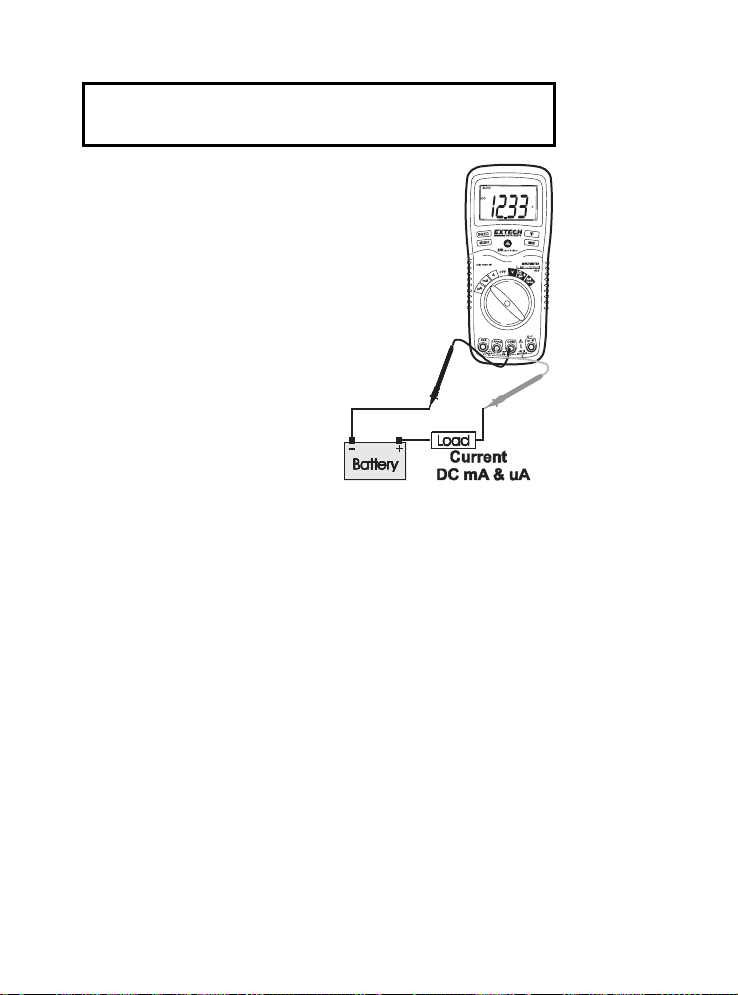

DC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements on the 20A

scale for longer than 30 seconds. Exceeding 30 seconds may
cause damage to the meter and/or the test leads.

1. Insert the black test lead

banana plug into the negative
COM jack.

2. For current measurements up

to 2000µA DC, set the
function switch to the yellow
µA position and insert the red
test lead banana plug into the
µA/mA jack.

3. For current measurements up

to 200mA DC, set the function
switch to the yellow mA
position and insert the red test
lead banana plug into the
µA/mA jack.

4. For current measurements up

to 20A DC, set the function
switch to the yellow 20A range and insert the red test lead
banana plug into the 20A jack.

5. Press the SELECT button to indicate “DC” on the display.

6. Remove power from the circuit under test, then open up the

circuit at the point where you wish to measure current.

7. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

Note: When current measurements exceed 10 Amps the meter will

produce an audible warning tone which indicates that the
measurement time should be limited to 30 seconds or less.

EX450V5.0V 10/06 10

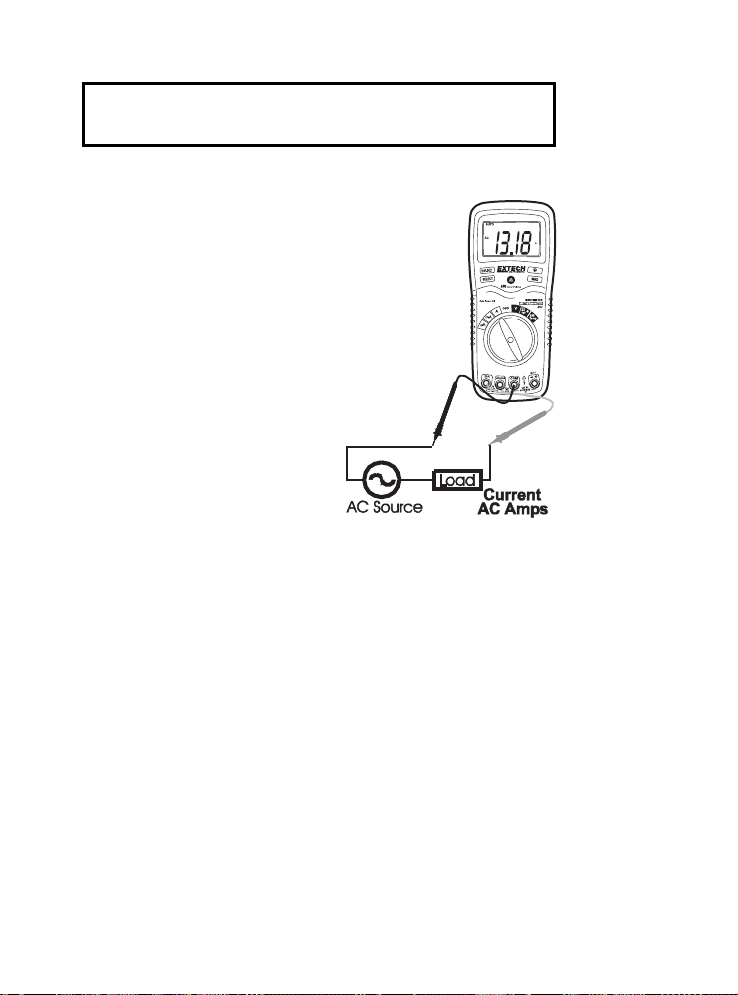

AC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements on the 20A

scale for longer than 30 seconds. Exceeding 30 seconds may
cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM

jack.

2. For current measurements up

to 2000µA AC, set the function
switch to the yellow µA
position and insert the red test
lead banana plug into the
µA/mA jack

3. For current measurements up

to 200mA AC, set the function
switch to the yellow mA
position and insert the red test
lead banana plug into the
µA/mA jack.

4. For current measurements up

to 20A AC, set the function
switch to the yellow 20A range
and insert the red test lead
banana plug into the 20A jack.

5. Press the SELECT button to indicate “AC” on the display.

6. Remove power from the circuit under test, then open up the

circuit at the point where you wish to measure current.

7. Touch the black test probe tip to the neutral side of the circuit.

Touch the red test probe tip to the “hot” side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

Note: When current measurements exceed 10 Amps the meter will

produce an audible warning tone which indicates that the
measurement time should be limited to 30 seconds or less.

EX450V5.0V 10/06 11

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the

unit under test and discharge all capacitors before taking any
resistance measurements. Remove the batteries and unplug
the line cords.

1. Set the function switch to the green

Ω position.

2. Insert the black test lead banana

plug into the negative COM jack.
Insert the red test lead banana plug
into the positive Ω jack.

3. Press the SELECT button to

indicate Ω on the display.

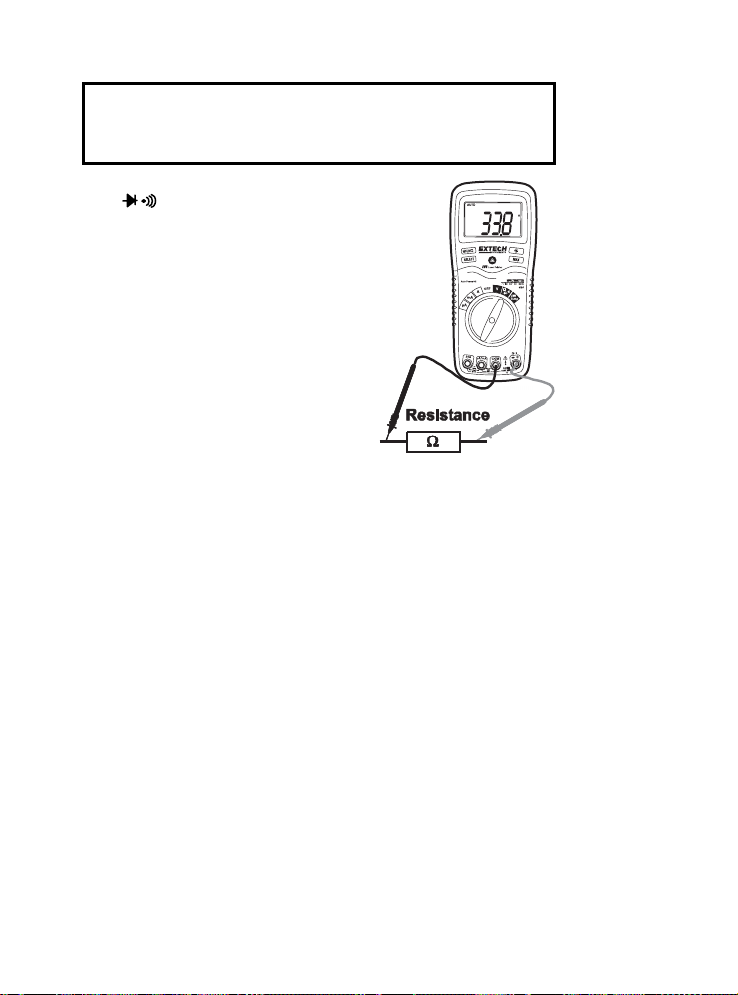

4. Touch the test probe tips across

the circuit or part under test. It is
best to disconnect one side of the
part under test so the rest of the
circuit will not interfere with the
resistance reading.

5. Read the resistance in the display.

EX450V5.0V 10/06 12

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity

on circuits or wires that have voltage on them.

1. Set the function switch to the

green Ω position.

2. Insert the black lead banana plug

into the negative COM jack
Insert the red test lead banana
plug into the positive Ω jack.

3. Press the SELECT button to
indicate on the display

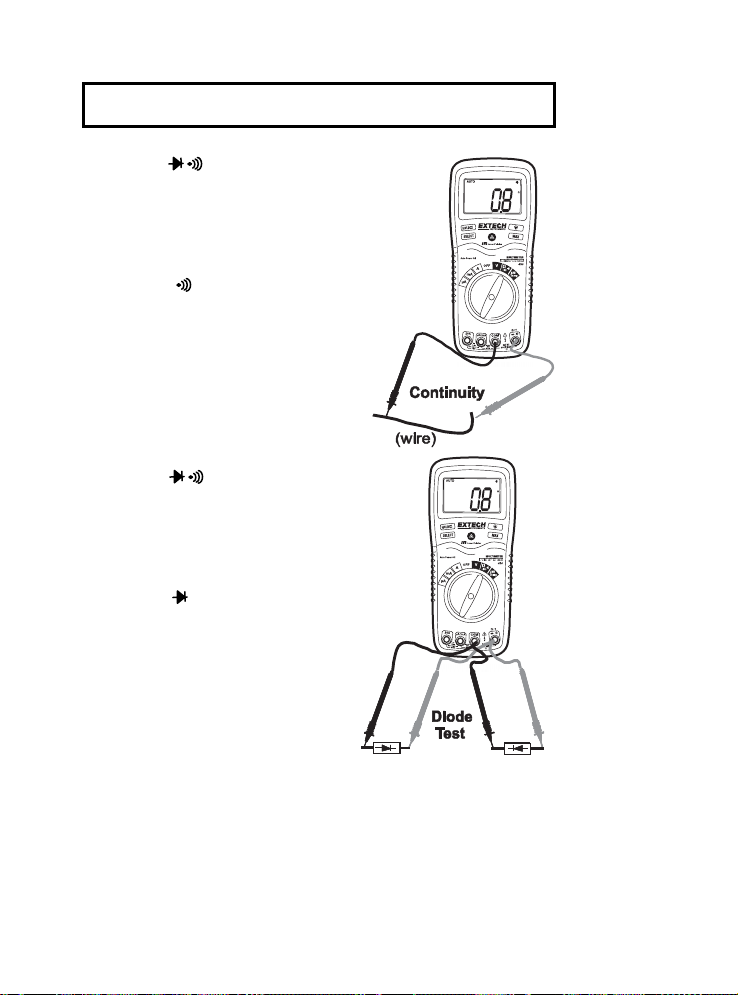

4. Touch the test probe tips to the

circuit or wire you wish to check.

5. If the resistance is less than

approximately 150Ω, the audible
signal will sound. If the circuit is
open, the display will indicate “OL”.

DIODE TEST

1. Set the function switch to the

green Ω position.

2. Insert the black test lead banana

plug into the negative COM jack
and the red test lead banana
plug into the positive V jack.

3. Press the SELECT button to

indicate on the display.

4. Touch the test probes to the

diode under test. Forward
voltage will typically indicate

0.400 to 0.700V. Reverse
voltage will indicate “OL”.
Shorted devices will indicate
near 0V and an open device will
indicate “OL” in both polarities.

EX450V5.0V 10/06 13

NON-CONTACT TEMPERATURE MEASUREMENTS

1. Set the function switch to the red IR Temp position.

2. Press the SELECT button to select ºF or ºC

3. Point the meter at the surface to be measured.

4. If needed, press the IR Laser Pointer button to locate the exact

spot being measured.

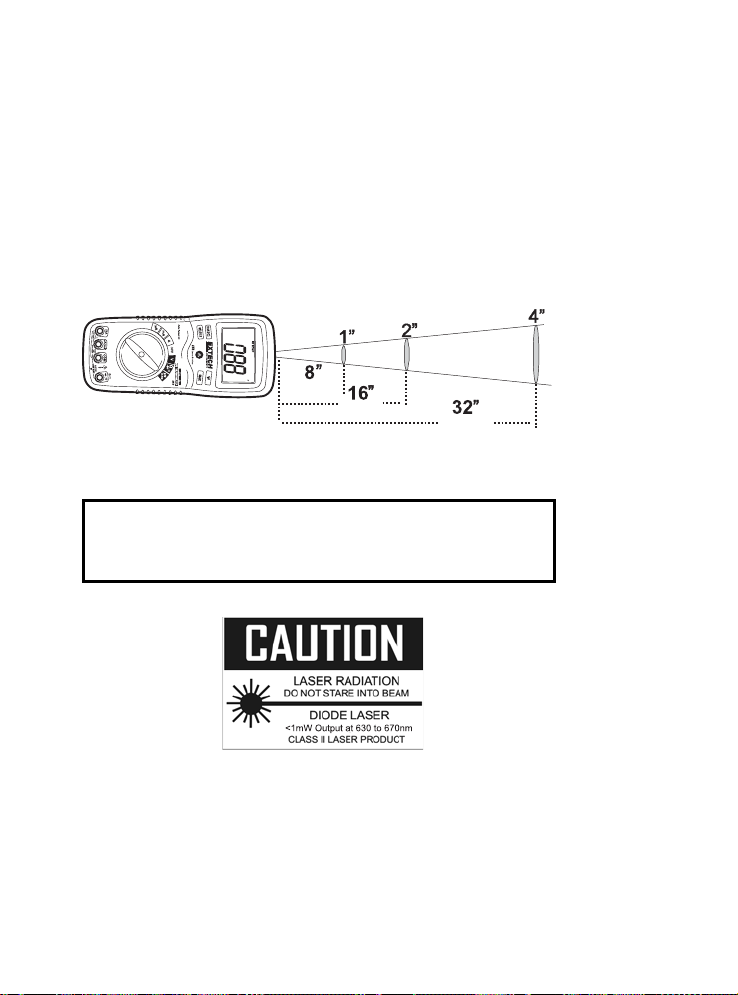

5. The area of the surface to be measured must be larger than the

spot size as determined by the distance to spot size
specification.

6. Read the temperature in the display.

Diameter of Spot

(10cm)

(2.5cm)

(20cm)

(5cm)

(40cm)

(80cm)

Distance to Object

WARNING: Do not directly view or direct the laser pointer
at an eye. Low power visible lasers do not normally present a

hazard, but may present some potential for hazard if viewed
directly for extended periods of time.

EX450V5.0V 10/06 14

DISPLAY BACKLIGHT

Press and hold the button for >1 second to turn on or off the
display backlight function. The backlight will automatically turn
off after 30 seconds.

MAX

Press the MAX button to activate the MAX feature in the voltage
or current functions. The display will hold the maximum reading
and will update only when a reading higher then the currently
displayed reading occurs. Press the MAX button again to
disable the feature.

HOLD

The hold function freezes the reading in the display. Press the
HOLD key momentarily to activate or to exit the hold function.

AUTO POWER OFF

The auto off feature will turn the meter off after 15 minutes.

LOW BATTERY INDICATION

The icon will appear in the lower left conner of the display
when the battery voltage becomes low. Replace the battery
when this appears.

WRONG CONNECTION INDICATION

The icon will appear in the upper right conner of the
display and the buzzer will sound whenever the positive test
lead is inserted into the 20A or uA/mA input jack and a non­current (green, black or red) function is selected. If this occurs,
turn the meter off and reinsert the test lead into the proper input
jack for the function selected.

EX450V5.0V 10/06 15

Maintenance

WARNING: To avoid electric shock, disconnect the test leads
from any source of voltage before removing the back cover or
the battery or fuse covers.

WARNING: To avoid electric shock, do not operate your meter
until the battery and fuse covers are in place and fastened
securely.

This MultiMeter is designed to provide years of dependable service,
if the following care instructions are performed:

1. KEEP THE METER DRY. If it gets wet, wipe it off.

2. USE AND STORE THE METER IN NORMAL

TEMPERATURES. Temperature extremes can shorten the life
of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping

it can damage the electronic parts or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a

damp cloth. DO NOT use chemicals, cleaning solvents, or
detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED

SIZE AND TYPE. Remove old or weak batteries so they do not
leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD

OF TIME, the batteries should be removed to prevent damage
to the unit.

EX450V5.0V 10/06 16

BATTERY INSTALLATION

WARNING: To avoid electric shock, disconnect the test leads

from any source of voltage before removing the battery cover.

1. Turn power off and disconnect the test leads from the meter.

2. Open the rear battery cover by removing two screws (B) using

a Phillips head screwdriver.

3. Insert the battery into battery holder, observing the correct

polarity.

4. Put the battery cover back in place. Secure with the screw.

WARNING: To avoid electric shock, do not operate the meter
until the battery cover is in place and fastened securely.

NOTE: If your meter does not work properly, check the fuses and

battery to make sure that they are still good and that they
are properly inserted.

EX450V5.0V 10/06 17

REPLACING THE FUSES

WARNING: To avoid electric shock, disconnect the test leads

from any source of voltage before removing the fuse cover.

1. Disconnect the test leads from the meter.

2. Remove the protective rubber holster.

3. Remove the battery cover (two “B” screws) and the battery.

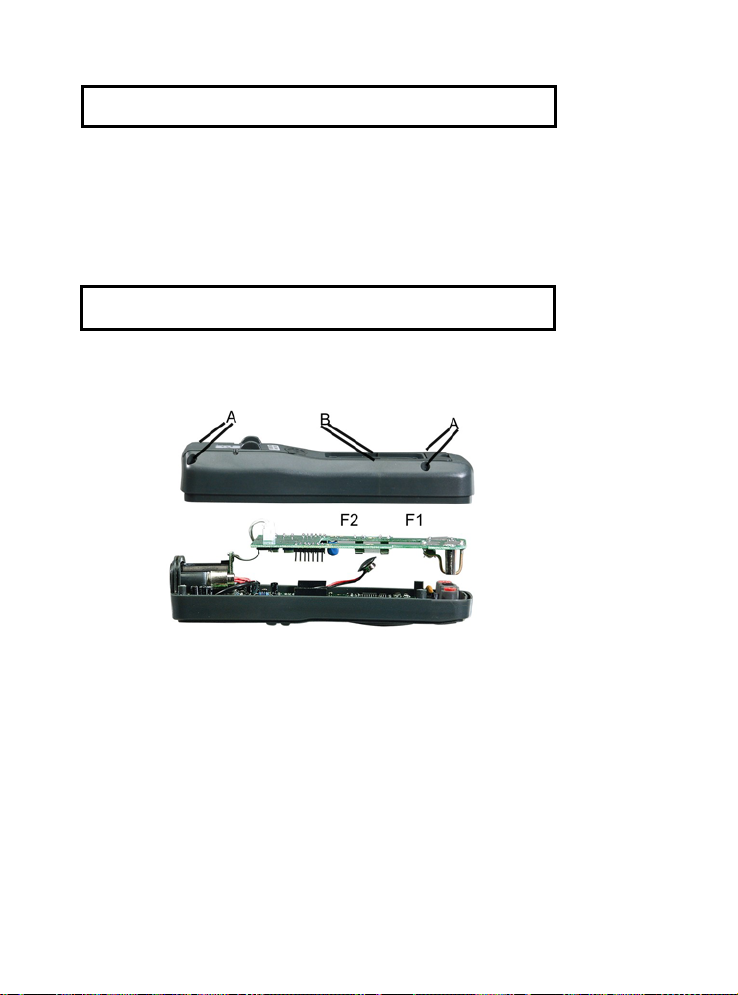

4. Remove the four “A” screws securing the rear cover.

5. Lift the center circuit board straight up from the connectors to

gain access to the fuse holders.

6. Gently remove the old fuse and install the new fuse into the

holder.

7. Always use a fuse of the proper size and value (0.2A/250V fast

blow for the 200mA range, 20A/250V fast blow for the 20A
range).

8. Align the center board with the connectors and gently press

into place.

9. Replace and secure the rear cover, battery and battery cover.

WARNING: To avoid electric shock, do not operate your meter
until the fuse cover is in place and fastened securely.

UL LISTED

The UL mark does not indicate that this product has been
evaluated for the accuracy of its readings.

EX450V5.0V 10/06 18

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be
free of defects in parts and workmanship for three years from date of
shipment (a six month limited warranty applies on sensors and cables). If it
should become necessary to return the instrument for service during or
beyond the warranty period, contact the Customer Service Department at
[phone] ext. 210 for authorization or visit our website at
www.extech.com
to request an RA number). A Return Authorization (RA) number must be
issued before any product is returned to Extech. The sender is responsible
for shipping charges, freight, insurance and proper packaging to prevent
damage in transit. This warranty does not apply to defects resulting from
action of the user such as misuse, improper wiring, operation outside of
specification, improper maintenance or repair, or unauthorized modification.
Extech specifically disclaims any implied warranties or merchantability or
fitness for a specific purpose and will not be liable for any direct, indirect,
incidental or consequential damages. Extech's total liability is limited to
repair or replacement of the product. The warranty set forth above is
inclusive and no other warranty, whether written or oral, is expressed or
implied.

Calibration and Repair Services

Extech offers complete repair and calibration services for the
products we sell. For periodic calibration, NIST certification or
repair of an Extech product, call customer service for details on
services available for that product. Extech recommends that
calibration be performed on an annual basis to ensure
calibration integrity.

Tech support: Ext. 200; Email: [e-mail]

Repair/Returns: Ext. 210; Email: [e-mail]

Copyright © 2006 Extech Instruments Corporation.

All rights reserved including the right of reproduction

(click on ‘Contact Extech’ and go to ‘Service Department’



Support Hotline [phone]

Website: www.extech.com

in whole or in part in any form.

EX450V5.0V 10/06 19
