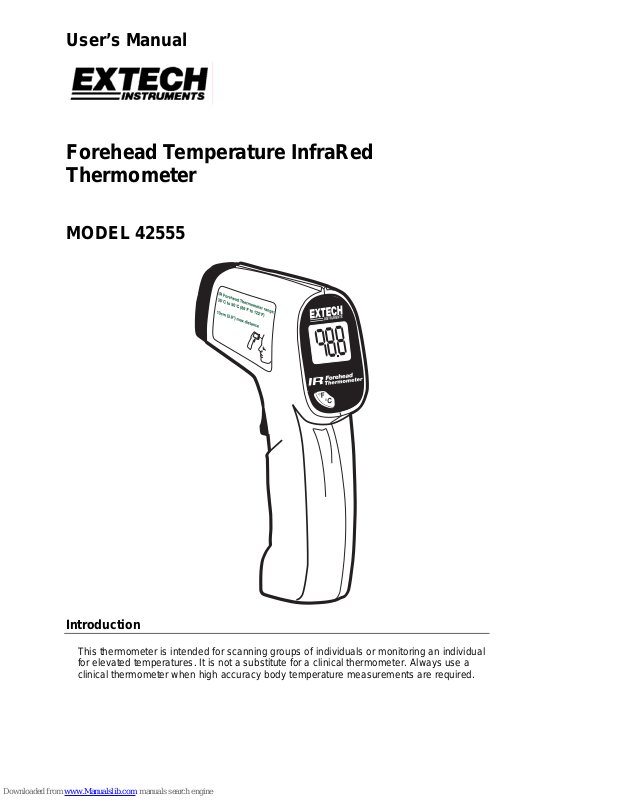

User’s Manual

Forehead Temperature InfraRed
Thermometer

MODEL 42555

Introduction

This thermometer is intended for scanning groups of individuals or monitoring an individual
for elevated temperatures. It is not a substitute for a clinical thermometer. Always use a
clinical thermometer when high accuracy body temperature measurements are required.

42555 V1.1 12/2005 2

1

2

3

4

5

6

Meter Description

1. LCD Display

2. Function Buttons

3. Handle Grip

4. IR Temperature Sensor

5. Measurement Trigger

6. Battery Compartment

Considerations and Warnings

Read all instructions before using this product.
For the most accurate results, make reading with an ambient (room) temperature of

73 to 82°F (23 to 27°C)
Make sure the skin is dry and that no hair interferes with the measurement.
Do not immerse the meter in water.
Avoid touching and/or scratching the infrared sensor lens.
Always use a clinical thermometer to verify any abnormal temperature

measurements.
Clean the lens area by gently blowing with compressed air and use a damp swap

to wipe the lens. Do not use any solvents to clean the lens.

Measurement Notes

1. If the meter has been stored in a cold or hot environment, allow it at least 20 minutes
to acclimate to room temperature before making measurements.

2. To prevent transmission of disease, avoid direct contact with the skin.

3. After heavy exercise always wait at least 10 minutes before taking forehead
temperature readings.
