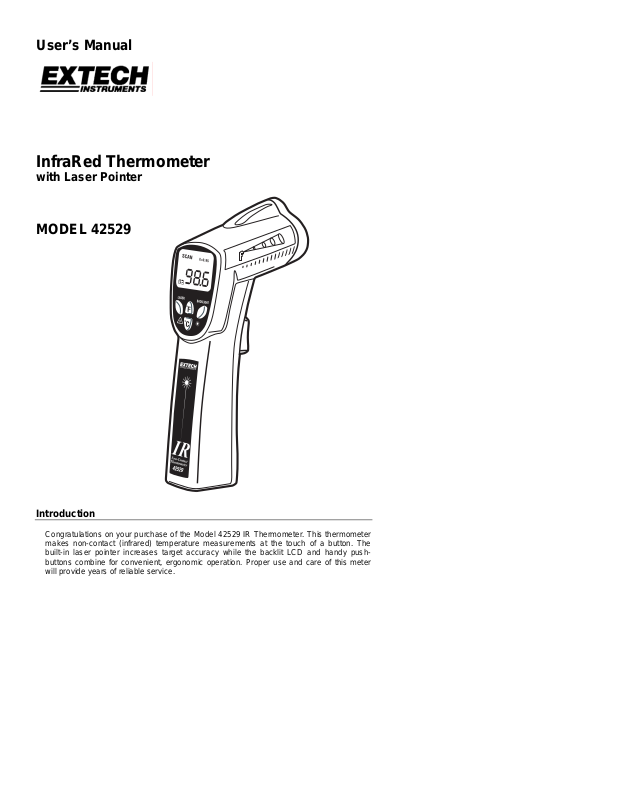

User’s Manual
InfraRed Thermometer
with Laser Pointer
MODEL 42529
Introduction
Congratulations on your purchase of the Model 42529 IR Thermometer. This thermometer
makes non-contact (infrared) temperature measurements at the touch of a button. The
built-in laser pointer increases target accuracy while the backlit LCD and handy pushbuttons combine for convenient, ergonomic operation. Proper use and care of this meter
will provide years of reliable service.
Warranty
EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and
workmanship for three (3) years from date of shipment (a six month limited warranty applies on sensors and
cables). If it should become necessary to return the instrument for service during or beyond the warranty
period, contact the Customer Service Department at (781) 890-7440 ext. 210 for authorization or visit our
website at www.extech.com (click on ‘Contact Extech’ and go to ‘Service Department’ to request an RA
number). A Return Authorization (RA) number must be issued before any product is returned to Extech. The
sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in
transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper
wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. Extech
specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be
liable for any direct, indirect, incidental or consequential damages. Extech's total liability is limited to repair or
replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or
oral, is expressed or implied.
Safety
• Use extreme caution when the laser pointer beam is on
• Do not point the beam toward anyone's eye or allow the
beam to strike the eye from a reflective surface
• Do not use the laser near explosive gases or in other
potentially explosive areas
Specifications
Infrared Thermometer Specifications
Range / Resolution 0 to 600
Accuracy ± 2% of reading or ± 4oF (2oC) whichever is greater.
Emissivity 0.95 fixed value
Field of View D/S = Approx. 6:1 ratio (D = distance, S = spot)
Laser power Less than 1mW
Spectral response
o
F (-20 to 320oC) 1oC/F
Note: Accuracy is specified for the following ambient
temperature range: 64 to 82°F (18 to 28°C)
6 to 14 µm (wavelength)
General Specifications
Display 3½ digit backlit LCD display with function indicators
Display rate 1 second approx.
Over range indication Audible tone sounds and ‘OVER’ appears on the LCD when
the measurement exceeds the measurement range spec.
Operating Temperature 32°F to 122°F (0°C to 50°C)
Operating Humidity Max. 80% RH.
Power Supply 9V battery
Automatic Power Off Meter shuts off automatically after 7 seconds
Weight 6.35 oz. / 180g
Size 8.3 x 3.5 x 1.5” (211 x 89 x 38mm)
Model 42529 Version 1.9 November 2005 2
