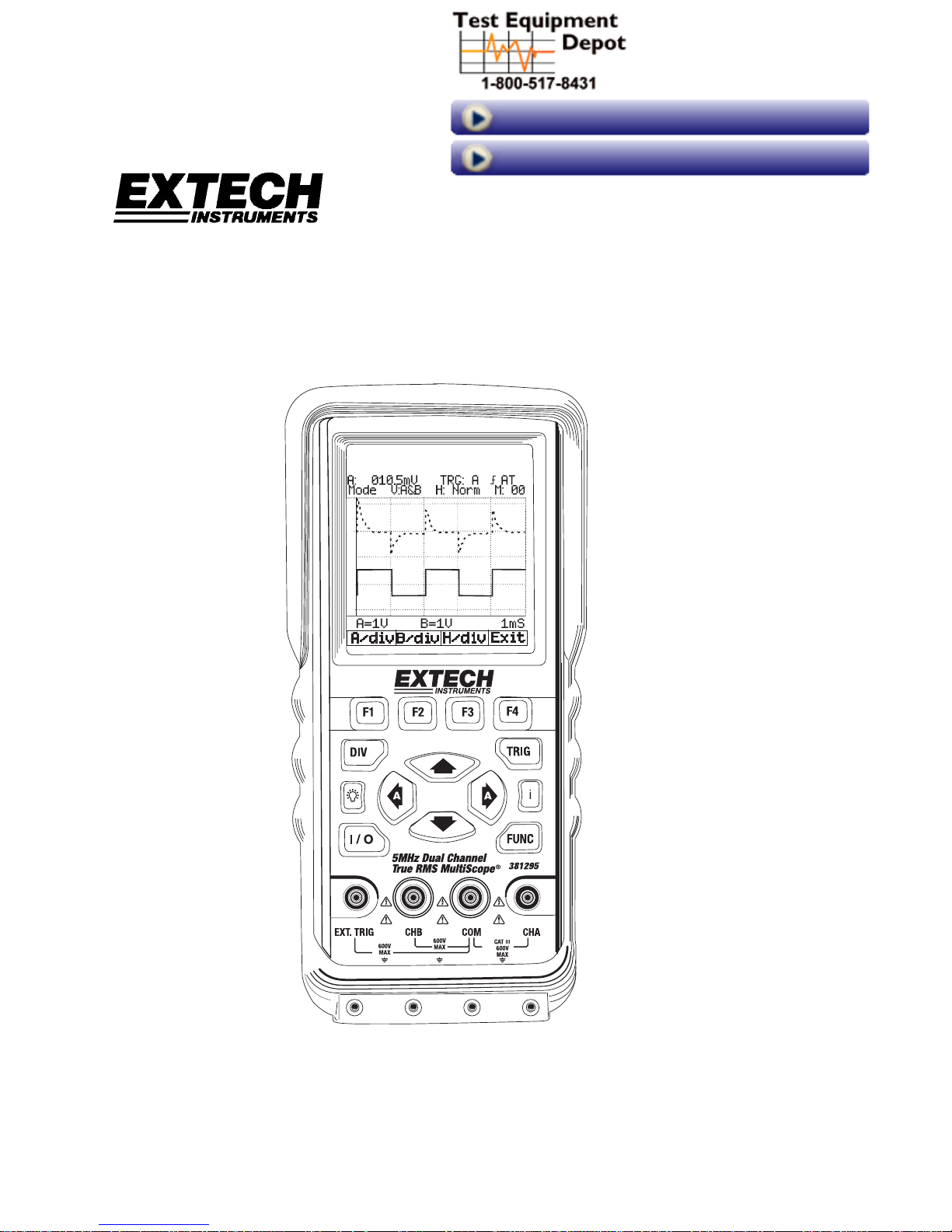

Extech Instruments 381295, 381295-220 User Manual

User Manual

Model 381295 and 381295-220

5MHz Dual Channel
True RMS Handheld Oscilloscope

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

99 Washington Street
Melrose, MA 02176

Phone [phone]
Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

Back to the Extech 381295 Product Page

381295 381295-220 V1.3 5/06

2

Table of Contents

Introduction ........................................................................................ 3

Main Features .........................................................................................................3

Safety................................................................................................... 3

Safety Precautions..................................................................................................3

Safety Symbols .......................................................................................................3

Quick-Start Manual............................................................................. 4

Power on and off.....................................................................................................4

Division, Trigger and Function key..........................................................................4

Input Terminals........................................................................................................4

Command (F1-F4), Arrow, Backlight and Help key.................................................4

Primary Menu Map..................................................................................................5

Positioning the waveform on the screen.................................................................5

Division key map.....................................................................................................6

Changing Vertical (A/div or B/div) division..............................................................7

Changing Horizontal division...................................................................................7

Trigger key map ......................................................................................................8

Trigger level control.................................................................................................8

Function key map....................................................................................................9

Specifications................................................................................... 10

General Specifications ..........................................................................................10

Oscilloscope Function...........................................................................................11

Digital Multimeter Functions..................................................................................12

Product Description......................................................................... 14

LCD Area...............................................................................................................14

Keys Area..............................................................................................................15

T erminal Area........................................................................................................17

Operation .......................................................................................... 18

Powering the Meter...............................................................................................18

Changing Backlight...............................................................................................18

Making Selections in a Menu................................................................................18

Frequency measurements for CHA.......................................................................19

Freezing the screen ..............................................................................................19

Changing the Graphic Representation..................................................................20

Acquiring the Waveform........................................................................................21

Triggering on a Waveform.....................................................................................22

Setting Trigger level (on NORmal trigger mode)...................................................22

Making a single acquisition...................................................................................23

Setting Trigger mode (Tmode)..............................................................................23

Setting AUTO Trigger Level ..................................................................................24

Setting Normal Trigger mode................................................................................24

Setting Trigger Slope.............................................................................................25

Storing and Recalling Screens..............................................................................25

Storing Screen.......................................................................................................25

Recalling Screen...................................................................................................25

PC Interface and Datalogging Software......................................... 26

Maintaining the Meter ......................................................................29

Battery Replacement...........................................................................................259

Appendices....................................................................................... 31

Troubleshooting guide...........................................................................................31

381295 381295-220 V1.3 5/06

3

Introduction

Main Features

• Rechargeable batteries and AC Adaptor:
Model 381295 (120V, 60Hz)
Model 381295-220 (240V, 50Hz)

• RS-232C PC interface for viewing, saving, and printing measurement and
waveform data.

• Dual Channel operation plus Auto Calibration features.

• Automatic settings for horizontal and vertical divisions.

• DC to 5MHz bandwidth

• Built-in auto ranging True-RMS digital MultiMeter

• Auto ranging

• Data hold and run modes.

• Backlit display with Low battery indication.

• Display Type: Super-Twist 132 x 128 pixels.

• Designed to comply with safety standards: UL3111 and CSA C22.2 No.1010-1

Safety

Attention

Carefully read the following safety information before using this instrument.

Safety Precautions

Specific warning and caution statements, where they apply, will be found throughout the
manual.

A ‘Caution’ identifies conditions and actions that may damage the instrument. A
‘Warning’ identifies conditions and actions that pose hazard(s) to the user.

Symbols used on this instrument and in this manual are explained in the next table.

Warning

To avoid electrical shock, use only the supplied power supply.

See explanation in manual
Dangerous Voltage

Double Insulation (Protection Class)
Earth (Ground)
Either AC or DC
DC – Direct Current
AC – Alternating Current

Fuse

381295 381295-220 V1.3 5/06

4

Quick-Start

Power On and Off

1.Pressing and holding this button for 2 to 3
seconds will turn the unit on. Pressing this
button again will turn the power off.

Division, Trigger and Function key

1 Division key:

Adjusts vertical division or Horizontal
division.

2 Trigger key:

Adjusts Trigger level.
Selects Single shot mode.
Selects trigger setup.

3 Function key:

Selects Scope Setup.
Selects general setup.

Input Terminals

1 Channel A:

Always use the red channel A input for single
input measurements.

2 Channel B:

For measuring two signals, use Channel B with
Channel A.

3 Common:

Use the black common as signal ground for low frequency measurements and for
ACV, DCV, Ohm, and Continuity measurements.

4 External trigger:

The EXT.TRIG input accepts external trigger signals.

Command (F1-F4), Arrow, Backlight and Help key

1

Function Command keys:

F1 through F4 are command ‘soft’ keys.
Their functions change with each screen.

2 Four arrow keys:

These keys serve as the primary means
of navigating the instrument’s menus and
operating displays.

3 Help key:

General information for the meter is available with a press of this key.

4 Display back light:

Press this button to turn on the backlight. To turn the back light off, press this button
again.

381295 381295-220 V1.3 5/06

5

Quick-Start

Primary Menu Map

Default Menu

Division Menu

Trigger Menu

Function Menu

Positioning the Waveform on the Screen

1. Pressing

moves the waveform up.

2. Pressing

moves the waveform down.

3. Pressing

moves the waveform left.

4. Pressing

moves the waveform right.

¸

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

381295 381295-220 V1.3 5/06

6

Quick-Start

Division key map

1

Pressing DIV calls up the default division menu.

2 Press F2 to control the Channel B Vertical Division.
3 Press F3 to change the Horizontal Division.
4 Press F4 to exit.

381295 381295-220 V1.3 5/06

7

Quick-Start

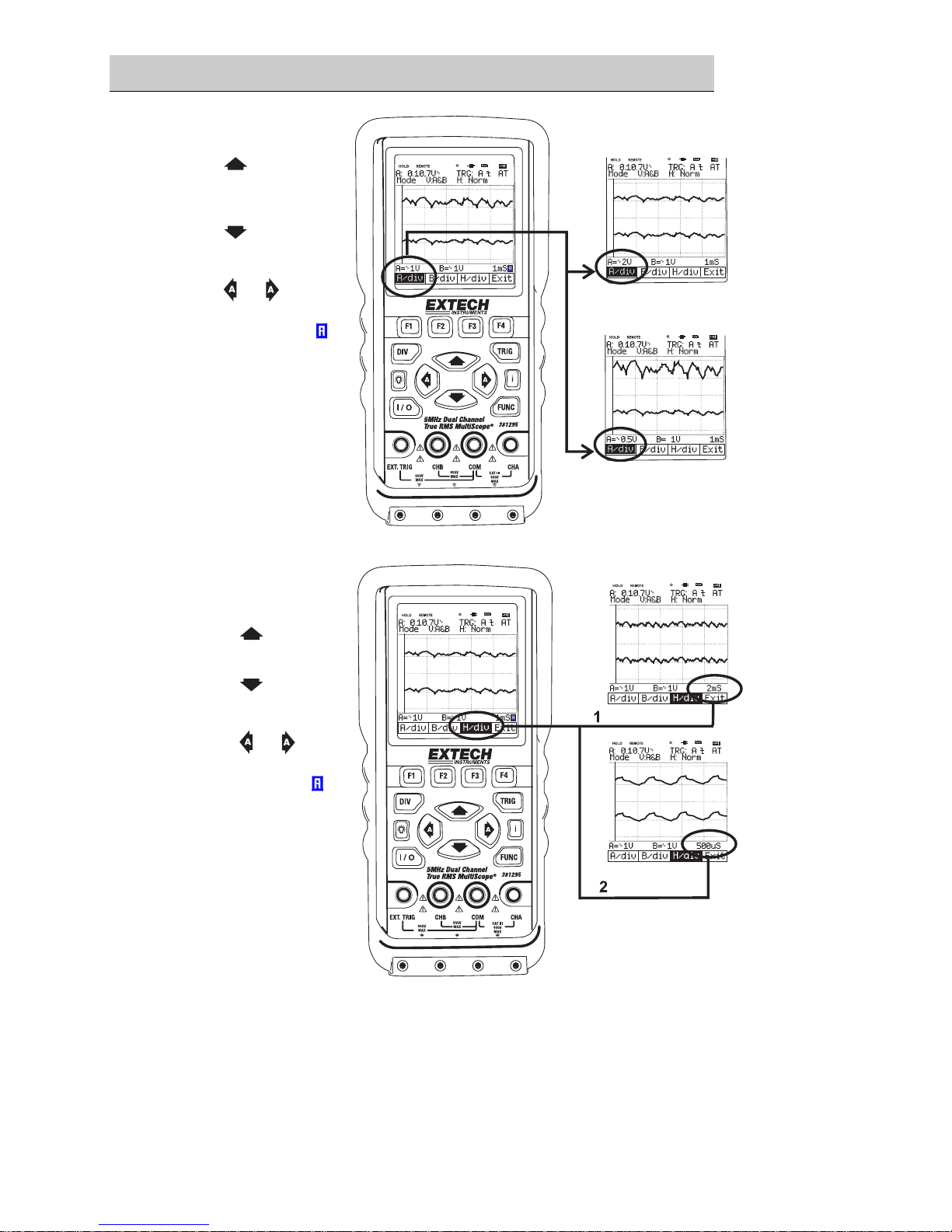

Changing Vertical (A/div or B/div) division

1 Pressing increases

CHA vertical division
(A/div).

2 Pressing

decreases
CHA vertical division
(A/div).

3 Pressing

or will

change Div from
MANUAL to AUTO(

).

Changing Horizontal
division

1 Pressing increases

Horizontal division
(H/div).

2 Pressing

decreases Horizontal
division (H/div).

3 Pressing

or will

change Div from
MANUAL to AUTO(

).

381295 381295-220 V1.3 5/06

8

Quick-Start

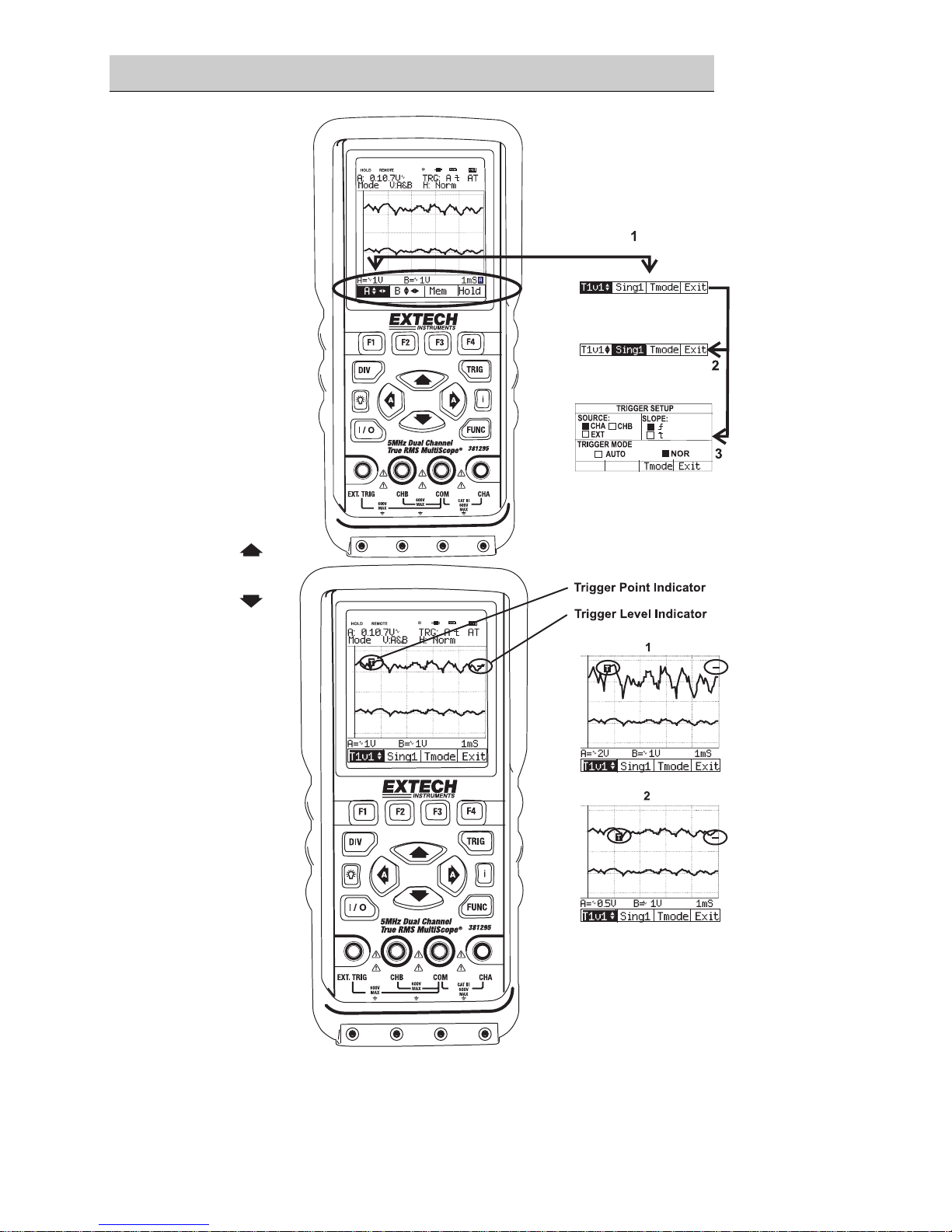

Trigger key map

1

Press TRIG to

display the
TRIGGER
default menu.

2 Press F2 for

Single shot mode.

3 Press F3 for

TRIGGER
SETUP.

4 Press F4 to exit.

Trigger level control

1 Pressing

increases the
Trigger level.

2 Pressing

decreases the
Trigger level.

381295 381295-220 V1.3 5/06

9

Quick-Start

Function key map

1 Press FUNC to display the FUNCtion default menu.
2 Press F1 for SCOPE SETUP.
3 Press F2 for General SETUP. Press F4 to exit.

381295 381295-220 V1.3 5/06

10

Specifications

General Specifications

Operational Temperature: +32°F to +122°F (0°C to +50°C)
Operational Relative Humidity: < 75%
Storage conditions: -4°F to 140°F (-20°C to +60°C); < 75%RH
Temperature Coefficient: 0.1 x (Specified Accuracy) per °C for temperature

<64.4°F (18°C) to >82.4°F (28°C)
Max. Voltage Input and Ground: DC or AC 600Vrms
Basic DC Accuracy: 0.3%
Scope Bandwidth: 5 MHz
MultiMeter AC Bandwidth: 20 kHz
Power Supply: Ni-MH Battery 4.8V (1.2V x 4 cell)
Battery Life: 4 Hours with Backlight OFF, 3 Hours with Backlight

ON
Battery Charge Time: 3 Hours approx.
AC Adaptor/Charger: Class-2 transformer,

Input: 120V AC 60Hz (381295)

Input: 240V AC 50Hz, (381295-220)

Output: 9V DC 1A
Display Type: Super-Twist 132 x 128 pixels
Equipment Dimensions: 3.5” (90mm) width x 7.7” (195mm) depth x 1.6”

(40mm) height
Equipment Weight: 1.0 lbs

. (460g) approx.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

381295 381295-220 V1.3 5/06

11

Oscilloscope Function
Horizontal

Sample Rate

25 MS/s (Dual CH mode)
50 MS/s (Single CH mode)

Record Length

512 single shot mode
256 in all modes

Sample / Division 25
Modes Single shot, Roll, Normal
Accuracy 0.01%
Sweep Rate 1uS to 5S in 1, 2, 5 sequence

Vertical

Bandwidth 5MHz
Resolution 8 Bit
Channels Dual
Coupling AC, DC
Input impedance

1 MΩ
Accuracy 3%
Max. Input Volts DC or AC 600Vrms
Volts / Division 50 mV to 500V in 1, 2, 5 sequence

Triggering

Type CHA, CHB, External
Coupling AC, DC
Slope

Rising (↑) or Falling (↓) edge
Internal Trigger

Sensitivity

2 / 20 Division

Waveform Memory

Waveform Memory 16 Screen shots

381295 381295-220 V1.3 5/06

12

Digital MultiMeter Function
DC V

Scope

V/Div

DMM

Range

Resolution Accuracy Impedance

50m,100m,200m 500mV 0.1mV

500m, 1, 2 5V 0.001V

5, 10, 20 50V 0.01V

±(0.3%+3)

50, 100, 200 500V 0.1V

500 1000V 1V

±(0.5%+5)

1 MΩ

AC V

Accuracy (Hz)

Scope

V/Div

DMM

Range

Resol.

50~450 0.45k~5k 5k~20k

Imped.

50m,100m,200m 300mV 0.1mV

500m, 1, 2 3V 0.001V

5, 10, 20 30V 0.01V

50, 100, 200 300V 0.1V

±(2.5%

+5)

500 750V 1V

±(0.75%

+5)

±(2%+5)

N/A

1 MΩ

OHM

Range Resolution Accuracy Over Load Protection

5 kΩ 0.001 kΩ

50 kΩ 0.01 kΩ

500 kΩ 0.1 kΩ

±(0.5%+5)

5 MΩ 0.001 MΩ

±(0.75%+10)

600V DC or

AC rms

Continuity Buzzer

Test Voltage Threshold Over Load Protection

1.7V 100 digits 600V DC or AC rms

Frequency

Range Resolution Accuracy Overload protection

100 Hz 0.01 Hz

1 kHz 0.0001 kHz

10 kHz 0.001kHz

100 kHz 0.01kHz

1 MHz 0.0001MHz

10 MHz 0.001MHz

±(0.05%+5)

600V DC

or AC rms

381295 381295-220 V1.3 5/06

13

RPM

Range Resolution Accuracy

240 - 60,000 1 RPM ±(0.05%+5)

Pulse Width

Range

2uS-500mS (Pulse Width > 2uS)

% Duty

Range

25% - 75%

381295 381295-220 V1.3 5/06

14

Product Description

In this section, the LCD, front panel buttons, controls and terminals are described.

LCD Area

The screen is divided into five areas: INDICATOR, READING, WAVEFORM,
SETTING and MENU areas. Refer to the Figure below.

[LCD Display]

1) Indicator

▪ HOLD: Freezes displayed reading
▪ REMOTE: RS-232 PC interface indicator

▪ BACKLIGHT(

): Backlight indicator

▪ Charging LINE(

): Charging Battery indicator

▪ BATTERY(

): Low battery indicator

▪ BUZZER(

): Buzzer indicator

2) Primary Numerical Field (DMM Function): Displays numerical readings

3) Trigger selection: Channel A, B and External
3-1) Trigger level indicator
3-2) Trigger Cursor

4) Trigger Slope: Rising or Falling edge

5) Trigger mode: Normal or AUTO

6) Channel mode status

Verticle mode: CHA, CHB, A&B
Horizontal mode: Normal, Roll

7) Memory Address: 0 to 15

8) Live Scope Display (Channel A): Displays real time waveforms and freezes held

captures.

9) Channel B

10) Channel A Vertical Division

11) Channel B Vertical Division

12) Horizontal Division (Time base)

13) Command Menu Field

381295 381295-220 V1.3 5/06

15

Keys Area

14) Command Menu keys
The F1 – F4 soft keys’ functions change with each display screen.

Default (Command Menu)

A/div B/div H/div Exit

15)

Arrow keys: Use the arrow keys to highlight an item.

Press to move the cursor upward. This button also increases the value of a

selection.

Press to move the cursor downward. This button also decreases the value of a

selection.

Move the cursor to the left with this button.
Pressing this button changes Vertical division or horizontal division from MANUAL
to AUTO.

Move the cursor to the right with this button.
Pressing this button changes Vertical division or horizontal division from MANUAL
to AUTO.

16) DIV Division key: Set Channel A and B Horizontal Division
A/div B/div H/div Exit

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

381295 381295-220 V1.3 5/06

16

7) TRIG Trigger key: Set Trigger level, Single mode and Setup

Tlvl

Singl Tmode Exit

F1 F2 F3 F4

F3

TRIGGER SETUP

SOURCE:

■ CHA □ CHB
□ EXT

SLOPE:

□

■

TRIGGER MODE:

□ AUTO ■ NOR

Set Exit

F1 F2 F3 F4

18) Back Light Key: Activates Back Light for the LCD, Toggles backlight ON and

OFF.

19)

i Help key: Provides meter model number, firmware version, serial number,

calibration date and manufacture date.

20) I/O Power switch: Turns the instrument ON or OFF (hold for 3 seconds to turn on)

21) FUNC Function Key: Set Scope, Auto Scope and Setup of the METER

Scope Setup Exit

F1 F2 F3 F4

Scope Setup

FUNCF1 (Scope)

SCOPE SETUP

INPUT A: INPUT B:

■ DC □ AC ■ DC □ AC

VERTICAL MODE:

□ CHA □ CHB □ A&B

HORIZONTAL MODE:

■ NORM □ ROLL

MEASUREMENTS A:

■ DCV □ ACV □ OHM □ BZ
□ HZ □ RPM □ P/W □ DTY

Set Exit

F1 F2 F3 F4

381295 381295-220 V1.3 5/06

17

Terminal Area

22) Terminals description

The METER provides 4 input jacks.

① CHA: Channel A
Use the red channel A terminal for all single input measurements.

② COM: Common
Use the black COMMON terminal as signal ground for DCV, ACV, Ohm, Continuity,

frequency and RPM measurements.

③ CHB: Channel B
When measuring two signals, use channel B and channel A.

④ EXT. TRIG
External trigger.

381295 381295-220 V1.3 5/06

18

Operation

Powering the METER

Follow the steps below to power the Meter from a standard ac outlet.

1. Insert Power Adaptor into AC outlet.

2. Connect the Power Adaptor to the Meter.

3. I/O Turn the Meter on by holding this button for about 3 seconds.

4. The meter powers up configured as it was at last power down.

Changing Backlight

1. Press Backlight ON.

2. Press Backlight OFF.

Note: Using the meter without the backlight increases battery life by 1 hour
approximately.

Selecting items in a Menu

Follow steps ① through ⑤ to open a menu and choose an item.

Press FUNC to open the FUNCTION menu.

Scope SetUp Exit

F1 F2 F3 F4

Press F1 to open the Scope Setup menu.

SCOPE SETUP

INPUT A: INPUT B:

■ DC □ AC ■ DC □ AC

VERTICAL MODE:

□ CHA □ CHB ■ A&B

HORIZONTAL MODE:

■ NORM □ ROLL

MEASUREMENTS A:

■ DCV □ ACV □ OHM □ BZ
□ HZ □ RPM □ P/W □ DTY

Set Exit

F1 F2 F3 F4

Use the arrow keys to highlight an item
Press F3 to select an item

Press F4 to Exit

381295 381295-220 V1.3 5/06

19

Frequency measurement for CHA:

Plug the black test lead into the COM input jack and plug the red test lead into the CHA
input jack

Press FUNC to open the FUNCTION menu.

Scope SetUp Exit

F1 F2 F3 F4

Press F1 to open the Scope Setup menu.

SCOPE SETUP

INPUT A: INPUT B:

■ DC □ AC ■ DC □ AC

VERTICAL MODE:

□ CHA □ CHB □ A&B

HORIZONTAL MODE:

■ NORM □ ROLL

MEASUREMENTS A:

■ DCV □ ACV □ OHM □ BZ
□ HZ □ RPM □ P/W □ DTY

Set Exit

Press to Highlight Hz (□ Hz )

F3 Set
F4

Exit

Observe that Hz is now the main reading.

Holding (freezing) the display screen

You can freeze the screen (all readings and waveforms) at any time.

Default (Command Menu) Display:

A B

Mem Hold

F1 F2 F3 F4

F4 freeze the screen. Highlighted Hold appears at the bottom of the Command Menu

area.

A B

Mem Hold

F1 F2 F3 F4

F4 Resume your measurement

A B

Mem Hold

F1 F2 F3 F4

381295 381295-220 V1.3 5/06

20

Changing the Graphic Representation

Changing the vertical division

DIV Open the Command Menu.

A/div

B/div H/div Exit

F1 F2 F3 F4

F1 or F2 Change the vertical division. (CH A or CH B)

Increase the vertical division, Div is changed to manual mode
Decrease the vertical division, Div is changed to manual mode.

or Change Div from Manual mode to AUTO mode

Changing the Time Base

DIV Open the Command Menu.

A/div B/div H/div Exit

F1 F2 F3 F4

F3 Change the Horizontal division

A/div B/div H/div Exit

F1 F2 F3 F4

Increase the number of periods.

Div is changed to manual mode

Decrease the number of periods.

Div is changed to manual mode

or Change Div from Manual mode to AUTO mode

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

381295 381295-220 V1.3 5/06

21

Acquiring the Waveform

FUNC Open the FUNCTION menu.

Scope SetUp Exit

F1 F2 F3 F4

F1 Open the Scope Setup menu.

SCOPE SETUP

INPUT A: INPUT B:

■ DC □ AC ■ DC □ AC

VERTICAL MODE:

□ CHA □ CHB □ A&B

HORIZONTAL MODE:

■ NORM □ ROLL

MEASUREMENTS A:

■ DCV □ ACV □ OHM □ BZ
□ HZ □ RPM □ P/W □ DTY

Set Exit

F1 F2 F3 F4

Recording Slow Signals over a Long Period of Time

Highlight ROLL MODE.

F3 Set ROLL MODE.

F4 Exit.

The roll mode function supplies a visual log of waveform activity and is especially useful
when measuring lower frequency waveforms.

Note: ROLL MODE operates when the horizontal division is between 1s and 5s

Selecting AC-Coupling for INPUT A

Highlight AC for INPUT A.

F3 SET
F4 Exit.

381295 381295-220 V1.3 5/06

22

Triggering on a Waveform

Triggering tells the Meter when to begin displaying a waveform. The instructions that
follow explain how to:

• Select a Channel

• Select rising or falling edge on which to trigger

• Define the condition for a new update of the waveform.

The display icons on the top line (right side) of the LCD identify the trigger parameters
currently used. Trigger icons on the screen indicate the trigger level and slope.

(1) Trigger Channel: Channel A or B
(2) Slope: rising or falling
(3) Trigger mode: Trigger setting mode

(Auto or Normal)
(4) Trigger Level indicator
(5) Trigger Cursor
(6) Command Menu: Trigger level
(7) Command Menu: Single shot
(8) Command Menu: Trigger mode (Setup)

Setting Trigger level (on NORmal trigger mode)

TRIG Open the Trigger menu

Tlvl

Singl Tmode Exit

F1 F2 F3 F4

Adjust the Trigger Level continuously. Observe the horizontal trigger icon on the

rightmost time division line.

F4 Exit.

381295 381295-220 V1.3 5/06

23

Making a single acquisition

To catch single events, perform a single shot. (One time screen update.) To set up the
Meter for a single shot on the input Channel A waveform:

Connect the probe to the signal to be measured.

TRIG Open the Trigger menu

Tlvl

Singl Tmode Exit

F1 F2 F3 F4

F2 Highlight Singl (SINGLE SHOT)

Tlvl

Singl Tmode Exit

F1 F2 F3 F4

Meter performs a single shot. (One time screen update)

F2 Return to normal Trigger mode.

Setting Trigger mode (Tmode)

TRIG Open the Trigger menu

Tlvl

Singl Tmode Exit

F1 F2 F3 F4

F3 Open the Trigger Setup

TRIGGER SETUP

SOURCE:

■ CHA □ CHB
□ EXT

SLOPE:

□

■

TRIGGER MODE:

□ AUTO ■ NOR

Set Exit

F1 F2 F3 F4

Highlight an ITEM.

F3 Set the ITEM.
F4 Exit.

381295 381295-220 V1.3 5/06

24

Setting AUTO Trigger Level

For fast trigger operation, use the AUTO trigger mode to trigger on
nearly all signals automatically. To optimize the trigger slope manually:

F3 Open the Trigger Setup

TRIGGER SETUP

SOURCE:

■ CHA □ CHB
□ EXT

SLOPE:

□

■

TRIGGER MODE:

□ AUTO ■ NOR

Set Exit

F1 F2 F3 F4

Highlight AUTO.

F3 Set AUTO.
F4 Exit.

Setting Normal Trigger mode

Highlight NOR.

F3 Set NOR.
F4 Exit.

Adjust the Trigger Level continuously. Observe the horizontal trigger icon on the

rightmost time division line.

381295 381295-220 V1.3 5/06

25

Setting Trigger Slope

Highlight

or .

F3 Set

or .

F4 Exit.

or . Trigger on either positive Slope or negative Slope of the chosen waveform.

Storing and Recalling Screens

The meter can store setups and waveforms to memory for later recall. Sixteen (0-15) setup
and waveform memories are available.

Storing a Screen

F3 Open the memory (Mem) menu

Sto

Rcl

Exit

F1 F2 F3 F4

Memory field (M:00) appears at the top­right corner of the display area.

Select the memory address where the

screen is to be stored.

F1 Store the actual screen

Recalling Screen

F3 Open the memory menu

Sto

Rcl

Exit

F1 F2 F3 F4

Memory field (M:00) appears at the top­right corner of the display area.

Select the memory address from

which to recall the screen.

Recall the screen.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

381295 381295-220 V1.3 5/06

26

PC Interface and Datalogging Software

Introduction

With the Meter connected to a PC, measurements can be viewed on the computer
screen as they are taken. Graphical (scope) as well as numerical (DMM) data can be
viewed. Measurement data can then be stored in a file and/or printed. Data files can be
opened in spreadsheets as ‘text files’ if desired. The PC interface also allows the meter
to be remotely controlled using the on-screen virtual push-buttons.

Connecting the Meter to a PC

Connect the meter to the PC using the supplied communication cable. The TRS
(tip/ring/sleeve phono plug) end of the cable connects to the meter (top) and the 9-pin
end connects to the PC serial port.

Installing the Supplied Datalogging Software

Install the software by placing the supplied diskette in the PC floppy drive. Run the
SETUP.EXE file from the list of files on the diskette. Follow the on-screen instructions for
installation. The supplied software should be installed on the PC hard drive first and the
program should be launched from the version on the hard drive. Do not run the software
program straight from the supplied disk.

Main Software Screen

After the program is installed, open the program to view the main software screen:

381295 381295-220 V1.3 5/06

27

Menu Bar in Main Software Window

The Menu Bar includes FILE, SETUP, and WINDOW selections, explained below:

FILE

Under FILE click on EXIT to close the program

SETUP

Under SETUP select COMM to choose the PC COMM port and the baud rate. Select
PRINTER to configure the line printer. Select COLOR to choose the display color
configuration.

WINDOW

Select DATALOGGER to open the Data View recording window (see below)

381295 381295-220 V1.3 5/06

28

Communicating with the PC

Once the program is running and the meter is connected, shut the meter off and turn it
back on. This will initiate communication between the meter and PC.

Under the SETUP menu on the main software screen, select the appropriate Serial
Comm Port and Baud Rate and then click the OK button.

To select the sampling time (rate at which data points are recorded), click on the S /
TIME button and type the desired sampling time.

Open the Data View window by clicking the DATA LOGGER button on the main software
screen. Click the “START” button to begin recording. Press ‘STOP’ to end recording.
The data points should appear in the Data View window. If not, check that the proper
COMM PORT is selected under SETUP.

Once the datalogger is started and the data points are appearing in the Data View
window, the software program’s remote control virtual pushbuttons can be used.

Data View Window Operation

In the Data View window (shown above), the data points can be stored in a file using the
SAVE button. When the SAVE button is RED the program is storing readings in the file
shown in the OPEN FILE NAME field. Click on the SAVE button until the letters appear
in red, the readings are now being stored. When the SAVE button is not RED, readings
can still be viewed in the data list but the readings are not being saved.

To open a file of previously stored data, use the BROWSER button. When the file is
found and opened, use the LOAD button to recall the data points to the Data View
Window.

381295 381295-220 V1.3 5/06

29

Maintaining the Meter

Cleaning the Meter

Clean the Meter with a damp cloth and a mild soap. Do not use abrasives, solvents, or
alcohol.

Storing the Meter

If you are storing the Meter for an extended period of time, charge the NI-MH battery
pack before storing. It is not necessary to remove the battery pack.

Replacing and Disposing of the NI-MH Battery Pack
Warning

To avoid electrical shock, remove the test leads and probes before replacing the battery
pack.

Note

This instrument contains a NI-MH battery pack. Do not dispose of this battery pack with
other solid waste. Used batteries should be disposed of by a qualified recycler or
hazardous materials handler.

To replace the battery pack:

1. Disconnect the test leads and probes both at the source and at the meter.

2. Loosen the screws with a screwdriver.

3. Lift the rear cover away from the Meter.

4. Take the battery pack out of the battery compartment.

5. Remove the battery plug from the connector.

6. Install a new battery pack.

7. Reinstall the rear cover and secure the screws.

381295 381295-220 V1.3 5/06

30

Replacing the Battery

381295 381295-220 V1.3 5/06

31

Appendices

Troubleshooting guide

If you experience a problem with the meter, try the corrective actions below before
concluding that the instrument needs repair.

1. Make sure you are using a fresh NI-MH battery pack or fully charged rechargeable

battery pack. If you are using the AC/DC power adapter, make sure the adapter is
plugged into an appropriate live power source.

2. If the buttons do not respond or the contrast is set such that the display is unreadable,

remove the power source while the instrument is on. Wait 15 minutes and then
restore power and retry.

3. If you still experience difficulty, check your connections and reread this instruction

manual.

4. If the meter’s display is frozen when trying to control the trigger level:

• In normal (NOR) mode, the trigger level must be the same level as the waveform.

The Meter does not trigger if the trigger level is set above or below the waveform
level.

• In Auto (AT) mode, the trigger level does not have to be adjusted.

• In rare cases, the instrument may require servicing. There are no internal user-

serviceable parts.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com
