Extech Instruments 380405 User manual

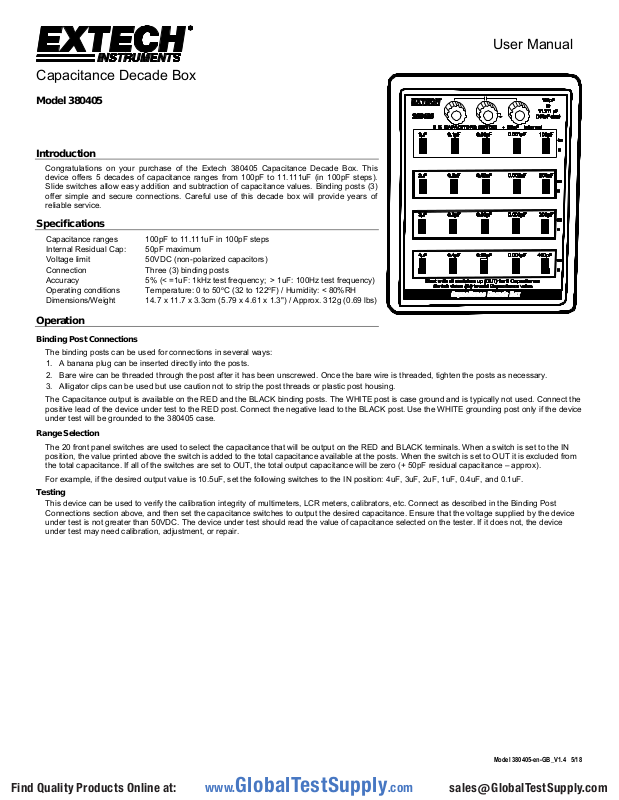

User Manual
Capacitance Decade Box
Model 380405
Introduction
Specifications
Capacitance ranges 100pF to 11.111uF in 100pF steps Internal Residual Cap: 50pF maximum Voltage limit 50VDC (non-polarized capacitors) Connection Three (3) binding posts Accuracy 5% (< =1uF: 1kHz test frequency; > 1uF: 100Hz test frequency) Operating conditions Temperature: 0 to 50oC (32 to 122oF) / Humidity: < 80%RH Dimensions/Weight 14.7 x 11.7 x 3.3cm (5.79 x 4.61 x 1.3") / Approx. 312g (0.69 lbs)
Operation
Binding Post Connections
The binding posts can be used for connections in several ways:
1. A banana plug can be inserted directly into the posts.
2. Bare wire can be threaded through the post after it has been unscrewed. Once the bare wire is threaded, tighten the posts as necessary.
3. Alligator clips can be used but use caution not to strip the post threads or plastic post housing.
The Capacitance output is available on the RED and the BLACK binding posts. The WHITE post is case ground and is typically not used. Connect the positive lead of the device under test to the RED post. Connect the negative lead to the BLACK post. Use the WHITE grounding post only if the device under test will be grounded to the 380405 case.
Range Selection
The 20 front panel switches are used to select the capacitance that will be output on the RED and BLACK terminals. When a switch is set to the IN position, the value printed above the switch is added to the total capacitance available at the posts. When the switch is set to OUT it is excluded from the total capacitance. If all of the switches are set to OUT, the total output capacitance will be zero (+ 50pF residual capacitance – approx).
For example, if the desired output value is 10.5uF, set the following switches to the IN position: 4uF, 3uF, 2uF, 1uF, 0.4uF, and 0.1uF.
Testing
This device can be used to verify the calibration integrity of multimeters, LCR meters, calibrators, etc. Connect as described in the Binding Post Connections section above, and then set the capacitance switches to output the desired capacitance. Ensure that the voltage supplied by the device under test is not greater than 50VDC. The device under test should read the value of capacitance selected on the tester. If it does not, the device under test may need calibration, adjustment, or repair.
Model 380405-en-GB_V1.4 5/18
