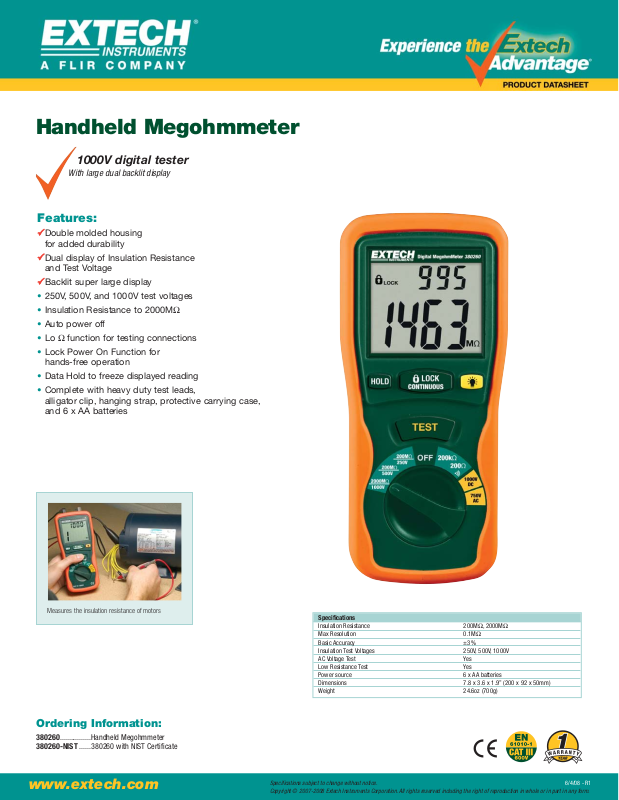

Extech Instruments 380260 Catalog Page

Specifications subject to change without notice.
Copyright © 2007-2008 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.

www.extech.com

6/4/08 - R1

1000V digital tester

With large dual backlit display

Handheld Megohmmeter

Ordering Information:

380260................Handheld Megohmmeter

380260-NIST ......380260 with NIST Certificate

Features:



Double molded housing
for added durability



Dual display of Insulation Resistance
and Test Voltage



Backlit super large display

• 250V, 500V, and 1000V test voltages

• Insulation Resistance to 2000MΩ

• Auto power off

• Lo Ω function for testing connections

• Lock Power On Function for

hands-free operation

• Data Hold to freeze displayed reading

• Complete with heavy duty test leads,

alligator clip, hanging strap, protective carrying case,
and 6 x AA batteries

Measures the insulation resistance of motors

Specifications

Insulation Resistance 200MΩ, 2000MΩ
Max Resolution 0.1MΩ
Basic Accuracy ±3%
Insulation Test Voltages 250V, 500V, 1000V
AC Voltage Test Yes
Low Resistance Test Yes
Power source 6 x AA batteries
Dimensions 7.8 x 3.6 x 1.9” (200 x 92 x 50mm)
Weight 24.6oz (700g)
